IB965F
3rd Gen. Intel® CoreTM i7/i5/i3
+ PCH
PICMG 1.3 SHB Express Full-Size CPU Card
USER’S MANUAL
Version 1.0
Acknowledgments
AMI is a registered trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Intel® Sandy Bridge DC/QC Processor are registered
trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
ii
IB965 User’s Manual
Table of Contents
Introduction ...................................................... 1
Product Description ............................................................ 1
Checklist ............................................................................. 2
IB965F Specifications ........................................................ 3
Board Dimensions .............................................................. 5
Installations ...................................................... 6
Installing the CPU .............................................................. 7
Installing the Memory......................................................... 8
Setting the Jumpers............................................................. 9
Connectors on IB965F...................................................... 14
BIOS Setup.......................................................25

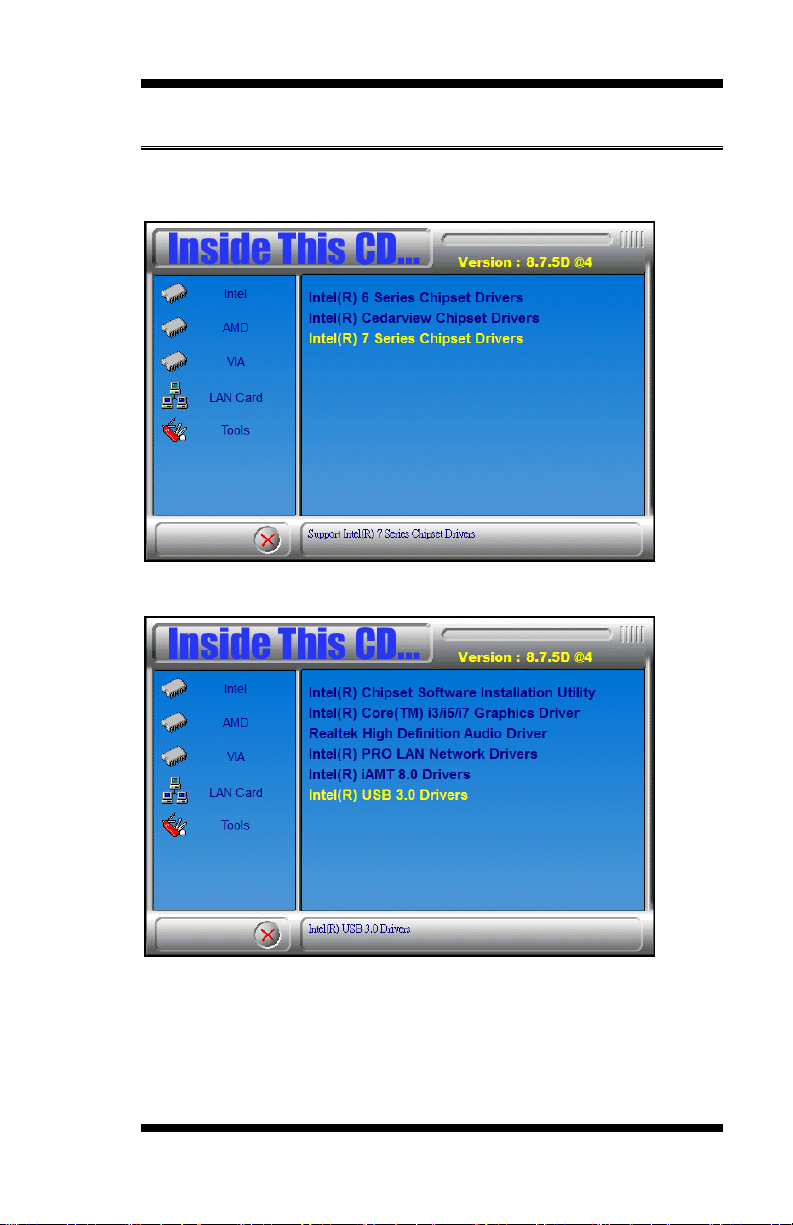

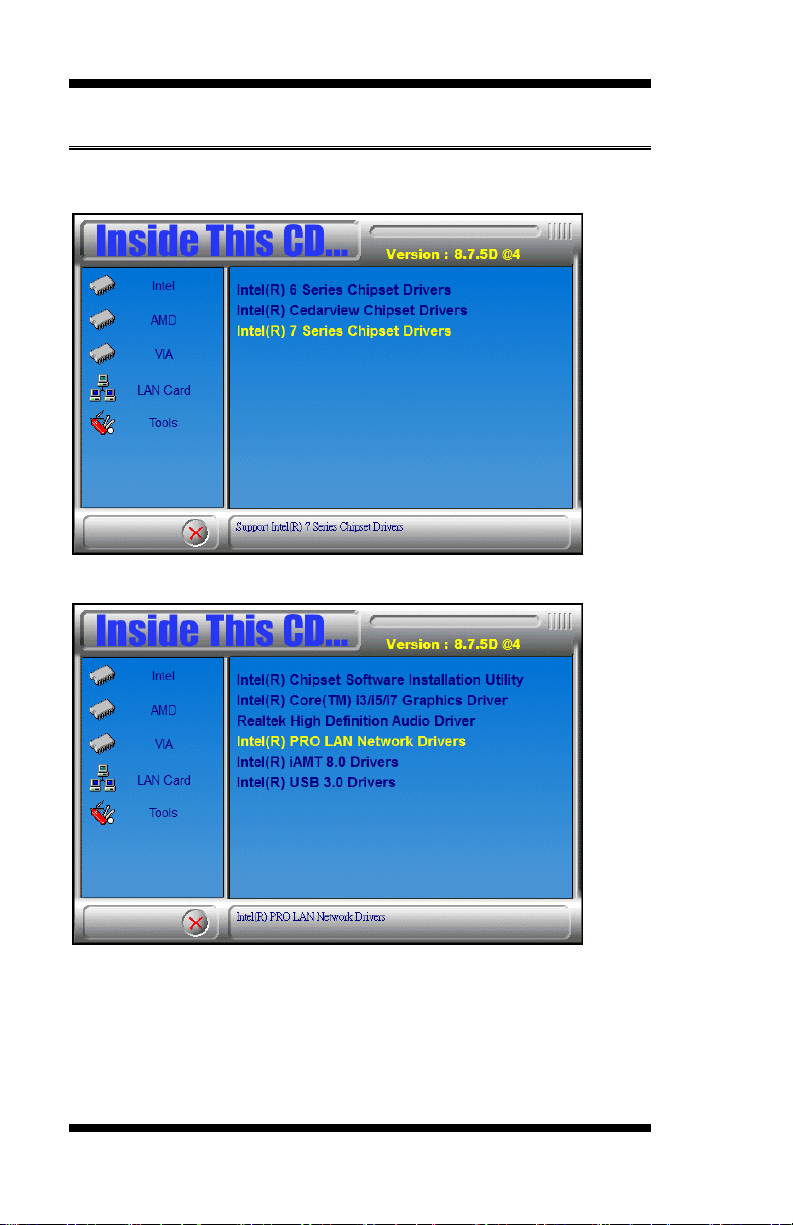

Drivers Installation ......................................51
Intel Chipset Software Installation Utility ......................... 52

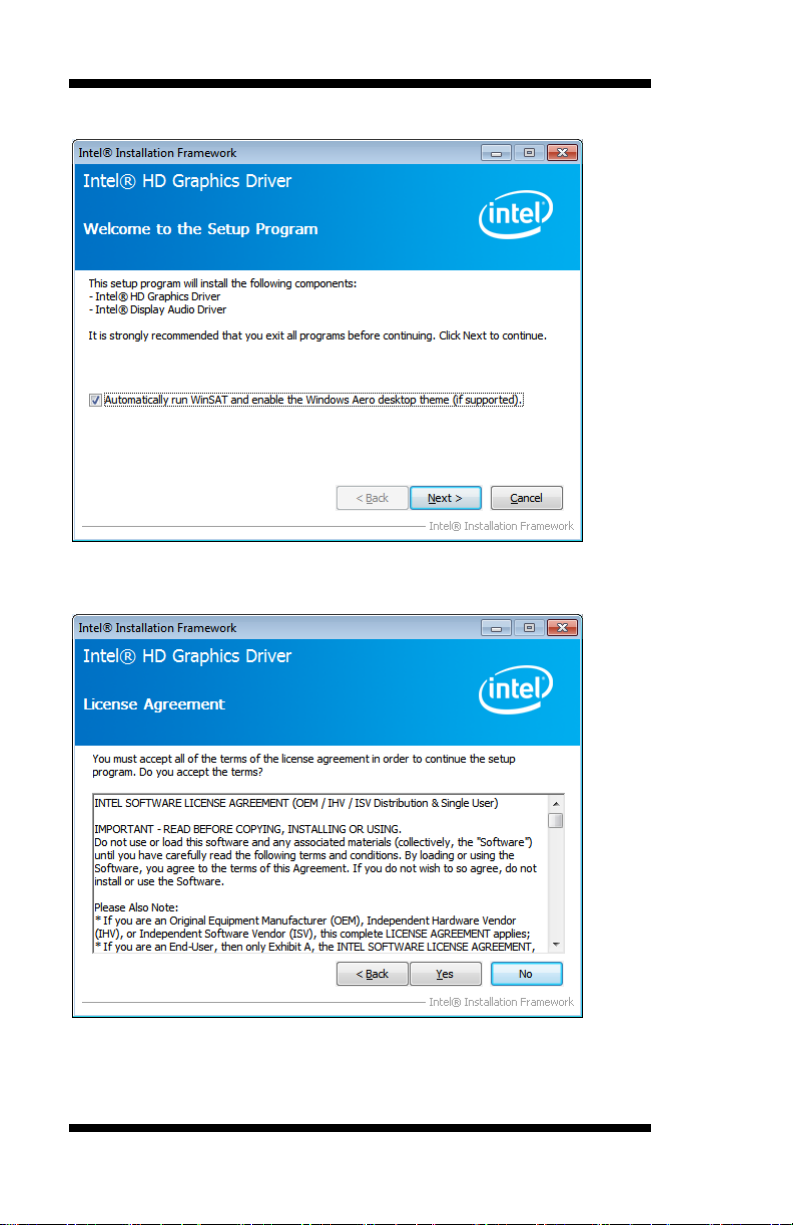

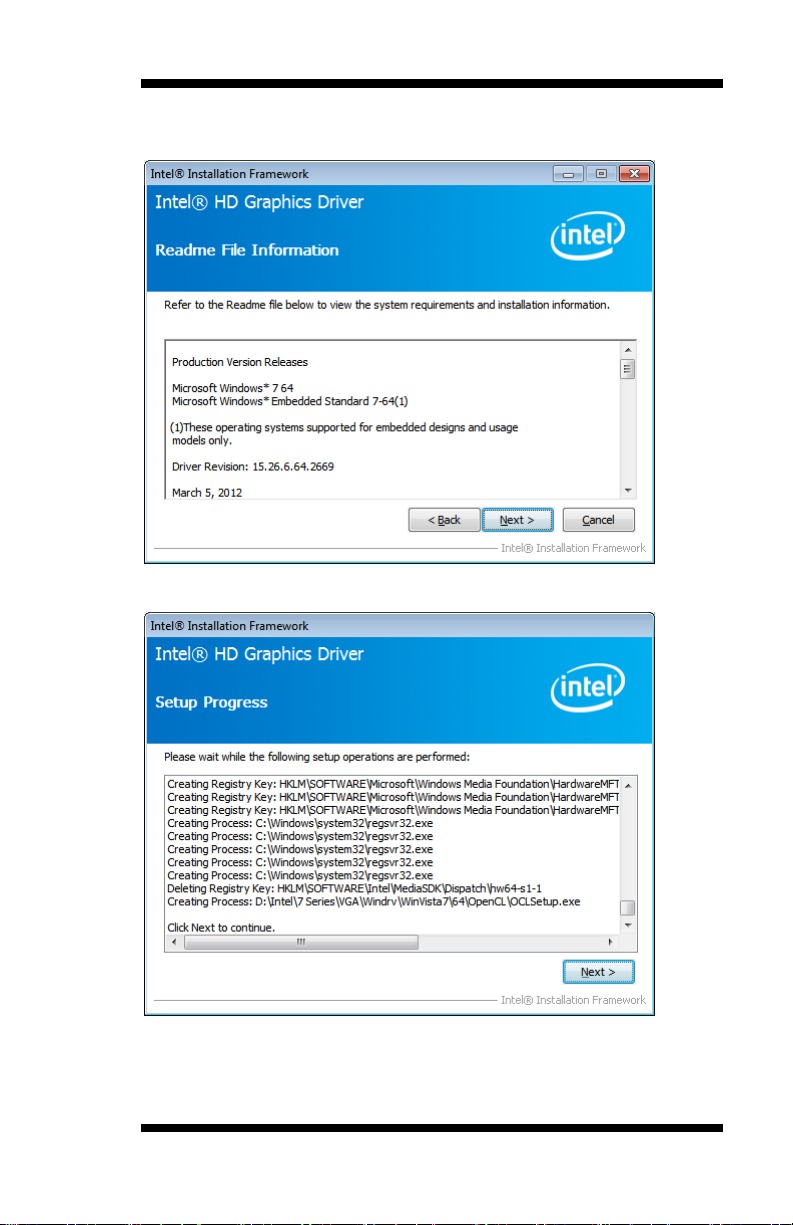

VGA Drivers Installation .................................................. 55
Realtek HD Audio Driver Installation .............................. 58
LAN Drivers Installation .................................................. 60

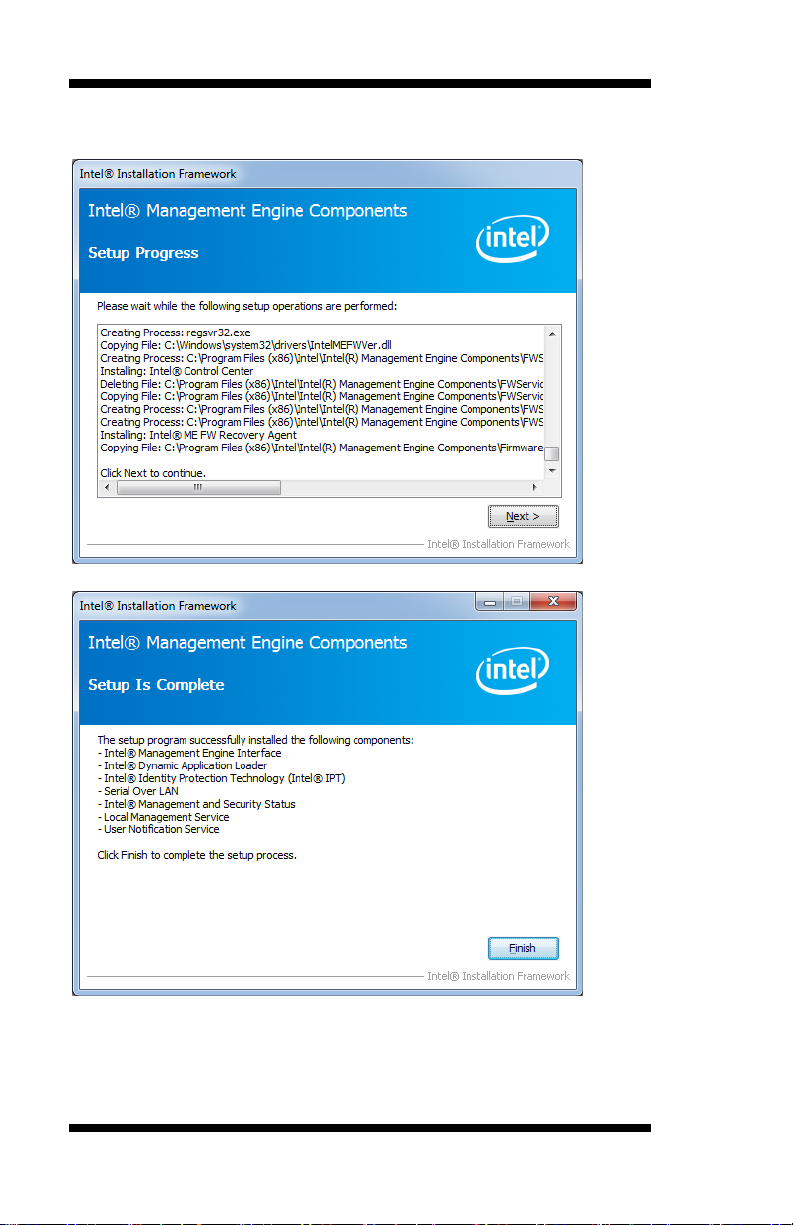

Intel® Management Engine Interface ............................... 64

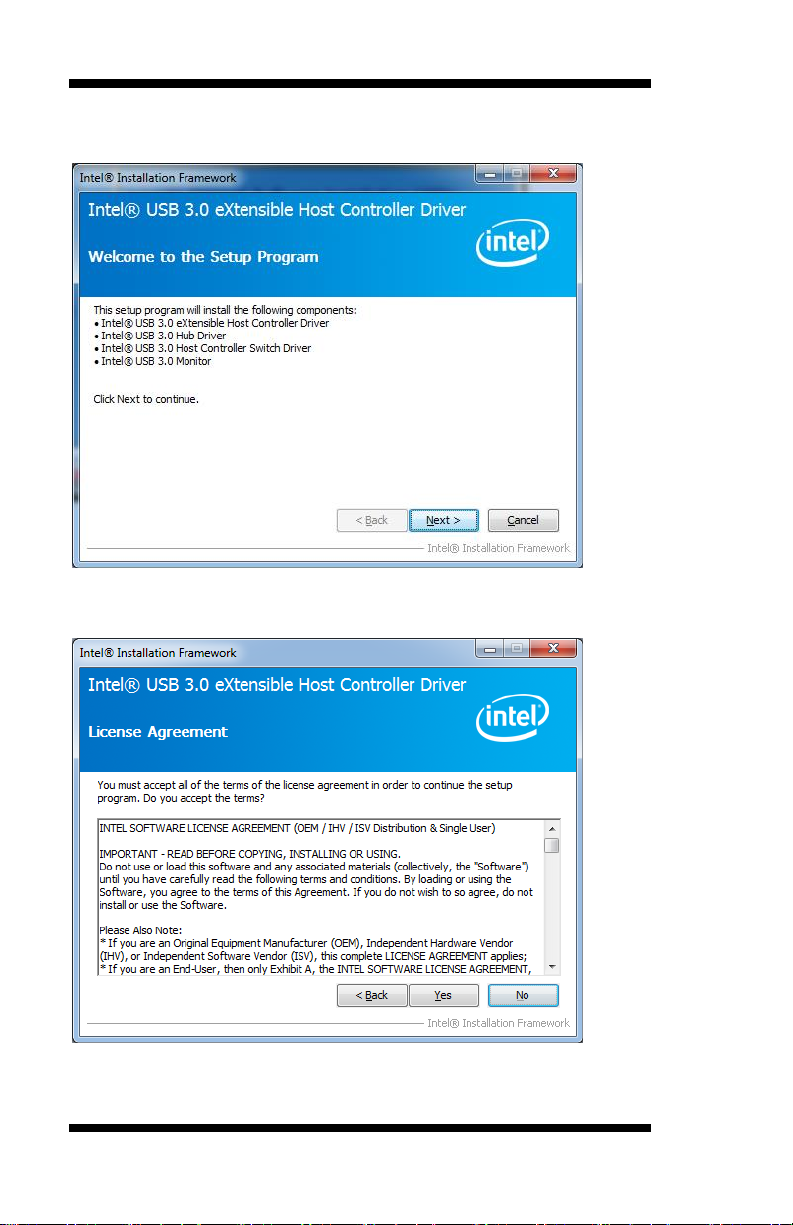

Intel® USB 3.0 Drivers .................................................... 67
Appendix ...........................................................71
A. I/O Port Address Map .................................................. 71
B. Interrupt Request Lines (IRQ) ...................................... 72
C. Watchdog Timer Configuration ................................... 73
IB965 User’s Manual iii
This page is intentionally left blank.
iv
IB965 User’s Manual
INTRODUCTION
Introduction
Product Description
The IB965F PICMG 1.3 SHB Express full size CPU Card is based on the
latest Intel® BD82B75 chipset. The platform supports 3rd Generation
Intel® Core i7/i5/i3 with LGA1155 packing and features an integrated
dual-channel DDR3 memory controller as well as a graphics core (4000).
Display interfaces of the CPU card include VGA CRT, DVI-D and 24-bit
dual channel LVDS. The edge connectors are for VGA CRT, USB 2.0,
USB 3.0 and dual Gigabit LAN RJ45 connectors. One SATA III port and
three SATA II ports are available. Expansion slot is provided with a Mini
PCIe socket on the component side. Four serial ports and a parallel port
are supported.
Dimensions of the board are 338mm x 126mm.
IB965F FEATURES:
Supports Intel® 3rd Generation Core i7/i5/i3 DT processors
Two DDR3 DIMM, 1066/1333/1600MHz, Max. 16GB
Dual Intel
Integrated Graphics for CRT, DVI-D, LVDS displays
3x SATA 2.0, 1x SATA III, 3x USB 2.0, 3x USB 3.0
4x COM, 1x parallel port
Mini PCIe socket, iSMART, Watchdog timer, Digital I/O
2x SATA 2.0, 4x USB 2.0 for PICMG 1.3 backplane
1x PCI-E (x16), 1x PCI-E (x4), 4x PCI for PICMG 1.3
backplane
®
PCI-Express Gigabit LAN
IB965 User’s Manual 1
INTRODUCTION
Checklist
Your IB965F package should include the items listed below.
The IB965F PICMG 1.3 SHB Express Full-Size CPU Card
This User’s Manual
1 CD containing chipset drivers and flash memory utility
2
IB965 User’s Manual
Product Name
IB965F (B75)
IB965RF(Q77)
Form Factor
PICMG 1.3 SHB Express Full size CPU card
CPU Type
- 3rd Generation Intel® CoreTM i7/i5/i3 DT processor
- FCLGA1155 package [37.5 mm x 37.5mm]
- TDP: QC= 77W/65W ; DC=45W/35W
CPU Speed
2.3GHz ~ 3.4GHz (TDP=35W~77W)
BIOS
AMI BIOS, support ACPI Function
CPU Socket
LGA1155
Chipset
Intel® BD82B75 PCH [IB965F]
Intel® BD82Q77 PCH [IB965RF]
27mm x 27mm, FCBGA942 (TDP=6.7W)
Memory
3rd Generation Intel® CoreTM i7/i5/i3 DT processor integrated memory
controller, support DDR3-1333/1600 MHz (Non-ECC)
- DIMM x 2, Max. 16GB
VGA / LVDS
3rd Generation Intel® CoreTM i7/i5/i3 DT processor integrated graphics
device
- VGA
- LVDS (Chrontel CH7511 via DP, support 24-bit dual channel)
- DVI-D: via level-shifter ASM1442
LAN
1. Intel® 82579V GbE PHY x1
2. Intel® 82583V PCI-e Gigabit LAN controller x1
** There is no LAN signal to the backplane**
USB
Intel® BD82B75/Q77 PCH integrated USB 2.0 host controller
- 2 ports thru onboard pin-header
- 1 port @ rear panel I/O
- 1 port via MiniPCIe @ component side
Intel® BD82B75/Q77 PCH integrated USB 3.0 host controller
- 1 port @ rear panel I/O
2 ports via onboard box header [ 2*10 pins box header, Blue color]
6 ports on SHB, 4 ports to the backplane [Connector C]
Serial ATA Ports
Intel® BD82B75/Q77 PCH built-in SATA controller, supports total 6
ports
1 x SATAIII + 3 x SATAII (one SATA II shared with mSATA)[IB965F]
2 x SATAIII + 2 x SATAII (one SATA II shared with mSATA)[IB965RF]
[2 x SATA 2.0 ports to the backplane Connector C]
Audio
Intel® BD82B75/Q77 PCH built-in high definition audio w/ Realtek
ALC662 Codec support 5.1 channel
LPC I/O
Fintek F81866AD-I (128-pin LQFP [14mm x 14 mm])
- COM1 (RS232/422/485), jumper-less design (SP339)
- COM2/COM3/COM4 (RS232),
- Hardware monitoring (2 thermal inputs,4 voltage monitor inputs & 2
Fan headers, one PWM fan type = 4-pin for CPU FAN; one DC fan
type = 3-pin for SYS FAN)
- Support Parallel port
Digital IO
4 in & 4 out
Keyboard/Mouse
Connector
Supports PS/2 Keyboard/Mouse thru onboard pin-header
Expansion Slots
Mini PCIe socket x1@ component side [Full-sized]
Support USB client & mSATA[share with onboard SATA]
IB965F Specifications
INTRODUCTION
IB965 User’s Manual 3
INTRODUCTION
Edge Connector
(The same as
IB970)
DB15 x1 for VGA
RJ45 x 2 for LAN 1 & 2
USB 2.0 x 1
USB 3.0 x 1
Onboard
Header/Connector
DF11-20 pins pin-header x1 for DVI-D
DF13-20 pins pin-header x 2 for 24-bit dual channel LVDS( **
brightness control not supported**)
2x13 pins box-header x1 for Printer port
DF11-20 pins box-header x1 for COM1/2
DF11-20 pins box-header x1 for COM3/4
2x5 pins pin-header x1 for USB 2.0 x2
2x6 pins pin-header x1 for Audio (Line-Out, Line-In & Mic)
2 x 5 pins pin-header x 1 for Digital I/O
2 x 4 pins pin-header x 1 for PS/2 KB/MS
4 pins pin-header x1 for CPU fan (PWM smart fan)
3 pins pin-header x1 for system fan
SATA x 4 (Black connectors for SATA2; Blue connectors for SATA 3)
2X10 pins pin-header x 1 for front panel indicators
2 x 2 pin ATX power connector x 1
Interface
1x PCIe(16x) [Connector A & B]
4x PCIe(1x) or 1x PCIe(4x) [Connector A]
4x PCI masters [Connector D]
Watchdog Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
Others
- RAID function (0, 1, 5, 10) [IB965RF only]
- iSMART{Thru MCU for supporting auto scheduler & Power
resume}
- LAN wake up
- TPM 1.2 supported
- Reserved extra mounting hole as IB970
System Voltage
+5V, +3.3V, +12V, -12V & 5VSB
RoHS
Yes
Board Size
338mm x 126mm
4
IB965 User’s Manual
[
Board Dimensions
INTRODUCTION
IB965 User’s Manual 5
INSTALLATIONS
Installations
This section provides information on how to use the jumpers and
connectors on the IB965F in order to set up a workable system. The
topics covered are:
Installing the CPU................................................................................ 7
Installing the Memory .......................................................................... 8
Setting the Jumpers.............................................................................. 9
Connectors on IB965F ....................................................................... 14
6
IB965 User’s Manual
INSTALLATIONS
NOTE:
Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.
Installing the CPU
The IB965F board supports an LGA1155 Socket (shown below) for Intel
Sandy Bridge processors.
To install the CPU, unlock first the socket by pressing the lever sideways,
then lift it up to a 90-degree. Then, position the CPU above the socket
such that the CPU corner aligns with the gold triangle matching the
socket corner with a small triangle. Carefully insert the CPU into the
socket and push down the lever to secure the CPU. Then, install the heat
sink and fan.
IB965 User’s Manual 7
INSTALLATIONS
DDR3 Module
Lock
Lock
Lock
Lock
Installing the Memory
The IB965F board supports two DDR3 memory socket for a maximum
total memory of 16GB in DDR3 DIMM memory type.
Installing and Removing Memory Modules
To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR3 module so that the key of the DDR3 module aligned
with that on the memory slot.
2. Gently push the DDR3 module in an upright position until the clips of
the slot close to hold the DDR3 module in place when the DDR3
module touches the bottom of the slot.
3. To remove the DDR3 module, press the clips with both hands.
8
IB965 User’s Manual
INSTALLATIONS

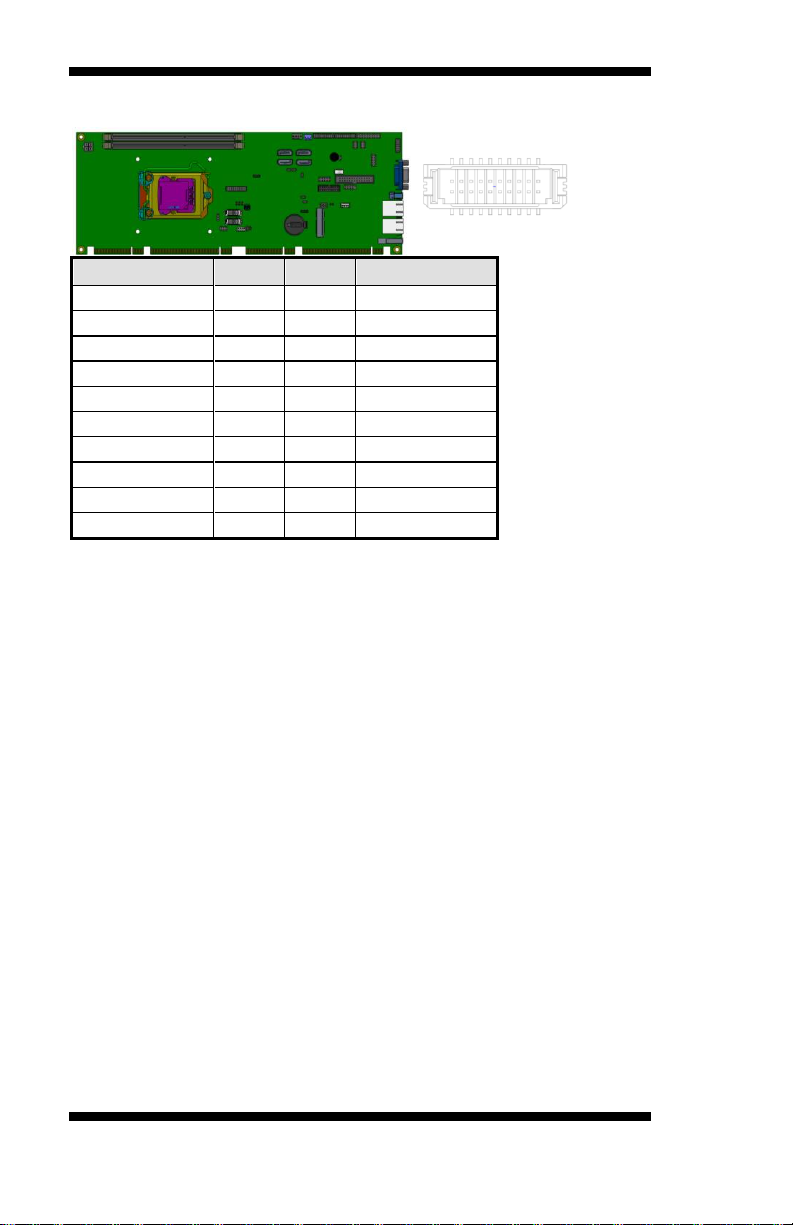

Setting the Jumpers
Jumpers are used on IB965F to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on IB965F and their respective functions.
JP1: COM1 RS232 RI/+5V/+12V Power Setting ............................... 10
JP2: COM2 RS232 RI/+5V/+12V Power Setting ............................... 10
JP3: Power On Type .......................................................................... 10
JP7: Flash Descriptor Security Override (Factory use only) ................ 11
JP10: LVDS Panel Power Selection ................................................... 11
JP11: LVDS EEPROM Flash Connector (factory use only) ................ 11
JP12: BL_ADJ_LEVEL Setting ................................ ......................... 12
JP13: BL Voltage Setting .................................................................. 12
JBAT1: Clear CMOS Contents .......................................................... 12
SW1: LVDS Panel Type Setting ........................................................ 13
IB965 User’s Manual 9
INSTALLATIONS
JP1
Setting
Function
Pin 1-3
Short/Closed
+12V
Pin 3-4
Short/Closed
RI
Pin 3-5
Short/Closed
+5V
JP2
Setting
Function
Pin 1-3
Short/Closed
+12V
Pin 3-4
Short/Closed
RI
Pin 3-5
Short/Closed
+5V
JP3
Function
Open
ATX Mode
(Default)
Close
AT Mode
JP1: COM1 RS232 RI/+5V/+12V Power Setting
JP2: COM2 RS232 RI/+5V/+12V Power Setting
JP3: Power On Type
10
IB965 User’s Manual
INSTALLATIONS
JP7
Flash Descriptor Security
Override
Open
Disabled
(Default)
Close
Enabled
JP10
Setting
Panel Voltage
Pin 1-2
Short/Closed
3.3V (default)
Pin 2-3
Short/Closed
5V
JP7: Flash Descriptor Security Override (Factory use only)
JP10: LVDS Panel Power Selection
JP11: LVDS EEPROM Flash Connector (factory use only)
IB965 User’s Manual 11
INSTALLATIONS
JP12
Function
Open
3.3V
Close
5V (default)
JP13
Setting
Function
Pin 1-2
Short/Closed
+3.3V
Pin 3-4
Short/Closed
+5V
Pin 5-6
Short/Closed
+12V(Default)
JBAT1
Setting
Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS
JP12: BL_ADJ_LEVEL Setting
JP13: BL Voltage Setting
JBAT1: Clear CMOS Contents
12
IB965 User’s Manual
SW1-4
SW1-3
SW1-2
SW1-1
Panel Type
ON
ON
ON
ON
800*600 18bit 1ch
ON
ON
ON
OFF
1024*768 18bit 1ch
ON
ON
OFF
ON
1024*768 24bit 1ch
ON
ON
OFF
OFF
1280*768 18bit 1ch
ON
OFF
ON
ON
1280*800 18bit 1ch
ON
OFF
ON
OFF
1280*960 18bit 1ch
ON
OFF
OFF
ON
1280*1024 24bit 2ch
ON
OFF
OFF
OFF
1366*768 18bit 1ch
OFF
ON
ON
ON
1366*768 24bit 1ch
OFF
ON
ON
OFF
1440*900 24bit 2ch
OFF
ON
OFF
ON
1440*1050 24bit 2ch
OFF
ON
OFF
OFF
1600*900 24bit 2ch
OFF
OFF
ON
ON
1680*1050 24bit 2ch
OFF
OFF
ON
OFF
1600*1200 24bit 2ch
OFF
OFF
OFF
ON
1920*1080 24bit 2ch
OFF
OFF
OFF
OFF
1920*1200 24bit 2ch
SW1: LVDS Panel Type Setting
INSTALLATIONS
IB965 User’s Manual 13
INSTALLATIONS
Connectors on IB965F
Connector Locations on IB965F ........................................................ 15
CN1, CN2, CN4: SATA2 Connectors................................................ 16
CN3: SATA3 Connectors ................................................................ .. 16
CN1: SATA3 Connectors (IB965RF only) ......................................... 16
CN5: DB-15 VGA Connector ............................................................ 16
CN6: USB3.0/2.0 Connector ............................................................. 17
CN7: USB2.0 Connector ................................................................... 17
CN8: Gigabit LAN (Intel 82579V) Connector ................................... 17
CN9: Gigabit LAN (Intel 82583V) Connector ................................... 17
CN10: LCD Backlight Connector ...................................................... 17
CN11: USB3.0 Connector ................................................................. 17
J1: COM3, COM4 Serial Port (DF11 Connector) .............................. 18
J2: COM1, COM2 Serial Port (DF11 Connector) .............................. 18
J3: Front Panel Function Connector ................................................... 19
J4, J5: DDR3 DIMM Socket ............................................................. 19
J6: External Audio Connector (DF11 Connector) .............................. 19
J7: ATX 12V Power Connector ......................................................... 20
J8: Digital I/O 4 In/4 Out ................................ ................................... 20
J9: PS/2 Keyboard and Mouse Connectors (DF11 Connector) ........... 20
J10: SPI Flash Connector (Factory use only) ...................................... 21
J11: Parallel Port ............................................................................... 21
J12: USB2.0 Connectors ................................................................... 22
J13: DVI-D Port (DF11 Connector) .................................................. 22
J19: MCU Flash Connector (factory use only).................................... 22
J20: Mini PCIE Connector (Support M-SATA with CN4) ................. 23
CPU_FAN1: CPU Fan Power Connector ........................................... 23
SYS_FAN1: System Fan1 Power Connector...................................... 23
CH1, CH2: LVDS Connectors ........................................................... 24
14
IB965 User’s Manual
Connector Locations on IB965F
INSTALLATIONS
IB965 User’s Manual 15
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
Red
1 2 Green
Blue
3 4 N.C.
GND
5 6 GND
GND
7 8 GND
VCC
9
10
GND
N.C.
11
12
DDCDATA
HSYNC
13
14
VSYNC
DDCCLK
15
CN1, CN2, CN4: SATA2 Connectors
CN3: SATA3 Connectors
CN1: SATA3 Connectors (IB965RF only)
CN5: DB-15 VGA Connector
16
IB965 User’s Manual
CN6: USB3.0/2.0 Connector
Signal Name
Pin #
Pin #
Signal Name
Vcc
1
X
P1_SSRX-
2
19
Vcc
P1_SSRX+
3
18
P2_SSRX-
GND
4
17
P2_SSRX+
P1_SSTX-
5
16
GND
P1_SSTX+
6
15
P2_SSTX-
GND
7
14
P2_SSTX+
P1_U2_D-
8
13
GND
P1_U2_D+
9
12
P2_U2_D-
NC
10
11
P2_U2_D+
Pin #
Signal Name
1
Backlight Power
2
Backlight Enable
3
NC
4
Ground
INSTALLATIONS
CN7: USB2.0 Connector
CN8: Gigabit LAN (Intel 82579V) Connector
CN9: Gigabit LAN (Intel 82583V) Connector
CN10: LCD Backlight Connector
CN11: USB3.0 Connector
IB965 User’s Manual 17
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
DSR3
2 1 DCD3
RTS3
4 3 RXD3
CTS3
6 5 TXD3
RI3
8 7 DTR3
NC
10 9 Ground
DSR4
12
11
DCD4
RTS4
14
13
RXD4
CTS4
16
15
TXD4
RI4
18
17
DTR4
NC
20
19
Ground
Signal Name
Pin #
Pin #
Signal Name
DSR1
2 1 DCD1
RTS1
4 3 RXD1
CTS1
6 5 TXD1
RI1
8 7 DTR1
NC
10 9 Ground
DSR2
12
11
DCD2
RTS2
14
13
RXD2
CTS2
16
15
TXD2
RI2
18
17
DTR2
NC
20
19
Ground
J1: COM3, COM4 Serial Port (DF11 Connector)
J2: COM1, COM2 Serial Port (DF11 Connector)
18
IB965 User’s Manual
J3: Front Panel Function Connector
Signal Name
Pin #
Pin #
Signal Name
VCC
1 2 Speaker Out
NC
3 4 NC
Ground
5 6 Ground
NC
7 8 VCC
Ground
9
10
NC
Ground
11
12
NC
Ground
13
14
PWR_SW
NC
15
16
NC
Ground
17
18
RST
HDD LED +
19
20
HDD LED -
Signal Name
Pin #
Pin #
Signal Name
LINE OUT_R
2 1 LINE OUT_L
Ground
4 3 JD_FRONT
LINE IN_R
6 5 LINE IN_L
Ground
8 7 JD_LINE IN
MIC-R
10 9 MIC-L
Ground
12
11
JD_MIC1
INSTALLATIONS
J4, J5: DDR3 DIMM Socket
J6: External Audio Connector (DF11 Connector)
J6 is a 12-pin header that is used to connect to the optional audio cable.
IB965 User’s Manual 19
INSTALLATIONS
Pin #
Signal Name
1
Ground
2
Ground
3
+12V
4
+12V
Signal Name
Pin #
Pin #
Signal Name
GND
1 2 VCC
OUT3
3 4 OUT1
OUT2
5 6 OUT0
IN3
7 8 IN1
IN2
9
10
IN0
Signal Name
Pin #
Pin #
Signal Name
Vcc
2 1 VCC
KB_DATA
4 3 MS_DATA
KB_CLK
6 5 MS_CLK
Ground
8 7 Ground
J7: ATX 12V Power Connector
This connector supplies the CPU operating voltage.
J8: Digital I/O 4 In/4 Out
J9: PS/2 Keyboard and Mouse Connectors (DF11 Connector)
20
IB965 User’s Manual
Signal Name
Pin #
Pin #
Signal Name
Line printer strobe
1
14
AutoFeed
PD0, parallel data 0
2
15
Error
PD1, parallel data 1
3
16
Initialize
PD2, parallel data 2
4
17
Select
PD3, parallel data 3
5
18
Ground
PD4, parallel data 4
6
19
Ground
PD5, parallel data 5
7
20
Ground
PD6, parallel data 6
8
21
Ground
PD7, parallel data 7
9
22
Ground
ACK, acknowledge
10
23
Ground
Busy
11
24
Ground
Paper empty
12
25
Ground
Select
13
26
Ground
J10: SPI Flash Connector (Factory use only)
INSTALLATIONS
J11: Parallel Port
IB965 User’s Manual 21
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
VCC
1 2 VCC
D0-
3 4 D1-
D0+
5 6 D1+
Ground
7 8 Ground
KEY
9
10
NC
Signal Name
Pin #
Pin #
Signal Name
TDC1#_B
2 1 TDC1_B
Ground
4 3 Ground
TLC#_B
6 5 TLC_B
5V
8 7 Ground
N.C.
10 9 HPDET_B
TDC2#_B
12
11
TDC2_B
Ground
14
13
Ground
TDC0#_B
16
15
TDC0_B
N.C.
18
17
N.C.
SC_DDC_B
20
19
SD_DDC_B
J12: USB2.0 Connectors
J13: DVI-D Port (DF11 Connector)
J13 is a 20-pin header that is used to connect to the optional DVI-D cable.
J19: MCU Flash Connector (factory use only)
22
IB965 User’s Manual
INSTALLATIONS
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
4
Control
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
1
4 1 3
J20: Mini PCIE Connector (Support M-SATA with CN4)
J20 also supports mSATA. However, when J20 is used for
mSATA, then CN4 SATA port cannot be used. Only one of them
can be used at one time to support SATA.
CPU_FAN1: CPU Fan Power Connector
SYS_FAN1: System Fan1 Power Connector
IB965 User’s Manual 23
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
N.C
19
20
N.C
ENABLE
17
18
LCD_PWR
CLK+
15
16
CLK-
GND
13
14
GND
LD2+
11
12
LD2-
LD3+
9
10
LD3-
GND
7 8 LCD_PWR
LD1+
5 6 LD1-
GND
3 4 GND
LD0+
1 2 LD0-
1
2
19
20
CH1, CH2: LVDS Connectors
24
IB965 User’s Manual
BIOS SETUP
BIOS Setup
This chapter describes the different settings available in the AMI BIOS
that comes with the board. The topics covered in this chapter are as
follows:
BIOS Introduction........................................................................... 26
BIOS Setup ...................................................................................... 26
Advanced Settings .......................................................................... 28
Chipset Settings............................................................................... 40
Boot Settings ................................................................................... 47
CSM Parameters ............................................................................. 48
Security Settings.............................................................................. 49
Save & Exit Settings ....................................................................... 50
IB965 User’s Manual 25
BIOS SETUP
Warning:
It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both AMI and your system manufacturer
to provide the absolute maximum performance and
reliability. Changing the defaults could cause the system to
become unstable and crash in some cases.
BIOS Introduction
The BIOS (Basic Input/Output System) installed in your computer
system’s ROM supports Intel processors. The BIOS provides critical
low-level support for a standard device such as disk drives, serial ports
and parallel ports. It also password protection as well as special support
for detailed fine-tuning of the chipset controlling the entire system.
BIOS Setup
The BIOS provides a Setup utility program for specifying the system
configurations and settings. The BIOS ROM of the system stores the
Setup utility. When you turn on the computer, the BIOS is immediately
activated. Pressing the <Del> key immediately allows you to enter the
Setup utility. If you are a little bit late pressing the <Del> key, POST
(Power On Self Test) will continue with its test routines, thus preventing
you from invoking the Setup. If you still wish to enter Setup, restart the
system by pressing the ”Reset” button or simultaneously pressing the
<Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the
system Off and back On again. The following message will appear on the
screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to select,
the <PgUp> and <PgDn> keys to change entries, <F1> for help and
<Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.
26
IB965 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
BIOS Information
Choose the system default
language
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
System Language
[English]
System Date
[Tue 01/20/2009]
System Time
21:25:55
Access Level
Administrator
Main Settings
Aptio Setup Utility – Copyright © 2011 American Megatrends, Inc.
System Language
Choose the system default language.
System Date
Set the Date. Use Tab to switch between Data elements.
System Time
Set the Time. Use Tab to switch between Data elements.
BIOS SETUP
IB965 User’s Manual 27
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
► PCI Subsystem Settings
► ACPI Settings
► Wake up event setting
► Trusted Computing
► CPU Configuration
► SATA Configuration
► Shutdown Temperature Configuration
► iSmart Controller
► Acoustic Management Configuration
► USB Configuration
► F81866 Super IO Configuration
► F81866 H/W Monitor
► CPU PPM Configuration
Main Advanced Chipset Boot Security Save & Exit
PCI Bus Driver Version V 2.0502
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
PCI 64bit Resources Handing
Above 4G Decoding
Disabled
PCI Common Settings
PCI Latency Timer
32 PCI Bus Clocks
VGA Palette Snoop
Disabled
PERR# Generation
Disabled
SERR# Generation
Disabled
► PCI Express Settings
Advanced Settings
This section allows you to configure and improve your system and allows
you to set up some system features according to your preference.
PCI Subsystem Settings
Aptio Setup Utility
Aptio Setup Utility
Above 4G Decoding
Enables or Disables 64bit capable devices to be decoded in above 4G
address space (only if system supports 64 bit PCI decoding).
28
IB965 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
PCI Express Device Register Settings
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Relaxed Ordering
Disabled
Extended Tag
Disabled
No Snoop
Enabled
Maximum Payload
Auto
Maximum Read Request
Auto
PCI Express Link Register Settings
ASPM Support
Disabled
WARNING: Enabling ASPM may cause
some PCI-E devices to fail
Extended Synch
Disabled
Link Training Retry
5 Link Training Timeout (uS)
100
Unpopulated Links
Keep Link ON
PCI Latency Timer
Value to be programmed into PCI Latency Timer Register.
VGA Palette Snoop
Enables or disables VGA Palette Registers Snooping.
PERR# Generation
Enables or disables PCI device to generate PERR#.
SERR# Generation
Enables or disables PCI device to generate SERR#.
PCI Express Settings
Change PCI Express devices settings.
PCI Express Settings
Aptio Setup Utility
Relaxed Ordering
Enables or disables PCI Express Device Relaxed Ordering.
Extended Tag
If ENABLED allows device to use 8-bit Tag field as a requester.
No Snoop
Enables or disables PCI Express Device No Snoop option.
IB965 User’s Manual 29
BIOS SETUP
Maximum Payload
Set Maximum Payload of PCI Express Device or allow System BIOS to
select the value.
Maximum Read Request
Set Maximum Read Request Size of PCI Express Device or allow System
BIOS to select the value.
ASPM Support
Set the ASPM Level: Force L0s – Force all links to L0s State:
AUTO – BIOS auto configure : DISABLE – Disables ASPM.
Extended Synch
If ENABLED allows generation of Extended Synchronization patterns.
Link Training Retry
Defines number of Retry Attempts software will take to retrain the link if
previous training attempt was unsuccessful.
Link Training Timeout (uS)
Defines number of Microseconds software will wait before polling ‘Link
Training’ bit in Link Status register. Value range from 10 to 1000 uS.
Unpopulated Links
In order to save power, software will disable unpopulated PCI Express
links, if this option set to ‘Disable Link’.
30
IB965 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
ACPI Settings
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Enable Hibernation
Enabled
ACPI Sleep State
S1 (CPU Stop C…)
Lock Legacy Resources
S3 Video Repost
Disabled
Disabled
ACPI Settings
Aptio Setup Utility
Enable Hibernation
Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This
option may be not effective with some OS.
ACPI Sleep State
Select ACPI sleep state the system will enter, when the SUSPEND button
is pressed.
Lock Legacy Resources
Enabled or Disabled Lock of Legacy Resources.
S3 Video Repost
Enable or disable S3 Video Repost.
IB965 User’s Manual 31
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Wake system with Fixed Time Disabled
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Wake up hour
0
Wake up minute
0
Wake up second
0
Wake on Ring
Disabled
Wake on PCI PME
Disabled
Wake on PCIE Wake Event
Disabled
Main Advanced Chipset Boot Security Save & Exit
TPM Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
TPM SUPPORT
Disabled
Current TPM Status Information
TPM SUPPORT OFF
Wake up event settings
Aptio Setup Utility
Wake system with Fixed Time
Enables or Disables System wake on alarm event. When enabled, System
will wake on the hr::min:: sec specified.
Wake on PCIE PME Wake Event
The options are Disabled and Enabled.
Trusted Computing
Aptio Setup Utility
TPM Support
This configuration is supported only with MB970VF. Enables or Disables
TPM support. O.S. will not show TPM. Reset of platform is required.
Security Device Support
Enables or disables BIOS support for security device. O.S. will not show
Security Device. TCG EFI protocol and INT1A interface will not be
available.
32
IB965 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
CPU Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Intel® Core ™ i7-3770 CPU @ 3.40GHz
Processor Stepping
306a8
Microcode Revision
c
CPU Speed
3400 MHz
Processor Cores
4
Intel HT Technology
Supported
Intel VT-x Technology
Supported
Intel SMX Technology
Supported
64-bit
Supported
Hyper-threading
Enabled
Active Processor Cores
All
Limit CPUID Maximum
Disabled
Execute Disable Bit
Enabled
Intel Virtualization Technology
Disabled
Adjacent Cache Line Prefetch
Enabled
CPU Configuration
This section shows the CPU configuration parameters.
Aptio Setup Utility
BIOS SETUP
Hyper-threading
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading
Technology) and Disabled for other OS (OS not optimized for
Hyper-Threading Technology). When Disabled, only one thread per
enabled core is enabled.
Active Processor Cores
Number of cores to enable in each processor package.
Limit CPUID Maximum
Disabled for Windows XP.
Execute Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when
combined with a supporting OS (Windows Server 2003 SP1, Windows
XP SP2, SuSE Linux 9.2, Re33dHat Enterprise 3 Update 3.)
IB965 User’s Manual 33
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
SATA Controller(s)
Enabled
SATA Mode Selection
IDE
SATA Port0
Empty
Software Preserve
Unknown
SATA Port1
Empty
Software Preserve
Unknown
SATA Port2
Empty
Software Preserve
Unknown
SATA Port3
Empty
Software Preserve
Unknown
SATA Port4
Empty
Software Preserve
Unknown
SATA Port5
Empty
Software Preserve
Unknown
Intel Virtualization Technology
When enabled, a VMM can utilize the additional hardware capabilities
provided by Vanderpool Technology.
Adjacent Cache Line Prefetch
To turn on/off prefetching of adjacent cache lines.
SATA Configuration
SATA Devices Configuration.
Aptio Setup Utility
SATA Controller(s)
Enable / Disable Serial ATA Controller.
SATA Mode Selection
(1) IDE Mode.
(2) AHCI Mode.
(3) RAID Mode.
34
IB965 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
APCI Shutdown Temperature
Disabled
Main Advanced Chipset Boot Security Save & Exit
iSmart Controller
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Power-On after Power failure
Disable
Schedule Slot 1
None
Schedule Slot 2
None
Shutdown Temperature Configuration
Aptio Setup Utility
ACPI Shutdown Temperature
The default setting is Disabled.
iSmart Controller
Aptio Setup Utility
BIOS SETUP
ISmart Controller
Setup the power on time for the system.
Schedule Slot 1 / 2
Setup the hour/minute for system power on.
IB965 User’s Manual 35
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Acoustic Management Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Acoustic Management
Disabled
Main Advanced Chipset Boot Security Save & Exit
USB Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
USB Devices:
2 Hubs
Legacy USB Support
Enabled
USB3.0 Support
Enabled
XHCI Hand-off
Enabled
EHCI Hand-off
Enabled
Port 60/64 Emulation
Disabled
USB hardware delays and time-outs:
USB Transfer time-out
20 sec
Device reset tine-out
20 sec
Device power-up delay
Auto
Acoustic Management Configuration
Aptio Setup Utility
USB Configuration
Aptio Setup Utility
Legacy USB Support
Enables Legacy USB support.
AUTO option disables legacy support if no USB devices are connected.
DISABLE option will keep USB devices available only for EFI
applications.
USB3.0 Support
Enable/Disable USB3.0 (XHCI) Controller support.
XHCI Hand-off
This is a workaround for OSes without XHCI hand-off support. The
XHCI ownership change should be claimed by XHCI driver.
36
IB965 User’s Manual
BIOS SETUP
EHCI Hand-off
Enabled/Disabled. This is a workaround for OSes without EHCI hand-off
support. The EHCI ownership change should be claimed by EHCI driver.
Port 64/60 Emulation
Enables I/O port 60h/64h emulation support. This should be enabled for
the complete USB keyboard legacy support for non-USB aware OSes.
USB Transfer time-out
The time-out value for Control, Bulk, and Interrupt transfers.
Device reset tine-out
USB mass Storage device start Unit command time-out.
Device power-up delay
Maximum time the device will take before it properly reports itself to the
Host Controller. ‘Auto’ uses default value: for a Root port it is 100ms, for
a Hub port the delay is taken from Hub descriptor.
IB965 User’s Manual 37
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Super IO Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
F81866 Super IO Chip
F81866
► Serial Port 0 Configuration
► Serial Port 1 Configuration
► Serial Port 2 Configuration
► Serial Port 3 Configuration
► Parallel Port Configuration
KB/MS Power On
None
F81866 Super IO Configuration
Aptio Setup Utility
Serial Port Configuration
Set Parameters of Serial Ports. User can Enable/Disable the serial port
and Select an optimal settings for the Super IO Device.
Parallel Port Configuration
Set Parameters of Parallel Ports. User can Enable/Disable the Parallel port and
Select an optimal settings for the Super IO Device.
KB/MS Power On
None (default)
Mouse Move
Any Key
Any Key / Mouse Move
38
IB965 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
PC Health Status
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
CPU smart fan control
Disabled
System smart fan control
Disabled
CPU temperature
+41 C
System temperature
+35 C
CPU FAN Speed
2115 RPM
System FAN Speed
N/A
Vcore
+1.000 V
+5V
+5.213 V
+12V
+12.408 V
+1.5V
+1.544 V
F81866 H/W Monitor
Aptio Setup Utility
Temperatures/Voltages
These fields are the parameters of the hardware monitoring function
feature of the motherboard. The values are read-only values as monitored
by the system and show the PC health status.
CPU/System Smart Fan Control
This field enables or disables the smart fan feature. At a certain
temperature, the fan starts turning. Once the temperature drops to a
certain level, it stops turning again.
IB965 User’s Manual 39
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
CPU PPM Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
EIST
Enabled
Turbo Mode
Enabled
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
► PCH-IO Configuration
► System Agent (SA) Configuration
CPU PPM Configuration
Aptio Setup Utility
EIST
Enable/Disable Intel SpeedStep.
Chipset Settings
This section allows you to configure and improve your system and allows
you to set up some system features according to your preference.
Aptio Setup Utility
40
IB965 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Intel PCH RC Version 1.1.0.0
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Intel PCH SKU Name
Q77
Intel PCH Rev ID
O4/C1
► PCI Express Configuration
► USB Configuration
► PCH Azalia Configuration
PCH LAN Controller
Enabled
Wake on LAN
Enabled
High Precision Event Timer Configuration
High Precision Timer
Enabled
PCH-IO Configuration
This section allows you to configure the North Bridge Chipset.
Aptio Setup Utility
PCH LAN Controller
Enable or disable onboard NIC.
Wake on LAN
Enable or disable integrated LAN to wake the system. (The Wake On
LAN cannot be disabled if ME is on at Sx state.)
IB965 User’s Manual 41
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
PCI Express Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
PCI Express Clock Gating
Enabled
DMI Link ASPM Control
Enabled
DMI Link Extended Synch Control
Disabled
PCIe-USB Glitch W/A
Disabled
Subtractive Decode
Disabled
► PCI Express Root Port 1
► PCI Express Root Port 2
► PCI Express Root Port 3
► PCI Express Root Port 4
► PCI Express Root Port 5
PCI-E Port 6 is assigned to LAN
► PCI Express Root Port 7
► PCI Express Root Port 8
PCI Express Configuration
PCI Express Clock Gating
Enable or disable PCI Express Clock Gating for each root port.
DMI Link ASPM Control
The control of Active State Power Management on both NB side and SB
side of the DMI link.
PCIe-USB Glitch W/A
PCIe-USB Glitch W/A for bad USB device(s) connected behind
PCIE/PEG port.
42
IB965 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
USB Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
XHCI Pre-Boot Driver
Disabled
xHCI Mode
Auto
HS Port #1 Switchable
Enabled
HS Port #2 Switchable
Enabled
HS Port #3 Switchable
Enabled
HS Port #4 Switchable
Enabled
xHCI Streams
Enabled
EHCI1
Enabled
EHCI2
Enabled
USB Ports Per-Port Disable Control
Disabled
USB Configuration
HS Port #1/2/3/4 Switchable
Allows for HS port switching between xHCI and EHCI. If disabled, port
is routed to EHCI. If HS port is routed to xHCI, the corresponding SS
port is enabled.
xHCI Streams
Enable or disable xHCI Maximum Primary Stream Array Size.
EHCI1/2
Control the USAB EHCI (USB 2.0) functions. One EHCI controller must
always be enabled.
USB Ports Per-Port Disable Control
Control each of the USB ports (0~13) disabling.
IB965 User’s Manual 43
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
PCH Azalia Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Azalia
Auto
Main Advanced Chipset Boot Security Save & Exit
System Agent Bridge Name IvyBridge
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
System Agent RC Version
1.1.0.0
VT-d Capability
Supported
VT-d
Enabled
CHAP Device (B0:D7:F0)
Disabled
Thermal Device (B0:D4:F0)
Disabled
Enable NB CRID
Disabled
BDAT ACPI Table Support
Disabled
C-State Pre-Wake
Enabled
► Graphics Configuration
► Memory Configuration
PCH Azalia Configuration
Azalia
Control Detection of the Azalia device.
Disabled = Azalia will unconditionally disabled.
Enabled Azalia will be unconditionally enabled.
Auto = Azalia will enabled if present, disabled otherwise.
System Agent (SA) Configuration
Aptio Setup Utility
VT-d
Check to enable VT-d function on MCH.
Enable NB CRID
Enable or disable NB CRID WorkAround.
C-State Pre-Wake
Controls C-State Pre-Wake feature for ARAT, in SSKPD[57].
44
IB965 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Graphics Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
IGFX VBIOS Version
2132
IGfx Frequency
350 MHz
Primary Display
Auto
Internal Graphics
Auto
GTT Size
2MB
Aperture Size
256MB
DVMT Pre-Allocated
64M
DVMT Total Gfx Mem
256MB
LVDS Control
Disabled
Graphics Configuration
Aptio Setup Utility
Primary Display
Select which of IGFX/PEG/PCI graphics device should be primary
display or select SG for switchable Gfx.
Internal Graphics
Keep IGD enabled based on the setup options.
DVMT Pre-Allocated
Select DVMT 5.0 Pre-Allocated (Fixed) graphics memory size used by
the internal graphics device.
DVMT Total Gfx Mem
Select DVMT 5.0 total graphics memory size used by the internal
graphics device.
LVDS Control
Enabled or Disabled LVDS.
IB965 User’s Manual 45
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Memory Information
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Memory Frequency
1333 MHz
Total Memory
4096 MB (DDR3)
DIMM#0
2048 MB (DDR3)
DIMM#1
Not Present
DIMM#2
2048 MB (DDR3)
DIMM#3
Not Present
CAS Latency (tCL)
9
Minimum delay time
CAS to RAS (tRCDmin)
9
Row Precharge (tRPmin)
9
Active to Precharge (tRASmin)
24
Memory Configuration
Aptio Setup Utility
46
IB965 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
Boot Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Setup Prompt Timeout
1
Bootup NumLock State
On
Quiet Boot
Disabled
Fast Boot
Disabled
CSM16 Module Version
07.69
GateA20 Active
Upon Request
Option ROM Messages
Force BIOS
INT19 Trap Response
Immediate
Boot Option Priorities
► CSM parameters
Boot Settings
This section allows you to configure the boot settings.
Setup Prompt Timeout
Number of seconds to wait for setup activation key.
65535(0xFFFF) means indefinite waiting.
Bootup NumLock State
Select the keyboard NumLock state.
Quiet Boot
Enables/Disables Quiet Boot option.
Fast Boot
Enables/Disables boot with initialization of a minimal set of devices
required to launch active boot option. Has no effect for BBS boot
options.
GateA20 Active
UPON REQUEST – GA20 can be disabled using BIOS services.
ALWAYS – do not allow disabling GA20; this option is useful when any
RT code is executed above 1MB.
Option ROM Messages
Set display mode for Option ROM. Options are Force BIOS and Keep
Current.
IB965 User’s Manual 47
Aptio Setup Utility
BIOS SETUP
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Launch CSM
Always
Boot option filter
UEFI and Legacy
Launch PXE OpROM policy
Do not launch
Launch Storage OpROM policy
Legacy only
Launch Video OpROM policy
Legacy only
Other PCI device ROM priority
Legacy OpROM
INT19 Trap Response
Enable: Allows Option ROMs to trap Int 19.
Boot Option Priorities
Sets the system boot order.
CSM Parameters
This section allows you to configure the boot settings.
Aptio Setup Utility
Boot option filter
This option controls what devices system can boot to.
Launch PXE OpROM policy
Controls the execution of UEFI and Legacy PXE OpROM.
Launch Storatge OpROM policy
Controls the execution of UEFI and Legacy Storage OpROM.
Launch Video OpROM policy
Controls the execution of UEFI and Legacy Video OpROM.
Other PCI device ROM priority
For PCI devices other than Network, Mass storage or Video defines
which OpROM to launch.
48
IB965 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Password Description
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
If ONLY the Administrator’s password is set, then
this only limit access to Setup and is only asked for
when entering Setup.
If ONLY the User’s password is set, then this is a
power on password and must be entered to boot or
enter Setup. In Setup the User will have
Administrator rights
The password length must be
in the following range:
Minimum length
3
Maximum length
20
Administrator Password
User Password
Security Settings
This section allows you to configure and improve your system and allows
you to set up some system features according to your preference.
Administrator Password
Set Setup Administrator Password.
User Password
Set User Password.
Aptio Setup Utility
IB965 User’s Manual 49
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Save Changes and Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Discard Changes and Exit
Save Changes and Reset
Discard Changes and Reset
Save Options
Save Changes
Discard Changes
Restore Defaults
Save as User Defaults
Restore User Defaults
Save & Exit Settings
Save Changes and Exit
Exit system setup after saving the changes.
Discard Changes and Exit
Exit system setup without saving any changes.
Save Changes and Reset
Reset the system after saving the changes.
Discard Changes and Reset
Reset system setup without saving any changes.
Save Changes
Save Changes done so far to any of the setup options.
Discard Changes
Discard Changes done so far to any of the setup options.
Restore Defaults
Restore/Load Defaults values for all the setup options.
Save as User Defaults
Save the changes done so far as User Defaults.
Restore User Defaults
Restore the User Defaults to all the setup options.
50
Aptio Setup Utility
IB965 User’s Manual
DRIVERS INSTALLATION
Drivers Installation
This section describes the installation procedures for software and
drivers. The software and drivers are included with the motherboard. If
you find the items missing, please contact the vendor where you made the
purchase. The contents of this section include the following:
Intel Chipset Software Installation Utility ........................................... 52
VGA Drivers Installation ................................................................... 55
Realtek HD Audio Driver Installation ................................................ 58
LAN Drivers Installation .................................................................... 60
Intel® Management Engine Interface ................................................. 64
Intel® USB 3.0 Drivers ..................................................................... 67
IMPORTANT NOTE:
After installing your Windows operating system, you must install first the
Intel Chipset Software Installation Utility before proceeding with the
drivers installation.
IB965 User’s Manual 51
DRIVER INSTALLATION
Intel Chipset Software Installation Utility
The Intel Chipset Drivers should be installed first before the software
drivers to enable Plug & Play INF support for Intel chipset components.
Follow the instructions below to complete the installation.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
7 Series Chipset Drivers.
2. Click Intel(R) Chipset Software Installation Utility.
52
IB965 User’s Manual
DRIVERS INSTALLATION
3. When the Welcome screen to the Intel® Chipset Device Software
appears, click Next to continue.
4. Click Yes to accept the software license agreement and proceed with
the installation process.
IB965 User’s Manual 53
DRIVER INSTALLATION
5. On the Readme File Information screen, click Next to continue the
installation.
6. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect.
54
IB965 User’s Manual
DRIVERS INSTALLATION
VGA Drivers Installation
NOTE: Before installing the Intel(R) Core™ i3/i5/i7 Graphics Driver,
the Microsoft .NET Framework 3.5 SPI should be first installed.
To install the VGA drivers, follow the steps below.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
7 Series Chipset Drivers.
2. Click Intel(R) Core™ i3/i5/i7 Graphics Driver.
IB965 User’s Manual 55
DRIVER INSTALLATION
3. When the Welcome screen appears, click Next to continue.
4. Click Yes to to agree with the license agreement and continue the
installation.
56
IB965 User’s Manual
DRIVERS INSTALLATION
5. On the Readme File Information screen, click Next to continue the
installation of the Intel® Graphics Media Accelerator Driver.
6. On Setup Progress screen, click Next to continue.
7. Setup complete. Click Finish to restart the computer and for changes
to take effect.
IB965 User’s Manual 57
DRIVER INSTALLATION
Realtek HD Audio Driver Installation
Follow the steps below to install the Realtek HD Audio Drivers.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
7 Series Chipset Drivers.
2. Click Realtek High Definition Audio Driver.
58
IB965 User’s Manual
DRIVERS INSTALLATION
3. On the Welcome to the InstallShield Wizard screen, click Next to
proceed with and complete the installation process.
4. The InstallShield Wizard Complete. Click Finish to restart the
computer and for changes to take effect.
IB965 User’s Manual 59
DRIVER INSTALLATION
LAN Drivers Installation
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
7 Series Chipset Drivers.
2. Click Intel(R) PRO LAN Network Driver.
60
IB965 User’s Manual
3. Click Install Drivers and Software.
DRIVERS INSTALLATION
4. When the Welcome screen appears, click Next.
IB965 User’s Manual 61
DRIVER INSTALLATION
5. Click Next to to agree with the license agreement.
6. Click the checkbox for Drivers in the Setup Options screen to select it
and click Next to continue.
62
IB965 User’s Manual
DRIVERS INSTALLATION
7. The wizard is ready to begin installation. Click Install to begin the
installation.
8. When InstallShield Wizard is complete, click Finish.
IB965 User’s Manual 63
DRIVER INSTALLATION
Intel® Management Engine Interface
Follow the steps below to install the Intel Management Engine.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
iAMT 8.0 Drivers.
64
IB965 User’s Manual
DRIVERS INSTALLATION
2. When the Welcome screen to the InstallShield Wizard for Intel®
Management Engine Components, click the checkbox for Install Intel®
Control Center & click Next.
3. Click Yes to to agree with the license agreement.
IB965 User’s Manual 65
DRIVER INSTALLATION
4. When the Setup Progress screen appears, click Next. Then, click
Finish when the setup progress has been successfully installed.
66
IB965 User’s Manual
DRIVERS INSTALLATION
Intel® USB 3.0 Drivers
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
7 Series Chipset Drivers.
2. Click Intel(R) USB 3.0 Drivers.
IB965 User’s Manual 67
DRIVER INSTALLATION
3. When the Welcome screen to the InstallShield Wizard for Intel® USB
3.0 eXtensible Host Controller Driver, click Next.
4. Click Yes to to agree with the license agreement and continue the
installation.
68
IB965 User’s Manual
DRIVERS INSTALLATION
5. On the Readme File Information screen, click Next to continue the
installation of the Intel® USB 3.0 eXtensible Host Controller Driver.
6. Setup complete. Click Finish to restart the computer and for changes
to take effect.
IB965 User’s Manual 69
DRIVER INSTALLATION
This page is intentionally left blank.
70
IB965 User’s Manual
Address
Device Description
0000h - 001Fh
DMA Controller #1
0020h - 003Fh
Interrupt Controller #1
0040h - 0043h
Timer
0050h - 0053h
Timer
0060h
Keyboard Controller
0064h
Keyboard Controller
0070h - 0077h
Real Time Clock
00A0h - 00BFh
Interrupt Controller #2
00C0h - 00DFh
DMA Controller #2
02E8h - 02EFh
Serial Port #4(COM4)
02F8h - 02FFh
Serial Port #2(COM2)
0378h - 037Fh
Parallel Port #1(LPT1)
03E8h - 03EFFh
Serial Port #3(COM3)
03F8h - 03FFh
Serial Port #1(COM1)
E000h - E01Fh
82583V Gigabit Network
F000h - F03Fh
Graphics adapter Controller
F060h - F07Fh
82579V Gigabit Network
APPENDIX
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses which also becomes the identity of the device. The following
table lists the I/O port addresses used.
IB965 User’s Manual 71
APPENDIX
Level
Function
IRQ0
System Timer Output
IRQ1
PS/2 Keyboard
IRQ3
Serial Port #2
IRQ4
Serial Port #1
IRQ7
Serial Port #3
IRQ8
Real Time Clock
IRQ11
Serial Port #4
IRQ12
PS/2 Mouse
IRQ18
82583V Gigabit Network
IRQ20
82579V Gigabit Network
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the service
required. The following table shows the IRQ used by the devices on
board.
72
IB965 User’s Manual
APPENDIX
C. Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sorts of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user will
restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "F81866.H"
//--------------------------------------------------------------------------int main (int argc, char *argv[]);
void EnableWDT(int);
void DisableWDT(void);
//--------------------------------------------------------------------------int main (int argc, char *argv[])
{
unsigned char bBuf;
unsigned char bTime;
char **endptr;
char SIO;
printf("Fintek 81866 watch dog program\n");
SIO = Init_F81866();
if (SIO == 0)
{
printf("Can not detect Fintek 81866, program abort.\n");
return(1);
}//if (SIO == 0)
if (argc != 2)
{
printf(" Parameter incorrect!!\n");
return (1);
}
bTime = strtol (argv[1], endptr, 10);
printf("System will reset after %d seconds\n", bTime);
if (bTime)
{ EnableWDT(bTime); }
else
{ DisableWDT(); }
return 0;
IB965 User’s Manual 73
APPENDIX
}
//--------------------------------------------------------------------------void EnableWDT(int interval)
{
unsigned char bBuf;
bBuf = Get_F81866_Reg(0x2B);
bBuf &= (~0x20);
Set_F81866_Reg(0x2B, bBuf); //Enable WDTO
Set_F81866_LD(0x07); //switch to logic device 7
Set_F81866_Reg(0x30, 0x01); //enable timer
bBuf = Get_F81866_Reg(0xF5);
bBuf &= (~0x0F);
bBuf |= 0x52;
Set_F81866_Reg(0xF5, bBuf); //count mode is second
Set_F81866_Reg(0xF6, interval); //set timer
bBuf = Get_F81866_Reg(0xFA);
bBuf |= 0x01;
Set_F81866_Reg(0xFA, bBuf); //enable WDTO output
bBuf = Get_F81866_Reg(0xF5);
bBuf |= 0x20;
Set_F81866_Reg(0xF5, bBuf); //start counting
}
//--------------------------------------------------------------------------void DisableWDT(void)
{
unsigned char bBuf;
Set_F81866_LD(0x07); //switch to logic device 7
bBuf = Get_F81866_Reg(0xFA);
bBuf &= ~0x01;
Set_F81866_Reg(0xFA, bBuf); //disable WDTO output
bBuf = Get_F81866_Reg(0xF5);
bBuf &= ~0x20;
bBuf |= 0x40;
Set_F81866_Reg(0xF5, bBuf); //disable WDT
}
//---------------------------------------------------------------------------
74
IB965 User’s Manual
APPENDIX
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include "F81866.H"
#include <dos.h>
//--------------------------------------------------------------------------unsigned int F81866_BASE;
void Unlock_F81866 (void);
void Lock_F81866 (void);
//--------------------------------------------------------------------------unsigned int Init_F81866(void)
{
unsigned int result;
unsigned char ucDid;
F81866_BASE = 0x4E;
result = F81866_BASE;
ucDid = Get_F81866_Reg(0x20);
if (ucDid == 0x07) //Fintek 81866
{ goto Init_Finish; }
F81866_BASE = 0x2E;
result = F81866_BASE;
ucDid = Get_F81866_Reg(0x20);
if (ucDid == 0x07) //Fintek 81866
{ goto Init_Finish; }
F81866_BASE = 0x00;
result = F81866_BASE;
Init_Finish:
return (result);
}
//--------------------------------------------------------------------------void Unlock_F81866 (void)
{
outportb(F81866_INDEX_PORT, F81866_UNLOCK);
outportb(F81866_INDEX_PORT, F81866_UNLOCK);
}
//--------------------------------------------------------------------------void Lock_F81866 (void)
{
outportb(F81866_INDEX_PORT, F81866_LOCK);
}
//--------------------------------------------------------------------------void Set_F81866_LD( unsigned char LD)
{
Unlock_F81866();
outportb(F81866_INDEX_PORT, F81866_REG_LD);
outportb(F81866_DATA_PORT, LD);
Lock_F81866();
}
//--------------------------------------------------------------------------void Set_F81866_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_F81866();
outportb(F81866_INDEX_PORT, REG);
outportb(F81866_DATA_PORT, DATA);
Lock_F81866();
}
//---------------------------------------------------------------------------
IB965 User’s Manual 75
APPENDIX
unsigned char Get_F81866_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_F81866();
outportb(F81866_INDEX_PORT, REG);
Result = inportb(F81866_DATA_PORT);
Lock_F81866();
return Result;
}
//---------------------------------------------------------------------------
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#ifndef __F81866_H
#define __F81866_H 1
//--------------------------------------------------------------------------#define F81866_INDEX_PORT (F81866_BASE)
#define F81866_DATA_PORT (F81866_BASE+1)
//--------------------------------------------------------------------------#define F81866_REG_LD 0x07
//--------------------------------------------------------------------------#define F81866_UNLOCK 0x87
#define F81866_LOCK 0xAA
//--------------------------------------------------------------------------unsigned int Init_F81866(void);
void Set_F81866_LD( unsigned char);
void Set_F81866_Reg( unsigned char, unsigned char);
unsigned char Get_F81866_Reg( unsigned char);
//--------------------------------------------------------------------------#endif //__F81866_H
76
IB965 User’s Manual
Loading...
