IB898
Intel® AtomTM E3800 SoC Series
3.5” Disk Size SBC
USER’S MANUAL
Version 1.0
Acknowledgments
AMI BIOS is a trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Atom are registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Nuvoton is a registered trademark of Nuvoton Technology
Corporation.
All other product names or trademarks are properties of their
respective owners.
ii
IB898 User’s Manual
Table of Contents
Introduction ....................................................... 1
Product Description............................................................. 1
Specifications ...................................................................... 2
Checklist .............................................................................. 3
Board Dimensions ............................................................... 4
Installations ....................................................... 5
Installing the Memory ......................................................... 6
Setting the Jumpers ............................................................. 7
Connectors on IB898 ......................................................... 11
BIOS Setup ....................................................... 21
Drivers Installation ...................................... 35
Intel Chipset Software Installation Utility ........................ 36
Intel Baytrail Graphics Driver Installation ........................ 37
Realtek High Definition Audio Driver Installation ........... 38
LAN Drivers Installation................................................... 39
Intel Trusted Execution Engine Installation...................... 40
Intel® USB 3.0 Drivers ..................................................... 41
Appendix ............................................................ 42
A. I/O Port Address Map .................................................. 42
B. Interrupt Request Lines (IRQ) ...................................... 44
C. Digital I/O Sample Code .............................................. 45
D. Watchdog Timer Configuration ................................... 50
IB898 User’s Manual iii
This page is intentionally left blank.
iv
IB898 User’s Manual
INTRODUCTION
Introduction
Product Description
IB898 is a 3.5-inch single board computer based on the Intel
E3800 series processors. It supports One DDR3L SODIMM sockets for
a maximum memory capacity of 4GB.
IB898 features the Intel® Gen7 w/4EUs graphics engines and has both
CRT and DisplayPort video display interface, and 24-bit LVDS dual
channel interface with the use of the NXP PTN3460 device.
Onboard connections are available for two SATAII ports, two COM
ports, one USB 3.0 ports, three USB2.0 ports, audio, three Mini
PCI-e(x1) slots,
IB898 Features:
Supports Atom
One DDR3L SO-DIMM, 1066 MHz, Max. 4GB memory
Integrated graphics for VGA, DP displays
2 x SATA II connectors
2x COM port connectors
1 x Mini-PCIe(x1) slot (w/ USB/mSATA support)
2 x Mini-PCIe(x1) slot
1x GbE (RJ-45) connectors
24-bit dual channel LVDS
TM
E3800 series SoC processors
®
AtomTM
IB898 User’s Manual 1
INTRODUCTION
Product Name
IB898 [default silk screen model # on PCB is IB898]
Form Factor
3.5” disk size SBC
SoC Type/Speed
Intel® AtomTM DC E3825 /1MB cache/1.33 GHz (IB898-I25)
Intel® AtomTM SC E3815 /512KB cache/1.46 GHz (IB898-I15)
FCBGA1170,Type-3, 25mmx27mm, 22nm,Tj= -40ﾟC to +110ﾟC ;
**All SoC Skus will be on D-0 stepping »
BIOS
AMI BIOS
Memory
Intel® Atom
TM
SoC integrated memory controller, supports
DDR3L(1.35V) only; 1x DDR3 SO-DIMM socket;
Max. DDR3L-1066@4GB (Non-ECC, Un-buffered)
VGA
Intel® Gen7 w/ 4 EUs graphics engines (Gfx freq @542MHz/792MHz
[Turbo]); Supports DX 11, OGL 3.0, OCL 1.1, OGLES 2.0,
DisplayPort x 1 [Support to 2560x1200@60Hz]
CRT x 1 [Support to 1920x1080@60Hz]
LVDS
24-bit dual channel via NXP PTN3460 thru eDP
[Supports up to 1920x1200@60Hz]
LAN
Intel I210IT PCIe Gigabit LAN [9x9mm @64-QFN , -40ﾟC to +85ﾟC]
USB
Intel® AtomTM SoC built-in USB host controller
Support USB 2.0 x 4 ports; USB 3.0 x 1 port,
USB 2.0 Hub x 4 ports (Thru Renesas uPD720115K8)
Serial ATA Ports
Intel® AtomTM SoC built-in SATA II controller, supports 2 ports
Audio
Intel® AtomTM SoC built-in HD Audio controller + Realtek ALC269QHD
Codec w/ class-D speaker amplifier(2.3W per channel @ 5V P/S)
[7mm x 7mm @ 48-QFN] ; support 2-channel audio out + amp
LPC I/O
Nuvoton NCT5523D [64-pin LQFP, 7x7x1.4mm]
COM #1 (RS232/422/485) [EXAR SP339EER1 x 1 for jumper-less]
COM #2 (RS-232 only)
Hardware Monitor: 2x Thermal inputs; 2x Voltage monitoring
Digital IO
4 in & 4 out
Expansion Slots
Mini PCI-e socket x3 (2x Full-sized + 1x Half-sized, all with USB signal
from USB Hub) **Full-sized MiniPCIe(1x) # 1 support mSATA also **
Edge Connector
DB9 for COM1, DB15 for VGA, DisplayPort, RJ45 for GbE LAN
USB 2.0 vertical connector x 1 (from SoC)
USB 3.0 vertical connector x 1 (from SoC)
Onboard
Header/Connector
2x4 header for front panel (PWR, LED, RESET)
DF11 2x4 header for 2x USB 2.0 (from USB Hub)
DF20 socket connector x2 for 24-bit dual channel LVDS
4-pin box header for backlight/brightness control (PWM mode)
DF11 2x6 box header x1 for Audio; 4-pin box header for speaker
DF11 2x5 box header for COM2
2x5 pin header for LPC (80-port card debugging purpose)
Mini PCI-e(1x) connector x3
SATA connector x2 for SATA device
4-pin power connector x2 (JST type, For SATA device)
2-pin connector 1 for power input
Watchdog Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
Power Connector
12V only DC-in thru onboard 2-pin connector
Others
iSMART 3.1 [EuP/ErP ; Auto-scheduler ; Power resume]
Heat-spreader / Heatsink for fanless purpose
Mounting holes for heatsink / heat spreader are at least 5 holes
OS supporting
- Windows 8.1 / Embedded; Windows 7 / Embedded; Linux
RoHS 2.0 / CE
/FCC/ LVD
Yes / Yes / Yes / Class B
Operating system
-40ﾟC to +85ﾟC
Board Size
102mm x 147mm
Specifications
2
IB898 User’s Manual
INTRODUCTION
Checklist
Your IB898 package should include the items listed below.
The IB898 SBC
This User’s Manual
1 CD containing chipset drivers and flash memory utility
IB898 User’s Manual 3
INTRODUCTION
Board Dimensions
4
IB898 User’s Manual
INSTALLATIONS
Installations
This section provides information on how to use the jumpers and
connectors on the IB898 in order to set up a workable system. The topics
covered are:
Installing the Memory ............................................................................ 6
Setting the Jumpers ................................................................................ 7
Connectors on IB898 ........................................................................... 11
IB898 User’s Manual 5
INSTALLATIONS
Installing the Memory
The IB898 board supports one DDR3L memory socket for a maximum
total memory of 4GB in DDR3L memory type.
Installing and Removing Memory Modules
To install the DDR3L modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR3L module so that the key of the DDR3L module
aligned with that on the memory slot.
2. Gently push the DDR3L module in an upright position until the clips
of the slot close to hold the DDR3L module in place when the
DDR3L module touches the bottom of the slot.
3. To remove the DDR3L module, press the clips with both hands.
** Channel-A slot must be installed with
memory module for booting up**
6
IB898 User’s Manual
INSTALLATIONS
Setting the Jumpers
Jumpers are used on IB898 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on IB898 and their respective functions.
Jumper Locations on IB898 ................................................................... 8
JP1: LVDS Panel Power Selection ........................................................ 9
JP2: LVDS Panel Brightness Control Selection .................................... 9
JP4: Clear CMOS Contents ................................................................. 10
JP5: Clear ME Contents....................................................................... 10
IB898 User’s Manual 7
INSTALLATIONS
Jumper Locations on IB898
8
IB898 User’s Manual
JP1
Setting
Panel Voltage
Pin 1-2
Short/Closed
3.3V (default)
Pin 2-3
Short/Closed
5V
JP2
Brightness Control
(PWM mode)
Open
3.3V
Close
5V(Default)
1 3
1 2
JP1: LVDS Panel Power Selection
INSTALLATIONS
JP2: LVDS Panel Brightness Control Selection
IB898 User’s Manual 9
INSTALLATIONS
JP4
Setting
Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS
JP5
Setting
Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear ME
Register
1
3 1 3
JP4: Clear CMOS Contents
JP5: Clear ME Contents
10
IB898 User’s Manual
Connectors on IB898
Connector Locations on IB898 ............................................................ 12
CN1: USB3.0 Connector ..................................................................... 13
CN3: Gigabit LAN Connector ............................................................. 13
CN3: Intel® I210IT Connector............................................................ 13
CN4: USB2.0 Connector ..................................................................... 13
CN5: DP Connector ............................................................................. 13
CN6: CRT Connector .......................................................................... 13
CN7: DB9 Connector (COM1) ............................................................ 13
J1: Audio Connector ............................................................................ 14
J3: Amplifier Connector ...................................................................... 14
J4: DDR3L SO-DIMM Sockets ........................................................... 15
J5, J6: LVDS Connectors .................................................................... 15
J5: First Channel LVDS ....................................................................... 15
J6: Second Channel LVDS .................................................................. 15
J7: LCD Backlight Connector .............................................................. 16
J8: SPI Flash Connector (factory use only).......................................... 16
J9: SATAII /share mSATA/ Connectors.............................................. 16
J12: SATAII Connectors ..................................................................... 17
J10, J11: SATA HDD Power Connectors ............................................ 17
J14: Mini PCIE Connector (share mSATA) ........................................ 18
J16: Front Panel Function Connector .................................................. 18
J17: Board Input Power Connector ..................................................... 19
J18: COM2/RS232 Serial Port ............................................................ 19
J19: Digital I/O Connector ................................................................... 20
J21: Debug 80 Port Connector (factory use only) ................................ 20
J22: USB 2.0 Connector ...................................................................... 20
INSTALLATIONS
IB898 User’s Manual 11
INSTALLATIONS
Connector Locations on IB898
12
IB898 User’s Manual
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
DCD, Data carrier detect
1 6 DSR, Data set ready
RXD, Receive data
2 7 RTS, Request to send
TXD, Transmit data
3 8 CTS, Clear to send
DTR, Data terminal ready
4 9 RI, Ring indicator
GND, ground
5
10
Not Used
Pin #
Signal Name
RS-232
R2-422
RS-485
1
DCD
TX-
DATA-
2
RX
TX+
DATA+
3
TX
RX+
NC
4
DTR
RX-
NC
5
Ground
Ground
Ground
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC 9 RI
NC
NC
10
NC
NC
NC
CN1: USB3.0 Connector
CN3: Gigabit LAN Connector
CN3: Intel® I210IT Connector
CN4: USB2.0 Connector
CN5: DP Connector
CN6: CRT Connector
CN7: DB9 Connector (COM1)
COM1 is jumper-less for RS-232, RS-422 and RS-485 and is to be
configured with BIOS Selection.
[
IB898 User’s Manual 13
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
LINEOUT_R
2 1 LINEOUT_L
Ground
4 3 JD_FRONT
LINEIN_R
6 5 LINEIN_L
Ground
8 7 JD_LINEIN
MIC-R
10 9 MIC_L
Ground
12
11
JD_MIC1
Pin #
Signal Name
1
OUTL+
2
OUTL-
3
OUTR-
4
OUTR+
1 11
2 12
1 4
1
4
J1: Audio Connector (DF11-12DP-2DSA)
J2: MCU Flash Connector (factory use only)
J3: Amplifier Connector (JST B4B-PH-K-S)
14
IB898 User’s Manual
Signal Name
Pin #
Pin #
Signal Name
TX0N
2 1 TX0P
Ground
4 3 Ground
TX1N
6 5 TX1P
Ground
8 7 Ground
TX2N
10 9 TX2P
Ground
12
11
Ground
CLKN
14
13
CLKP
Ground
16
15
Ground
TX3N
18
17
TX3P
Power(1A)
20
19
Power
20 2
19 1
2
20
1
19
J4: DDR3L SO-DIMM Sockets
INSTALLATIONS
J5, J6: LVDS Connectors (DF20G-20DP-1V)
J5: First Channel LVDS
J6: Second Channel LVDS
IB898 User’s Manual 15
INSTALLATIONS
Pin #
Signal Name
1
+12V(1A)
2
Backlight Enable
3
Brightness Control
4
Ground
4
1
2 10
1 9
J7: LCD Backlight Connector (JST B4B-PH-K-S )
J8: SPI Flash Connector (factory use only)
J9: SATAII /share mSATA/ Connectors
16
IB898 User’s Manual
Pin #
Signal Name
1
+5V(1A)
2
Ground
3
Ground
4
+12V(1A)
4
1
J12: SATAII Connectors
INSTALLATIONS
J10, J11: SATA HDD Power Connectors (JST B4B-XH-A)
** It is recommend to connect with 2.5” storage device only from J10/J11**
J13: Mini PCIE Connector (Full Size)
IB898 User’s Manual 17
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
Power BTN
1 2 Power BTN
HDD LED+
3 4 HDD LED-
Reset BTN
5 6 Reset BTN
Power LED+
7 8 Power LED-
2 8
1 7
J14: Mini PCIE Connector (share mSATA)
J15: Mini PCIE Connector (Half Size)
J16: Front Panel Function Connector (2.54mm)
18
IB898 User’s Manual
INSTALLATIONS
Pin #
Signal Name
1
VCC12
2
GND
Signal Name
Pin #
Pin #
Signal Name
DCD, Data carrier detect
1 2 RXD, Receive data
TXD, Transmit data
3 4 Data terminal ready
GND, ground
5 6 DSR, Data set ready
RTS, Request to send
7 8 CTS, Clear to send
RI, Ring indicator
9
10
Not Used
1 9
2 10
1
2
J17: Board Input Power Connector (HK_WAFER396-2S-WV)
J18: COM2/RS232 Serial Port (DF11-10DP-2DSA)
IB898 User’s Manual 19
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
GND
1 2 VCC(500mA)
OUT3
3 4 OUT1
OUT2
5 6 OUT0
IN3
7 8 IN1
IN2
9
10
IN0
Signal Name
Pin #
Pin #
Signal Name
Vcc
1 2 Ground
D0-
3 4 D1+
D0+
5 6 D1-
Ground
7 8 Vcc
8 2
7 1
2 10
1 9
2 10
1 9
J19: Digital I/O Connector (2.54mm)
J21: Debug 80 Port Connector (factory use only)
J22: USB 2.0 Connector (DF11-8DP-2DSA)
]
20
IB898 User’s Manual
BIOS Setup
This chapter describes the different settings available in the AMI BIOS
that comes with the board. The topics covered in this chapter are as
follows:
BIOS Introduction ............................................................................... 22
BIOS Setup .......................................................................................... 22
Main Settings ....................................................................................... 23
Advanced Settings ............................................................................... 24
Chipset Settings ................................................................................... 31
Security Settings .................................................................................. 32
Boot Settings........................................................................................ 33
Save & Exit Settings ............................................................................ 34
BIOS SETUP
IB898 User’s Manual 21
BIOS SETUP
Warning:
It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both AMI and your system manufacturer
to provide the absolute maximum performance and
reliability. Changing the defaults could cause the system to
become unstable and crash in some cases.
BIOS Introduction
The BIOS (Basic Input/Output System) installed in your computer
system’s ROM supports Intel processors. The BIOS provides critical
low-level support for a standard device such as disk drives, serial ports
and parallel ports. It also password protection as well as special support
for detailed fine-tuning of the chipset controlling the entire system.
BIOS Setup
The BIOS provides a Setup utility program for specifying the system
configurations and settings. The BIOS ROM of the system stores the
Setup utility. When you turn on the computer, the BIOS is immediately
activated. Pressing the <Del> key immediately allows you to enter the
Setup utility. If you are a little bit late pressing the <Del> key, POST
(Power On Self Test) will continue with its test routines, thus preventing
you from invoking the Setup. If you still wish to enter Setup, restart the
system by pressing the ”Reset” button or simultaneously pressing the
<Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the
system Off and back On again. The following message will appear on the
screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to select,
the <PgUp> and <PgDn> keys to change entries, <F1> for help and
<Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.
22
IB898 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
Choose the system default
language
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
ESC: Exit
System Date
[Tue 04/20/2015]
System Time
[13:52:06]
Main Settings
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
System Date
Set the Date. Use Tab to switch between Data elements.
System Time
Set the Time. Use Tab to switch between Data elements.
BIOS SETUP
IB898 User’s Manual 23
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Onboard LAN PXE Rom [Disabled]
► ACPI Settings
► LVDS Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
► iSmart Controller
► Super IO Configuration
► H/W Monitor
► CPU Configuration
► IDE Configuration
► USB Configuration
Main Advanced Chipset Boot Security Save & Exit
ACPI Settings
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Enable ACPI Auto Configuration
Disabled
Enable Hibernation
Enabled
ACPI Sleep State
S3 (Suspend to RAM)
Advanced Settings
This section allows you to configure and improve your system and allows
you to set up some system features according to your preference.
Onboard LAN PXE ROM
Controls the execution of UEFI and Legacy PXE OpROM.
ACPI Settings
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
Enabled ACPI Auto Configuration
Enables or Disables BIOS ACPI Auto Configuration.
Enable Hibernation
Enables or Disables System ability to Hibernate (OS/S4 Sleep State).
This option may be not effective with some OS.
ACPI Sleep State
Select ACPI sleep state the system will enter when the SUSPEND button
is pressed.
24
IB898 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
LVDS Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
LVDS Control
Panel Color Depth
LVDS Channel Type
Enabled
24 BIT
Single
Panel Type
Brightness Control
1024 x 768
Enabled
Brightness Percent
100%
PWM Clock
200Hz
Main Advanced Chipset Boot Security Save & Exit
iSMART Controller
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Power-On after Power failure
Temperature Guardian
Schedule Slot 1
Disable
Disable
None
Schedule Slot 2
None
LVDS Configuration
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
iSMART Controller
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
BIOS SETUP
Power-On after Power failure
This field sets the system power status whether Disable or Enable when
power returns to the system from a power failure situation.
Temperature Guardian
Generate the reset signal when system hangs up on POST.
Schedule Slot 1 / 2
Setup the hour/minute for system power on.
IB898 User’s Manual 25
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Super IO Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
EuP/ErP standby power control
Keep standby power
► Serial Port 1 Configuration
► Serial Port 2 Configuration
Super IO Configuration
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
Eup/Erp standby power control
EuP/ErP control on S5[Keep standby power] Enable all of the
standby power and ignore EuP/ErP specification .[Ethernet Only]
Only provide the standby power for Ethernet chip.[No standby
power] Shutdown all of the standby power.
Serial Port 1 Configuration
Set parameters of serial port 1(COMA)
Serial Port 2 Configuration
Set parameters of serial port 2(COMB)
26
IB898 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
PC Health Status
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
SYS temp
+33.0 C
CPU temp
+40.5 C
Vcore
+0.776 V
+1.35V
+1.352 V
VSB3
VCC3V
+3.376 V
+3.312 V
CPU Shutdown Temperature
Disabled
H/W Monitor
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
Temperatures/Voltages
These fields are the parameters of the hardware monitoring function
feature of the motherboard. The values are read-only values as monitored
by the system and show the PC health status
Shutdown Temperature
This field enables or disables the Shutdown Temperature
Disabled (default)
70 ℃/158 F
75 ℃/167 F
80 ℃/176 F
85 ℃/185 F
90 ℃/194 F
95 ℃/203 F
IB898 User’s Manual 27
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
CPU Configuration
►Socket 0 CPU Information
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
CPU Speed
1334 MHz
64-bit
Supported
CPU Configuration
This section shows the CPU configuration parameters.
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
Socket 0 CPU Information
Socket specific CPU Information.
28
IB898 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
IDE Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Serial-ATA (SATA)
SATA Speed Support
Enabled
Gen2
SATA Mode
AHCI Mode
Serial-ATA Port 0
Enabled
SATA Port0 HotPlug
Disabled
Serial-ATA Port 1
Enabled
SATA Port1 HotPlug
Disabled
SATA Port0
Not Present
SATA Port1
Not Present
IDE Configuration
SATA Devices Configuration.
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
Serial-ATA(SATA)
Enabled / Disabled Serial ATA
SATA Speed Support
SATA Speed Support Gen1 or Gen2
SATA Mode
Select IDE / AHCI Mode
Serial –ATA Port 0
Enabled / Disabled Serial Port 0
SATA Port0 HotPlug
Enabled / Disabled SATA Port 0 HotPlug
Serial –ATA Port 1
Enabled / Disabled Serial Port 1
SATA Port1 HotPlug
Enabled / Disabled SATA Port 1 HotPlug
IB898 User’s Manual 29
BIOS SETUP
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
USB Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
USB Module Version
8.11.03
USB Devices:
1Keyboard, 2 Hubs
Legacy USB Support
Enabled
XHCI Hand-off
Enabled
EHCI Hand-off
Enabled
USB Mass Storage Driver Support
Enabled
USB hardware delays and time-outs:
USB Transfer time-out
20 sec
Device reset time-out
20 sec
Device power-up delay
Auto
USB Configuration
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
Legacy USB Support
Enables Legacy USB support. AUTO option disables legacy support if
no USB devices are connected. DISABLE option will keep USB devices
available only for EFI applications.
XHCI Hand-off
This is a workaround for OSes without XHCI hand-off support. The
XHCI ownership change should be claimed by XHCI driver.
EHCI Hand-off
This is a workaround for OSes without EHCI hand-off support. The
EHCI ownership change should be claimed by EHCI driver.
USB Mass Storage Driver Support
Enable/Disable USB Mass Storage Driver Support.
USB Transfer time-out
The time-out value for Control, Bulk, and Interrupt transfers.
Device reset time-out
USB mass storage device start Unit command time-out.
Device power-up delay
Maximum time the device will take before it properly reports itself to the
Host Controller. ‘Auto’ uses default value: for a Root port it is 100ms, for
a Hub port the delay is taken from Hub descriptor.
30
IB898 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
► North Bridge
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Memory Information
Total Memory
4096 MB (LPDDR3)
Memory Slot0
4096 MB (LPDDR3)
Memory Slot2
Not Present
Chipset Settings
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
North Bridge
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
BIOS SETUP
IB898 User’s Manual 31
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Password Description
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
If ONLY the Administrator’s password is set, then
this only limit access to Setup and is only asked
for when entering Setup.
If ONLY the User’s password is set, then this is a
power on password and must be entered to boot
or enter Setup. In Setup the User will have
Administrator rights
The password length must be
in the following range:
Minimum length
3
Maximum length
20
Administrator Password
User Password
Security Settings
This section allows you to configure and improve your system and allows
you to set up some system features according to your preference.
Administrator Password
Set Administrator Password.
User Password
Set User Password.
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
32
IB898 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
Boot Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save & Exit
ESC: Exit
Setup Prompt Timeout
1
Bootup NumLock State
On
Quiet Boot
Disabled
Fast Boot
Disabled
Boot mode select
LEGACY
FIXED BOOT ORDER Priorities
Boot Option # 1
Hard Disk
Boot Option # 2
CD/DVD
Boot Option # 3
USB Hard Disk
Boot Option # 4
USB CD/DVD
Boot Option # 5
USB Key
Boot Option # 6
USB Floppy
Boot Option # 7
USB Lan
Boot Option # 8
Network
Boot Settings
This section allows you to configure the boot settings.
Setup Prompt Timeout
Number of seconds to wait for setup activation key.
65535(0xFFFF) means indefinite waiting.
Bootup NumLock State
Select the keyboard NumLock state.
Quiet Boot
Enables or disables Quiet Boot option.
Fast Boot
Enables or disables boot with initialization of a minimal set of devices
required to launch active boot option. Has no effect for BBS boot
options.
Boot mode select
Select boot mode LEGACY/UEFI.
IB898 User’s Manual 33
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
BIOS SETUP
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Save Changes and Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Discard Changes and Exit
Save Changes and Reset
Discard Changes and Reset
Save Options
Save Changes
Discard Changes
Restore Defaults
Save as User Defaults
Restore User Defaults
Boot Override
Save & Exit Settings
Save Changes and Exit
Exit system setup after saving the changes.
Discard Changes and Exit
Exit system setup without saving any changes.
Save Changes and Reset
Reset the system after saving the changes.
Discard Changes and Reset
Reset system setup without saving any changes.
Save Changes
Save Changes done so far to any of the setup options.
Discard Changes
Discard Changes done so far to any of the setup options.
Restore Defaults
Restore/Load Defaults values for all the setup options.
Save as User Defaults
Save the changes done so far as User Defaults.
Restore User Defaults
Restore the User Defaults to all the setup options.
34
Aptio Setup Utility – Copyright © 2013 American Megatrends, Inc.
IB898 User’s Manual
DRIVERS INSTALLATION
Drivers Installation
This section describes the installation procedures for software and
drivers. The software and drivers are included with the motherboard. If
you find the items missing, please contact the vendor where you made the
purchase. The contents of this section include the following:
Intel Chipset Software Installation Utility ........................................... 36
Intel Baytrail Graphics Driver Installation ........................................... 37
Realtek High Definition Audio Driver Installation .............................. 38
LAN Drivers Installation ..................................................................... 39
Intel Trusted Execution Engine Installation ......................................... 40
Intel® USB 3.0 Drivers ....................................................................... 41
IMPORTANT NOTE:
After installing your Windows operating system, you must install first the
Intel Chipset Software Installation Utility before proceeding with the
drivers installation.
IB898 User’s Manual 35
DRIVERS INSTALLATION
Intel Chipset Software Installation Utility
The Intel Chipset Drivers should be installed first before the software
drivers to enable Plug & Play INF support for Intel chipset components.
Follow the instructions below to complete the installation.
1. Insert the DVD that comes with the board. Click Intel and then
Intel(R) Baytrail Chipset Drivers. Click Intel(R) Chipset Software
Installation Utility.
2. When the Welcome screen to the Intel Chipset Device Software
appears, click Next to continue.
3. Click Yes to accept the software license agreement and proceed with
the installation process. Click Next to continue.
4. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect.
36
IB898 User’s Manual
DRIVERS INSTALLATION

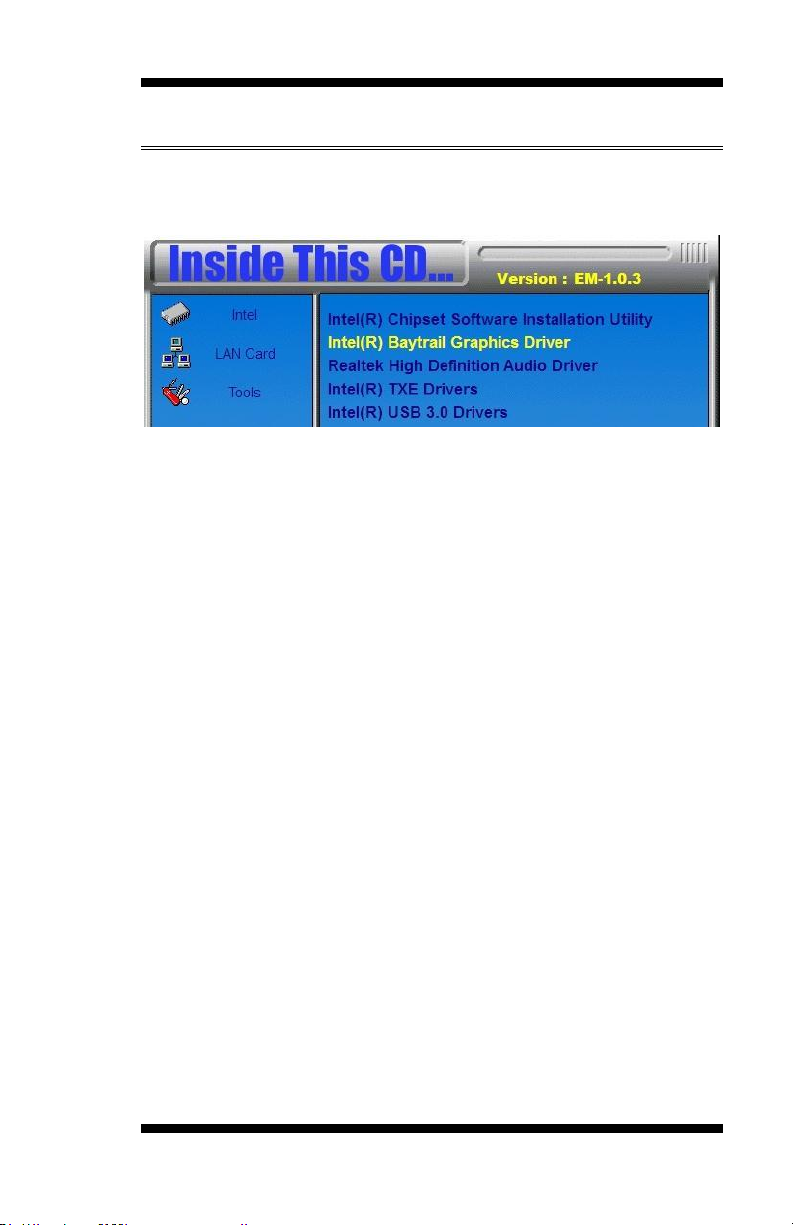

Intel Baytrail Graphics Driver Installation
1. Insert the DVD that comes with the board. Click Intel and then
Intel(R) Baytrail Chipset Drivers. Click Intel(R) Baytrail Graphics
Driver.
2. When the Welcome screen appears, click Next to continue.
3. Click Yes to accept the license agreement and continue the installation.
Click Next to continue.
4. Setup complete. Click Finish to restart the computer and for changes
to take effect.
IB898 User’s Manual 37
DRIVERS INSTALLATION
Realtek High Definition Audio Driver
Installation
Insert the DVD that comes with the board. Click Intel and then Intel(R)
Baytrail Chipset Drivers. Click Realtek High Definition Audio Driver.
2. On the Welcome screen, click Next to proceed with the installation.
3. InstallShield Wizard is complete. Click Finish to restart the computer
and for changes to take effect.
38
IB898 User’s Manual
DRIVERS INSTALLATION
LAN Drivers Installation
1. Insert the DVD that comes with the board. Click LAN Card and then
click Intel LAN Controller Drivers. Click Intel(R) I21x Gigabit
Network Drivers.
2. When the Welcome screen appears, click Next to continue.
3. Click Next to to agree with the license agreement.
4. When the Setup Options screen appears, click Next to continue.
5. The wizard is ready to begin installation. Click Install to begin the
installation.
6. When InstallShield Wizard is complete, click Finish.
IB898 User’s Manual 39
DRIVERS INSTALLATION
Intel Trusted Execution Engine Installation
Note :Windows 7 OS only
1. Insert the DVD that comes with the board. Click Intel and then
Intel(R) Baytrail Chipset Drivers. Click Intel(R) TXE Drivers.
2. On the Setup Welcome screen, click Next to proceed with the
installation process.
3. Click Next accept the license agreement and continue the installation,
click Next to continue.
4. Installation of the Intel Trusted Execution Engine is now complete.
Click Finish to restart the computer and for changes to take effect.
40
IB898 User’s Manual
Intel® USB 3.0 Drivers
1. Insert the DVD that comes with the board. Click Intel and then
Intel(R) Baytrail Chipset Drivers. Click Intel(R) USB 3.0 Drivers.
DRIVERS INSTALLATION
2. When the Welcome screen to the InstallShield Wizard for Intel® USB
3.0 eXtensible Host Controller Driver, click Next.
3. Click Yes to to agree with the license agreement and continue the
installation.
4. On the Readme File Information screen, click Next to continue the
installation of the Intel® USB 3.0 eXtensible Host Controller Driver.
5. When the Setup Progress screen appears, click Next. Setup complete.
Click Finish to restart the computer and for changes to take effect.
IB898 User’s Manual 41
APPENDIX
Address
Device Description
0000h-006Fh
PCI bus
0020h-0021h
Programmable interrupt controller
0024h-0025h
Programmable interrupt controller
0028h-0029h
Programmable interrupt controller
002Ch-002Dh
Programmable interrupt controller
0030h-0031h
Programmable interrupt controller
0034h-0035h
Programmable interrupt controller
0038h-0039h
Programmable interrupt controller
003Ch-003Dh
Programmable interrupt controller
0040h-0043h
System timer
0050h-0053h
System timer
0070h-0077h
System CMOS/real time clock
0078h-0CF7h
PCI bus
00A0h-00A1h
Programmable interrupt controller
00A4h-00A5h
Programmable interrupt controller
00A8h-00A9h
Programmable interrupt controller
00ACh-00ADh
Programmable interrupt controller
00B0h-00B1h
Programmable interrupt controller
00B4h-00B5h
Programmable interrupt controller
00B8h-00B9h
Programmable interrupt controller
00BCh-00BDh
Programmable interrupt controller
03B0h-03BBh
Intel(R) Atom(TM) Processor E3800
Series/Intel(R) Celeron(R) Processor
N2920/J1900
03C0h-03DFh
Intel(R) Atom(TM) Processor E3800
Series/Intel(R) Celeron(R) Processor
N2920/J1900
03E8h-03EFh
Nuvoton Communications Port (COM2)
03F8h-03FFh
Nuvoton Communications Port (COM1)
04D0h-04D1h
Programmable interrupt controller
0D00h-FFFFh
PCI bus
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses which also becomes the identity of the device. The following
table lists the I/O port addresses used.
42
IB898 User’s Manual
APPENDIX
Address
Device Description
D000h-DFFFh
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series PCI
Express - Root Port 1 - 0F48
E000h-E01Fh
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series
Platform Control Unit - SMBus Port - 0F12
E020h-E03Fh
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series
AHCI - 0F23
E040h-E043h
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series
AHCI - 0F23
E050h-E057h
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series
AHCI - 0F23
E060h-E063h
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series
AHCI - 0F23
E070h-E077h
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series
AHCI - 0F23
E080h-E087h
Intel(R) Atom(TM) Processor E3800
Series/Intel(R) Celeron(R) Processor
N2920/J1900
IB898 User’s Manual 43
APPENDIX
Level
Function
IRQ 0
System timer
IRQ 3
Nuvoton Communications Port (COM2)
IRQ 4
Nuvoton Communications Port (COM1)
IRQ 8
High precision event timer
IRQ 11
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series
Platform Control Unit - SMBus Port - 0F12
IRQ 16
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series PCI
Express - Root Port 1 - 0F48
IRQ 17
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series PCI
Express - Root Port 2 - 0F4A
IRQ 18
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series PCI
Express - Root Port 3 - 0F4C
IRQ 19
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series PCI
Express - Root Port 4 - 0F4E
IRQ 19
Intel(R) Pentium(R) processor N- and J-series /
Intel(R) Celeron(R) processor N- and J-series AHCI
- 0F23
IRQ 22
High Definition Audio Controller
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the
service required. The following table shows the IRQ used by the devices
on board.
44
IB898 User’s Manual
APPENDIX
C. Digital I/O Sample Code
File of the NCT5523D.H
//--------------------------------------------------------------------------// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//--------------------------------------------------------------------------#ifndef __NCT5523D_H
#define __NCT5523D_H 1
//--------------------------------------------------------------------------#define NCT5523D_INDEX_PORT (NCT5523D_BASE)
#define NCT5523D_DATA_PORT (NCT5523D_BASE+1)
//--------------------------------------------------------------------------#define NCT5523D_REG_LD 0x07
//--------------------------------------------------------------------------#define NCT5523D_UNLOCK 0x87
#define NCT5523D_LOCK 0xAA
//--------------------------------------------------------------------------unsigned int Init_NCT5523D(void);
void Set_NCT5523D_LD( unsigned char);
void Set_NCT5523D_Reg( unsigned char, unsigned char);
unsigned char Get_NCT5523D_Reg( unsigned char);
//---------------------------------------------------------------------------
#endif //__NCT5523D_H
IB898 User’s Manual 45
APPENDIX
File of the MAIN.CPP
//---------------------------------------------------------------------------
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//--------------------------------------------------------------------------#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "NCT5523D.H"
//--------------------------------------------------------------------------int main (void);
void Dio5Initial(void);
void Dio5SetOutput(unsigned char);
unsigned char Dio5GetInput(void);
void Dio5SetDirection(unsigned char);
unsigned char Dio5GetDirection(void);
//--------------------------------------------------------------------------int main (void)
{
char SIO;
SIO = Init_NCT5523D();
if (SIO == 0)
{
printf("Can not detect Nuvoton NCT5523D, program abort.\n");
return(1);
}
Dio5Initial();
//for GPIO20..27
Dio5SetDirection(0x0F); //GP20..23 = input, GP24..27=output
printf("Current DIO direction = 0x%X\n", Dio5GetDirection());
printf("Current DIO status = 0x%X\n", Dio5GetInput());
printf("Set DIO output to high\n");
Dio5SetOutput(0x0F);
printf("Set DIO output to low\n");
Dio5SetOutput(0x00);
return 0;
}
//---------------------------------------------------------------------------
46
IB898 User’s Manual
APPENDIX
void Dio5Initial(void)
{
unsigned char ucBuf;
ucBuf = Get_NCT5523D_Reg(0x1C);
ucBuf &= ~0x02;
Set_NCT5523D_Reg(0x1C, ucBuf);
Set_NCT5523D_LD(0x07); //switch to logic device 7
//enable the GP2 group
ucBuf = Get_NCT5523D_Reg(0x30);
ucBuf |= 0x04;
Set_NCT5523D_Reg(0x30, ucBuf);
}
//--------------------------------------------------------------------------void Dio5SetOutput(unsigned char NewData)
{
Set_NCT5523D_LD(0x07); //switch to logic device 7
Set_NCT5523D_Reg(0xE1, NewData);
}
//--------------------------------------------------------------------------unsigned char Dio5GetInput(void)
{
unsigned char result;
Set_NCT5523D_LD(0x07); //switch to logic device 7
result = Get_NCT5523D_Reg(0xE1);
return (result);
}
//--------------------------------------------------------------------------void Dio5SetDirection(unsigned char NewData)
{
//NewData : 1 for input, 0 for output
Set_NCT5523D_LD(0x07); //switch to logic device 7
Set_NCT5523D_Reg(0xE8, NewData);
}
//--------------------------------------------------------------------------unsigned char Dio5GetDirection(void)
{
unsigned char result;
Set_NCT5523D_LD(0x07); //switch to logic device 7
result = Get_NCT5523D_Reg(0xE8);
return (result);
}
//---------------------------------------------------------------------------
IB898 User’s Manual 47
APPENDIX
File of the NCT5523D.CPP
//--------------------------------------------------------------------------// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//--------------------------------------------------------------------------#include "NCT5523D.H"
#include <dos.h>
//--------------------------------------------------------------------------unsigned int NCT5523D_BASE;
void Unlock_NCT5523D (void);
void Lock_NCT5523D (void);
//--------------------------------------------------------------------------unsigned int Init_NCT5523D(void)
{
unsigned int result;
unsigned char ucDid;
NCT5523D_BASE = 0x4E;
result = NCT5523D_BASE;
ucDid = Get_NCT5523D_Reg(0x20);
if (ucDid == 0xC4) //NCT5523D??
{ goto Init_Finish; }
NCT5523D_BASE = 0x2E;
result = NCT5523D_BASE;
ucDid = Get_NCT5523D_Reg(0x20);
if (ucDid == 0xC4) //NCT5523D??
{ goto Init_Finish; }
NCT5523D_BASE = 0x00;
result = NCT5523D_BASE;
Init_Finish:
return (result);
}
//--------------------------------------------------------------------------void Unlock_NCT5523D (void)
{
outportb(NCT5523D_INDEX_PORT, NCT5523D_UNLOCK);
outportb(NCT5523D_INDEX_PORT, NCT5523D_UNLOCK);
}
//--------------------------------------------------------------------------void Lock_NCT5523D (void)
{
outportb(NCT5523D_INDEX_PORT, NCT5523D_LOCK);
}
//---------------------------------------------------------------------------
48
IB898 User’s Manual
APPENDIX
void Set_NCT5523D_LD( unsigned char LD)
{
Unlock_NCT5523D();
outportb(NCT5523D_INDEX_PORT, NCT5523D_REG_LD);
outportb(NCT5523D_DATA_PORT, LD);
Lock_NCT5523D();
}
//--------------------------------------------------------------------------void Set_NCT5523D_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_NCT5523D();
outportb(NCT5523D_INDEX_PORT, REG);
outportb(NCT5523D_DATA_PORT, DATA);
Lock_NCT5523D();
}
//--------------------------------------------------------------------------unsigned char Get_NCT5523D_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_NCT5523D();
outportb(NCT5523D_INDEX_PORT, REG);
Result = inportb(NCT5523D_DATA_PORT);
Lock_NCT5523D();
return Result;
}
//---------------------------------------------------------------------------
IB898 User’s Manual 49
APPENDIX
D. Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sorts of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user will
restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
File of the NCT5523D.H
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#ifndef __NCT5523D_H
#define __NCT5523D_H 1
//--------------------------------------------------------------------------#define NCT5523D_INDEX_PORT (NCT5523D_BASE)
#define NCT5523D_DATA_PORT (NCT5523D_BASE+1)
//--------------------------------------------------------------------------#define NCT5523D_REG_LD 0x07
//--------------------------------------------------------------------------#define NCT5523D_UNLOCK 0x87
#define NCT5523D_LOCK 0xAA
//--------------------------------------------------------------------------unsigned int Init_NCT5523D(void);
void Set_NCT5523D_LD( unsigned char);
void Set_NCT5523D_Reg( unsigned char, unsigned char);
unsigned char Get_NCT5523D_Reg( unsigned char);
//--------------------------------------------------------------------------#endif //__NCT5523D_H
50
IB898 User’s Manual
APPENDIX
File of the MAIN.CPP.
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "NCT5523D.H"
//--------------------------------------------------------------------------int main (void);
void WDTInitial(void);
void WDTEnable(unsigned char);
void WDTDisable(void);
//--------------------------------------------------------------------------int main (void)
{
char SIO;
SIO = Init_NCT5523D();
if (SIO == 0)
{
printf("Can not detect Nuvoton NCT5523D, program abort.\n");
return(1);
}
WDTInitial();
WDTEnable(10);
WDTDisable();
return 0;
}
//--------------------------------------------------------------------------void WDTInitial(void)
{
unsigned char bBuf;
Set_NCT5523D_LD(0x08); //switch to logic device 8
bBuf = Get_NCT5523D_Reg(0x30);
bBuf &= (~0x01);
Set_NCT5523D_Reg(0x30, bBuf); //Enable WDTO
}
//---------------------------------------------------------------------------
IB898 User’s Manual 51
APPENDIX
void WDTEnable(unsigned char NewInterval)
{
unsigned char bBuf;
Set_NCT5523D_LD(0x08); //switch to logic device 8
Set_NCT5523D_Reg(0x30, 0x01); //enable timer
bBuf = Get_NCT5523D_Reg(0xF0);
bBuf &= (~0x08);
Set_NCT5523D_Reg(0xF0, bBuf); //count mode is second
Set_NCT5523D_Reg(0xF1, NewInterval); //set timer
}
//--------------------------------------------------------------------------void WDTDisable(void)
{
Set_NCT5523D_LD(0x08); //switch to logic device 8
Set_NCT5523D_Reg(0xF1, 0x00); //clear watchdog timer
Set_NCT5523D_Reg(0x30, 0x00); //watchdog disabled
}
//---------------------------------------------------------------------------
52
IB898 User’s Manual
APPENDIX
File of the NCT5523D.CPP
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include "NCT5523D.H"
#include <dos.h>
//--------------------------------------------------------------------------unsigned int NCT5523D_BASE;
void Unlock_NCT5523D (void);
void Lock_NCT5523D (void);
//--------------------------------------------------------------------------unsigned int Init_NCT5523D(void)
{
unsigned int result;
unsigned char ucDid;
NCT5523D_BASE = 0x4E;
result = NCT5523D_BASE;
ucDid = Get_NCT5523D_Reg(0x20);
if (ucDid == 0xC4) //NCT5523D??
{ goto Init_Finish; }
NCT5523D_BASE = 0x2E;
result = NCT5523D_BASE;
ucDid = Get_NCT5523D_Reg(0x20);
if (ucDid == 0xC4) //NCT5523D??
{ goto Init_Finish; }
NCT5523D_BASE = 0x00;
result = NCT5523D_BASE;
Init_Finish:
return (result);
}
//--------------------------------------------------------------------------void Unlock_NCT5523D (void)
{
outportb(NCT5523D_INDEX_PORT, NCT5523D_UNLOCK);
outportb(NCT5523D_INDEX_PORT, NCT5523D_UNLOCK);
}
//--------------------------------------------------------------------------void Lock_NCT5523D (void)
{
outportb(NCT5523D_INDEX_PORT, NCT5523D_LOCK);
}
//---------------------------------------------------------------------------
IB898 User’s Manual 53
APPENDIX
void Set_NCT5523D_LD( unsigned char LD)
{
Unlock_NCT5523D();
outportb(NCT5523D_INDEX_PORT, NCT5523D_REG_LD);
outportb(NCT5523D_DATA_PORT, LD);
Lock_NCT5523D();
}
//--------------------------------------------------------------------------void Set_NCT5523D_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_NCT5523D();
outportb(NCT5523D_INDEX_PORT, REG);
outportb(NCT5523D_DATA_PORT, DATA);
Lock_NCT5523D();
}
//--------------------------------------------------------------------------unsigned char Get_NCT5523D_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_NCT5523D();
outportb(NCT5523D_INDEX_PORT, REG);
Result = inportb(NCT5523D_DATA_PORT);
Lock_NCT5523D();
return Result;
}
//------------------------------------------------------------------------
54
IB898 User’s Manual
Loading...
