IBASE IB827 User Manual

IB827

Intel® Atom 945GSE

PICMG 1.0 CPU CARD

USER’S MANUAL

Version 1.0

Acknowledgments

Award is a registered trademark of Award Software International, Inc. PS/2 is a trademark of International Business Machines Corporation. Intel® and Atom™ are registered trademark and trademark of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Winbond is a registered trademark of Winbond Electronics Corporation. All other product names or trademarks are properties of their respective owners.

ii

IB827 User’s Manual

This full-size single board computer provides greater flexibility for developers of embedded computing solutions. It is ideally suited for communication and compact designs as in telephone exchange and applications in automation, industrial control, data acquisition, client and other industrial PC applications.

IB827 features the Intel's Graphics Media Accelerator 950 core, making it compatible with Windows Vista Premium, and Chrontel CH7308 for 24-bit dual LVDS channel. Two DDR2 DIMM sockets on board implement up to 2GB of system memory. Dual Gigabit LAN is also available.

Advanced connectivity and expansion interfaces are provided by one IDE, two high-speed SATA-II, four serial ports, eight USB 2.0 ports and a CF socket. Dimensions of the board are 122mm x 338mm.

IB827 User’s Manual 1

INTRODUCTION

Checklist

Your IB827 package should include the items listed below.

• The IB827 CPU card

• This User’s Manual

• 1 CD containing chipset drivers and flash memory utility

• Cables include: AUDIO-18K, KBMS-3, IDE22A, SATA-2

S

A

e

R

. H

T

r

ia

A

l

2

IB827 User’s Manual

INTRODUCTION

IB827 Specifications

Product Name IB827 Form Factor CPU Type CPU Speed CPU FSB Green /APM BIOS CPU Socket Chipset

Memory

VGA

DVI LVDS

LAN USB

Serial ATA Ports Parallel IDE PCI-to-ISA bridge Audio

LPC I/O Winbond 83627EHG + Fintek 81216 (N/A for IB827E)

Digital IO Keyboard/Mouse Connector Expansion Slots

Edge Connector

On Board Header/Connector

Watchdog Timer System Voltage RoHS Board Size

Full Size CPU Card (PICMG 1.0) Intel® Atom™ Processor N270 (45nm Technology)

1.6 GHz (512K Cache, 2.5W) 533 MHz FSB APM1.2 Award BIOS, support ACPI Function PBGA437 Mobile Intel® 945GSE + ICH7M Chipset 945GSE GMCH: QG82945GSE, 27mm x 27mm, 998-pin FC-BGA (3.5W) ICH7M: NH82801GBM, 31mm x 31mm, 652-pin mBGA , (1.5W) DDR 2 533MHz DIMM x 2 (w/o ECC), Max. 2GB , Supports single channel. w/o ECC function Intel 945GSE GMCH integrated graphics device (GMA950) Supports Direct X 9.1 N/A Chrontel CH7308B x1 for 24-bit single/dual channel LVDS (N/A

for 827E)

Realtek 8111C PCI Express Gigabit LAN controller x 2 (1 port for

827E) ICH7M built-in USB 2.0 host controller, support 8 ports ICH7M built-in SATA controller, supports 2 ports ICH7M built-in one channel Ultra DMA 33/66/100, CF Type II ITE IT8888G x1 for high drive ISA bus Intel ICH7M built-in audio controller w/ Realtek ALC662 Codec supports 5.1 CH audio (Line-out, Line-in & MIC )

COM1(RS232), COM2(RS232/422/485), COM 3 & 4( support

power via pin-9) IrDAx1, Parallel x 1, Floppy Hardware monitor (3 thermal inputs, 4 voltage monitor inputs,

VID0-4 & 2 Fan Headers) 4 in & 4 out Supports PS/2 Keyboard/Mouse

Mini PCI-express socket x1 for Wireless LAN or other module (Solder side) N/A for IB827E PS/2 Connector x1 for keyboard/mouse DB15 x1 for VGA, RJ45 x2 for LAN 1, 2 (N/A for 827E) USB x1 40-pin box header for IDE, 2x DF13-20 header for LVDS, 34-pin box header for FDD, 26-pin box header for LPT, 10-pin box header x4 for COM1/COM2/COM3/COM4 Note: (There is no COM3/COM4 for IB827E) 3-pin header for CPU fan, 3-pin header for system fan, 3x 8-pin header USB1~USB6 5-pin header for IrDA SATA ports x2, CF connector x1 Yes (256 segments, 0, 1, 2…255 sec/min) +5V, +12V, -12V & 5VSB Yes 338mm x 122mm

IB827 User’s Manual 3

INTRODUCTION

[

Board Dimensions

4

IB827 User’s Manual

INTRODUCTION

IB827 User’s Manual 5

INSTALLATIONS

Installations

This section provides information on how to use the jumpers and connectors on the IB827 in order to set up a workable system. The topics covered are:

Installing the Memory ............................................................................ 7

Setting the Jumpers ................................................................................ 8

Connectors on IB827 ........................................................................... 15

6

IB827 User’s Manual

INSTALLATIONS

Installing the Memory

The IB827 board supports two DDR2 memory sockets to support up to 2GB memory, DDR2 400/533 (w/o ECC function).

Installing and Removing Memory Modules

To install the DDR2 modules, locate the memory slot on the board and perform the following steps:

1. Hold the DDR2 module so that the key of the DDR2 module aligns

with that on the memory slot. Insert the module into the socket at a slight angle. Note that the socket and module are both keyed, which means that the module can be installed only in one direction.

2. To seat the memory module into the socket, apply firm and even

pressure to each end of the module until you feel it slip down into the socket.

3. With the module properly seated in the socket, push the module

downward. Continue pressing downward until the clips at each end lock into position.

4. To remove the DDR2 module, press the clips with both hands.

IB827 User’s Manual 7

INSTALLATIONS

Setting the Jumpers

Jumpers are used on IB827 to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the jumpers on IB827 and their respective functions.

Jumper Locations on IB827 ................................................................... 9

JP1: ATX or AT Power Selection ........................................................ 10

JP3: LCD Panel Power Selection ......................................................... 10

JP10: CompactFlash Slave/Master Selection ....................................... 10

JP11: Clear CMOS Setting .................................................................. 10

JP2, JP4, JP5: RS232/422/485 (COM2) Selection .............................. 11

JP6: COM2 RS232 +5V/+12V Power Setting ..................................... 12

JP7: COM1 RS232 +5V/+12V Power Setting ..................................... 12

JP8: COM3 RS232 +5V/+12V Power Setting ..................................... 12

JP9: COM4 RS232 +5V/+12V Power Setting ..................................... 12

JP12: USB0, USB1 (CN1, J24) Power Setting .................................... 13

JP13: USB2, USB3 (J17) Power Setting ............................................. 13

JP14: USB4, USB5 (J18) Power Setting ............................................. 13

JP15: USB6, USB7 (J19) Power Setting ............................................. 13

8

IB827 User’s Manual

Jumper Locations on IB827

INSTALLATIONS

IB827 User’s Manual 9

INSTALLATIONS

JP1: ATX or AT Power Selection

JP1 ATX Power

ATX

AT

JP3: LCD Panel Power Selection

JP3 LCD Panel Power

JP10: CompactFlash Slave/Master Selection

3.3V

5V

JP10 CF Setting

Master

Slave

JP11: Clear CMOS Setting

JP11 Setting

10

Normal

Clear CMOS

IB827 User’s Manual

INSTALLATIONS

JP2, JP4, JP5: RS232/422/485 (COM2) Selection

COM1 is fixed for RS-232 use only. COM2 is selectable for RS232, RS-422 and RS-485.The following describes the settings for COM2.

COM2

Function

Jumper Setting

(pin closed)

RS-232 RS-422 RS-485

JP5:

1-2

JP2:

3-5 & 4-6

JP4:

3-5 & 4-6

JP5:

3-4

JP2:

1-3 & 2-4

JP4:

1-3 & 2-4

JP5:

5-6

JP2:

1-3 & 2-4

JP4:

1-3 & 2-4

COM2 is jumper selectable for RS-232, RS-422 and RS-485.

Pin # Signal Name

RS-232 R2-422 RS-485

1 DCD TX- DATA2 RX TX+ DATA+ 3 TX RX+ NC 4 DTR RX- NC 5 Ground Ground Ground 6 DSR NC NC 7 RTS NC NC 8 CTS NC NC 9 RI NC NC

10 NC NC NC

IB827 User’s Manual 11

INSTALLATIONS

JP6: COM2 RS232 +5V/+12V Power Setting

JP6 Setting Function

Pin 1-2

Short/Closed

+12V

Pin 3-4

Short/Closed

Pin 5-6

Short/Closed

JP7: COM1 RS232 +5V/+12V Power Setting

Normal

+5V

JP7 Setting Function

Pin 1-2

Short/Closed

+12V

Pin 3-4

Short/Closed

Pin 5-6

Short/Closed

JP8: COM3 RS232 +5V/+12V Power Setting

Normal

+5V

JP8 Setting Function

Pin 1-2

Short/Closed

+12V

Pin 3-4

Short/Closed

Pin 5-6

Short/Closed

JP9: COM4 RS232 +5V/+12V Power Setting

Normal

+5V

JP9 Setting Function

Pin 1-2

Short/Closed

+12V

Pin 3-4

Short/Closed

Pin 5-6

Short/Closed

Normal

+5V

12

IB827 User’s Manual

JP12: USB0, USB1 (CN1, J24) Power Setting

JP12 Setting Function

Pin 1-2

Short/Closed

+5VSB

INSTALLATIONS

Pin 2-3

Short/Closed

+5V

JP13: USB2, USB3 (J17) Power Setting

JP13 Setting Function

Pin 1-2

Short/Closed

Pin 2-3

Short/Closed

+5VSB

+5V

JP14: USB4, USB5 (J18) Power Setting

JP14 Setting Function

Pin 1-2

Short/Closed

Pin 2-3

Short/Closed

+5VSB

+5V

JP15: USB6, USB7 (J19) Power Setting

JP15 Setting Function

Pin 1-2

Short/Closed

+5VSB

Pin 2-3

Short/Closed

+5V

IB827 User’s Manual 13

INSTALLATIONS

This page is intentionally left blank.

14

IB827 User’s Manual

Connectors on IB827

J9: IDE Connector ............................................................................... 16

FAN1: CPU Fan Power Connector .................................................... 16

FAN2: System Fan Power Connector ................................................ 16

FDC: Floppy Drive Connector ............................................................ 17

COM1~COM4: COM1~ COM4 Serial Ports ...................................... 17

VGA: VGA Connector (D-sub, 15-pin) .............................................. 18

J2: CD-In Audio Connector ................................................................. 18

J3: Audio Connector (DF11 type) ....................................................... 18

J4: LCD Backlight Connector (DC type) ............................................ 18

J5: System Function Connector ........................................................... 19

J7, J8: LVDS Connectors (DF13 type) ................................................ 20

J6: ATX- Power Signal Connector ..................................................... 21

J10: SPI Flash Connector (factory use only) ....................................... 21

J11, J12: SATA Connectors ................................................................ 21

J13: Parallel Port Connector ................................................................ 21

J14: CF Socket ..................................................................................... 21

J16: Digital I/O .................................................................................... 21

CN1, J24: USB0/1 Ports ...................................................................... 21

J17: USB2/3 Ports ............................................................................... 21

J18: USB4/5 Ports ............................................................................... 21

J19: USB6/7 Ports ............................................................................... 22

J23: PS/2 Keyboard/Mouse Connector ................................................ 22

LAN1, LAN2: GbE RJ45 Ports ........................................................... 22

INSTALLATIONS

IB827 User’s Manual 15

INSTALLATIONS

J9: IDE Connector

Signal Name Pin # Pin # Signal Name

Reset IDE 1 2 Ground Host data 7 3 4 Host data 8 Host data 6 5 6 Host data 9 Host data 5 7 8 Host data 10 Host data 4 9 10 Host data 11 Host data 3 11 12 Host data 12 Host data 2 13 14 Host data 13 Host data 1 15 16 Host data 14 Host data 0 17 18 Host data 15

Ground 19 20 Key

DRQ0 21 22 Ground

Host IOW 23 24 Ground

Host IOR 25 26 Ground

IOCHRDY 27 28 Host ALE

DACK0 29 30 Ground

IRQ14 31 32 No connect Address 1 33 34 No connect Address 0 35 36 Address 2

Chip select 0 37 38 Chip select 1

Activity 39 40 Ground

Vcc 41 42 Vcc

Ground 43 44 N.C.

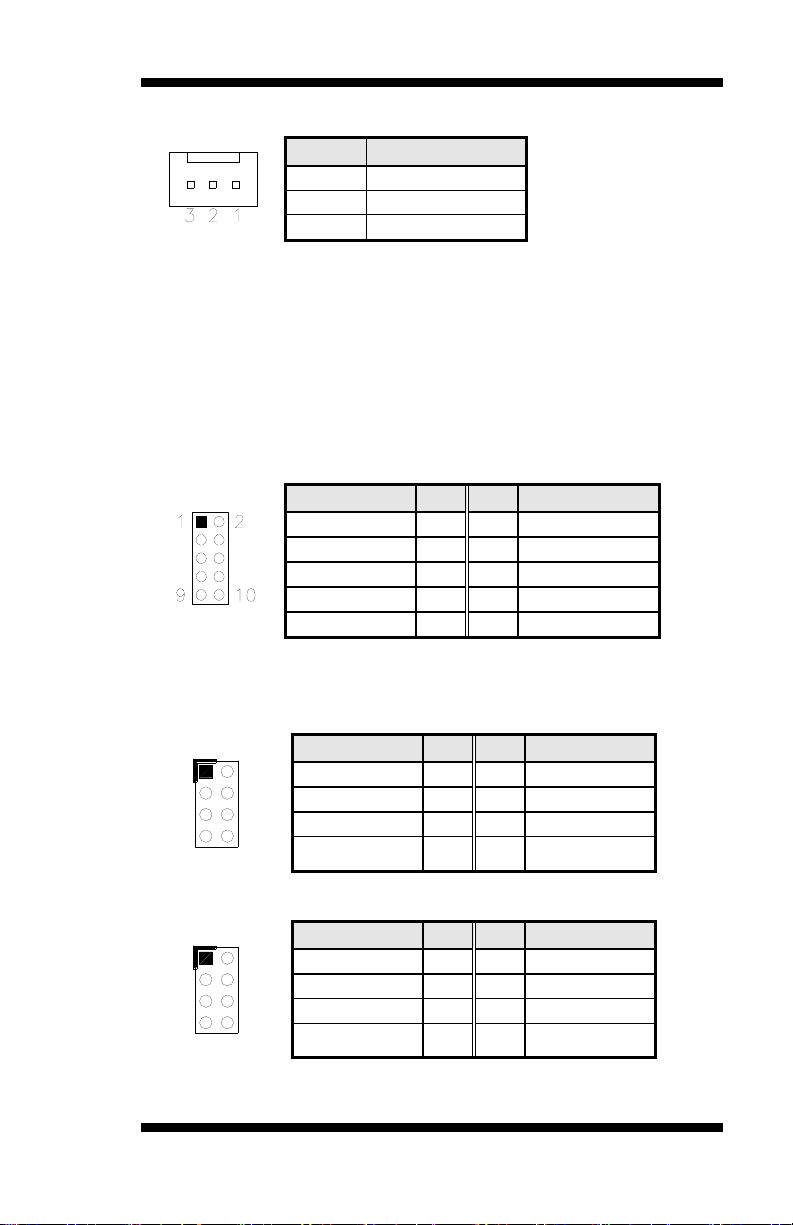

FAN1: CPU Fan Power Connector

Pin # Signal Name

1 Ground 2 +12V 3 Rotation detection

FAN2: System Fan Power Connector

Pin # Signal Name

1 Ground 2 +12V 3 Rotation detection

16

IB827 User’s Manual

FDC: Floppy Drive Connector

Signal Name Pin # Pin # Signal Name

Ground 1 2 RM/LC Ground 3 4 No connect Ground 5 6 No connect Ground 7 8 Index Ground 9 10 Motor enable 0 Ground 11 12 Drive select 1 Ground 13 14 Drive select 0 Ground 15 16 Motor enable 1 Ground 17 18 Direction Ground 19 20 Step Ground 21 22 Write data Ground 23 24 Write gate Ground 25 26 Track 00 Ground 27 28 Write protect Ground 29 30 Read data Ground 31 32 Side 1 select Ground 33 34 Diskette change

COM1~COM4: COM1~ COM4 Serial Ports

INSTALLATIONS

Signal Name Pin # Pin # Signal Name

DCD, Data carrier detect 1 6 DSR, Data set ready

RXD, Receive data 2 7 RTS, Request to send

TXD, Transmit data 3 8 CTS, Clear to send

DTR, Data terminal ready 4 9 RI, Ring indicator

GND, ground 5 10 Not Used

IB827 User’s Manual 17

INSTALLATIONS

VGA: VGA Connector (D-sub, 15-pin)

Signal Name Pin # Pin # Signal Name

Red 1 2 Green

Blue 3 4 N.C. GND 5 6 GND GND 7 8 GND VCC 9 10 GND

N.C. 11 12 DDCDATA

HSYNC 13 14 VSYNC

DDCCLK 15

J2: CD-In Audio Connector

Pin # Signal Name

1 CD Audio L 2 Ground 3 Ground 4 CD Audio R

J3: Audio Connector (DF11 type)

Signal Name Pin # Pin # Signal Name

LINEOUT R 2 1 LINEOUT L

Ground 4 3 JD FRONT

LINEIN R 6 5 LINEIN

Ground 8 7 JD LINEIN MIC-In 10 9 MIC L Ground 12 11 JD MIC1

J4: LCD Backlight Connector (DC type)

Pin # Signal Name

1 +12V 2 Backlight Enable 3 *Backlight Adj (DC type)

4 Ground

* LCD backlight can be controlled by the OS.

18

IB827 User’s Manual

INSTALLATIONS

J5: System Function Connector

J5 provides connectors for system indicators that provide light i ndication of the computer activities and switches to change the computer status.

Speaker: Pins 1 - 4

This connector provides an interface to a speaker for audio tone generation. An 8-ohm speaker is recommended.

Power LED: Pins 11 - 13

The power LED indicates the status of the main power switch.

ATX Power ON Switch: Pins 7 and 17

This 2-pin connector is an “ATX Power Supply On/Off Switch” on the system that connects to the power switch on the case. When pressed, the power switch will force the system to power on. When pressed again, it will force the system to power off.

Pin # Signal Name

1 Speaker out 2 No connect 3 Ground 4 +5V

Pin # Signal Name

11 Power LED 12 No connect 13 Ground

IB827 User’s Manual 19

INSTALLATIONS

Reset Switch: Pins 9 and 19

The reset switch allows the user to reset the system without turning the main power switch off and then on again. Orientation is not required when making a connection to this header.

Hard Disk Drive LED Connector: Pins 10 and 20

This connector connects to the hard drive activity LED on control panel. This LED will flash when the HDD is being accessed.

Pin # Signal Name

10 HDD Active 20 5V

J7, J8: LVDS Connectors (DF13 type)

Signal Name Pin # Pin # Signal Name

TX0- 2 1 TX0+

Ground 4 3 Ground

TX1- 6 5 TX1+

*5V/3.3V 8 7 Ground

TX3- 10 9 TX3+ TX2- 12 11 TX2+

Ground 14 13 Ground

TXC- 16 15 TXC+

*5V/3.3V 18 17 ENABKL

Remarks: These connectors support 24-bit. J7 is 1st channel. J8 is 2nd channel. JP3 can be used to set 3.3V or 5V.

+12V 20 19 +12V

20

IB827 User’s Manual

J6: ATX- Power Signal Connector

Pin # Signal Name

1 Ground 2 PS-ON 3 5VSB

J10: SPI Flash Connector (factory use only) J11, J12: SATA Connectors J13: Parallel Port Connector

J14: CF Socket J16: Digital I/O

Signal Name Pin Pin Signal Name

GND 1 2 VCC OUT3 3 4 OUT1 OUT2 5 6 OUT0

IN3 7 8 IN1 IN2 9 10 IN0

CN1, J24: USB0/1 Ports J17: USB2/3 Ports

Signal Name Pin Pin Signal Name

15

Vcc 1 5 Ground D3- 2 6 D2+

D3+ 3 7 D2-

Ground 4 8 Vcc

J18: USB4/5 Ports

Signal Name Pin Pin Signal Name

15

Vcc 1 5 Ground D5- 2 6 D4+

D5+ 3 7 D4-

Ground 4 8 Vcc

INSTALLATIONS

IB827 User’s Manual 21

INSTALLATIONS

J19: USB6/7 Ports

Signal Name Pin Pin Signal Name

15

Vcc 1 5 Ground

D7- 2 6 D6+

D7+ 3 7 D6-

Ground 4 8 Vcc

J23: PS/2 Keyboard/Mouse Connector

5 6

Pin # Signal Name

1 2 3 4

Keyboard data

Mouse data

Keyboard clock

Mouse clock

GND

5V

LAN1, LAN2: GbE RJ45 Ports

22

IB827 User’s Manual

BIOS SETUP

BIOS Setup

This chapter describes the different settings available in the Award BIOS that comes with the board. The topics covered in this chapter are as follows:

BIOS Introduction ............................................................................... 24

BIOS Setup .......................................................................................... 24

Standard CMOS Features .................................................................... 26

Advanced BIOS Features .................................................................... 29

Advanced Chipset Features ................................................................. 32

Integrated Peripherals .......................................................................... 35

Power Management Setup ................................................................... 39

PNP/PCI Configurations ..................................................................... 42

PC Health Status .................................................................................. 43

Frequency/Voltage Control ................................................................. 44

Load Fail-Safe Defaults ....................................................................... 45

Load Optimized Defaults ..................................................................... 45

Set Supervisor/User Password ............................................................. 45

Save & Exit Setup ............................................................................... 45

Exit Without Saving ............................................................................ 45

IB827 User’s Manual 23

BIOS SETUP

BIOS Introduction

The Award BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

BIOS Setup

The Award BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the Award BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

24

IB827 User’s Manual

BIOS SETUP

f

Standard CMOS Features Frequency/Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP/PCI Configurations Save & Exit Setup PC Health Status Exit Without Saving ESC : Quit Ç È Æ Å : Select Item F10 : Save & Exit Setup

Phoenix - AwardBIOS CMOS Setup Utility

Time, Date, Hard Disk Type…

The section below the setup items of the Main Menu displays the control keys for this menu. At the bottom of the Main Menu just below the control keys section, there is another section, which displays information on the currently highlighted item in the list.

Note:

If the system cannot boot after making and saving system changes with Setup, the Award BIOS supports an override to the CMOS settings that resets your system to its default.

Warning:

It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both Award and your system manufacturer to provide the absolute maximum performance and reliability. Changing the de

aults could cause the system

to become unstable and crash in some cases.

IB827 User’s Manual 25

BIOS SETUP

Standard CMOS Features

“Standard CMOS Features” choice allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the board is already installed in a working system, you will not need to select this option. You will need to run the Standard CMOS option, however, if you change your system hardware configurations, the onboard battery fails, or the configuration stored in the CMOS memory was lost or damaged.

Date (mm:dd:yy) Wed, Apr 28, 2004 Item Help Time (hh:mm:ss) 00 : 00 : 00 Menu Level >

IDE Channel 0 Master None Change the day, month,

IDE Channel 1 Master None IDE Channel 1 Slave None

Drive A 1.44M, 3.5in. Drive B None

Video EGA/VGA Halt On All, But Keyboard

Base Memory 640K Extended Memory 129024K Total Memory 130048K

At the bottom of the menu are the control keys for use on this menu. If you need any help in each item field, you can press the <F1> key. It will display the relevant information to help you. The memory display at the lower right-hand side of the menu is read-only. It will adjust automatically according to the memory changed. The following describes each item of this menu.

Date

The date format is:

Day : Sun to Sat Month : 1 to 12 Date : 1 to 31 Year : 1999 to 2099

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Year and century IDE Channel 0 Slave None

26

IB827 User’s Manual

BIOS SETUP

To set the date, highlight the “Date” field and use the PageUp/ PageDown or +/- keys to set the current time.

Time

The time format is:

Minute : 00 to 59 Second : 00 to 59

Hour : 00 to 23

To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn> or +/- keys to set the current time.

IDE Channel Master/Slave

The onboard PCI IDE connector provides Primary and Secondary channels for connecting up to two IDE hard disks or other IDE devices.

Press <Enter> to configure the hard disk. The selections include Auto, Manual, and None. Select ‘Manual’ to define the drive information manually. You will be asked to enter the following items.

CYLS : Number of cylinders HEAD : Number of read/write heads PRECOMP : Write precompensation LANDING ZONE : Landing zone SECTOR : Number of sectors

The Access Mode selections are as follows: CHS (HD < 528MB)

LBA (HD > 528MB and supports

Logical Block Addressing) Large (for MS-DOS only) Auto

Remarks: The main board supports two serial ATA ports and are represented in this setting as IDE Channel 0.

IB827 User’s Manual 27

BIOS SETUP

Video

This field selects the type of video di splay card instal led i n your syst em . You can choose the following video display cards: EGA/VGA For EGA, VGA, SEGA, SVGA or PGA monitor adapters. (default) CGA 40 Power up in 40 column mode. CGA 80 Power up in 80 column mode. MONO For Hercules or MDA adapters.

Halt On

This field determines whether or not the system will halt if an error is detected during power up. No errors The system boot will not be halted for any error

that may be detected.

All errors Whenever the BIOS detects a non-fatal error,

the system will stop and you will be prompted.

All, But Keyboard The system boot will not be halted for a

keyboard error; it will stop for all other errors

All, But Diskette The system boot will not be halted for a disk

error; it will stop for all other errors.

All, But Disk/Key The system boot will not be halted for a key-

board or disk error; it will stop for all others.

28

IB827 User’s Manual

BIOS SETUP

Advanced BIOS Features

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

CPU Feature Press Enter ITEM HELP Hard Disk Boot Priority Press Enter Virus Warning Disabled Menu Level > CPU L1 and L2 Cache Enabled CPU L3 Enabled Hyper-Threading Technology Enabled Quick Power On Self Test Enabled First Boot Device Hard Disk Second Boot Device CDROM Third Boot Device USB-CDROM Boot Other Device Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Disabled Boot Up NumLock Status On Gate A20 Option Fast Typematic Rate Setting Disabled Typematic Rate (Chars/Sec) 6 Typematic Delay (Msec) 250 Security Option Setup APIC Mode Enabled MPS Version Control for OS 1.4 OS Select For DRAM>64MB Non-OS2 Report No FDD For WIN 95 No Small Logo (EPA) Show Disabled

CPU Feature

Press Enter to configure the settings relevant to CPU Feature.

Hard Disk Boot Priority

With the field, there is the option to choose, aside from the hard disks connected, “Bootable add-in Cards” which refers to other external devices.

Virus Warning

If this option is enabled, an alarm message will be displayed when trying to write on the boot sector or on the partition table on the disk, which is typical of the virus.

CPU L1/L2/L3 Cache

Cache memory is additional memory that is faster than conventional DRAM (system memory). CPUs from 486-type on up contain internal cache memory, and most, but not all, modern PCs have additional (external) cache memory. When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU. These allow you to enable (speed up memory access) or disable the cache function.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced BIOS Features

IB827 User’s Manual 29

BIOS SETUP

Hyper-Threading Technology

By default, this field is enabled.

Quick Power On Self Test

When enabled, this field speeds up the Power On Self Test (POST) after the system is turned on. If it is set to Enabled, BIOS will skip some items.

First/Second/Third Boot Device

These fields determine the drive that the system searches first for an operating system. The options available include Floppy, LS120, Hard

Disk, CDROM, ZIP100, USB-FDD, USB-ZIP, USB-CDROM, LAN and Disable.

Boot Other Device

These fields allow the system to search for an OS from other devices other than the ones selected in the First/Second/Third Boot Device.

Swap Floppy Drive

This item allows you to determi ne whether or not to enable Swap Floppy Drive. When enabled, the BIOS swaps floppy drive assignments so that Drive A becomes Drive B, and Drive B becomes Drive A. By default, this field is set to Disabled.

Boot Up Floppy Seek

This feature controls whether the BIOS checks for a floppy drive while booting up. If it cannot detect one (either due to improper configuration or its absence), it will flash an error message.

Boot Up NumLock Status

This allows you to activate the NumLock function after you power up the system.

Gate A20 Option

This field allows you to select how Gate A20 is worked. Gate A20 is a device used to address memory above 1 MB.

Typematic Rate Setting

When disabled, continually holding dow n a key on your keyboard will generate only one instance. When enabled, you can set the two typematic controls listed next. By default, this field is set to Disabled.

30

IB827 User’s Manual

BIOS SETUP

Typematic Rate (Chars/Sec)

When the typematic rate is enabled, the system registers repeated keystrokes speeds. Settings are from 6 to 30 characters per second.

Typematic Delay (Msec)

When the typematic rate is enabled, this item allows you to set the time interval for displaying the first and second characters. By default, this item is set to 250msec.

Security Option

This field allows you to limit access to the System and Setup. The default value is Setup. When you select System, the system prompts for the User Password every time you boot up. When you select Setup, the system always boots up and prompts for the Supervisor Password only when the Setup utility is called up.

APIC Mode

APIC stands for Advanced Programmable Interrupt Controller. The default setting is Enabled.

MPS Version Control for OS

This option is specifies the MPS (Multiprocessor Specification) version for your operating system. MPS version 1.4 added extended configuration tables to improve support for multiple PCI bus configurations and improve future expand ability. The default setting is

1.4.

OS Select for DRAM > 64MB

This option allows the system to access greater than 64MB of DRAM memory when used with OS/2 that depends on certain BIOS calls to access memory. The default setting is Non-OS/2.

Report No FDD For WIN 95

If you are using Windows 95/98 without a floppy disk drive, select Enabled to release IRQ6. This is required to pass Windows 95/98' s SCT test. You should also disable the Onboard FDC Controller in the Integrated Peripherals screen when there's no floppy drive i n the system. If you set this feature to Disabled, the BIOS will not report the missing floppy drive to Win95/98.

Small Logo (EPA) Show

The EPA logo appears at the right side of the monitor screen when the system is boot up.

IB827 User’s Manual 31

BIOS SETUP

Advanced Chipset Features

This Setup menu controls the configuration of the chipset.

DRAM Timing Selectable By SPD ITEM HELP CAS Latency Time Auto Menu Level > DRAM RAS# to CAS# Delay Auto DRAM RAS# Precharge Auto Precharge delay (tRAS) Auto System Memory Frequency Auto SLP_S4# Assertion Width 4 to 5 Sec System BIOS Cacheable Enabled Video BIOS Cacheable Disabled Memory Hole at 15M-16M Disabled PCI Express Root Port Func Press Enter

** VGA Setting ** On-Chip Frame Buffer Size 8MB DVMT Mode DVMT DVMT/FIXED memory Size 128MB SDVO Device Setting None SDVO LVDS Protocol 1 Ch SPGW 18 bit SDVO Panel Number 1024x768 Boot Display CRT Panel Scaling Auto

DRAM Timing Selectable

This option refers to the method by which the DRAM timi ng is selected. The default is By SPD.

CAS Latency Time

You can configure CAS latency time in HCLKs as 2 or 2.5 or 3. The system board designer should set the values in this field, depending on the DRAM installed. Do not change the values in this field unless you change specifications of the installed DRAM or the installed CPU.

DRAM RAS# to CAS# Delay

This option allows you to insert a delay between the RAS (Row Address Strobe) and CAS (Column Address Strobe) signals. This delay occurs when the SDRAM is written to, read from or refreshed. Reducing the delay improves the performance of the SDRAM.

DRAM RAS# Precharge

This option sets the number of cycles required for the RAS to accumulate its charge before the SDRAM refreshes. The default setting for the Active to Precharge Delay is Auto.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features

32

IB827 User’s Manual

BIOS SETUP

Precharge Delay (tRAS)

The default setting for the Precharge Delay is Auto.

System Memory Frequency

The default setting is Auto.

SLP_S4# Assertion Width

The default setting is 4 to 5 Sec.

System BIOS Cacheable

The setting of Enabled allows caching of the system BIOS ROM at F000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.

Video BIOS Cacheable

The Setting Enabled allows caching of the video BIOS ROM at C0000h-F7FFFh, resulting in better video performance. However, if any program writes to this memory area, a system error may result.

Memory Hole At 15M-16M

In order to improve performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space below 16 MB. The choices are Enabled and Disabled.

On-Chip VGA Setting

The fields under the On-Chip VGA Setting and their default settings are:

On-Chip Frame Buffer Size: 8MB DVMT Mode: DVMT DVMT/Fixed Memory Size: 128MB SDVO Device Setting: None SDVO LCDS Protocol: 1 Ch SPGW 18 bit SDVO Panel Number: 1024x768 Boot Display: CRT Panel Scaling: Auto

The options under the SDVO LCDS Protocol field include:

1 Ch SPGW 18 bit 2 Ch SPGW 18 bit 1 Ch OpenLDI 18 bit 2 Ch OpenLDI 18 bit 1 Ch SPGW 24 bit 2 Ch SPGW 24 bit 1 Ch OpenLDI 24 bit 2 Ch OpenLDI 24 bit

IB827 User’s Manual 33

BIOS SETUP

SDVO Panel Number

This field allows you to select the SDVO Panel type. The default values for these ports are:

640x480 852x480 800x600 1024x768 1280x1024 1280x800 1366x768 1400x1050 1440x900 1600x1200 1920x1080 1920x1200

34

IB827 User’s Manual

Integrated Peripherals

This section sets configurations for your hard disk and other integrated peripherals. The first screen shows three main items for user to select. Once an item selected, a submenu appears. Details follow.

BIOS SETUP

OnChip IDE Device Onboard Device SuperIO Device 2nd SuperIO Device

IDE HDD Block Mode IDE DMA Transfer Access On-chip Primary PCI IDE IDE Primary Master PIO IDE Primary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA On-Chip Secondary PCI IDE IDE Secondary Master PIO IDE Secondary Slave PIO IDE Secondary Master UDMA IDE Secondary Slave UDMA

*** On-Chip Serial ATA Setting *** SATA Mode IDE On-Chip Serial ATA Auto SATA PORT Speed Settings Disabled PATA IDE Mode Secondary SATA port P0, P2 is Primary

USB Controller USB 2.0 Controller USB Keyboard Support Azalia/AC97 Audio Select Auto

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals Press Enter ITEM HELP

Press Enter Menu Level > Press Enter Press Enter

Phoenix - AwardBIOS CMOS Setup Utility

OnChip IDE Device

Enabled ITEM HELP Enabled Menu Level > Enabled Auto Auto Auto Auto Enabled Auto Auto Auto Auto

Phoenix - AwardBIOS CMOS Setup Utility

Onboard Device

Enabled ITEM HELP Enabled Menu Level > Disabled

IB827 User’s Manual 35

BIOS SETUP

POWER ON Function BUT TON ONLY

KB Power ON Password Enter Hot Key power ON Ctrl-F1 Onboard FDC Controller Enabled Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3 UART Mode Select Normal RxD , TxD Active Hi, Lo IR Transmission Delay Enabled UR2 Duplex Mode Use IR Pins Onboard Parallel Port Parallel Port Mode EPP Mode Select ECP Mode Use DMA PWRON After PWR-Fail

Onboard Serial Port 3 Serial Port 3 Use IRQ Onboard Serial Port 4 Serial Port 4 Use IRQ

Phoenix - AwardBIOS CMOS Setup Utility

SuperIO Device

Half IR-Rx2Tx2 378/IRQ7 SPP EPP1.7 3 Off

2nd Super IO Device

2A0h ITEM HELP IRQ11 Menu Level > 2A8h IRQ10

ITEM HELP

Menu Level >

IDE HDD Block Mode

This field allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive.

IDE DMA Transfer Access

By default, this field is enabled.

OnChip Primary/Secondary PCI IDE

The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately.

IDE Primary/Secondary Master/Slave PIO

These fields allow your system hard disk controller to work faster. Rather than have the BIOS issue a series of commands that transfer to or from the disk drive, PIO (Programmed Input /Output) allows the BIOS to communicate with the controller and CPU directly.

The system supports five modes, numbered from 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode.

36

IB827 User’s Manual

BIOS SETUP

IDE Primary/Secondary Master/Slave UDMA

These fields allow your system to improve disk I/O throughput to 33Mb/sec with the Ultra DMA/33 feature. The options are Auto and Disabled.

On-Chip Serial ATA Setting

The fields under the SATA setting include:

SATA Mode: IDE; (other setting is AHCI) SATA PORT Speed Settings: Disabled On-Chip Serial ATA: Auto PATA IDE Mode: Secondary SATA port: P0, P2 is Primary

USB Controller

The options for this field are Enabled and Disabled. By default, this field is set to Enabled.

USB 2.0 Controller

The options for this field are Enabled and Disabled. By default, this field is set to Enabled. In order to use USB 2.0, necessary OS drivers must be installed first.

USB Keyboard Support

The options for this field are Enabled and Disabled.

Azalia/AC97 Audio Select

This field, by default, is set to Auto.

Power ON Function

This field is related to how the system is powered on – such as with th e use of conventional power button, keyboard or hot keys. The default is BUTTON ONLY.

KB Power ON Password

This field allows users to set the password when keyboard power on is the mode of the Power ON function.

Hot Key Power ON

This field sets certain keys, also known as hot keys, on the keyboard that can be used as a ‘switch’ to power on the system.

IB827 User’s Manual 37

BIOS SETUP

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on the motherboard and you wish to use it. If you install an add-in FDC or the system has no floppy drive, select Disabled in this field. This option allows you to select the onboard FDD port.

Onboard Serial/Parallel Port

These fields allow you to select the onboard serial and parallel ports and their addresses. The default values for these ports are: Serial Port 1 3F8/IRQ4 Serial Port 2 2F8/IRQ3 Serial Port 3 2A0/IRQ11 Serial Port 4 2A8/IRQ10 Parallel Port 378H/IRQ7

UART Mode Select

This field determines the UART 2 mode in your computer. The default value is Normal. Other options include IrDA and ASKIR.

Parallel Port Mode

This field allows you to determine parallel port mode function. SPP Standard Printer Port EPP Enhanced Parallel Port ECP Extended Capabilities Port ECP+EPP Combination of ECP and EPP capabilities

Normal Normal function

PWRON After PWR-Fail

This field sets the system power status whether on or off when power returns to the system from a power failure situation.

38

IB827 User’s Manual

BIOS SETUP

Power Management Setup

Power-Supply Type ACPI Function ACPI Suspend RUN VGABIOS if S3 Resume Power Management Video Off Method Video Off In Suspend Suspend Type Modem Use IRQ HDD Power Down

Soft-Off by PWR-BTTN CPU THRM-Throttling Wake-Up by PCI Card Power On by Ring Resume by Alarm

Date (of Month) Alarm 0 Time (hh:mm:ss) Alarm 0 : 0 : 0

** Reload Global Timer Events ** Primary IDE 0 Primary IDE 1 Secondary IDE 0 Secondary IDE 1 FDD, COM, LPT Port PCI PIRQ[A-D] #

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

ATX ITEM HELP Enabled Menu Level > S1(POS) Auto User Define V/H SYNC+Blank Yes Stop Grant 3 Disabled

Instant-Off 50% Disabled Disabled Disabled

Enabled Enabled Enabled Enabled Enabled Enabled

Power Supply Type

The default setting is ATX. The other setting is AT mode.

ACPI Function

Enable this function to support ACPI (Advance Configuration and Power Interface).

ACPI Suspend

The default setting of the ACPI Suspend mode is S1(POS).

RUN VGABIOS if S3 Resume

The default setting of this field is Auto.

IB827 User’s Manual 39

BIOS SETUP

Power Management

This field allows you to select the type of power saving management modes. There are four selections for Power Management.

Min. Power Saving Minimum power management Max. Power Saving Maximum power management. User Define Each of the ranges is from 1 min. to

1hr. Except for HDD Power Down which ranges from 1 min. to 15 min.

Video Off Method

This field defines the Video Off features. There are three options.

V/H SYNC + Blank Default setting, blank the screen and turn

off vertical and horizontal scanning. DPMS Allows BIOS to control the video display. Blank Screen Writes blanks to the video buffer.

Video Off In Suspend

When enabled, the video is off in suspend mode. The default setting is Yes.

Suspend Type

The default setting for the Suspend Type field is Stop Grant.

Modem Use IRQ

This field sets the IRQ used by the Modem. By default, the setting is 3.

HDD Power Down

When enabled, and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.

Soft-Off by PWRBTN

This field defines the power-off mode when using an ATX power supply. The Instant Off mode allows powering off immediately upon pressing the power button. In the Delay 4 Sec mode, the system powers off when the power button is pressed for more than four seconds or enters the suspend mode when pressed for less than 4 seconds.

40

IB827 User’s Manual

BIOS SETUP

CPU THRM-Throttling

By default, this field is set to 50%.

Wake up by PCI Card

By default, this field is disabled.

Power On by Ring

This field enables or disables the power on of the system through the modem connected to the serial port or LAN.

Resume by Alarm

This field enables or disables the resumption of the system operation. When enabled, the user is allowed to set the Date and Time.

Reload Global Timer Events

The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can prevent the system from entering a power saving mode or can awaken the system from such a mode. When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.

IB827 User’s Manual 41

BIOS SETUP

PNP/PCI Configurations

This option configures the PCI bus system. All PCI bus systems on the system use INT#, thus all installed PCI cards must be set to this value.

PNP OS Installed Init Display First Reset Configuration Data

Resources Controlled By IRQ Resources DMA Resource

PCI/VGA Palette Snoop

**PCI Express relative items** Maximum Payload Size

PNP OS Install

Enable the PNP OS Install option if it is supported by the operating system installed. The default value is No.

Init Display First

The default setting is PCI Card.

Reset Configuration Data

This field allows you to determine whether to reset the con figuration data or not. The default value is Disabled.

Resources Controlled by

This PnP BIOS can configure all of the boot and compatible devices with the use of a PnP operating system such as Windows 95.

PCI/VGA Palette Snoop

Some non-standard VGA display cards may not show colors properly. This field allows you to set whether or not MPEG ISA/VESA VGA cards can work with PCI/VGA. When this field is enabled, a PCI/VGA can work with an MPEG ISA/VESA VGA card. When this field is disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.

Maximum Payload Size

The default setting of the PCI Express Maximum Payload Size is 128.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations

No ITEM HELP PCI Slot Menu Level Disabled Select Yes if you are Auto (ESCD) using a Plug and Play Press Enter Press Ente

Disabled

128

capable operating system Select No if you need the BIOS to configure non-boot devices

42

IB827 User’s Manual

BIOS SETUP

PC Health Status

This section shows the parameters in determining the PC Health Status. These parameters include temperatures, fan speeds and voltages.

Shutdown Temperature Disabled CPU Warning Temperature Disabled Current System Temp 36°C/96°F Current CPU Temp 40°C/104°F System Fan Speed 0 RPM CPU Fan Speed 0 RPM Vcore(V) 0.90 V

+12 V 12.50 V +1.8V 1.88V +5 V 5.07 V

-12 V -12.20V +3.3V 3.37V

VBAT (V) 3.21 V

3.3VSB(V) 3.34 V

LCD Back Light Control 0

Shutdown Temperature

This field allows the user to set the temperature by which the system automatically shuts down once the threshold temperature is reached. This function can help prevent damage to the system that is caused by overheating.

CPU Warning Temperature

This field allows the user to set the temperature so that when the temperature is reached, the system sounds a warning. This function can help prevent damage to the system that is caused by overheating.

Temperatures/Voltages

These fields are the parameters of the hardware monitoring function feature of the board. The values are read-only values as monitored by the system and show the PC health status.

LCD Back Light Control

The default setting of the LCD Back Light Control is 0.

Phoenix - AwardBIOS CMOS Setup Utility

PC Health Status

Menu Level >

ITEM HELP

IB827 User’s Manual 43

BIOS SETUP

Frequency/Voltage Control

This section shows the user how to configure the processor frequency.

Auto Detect PCI Clk Spread Spectrum

Auto Detect PCI Clk

This field enables or disables the auto detection of the PCI clock.

Spread Spectrum Modulated

This field sets the value of the spread spectrum. The default setting is Disabled. This field is for CE testing use only

Phoenix - AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

Disabled ITEM HELP Disabled Menu Level >

.

44

IB827 User’s Manual

BIOS SETUP

Load Fail-Safe Defaults

This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high-performance features.

Load Optimized Defaults

This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features.

Set Supervisor Password

These two options set the system password. Supervisor Password sets a password that will be used to protect the system and Setup utility. User Password sets a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, up to eight characters in length, and press <Enter>. The system confirms your password by asking you to type it again. After setting a password, the screen automatically returns to the main screen.

To disable a password, just press the <Enter> key when you are prompted to enter the password. A message will confirm the password to be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

Save & Exit Setup

This option allows you to determine whether or not to accept the modifications. If you type “Y”, you will quit the setup utility and save all changes into the CMOS memory. If you type “N”, you will return to Setup utility.

Exit Without Saving

Select this option to exit the Setup utility without saving the changes you have made in this session. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility.

IB827 User’s Manual 45

BIOS SETUP

This page is intentionally left blank.

46

IB827 User’s Manual

DRIVERS INSTALLATION

Drivers Installation

This section describes the installation procedures for software and drivers under the Windows 2000, Windows XP and Windows Vista. The software and drivers are included with the board. If you find the items missing, please contact the vendor where you made the purchase. The contents of this section include the following:

Intel Chipset Software Intallation Utility ............................................ 48

VGA Drivers Installation .................................................................... 49

Realtek High Definition Audio Driver Installation ............................. 50

LAN Drivers Installation ..................................................................... 51

IMPORTANT NOTE:

After installing your Windows operating system (Windows 2000/XP/Vista), you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation.

IB827 User’s Manual 47

DRIVER INSTALLATION

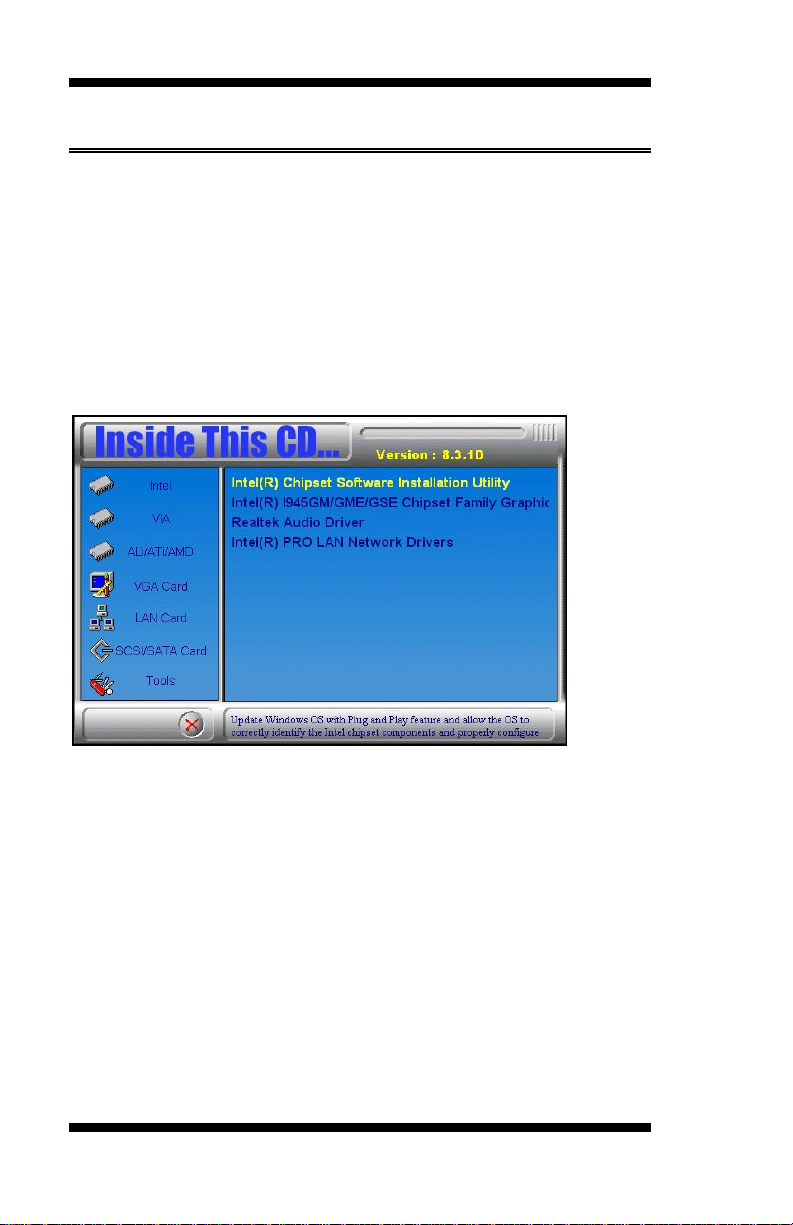

Intel Chipset Software Installation Utility

The Intel Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset component s. Follow the instructions below to complete the installation under Windows 2000, Windows XP and Windows Vista. (Before installing this utility, please update your system to Windows 2000 SP4 or Windows XP SP2)

1. Insert the CD that comes with the board. Click Intel at the left side, then Intel(R) I945GM/GME/GSE Chipset Drivers.

2. Click Intel(R) Chipset Software Installation Utility.

3. When the welcome screen to the Intel(R) Chipset Software Installation Utility appears, click Next to continue.

4. Click Yes to accept the software license agreement and proceed with the installation process.

5. On Readme Information screen, click Next to continue the installation.

6. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect.

48

IB827 User’s Manual

DRIVERS INSTALLATION

VGA Drivers Installation

To install the VGA drivers, follow the steps below to proceed with the installation.

1. Insert the CD that comes with the board. Click Intel at the left side, then Intel(R) I945GM/GME/GSE Chipset Drivers.

2. Click Intel(R) I945GM/GME/GSE Chi pset Family Graphics Driver.

3. When the welcome screen of the Intel(R) Graphics Media Accelerator Driver appears, click Next to continue.

4. Click Yes to to agree with the license agreement and continue the installation.

5. Click Next in the Readme File Information window.

6. Click Next in the Setup Progress window.

7. Setup is now complete. Click Finish to restart the computer and for

changes to take effect.

IB827 User’s Manual 49

DRIVER INSTALLATION

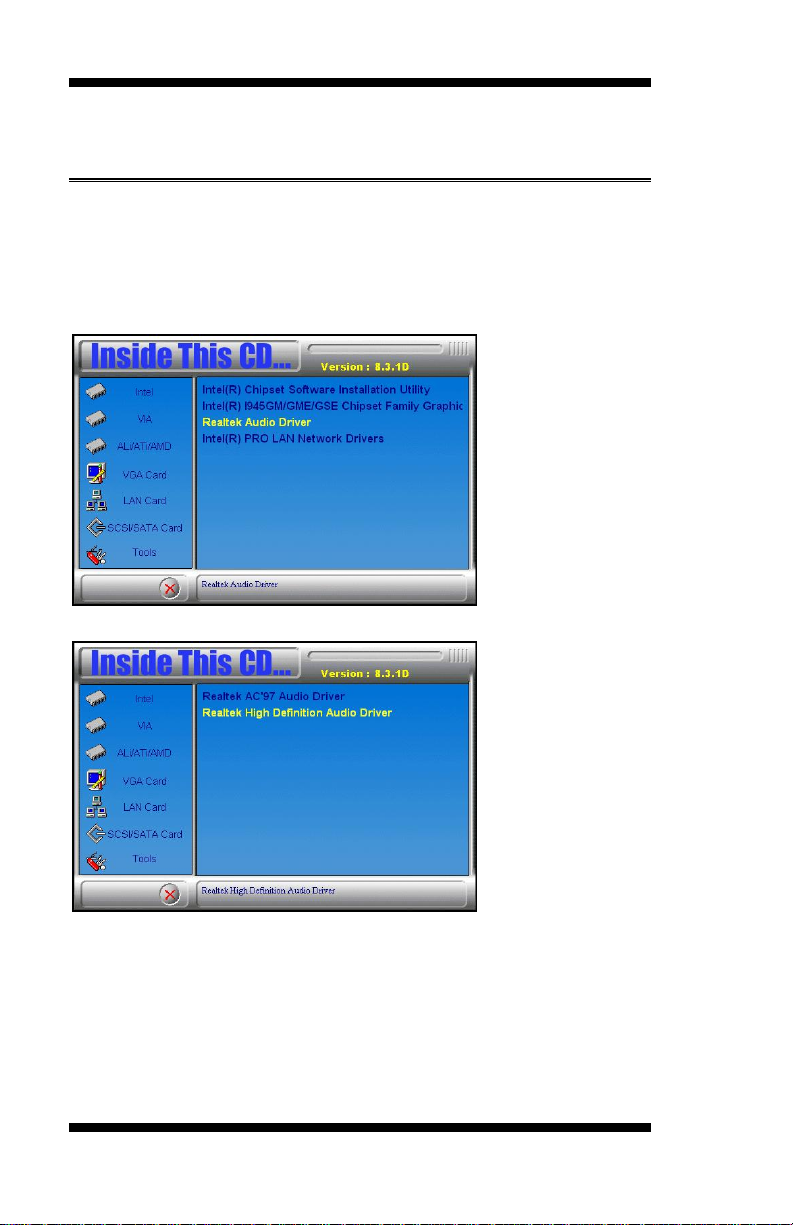

Realtek High Definition Audio Driver Installation

Follow the steps below to install the Realtek High Definition Audio Drivers.

1. Insert the CD that comes with the board. Click Intel at the left side, then Intel(R) I945GM/GME/GSE Chipset Drivers, and then Realtek Audio Driver.

2. Click Realtek High Definition Audio Driver.

3. When the welcome screen to the InstallShield Wizard for Realtek High Definition Audio Driver appears, click Next to start the installation.

4. When the InstallShieldWizard has finished performing maintenance operations on Realtek High Definition Audio Driver, click Finish to restart the computer.

50

IB827 User’s Manual

DRIVERS INSTALLATION

LAN Drivers Installation

Follow the steps below to install Realtek 8111C LAN drivers.

1. Insert the CD that comes with the board. Click LAN Card at the left side and then Realtek GbE_FE Ethernet PCI-E NIC Driver.

2. In the welcome screen of the InstallShield Wizard for REALTEK GbE & FE Ethernet PCI-E NIC Driver, click Next.

3. In the InstallShield Wizard screen, click Install to begin the installation.

4. InstallShield Wizard completed. Click Finish to exit the Wizard.

IB827 User’s Manual 51

APPENDIX

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The fo llowing table lists the I/O port addresses used.

Address Device Description

000h - 01Fh DMA Controller #1 020h - 03Fh Interrupt Controller #1 040h - 05Fh Timer 060h - 06Fh Keyboard Controller 070h - 07Fh Real Time Clock, NMI 080h - 09Fh DMA Page Register 0A0h - 0BFh Interrupt Controller #2 0C0h - 0DFh DMA Controller #2 0F0h Clear Math Coprocessor Busy Signal 0F1h Reset Math Coprocessor 1F0h - 1F7h IDE Interface 278 - 27F Parallel Port #2(LPT2) 2F8h - 2FFh Serial Port #2(COM2) 2B0 - 2DF Graphics adapter Controller 378h - 3FFh Parallel Port #1(LPT1) 360 - 36F Network Ports 3B0 - 3BF Monochrome & Printer adapter 3C0 - 3CF EGA adapter 3D0 - 3DF CGA adapter 3F0h - 3F7h Floppy Disk Controller 3F8h - 3FFh Serial Port #1(COM1)

52

IB827 User’s Manual

APPENDIX

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

Level Function

IRQ0 System Timer Output IRQ1 Keyboard IRQ2 Interrupt Cascade IRQ3 Serial Port #2 IRQ4 Serial Port #1 IRQ5 Reserved IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 Reserved IRQ10 Reserved IRQ11 Reserved IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE

IB827 User’s Manual 53

APPENDIX

C. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE:

//=========================================================================== // // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //=========================================================================== #include <stdio.h> #include <stdlib.h> #include "W627EHF.H" //=========================================================================== int main (int argc, char *argv[]); void copyright(void); void EnableWDT(int); void DisableWDT(void); //=========================================================================== int main (int argc, char *argv[]) { unsigned char bBuf; unsigned char bTime; char **endptr;

copyright();

if (argc != 2) { printf(" Parameter incorrect!!\n"); return 1; }

if (Init_W627EHF() == 0) { printf(" Winbond 83627HF is not detected, program abort.\n"); return 1; } bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds\n", bTime);

EnableWDT(bTime);

return 0; } //===========================================================================

54

IB827 User’s Manual

APPENDIX

void copyright(void) { printf("\n======== Winbond 83627EHF Watch Timer Tester (AUTO DETECT) ========\n"\ " Usage : W627E_WD reset_time\n"\ " Ex : W627E_WD 3 => reset system after 3 second\n"\ " W627E_WD 0 => disable watch dog timer\n"); } //=========================================================================== void EnableWDT(int interval) { unsigned char bBuf;

bBuf = Get_W627EHF_Reg( 0x2D); bBuf &= (!0x01); Set_W627EHF_Reg( 0x2D, bBuf); //Enable WDTO

Set_W627EHF_LD( 0x08); //switch to logic device 8 Set_W627EHF_Reg( 0x30, 0x01); //enable timer

bBuf = Get_W627EHF_Reg( 0xF5); bBuf &= (!0x08); Set_W627EHF_Reg( 0xF5, bBuf); //count mode is second

Set_W627EHF_Reg( 0xF6, interval); //set timer } //=========================================================================== void DisableWDT(void) { Set_W627EHF_LD(0x08); //switch to logic device 8 Set_W627EHF_Reg(0xF6, 0x00); //clear watchdog timer Set_W627EHF_Reg(0x30, 0x00); //watchdog disabled } //===========================================================================

IB827 User’s Manual 55

APPENDIX

//=========================================================================== // // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //=========================================================================== #include "W627EHF.H" #include <dos.h> //=========================================================================== unsigned int W627EHF_BASE; void Unlock_W627EHF (void); void Lock_W627EHF (void); //=========================================================================== unsigned int Init_W627EHF(void) { unsigned int result; unsigned char ucDid;

W627EHF_BASE = 0x2E; result = W627EHF_BASE;

ucDid = Get_W627EHF_Reg(0x20); if (ucDid == 0x88) { goto Init_Finish; }

W627EHF_BASE = 0x4E; result = W627EHF_BASE; ucDid = Get_W627EHF_Reg(0x20); if (ucDid == 0x88) { goto Init_Finish; }

W627EHF_BASE = 0x00; result = W627EHF_BASE;

Init_Finish: return (result); } //=========================================================================== void Unlock_W627EHF (void) { outportb(W627EHF_INDEX_PORT, W627EHF_UNLOCK); outportb(W627EHF_INDEX_PORT, W627EHF_UNLOCK); } //=========================================================================== void Lock_W627EHF (void) { outportb(W627EHF_INDEX_PORT, W627EHF_LOCK); } //=========================================================================== void Set_W627EHF_LD( unsigned char LD) { Unlock_W627EHF(); outportb(W627EHF_INDEX_PORT, W627EHF_REG_LD); outportb(W627EHF_DATA_PORT, LD); Lock_W627EHF(); }

56

IB827 User’s Manual

APPENDIX

//=========================================================================== void Set_W627EHF_Reg( unsigned char REG, unsigned char DATA) { Unlock_W627EHF(); outportb(W627EHF_INDEX_PORT, REG); outportb(W627EHF_DATA_PORT, DATA); Lock_W627EHF(); } //=========================================================================== unsigned char Get_W627EHF_Reg(unsigned char REG) { unsigned char Result; Unlock_W627EHF(); outportb(W627EHF_INDEX_PORT, REG); Result = inportb(W627EHF_DATA_PORT); Lock_W627EHF(); return Result; } //===========================================================================

//=========================================================================== // // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //=========================================================================== #ifndef __W627EHF_H #define __W627EHF_H 1 //=========================================================================== #define W627EHF_INDEX_PORT (W627EHF_BASE) #define W627EHF_DATA_PORT (W627EHF_BASE+1) //=========================================================================== #define W627EHF_REG_LD 0x07 //=========================================================================== #define W627EHF_UNLOCK 0x87 #define W627EHF_LOCK 0xAA //=========================================================================== unsigned int Init_W627EHF(void); void Set_W627EHF_LD( unsigned char); void Set_W627EHF_Reg( unsigned char, unsigned char); unsigned char Get_W627EHF_Reg( unsigned char); //===========================================================================

#endif //__W627EHF_H

IB827 User’s Manual 57

APPENDIX

D. Digital I/O Sample Code

Filename: W627hf.h //===================================================================== // // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //===================================================================== #ifndef __W627HF_H #define __W627HF_H 1 //======================================================================= #define W627HF_INDEX_PORT (W627HF_BASE) #define W627HF_DATA_PORT (W627HF_BASE+1) //======================================================================= #define W627HF_REG_LD 0x07 //======================================================================= #define W627HF_UNLOCK 0x87 #define W627HF_LOCK 0xAA //======================================================================= unsigned int Init_W627HF(void); void Set_W627HF_LD( unsigned char); void Set_W627HF_Reg( unsigned char, unsigned char); unsigned char Get_W627HF_Reg( unsigned char); //======================================================================= #endif //__W627HF_H

58

IB827 User’s Manual

APPENDIX

Filename: W627hf.cpp //===================================================================== // // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //===================================================================== unsigned int W627HF_BASE; void Unlock_W627HF (void); void Lock_W627HF (void); //======================================================================= unsigned int Init_W627HF(void) { unsigned int result; //0=NA, 1=627HF, 2=627THF, 4=627EHF

// W627HF_BASE = 0x2E; W627HF_BASE = 0x4E; result = Get_W627HF_Reg(0x20); if (result == 0x52) { result = 1; goto Init_Finish; } else if (result == 0x82) { result = 2; goto Init_Finish; } else if (result == 0x88) { result = 4; goto Init_Finish; }

// W627HF_BASE = 0x4E; W627HF_BASE = 0x2E;

result = Get_W627HF_Reg(0x20); if (result == 0x52) { result = 1; goto Init_Finish; } else if (result == 0x82) { result = 2; goto Init_Finish; } else if (result == 0x88) { result = 4; goto Init_Finish; }

IB827 User’s Manual 59

APPENDIX

W627HF_BASE = 0x00; result = 0;

Init_Finish: return (result); } //======================================================================= void Unlock_W627HF (void) { outportb(W627HF_INDEX_PORT, W627HF_UNLOCK); outportb(W627HF_INDEX_PORT, W627HF_UNLOCK); } //======================================================================= void Lock_W627HF (void) { outportb(W627HF_INDEX_PORT, W627HF_LOCK); } //======================================================================= void Set_W627HF_LD( unsigned char LD) { Unlock_W627HF(); outportb(W627HF_INDEX_PORT, W627HF_REG_LD); outportb(W627HF_DATA_PORT, LD); Lock_W627HF(); } //======================================================================= void Set_W627HF_Reg( unsigned char REG, unsigned char DATA) { Unlock_W627HF(); outportb(W627HF_INDEX_PORT, REG); outportb(W627HF_DATA_PORT, DATA); Lock_W627HF(); } //======================================================================= unsigned char Get_W627HF_Reg(unsigned char REG) { unsigned char Result; Unlock_W627HF(); outportb(W627HF_INDEX_PORT, REG); Result = inportb(W627HF_DATA_PORT); Lock_W627HF(); return Result; } //=======================================================================

60

IB827 User’s Manual

APPENDIX

File of the Main.cpp //===================================================================== // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. //===================================================================== #include <dos.h> #include <conio.h> #include <stdio.h> #include <stdlib.h> #include "W627HF.H" //--------------------------------------------------------------------------void ClrKbBuf(void); int main (void); unsigned char GetDI(unsigned char); void SetDo(unsigned char, unsigned char); //--------------------------------------------------------------------------int main (void) { unsigned char ucDO = 0; //data for digital output unsigned char ucDI; //data for digital input unsigned char ucBuf; char SIO;

SIO = Init_W627HF(); if (SIO == 0) { printf("Can not detect Winbond 83627HF/83627THF/83627EHF, program abort.\n"); return(1); } switch (SIO) { //------------------------------------------------------------------ case 1: printf("Winbond 83627HF is detected .\n"); break; //------------------------------------------------------------------ case 2: printf("Winbond 83627THF is detected.\n"); break; //------------------------------------------------------------------ case 4: printf("Winbond 83627EHF is detected.\n"); break; //------------------------------------------------------------------ }

//bit 0..3 = input signal //bit 4..7 = output signal

ucDI = GetDI(0x0F); //get current DI status SetDo(ucDO, 0xF0); //set current DO status return 0; } //--------------------------------------------------------------------------unsigned char GetDI(unsigned char Mask) {

IB827 User’s Manual 61

APPENDIX

unsigned char result;

Set_W627HF_LD(0x07); //switch to logic device 7 Set_W627HF_Reg(0xF0, Mask); //set the DIO direction result = Get_W627HF_Reg(0xF1) & Mask; return (result); } //--------------------------------------------------------------------------void SetDo(unsigned char NewData, unsigned char Mask) { Set_W627HF_LD(0x07); //switch to logic device 7 Set_W627HF_Reg(0xF0, ~Mask); //set the DIO direction Set_W627HF_Reg(0xF1, NewData & Mask); } //--------------------------------------------------------------------------void ClrKbBuf(void) { while(kbhit()) { getch(); } } //---------------------------------------------------------------------------

62

IB827 User’s Manual

IBASE IB827 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Pin # Signal Name

Pin # Signal Name

Reset Switch: Pins 9 and 19
