INTRODUCTION
Introduction
Product Description
The IB550F 3.5-inch disk siz e SBC incorpor ates the AMD Geode LX processor with speeds of 433MHz (LX700) or 500MHz (LX800). It comes with one DDR SO-DIMM socket t hat has a capacity of 1GB system memory. The board supports one 10/100Mbps Ethernet, using a Realtek RTL8100C controller. A 2D graphics controller comes integrated on the board that supports CRT and TFT LCD displays. Useful
interface includes four USB 2.0 ports, 4 COM por ts, and one PCI-104 expansion slot. IB550F also support 2 SATA ports.
IB550F FEATURES:
- Embedded AMD Geode LX processor, 433MHz (LX700) /
500MHz (LX800)
- DDR SO-DIMM x 1, Max. 1GB
- Realtek RTL8100C 10/100Mbps Ethernet
- Integrated LX800/LX700 2D VGA controller, supports CRT
and TFT LCD display
- 4 x USB 2.0, 4 x COM , CF socket, Watchdog timer, Digital I/O
- 2 x SATA, PC I-104 expansion
- Dime nsions: 145mm x 102mm ( 5. 7” x 4”)
IB550F User’s Manual 1
INTRODUCTION
Checklist
Your IB550F package should include the items list ed below.
The IB550F AMD Geode LX 3.5-inch Disk Size SBC
This User’s Manual
1 C D conta in ing chipset drivers and flash memory utility
Heatsink for AMD Geode LX processor
Options:
IB61 cable kit (SATA, COM, PS/2, LPT, USB, Audio, Po wer
cable)
2
IB550F User’s Manual
Product Name
IB550F/ IB550F-24
Form Factor
3.5”
CPU Type
AMD Geode (BGU481)
CPU Speed
AMD LX800 500MHz / 128KB L2 cache/ SC (3.8W)
BIOS
Award BIOS
Chipset
AMD CS5536 I/O companion multi-function chipset
Memory
DDR SO-DIMM x1 (w/o ECC), Max. 1GB , Single channel
Graphic
LX800 built-in high performance 2D graphi c controller Supports TFT LCD & CRT display
LVDS
18-bit one channels LVDS i nterface w/DF13 soc ket x1 [Default] 24-bit one channel LVDS interface w/DF13 socket x1 [IB550F-24]
LAN
Realtek 8100C-LF 10/ 100M P CI LAN x1
USB (Universal
Serial Bus)
CS5536 built-in USB2.0 controller, support 4 ports
Serial ATA Ports
PCI to SATA controller [SiI3512ECTU], support s 2 ports
Parallel IDE
CS5536 built-in one channel UDMA100 IDE
- Compact Flash (type I I) connector x1
Audio
Realtek ALC203 AC97 audio codec, Supports 2-CH Line-Out, Line-In & MIC
LPC I/O
Winbond W83627HF + Fintek 81216AD
VID0-4)
Digital IO
4 in & 4 out
Keyboard/Mouse Connector
Mini DIN connector x1
Expansion Slots
PCI-104 x1 Comp act Flash Socket x1
Edge Connector
DB-9 connector x1 for COM1 (RS232/422/485)
RJ-45 connector x1 for LAN
On Board
2x5 pins header x3 for COM2/3/4 (RS232 only)
4-pin power connector x 1 f or SATA HDD
Watchdog Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
Power C onnector
+12V DC-in
RoHS
Yes
Board Size
102mm x 145mm
Specifications
[
COM1 (RS232/422/485) , COM2~4(RS232) , K B/M ouse, Parallel, IrDA, Hardware monitor (3 thermal inputs, 4 voltage monitor inputs,
INTRODUCTION
6-pins Mini-DIN connect or x1 for PS/2 KB & Mouse Dual USB stack connector x1 for USB 1, 2 DB-15 connector x1 for CRT
Header/Connector
2x4 pins header x1 for USB 3,4 2x13 pins header x1 for LPT port 2x6 pins header x1 for Audio 2x22 pins header x1 for TFT LCD panel 4-pin header x1 for I rDA
IB550F User’s Manual 3
INTRODUCTION
Board Dimensions
4
IB550F User’s Manual
INSTALLATIONS
Installations
This section provides information on how to use the jumpers and connectors on the IB550F in order to set up a workable system. The topics covered are:
Inst alling the Memory .......................................................................... 6
Setting the Jumpers .............................................................................. 7
Conne c to rs on IB550F ....................................................................... 11
IB550F User’s Manual 5
INSTALLATIONS
Installing the Memory
The IB550F board supports one SODIMM DDR memory socket for a maximum total memory. The memory module capacities supported ar e 128MB, 256MB, 512MB and 1GB.
Installing and Removing Memory Modules
To install the DDR modules, locate the memory slot on the board and pe rform the following step s:
1. Hold the DDR module so that t he keys o f the DDR module align wit h
those on the memory slot. I nsert the module into t he sock et at a slight angle (approxim ately 30 degrees). Note that the socket and module are both keyed, which means that the module can be installed only in one direction.
2. To seat the memory module into the socket, apply firm and even
pressure to each end of the module until you feel it slip down into t he socket.
3. With the module properly seated in the socket, rotate the module
downward. Cont inue pressing downward until the clips at each end lock in to pos ition.
4. To remove the DDR mo dule, press the clips w ith both hands.
6
IB550F User’s Manual
INSTALLATIONS
Setting the Jumpers
Jumpers are used on IB550F to select various sett ings and features according to your needs and applications. Contact your supplier if you have doubt s abou t t he best c onfiguratio n for you r needs. The following
lists the connecto r s on IB550F and their respective functions.
Jumper Locations on IB550F ............................................................... 8
JP1: LVDS VDD Select (5V / 3.3V) .................................................... 9
JP2: CF Connector master/Slave Sett ing .............................................. 9
JP3: Clear CMOS Setting .................................................................... 9
JP4, JP5, JP6: RS232/422/485 (COM1) Selection .............................. 10
IB550F User’s Manual 7
INSTALLATIONS
Jumper Locations on IB550F
Jumper Locations on IB550F ...................................................... Page
JP1: LVDS VDD Select (5V / 3.3V) ................................................... 9
JP2: CF Connector master/ Slave Sett ing .............................................. 9
JP3: Clear CMOS Setting .................................................................... 9
JP4, JP5, JP6: RS232/422/485 (COM1) Selection.............................. 10
8
IB550F User’s Manual
JP1
VDD Setting
JP3
Function
JP1: LVDS VDD Selec t (5V / 3.3V)
3.3V
5V
JP2: CF Connector master/Slave Setting
JP2 Setting Function
INSTALLATIONS
Short/Closed Master
Open Slave
JP3: Clear CMOS Setting
Use JP3 to clear the CMOS contents. Note that the power connector should be disconnected from the board before clearing CMOS.
Normal (default)
Clear CMOS
IB550F User’s Manual 9
INSTALLATIONS
COM1
Function
JP4:
JP4:
JP4:
JP4, JP5, JP6: RS232/422/485 (COM1) Selection
COM1 is selectable for RS232, RS-422 and RS-485. The following table describes the jumper settings for COM1 selection.
RS-232 RS-422 RS-485
Jumper Setting
(pin clos ed)
1-2
JP5:
3-5 & 4-6
JP6:
3-5 & 4-6
3-4
JP5:
1-3 & 2-4
JP6:
1-3 & 2-4
5-6
JP5:
1-3 & 2-4
JP6:
1-3 & 2-4
10
IB550F User’s Manual
INSTALLATIONS
Connectors on IB550F
The connectors on IB550F allow you to connect external devices such as keyboard, hard disk drives, printers, etc. The following table lists the connectors o n IB550F and t heir respective functions.
Connector Locations on IB550F ........................................................ 12
CN1: Compact Flash Card Socket ...................................................... 13
CN3: RJ45 Connect or ........................................................................ 13
CN4: PS/2 Keyboard and Mouse Connecto r ...................................... 13
CN5: VGA CRT Connect or ............................................................... 13
CN6, J7, J12, J13: Serial Ports ........................................................... 14
J1 : Digit al 4-in 4-out Connector ......................................................... 14
J2: External Audio Connector ............................................................ 15
J3: Power DC-In ................................................................................ 15
J4: LVDS Connectors ........................................................................ 15
J5: IrDA Connector ........................................................................... 15
J6: TFT Panel Conne c to r (whe n board suppor ts 24 -bit) ..................... 16
J6: TFT Panel Conne c to r (whe n board suppor ts 18 -bit) ..................... 17
CN10, J8: USB Connectors ............................................................... 17
J9: PCI-104 Co nnector ...................................................................... 18
PCI-104 Bus Signal Assignments ....................................................... 18
J10: Parallel Port Connector .............................................................. 19
J11: Reset Switch .............................................................................. 19
SODIMM1: S O D I MM Socket ........................................................... 19
IB550F User’s Manual 11
INSTALLATIONS
Connector Locations on IB550F
Connector Locations on IB550F ................................................................. Page
Connector Locations on IB550F .......................................................................... 12
CN1: Compact Flash Card Socket ....................................................................... 13
CN3: RJ45 Connector .......................................................................................... 13
CN4: PS/2 Keyboard and Mouse Connector ....................................................... 13
CN5: VGA CRT Connector ................................................................................. 13
CN6, J7, J12, J13: Se rial Ports ............................................................................ 14
J1: Digital 4-in 4-out Connector .......................................................................... 14
J2: External Audio Connector .............................................................................. 15
J3: Power DC-In ................................................................................................... 15
J4: LVDS Connectors .......................................................................................... 15
J5: IrDA Connector .............................................................................................. 15
J6: TFT Panel Connector (when board supports 24-bit) ..................................... 16
J6: TFT Panel Connector (when board supports 18-bit) ..................................... 17
CN10, J8: USB Connectors ................................................................................. 17
J9: PCI -104 Connector ......................................................................................... 18
PCI-104 Bus Signal Assignments ........................................................................ 18
J10: Parallel Port Connector ................................................................................ 19
J11: Reset Sw itch ................................................................................................. 19
SODIMM1: SODIMM Socket ............................................................................. 19
12
IB550F User’s Manual
INSTALLATIONS
Pin #
Signal Name
1
TD+
2
TD-
3
RD+
4
RJ45-4A
5
RJ45-5A
6
RD-
7
RJ45-7A
8
RJ45-8A
Pin #
Signal Name
1
Keyboard Data
2
Mouse Data
3
Ground
4
Vcc
5
Keyboard Clock
6
Mouse Clock
[
Signal Name
Pin
Pin
Signal Name
Red
1 2 Green
Blue
3 4 NC
GND
5 6 GND
GND
7 8 GND
Vcc
9
10
GND
N.C.
11
12
DDCDA
HSYNC
13
14
VSYNC
DDCCLK
15
CN1: Compact Flash Card Socket
CN3: RJ45 Connector
CN4: PS/2 Keyboard and Mouse Connector
CN4 uses a Y-cable with dual D-connectors for a PS/2 keyboard and a PS/2 mouse.
CN5: VGA CRT Connector
IB550F User’s Manual 13
INSTALLATIONS

Pin #

Signal Name
RS-232
RS-422
RS-485
1
DCD
TX-
DATA-
2
RX
TX+
DATA+
3
TX
RX+
NC 4 DTR
RX-
NC 5 GND
GND
GND
6
DSR
NC
NC 7 RTS
NC
NC 8 CTS
NC
NC 9 RI
NC
NC
10
NC
NC
NC
Pin #
Signal Name (RS-232)
1
DCD, Data carrier detect
2
RXD, Receive data
3
TXD, Transmit data
4
DTR, Data terminal ready
5
Ground
6
DSR, Data set ready
7
RTS, Request to send
8
CTS, Clear to send
9
RI, Ring indicator
10
No Connect.
Signal Name
Pin #
Pin #
Signal Name
Ground
1 2 Vcc
Out3
3 4 Out1
Out2
5 6 Out0
IN3
7 8 IN1
IN2
9
10
IN0
CN6, J7, J12, J13: Serial Ports
[
J7/J12/J13
CN6 is configurable as RS-232/ RS-422/485 with jumpers JP4/JP5/JP6. J7 (COM2) /J12 (COM3) /J13 (COM4) is fixed as RS-232.
J1: Digital 4-in 4-out Conne ctor
14
IB550F User’s Manual
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
LINEOUT R
1 2 LINEOUT L
Ground
3 4 Ground
LINEIN_R
5 6 LINEIN L
Ground
7 8 Ground
Mic-In
9
10
VREFOUT
Ground
11
12
Protect pin
Pin #
Signal Name
1
DC In (12V only)
2
Ground
Signal Name
Pin #
Pin #
Signal Name
TX0-
2 1 TX0+
Ground
4 3 Ground
TX1-
6 5 TX1+
5V/3.3V
8 7 Ground
TX3-
10 9 TX3+
TX2-
12
11
TX2+
Ground
14
13
Ground
TXC-
16
15
TXC+
5V/3.3V
18
17
ENABKL
+12V
20
19
+12V
Pin #
Signal Name
1
+5V
2
Ir RX
3
Ground
4
Ir TX
J2: External Audio Connector
J2 is a 12-pin header that is used to connect to the optional audio cable card that integrates jacks for Line In, Line Out and Mic.
J3: Power DC-In
J4: LVDS Connectors
*Depends on JP1 setting (1-2 for 3.3V/default, 2-3 for 5V).
J5: IrDA Connector
J5 is used for an optional IrDA connector fo r wireless commun ication.
IB550F User’s Manual 15
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
+12V
1 2 +12V
Ground
3 4 Ground
5V/3.3V
5 6 5V/3.3V
N.C.
7 8 Ground
R0
9
10
R1
R2
11
12
R3
R4
13
14
R5
R6
15
16
R7
G0
17
18
G1
G2
19
20
G3
G4
21
22
G5
G6
23
24
G7
B0
25
26
B1
B2
27
28
B3
B4
29
30
B5
B6
31
32
B7
Ground
33
34
Ground
SHFCLK
35
36
FLM(VSYNC)
DISPENA(MDE)
37
38
LP(HSYNC)
Ground
39
40
ENABKL
Ground
41
42
N.C.
ENAVDD
43
44
5V/3.3V
J6: TFT Panel Connector (when board supports 24-bit)
He re is the pin definition of J6 when it supports for 24-bit TFT flat panel LCD displays.
*Depends on JP 1 s e t t ing ( 1-2 f or 3. 3V / defa ult , 2-3 for 5V).
16
IB550F User’s Manual
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
+12V
1 2 +12V
Ground
3 4 Ground
5V/3.3V
5 6 5V/3.3V
N.C.
7 8 Ground
N.C.
9
10
N.C.
R0
11
12
R1
R2
13
14
R3
R4
15
16
R5
N.C.
17
18
N.C.
G0
19
20
G1
G2
21
22
G3
G4
23
24
G5
N.C.
25
26
N.C.
B0
27
28
B1
B2
29
30
B3
B4
31
32
B5
Ground
33
34
Ground
SHFCLK
35
36
FLM(VSYNC)
DISPENA(MDE)
37
38
LP(HSYNC)
Ground
39
40
ENABKL
Ground
41
42
N.C.
ENAVDD
43
44
5V/3.3V
Signal Name
Pin
Pin
Signal Name
+5V
1 5 Ground
USB0-
2 6 USB1+
USB0+
3 7 USB1-
Ground
4 8 +5V
J6: TFT Panel Connector (when board supports 18-bit)
He re is the pin definition of J6 when it supports for 18-bit TFT flat panel LCD displays.
*Depends on JP 1 s e t t ing ( 1-2 f or 3. 3V / default, 2-3 for 5V).
CN10, J8: USB Connectors
The J8, USB pin header connectors support three USB 2.0 ports via
optional USB cables. The IB550F also supports an embedded USB connector, CN10, w hich suppo r ts another USB 2.0 port.
J8
IB550F User’s Manual 17
INSTALLATIONS
J3/P3
Pin A B C D 1 GND/5.0V KEY²
Reserved
+5
AD00 2 VI/O
AD02
AD01
+5V 3 AD05
GND
AD04
AD03 4 C/BE0*
AD07
GND
AD06 5 GND
AD09
AD08
GND 6 AD11
VI/O
AD10
M66EN 7 AD14
AD13
GND
AD12 8 +3.3V
C/BE1*
AD15
+3.3V 9 SERR*
GND
SB0*
PAR
10
GND
PERR*
+3.3V
SDONE
11
STOP*
+3.3V
LOCK*
GND
12
+3.3V
TRDY*
GND
DEVSEL*
13
FRAME*
GND
IRDY*
+3.3V
14
GND
AD16
+3.3V
C/BE2*
15
AD18
+3.3V
AD17
GND
16
AD21
AD20
GND
AD19
17
+3.3V
AD23
AD22
+3.3V
18
IDSEL0
GND
IDSEL1
IDSEL2
19
AD24
C/BE3*
VI/O
IDSEL3
20
GND
AD26
AD25
GND
21
AD29
+5V
AD28
AD27
22
+5V
AD30
GND
AD31
23
REQ0*
GND
REQ1*
VI/O
24
GND
REQ2*
+5V
GNT0*
25
GNT1*
VI/O
GNT2*
GND
26
+5V
CLK0
GND
CLK1
27
CLK2
+5V
CLK3
GND
28
GND
INTD*
+5V
RST*
29
+12V
INTA*
INTB*
INTC*
30
-12V
Reserved
Reserved
GND/3.3V
KEY²
J9: PCI-104 Connector PCI-104 Bus Signal Assignments
* The shaded area denotes power or ground signals. * The KEY pins are to guarantee proper module installation. Pin-A1 will be removed and the fem al e side pl ugged for 5.0V I/O signals and Pin-D30 will be modified in the same manner for 3.3V I/O. It is recommended that both KEY pins (A1 and D30) be electrically connnected for GND for shielding.
18
IB550F User’s Manual
Signal Name
Pin #
Pin #
Signal Name
Line printer strobe
1
14
AutoFeed
PD0, parallel data 0
2
15
Error
PD1, parallel data 1
3
16
Initialize
PD2, parallel data 2
4
17
Select
PD3, parallel data 3
5
18
Ground
PD4, parallel dat a 4
6
19
Ground
PD5, parallel data 5
7
20
Ground
PD6, parallel data 6
8
21
Ground
PD7, parallel data 7
9
22
Ground
ACK, acknowledge
10
23
Ground
Busy
11
24
Ground
Paper empty
12
25
Ground
Select
13
N/A
N/A
Pin #
Signal Name
1
Reset
2
Ground
J10: Parallel Port Connector
J11: Reset Switch
INSTALLATIONS
SODIMM1: SODIMM Socket
IB550F User’s Manual 19
INSTALLATIONS
This page is inte ntionally left blank.
20
IB550F User’s Manual
BIOS SETUP
BIOS Setup
This chapter describes the different settings available in the Award BIOS that comes with the board. The topics covered in this chapter are as follows:
BIOS Introduction ............................................................................. 22
BIOS Setup ....................................................................................... 22
Standard CMOS Featur es .................................................................. 24
Advanced BIOS Features ................................................................... 27
Advanced Chipset Features ................................................................ 29
Integrated P er ipherals ........................................................................ 31
Power Management Setup ................................................................. 33
PNP/PCI Configurations .................................................................... 34
PC Health Status................................................................................ 35
Load Fail-Safe Defaults...................................................................... 36
Load Optimized Defaults ................................................................... 36
Set Su p ervisor/User Passw ord ........................................................... 36
Save & Exit Setup ............................................................................. 36
Exit Wit hout Saving ........................................................................... 36
IB550F User’s Manual 21
BIOS SETUP
BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your computer system’s ROM supports various processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as speci al support for detailed fi ne-tuning of the chipset controlling the entire sys te m.
BIOS Setup
The Award BIOS provides a Setup utility program for specifying the system conf igurations and settings. The BIOS ROM of the system stor es the Setup utility. When you turn on the computer, the Award BIOS is im mediately activated. Pressin g the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Po wer On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highli gh t items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.
When you enter the Set u p utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.
22
IB550F User’s Manual
BIOS SETUP
Advanced BIOS Features
Load Optimized Defaults
Advanced Chipset Features
Set Supervisor Password
Integrated Peripherals
Set User Password
Power Management Setup
Save & Exit Setup
PC Health Status
F10 : Save & Exit Setup Time, Date, Hard Disk Type…
Note:
If the system cannot boot after making and saving system
the CMOS settings that resets your system to its default.
Warning:
It is strongly recommended that you avoid making any
e absolute maximum performance
and reliability. Changing the defaults could cause the system
Phoenix - AwardBIOS CMOS Se tup Utility
Standard CMOS Features Load Fail-Safe Defaults
PnP/PCI Configurations Exit Without Saving
ESC : Quit : Select Item
The section below the setup items of the Main Menu displays the contro l keys for this menu. At the bo ttom of the Main Menu just below the contro l keys section, there is another section, which displays information on the currently highlighted it em in the list .
changes with Setup, the Award BIOS supports an override to
changes to the chipset defaults. These defaults have been carefully chosen by both Award and your system manufacturer to provide th
to become unstable and crash in some cases.
IB550F User’s Manual 23
BIOS SETUP
Date (mm:dd:yy)
Sat, Jul 3, 2010
Item Help
Time (hh:mm:ss)
00 : 00 : 00
Menu Level >
IDE Primary Master
None
Change the day, month,
IDE Primary Slave
None
Halt On
All, But keyboard
Base Memory
640K
Extended Memory
514816K
Standard CMOS Features
“Standard CMOS Setup” cho ice allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the motherboard is already in st alled in a working system, you will not ne ed to selec t this option. Y ou will need to run the Standard CMOS o ption, however, if you change your system hardware configurations, the onboard batt er y fails, or t he configuration stored in the CMOS memory was lost or d amaged.
Video EGA/VGA
Total Memory 515584K
At the bottom of the menu are the control keys for use on this menu. If you need any help in each item field, you can press the <F1> key. It will display the relevant information to help you. The memory display at the lower right-hand side of the men u is read-only. It will adjust automatically according to t he memory changed. The following describes each item of this menu.
Date
The date format is:
Day : Sun to Sat Month : 1 to 12 Date : 1 to 31 Year : 1999 to 2099
To set the date, highli ght the “Date” fi eld an d use the PageUp/ PageDown or +/- keys to set the current t ime.
Phoenix - AwardBIOS CMOS Se tup Utility
Standard CMOS Features
year and century
24
IB550F User’s Manual
BIOS SETUP
Time
The time for mat is: Hour : 00 to 23
Minute : 00 to 59 Second : 00 to 59
To set the time, highlight the “Time” field and use the <PgUp>/ <PgD n> or +/- keys to set the current t ime.
IDE Primary HDDs / IDE Secondary HDDs
The onboard PCI IDE connectors provide Primary and Secondary channels for connecting up to four IDE hard disks o r other I DE devices. Each channel can support up to t wo hard disks; the first is the “Master” and the second is the “Slave”.
Press <Enter> t o configure the hard disk. The selections include Auto, Manual, and None. Select ‘Manual’ to define the drive information manually. You will be asked to e nter the following items.
Capacity : Capacity/size of the hard disk drive Cylinder : Nu mber of cylind ers Head : Number of read/write heads Precomp : Write precompensation Landing Zone : Landing zone Sector : Number of sectors
The Access Mode selections are as follows: CHS (HD < 528MB) LBA (HD > 528MB and supports Logical Block Addressing) Large (for MS-DOS only) Auto
IB550F User’s Manual 25
BIOS SETUP
No errors
The sys tem boot will not be halted for any error that may be detected.
All errors
Whenever the BIOS det ects a non-fatal error, the syst em will st op and you will b e prompted.
All, But Keyboard
The system boot will not be halted for a keyboard error; it will stop for all o ther errors
All, But D iskette
The syste m boo t w ill not be halt ed fo r a d isk error; it will stop for all other errors.
All, But D isk/Key
The system boot will not be halted for a key­bo ar d o r d isk error; it will stop for all o thers.
Video
This field selects the type of video display card installed in your system. You can choose t he following video display cards: EGA/VGA For EGA, VGA, SEGA, SVGA or PGA monitor adapters. ( d efault) CGA 40 Power up in 40 column mode. CGA 80 Power up in 80 column mode. MONO For Hercules or MDA adapter s.
Halt On
This field de ter mines wh ethe r or no t the syst em will ha lt if an e rro r is detected during power up.
26
IB550F User’s Manual
BIOS SETUP
Virus Warning
Disabled
ITEM HELP
CPU Internal Cache
Enabled
Menu Level >
First Boot Device
USB-FDD
Second Boot Device
SCSI
Third Boot Device
HDD-0
Boot Other Device
Enabled
Boot Up Num Lo ck St atus
On
Gate A20 Option
Fast
Typematic Rate Setting
Disabled
Typematic Rate (Chars/Sec)
6
Typematic Delay (Msec)
250
Security Opt ion
Setup
OS Select For DRAM>64MB
Non-OS2
Small Logo (EPA) Show
Disabled
Advanced BIOS Features
This section allows you to configure and improve your system and all ows you to set u p some system features according to your preference.
Virus Warning
If this option is enabled, an alarm message will be displayed when trying to write on the boot sector or on the part ition table on the disk, which is typical of the virus.
CPU Internal Cache
Cache memory is additional memory that is much faster than conventional DRAM (system memory). CPUs from 486-type on up contain internal cache memory, and most, but not all, modern PCs have additional (external) cache memory. When the CPU re qu e sts d ata , th e system transfe rs the re qu e ste d data fro m the ma i n DR A M into cache memory, for even faster access by the CPU.
First/Second/Third Boot Device
These fields determine the drive that the system searches first for an operating system. The options available include LS120, HDD-0, SCSI,
CDROM, HDD-1, USB-FDD, USB-ZIP, LAN, USB-CDROM, USB-HDD and Disabled.
Boot Other Device
These fields allow the system to search for an OS from other devices other t han the ones selected in the First/Second/Third Boot Device.
Phoenix - AwardBIOS CMOS Se tup Utility
Advanced BIOS Features
IB550F User’s Manual 27
BIOS SETUP
Boot Up NumLock Status
This al lows you to activate the NumLock functi on after you power up the system.
Gate A20 Option
This field allows you to select how Gat e A20 is worked. Gate A20 is a device used to address memory above 1 MB.
Typematic Rate Setting
When dis able d, co ntinually ho lding down a k ey o n your keyboard will generate only one instance. When enab led, you can set the two typematic controls list ed n ext. By default, this f ield is se t to Disabled.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, the system registers repeated keystrokes speeds. Set tings are from 6 to 30 characters per second.
Typematic Delay (Msec)
When the typematic rate is enabled, this item allows you to set the t ime interval f or displ ayi ng the f irst and second characters. By defaul t, this item is set to 250msec.
Security Option
This field al lows you to limit access to the System an d Setup. The default value is Setup. When you select System, the system prompts for the User Password every time you boot up. When you select Setup, t he system always boots up and prompts for the Supervisor Password only when the Se tup ut ility is called up.
OS Select for DRAM > 64MB
This option allows the system to access greater t han 64MB o f DRA M memory when used with OS/2 that depends on certain BIOS calls to access memory. The default setting is Non-OS/2.
Small Logo (EPA) Show
The EPA logo appears at the right side of the monitor screen when the system is boot up.
28
IB550F User’s Manual
BIOS SETUP
CPU Freque nc y
Auto
ITEM HELP
Video Memory Size
8M Output Display
CRT
Flat Panel Configuration
Press Enter
Onboard Audio
Enabled
Onboard US B 1.1
Enabled
Onboard US B 2.0
Enabled
Onboard IDE
Enabled
Overcurrent Reporting
Disabled
Port 4 Assignment
Host
Memory Hole At 15M-16M
Disabled
Onboard S ATA chip mode
SATA mode
Advanced Chipset Features
This Setup menu controls the configuration of the chipset.
Phoenix - AwardBIOS CMOS Se tup Utility
Advanced Chipset Features
CPU Frequency
This o ptions fo r this field are Auto, 433MHz and 500MHz.
Video Memory Size
The default setting for this field is 8M. The options a r e from 8M to 254M.
Flat Panel Configuration
This options for this field are Flat Panel, CRT and Panel & CRT. For flat panel, configuration settings inc lude Fla t Panel Type, Resolution (320x240 up to 1600x1200), Data Bus Type, Refresh Rate (60~100Hz), HSYNC Polarity, VSYNC Polarity, SHFCLK Active Period and LP Active Period.
Onboard Audio
The options for this field are Enabled and Disabled. By d efault , this f ield is set to Enabled.
Onboard USB 1.1
The options for this field are Enabled and Disabled. By default , this field is set to Enabled.
IB550F User’s Manual 29
BIOS SETUP
Onboard USB 2.0
The options for this field are Enabled and Disabled. By default , this field is set to Enabled. In order to use USB 2.0, necessary OS drivers must be installed first. Please update your system to Windows 2000 SP4 or
Windows XP SP1.
Onboard IDE
The options for this field are Enabled and Disabled. By default , this field is set to Enabled.
Overcurrent Reporting
The options for this field are Enabled and Disabled. By default , this field is set to Disabled.
Port 4 Assignment
This o ptions for this field are Host, Device and Not Used.
Memory Hole At 15M-16M
In order t o improve performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space below 16 MB. The choices are Enabled and Disabled.
Onboard SATA chip Mode
The field d etermines the behavior of Serial ATA.The default setting is SATA mode.Choosing RA ID mode enabl es Serial ATA driv es to work as RAID 0,1.
30
IB550F User’s Manual
BIOS SETUP
Master Drive PIO Mode
Auto
ITEM HELP
Slave Drive PIO Mo de
Auto
Menu Level >
IDE Primary Master UDMA
Auto
IDE Primary Slave UDMA
Auto
IDE DMA transfe r access
Enabled
IDE HDD Blo c k M ode
Enabled
Onboard Lan Boot ROM
Disabled
Onboard Serial Port 1
3F8/IRQ4
Onboard Serial Port 2
2F8/IRQ3
UART Mode Select
Normal
RxD , TxD Active
Hi, Lo
IR Transm is s ion Delay
Enabled
UR2 Duplex Mode
Half Use IR P ins
IR-Rx2Tx2
Onboard Parallel Port
387/IRQ7
Parallel Port Mode
SPP
EPP Mode Select
EPP1.7
ECP Mode Use DMA
3
**** 2nd SuperI O Device ****
Onboard Serial Port 3
3E8 Serial Port 3 Use IRQ
IRQ11
Onboard Serial Port 4
2E8 Serial Port 4 Use IRQ
IRQ10
Integr ated Peripherals
This section sets configurations for your hard disk and other integrat ed peripherals. T he first screen shows three main items for user to select. Once an item selected, a submenu appears. Details follow.
Phoenix - AwardBIOS CMOS Se tup Utility
Inte gr ated Peripherals
IDE Primary/Secondary Master/Slave PIO
These fi el ds allow your system hard disk controller to work faster. Rather than have the BIOS issue a series of commands that t ransfer to or from the disk drive, PIO (Programmed Input/Output) allows the BIOS to communicate with the controller and CPU directly.
The system supports five modes, numbered from 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode.
IDE Prim ary /Secondary Master /Slav e UDMA
These fields allow your system to improve disk I/O throughput to 33Mb/sec with the Ultra DMA/33 feature. The options are Auto and Disabled.
IB550F User’s Manual 31
BIOS SETUP
IDE HDD Block Mode
This f ie ld a llow s yo ur ha rd d is k c ontr olle r to u s e t he fast block mode to transfer data to and from your hard disk drive.
Onboard Lan Boot ROM
This feature allows users to enable or disable the onboard LAN boot ROM. The d efault setting is Disabled.
Onboard Serial/Parallel Port
These fields a llow you to select the onboar d serial and parallel ports and their addresses. The default values for these ports ar e: Serial Por t 1 3F8/IRQ4 Serial Por t 2 2F8/IRQ3 Serial Por t 3 3E8/IRQ11 Serial Por t 4 2E8/IRQ10 Parallel Port 378H/IRQ7
UART Mode Select
This field determines the UART 2 mode in your computer. The default value is Normal. Ot h er op tions include IrDA and ASKIR.
Parallel Port Mode
This field allow s you to determine parallel po rt mode function. SPP Standard Printer Port EPP E nha nced Parallel Po rt ECP Extended Capabilities Port
ECP+EP P Combin ation of ECP and EPP capabilities
Normal Normal function
32
IB550F User’s Manual
BIOS SETUP
Disabled
ITEM HELP
** PM Timers **
Menu Level >
IRQ Wake up E v ents
Press Enter
Power Management Setup
The Power Management Setup allows you to save energy of your system effectively.
Power Management
Power Management
The options for the power management setting are Disabled, Legacy and APM.
PM Timers and IRQ Wakeup Events
The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can prevent the system from en tering a power savi ng m ode or can awaken the system f rom such a m ode. When an I/O device wan ts to gain the attention of the operating system, it si gn als this by causing an IRQ to occur. When the operating system i s ready to respond to the request, it interrupts itself and performs the service.
Phoenix - AwardBIOS CMOS Se tup Utility
Power Management Setup
IB550F User’s Manual 33
BIOS SETUP
PNP OS Installed
No
ITEM HELP
Init Display First
PCI Slot
Menu Level
Reset Configuration Da ta
Disabled
Resources Controlled By
Auto (ESCD)
IRQ Resources
Press Enter
Memory Resources
Press Enter
PCI/VGA Palette Snoop
Disabled
PNP/PCI Conf igurations
This op tio n configu res t he P CI bus system. All PCI bus systems on t he system use INT#, thus all installed PCI car d s must be set t o this value.
PNP OS Installed
If y our OS supports Plug & Pl ay (PnP), select Yes so that it can take over the management of device resources. If you are using a non-PnP-aware OS or not all of the operating systems you are using support PnP, select No to let the BIOS handle it instead.
Init Display First
This field refers to the primary video or primary video adapter. The de f ault setting is PCI Slot.
Reset Configuration Data
This f i el d al l ows y ou to determin e whether to reset the configuration data or not . T he default value is Disabled.
Resources Controlled by
This PnP BIOS can configure all of the boot and compatible devices automatically wi th the use of a use a PnP OS system such as Wi n dows 95.
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors pro perly. This f i eld allows you to set whether or not MPEG ISA/VESA VGA cards can work with PCI/VGA. When this field is enabled, a PCI/VGA can work with an MPEG ISA/VESA VGA card. When this fi eld is disabl ed, a PCI/VGA cannot work with an MPEG ISA/VESA card.
Phoenix - AwardBIOS CMOS Se tup Utility
PnP/PCI Configurat ions
34
IB550F User’s Manual
BIOS SETUP
CPU Warning Temperature
Disabled
ITEM HELP
Current System Temp.
50°C/122°F
Menu Level >
Current CPU Te m p
61°C/141°F
Vcore(V)
1.31 V
Vmem
2.70V
Vcc3
3.47V
+5V
5.08 V
+12V
11.30 V
5VSB(V)
5.04 V
PC Health Status
This section shows the parameters in determining the PC Health Status. These parameters include temperatures, fan speeds and voltages.
CPU Warning Temperature
This field allows the user to set the temperature so that when the temperature is reached, the system sounds a warning. This func tio n can help prevent damage to the system that is caused by overheating.
Temperatures/Voltages
These fields are the parameters of the hardware monitoring function feature of the motherboard. The values are read-only values as monitored by the system and show the P C health stat us.
Phoenix - AwardBIOS CMOS Se tup Utility
PC Health S tatus
IB550F User’s Manual 35
BIOS SETUP
Load Fail-Safe Def aults
This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all h igh-performance features.
Load Optimized Defaults
This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features.
Set Superv isor/User Password
These two o pt ions set t he system passwo rd . S upe rvisor P asswo r d set s a password that will be used to prot ect the system and Setup utility. User Password sets a password that will b e used ex clusively on the system. To specify a password, highlight the type you want and press <Enter>. T he Enter P a ssword: message pr ompts on the screen. Type the password, up to eight characters in length, and press <Enter>. The system confirms your password by asking you to type it again. After setting a password, the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when you are prompted to enter the password. A message will confirm the password to be disabl ed. Once the password is di sabled, the system wi l l b oot and you can enter Setup freely.
Save & Exit Setup
This option allows you to determine whether or not to accept the modificat ions. If you typ e “Y ”, you will q uit t h e set up utility and save all changes into the CMOS memory. If yo u type “N”, you will return to Se tup ut ility.
Exit Wi thout Saving
Select this option to exit the Setup utility without saving the changes you hav e ma d e in this s e s s ion. Typ ing “Y ” w ill q u it the S e tu p u tility w ithout saving the mo difications. Typing “N” will return you to Setup utility.
36
IB550F User’s Manual
DRIVERS INSTALLATION
Drivers Installation
This section descri bes the i n stall ati on procedures for software and drivers under the Windows XP. T he so ftwar e and drivers are included with the motherboard. I f you find the items missing, please contact the vendor where you made the purchase. The contents of this section include the following:
Ent ert a inment Encryptio n/Decryption Contro ller Driver ..................... 38
VG A Drivers Ins ta llation ................................................................... 40
Audio Driver In st allation .................................................................... 43
Silic on Image Sil3512E CTU Drive r Installation ................................. 46
IMPORTANT NOTE:
How to install Windows XP on your Serial ATA hard drive:
1. Assuming the driver s DVD is in D d rive, the path for the r e levant files is D:\ SataRaid\SiliconImage\SIL3512\Non-RAID or D:\ SataRaid\SiliconImage\SIL3512\RAID, please copy the fi le to the floppy disk.
2. Windo ws XP in st allation needs to u se U S B floppy drive.
3. When the Windows XP Setup screen appears, press F6 and follow the proceeding instructions.
4. When the Windows XP Setup screen stops, press S (Specify Additional Device), then insert the SATA device driver into the floppy disk drive. Press Enter, then choose the driver --- Silicon Image Sil 3x12 SATALink Controller for Windows XP/Server 2003. Press Enter and fo llow the proceeding instructions.
IB550F User’s Manual 37
DRIVERS INSTALLATION
Entertainment Encryption/Decryption Controller Driver
1. In the Windows operating system, go to the Device Manager.
2. As s hown below, click the Entertainment Encryption/Decryption Controller under Other devices.
3. In the following windo w, click t he Driver tab and click OK to continue.
38
IB550F User’s Manual
DRIVERS INSTALLATION

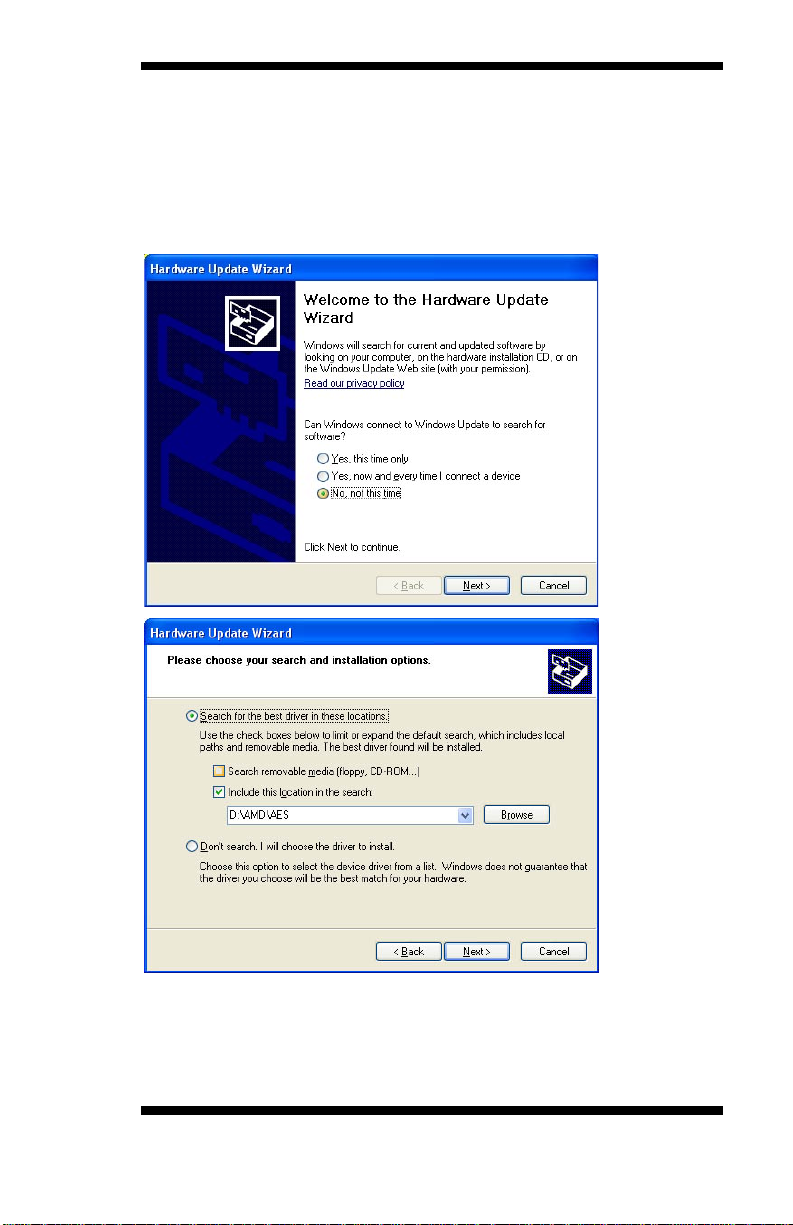

4. In the Hardware Update Wizard, select No, not this time and click Next to co nt inue. Then select Install from a list of specific location (Advanced). Click Browse to find the driver’s path in the CD provided - \AMD\AES. Then, click Next t o s tart the drivers installtion. The n clic k Finish after the wizard has finished installing the software for Geode LX
AES Crypto Driver.
IB550F User’s Manual 39
DRIVERS INSTALLATION
VGA Drivers I n sta lla tio n
1. In the Windows operating system, go to the Device Manager.

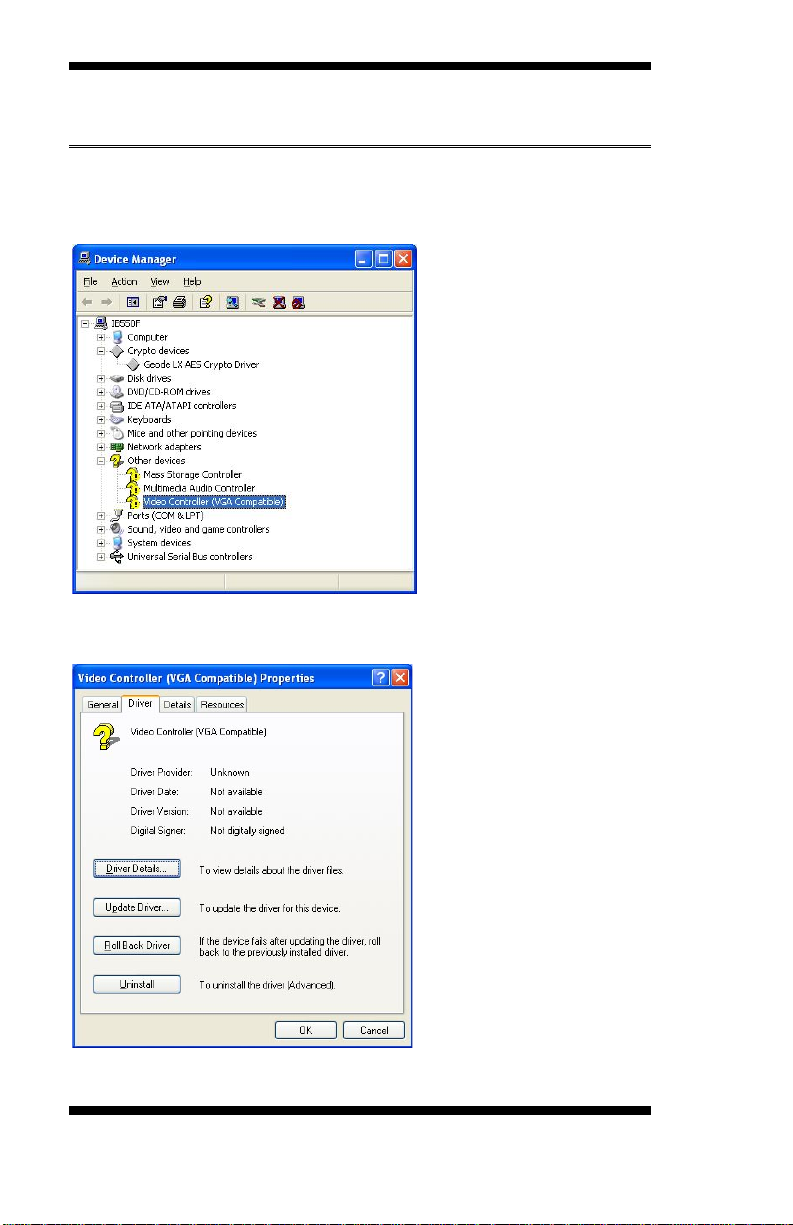

2. As s hown below, click the Video Cont roller (VGA Compatible) under Other devices.
3. In the following windo w, click t he Driver tab and click OK to continue.
40
IB550F User’s Manual
DRIVERS INSTALLATION

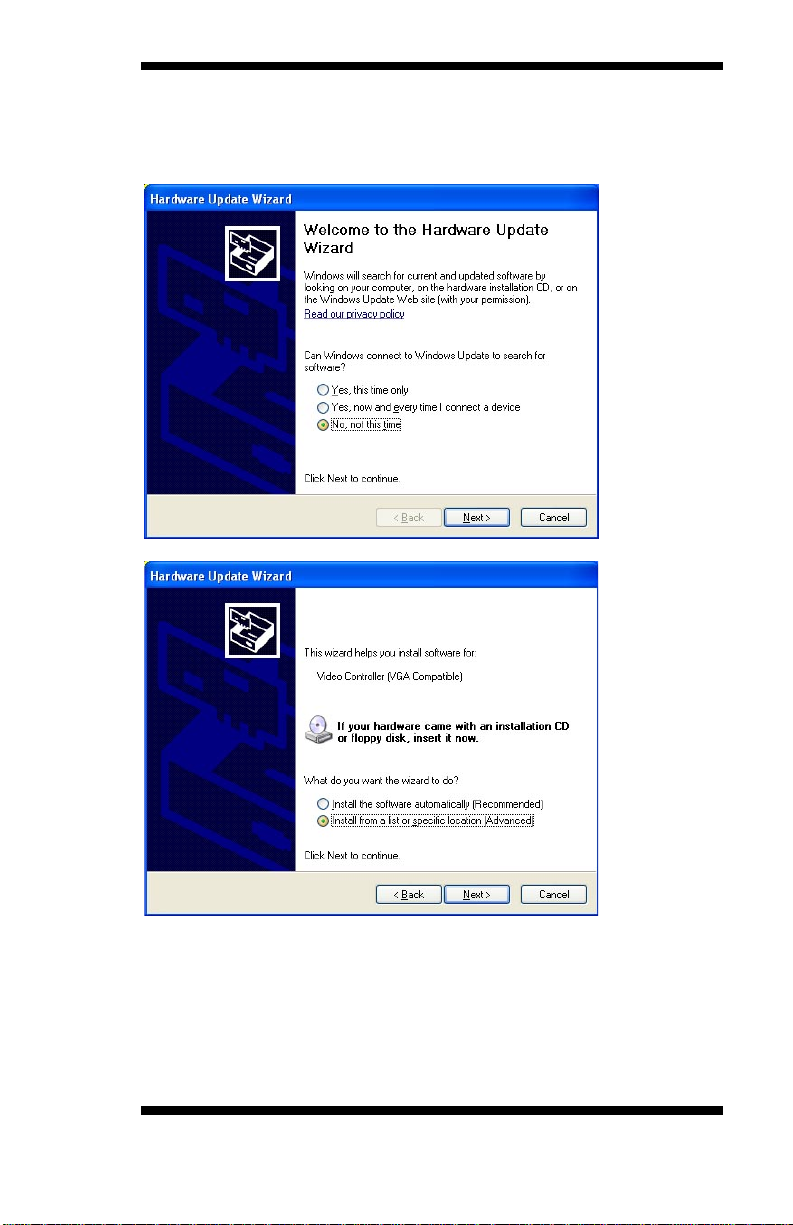

4. In the Hardware Update Wizard, select No, not this time and click Next to continue. Then select Install from a list of specific location (Advanced).
IB550F User’s Manual 41
DRIVERS INSTALLATION
5. In the next screen, click Search for the best driver in these locations. Check Include this location in the search. Click Browse to find the driver’s path in the CD provided or e nt er the path directly ­\AMD\Vga\WinXP. Then, click Next to start the drivers installtion. Then click Finish after the wizard has finished installing the software for Advanced Micro Devices Win XP Graphics Driver.
42
IB550F User’s Manual
DRIVERS INSTALLATION
Audio Driver Installation
1. In the Windows operating system, go to the Device Manager.
2. As s hown below, click the Multimedia Audio Controller under Other devices.
3. In the following windo w, click t he Driver tab and click OK to continue.
IB550F User’s Manual 43
DRIVERS INSTALLATION
4. In the Hardware Update Wizard, select No, not this time and click Next to co nt inue. Then select Install from a list of specific location (Advanced).
44
IB550F User’s Manual
DRIVERS INSTALLATION
5. In the next screen, click Search for the best driver in these locations. Check Include this location in the search. Click Browse to find the driver’s path in the CD provided or enter the pat h directly ­\AMD\Audio\XPe. Then, click Next to start the drivers installtion. Then click Finish after the wizard has finished installing the software for GeodeLX Au d i o Driver (WDM).
IB550F User’s Manual 45
DRIVERS INSTALLATION
Silicon Image Sil3512ECTU Driver Installation
1. In the Windows operating system, go to the Device Manager.
2. As s hown below, click the Mass Storage Controller under Other devices.
3. In the following windo w, click t he Driver tab and click OK to continue.
46
IB550F User’s Manual
DRIVERS INSTALLATION
4. In the Hardware Update Wizard, select No, not this time and click Next to co nt inue. Then select Install from a list of specific location (Advanced).
IB550F User’s Manual 47
DRIVERS INSTALLATION
5. In the next screen, click Search for the best driver in these locations. Check Include this location in the search. Click Browse to find the driver’s path in the CD provided or enter the pat h directly -
\SataRaid\SiliconImage\SIL3512\Non-RAID or \SataRaid\SiliconImage\SIL3512\RAID. Then, click Next to start the
drivers in st alltion. The n click Finish after t he wizard has finished installing the software for Silicon Image Sil 3512 SATALink Controller.
48
IB550F User’s Manual
APPENDIX
Address
Device Description
0000h-000Fh
Direct memory access controller
0020h-0021h
Pro grammab le interrupt controller
0022h-003Fh
PCI bus
0040h-0043h
Sys te m timer
0044h-0047h
PCI bus
004Ch-006Fh
PCI bus
0060h-0060h
PC/AT Enhanced PS/2 Keyboard (101/102-Key)
0061h-0061h
System speaker
0064h-0064h
PC/AT Enhanced PS/2 Keyboard (101/102-Key)
0070h-0071h
System CMOS/real time clock
0072h-007Fh
PCI bus
0081h-0083h
Direct memory access controller
0087h-0087h
Direct memory access controller
0089h-008Bh
Direct memory access controller
008Fh-0091h
Direct memory access controller
0090h-0091h
PCI bus
0093h-009Fh
PCI bus
00A0h-00A1h
Pro grammab le interrupt controller
00A2h-00BFh
PCI bus
00C0h-00DFh
Direct memory access controller
00E0h-00EFh
PCI bus
00F0h-00FFh
Numeric data processor
0100h-0CF7h
PCI bus
0170h-0177h
Secondary IDE Channel
01F0h-01F7h
Primary IDE Channel
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the ident it y of t he de vice. T he fo llow ing table lists the I/O port addresses used.
IB550F User’s Manual 49
APPENDIX
Address
Device Description
0274h-0277h
ISAPNP Read Data Port
0279h-0279h
ISAPNP Read Data Port
02E8h-02EFh
Commun ications Port ( COM4)
02F8h-02FFh
Commun ications Port ( COM2)
0376h-0376h
Secondary IDE Channel
0378h-037Fh
Printer Port (LPT1)
03B0h-03BAh
Advanced Micro Devices Win XP Grap hics Driver
03C0h-03DFh
Advanced Micro Devices Win XP Graphics Driver
03E8h-03EFh
Commun ications Port ( COM3)
03F0h-03F1h
Motherboard r esources
03F6h-03F6h
Primary IDE Channel
03F8h-03FFh
Commun ications Port ( COM1)
0778h-077Bh
Printer Port (LPT1)
0A79h-0A79h
ISAPNP Read Data Po rt
0D00h-FFFFh
PCI bus
F600h-F6FFh
Realtek RTL8139/810x Family Fast Et hernet NIC
F900h-F97Fh
GeodeLX Audio Driver (WDM)
FA00h-FA0Fh
Standard Dual Channel PCI IDE Controller
FB00h-FB0Fh
Silic on Image SiI 3512 SATALin k Controller
FC00h-FC03h
Silic on Image SiI 3512 SATALin k Controller
FD00h-FD07h
Silic on Image SiI 3512 SATALin k Controller
FE00h-FE03h
Silic on Image SiI 3512 SATALin k Controller
FF00h-FF07h
Silic on Image SiI 3512 SATALin k Controller
50
IB550F User’s Manual
APPENDIX
Level
Function
IRQ 0
Sys te m timer
IRQ 1
PC/AT Enhanced PS/2 Keyboard (101/102-Key)
IRQ 3
Communications Po rt (COM2)
IRQ 4
Commun ications Port ( COM1)
IRQ 5
Advanced Micro Devices Win XP Graphics Driver
IRQ 5
Geode LX AES Crypto Dr iver
IRQ 5
Silic on Image SiI 3512 SATALin k Contr oller
IRQ 5
Realtek RTL8139/810x Family Fast Ethernet NIC
IRQ 5
GeodeLX Audio Driver (WDM)
IRQ 5
Standard OpenHCD USB Host Contr oller
IRQ 5
Standard Enhanced PCI to US B Host Contr oller
IRQ 8
System CMOS/real time clock
IRQ 10
Commun ications Port ( COM4)
IRQ 11
Commun ications Port ( COM3)
IRQ 12
Microsoft P S / 2 Mouse
IRQ 13
Numeric data processor
IRQ 14
Primary IDE Channel
B. Interrupt Request Lines (IRQ)
Peripheral devi ces use i nterrupt request li nes to notify CPU f or the service required. The following table shows the IRQ used by the devices on board.
IB550F User’s Manual 51
APPENDIX
C. Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of syste m lock-up, such as when software becomes trapped in a deadlock. Under these sort of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zer o.
SAMPLE CODE: This code and information is provided "as is" without warrant y of any kind, either exp ressed or implied, inclu ding but not limited to the implied warranties of merchantability and/or fitness for a particular purpose.
;[]================================================ ; Name : Enable_And_Set_Watchdog ; IN : AL - 1sec ~ 255sec ; OUT : None ;[]================================================ Enable_And_Set_Watchdog Proc Near push ax ;save time interval call Unlock_Chip
mov cl, 2Bh call Read_Reg and al, NOT 10h call Write_Reg ;set GP24 as WDTO
mov cl, 07h mov al, 08h call Write_Reg ;switch to LD8 mov cl, 0F5h call Read_Reg and al, NOT 08h call Write_Reg ;set count mode as second
pop ax mov cl, 0F6h call Write_Reg ;set watchdog timer
mov al, 01h mov cl, 30h call Write_Reg ;watchdog enabled
52
IB550F User’s Manual
call Lock_Chip ret Enable_And_Set_Watchdog Endp
;[]=============================================== ; Name : Disable_Watchdog ; IN : None ; OUT : None ;[]=============================================== Disable_Watchdog Proc Near call Unlock_Chip
mov cl, 07h mov al, 08h call Write_Reg ;switch to LD8
xor al, al mov cl, 0F6h call Write_Reg ;clear watchdog timer
xor al, al mov cl, 30h call Write_Reg ;watchdog disabled
call Lock_Chip ret Disable_Watchdog Endp ;[]=============================================== ; Name : Unlock_Chip ; IN : None ; OUT : None ;[]=============================================== Unlock_Chip Proc Near mov dx, 4Eh mov al, 87h out dx, al out dx, al ret Unlock_Chip Endp ;[]================================================ ; Name : Lock_Chip ; IN : None ; OUT : None
APPENDIX
IB550F User’s Manual 53
APPENDIX
;[]================================================ Unlock_Chip Proc Near mov dx, 4Eh mov al, 0Aah
out dx, al ret Unlock_Chip Endp ;[]================================================ ; Name : Write_Reg ; IN : CL - register index ; AL - Value to write ; OUT : None ;[]================================================ Write_Reg Proc Near push ax mov dx, 4Eh mov al,cl out dx,al pop ax inc dx out dx,al ret Write_Reg Endp ;[]================================================ ; Name : Read_Reg ; IN : CL - register index ; OUT : AL - Value to read ;[]=================================================== Read_Reg Proc Near mov al, cl mov dx, 4Eh out dx, al inc dx in al, dx ret Read_Reg Endp ;[]================================================
54
IB550F User’s Manual
Loading...
