IAI GO-2400M-USB, GO-2400C-USB User Manual

Thank you for purchasing this product.

Be sure to read this manual before use.

This manual includes important safety precautions and instructions on how to operate the unit. Be sure to read this manual to ensure proper operation.

User Manual

GO-2400M-USB GO-2400C-USB

2.35M Digital Progressive Scan

Monochrome and Color Camera

Document Version: 1.0

GO-2400-USB_Ver.1.0_Mar.2017

Contents

Notice ............................................................................3

Warranty .......................................................................3

Certifications ................................................................. 3

Warning ........................................................................3

Usage Precautions .......................................................6

Features ........................................................................7

Parts Identification ........................................................8

Preparation........................................................... 11

Preparation Process ...................................................11

Step 1: Installing the Software (first time only) ............11

Step 2: Connecting Devices ........................................ 12

Step 3: Verifying the Camera’s Network Connection

Status ..........................................................................14

Step 4: Configuring Initial Settings for the Camera .....14

Connecting to the Camera to Control Tool .............14

Configuring the Output Format ...............................15

Configuring Exposure and External Trigger

Settings ...................................................................16

Control via External Triggers .......................................17

When Controlling the Exposure Time Using

Specified Exposure Times ......................................17

When Controlling the Exposure Time using

the Pulse Width of the Trigger Input Signal ............17

Control Without External Triggers ...............................18

When Controlling the Exposure Time Using

Specified Exposure Times ......................................18

When not Controlling the Exposure Time ...............19

Step 5: Adjusting the Image Quality............................19

Adjusting the Gain ..................................................19

Manual adjustment .............................................19

Adjusting the White Balance

(GO-2400C-USB only) ............................................20

Manual white balance adjustment ......................20

Automatic white balance adjustment .................20

Adjusting the Black Level .......................................20

Step 6: Configuring Various Other Settings ................20

Step 7: Saving the Settings .........................................20

To save user settings ..........................................21

To load user settings ...........................................22

Basic Function Matrix .................................................22

Main Functions .................................................... 23

GPIO (Digital Input/Output Settings) ...........................23

Valid Input/Output Combinations ............................23

Acquisition Control (Image Acquisition Controls) ........24

Changing the Frame Rate ......................................24

Maximum Frame Rate .............................................24

Maximum frame rate period formula ..................25

Exposure Mode ...........................................................26

Trigger Control ............................................................26

Shortest Repetition Period for Triggers ...................26

When [Exposure Mode] is [Timed] .....................27

When [Exposure Mode] is [Trigger Width] .........28

Gain Control ................................................................29

LUT (Lookup Table) ....................................................30

To use the LUT function ......................................30

LUT values ..........................................................30

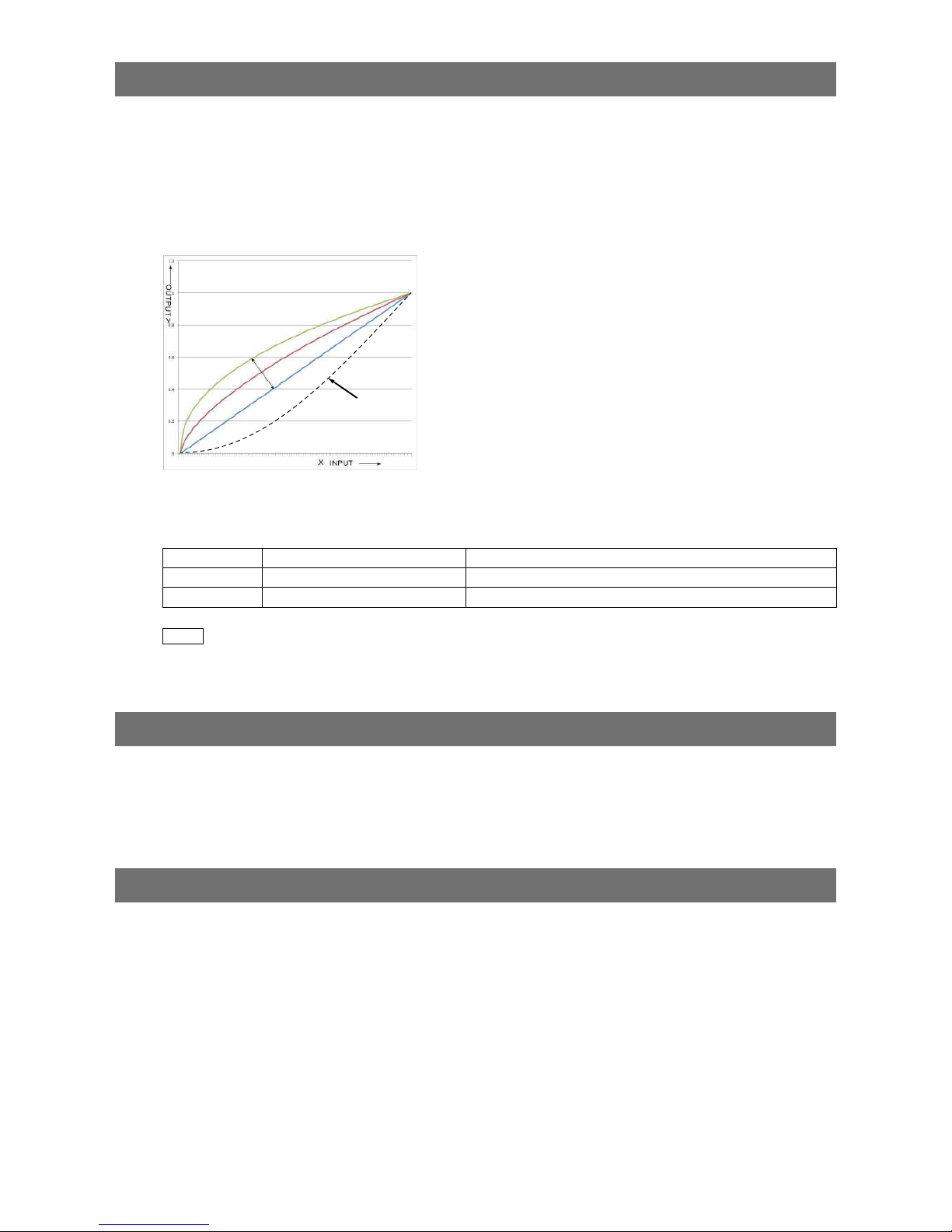

Gamma Function ........................................................31

To use the gamma function ................................31

Defective Pixel Correction Function ............................ 31

Line Status ..................................................................31

Shading Correction .....................................................32

Flat Shading ........................................................32

Color Shading (GO-2400C-USB only) ................33

To use the shading correction function ..............33

Binning Function .........................................................33

ROI (Regional Scanning Function) .............................34

ROI Settings ............................................................34

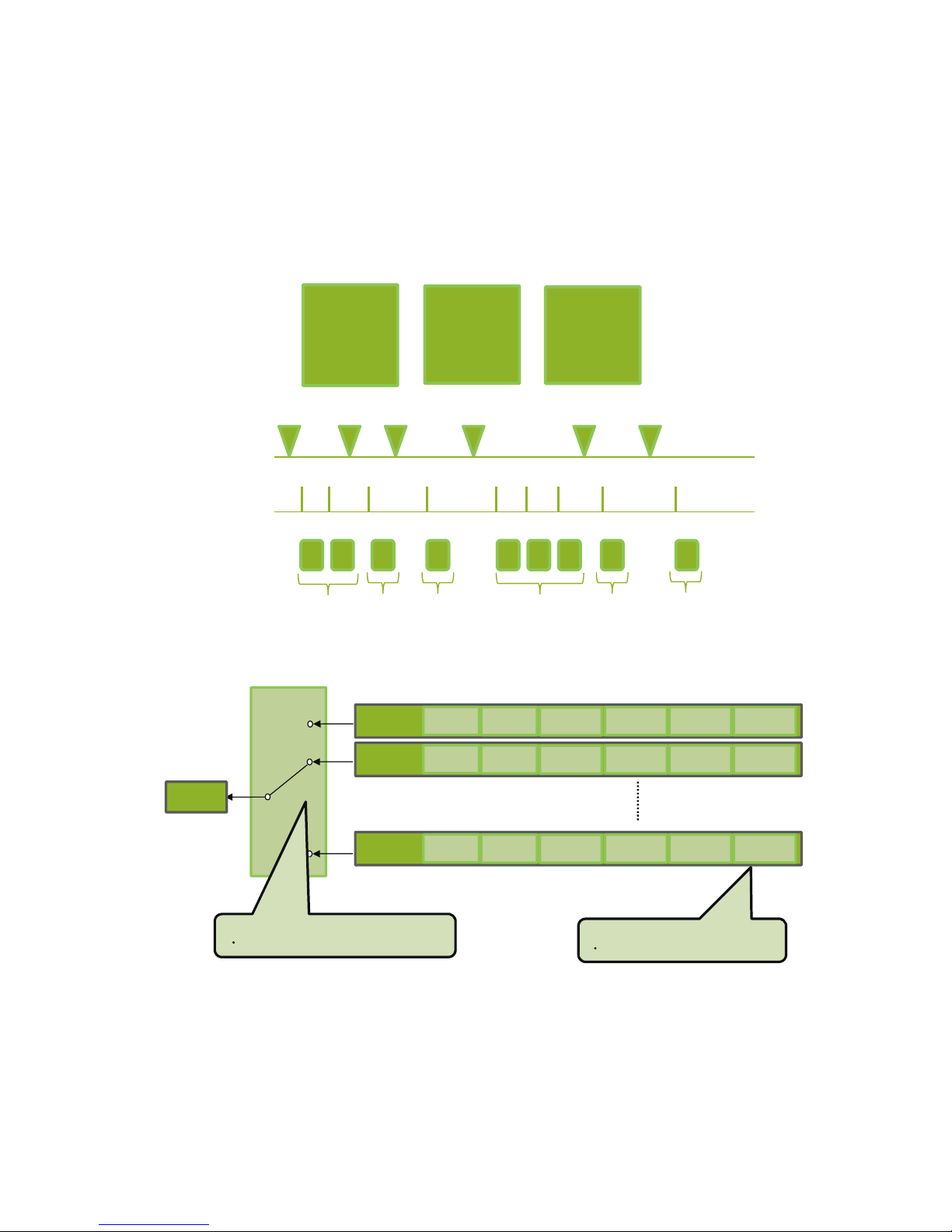

Sensor Multi ROI Function ..........................................35

Sequencer Function ....................................................37

Delayed Readout [Acquisition Transfer Start] ........40

ALC (Automatic Level Control) Function ..................... 40

To use the ALC function ......................................40

Automatic gain level control ...............................40

Detailed Settings for Gain Auto

(Automatic Gain Level Control) ..............................41

Counter and Timer Control Function

(counter support only) ................................................. 42

Counter occurrence diagram .............................42

Internal camera blocks .......................................42

To use the counter function ................................43

Video Process Bypass Mode ......................................43

Differences in camera operation ........................43

To enable video process bypass mode..............43

Chunk Data Function ..................................................44

Configuring Chunk Data .....................................45

Settings List ......................................................... 46

Feature Properties ......................................................46

Miscellaneous ...................................................... 54

Troubleshooting ..........................................................54

Specifications ..............................................................55

Frame Rate Reference ...............................................57

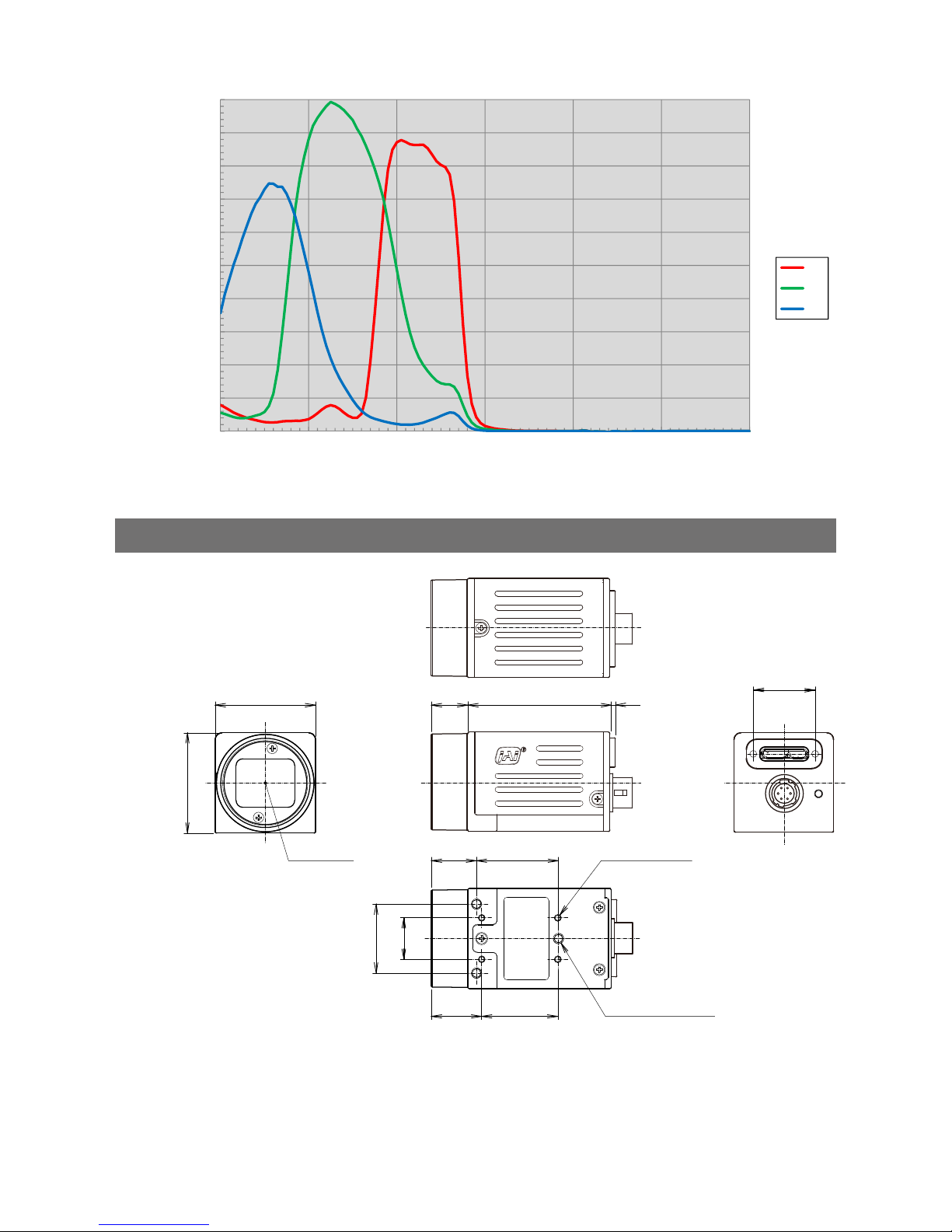

Spectral Response .....................................................57

Dimensions .................................................................58

User’s Record .............................................................59

Index ..................................................................... 60

— 2 —

GO-2400M-USB / GO-2400C-USB

— 3 —

Notice

The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein. JAI Ltd., Japan reserves the right to make changes without notice.

Company and product names mentioned in this manual are trademarks or registered trademarks of their respective owners.

Warranty

For information about the warranty, please contact your factory representative.

Certifications

CE compliance

As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC (Electromagnetic compatibility), JAI Ltd., Japan declares that GO-2400M-USB and GO-2400C-USB comply with the following provisions applying to its standards. EN 61000-6-3 (Generic emission standard part 1) EN 61000-6-2 (Generic immunity standard part 1)

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications to this unit not expressly approved by the party responsible for FCC compliance could void the user



s authority to operate the equipment.

GO-2400M-USB / GO-2400C-USB

— 4 —

GO-5000M-PGE

Supplement

The following statement is related to the regulation on “ Measures for the Administration of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “. The table shows contained Hazardous Substances in this camera.

mark shows that the environment-friendly use period of contained Hazardous

Substances is 15 years.

嶷勣廣吭並㍻

嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕

功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇云恢瞳ゞ嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕〃泌和



桟隠聞喘豚㍉

窮徨佚連恢瞳嶄根嗤議嗤蕎嗤墾麗嵎賜圷殆壓屎械聞喘議訳周和音氏窟伏翌亶賜融延、窮徨佚連恢瞳喘薩聞喘乎窮徨佚連恢瞳音氏斤桟廠夛撹冢嶷麟半賜斤児繁附、夏恢夛撹冢嶷鱒墾議豚㍉。

方忖仝15々葎豚㍉15定。

部件名称

有毒有害物质或元素

铅

(Pb)

汞

(Hg)

镉

(Cd)

六价铬

(Cr (VI))

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

电路板 × ○ ○ ○ ○ ○

螺丝 × ○ ○ ○ ○ ○

插座 × ○ ○ ○ ○ ○

······ ······ ······ ······ ······ ······ ······

GO-2400M-USB / GO-2400C-USB

— 5 —

GO-5000C-PGE

Supplement

mark shows that the environment-friendly use period of contained Hazardous

Substances is 15 years.

嶷勣廣吭並㍻

嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕

功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇云恢瞳ゞ嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕〃泌和



桟隠聞喘豚㍉

方忖仝15々葎豚㍉15定。

部件名称

有毒有害物质或元素

铅

(Pb)

汞

(Hg)

镉

(Cd)

六价铬

(Cr (VI))

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

电路板 × ○ ○ ○ ○ ○

螺丝 × ○ ○ ○ ○ ○

插座 × ○ ○ ○ ○ ○

光学滤镜 × ○ × ○ ○ ○

······ ······ ······ ······ ······ ······ ······

GO-2400M-USB / GO-2400C-USB

— 6 —

Notes on cable configurations

The presence of lighting equipment and television receivers nearby may result in video and audio noise. In such cases, change the cable configurations or placement.

Notes on attaching the lens

Avoiding dust particles

When attaching the lens to the camera, stray dust and other particles may adhere to the sensor surface and rear surface of the lens. Be careful of the following when attaching the lens.

•Work in a clean environment.

•Do not remove the caps from the camera and lens until immediately before you attach the lens.

•To prevent dust from adhering to surfaces, point the camera and lens downward and do not allow the

lens surface to come into contact with your hands or other objects.

•Always use a blower brush to remove any dust that adheres. Never use your hands or cloth, blow with your mouth, or use other methods to remove dust.

Phenomena specific to CMOS image sensors

The following phenomena are known to occur on cameras equipped with CMOS image sensors. These do not indicate malfunctions.

•

Aliasing

When shooting straight lines, stripes, and similar patterns, vertical aliasing (zigzag distortion) may appear on the monitor.

•

Blooming

When strong light enters, more than the allowable amount of charge of the sensor element in the CMOS image sensor (pixel) and the charge is overflowing, enters into the surrounding pixels, and blooming may occur. However, this does not affect actual operation.

•

Fixed pattern noise

When shooting dark objects in high-temperature conditions, fixed pattern noise may occur throughout the entire video monitor screen.

•

Defective pixels

Defective pixels (white and black pixels) of the CMOS image sensor are minimized at the factory according to shipping standards. However, as this phenomenon can be affected by the ambient temperature, camera settings (e.g., high sensitivity and long exposure), and other factors, be sure to operate within the camera’s specified operating environment.

Notes on exportation

When exporting this product, please follow the export regulations of your country or region.

Usage Precautions

GO-2400M-USB / GO-2400C-USB

— 7 —

GO-2400M-USB / GO-2400C-USB

Features

The GO-2400M-USB/GO-2400C-USB is an industrial progressive scan camera equipped with a 1/1.2-inch global shutter CMOS image sensor with 2.35 effective megapixels (1936 × 1216). The unit is compact and lightweight in design and is equipped with USB 3.0 interface.

 The GO-2400M-USB produces monochrome output while the GO-2400C-USB produces Bayer output.

Compact and lightweight

The unit’s compact (approx. 29 × 29 × 41.5 mm, excluding lens mount) and lightweight (approx. 46 g) design allows for easy assembly and installation.

Output formats

You can choose from 8-bit, 10-bit, and 12-bit* output for both monochrome and Bayer.

* As the color camera cannot perform white balance when using 12-bit output, perform white balance on the

application.

High frame rate

The GO-2400M-USB and GO-2400C-USB are both capable of frame rates of up to 159 fps (8-bit format) for full 2.35-megapixel output. Even faster frame rates can be achieved when a smaller ROI (region of interest) is specified.

ALC (automatic level control) function

Combine the automatic gain control and automatic exposure control functions to allow handling of changes in various brightnesses.

Variety of pre-process functions

• LUT (lookup table)

For programmable control over gamma and contrast.

• Gamma correction

Gamma can be set to 0.45, 0.60, or 1.0 (off).

• Shading correction (flat field and color shading)

Non-uniformity (i.e., shading) in the amount of light generated by the lens and lighting equipment can be corrected.

• Bayer white balance (GO-2400C-USB only)

White balance can be automatically adjusted continuously. It can also be adjusted manually using R, and B gain.

Connection example:

External trigger

AC adapter

Camera

Computer

USB 3.0

— 8 —

GO-2400M-USB / GO-2400C-USB

Parts Identification

②

③

①

④

⑤

⑥

Lens mount (C-mount)

Mount a C-mount lens, microscope adapter, etc. here.

 Before mounting a lens, be sure to refer to “Step 2: Connecting Devices” (page 12) and confirm the

precautions for attaching a lens and the supported lens types.

USB 3.0 connector

Use a USB 3.0 compatible cable to connect this to a USB port on the computer.

Power/trigger LED

Indicates the power and trigger input status.

LED status and camera status

LED Light Status

Power / trigger LED Lit amber Camera initializing.

Lit green Camera in operation. Blinking green During operation in trigger mode, trigger signals are being

input.

 The blinking interval is not related to the actual input interval

of the external trigger.

— 9 —

GO-2400M-USB / GO-2400C-USB

DC IN / trigger IN connector (6-pin round)

Connect the cable for a power supply (optional) or for DC IN / trigger IN here.

HR-10A-7R-6PB (73) (Hirose Electric or equivalent)

Pin No.

Input/

output

Signal Description

1 DC IN +12 to +24 V±10% 2 In Opto IN 1

Line 5

3 Out Opto OUT 1

Line 2

4 Out Opto OUT 2

Line 3

5 Opto Common 6 GND

Recommended external input circuit diagram (reference example)

TLP2366

1SS400

180CS

BF545C

USER POWER1

+3.3V to +24V

JAI GO Series CAMERA side

User side

+3.3V

JAI camera

HIROSE_6Pin_No.5

HIROSE_6Pin_No.2

User side

— 10 —

GO-2400M-USB / GO-2400C-USB

Recommended external output circuit diagram (reference example)

Standard circuit diagram example

2SC6033

220BS

1SS400

180BS

100KBS

TLP109(TPR, E)

HIROSE_6Pin_No.5

HIROSE_6Pin_NO.3 or 4

OUT f rom cam era

USER POWER2 +5V to +24V

User side

JAI GO Series CAMERA side

330

330~

2SC6033

4k7

OUT

4k7

Userload (resistor/lamp/relay/etc)

JAI camera

User side

Characteristics of the recommended circuits for Opto OUT

OUTPUT LINE RESPONSE TIME

Output Line Voltage

Camera Output Signal

TDR

TDF

90%

10%

Output LEVEL = User Vcc- (0.8 to 1.1)

Camera locking screw holes (M3, 3 mm depth)

Use these holes when attaching an MP-43 tripod adapter plate (optional) or mounting the camera directly to a wall or other structural system.

Camera locking screws (M3, 3 mm depth)

Use these when mounting the camera directly to a wall or other structural system.

— 11 —

GO-2400M-USB / GO-2400C-USB

Preparation

Preparation Process

Step 1 Installing the Software (first time only)

Install the software for configuring and controlling the camera (JAI SDK) on the computer.



Step 2 Connecting Devices

Connect the lens, USB cable, AC adapter, computer, and other devices.



Step 3 Verifying Whether the Camera is Running

Verify whether the camera is ready for use.



Step 4 Configuring Initial Settings for the Camera

• Configure the output format.

• Configure settings related to the exposure and external trigger.



Step 5 Adjusting the Image Quality

• Adjust the gain and white balance.

• Adjust the exposure (shutter).



Step 6 Configuring Various Other Settings

Configure various other settings as necessary.



Step 7 Saving the Settings

Save the current setting configurations in user memory.

Step 1: Installing the Software (first time only)

When using the camera for the first time, install the software for configuring and controlling the camera (JAI SDK) on the computer.

 When you install JAI SDK, JAI Camera Control Tool will also be installed.

Download the “JAI - Getting Started Guide” and JAI SDK from the JAI website.

URL: http://www.jai.com/en/support/download-jai-software

Refer to the “JAI - Getting Started Guide,” and install JAI SDK on the computer.

The computer will restart when installation is complete.

— 12 —

GO-2400M-USB / GO-2400C-USB

Step 2: Connecting Devices

Connect the lens, USB cable, AC adapter, and other devices. Attach the lens in a clean environment to prevent dust from adhering to the unit.

Camera body

Direct connection

(or MP-43 tripod adapter plate)

DC IN / trigger IN

connection cable

Lens

USB cable

Computer

to external trigger

AC adapter (not supplied)

(power supply)

Lens

• C-mount lenses with lens mount protrusions of 9 mm or less can be attached.

9 mm or less

Lens mount protrusion

Lens

• The diagonal of the camera’s CMOS image sensor is 13.4 mm, which is larger than the 11 mm size of standard 2/3-inch lenses. To prevent vignetting and to obtain the optimal resolution, use a lens that will cover the 13.4 mm diagonal. Some lens manufacturers offer lenses with a 13.4 mm format. If not, a 1-inch lens is recommended.

— 13 —

GO-2400M-USB / GO-2400C-USB

Caution

• The maximum performance of the camera may not be realized depending on the lens.

• Attaching a lens with a mount protrusion of 9.1 mm or longer may damage the lens or camera.

Note

The following formula can be used to estimate the focal length. focal length = WD / (1 + W/w)

WD: Working distance (distance between lens and object) W: Width of object w: Width of sensor (11.3 mm on this camera)

Direct connection (or MP-43 tripod adapter plate)

When mounting the camera directly to a wall or other device, use screws that match the camera locking screw holes on the camera. (Large: M3, small: M2, depth: 3 mm) Use the supplied screws to attach the tripod adapter plate.

Caution

For heavy lenses, be sure to support the lens itself. Do not use configurations in which its weight is supported by the camera.

USB cable

Connect a USB cable to the USB 3.0 connector.

Caution

The camera is equipped with a USB 3.0 compatible Micro B connector. Although this connector includes USB

2.0 connectors, the camera does not support use of USB 2.0.

Computer

Use a computer that meets the following requirements.

Operating system (OS):

Microsoft Windows 7/8 32-bit/64-bit edition

CPU: Intel Core i3 or higher Memory:

Windows 7/8 32-bit edition: DDR3, 4 GB or higher Windows 7/8 64-bit edition: DDR3, 8 GB or higher

Graphics card: PCI-Express 3.0 or higher Interface: USB 3.0 compatible connector

DC IN / trigger IN connection cable

AC adapter (power supply) (if necessary)

Connect the AC adapter and the round connector of the connection cable to the DC IN / trigger IN connector on the camera.

— 14 —

GO-2400M-USB / GO-2400C-USB

Step 3: Verifying the Camera’s Network Connection Status

When power is supplied to the camera while the necessary equipment is connected, the power / trigger LED at the rear of the camera lights amber, and initialization of the camera starts. When initialization is complete, the power / trigger LED lights green.

Verify whether power is being supplied to the camera by checking the rear LED.

Lit green

During normal status

 For details on how to read the LEDs, see “LED status and camera status” (page 8) in the “Parts

Identification” section.

Step 4: Configuring Initial Settings for the Camera

Start Control Tool, configure initial settings for the output format, exposure, external trigger, etc.

Connecting to the Camera to Control Tool

Start JAI Control Tool.

Cameras connected to the computer’s USB 3.0 connectors are detected, and a window appears. If they do not appear, right-click inside the window and select [Search for Cameras].

Select the camera you want to configure.

Check that the settings of the selected camera are displayed.

— 15 —

GO-2400M-USB / GO-2400C-USB

Configuring the Output Format

Configure the size, position, and pixel format of the images to be acquired. The factory settings are as follows. Change the settings as necessary.

Factory default values

Item Default value

Image Format Control Width 1936 (pixels)

Height 1216 (pixels) Offset X (horizontal position) 0 (pixels) Offset Y (vertical position) 0 (pixels) Pixel Format GO-2400M-USB: 8 Bit Monochrome

GO-2400C-USB: 8 Bit Bayer RG

 You can specify the image acquisition area. For details, see “ROI (Regional Scanning Function)” (page 34).

Select the [Feature Properties] tab, and select the item you want to configure under [Image Format Control].

when a configurable item is selected.

Note

Settings can only be changed when image acquisition on the camera is stopped. If an item is grayed out and

does not appear even when you select it, click (Stop Acquisition) to stop image acquisition.

Click and change the setting value.

Example: When changing [Width]

— 16 —

GO-2400M-USB / GO-2400C-USB

Example: When changing [Pixel Format]

Note

Direct entry of numerical and text values is possible for some setting items.

Configuring Exposure and External Trigger Settings

Configure settings related to exposure control methods and trigger control. The factory settings are as follows. Change settings as necessary, according to the intended purpose or application.

Factory default values

Item Default value

Trigger Selector (trigger operation) Frame Start

Trigger Mode Off Trigger Source (trigger signal source) Line 5 - Optical In 1

Trigger Activation (trigger polarity) Rising Edge (rising edge of input signal) Exposure Mode Timed (control via exposure time) Exposure Time 6210 (µs) Exposure Auto* Off

* This item is only enabled when [Exposure Mode] is set to [Timed].

Caution

When [Exposure Mode] is set to [Off], [Trigger Mode] cannot be set to [On]. Other settings may also be restricted depending on the exposure mode, so be sure to set the exposure mode before configuring the trigger settings.

Configure the settings by expanding [Acquisition Control] and configuring the following items.

Caution

Settings can only be configured when image acquisition on the camera is stopped. If an item is grayed out and the setting cannot be changed, stop image acquisition beforehand.

— 17 —

GO-2400M-USB / GO-2400C-USB

Control via External Triggers

When Controlling the Exposure Time Using Specified Exposure Times

Configure the settings as follows.

Item Setting value / selectable range

Trigger Selector (trigger operation) Frame Start

Trigger Mode On

Trigger Source (trigger signal source) Any

Trigger Activation (trigger polarity) Rising Edge (rising edge of input signal), Falling Edge (falling

edge of input signal) Exposure Mode Timed (control via exposure time) Exposure Time 6 to 7999892 (µs) (1 µs/step)*

Exposure Auto Off, Continuous

* 1 The minimum value will differ depending on the [Pixel Format] setting value.

Set [Exposure Mode] to [Timed].

([Timed] is the default setting.)

Specify the exposure time in [Exposure Time].

The setting value for the exposure time can only be changed when [Exposure Auto] is set to [Off]. If [Exposure Auto] is set to [Continuous], temporarily set it to [Off] before changing the exposure time.

Set [Trigger Selector] to [Frame Start].

([Frame Start] is the default setting.)

Set [Trigger Mode] to [On].

If necessary, change the [Trigger Source], [Trigger Activation], and [Exposure Auto] settings.

When Controlling the Exposure Time using the Pulse Width of the Trigger Input Signal

Configure the settings as follows.

Item Setting value / selectable range

Trigger Selector (trigger operation) Frame Start

Trigger Mode On Trigger Source (trigger signal source) Any Trigger Activation (trigger polarity) Level High (high-level duration), Level Low (low-level

duration) Exposure Mode Trigger Width (control via trigger width)

— 18 —

GO-2400M-USB / GO-2400C-USB

Set [Exposure Mode] to [Trigger Width] .

When you select [Trigger Width], [Trigger Mode] will automatically be set to [On].

Set [Trigger Selector] to [Frame Start].

([Frame Start] is the default setting.)

If necessary, change the [Trigger Source] and [Trigger Activation] settings.

Other controls

In addition to exposure time, the following can also be controlled by external triggers. Select these control operations in [Trigger Selector].

[Trigger Selector] setting Description

Acquisition Start Start image acquisition. Acquisition End Stop image acquisition. Acquisition Transfer Start Output acquired images at a specified timing. (Up to 8

frames for 8-bit, and up to 4 frames for 10-/12-bit.)

Control Without External Triggers

When Controlling the Exposure Time Using Specified Exposure Times

Configure the settings as follows.

Item Setting value / selectable range

Trigger Selector (trigger operation) Frame Start

Trigger Mode Off Exposure Mode Timed (control via exposure time) Exposure Time The exposure time will differ depending on the [Pixel Format]

and [Acquisition Frame Rate] setting values. (1 µs/step)*

Exposure Auto Off, Continuous

*1 The maximum value for [Exposure Time] varies depending on the value configured for the [Acquisition Frame

Rate Raw] setting. Max. value for [Exposure Time] = [Acquisition Frame Rate Raw] value - 14H (8 bit: 14×4.85 = 67.9, 10/12 bit: 14×6.22 = 87.1)

Set [Exposure Mode] to [Timed].

([Timed] is the default setting.)

Specify the exposure time in [Exposure Time].

The setting value for the exposure time can only be changed when [Exposure Auto] is set to [Off].

If [Exposure Auto] is set to [Continuous], temporarily set it to [Off] before changing the exposure

time.

Set [Trigger Mode] to [On].

If necessary, change the [Exposure Auto] setting.

— 19 —

GO-2400M-USB / GO-2400C-USB

When not Controlling the Exposure Time

Configure the settings as follows.

Item Setting value / selectable range

Exposure Mode Off

The exposure will be performed with an exposure time equal to 1 / frame rate.

Note

• [Exposure Time] will be disabled.

• [Exposure Auto] cannot be used.

Step 5: Adjusting the Image Quality

Adjust the image quality using the gain and white balance (GO-2400C-USB only) functions.

To adjust the image quality

The display level must be changed from [Beginner] to [Guru].

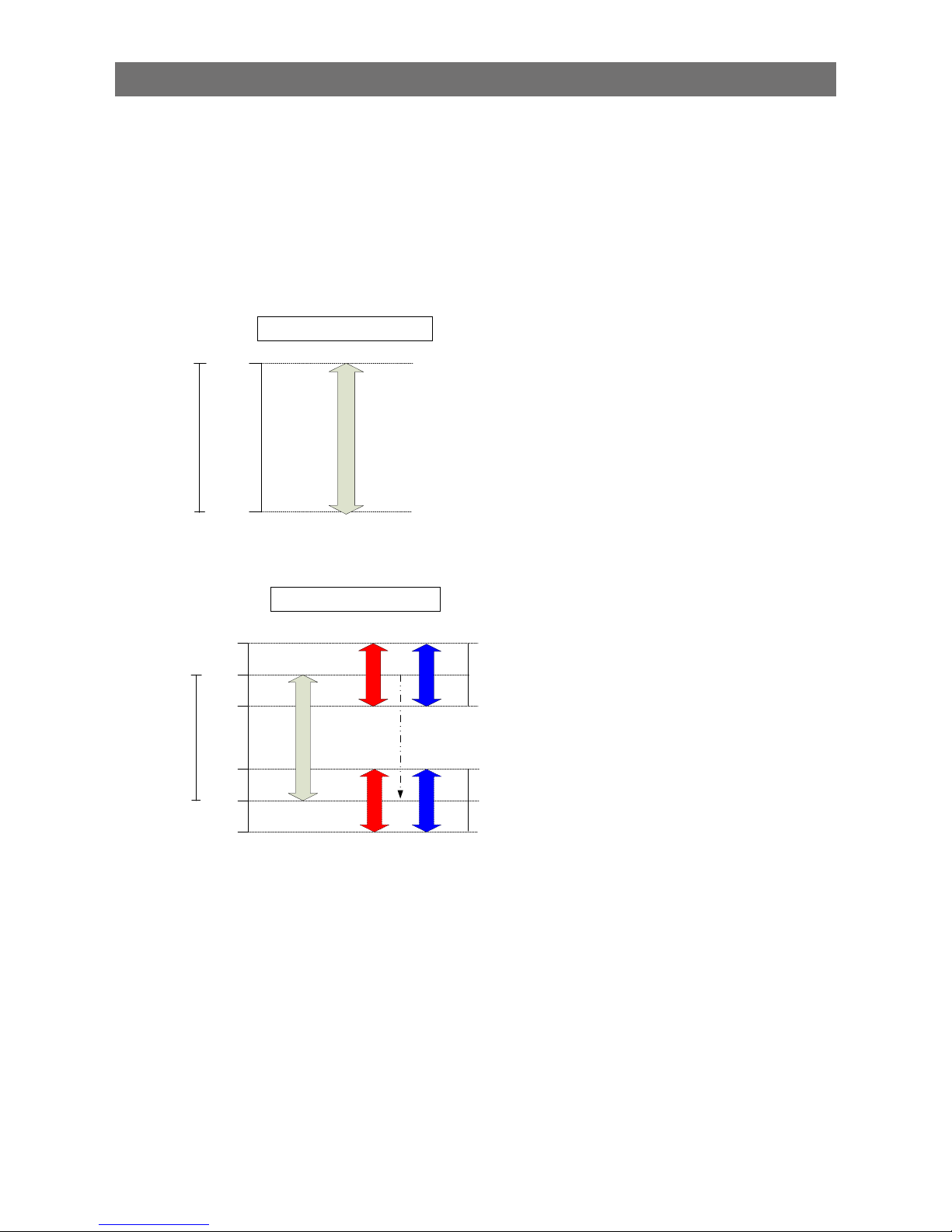

Adjusting the Gain

Adjust the sensitivity via the analog gain (i.e., master gain).

 For details on gain control, see “Gain Control” (page 29) in the “Main Functions” section.

■ Manual adjustment

Expand [Analog Control], and set [Gain Auto] to [Off].

([Off] is the default setting.)

Configure the gain.

Expand [Analog Control], and select the gain you want to configure in [Gain Selector].

• For the GO-2400M-USB, only [Analog All] (master gain) can be configured.

• For the GO-2400C-USB, [Analog All] (master gain), [Digital Red] (digital R gain), and [Digital

Blue] (digital B gain) can be configured individually.

Configure the gain value in [Gain].

• [Analog All] (master gain) can be set to a value from x1 to x16 (0 dB to +24 dB). The resolution is set in x0.01 steps (0.005 dB to 0.08 dB depending on the setting value). Values are configured by multipliers.

• For the GO-2400C-USB, the [Digital Red] (digital R gain) and [Digital Blue] (digital B gain) can be set to a value from x0.45 to x5.62 (–7 dB to +15 dB) the [Analog All] (master gain) value. The resolution is set in x0.01 steps.

— 20 —

GO-2400M-USB / GO-2400C-USB

Adjusting the White Balance (GO-2400C-USB only)

Adjust the white balance using R and B gain. The white balance can also be adjusted automatically.

■ Manual white balance adjustment

Expand [Analog Control], and set [Balance White Auto] to [Off].

([Off] is the default setting.)

Select the gain to configure in [Gain Selector], and set the gain value in [Gain].

■ Automatic white balance adjustment

Place a white sheet of paper or similar object under the same lighting conditions as the intended subject, and zoom in to capture the white.

White objects near the subject, such as a white cloth or wall, can also be used.

Be sure to prevent the high-intensity spot lights from entering the screen.

Select the [Balance White Auto] tab, and click [Continuous] or [Once] depending on your intended application.

The white balance is automatically adjusted.

Adjusting the Black Level

Expand [Analog Control], and select the black level you want to configure in [Black Level Selector].

For the GO-2400M-USB, only [Digital All] (master black) can be configured.

For the GO-2400C-USB, [Digital All] (master black), [Digital Red] (digital R), and [Digital Blue] (digital B) can be configured individually.

Specify the adjustment value in [Black Level].

Step 6: Configuring Various Other Settings

See “Settings List” (page 46) and configure settings as necessary.

Step 7: Saving the Settings

The setting values configured in Control Tool will be deleted when the camera is turned off. By saving current setting values to user memory, you can load and recall them whenever necessary. You can save up to three sets of user settings (User Set1 to 3) in the camera.

— 21 —

GO-2400M-USB / GO-2400C-USB

User memory Temporary memory

Current

setting values

Control Tool

Save

User Set1

User Set2

User Set3

Note

Changes to settings are not saved to the computer (Control Tool).

■ To save user settings

Stop image acquisition.

Expand [User Set Control], and select the save destination ([User Set1] to [User Set3]) in [User Set Selector].

Note

The factory default setting values are stored in [Default] and cannot be overwritten.

Caution

Settings can only be saved when image acquisition on the camera is stopped.

Select [User Set Save], and click [Execute ‘User Set Save’ Command].

— 22 —

GO-2400M-USB / GO-2400C-USB

The current setting values are saved as user settings.

■ To load user settings

Stop image acquisition.

User settings can only be loaded when image capture on the camera is stopped.

Select the settings to load (User Set1 to User Set3) in [User Set Selector].

Select [User Set Load], and click [Execute ‘User Set Load’ Command].

The selected user settings are loaded.

Basic Function Matrix

The combinations of settings for the basic functions that can be used together are as follows.

Exposure Mode

Frame Start Trigger

Binning Vertical*

Binning Horizontal*

Exposure Time

ROI

Balance White

Auto*

Gain Auto

Exposure Auto

Sequencer

Multi ROI

Sensor Multi ROI

Sensor

Trigger

Sequencer Mode

Command

Sequencer Mode

Off Off 1 × 1 (Off) ×

  

 

× ×

1 × 2 ×



 

× ×

2 × 1 ×



 

× ×

2 × 2 ×



 

× ×

Timed Off 1 × 1 (Off)

      



1 × 2

 

   



2 × 1

 

   



2 × 2

 

   



Timed (EPS) On 1 × 1 (Off)

        

1 × 2

 

     

2 × 1

 

     

2 × 2

 

     

Trigger Width On 1 × 1 (Off) ×

  

 

× ×

1 × 2 ×



 

× ×

2 × 1 ×



 

× ×

2 × 2 ×



 

× ×

*1 Operates only on the GO-2400M-USB *2 Operates only on the GO-2400C-USB

— 23 —

GO-2400M-USB / GO-2400C-USB

Main Functions

GPIO (Digital Input/Output Settings)

The camera is equipped with GPIO (general-purpose input/output) functions for generating and using combinations of triggers and other necessary signals within the camera and of signals output from the camera to the system such as those used for lighting equipment control.

Valid Input/Output Combinations

The following signals can be used as sources for each output destination (Trigger Selector, Line Selector, Pulse Generator Selector). You can also connect two different sources to NAND paths in the GPIO and reuse the signal generated there as a source for a different selector.

The combinations of source signals and output destinations are indicated in the following.

Selector

(Cross point

switch output)

Source signal (Cross point switch input)

Output destination

Trigger Selector Line Selector

Acquisition Start

Acquisition End

Frame Start

Transfer Start

Line2 OPT Out 1

Line3 OPT Out 2

PG Clear

Time Stamp Reset

Nand Gate 0 In

Nand Gate 1 In

Signals to use as output

LOW

         

HIGH

         

User Output 0

         

User Output 1

         

Software

   

× × × × × ×

Pulse Generator 0

     

  

NAND 0 Out

       



NAND 1 Out

        

Line5-Optical In 1

         

FVAL

× × × ×

     

LVAL

× × × × × ×

   

Acquisition Trigger Wait

× × × ×

     

Frame Trigger Wait

× × × ×

     

Frame Active

× × × ×

     

Exposure Active

× × × ×

     

Trigger Source Line Source

Use

: Indicates default values for each selector. “Factory default values” (page 16) shows the

default values for [Frame Start].

— 24 —

GO-2400M-USB / GO-2400C-USB

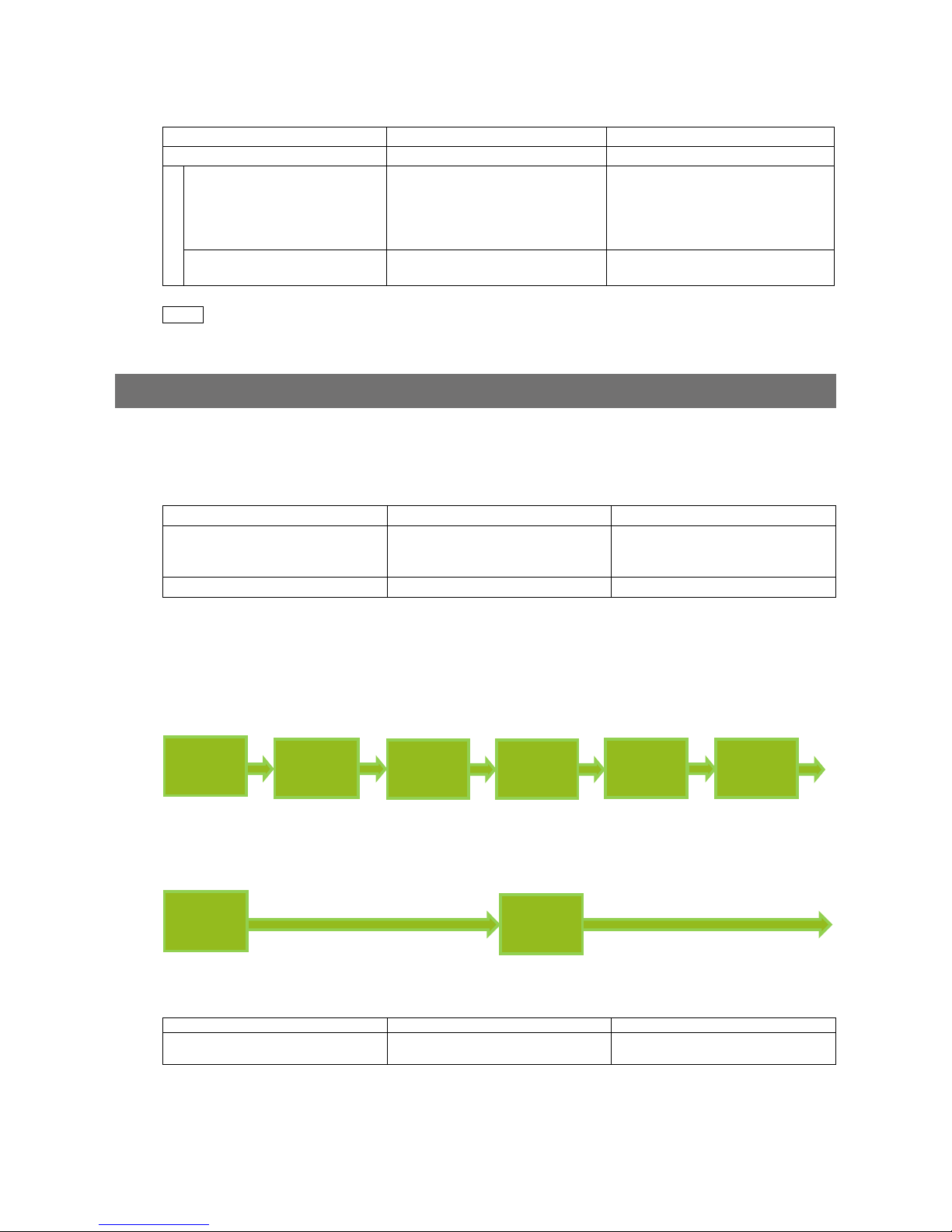

Acquisition Control (Image Acquisition Controls)

Perform operations and configure settings related to image acquisition in [Acquisition Control].

The following acquisition modes are available on the camera.

Acquisition Mode Description

Single Frame Acquire a single frame when the [Acquisition Start] command is executed. Multi Frame Acquire the number of frames specified in [Acquisition Frame Count] when the

[Acquisition Start] command is executed.

Continuous Acquire images continuously until the [Acquisition Stop] command is executed.

Changing the Frame Rate

When [Trigger Mode] is disabled, you can change the frame rate in [Acquisition Frame Rate].

Note

• The shortest frame period varies depending on the ROI, pixel format, and binning mode selected. The longest frame period is 0.125 Hz (8 sec.).

• When [Trigger Mode] is enabled, the [Acquisition Frame Rate] setting is disabled.

Maximum Frame Rate

The maximum frame rate is as follows depending on the sensor’s scanning range and the USB 3.0 bandwidth.

Maximum frame rate (A)

(Value derived from sensor

scanning range)

SensorFR

Compared

Maximum frame rate (B)

(Value derived from USB 3.0

bandwidth) InterfaceFR

Maximum frame rate (A) Maximum frame rate (B)

(A) < (B) (A) > (B)

— 25 —

GO-2400M-USB / GO-2400C-USB

■ Maximum frame rate period formula

During continuous operation ([Frame Start] trigger is [Off] or [Exposure Mode] is [Off])

• Maximum frame rate of sensor output SensorFR = 1 / ((Height_s + 40) × Hperiod)

• Maximum frame rate of USB 3.0 output bandwidth InterfaceFR = 3000 × 1000000 / (Height_g × Width_g × Pack value)

• Maximum frame rate FR_Cont = Min (<SensorFR>, <InterfaceFR>)

When the exposure time is longer than the frame interval

• Maximum exposure time at maximum frame rate

MaxExposureTime_TrOlrd = (1 / FR_Cont) - (14 × H Period)

• Exposure time outside of frame interval

NonOverlapExposureTime = ExposureTime - MaxExposureTime_TrOlrd However, NonOverlapExposureTime calculation results that are 0 or below will be considered as 0.

• Maximum frame rate

FR_ContLongExposure = 1/{(1/FR_Cont) + NonOverlapExposureTime}

When [Frame Start] trigger is [On] and [Trigger OverLap] is [Off]

• Maximum frame rate of sensor output

Sensor FR = 1 / {H Period × (Height + 40)}

• Maximum frame rate by interface

Interface FR = 3000 × 1000000 / (Height × Width × Pack value)

• Maximum frame rate

FR_Cont = Min (Sensor FR, Interface FR)

• Exposure time possible within frames

MaxOverlapTime_TrOloff = (1 / FR_Cont) - (1 / Sensor FR)

• Exposure time outside of frame interval

NonOverlapExposureTime_TrOloff = ExposureTime - MaxOverlapTime_TrOloff However, NonOverlapExposureTime_TrOloff calculation results that are 0 or below will be considered as 0. For TriggerWidth, the trigger pulse is equivalent to ExposureTime.

• Maximum frame rate

FR_TrOloff = 1 / {(1 / FR_Cont) + NonOverlapExposureTime_TrOloff}

When [Frame Start] trigger is [On] and [Trigger OverLap] is [Readout]

• Maximum frame rate of sensor Sensor FR = 1 / {H Period × (Height + 40)}

• Maximum frame rate by interface Interface FR = 3000 × 1000000 / (Height × Width × Pack value)

• Maximum frame rate FR_Cont = Min (Sensor FR, Interface FR)

• Exposure time possible within frames MaxOverlapTime_TrOlrd = (1 / FR_Cont) - (14 × H Period)

• Exposure time outside of frame interval NonOverlapExposureTime_TrOlrd = ExposureTime - MaxOverlapTime_TrOlrd However, NonOverlapExposureTime_TrOlrd calculation results that are 0 or below will be considered as 0. For TriggerWidth, the trigger pulse is equivalent to ExposureTime.

• Maximum frame rate FR_TrOlrd = 1 / {(1 / FR_Cont) + NonOverlapExposureTime_TrOlrd}

— 26 —

GO-2400M-USB / GO-2400C-USB

Pixel Format

H Period (μs) Pack Value

8 bit

4.8485 8

10 bit packed

6.2222 10

12 bit packed

6.2222 12

10 bit/12 bit

6.2222 16

Exposure Mode

The following exposure modes are available on the camera.

Exposure Mode Description

Off Exposure control is not performed (free-running operation). Timed Mode in which control is performed using exposure time. Acquire images using an

exposure time configured beforehand on an external trigger.

Trigger Width Mode in which control of the exposure time is performed using the pulse width of the

trigger input signal. The exposure time will be the same as the pulse width of the trigger input signal. This allows long exposure.

 The settings for exposure control and triggers are related to each other. Be sure to configure the settings

described in “Configuring Exposure and External Trigger Settings” (page 16).

Trigger Control

The camera allows the following controls to be performed via external trigger signals.

Trigger Selector Description

Frame Start Start exposure in response to the external trigger signal input. Select this to perform

exposure control using external triggers. Acquisition Start Start image acquisition in response to the external trigger signal input. Acquisition End Stop image acquisition in response to the external trigger signal input. Acquisition Transfer Start Output acquired images at a specified timing in response to an external trigger

signal input. (Up to 8 frames for 8-bit, and up to 4 frames for 10-/12-bit.)

 The settings for exposure control and triggers are related to each other. Be sure to configure the settings

described in “Configuring Exposure and External Trigger Settings” (page 16).

Shortest Repetition Period for Triggers

The reciprocal of the maximum frame rate is the time required to output one frame. The shortest repetition periods for triggers cannot be lower than that value.

Scanning range

Shortest period of trigger

8 bit 10 bit Packed 10 bit

Full 6.289 ms 7.874 ms 12.658 ms ROI 2/3 (Height = 810) 4.193 ms 5.249 ms 8.439 ms ROI 1/2 (Height = 608) 3.145 ms 3.937 ms 6.329 ms ROI 1/4 (Height = 304) 1.572 ms 1.969 ms 3.165 ms ROI 1/8 (Height = 152) 0.786 ms 0.984 ms 1.582 ms Binning Vertical 2* 3.145 ms 5.249 ms 8.439 ms

* GO-2400M-USB only

The above table indicates the shortest trigger periods for when [Trigger OverLap] is set to [Readout]. When [Trigger OverLap] is set to [Off], the exposure time is added to the period.

— 27 —

GO-2400M-USB / GO-2400C-USB

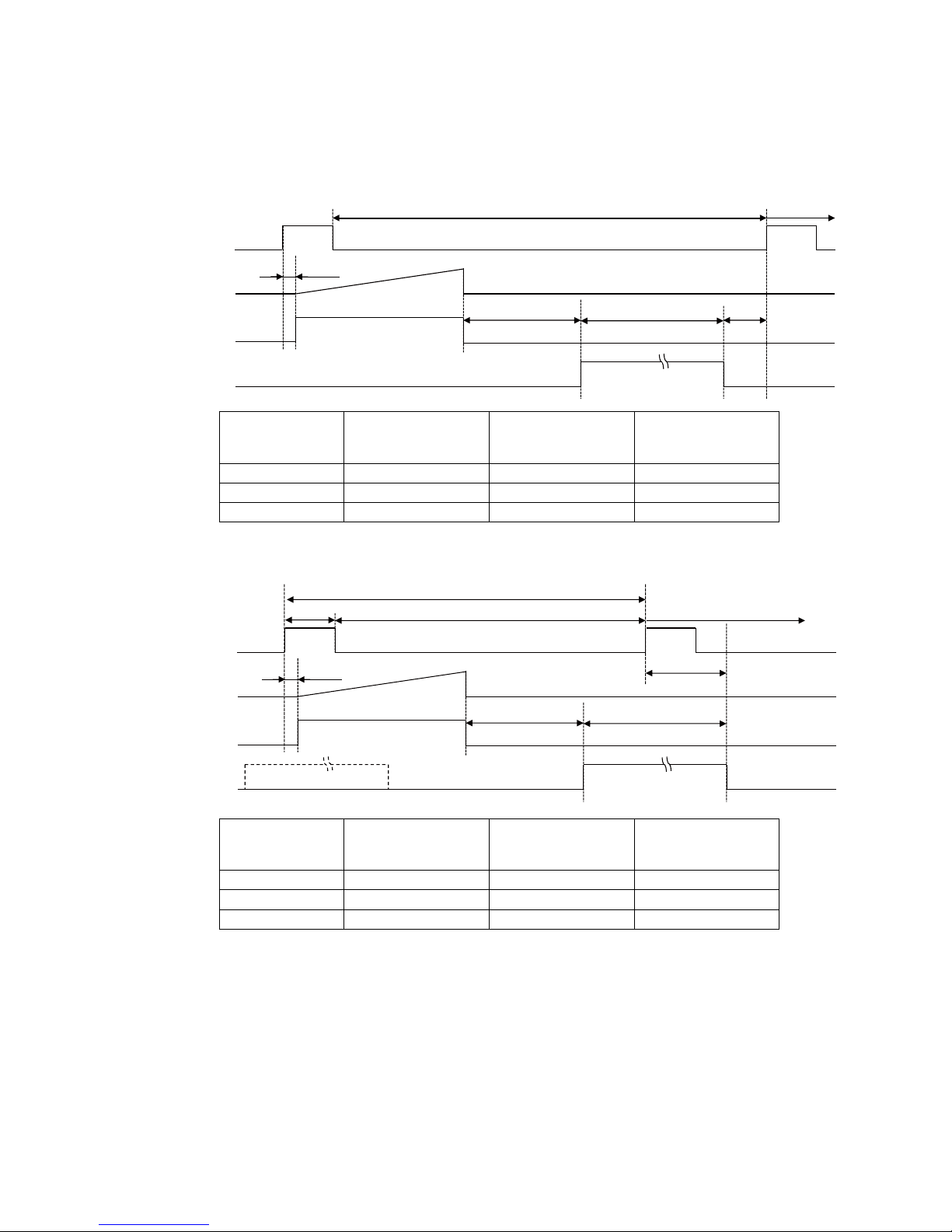

■ When [Exposure Mode] is [Timed]

Example: When [Trigger Source] is set to [Line 5 - Optical In 1] and [OptIn Filter Selector] is set to [10 µs]

• Trigger overlap: Off

FVAL

データ出力期間

次のトリガ無効

次のトリガ

入力可能

Sensor Exposure

Trigger

(= Height x Line Period)

EEN

Readout duration

Next trigger disabled

Next trigger input enabled

Pixel format Period from Trigger

start edge to Exposure

start[A](usec)

Period from Exposure

end to FVAL start[B]

(usec)

Period FVAL end to next trigger start[C]

(usec)

8 bit 422 165 355

10 bit packed 26 212 41

10 bit 26 212 4749

• Trigger overlap: Readout

FVAL

Sensor Exposure

Trigger

(= Height x Line Period)

EEN

Readout duration

Next trigger disabled

Next trigger

input enabled

Pixel format Period from Trigger

start edge to Exposure

start[A](usec)

Period from Exposure

end to FVAL start[B]

(usec)

Period FVAL end to next trigger start[C]

(usec)

8 bit 422 165 6277-ExposureTime

10 bit packed 26 212 7848-ExposureTime

10 bit 26 212 12556-ExposureTime

— 28 —

GO-2400M-USB / GO-2400C-USB

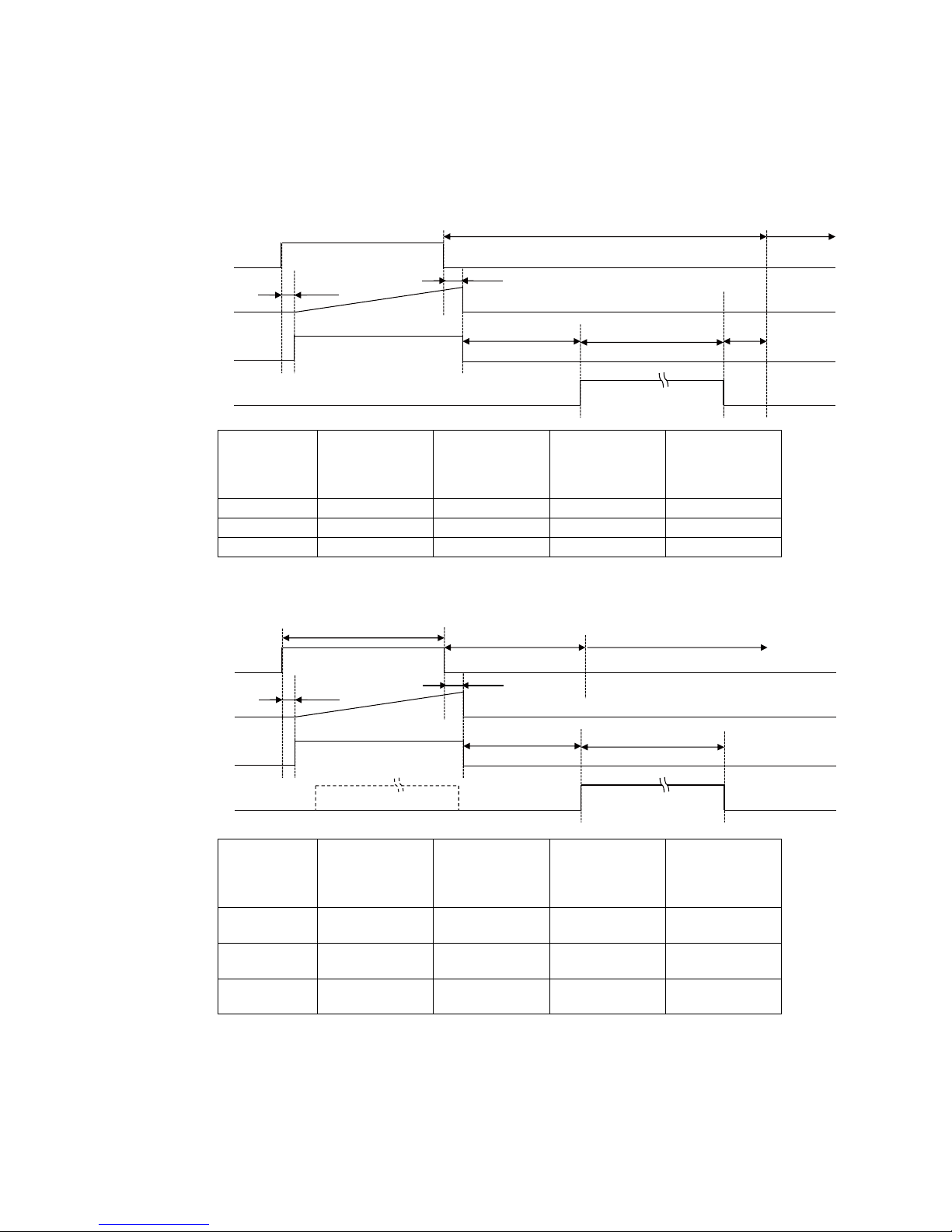

■ When [Exposure Mode] is [Trigger Width]

Example: When [Trigger Source] is set to [Line 5 - Optical In 1] and [OptIn Filter Selector] is set to [10 µs]

• Trigger overlap: Off

FVAL

データ出力期間

次のトリガ無効

次のトリガ

入力可能

Sensor Exposure

Trigger

(= Height x Line Period)

EEN

Readout duration

Next trigger disabled

Next trigger input enabled

Pixel format Period from

Trigger start edge

to Exposure

start[A](usec)

Period from

Exposure end to

FVAL start[B]

(usec)

Period FVAL end

to next trigger start[C](usec)

Period from

Trigger end edge

to Exposure

end[D](usec)

8 bit 422 165 355 22

10 bit packed 26 212 41 26

10 bit 26 212 4749 26

• Trigger overlap: Off

FVAL

Sensor Exposure

Trigger

(= Height x Line Period)

EEN

Readout duration

Next trigger

disabled

Next trigger input enabled

Pixel format Period from

Trigger start edge

to Exposure

start[A](usec)

Period from

Exposure end to

FVAL start[B]

(usec)

Next trigger start

prohibited

period[C](usec)

Period from

Trigger end edge

to Exposure

end[D](usec)

8 bit 422 165 67.879

(14*Line Period)

10 bit packed 26 212 87.1108

(14*Line Period)

10 bit 26 212 87.1108

(14*Line Period)

— 29 —

GO-2400M-USB / GO-2400C-USB

Gain Control

[Analog All] can be used for gain control for both the monochrome and color camera. [Analog All] (master gain) uses the sensor's internal gain function and consists of analog gain + digital gain. Analog gain is used for lower gain, and analog gain + digital gain is used when the gain becomes high. R and B can be configured individually as digital gain on the GO-2400C-USB.

 For details on how to configure the settings, see “Adjusting the Gain” (page 19).

The relationship between the gain setting value, gain amplification, and dB value is as follows. For example, a gain amplification of x5.62 will be 15 dB.

Monochrome

x16

16.0

1.0

24dB

0dB

Gain

setting

value

Gain

amplification

Gain adjustment range (monochrome)

Bayer color

X89.12

X16

X7.15

X5.62

X0.45

16.0

1.0

37876 (X5.62)

0 (X1)

–4533 (X0.45)

R&B

Red

Blue

39dB

-7dB

0dB

24dB

15dB

0dB

–7dB

15dB

0dB

–7dB

15dB

37876 (X5.62)

0 (X1)

–4533 (X0.45)

Gain

setting

value

Master Master

Gain

amplification

Gain setting

value (scaling)

Gain adjustment range (Bayer color)

— 30 —

GO-2400M-USB / GO-2400C-USB

LUT (Lookup Table)

The LUT function is used to generate a non-linear mapping between signal values captured on the sensor and those that are output from the camera. You can specify the output curve using 257 setting points (indexes).

■ To use the LUT function

Configure the settings as follows.

Item Setting value / selectable range Description

JAI LUT Mode LUT Use LUT. LUT Selector* R, G, B Select the LUT channel to control. LUT Index GO-2400M-USB: 0 to 256

GO-2400C-USB: 0 to 256

Select the LUT index to configure. Indexes represent the possible pixel values captured on the sensor, from the lowest value (Index 0) to the highest (Index 256). For example, Index 0 represents a full black pixel and Index 256 represents a full white pixel.

LUT Value 0 to 4095 Set the LUT output value for the selected index.

* GO-2400C-USB only

■ LUT values

LUT values range from 0 at the lowest to 4095 at the highest. Linear interpolation is used to calculate LUT values between the index points.

4095

Index0

Index1

LUT Value [1]

LUT Value [0]

Index256

Values between points are determined using the linear interpolation values of data to the left and right.

— 31 —

GO-2400M-USB / GO-2400C-USB

Gamma Function

The gamma function corrects the output signals from the camera beforehand (reverse correction), taking into consideration the light-emitting properties of the monitor display. As the light-emitting properties of the monitor are not linear, the entire image may be darker or the gradation in the dark areas may be less noticeable when camera outputs are displayed without processing. The gamma function can be used to correct the camera signals with an opposite-direction curve and produce a display that is close to linear.

Example of the light-emitting properties of the monitor display

■ To use the gamma function

Configure the settings as follows.

Item Setting value / selectable range Description

Gamma 0.45, 0.60, 1.0 (Off) Select the gamma correction value. JAI LUT Mode Gamma Use gamma.

Note

You can use the LUT function to configure a curve with more detailed points. For details, see “LUT (Lookup Table)” (page 30).

Defective Pixel Correction Function

Multiple defective pixels that are not adjacent to each other can occur on conventional CMOS sensor cameras. This camera features a function that interpolates defective pixels using the surrounding pixels. Up to 256 pixels can be corrected.

Line Status

The line status function allows you to verify the status of external input/output signals. You can verify the status of the following signals.

•Opt Out 1, Opt Out 2, Opt In 1

•Time Stamp Reset

•NAND Gate 0 In 1, NAND Gate 0 In 2, NAND Gate 1 In 1, NAND Gate 1 In 2

— 32 —

GO-2400M-USB / GO-2400C-USB

Shading Correction

The shading correction is a function that corrects non-uniformity (i.e., shading) in the amount of light generated by the lens and lighting equipment. Using this function allows correction even if top, bottom, left, and right shading is not symmetrical in relation to the center of the screen (H, V).

The size of the correction block is 16 (H) × 10 (V) blocks and calculation errors in the correction data are minimized due to the small interpolation block. Each block is 128 × 128 pixels. The total size of the blocks is 2048 (H) × 1280 (V), but the actual number of effective pixels for the camera is 1936 (H) × 1216 (V). The ineffective peripheral areas will be deleted internally on the camera automatically.

2048 (Total size)

1936 (Effective pixels)

1280 (Total size)

1216 (Effective pixels)

128

The following shading correction modes are available on the camera. However, as proper interpolation is not performed when ROI settings are configured, execute shading correction at full size before configuring the ROI settings.

■ Flat Shading

Correction is performed using the area of the screen with the highest brightness level as the reference, and adjusting the brightness levels of the other areas to match this level.

Within 30% of adjustment range

— 33 —

GO-2400M-USB / GO-2400C-USB

■ Color Shading (GO-2400C-USB only)

R-channel and B-channel properties are adjusted to using the G-channel shading properties as a reference.

Pre-correction Post-correction

Caution

Proper correction is not possible under the following conditions.

• If an area with a brightness level that is more than 30% less than the reference level exists within the screen

• If the brightness level is saturated in parts or all of the screen

• If the area in the screen with the highest brightness level is 300 LSB or less (during 10-bit video

output)

■ To use the shading correction function

Configure the settings as follows.

Item Setting value Description

Shading Correction Mode GO-2400M-USB:

Flat Shading (fixed)

GO-2400C-USB:

Flat Shading, Color Shading

Select the shading correction mode.

Shading Mode User 1, User 2, User 3, Off Select the user area to which to save the

shading correction value.

Display a white chart under a uniform light, and execute [Perform Shading Calibration].

Note

After shading correction is executed, the shading correction value is automatically saved to the user area selected in [Shading Mode].

Binning Function

The binning function (GO-2400M-USB Only) allows you to combine the signal values of clusters of adjacent pixels on the sensor to create improved virtual pixels. Using the function results in images with lower pixel resolution and higher sensitivity. Common methods of binning include “horizontal binning” where two horizontally adjacent pixels are combined, and “vertical binning” where two vertically adjacent pixels are combined. By combining the horizontal and vertical methods to create a group of four pixels (2×2 binning), you can create images with x4 sensitivity.

— 34 —

GO-2400M-USB / GO-2400C-USB

ROI (Regional Scanning Function)

The ROI (region of interest) function allows you to output images by specifying the areas to scan.

ROI Settings

Specify the area to scan by specifying width, height, and horizontal/vertical offset values under [Image Format Control].

 For details on how to configure the settings, see “Configuring the Output Format” (page 15).

You can increase the frame rate by specifying a lower height, as the number of lines scanned decreases. The minimum area is as follows.

Minimum width value (pixels) Minimum height value (pixels)

GO-2400M-USB 16 1 GO-2400C-USB 16 2

Example 1: Without binning

[Binning Horizontal] *: 1 [Binning Vertical] *: 1

OffsetX

OffsetY

Height

Width

1216 Height Max

1936 Width Max

Scanning range

Example 2: With binning

[Binning Horizontal] *: 2 [Binning Vertical] *: 2

OffsetX

OffsetY

Height

Width

608 Height Max

968 Width Max

Scanning range

* GO-2400M-USB only

 For details on the frame rates for common ROI sizes, see “Frame Rate Reference” (page 57).

— 35 —

GO-2400M-USB / GO-2400C-USB

Sensor Multi ROI Function

Sensor Multi ROI is an ROI function that is configured and functions inside the sensor. You can configure up to 16 scanning regions (4 horizontal and 4 vertical). By skipping areas that are not specified as regions of interest when scanning a frame, the sensor's ROI function outputs the specified regions in a compressed state. You can increase the frame rate due to the reduced scanning time for the compressed areas. However, you cannot make the line frequency faster by compressing in the horizontal direction.

ROI 1-1

ROI 1-2

ROI 1-3

ROI 1-4

ROI 2-1

ROI 3-1

ROI 4-1

ROI 2-2 ROI 2-3

ROI 2-4

ROI 3-4

ROI 3-3

ROI 4-2

ROI 4-4

ROI 3-2

ROI 4-3

ROI 1-1 ROI 1-2

ROI 1-3

ROI 1-4

ROI 2-1

ROI 3-1

ROI 4-1

ROI 2-2 ROI 2-3

ROI 2-4

ROI 3-4

ROI 3-3

ROI 4-2

ROI 4-4

ROI 3-2

ROI 4-3

Total sensor area (1936 × 1216)

The areas selected with the ROI function will be compressed.

Horizontal pixel count ROI Width 1 + ROI Width 2 + ROI Width 3 + ROI Width 4

Vertical pixel count ROI Height 1 + ROI Height 2 + ROI Height 3 + ROI Height 4

Restrictions

• The specified areas cannot overlap.

• The frame rate can be increased in relation to size of the area specified in the vertical direction, but

not in relation to the horizontal direction.

• In the horizontal direction, the configuration for the second and subsequent row will be identical. In the vertical direction, the configuration for the second and subsequent column will be identical.

Configuration

Configure each area so that they do not overlap. Both the horizontal and vertical settings must be configured as even values.

Horizontal ROI conditions

ROI Offset H1 + ROI Width 1 < ROI Offset H2 ROI Offset H2 + ROI Width 2 < ROI Offset H3 ROI Offset H3 + ROI Width 3 < ROI Offset H4 ROI Offset H4 + ROI Width 4 < 1936

Vertical ROI conditions

ROI Offset V1 + ROI Height 1 < ROI Offset V2 ROI Offset V2 + ROI Height 2 < ROI Offset V3 ROI Offset V3 + ROI Height 3 < ROI Offset V4 ROI Offset V4 + ROI Height 4 < 1216

Configure the four index settings (Index 1 to 4). The [OffsetH], [Width], [OffsetV], [Height], [Horizontal Enable], and [Vertical Enable] settings can be configured for each index.

Note

Sensor Multi ROI cannot be used together with Sequencer function (Page 37).

— 36 —

GO-2400M-USB / GO-2400C-USB

When you configure the [OffsetH], [Width], [OffsetV], and [Height] settings for an index and set [Horizontal Enable] or [Vertical Enable] to [True] for that index, the corresponding area is configured. When [False] is specified, the settings within the index are disabled. OffsetH, Width: 16 pixels/step OffsetV, Height: 2 lines/step

ROI 1-1 ROI 1-2

ROI 1-3

ROI 1-4

ROI 2-1

ROI 3-1

ROI 4-1

ROI 2-2 ROI 2-3

ROI 2-4

ROI 3-4

ROI 3-3

ROI 4-2

ROI 4-4

ROI 3-2

ROI 4-3

Index1 Index2 Inde x3 Index4

Index1

Index2

Index3

Index4

Total sensor area (1936 × 1216)

Reference: Areas corresponding to the [Horizontal Enable] and [Vertical Enable] settings of each setting

Index 1 Index 2 Index 3 Index 4 Number of

Enabled ROI

Enabled area

Hori Ver t Hori Vert Hori Vert Hori Vert

True True False False False False False False 1 ROI 1-1 True True True True False False False False 4 ROI 1-1, ROI 1-2, ROI 2-1, ROI 2-2 True True True False False False False False 2 ROI 1-1, ROI 1-2 True True True True True True False False 9 ROI 1-1, ROI 1-2, ROI 1-3

ROI 2-1, ROI 2-2, ROI 2-3 ROI 3-1, ROI 3-2, ROI 3-3

True True True True True True True False 12 ROI 1-1, ROI 1-2, ROI 1-3, ROI 1-4

ROI 2-1, ROI 2-2, ROI 2-3, ROI 2-4 ROI 3-1, ROI 3-2, ROI 3-3, ROI 3-4

True True True True True True True True 16 ROI 1-1, ROI 1-2, ROI 1-3, ROI 1-4

ROI 2-1, ROI 2-2, ROI 2-3, ROI 2-4 ROI 3-1, ROI 3-2, ROI 3-3, ROI 3-4 ROI 4-1, ROI 4-2, ROI 4-3, ROI 4-4

Frame rate calculation formula

FR + line frequency ÷ (ROI Height 1 + ROI Height 2 + ROI Height 3 + ROI Height 4 + vertical invalid line)

There are two types of line frequencies.

SensorReadout 10 bit, camera output 8 bit: 12.4445 KHz SensorReadout 12 bit, camera output 10 bit: 24.2425 KHz

Vertical invalid line: 40 (fixed)

— 37 —

GO-2400M-USB / GO-2400C-USB

Sequencer Function

The Sequencer function lets you define up to 128 preset combinations of exposure time, gain, ROI, and other settings which can be stepped through each time a trigger is received. This is particularly useful for quickly capturing multiple exposures of objects under inspection to adjust for areas or components with significantly different levels of reflectance. The order of execution and the repetition of particular presets are based on user-defined parameters configured in [Sequencer Control].

Two operation modes (Trigger Sequencer mode and Command Sequencer mode) are available for the Sequencer function.

Trigger Sequencer mode

With this mode, the Sequencer Trigger “pattern” is predetermined by the user. The user defines up to 128 different “indexes.” Each index represents a combination of the following parameters:

• ROI (width, height, offset X, and offset Y)

• Exposure Time

• Gain Level (R/B Gain can also be configured on the color model)

• Black Level

• Binning Mode (monochrome only)

• LUT Enable (whether or not to enable the use of LUT for this index)

• Frame Count (the number of times to repeat this index before moving to the next)

• Next Index to execute in the predetermined pattern

In addition to these individual index parameters, two other parameters are applied to the entire sequence:

[Sequencer LUT Mode] defines whether Gamma or LUT is to be applied to the sequence. If Gamma is selected, the Gamma setting defined in the camera’s Analog Control section will be applied to all exposures in the sequence. If LUT is selected, the LUT characteristics defined in Analog Control will be applied to any index where [Sequencer LUT enable] has been set to ON.

[Sequencer Reset] causes the index selector to be reset to Index 1. Thus, the sequencer pattern will start over at the next trigger.

In Trigger Sequencer mode, patterns begin with the index of [Sequencer Set Start]. Subsequent triggers follow the user-defined values in [Sequencer Index Frame Count] and [Sequencer ROI Next Index]. Assigning a Next Index value of “1” to an index creates a loop back to the start of the sequencer pattern. Setting a Next Index value to “OFF” causes the value of [Sequencer Repetition] to be applied as described below.

[Sequencer Repetition]

This parameter applies to Trigger Sequencer patterns which include an index whose [Sequencer ROI Next Index] is set to OFF. When the index whose [Sequencer ROI Next Index] is set to OFF is finished executing, the value of Sequencer Repetition (range = 1-255) is decremented internally. If the result of the decrement is not zero, the Trigger Sequencer pattern starts over from Index1. If the result of the decrement is zero, the status changes to Acquisition Stop and external triggers are not accepted.

Note

Sequencer function cannot be used together with Sensor Multi ROI function (Page 35).

— 38 —

GO-2400M-USB / GO-2400C-USB

Trigger Sequencer example

User-defined Indexes (up to 128)

Index1 Index2

Index4 Index3

ROI Exposure Gain LUT Binning Frame Count = 2 Next Index = 3

ROI Exposure Gain LUT Binning Frame Count = 1 Next Index = 1

ROI Exposure Gain LUT Binning Frame Count = 1 Next Index = 4

ROI Exposure Gain LUT Binning Frame Count = 2 Next Index = 2

Triggers / Image Frames

Index structure for Trigger Sequencer

Index1

ROI1

Exposure

Gain1

(M/Red/Blue)

Black

Level1

Binning1

(H/V)

LUT

Enable1

Frame

Count1

Index1

Index2

ROI2

Exposure

Gain2

(M/Red/Blue)

Black

Level2

Binning2

(H/V)

LUT

Enable2

Frame

Count2

Index2

Index128 ROI128

Exposure

128

Gain128

(M/Red/Blue)

Black

Level128

Binning128

(H/V)

LUT

Enable128

Frame

Count128

Index128

Index

Selector

(MUX)

Index Table

・

Index Next Index

Current

Index

Command

・

Reset Sequencer Index

Reset Sequencer

Common Settings

・

Sequencer LUT mode

Command Sequencer mode

This mode allows the user to vary the “pattern” of the sequence in response to external factors. Changes in the sequence can be initiated manually or in a programmatic fashion as the result of data from sensors/controllers or from the analysis of previous images.

In this mode, the user can define up to 128 different “indexes” each incorporating a combination of:

• ROI (width, height, offset X, and offset Y)

• Exposure Time

• Gain Level (R/B Gain can also be configured on the color model)

• Black Level

• Binning Mode (monochrome only)

• LUT Enable (whether or not to enable the use of LUT for this index)

The user must also enter a value from 1 to 128 in [Command Sequencer Index]. This indicates which index to execute each time a trigger is received. The same index will continue to be executed for all subsequent triggers as long as the value of [Command Sequencer Index] remains unchanged.

Changing the value of [Command Sequencer Index] to one of the other predefined indexes causes that index to be executed in response to subsequent triggers. This mode of operation enables users to develop applications that continually send new values to [Command Sequencer Index] in response to external factors such as changing light conditions, different types or sizes of objects being inspected, or other factors. This allows applications to change ROI, exposure, gain, etc., without being restricted to a predefined pattern.

— 39 —

GO-2400M-USB / GO-2400C-USB

As with Trigger Sequencer, [Sequencer LUT Mode] defines whether Gamma or LUT is to be applied to the sequence. If Gamma is selected, the Gamma setting defined in the camera’s Analog Control section will be applied to all exposures in the sequence. If LUT is selected, the LUT characteristics defined in Analog Control will be applied to any index where [Sequencer LUT enable] has been set to ON.

[Sequencer Index Frame Count], [Sequencer ROI Next Index], and [Reset Sequencer Index] are not used in Command Sequencer mode and entered values are ignored.

Command Sequencer Example

User-defined Indexes (up to 128)

Index1 Index2

Index3

ROI Exposure Gain LUT Binning

Command Sequencer Index

Camera Triggers

Image Frames

Set to

Index1

Set to

Index3

Set to

Index1

Set to

Index2

Set to

Index1

Set to

Index2

Index1

Settings

Index3

Settings

Index1

Settings

Index2

Settings

Index1

Settings

Index2

Settings

Settings Used

Index structure for Command Sequencer

Index1

ROI1

Exposure1

Gain1

Black

Level1

Binning1

LUT

Enable1

Index2

ROI2

Exposure2

Gain2

Black

Level2

Binning2

LUT

Enable2

Index128

ROI128

Exposure

128

Gain128

Black

Level128

Binning128

LUT

Enable128

Index

Selector

(MUX)

Current

(M/Red/Blue)

(H/V)

(M/Red/Blue)

(H/V)

Common Settings

Command Sequencer Index (1 to 128)

Common Settings

Sequencer LUT mode

Index

(M/Red/Blue) (H/V)

— 40 —

GO-2400M-USB / GO-2400C-USB

Delayed Readout [Acquisition Transfer Start]

Delayed readout enables images captured by a Frame Start trigger command to be stored inside the camera and read out on demand at a later time using Acquisition Transfer Start trigger. This can be especially useful when multiple cameras need to be triggered at the same time, but simultaneous readout of all images would overwhelm the available network bandwidth. The delayed readout buffer can hold up to 8 frames in 8-bit mode or 4 frames in 10-bit or 12-bit modes.

 For details, see “Trigger Control” (page 26).

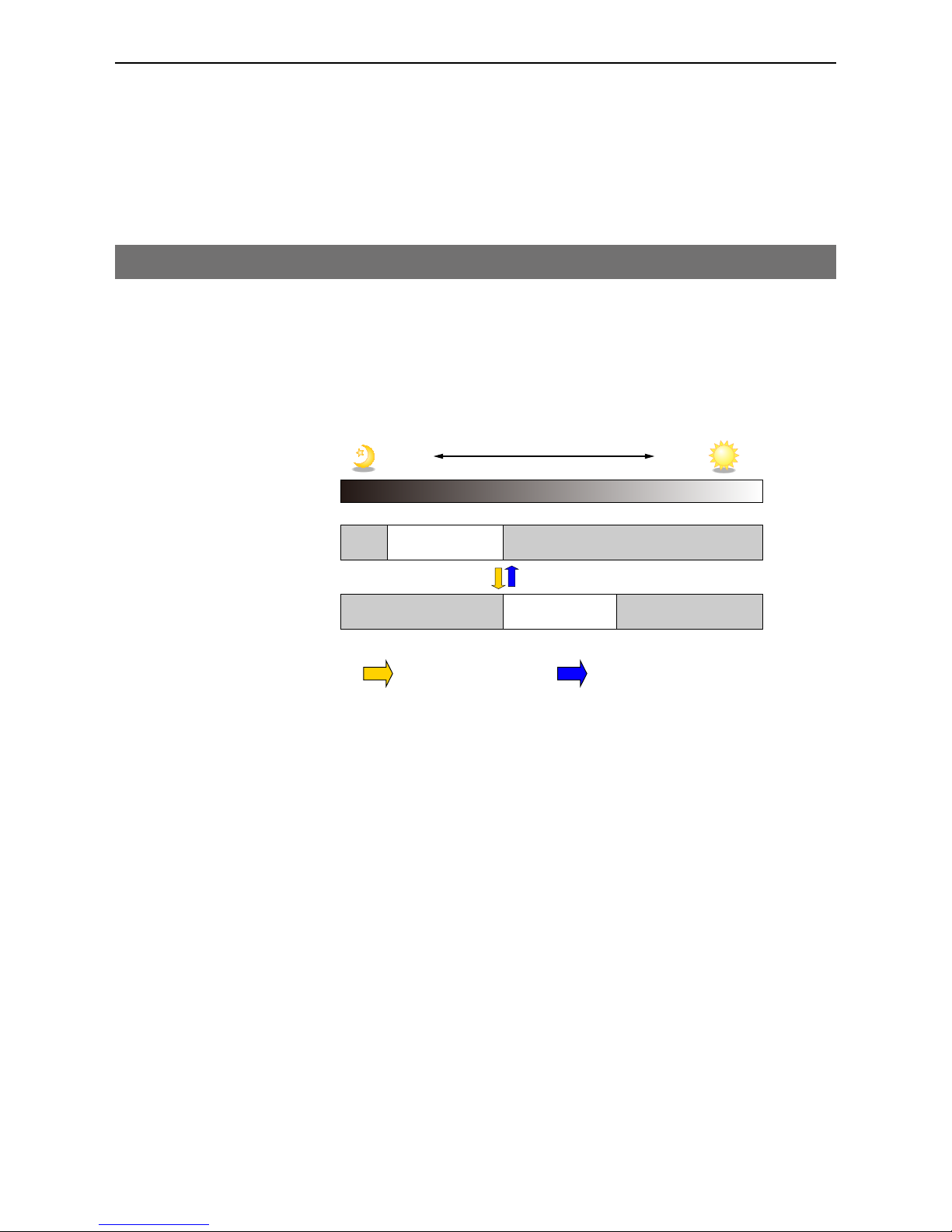

ALC (Automatic Level Control) Function

The ALC (automatic level control) function combines the automatic gain control (AGC/Auto Gain Control) and automatic exposure control (ASC/Auto Shutter Control) functions, and is capable of handling various changes in brightness. The function operates as follows in response to changes in brightness.

Change from bright to dark: ASC  AGC Change from dark to bright: AGC  ASC

Change in brightness

Fixed at max. ASC value Fixed at min. ASC value

Fixed at min. gain value

AGC Max

AGC operation

Max. to min. (user specified)

Operation during change from dark to bright

Operation during change from bright to dark

ASC operation

Max. to min. (user specified)

ASC (auto shutter) operation

AGC operation

Dark Bright

■ To use the ALC function

Set [Gain Auto] or [Exposure Auto] or both to [Continuous] mode. Configure the minimum value, maximum value, etc. for AGC and ASC under [JAI Custom Control ALC]. The target video levels for AGC and ASC are configured in [ALC Reference]. For example, when [ALC Reference] is set to 100%, video levels will be maintained at 100% for AGC and ASC.

■ Automatic gain level control

Set [Gain] to [Continuous].

— 41 —

GO-2400M-USB / GO-2400C-USB

Detailed Settings for Gain Auto (Automatic Gain Level Control)

When [Gain Auto] is set to [Continuous], you can configure the conditions for automatic adjustment in detail.

Item Description

ALC Reference Specify the target level for automatic gain control. (This

setting is also used for automatic exposure control.)

ALC Area Enable All Select whether to specify all areas as auto gain metering

areas or whether to specify the areas individually.

[0]: Specify areas as auto gain metering areas (16 areas)

individually.

[1]: Specify all areas as auto gain metering areas.

ALC Area Selector Individually select any of 16 areas for automatic gain

metering. (This setting is also used for automatic exposure control.)

ALC Area Enable Select [True] to enable the metering area selected in [ALC

Area Selector], or select [False] to disable it.

AGC Max. Specify the maximum value for the automatic gain control

range.

AGC Min. Specify the minimum value for the automatic gain control

range.

AGC/ASC Control Speed Specify the reaction speed for automatic gain control. (This

setting is also used for automatic exposure control.)

Auto gain metering areas (16 areas)

Low Right

Low

Mid-right

Low

Mid-left

Low

Left

Mid-Low

Mid-left

Mid-High

Mid-left

High

Mid-left

Mid-Low

Left

Mid-High

Left

High

Left

High

Mid-right

Mid-High

Mid-right

Mid-Low

Mid-right

High Right

Mid-High

Right

Mid-Low

Right

— 42 —

GO-2400M-USB / GO-2400C-USB

Counter and Timer Control Function (counter support only)

The counter function counts up change points in the camera’s internal signals using the camera’s internal counter, and reads that information from the host side. This function is useful for verifying error conditions via the count value using internal camera operations. Counting is performed at frame trigger, frame start, exposure start, and exposure transfer end, and by comparing these values, you can determine the internal camera state at which missed triggers will occur.

■ Counter occurrence diagram

Frame trigger

Frame trigger counter Set to count 1 Exposure Start

Exposure start counter Set to count 2

Event occurrence

Count up

Count 2 request

Read count value

Count 1

Request

Read count value

Counter reset

Count 1 reset

Count 2 reset

MCU

HOST

Note

To reset the counter itself, execute [Counter Reset] or enter “1” in [Counter Reset].

■ Internal camera blocks

Frametrigger

Event detection

Counter At event occurrence or count up

Counter

Counter reset Internal MCU of camera

Read requested counter value

Send information to the HOST

Event detection

Exposure Start

Frame Start

FrameTransfer End

— 43 —

GO-2400M-USB / GO-2400C-USB

■ To use the counter function

Configure the settings as follows. Three counters can be configured (Counter 0 to 2).

Item Setting value / selectable range Description

Counter 0 to 2 Counter 0 to 2 Select the counter.

Counter 0 to 2 Event Source Off,

Frame Trigger, Frame Start, Exposure Start, Exposure Transfer End

Select the counter event signal for which to read the count value.

Counter 0 to 2 Event Activation Rising Edge (fixed)

or Falling Edge

Specify the timing at which to count.

Note

The three counter event signals are always counted up internally on the camera.

Video Process Bypass Mode

The video process bypass mode is a function that bypasses internal video processing on the camera. When bypass is enabled, the sensor output and camera output data can be set to the same bit width. Operation using 12-bit outputs must be performed in bypass mode.

Video process bypass mode On Off

Camera operation All video processes except Gain all

(excluding R/B Gain) and Blemish Compensation are disabled.

All video processes are enabled.

Camera output 8-/10-/12-bit 8-/10-bit

■ Differences in camera operation

When video process bypass mode is disabled

All video processes are enabled.

Sensor Block

Gain All

Black Level

Block

R/B Black

Level

Pixel Gain

Block

R/B Gain

Shading/

LUT Block

LUT

Blemish

Comp Block

Blemish Comp

BlackSetup

Block

Black Setup

When video process bypass mode is enabled

All video processes except Gain all (excluding R/B Gain) and Blemish Compensation are disabled.

Sensor Block

Gain All

Blemish

Comp Block

Blemish Comp

■ To enable video process bypass mode

Item Setting value / selectable range Description

Video Process Bypass Mode On Enable video process bypass

mode.

— 44 —

GO-2400M-USB / GO-2400C-USB

Chunk Data Function

The Chunk Data function adds camera configuration information to the image data that is output from the camera. Embedding camera configuration information in the image data allows you to use the serial number of the camera as a search key and find specific image data from among large volumes of image data. In addition, when images are shot with a single camera in sequence under multiple setting conditions, you can search for images by their setting conditions.

The following information can be added to image data as chunk data.

Genicam Name Chunk ID Data type Description

Chunk Image 1000h IRegister Image data (Image data is also handled as a piece of

chunk data.) Chunk Offset X 2000h IInteger Offset X value Chunk Offset Y 2001h IInteger Offset Y value Chunk Width 2002h IInteger Width value Chunk Height 2003h IInteger Height value Chunk Pixel Format 2012h IEnumeration Pixel Format value Chunk Timestamp 2014h IInteger Timestamp value Chunk Line Status All 2013h IInteger [0]: Line1 - TTL Out 1

[1]: Line2 - Opt Out 1

[2]: Line3 - Opt Out 2

[3]: Line4 - TTL In 1

[4]: Line5 - Opt In 1

[5]: Line6 - Opt In 2

[6]: Line7 - CC1/CXP In

[7]: Line8 - TTL Out 2 (Option)

[8]: Line9 - TTL Out 3 (Option)

[9]: Line10 - TTL In 2 (Option)

[10]: Line11 - LVDS In (Option)

[11]: TimeStampReset

[12]: Nand0_In_1

[13]: Nand0_In_2

[14]: Nand1_In_1

[15]: Nand1_In_2 Chunk Exposure Time (us)

2004h IFloat ExposureTime value for when Exposure Mode is set

to Timed Chunk Gain All 2005h IFloat Gain All value Chunk Gain Red 2006h IFloat Gain Red value* Chunk Gain Blue 2007h IFloat Gain Blue value* Chunk Black Level All 2008h IFloat Black Level Alll value Chunk Sequencer Set Active

200Ch IInteger Value indicating the Sequencer status

Chunk Frametrigger Counter

200Eh IInteger Counter value for FrameTtrigger

Chunk Exposure Start Counter

200Fh IInteger Counter value for ExposureStart

Chunk Frame Start Counter

2010h IInteger Counter value for FrameStart

Chunk Frame Transfer End Counter

2011h IInteger Counter value for FrameTransferEnd

Chunk Line Status All On FVAL Start

2016h IInteger The line status is added when FVAL is established.

The content of the data is identical to

[ChunkLineStatusAll]. Chunk Device Temperature

2019h IFloat Device Temperature value

Chunk Device Serial Number

2017h IString Device Serial Number value

Chunk Device User ID 2018h IString Decice User ID value

GO-2400C-USB only

— 45 —

GO-2400M-USB / GO-2400C-USB

■ Configuring Chunk Data

Set [Chunk Mode Active] to [True].

Select the items of information you want added to image data with [Chunk Selector], and set [Chunk Enable] from [False] to [True].

Note

When [Chunk Mode Active] is set to [True], [Chunk Image] is automatically set to [True].

Caution

The Chunk Data function settings cannot be changed during image output. To change the settings, stop Acquisition.

— 46 —

GO-2400M-USB / GO-2400C-USB

Settings List

Feature Properties

: Settings that can only be configured when image acquisition on the camera is stopped.

Item Setting range Default value Description

a) Device Control

Display/configure information related to the device.

Device Vendor Name — — Display the manufacturer name.

Device Model Name — — Display the model name.

Device Manufacturer Info — See the

possibilities

Display the device information.

Device Version — — Display the hardware version.

Device Firmware Version — — Display the firmware version.

Device Serial Number — — Display the device ID.

Device User ID Any — Set the user ID for the camera.

Device Temperature Selector Mainboard Mainboard Select the area of the camera's interior for

which to display the temperature sensor's reading.

Device Temperature (C) — — Display the internal temperature (˚C) of

the camera.

Device Reset — — Reset the device.

b) Image Format Control

Configure image format settings.

Sensor Width 1936 1936 Display the maximum image width.

Sensor Height 1216 1216 Display the maximum image height.

Width Max — 1936 Display the maximum image width.

Height Max — 1216 Display the maximum image height.

Width Binning Off: 16 to 1936

Binning 2 On: 16 to 968 ❖ The minimum value for

Monochrome varies depending on the [Binning] setting.

1936 Set the image width.

Height GO-2400M-USB:

Binning Off: 1 to 1216 Binning 2 On: 1 to 608

GO-2400C-USB: 2 to 1216 ❖ The minimum value for

Monochrome varies depending on the [Binning] setting.

1216 Set the image height.

Offset X 0 to (1936 to Width) 0 Set the horizontal position.

Offset Y 0 to (1216 to Height)1 0 Set the vertical position.

Binning Horizontal Mode (GO-2400M-USB only)

Sum, Average Sum Set the addition process to be used

during horizontal binning.

Binning Horizontal (GO-2400M-USB only)

1, 2 1 Set the number of pixels in the horizontal

direction for which to perform binning.

Binning Vertical (GO-2400M-USB only)

1, 2 1 Set the number of pixels in the vertical

direction for which to perform binning.

Binning Vertical Mode (GO-2400M-USB only)

Sum, Average Sum Display the addition process to be used

during vertical binning.

— 47 —

GO-2400M-USB / GO-2400C-USB

Item Setting range Default value Description

Pixel Format GO-2400M-USB:

8 Bit Monochrome, 10 Bit Monochrome, 10 Bit Monochrome Packed, 12 Bit Monochrome, 12 Bit Monochrome Packed

GO-2400C-USB:

8 Bit Bayer RG, 10 Bit Bayer RG (Unpacked), 10 Bit Bayer RG Packed, 12 Bit Bayer RG (Unpacked), 12 Bit Bayer RG Packed

GO-2400M-USB:

8 Bit Monochrome

GO-2400C-USB：

8 Bit Bayer RG

Set the pixel format.

Test Pattern GO-2400M-USB:

Off, GreyHorizontal Ramp, GreyVertical Ramp, GreyHorizontalRamp Moving

GO-2400C-USB:

Off, GreyHorizontalRamp, GreyVerticalRamp, GreyHorizontalRamp Moving, HorizontalColorBar, VerticalColorBar, MovingColorBar

Off Select the test image.

c) Acquisition Control

Configure image acquisition settings.

Acquisition Mode Single Frame, Multi Frame,

Continuous

Continuous Select the image acquisition mode.

Acquisition Start — — Start image acquisition.

Acquisition Stop — — Stop image acquisition.

Acquisition Frame Count 1 to 255 1 In [Multi Frame] mode, set the number of

frames to acquire.

Acquisition Frame Rate (Hz)*

* Max. frequency/min. frame

period depends on ROI, pixel format, and binning mode selected.

0.125 to 159.286 159.286

Set the frame rate as a frequency. (unit: Hz)

Trigger Selector Acquisition Start,

Acquisition End, Frame Start, Acquisition Transfer Start

Frame Start Select the trigger operation.

Trigger Mode Off, On Off Select the trigger mode.

Trigger Software — — Execute a software trigger.

Trigger Source Low, High, Software,

Pulse Generator 0, User Output 0, User Output 1, Line 5 - Optical In 1, NAND0 Out, NAND1 Out

Line 5 - Optical In 1

Select the trigger signal source.

Trigger Activation Rising Edge,

Falling Edge

Rising Edge (rising edge of input signal)

Select the polarity of the trigger signal (i.e., location of signal at which trigger is applied).

Trigger OverLap Off, Read Out

(Frame Start only)

Off Select the trigger overlap operation.

Exposure Mode Off, Timed, Trigger Width Timed (control

via exposure time)

Select the exposure mode.

Exposure Time 6 to 6210 (µs) 6210 (µs) Set the exposure time.

Exposure Auto Off, Continuous Off Set whether to enable auto exposure.

d) Analog Control

Configure analog control settings.

— 48 —

GO-2400M-USB / GO-2400C-USB

Item Setting range Default value Description

Gain Selector GO-2400M-USB: Analog All

GO-2400C-USB: Analog All,

Digital Red, Digital Blue

Analog All (master gain)

Select the gain to configure.

Gain Analog All: 1 to 16

Digital Red & Blue:

0.447 to 5.624 (color only)

Master gain: 1 R, B: 1

Set the gain value.

Black Level Selector GO-2400M-USB: Digital All

GO-2400C-USB: Digital All,

Digital Red, Digital Blue

Digital All (master black)

Select the black level to configure.

Black Level Digital All: –133 to 255

Digital Red & Blue:

–133 to 255 (color only)

0 Set the black level value.

Gain Auto Off, Continuous Off Enable/disable gain auto adjustment.

Gamma 0.45, 0.60, 1.0 0.45 Set the gamma value.

JAI LUT Mode Off, Gamma, LUT Off Select the JAI LUT mode.

e) LUT Control

Configure LUT settings.

LUT Selector (GO-2400C-USB only)

R, G, B R Select the LUT channel to control.

LUT Index GO-2400M-USB: 0 to 256

GO-2400C-USB: 0 to 256

0 Set the LUT index table number.

LUT Value 0 to 4095 0 Set the LUT value.

f) Digital IO Control

Configure settings for digital input/output.

Line Selector Line2 - Opt Out 1,

Line3 - Opt Out 2, Line5 - Opt In 1, Time Stamp Reset, NAND Gate 0 In 1, NAND Gate 0 In 2, NAND Gate 1 In 1, NAND Gate 1 In 2

Line2 - Opt Out 1 Select the input/output to configure.

Line Mode — Output Display the input/output status (whether it

is input or output).

Line Inverter True, False False Enable/disable polarity inversion for the

selected input signal or output signal.

Line Status — False Display the status of the input signal or

output signal (True: High, False: Low).

LineSource Low, High,

Acquisition Trigger Wait, Frame Trigger Wait, Frame Active, Exposure Active, FVAL, User Output 0, User Output 1, Line 5 - Opt In 1, Pulse Generator 0, Nand 0 Out, Nand 1 Out

Low Select the line source signal for the item

selected in [Line Selector].

Line Format — Opto Coupled Display the current I/F type.

Line Status All — 0x00 Display the status of the input signal and

output signal.

User Output Selector User Output 0,

User Output 1

User Output 0 Set the user output signal.

User Output Value True, False False

g) Counter And Timer Control

Configure counter settings. (This camera only supports counter functions.)

Counter 0 to 2 Counter 0 to 2 — Display the counter.

— 49 —

GO-2400M-USB / GO-2400C-USB

Item Setting range Default value Description

Counter 0 to 2 Event Source

Off, Frame Trigger, Frame Start, Exposure Start, Exposure Transfer End

Off Select the counter event signal for which

to read the count value.

Counter 0 to 2 Event Activation

Rising Edge (fixed) Rising Edge Specify the timing at which to count.

Counter 0 to 2 Reset — — Reset the counter.

Counter 0 to 2 Refresh — — Update the count value.

Counter 0 to 2 Value — 0 to 2 Display the count value.

Counter 0 to 2 Status — Counter Active Display the counter status.

h) User Set Control

Configure user settings.

User Set Selector Default,

User Set1 to User Set3

Default (factory default values)

Select the user settings.

User Set Load — — Load user settings.

User Set Save — — Save the current setting values as user

settings.

i) Sequencer Control

Configure sequencer settings.

Sequencer Mode On, Off Off Enable/disable [Sequencer Mode].

Sequencer Mode Select Trigger Sequencer,

Command Sequencer

Trigger Sequencer

Select the sequencer mode.

Sequencer Configuration Mode On, Off On Select [On] to change the settings within

the index.

Sequencer Set Selector 1 to 128 1 Select the [Trigger Sequencer] mode and

[Command Sequencer] mode index.

Sequencer Frame Number 1 to 255 1 Set the number of frames to display for

the selected Sequencer Index. (Enabled only for Trigger Sequencer.)

Sequencer Set Next 0 (Off), 1 to 128 1 Set the next index to be displayed for the

selected Sequencer Index. (Enabled only for Trigger Sequencer.)

Sequencer Width GO-2400M-USB:

16 to 1216

GO-2400C-USB:

16 to 1936

1936 Set the width of the selected Sequencer

Index.

Sequencer Height 2 to 1216 1216 Set the height of the selected Sequencer

Index.

Sequencer Offset X 0 to (1936 - Width) 0 Set the horizontal offset value for the

selected Sequencer Index.

Sequencer Offset Y 0 to (1218 - Height) 0 Set the vertical offset value for the

selected Sequencer Index.

Sequencer Gain 100 to 1600 100 Set the gain for the selected Sequencer

Index.

Sequencer Exposure Time (US)

6 to 8000000 6210 Set the exposure time for the selected

Sequencer Index.

Sequencer Black Level -133 to 255 0 Set the black level for the selected

Sequencer Index.

Sequencer LUT Enable True, False False Enable/disable the LUT setting for the

selected Sequencer Index.

Sequencer H Binning (GO-2400M-USB only)

1 to 2 1 Set the horizontal binning for the selected

Sequencer Index.

Sequencer V Binning (GO-2400M-USB only)

1 to 2 1 Set the vertical binning for the selected

Sequencer Index.

Sequencer Repetition 1 to 255 1 Set the repeat count for the sequencer.

Sequencer LUT Mode Gamma, LUT Gamma Set the sequencer LUT mode.

Sequencer Set Active — — Displays the active LUT number.

Sequencer Command Index 1 to 128 1 Set this to change the Sequencer Index.

(Enabled only for Command Sequencer.)

Sequencer Set Start 1 to 128 1 Set the index number that is used when

executing [Sequencer Reset] in [Trigger Sequencer] mode.

Sequencer Reset — — Reset the current index number to the

number configured in [Sequencer Set Start].

j) Chunk Data Control

Configure Chunk Data function settings.

Chunk Mode Active True, False False Enable/disable the Chunk Data function.

— 50 —

GO-2400M-USB / GO-2400C-USB

Item Setting range Default value Description

Chunk Selector Chunk Image,

Chunk Offset X, Chunk Offset Y, Chunk Width, Chunk Height, Chunk Pixel Format, Chunk Timestamp, Chunk Line Status All, Chunk Exposure rtime (us), Chunk Gain All, Chunk Gain Red,* Chunk Gain Blue,* Chunk Black Level All, Chunk Sequencer Set Active, Chunk Frame Trigger Counter, Chunk Exposure Start Counter, Chunk Frame Start Counter, Chunk Frame Transfer End Counter, Chunk Line Status All On FVAL Start, Chunk Device Temperature, Chunk Device Serial Number, Chunk Device User ID

Image Select the information you want added to

the image data. * GO-2400C-USB only

Chunk Enable True, False — Select whether to add the information to

the image data. Default value: [Chunk Image] only "True"

k) Transport Layer Control

Display information on transport layer control.

Payload Size (B) — 2354176 Display the payload size.

Device Tap Geometry Geometry_1X1_1Y Geometry_1X1_ 1YSet the transmission method for each time

images are transmitted from the device (TAP structure).

l) JAI Custom Control Pulse Generators

Configure pulse generator settings.

Clock Pre-scaler 1 to 4096 165 Set the division value for the prescaler

(12-bit) using the pixel clock as the base clock.

Pulse Generator Clock (MHz) 0.018127 to 74.25 0.45 Set the clock used for the pulse

generator.

This value is calculated based on the Clock Pre-Scaler value.

Pulse Generator Selector Pulse Generator 0 Pulse Generator 0Select the pulse generator.

— 51 —

GO-2400M-USB / GO-2400C-USB

Item Setting range Default value Description

Pulse Generator Length 1 to 1048575 30000 Set the maximum count up value using

clock value.

Pulse Generator Length (ms)

0.002222 to 2330.166666 66.6667 Set the maximum count up value using ms. This value is calculated based on the Pulse Generator Length value. The setting range varies depending on the Clock Pre-Scaler value.

Pulse Generator Frequency (Hz)

0.429154 to 450000 15 Set the maximum count up value using frequency. This value is calculated based on the Pulse Generator Length value.

Pulse Generator Start Point 0 to 1048574 0 Set the start point for the High interval

using clock value. When the counter reaches this value, the output becomes 1.

Pulse Generator Start Point (ms)

0 to 2330.164444 0 Set the start point for the High interval

using ms. When the counter reaches this value, the output becomes 1. The setting range varies depending on the Clock Pre-Scaler value.

Pulse Generator End Point 1 to 1048575 15000 Set the start point for the Low interval

using clock value. When the counter reaches this value, the output becomes 0.

Pulse Generator End Point (ms)

0.000013468 to 14.1222 33.3333 Set the start point for the Low interval using ms. When the counter reaches this value, the output becomes 0. The setting range varies depending on the Clock Pre-Scaler value.

Pulse Generator PulseWidth (ms)

33.3333 Display High interval width for the pulse in ms. This is a calculation of the time between the Start Point and End Point. The setting range varies depending on the Clock Pre-Scaler value.

Pulse Generator Repeat Count

0 to 255 0 Set the repeat count for the counter.

When this is set to 0, the counter will be free-running with limitless repeating.

Pulse Generator Clear Activation

Off, High Level, Low Level, Rising Edge, Falling Edge

0: Off Set the clear signal condition for the

count clear input of the pulse generator.

Pulse Generator Clear Source

Low, High, Acquisition Trigger Wait, Frame Trigger Wait, Frame Active, Exposure Active, FVAL, LVAL, User Output 0, User Output 1, Action 1, Action 2, Line 5 - Opt In 1, Nand0 Out, Nand1 Out

0: Low Select the count clear input signal source.

Line4 TTL In is available on Standard Model.

Pulse Generator Clear Inverter

True, False False Select whether to invert the polarity of the

count clear input signal.

Pulse Generator Clear Sync Mode

Async Mode, Sync Mode Async Mode Select the sync mode for the count clear

input signal.

m) JAI Custom Control ALC

Configure JAI ALC settings. These settings are also used for AGC (auto gain control).

ALC Reference 10 to 95 50 Set the target level for ALC. (unit: %)

ALC Area Selector Low Right to High Left Low Right Select an ALC metering area.

ALC Area Enable True, False False Enable/disable the metering area where

selected metering area.

— 52 —

GO-2400M-USB / GO-2400C-USB

Item Setting range Default value Description

ALC Area Enable All True, False

True

Set whether to enable ALC for all areas.

ASC Min. 100 to 6209 100 Set the minimum value for the ASC range.

ASC Max. 101 to 6210 6210 Set the maximum value for the ASC

range.

AGC Min. 100 to 1599 100 Set the minimum value for the AGC

range.

AGC Max. 101 to 1600 1600 Set the maximum value for the AGC

range.

AGC/ASC Control Speed 1 to 8 4 Set the reaction speed for AGC/ASC.

These settings are also used for auto exposure control.

ALC Status — Idle Display the status of the ALC.

n) JAI Custom Control Blemish

Configure settings for JAI white blemish correction.

Blemish Enable True, False True Set whether to enable white blemish

correction.

Blemish Detect — — Detect white blemishes.

Blemish Detect Threshold 0 to 100 10 Set the white blemish detection threshold.

Blemish Detect Position Index 0 to 511 0 Select the index table for the white

blemish detection position.

Blemish Detect Position X –1 to 1935 –1 Set the horizontal position.

Blemish Detect Position Y –1 to 1215 –1 Set the vertical position.

Blemish Compensation Number

— 0 Display the number of correction

blemishes.

o) JAI Custom Control Shading

Configure shading correction settings.

Shading Correction Mode GO-2400M-USB:

Flat Shading (fixed)

GO-2400C-USB:

Flat Shading, Color Shading

Flat Shading Select the shading correction mode.

Shading Mode Off, User 1, User 2, User 3 Off Select whether to use shading correction.

When using the function, select the user area to which to save the shading correction value.

Perform Shading Calibration — — Execute shading correction. After

execution, the shading correction value is automatically saved to the selected user area.

Shading Detect Result — — Display the shading detection results.

p) JAI Custom Control Sensor MultiROI

Configure settings for JAI sensor multi ROI.

Sensor Multi Roi Enable True, False False Enable/disable sensor multi ROI.

Sensor Multi Roi Index Index 1 to 4 Index 1 Select the sensor multi ROI index table.

Sensor Multi Roi Width 16 to 1936/16 steps 256 Set the width. When binning is enabled

on the GO-2400M-USB, the maximum value will change.

Sensor Multi Roi Height 2 to 1216/2 steps 160 Set the height. When binning is enabled

on the GO-2400M-USB, the maximum value will change.

Sensor Multi Roi Offset X 0 to 1680/16 steps

❖ maximum value

= 1936 - width value

0 Set the horizontal position. When binning

is enabled on the GO-2400M-USB, the maximum value will change.

Sensor Multi Roi Offset Y 0 to 1056/2 step

❖ maximum value

= 1216 - height value

0 Set the vertical position. When binning is

enabled on the GO-2400M-USB, the maximum value will change.

Horizontal Enable True, False False Enable/disable horizontal offset.

Vertical Enable True, False False Enable/disable vertical offset.

— 53 —

GO-2400M-USB / GO-2400C-USB

Item Setting range Default value Description

q) JAI Custom control Misc.

Configure settings for other JAI functions.

Video Process Bypass Mode

On, Off Off Enable / disable video process bypass

mode.

Trigger Option Off Off —

OptIn Filter Selector 10 us, 100 us, 500 us, 1 ms,

5 ms, 10 ms

10 us Select the surge protection filter.

Video Send Mode Normal Mode,

Trigger Sequence Mode, Command Sequence Mode

Normal Display the video send mode status.

Sensor LVDS Ch Num 8 8 Display the number of sensor output

LVDS channels.

Sensor Digitization Bits 10,12 12 Display the resolution per pixel of sensor

output.

— 54 —

GO-2400M-USB / GO-2400C-USB

Miscellaneous

Troubleshooting

Check the following before requesting help. If the problem persists, contact your local JAI distributor.

■ Power supply and connections

Problem Cause and solution

The power / trigger LED remains lit amber and does not turn green, even after power is supplied to the camera.

Camera initialization may not be complete due to lack of a network connection. Check the USB cable conection.

■ Image display

Problem Cause and solution

Gradation in dark areas is not noticeable. Use the gamma function to correct the display.

As the light-emitting properties of the monitor are not linear, the entire image may be darker or the gradation in the dark areas may be less noticeable when camera outputs are displayed without processing. Using the gamma function performs correction to produce a display that is close to linear. For details, see “Gamma Function” (page 31).

■ Settings and operations

Problem Cause and solution

Settings cannot be saved to user memory. You cannot save to user memory while images are being

acquired by the camera. Stop image acquisition before performing the save operation.

I want to restore the factory default settings. Load [Default] under [User Set Selector] in the [Feature

Properties] tab to restore the factory default settings.

— 55 —

GO-2400M-USB / GO-2400C-USB

Specifications

Item GO-2400M-USB GO-2400C-USB

Scanning system Progressive scan, 1 tap

Synchronization Internal

Interface USB 3.0 Vision (Specification V1.0 RC4.02) compatible

Image sensor 1/1.2-inch monochrome CMOS 1/1.2-inch Bayer color CMOS

Image size (effective image) 11.3 (H) × 7.13 (V), 13.4 mm diagonal

Pixel size 5.86 (H) × 5.86 (V) µm

Effective image pixel output 1936 (H) × 1216 (V) 1936 (H) × 1216 (V)

Acquisition Frame Rate (max) ❖ The minimum

value is 0.125 fps for all.

8-bit H1, V1 159 fps 159 fps

Binning H1, V2 164 fps —

H2, V1 164 fps —

H2, V2 164 fps —

10-bit packed / 12-bit packed

H1, V1 127 fps 127 fps

Binning H1, V2 127 fps —

H2, V1 127 fps —

H2, V2 127 fps —

10-bit / 12-bit

H1, V1 79 fps 79 fps

Binning H1, V2 127 fps —

H2, V1 127 fps —

H2, V2 127 fps —

EMVA 1288 parameters Absolute sensitivity Maximum SN ratio

At 12-bit output

9.44p (λ = 525 nm)

45.16 dB

At 12-bit output

10.86p (λ = 525 nm)

45.23 dB

SN ratio (traditional method) 60 dB or more (typical)

(0 dB gain, Black)

60 dB or more (typical)

Dark compression ON: 50 dB

(typical)

(0 dB gain, Green Black)

Digital image output format

Full pixel 1936 (H) × 1216 (V)

Bayer 1936 (H) × 1216 (V)

ROI Width 16 to 1936, 16 pixels/step 16 to 1936, 16 pixels/step

Offset X 0 to 1920, 16 pixels/step 0 to 1920, 16 pixels/step

Height 1 to 1216, 1 line/step 2 to 1216, 2 lines/step

Offset Y 0 to 1215, 1 line/step 0 to 1214, 2 lines/step

Binning H 1 1936 (H) 1936 (H)

2 968 (H) —

V 1 1216 (V) 1216 (V)

2 968 (V) —

Pixel Format Mono8, Mono10, Mono10

Packed, Mono12,

Mono12 Packed

BayerGR8, BayerGR10,

BayerGR10 Packed, BayerGR12,

BayerGR12 Packed

Trigger selector Exposure Frame Start

Exposure modes Off, Timed (EPS), Trigger Width (PWC)

Trigger overlap Off

Trigger input signals Line 5 (Opt In), Software, PG0, NAND Out 0/1

Exposure modes Timed 6 µs (8-bit), 7 µs (10-bit) (min) to 8 s (max), variable unit: 1 µs

❖ Performance verified for up to 1 second.

Trigger Width 6 µs (8-bit), 7 µs (10-bit) (min) to 8 s (max)

❖ Performance verified for up to 1 second.

Auto exposure (Exposure Auto) Off, Continuous

Auto exposure response speed (AGC/ASC Control Speed)

1 to 8

Video send modes Normal Mode, Trigger Sequencer Mode, Command

Sequencer Mode, Multi Mode

Digital I/O Line Selector (6P): GPIO IN / GPIO OUT

Black level adjustment

Default level 33LSB (during 10-bit output)

Video level adjustment range R/B: 20 to 60 (during 10-bit output)

Adjustment range –33LSB to +64LSB against reference level (during 10-bit output)

Resolution adjustment 1 STEP = 0.25LSB

— 56 —

GO-2400M-USB / GO-2400C-USB

Item GO-2400M-USB GO-2400C-USB

Gain adjustment Manual adjustment range 0 dB to +24 dB 0 dB to +24 dB

Auto gain Off, Continuous Off, Continuous

WB gain — R / B: –7 dB to +15 dB, 1 step =

0.1 dB

WB Preset — 4600K, 5600K, 6500K

WB area — 16 (4 × 4) Area

WB range — 3000 K to 9000 K

White balance — Off, Continuous, Once

Blemish correction Detection Detect white blemishes using threshold values

(black blemish correction performed only at factory)

Correction Interpolation using adjacent pixels (continuous blemishes not

corrected)

Correctable pixels 256 pixels

ALC Can be adjusted automatically together with AGC and auto exposure

Gamma 0.45, 0.6 an, 1.0 (OFF) (3 steps available)

LUT

OFF: γ = 1.0, ON = 257 points can be set

Power supply 6-pin

connector

Input range DC +12 V to +24 V ±10% (via input terminal)

Power consumption 4.08 W (at 12 V input, full pixel) (Typical)

USB bus power

Input range DC 36 V to 57 V

Power consumption 4.1 W (at 5 V input, full pixel) (Typical)

Lens mount C-mount

Lens mount protrusion length of 9 mm or less is supported

Flange back 17.526, tolerance: 0 mm to –0.05 m

Optical filter Protective glass: Not provided IR cut filter (half value of 670 nm)

Verified performance temperature / humidity –5°C to +45°C / 20% to 80% (non-condensing)

Storage temperature / humidity –25°C to +60°C / 20% to 80% (non-condensing)

Regulations CE (EN61000-6-2 and EN61000-6-3), FCC part 15 class B, RoHS,

WEEE

Dimensions (housing) 29 × 29 × 41.5 mm (WHD) (excluding mount protrutions)

Weight 46 g

Approximately 5 minutes of warm-up are required to achieve these specifications.

Package contents

Camera body (1) Sensor protection cap (1) Dear Customer (sheet) (1)

Optional accessories (not supplied)

MP-43 tripod mount AC adapter

Design and specifications are subject to change without notice.

— 57 —

GO-2400M-USB / GO-2400C-USB

Frame Rate Reference

(Theoretical value: decimal values are dropped)

Pixel count

Resolution

(screen size)

ROI/Binning Pixel size(μm) Image size

Frame rate

8 / 10 / 12 bit

2.35 MP 1936 × 1216 Full pixel 5.86 × 5.86 1/1.2" (13.40 mm) 159 fps (@8 bit)

2 MP 1920 × 1080 ROI 5.86 × 5.86 1/1.2" (12.91 mm) 180 fps (@8 bit)

1.4 MP 1392 × 1050 ROI 5.86 × 5.86 1/1.6" (10.26 mm) 189 fps (@8 bit)

1.3 MP 1280 × 1024 ROI 5.86 × 5.86 1/1.7" (9.61 mm) 193 fps (@8 bit)

0.5 MP 800 × 600 ROI 5.86 × 5.86 1/2.7" (5.86 mm) 322 fps (@8 bit)

0.3 MP 640 × 480 ROI 5.86 × 5.86 1/3.4" (4.69 mm) 396 fps (@8 bit)

Spectral Response

GO-2400M-USB

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

400 500 600 700 800 900 1000

Sensitivity

wave length (nm)

GO-2400M/2401M Sensitivity

B&W

— 58 —

GO-2400M-USB / GO-2400C-USB

GO-2400C-USB

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

400 500 600 700 800 900 1000

Sensitivity

wave length (nm)

GO-2400C/2401C Sensitivity

Rch

Gch

Bch

Dimensions

10 41.5

12.5

23.7

14 22

C Mount

4-M2 Depth3

3-M3 Depth3

1.5

Dimensional tolerance: ±0.3 mm Unit: mm

— 59 —

GO-2400M-USB / GO-2400C-USB

User’s Record

Camera type: GO-2400M-USB / GO-2400C-USB

Revision: ……………..

Serial No. ……………..

Firmware version. ……………..

For camera revision history, please contact your local JAI distributor.

Trademarks

• Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.

• Intel and Intel Core are trademarks of Intel Corporation in the United States and other countries.

Other system and product names described in this document are trademarks or registered trademarks of their respective owners. The ™ and ® symbols are not used in this document.

— 60 —

GO-2400M-USB / GO-2400C-USB

6-pin round

AC adapter

Acquisition Control

acquisition modes

Adjusting the Black Level

Adjusting the Gain

Adjusting the White Balance

ALC

Automatic Level Control Function

black level

Camera locking screw holes

C-mount

Configuring Exposure

Connecting Devices

Counter and Timer Control Function

DC IN

DC IN / trigger IN connector

Digital Input/Output Settings

Dimensions

exposure

Exposure Mode

External Trigger Settings

factory default settings

Feature Properties

Frame Rate

Frame Rate Reference

Gain Auto

Gain Level

Gamma Function

GPIO

Initial Settings for the Camera

Installing the Software

JAI Camera Control Tool

JAI SDK

LED

Lens

Lens mount

Lookup Table

LUT

Optional accessories (not supplied)

Output format

Parts Identification

Power/trigger LED

Regional Scanning Function

RJ-45 connector

ROI

Saving the Settings

Settings List 44,

Shading Correction

software

Specifications

Spectral Response

Trigger Control

trigger IN

Trigger Selector

Troubleshooting

USB cable

Verifying the Camera’s Network

Connection Status

Video Process Bypass Mode

white balance

Index

Revision history

Revision Date Changes

1.0 Mar 2017 First draft

IAI GO-2400M-USB, GO-2400C-USB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
