IAI AM-200GE, AB-200GE User Manual

User Manual

AM-200GE

AB-200GE

2M Digital Progressive Scan

Monochrome and Color Camera

Document Version:1.1

AM/AB-200GE_Ver.1.1_Sept2013

1035E-1110

AM-200GE

Supplement

The following statement is related to the regulation on “ Measures for the Administration
of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “.
The table shows contained Hazardous Substances in this camera.

mark shows that the environment-friendly use period of contained Hazardous

Substances is 15 years.

嶷勣廣吭並㍻

嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕

功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇云恢瞳ゞ 嗤蕎嗤
墾麗嵎賜圷殆兆各式根楚燕 〃泌和



桟隠聞喘豚㍉

窮徨佚連恢瞳嶄根嗤議嗤蕎嗤墾麗嵎賜圷殆壓屎械聞喘議訳周和音氏窟伏翌
亶賜融延、窮徨佚連恢瞳喘薩聞喘乎窮徨佚連恢瞳音氏斤桟廠夛撹冢嶷麟半
賜斤児繁附、夏恢夛撹冢嶷鱒墾議豚㍉。

方忖仝15々葎豚㍉15定。

AB-200GE

Supplement

The following statement is related to the regulation on “ Measures for the Administration
of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “.
The table shows contained Hazardous Substances in this camera.

mark shows that the environment-friendly use period of contained Hazardous

Substances is 15 years.

嶷勣廣吭並㍻

嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕

功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇云恢瞳ゞ 嗤蕎嗤
墾麗嵎賜圷殆兆各式根楚燕 〃泌和



桟隠聞喘豚㍉

窮徨佚連恢瞳嶄根嗤議嗤蕎嗤墾麗嵎賜圷殆壓屎械聞喘議訳周和音氏窟伏翌
亶賜融延、窮徨佚連恢瞳喘薩聞喘乎窮徨佚連恢瞳音氏斤桟廠夛撹冢嶷麟半
賜斤児繁附、夏恢夛撹冢嶷鱒墾議豚㍉。

方忖仝15々葎豚㍉15定。

AM-200GE / AB-200GE

Notice

The material contained in this manual consists of information that is proprietary to JAI Ltd.,

Japan and may only be used by the purchasers of the product. JAI Ltd., Japan makes no
warranty for the use of its product and assumes no responsibility for any errors which may
appear or for damages resulting from the use of the information contained herein. JAI Ltd.,
Japan reserves the right to make changes without notice.

Company and product names mentioned in this manual are trademarks or registered
trademarks of their respective owners.

Warranty

For information about the warranty, please contact your factory representative.

Certifications

CE compliance

As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC
(Electromagnetic compatibility), JAI Ltd., Japan declares that AM-200GE and AB-200GE
complies with the following provisions applying to its standards.
EN 61000-6-3 (Generic emission standard part 1)
EN 61000-6-2 (immunity)

FCC

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications to this unit not expressly approved by the party responsible for FCC
compliance could void the user’s authority to operate the equipment.

- 1 -

AM-200GE / AB-200GE

Table of Contents

JAI GigE® Vision Camera operation manuals ............................................ - 7 -

Introduction ................................................................................... - 7 -

Before using GigE Vision camera .......................................................... - 7 -

Software installation ......................................................................... - 7 -

Camera Operation ............................................................................ - 8 -

1. General ..................................................................................... - 8 -

2. Camera nomenclature ................................................................... - 8 -

3. Main Features .............................................................................. - 9 -

4. Locations and Functions ................................................................ - 10 -

4.1. Locations and functions ................................................................................ - 10 -

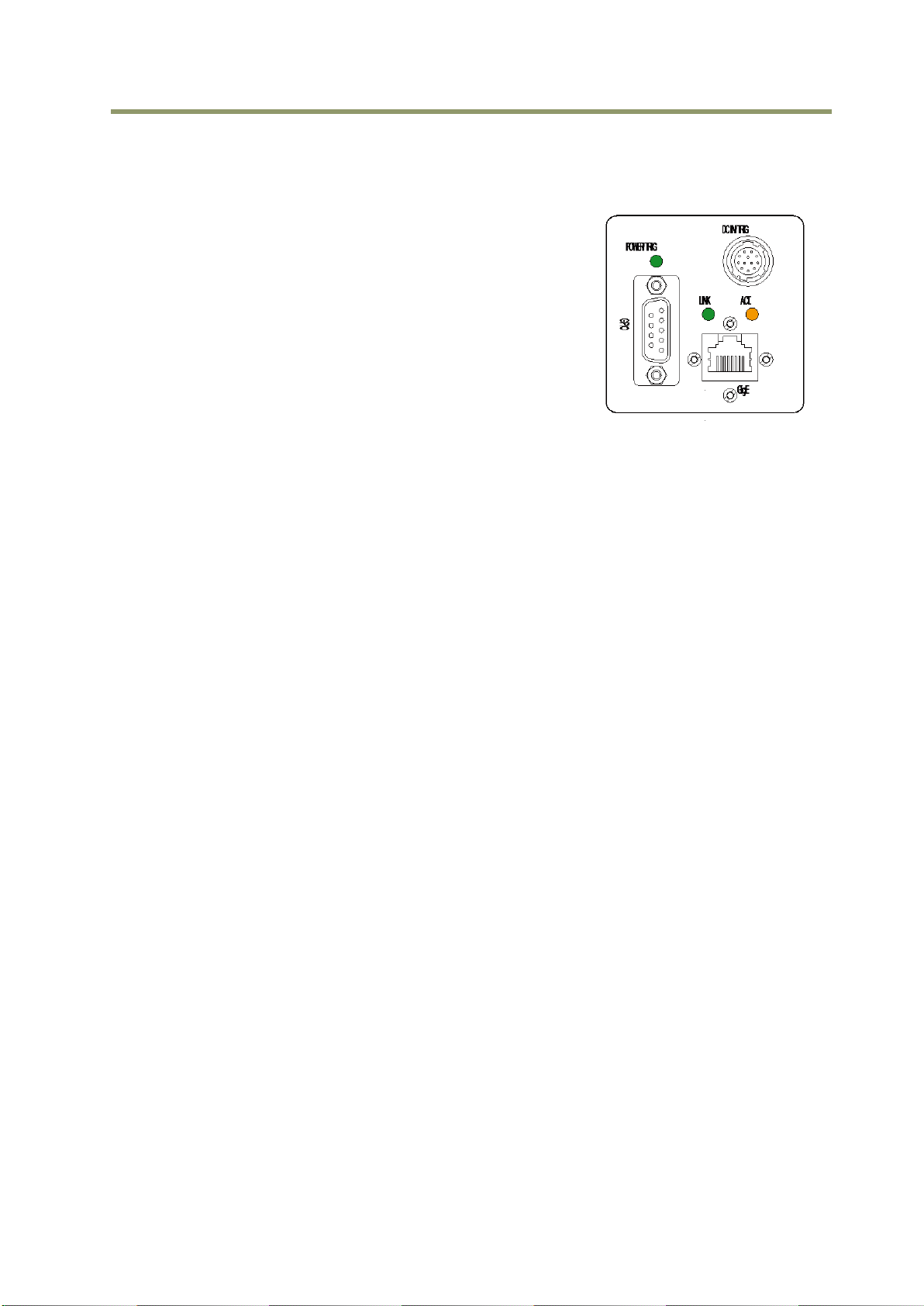

4.2. Rear panel indicator .................................................................................... - 11 -

5. Pin Assignment ........................................................................... - 12 -

5.1. 12-pin Multi-connector (DC-IN/Digital IO) ............................................................ - 12 -

5.2. Digital Output Connector for Gigabit Ethernet..................................................... - 12 -

5.3. D-Sub 9pin connector (For GPIO) ................................................................... - 13 -

5.4. DIP switch ................................................................................................. - 13 -

5.4.1 SW-900 .............................................................................................. - 13 -

5.4.2 SW-500 .............................................................................................. - 14 -

5.4.3 SW-901 .............................................................................................. - 14 -

6. Input and output Interface .......................................................... - 15 -

6.1. Digital Interface ......................................................................................... - 15 -

6.1.1 LineSelector ........................................................................................ - 15 -

6.1.2 LineInverter ........................................................................................ - 15 -

6.1.3 LineStatus ........................................................................................... - 15 -

6.1.4 LineSource .......................................................................................... - 15 -

6.1.5 LineMode ............................................................................................ - 15 -

6.1.6 LineFormat ......................................................................................... - 15 -

6.2. Opto-isolated Interface ................................................................................ - 16 -

6.2.1 Recommended External Input circuit diagram for customer .............................. - 16 -

6.2.2 Recommended External Output circuit diagram for customer ............................ - 16 -

6.2.3 Optical Interface Specifications ................................................................ - 17 -

6.3. Iris video output ......................................................................................... - 17 -

6.4. Trigger input ............................................................................................. - 19 -

6.5. Exposure Active output ................................................................................. - 19 -

7. Video signal output .................................................................... - 20 -

7.1. Video output image ..................................................................................... - 20 -

7.2. AOI (Area of Interest) ................................................................................... - 21 -

7.2.1 AOI parameters ................................................................................... - 21 -

7.2.2 AOI setting details ................................................................................ - 21 -

7.2.2.1 When only the image part is transmitted (OB is not transferred) .................... - 21 -

7.2.2.2 When the full image plus the vertical OB is transmitted .............................. - 22 -

7.2.2.3 When the full image plus the horizontal OB is transmitted ............................ - 22 -

7.2.3 Frame rate calculation in the AOI mode ...................................................... - 22 -

7.2.3.1 Binning control setting : off or 2x1 (Binning Vertical=1) ............................. - 22 -

7.2.3.2 Binning control setting : 1x2 or 2x2 (Binning Vertical=2) .............................. - 23 -

7.2.4 The relationship between LinePitch and Width .............................................. - 23 -

7.3. In case of vertical binning and horizontal binning (Only for AM-200GE) ....................... - 23 -

7.3.1 The relationship between Binning Horizontal and Width/LinePitch ..................... - 24 -

7.3.2 The relationship between Binning Vertical and Height ..................................... - 24 -

7.4. Digital video output (Bit allocation) ................................................................. - 24 -

7.5. Bayer output pattern ................................................................................... - 25 -

7.6. Pixel format and pixel type ............................................................................ - 25 -

7.6.1 GVSP_PIX_MONO8 (8bit output) ................................................................ - 25 -

- 2 -

AM-200GE / AB-200GE

7.6.2 GVSP_PIX_MONO10 (10bit output) .............................................................. - 26 -

7.6.3 GVSP_PIX_MONO10_Packed (10bit output) ................................................... - 26 -

7.6.4 GVSP_PIX_MONO12 (12bit ourput) .............................................................. - 26 -

7.6.5 GCSP_PIX_MONO12_Packed (12bit output) ................................................... - 26 -

7.6.6 GCSP_PIX_BAYERGR8 (8bit output)............................................................. - 26 -

7.6.7 GVSP_PIX_BAYERGR10 (10bit output) ......................................................... - 26 -

7.6.8 GVSP_PIX_BAYERGR10_Packed .................................................................. - 26 -

7.6.9 GVSP_PIX_BAYERGR12 (12bit output) ......................................................... - 27 -

7.6.10 GVSP_PIX_BAYERGR12_Packed ................................................................ - 27 -

7.6.11 GVSP_PIX_RGB8_PACKED (24bit) (Interpolation) ........................................... - 27 -

7.6.12 GVSP_PIX_ YUV422_PACKED (16bit) .......................................................... - 27 -

7.6.13 The relationship between PixelFormat and PixelSize. .................................... - 27 -

7.7 YUV output................................................................................................. - 28 -

7.8. Video output timing ..................................................................................... - 28 -

7.8.1 Vertical timing (8bit, 10 bit or 12bit for Bit allocation) .................................... - 28 -

7.8.1.1 If the binning control is OFF or 2x1, AOI default setting ............................... - 28 -

7.8.1.2 If the binning control is OFF or 2x1, AOI setting ........................................ - 29 -

7.8.1.3 If the binning control is 1x2 or 2x2, AOI default setting ............................... - 29 -

7.8.1.4 If the binning control is 1x2 or 2x2, AOI setting ........................................ - 30 -

7.8.2 Horizontal timing .................................................................................. - 30 -

7.8.2.1 If the binning control is OFF or 2x1 ........................................................ - 30 -

7.8.2.2 If the binning control is 1x2 or 2x2 ........................................................ - 31 -

6.4.3 DVAL output if the Binning control is set to 2=2x1 or 3=2x2 .............................. - 31 -

7.8.2.3 LVAL-LOW level period ....................................................................... - 31 -

8. Network configuration ................................................................ - 33 -

8.1. GigEVision Standard interface ......................................................................... - 33 -

8.2. Equipment to configure the network system ....................................................... - 33 -

8.2.1 PC .................................................................................................... - 33 -

8.2.2 Cables ............................................................................................... - 33 -

8.2.3 Network card (NIC) ................................................................................ - 33 -

8.2.4 Hub ................................................................................................... - 34 -

8.3. Recommended Network Configurations ............................................................. - 34 -

8.3.1 Guideline for network settings ................................................................. - 34 -

8.3.2 Video data rate (network bandwidth) ......................................................... - 35 -

8.3.2.1 Exposure function ............................................................................. - 35 -

8.3.3 Note for setting packet size ..................................................................... - 36 -

8.3.4 Calculation of Data Transfer Rate .............................................................. - 36 -

8.3.5 Simplified calculation (Approximate value) .................................................. - 37 -

8.4. GigE camera connecting examples ................................................................... - 38 -

8.4.1 Using a switching hub for 1 port ................................................................ - 38 -

8.4.2 Connecting a camera to each port of a multi-port NIC ..................................... - 38 -

8.4.3 The data transfer for multiple cameras ....................................................... - 39 -

8.4.3.1 If delayed readout is not used in continuous mode ..................................... - 39 -

8.4.3.2 If delayed readout is not used in trigger mode .......................................... - 39 -

8.4.3.3 If delayed readout is used ................................................................... - 40 -

9. Core functions ............................................................................ - 41 -

9.1. Acquisition function ..................................................................................... - 41 -

9.1.1 Basic image acquisition flow .................................................................... - 41 -

9.1.2 Acquisition mode .................................................................................. - 42 -

9.1.2.1 Single Frame ................................................................................... - 42 -

9.1.2.2 MultiFrame ..................................................................................... - 43 -

9.1.2.3 Continuous mode .............................................................................. - 44 -

9.1.3 AcquisitionAbort ................................................................................... - 44 -

9.1.4 AcquisitionFrameCount ........................................................................... - 45 -

9.1.5 AcquisitionFrameRate ............................................................................ - 45 -

9.1.6 AcquisitionStatus .................................................................................. - 45 -

- 3 -

AM-200GE / AB-200GE

9.2. Trigger Control ........................................................................................... - 47 -

9.2.1 TriggerSelector(TriggerMode) ................................................................... - 47 -

9.2.1.1 Acquisition ...................................................................................... - 47 -

9.2.1.2 Exposure ........................................................................................ - 47 -

9.2.2 Triggersoftware .................................................................................... - 48 -

9.2.3 Triggersource ....................................................................................... - 48 -

9.2.4 TriggerActivation ................................................................................... - 49 -

9.2.4.1 Initial Trigger Activation Set ................................................................ - 49 -

9.2.5 TriggerOverlap ..................................................................................... - 50 -

9.2.6 Triggerdelay ........................................................................................ - 50 -

9.3. Exposure Control ........................................................................................ - 50 -

9.3.1 Exposure Mode ..................................................................................... - 50 -

9.3.2 ExposureTime ...................................................................................... - 51 -

9.3.3 ExposureAuto....................................................................................... - 51 -

9.4. Counter function......................................................................................... - 51 -

9.4.1 CounterSelector ................................................................................... - 51 -

9.4.2 CounterEventSource .............................................................................. - 51 -

9.4.3 CounterEventActivation .......................................................................... - 52 -

9.4.4 CounterResetSource .............................................................................. - 52 -

9.4.5 CounterResetActivation .......................................................................... - 52 -

9.4.6 CounterReset ....................................................................................... - 52 -

9.4.7 CounterValue ....................................................................................... - 52 -

9.4.8 CounterDuration ................................................................................... - 52 -

9.4.9 CounterStatus ...................................................................................... - 52 -

9.4.10 CounterTriggerSource ............................................................................ - 53 -

9.4.11 CounterTriggerActivation ....................................................................... - 53 -

9.5. Timer Control ............................................................................................ - 54 -

9.5.1 TimerSelector ...................................................................................... - 54 -

9.5.2 TimerDuration ..................................................................................... - 54 -

9.5.3 TimerDelay ......................................................................................... - 54 -

9.5.4 TimerValue ......................................................................................... - 54 -

9.5.5 TimerStatus ........................................................................................ - 54 -

9.5.6 TimerTriggerSource ............................................................................... - 54 -

9.5.7 TimerTriggerActivation ........................................................................... - 55 -

9.6. Event Control ............................................................................................. - 55 -

9.6.1 EventSelector ...................................................................................... - 55 -

9.7. ActionControl............................................................................................. - 55 -

9.7.1 ActionDeviceKey ................................................................................... - 55 -

9.7.2 ActionSelector ..................................................................................... - 55 -

9.7.3 ActionGroupMask .................................................................................. - 55 -

9.7.4 ActionGroupKey.................................................................................... - 55 -

10. Operation modes ...................................................................... - 56 -

10.1. Continuous mode (Free run) ......................................................................... - 56 -

10.2. Trigger operation with “timed” exposure (Previously called EPS) ............................ - 57 -

10.2.1 TriggerOverlap = OFF ............................................................................ - 58 -

10.2.2 TriggerOverlap = Read out ..................................................................... - 58 -

10.2.3 SmearLess ON ..................................................................................... - 58 -

10.3. Trigger operation by “TriggerWidth” (Previously called PWC) ................................ - 59 -

10.3.1 TriggerOverlap = OFF ............................................................................ - 60 -

10.3.2 TriggerOverlap = Read out ..................................................................... - 60 -

10.4. Pre-dump mode (so-called RCT) (JAI Custom) .................................................... - 61 -

10.5. PIV (Particle Image Velocimetry) (JAI Custom) ................................................... - 62 -

10.6 Other JAI custom mode ................................................................................ - 63 -

10.6.1 Video Send Mode ................................................................................. - 63 -

10.6.1.1 Normal: Ordinal operation ................................................................. - 63 -

10.6.1.2 Sequence Trigger Mode ..................................................................... - 63 -

- 4 -

AM-200GE / AB-200GE

10.6.1.3 Multi ROI Mode ............................................................................... - 65 -

10.6.2 Delayed Readout Mode (JAI Custom Control) ............................................... - 65 -

10.6.3 OB transfer ........................................................................................ - 66 -

10.6.3.1 Vertical OB transferred ..................................................................... - 67 -

10.6.3.2 Horizontal OB transferred .................................................................. - 67 -

10.6.3.3 OB transfer is not activated ............................................................... - 68 -

10.7. Mode and function matrix table ..................................................................... - 68 -

11. Other functions ....................................................................... - 69 -

11.1. ALC ....................................................................................................... - 69 -

11.2 Black level control ...................................................................................... - 69 -

11.2.1 Black level control relations ................................................................... - 70 -

11.2.2 Black Level Selector ............................................................................. - 70 -

11.2.3 Black Level ........................................................................................ - 70 -

11.2.4 Black Level Auto ................................................................................. - 70 -

11.3. Gain control ............................................................................................. - 71 -

11.3.1 Gain control relations ........................................................................... - 71 -

11.3.2 Gain Control ...................................................................................... - 71 -

11.3.3 Gain selector ..................................................................................... - 72 -

11.3.4 Gain ................................................................................................ - 72 -

11.3.5 Gain Raw .......................................................................................... - 73 -

11.3.6 Gain Auto .......................................................................................... - 73 -

11.4. Tap Balance ............................................................................................. - 73 -

11.4.1 Gain Auto Balance ............................................................................... - 73 -

11.4.2 Automatic Tap Balance ......................................................................... - 74 -

11.4.3 Manual Tap Balance ............................................................................. - 74 -

11.4.4 Once Tap Balance ................................................................................ - 74 -

11.5. Exposure auto (Auto Shutter) ........................................................................ - 74 -

11.6. Balance Ratio (Only for AB-200GE) ................................................................. - 74 -

11.6.1 Balance Ratio ..................................................................................... - 75 -

11.6.2 Balance Ratio Auto .............................................................................. - 75 -

11.7. Blemish compensation ................................................................................ - 75 -

11.8. LUT ....................................................................................................... - 76 -

11.9 Gamma .................................................................................................... - 77 -

11.10. Shading Correction ................................................................................... - 78 -

11.11. Bayer color interpolation (Only for AB-200GE) .................................................. - 79 -

11.12. Test Image selector .................................................................................. - 79 -

11.13. Temperature sensor .................................................................................. - 80 -

12. Examples of operation using JAI Control Tool .................................. - 81 -

12.1. About GenICamTM SFNC1.3 ............................................................................ - 81 -

12.2. Examples of camera operation ...................................................................... - 81 -

12.2.1 Operational cautions ............................................................................. - 81 -

12.2.2 Connecting camera(s) ........................................................................... - 81 -

12.2.3 Camera setting layers ........................................................................... - 82 -

12.4. Input and output settings ............................................................................. - 83 -

12.4.1. Connection with the external devices ...................................................... - 83 -

12.4.2. Setting inputs and outputs .................................................................... - 84 -

12.4.2.1 Select signal to connect with Line which is selected by Line selector ............. - 84 -

12.4.2.2 Select Trigger Source ....................................................................... - 84 -

12.4.3. Specify the image size to be captured ...................................................... - 85 -

12.4.4. Acquisition of the image ....................................................................... - 86 -

12.4.4.1 Basic settings ................................................................................. - 86 -

12.4.5. Setting examples ................................................................................ - 88 -

12.4.5.1 Capture the image continuously with fastest frame rate ............................ - 88 -

12.4.5.2 Capture the image with half of the frame rate (increasing the sensitivity) ...... - 88 -

12.4.5.3 Capture one frame with preset exposure time using the external trigger ........ - 88 -

- 5 -

AM-200GE / AB-200GE

12.4.5.4 Capture multi frames of the image with preset exposure time using the external

trigger ...................................................................................................... - 89 -

12.4.5.5 Capture one frame image with the trigger width using the external trigger ..... - 89 -

12.4.5.6 Capture multi frames of the image with the trigger width using the external ... - 90 -

12.4.5.7 Capture the image continuously with preset exposure time by using the external

trigger ...................................................................................................... - 90 -

12.4.5.8 Capture the image using Software Trigger .............................................. - 90 -

12.4.5.9 Sequence Trigger setting ................................................................... - 91 -

12.4.5.10 Multi ROI setting ............................................................................ - 92 -

12.4.5.11 Delayed readout setting .................................................................. - 93 -

12.4.5.12 Operate the external strobe light ....................................................... - 93 -

12.4.6 How to view the XML file ....................................................................... - 94 -

12.4.7 Feature Tree Information ...................................................................... - 95 -

12.4.8 Feature Properties (Guru) ...................................................................... - 95 -

13. External Appearance and Dimensions .......................................... - 102 -

14. Specifications ........................................................................ - 103 -

14.1 Spectral response ...................................................................................... - 103 -

14.2 Specifications table .................................................................................... - 104 -

Appendix .................................................................................... - 106 -

1. Precautions ................................................................................................. - 106 -

2. Typical Sensor Characteristics .......................................................................... - 106 -

3. Caution when mounting a lens on the camera ....................................................... - 106 -

4. Caution when mounting the camera ................................................................... - 107 -

5. Caution for cleaning CCD and Low Pass Filter ........................................................ - 107 -

6. Exportation ................................................................................................. - 107 -

7. References ................................................................................................. - 107 -

Change history ............................................................................. - 108 -

User's Record ............................................................................... - 109 -

- 6 -

AM-200GE / AB-200GE

JAI GigE® Vision Camera operation manuals

To understand and operate this JAI GigE® Vision camera properly, JAI provides the following
manuals.

User’s manual (this booklet) Describes functions and operation of the hardware
JAI SDK & Control Tool User Guide Describes functions and operation of the Control Tool
JAI SDK Getting Started Guide Describes the network interface

User’s manual is available at www.jai.com
JAI SDK & Control Tool User Guide and JAI SDK Getting Started Guide are provided with the
JAI SDK which is available at www.jai.com.

Introduction

GigE Vision is the new standard interface using Gigabit Ethernet for machine vision
applications and it was mainly set up by AIA (Automated Imaging Association) members. GigE
Vision is capable of transmitting large amounts of uncompressed image data through an
inexpensive general purpose LAN cable for a long distance.

GigE Vision also supports the GenICamTM standard which is mainly set up by the EMVA
(European Machine Vision Association). The purpose of the GenICam standard is to provide a
common program interface for various machine vision cameras. By using GenICam, cameras
from different manufactures can seamlessly connect in one platform.

For details about the GigE Vision standard, please visit the AIA web site,
www.machinevisiononline.org and for GenICam, the EMVA web site, www.genicam.org.

JAI GigE Vision cameras comply with both the GigE Vision standard and the GenICam standard.

Before using GigE Vision camera

All software products described in this manual pertain to the proper use of JAI GigE Vision
cameras. Product names mentioned in this manual are used only for the explanation of
operation. Registered trademarks or trademarks belong to their manufacturers.
To use the JAI SDK, it is necessary to accept the “Software license agreement” first.

This manual describes necessary equipment and the details of camera functions.

Software installation

The JAI GigE Vision SDK & Control Tool can be downloaded from the JAI web site at
www.jai.com. The JAI SDK is available for Windows XP and Vista, 32-bit and 64-bit.
For the details of software installation, please refer to the “Getting Started Guide” supplied
on the JAI SDK download page.

- 7 -

AM-200GE / AB-200GE

Camera Operation

1. General

The AB-200GE and AM-200GE comply with the GigEVision® standard and also GenICamTM with
its Standard Feature Naming Convention (SFNC) ver.1.3. Functions described in this booklet
are described based on this standard.For further information about the GigE Vision standard,
please go to www.machinevisiononline.org and about GenICam, please go to
www.genicam.org.

The AM-200GE is a 2/3 inch monochrome progressive scan CCD camera and the AB-200GE is
the equivalent Bayer mosaic progressive scan CCD camera. Both have 2 million pixels
resolution and utilize 2-tap output from the Kodak KAI-02050 sensor. They provide 40.6
frames per second (8-bit Mono/Bayer output) for continuous scanning with full 1600 x 1200
pixel resolution.

Both AM-200GE and AB-200GE are suitable for automated optical inspection applications, such
as solid state device inspection or material surface inspection.

They incorporate various processing circuits such as LUT, FFC (Flat Field Compensation),
blemish compensation and Bayer interpolation. The AM-200GE and AB-200GE work in
continuous, single frame, and multi-frame modes for acquisition control together with timed
and trigger width exposure controls. Both cameras also have pre-dump and PIV modes.

As an application programming interface, JAI provides an SDK (Software Development Kit).
This SDK includes GigE Vision Filter Driver, JAI control tool, software documentation and code
examples.
The JAI SDK can be downloaded from www.jai.com.
The latest version of this manual can be downloaded from www.jai.com
For camera revision history, please contact your local JAI distributor.

2. Camera nomenclature

The camera is available in the following versions:

AM-200GE

Where A stands for "Advanced" family, M stands for "Monochrome", 200 represents the
resolution "2 million pixel" , 200 for the product dependent, and GE stands for "GigEVision"
interface

AB-200GE

Where A stands for "Advanced" family, B stands for "Bayer mosaic color", 200 represents the
resolution "2 million pixel" , 200 for the product dependent, and GE stands for "GigEVision"
interface

- 8 -

AM-200GE / AB-200GE

3. Main Features

 C3 Advanced series 2/3 ” progressive scan camera
 Monochrome and Bayer mosaic color versions
 1600 (h) x 1200 (v) active pixels
 5.5μm square pixels
 57dB or more S/N for AM-200GE and 55dB or more for AB-200GE
 8-bit, 10-bit or 12-bit output for monochrome and Bayer, or 8-bit output RGB color or

YUV422 output for AB-200GE

 40.6 frames/second with full resolution in continuous operation for monochrome or

Bayer 8-bit output

 19.2 frames/second for AB-200GE RGB output (in-camera interpolation) and 28.8

frames/second for AB-200GE YUV422 output

 Various readout modes, horizontal and vertical binning (AM-200GE only) and AOI (Area

Of Interest) modes for faster frame rates

 -3dB to +24dB gain control for AM-200GE and 0dB to +24dB for AB-200GE
 10μs (1/100,000) to 2 seconds exposure control in 1μs steps ( Exposure/Timed control

mode)

 Timed and trigger width for exposure control
 Pre-dump (RCT) and PIV modes for specific applications
 ALC to automatically control exposure for changing lighting conditions by combining

auto gain control, auto shutter and auto iris functions

 Various pre-processing circuits are provided

Programmable LUT
Gamma correction from 0.45 to 1.0
Shading Correction
Bayer white balance with manual, one-push auto, or continuous (AB-200GE only)
Bayer color interpolation (AB-200GE only)
Blemish compensation

 Test pattern signal generator built in
 Auto iris lens video output with H-sync
 Setup by Windows XP/Vista/7 via serial communication

- 9 -

AM-200GE / AB-200GE

LINK ACT.

DCIN/TRIG

GPIO

POWER/TRIG

GigE

Front View

Top View

Bottom View

Rear View

Side View

①

②

③

④

⑤

⑥ ⑦

⑧

⑨

⑩

⑨

4. Locations and Functions

4.1. Locations and functions

1. Lens mount Lens mount of C-mount type. *1)

2. CCD sensor 2/3 inch CCD

3. 12-pin connector DC+12V, Trigger IN and EEN out

4. RJ-45 connector GigE Vision interface with thumb screws

5. D-sub 9-pin connector LVDS IN and TTL IN and OUT

6. LED Power and trigger indications

7. LINK Indication for Network connection

8. ACT Indication for GigE communication

9.Holes for RJ-45 thumbscrews Vertical type and horizontal type (*2)

10.Mounting holes M3, max length 4.5mm (*3)

*1) Note: Rear protrusion on C-mount lens must be less than 10mm.
*2) Note: When an RJ-45 cable with thumb screws is connected to the camera, please do not

excessively tighten screws by using a driver. The RJ-45 receptacle on the camera might
be damaged. For security, the strength to tighten screws is less than 0.147 Newton
meter (Nm). Tightening by hand is sufficient in order to achieve this.

*3) Note: The tripod adapter plate MP-41 can be used.

Fig. 1. Locations

- 10 -

AM-200GE / AB-200GE

4.2. Rear panel indicator

The rear panel mounted LED provides the following information:

 Amber : Power connected - initiating

 Steady green : Camera is operating in Continuous mode
 Flashing green : The camera is receiving external trigger

Ethernet connector indicates,

 Steady green : 1000 Base-T has been connected
 Flashing green : 100 Base/10Base have been connected

(Note)

 Flashing amber : Network active in communication

Note: When 100BASE/10BASE are connected, the green is also

flashing.
However, the video is not streamed through Ethernet.

Fig.2 Rear Panel

- 11 -

AM-200GE / AB-200GE

Pin No

In/Out

Name

1

In/Out

MX1+ (DA+)

2

In/Out

MX1- (DA-)

3

In/Out

MX2+ (DB+)

4

In/Out

MX3+ (DC+)

5

In/Out

MX3- (DC-)

6

In/Out

MX2- (DB-)

7

In/Out

MX4+ (DD+)

8

In/Out

MX4- (DD-)

Pin no.

Signal

Remarks

1

GND

2

DC input

+12V to +24V

3

Opt In 2(-) / GND (*1)

Line 6

4

Opt In 2 (+) / Iris video(*1)

5

Opt In 1 (-)

Line 5

6

Opt In 1 (+)

7

Opt Out 1 (-)-

Line 3

8

Opt Out 1 (+)

9

Opt Out 2 (-)

Line 4

10

Opt Out 2 (+)

11

DC input

+12V to +24V

12

GND

3

4

5

6

7

8

9

10

11

12

1

2

5. Pin Assignment

5.1. 12-pin Multi-connector (DC-IN/Digital IO)

Type: HR10A-10R-12PB-01
(Hirose) male.
(Seen from rear of
camera.)

Fig. 3. 12-pin connector. *1) Default is Opt In 2. DIP switch SW901 changes to

iris video output.

5.2. Digital Output Connector for Gigabit Ethernet

Type: RJ-45
HFJ11-1G02E-L21RL or equivalent

The AM-200GE AND AB-200GE cameras also accept industrial RJ-45
connectors with thumbscrews. This assures that the connector does
not come undone in tough industrial environments.
Please contact the nearest JAI distributor for details on
recommended industrial RJ-45 connectors.

Fig. 4. Gigabit Ethernet connector

The digital output signals follow the Gigabit Ethernet interface using RJ-45 conforming
connector. The following is the pin assignment for the Gigabit Ethernet connector.

- 12 -

AM-200GE / AB-200GE

No

I/O

Name

Note

1 I LVDS In 1-

Line 8

2 I LVDS In 1+

3 I TTL IN 1

Line 7

75ohm Termination (Note 1)

4 O TTL Out 1

Line 1

5 GND

6 NC

7 NC

8 O TTL OUT 2

Line 2

9 GND

No

Functions

Setting

ON

OFF

1

Trigger input termination

75Ω

TTL

2

NC

SW900

Right side for
75 ohms
termination

ON

5.3. D-Sub 9pin connector (For GPIO)

Type : DD-09SSG

Fig. 5．D Sub 9pin connector

Note1) Can be changed by DIP switch (SW900).

5.4. DIP switch

DIP switches are located on circuit boards. When the top cover is removed, please pay careful
attention so that circuit boards are not damaged.

5.4.1 SW-900

This switch sets the 75 ohm trigger input termination to ON or OFF.
The factory default setting is OFF which is TTL level.

The 75 ohm termination DIP switch is located the right side as looking from the lens

when the top cover is removed.
The photo in the right shows the default setting.
In order to change to the 75 ohm termination, the switch
in the front should be set downwards.

Fig.6. SW900

- 13 -

AM-200GE / AB-200GE

No

Function

Setting

ON

OFF

Exposure Active output
select

Open Collector
signal

TTL signal

2

NC - -

No

Functions

Setting

ON

OFF

1

OPT IN(+) / Iris video OUT
select

Iris video

OPT IN (+)

2

OPT IN(-) / Iris video OUT
select

GND for iris video

OPT IN (-)

SW500

SW500

Sensor side

Sensor side

Open Collector ooutput

TTL output

SW901

SW901

Opt output

Iris output

5.4.2 SW-500

This switch selects the ExposureActive signal. The factory default setting is TTL signal and it
can be changed to the open collector signal.

Sensor side

SW500 is located in the upper board when the top cover is
removed.

Fig. 7 SW500

back side

5.4.3 SW-901

Fig.8 SW901

This DIP switch can select OPT IN or Iris video output through pin#3 and #4 of the
HIROSE 12 pin connector. The default setting is OPT IN.

- 14 -

AM-200GE / AB-200GE

Output

Input

TTL

Line 1

Opt

Line 5

TTL

Line 2

Opt

Line 6

Opt

Line 3

TTL

Line 7

Opt

Line 4

LVDS

Line 8

6. Input and output Interface

6.1. Digital Interface

In the AM-200GE AND AB-200GE, the input and output interfaces for Hirose 12P and D-

Sub 9P are configured as follows.

6.1.1 LineSelector

The following input and output signals are configured on Line 1 through Line 8.

① Line 1(TTL out1)
② Line 2(TTL out2)
③ Line 3(Opt out1)
④ Line 4(Opt out2)
⑤ Line 5(Opt in1)
⑥ Line 6(Opt in2)
⑦ Line 7(TTL in1)
⑧ Line 8(LVDS in)

6.1.2 LineInverter

This function changes the polarity of the signal.

6.1.3 LineStatus

The user can ascertain the status of input and output signals.

6.1.4 LineSource

This function lets you designate the signal source to output through Line 1 to Line 4 as

part of the LineSelector configuration. Each signal is selected from the following

five signals.

① AcquisitionTriggerWait
② AcquisitionActive
③ FrameTriggerWait
④ FrameActive
⑤ ExposureActive
⑥ JAI_Acquisitionwait
⑦ Counter1Active
⑧ Timer1Active
⑨ UserOut0
⑩ UserOut1
⑪ UserOut2
⑫ UserOut3

6.1.5 LineMode

The current mode of signals (input or output) is displayed.

6.1.6 LineFormat

The interface of input and output circuits is displayed.

- 15 -

AM-200GE / AB-200GE

6.2. Opto-isolated Interface

The control interface of the C3 GigE Vision
camera series has opto-isolated inputs and
outputs, providing galvanic separation between
the camera's inputs/outputs and peripheral
equipment. In addition to galvanic separation,
the opto-isolated inputs and outputs can cope
with a wide range of voltages; the voltage

range for inputs is +3.3V to +24V DC whereas Fig.9 Opto-coupler

outputs will handle +5V to +24V DC.

The figure at the right shows the functional
principle (opto-coupler) of the opto-isolated
inputs/outputs.

6.2.1 Recommended External Input circuit diagram for customer

Fig.10 External Input Circuit, OPT IN 1 and 2

6.2.2 Recommended External Output circuit diagram for customer

Fig.11 External Output Circuit, OPT OUT 1 and 2

- 16 -

AM-200GE / AB-200GE

User Power (VCC)

3.3V

5V

12V

24V

Time Delay Rising TDR(µs)

0.54

0.54

0.62

0.68

Rising Time RT(µs)

1.2

1.2

2.0

3.0

Falling Delay Time FDR(µs)

1.5

1.5

2.4

2.1

Falling Time FT(µs)

3.6

3.4

4.5

6.8

１μ１Ｋ

０．１μ

＋５Ｖ

IRIS Video Out

DA IN

DAC

10K

12K

12K

Iris Sync

6.2.3 Optical Interface Specifications

The relation of the input signal and the output signal through the optical interface is as
follows.

Fig.12 Optical Interface Performance

6.3. Iris video output

This signal can be used for lens iris control in Continuous
and pre-dump modes.
The signal is 1.0 V p-p (with H-sync) from 75  without
termination.

Fig. 13 Iris video output.
The iris video signal is composed to average the video level in the center area of each frame
and can be output as a composite signal with H-sync. As shown in the following figure, each
frame has its own video level which is averaged.

Fig.14 Iris signal details

- 17 -

AM-200GE / AB-200GE

Note:
These interpolated controls are calculated based on the “Gain Auto
Reference” value. If the system is operating with a frame rate of less than
20fps, the set point of the lens should match the value of “Gain Auto
Reference”, even if ALC is being controlled by only the auto iris. Also, when
using an auto iris lens with its own speed and level controls, it is
recommended that these controls first be adjusted on the lens before using

the camera controls above to avoid possible conflicts.

The following parameters of this auto iris control signal output can be changed.

Auto Iris Control Signal Output:

ON : The auto iris control can be connected with AGC and ASC as ALC function
OFF : The auto iris control is not connected with AGC and ASC.

Iris Reverse Gain:

ON : The auto iris control signal is multiplied by the inverse of AFE gain (VGA

gain). If ALC is used, this setting is recommended. Auto iris control signal is
not affected by AGC gain.

OFF: The auto iris control signal is not multiplied by the inverse of AFE gain (VGA

gain).

Iris State Control:

Video: Use the iris control in auto mode.
Close: Force the iris to close.

Open: Force the iris to open.
Iris Sync Level: Adjust the H sync level added to the video between 0 to 255.
Iris Control Gain:

0 – 255: Set a separate control gain for the auto iris control signal. If oscillation

occurs when the auto iris diaphragm reaches the set point, this setting
may reduce the phenomenon.

Iris Interpolate Gain (Note):
0 – 255: At frame rates below 20fps, the auto iris operation may appear “jumpy”

as it rapidly moves from one level to the next.
This function prevents this so-called “hunting” phenomenon by
interpolating new auto iris control levels between each frame, thereby
smoothing the rate of the auto iris changes.

Iris Calculate Ratio (Note):
20 – 160: This function compensates Iris Interpolate Gain to allow for the varying

diaphragm ranges of different auto iris lenses.
This can be helpful if the auto iris is not able to find the appropriate
point by hunting when operating at frame rates of less than 20fps.

- 18 -

AM-200GE / AB-200GE

○

＋５V

＋５V

Trigger INI B
Trigger INI A

1000

0.1μ

Trigger

IN

0.1μ

1K

1K22K

15K

3K

100K

●

●

●●

● ●

●

●

●

● ● ●

●

●●

●

●

● ●

●

●

●

●

○

Open

Collector

TTL

SW500

Exposure
Active

150

120

10

10

10K

220

0.1μ

180

1K

1K

100

10K

0.1μ

+5V

+5V

TTL Out
1/2

Initial Trigger Activation Set:
If the TTL trigger signal is input through D-SUB 9 pin, there are several
functions inside the camera using TTL. And each function has the setting of
the trigger activation, the camera sets the initial processing in accordance
with its priority. The initial Trigger Activation Set function, however, forces
to set the input polarity after the power is ON.

Refer to 9.2.4.1 Initial Trigger Activation Set.

6.4. Trigger input

An external trigger input can be applied to the
input selected Line Selector. The input is AC
coupled. To allow long pulses the input circuit is
designed as a flip-flop circuit. The leading and
trailing edges of the trigger pulse activate the
circuit.
The trigger polarity can be changed by Trigger
Activation.
Trigger input level is 4 V 2 V.

Fig.15 Trigger input circuit

6.5. Exposure Active output

Exposure Active signal (positive) is found on
Opt-out on Hirose 12P or TTL out on D-sub 9­pin connector. The output circuit is 75 
complementary emitter followers. Output
level 3 V from 75 (no termination). It can
be changed to the open collector signal.
When the open collector is used, the
maximum current is 120mA. However, if a
current of more than 50mA is flowed, it is
necessary to use bigger diameter wires for
connecting pins #8 and 9. If narrower-gauge
wires are used, it may not work properly due
to resistance issues.
This output can be changed to open collector
signal by SW500. Fig.16 Exposure Active output

- 19 -

7. Video signal output

7.1. Video output image

AM-200GE / AB-200GE

Note: The following OB area can be transferred.

For vertical : 4 pixels for upper side
For horizontal : 16 pixels on right and left sides

Fig.17 CCD sensor layout

- 20 -

AM-200GE / AB-200GE

WidthMax

HeightMax

OffsetY

OffsetX

Width

Height

(1,1)

OB 4 lines

OB 16 pixels

(1,1)

(1,1204)

(1632,1204)

(16,4)

(1616,1204)

OB 16 pixels

(1616,4)

(1632,1)

(16,1204)

Height

Width

7.2. AOI (Area of Interest)

In the AM-200GE and AB-200GE, the output image size can be determined by setting
the output area.

7.2.1 AOI parameters

In order to set the output area, 4 parameters including OffsetY, OffsetX, Width and

Height should be specified.

Fig.18 AOI setting

7.2.2 AOI setting details

In the AM-200GE and AB-200GE, AOI settings must consider the optical black areas

when specifying the area to be transferred.

Fig.19 OB transfer

7.2.2.1 When only the image part is transmitted (OB is not transferred)

Offset X=16 (Note)
Offset Y=4
Width =1600
Height = Effective lines

Note: If the horizontal binning is x2, the value is 8.

- 21 -

AM-200GE / AB-200GE

Area

Offset

Height

Frame rate
（fps）

1/2

304

600

Continuous

64.05673
Timed (EPS)

（Smearless OFF）

Trigger Width

1/4

454

300

Continuous

89.91026
Timed (EPS)

(Smearless OFF)

Trigger Width

1/8

528

150
Continuous

112.8964
Timed (EPS)

Trigger Width

7.2.2.2 When the full image plus the vertical OB is transmitted

Offset X=16(Note)
Offset Y=0
Width =1600

Height = Effective lines ＋4

Note: If the horizontal binning is x2, the value is 8.

7.2.2.3 When the full image plus the horizontal OB is transmitted

Offset X=0
Offset Y=4
Width =1632 (Note1)(Note2)
Height = Effective lines

Note1: When the horizontal OB is transferred, the width must be set at its maximum.
Note2: If the horizontal binning is used, the OB on both side is 8 and total 1616.

7.2.3 Frame rate calculation in the AOI mode

The frame rate in AOI mode depends on each setting of Offset, Height, Bit allocation

or Binning control. In the following formula, the part labelled (
decimal values rounded up.

7.2.3.1 Binning control setting : off or 2x1 (Binning Vertical=1)

In case of Offset Y < 4

Frame line number = ((1203 - (Height + (Offset Y - 4))) / 4)

rounddown

(Height - (4 – Offset Y)) + 29

In case of Offset Y ≧ 4
Frame line Number = (Offset Y / 4)

+ ((1203 – (Height + (Offset Y - 4))) /4)

roundup

+ Height + 28

Frame rate (Hz) = 1/ (Frame line number x 0.00002004)

Setting examples (8-bit output)

+

round up

) has its

rounddown

- 22 -

AM-200GE / AB-200GE

Area

Offset

Height

Frame rate
（fps）

1/2

154

300

Continuous

96.09841
Timed (EPS)

(SmearLess OFF)

Trigger Width

1/4

228

150

Continuous

114.2074
Timed (EPS)

(SmearLess OFF)

Trigger Width

1

/8

266

76
Continuous

125.9129
Timed (EPS)

Trigger Width

7.2.3.2 Binning control setting : 1x2 or 2x2 (Binning Vertical=2)

In case of Offset Y < 4
Frame line number = ((1203 – (((Height - (4 - Offset Y)) x 2) +

((Offset Y x 2) – 4))) / 4)

rounddown

In case of Offset Y ≧ 4
Frame line 数 = ((Offset Y / 4) x 2)

((Offset Y x 2) - 4))) / 4)

+ ((1203 – ((Height x 2) +

roundup

rounddown

Frame rate (Hz) = 1/ (Frame line 数 x 0.00002200)

Setting example (8-bit output)

+ (Height - (4 - Offset Y)) + 24

+ Height + 22

7.2.4 The relationship between LinePitch and Width

The setting range of LinePitch is changed according to PixelFormat setting.
LinePitch can be set as follows.

Mono8/Bayer8 : 8-1632, by 8 pixels step
Mono10/Bayer10_Packed : 12-2448, by 12 pixels step
Mono10/12/bayer10/12 : 16-3264, by 16 pixels step
RGB8_Packed : 24-4896, by 24 pixels step
YUV422_Packed : 16-3264, by 16 pixels step

As for LinePitch and Width, if one is changed, the other will also be changed.
The relationship between LinePitch and width is;

Mono8/Bayer8 : Linepitch
Mono10/Bayer10_Packed : Linepitch/1.5
Mono10/12/Bayer10/12 : Linepitch/2
RGB8_Packed : Linepitch/3
YUV422_Packed : Linepitch/2

7.3. In case of vertical binning and horizontal binning (Only for AM-200GE)

This function is available only for AM-200GE. In binning mode, adjacent pixels in the
horizontal direction and/or vertical direction are combined and output as one pixel.
The possible combinations are shown below.

- 23 -

AM-200GE / AB-200GE

H x V (Pixels)

Sensitivity

Spatial resolution

H direction

V direction

1 x 2

2 times

Unchanged

1/2

2 x 1

2 times

1/2

Unchanged

2 x 2

4 times

1/2

1/2

CCD out

Analog Out

(Equivalent)

Digital Out

8bit

10bit

12bit

Black

0%

Setup 3.6%, 25mV

8LSB

32LSB

128LSB

AM-200GE

350mV

100%

700mV

222LSB

890LSB

3560LSB

AB-200GE

290mV

AM-200GE

404mV

115%

808mV

255LSB

1023LSB

4095LSB

AB-200GE

334mV

Horizontal

Vertical

1 pixel

1 Pixel

2 Pixels

2 pixels

Fig. 20 Binning modes
Binning achieves a higher frame rate, as well as better sensitivity.
On the other hand, the resolution becomes less than the full frame readout.

7.3.1 The relationship between Binning Horizontal and Width/LinePitch

If Binning Horizontal is set at 1 or 2, Width/LinePitch is changed accordingly.
Binning Horizontal = 1 Width is 1632 as the maximum
Binning Horizontal = 2 Width is 816 as the maximum

Note: If Binning Horizontal is reset to 1 after setting to 2, the maximum value is not

changed. It is necessary to set manually.

7.3.2 The relationship between Binning Vertical and Height

If Binning Vertical is set at 1 or 2, Height is changed accordingly.
Binning Vertical = 1 Height is 1204 as the maximum
Binning Vertical = 2 Height is 604 as the maximum

Note: If Binning Vertical is reset to 1 after setting to 2, the maximum value is not changed.

It is necessary to set manually.

7.4. Digital video output (Bit allocation)

Although the AM-200GE and AB-200GE are digital cameras, the image is generated by an
analog component, the CCD sensor. The table and diagram below show the relationship
between the analog CCD output level and the digital output.

- 24 -

AM-200GE / AB-200GE

Digital Out [LSB]

32

70025

Analog Ou t [mV ]

890

1023

Black L eve l

0

White Cli p Lev el

800

100% Le vel

signal out

Gｒ

B

Gｒ

H7

Gｒ

B

Gｒ

RGｒR

GbBGb

R

H3H4H5

H6

Gｒ

R

V1

V2

V3

H1

H2

Gｒ

R

Gｒ

R

B

Gb

Model

Pixel Type supported

AM-200GE

Mono8, Mono10, Mono10_Packed, Mono 12, Mono12_Packed

AB-200GE

BayGR8, BayGR10, BayGR12, BayGR10_Packed,
BayGR12_Packed,RGB8_PACKED, YUV422_PACKED

0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7

Y0Y1Y2

Fig.21 Bit allocation

7.5. Bayer output pattern

The AB-200GE starts with GRG on odd lines and BGB on even lines as shown below.
If AOI is used, Offset Y can be set every 2 lines and therefore, it always starts with a
GRG sequence.

Fig. 22 Bayer sequence

7.6. Pixel format and pixel type

In the GigE Vision Interface, GVSP (GigE Vision Streaming Protocol) is used for an
application layer protocol relying on the UDP transport layer protocol. It allows an
application to receive image data, image information and other information from a
device.
As for the sensors in the AM-200GE AND AB-200GE, the following pixel types supported
by GVSP are available.
With regard to the details of GVSP, please refer to the GigE Vision Specification
available from the AIA (www.machinevisiononline.org).

7.6.1 GVSP_PIX_MONO8 (8bit output)

- 25 -

AM-200GE / AB-200GE

0 1 2 3 4 5 6 7 8 9 X X X X X X 0 1 2 3 4 5 6 7 8 9 X X X X X X

Y0Y0Y1

Y1

2 3 4 5 6 7 8 9 0 1 X X 0 1 X X 2 3 4 5 6 7 8 9 2 3 4 5 6 7 8 9 0 1 X X 0 1 X X 2 3 4 5 6 7 8 9

Y3Y1Y0

Y2

0 1 2 3 4 5 6 7 8 9 10 11 X X X X 0 1 2 3 4 5 6 7 8 9 10 11 X X X X

Y0Y0Y1

Y1

4 5 6 7 8 9 10 11 0 1 2 3 0 1 2 3 4 5 6 7 8 9 10 11 4 5 6 7 8 9 10 11 0 1 2 3 0 1 2 3 4 5 6 7 8 9 10 11

Y3Y1Y0

Y2

0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7

G0R1G2

0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7

B0G1B2

0 1 2 3 4 5 6 7 8 9 X X X X X X 0 1 2 3 4 5 6 7 8 9 X X X X X X

G0G0R1

R1

0 1 2 3 4 5 6 7 8 9 X X X X X X 0 1 2 3 4 5 6 7 8 9 X X X X X X

B0B0G1

G1

2 3 4 5 6 7 8 9 0 1 X X 0 1 X X 2 3 4 5 6 7 8 9

R1

G0

2 3 4 5 6 7 8 9 0 1 X X 0 1 X X 2 3 4 5 6 7 8 9

B0

G1

7.6.2 GVSP_PIX_MONO10 (10bit output)

7.6.3 GVSP_PIX_MONO10_Packed (10bit output)

7.6.4 GVSP_PIX_MONO12 (12bit ourput)

7.6.5 GCSP_PIX_MONO12_Packed (12bit output)

7.6.6 GCSP_PIX_BAYERGR8 (8bit output)

Odd Line

Even Line

7.6.7 GVSP_PIX_BAYERGR10 (10bit output)

Odd Line

Even Line

7.6.8 GVSP_PIX_BAYERGR10_Packed

Odd Line

Even Line

- 26 -

AM-200GE / AB-200GE

0 1 2 3 4 5 6 7 8 9 10 11 X X X X 0 1 2 3 4 5 6 7 8 9 10 11 X X X X

G0G0R1

R1

0 1 2 3 4 5 6 7 8 9 10 11 X X X X 0 1 2 3 4 5 6 7 8 9 10 11 X X X X

B0B0G1

G1

4 5 6 7 8 9 10 11 0 1 2 3 0 1 2 3 4 5 6 7 8 9 10 11

R1

G0

4 5 6 7 8 9 10 11 0 1 2 3 0 1 2 3 4 5 6 7 8 9 10 11

B0

G1

R R R R R R R R G G G G G G G G B B B B B B B B
0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7

U U U U U U U U Y Y Y Y Y Y Y Y V V V V V V V V Y Y Y Y Y Y Y Y

0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7

AM-200GE

AB-200GE

Pixel format

Pixel size

Pixel format

Pixel size

Mono8

Bpp8

BayerGR8

Bpp8

Mono10

Bpp16

BayerGR10

Bpp16

Mono10_Packed

Bpp12

BayerGR10_Packed

Bpp12

Mono12

Bpp16

BayerGR12

Bpp16

Mono12_Packed

Bpp12

BayerGR_Packed12

Bpp12

RGB8_PACKED

Bpp24

YUV422_PACKED

Bpp16

7.6.9 GVSP_PIX_BAYERGR12 (12bit output)

Odd Line

Even Line

7.6.10 GVSP_PIX_BAYERGR12_Packed

Odd Line

Even Line

7.6.11 GVSP_PIX_RGB8_PACKED (24bit) (Interpolation)

1Byte 2Byte 3Byte

7.6.12 GVSP_PIX_ YUV422_PACKED (16bit)

1Byte 2Byte 3Byte
4Byte

7.6.13 The relationship between PixelFormat and PixelSize.

The pixel format and pixel size are related and if one is changed, the other is

automatically changed.

- 27 -
