AUDIO (With Touch Screen)

■ Type C

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:52 PM Page 31

Audio system

324

Feature of Your Audio

Head unit

❈ The actual features in the vehicle

may differ from the illustration.

(1) LCD screen

• Tap the screen to select a button.

(2) TUNE knob

• In Radio Mode

- Turn to navigate through the
FM/AM and DRM frequencies
manually.

• In Media Mode

- Turn to navigate through the
songs list.

- Press to select an item.

(3) SETUP

• Access Display, Sound, Date/Time,
Bluetooth, System, Screen Saver
and Display Off settings.

(4) PHONE

• Start Bluetooth

®

Phone mode.

(5) SEEK/TRACK

• Search for next station in radio
mode.

• Change the current song in media
mode.

(6) MEDIA

• Select USB(iPod

®

), Bluetooth®(BT)

Audio, AUX or My Music.

• Display the media menu when two
or more media are connected or
when the [MEDIA] button is
pressed in media mode.

(7) RADIO

• Start FM, AM and DRM Radio.

(8) POWER/VOL knob

• Turn to adjust the volume.

• Press to turn the device on or off.

(9) RESET

• Shutdown and restart the system.

■ Type C

■ Type C

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:52 PM Page 32

433

Audio system

Steering wheel remote control

❈ The actual features in the may dif-

fer from the illustration.

(1) VOLUME

• Press to adjust the volume.

(2) MUTE

• Press to mute audio output.

(3) MODE

• Press the button to change the
mode in the following order: Radio
➟ Media.

• Press and hold the button to turn
off.

(4) UP/DOWN

• Press the button in radio mode to
cycle between the FM/AM and
DRM frequencies in the order as
stored in the presets.

• Press and hold the button in radio
mode to search for the next avail­able frequency.

• Press the button in media mode to
change the current song.

• Press and hold the button in media
mode to quick search through
songs.

(5) CALL

• Pressing the button.

- If not in Bluetooth

®

Handsfree

mode or receiving a phone call.
First press: Display Dial Number

screen.
Second press: Automatically dis-

play the most recently Dialed
Call number.

Third press: Dial the phone num­ber entered.

- Press in the Incoming Call notifi-

cation screen to accept the
phone call.

- Press in Bluetooth

®

Handsfree
mode to switch to the waiting
call.

• Pressing and holding the button.

- If not in Bluetooth

®

Handsfree
mode or receiving a phone call,
the most recently Dialed Call
number is dialed.

- Press in Bluetooth

®

Handsfree
mode to transfer the call to your
cell phone.

- Press in cell phone mode to
switch to Bluetooth

®

Handsfree

mode.

(6) END

• Press in Bluetooth

®

Handsfree

mode to end the phone call.

• Press in the incoming call screen
to reject the call.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 33

Audio system

344

WARNING

-

Audio System Safety
Warnings

• Do not stare at the screen
while driving. Staring at the
screen for prolonged periods
of time could lead to traffic
accidents.

• Do not disassemble, assem­ble, or modify the audio sys­tem. Such acts could result in
accidents, fire, or electric
shock.

• Using the phone while driving
may lead to a lack of attention
of traffic conditions and
increase the likelihood of
accidents. Use the phone fea­ture after parking the vehicle.

• Heed caution not to spill water
or introduce foreign objects
into the device. Such acts
could lead to smoke, fire, or
product malfunction.

(Continued)

(Continued)

• Please refrain from use if the
screen is blank or no sound
can be heard as these signs
may indicate product malfunc­tion. Continued use in such
conditions could lead to acci­dents (fires, electric shock) or
product malfunctions.

• Do not touch the antenna dur­ing thunder or lightening as
such acts may lead to light­ning induced electric shock.

• Do not stop or park in park­ing-restricted areas to operate
the product. Such acts could
lead to traffic accidents.

• Use the system with the vehi­cle ignition turned on.
Prolonged use with the igni­tion turned off could result in
battery discharge.

WARNING

-

Distracted Driving

Driving while distracted can
result in a loss of vehicle con­trol that may lead to an acci­dent, severe personal injury,
and death. The driver’s primary
responsibility is in the safe and
legal operation of a vehicle, and
use of any handheld devices,
other equipment, or vehicle sys­tems which take the driver’s
eyes, attention and focus away
from the safe operation of a
vehicle or which are not permis­sible by law should never be
used during operation of the
vehicle.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 34

435

Audio system

(Continued)

• If you want to change the posi­tion of device installation,
please inquire with your place
of purchase or service mainte­nance center. Technical
expertise is required to install
or disassemble the device.

• Turn on the car ignition before
using this device. Do not oper­ate the audio system for long
periods of time with the igni­tion turned off as such opera­tions may lead to battery dis­charge.

• Do not subject the device to
severe shock or impact. Direct
pressure onto the front side of
the monitor may cause damage
to the LCD or touch screen.

(Continued)

(Continued)

• When cleaning the device,
make sure to turn off the
device and use a dry and
smooth cloth. Never use
tough materials, chemical
cloths, or solvents (alcohol,
benzene, thinners, etc.). As
such materials may damage
the device panel or cause
color/quality deterioration.

• Do not place beverages close
to the audio system. Spilling
beverages may lead to system
malfunction.

• In case of product malfunc­tion, please contact your
place of purchase or After
Service center.

• Placing the audio system
within an electromagnetic
environment may result in
noise interference.

• Prevent caustic solutions such
as perfume and cosmetic oil
from contacting the dashboard
because they may cause dam­age or discoloration.

CAUTION

• Operating the device while
driving could lead to acci­dents due to a lack of atten­tion to external surroundings.
First park the vehicle before
operating the device.

• Adjust the volume to levels
that allow the driver to hear
sounds from outside of the
vehicle. Driving in a state
where external sounds cannot
be heard may lead to acci­dents.

• Pay attention to the volume
setting when turning the
device on. A sudden output of
extreme volume upon turning
the device on could lead to
hearing impairment. (Adjust
the volume to a suitable levels
before turning off the device.)

(Continued)

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 35

Audio system

364

Information on status icons

Icons showing audio status are shown
in the upper-right corner of the screen.

Radio

DRM

❈ The actual features may differ

from the illustration. May change
according to the transmission con­tent of DRM.

(1) Band

Switch between FM, AM and DRM.

(2) Presets

View all presets.

(3) Services 

Cycle between the services available
with the broadcasting frequency.

(4) Menu

Navigate to the menu screen.

(5) No signal

When no signal or weak signal in
DRM Mode, Display No signal icon.

(6) Services Index

• Displays the number of services
available with the broadcasting fre­quency.

• Highlights the currently receiving
service.

• No. of services depends on the
broadcasting station and it may
vary from 1 ~ 4.

(7) Text Information

Text Information may or may not be
available and it depends on the
broadcasting station.

Switching between FM, AM and DRM

• Press the [RADIO] button on the
audio system to switch between
FM, AM and DRM.

• Select [Band] on the screen to
switch between FM, AM and DRM.

Icon Description

Mute Mute engaged

Battery

Remaining battery life of
a connected Bluetooth

®

device

Handsfree +

Audio stream-

ing connection

Bluetooth®Handsfree
call and audio stream­ing available

Handsfree

connection

Bluetooth®Handsfree
call available

Bluetooth

audio streaming

Bluetooth

®

audio

streaming available

Downloading

contacts

Downloading contacts
through Bluetooth®wire­less communications

Downloading

call history

Downloading call history
through Bluetooth® wire­less communications

Line busy Phone call in progress

Mute mic

Mic muted during a
call (caller cannot
hear your voice)

Phone signal

strength

Display the phone signal
strength for a cell phone
connected by Bluetooth

®

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 36

437

Audio system

Searching stations

Press the [SEEK/TRACK] button to
search stations.

Presets

Save up to 40 frequently used stations.
To listen to a preset, select the

desired station list.
Press and hold the desired slot from

1 through 40. This saves the current
station in the selected slot.

If the slot is empty, simply selecting
saves the station to the slot.

Changing Service

• Select [Services] in order to
cycle between the available servic­es from 1 ➟ 2 ➟ 3 ➟ 4 ➟ 1.

• Number of services depends on
the broadcasting station and can
vary between 1 ~ 4.

✽ NOTICE

• The Receiving of DRM Signal is
based on transmission (Range &
time) of All India Radio.

• Some of the States of India are not
started with DRM transmission.

Menu

Select [Menu], and select the desired
function.

• Weather/News Report: Enable or
disable Weather/News Report.

• Scan: All available stations are
played for five seconds each.

• Sound Settings: Audio sound set­tings can be changed.

(1) Band

Switch between FM, AM and DRM.

(2) Presets

View all presets.

(3) List

View all available stations.

(4) Menu

Navigate to the menu screen.

Switching between FM, AM and DRM

• Press the [RADIO] button on the
audio system to switch between
FM, AM and DRM.

• Select [Band] on the screen to
switch between FM, AM and DRM.

Searching stations

Press the [SEEK/TRACK] button to
search stations.

List

A list of all available stations in the
vehicle’s current location is dis­played. Select the desired station.

Favorite stations can be saved to
[Presets] by selecting [save].

Select the refresh icon in order
to update the list of available stations
at the vehicle’s current location while
in FM/AM Mode.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 37

FM/AM

(without RDS)

Audio system

384

Presets

Save up to 40 frequently used stations.
To listen to a preset, select the

desired station list.
Press and hold the desired slot from

1 through 40. This saves the current
station in the selected slot.

If the slot is empty, simply selecting
saves the station to the slot.

Menu

Select [Menu], and select the desired
function.

• Scan: All available stations are
played for five seconds each.

• Sound Settings: Audio sound set­tings can be changed.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 38

FM/AM

(1) Radio

Switch between FM and AM.

(2) List

View all available stations.

(3) Presets

View all presets.

(4) Menu

Navigate to the menu screen.

(with RDS)

Switching between FM and AM

• Press the [RADIO] button on the
audio system to switch between
FM and AM.

• Select [Radio] on the screen to
switch between FM and AM.

Searching stations

Press the [SEEK/TRACK] button to
search stations.

List

A list of all available stations in the
vehicle’s current location is dis­played. Select the desired station.

Favourite stations can be saved to
[Presets] by selecting [+].

Audio system

Media

✽ NOTICE -

Using MP3

Supported audio formats

❈ File formats other than the formats

above may not be recogniz

ed or
playable. Information such as file­name may not be displayed.

Range of supported compressed file
types

1. Bitrate range (Kbps)

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 38

Presets

Save up to 40 frequently used stations.
To listen to a preset, select the

desired station list.
Press and hold the desired slot from

1 through 40. This saves the current
station in the selected slot.

If the slot is empty, simply selecting
saves the station to the slot.

Menu

Select [Menu], and select the desired
function.

• Traffic Announcement (TA): Enable
or disable Traffic Announcements.

• Scan: All available stations are
played for five seconds each.

• Sound Settings: Audio sound set­tings can be changed.

439

Audio system

2. Sampling frequency (Hz)

• The sound quality of MP3/WMA
compressed files may vary depend­ing on the bitrate. (A higher bitrate
can have better sound quality.)

• The product only recognizes files
with the MP3 or WMA extension.
Files without one of these exten­sions are not recognized.

3. Number of recognizable folders

and files

• Folders: 2,000 for USB

• Files: 6,000 for USB

• No recognition limit for folder hier­archies

4. Character display range (Unicode)

• Filenames: Up to 64 English char­acters (64 Korean characters)

• Foldernames: Up to 32 English
characters (32 Korean characters)

❈ The scroll feature can be used to

display file and folder names that
are too long to display on the
screen.

Languages supported (Unicode support)

• Korean: 2,604 characters

• English: 94 characters

• Common Chinese characters:
4,888 characters

• Special symbols: 986 characters

❈ Japanese/Simplified Chinese

characters are not supported.

✽ NOTICE -

Using the USB
Devices

• Starting the vehicle while a USB
device is connected can damage
the device. Please disconnect USB
devices before starting the vehicle.

• Starting the vehicle or stopping
the engine while an external USB
device is connected can result in
failure of the external USB device
to operate.

• Be cautious of static electricity
when connecting/disconnecting
external USB devices.

• An encrypted MP3 player is not
recognized when connected as an
external device.

• External USB devices may not be
recognized, depending on the state
of the external USB device.

• Only products with byte/sectors
formatted at 4 KB or lower are
recognized.

• Only USB devices in FAT12/16/32
format are recognized; NTFS and
ExFAT file systems are not recog­nized.

• Some USB devices are not recog­nized due to compatibility issues.

(Continued)

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 39

Audio system

404

(Continued)

• Do not touch the USB connections.

• Connecting and disconnecting
USB devices rapidly over a short
period of time can cause equip­ment failure.

• Abnormal sounds may be audible
when the USB device is discon­nected.

• Turn the audio off before connect­ing or disconnecting external USB
devices.

• Recognition may take longer
depending on the type, capacity or
file format of the external USB
device. This is not a product mal­function.

• Use of USB devices for purposes
other than playing music files is
prohibited.

• Image display and video playback
are not supported.

• Use of USB accessories, including
charge and heat though the USB
I/F, can lead to reduced product
performance or malfunctions. Do
not use USB devices or accessories
for these purposes.

(Continued)

(Continued)

• Use of aftermarket USB hubs and
extension cables can result in the
vehicle’s audio system failing to
recognize your USB device.
Connect the USB device directly to
the multimedia port of your vehi­cle.

• When using high-capacity USB
devices with logical drive divi­sions, only files saved on the high­est level logical drive can be
played.
If applications are loaded on a
USB drive, file playback may fail.

• Some MP3 players, cell phones,
digital cameras, etc. (USB devices
that are not recognized as mobile
storage) may not operate normally
when connected.

• USB charging may not be sup­ported by some mobile devices.

• Operation is guaranteed only for
standard (Metal Cover Type) USB
Memory drives.

• Operation of HDD, CF, SD and
memory stick devices is not guar­anteed.

(Continued)

(Continued)

• DRM (Digital Rights Management)
files cannot be played.

• SD-type USB memory, CF-type
USB memory, and other USB
memory devices that require
adapters for connection are not
supported.

• Proper operation of USB HDDs or
USB drives with connectors that
loosen due to vehicle vibrations is
not guaranteed. (iStick, etc.)

• USB products that are
used as key chains or
cell phone accessories
may damage the USB
jack and affect proper
file playback. Please refrain from
use. Use only products with plug
connectors, as shown in the follow­ing illustration.

• When MP3 devices or cell phones
are connected simultaneously
through AUX, BT Audio and USB
modes, a popping noise or mal­function may occur.

• Use USB 2.0 devices for better
compatibility. Maximum device
size supported is 32 GB.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 40

441

Audio system

USB

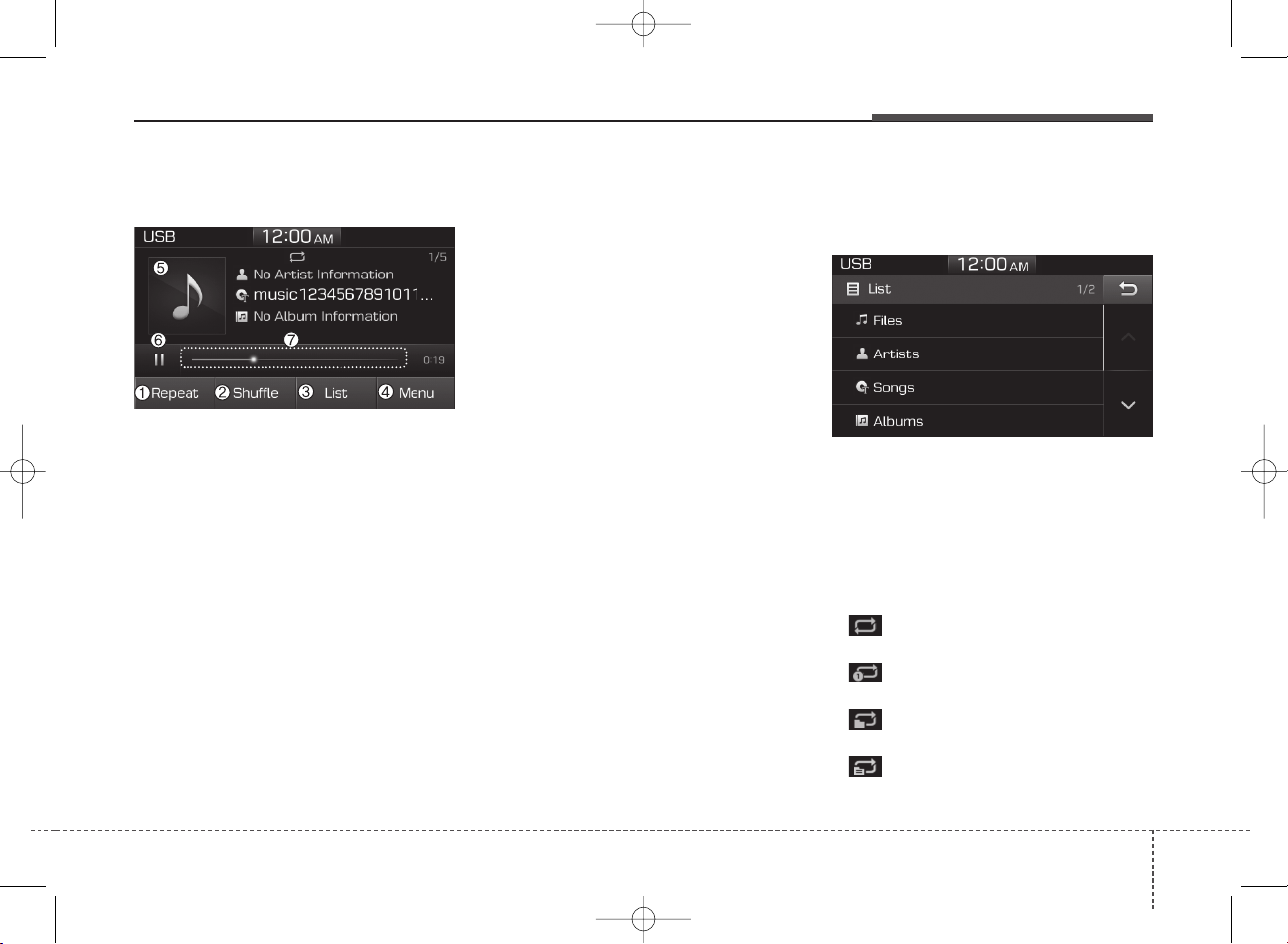

(1) Repeat

Enable/disable repeat play.

(2) Shuffle

Enable/disable shuffle play.

(3) List

View a list of all songs.

(4) Menu

Navigate to the menu screen.

(5) Album Image

View song info.

(6) Pause

Pause or play music.

(7) Playback progress

Select to skip to the desired location.

Playback

Press the [MEDIA] button, and select
[USB].

Connect a USB drive to the USB port
to automatically play files on the USB
drive.

Changing songs

Press the [SEEK/TRACK] button to
play the previous or next song.

Press and hold the [SEEK/TRACK]
button to rewind or fast forward the
currently playing song.

Search songs by turning TUNE knob,
and press the knob to play.

Selecting songs from a list

Select [List] to see a list of songs
available for play.

Select and play the desired song.

Repeat play

Select [Repeat] to enable or disable
‘Repeat all’, ‘Repeat current song’,
‘Repeat folder’ or ‘Repeat category’
play.

• Repeat all: All songs in the
playlist are repeated.

• Repeat current song: The cur­rently playing song is repeated.

• Repeat folder: All songs in the
current folder are repeated.

• Repeat category: Repeat all
songs in the current category.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 41

Audio system

424

✽ NOTICE

The repeat folder function is avail­able only when songs are playing
from the [File] category under
[List].

Shuffle play

Select [Shuffle] to enable or disable
‘Shuffle’, ‘Shuffle folder’ or ‘Shuffle
category’ play.

• Shuffle: Songs are played in
random order.

• Shuffle folder: Songs within
the current folder are played in ran­dom order.

• Shuffle category: Songs within
the current category are played in
random order.

Menu

Select [Menu], and select the desired
function.

• Save to My Music: Songs on your
USB device can be saved to My
Music.

(1) File: Select a file to save

.

(2) Mark All: Select all files.
(3) Unmark All: Deselect all files.

(4) Save: Save the selected file(s)

.

- Select the files you want to save,
and select [Save]. This saves the
selected files to My Music.

- Saving is canceled if phone calls
are received or made while saving.

- Up to 6,000 files can be saved.

- The currently playing file on the
USB device cannot be changed
while saving.

- My Music cannot be used while
saving.

- Up to 700 MB can be saved.

• Information: Detailed information
on the currently playing song is dis­played.

• Sound Settings: Audio sound set­tings can be changed.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 42

443

Audio system

✽ NOTICE -

Using an iPod

®

• To use the audio system’s iPod

®

control function, use the dedicated
cable provided with your iPod®.

• Connecting the iPod®to the vehi­cle during play may result in a
loud noise that lasts about one to
two seconds. Connect the iPod®to
the vehicle after stopping or paus­ing play.

• Connect the iPod®with the vehicle
in the ACC ON state to begin
charging.

• When connecting the iPod®cable,
be sure to fully push the cable into
the port.

• When EQ effects are enabled
simultaneously on external
devices, such as iPod®s and the
audio system, the EQ effects may
overlap, causing sound quality
deterioration or distortion.
Deactivate the EQ function for all
external devices, if possible.

• Noise may occur when your iPod

®

or the AUX port is connected.
Disconnect and store separately
when not in use.

(Continued)

(Continued)

• There may be noise if the audio
system is used with an iPod

®

or
AUX external device connected to
the power jack. In these cases, dis­connect the iPod®or external
device from the power jack.

• Play may be interrupted, or device
malfunctions may occur depend­ing on the characteristics of your
iPod®/iPhone®.

• Play may fail if your iPhone®is con­nected through both Bluetooth

®

and USB. In this case, select Dock
connector or Bluetooth®on your
iPhone®to change the sound output
settings.

• If your software version does not
support the communication proto­col or your iPod®is not recognized
due to device failure, anomalies or
defects, iPod®mode cannot be
used.

• iPod®nano (5th generation)
devices may not be recognized if
the battery is low. Charge suffi­ciently before use.

(Continued)

(Continued)

• The search and song play order in
the iPod®device may be different
from the search order in the audio
system.

• If the iPod®has failed due to an
internal defect, please reset the
iPod®(consult your iPod®manu­al).

• Depending on the software ver­sion, the iPod®may fail to sync
with the system. If the media is
removed or disconnected before
recognition, the previous mode
may not be restored (iPad®cannot
be charged).

• Cables other than the 1-meter
cable provided with
iPod®/iPhone®products may not
be recognized.

• When other music apps are used
on your iPod®, the system sync
function may fail due to malfunc­tion of the iPod®application.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 43

Audio system

444

iPod

®

(1) Repeat

Enable/disable repeat play.

(2) Shuffle

Enable/disable shuffle play.

(3) List

View a list of all songs.

(4) Menu

Navigate to the menu screen.

(5) Album Image

View song info.

(6) Pause

Pause or play music.

(7) Playback progress

Select to skip to the desired location.

Playback

Connect your iPod

®

to the audio
USB port, press the [MEDIA] button,
and select [iPod].

Changing songs

Press the [SEEK/TRACK] button to
play the previous or next song.

Press and hold the [SEEK/TRACK]
button to rewind or fast forward the
currently playing song.

Search songs by turning the TUNE
knob, and press the knob to play.

Selecting songs from a list

Select [List] to see a list of songs
available for play.

Select and play the desired song.

Repeat play

Select [Repeat] to enable or disable
‘Repeat category’, ‘Repeat current
song’ play.

• Repeat category: Repeat all
songs in the current category.

• Repeat current song: The cur­rently playing song is repeated.

Shuffle play

Select [Shuffle] to enable or disable
‘Shuffle category’ play.

• Shuffle category: Songs within
the current category are played in
random order.

Menu

Select [Menu], and select the desired
function.

• Information: Detailed info on the
currently playing song is displayed.

• Sound Settings: Audio sound set­tings can be changed.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 44

445

Audio system

When other music programs are running

When songs saved on your iPod

®

are playing through a separate music
app, the following screen is dis­played.

(1) Play/Pause: Pause or play music

.

(2) Play iPod Files: Play music saved

on your iPod®.

(3) Sound Settings: Audio sound set-

tings can be changed.

(4) Album Image: View playback info

.

Play iPod Files

Select [Play iPod Files] to play songs
saved on your iPod

®

.
If there are no songs saved on your
iPod®, the [Play iPod Files] is dis­abled.

✽ NOTICE

Operation cannot be carried out
correctly due to iPod®application
malfunction.

✽ NOTICE -

Using Bluetooth

®

(BT) Audio

• Bluetooth®Audio mode can only
be used if a Bluetooth®-enabled
phone is connected. Only devices
that support Bluetooth®audio can
be used.

• If the Bluetooth®-enabled phone is
disconnected during play, the
music stops.

• When the TRACK UP/DOWN
buttons are used during Bluetooth

®

audio streaming, a popping noise
or sound interruptions may occur,
depending on the cell phone device.

• Depending on the cell phone
model, the audio streaming func­tion may not be supported.

• If a phone call is made or received
when music is playing in
Bluetooth®Audio mode, the call
may mix with the music.

• When returning to Bluetooth

®

Audio mode after ending a call,
play might not resume automati­cally for some cell phone models.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 45

Audio system

464

Bluetooth®(BT) Audio

(1) Repeat

Enable/disable repeat play.

(2) Shuffle

Enable/disable shuffle play.

(3) Menu

Navigate to the menu screen.

(4) Play/Pause

Pause or play music.

✽ NOTICE

• Some cell phone models may not
support particular functions.

• Bluetooth®audio volume is synced
with cell phone media volume.

Playback

Press the [MEDIA] button, and select
[BT Audio].

Changing songs

Press the [SEEK/TRACK] button to
play the previous or next song.

✽ NOTICE

Some cell phones may not support
this function.

CAUTION

• Bluetooth®Handsfree is a fea­ture that enables drivers to
practice safe driving.
Connecting the car audio sys­tem with a Bluetooth®phone
allows the user to convenient­ly make calls, receive calls,
and manage the phone book.
Before using the Bluetooth®,
carefully read the contents of
this user’s manual.

• Excessive use or operations
while driving may lead to neg­ligent driving practices and be
the cause of accidents.

• Do not operate the device
excessively while driving.

• Viewing the screen for prolonged
periods of time is dangerous and
may lead to accidents.

• When driving, view the screen
only for short periods of time.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 46

447

Audio system

Repeat play

Select [Repeat] to enable or disable
‘Repeat all’, ‘Repeat current song’ or
‘Repeat category’ play.

• Repeat all: All songs in the
playlist are repeated.

• Repeat current song: The cur­rently playing song is repeated.

• Repeat category: Repeat all
songs in the current category.

✽ NOTICE

The repeat play function is engaged,
depending on the operation of the
connected Bluetooth®device.

Shuffle play

Select [Shuffle] to enable or disable
‘Shuffle’, ‘Shuffle category’ play.

• Shuffle: Songs are played in
random order.

• Shuffle category: Songs within
the current category are played in
random order.

✽ NOTICE

The shuffle function is engaged,
depending on the operation of the
connected Bluetooth®device.

Menu

Select [Menu], and select the desired
function.

• Connections: The currently connected
Bluetooth

®

device can be changed.

• Information: Detailed information on
the currently playing song is displayed.

• Sound Settings: Audio sound set­tings can be changed.

AUX

Running AUX

Press the [MEDIA] button, and select
[AUX].

Connect the external device connec­tion jack to the AUX terminal to run
AUX.

(1) Sound Settings: Audio sound set-

tings can be changed.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 47

Audio system

484

My Music

(1) Repeat

Enable/disable repeat play.

(2) Shuffle

Enable/disable shuffle play.

(3) List

View a list of all songs.

(4) Menu

Navigate to the menu screen.

(5) Album Image

View song info.

(6) Pause

Pause or play music.

(7) Playback progress

Select to skip to the desired location.

Playback

Press the [MEDIA] button, and
select [My Music].

• My Music cannot be selected if it
does not contain music.

• Check the content of your USB
drive before saving music to My
Music.

Changing songs

Press the [SEEK/TRACK] button to
play the previous or next song.

Press and hold the [SEEK/TRACK]
button to rewind or fast forward the
currently playing song.

Search songs by turning the TUNE
knob and press the knob to play.

Selecting songs from a list

Select [List] to see a list of songs
available for play.

Select and play the desired song.

Repeat play

Select [Repeat] to enable or disable
‘Repeat all’, ‘Repeat current song’ or
‘Repeat category’ play.

• Repeat all: All songs in the
playlist are repeated.

• Repeat current song: The cur­rently playing song is repeated.

• Repeat category: Repeat all
songs in the current category.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 48

449

Audio system

Shuffle play

Select [Shuffle] to enable or disable
‘Shuffle’, ‘Shuffle category’ play.

• Shuffle: Songs are played in
random order.

• Shuffle category: Songs within
the current category are played in
random order.

Menu

Select [Menu], and select the desired
function.

• Delete Files: You can delete files
from My Music.

(1) File: Select saved file

.

(2) Mark All: Select all files.
(3) Unmark All: Deselect all files.

(4) Delete: Delete the selected file(s)

.

- Select the file to delete, then
select [Delete] to delete it.

• Add to Playlist: Frequently played
songs can be paired in a [Playlist].

- Songs can be played from the

[Playlist].

• Information: Detailed info on the
currently playing song is displayed.

• Sound Settings: Audio sound set­tings can be changed.

Delete from Playlist

When a song in the playlist is play­ing, select [Menu] and select [Delete
from Playlist].

Select the song to delete, then select
[Delete].

Phone

✽ NOTICE -

Using Bluetooth

®

(BT) Phone

• Bluetooth®is a near-field wireless
networking technology that uses
the 2.4 GHz frequency to connect
various devices within a certain
distance wirelessly.

• The technology is used in PCs,
peripherals, Bluetooth®phones,
tablet PCs, household appliances
and automobiles. Devices support­ing Bluetooth®can exchange data
at high speeds without physical
cable connections.

• Bluetooth

®

Handsfree devices
enable convenient access to phone
functions through cell phones
equipped with Bluetooth®.

• Some Bluetooth®devices may not
be supported by the Bluetooth

®

Handsfree function.

(Continued)

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 49

Audio system

504

(Continued)

• When Bluetooth®is connected and
calls are attempted through a con­nected cell phone from outside the
vehicle, the call is connected
through the Bluetooth®Handsfree
function of the vehicle.

• Please be sure to disconnect the
Bluetooth®Handsfree function
through your Bluetooth®device or
the audio screen.

Safety precautions

• The Bluetooth

®

Handsfree function
helps drivers to drive safely. By
connecting a Bluetooth®-enabled
phone to the vehicle’s audio sys­tem, phone calls can be made and
received through the audio system
and contacts can be managed.
Consult the user manual before
use.

• Excessive manipulation of controls
while driving, making it difficult to
pay attention to the road ahead,
can lead to accidents. Do not oper­ate the device excessively while
driving.

• Looking at the screen for a pro­longed time increases the risk of
accidents. Keep time spent looking
at the screen to a minimum.

Precautions when connecting Bluetooth

®

devices

• The vehicle supports the following
Bluetooth

®

functions. Some
Bluetooth® devices may not sup­port some functions.

1) Bluetooth

®

Handsfree phone calls

2) Operations during a call (Private,

Switch, Mic Vol. controls)

3) Download call history saved to

the Bluetooth

®

device

4) Download contacts saved to the

Bluetooth

®

device

5) Automatic contacts/call history

download when Bluetooth

®

is

connected

6) Automatic Bluetooth

®

device
connection when the vehicle is
started

7) Bluetooth

®

audio streaming

playback

• Before connecting the audio sys­tem to your device, make sure your
device supports Bluetooth

®

.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 50

451

Audio system

• Even if your device supports
Bluetooth®, a Bluetooth®connec­tion cannot be established if the
device’s Bluetooth®function is
switched off. Search and connect
with the Bluetooth®function
enabled.

• Pair or connect Bluetooth

®

devices
to the audio system with the vehi­cle at a standstill.

• If a Bluetooth

®

connection is lost
due to abnormal conditions while a
Bluetooth®device is connected
(communication range exceeded,
device power OFF, communication
errors, etc.), the disconnected
Bluetooth®device is searched for
and automatically reconnected.

• If you want to disable the
Bluetooth

®

device auto-connect
function, turn the Bluetooth®func­tion OFF on your device. Consult
the user manuals for individual
devices to see whether Bluetooth

®

is supported.

• Handsfree call quality and volume
may vary depending on the type of
Bluetooth

®

device.

• Some Bluetooth

®

devices are sub­ject to intermittent Bluetooth®con­nection failures. In this case, use
the following method.

1) Turn the Bluetooth

®

function off
on your Bluetooth®device ➟
Turn it on and try again.

2) Delete the paired device from
both the audio system and
Bluetooth

®

device, then pair

again.

3) Power down your Bluetooth

®

device ➟ Turn it on and try
again.

4) Completely remove the battery
from your Bluetooth

®

device;
reinsert it, reboot, and attempt
connection.

5) Restart the vehicle and reat­tempt connection.

Pairing a Bluetooth®device

Information on pairing Bluetooth

®

devices

• Pairing refers to the process of
pairing Bluetooth

®

cell phones or
devices with the system prior to
connection. This is a necessary
procedure for Bluetooth®connec­tion and usage.

• Up to five devices can be paired.

• Pairing Bluetooth

®

device is not

allowed while vehicle is moving.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 51

Audio system

524

Pairing the first Bluetooth®device

Press the [PHONE] button on the
audio system or the [CALL] button
on the steering wheel remote control
➟ Search for the vehicle from the
Bluetooth

®

device, and pair ➟ Enter

the passkey on the Bluetooth

®

device or approve passkey ➟
Bluetooth®pairing completed.

1. When the [PHONE] button on the
audio or the [CALL] button on the
steering wheel remote control is
pressed, the following screen is dis­played. Devices can now be paired.

(1) Vehicle Name: Searched name in

Bluetooth

®

device.

✽ NOTICE

The vehicle name in the image above
is an example. Refer to your device
for the actual name of your device.

2. Search for available Bluetooth

®

devices in the Bluetooth®menu of
your Bluetooth®device (cell
phone, etc.).

3. Confirm that the vehicle name in
your Bluetooth

®

device matches
the vehicle name shown on the
audio screen, then select it.

4-1. For devices that require passkey

entry, a passkey entry screen is
shown on your Bluetooth

®

device.

- Enter the passkey ‘0000’, in your

Bluetooth

®

device.

4-2. For devices that require passkey

confirmation, the following
screen is shown on the audio
system. A 6-digit passkey input
screen is shown in the
Bluetooth

®

device.

- After confirming that the 6-digit
passkey on the audio screen
and the Bluetooth

®

device are
identical, select [OK] in your
Bluetooth®device.

✽ NOTICE

The 6-digit passkey in the image
above is an example. Refer to your
vehicle for the actual passkey.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 52

453

Audio system

Pairing a second Bluetooth®device

Press the [SETUP] button on the
audio system ➟ Select [Bluetooth] ➟
Select [Connections] ➟ Select [Add
New].

- The pairing procedure from this
point is identical to [Pairing the first
Bluetooth device].

✽ NOTICE

• Bluetooth®standby mode lasts for
three minutes. If a device is not
paired within three minutes, pair­ing is canceled. Start over from the
beginning.

• For most Bluetooth®devices, a
connection is established automat­ically after pairing. Some devices,
however, require separate confir­mation when connecting after
pairing. Be sure to check your
Bluetooth®device after pairing to
confirm that it has connected.

Connecting Bluetooth®devices

If there are no connected devices

Press the [PHONE] button on the
audio system or the [CALL] button in
the steering wheel remote control ➟
List of paired Bluetooth

®

devices ➟
Select the desired Bluetooth®device
from the list ➟ Connect Bluetooth®.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 53

Audio system

544

If there are connected devices

Press the [PHONE] button on the
audio system ➟ Select [Settings] ➟
Select [Connections] ➟ Select
Bluetooth

®

device to connect ➟ Select

[Connect] ➟ Connect Bluetooth®.

✽ NOTICE

• Only one Bluetooth®device can be
connected at a time.

• When a Bluetooth®device is con­nected, other devices cannot be
paired.

Accepting/rejecting phone calls

Receiving phone calls with Bluetooth

®

connected.

(1) Caller name: If the caller number

is in your contacts, the correspon­ding name is displayed.

(2) Incoming phone number: Incoming

phone number is displayed.
(3) Accept: Accept call.
(4) Reject: Reject call.

✽ NOTICE

• When the incoming call screen is
displayed, audio mode and the set­tings screen cannot be shown. Only
call volume control is supported.

• Some Bluetooth®devices may not
support the call reject function.

• Some Bluetooth®devices may not
support the phone number display
function.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 54

455

Audio system

Operation during calls

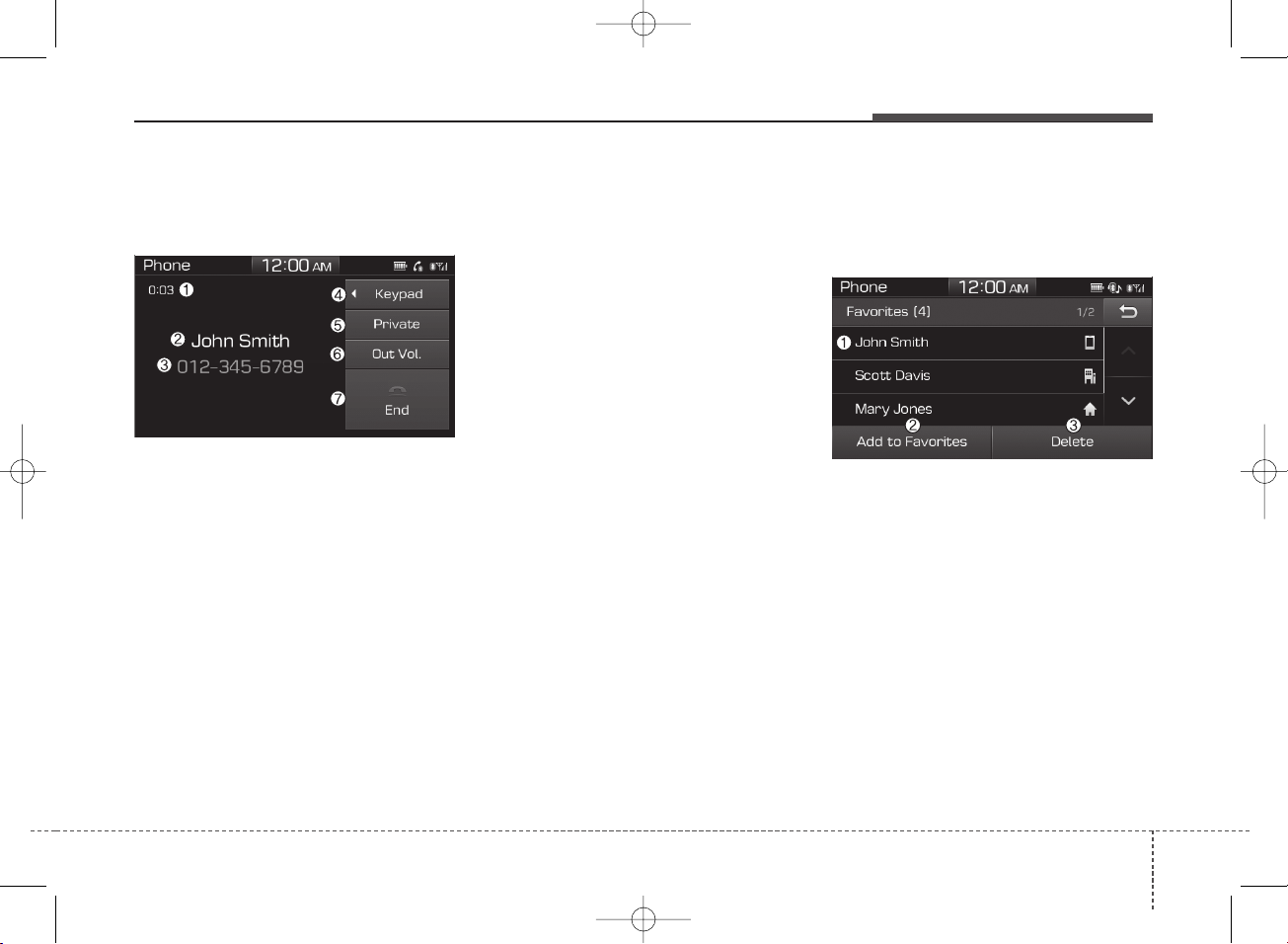

Incoming call with Bluetooth®con­nected ➟ Select [Accept].

(1) Call duration: Call duration display.
(2) Caller name: If the caller number is

in your contacts, the corresponding
name is displayed.

(3) Incoming phone number: Incoming

phone number is displayed.

(4) Keypad: Number keypad for

Automatic Response Service input
is displayed.

(5) Private: Call is transferred to a cell

phone.

(6) Outgoing Volume: Adjust outgoing

voice volume.

(7) End: End call.

✽ NOTICE

• Some Bluetooth®devices may not
support the Private function.

• The outgoing voice volume may
vary depending on the type of
Bluetooth®device. If the outgoing
voice volume is too high or low,
adjust the Outgoing Volume.

Favorites

Press the [PHONE] button on the
audio system ➟ Select [Favorites] ➟
Favorites list displayed.

(1) Favorites list: A list of paired

favorites is displayed.
Connect a call when selected.

(2) Add to Favorites: Add a down-

loaded phone number to favorites.

(3) Delete: Delete a saved favorite.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 55

Audio system

564

✽ NOTICE

• Up to 20 favorites can be paired
for each paired Bluetooth®device.

• Favorites can be accessed when
the Bluetooth®device they were
paired from is connected.

• The audio system does not down­load favorites from Bluetooth

®

devices. Favorites must be newly
saved before use.

• To add to favorites, contacts must
be downloaded first.

• Saved favorites are not updated
even if the contacts of the connect­ed Bluetooth®device are changed.
In this case, favorites need to be
deleted and added again.

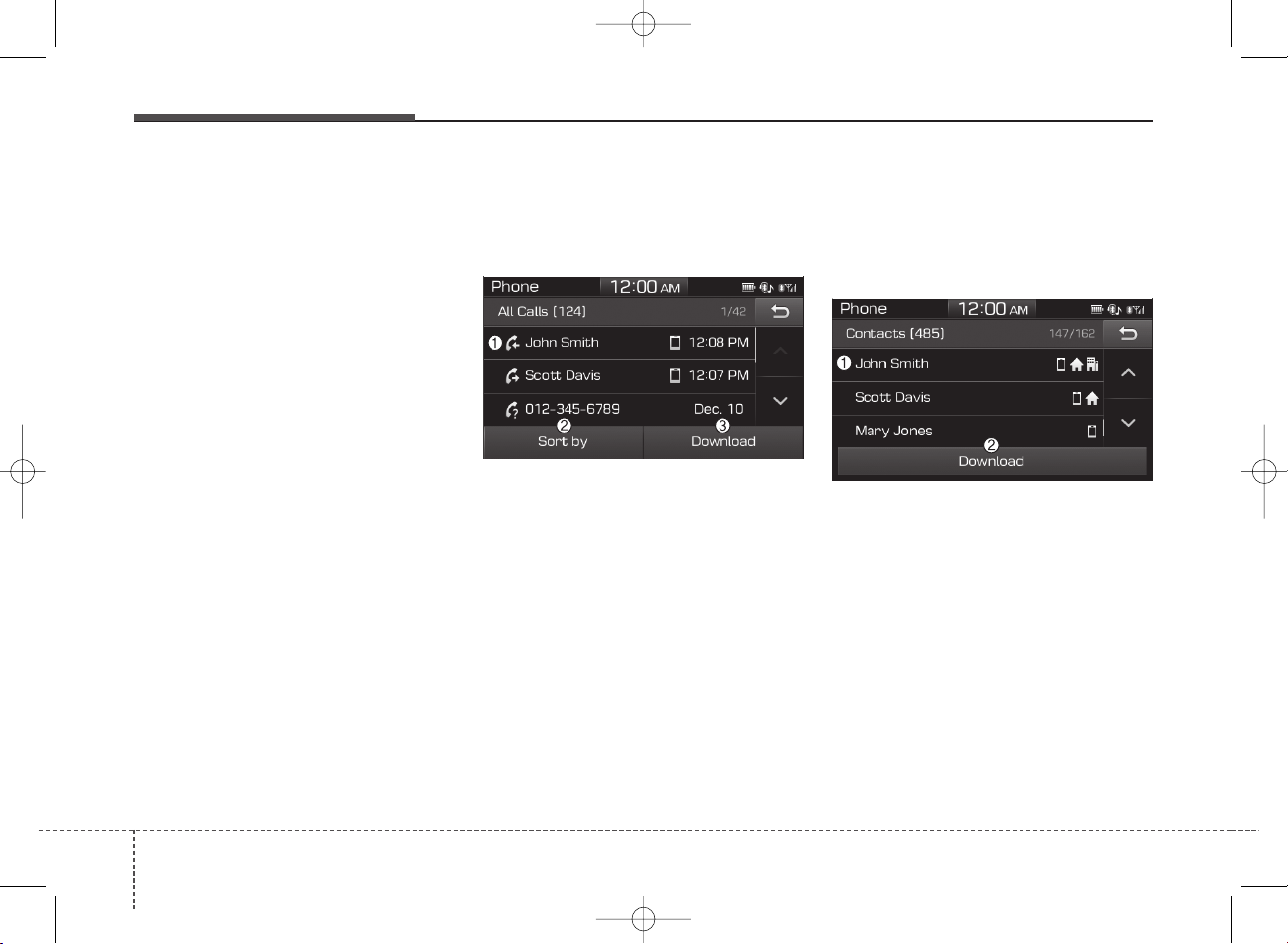

Call History

Press the [PHONE] button on the
audio system ➟ Select [Call History]
➟ Call history is displayed.

(1) Call History: Display the down-

loaded call history list.
Connect a call when selected.

(2) Sort by: Sort by All Calls, Dialed

Calls, Received Calls or Missed
Calls.

(3) Download: Download call history

from connected Bluetooth

®

devices.

✽ NOTICE

• Up to 50 dialed, received and
missed calls are saved.

• When the latest call history is
received, the existing call history is
deleted.

Contacts

Press the [PHONE] button on the
audio system ➟ Select [Contacts] ➟
Select letter (ABC) ➟ Contacts dis­played.

(1) Contacts: Display downloaded

contacts.
Connect a call when selected.

(2) Download: Download contacts from

connected Bluetooth

®

devices.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 56

457

Audio system

✽ NOTICE

• Up to 2,000 contacts can be saved.

• In some cases, additional confir­mation from your Bluetooth

®

device is necessary when down­loading contacts. If downloading
of contacts unsuccessful, consult
your Bluetooth®device’s settings
or the audio screen to approve the
download.

• Contacts without phone numbers
are not displayed.

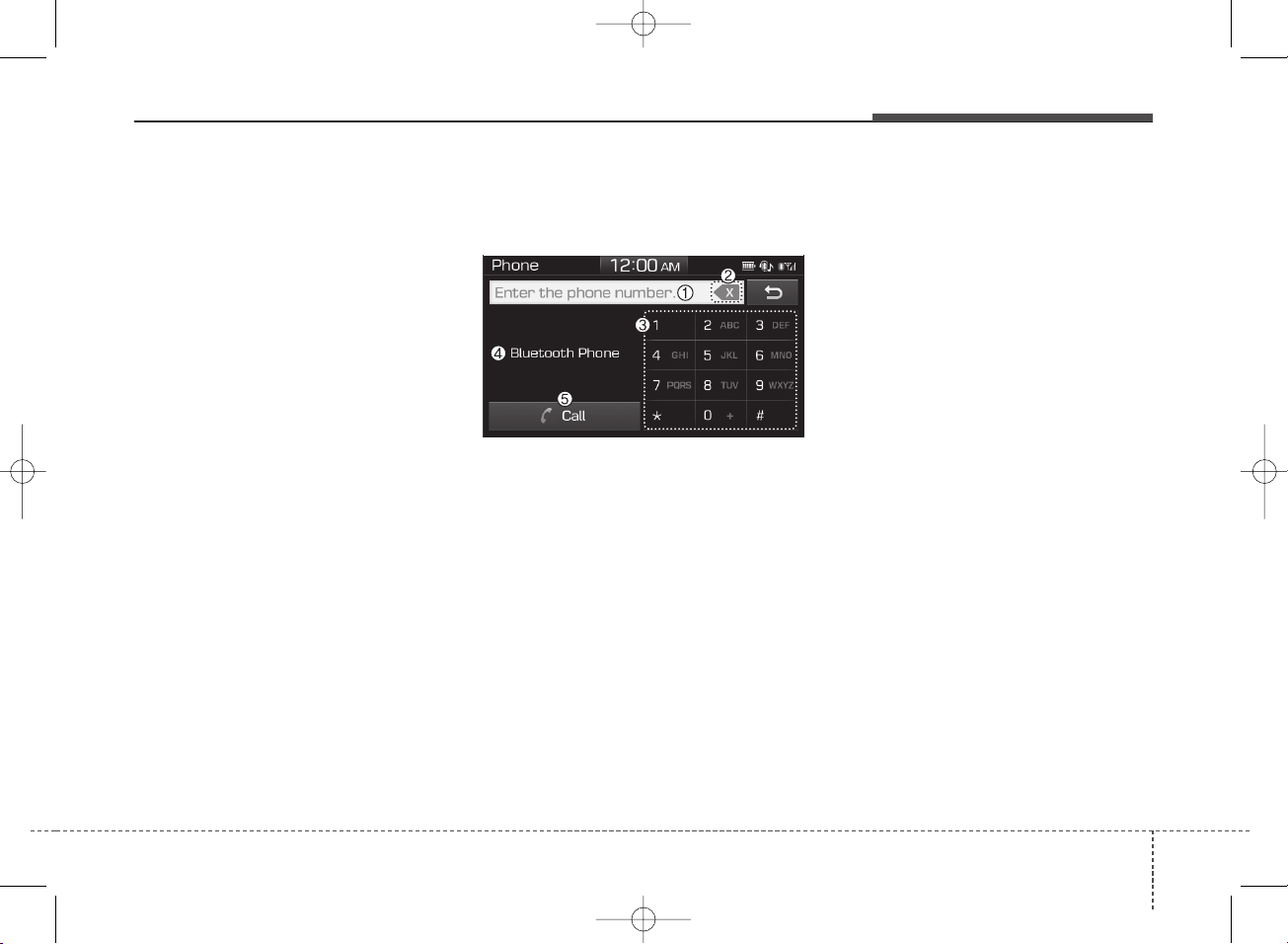

Dial

Press the [PHONE] button on the
audio ➟ Select [Dial].

(1) Phone number entry window: The

phone number entered using the
keypad is displayed.

(2) Clear

- Shortly press to delete individual
digits.

- Press and hold to delete the
entire phone number.

(3) Keypad: Enter phone number.
(4) Bluetooth

®

Phone name

- The name of the connected
Bluetooth

®

device is displayed.

- Contacts matching the keypad
number/letter input are displayed.

(5) Call

- Enter and select a phone num­ber to call.

- Select without entering a phone
number to see the most recent
dialed call.

Settings

Press the [PHONE] button on the
audio ➟ Select [Settings].

- For phone Setup, refer to Setup
page ➟ Select [Bluetooth].

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 57

Audio system

584

Setup

Access Display, Sound, Date/Time,
Bluetooth, System, Screen Saver
and Display Off settings.

Press the [SETUP] button on the
audio system.

Display

Press the [SETUP] button on the
audio system ➟ Select [Display].

• Mode: Audio screen brightness
can be adjusted to the time of day.

• Illumination: The brightness of the
audio screen can be changed.

• Text Scroll: If text is too long to be
displayed on the screen, enable
the text scroll function.

Sound

Press the [SETUP] button on the
audio system ➟ Select [Sound].

• Position: Sound balance and pan­ning can be adjusted.

• Tone: Sound tone color can be
adjusted.

• Back-up Warning Priority:

- Automatically lower audio vol-

ume while reversing.

- Control the audio volume level

automatically in R-Position.
If volume level over “5 level” then

down to “5 level”.
If volume level under “5 level”

then maintain the volume level.
Return the volume level when R-

Position was cancelled.
In R-Positon, if driver change the

volume level then volume
changed.

Apply the volume control option
“On/Off” in “Setup”: Default is
“On”.

• Speed dependent volume:
Automatically adjust volume based
on vehicle speed.

• Beep: Select whether to play a beep
sound when the screen is touched.

Date/Time

Press the [SETUP] button on the
audio system ➟ Select [Date/Time].

• Set Time: Set the time displayed on
the audio screen.

• Time Format: Choose between 12­hour and 24-hour time formats.

• Set Date: Set the date displayed on
the audio screen.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 58

459

Audio system

Bluetooth

Press the [SETUP] button on the
audio system ➟ Select [Bluetooth].

• Connections: Control pairing, dele­tion, connection and disconnection
of Bluetooth

®

devices.

• Auto Connection Priority: Set the
connection priority of Bluetooth

®

devices when the vehicle is started.

• Download Contacts: Contacts can
be downloaded from connected
Bluetooth

®

devices.

✽ NOTICE

• When paired devices are deleted,
the call history and contacts of the
device saved to the audio system
are deleted.

• For Bluetooth®connections with
low connection priority, some time
may be required for the connec­tion to be established.

• Contacts can be downloaded only
from the currently connected
Bluetooth®device.

• If no Bluetooth®device is connect­ed, the Download Contacts button
is disabled.

System

Press the [SETUP] button on the
audio system ➟ Select [System].

• Memory Information: View My
Music memory usage.

• Language: Change the user lan­guage.

• Default: Reset the audio system.

✽ NOTICE

The system resets to the default val­ues, and all saved data and settings
are lost.

Screen Saver

Set the information displayed when
the audio system is switched off or
the screen is turned off.

Press the [SETUP] button on the audio
system ➟ Select [Screen Saver].

• Analog: An analog clock is dis­played.

• Digital: A digital clock is displayed.

• None: No information is displayed.

Display Off

To prevent glare, the screen can be
turned off with the audio system in
operation.

Press the [SETUP] button on the
audio system ➟ Select [Display Off].

✽ NOTICE

Use ‘Screen Saver’ to set the infor­mation to be displayed when the
screen is turned off.

H_BA 17FL_G3.0B[ECO_EG],G4.0B[EG]AUDIO_NWG007,NPG020:YF eng 4c-Audio.qxd 11/28/2016 5:53 PM Page 59

FCC#Warning#
#

This%equipment%has%been%tested%and%found%to%comply%with%the%limits%for%a%Class%B%digital%device,%pursuant%to%part%15%
of%the%FCC%Rules.%These%limits%are%designed%to%provide%reasonable%protection%against%harmful%interference%in%a%
residential%installation.%This%equipment%generates,%uses%and%can%radiate%radio%frequency%energy%and,%if%not%installed%
and%used%in%accordance%with%the%instructions,may%cause%harmful%interference%to%radio%communications.%However,%
there%is%no%guarantee%that%interference%will%not%occur%in%a%particular%installation.%If%this%eq u ipm en t%do es%ca use%
harmful%interference%to%radio%or%television%reception,%which%can%be%determined%by%turning%the%equipment%off%and%
on,%the%user%is%encouraged%to%try%to%correct%the%interference%by%one%ormore%of%the%following%measures:%



■%Reorient%or%relocate%the%receiving%antenna.%

■%Increase%the%separation%bet w e en %th e %e q u ipment%and%receiver.%

■%Connect%the%equipment%into%an%outlet%on%a%circuit%different%from%that%to%which%the%receiver%is%connected.%

■%Consult%the%dealer%or%an%experienced%radio/TV%technician%for%help.%

%
Caution:%Any%changes%ormodifications%to%this%device%not%explicitly%approved%by%manufacturer%could%void%
your%authority%to%operate%this%equipment.%
%
This%device%complies%with%part%15%of%the%FCC%Rules.%Operation%is%subject%to%the%following%two%conditions:%
(1)%This%device%may%not%cause%harmful%interference,%and%(2)%this%dev ice%m u st%acc ept%a ny %interfe renc e%rece ived , %
including%interference%that%may%cause %u nd e sir ed %operation.%
%
This%equipment%complies%with%the%FCC%RF%radiation%exposure%limits%set%forth%for%an%uncontrolled%environment.%This%
equipment%should%be%installed%and%operated%with%a%minimum%distance%of%20cm%between%the%radiator%and%any%part%
of%your%body.%
%
