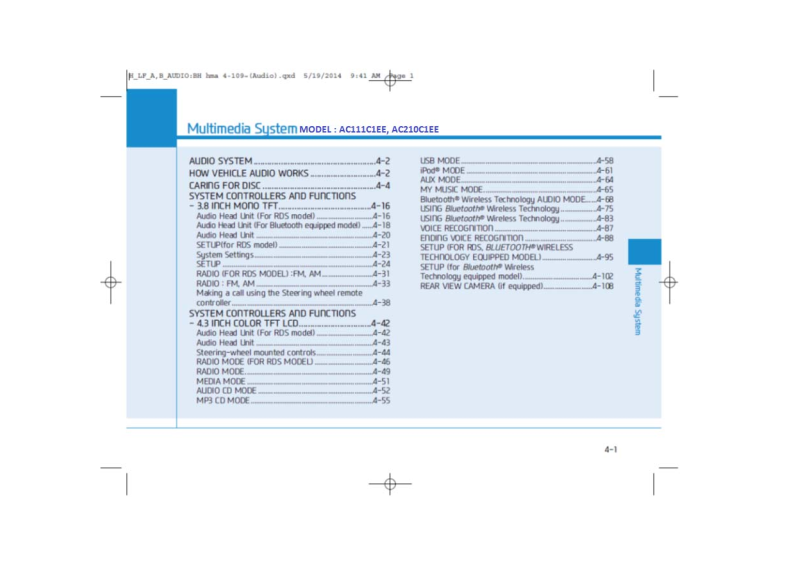

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:41 AM Page 2

Multimedia System

How vehicle audio works

FM reception

JBM001

AM and FM radio signals are broadcast from transmitter towers located around your city. They are intercepted by the radio antenna on your vehicle. This signal is then processed by the radio and sent to your vehicle speakers.

When a strong radio signal has reached your vehicle, the precise engineering of your audio system ensures the best possible quality reproduction. However, in some cases the signal coming to your vehicle may not be strong and clear.

This can be due to factors, such as the distance from the radio station, closeness of other strong radio stations or the presence of buildings, bridges or other large obstructions in the area.

AM reception

JBM002

AM broadcasts can be received at greater distances than FM broadcasts. This is because AM radio waves are transmitted at low frequencies. These long distance, low frequency radio waves can follow the curvature of the earth rather than travelling straight. In addition, they curve around obstructions resulting in better signal coverage.

4-2

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:41 AM Page 3

FM radio station

JBM003

FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fade within short distances from the station. Also, FM signals are easily affected by buildings, mountains, and obstructions. This can lead to undesirable or unpleasant listening conditions which might lead you to believe a problem exists with your radio. The following conditions are normal and do not indicate radio trouble:

JBM004 JBM005

• Fading - As your vehicle moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station.

• Flutter/Static - Weak FM signals or large obstructions between the transmitter and your radio can disturb the signal causing static or fluttering noises to occur. Reducing the treble level may lessen this effect until the disturbance clears.

• Station Swapping - As an FM signal weakens, another more powerful signal near the same frequency may begin to play. This is because your radio is designed to lock onto the clearest signal. If this occurs, select another station with a stronger signal.

• Multi-Path Cancellation - Radio signals being received from several directions can cause distortion or fluttering. This can be caused by a direct and reflected signal from the same station, or by signals from two stations with close frequencies. If this occurs, select another station until the condition has passed.

4-3

Multimedia System

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:41 AM Page 4

Multimedia System

Caring for disc

• If the temperature inside the car is too high, open the car windows to ventilate before using the system.

• It is illegal to copy and use MP3/WMA files without permission. Use CDs that are created only by lawful means.

• Do not apply volatile agents, such as benzene and thinner, normal cleaners and magnetic sprays made for analogue disc onto CDs.

• To prevent the disc surface from getting damaged, hold CDs by the edges or the center hole only.

• Clean the disc surface with a piece of soft cloth before playback (wipe it from the center to the outside edge).

• Do not damage the disc surface or attach pieces of sticky tape or paper.

• Make certain only CDs are inserted into the CD player (Do not insert more than one CD at a time).

• Keep CDs in their cases after use to protect them from scratches or dirt.

• Depending on the type of CDR/CD-RW CDs, certain CDs may not operate normally according to the manufacturing companies. In such circumstances, continued use may cause malfunctions to your audio system.

NOTICE - Playing an

Incompatible Copy Protected Audio CD

Some copy protected CDs, which do not comply with international audio CD standards (Red Book), may not play on your car audio. Please note that inabilities to properly play a copy protected CD may indicate that the CD is defective, not the CD player.

MP3 File Information

• Supported Audio Formats

ISO 9660 Level 1

File System

Audio Compression

❈File formats that do not comply

with the above formats may not be properly recognized or play without properly displaying file names or other information.

ISO 9660 Level 2 Romeo / Juliet (128 characters) MPEG1 Audio Layer3 MPEG2 Audio Layer3 MPEG2.5 Audio Layer3 Windows Media Audio Ver 7.X

& 8.X

4-4

SYSTEM CONTROLLERS AND FUNCTIONS

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 42

Multimedia System

❈ Display and settings may differ depending

on the selected audio

Audio Head Unit (For RDS model)

Name Description

Ejects the disc.

RADIO

• Convert to Radio mode.

• Each time the key is pressed,the mode is changed in order of FM1, FM2, FMA, AM, AMA

4-42

Name Description

MEDIA

• Each time the key is pressed, the mode is changed in order of CD, USB, iPod Music, BT Audio modes.

PHONE

(for

Bluetooth

Wireless Technology equipped

model)

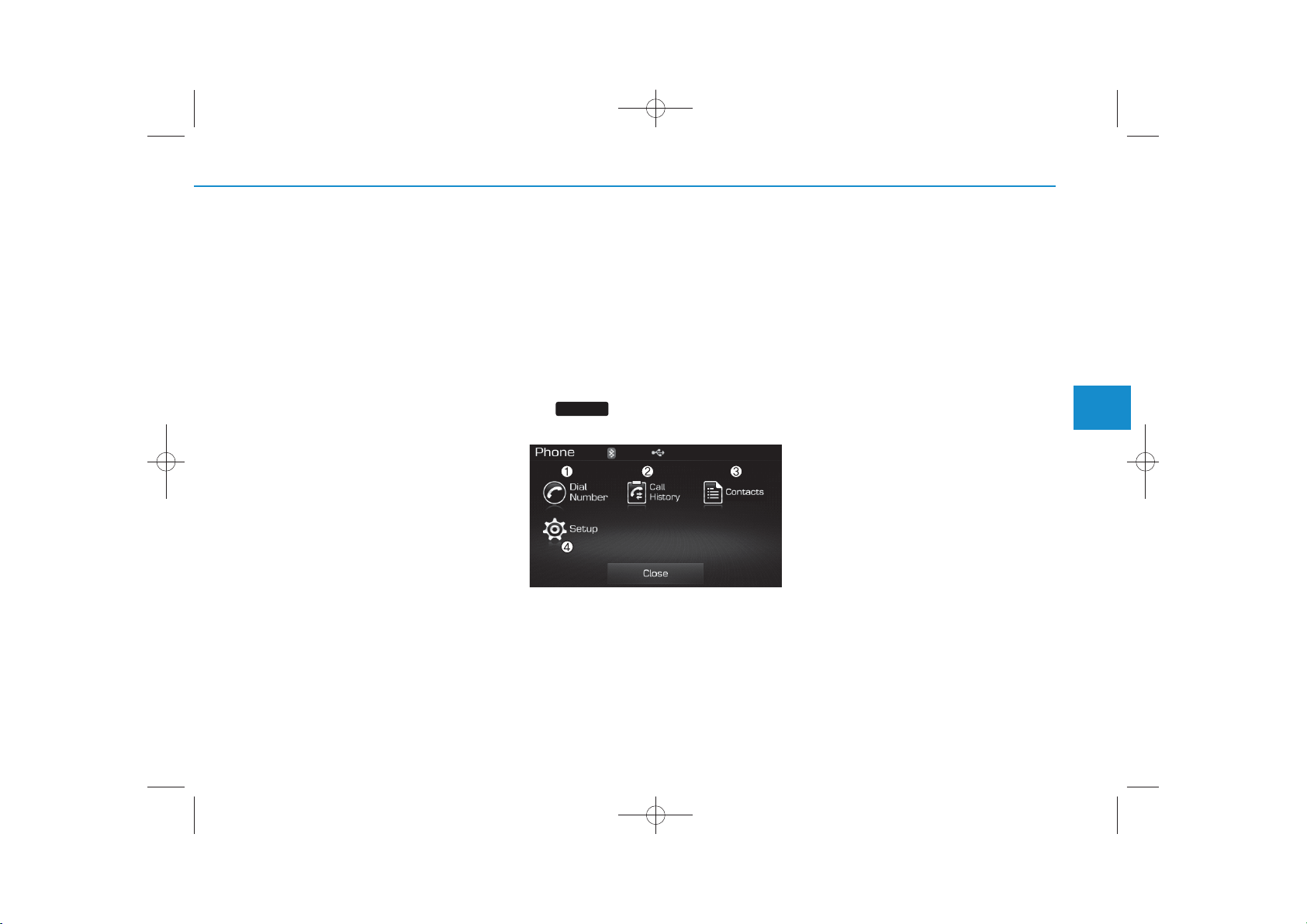

• Converts to Phone mode ❈ When a phone is not connected, the connection screen is displayed.

POWER/ VOL knob

• Power : Turns power On/Off by pressing the knob

• Volume : Sets volume by turning the knob left/right

SEEK

TRACK

• When pressed shortly

- Radio mode : plays previous/next frequency.

- Media (CD/USB/iPod®/My Music) modes : changes the track, Song(file)

• When pressed and held

- Radio mode : continuously changes the frequency. Upon release, plays the current frequency.

- Media(CD/USB/iPod

/My Music) modes :

rewinds or fast forwards the track or file

- During a Handsfree call, controls the call volume.

, AUX, My

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 43

Name Description

DISP

SCAN

• Each time the button is shortly pressed, it sets the screen Off ➟ Screen On ➟ Screen Off ❈ Audio operation is maintained and only the

screen will be turned Off. In the screen Off state, press any key to turn the screen On again.

Set TA(Traffic Announcement) feature On/Off.

• Radio Mode

- Shortly press the key : Previews each broad cast for 5 seconds each

- Press and hold the key : Previews the broad casts saved in Preset for 5 seconds each.

❈

Press the key again to continue

SCAN

listening to the current frequency.

• CD, USB mode

- Shortly press the key : Previews each song (file) for 10 seconds each

❈

Press the key again to continue

SCAN

listening to the current song (file).

SETUP

TUNE knob

FOLDER

Converts to Setup mode.

• Radio mode : turn to change broadcast frequencies.

• Media (CD/USB/iPod turn to search tracks/ channels/files.

• MP3, CD, USB mode : Folder Search ❈ May differ depending on the selected audio

/My Music) modes :

Multimedia System

4-43

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 44

Multimedia System

Steering-wheel mounted controls

❈ The actual feature in the vehicle may differ from the

illustration.

Name Description

MODE

• Each time this key is pressed, the mode is changed in order of FM1

➟

FM2 ➟FMA

AM ➟AMA ➟CD ➟USB or iPod®➟

➟

My Music ➟BT Audio.

• If the media is not connected or a disc is not inserted, corresponding modes will be disabled.

VOL-VOL+

, Used to control volume.

, Mute the microphone during a call.

• When pressed shortly (under 0.8 seconds)

- Radio mode : searches broadcast frequen cies saved to presets.

- Media(CD / USB / iPod

/ My Music / BT Audio) modes : changes the track, file or chapter.

• When pressed and held (over 0.8 seconds)

- Radio mode, automatically searches broadcast frequencies and channels

- Media(CD / USB / iPod

/ My Music) modes, rewinds or fast forwards the track or song(file)

- BT Audio mode may not be supported in some mobile phones.

➟

AUX

4-44

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 45

Name Description

• When pressed shortly

- When pressed in the phone screen, displays call history screen

- When pressed in the dial screen, makes a call

- When pressed in the incoming call screen, answers the call

- When pressed during call waiting, switches to waiting call (Call Waiting)

• When pressed and held (over 0.8 seconds)

- When pressed in the Bluetooth

Technology Handsfree wait mode, redials the last call

- When pressed during a Bluetooth Technology Handsfree call, switches call back to mobile phone (Private)

- When pressed while calling on the mobile phone, switches call back to Bluetooth Wireless Technology Handsfree (Operates only when Bluetooth

Wireless Technology

Handsfree is connected)

Ends phone call

Wireless

Multimedia System

4-45

RADIO MODE (FOR RDS MODEL)

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 46

Multimedia System

Basic Mode Screen

1. Mode Display Displays currently operating mode

2. Frequency Displays the current frequency

3. Preset Displays current preset number

4. Preset Display Displays preset buttons

5. Autostore Automatically saves frequencies with

superior reception to Preset buttons

6. RDS Info Displays RDS broadcast information

Switching to Radio Mode

Pressing the key will change the operating mode in order of ➟ FM2 ➟ FMA ➟ AM ➟ AMA

If [Pop up Mode] is turned on within

SETUP

RADIO

Pop-up Mode screen.

Turn the TUNE knob to move the focus. Press the knob to select.

RADIO

FM1

[Display], then pressing the

key will display the Radio

4-46

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 47

Searching Radio Frequencies

Using Seek

Press the key to play the previous/next frequency.

SEEK

TRACK

Using TUNE

Turn the TUNE knob to select the desired frequency.

• FM : Increases/decreased by 100kHz

• AM : Increases/decreased by 9kHz

Using Radio Mode

Selecting /Saving Presets

Press the ~ buttons to play the desired preset.

Press the button to display the broadcast information for the frequency saved to each button.

NOTICE

While listening to a frequency you want to save as a preset, press and hold one of the [1] ~ [6] preset buttons (over 0.8 seconds) to save the current frequency to the selected preset.

Auto Store

Press the button to automatically save receivable frequencies to Preset buttons.

NOTICE

While Auto Store is operating, pressing the [Cancel] button again will cancel Auto Store and restore the previous frequency.

Multimedia System

4-47

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 48

Multimedia System

RDS Menu

Press the button to set the AF (Alternative Frequency), Region and News features.

Scan

Press the key to preview frequencies with superior reception for 5 seconds each.

Press and hold the key (over

SCAN

TA (Traffic Announcement)

Press the key to turn the TA (Traffic Announcement) feature On/Off.

0.8 seconds) to preview presets for 5 seconds each.

NOTICE

Once scan is complete, the previous frequency will be restored. While Scan is operating, pressing and

NOTICE

The RDS Menu is not supported with-

holding the key (over 0.8 seconds) will cancel the scan operation.

SCAN

in AM or AMA mode.

4-48

RADIO MODE

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 49

Basic Mode Screen

1. Mode Display Displays currently operating mode.

2. Frequency Displays the current frequency.

3. Preset Displays current preset number

~ .

4. Preset Display Displays preset buttons.

5. Auto store Automatically saves frequencies with superior reception to Preset buttons.

Switching to Radio Mode

Pressing the key will change the operating mode in order of FM1

➟ FM2 ➟ AM

If [Mode Pop up] is turned on within

SETUP

RADIO

Pop-up Mode screen.

Turn the TUNE knob to move the focus. Press the knob to select.

RADIO

[Display], then pressing the

key will display the Radio

Multimedia System

4-49

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 50

Multimedia System

Searching Radio Frequencies

Using Seek

Press the key to play the previous/next frequency.

SEEK

TRACK

Using TUNE

Turn the TUNE knob to select the desired frequency.

• FM : Increases/decreased by 200kHz

• AM : Increases/decreased by 10kHz

Using Radio Mode

Selecting Presets/Saving Presets

Press the button to display the broadcast information for the frequency saved to each button.

Preset

Press the ~ buttons to play the desired preset.

P6P1

NOTICE

While listening to a frequency you want to save as a preset, press and hold one of the ~ preset buttons (over 0.8 seconds) to save the current frequency to the selected preset.

P6P1

Auto Store

Press the button to automatically save receivable frequencies to Preset buttons.

Auto store

NOTICE

While Auto Store is operating, pressing the [Cancel] button again will cancel Auto Store and restore the previous frequency.

Scan

Press the key to preview frequencies

with superior reception for 5 seconds each.

Press and hold the key (over

0.8 seconds) to preview presets for 5 seconds each.

Once scan is complete, the previous frequency will be restored. While Scan is operating, pressing

the key will cancel the scan operation.

SCAN

4-50

MEDIA MODE

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 51

Pressing the key will change

MEDIA

the operating mode in order of CD USB(iPod®) ➟ AUX ➟ My Music ➟BT Audio.

Title Icon

When a

Bluetooth

Technology, iPod device is connected or a CD is

➟

inserted, the corresponding mode icon will be displayed.

, USB, or AUX

Wireless

If [Mode Pop up] is turned on within

SETUP

MEDIA

[Display], then pressing the

key will display the Media

Pop-up Mode screen. Turn the TUNE knob to move the

focus. Press the knob to select.

NOTICE

The media mode pop up screen can be displayed only when there are two or more media modes turned on.

Icon Title

Bluetooth

iPod

USB

AUX

Wireless Technology

Multimedia System

4-51

AUDIO CD MODE

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 52

Multimedia System

Using Audio CD Mode

Playing/Pausing CD Tracks

Once an audio CD is inserted, the mode will automatically start and begin playing.

While playing, press the button to pause and press button to play.

NOTICE

• Only genuine audio CDs are supported. Other discs may result in recognition failure (e.g. copy CDR, CDs with labels)

• The artist and title information are displayed on the screen if track information is included within the audio CD.

Changing Tracks

Press the key to move to

SEEK

TRACK

the previous or next track.

NOTICE

• Pressing the key after the

SEEK

TRACK

track has been playing for 2 seconds will start the current track from the beginning.

• Pressing the key before

SEEK

TRACK

the track has been playing for 1 seconds will start the previous track.

4-52

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 53

Selecting from the List

Turn the TUNE knob left/right to search for the desired track.

Once you find the desired track, press the TUNE knob to start playing.

Rewinding / Fast-forwarding Tracks

While playing, press and hold the

SEEK

TRACK

key to rewind or fast-for-

ward the current track.

Scan

Press the key to play the first 10 seconds of each file.

SCAN

Audio CD Mode Menu

Within this mode, you will have access to the Info, Random(Shuffle), Repeat and List features.

Info

Press the ( ) button to display details about the current disc.

Info

Random(Shuffle)

Press the ( ) button to play tracks in random(Shuffle) order.

Press the ( ) button again to turn the Random(Shuffle) feature off.

• Random(Shuffle): Plays all tracks in random(Shuffle) order.

Shuffle

Repeat

Press the ( ) button to repeat the current track. Press the button again to turn the repeat feature off.

• Repeat : Repeats the current track.

Repeat

Multimedia System

4-53

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 54

Multimedia System

List

Press the ( ) button to display the track list screen.

Turn the TUNE knob left/right to search for tracks. Once the desired track is displayed, press the knob to select and play.

List

4-54

MP3 CD MODE

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:42 AM Page 55

Using MP3 CD Mode

Playing/Pausing MP3 Files

Once an MP3 disc is inserted the mode will automatically start and being playing.

While playing, press the button to pause and press button to play.

NOTICE

If there are numerous files and folders within the disc, reading time could take more than 10 seconds and the list may not be displayed or song searches may not operate. Once loading is complete, try again.

Changing Files

Press the key to move to

SEEK

TRACK

the previous or next file.

NOTICE

• Pressing the key after the file has been playing for 2 seconds will start the current file from the beginning.

• Pressing the key before the file has been playing for 1 seconds will start the previous file.

SEEK

TRACK

SEEK

TRACK

Selecting from the List

Turn the TUNE knob left/right to search for the desired file.

Multimedia System

Once you find the desired file, press the TUNE knob to start playing.

4-55

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 56

Multimedia System

Rewinding / Fast-forwarding Files

While playing, press and hold the

SEEK

TRACK

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan

Press the key to play the first 10 seconds of each file.

SCAN

Searching Folders

Press the key to select and search folders.

Once the desired folder is displayed, press the TUNE knob to select.

The first file within the selected folder will begin playing.

FOLDER

MP3 CD Mode Menu

Within this mode, you will have access to the Info, Random(Shuffle), Repeat, Copy and List features.

Info

Press the ( ) button to display details about the current file.

Info

NOTICE

• When the ‘Folder File’ option is set as the default display within Display setup, the album/artist/file information are displayed as detailed file information.

• When the ‘Album Artist Song’ option is set as the default display, the folder name/file name are displayed as detailed file information.

• The title, artist and album info are displayed only when such information are recorded within the MP3 file ID3 tag.

Random(Shuffle)

Press the ( ) button to play files in random(Shuffle) order.

Each time the button is pressed, the feature changes in order of Random (Shuffle) Folder All

➟ Off.

• Random(Shuffle) Folder : Plays all files within the current folder in Random (Shuffle) order.

• Random(Shuffle) All : Plays all files in Random(Shuffle) order.

Shuffle

➟ Random (Shuffle)

4-56

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 57

Repeat

Press the ( ) button to repeat the current file or folder.

Each time the button is pressed, the feature changes in order of Repeat

➟Repeat Folder➟Off.

• Repeat: Repeats the current file.

• Repeat Folder: Repeats all files within the current Folder.

Repeat

Copying Files

Press the ( ) button to copy the current file into My Music.

Copy

NOTICE

Selecting another feature during copying will display a pop-up asking whether you wish to cancel copying. To cancel, select 'Yes’.

List

Press the ( ) button to display the file list screen.

Turn the TUNE knob left/right to search for files. Once the desired file is displayed, press the knob to select and play.

List

Multimedia System

4-57

USB MODE

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 58

Multimedia System

Using USB Mode

Playing/Pausing USB Files

Once a USB is connected, the mode will automatically start and begin playing a USB file.

While playing, press the button to pause and press button to play.

NOTICE

• Loading may require additional time if there are many files and folders within the USB and result in faulty list display or file searching. Normal operations will resume once loading is complete.

• The device may not support normal operation when using a USB memory type besides (Metal Cover Type) USB Memory.

Changing Files

Press the keys to move to the previous or next file.

NOTICE

• Pressing the key after the file has been playing for 2 seconds will start the current file from the beginning.

• Pressing the key before the file has been playing for 1 seconds will start the previous file.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

Selecting from the List

Turn the TUNE knob left/right to search for the desired file.

Once you find the desired file, press the TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

SEEK

TRACK

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan

Press the key to play the first 10 seconds of each file.

SCAN

4-58

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 59

Searching Folders

Press the key to select

FOLDER

and search folders.

Once the desired folder is displayed, press the TUNE knob to select.

The first file within the selected folder will begin playing.

USB Mode Menu

Within this mode, you will have access to the Info, Random(Shuffle), Repeat, Copy and List features.

Info

Press the ( ) button to display details about the current file.

Info

NOTICE

• When the ‘Folder File’ option is set as the default display within Display setup, the album/artist/file information are displayed as detailed file information.

• When the ‘Album Artist Song’ option is set as the default display, the folder name/file name are displayed as detailed file information.

• The title, artist and album info are displayed only when such information are recorded within the MP3 file ID3 tag.

Random (Shuffle)

Press the ( ) button to play files in random(Shuffle) order.

Each time the button is pressed, the feature changes in order of Random(Shuffle) Folder (Shuffle) All

• Random(Shuffle) Folder : Plays the files in the current folder in random(Shuffle) order.

• Random(Shuffle) All : Plays all files in random(Shuffle) order.

➟Off.

Shuffle

➟Random

Multimedia System

4-59

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 60

Multimedia System

Repeat

Press the ( ) button to repeat the current file or folder.

Each time the button is pressed, the feature changes in order of Repeat➟ Repeat Folder ➟ Off.

• Repeat : Repeats the current file.

• Repeat Folder : Repeats all files within the current folder.

Repeat

Copying Files

Press the ( ) button to copy the current file into My Music.

Copy

NOTICE

Selecting another feature during copying will display a pop-up asking whether you wish to cancel copying. To cancel, select 'Yes’.

List

Press the ( ) button to display the file list screen.

Turn the TUNE knob left/right to search for files. Once the desired file is displayed, press the knob to select and play.

List

4-60

iPod®MODE

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 61

Using iPod®Mode

Playing/Pausing iPod®Songs

Once an iPod®is connected, the mode will automatically start and begin playing an iPod

song.

While playing, press the button to pause and press button to play.

NOTICE

iPod®s with unsupported communication protocols may not properly operate in the audio system.

Changing Songs

Press the key to move to the previous or next song.

SEEK

TRACK

NOTICE

• Pressing the key after the song has been playing for 2 seconds will start the current song from the beginning.

• Pressing the key before the song has been playing for 1 seconds will start the previous song.

• Slight time differences may exist depending your iPod

SEEK

TRACK

SEEK

TRACK

product.

Rewinding / Fast-forwarding Songs

While playing, press and hold the

SEEK

TRACK

key (over 0.8 seconds) to rewind or fast-forward the current song.

Searching Categories

Turn the TUNE knob left/right to search for the desired category.

Multimedia System

4-61

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 62

Multimedia System

Once you find the desired category, press the TUNE knob to select and play.

NOTICE

There are eight categories that can be searched, including Playlists, Artists, Albums, Genres, Songs, Composers, Audiobooks and Podcasts.

Category Menu

Within the iPod you will have access to the ,

, and features.

4-62

Category menu,

1. : Displays the play screen

(Home)

: Moves to the iPod

root category screen

3. : Moves to the previous category

NOTICE

• If the search mode is accessed

while playing a song, the most recently searched category is displayed.

• Search steps upon initial connec-

tion may differ depending on the type of iPod

device.

iPod®Mode Menu

Within this mode, you will have access to the Random(Shuffle), Repeat and List features.

Random(Shuffle)

Press the ( ) button to play songs in random(Shuffle) order.

• Random(Shuffle) All : Plays all songs in Random(Shuffle) order.

Shuffle

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 63

Repeat

Press the ( ) button to repeat the current song. Press the button again to turn the repeat feature off.

• Repeat : Repeats the current song

Repeat

List

Press the ( ) button to display the Category Menu.

Turn the TUNE knob left/right to search for the desired category.

Once you find the desired category, press the TUNE knob to select and play.

List

Multimedia System

4-63

AUX MODE

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 64

Multimedia System

Connecting an External Device

External audio players (Camcorders,

Using AUX Mode

car VCR, etc.) can be played through a dedicated cable.

Press the key Select [AUX]

MEDIA

An external device can be connected to play music.

4-64

MY MUSIC MODE

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 65

Using My Music Mode

Playing/Pausing My Music Files

NOTICE

If there are no files saved within My Music, the button will be disabled.

Changing Files

Press the key to move to the previous or next file.

NOTICE

• Pressing the key after the file has been playing for 2 seconds will start the current file from the beginning.

• Pressing the key before the file has been playing for 1 seconds will start the previous file.

My Music

SEEK

TRACK

SEEK

TRACK

SEEK

Selecting from the List

Turn the TUNE knob left/right to search for the desired file.

Multimedia System

While playing, press the button to pause and press button to play.

Once you find the desired file, press the TUNE knob to start playing.

4-65

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 66

Multimedia System

Rewinding / Fast-forwarding Files

While playing, press and hold the

SEEK

TRACK

key to rewind or fast-for-

ward the current file.

Scan

Press the key to play the first 10 seconds of each file.

SCAN

My Music Mode Menu

Within this mode, you will have access to the Info, Random(Shuffle), Repeat, Delete and List features.

Info

Press the ( ) button to display details about the current file.

Info

NOTICE

The title, artist and album info are displayed only when such information is recorded within the MP3 file ID3 tag.

Random

Press the ( ) button to play files in random order. Press the button again to turn the Random feature off.

Repeat

Press the ( ) button to repeat the current song. Press the button again to turn the repeat feature off.

Deleting Files

Press the ( ) button to delete the current file.

Shuffle

Repeat

Delete

4-66

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 67

List

Press the button to display the file list screen.

Turn the TUNE knob left/right to search for files. Once the desired file is displayed, press the knob to select and play.

List

List Menu

From the List screen, it is possible to delete files you previously saved into My Music.

Press the ( ) button or individually select the files you want to delete. Once files are selected, the

( ) button and

Unselect All

( ) buttons will be

Delete

Select All

enabled.

1) : Moves to the previous screen

Selects all) : Selects all files

(

(Unselect All) selected files

(Delete)

: Deselects all

: Deletes selected files

After selecting the files you want to delete, press the

()

Delete

button to delete the selected files.

NOTICE

• If there is memory available, up to 6,000 files can be saved.

• Identical files cannot be copied more than 1,000 times.

• To check memory information, go

SETUP

to [System] [Memory Information]

4-67

Multimedia System

Bluetooth

Wireless

Technology AUDIO MODE

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 68

Multimedia System

(for

Bluetooth

Technology equipped model)

Using

Bluetooth

Technology Audio Mode

Playing/Pausing Bluetooth

Wireless Technology

Once a Technology device is connected, the mode will automatically start.

While playing, press the button to pause and press button to play.

Wireless

Bluetooth

Wireless

Audio

Wireless

NOTICE

The play/pause feature may operate differently depending on the mobile phone.

Changing Files

Press the key to move to the previous or next file.

Setting Connection

If a

Bluetooth

device has not been connected, press the key [Phone] but-

SETUP

SEEK

TRACK

Wireless Technology

NOTICE

• If the Bluetooth

Wireless Technology audio is not operating properly, check whether the feature is turned off at [Phone]

SETUP

[Audio streaming] (Streaming Audio). If the feature is off, turn back on and try again.

• If music is not yet playing from your mobile device after converting to

Bluetooth

Wireless Technology Audio mode, pressing the play button once may start playing the mode. Check to see that music is playing from the Bluetooth

Wireless Technology device after

ton to display the

Bluetooth

Wireless Technology connection

converting to Bluetooth®Wireless Technology Audio Mode.

screen. It is possible to use the pair phone,

connect/disconnect and delete features from your

Bluetooth

Wireless

Technology phone.

4-68

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 69

Bluetooth

(for RDS,

Wireless Technology

Bluetooth

Wireless

Technology equipped model)

Using

Bluetooth

Wireless

Technology Handsfree

•

Bluetooth

refers to a short-distance wireless networking technology which uses a

2.45GHz frequency to connect various devices within a certain distance.

• Supported within PCs, external devices, Technology phones, PDAs, various electronic devices, and automotive environments, Wireless Technology allows data to be transmitted at high speeds without having to use a connector cable.

Wireless Technology

Bluetooth

Wireless

Bluetooth

•

Wireless Technology Handsfree refers to a device which allows the user to conveniently make phone calls with Wireless Technology mobile phones through the audio system.

Bluetooth

CAUTION

• Bluetooth®Wireless Technology

Handsfree is a feature that enables drivers to practice safe driving. Connecting the car audio system with a Bluetooth Wireless Technology phone allows the user to conveniently make calls, receive calls, and manage the phone book. Before using the Bluetooth Technology , carefully read the contents of this user’s manual.

• Excessive use or operations while driving may lead to negligent driving practices and be the cause of accidents.

• Do not operate the device excessively while driving.

• Viewing the screen for prolonged periods of time is dangerous and may lead to accidents. When driving, view the screen only for short periods of time.

Wireless

Multimedia System

4-69

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 70

Multimedia System

NOTICE - USING UPON CONNECTING

Bluetooth

Wireless Technology PHONE

• Before connecting the car audio system with the mobile phone, check to see that the mobile phone supports Bluetooth Wireless Technology features.

• Even if the phone supports Bluetooth Wireless Technology, the phone will not be found during device searches if the phone has been set to hidden state or the Bluetooth

Wireless Technology power is turned off. Disable the hidden state or turn on the Bluetooth Wireless Technology power prior to searching/connecting with the car audio system.

• If you do not want to automatically connect your Bluetooth Technology phone, try the following.

1. Turn off the Bluetooth

Wireless

Wireless Technology feature in your mobile phone.

- For more information on Bluetooth Wireless Technology features within your mobile, refer to your mobile phone user’s manual.

2. Turn off the Bluetooth

Wireless

Technology feature in your car

(Continued)

- To turn off the Bluetooth Technology feature in your car audio system, go to [Phone] and

SETUP

[turn off] the Bluetooth

Technology feature.

• Park the vehicle when connecting the car audio system with your mobile phone.

• Bluetooth

Wireless Technology connection may become intermittently disconnected in some mobile phones. Follow these steps to try again.

1. Turn the Bluetooth

Technology function within the

mobile phone off/on and try again.

2. Turn the mobile phone power

Off/On and try again.

3 Completely remove the mobile

phone battery, reboot, and then again.

4. Reboot the audio system and try

again.

5. Delete all paired devices, pair and

try again.

• The Handsfree call volume and quality may differ depending on the mobile phone.

(Continued)

Wireless

audio system.

(Continued)

• Bluetooth

Wireless Technology features supported within the vehicle are as follows. Some features may not be supported depending on your

Bluetooth

Wireless Technologydevice.

- Answering and placing Bluetooth

Wireless Technology Handsfree calls

- Menu operation during call (Switch

to Private, Switch to call waiting, Outgoing volume)

- Download Call History

- Download Mobile Phone book

- Phone book/Call History Auto Download

-Bluetooth

Wireless Technology device auto connection - Bluetooth Wireless Technology Audio

• It is possible to pair up to five

Bluetooth

devices to the car system.

• Only one Bluetooth

Wireless Technology

Wireless Technology device can be connected at a time.

• Other devices cannot be paired while a

Bluetooth

is already connected.

• When a Bluetooth

Wireless Technologydevice

Wireless Technology device is being connected, the connection process cannot be canceled.

(Continued)

4-70

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 71

(Continued)

•Only Bluetooth Handsfree and Bluetooth

Wireless Technology

Wireless Technology audio related features will operate within this system.

• Normal operation is possible only for devices that support Handsfree or audio features, such as a Bluetooth Wireless Technology mobile phone or a Bluetooth

Wireless Technology

audio device.

• Only one function can be used at a time between the Bluetooth

Wireless Technology Handsfree and Bluetooth Wireless Technology audio. (While playing Bluetooth audio, streaming will end upon entering the Bluetooth phone screen.)

• If a connected Bluetooth

Wireless Technology

Wireless Technology device becomes disconnected for various reasons, such as being out of range, turning the device OFF, or a Bluetooth Technology communication error,

Bluetooth

Wireless Technology

Wireless

devices are automatically searched and connected.

• Placing the audio system within an electromagnetic environment may result in noise interference.

Pairing a

Bluetooth

Wireless Technology wireless technology Device

What is Technology Pairing?

Bluetooth

Pairing refers to the process of synchronizing your Technology phone or device with the car audio system for connection. Pairing is necessary to connect and

use the

Bluetooth

Technology feature.

Wireless

Bluetooth

Wireless

Pairing Key / Key

PHONE

on the Steering Remote Controller

When No Devices have been Paired

1. Press the key or the key on the steering remote controller. The following screen is displayed.

2. Press the button to enter the Pair Phone screen.

PHONE

Multimedia System

4-71

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 72

Multimedia System

1) Device : Name of device as shown when searching from your

Bluetooth

Wireless Technology

device

2) Passkey : Passkey used to pair the device

3. From your

Bluetooth

Wireless Technology device (i.e. Mobile Phone), search and select your car audio system.

4. After a few moments, a screen is displayed where the passkey is entered. Here, enter the passkey “0000” to pair your

Bluetooth

Wireless Technology device with the car audio system.

5. Once pairing is complete, the following screen is displayed.

NOTICE

•If Bluetooth®Wireless Technology devices are paired but none are currently connected, pressing the

PHONE

steering remote controller displays the following screen. Press the [Pair] button to pair a new device or press the [Connect] to connect a previously pair device.

key or the key on the

Pairing through [PHONE] Setup

Press the key Select [Phone] Select [Pair Phone] Select TUNE knob

1. The following steps are the same as the steps described in the “When No Devices have been Paired” section.

SETUP

4-72

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 73

NOTICE

• The waiting period during phone pairing will last for one minute. The pairing process will fail if the device is not

Connecting a Device

Press the key Select [Phone] Select [Paired Phone List]

SETUP

From the paired phone list, select the device you want to connect and press the button.

paired within the given time. If the pairing process fails, you must start the process from the beginning.

• Generally, most Bluetooth

Wireless Technology devices will automatically connect once pairing is complete. However, some devices may require a separate verification process to connect. Check to see whether Bluetooth Wireless Technology has been properly connected within your mobile phone.

• List of paired Bluetooth

Wireless

Technology devices can be viewed at

SETUP

[Phone] [Paired Phone

1) Connected Phone : Device that is currently connected

2) Paired Phone : Device that is paired but not connected

Multimedia System

List].

4-73

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 74

Multimedia System

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth

devices with the car audio system. As a result, the “Change Priority’ feature is used to set the connection priority of paired phones. However, the most recently connected phone will always be set as the highest priority.

Press the key Select [Phone] Select [Paired Phone List]

Wireless Technology

SETUP

From the paired phone list, select the phone you want to change to the highest priority, then press the button from the Menu. The selected device will be changed to the highest priority.

Disconnecting a Device

Press the key Select

SETUP

[Phone] Select [Paired Phone List]

From the paired phone list, select the currently connected device and

press the button.

4-74

✽

USING

Bluetooth

Wireless

Technology

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 75

Deleting a Device

Press the key Select [Phone] Select [Paired Phone List]

SETUP

Phone Menu Screen

From the paired phone list, select the device you want to delete and press the button.

Phone Menus

With a

Bluetooth

Technology device connected, press

PHONE

the key to display the Phone menu screen.

Wireless

NOTICE

• When deleting the currently connected device, the device will automatically be disconnected to proceed with the deleting process.

• If a paired Bluetooth Technology device is deleted, the device’s call history and phone book data will also be deleted.

• To re-use a deleted device, you must pair the device again.

Wireless

1) Dial Number : Displays the dial screen where numbers can be dialed to make calls

2) Call History : Displays the call history list screen

3) Phone book : Displays the Phone book list screen

4) Setup : Displays Phone related settings

NOTICE

• If you press the [Call History] button

but there is no call history data, a prompt is displayed which asks whether to download call history data.

• If you press the [Phone book] button

but there is no phone book data, a prompt is displayed which asks whether to download phone book data. .

• This feature may not be supported in

some mobile phones. For more information on download support, refer to your mobile phone user’s manual.

Multimedia System

4-75

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 76

Multimedia System

Calling by Dialing a Number

Press the key Select [Dial Number]

1) Dial Pad : Used to enter phone number

2) Call : If a number has been entered, calls the number If no number has been entered, switches to call history screen

3) End : Deletes the entered phone number

4) Delete : Deletes entered numbers one digit at a time

PHONE

Answering Calls

Answering a Call

Answering a call with a Wireless Technology device connected will display the following screen.

1) Caller : Displays the other part’s name when the incoming caller is saved within your phone book

2) Incoming Number : Displays the incoming number

3) Accept : Accept the incoming call

4) Reject : Reject the incoming call

Bluetooth

NOTICE

• When the incoming call pop-up is displayed, most Audio and SETUP mode features will not operate. Only the call

volume can be operated.

• The telephone number may not be properly displayed in some mobile phones.

• When a call is answered with the mobile phone, the call mode will automatically convert to Private mode.

4-76

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 77

During a Handsfree Call

1)Caller : Displays the other party’s name if the incoming caller is saved within your phone book

2)Incoming Number : Displays the incoming number

3) Call time : Displays the call time

4) End : Ends call

5) Private : Converts to Private mode

6) Out Vol. : Sets call volume as heard by

the other party

7) Mute : Turns Mic Mute On/Off

NOTICE

If the mic is muted, the other party will not be able to hear your voice.

Call History

Press the key Select [Call History]

PHONE

A list of incoming, outgoing and missed calls is displayed.

Press the [Download] button to download the call history.

1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

2) Download : Download Recent Call History

NOTICE

• The call history list will display up to 30 outgoing, incoming, and missed calls.

• Upon downloading call histories, previously saved histories are deleted.

• Incoming calls with hidden caller IDs will not be saved in the call history list.

• Previously saved phone book entries are stored even if a device is disconnected and re-connected.

• The download feature may not be supported in some mobile phones. Check to see that the Bluetooth Technology device supports the download feature.

Wireless

Multimedia System

4-77

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 78

Multimedia System

Phone Book

Press the key Select

PHONE

[Phone book]

The list of saved phone book entries is displayed. Press the [Download] button to download the call history.

1) Phone book List :

-Displays downloaded phone book entries

-Connects call upon selection

2) Download : Download phone book entries

NOTICE

• Up to 1,000 phone book entries can be copied into car phone book.

• Upon downloading phone book data, previously saved phone book data will be deleted.

• Downloading is not possible if the phone book download feature is turned off within the Bluetooth Wireless Technology device. Also, some devices may require device authorization upon attempting to download. If downloading cannot be normally conducted, check the

Bluetooth

device setting or the screen state.

• Caller ID information will not be displayed for unsaved callers.

• The download feature may not be supported in some mobile phones. Check to see that the Bluetooth Technology device supports the download feature.

Wireless Technology

Wireless

4-78

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 79

Bluetooth

(for

Bluetooth

Wireless Technology

Wireless

Technology equipped model)

Pairing a

Bluetooth

Wireless Technology wireless technology Device

What is

Bluetooth

Wireless

Technology Pairing?

Pairing refers to the process of synchronizing your

Bluetooth

Technology phone or device with the car audio system for connection. Pairing is necessary to connect and use the

Bluetooth

Technology feature.

Wireless

Pairing Key / Key on

PHONE

the Steering Remote Controller

When No Devices have been Paired

1. Press the key or the key on the steering remote controller. The following screen is displayed.

2. Press the button to enter the Pair Phone screen.

PHONE

1) Device : Name of device as shown when searching from your

Wireless Technology device

2) Passkey : Passkey used to pair the device

3. From your

Bluetooth

Bluetooth®

Wireless Technology device (i.e. Mobile Phone), search and select your car audio system.

4. After a few moments, a screen is displayed where the passkey is entered. Here, enter the passkey “0000” to pair your

Bluetooth

Wireless Technology device with the car audio system.

5. Once pairing is complete, the following screen is displayed.

Multimedia System

4-79

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 80

Multimedia System

NOTICE

Pairing through [PHONE] Setup

Press the key Select [Phone] Select [Pair Phone] Select TUNE knob

SETUP

NOTICE

• The waiting period during phone

pairing will last for one minute. The pairing process will fail if the device is not paired within the given time. If the pairing process fails, you must start the process from the beginning.

• Generally, most Bluetooth

Wireless Technology devices will automatically connect once pairing is complete. However, some devices may require a

•If Bluetooth®Wireless Technology devices are paired but none are currently connected, pressing the

PHONE

key or the key on the steering remote controller displays the following screen. Press the [Pair] button to pair a new device or press the [Connect] to connect a previously pair

1. The following steps are the same as the steps described in the “When No Devices have been Paired” section.

separate verification process to connect. Check to see whether Bluetooth

Wireless Technology has been properly connected within your mobile phone.

• List of paired Bluetooth

Technology devices can be viewed at

SETUP

[Phone] [Paired Phone

List].

Wireless

device.

4-80

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 81

Connecting a Device

Press the key Select [Phone] Select [Paired Phone List]

1) Connected Phone : Device that is currently connected

2) Paired Phone : Device that is paired but not connected

SETUP

From the paired phone list, select the device you want to connect and press the

Connect

button.

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth

Press the key Select [Phone]

Select [Paired Phone List]

Wireless Technology

SETUP

Multimedia System

4-81

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 82

Multimedia System

From the paired phone list, select the phone you want to change to the highest priority, then press the

Change priority

button from the Menu. The selected device will be changed to the highest priority.

Disconnecting a Device

Press the key Select [Phone] Select [Paired Phone List]

From the paired phone list, select the currently connected device and press the

Disconnect

button.

Deleting a Device

Press the key Select [Phone] Select [Paired Phone List]

From the paired phone list, select the device you want to delete and press the

button.

Delete

SETUP SETUP

4-82

✽

USING

Bluetooth

Wireless

Technology

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 83

NOTICE

• When deleting the currently connect-

ed device, the device will automatically be disconnected to proceed with the deleting process.

• If a paired Bluetooth

Technology device is deleted, the device’s call history and contacts data will also be deleted.

• To re-use a deleted device, you must

pair the device again.

Wireless

Phone Menu Screen

Phone Menus

With a

Bluetooth

Technology device connected, press

PHONE

the key to display the Phone menu screen.

1) Dial Number : Displays the dial screen where numbers can be dialed to make calls

2) Call History : Displays the call history list screen

3) Contacts : Displays the Contacts list screen

Wireless

4) Setup : Displays Phone related settings

NOTICE

• If you press the [Call History] button

but there is no call history data, a prompt is displayed which asks whether to download call history data.

• If you press the [contacts] button but

there is no contacs data, a prompt is displayed which asks whether to download contacts data.

• This feature may not be supported in

some mobile phones. For more information on download support, refer to your mobile phone user’s manual.

Multimedia System

4-83

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 84

Multimedia System

Calling by Dialing a Number

Press the key Select [Dial Number]

1) Dial Pad : Used to enter phone number

2) Call : If a number has been entered, calls the number If no number has been entered, switches to call history screen

3) End : Deletes the entered phone number

4) Delete : Deletes entered numbers one digit at a time

PHONE

Answering Calls

Answering a Call

Answering a call with a Wireless Technology device connected will display the following screen.

1) Caller : Displays the other part’s name when the incoming caller is saved within your contacts

2) Incoming Number : Displays the incoming number

3) Accept : Accept the incoming call

4) Reject : Reject the incoming call

Bluetooth

NOTICE

• When the incoming call pop-up is displayed, most Audio and SETUP mode features will not operate. Only the call

volume can be operated.

• The telephone number may not be properly displayed in some mobile phones.

• When a call is answered with the mobile phone, the call mode will automatically convert to Private mode.

4-84

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 85

During a Handsfree Call

1) Caller : Displays the other party’s name if the incoming caller is saved within your contacts

2) Incoming Number : Displays the incoming number

3) Call time : Displays the call time

4) End : Ends call

5) Private : Converts to Private mode

6) Out Vol. : Sets call volume as heard by the other party

7) Mute : Turns Mic Mute On/Off

NOTICE

If the mic is muted, the other party will not be able to hear your voice.

Call History

Press the key Select [Call History]

A list of incoming, outgoing and missed calls is displayed.

Press the button to download the call history.

1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

2) Download : Download Recent Call History

Download

Contacts

Press the key Select [Contacts]

The list of saved phone book entries is displayed. Press the button to download the call history.

1) Contacts List :

- Displays downloaded contacts entries

- Connects call upon selection

2) Download : Download contacts entries

PHONEPHONE

Download

Multimedia System

4-85

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 86

Multimedia System

NOTICE

• Up to 1,000 contacts entries can be copied into car contacts.

• Upon downloading contacts data, previously saved contacts data will be deleted.

• Downloading is not possible if the contacts download feature is turned off within the Bluetooth

Wireless Technology device. Also, some devices may require device authorization upon attempting to download. If downloading cannot be normally conducted, check the Bluetooth

Wireless Technology device setting or the screen state.

• Caller ID information will not be displayed for unsaved callers.

• The download feature may not be supported in some mobile phones. Check to see that the Bluetooth

Wireless Technology device supports the download feature.

NOTICE - USING THE Voice Recognition

• When using the voice recognition feature, only commands listed within the user's manual are supported.

• Be aware that during the operation of the voice recognition system, pressing any key other than the key or touching the screen will terminate voice recognition mode.

• For superior voice recognition performance, position the microphone used for voice recognition above the head of the driver’s seat and maintain a proper position when saying commands.

• Within the following situations, voice recognition may not function properly due to external sound.

- When the windows and sunroof are

open

- When the wind of the cooling / heat-

ing device is strong

• Phone related voice commands can be used only when a Bluetooth

Wireless

Technology device is connected.

• When making calls by stating a name, the corresponding contact must be downloaded and stored within the audio system.

• After downloading the Bluetooth Wireless Technology phone book, it takes some times to convert the phone book data into voice information. During this time, voice recognition may not properly operate.

• Pronounce the voice commands naturally and clearly as if in a normal conversation.

- When entering and passing through tunnels

- When driving on rugged and uneven roads

- During severe rain (heavy rains, windstorms)

4-86

VOICE RECOGNITION (if equipped)

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 87

Using Voice Recognition

Starting Voice Recognition

Shortly press the key on the steering remote controller .Say a command

If voice recognition is in [Normal Mode], then the system will say “Please say a command. Beep~”

• If voice recognition is in [Expert Mode], then the system will only say a “Beep~”

• To change the Normal Mode/Expert Mode setting, go to [System] [Prompt Feedback].

SETUP

NOTICE

For proper recognition, say the command after the voice instruction and beep tone.

Skipping Prompt Messages

While prompt message is being stated Shortly press the key on the steering remote controller (under 0.8 seconds)

The prompt message is immediately ended and the beep tone will sound. After the “beep”, say the voice command.

Re-starting Voice Recognition

While system waits for a command Shortly press the key on the steering remote controller (under 0.8 seconds)

The command wait state is immediately ended and the beep ton will sound. After the “beep”, say the voice command.

Multimedia System

4-87

ENDING VOICE RECOGNITION

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 88

Multimedia System

While Voice Recognition is operating

Press and hold the key on the steering remote controller (over 0.8 seconds)

NOTICE

• While using voice command, pressing

a steering wheel remote control or a different key will end voice command.

• In a state where the system is waiting

for a voice command, say “cancel” or “end” to end voice command.

• In a state where the system is waiting

for a voice command, press and hold the key on the steering remote controller to end voice command.

4-88

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 89

❈ Illustration on using voice commands

• Starting voice command.

Shortly pressing the key (under 0.8 seconds):

Please say a command

More Help. You can say Radio, FM, AM, Media, CD, USB, Aux,

My Music, iPod, Bluetooth Audio, Phone, Call History or Phone book. Please say a command.

Ding~

More Help

• Skipping Voice Recognition

Please say a...

Shortly pressing the key

Shortly pressing the key (under

0.8 seconds):

Ding~

(under 0.8 seconds)

More Help

More Help. You can say Radio, FM, AM, Media, CD, USB, Aux,

My Music, iPod, Bluetooth Audio, Phone, Call History or Phone book. Please say a command.

• End voice command.

Shortly pressing the key (under 0.8 seconds):

Please say a command

Phone book. Please say the name of the phone book you

want to call.

Ding~

Di-Ding~(Cancel Sound)

Ding~

Phone book

Cancel

Multimedia System

4-89

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 90

Multimedia System

Voice Command List

• Common Commands: These are commands that can be used in all situations. (However, some commands may not be support-

ed in special circumstances.)

Command Function

More Help Provides guidance on commands that can be

Help Provides guidance on commands that can be

Call<Name> Calls <Name> saved in

Phone Provides guidance on Phone related com-

Call History Displays the Call History screen.

Phone book

Dial Number Display the Dial number screen. After saying

Redial Connects the most recently called number.

Radio

used anywhere in the system.

used within the current mode.

Ex) Call “John”

mands. After saying this command, say “Call History”, “ cute corresponding functions.

Displays the this command, say the name of a saved in the nect the call.

this command, you can say the number what you want to call.

•

Phone book

phone book

When listening to the radio, displays the next radio screen. (FM1 AMA)

When listening to a different mode, displays the most recently played radio screen.

phone book

”, “Dial Number” to exe-

screen. After saying

phone book

to automatically con-

➟ FM2➟ FMA ➟ AM ➟

4-90

Command Function

•

FM1(FM One) Displays the FM1 screen.

FM2(FM Two) Displays the FM2 screen.

FMA Displays the FMA screen.

AM Displays the AM screen.

AMA Displays the AMA screen.

FM Preset 1~6 Plays the most recently played broadcast

AM Preset 1~6 Plays the broadcast saved in AM Preset 1~6.

FM 87.5~107.9 Plays the FM broadcast of the corresponding

AM 530~1710 Plays the AM broadcast of the corresponding

TA on Enable Traffic Announcement

TA off Disable Traffic Announcement

News on Enable RDS News feature

News off Disable RDS News feature

When currently listening to the FM radio,

maintains the current state.

•

When listening to a different mode, displays the most recently played FM screen.

saved in FM Preset 1~6.

frequency.

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 91

Command Function

Media Moves to the most recently played media

Play Track 1~30 If a music CD has been inserted, plays the

CD Plays the music saved in the CD.

Search CD Moves to the CD track or file selection screen.

USB Plays USB music.

Search USB Moves to USB file selection screen. After

iPod Plays iPod music.

Search iPod Moves to the iPod file selection screen. After,

My Music Plays the music saved in My Music.

Search My Music Moves to My Music file selection screen. After

screen.

corresponding track.

•

For audio CDs, move to the screen and say the

track number to play the corresponding track.

•

Moves to MP3 CD file selection screen. After manually operate the device to select and play music.

manually operate the device to select and play music.

Command Function

AUX (Auxiliary) Plays the connected external device.

Bluetooth Audio Plays the music saved in connected

Bluetooth

Mute Mutes the radio or music volume.

Pardon? Repeats the most recent comment.

Cancel (Exit) Ends voice command.

Wireless Technology

device.

Multimedia System

4-91

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 92

Multimedia System

• FM/AM radio commands: Commands that can be used while

listening to FM, AM radio.

Command Function

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Auto Store Automatically selects radio broadcast fre-

quencies with superior reception and saves in Presets 1~6.

Preset Save 1~6 Saves the current broadcast frequency to

Preset 1~6.

Seek up Plays the next receivable broadcast.

Seek down Plays the previous receivable broadcast.

Next Preset Selects the preset number next to the most

recently selected preset. (Example: When currently listening to preset no. 3, then preset no. 4 will be selected.)

Previous Preset Selects the preset number previous to the

most recently selected preset. (Example: When currently listening to preset no. 3, then preset no. 2 will be selected.)

Scan Scans receivable frequencies from the current

broadcast and plays for 10 seconds each.

Preset Scan Moves to the next preset from the current

present and plays for 10 seconds each.

AF on Enable Alternative Frequency feature

AF off Disable Alternative Frequency feature

Region Enable Region feature

• Audio CD commands: Commands that can be used while listening to Audio CD.

Command Function

Region off Disable Region feature

Program Type Moves to the RDS Program type selection

screen. After, manually operate the device to select a desired program type.

Random Randomly plays the tracks within the CD.

Random Off Cancels random play to play tracks in sequen-

tial order.

Repeat Repeats the current track.

Repeat Off Cancels repeat play to play tracks in sequen-

tial order.

Next Track Plays the next track.

Previous Track Plays the previous track.

Scan Scans the tracks from the next track for 10

seconds each.

Track 1~30 Plays the desired track number.

Search Track Moves to the track selection screen. After, say

the track name to play the corresponding track.

Information Displays the information screen of the current

track.

4-92

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 93

• MP3 CD / USB commands: Commands that can be used while listening to music files saved in CD and USB.

Command Function

Random Randomly plays the files within the current

folder.

All Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Folder Repeat Repeats all files in the current folder.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Search Folder Moves to the folder selection screen.

Information Displays the information screen of the current

file.

Copy Copies the current file into My Music.

• iPod Commands: Commands that can be used while playing iPod.

Command Function

All Random Randomly plays all saved songs.

Random Randomly plays the songs within the current

category.

Random Off Cancels random play to play songs in sequen-

tial order.

Repeat Repeats the current song.

Repeat Off Cancels repeat play to play songs in sequen-

tial order.

Next Song Plays the next song.

Previous Song Plays the previous song.

Search Song Moves to the song selection screen.

Information Displays the information screen of the current

song.

Multimedia System

4-93

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 94

Multimedia System

• My Music Commands: Commands that can be used while playing My Music.

Command Function

Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Information Displays the information screen of the current

file.

Delete Deletes the current file. You will bypass an

additional confirmation process.

Delete All Deletes all files saved in My Music. You will

bypass an additional confirmation process.

•

Bluetooth

Wireless Technology Audio Commands:

Commands that can be used while playing Phone Music.

Command Function

Play Plays the currently paused song.

Pause Pauses the current song.

4-94

SETUP

(FOR RDS,

BLUETOOTH

WIRELESS

TECHNOLOGY EQUIPPED MODEL)

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 95

Starting Mode

Press the key to display the

SETUP

Setup screen.

You can select and control options related to [Display], [Sound], [Phone] and [System].

Display Settings

Adjusting the Brightness

Press the key Select [Display] Select [Brightness]

Use the , buttons to adjust the screen brightness or set the Brightness on Automatic, Day, or Night mode.

Press the button to reset.

1) Automatic : Adjusts the brightness automatically

2) Day : Always maintains the bright-

ness on high

3) Night: Always maintains the

brightness on low

SETUP

Default

Pop-up Mode

Press the key Select [Display] Select [Pop-up Mode]

This feature is used to display the Pop-up Mode screen when entering radio and media modes.

When this feature is turned on, pressing the or key will display the Pop-up Mode screen

SETUP

MEDIA RADIO

NOTICE

The media Pop-up Mode screen can be displayed only when two or more media modes have been connected.

Multimedia System

4-95

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 96

Multimedia System

Scroll Text

Press the key Select [Display] Select [Scroll text]

This feature is used to scroll text displayed on the screen when it is too long to be displayed at once.

When turned on, the text is repeatedly scrolled. When turned off, the text is scrolled just once.

SETUP

MP3 Information Display

Press the key Select [Display] Select [Song Info]

This feature is used to change the information displayed within USB and MP3 CD modes.

1) Folder File : Displays file name and folder name

2) Album Artist Song : Displays album name/artist name/song

SETUP

Sound Settings

Audio Settings

Press the key Select [Sound] Select [Audio Setting]

SETUP

4-96

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 97

Use the , , , buttons to adjust the Fader/Balance settings.

Use the , buttons to adjust the Bass/Middle/Treble settings.

Press the button to reset.

Default

SDVC (Speed Dependent Volume Control)

Press the key Select [Sound] Select [Speed Dependent Vol.]

The volume level is controlled automatically according to the vehicle speed. SDVC can be set by selecting from On / Off.

SETUP

Touch Screen Beep

Press the key Select [Sound] Select [Touch Screen Beep]

This feature is used to turn the touch screen beep on/off.

SETUP

Multimedia System

4-97

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 98

Multimedia System

Bluetooth

Wireless

Technology Setting

Pairing a New Device

Press the key Select [Phone] Select [Pair Phone]

Bluetooth

devices can be paired with the audio system.

For more information, refer to the “Pairing through Phone Setup” section within Technology.

SETUP

Wireless Technology

Bluetooth

Wireless

Viewing Paired Phone List

Press the key Select [Phone] Select [Paired Phone List]

This feature is used to view mobile phones that have been paired with the audio system. Upon selecting a paired phone, the setup menu is displayed.

For more information, refer to the “Setting Technology Connection” section within Technology.

SETUP

Bluetooth

Wireless

1) : Moves to the previous screen

2) : Connect/ disconnects currently selected phone

3) : Deletes the currently selected phone

4) : Sets currently selected phone to highest connection priority

NOTICE BEFORE DOWNLOADING PHONE BOOKS

• Only phone books within connected

phones can be downloaded. Also check to see that your mobile phone supports the download feature.

• To learn more about whether your

mobile phone supports phone book downloads, refer to your mobile phone user’s manual.

• The Phone book for only the con-

nected phone can be downloaded. Before downloading, check to see whether your phone supports the download feature.

4-98

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 99

Downloading Phone books

Press the key Select [Phone] Select [Phone book

SETUP

Auto Download (Phone Book)

Press the key Select [Phone] Select [Auto Download]

Audio Streaming

Press the key Select [Phone] Select [Audio Streaming]

SETUP SETUP

Download]

Multimedia System

This feature is used to automatically

The Phone book is downloaded from the mobile phone and the download progress is displayed.

NOTICE

• Up to 1,000 phone book entries can be copied into car phone book.

• Up to 1,000 phone book entries can be saved for each paired device.

• Upon downloading phone book

data, previously saved phone book data will be deleted. However, Phone book entries saved to other paired phones are not deleted.

download mobile phone book entries once a

Bluetooth

Wireless

Technology phone is connected.

NOTICE

• The Auto Download feature will download mobile phone book entries every time the phone is connected. The download time may differ depending on the number of saved phone book entries and the communication state.

• When downloading a phone book, first check to see that your mobile phone supports the phone book download feature.

When Audio Streaming is turned on, you can play music files saved in your

Bluetooth

Wireless

Technology device from the car.

4-99

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 100

Multimedia System

Outgoing Volume

Press the key Select [Phone] Select [Outgoing Volume]

Use the , buttons to adjust the outgoing volume level.

SETUP

Turning Bluetooth System Off

Press the key Select [Phone] Select [Bluetooth System Off]

Once Technology is turned off, Wireless Technology related features will not be supported within the audio system.

SETUP

Bluetooth

Wireless

Bluetooth

NOTICE

To tu r n Bluetooth Technology back on, go to [Phone] and press “Yes”.

Wireless

SETUP

4-100

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 101

System Setting

Memory Information

Press the key Select [System] Select [Memory Information]

This feature displays information related to system memory.

1) Using : Displays capacity currently in use

2) Capacity : Displays total capacity

SETUP

Language

Press the key Select [System] Select [Language]

SETUP

CAUTION

• Bluetooth audio streaming may not be sup- ported in some Bluetooth

Wireless Technology

This feature is used to change the system and voice recognition language.

If the language is changed, the system will restart and apply the selected language.

Wireless Technology

phones.

Multimedia System

4-101

SETUP (for

Bluetooth

Wireless

Technology equipped model)

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 102

Multimedia System

Starting Mode

Press the key to display the Setup screen.

You can select and control options related to [Display], [Sound], [Phone] and [System].

SETUP

Display Settings

Adjusting the Brightness

Press the key Select [Display] Select [Brightness]

Use the , buttons to adjust the screen brightness or set the Brightness on Automatic, Daylight, or Night mode.

Press the button to reset.

1) Automatic : Adjusts the brightness automatically

2 Day : Always maintains the bright-

ness on high

3) Night: Always maintains the brightness on low

SETUP

Default

Mode Pop up

Press the key Select [Display] Select [Mode Pop up]

This feature is used to display the Mode Pop up screen when entering radio and media modes.

When this feature is turned on, pressing the or key will display the Mode Pop up screen.

SETUP

RADIO MEDIA

NOTICE

The media Mode Pop up screen can be displayed only when two or more media modes have been connected.

4-102

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 103

Text Scroll

Press the key Select [Display] Select [Text Scroll]

This feature is used to scroll text displayed on the screen when it is too long to be displayed at once.

When turned on, the text is repeatedly scrolled. When turned off, the text is scrolled just once

MP3 Information Display

Press the key Select [Display] Select [Media Display]

This feature is used to change the information displayed within USB and MP3 CD modes.

1) Folder File : Displays file name

and folder name

2) Album Artist Song : Displays

album name/artist name/song

SETUP SETUP

Sound Settings

Press the key Select [Sound] Select [Sound Setting]

SETUP

Multimedia System

4-103

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 104

Multimedia System

Use the , , , buttons to adjust the Fader/Balance settings.

Use the , buttons to adjust the Bass/Middle/Treble settings.

Press the button to reset.

Default

SDVC (Speed Dependent Volume Control)

Press the key Select [Sound] Select [Speed Dependent Vol.]

The volume level is controlled automatically according to the vehicle speed. SDVC can be set by selecting from On/Off.

SETUP

Touch Screen Beep

Press the key Select [Sound] Select [Touch Screen Beep]

SETUP

4-104

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 105

Bluetooth

Wireless

Technology Setting

Pairing a New Device

Press the key Select [Phone] Select [Pair Phone]

Bluetooth

devices can be paired with the audio system.

For more information, refer to the “Pairing through Phone Setup” section within Technology.

SETUP

Wireless Technology

Bluetooth

Wireless

Viewing Paired Phone List

Press the key Select [Phone] Select [Paired Phone List]

This feature is used to view mobile phones that have been paired with the audio system. Upon selecting a paired phone, the setup menu is displayed.

For more information, refer to the “Setting Technology Connection” section within Technology.

SETUP

Bluetooth

Wireless

1) : Moves to the previous screen

2) Connect/Disconnect Phone : Connect/ disconnects currently selected phone

3) Delete : Deletes the currently selected phone

4) Change Priority : Sets currently selected phone to highest connection priority

NOTICE BEFORE DOWNLOADING CONTACTS

• Only contacts within connected

phones can be downloaded. Also check to see that your mobile phone supports the download feature.

• To learn more about whether your

mobile phone supports contacts downloads, refer to your mobile phone user’s manual.

• The contacts for only the connected

phone can be downloaded. Before downloading, check to see whether your phone supports the download feature.

Multimedia System

4-105

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 106

Multimedia System

Downloading Contacts

Press the key Select [Phone] Select [Contacts Download]

The contacts is downloaded from the mobile phone and the download progress is displayed.

Auto Download (Contacts)

Press the key Select [Phone] Select [Auto Download]

This feature is used to automatically download mobile contacts entries once a

Bluetooth

Technology phone is connected.

Wireless

Streaming Audio

Press the key Select [Phone] Select [Streaming Audio]

When Streaming Audio is turned on, you can play music files saved in your

Bluetooth

Technology device from the car.

SETUP SETUP SETUP

Wireless

NOTICE

• Up to 1,000 contacts entries can be copied into car contacts.

• Up to 1,000 contacts entries can be saved for each paired device.

• Upon downloading contacts data, previously saved contacts data will be deleted. However, contacts entries saved to other paired phones are not deleted.

NOTICE

• The Auto Download feature will download mobile contacts entries every time the phone is connected. The download time may differ depending on the number of saved contacts entries and the communication state.

• When downloading a contacts, first check to see that your mobile phone supports the contacts download feature.

4-106

✽

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 107

Outgoing Volume

Press the key Select [Phone] Select [Outgoing Volume]

Use the , buttons to adjust the outgoing volume level.

SETUP

Turning Bluetooth System Off

Press the key Select [Phone] Select [Bluetooth System Off]

Once Technology is turned off, Wireless Technology related features will not be supported within the audio system.

SETUP

Bluetooth

Wireless

Bluetooth

NOTICE

To tu r n Bluetooth Technology back on, go to

[Phone] and press “Yes”.

Wireless

SETUP

System Setting

Memory Information

Press the key Select [System] Select [Memory Information]

This feature displays information related to system memory.

1) Using : Displays capacity currently in use

2) Capacity : Displays total capacity

SETUP

Multimedia System

4-107

REAR VIEW CAMERA (if equipped)

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 108

Multimedia System

• The system has been equipped with a rear view camera for user safety by allowing a wider rear range of vision.

• The rear view camera will automatically operate when the ignition key is turned ON and the transmission lever is set to R.

• The rear view camera will automatically stop operating when set to a different lever.

CAUTION

The rear view camera has been equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance. For safety, directly check the rear and left/right sides.

4-108

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 109

APPENDIX

Name Description

Monday Monday Tuesday Tuesday Wednesday Wednesday Thursday Thursday Friday Friday Saturday Saturday Sunday Sunday Use tune knob Use tune knob Volume Volume Max Volume maxinmum Min Volume mininmum AST (Auto store) Automatically selects and saves

channels No Media Empty media file in CD or USB No File Empty media file in CD or USB Empty File Empty media file in MY MUSIC Info (Information) Information of playing files Artist Artist name, MP3/CD file

currently being played Title Song name, MP3/CD file

currently being played Album Album name, MP3/CD file cur-

rently being played Genres "Genres" is keyword for search-

ing mode of playlists for iPod Composers "Composers" is filtering keyword

for searching mode of playlists

for iPod

Name Description

Playlists

Songs

Audiobooks "Audiobooks" is filtering key-

Podcasts "Podcasts" is filtering keyword

RPT (Repeat) Audio play mode of Reapeat FLD.RPT (Folder Repeat)

RDM (Random) Audio play mode of Random FLD.RDM(Folder Random)

ALL RDM (All Random) COPY Copy MP3 file to flash memory

Cancel copy Cancel copy mode File copied Completed File copy Free Free size of memory Copy failed Copy failed Search Search files Loading CD Loading CD Reading CD Reading CD Reading Error Reading Error Mechanism Error Mechanism Error

Features of your vehicle

"Playlists" is filtering keyword for searching mode of playlists for iPod "Songs" is filtering keyword for searching mode of playlists for iPod

word for searching mode of playlists for iPod

for searching mode of playlists for iPod

Audio play mode of Folder Reapeat

Audio play mode of Folder Random Audio play mode of All Random

for MY MUSIC

4 109

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 110

Features of your vehicle

Name Description

Ejecting CD Ejecting CD Audio CD Audio CD Track Audio CD song order Reading Media Reading Media Not supported Not supported file format Empty iPod Empty iPod, iPod don't have

playable data Communication Error

Delete Delete the paired phone or files

Del.All Delete all files Del.Sel Select files to delete Return Return menu List List files or paired phones Select Files Select Files Memory is full, Memory is full, Delete files

Delete files

Over 6000 files. can Over 6000 files. can not be copied not be copied Over 1000 same files

can not be copied

System will automati cally switchoff after 1 hour with ignition off

Battery discharge Battery discharge Start the Start the engine

Communication error between

audio and iPod or usb

in MY MUSIC

Over 1000 same files can not

be copied

System will automatically

switchoff after 1 hour with igni-

tion off

engine

Name Description

Setup Setup Display Setup display mode Mode Pop up This function is used to select

popup menu on or off

Scroll text This function is used to display

characters longer than the LCD text displays

Song Info Setup display information being

played

Folder/File Display Folder/file name,

file currently being played

Album/Artist/Song Display Album/Artist/Song

name, file currently being played Sound Setup sound mode Audio Settings Setup Audio settings that consist

BASS,Middle,Treble,Fader and

Balance PowerBass This function is used to improve

bass sound quality Speed Dependent Vol.

Volume Dialogue Adjust volume level of Dialogue Bass Bass is sound of low frequency.

Middle Middle is sound of middle fre-

Automatically adjust the volume

according to the car speed

It can be adjusted sound by user

quency. It can be adjusted

sound by user

1104

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 111

Features of your vehicle

Name Description

Treble

Fader Fader is sound positon between

Balance Balance is sound positon

Default This function is used to initialize

Clock Setup time Clock Settings Enters time advanced settings Day Settings Enters day advanced settings Time Format Refer to the time display The

Clock Disp.(Pwr Off) This function is used to select

Automatic RDS Time This function is used to set the RDS time automatically. System Setup system or system infor

Memory Information Display used memory size VRS Mode Setup Voice command mode Normal Normal mode. This function is

Treble is sound of high frequency.

It can be adjusted sound by user

FRONT and REAR. It can be adjusted sound by user

between Right and Left. It can be adjusted sound by user

setting value

time can be displayedin 12 hours or 24 hours

clock display mode in power off

mation

used to set default value of voice recognition factor

Name Description

Expert Expert mode. This function is

used to set exercised value of

voice recognition factor Language This function is used to select

user language Deutsch Deutsch English(UK) English(UK) Français French Italiano Italian Español Spanish Nederlands dutch Svenska swedish Dansk Danish

Russian Polski Polish

Turkish The system will be The system will be rebooted

rebooted

Please change language

when ignition ON

Bluetooth not ready

Please wait

Add a new Bluetooth Add a new device from your phone

Processing Bluetooth Please try later

Please change language when

ignition ON

You can use BT System for a

moment Because BT system is

being initialized

Technology device from your phone

You can use BT System for a

moment Because BT system is

being initialized or processing

other command

Bluetooth

Wireless

4 111

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 112

Features of your vehicle

Name Description

Incoming Call Receivng phone Call Ended Call Ended Call Rejected When there is unwanted call,

You push the button on the steering remote controller

Unknown "Unknown" mean Headunit or

phone don't have any informa-

tion about phone number Call is not possible Call is not possible MIC Mute Microphone mute Activate

Bluetooth

System? Bluetooth System

activated

Activate

Bluetooth

Technology

Bluetooth

system activated

Wireless

System

Wireless Technology

No phone paired. Empty phone paired. Pair a Pair a phone?

No connected phone. Connect a phone?

Phone book is empty.

phone?

No connected phone. Connect a

phone?

Phone book is empty Download?

Available only when This is a warning, Do not enter

the MENU about BT Setup.

When vehicle is moving Listening... Listen to instruction of audio Phone book Download

vehicle is stationary

Downloading phone book from

phone paired to audio Auto Download After pairing phone, audio

system automatically download

phone book

Name Description

Audio Streaming

After pairing phone can support

Bluetooth

, a

udio system

Wireless

Technology streaming mode

Outgoing Volume Set outoging volume "0 ~ 5"

Bluetooth

Device :

System Off

System ON

Turn off

Bluetooth

Technology

Turn on

Bluetooth

Technology

Bluetooth

Technology

System

Wireless

device name

Wireless

Passkey Passkey for pairing a phone Pairing complete Pair a

Technology

Bluetooth

Wireless

phone to the audio

Pairing failed Audio & Phone connection have

failed

Already 5 devices All 5 phones have already been

paired. Delete a paired phone?

Connection complete

paired. Delete a previously paired phone to pair new phone

Audio & Phone connection have succeed

Connection failed. Audio & Phone connection have

Retry?

failed

Priority changed Changed priority about the

registered phones

Overwrite previous Overwrite previous phone book

phone book?

information

1124

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 113

Name Description

Phone does not support Phone book download No connected There are phone in the connec-

Bluetooth

Phone does not support

Bluetooth

Downloading stopped

device

audio

Phone does not support Phone book download

tion list But it was actually not connected BT pairing Downloading stopped

Features of your vehicle

4 113

HYUNDAI MOBIS AC111C1EE, AC210C1EE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
