HYUNDAI MOBIS AC142C6AN User Manual

CAR MULTIMEDIA SYSTEM

USER'S MANUAL

Read the following safety precautions for your safety

Notations used within this User's Manual

Before using the product, read the contents of this user's manual

carefully and use this product safely.

※

The design and speciﬁ cations of this product may change without prior

notiﬁ cation for product and service improvement.

The actual features in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

※

This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁ ed under the GNU General

Public license, Version 2, June 1991, and the GNU lesser General Public

License, Version 2.1, February 1999.

For additional information and to obtain related materials including

without limitation, the previous referred to licenses and software, please

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

iPod

iPod® is a registered trademark of Apple Inc.

Bluetooth®

A compatible

required to use

Bluetooth

The

Wireless Technology

Bluetooth®

word mark and logos are registered trademarks owned by

Wireless Technology-enabled cell phone is

Wireless Technology.

Bluetooth SIG, Inc. and any use of such marks by Kia is under license.

Other trademarks and trade names are those of their respective owners.

A Bluetooth

enabled cell phone is required to use

Bluetooth®

Wireless

Technology.

Bluetooth

Wireless Technology phone compatibility can be checked by

visiting http://www.kia.com.

part.1

Component Names and Functions

Starting the System for the First Time

Basic

Warnings and Cautions

Key Product Features

Basic

Safety Warnings

• Do not stare at the screen while driving.

Staring at the screen for prolonged peri-

ods of time could lead to traffic accidents.

• Do not disassemble, assemble, or modify

the Multimedia system. Such acts could

result in accidents, fire, or electric shock.

• Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

• If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibility

of an accident may increase. Please

use phone related functions only when

parked.

• Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

• Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

• Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

• For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

• Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

1-2 I Basic

Safety Cautions

Pay attention to traffic conditions while

driving.

• Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

• Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

• Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

• If you want to change the position of

device installation, please inquire with

your place of purchase or service main-

tenance center. Technical expertise is

required to install or disassemble the

device.

• Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

• Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

• Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

• When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

• Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

Warnings and Cautions I 1-3

Key Product Features

This device is a Multimedia system equipped with a multifunc-

tional player that supports Radio (FM, AM), SiriusXM™, USB,

iPod, AUX, Bluetooth Audio and My Music features. The WIDE

VGA LCD provides a high quality resolution while the powerful

and rich sound system adds to the driving enjoyment.

Wide TFT-LCD Display

Display

Radio

Multimedia

Player

• Provides high quality video through a Wide TFT-LCD Display using an LED Back Light.

• Touch screen for maximum user convenience.

Digital Tuner Feature

• Digital Tuner using PLL method that supports memory of 40 broadcast stations.

Radio broadcast station name

• Displays broadcast station names.

Support for various Media Formats

• Support for various media formats, including Radio, USB, iPod, AUX and Bluetooth

Audio

Streaming modes

My Music

• Supports copying of music stored within USB devices into My Music (internal memory) mode

Miscellaneous

Bluetooth

• Convenient use of Bluetooth

Wireless Technology

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

• Easy control of features through touch screen options

Steering Wheel Control

• Control over audio features, voice recognition and Bluetooth

through the steering wheel

control for maximum convenience

1-4 I Basic

Component Names and Functions

Head Unit

Name Description

Selects FM/AM/SiriusXM™ mode

RADIO

MEDIA

SEEK

TRACK

POWER/

VOL

• Each time this is pressed, the mode is changed in the following order: FM → AM → SiriusXM™

→

FM.

Selects MEDIA mode.

• If the media is not connected MEDIA mode will not be activated.

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: Plays the previous/next frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA (USB/iPod/My Music) mode: Changes the track, file or title (except for USB Image and AUX).

When pressed and held down (more than 0.8 seconds),

• FM/AM mode: Continuously changes the frequency until the key is released.

• MEDIA (USB/iPod/My Music) mode: Rewinds or fast forwards the track or file (except for USB Image, Bluetooth Audio, and AUX).

• When power is off, press to turn power on.

• When power is on, press and hold (more than

0.8 seconds) to turn the power off.

• When power is on, press quickly (less than 0.8 seconds) to turn Audio off.

• Turn left/right to adjust the volume.

Name Description

PHONE

APPS/

UVO

SETUP

Displays the Bluetooth phone mode.

Moves to the Apps/Info screen.

Moves to the UVO mode

Moves to the Setup screen.

• FM/AM mode: Changes the frequency.

• SiriusXM™ mode: Changes the channel.

TUNE

• MEDIA (USB/iPod/My Music) mode: Changes the track, file or title (except USB Image, Bluetooth Audio, and AUX).

RESET

※

The actual feature in the vehicle may differ from the illustration.

Resets the system settings. (Preset radio channels and other data will not be deleted)

Component Names and Functions I 1-5

Steering Wheel Controls

Name Description

When pressed quickly (less than 0.8 seconds),

• Activates voice recognition. When pressed and held (more than 0.8 seconds),

• Ends voice recognition.

• If iOS device is connected through Bluetooth, activates or ends Siri Eyes Free.

• Each time this is pressed, the mode is changed in

the following order: FM → AM → SiriusXM → USB or iPod → AUX → Bluetooth Audio → My Music

→

MODE

• If the media is not connected, the corresponding

modes will be disabled

• Press and hold (more than 0.8 seconds) to turn

the Audio system on/off

• When power is off, press button to turn power

back on

VOL +

VOL -

Controls the volume

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: searches broadcast frequencies

saved to Presets

• SiriusXM™ mode: searches broadcast channels

saved to Presets

• MEDIA (USB/iPod/My Music) mode: changes the

track, file or title (except USB Image, AUX)

When pressed and held (more than 0.8 seconds),

• FM/AM mode: automatically searches broadcast

frequencies

• SiriusXM™ mode: automatically searches broad-

cast channels

• MEDIA (USB/iPod/My Music) mode: quickly

looks up songs (excluding USB images, AUX and Bluetooth audio files)

Name Description

When pressed quickly (less than 0.8 seconds),

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen, answers the call

• When pressed during call waiting, switches to waiting call (Call Waiting)

When pressed and held (more than 0.8 seconds),

• When pressed in Bluetooth

→

the last dialed call

• When pressed during a Bluetooth

Hands-free, redials

Hands-free

call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone, switches call back to Bluetooth (operates only when Bluetooth

Hands-free

Hands-free is

connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects the call

※

The actual feature in the vehicle may differ from the illustration.

Component Names and Functions I 1-7

Starting the System for the First Time

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

NOTICE

• You cannot operate the system while it is

booting up. It may take some time for all of features of the system, particularly the voice recognition system, to be ready for use.

Pressing and holding the power key on the

head unit will turn off the system.

You can change Screen Saver Settings

in Setup to display a clock on the Screen

Saver.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will automatically switch to your mobile phone.

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the

ond or longer. (It is recommended that you

press the

a pin or a clip.)

RESET

key for a sec-

key using a tool, such as

Pressing the power key on the head unit

will display the safety guide. To change the

system language between English,

French, Spanish and Korean, select the

Language

button.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust the volume to a reasonable level.

Starting the System for the First Time I 1-9

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become completely discharged.

Restrictions on Features for Safety Measures

Several features are limited while driving.

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

WARNING

- Blank Screen

• Refrain from use if the screen is blank or

no sound can be heard as these signs ma indicate product malfunction. Continued use in such conditions could lead to accidents (ﬁ res, electric shock).

WARNING

- Touching the Antenna During A Thunder Storm

• Do not touch the antenna during thunder or

lightning as such acts may lead to lightning induced electric shock.

1-10 I Basic

Home Screen

Controls Menu Conﬁ guration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

The icons in the following table indicate the various types of sys-

tem status details and events.

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Features Description

• Shows brief information on the radio or

Radio/

Media Widget

media that is now playing.

• Tap the area to move to the mode that you are listening to.

Connectivity

Widget

All Menus

Shows any connected devices such as iPod, and Bluetooth.

Shows all of the items in the system menu.

• You can add up to eight menus here.

My Menu

• Add your favorite menus to have quick and easy access to them.

Apps/Info

Setup

Moves to the Apps/Info screen.

Moves to the Setup screen.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth is muted.

Displays the signal strength of the Bluetooth phone.

Displayed when 911 connect is available.

Starting the System for the First Time I 1-11

Adding Your Favorite Menu Items to My Menu

From the Home screen, select

icon, and then

Edit

From the Edit My Menu screen, select

menu items from the list on the right, then

drag and drop them to a desired place on

the left.

To remove the item from My Menu, drag

item from the left and drop them on the right.

Information

• Up to eight items can be added to My Menu.

My Menu

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive material. Touch the screen using your ﬁ nger, an electrostatic touch-screen glove, or a stylus pen.

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

1-12 I Basic

Flick (Quick Scrolling)

Drag the frequency bar to the left or right

to move to the frequency that you want.

From the Edit My Menu screen, drag and

drop icons to add, delete, or move to/from

My Menu.

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display. You can easily move many items at a time with the handler.

You can view the previous or next image

by flicking left/right on an image on the

USB Image screen.

Flick left/right on the frequency bar in the

radio player to look up the previous/next

frequency available.

Starting the System for the First Time I 1-13

Press and Hold

Pressing the and buttons

in the music player will fast forward/rewind

the music.

1-14 I Basic

part.2

Radio/Media

FM/AM (with HD Radio™)

HD Radio™ Technology (if equipped)

FM/AM

SiriusXM™

USB

iPod

AUX

Bluetooth

Audio

My Music

Radio/Media

FM/AM (with HD RadioTM)

You can access the radio player either by pressing the

key or by selecting the Radio menu from All Menus on the Home

screen.

FM/AM Mode Display Controls

Information

• If you press the

and a radio broadcast will be tuned from the current mode.

• If you are in radio mode, select the media widget from the Home screen

to access the r

RADIO

adio player.

key when power is off, the power will turn on

RADIO

Features Description

• The stored preset frequencies are displayed for user selection.

Preset

Frequencies

Frequency Bar

Frequency

Ta g

Presets

• After selecting frequency, press and hold the preset button for more than 0.8 seconds. A beep sound will be heard and the frequency is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll quickly through presets.

• Flick the frequency bar left/right to search for available radio channels to the left or right of the current channel.

• Dragging: Drag the frequency bar to the left/ right to find the radio channel that you want.

Displays the current frequency.

Saves the current music’s tag information to the head unit. If connected to iPod, the tag information can be saved on the device.

Shows the stored presets for user selection.

• List Moves to the frequency list.

• Info Turns the Radio text information transmitted from the broadcasting station on and off.

• Preset Scan Plays preset frequencies for 10 seconds per item.

• Sound Settings Moves to the Sound Settings.

2-2 I Radio/Media

Features Description

Scan/Preset

Scan

Band

HD Radio (if equipped)

Scan

SEEK/TRACK

TUNE

Displays an active mode from Scan and Preset Scan modes.

Changes to the desired band from among FM, AM, and SiriusXM.

Used to set whether to turn HD Radio™ reception On or Off.

Shortly plays the broadcasts for the frequencies with superior reception for 5 seconds per item.

• When pressed quickly (less than 0.8 seconds): Seeks the previous/next frequency.

• When pressed and held (more than 0.8 seconds): Moves quickly through all of the frequencies. The moment that you release the button, the system seeks the next available frequency.

Turn the able frequencies.

• FM: Increment/decrement by 200 kHz

• AM: Increment/decrement by 10 kHz

TUNE

knob to manually seek avail-

FM/AM (with HD Radio™) I 2-3

HD Radio™ Technology (if equipped)

Program Service Data:

Contributes to the superior user experience of HD

Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3

Channel Guide, and other relevant data streams.

Adjacent traditional main stations are extra local FM

channels. These HD2/HD3 Channels provide new, origi-

nal music as well as deep cuts into traditional genre.

Digital, CD-quality sound. HD Radio™ Technology

enables local radio stations to broadcast a clean digital

signal. AM sounds like today’s FM and FM sounds like a CD.

If an HD Radio™ broadcast is received,

the radio mode will switch from analog

broadcast to HD Radio™ broadcast.

Information

• The

HD Radio™

when a HD Radio™ broadcast is being received.

screen is displayed only

2-4 I Radio/Media

HD Radio™ Mode Display Controls

Name Description

Displays main HD Radio™ channels and

HD Radio™

Reception & Channel buttons

HD Channel

Number

HD Broadcast

Info

HD Radio

used to directly select the current available channels.

The HD Radio™ related icon display

becomes active within regions where an HD Radio™ signal can be received.

Analog station and corresponding HD Radio™ channel number saved in the preset list.

Displays detailed information about the current broadcast (the details of the information shown are different depending on whether the Info button is selected)

When the HD Radio™ soft button is ON (the red indicator on the HD Radio™ button is illuminated), HD Radio™ signals will be received.

HD Radio™ Technology (if equipped) I 2-5

FM/AM

You can access the radio player either by pressing the

key or by selecting the Radio menu from All Menus on the Home

screen.

FM/AM Mode Display Controls

Information

• If you press the

and a radio broadcast will be tuned from the current mode.

• If you are in radio mode, select the media widget from the Home screen

to access the r

RADIO

adio player.

key when power is off, the power will turn on

RADIO

Features Description

• The stored preset frequencies are displayed for user selection.

Preset

Frequencies

Frequency Bar

Frequency

Presets

• After selecting frequency, press and hold the preset button for more than 0.8 seconds. A beep sound will be heard and the frequency is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll quickly through presets.

• Flick the frequency bar left/right to search for available radio channels to the left or right of the current channel.

• Dragging: Drag the frequency bar to the left/ right to find the radio channel that you want.

Displays the current frequency.

Shows the stored presets for user selection.

• List Moves to the frequency list.

• Preset Scan Plays preset frequencies for 10 seconds per item.

• Sound Settings Moves to the Sound Settings.

2-6 I Radio/Media

Features Description

Scan/ Preset Scan

Band

Info

Scan

SEEK/TRACK

TUNE

Displays an active mode from Scan and Preset Scan modes.

Changes to the desired band from among FM, AM, and SiriusXM.

Turns the Radio text information transmitted from the broadcasting station on and off.

Shortly plays the broadcasts for the frequencies with superior reception for 5 seconds per item.

• When pressed quickly (less than 0.8 seconds): Seeks the previous/next frequency.

• When pressed and held (more than 0.8 seconds): Moves quickly through all of the frequencies. The moment that you release the button, the system seeks the next available frequency.

Turn the able frequencies.

• FM: Increment/decrement by 200 kHz

• AM: Increment/decrement by 10 kHz

TUNE

knob to manually seek avail-

FM/AM I 2-7

SiriusXM™

You can access the radio player either by pressing the

key or by selecting the Radio menu option from All Menus on the

Home screen. Select the SiriusXM™ band from the radio player.

SiriusXM™ Mode Display Controls

Information

• If you press the

on and a radio broadcast will be tuned from the current mode.

• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget

from the Home screen to access the r

• When the power is off, pressing the

and play a SiriusXM™ Radio broadcast.

RADIO

key when the power is off, the power will turn

adio player.

RADIO

key will turn the power on

RADIO

Features Description

• Shows the stored presets for user selection.

Preset Frequencies

Channel Logo

Channel Info

Content Info

Category Info

Band

Direct Tune

Scan

Category Lock

Category

Selection Buttons

Play Live

Skip Backward

• After selecting frequency, press and hold the preset button for more than 0.8 seconds. A beep sound will be heard and the frequency is to be stored in the selected preset button.

Displays the current channel logo.

Displays the current channel number and name.

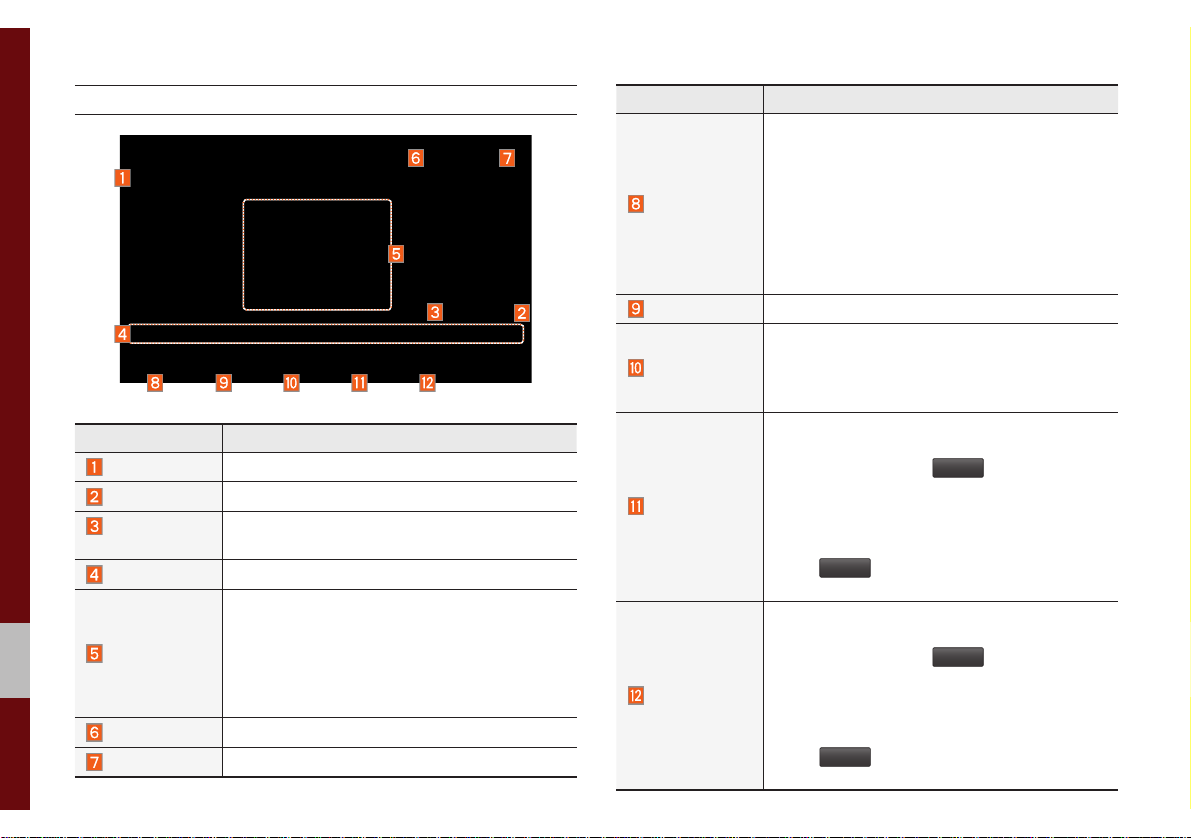

Displays the artist, title and other information about the current playing song.

Displays the category of the currently playing song.

Changes to the desired band from among FM, AM, and SiriusXM.

Used to search for the desired channel by entering the channel number.

Plays all receivable channels for 10 seconds per item.

If pressed, only the channels for the current category can be searched or scanned.

Used to select the previous/next category.

Switches to the live broadcast mode.

Repeats the previously broadcasted program.

• Holding for less than 0.8 seconds: Moves to the previous segment.

• Holding for more than 0.8 seconds: Moves to the previous 5 seconds.

2-8 I Radio/Media

Features Description

Play/Pause

Skip Forward

Ta g

Presets

List

SEEK/TRACK

TUNE

Pauses/plays the current broadcasting program.

Moves to the next segment.

Saves the current music’s tag information to the head unit. If connected to iPod, the tag information can be saved on the device.

Shows the stored presets for user selection.

Moves to the channel list.

• What is on My Presets? The program schedule saved in my preset. (For more details, see Section 3.10. Viewing Menu.)

• Featured Favorites Theme channels recommended by SiriusXM™. (For more details, see Section 3.10. Viewing Menu.)

• Preset Scan Plays preset channels for 10 seconds each.

• Sound Settings Moves to the Sound Settings.

• When pressed quickly (less than 0.8 seconds): Plays the previous/next channel.

• When pressed and held (more than 0.8 seconds): Continuously changes the channel until the key is released and pla channel.

Changes the channel.

ys the current

SiriusXM™ I 2-9

Selecting through Channel/Category List

Select the

egory and channel.

Select the desired category and the chan-

nel. Once selected, the previous screen

will be restored and the selected channel

will begin playing.

List

▶ Select the desired cat-

If you select the

scan channels using the

key or the

Skip

button, you can

SEEK

TUNE

knob by skipping the

TRACK

channels that you chose to skip.

Direct Tune

Enter the number of the channel you want

to receive.

Viewing Menu

Using the

can view the program schedule and infor-

mation about the Featured Favorites pro-

vided by SiriusXM™.

button on the right, you

2-10 I Radio/Media

What is on My Presets? (Program Schedule)

Name Description

By selecting this option, you can select a broadcasting date. Broadcast information will be provided for one week from the current date.

Change

Broadcast Date

You can select Menu to see program information and the sched-

ules of broadcast channels listed in the presets.

Preset

Program

Information

Shows saved presets for user selection

A total of 40 frequencies for SiriusXM™ modes

can be displayed.

Shows you the program titles to be broadcasted at the time that you have chosen. Select a program to see more details.

If there is more information on the program you

selected, an arrow button will be displayed on the right of the list. You can see more program information by selecting the arrow button.

SiriusXM™ I 2-11

Featured Favorites

Featured Favorites feature allows

SiriusXM™ to broadcast additional presets.

• Example 1: “Martha’s Favorites” may

represent Martha Stuart’s favorites pre-

sets on her radio.

• Example 2: During holidays, “Holiday

Music” may represent all the SiriusXM™

channels that are playing the holiday

music for easy access by users.

Multiple sets Featured Favorites data

can be broadcast by SiriusXM™ and can

change from time to time.

2-12 I Radio/Media

USB

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB

device may become damaged if it is already connected when the

ignition is turned on.

• Files that are not standard format music/image files will not be

played.

• For MP3/WMA/OGG files, only music files with compression

rates between 8Kbps ~ 320Kbps can be played.

• Heed caution to static electricity when connecting/disconnecting

external USB devices.

• Encoded MP3 Players will not be recognized when connected

as an external device.

• When connecting an external USB device, the device may not

properly recognize the USB is in some states.

• Only products formatted with byte/sectors under 64Kbyte will be

recognized.

• USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-

tem, are recommended. File systems other than FAT12, FAT16,

FAT32, exFAT, and NTFS are not supported.

• Some USB devices may not be supported due to compatibility

issues.

• Take caution so that the USB connector does not come in con-

tact with body parts or objects.

• Repeated connecting/disconnecting of USB devices within short

periods of time may result in product malfunction.

• Make sure to connect/disconnect external USB devices with the

audio power turned off.

• The amount of time required to recognize the external USB

device may differ depending on the type, size, or file formats

stored on the USB.

• The use of USB devices for purposes other than playing music

and image files is prohibited.

• Do not use the USB I/F to charge batteries or USB accessories

that generate heat. Such acts may lead to worsened perfor-

mance or damage to the device.

• The device may not recognize the USB device if separately

purchased USB hubs and extension cables are being used.

Connect the USB directly with the multimedia terminal of the

vehicle.

• When using mass storage USB devices with separate logical

drives, only files saved to the root drive can be played.

• When application programs are installed to specific USBs, files

may not properly play.

USB I 2-13

• The device may not operate normally if MP3 Players, cellu-

lar phones, digital cameras, or other electronic devices (USB

devices not recognized as portable disk drives) are connected

with the device.

• Charging through the USB may not work for some mobile

devices.

• The device may not support normal operation when using a

USB memory type besides Metal Cover Type USB Memory.

• The device may not support normal operation when using for-

mats such as HDD Type, CF, or SD Memory.

• When playing iPods, please use a dedicated iPod car cable.

• Normal operation cannot be guaranteed when other cables are

being used.

• The device will not support files locked by DRM (Digital Rights

Management).

• USB memory sticks used by connecting an Adaptor (SD Type or

CF Type) may not be properly recognized.

• Only use Plug type connector products, as shown in the figure

below.

• To play USB MP3, the USB device must be connected to the

USB port in the front multibox. The USB port in the center con-

sole storage (if equipped) is for charging only.

Plug Type Connector

Product Name Manufacturer

XTICK LG

BMK BMK Technology

SKY-DRV Sky Digital

TRANSCEND JetFlash Transcend

Sandisk Cruzer SanDisk

Micro ZyRUS ZyRUS

NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

2-14 I Radio/Media

Supported USB MP3 music speciﬁ cations

Supported Image Speciﬁ cations

Name Description

MP3 File Specification

Recommended Bit Rates and Sampling Frequency

ID3 Tag

Detailed Specifications

Information

• The sound quality of MP3 files that use bitrates exceeding

192 Kbps cannot be guaranteed. When using ﬁ les without ﬁ xed bit rates, some features (FF/REW features) may not properly operate.

Specification: MPEG1 AUDIO LAYER 3

Acceptable sampling frequency: 32, 44.1, 48 (kHz)

Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (Kbps)

96, 128, 192 Kbps fixed bit rate/44.1kHz

Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3, ID3v2.4 ID3 tags

Maximum directory layers: 20 layers Maximum length of folder name/file name: 255Bytes Supported characters for folder name/file name: Alphanumeric characters, Korean standard character set 2,350 characters, Simplified Chinese 4888 characters Maximum number of folders which can be stored onto one USB: 2000 folders (including ROOT) Maximum number of files which can be stored onto one USB: 8000

Name Description

Image format

Supported image file size

JPG, GIF, BMP, PNG (animated GIF, etc. are not supported)

5M pixels for JPG, BMP, PNG (1M pixels maximum for GIF)

USB I 2-15

+ 101 hidden pages
