FM reception

JBM001

How vehicle audio works

AM and FM radio signals are broadcast from transmitter towers located around your city. They are intercepted by the radio antenna on your vehicle.This signal is then received by the radio and sent to your vehicle speakers.

When a strong radio signal has reached your vehicle, the precise engineering of your audio system ensures the best possible quality reproduction. However, in some cases the signal coming to your vehicle may not be strong and clear. This can be due to factors, such as the distance from the radio station, closeness of other strong radio stations or the presence of buildings, bridges or other large obstructions in the area.

AM reception

JBM002

AM broadcasts can be received at greater distances than FM broadcasts. This is because AM radio waves are transmitted at low frequencies. These long, low frequency radio waves can follow the curvature of the earth rather than travelling straight out into the atmosphere. In addition, they curve around obstructions so that they can provide better signal coverage.

FM radio station

JBM003

FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fade at short distances from the station. Also, FM signals are easily affected by buildings, mountains, or other obstructions. These can result in certain listening conditions which might lead you to believe a problem exists with your radio. The following conditions are normal and do not indicate radio trouble:

Features of your vehicle

ቍቋᆲ

JBM004

• Fading - As your vehicle moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station.

• Flutter/Static - Weak FM signals or large obstructions between the transmitter and your radio can disturb the signal causing static or fluttering noises to occur. Reducing the treble level may lessen this effect until the disturbance clears.

JBM005

• Station Swapping - As a FM signal weakens, another more powerful signal near the same frequency may begin to play. This is because your radio is designed to lock onto the clearest signal. If this occurs, select another station with a stronger signal.

• Multi-Path Cancellation - Radio signals being received from several directions can cause distortion or fluttering. This can be caused by a direct and reflected signal from the same station, or by signals from two stations with close frequencies. If this occurs, select another station until the condition has passed.

Using a cellular phone or a two-way radio

When a cellular phone is used inside the vehicle, noise may be produced from the audio system. This does not mean that something is wrong with the audio equipment. In such a case, use the cellular phone at a place as far as possible from the audio equipment.

CAUTION

When using a communication system such as a cellular phone or a radio set inside the vehicle, a separate external antenna must be fitted. When a cellular phone or a radio set is used with an internal antenna alone, it may interfere with the vehicle's electrical system and adversely affect safe operation of the vehicle.

WARNING

Do not use a cellular phone while driving. Stop at a safe location to use a cellular phone.

Features of your vehicle

WARNING

• Do not stare at the screen while driving. Staring at the screen for prolonged periods of time could lead to traffic accidents.

• Do not disassemble, assemble, or modify the audio system. Such acts could result in accidents, fire, or electric shock.

• Using the phone while driving may lead to a lack of attention of traffic conditions and increase the likelihood of accidents. Use the phone feature after parking the vehicle.

• Heed caution not to spill water or introduce foreign objects into the device. Such acts could lead to smoke, fire, or product malfunction.

• Please refrain from use if the screen is blank or no sound can be heard as these signs may indicate product malfunction. Continued use in such conditions could lead to accidents(fires, electric shock) or product malfunctions.

(Continued)

• Do not touch the antenna during thunder or lightening as such acts may lead to lightning induced electric shock.

• Do not stop or park in parkingrestricted areas to operate the product. Such acts could lead to traffic accidents.

• Use the system with the vehicle ignition turned on. Prolonged use with the ignition turned off could result in battery discharge.

CAUTION

• Operating the device while driving could lead to accidents due to a lack of attention to external surroundings. First park the vehicle before operating the device.

• Adjust the volume to levels that allow the driver to hear sounds from outside of the vehicle. Driving in a state where external sounds cannot be heard may lead to accidents.

• Pay attention to the volume setting when turning the device on. A sudden output of extreme volume upon turning the device on could lead to hearing impairment. (Adjust the volume to a suitable levels before turning off the device.)

• If you want to change the position of device installation, please inquire with your place of purchase or service maintenance center. Technical expertise is required to install or disassemble the device.

(Continued)

Features of your vehicle

(Continued)

• Turn on the car ignition before using this device. Do not operate the audio system for long periods of time with the ignition turned off as such operations may lead to battery discharge.

• Do not subject the device to severe shock or impact. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch screen.

• When cleaning the device, make sure to turn off the device and use a dry and smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, benzene, thinners, etc.) as such materials may damage the device panel or cause color/quality deterioration

• Do not place beverages close to the audio system. Spilling beverages may lead to system malfunction.

• In case of product malfunction, please contact your place of purchase or After Service center.

•

Placing the audio system within an electr may result in noise interference.

omagnetic environment

■

Features of your vehicle

CD Player (for RDS model) :

AM904DMEE, AM914DMEE

❋No logo will be shown if the

Bluetooth

Wireless Technology feature is not supported.

Features of your vehicle

SYSTEM CONTROLLERS AND FUNCTIONS

❈ Display and settings may differ

depending on the selected audio.

Audio Head Unit (for RDS,

Bluetooth

Technology equipped model)

Wireless

1. (EJECT)

• Ejects the disc.

RADIO

• Converts to Radio(FM/AM) mode.

• Each time the key is pressed,the mode is changed in order of FM1

➟ FM2 ➟

FMA ➟ AM ➟ AMA.

MEDIA

• Start Media mode

• Each time the key is pressed, the mode is changed in order of CD, USB(iPod) AUX, My Music, BT Audio.

PHONE

4. (for

Bluetooth

Wireless

Technology equipped model)

• Converts to Phone mode

❈ When a phone is not connected, the

connection screen is displayed.

5. PWR/VOL knob

• Power : Press to turn power on/off.

• Volume : Turn left/right to control volume.

SEEK

TRACK

• When pressed shortly(under 0.8 seconds)

- Radio mode : plays previous/next frequency.

- Media (CD/USB/iPod/My Music) modes : changes the track, Song(file)

• When pressed and held (0.8 seconds)

- Radio mode : continuously changes the frequency. Upon release, plays the

current frequency.

- Media(CD/USB/iPod/My Music) modes : rewinds or fast forwards the track or file

- During a Handsfree call, controls the call volume.

PTY

FOLDER

• RDS Radio mode : searches RDS program types.

• CD/USB/MP3 modes : searches folders.

SETUP

11. Converts to Setup mode.

12. TUNE knob

• Radio mode : turn to change broadcast frequencies.

• Media (CD/USB/iPod/My Music) modes : turn to search tracks/channels/files.

13. DISC-IN LED

Features of your vehicle

• Turns the monitor display on/off.

9. CLOCK Displays the time/date/day.

TA/SCAN

10.

• Radio Mode :

- Short key : TA On/Off

- Long key : previews all receivable broadcasts for 5 seconds each.

• Media (CD/USB/iPod/My Music) modes : previews each song (file) for 10 sec-

onds each.

• LED that indicates whether a disc is inserted.

14. RESET

• Forced system termination and system restart.

Features of your vehicle

Audio Head Unit

15.

•

Changes to FM mode.

•

Each time the key is pressed, the mode changed in order of FM1

16.

• Changes to AM mode.

• Each time the key is pressed, the mode changed in order of AM

➟

FM2➟ FMA.

➟ AMA.

MEDIA

17.

• Start Media mode

• Each time the key is pressed, the mode is changed in order of CD, USB(iPod), AUX, My Music.

■

Features of your vehicle

CD Player : AM900DMMG, AM910DMMG, AM911DMMG, AM901DMGG, AM910DMEE, AM911DMEE, AM910DMGL,

AM900DMMN, AM910DMMN, AM912DMEE, AM911DMGL

❋No logo will be shown if the

Bluetooth

Wireless Technology feature is not supported.

Features of your vehicle

SYSTEM CONTROLLERS AND FUNCTIONS

❈ Display and settings may differ

depending on the selected audio.

Audio Head Unit (for

Bluetooth

Technology equipped model)

Wireless

1. (EJECT)

• Ejects the disc.

RADIO

• Converts to Radio(FM/AM) mode.

• Each time the key is pressed,the mode is changed in order of FM1

MEDIA

➟FM2➟AM.

• Start Media mode

• Each time the key is pressed, the mode is changed in order of CD, USB(iPod) AUX, My Music, BT Audio.

PHONE

4. (for

Bluetooth

Wireless

Technology equipped model)

• Converts to Phone mode

❈ When a phone is not connected, the

connection screen is displayed.

5. PWR/VOL knob

• Power : Press to turn power on/off.

• Volume : Turn left/right to control volume.

SEEK

TRACK

• When pressed shortly(under 0.8 seconds)

- Radio mode : plays previous/next frequency.

- Media (CD/USB/iPod/My Music) modes : changes the track, Song(file)

• When pressed and held (0.8 seconds)

- Radio mode : continuously changes the frequency. Upon release, plays the

current frequency.

- Media(CD/USB/iPod/My Music) modes : rewinds or fast forwards the track or file

- During a Handsfree call, controls the call volume.

FOLDER

• CD/USB/MP3 modes : searches folders.

104

Features of your vehicle

DISP

• Turns the monitor display on/off.

9. CLOCK Displays the time/date/day.

SCAN

10.

• Radio Mode : previews all receivable broadcasts for 5 seconds each

• Media (CD/USB/iPod/My Music) modes : previews each song (file) for 10 sec-

onds each.

SETUP

11. Converts to Setup mode.

12. TUNE knob

• Radio mode : turn to change broadcast frequencies.

• Media (CD/USB/iPod/My Music) modes : turn to search tracks/channels/files.

13. DISC-IN LED

• LED that indicates whether a disc is inserted.

14. RESET

• Forced system termination and system restart.

Audio Head Unit

15.

•

Converts to FM mode.

•

Each time the key is pressed, the mode changed in order of FM1

16.

• Converts to AM mode.

MEDIA

17.

• Start Media mode

• Each time the key is pressed, the mode is changed in order of CD, USB(iPod), AUX, My Music.

➟

FM2.

411

Features of your vehicle

Steering remote controller

1. VOLUME

• Used to control volume.

2. MUTE

• Mutes audio volume.

3. SEEK

• When pressed shortly (under 0.8 seconds)

- Radio mode : searches broadcast frequencies saved to presets.

- Media(CD/USB/iPod/My Music/BT Audio) modes : changes the track, file or chapter.

• When pressed and held (over 0.8 seconds)

- Radio mode, automatically searches broadcast frequencies and channels

- Media(CD/USB/iPod/My Music) modes, rewinds or fast forwards the track or song(file)

- BT Audio mode may not be supported in some mobile phones.

4. MODE

• Each time this key is pressed, the mode is changed in order of FM1

➟

FMA➟AM➟AMA➟USB or iPod➟AUX

➟

My Music➟BT Audio

➟

FM2

• If the media is not connected or a disc is not inserted, corresponding modes will be disabled.

5. (if equipped)

• When pressed shortly (under 0.8 seconds)

- Starts voice recognition

- When selecting during a voice prompt, stops the prompt and converts to voice command waiting state

• When pressed and held (over 0.8 seconds)

- Ends voice recognition

• When pressed shortly (under 0.8 seconds)

- When pressed in the phone screen, displays call history screen

- When pressed in the dial screen, makes a call

- When pressed in the incoming call screen, answers the call

- When pressed during call waiting, switches to waiting call (Call Waiting)

• When pressed and held (over 0.8 seconds)

- When pressed in the

Bluetooth

Wireless Technology Handsfree wait

mode, redials the last call

- When pressed during a

Bluetooth

Wireless Technology Handsfree call,

switches call back to mobile phone (Private)

- When pressed while calling on the mobile phone, switches call back to

Bluetooth

Wireless Technology

Handsfree (Operates only when

Bluetooth

Wireless Technology

Handsfree is connected)

• Ends phone call

124

Features of your vehicle

RADIO MODE (for RDS model)

-AM904DMEE, AM914DMEE

Basic Mode Screen

1. Mode Display Displays currently operating mode

2. Frequency Displays the current frequency

3. Preset Displays current preset number [1] ~

[6]

4. Preset Display Displays saved presets

5. Autostore Automatically saves frequencies with

superior reception to Preset buttons

6. RDS Menu Displays the RDS Menu

7. RDS Info Displays RDS broadcast information

Switching to Radio Mode

Pressing the key will change

RADIO

the operating mode in order of FM1

➟

FM2➟FMA➟AM➟AMA.

Pressing the or key

AMFM

to change the operating mode in order of FM1

➟

FM2➟FMA and AM

AMA.

If [Pop-up Mode] is turned on within

SETUP

RADIO

up Mode screen. Turn the TUNE knob to move the

focus. Press the knob to select.

[Display], then pressing the

key will display the Radio Pop-

➟

413

Features of your vehicle

✽

Searching Radio Frequencies

Using Seek

Press the key to play the

SEEK

TRACK

previous/next frequency.

Using TUNE

Turn the TUNE knob to select the desired frequency.

• FM : Increases/decreased by 50kHz

• AM : Increases/decreased by 9kHz

Using Radio Mode

Selecting /Saving Presets

Press the ~ buttons to play

the desired preset.

Press the button to display the broadcast information for the frequency saved to each button.

NOTICE

While listening to a frequency you want to save as a preset, press and hold one of the [1] ~ [6] preset buttons (over 0.8 seconds) to save the current frequency to the selected preset.

Auto Store

Press the button to automatically save receivable frequencies to Preset buttons.

NOTICE

While Auto Store is operating, pressing the [Cancel] button again will cancel Auto Store and restore the previous frequency.

144

Features of your vehicle

✽

RDS Menu

Press the button to set the AF (Alternative Frequency), Region and News features.

Scan

Press and hold the key (over

TA/SCAN

0.8 seconds) to preview frequencies with superior reception for 5 seconds each.

NOTICE

Once scan is complete, the previous frequency will be restored.

NOTICE

The RDS Menu is not supported within AM or AMA mode.

While Scan is operating, pressing and holding the key (over 0.8 seconds) will cancel the scan operation.

TA/SCAN

415

Features of your vehicle

Program Type

Press the key to search for

PTY

FOLDER

the desired Program type.

Turn the TUNE knob left/right to search for the desired program type. Once you find the desired program type, press the TUNE knob.

After selecting the desired Program Type and while the Program Type is blinking (approximately 5 seconds), pressing the

SEEK

TRACK

different Program Type broadcast.

key will allow you to select a

TA (Traffic Announcement)

Press the key to turn the TA

TA/SCAN

(Traffic Announcement) feature On/Off.

164

Features of your vehicle

RADIO MODE

- AM900DMMG, AM910DMMG, AM911DMMG, AM901DMGG, AM910DMEE, AM911DMEE, AM910DMGL, AM900DMMN, AM910DMMN, AM912DMEE,

AM911DMGL

Basic Mode Screen

1. Mode Display Displays currently operating mode

2. Frequency Displays the current frequency

3. Preset Displays current preset number [1] ~

[6]

4. Preset Display Displays preset buttons

5. Autostore Automatically saves frequencies with

superior reception to Preset buttons

Switching to Radio Mode

Pressing the key will change

RADIO

the operating mode in order of FM1

➟

FM2➟AM

Press the or key to

AMFM

change the mode in order of FM1 FM2 and AM.

If [Mode Pop-up] is turned on within

SETUP

RADIO

up Mode screen.

Turn the TUNE knob to move the focus. Press the knob to select.

[Display], then pressing the

key will display the Radio Pop-

➟

417

Features of your vehicle

✽

Searching Radio Frequencies

Using Seek

Press the key to play the

SEEK

TRACK

previous/next frequency.

Using TUNE

Turn the TUNE knob to select the desired frequency.

• FM : Increases/decreased by 100kHz

• AM : Increases/decreased by 9kHz

Using Radio Mode

Selecting /Saving Presets

Press the button to display the broadcast information for the frequency saved to each button.

Press the ~ buttons to play the desired preset.

Preset

NOTICE

While listening to a frequency you want to save as a preset, press and hold one of the [1] ~ [6] preset buttons (over 0.8 seconds) to save the current frequency to the selected preset.

Auto Store

Press the button to automati-

A.store

cally save receivable frequencies to Preset buttons.

Scan

Press the key to preview fre-

SCAN

quencies with superior reception for 5 seconds each.

Press and hold the key (over

SCAN

0.8 seconds) to preview presets for 5 seconds each.

NOTICE

• Once scan is complete, the previous frequency will be restored.

• While Scan is operating, pressing the

ation.

key will cancel the scan oper-

SCAN

184

Features of your vehicle

✽

NOTICE - USING THE DISCS

• This device has been manufactured to be compatible with software bearing the following logo marks.

• Do not clean discs with chemical solutions, such as record sprays, antistatic sprays, antistatic liquids, benzene, or thinners.

• After using a disc, put the disc back in its original case to prevent disc scratches.

• Hold discs by their edges or within the center hole to prevent damages to disc surfaces.

• Do not introduce foreign substances into the disc insert/eject slot. Introducing foreign substances could damage the device interior.

• Do not insert two discs simultaneously.

• When using CD-R/CD-RW discs, differences in disc reading and playing times may occur depending on the disc manufacturer, production method and the recording method as used by the user.

• Clean fingerprints and dust off the disc surface (coated side) with a soft cloth.

(Continued)

• The use of CD-R/CD-RW discs attached with labels may result in disc slot jams or difficulties in disc removal. Such discs may also result in noise while playing.

• Some CD-R/CD-RW discs may not properly operate depending on the disc manufacturer, production method and the record method as used by the user. If problems persist, trying using a different CD as continued use may result in malfunctions.

• The performance of this product may differ depending on the CD-RW Drive Software.

• Copy-protected CDs such as S-type CDs may not function in the device. DATA discs cannot be played. (However, such discs may still operate but will do so abnormally.)

• Do not use abnormally shaped discs (8cm, heart-shaped, octagon-shaped) as such discs could lead to malfunctions.

• If the disc is straddled on the disc slot without removal for 10 seconds, the disc will automatically be re-inserted into the disc player.

(Continued)

• Only genuine audio CDs are supported. Other discs may result in recognition failure (e.g. copy CD-R, CDs with labels)

419

Features of your vehicle

MP3 File Information

• Supported Audio Formats

ISO 9660 Level 1

File System

Audio Compression

❈ File formats that do not comply with

the above formats may not be properly recognized or play without properly displaying file names or other information.

ISO 9660 Level 2 Romeo / Juliet (128 characters) MPEG1 Audio Layer3 MPEG2 Audio Layer3 MPEG2.5 Audio Layer3 Windows Media Audio Ver 7.X

& 8.X

• Support for Compressed Files

1. Supported Bitrates (Kbps)

MPEG1 MPEG2 MPEG2.5 WMA Layer3 Layer3 Layer3

32 8 8 48 40 16 16 64 48 24 24 80 56 32 32 96 64 40 40 128 80 48 48 160 96 56 56 192

112 64 64

BIT RATE(kbps)

128 80 80 160 96 96 192 112 112 224 128 128 256 144 144 320 160 160

High Range

2. Sampling Frequencies (Hz)

MPEG1 MPEG2 MPEG2.5 WMA

44100 22050 11025 32000 48000 24000 12000 44100

3000 16000 8000 48000

• For MP3/WMA compression files, differences in sound quality will occur depending on the bitrate. (Higher sound quality can be experienced with higher bitrates.)

• This device only recognizes files with MP3/WMA extensions. Other file extensions may not be properly recognized.

3. Maximum number of recognized fold-

ers and files

- Folder : 255 folders for CD, 2,000 folders for USB

- File : 999 files for CD, 6,000 files for USB

❈ There are no limitations to the number

of recognized folder levels

• Language Support (Unicode Support)

1. English: 94 characters

2. Special characters and Symbols : 986

characters

3. Special characters and Symbols : 986

characters

❈ Languages other than Korean and

English (including Chinese) are not included.

204

Features of your vehicle

4. Text Display (Based on Unicode)

- File name: Maximum 64 English characters

- Folder name: Max 32 English characters

❈ Using the scroll feature allows you to

see the entire name of files with names that are too long to be displayed at once.

•

Compatibility by Disc Type

1. Playing MIXED CDs: First plays the audio CD, then plays the compressed file(s).

2. Playing EXTRA CDs: First plays the audio CD, then plays the compressed file(s).

3. Playing multisession CDs: Plays in order of sessions

- MIXED CD : CD type in which both MP3 and audio CD files are recognized in one disc.

- Multisession CD CD type that includes more than two sessions. Different from Extra CDs, multisession CDs are recorded by sessions and have no media limitation.

•

Precautions upon Writing CDs

1. In all cases except when creating multisession discs, check the close session option before creating the disc. Though product malfunctions will not occur, some time may be required for the device to check whether the session state is closed (approximately 25 seconds). (Additional time may also be required depending on the number of folders or files.)

2. Changing the MP3/WMA file extensions or changing files of other extensions to MP3/WMA may result in product malfunction.

3. When naming files with MP3/WMA file extensions, write using only Korean and English. (Languages other than Korean and English are not supported and are displayed as blank.)

4. Unauthorized use or duplication of music files are prohibited by law.

5. Prolonged use of CD-R/CD-RW discs that do not satisfy related standards and/or specifications could result in product malfunction.

6. Unauthorized use or duplication of MP3/WMA files is prohibited by law.

421

Features of your vehicle

✽

MEDIA MODE

- AM910DMMG, AM911DMMG, AM912DMEE, AM910DMMN, AM914DMEE,

Switching to Media Mode (for

Bluetooth

Technology equipped model)

Pressing the key will change the operating mode in order of

➟

USB(iPod)➟AUX➟My Music

CD BT Audio.

If [Pop-up Mode] / [Mode Pop-up] is turned on within [Display], then pressing the key will display the Media Pop-up Mode screen.

Turn the TUNE knob to move the focus. Press the knob to select.

AM911DMGL

Wireless

MEDIA

SETUP

MEDIA

MEDIA MODE

- AM900DMMG, AM901DMMG, AM910DMEE, AM911DMEE, AM910DMGL, AM900DMMN, AM904DMEE

Switching to Media Mode

Pressing the key will change the operating mode in order of CD

➟

USB(iPod)➟AUX➟My Music.

➟

If [Pop-up Mode] / [Mode Pop-up] is turned on within [Display], then pressing the key will display the Media Pop-up Mode screen.

Turn the TUNE knob to move the focus. Press the knob to select.

MEDIA

SETUP

MEDIA

NOTICE

• The media mode pop up screen can be displayed only when there are two or more media modes turned on.

Title Icon

When a

Bluetooth

Technology, iPod, USB, or AUX

device is connected or a CD is inserted, the corresponding mode icon will be displayed.

Icon Title

Bluetooth

CD iPod USB AUX

Wireless

Wireless Technology

224

Features of your vehicle

AUDIO CD MODE

Basic Mode Screen

1. Mode Displays currently operating mode

2. Operation State From Repeat/Random(Shuffle)/ Scan,

displays the currently operating function

3. Track Info Displays information about the cur-

rent track

4. Play/Pause Changes the play/pause state

5. Play Time Displays the current play time

6. Info Shows detailed information about

the current track

7. Random(Shuffle)

Turns the Random(Shuffle) feature on/off

8. Repeat

Turns the Repeat feature on/off

9. List

Moves to the list screen

423

Features of your vehicle

✽

Using Audio CD Mode

Playing/Pausing CD Tracks

Once an audio CD is inserted, the mode will automatically start and begin playing.

While playing, press the button to pause and press button to play.

NOTICE

• Only genuine audio CDs are supported. Other discs may result in recognition failure (e.g. copy CD-R, CDs with labels)

• The artist and title information are displayed on the screen if track information is included within the audio CD.

Changing Tracks

Press the key to move to the previous or next track.

NOTICE

• Pressing the key after the track has been playing for 3 seconds will start the current track from the beginning.

• Pressing the key before the track has been playing for 3 seconds will start the previous track.

Selecting from the List

Turn the TUNE knob left/right to search for the desired track.

SEEK

TRACK

SEEK

TRACK

SEEK

Once you find the desired track, press the TUNE knob to start playing.

Rewinding / Fast-forwarding Tracks

While playing, press and hold the

SEEK

TRACK

key (over 0.8 seconds) to rewind or fast-forward the current track.

Scan(for RDS model)

Press and hold the key (over

TA/SCAN

0.8 seconds) to play the first 10 seconds of each track.

Scan

Press the key to play the first

SCAN

10 seconds of each file.

244

Features of your vehicle

Audio CD Mode Menu

Within this mode, you will have access to the Info, Random(Shuffle), Repeat and List features.

Info

Press the ( )button to dis-

Info

play details about the current disc.

Random(Shuffle)

Press the ( )button to play

Shuffle

tracks in random(Shuffle) order.

Press the button again to turn the

Random(Shuffle) feature off.

• Random(Shuffle): Plays all tracks in random(Shuffle) order.

Repeat

Press the ( )button to

Repeat

repeat the current track. Press the button again to turn the repeat feature off.

• Repeat: Repeats the current track.

List

Press the ( )button to dis-

List

play the track list screen.

Turn the TUNE knob left/right to search for tracks. Once the desired track is displayed, press the knob to select and play.

425

Features of your vehicle

MP3 CD MODE

Basic Mode Screen

1. Mode

Displays currently operating mode.

2. Operation State

From Repeat/Random(Shuffle)/ Scan, displays the currently operating function

3. File Index

Displays the current file number

4. File Info

Displays information about the current file

5. Play/Pause

Changes the play/pause state

6. Play Time

Displays the current play time

7. Info

Shows detailed information about the current file

8. Random(Shuffle) Turns the Random(Shuffle) feature

on/off

9. Repeat Turns the Repeat feature on/off

10. Copy Copies the current file into My Music

11. List Moves to the list screen

264

Features of your vehicle

✽

Using MP3 CD Mode

Playing/Pausing MP3 Files

Once an MP3 disc is inserted the mode will automatically start and being playing.

While playing, press the button to pause and press button to play.

NOTICE

• If there are numerous files and folders within the disc, reading time could take more than 10 seconds and the list may not be displayed or song searches may not operate. Once loading is complete, try again.

Changing Files

Press the key to move to the previous or next file.

NOTICE

• Pressing the key after the file has been playing for 3 seconds will start the current file from the beginning.

• Pressing the key before the file has been playing for 3 seconds will start the previous file.

Selecting from the List

Turn the TUNE knob left/right to search for the desired file.

SEEK

TRACK

SEEK

TRACK

SEEK

Once you find the desired file, press the

TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

SEEK

TRACK

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan(for RDS model)

Press and hold the key (over

TA/SCAN

0.8 seconds) to play the first 10 seconds of each file.

Scan

Press the key to play the first

SCAN

10 seconds of each file.

427

Features of your vehicle

✽

Searching Folders

Press the

PTY

FOLDER

(

FOLDER

key to select and search folders.

Once the desired folder is displayed, press the TUNE knob to select.

The first file within the selected folder will begin playing.

MP3 CD Mode Menu

)

Within this mode, you will have access to the Info, Random(Shuffle), Repeat, Copy and List features.

Info

Press the ( )button to display details about the current file.

Info

NOTICE

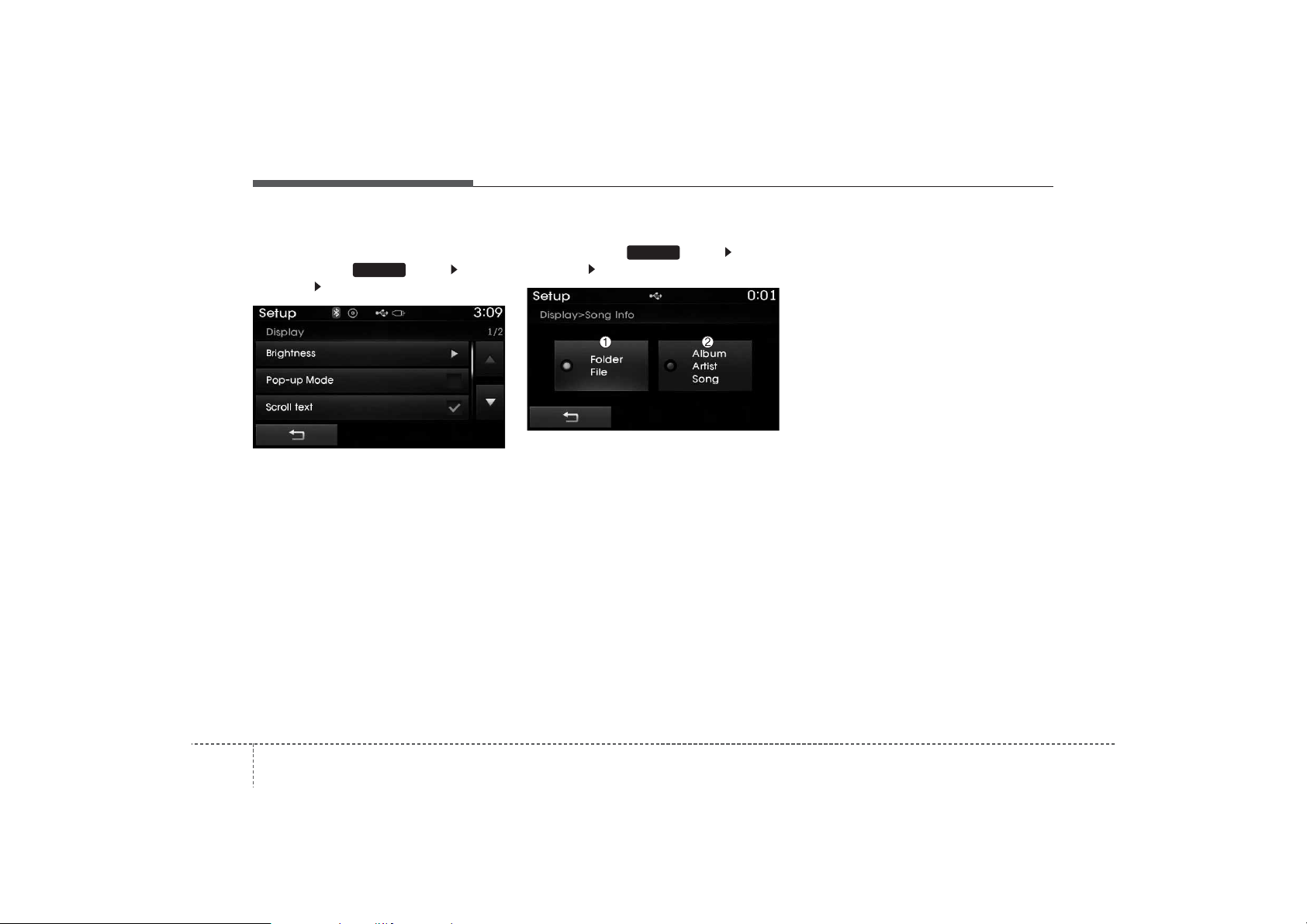

• When the ‘Folder File’ option is set as the default display within Display setup, the album/artist/file information are displayed as detailed file information.

• When the ‘Album Artist Song’ option is set as the default display, the folder name/file name are displayed as detailed file information.

• The title, artist and album info are displayed only when such information are recorded within the MP3 file ID3 tag.

Random(Shuffle)

Press the ( )button to play files in random(Shuffle) order.

Each time the button is pressed, the feature changes in order of Random (Shuffle) Folder Off.

• Random(Shuffle) Folder : Plays all files within the current folder in Random (Shuffle) order.

• Random(Shuffle) All : Plays all files in Random(Shuffle) order.

Shuffle

➟ Random (Shuffle) All➟

284

Features of your vehicle

✽

Repeat

Press the ( )button to

Repeat

repeat the current file or folder.

Each time the button is pressed, the feature changes in order of Repeat Folder

➟Off.

• Repeat: Repeats the current file.

• Repeat Folder: Repeats all files within the current Folder.

Copying Files

Press the ( )button to

Copy

➟Repeat

copy the current file into My Music.

NOTICE

List

Press the ( )button to dis-

List

play the file list screen.

Turn the TUNE knob left/right to search for files. Once the desired file is displayed, press the knob to select and play.

Selecting another feature during copying will display a pop-up asking whether you wish to cancel copying. To cancel, select 'Yes’.

429

Features of your vehicle

✽

NOTICE - USING THE USB DEVICE

• Connect the USB device after turn-

ing on the engine. The USB device may become damaged if it is already connected when the ignition is turned on.The USB device may not operate properly if the car ignition is turned on or off with the USB device connected.

• Heed caution to static electricity

when connecting/disconnecting USB devices.

• Encoded MP3 Players will not be

recognized when connected as an external device.

• When connecting an external USB

device, the device may not properly recognize the USB is in some states.

• Only products formatted with

byte/sectors under 64Kbyte will be recognized.

• This device recognizes USB devices

formatted in FAT 12/16/32 file formats. This device does not recognize files in NTFS file format.

• Some USB devices may not be sup-

ported due to compatibility issues.

(Continued)

• Avoid contact between the USB connector with bodily parts or foreign objects.

• Repeated connecting/disconnecting of USB devices within short periods of time may result in product malfunction.

• A strange noise may occur when disconnecting the USB.

• Make sure to connect/disconnect external USB devices with the audio power turned off.

• The amount of time required to recognize the USB device may differ depending on the type, size or file formats stored in the USB. Such differences in time are not indications of malfunctions.

• The device only supports USB devices used to play music files.

• USB images and videos are not supported.

• Do not use the USB I/F to charge batteries or USB accessories that generate heat. Such acts may lead to worsened performance or damage to the device.

(Continued)

• The device may not recognize the USB device if separately purchased USB hubs and extension cables are being used. Connect the USB directly with the multimedia terminal of the vehicle.

• When using mass storage USB devices with separate logical drives, only files saved to the root drive can be played.

• Files may not properly operate if application programs are installed to the USBs.

• The device may not operate normally if MP3 Players, cellular phones, digital cameras, or other electronic devices (USB devices not recognized as portable disk drives) are connected with the device.

• Charging through the USB may not work for some mobile devices.

• The device may not support normal operation when using a USB memory type besides (Metal Cover Type) USB Memory.

• The device may not support normal operation when using formats such as HDD Type, CF, or SD Memory.

(Continued)

304

(Continued)

• The device will not support files locked by DRM (Digital Rights Management.)

• USB memory sticks used by connecting an Adaptor (SD Type or CF Type) may not be properly recognized.

• The device may not operate properly when using USB HDDs or USBs subject to connection failures caused by vehicle vibrations. (e.g. istick type)

• Avoid use of USB memory products that can also be used as key chains or mobile phone accessories. Use of such products may cause damage to the USB jack.

• Connecting an MP3 device or phone through various channels, such as AUX/BT or Audio/USB mode may result in pop noises or abnormal operation.

Features of your vehicle

431

Features of your vehicle

USB MODE

Basic Mode Screen

1. Mode Displays currently operating mode

2. Operation State From Repeat/Random(Shuffle)/

Scan, displays the currently operating function

3. File Index Displays the current file number

4. File Info Displays information about the current file

5. Play/Pause Changes the play/pause state

6. Play Time Displays the current play time

7. Info Displays detailed information for the

current file

8. Random(Shuffle) Turns the Random(Shuffle) feature

on/off

9. Repeat Turns the Repeat feature on/off

10. Copy Copies the current file into My Music

11. List Moves to the list screen

324

Features of your vehicle

✽

Using USB Mode

Playing/Pausing USB Files

Once a USB is connected, the mode will automatically start and begin playing a USB file.

While playing, press the button to pause and press button to play.

NOTICE

• Loading may require additional time if there are many files and folders within the USB and result in faulty list display or file searching. Normal operations will resume once loading is complete.

• The device may not support normal operation when using a USB memory type besides (Metal Cover Type) USB Memory.

Changing Files

Press the keys to move to the previous or next file.

NOTICE

• Pressing the key after the file has been playing for 3 seconds will start the current file from the beginning.

• Pressing the key before the file has been playing for 3 seconds will start the previous file.

Selecting from the List

Turn the TUNE knob left/right to search for the desired file.

SEEK

TRACK

SEEK

TRACK

SEEK

Once you find the desired file, press the

TUNE knob to start playing.

Rewinding / Fast-forwarding Files

While playing, press and hold the

SEEK

TRACK

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan(for RDS model)

Press and hold the key (over

TA/SCAN

0.8 seconds) to play the first 10 seconds of each file.

Scan

Press the key to play the first

SCAN

10 seconds of each file.

433

Features of your vehicle

✽

Searching Folders

Press the

PTY

FOLDER

(

FOLDER

)key

to select and search folders.

Once the desired folder is displayed, press the TUNE knob to select.

The first file within the selected folder will begin playing.

USB Mode Menu

Within this mode, you will have access to the Info, Random(Shuffle), Repeat, Copy and List features.

Info

Press the ( )button to display details about the current file.

Info

NOTICE

• When the ‘Folder File’ option is set as the default display within Display setup, the album/artist/file information are displayed as detailed file information.

• When the ‘Album Artist Song’ option is set as the default display, the folder name/file name are displayed as detailed file information.

• The title, artist and album info are displayed only when such information are recorded within the MP3 file ID3 tag.

Random(Shuffle)

Press the ( )button to play files in random(Shuffle) order.

Each time the button is pressed, the feature changes in order of Random(Shuffle) Folder (Shuffle) All➟Off.

• Random(Shuffle) Folder : Plays the files in the current folder in random(Shuffle) order.

• Random(Shuffle) All : Plays all files in random(Shuffle) order.

Shuffle

➟Random

344

Features of your vehicle

✽

Repeat

Press the ( )button to

Repeat

repeat the current file or folder.

List

Press the ( )button to dis-

List

play the file list screen.

Each time the button is pressed, the feature changes in order of Repeat

➟

Repeat Folder ➟ Off.

• Repeat (Icon) : Repeats the current

file.

• Repeat Folder (Icon) : Repeats all

files within the current folder.

Copying Files

Press the ( )button to copy the current file into My Music.

Copy

Turn the TUNE knob left/right to search for files. Once the desired file is displayed, press the knob to select

NOTICE

Selecting another feature during copying will display a pop-up asking whether you wish to cancel copying. To cancel, select 'Yes’.

and play.

435

Features of your vehicle

✽

NOTICE - USING THE

iPod

DEVICE

• iPod®is a registered trademark of Apple Inc.

• In order to use the iPod while operating the keys, you must use a dedicated iPod cable. (the cable that is supplied when purchasing iPod/iPhone products)

• If the iPod is connected to the vehicle while it is playing, a high pitch sound could occur for approximately 1-2 seconds immediately after connecting. If possible, connect the iPod to the vehicle with the iPod stopped/paused.

• During ACC ON state, connecting the iPod through the iPod cable will charge the iPod through the car audio system.

• When connecting with the iPod cable, make sure to fully insert the jack to prevent communication interference.

(Continued)

• When the EQ features of an external device, such as the iPod, and the audio system are both active, EQ effects could overlap and cause sound deterioration and distortion. Whenever possible, turn off the EQ feature within the external device upon use by connecting with the audio system.

• Noise may occur when an iPod or AUX device is connected. When such devices are not being used, disconnect the device for storage.

• When the iPod or AUX device power is connected to the power jack, playing the external device may result in noise. In such cases, disconnect the power connection before use.

• Skipping or improper operation may occur depending on the characteristics of your iPod/Phone device.

• If your iPhone is connected to both the Bluetooth

Wireless Technology and USB, the sound may not be properly played. In your iPhone, select the Dock connector or Bluetooth

Wireless

(Continued)

• iPod mode cannot be operated when the iPod cannot be recognized due to the playing of versions that do not support communication protocols, cases of iPod abnormalities and defects.

• For fifth generation iPod Nano devices, the iPod may not be recognized when the battery level is low. Please charge the iPod for use.

• Search/play orders shown within the iPod device may differ with the orders shown within the audio system.

• If the iPod malfunctions due to an iPod device defect, reset the iPod and try again. (To learn more, refer to your iPod manual)

• Some iPods may not sync with the System depending on its version. If the Media is removed before the Media is recognized, then the system may not properly restore the previously operated mode. (iPad charging is not supported.)

Technology to change the sound output (source).

(Continued)

364

Features of your vehicle

iPod MODE

Basic Mode Screen

1. Mode Displays currently operating mode

2. Operation State From Repeat/Random(Shuffle), dis-

plays the currently operating function

3. Song Index Displays the current song/total num-

ber of songs

4. Song Info Displays information about the cur-

rent song

5. Play/Pause Changes the play/pause state

6. Play Time Displays the current play time

7. Random(Shuffle) Turns the Random(Shuffle) feature

on/off

8. Repeat Turns the Repeat feature on/off

9. List Moves to the list screen

437

Features of your vehicle

✽

Using iPod Mode

Playing/Pausing iPod Songs

Once an iPod is connected, the mode will automatically start and begin playing an iPod song.

While playing, press the button to pause and press button to play.

NOTICE

• iPods with unsupported communication protocols may not properly operate in the audio system.

Changing Songs

Press the key to move to the previous or next song.

NOTICE

• Pressing the key after the song has been playing for 3 seconds will start the current song from the beginning.

• Pressing the key before the song has been playing for 3 seconds will start the previous song.

• Slight time differences may exist depending your iPod product.

Rewinding / Fast-forwarding Songs

While playing, press and hold the

SEEK

TRACK

rewind or fast-forward the current song.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

key (over 0.8 seconds) to

Searching Categories

Turn the TUNE knob left/right to search for the desired category.

Once you find the desired category, press the TUNE knob to select and play.

384

Features of your vehicle

✽

NOTICE

There are eight categories that can be searched, including Playlists, Artists, Albums, Genres, Songs, Composers, Audiobooks and Podcasts.

Category Menu

Within the iPod Category menu, you will have access to the , Home, and features.

1. : Displays the play screen

2. Home : Moves to the iPod root category

screen

3. : Moves to the previous category

NOTICE

• If the search mode is accessed while playing a song, the most recently searched category is displayed.

• Search steps upon initial connection may differ depending on the type of iPod device.

439

Features of your vehicle

iPod Mode Menu

Within this mode, you will have access to the Random(Shuffle), Repeat and List features.

Random(Shuffle)

Press the ( )button to

Shuffle

play songs in random(Shuffle) order. Each time the button is pressed, the

feature changes in order of Random(Shuffle) Album

➟Random

(Shuffle) All➟Off.

• Random(Shuffle) Album : Shuffle Album plays album in Random(Shuffle) order.

• Random(Shuffle) All : Plays all songs in Random(Shuffle) order.

Repeat

Press the ( )button to

Repeat

repeat the current song. Press the button again to turn the repeat feature off.

• Repeat : Repeats the current song

List

Press the ( )button to dis-

List

play the Category Menu.

Turn the TUNE knob left/right to search for the desired category.

Once you find the desired category, press the TUNE knob to select and play.

404

Features of your vehicle

✽

AUX MODE

Using AUX Mode

Press the key Select [AUX]

MEDIA

An external device can be connected to play music.

Connecting an External Device

External audio players (Camcorders, car VCR, etc.) can be played through a dedicated cable.

NOTICE

• If an external device connector is con-

nected with the AUX terminal, then AUX mode will automatically operate. Once the connector is disconnected, the previous mode will be restored.

• AUX mode can be used only when an

external audio player (camcorder, car VCR, etc.) has been connected.

• The AUX volume can be controlled

separately from other audio modes.

• Connecting a connector jack to the

AUX terminal without an external device will convert the system to AUX mode, but only output noise. When an external device is not being used, also remove the connector jack.

• When the external device power is

connected to the power jack, playing the external device may output noise. In such cases, disconnect the power connection before use.

• Fully insert the AUX cable to the AUX

jack upon use.

441

Features of your vehicle

MY MUSIC MODE

Basic Mode Screen

1. Mode

Displays currently operating mode

2. Operation State

From Repeat/Random(Shuffle)/ Scan, displays the currently operating function

3. File Index

Displays the current file/total number of files

4. File Info

Displays information about the current file

5. Play/Pause

Changes the play/pause state

6. Play Time

Displays the current play time

current file

8. Random(Shuffle) Turns the Random(Shuffle) feature

on/off

9. Repeat Turns the Repeat feature on/off

10. Delete Deletes the current file

11. List Moves to the list screen

7. Info

Displays detailed information for the

424

Features of your vehicle

✽

Using My Music Mode

Playing/Pausing My Music Files

While playing, press the button to pause and press button to play.

NOTICE

If there are no files saved within My Music, the [My Music] button will be disabled.

Changing Files

Press the key to move to the previous or next file.

NOTICE

• Pressing the key after the file has been playing for 3 seconds will start the current file from the beginning.

• Pressing the key before the file has been playing for 3 seconds will start the previous file.

SEEK

TRACK

SEEK

TRACK

SEEK

Selecting from the List

Turn the TUNE knob left/right to search for the desired file.

Once you find the desired file, press the

TUNE knob to start playing.

443

Features of your vehicle

✽

Rewinding / Fast-forwarding Files

While playing, press and hold the

SEEK

TRACK

key (over 0.8 seconds) to

rewind or fast-forward the current file.

Scan(for RDS model)

Press and hold the key (over

TA/SCAN

0.8 seconds) to play the first 10 seconds of each file.

Scan

Press the key to play the first

SCAN

10 seconds of each file.

My Music Mode Menu

Within this mode, you will have access to the Info, Random(Shuffle), Repeat, Delete and List features.

Info

Press the ( )button to dis-

Info

play details about the current file.

NOTICE

The title, artist and album info are displayed only when such information is recorded within the MP3 file ID3 tag.

Random

Press the ( )button to play files in random order. Press the button again to turn the Random feature off.

Repeat

Press the ( )button to repeat the current song. Press the button again to turn the repeat feature off.

Deleting Files

Press the ( )button to delete the current file.

Shuffle

Repeat

Delete

444

Features of your vehicle

✽

List

Press the ( )button to dis-

List

play the file list screen.

Turn the TUNE knob left/right to search for files. Once the desired file is displayed, press the knob to select and play.

List Menu

From the List screen, it is possible to delete files you previously saved into My Music.

Press the ( )button or individually select the files you want to delete. Once files are selected, the

( )button and

Unselect All

( )buttons will be enabled.

Delete

1) : Moves to the previous screen

2) Sellect All: Selects all files

3) Unsellet All: Deselects all selected files

4) Delete: Deletes selected files

After selecting the files you want to delete, press the to delete the selected files.

Select All

( )button

Delete

NOTICE

• If there is memory available, up to

6,000 files can be saved.

• Identical files cannot be copied more

than 1,000 times.

• To check memory information, go to

SETUP

Information]

[System] [Memory

445

Features of your vehicle

✽

NOTICE - USING THE

Bluetooth

Wireless

Technology Audio Mode

• Bluetooth Audio Mode can be used only when a

Bluetooth

phone has been connected.

• Bluetooth Audio Mode will not be available when connecting mobile phones that do not support this feature.

• While Bluetooth Technology Audio is playing, if the

Bluetooth

phone is connected, then the music

Wireless Technology

Wireless

Bluetooth

Technology AUDIO MODE

(for

Technology equipped model)

Using Technology Audio Mode

Playing/Pausing Bluetooth

Technology

Once a device is connected, the mode will automatically start.

will also stop.

• Moving the Track up/down while playing Bluetooth

Wireless Technology audio mode may result in pop noises in some mobile phones.

• Bluetooth

Wireless Technology streaming audio may not be supported in some mobile phones.

• When returning to Bluetooth

Wireless

Bluetooth

Audio

Bluetooth

Wireless

Wireless Technology

NOTICE

The play/pause feature may operate differently depending on the mobile phone.

Changing Files

Press the key to move to the previous or next file.

Setting Connection

If a

Bluetooth

device has not been connected, press

SETUP

the key [Phone] button to display the Technology connection screen.

It is possible to use the pair phone, connect/disconnect and delete features from your

Bluetooth

phone.

SEEK

TRACK

Wireless Technology

Bluetooth

Wireless

Wireless Technology

Wireless Technology Audio mode after ending a call, the mode may not automatically restart in some mobile phones.

While playing, press the button to pause and press button to play.

• Receiving an incoming call or making an outgoing call while playing

Bluetooth

Wireless Technology Audio

may result in audio interference.

464

Features of your vehicle

✽

NOTICE

• If the Bluetooth®Wireless Technology audio is not operating properly, check whether the feature is turned off at

SETUP

ing] (Streaming Audio). If the feature is off, turn back on and try again.

• If music is not yet playing from your mobile device after converting to

Bluetooth

Audio mode, pressing the play button once may start playing the mode. Check to see that music is playing from the Bluetooth Technology device after converting to

Bluetooth

Audio Mode.

[Phone] [Audio stream-

Wireless Technology

Wireless

Wireless Technology

447

Features of your vehicle

Bluetooth

(for RDS,

Wireless Technology

Bluetooth

Wireless

Technology equipped model)

Using

Bluetooth

Wireless

Technology Handsfree

•

Bluetooth

Wireless Technology

refers to a short-distance wireless networking technology which uses a

2.45GHz frequency to connect various devices within a certain distance.

• Supported within PCs, external

devices,

Bluetooth

Wireless Technology phones, PDAs, various

electronic devices, and automotive environments,

Bluetooth

Wireless Technology allows data to be transmitted at high speeds without having to use a connector cable.

•

Bluetooth

Wireless Technology

Handsfree refers to a device which allows the user to conveniently make phone calls with

Bluetooth

Wireless Technology mobile phones through the audio system.

CAUTION

• Bluetooth®Wireless Technology

Handsfree is a feature that

les drivers to practice safe

enab driving. Connecting the system with a Bluetooth

Wireless Technology phone

allo

ws the user to conveniently make calls, receive calls, and manage the phone book. Before using the

Technology , carefully read the

contents of this user’

• Excessive use or operations while driving may lead to negligent driving practices and be the cause of accidents.

• Do not operate the device excessively while driving.

• Viewing the screen for prolonged periods of time is dangerous and may lead to accidents. When driving, view the screen only for short periods of time.

Bluetooth

car audio

Wireless

s manual.

484

Features of your vehicle

✽

NOTICE - USING UPON CONNECTING

Bluetooth

Wireless Technology PHONE

• Before connecting the car audio system with the mobile phone, check to see that the mobile phone supports Bluetooth Wireless Technology features.

• Even if the phone supports Bluetooth Wireless Technology, the phone will not be found during device searches if the phone has been set to hidden state or the Bluetooth

Wireless Technology power is turned off. Disable the hidden state or turn on the Bluetooth Wireless Technology power prior to searching/connecting with the car audio system.

• If you do not want to automatically connect your Bluetooth Technology phone, try the following.

1. Turn off the Bluetooth

Wireless

Wireless Technology feature in your mobile phone.

- For more information on Bluetooth Wireless Technology features within your mobile, refer to your mobile phone user’s manual.

2. Turn off the Bluetooth

Wireless

Technology feature in your car

(Continued)

- To turn off the Bluetooth

Technology feature in your car audio system, go to > [Phone] and [turn off] the Bluetooth

Technology feature.

• Park the vehicle when connecting the car audio system with your mobile phone.

• Bluetooth

SETUP

Wireless Technology con-

nection may become intermittently disconnected in some mobile phones. Follow these steps to try again.

1. Turn the Bluetooth

Technology function within the

mobile phone off/on and try again.

2. Turn the mobile phone power

Off/On and try again.

3 Completely remove the mobile

phone battery, reboot, and then again.

4. Reboot the audio system and try

again.

5. Delete all paired devices, pair and

try again.

• The Handsfree call volume and quality may differ depending on the mobile phone.

(Continued)

Wireless

audio system.

(Continued)

• Bluetooth

Wireless Technology features supported within the vehicle are as follows. Some features may not be supported depending on your

Bluetooth

Wireless Technologydevice.

- Answering and placing Bluetooth

Wireless Technology Handsfree calls

- Menu operation during call (Switch

to Private, Switch to call waiting, Outgoing volume)

- Download Call History

- Download Mobile Phone book

- Phone book/Call History Auto Download

- Bluetooth

Wireless Technology device auto connection - Bluetooth Wireless Technology Audio

• It is possible to pair up to five

Bluetooth

devices to the car system.

• Only one Bluetooth

Wireless Technology

Wireless Technology device can be connected at a time.

• Other devices cannot be paired while a

Bluetooth

is already connected.

• When a Bluetooth

Wireless Technologydevice

Wireless Technology device is being connected, the connection process cannot be canceled.

(Continued)

449

Features of your vehicle

(Continued)

• Only Bluetooth Handsfree and Bluetooth

Wireless Technology

Wireless Technology audio related features will operate within this system.

• Normal operation is possible only for devices that support Handsfree or audio features, such as a Bluetooth Wireless Technology mobile phone or a Bluetooth

Wireless Technology

audio device.

• Only one function can be used at a time between the Bluetooth

Wireless Technology Handsfree and Bluetooth Wireless Technology audio. (While playing Bluetooth audio, streaming will end upon entering the Bluetooth phone screen.)

• If a connected Bluetooth

Wireless Technology

Wireless Technology device becomes disconnected for various reasons, such as being out of range, turning the device OFF, or a Bluetooth Technology communication error,

Bluetooth

Wireless Technology

Wireless

devices are automatically searched and connected.

• Placing the audio system within an electromagnetic environment may result in noise interference.

Pairing a

Bluetooth

Wireless Technology wireless technology Device

What is Technology Pairing?

Pairing refers to the process of syn-

Bluetooth

chronizing your

Wireless

Bluetooth

Technology phone or device with the car audio system for connection. Pairing is necessary to connect and

use the

Bluetooth

Technology feature.

Wireless

Pairing Key / Key on

PHONE

the Steering Remote Controller

When No Devices have been Paired

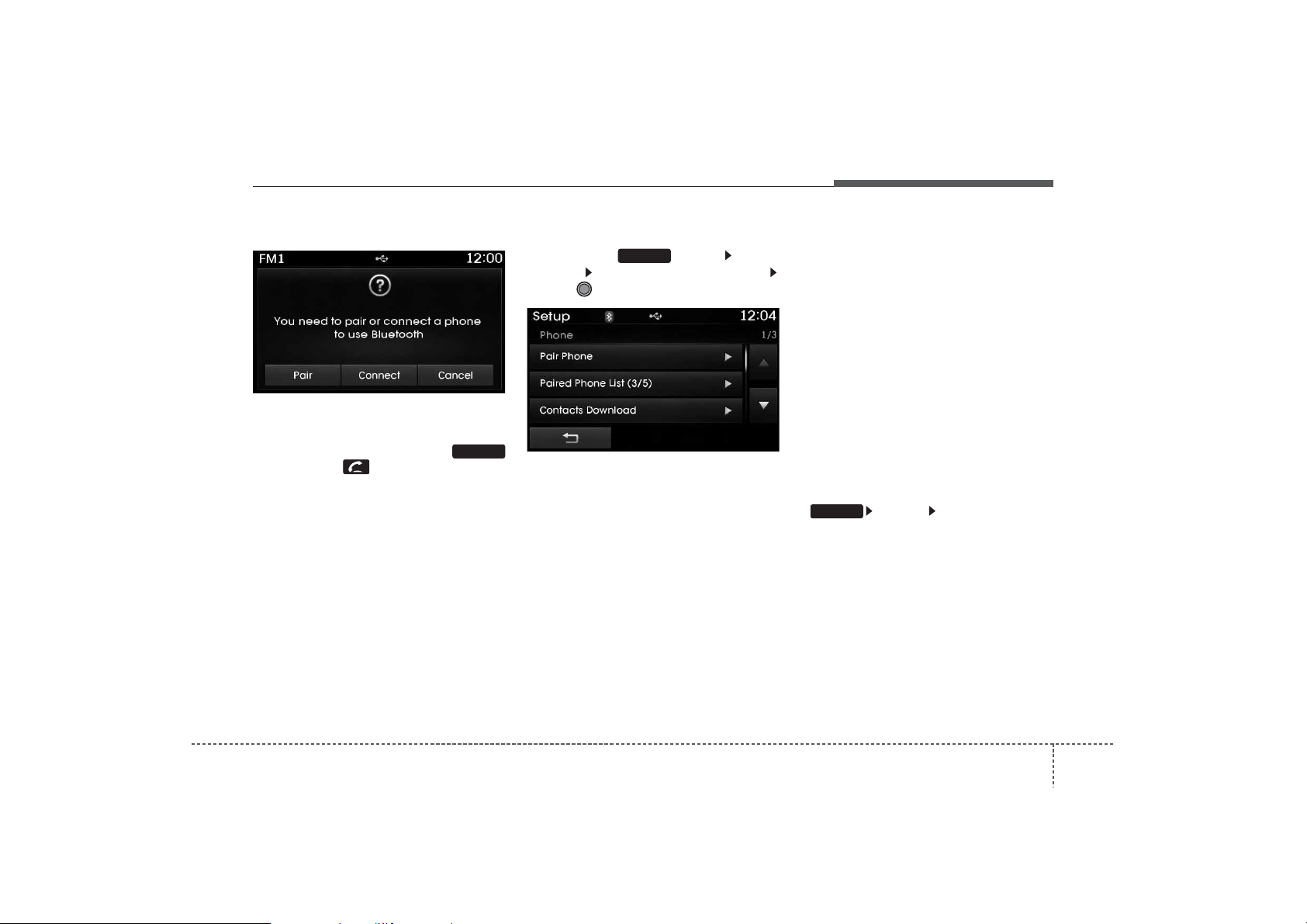

1. Press the key or the

PHONE

key on the steering remote controller. The following screen is displayed.

2. Press the button to enter the Pair Phone screen.

504

Features of your vehicle

✽

1) Device : Name of device as shown when searching from your Wireless Technology device

2) Passkey : Passkey used to pair the device

3. From your Technology device (i.e. Mobile Phone), search and select your

Bluetooth

Wireless

car audio system.

4. After a few moments, a screen is displayed where the passkey is entered. Here, enter the passkey “0000” to pair your

Bluetooth

Wireless Technology device with the car audio system.

5. Once pairing is complete, the following screen is displayed.

NOTICE

• If Bluetooth®Wireless Technology devices are paired but none are currently connected, pressing the key or the key on the steering remote controller displays the following screen. Press the [Pair] button to pair a new device or press the [Connect] to connect a previously pair device.

PHONE

Pairing through [PHONE] Setup

Press the key Select

SETUP

[Phone] Select [Pair Phone] Select TUNE knob

1. The following steps are the same as the steps described in the “When No Devices have been Paired” section.

451

Features of your vehicle

✽

NOTICE

• The waiting period during phone pairing will last for one minute. The pairing process will fail if the device is not

Connecting a Device

Press the key Select

SETUP

[Phone] Select [Paired Phone List]

From the paired phone list, select the device you want to connect and press the button.

paired within the given time. If the pairing process fails, you must start the process from the beginning.

• Generally, most Bluetooth Technology devices will automatically connect once pairing is complete.

Wireless

However, some devices may require a separate verification process to connect. Check to see whether Bluetooth

Wireless Technology has been properly connected within your mobile phone.

• List of paired Bluetooth

Wireless

Technology devices can be viewed at

SETUP

[Phone] [Paired Phone

1) Connected Phone : Device that is currently connected

2) Paired Phone : Device that is paired but not connected

List].

524

Features of your vehicle

✽

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth

Wireless Technology devices with the car audio system. As a result, the “Change Priority’ feature is used to set the connection priority of paired phones. However, the most recently connected phone will always be set as the highest priority.

Press the key Select [Phone]

Select [Paired Phone List]

SETUP

From the paired phone list, select the phone you want to change to the highest priority, then press the button from the Menu. The selected device will be changed to the highest priority.

NOTICE

When a device is currently connected, even if you change the priority to a different device, the currently connected phone will always be set as the highest priority.

Disconnecting a Device

Press the key Select

SETUP

[Phone] Select [Paired Phone List]

From the paired phone list, select the currently connected device and press the

button.

453

Features of your vehicle

✽

Deleting a Device

Press the key Select

SETUP

[Phone] Select [Paired Phone List]

From the paired phone list, select the device you want to delete and press the

button.

USING

Bluetooth

Wireless

Technology

Phone Menu Screen

Phone Menus

With a

Bluetooth

Wireless

Technology device connected, press

PHONE

the key to display the Phone menu screen.

4) Setup : Displays Phone related settings

NOTICE

• If you press the [Call History] button

but there is no call history data, a prompt is displayed which asks whether to download call history data.

• If you press the [Phone book] button

but there is no phone book data, a prompt is displayed which asks whether to download phone book data. .

• This feature may not be supported in

some mobile phones. For more information on download support, refer to your mobile phone user’s manual.

NOTICE

• When deleting the currently connected device, the device will automatically be disconnected to proceed with the deleting process.

• If a paired Bluetooth Technology device is deleted, the device’s call history and phone book data will also be deleted.

• To re-use a deleted device, you must pair the device again.

Wireless

1) Dial Number : Displays the dial screen where numbers can be dialed to make calls

2) Call History : Displays the call history list screen

3) Phone book : Displays the Phone book list screen

544

Features of your vehicle

✽

Calling by Dialing a Number

Press the key Select [Dial

PHONE

Number]

1) Dial Pad : Used to enter phone number

2) Call : If a number has been entered, calls the number If no number has been entered, switches to call history screen

3) End : Deletes the entered phone number

4) Delete : Deletes entered numbers one digit at a time

Answering Calls

Answering a Call

Answering a call with a

Bluetooth

Wireless Technology device connected will display the following screen.

1) Caller : Displays the other part’s name when the incoming caller is saved within your phone book

2) Incoming Number : Displays the incoming number

3) Accept : Accept the incoming call

4) Reject : Reject the incoming call

NOTICE

• When the incoming call pop-up is displayed, most Audio and SETUP mode features will not operate. Only the call

volume can be operated.

• The telephone number may not be properly displayed in some mobile phones.

• When a call is answered with the mobile phone, the call mode will automatically convert to Private mode.

455

Features of your vehicle

✽

During a Handsfree Call

1) Caller : Displays the other party’s name if the incoming caller is saved within your phone book

2) Incoming Number : Displays the incoming number

3) Call time : Displays the call time

4) End : Ends call

5) Private : Converts to Private mode

6) Out Vol. : Sets call volume as heard by the other party

7) Mute : Turns Mic Mute On/Off

NOTICE

If the mic is muted, the other party will not be able to hear your voice.

Call History

Press the key Select [Call

PHONE

History]

A list of incoming, outgoing and missed calls is displayed.

Press the [Download] button to download the call history.

1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

2) Download : Download Recent Call History

NOTICE

• The call history list will display up to 30 outgoing, incoming, and missed calls.

• Upon downloading call histories, previously saved histories are deleted.

• Incoming calls with hidden caller IDs will not be saved in the call history list.

• Previously saved phone book entries are stored even if a device is disconnected and re-connected.

• The download feature may not be supported in some mobile phones. Check to see that the Bluetooth Technology device supports the download feature.

Wireless

564

Features of your vehicle

✽

Phone Book

Press the key Select

PHONE

[Phone book]

The list of saved phone book entries is displayed. Press the [Download] button to download the call history.

1) Contact List :

- Displays downloaded phone book entries

- Connects call upon selection

2) Download : Download phone book entries

NOTICE

• Up to 1,000 phone book entries can be copied into car phone book.

• Upon downloading phone book data, previously saved phone book data will be deleted.

• Downloading is not possible if the phone book download feature is turned off within the Bluetooth Wireless Technology device. Also, some devices may require device authorization upon attempting to download. If downloading cannot be normally conducted, check the

Bluetooth

Wireless Technology

device setting or the screen state.

• Caller ID information will not be displayed for unsaved callers.

• The download feature may not be supported in some mobile phones. Check to see that the Bluetooth Wireless Technology device supports the download feature.

457

Features of your vehicle

Bluetooth

(for

Bluetooth

Wireless Technology

Wireless

Technology equipped model)

Pairing a

Bluetooth

Wireless Technology wireless technology Device

What is

Bluetooth

Wireless

Technology Pairing?

Pairing refers to the process of synchronizing your

Bluetooth

Wireless Technology phone or device with the car audio system for connection. Pairing is necessary to connect and use the

Bluetooth

Wireless

Technology feature.

Pairing Key / Key on

PHONE

the Steering Remote Controller

When No Devices have been Paired

1. Press the key or the

PHONE

key on the steering remote controller. The following screen is displayed.

2. Press the button to enter the Pair Phone screen.

1) Device : Name of device as shown when searching from your Wireless Technology device

2) Passkey : Passkey used to pair the device

3. From your

Bluetooth

Wireless Technology device (i.e. Mobile Phone), search and select your car audio system.

4. After a few moments, a screen is displayed where the passkey is entered. Here, enter the passkey “0000” to pair your

Bluetooth

Wireless Technology device with the car audio system.

5. Once pairing is complete, the following screen is displayed.

584

Features of your vehicle

✽

NOTICE

Pairing through [PHONE] Setup

Press the key Select

SETUP

[Phone] Select [Pair Phone] Select TUNE knob

NOTICE

• The waiting period during phone pair-

ing will last for one minute. The pairing process will fail if the device is not paired within the given time. If the pairing process fails, you must start the process from the beginning.

• Generally, most Bluetooth

Technology devices will automatically connect once pairing is complete.

Wireless

However, some devices may require a

• If Bluetooth®Wireless Technology devices are paired but none are currently connected, pressing the

PHONE

key or the key on the steering remote controller displays the following screen. Press the [Pair] button to pair a new device or press the [Connect] to connect a previously pair

1. The following steps are the same as the steps described in the “When No Devices have been Paired” section.

separate verification process to connect. Check to see whether Bluetooth Wireless Technology has been properly connected within your mobile phone.

• List of paired Bluetooth

Technology devices can be viewed at

SETUP

[Phone] [Paired Phone

List].

Wireless

device.

459

Features of your vehicle

Connecting a Device

Press the key Select

SETUP

[Phone] Select [Paired Phone List]

1) Connected Phone : Device that is currently connected

2) Paired Phone : Device that is paired but not connected

From the paired phone list, select the device you want to connect and press the button.

Connect

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth

Wireless Technology devices with the car audio system. As a result, the “Change Priority’feature is used to set the connection priority of paired phones. However, the most recently connected phone will always be set as the highest priority.

Press the key Select [Phone]

Select [Paired Phone List]

SETUP

604

Features of your vehicle

✽

From the paired phone list, select

Disconnecting a Device

Deleting a Device

the phone you want to change to the highest priority, then press the

Change priority

button from the Menu.

The selected device will be changed

Press the key Select

SETUP

[Phone] Select [Paired Phone List]

Press the key Select [Phone] Select [Paired Phone List]

SETUP

to the highest priority.

NOTICE

When a device is currently connected, even if you change the priority to a different device, the currently connected phone will always be set as the highest priority.

From the paired phone list, select the currently connected device and press the

Disconnect

button.

From the paired phone list, select the device you want to delete and press the

button.

Delete

461

Features of your vehicle

✽

NOTICE

• When deleting the currently connected device, the device will automatically be disconnected to proceed with the deleting process.

• If a paired Bluetooth Technology device is deleted, the device’s call history and contacts data will also be deleted.

• To re-use a deleted device, you must pair the device again.

Wireless

USING

Bluetooth

Technology

Phone Menu Screen

Phone Menus

With a Technology device connected, press

PHONE

the key to display the Phone menu screen.

Bluetooth

Wireless

1) Dial Number : Displays the dial screen where numbers can be dialed to make calls

2) Call History : Displays the call history list screen

3) Contacts : Displays the Contacts list screen

4) Setup : Displays Phone related settings

NOTICE

• If you press the [Call History] button

but there is no call history data, a prompt is displayed which asks whether to download call history data.

• If you press the [contacts] button but

there is no contacs data, a prompt is displayed which asks whether to download contacts data.

• This feature may not be supported in

some mobile phones. For more information on download support, refer to your mobile phone user’s manual.

624

Features of your vehicle

✽

Calling by Dialing a Number

Press the key Select [Dial

PHONE

Number]

1) Dial Pad : Used to enter phone number

2) Call : If a number has been entered, calls the number If no number has been entered, switches to call history screen

3) End : Deletes the entered phone number

4) Delete : Deletes entered numbers one digit at a time

Answering Calls

Answering a Call

Answering a call with a

Bluetooth

Wireless Technology device connected will display the following screen.

1) Caller : Displays the other part’s name when the incoming caller is saved within your contacts

2) Incoming Number : Displays the incoming number

3) Accept : Accept the incoming call

4) Reject : Reject the incoming call

NOTICE

• When the incoming call pop-up is displayed, most Audio and SETUP mode features will not operate. Only the call

volume can be operated.

• The telephone number may not be properly displayed in some mobile phones.

• When a call is answered with the mobile phone, the call mode will automatically convert to Private mode.

463

Features of your vehicle

✽

During a Handsfree Call

1) Caller : Displays the other party’s name if the incoming caller is saved within your contacts

2) Incoming Number : Displays the incoming number

3) Call time : Displays the call time

4) End : Ends call

5) Private : Converts to Private mode

6) Out Vol. : Sets call volume as heard by the other party

7) Mute : Turns Mic Mute On/Off

NOTICE

If the mic is muted, the other party will not be able to hear your voice.

Call History

Press the key Select [Call

PHONE

History]

A list of incoming, outgoing and missed calls is displayed.

Press the button to download the call history.

1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

2) Download : Download Recent Call History

Download

Contacts

Press the key Select

PHONE

[Contacts]

The list of saved phone book entries is displayed. Press the button to download the call history.

1) Contacts List :

- Displays downloaded contacts entries

- Connects call upon selection

2) Download : Download contacts entries

Download

644

Features of your vehicle

✽

NOTICE

• Up to 1,000 contacts entries can be copied into car contacts.

• Upon downloading contacts data, previously saved contacts data will be deleted.

• Downloading is not possible if the

off within the Bluetooth Technology device. Also, some devices may require device authorization upon attempting to download. If downloading cannot be normally conducted, check the Bluetooth Technology device setting or the screen state.

• Caller ID information will not be displayed for unsaved callers.

• The download feature may not be supported in some mobile phones. Check to see that the Bluetooth Wireless Technology device supports the download feature.

contacts download feature is turned

Wireless

465

Features of your vehicle

✽

NOTICE - USING THE Voice Recognition

• When using the voice recognition fea-

ture, only commands listed within the user's manual are supported.

• Be aware that during the operation

of the voice recognition system, pressing any key other than the key or touching the screen will terminate voice recognition mode.

• For superior voice recognition per-

formance, position the microphone used for voice recognition above the head of the driver’s seat and maintain a proper position when saying commands.

• Within the following situations, voice

recognition may not function properly due to external sound.

- When the windows and sunroof are open

- When the wind of the cooling / heating device is strong

- When entering and passing through tunnels

- When driving on rugged and uneven roads

- During severe rain (heavy rains, windstorms)

• Phone related voice commands can be used only when a Bluetooth Wireless Technology device is connected.

• When making calls by stating a name, the corresponding contact must be downloaded and stored within the audio system.

• After downloading the Bluetooth Wireless Technology phone book, it takes some times to convert the phone book data into voice information. During this time, voice recognition may not properly operate.

• Pronounce the voice commands naturally and clearly as if in a normal conversation.

664

Features of your vehicle

✽

VOICE RECOGNITION (if equipped)

Using Voice Recognition

Starting Voice Recognition

Shortly press the key on the steering remote controller .Say a command

If voice recognition is in [Normal Mode], then the system will say “Please say a command. Beep~”

• If voice recognition is in [Expert Mode],

then the system will only say a “Beep~”

• To change the Normal Mode/Expert

Mode setting, go to [System]

[Prompt Feedback].

SETUP

NOTICE

For proper recognition, say the command after the voice instruction and beep tone.

Skipping Prompt Messages

While prompt message is being stated Shortly press the key on the steering remote controller (under 0.8 seconds)

The prompt message is immediately ended and the beep tone will sound. After the “beep”, say the voice command.

Re-starting Voice Recognition

While system waits for a command Shortly press the key on the steering remote controller (under 0.8 seconds)

The command wait state is immediately ended and the beep ton will sound. After the “beep”, say the voice command.

467

Features of your vehicle

✽

ENDING VOICE RECOGNITION

While Voice Recognition is operating

Press and hold the key on the steering remote controller (over 0.8 seconds)

NOTICE

• While using voice command, pressing

a steering wheel remote control or a different key will end voice command.

• In a state where the system is waiting

for a voice command, say “cancel” or “end” to end voice command.

• In a state where the system is waiting

for a voice command, press and hold the key on the steering remote controller to end voice command.

684

Features of your vehicle

❈ Illustration on using voice commands

• Starting voice command.

Shortly pressing the key (under 0.8 seconds):

Please say a command

More Help. You can say Radio, FM, AM, Media, CD, USB, Aux,

My Music, iPod, Bluetooth Audio, Phone, Call History or Phone book. Please say a command.

Ding~

More Help

• Skipping Voice Recognition

Please say a...

Shortly pressing the key

Shortly pressing the key (under

0.8 seconds):

Ding~

(under 0.8 seconds)

More Help

More Help. You can say Radio, FM, AM, Media, CD, USB, Aux,

My Music, iPod, Bluetooth Audio, Phone, Call History or Phone book. Please say a command.

• End voice command.

Shortly pressing the key (under 0.8 seconds):

Please say a command

Phone book. Please say the name of the phone book you

want to call.

Ding~

Di-Ding~(Cancel Sound)

Ding~

Phone book

Cancel

469

Features of your vehicle

Voice Command List

• Common Commands: These are commands that can be used in all situations. (However, some commands may not be support-

ed in special circumstances.)

Command Function

More Help Provides guidance on commands that can be

Help Provides guidance on commands that can be

Call<Name> Calls <Name> saved in

Phone Provides guidance on Phone related com-

Call History Displays the Call History screen.

Phone book

Dial Number Display the Dial number screen. After saying

Redial Connects the most recently called number.

Radio

used anywhere in the system.

used within the current mode.

Ex) Call “John”

mands. After saying this command, say “Call History”, “ cute corresponding functions.

Displays the this command, say the name of a saved in the nect the call.

this command, you can say the number what you want to call.

•

Phone book

phone book

When listening to the radio, displays the next radio screen. (FM1 AMA)

When listening to a different mode, displays the most recently played radio screen.

phone book

”, “Dial Number” to exe-

screen. After saying

phone book

to automatically con-

➟ FM2➟ FMA ➟ AM ➟

704

Command Function

FM1(FM One) Displays the FM1 screen.

FM2(FM Two) Displays the FM2 screen.

FMA Displays the FMA screen.

AM Displays the AM screen.

AMA Displays the AMA screen.

FM Preset 1~6 Plays the most recently played broadcast

AM Preset 1~6 Plays the broadcast saved in AM Preset 1~6.

FM 87.5~107.9 Plays the FM broadcast of the corresponding

AM 530~1710 Plays the AM broadcast of the corresponding

TA on Enable Traffic Announcement

TA off Disable Traffic Announcement

News on Enable RDS News feature

News off Disable RDS News feature

•

When currently listening to the FM radio, maintains the current state.

•

When listening to a different mode, displays the most recently played FM screen.

saved in FM Preset 1~6.

frequency.

Features of your vehicle

Command Function

Media Moves to the most recently played media

Play Track 1~30 If a music CD has been inserted, plays the

CD Plays the music saved in the CD.

Search CD Moves to the CD track or file selection screen.

USB Plays USB music.

Search USB Moves to USB file selection screen. After

iPod Plays iPod music.

Search iPod Moves to the iPod file selection screen. After,

My Music Plays the music saved in My Music.

Search My Music Moves to My Music file selection screen. After

screen.

corresponding track.

•

For audio CDs, move to the screen and say the track number to play the corresponding track.

•

Moves to MP3 CD file selection screen. After manually operate the device to select and play music.

manually operate the device to select and play music.

Command Function

AUX (Auxiliary) Plays the connected external device.

Bluetooth Audio Plays the music saved in connected

Bluetooth

Mute Mutes the radio or music volume.

Pardon? Repeats the most recent comment.

Cancel (Exit) Ends voice command.

Wireless Technology

device.

471

Features of your vehicle

• FM/AM radio commands: Commands that can be used while

listening to FM, AM radio.

Command Function

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Auto Store Automatically selects radio broadcast fre-

quencies with superior reception and saves in Presets 1~6.

Preset Save 1~6 Saves the current broadcast frequency to

Preset 1~6.

Seek up Plays the next receivable broadcast.

Seek down Plays the previous receivable broadcast.

Next Preset Selects the preset number next to the most

recently selected preset. (Example:When currently listening to preset no. 3, then preset no. 4 will be selected.)

Previous Preset Selects the preset number previous to the

most recently selected preset. (Example: When currently listening to preset no. 3, then preset no. 2 will be selected.)

Scan Scans receivable frequencies from the current

broadcast and plays for 10 seconds each.

Preset Scan Moves to the next preset from the current

present and plays for 10 seconds each.

AF on Enable Alternative Frequency feature

AF off Disable Alternative Frequency feature

Region Enable Region feature

• Audio CD commands: Commands that can be used while listening to Audio CD.

Command Function

Region off Disable Region feature

Program Type Moves to the RDS Program type selection

screen. After, manually operate the device to select a desired program type.

Random Randomly plays the tracks within the CD.

Random Off Cancels random play to play tracks in sequen-

tial order.

Repeat Repeats the current track.

Repeat Off Cancels repeat play to play tracks in sequen-

tial order.

Next Track Plays the next track.

Previous Track Plays the previous track.

Scan Scans the tracks from the next track for 10

seconds each.

Track 1~30 Plays the desired track number.

Search Track Moves to the track selection screen. After, say

the track name to play the corresponding track.

Information Displays the information screen of the current

track.

724

Features of your vehicle

• MP3 CD / USB commands: Commands that can be used while listening to music files saved in CD and USB.

Command Function

Random Randomly plays the files within the current

folder.

All Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Folder Repeat Repeats all files in the current folder.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Search Folder Moves to the folder selection screen.

Information Displays the information screen of the current

file.

Copy Copies the current file into My Music.

• iPod Commands: Commands that can be used while playing iPod.

Command Function

All Random Randomly plays all saved songs.

Random Randomly plays the songs within the current

category.

Random Off Cancels random play to play songs in sequen-

tial order.

Repeat Repeats the current song.

Repeat Off Cancels repeat play to play songs in sequen-

tial order.

Next Song Plays the next song.

Previous Song Plays the previous song.

Search Song Moves to the song selection screen.

Information Displays the information screen of the current

song.

473

Features of your vehicle

• My Music Commands: Commands that can be used while playing My Music.

Command Function

Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Information Displays the information screen of the current

file.

Delete Deletes the current file. You will bypass an

additional confirmation process.

Delete All Deletes all files saved in My Music. You will

bypass an additional confirmation process.

•

Bluetooth

Wireless Technology Audio Commands:

Commands that can be used while playing Phone Music.

Command Function

Play Plays the currently paused song.

Pause Pauses the current song.

744

Features of your vehicle

✽

SETUP (for RDS,

Bluetooth

Technology equipped model)

- AM904DMEE, AM914DMEE

Starting Mode

Press the key to display the

SETUP

Setup screen.

You can select and control options related to [Display], [Sound], [Clock/Day], [Phone] and [System].

Wireless

Display Settings

Adjusting the Brightness

Press the key Select

SETUP

[Display] Select [Brightness]

Use the , buttons to adjust the screen brightness or set the Brightness on Automatic, Day, or Night mode.

Press the button to reset.

1) Automatic : Adjusts the brightness automatically

2) Day : Always maintains the brightness on high

3) Night : Always maintains the brightness on low

Default

Pop-up Mode

Press the key Select

SETUP

[Display] Select [Pop-up Mode]

This feature is used to display the Pop-up Mode screen when entering radio and media modes.

When this feature is turned on, pressing the or key will display the Pop-up Mode screen.

MEDIARADIO

NOTICE

The media Pop-up Mode screen can be displayed only when two or more media modes have been connected.

475

Features of your vehicle

Scroll Text

Press the key Select

SETUP

[Display] Select [Scroll text]

This feature is used to scroll text displayed on the screen when it is too long to be displayed at once.

When turned on, the text is repeatedly scrolled. When turned off, the text is scrolled just once.

MP3 Information Display

Press the key Select

SETUP

[Display] Select [Song Info]

This feature is used to change the information displayed within USB and MP3 CD modes.

1) Folder File : Displays file name and folder name

2) Album Artist Song : Displays album name/artist name/song

764

Features of your vehicle

Sound Settings

Press the key Select

SETUP

[Sound] Select [Audio Setting]

Use the , , , buttons to adjust the Fader/Balance settings.

Use the , buttons to adjust the Bass/Middle/Treble settings.

Press the button to reset.

Virtual Sound

Press the key Select

Default

SETUP

[Sound] Select [Virtual Sound]

This feature is used to set the Power Bass, Power Treble and Surround sound options.

SDVC (Speed Dependent Volume Control)

Press the key Select

SETUP

[Sound] Select [Speed Dependent Vol.]

The volume level is controlled automatically according to the vehicle speed. SDVC can be set by selecting from Off/Low/Mid/High.

477

Features of your vehicle

✽

Voice Recognition Setting

Press the key Select [Sound] Select [Volume Dialogue]

Use the , buttons to adjust the Volume Dialog.

Touch Screen Beep

Press the key Select

SETUPSETUP

[Sound] Select [Touch Screen Beep]

This feature is used to turn the touch screen beep on/off.

Clock/Day Setting

Clock Setting

Press the key Select

SETUP

[Clock/Day] Select [Clock Settings]

Use the , buttons to set the Hour, Minutes and AM/PM setting.

NOTICE

Press and hold the key (over

0.8 seconds) to display the Clock/Day screen.

CLOCK

784

Features of your vehicle

Calendar Setting

Press the key Select

SETUP

[Clock/Day] Select [Day Settings]

Use the , buttons to set the Day, Month and Year setting.

Time Format

Press the key Select

SETUP

[Clock/Day] Select [Time Format]

This feature is used to change the clock format between 12hr or 24hr.

Clock Display

Press the key Select

SETUP

[Clock/Day] Select [Clock Display (Power off)]

This feature is used to display a clock on the screen when the audio system is turned off.

Automatic RDS Time

Press the key Select

SETUP

[Clock/Day] Select [Automatic RDS Time]

This feature is used to set time automatically by synchronizing with RDS.

479

Features of your vehicle

✽

Bluetooth

Wireless Technology

Setting

Pairing a New Device

Press the key Select

SETUP

[Phone] Select [Pair Phone]

Bluetooth

can be paired with the audio system.

For more information, refer to the “Pairing through Phone Setup” section within

Bluetooth

Wireless Technology devices

Wireless Technology.

Viewing Paired Phone List

Press the key Select

SETUP

[Phone] Select [Paired Phone List]

This feature is used to view mobile phones that have been paired with the audio system. Upon selecting a paired phone, the setup menu is displayed.

For more information, refer to the “Setting

Bluetooth

Connection” section within Wireless Technology.

1) : Moves to the previous screen

2) Connect/Disconnect Phone : Connect/

3) Delete : Deletes the currently selected

Wireless Technology

Bluetooth

disconnects currently selected phone

phone

4) Change Priority : Sets currently selected phone to highest connection priority

NOTICE BEFORE DOWNLOADING PHONE BOOKS

• Only phone books within connected

phones can be downloaded. Also check to see that your mobile phone supports the download feature.

• To learn more about whether your

mobile phone supports phone book downloads, refer to your mobile phone user’s manual.

• The Phone book for only the connect-

ed phone can be downloaded. Before downloading, check to see whether your phone supports the download feature.

804

Features of your vehicle

✽

Downloading Phone books

Press the key Select [Phone] Select [Phone book

Auto Download (Phone Book)

Press the key Select [Phone] Select [Auto Download]

Audio Streaming

Press the key Select

SETUPSETUPSETUP

[Phone] Select [Audio Streaming]

Download]

This feature is used to automatically The Phone book is downloaded from the mobile phone and the download progress is displayed.

NOTICE

• Up to 1,000 phone book entries can be

copied into car phone book.

• Up to 1,000 phone book entries can be

saved for each paired device.

• Upon downloading phone book data,

previously saved phone book data will be deleted. However, Phone book entries saved to other paired phones are not deleted.

download mobile phone book entries

once a

phone is connected.

Bluetooth

Wireless Technology

NOTICE

• The Auto Download feature will download mobile phone book entries every time the phone is connected. The download time may differ depending on the number of saved phone book entries and the communication state.

• When downloading a phone book, first check to see that your mobile

When Audio Streaming is turned on, you can play music files saved in your

Bluetooth

from the car.

Wireless Technology device

phone supports the phone book download feature.

481

Features of your vehicle

✽

Outgoing Volume

Press the key Select

SETUP

[Phone] Select [Outgoing Volume]

Use the , buttons to adjust the outgoing volume level.

Turning Bluetooth System Off

Press the key Select

SETUP

[Phone] Select [Bluetooth System Off]

Once

Bluetooth

turned off, Technology related features will not be supported within the audio system.

Wireless Technology is

Bluetooth

Wireless

NOTICE

To turn Bluetooth®Wireless Technology back on, go to [Phone] and press “Yes”.

SETUP

CAUTION

• Bluetooth audio streaming may not be supported in some Bluetooth

Wireless Technology

phones.

824

Features of your vehicle

✽

System Setting

Memory Information

Press the key Select

SETUP

[System] Select [Memory Information]

This feature displays information related to system memory.

1) Using : Displays capacity currently in use

2) Capacity : Displays total capacity

Voice Recognition Mode Setting (if equipped)

Press the key Select

SETUP

[System] Select [Voice Recognition System]

This feature is used to select the desired prompt feedback option from Normal and Expert.

1) Normal : When using voice recognition, provides detailed guidance prompts

2) Expert : When using voice recognition, omits some guidance prompts

NOTICE

• Voice Recognition is depend on the

Audio System.

Language

Press the key Select

SETUP

[System] Select [Language]

This feature is used to change the system and voice recognition language.

If the language is changed, the system will restart and apply the selected language.

483

Features of your vehicle

✽

SETUP (for

Bluetooth

Technology equipped model)

-AM900DMMG, AM910DMMG, AM911DMMG, AM901DMGG, AM910DMEE, AM911DMEE, AM910DMGL, AM900DMMN, AM910DMMN, AM912DMEE,

AM911DMGL

Starting Mode

Press the key to display the Setup screen.

You can select and control options related to [Display], [Sound], [Clock/Calendar], [Phone] and [System].

SETUP

Wireless

Display Settings

Adjusting the Brightness

Press the key Select

SETUP

[Display] Select [Brightness]

Use the , buttons to adjust the screen brightness or set the Brightness on Automatic, Daylight, or Night mode.

Press the button to reset.

1) Automatic : Adjusts the brightness automatically

2) Daylight : Always maintains the brightness on high

3) Night : Always maintains the brightness on low

Default

Pop-up Mode

Press the key Select

SETUP

[Display] Select [Mode Pop up]

This feature is used to display the Pop-up Mode screen when entering radio and media modes.

When this feature is turned on, pressing the or key will display the Pop-up Mode screen.

MEDIARADIO

NOTICE

The media Pop-up Mode screen can be displayed only when two or more media modes have been connected.

844

Features of your vehicle

Text Scroll

Press the key Select

SETUP

[Display] Select [Text Scroll]

This feature is used to scroll text displayed on the screen when it is too long to be displayed at once.

When turned on, the text is repeatedly scrolled. When turned off, the text is scrolled just once.

MP3 Information Display

Press the key Select

SETUP

[Display] Select [Media Display]

This feature is used to change the information displayed within USB and MP3 CD modes.

1) Folder File : Displays file name and folder name

2) Album Artist Song : Displays album name/artist name/song

Sound Settings

Press the key Select

SETUP

[Sound] Select [Sound Setting]

485

Features of your vehicle

Use the , , , buttons to adjust the Fader/Balance settings.

Use the , buttons to adjust the Bass/Middle/Treble settings.

Press the button to reset.

Virtual Sound

Press the key Select

Default

SETUP

[Sound] Select [Virtual Sound]

This feature is used to set the Power Bass, Power Treble and Surround sound options.

SDVC (Speed Dependent Volume Control)

Press the key Select

SETUP

[Sound] Select [Speed Dependent Vol.]

The volume level is controlled automatically according to the vehicle speed. SDVC can be set by selecting from Off/Low/Mid/High.

Touch Screen Beep

Press the key Select

SETUP

[Sound] Select [Touch Screen Beep]

This feature is used to turn the touch screen beep on/off.

864

Features of your vehicle

✽

Clock/Calendar Setting

Clock Setting

Press the key Select

SETUP

[Clock/Calendar] Select [Clock Settings]

Use the , buttons to set the Hour, Minutes and AM/PM setting.

NOTICE

Press and hold the key (over

0.8 seconds) to set the Clock/Calendar screen.

CLOCK

Calendar Setting

Press the key Select [Clock/Calendar] Select [Calendar Settings]

Use the , buttons to set the Day, Month and Year setting.

Clock Display

Press the key Select

SETUPSETUP

[Clock/Calendar] Select [Clock Display (Power off)]

This feature is used to display a clock on the screen when the audio system is turned off.

487

Features of your vehicle

✽

Bluetooth

Wireless Technology

Setting

Pairing a New Device

Press the key Select

SETUP

[Phone] Select [Pair Phone]

Bluetooth

can be paired with the audio system.

For more information, refer to the “Pairing through Phone Setup” section within

Bluetooth

Wireless Technology devices

Wireless Technology.

Viewing Paired Phone List

Press the key Select

SETUP

[Phone] Select [Paired Phone List]

This feature is used to view mobile phones that have been paired with the audio system. Upon selecting a paired phone, the setup menu is displayed.

For more information, refer to the “Setting

Bluetooth

Connection” section within Wireless Technology.

1) : Moves to the previous screen

2) Connect/Disconnect Phone : Connect/

3) Delete : Deletes the currently selected

Wireless Technology

Bluetooth

disconnects currently selected phone

phone

4) Change Priority : Sets currently selected phone to highest connection priority

NOTICE BEFORE DOWNLOADING CONTACTS

• Only contacts within connected

phones can be downloaded. Also check to see that your mobile phone supports the download feature.

• To learn more about whether your

mobile phone supports contacts downloads, refer to your mobile phone user’s manual.

• The contacts for only the connected

phone can be downloaded. Before downloading, check to see whether your phone supports the download feature.

884

Features of your vehicle

✽

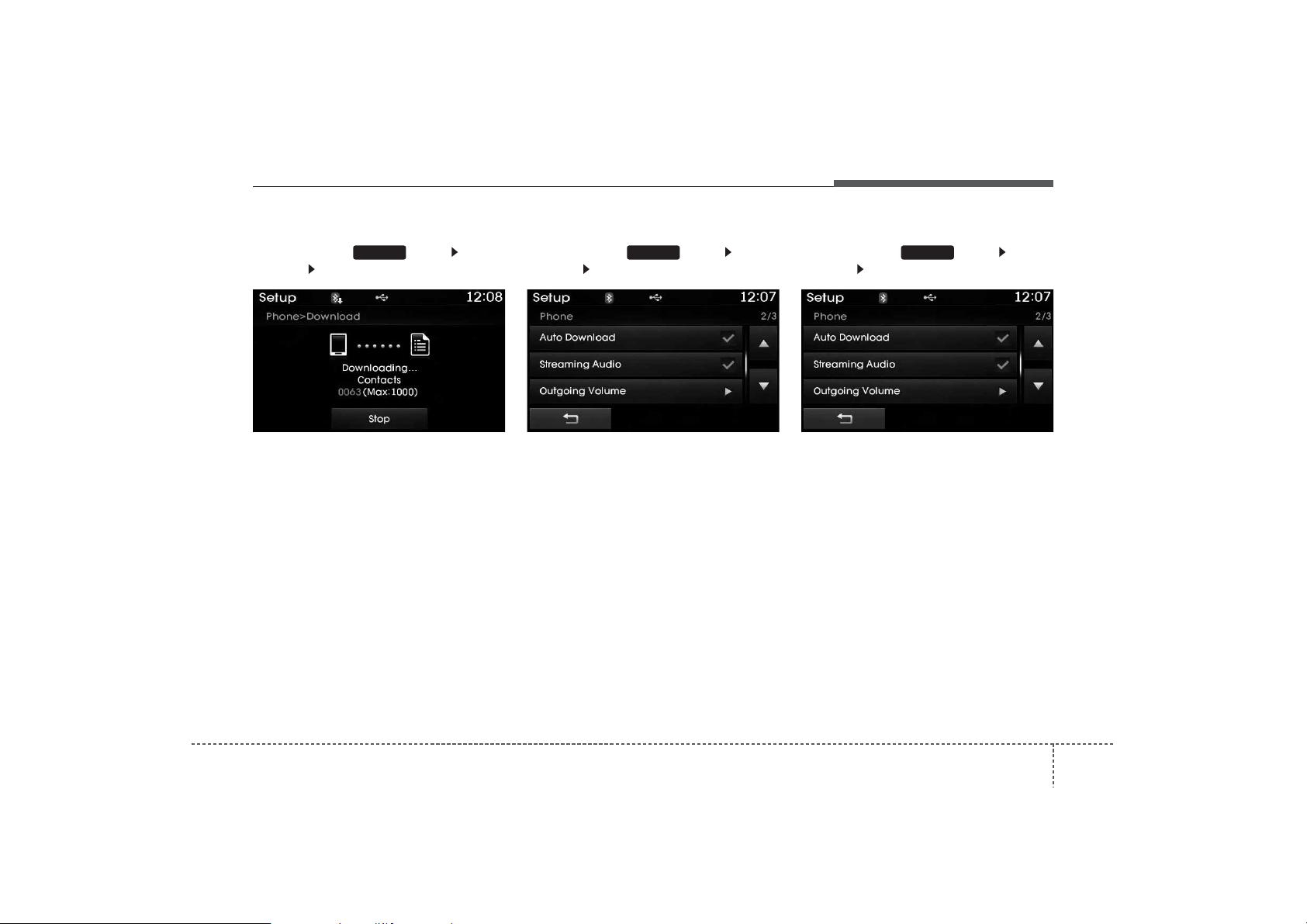

Downloading Contacts

Press the key Select [Phone] Select [Contacts Download]

The contacts is downloaded from the mobile phone and the download progress is displayed.

Auto Download (Contacts)

Press the key Select [Phone] Select [Auto Download]

This feature is used to automatically download mobile contacts entries once a

Bluetooth

is connected.

Wireless Technology phone

Streaming Audio

Press the key Select

SETUPSETUPSETUP

[Phone] Select [Streaming Audio]

When Streaming Audio is turned on, you can play music files saved in your

Bluetooth

from the car.

Wireless Technology device

NOTICE

• Up to 1,000 contacts entries can be copied into car contacts.

• Up to 1,000 contacts entries can be saved for each paired device.

• Upon downloading contacts data, previously saved contacts data will be deleted. However, contacts entries saved to other paired phones are not deleted.

NOTICE

• The Auto Download feature will download mobile contacts entries every time the phone is connected. The download time may differ depending on the number of saved contacts entries and the communication state.

• When downloading a contacts, first check to see that your mobile phone supports the contacts download feature.

489

Features of your vehicle

✽

Outgoing Volume

Press the key Select

SETUP

[Phone] Select [Outgoing Volume]

Use the , buttons to adjust the outgoing volume level.

Turning Bluetooth System Off

Press the key Select

SETUP

[Phone] Select [Bluetooth System Off]

Once

Bluetooth

turned off, Technology related features will not be supported within the audio system.

Wireless Technology is

Bluetooth

Wireless

NOTICE

To turn Bluetooth®Wireless Technology back on, go to [Phone] and press “Yes”.

SETUP

System Setting

Memory Information

Press the key Select

SETUP

[System] Select [Memory Information]

This feature displays information related to system memory.

1) Using : Displays capacity currently in use

2) Capacity : Displays total capacity

904

Features of your vehicle

Language

Press the key Select

SETUP

[System] Select [Language]

This feature is used to change the system and voice recognition language.

If the language is changed, the system will restart and apply the selected language.

REAR VIEW CAMERA (if equipped)

• The system has been equipped with a rear view camera for user safety by allowing a wider rear range of vision.

• The rear view camera will automatically operate when the ignition key is turned ON and the transmission lever is set to R.

• The rear view camera will automatically stop operating when set to a different lever.

CAUTION

• The rear view camera has been equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance. For safety, directly check the rear and left/right sides.

491

Features of your vehicle

APPENDIX

Name Description

12hr 12 HOUR 24hr 24 HOUR AST(A.Store) AUTO STORE AMA AM RADIO (AUTO STORE) FMA FM RADIO (AUTO STORE) AUX External Audio mode BASS BASS TREBLE TREBLE BT Bluetooth PRESET PRESET RDS Search Radio Data System Search TA Traffic Announcement Radio Radio FM/AM/USB FM/AM/USB Max MAXIMUM Min minimum Low Low Mid Middle On On Off Off PowerBass PowerBass Setting Setting OK OK MENU MENU PowerTreble PowerTreble

Name Description

SDVC Speed Dependent

VolumeControl Setup Setup Service Following Service Following CURRENT CURRENT Current/Total Current/Total DEVICE NAME DEVICE NAME NAME NAME NAME HERE NAME HERE NUMBER NUMBER PHONE NAME PHONE NAME Received Date Received Date Received Received Message Message Received Time Received Time TIME TIME AST AUTO STORE AM AM RADIO CD COMPACT DISC FM FM RADIO(AUTO STORE) L=R LEFT=RIGHT Middle Middle My Music My Music Track Track USB USB

924

Features of your vehicle

APPENDIX

Name Description

Phone Phone Engineering Mode Engineering Mode SEEK SEEK Icon Icon

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•• Reorient or relocate the receiving antenna.

•• Increase the separation between the equipment and receiver.

•• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IC warning Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

493

HYUNDAI MOBIS AC111TMAN User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
