24” Wide LED Monitor
User Manual
P247DPU
P247DP
Precautions
Precautions
Warning
AC outlet
Plug the power cord into a
properly grounded outlet.
There is the risk of electric
shock.
Do not unplug from the outlet
by pulling the power cord or
when your hands are wet.
There is the risk of electric
shock or fire.
The following information will help you avoid the risk of electric shock, serious injury or death.
Power cord
If you hear a noise or smell
smoke from the computer or
adaptor, unplug the power cord
immediately, and call the service
center. There is the risk of electric shock or fire.
Do not bend the power cord
excessively nor place heavy objects
on it. Keep children and pets away
from the power cord as they may
damage the power cord. There is
the risk of electric shock or fire.
Do not overload an electrical
outlet with too many devices.
There is the risk of fire.
Do not use a damaged power
cord or plug. Make sure the
plug fits snugly into the outlet.
There is the risk of electric
shock or fire.
Do not allow any object or liquid to enter inside the monitor.
There is the risk of electric
shock, fire or damage to the
monitor.
Caution
Use a proper voltage/current
level indicated
The following information will help you avoid the risk of minor or moderate injury or damage to the monitor.
Do not attempt to disassemble,
fix or modify the monitor.
There is the risk of electric
shock or fire.
Do not clean the LCD with
abrasive chemicals.
There is the risk of damage to
the LCD.
Do not scratch and damage
the LCD with sharp objects.
Do not expose the monitor to
the direct sun light.
Keep the monitor away from high
temperature, humidity, and dust.
Operating environment
=10~40degrees Celsius
Operating environment
=20~80relative humidity.
The socket - outlet shall be installed near the equipment and shall be easily accessible.
Do not block the fan louvers.
There is the risk of fire or dam-
age to the monitor.
Keep the monitor away from
objects and electrical appliances that may generate electromagnetic fields.
Place the monitor on a flat, stable surface. The monitor may
fall and there is the risk of
damage or injury.
Unplug the power cord when
the monitor is not in use for a
long period of time.
Monitor Stand
7
* Push the hook until
hanging
Power Cord
15-pin Dsub Cable
24pin DVI Cable Audio Cable
1 : For Audio Model Only.
2 : For USB Model Only.
AUDIO IN
Install CD / Quick guide
1
2
7
VGA
DVI
DISPLAY PORT
AUDIO Cable *2
15-pin D-Sub Signal Cable
DVI-D Cable
DP Cable
*2 : For Audio Model Only.
USB Cable
4
5
“UP, DOWN”
DOWN
UP
SCALE
Change Ratio (Wide or Normal)
SOURCE Change Input Signal
LCD
LCD
BRIG HTNESS 90
CO NT RAST 60
H. PO SITION 50
V.P OSITION 50
PHAS E 76
CL OC K 50
AUTO ADJUST
1920x120 0 60Hz
PI CTURE
VG A
Volume
* VGA Only

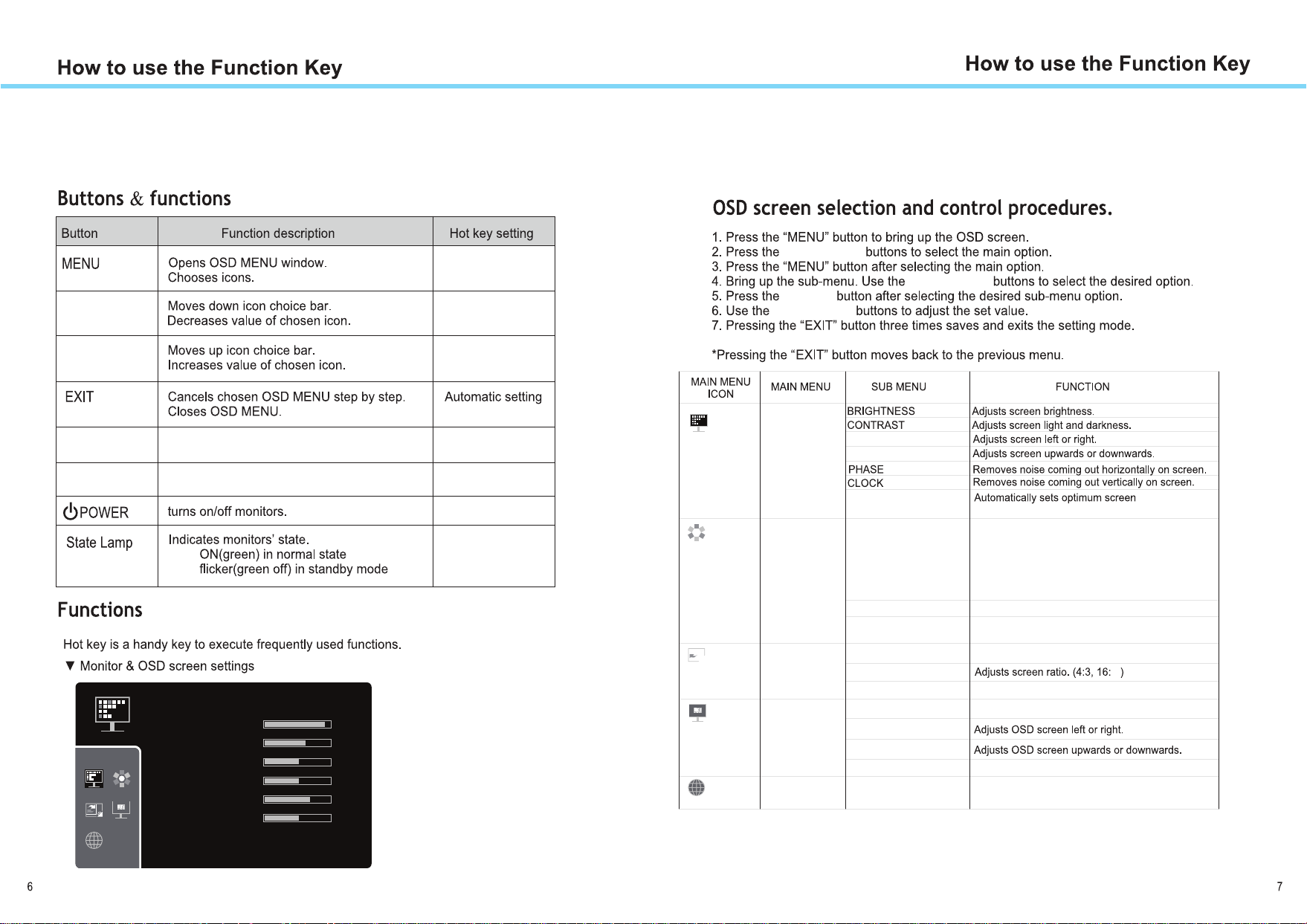

“MENU”
“UP, DOWN”
“UP, DOWN”
H.POSITION
V.POSITION
AUTO ADJUST
COLOR
FUNCTION INPUT SELECT
OSD
LANGUGAE
COLOR TEMP
RED,GREEN,BLUE
AUTO COLOR
ASPECT RATIO
DCR
RECALL
H.POSITION
V.POSITION
TIMER
*1
*1
*1
*1
Select the most comfortable color tone to your eyes
STANDARD -> REDDISH -> BLUISH -> USER
* STANDARD : for general color tone.
* REDDISH : for reddish color with warm tone.
* BLUISH : for bluish color with cool tone.
* USER : for adjusting degree of RGB as user wants
For adjusting the each color as user wants.
Automatically set optimum screen.
*1
To switch current and other input source.
9
Turn on / off DCR Function.
Recall the saved initial data.
Adjusts OSD display time on the screen.
Select OSD language.( 5 langauges )
*1 : Not available in DVI and DP mode .
*1
800 x 600
1024 x 768
1280 x 960
1280 x 1024
1440 x 900
1680 x 1050
1920 x 1080
480p
576p
720p
1080p
35.2 kHz
37.8 kHz
48.3 kHz
60.0 kHz
63.9 kHz
55.9 kHz
64.7 kHz
67.5 kHz
56 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
50/60
50/60
50/60
50/60
DVI(HDCP)
Under 28W
Less then 0.5W
8 9
Specification
531.36mm(H) x 298.89mm(V) (24 inch)
0.276mm(H) x 0.276mm(V)
1920 x 1080@60Hz
170º/170º(H/V)
16.7M
2
50
24” Wide
1 : ForAudioModel Only.
2 : ForUSBModel Only.
*1
DVI-D, AUDIO
< 28W (Typ.)
< 0.5W
AC:100V-240V 50/60Hz, 2.0A
*1
1Wx2
DISPLAY PORT
USB
*2
10 11
FCC compliance
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
ㆍReorient or relocate the receiving antenna.
ㆍIncrease the separation between the equipment and receiver.
ㆍConnect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
ㆍConsult the dealer or an experienced radio/TV technician for help.
Change or modifications not expressly approved by the
party responsible for compliance could void the user’s authority
to operate the equipment under FCC rules.
12
