Hyundai IBT L24C0F081 1 User Manual

Type No. L22C0E081
Model. W242D
NEXT
Multi Function Wide Monitor
User’s Guide
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal cables.
1. Introduction
2. Safety Information
This manual contains instructions for installing and operating HYUNDAI IT CORP.
HYUNDAI IT CORP. This is a highly ergonomic color display unit.
• 24” viewable WUXGA LCD
• High quality screen re-scaling capability
• 100-240V AC input voltage
• VESA DPMS (Display Power Management Signaling)
• VESA DDC1/2B compatibility
• Advanced digital On-Screen-Display controls
• Digital Signal Input by DVI-1.0 Compatability
• Fast and accurate auto adjustment
• Most advanced image scaling
• Supporting VESA Flat Panel Monitor Physical Mounting Interface
This Monitor has been engineered and manufactured to assure your safety. You can prevent serious electrical shock and other hazards by keeping in mind the following:
Do not place anything wet on the monitor or the power cord. Never cover the ventilation openings with any material and never touch them with metallic or inflammable materials.
1/23
2/23
Avoid operating the monitor in extreme heat, humidity or areas affected by dust. Temperature : 5~40°C Humidity : 30~80RH
Be sure to turn the monitor off before plugging the power cord into the socket. Make sure that the power cord and the other cords are securely and rightly connected.
Overloaded AC outlets and extension cords are dangerous, as are frayed power cords and broken plugs, which may cause electric shock or fire. Call your service technician for replacement.
Do not use sharp tools such as a pin or a pencil near the monitor, as they may scratch the LCD surface.
Do not use a solvent, such as benzene, to clean the monitor, as it will damage the LCD surface.
Cleaning and Maintenance
• To avoid to risk of electric shock, do not disassemble the Cabinet of display Unit. The Cabinet is not user-serviceable. Remember to unplug the display unit from the power outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not use thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with a cloth or sponge that could scratch the surface.
• To clean your antistatic screen, use water and a special microfiber screen cleaning tissue used in optical lens cleaning, or lightly dampen a soft, clean cloth with water or a mild detergent.
• If the instructions above do not help in removing stains, contact an authorized service agent.
3/23
4/23
The following items should be found in the packaging.
Above power cord can be changed upon different voltage areas. Please contact your dealer if anything is missing or damaged.
Other power cord except the cord packed in the product or longer than 3m may affect EMC of the product in operating condition.
3. Installing the monitor
3-1. Packing List
!
UK
America/Canada
Japan
Australia
Korea
Europe
South Africa
Power Cord
Signal Cable
Compact Disc
DVI Cable
Audio Cable
5/23
3-2. Selecting a suitable
location
3-3. Connecting the PC
• 15 pin D-sub / DVI-D / HDMI
• Place the monitor at least 30cm from other electrical or heat-emitting equipment and allow at least 10cm on each side for ventilation.
• Place the monitor in a position where no light shines directly onto or is reflected on the screen.
• To reduce eye strain, avoid installing the display unit against a bright background such as a window.
• Position the monitor so that the top of the screen is no higher than eye level.
• Position the monitor directly in front of you at a comfortable reading distance (around 45 to 90cm)
Before you start cabling your monitor, check that the power is off on all units. To avoid any possibility of electric shock, always connect your equipment to properly earthed outlets.
1. Insert the other 15-pin/DVI-D/HDMI signal cable connector into the 15-pin VGA/DVI-D connection on your computer and screw it down.
2. Plug the power cord connection to connection on the monitor.
3. Plug the other end of the power cord to your computer's main supply or to a 100V-240V earthed electrical outlet.
4. Turn on the monitor using the power switch and check that the power LED is on. If not, repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of this guide.
!!
7/23
• Audio system

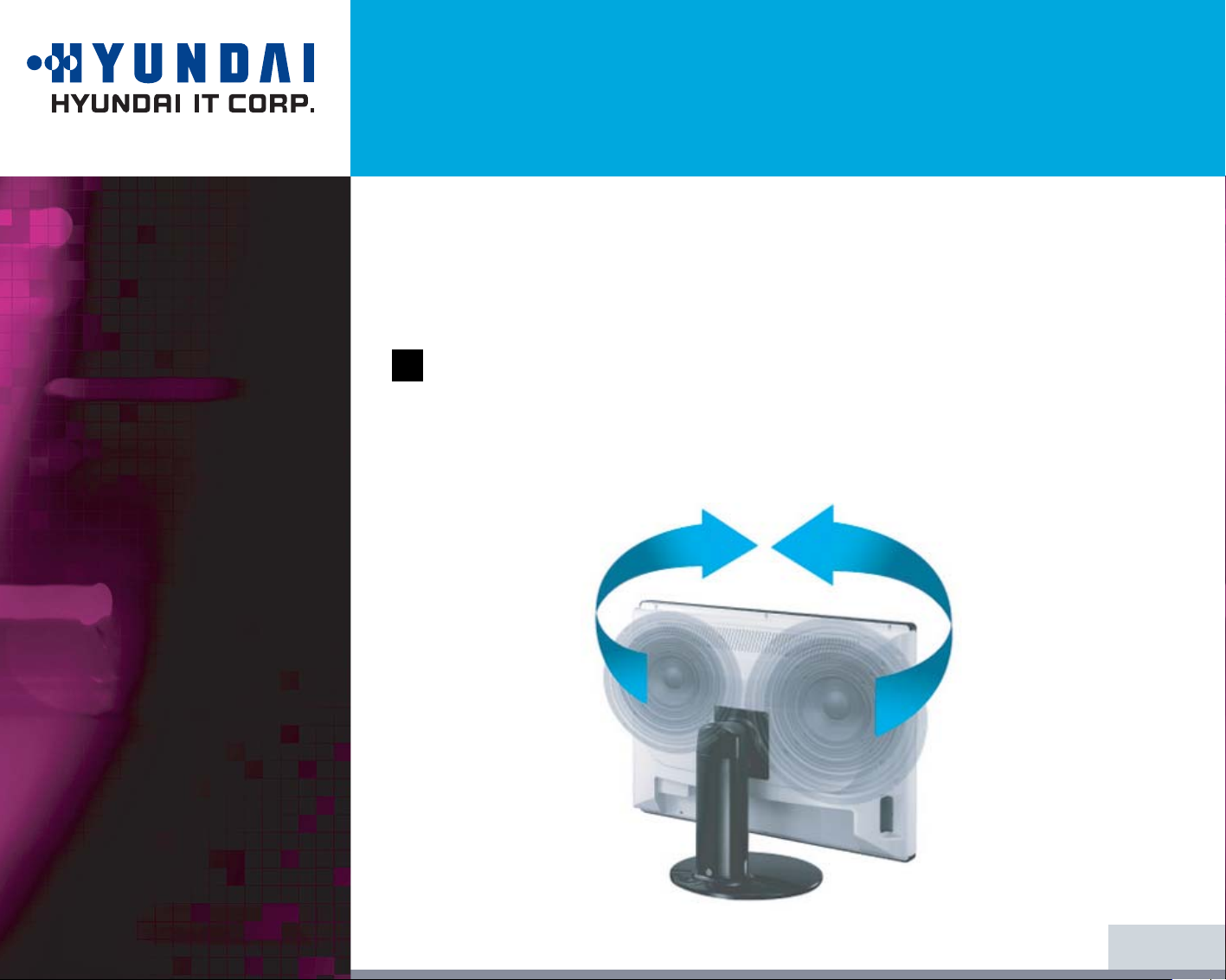

This monitor has an audio system including two micro loudspeakers. Each of two micro loudspeakers has an 3W(max.) output power. This system also supports a headphone output jack.
This system has been tuned to get a best tone quality which an audio input level is under 500mv rms. If the input level is more than 500mv rms, you must tune down the audio input as the audio output tone may be distorted.
7/23
!!
Speaker
8/23
3-4. Setting the refresh
rate
Follow the instructions below to set your refresh rate in Windows 98/ME/XP/2000.
1. Go to the configuration window(Start-Settings-Configuration window).
2. Double click on the ‘Display’ icon.
3. Click on the ‘Settings’ tab.
4. Click on the ‘Advanced’ button.
5. Click on ‘Adapter’ and select 60Hz from the list.
6. Click on ‘Apply’ to accept the selected value.
9/23
Preset Timing Table
If the signal from the system doesn't equal to the preset timing mode, adjust the mode with reference to the user guide of videocard because the screen may not be displayed.
!
Resolution
640 X 350 720 X 400 640 X 480 640 X 480 800 X 600 800 X 600 800 X 600
832 X 624 1024 X 768 1024 X 768 1024 X 768 1152 X 864 1152 X 870 1280 X 960
1280 X 1024 1280 X 1024 1680 X 1050 1600 X 1200 1920 X 1200
480 i/p 720 i/p
1080 i/p
H-Freq.(Khz)
31.4
31.4
31.4
37.5
35.1
37.8
46.8
49.7
48.3
56.4
60.0
67.5
68.6
60.0
63.9
79.9
64.7
75.0
84.0
V-Freq.(hz)
70.0
70.0
59.9
75.0
56.2
60.3
75.0
74.5
60.0
70.0
75.0
75.0
75.0
60.0
60.0
75.0
60.0
60.0
59.9
50/60 50/60 50/60
Supported Mode
Analog DVI
Video Mode
No.
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19
20 21 22
W240D Multi Function Wide Monitor
3-6. User’s Environment
Recommended Ergonomic User’s Environment
• Viewing angle of the monitor should be between -3~17 degree.
11/23
W240D Multi Function Wide Monitor
12/23
Kensington Security (Locking) Slot
VESA MOUNT’G
• This display unit supports a Kensington-type security device to secure your monitor. Kensington lock is not included.
• To purchase and install the Kensington locking device, please refer to the following contact information.
* Kensington Technology Group
· Address : 2000 Alameda de las Pulgas 2F san mateo, California 94403-1289
· Tel : +1 650 572 2700 · Fax : +1 650 572 9675 · Web-site : www.kensington.com
• This display unit supports VESA FPMPMI standard for 100mmx100mm screw mounting by giving 4 screw holes inside the base stand of the unit.
• For buying VESA Flat Panel Monitor Mounting Devices, please contact following information.
* Ergotron, Inc.
· Address : Ergotron Europe Kuiperbergweg 50 1101 AG Amsterdam The Netherlands
· Tel : +3 1 20 696 60 65 · Fax : +3 1 20 609 04 59 · E-mail : info.eu@ergotron.com
Desk Mount
Wall Mount
4. Adjusting the picture
13/23

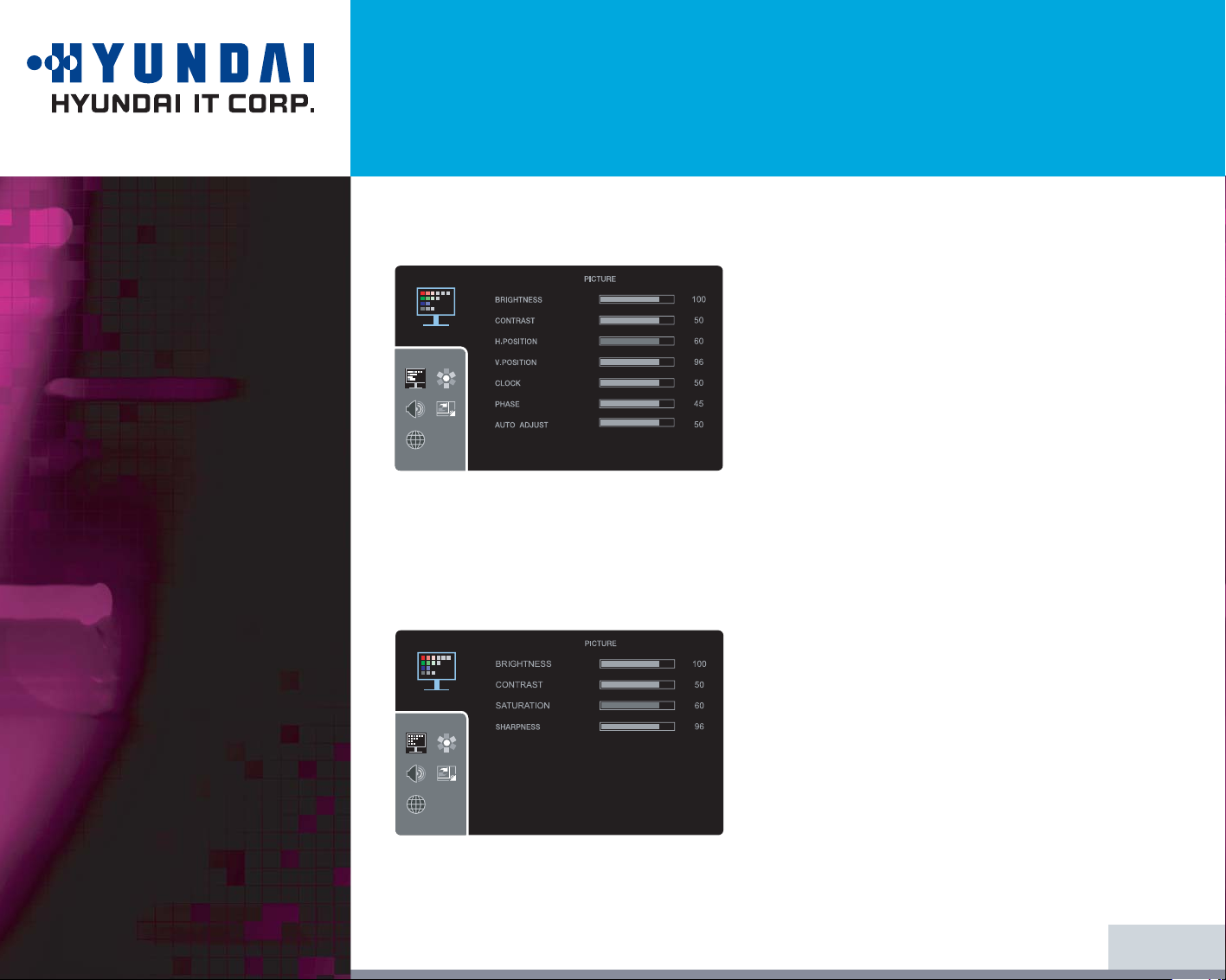

You can adjust the screen display by using the buttons located below the screen.
The second Menu from the OSD can't be chosen in digital-mode.
14/23
4-1. Using the On Screen
Display
4-2. Direct access buttons
To make adjustments in the On Screen Display, follow these steps:
1. Push the MENU button to call the OSD to the screen.
2. Push the or button to choose the item you want to adjust. The selected item
is highlighted.
3. Push the SELECT button to adjust the highlighted item.
4. Use the or button to adjust the selection.
5. Push the MENU button to return to the previous menu if you are in a submenu.
6. The display unit automatically saves the new settings in 1 second after your last
adjustments and the menu disappears. You can also push the MENU button to make the menu disappear.
AUTO ADJUST
At first display a full screen such as Window's back ground. Push the button SELECT(AUTO) to adjust the shape of screen automatically.
VOLUME
Use the button to select the Volume adjustment. Adjust with or button.
SOURCE
Use the button to switch the other input from current input. (VGA -> Component -> DVI -> HDMI -> VGA)
4-3. OSD Adjustments
• Picture
PC
BRIGHTNESS
To adjust the brightness of the screen.
CONTRAST
To adjust the contrast of the screen.
H.POSITION
To move image left and right.
V.POSITION
To move image up and down
CLOCK
To adjust the horizontal size of the entire screen image.
HDMI MODE
BRIGHTNESS
To adjust the brightness of the screen.
CONTRAST
To adjust the contrast of the screen.
SATURATION
To adjust color density.
SHARPNESS
To adjust sharpness of screen.
15/23
• Color
PC ANALOG
STANDARD
For general Color tone.
REDISH
For Redish color with warm tone.
BLUISH
For Bluish color with cool tone.
USER
For adjusting degree of RGB as User wants
AUTO COLOR
TO adjust the horizontal size of the entire screen image.
HDMI MODE
STANDARD
For general Color tone.
DYNAMIC
To be Sharper image.
MILD
To be Smoother image.
16/23
17/23
• Sound
• Setting
VOLUME
To adjust the audio volume level.
BASE
To emphasize low frequency audio.
TREBLE
To empahsize high frequency audio.
BALANCE
To use this function to balance sound from the left and right speakers.
MUTE
Audio ON or OFF
OSD CONFIGURATION
- OSD TIMER
To adjust OSD Display time on the screen.
- OSD POS
To adjust OSD Display position on the screen.
- TRANSPARENT
To adjust the transparency of OSD window.
- OSD ZOOM
To adjust the size of OSD window.
INPUT SOURCE
To switch between current source and other input source. ( VGA/DVI/COMP/HDMI )
• Language
DISPLAY CONTROL
If you choose DISP. CONTROL on the OSD menu, you can adjust the following
<PC>
- Full (16:10) : Shows full screen regardless of screen size.
- 4:3 : Displays image at 4:3 ratio.
<HDMI Mode>
- Full (16:10) : Shows full screen regardless of screen size.
- 16 : 9 : Displays image at 16:9 ratio.
- 4:3 : Displays image at 4:3 ratio.
- 1:1 : Displays image according to actual input pixels.
- Zoom1 : Enlarges image by 20%
- Zoom2 : Enlarges image by 25%.
GENERAL RECALL
Recall the saved initial data
LANGUAGE
You can select the language in which adjustment menus are displayed. The following languages are available. English, German, French, Italian, Spanish, Dutch, Swedish, Finnish, Danish, Portuguese, Russian,Korean,Japanese,Chinese.
18/23
5. Display power management
Reducing power consumption
If the power management function of your computer is enabled, your monitor turns on and off automatically. You can control power management features from your computer.
Your computer may have power management features which enable the computer or monitor to enter a power saving mode when the system is idle. You can reactivate the system by pressing any key or moving the mouse.
Mode
LED
Power consumption
Normal
off
Unplugged
Blue
RED(Orange)
Not illuminated
50W(Typ)
1 W(Typ)
0 W
The power button does not disconnect the monitor from the mains. The only way to isolate the monitor completely from the mains supply is to unplug the
!
mains cable.
19/23
6. Troubleshooting
20/23
Problem
Blank screen
Error message:
Video mode not supported
The display does not enter power management mode
Possible solution
If the power LED is not lit, push the Soft power switch or check the AC cord to turn the monitor on. If the display unit is powered through the computer, check that the computer is switched on.
The display unit might be in standby mode. Push one of the keyboard keys. Check that the keyboard is properly connected to the computer.
Check that the signal cable connector is properly connected and that the connection pins are not bent or damaged. If the connector is loose, tighten the connector's screws.
Check that the power cable is correctly connected to the display unit and to the power outlet.
Check the resolution and the frequency on the video port of your computer.
Compare these values with the data in the Preset Timing Table.
The video signal from the computer does not comply with VESA DPMS standard. Either the computer or the graphics adapter is not using the VESA DPMS power management function.
If your monitor is not functioning properly, you may be able to solve the problem by following the suggestions below :
21/23
Possible solution
Check that the signal cable connector is properly connected and that the connection pins are not bent or damaged. Try another color temperature.
Adjust the picture characteristics as described in the section
OSD
Adjustment(4-3).
A problem with your graphics adapter or display unit. Contact your service representative.
Check that the display resolution and frequency from your PC or graphic adapter is an available mode for your monitor. In your PC, you can check through Control panel, Display, Settings.
If the setting is not correct, use your computer utility program to change the display settings.
Check that the signal cabel connector is properly connected and that the connection pins are not bent or damaged. If the connector is loose, tighten the connector’s screws. Check that the computer is switched on.
To enter a power saving mode. You can reactivate the system by pressing any key or moving the mouse.
Problem
Color defects
Size, position, shape or quality unsatisfactory
Duplicated images
Image is not stable
Message :
No signal
The power LED is a orange color
22/23
Possible solution
LED Indicator can be orange color on changing of video mode or Input Signal.
Check the Resolution and the frequency on the video part of your computer. Compare these values with the data in the Preset Timing Table.
Problem
The power LED is a orange color
Contacting service
If the above troubleshooting hints do not help you find a solution to the problem, contact an authorized service agent. If the monitor is sent for service, use the original package if possible.
Unplug the display unit from the power outlet and contact a service agent when:
• The monitor does not operate normally according to the operating instructions.
• The monitor exhibits a distinct change in performance.
• The monitor has been dropped or the cabinet has been damaged.
• The monitor has been exposed to rain, or water or liquid has been spilled onto the monitor.
7. Specifications
LCD
Display area
Number of color
Input signals
Frequency rate
Maximum bandwidth
Maximum resolution
Recommanded resolution
Input voltage Power consumption Power management
Plug & Play
OSD menu
Audio system
VESA FPMPMI
Ergonomics,
Safety and EMC
Operating Temperature
Weight
Dimensions (W X H X D mm)
24" viewable, Diagonal, Pixel pitch 0.270mm, A-si TFT
518.4(H) X 324(V), 24" Diagonal
16.7 million colors ( true 8-bit color ) R.G.B Analog(15pin D-sub) / DVI-D / Component / HDMI Horizontal : 30.0 to 80.0Khz, Vertical : 56 to 75hz 162Mhz 1920 X 1200 @ 60hz 1920 X 1200 @ 60hz 100-240V AC, 2.0A 55W(Typ.) VESA DPMS VESA DDC 2B BRIGHTNESS, CONTRAST, H/W POSITION, CLOCK, PHASE, AUTO ADJUST, AUTO COLOR, SOUND, OSD CONFIGRATION, INPUT SOURCE, DISPLAY CONTROL, GENERAL RECALL, LANGUAGE 2ch X 2watts / Ear Phone Jack 75mm X 75mm screw mounting Energystar cTUVus, TUV-GS, CB, FCC, CE, VCCI, GOST 5 ~ 40O C
• Specification is subject to change without notice.
• HYUNDAI IT CORP. specification on “dead pixel” of LCD Panel applies to ISO 13406-2 Standard.
23/23
Loading...
