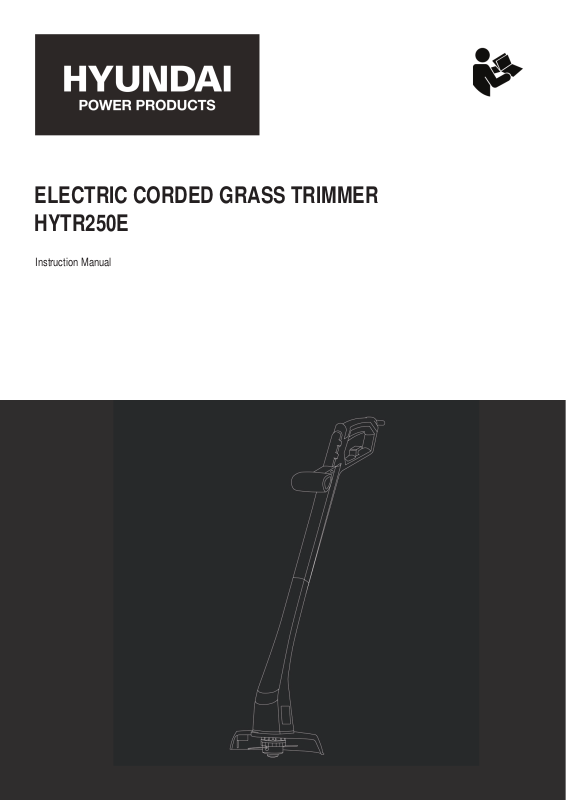

Hyundai HYTR250E User guide

ELECTRIC CORDED GRASS TRIMMER
HYTR250E

Instruction Manual

IMPORTANT

Do not forget to register your EXTENDED 3 YEAR HYUNDAI
WARRANTY within 30 days of purchase.

http://www.hyundaipowerequipment/warranty

3-8. Safety Instructions
7-10. Assembly
10-12. Operation

13. Maintenance

14. Storage

15. Troubleshooting

16. Technical Data

17. Declaration Of Conformity

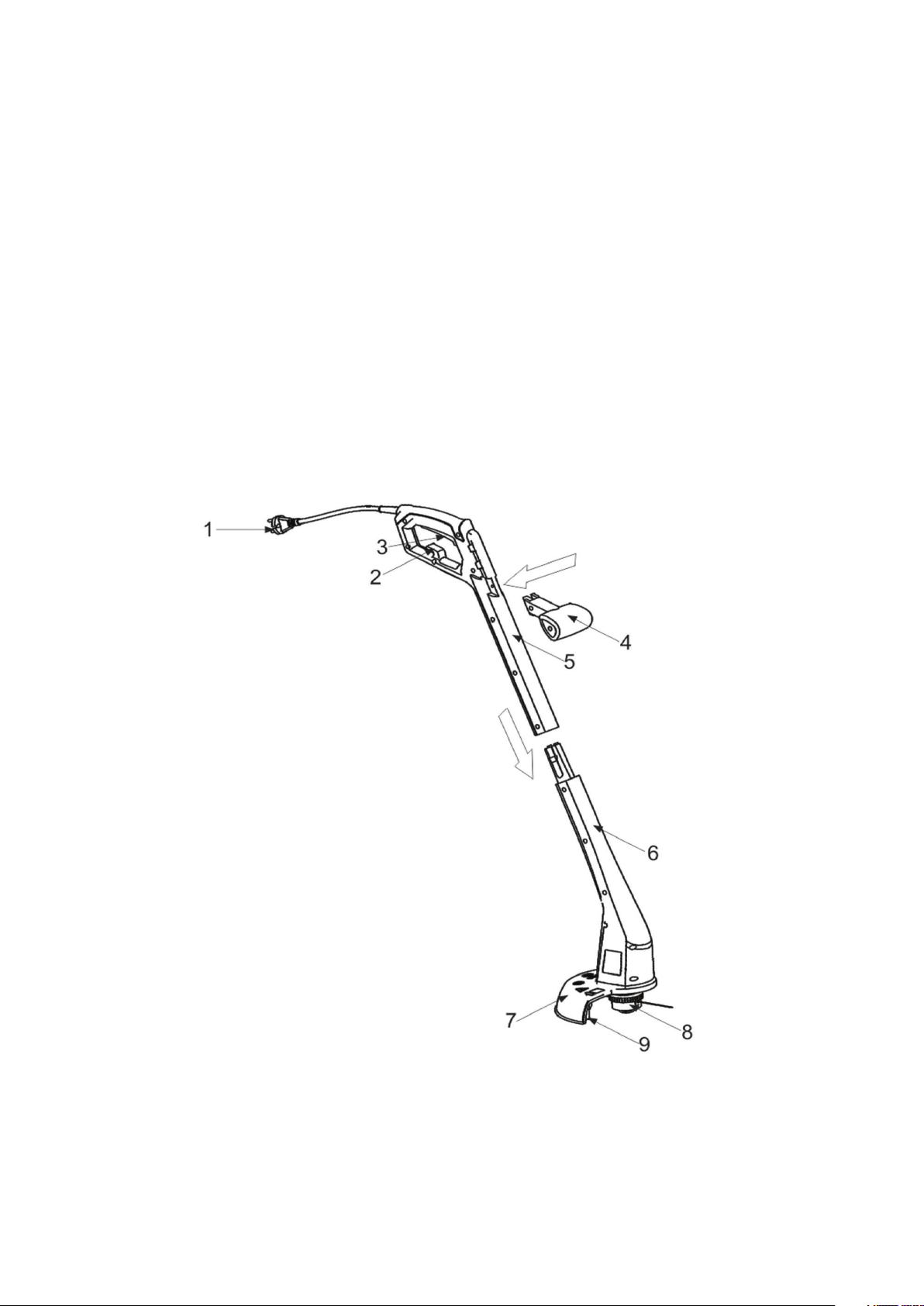

1. Power Cord

2. Cable Holder

3. Starting Switch

4. Handle

5. Handle Grip

6. Motor Housing

7. Guard

8. Spool Holder

9. Cutting Knife With Cover

ELECTRIC GRASS
TRIMMER HYTR250E

WARNING

Read all safety warnings and instructions. Failure to follow the
warnings and instructions on the machine may result in fire and/or
serious injury to yourself. Save all warnings and instructions for future
reference.

SAFETY WARNINGS

When using the machine, always observe the enclosed safety
warnings as well as the additional safety warnings.

The following symbols are used throughout this manual:

Denotes risk of personal injury or damage to the machine

PACKAGE CONTENTS

HYTR250E ELECTRIC GRASS TRIMMER

1x Safety Guard With Screws
1x Auxiliary Handle With Screw & Nut
1x Trimmer Spool
1x Main Trimmer Body (2 parts)

Indicates a hazard, which if not avoided, could result in serious injury
or death.

WARNING

Indicates a hazard, which if not avoided, could result in serious injury.

Indicates a hazard, which if not avoided, might result in minor or
moderate injury.

DANGER

CAUTION

NOTE

Indicates a situation that could easily result in equipment damage.

4

SAFETY INSTRUCTIONS FOR ELECTRIC
GRASS TRIMMERS

NOTE: READ THROUGH THE ENTIRE MANUAL BEFORE

STARTING ANY POWER PRODUCT.

Machinery presents serious injury hazards to untrained users.

PERSONAL SAFETY

STAY ALERT: Watch what you are doing and use common sense

when operating a power tool. Do not operate tool when you are tired
or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal
injury.

WORK AREA

• Keep the work area clean and well lit. Cluttered and dark areas
invite accidents.

• DO NOT operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power Tools
create sparks, which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

• Power tools plug must match the outlet. Never modify the plug
in any way. DO NOT use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.

• DO NOT expose this power tool to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
DO NOT abuse the power cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep the cord away from
heat, oil and sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock. When
operating a power tool, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the
risk of electric shock.

• USE SAFETY EQUIPMENT: Always wear eye protection. Safety
equipment such as dust mask, non-skid safety shoes, hard hat,
or hearing protection used for appropriate conditions will reduce
personal injuries.

• AVOID ACCIDENTAL STARTING: Ensure the switch is in the off
position before plugging in. Carrying power tools with your finger
on the switch or plugging in power tools that have the switch on
invites accidents.

• REMOVE: Adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power
tool may result in personal injury.

• DO NOT OVERREACH: Keep proper footing and balance at all
times. This enables better control of the lawnmower in
unexpected situations.

• DRESS PROPERLY: Do not wear loose clothing or jewellery;
keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving
parts.

• DO NOT FORCE THE TOOL: Use the correct power tool for your
application, The correct power tools will do the job better and
safer at the rate for which it was designed.

• DO NOT: use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.

• Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power
tool accidentally.

• Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions
to operate the power tool. Power tools are dangerous in the
hands of untrained users.

• Maintain power tools, check for misalignment or binding of
moving parts, breakage of parts and any other condition that may
affect the power tools operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly
maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are
easier to control.

• Use the power tool, accessories and tool bits etc., in
accordance with these instructions and in the manner intended
for particular type of power tool, taking into account the working

• conditions and the work to be performed. Use of the power tool
for operations different from intended could result in a hazardous
situation.

• Before use check the supply and extension cord for signs foe
signs of damage or aging.

• If the cord becomes damaged during use, disconnect the cord
from the supply immediately.

• WARNING: Cutting elements continue to rotate after the motor
is switch off.

• Keep extension cord away from cutting element.

5

USE AND CARE

• DO NOT force the power tool. Use the correct power tool for your

application, The correct power tool will do the job better and safer
at the rate for which it was designed.

• DO NOT use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.

• Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing the lawnmower.
Such preventive safety measures reduce the risk of starting the
power tool accidentally.

• Store idle power tools out of the reach of children and do not al­low persons unfamiliar with the power tool or these instructions to
operate the power tool . Power tools are dangerous in the hands
of untrained users.

• Maintain power tools, Check for misalignment or binding of
moving parts, breakage of parts and any other condition that may
affect the power tools operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly
maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are
easier to control.

• Use the power tool, accessories and tool bits etc., in accordance
with these instructions and in the manner intended for particular
type of power tool, taking into account the working conditions and
the work to be performed. Use of the power tool for operations
different from intended could result in a hazardous situation.

ADDITIONAL SAFETY INSTRUCTIONS

NOTE: READ THROUGH THE ENTIRE MANUAL BEFORE

STARTING ANY POWER PRODUCT.

Machinery presents serious injury hazards to untrained users.

• Read the instructions carefully. Be familiar with the controls and
the proper use of the appliance.

• NEVER allow children to use the appliance.

• NEVER allow people unfamiliar with these instructions to use the

appliance. Local regulations may restrict the age of the operator.

• NEVER operate the appliance with people, especially children, or
pets are nearby.

• The operator or user is responsible for accidents or hazards
occurring to other people or their property.

• While operating the appliance, always wear substantial footwear
and long trousers. DO NOT operate the appliance when barefoot
or wearing open sandals.

• Thoroughly inspect the area where the appliance is to be used
and remove all stones, sticks, wires, bones, and other foreign
objects.

• Before using, always visually inspect to see that the rotating parts
and cutter assembly are not worn or damaged. Replace worn or
damaged parts in sets to preserve balance.

• Operate the appliance only in daylight or in good artificial light.
Avoid operating the appliance in wet grass, where feasible.
Always be sure of your footing on slopes. Walk, never run.
Always work across the face of slopes, never up and down.

• Exercise extreme caution when reversing or pulling the appliance
towards to you.

• DO NOT operate the appliance on excessively steep slopes.

• Use extreme caution when reversing or pulling appliance towards
you.

• Stop the rotating parts if appliance has to be tilted for
transportation. DO NOT operate the cutting means when
crossing surfaces other than grass, and when transporting the
appliance to and from the working area.

• NEVER operate the appliance with defective guards or shields,
or without safety devices, for example deflectors and/or catchers
in place.

• Switch on the motor according to instructions and with feet well
away from rotating parts.

• DO NOT tilt appliance when switching on the motor, expect if
the appliance has to be tilted for starting. In this case, do not tilt
it more than absolutely necessary and lift only the part, which is
away from the operator. Always ensure that both hands are in the
operating position before returning the appliance to the ground.
DO NOT put hands or feet near or under rotating parts.

• Never pick up or carry an appliance while the motor is running.

• Pull the plug from the socket whenever you leave the machine
before clearing a blockage.

• DO NOT start the trimmer when it is upside down or when not in
working position.

• Before connecting the trimmer to the mains, make sure that the
rotating parts are not damaged and the line-holding spool is
inserted correctly and securely.

• DO NOT use the trimmer if the cutting device is not secured
properly or is damaged.

6

• After striking a foreign object. Inspect the appliance for damage
and make repairs as necessary.

• If the appliance starts to vibrate abnormally, check immediately.

• When the machine is at work in the thick bushes or runs into
obstacles it can’t cut down, the blade will be stalled so that
the machine temperature and current will increase. When the
temperature is too high or the current is too large, the overload
protection device installed inside the machine will automatical­ly shut off the power to stop the machine (main purpose is to
protect motor and prolong motor life). At this moment, let go of
the trigger and disconnect power supply of the machine, let the
machine cool in some time (1~2 mins) and then restart switch,
the machine can rework.

WARNING

Like all machinery there is potential danger when operating this

machine. Accidents are frequently caused by lack of familiarity

or failure to pay attention. Use this machine with respect and

caution to lessen the possibility of operator injury. If normal safety

precautions are overlooked or ignored, serious personal injury
may occur.

CAUTION

No list of safety guidelines can be complete. Every environment

is different. Always consider safety first, as it applies to your

individual working conditions. Use this and other machinery

with caution and respect. Failure to do so could result in serious
personal injury, damage to equipment, or poor work results.

ELECTRICAL SAFETY INFORMATION

WARNING

• IMPORTANT: Make sure that the electric circuit is fused, and

that the power, voltage and frequency of the motor is supported
by your mains supply. Also, make sure, that your power supply is
earthed. Connect your power tool to earth. Never open the ON/
OFF switchbox. However, if it should become necessary to do
so, contact a qualified electrician. Make sure that you will never
touch live contacts, specifically when you plug or unplug your
log splitter. This machine and its power cord must never get into
contact with water.

• Never use its power cord to move/shift your power tool. Always
unplug the power cord before handling your power tool. Do not
yank the plug out of the wall socket by the cable and protect the
latter against heat sources, oil and objects which can damage it.
Neither expose your power tool to rain and wetness.

• NOTE: When equipment like this is being started a short-time
voltage drop may occur, particularly if the mains quality is poor.
Such drops can affect other consumers (e. g. flickering of a
lamp). At a mains impedance of Zmax < 0.448 Ω, such trouble is
not to be expected.

ELECTRICAL CONNECTION

• The single-phase 230 V/50 Hz motor of this lawnmower should
be connected to a standard 230 V + 10 %/50 Hz + 1 Hz power
supply source provided with a residual-current circuit breaker.

• CAUTION: Any unprofessional use of extension cables can
cause overheating to this lawnmower. Ensure that the extension
cable is not longer than 10 m and its wire cross section is not
less than 2.5 mm². Never use uninsulated or bare cables,
respectively. The extension cable must be suitable for outdoor
use.

7

ASSEMBLY

The grass trimmer is supplied with some components not assembled.
To assemble these proceed as follows:

ASSEMBLING THE MOTOR HOUSING

Insert the motor housing (6) into the handgrip (5), make sure the cable
between will not be damaged.

MOUNTING THE GUARD

Align the reference indices of the body (2) of the spool holder (3) and
of the guard (4). Insert the guard in the body (up to the collar) and
rotate it in the direction indicated by the arrow until the hole of the
guard corresponds to that of the body. Firm the screws supplied (1).

CAUTION: During this operation beware of the line cutter blade.
You may be wounded.

ASSEMBLING THE HANDLE

Install the handle (4) onto the handgrip (5) with bolt and nut.

MOUNTING THE GUARD

Align the reference indices of the body (2) of the spool holder (3) and
of the guard (4). Insert the guard in the body (up to the collar) and
rotate it in the direction indicated by the arrow until the hole of the
guard corresponds to that of the body. Firm the screws supplied (1).

CAUTION: During this operation beware of the line cutter blade.
You may be wounded.

CAUTION: Never use the grass trimmer without the guard. It is vital
for your and other peoples’ safety and for the good working order of
the trimmer. The failure to observe this safety regulation is not only
dangerous but also annuls the guarantee terms.

8

CAUTION: Never use the grass trimmer without the guard. It is vital
for your and other peoples’ safety and for the good working order of
the trimmer. The failure to observe this safety regulation is not only
dangerous but also annuls the guarantee terms.

USE OF THE CABLE HOLDER

The handle is equipped with a cable holder that serves for connection
of the extension cable.

.

STARTING

If the trimmer is to be used for the first time, check that the nylon line
touches or passes over the cutting blade. The nylon line will be cut
automatically when turn on the switch to the maximum length. If it
does not reach the necessary length, push the head of spool with your
finger while pulling the lines.

Insert the plug into the extension cable and attach it to the handle.

Pressure the switch and make the trimmer turn at no load; thus, the
line length is automatically adjusted. Only approach the implement
to the grass to be cut while it is in operation, i.e. while the switch is
pressed down.

CAUTION: Before turn on the switch, take the blade cover away.
To cut long grass, take several small cuts. Never cut wet or very damp
grass. The line has to be protected against premature wear caused by
hard obstacles; for this purpose, keep the trimmer away from hard
surfaces using the guard’s edge as a protection. A short or worn line
will reduce cutting capacity. So, to restore the line to its optimum
length, push the implement to the ground while it is running; this way,
the line will automatically be the correct length.

CAUTION: The short or worn line cuts less efficiently therefore, to
improve its operations, unplug the electrical supply and repeat the
operation described in the beginning of the chapter. These make sure
that everything is functioning properly and to familiarize yourself with
the grass trimmer.

CAUTION: After switching off, the nylon line will continue to rotate for
a few more seconds.

GENERAL CUTTING TIPS

When cutting, ensure of a firm footing to allow for more effective
cutting & a proper discharge of the clippings. We recommend that you
cut longer grass in stages. Start at a higher cutting height & go over
the same area a second time with a lower cutting height.

DO NOT: Cut wet grass; it will stick to the blade/cutting line &
deck/guard, preventing proper discharge of trimmings.

9

LINE SPOOL REPLACEMENT

Unplug from the socket. Turn upside down the machine with the
guard facing upwards. Hold with one hand the motor fan (1) firmly and
with the other hold the spool holder (2). Push the clips of the spool
holder both side down and pull it out of the motor fan.

Extract the empty spool (3) and clean the inside of the spool holder
carefully removing all dust and grass residues.

Insert now the new spool in the motor fan and push the end of line
through the lateral holes provided on the motor fan. Push the spool
holder on and fasten it securely. Re-establish the length of the nylon
line by pushing the head of spool holder and pull the line ends out to
the desired length (approx. 10 cm).

INSTRUCTIONS FOR USE

After reading the safety rules carefully, follow the instructions below
attentively in order to get the most out of your grass trimmer.

Start off slowly, when you have gained experience, you will be able
to use the grass trimmer to its full potential. Start the grass trimmer
before getting close to the grass to be cut. Cut the grass by moving
the grass trimmer from right to left and proceed slowly keeping the
trimmer inclined by about 15.

CAUTION: Under no circumstances wind extra line on the empty
spool but instead replace it with a new one, the same as the original.
The use of line with different characteristics to those of the original can
permanently damage the grass trimmer as well as annulling the terms
of the guarantee.

High grass should be cut in layers, always beginning from the top.
The cuts should be short.

DO NOTE: cut damp or wet grass. Dry grass will give excellent
results.

10

Always let the nylon line rotate at top speed; do not work in such a
way as to overload the trimmer.

CAUTION: DO NOT use the Grass Trimmer without the guard.
Never pass the grass trimmer over the extension cable while the grass
trimmer is running; make sure it is always in a safe position behind
your back.

Before starting work, make sure that the area to be cut is free of
stones, debris, wires and any other objects.

MAINTENANCE

Before carrying out any maintenance operations, cut off the electric
power supply by disconnecting the plug from the extension cable.

Regular cleaning and maintenance of you grass trimmer will ensure
efficiency and prolong the life of your machine.

After each cutting operation, take apart and clean out the grass and
soil from; the spool and its slot, the whole trimmer and in particular the
guard.

During operation, keep the air slots clean and free of grass.

Only use a cloth soaked with hot water and a soft brush to clean the
grass trimmer.

DO NOT spray or wet the appliance with water. DO NOT use
detergents or solvents as these could ruin the trimmer. The parts in
plastic can easily be damaged by chemical agents. If the line cutting
blade no longer cuts or breaks, have this replaced by contacting an
authorised service centre.

CAUTION! The blade can give deep cuts. For repairs which have not
been explained in these instructions, contact an authorised service
centre.

After use, disconnect the machine from the mains and check for
damage; When not in use store the machine out of the reach of
children.

Inspect and maintain the trimmer regularly. Mains powered trimmers
should only be repaired by an authorized repairer.

User may carry out maintenance and adjustments of the trimmer spool
and line.

WARNING

Turn OFF the machine, allow all moving parts to come to a complete
stop, and disconnect the power cord before maintaining the machine.

Maintain your power tool carefully. Clean the machine after each use.
To guarantee the best possible and safest performance keep your
power tool clean.

.

• Keep all nuts, bolts and screws tight to be sure the lawn mower is
in a safe working condition.

• Check the catcher frequently for wear or deterioration.

• Replace worn or damaged parts for safety.

• Be careful during adjustments of the power tool to prevent
entrapment of the fingers between moving blade and fixed parts
of the machine.

• Store the power tool in a dry place.

CLEANING

Always remove the electric plug from the mains supply, before
any cleaning is undertaken. Carefully clean the underside of the deck
with a stiff brush after each cut; remove the grass debris and mud
accumulated inside the trimmer guard to prevent it drying.

11

STORAGE

Keep the power tool stored in dry, level area way from damp,
moisture and rain fall. Allow the power tool to cool before storing.

STORING

For trouble free service, make sure the machine is clean and
dry before storing.
Please ensure the machine is stored away from direct sunlight.
Store indoors or in a safe, locked protected area during severe
weather and winter months.
If storing for an extended period, inspect, clean and repair the
machine if necessary.
Store in a clean, dry, dust free area.
Ensure the machine is stored in a position, where any persons
cannot step on to attempt to reach items up high, due to risk of
movement.

DO NOT store the power tool near an ignition source, such as a wood
stove, gas or electric heater, or an appliance or heater with a pilot
light.

SERVICE & REPAIR

Servicing requires extreme care and knowledge and should be
performed only by a qualified service technician. For service, we
suggest you contact your nearest garden machinery specialist for
repair. When servicing, use only identical replacement parts.

This product does not contain any parts that can be repaired by the
consumer. Contact an authorised service centre or a similarly qualified
person to have it checked and repaired.

Trouble-Shooting

CAUTION: Before every operation disconnect the electric power
supply.

If the grass trimmer vibrates: remove the spool and clean its slot
carefully removing any grass and so forth. If vibration persists after
reassembly, replace the spool with a new one. In the event of the
problem not disappearing, have the trimmer checked at an authorized
service center.

If the grass trimmer does not start: check all the electrical connections;
make sure the safety circuit-breaker has not been activated; check
that no fuse has blown in your electrical system. If after the above
checks, the grass trimmer still dose not start, have it checked at an
authorised service center.

12

TROUBLESHOOTING

Probelm Possible Cause Possible Solution

Strimmer will not start Fuse in mains plug blown/faulty Check fuse in mains plug and replace

fuse if necessary.

Loose connection to trigger/
switch

Check connections within the handle
assembly.

Internal wiring fault Contact your service dealer.

Strimmer line not feeding Strimmer line not installed

correctly

Blockage in strimmer head
eyelets

Check user manual for fitting
instructions.

Cut power to motor and check
strimmer head eyelets are clear.

Strimmer not cutting cleanly Incorrect strimmer line installed Check strimmer line thickness -

replace if incorrect.

Strimmer head clogged with
grass
trimmings

Strimmer head not spinning at

Cut power to motor and clear any
built up grass trimmings around the
strimmer head.

Contact service dealer.
correct
speed.

13

ENVIRONMENT

TECHNICAL DATA

Disposal

Your product, accessories and packaging should be sorted for
environmental-friendly recycling.

Electronic equipment should not be disposed of in household waste.
For the proper disposal, treatment, recovery and recycling, please
take these products to your local waste management center.
Disposing of this product correctly will help to save valuable resources
and prevent any potential adverse effects on human health and the
environment which could otherwise arise from inappropriate waste
disposal and handling. Please contact your local authority for further
details of your nearest designated collection point. Penalties may
be applicable for incorrect disposal of this waste in accordance with
national legislation.

Only For EC Countries

Do not dispose of power tools into domestic waste. Power tools that
are no longer usable must be collected separately and disposed of in
an environmentally friendly way.

MODEL HYTR250E

Voltage 230 - 240V - 50Hz

Motor Power Rating (w) 250W

No Load Speed 12000min

Line Diameter (mm) 1.2mm

Line Supplied 2*2m

Cable Length (m) 10

Dimensions (mm) 165x130x540

Net Weight (kg) 1.7

WARRANTY

Register your 3 year warranty within 30 days of purchase at:

https://hyundaipowerequipment.co.uk/warranty

Full warranty term and conditions can be found on the HYUNDAI
POWER PRODUCTS website:

www.hyundaipowerproducts.co.uk

UPDATES

Our manuals are constantly being reviewed and updated.
Should you find an error, omission or something unclear, please
contact us for assistance.

We reserve the right to make any modifications without prior notice
whenever necessary.

All our manuals can be downloaded at:

www.hyundaipowerproducts.co.uk

14

GENPOWER LTD confirms that this HYUNDAI POWER PRODUCT conforms to the following CE Directives:

EN 60335-1:2012+A11
EN 50636-2-91:2014
EN 62233:2008
AfPS GS 2014:01

EC DECLARATION OF CONFORMITY

The undersigned, as authorised by: Genpower Ltd
Declares that the following equipment manufactured under license by Hyundai Korea

Conforms to the Directive:

EN 60335-1:2012+A11
EN 50636-2-91:2014
EN 62233:2008
AfPS GS 2014:01

Of the European Parliament and of the council on the approximation of the laws of the Member States relating to the noise emission in the
environment by equipment for use outdoors.

Equipment Category: Grass Trimmers
Product Name/Model: HYTR250E

Type: Electric Grass Trimmers

The technical documentation is kept by: Roland Llewellin, Genpower Ltd

Isaac Way, Pembroke Dock
Pembrokeshire, SA72 4RW

The conformity assessment procedure followed was in accordance with annex V or VI of the Directive.

Notified Body: TÜV Rheinland LGA Products GmbH, TillystaBe 2, 90431 Nurnberg

Certification No: AM 50363320 0001

Measured Sound Power Level: 96dB(A)

A copy of this certificate has been submitted to the European Commission and to EU Member State United Kingdom.

Place of Declaration: Pembroke Dock, SA72 4RW
Date: Friday, 09 October 2019
Signed By: Roland Llewellin
Position in Company: Managing Director

Name and address of manufacturer or authorised representative:

Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW.

15

Imported for:
GENPOWER LTD
Isaac Way, London Road,
Pembroke Dock, UNITED KINGDOM, SA72 4RW
T: [phone] F: [phone]
E: [email protected]
www.hyundaipowerproducts.co.uk

mported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea
