2 IN 1 POLE HEDGE TRIMMER HYP2HT550E

Instruction Manual

WARNING: Read the instructions carefully before use.

Page 2

Contents

Introduction……..……………………………3

Safety Information…..…………………..4-14

Understand Your Machine.…..…………...4 Personal Safety...…….……………………4-5 Inspect Your Machine……………………...5

Work Area…….……………………………....6

During Use…….………………………………7 Batteries…….…………………………………8

Electricity…….…………….…...………….8-9

Double Insulated Devices……....…….......9

Vibrations….…………………………..........10

Noise…….……………………………..........10

Residual Risks…………………....................10

Intended Use………………………............11

Personal Protective Equipment…...........12

Symbols On The Machine……………13-14

Unboxing…………………………...............15

In The Box……………………..……............16

Declaration Of Conformity……………….41

Useful Information………………………….42

Our YouTube Channel…..………………..42

Warranty…………………………………….42

Manual Updates….……………………….42 Returning Your Product….……………….42 Leaving A Review….……………………...42

Ordering Spare Parts.……………………..42

Product Record…………………………….43

Features…………………………...........17-18

Assembly……..…………………….......19-25

Assembly Overview……………………….19

Hand Held Trimmer Configuration....19-20

Pole Trimmer Configuration...............21-24

Cord Management……………………….25

Operation……...………………………..26-37

Cutting A Hedge………………………….26

Choosing The Correct Angle…..….……27

Maximum Cutting Capacity…....……...28

Starting and Stopping Hand Held…29-30

Starting and Stopping Pole Trimmer…31-32

Adjusting Pole Length…………………..35-36

Adjusting Pole Grip………………………….37

Maintenance & Care……………………38

Cleaning…………………………………….38

Clearing Jams……...……………………...38

Blade Lubrication…………………………38

Blade Damage…………………………....38

Specifications………………………………39

Recycling & Disposal……………………...40

www.hyundaipowerproducts.co.uk

Page 3

Introduction

Thank You For Purchasing Your HYUNDAI Product

We work very hard to give all of our customers the best possible service. If you have any problems, before leaving negative feedback, please contact us to give us a chance to resolve the issue. We would be delighted if you left us positive feedback! Thank you for purchasing this product.

Important!

WARNING: READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference and pass it on if the machine is

loaned or sold to another user.

This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.

The safety precautions and warnings are to ensure your safety and protect you from harm or damage to the product.

The information contained in this manual was accurate at the time of production, however HYUNDAI Power Products may make modifications to the product without notification.

www.hyundaipowerproducts.co.uk

Page 4

Safety Information

Understand Your Machine

• WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. Make sure to save all warnings and instructions for future reference.

• Read this manual and labels affixed to the machine to understand its limitations and potential hazards.

• Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.

• If the unit is to be used by someone other than original purchaser, or is to be loaned, rented, or sold, always provide this manual and any needed safety training before operation. The user can prevent and is responsible for accidents or injuries that may occur to themselves, to other people, or to property.

• Do not force the machine beyond its limits. Use the correct machine for your application.

• Know how to stop the machine quickly in case of emergency. Understand the use of all controls.

• ALL MAINTENANCE other than that listed in this manual, should be carried out by professionally trained and certified personnel.

• When using this machine for the first time and before actual work, you MUST learn how to handle the machine from an experienced or skilled person.

Personal Safety

• WARNING! Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the minimum age of the operator.

• Keep children, pets, and other people not using the unit away from the work area (at least 15m). Be alert and shut off the unit if anyone enters work area. Keep children under the watchful care of a responsible adult.

• Stay alert, watch what you are doing and use common sense when operating the machine. Never operate the machine when unwell or tired, or if you have taken alcohol, medicine, drugs or any substances which may slow your reflexes and compromise judgment. A moment of inattention while operating the machine may result in serious personal injury.

• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. Always wear anti-slip and resistant work footwear and long trousers while using the machine. Do not use the machine when barefoot, wearing sandals or similar lightweight footwear. Do not wear chains, bracelets or clothing that is loose fitting or hanging ties or cords. Tie long hair back. Always wear protective earplugs. Loose clothes, jewellery, or long hair can be caught in moving parts. Protect eyes, face, and head from objects that may be thrown from the unit. Always wear safety goggles or safety glasses with side shields when operating.

•Always keep hands and feet away from all moving parts during operation. Moving parts can cut or crush body parts. Always keep hands and feet away from all pinch points.

www.hyundaipowerproducts.co.uk

Page 5

Safety Information

Personal Safety (Continued)

• Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. Extending your body too far can result in a loss of balance and you may fall which will result in injury.

• Never place any part of your body where it would be in danger if movement should occur during assembly, installation, and operation, maintenance, repairing or moving.

• Keep in mind that the operator or user is responsible for accidents, hazards or unexpected events involving the machine that occur to other people or their property. It is the responsibility of the user to assess the potential risk of the area where work is being carried out. The operator or user must take all necessary precautions to ensure their own safety and that of others, especially on slopes or rough, slippery and unstable ground.

Inspect Your Machine

• Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened.

• You must check the general condition of the machine before use.

• Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing, or failed parts before using it. Check for fuel leaks. Keep the machine in safe working condition.

• Do not use the machine if the machine’s switch does not turn off the machine when running. Any machine that can’t be controlled with the switch is dangerous and must be replaced.

• Regularly check to see that keys and adjusting wrenches are removed from the machine area before starting it. A wrench or a key that is left attached to a rotating part of the machine may result in personal injury.

• If the machine should start to vibrate abnormally, stop the machine and check immediately for the cause. Vibration is generally a warning sign of trouble.

• Avoid accidental starting. Be sure the switch is off before transporting the machine or performing any maintenance or service on the unit. Transporting or performing maintenance or service on a machine with its switch on invites accidents.

• Do not tamper with or disable safety systems.

• Only use manufacturer-recommended attachments.

• Before using, always visually inspect to see that the tools are not worn out or damaged. Replace worn out or damaged elements and bolts in set to preserve balance.

• Keep the machine in good operating condition. Operating the machine in poor or questionable condition could result in serious injury.

• Be sure all safety devices are in working order and warning labels are in place. These items are installed for your safety.

www.hyundaipowerproducts.co.uk

Page 6

Safety Information

Work Area

• You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area.

• Keep people, children and animals away from the working area.

• Operate on flat, level ground.

• DO NOT work on wet ground. If there has been heavy rain on the working site, wait until the ground has dried up.

• Never park the machine in a place with unstable ground which could give way.

• You must be careful near ravines, ditches or embankments.

• Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.

• Do not work in the rain, when there is a thunderstorm or lightning risk, at times of strong or gale force winds, or at any other times when the weather conditions might make it unsafe to use this product. If there is bad weather conditions, do not use the machine.

• Any liquid spilled on the floor may result in you slipping.

• DO NOT operate power tools in explosive atmospheres, such as in the presence

of flammable liquids, gases or dust. Power tools may create sparks, which may ignite the dust or fumes.

www.hyundaipowerproducts.co.uk

Page 7

Safety Information

During Use

• Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object.

• Never attempt to make any adjustments, while the machine is running.

• You must switch off the machine:

- Before checking or working on the machine.

- When transporting the machine.

- Whenever you leave the machine unattended.

- If the machine starts to vibrate abnormally.

• WARNING! If something breaks or an accident happens whilst working, you must turn off the machine immediately and move the machine away to prevent further damage. If an accident happens with injuries or third parties are injured, carry out the first aid measures most suitable for the situation immediately and contact the medical authorities for any necessary health care. Carefully remove any debris that might cause damage or harm persons or animals should it not be seen.

• Never operate the machine without the defective guards or shields, or without safety devices, or if the cord is damaged or worn.

• Always make sure that the power cord is not in the way of your work.

www.hyundaipowerproducts.co.uk

Page 8

Safety Information

Batteries (Where Present)

Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form.

Should you come in to contact with electrolyte you should;

• Remove all clothing contaminated with electrolyte. If you cannot remove then

saturate them in water.

• Get medical assistance as soon as possible.

You must advise the medical staff of the type of acid.

• Lead/acid battery = dilute sulphuric acid.

• Nickel/cadmium = potassium hydroxide alkali electrolyte.

• Use fresh running water to wash off excess electrolyte, continue this until medical

assistance arrives. Make sure that you do not wash the electrolyte to another part of your body or face.

• If electrolyte comes in to contact with Eyes the electrolyte needs to be

immediately washed away with large amounts of water. Make sure that you do not wash the electrolyte to another part of your face or body.

• Gasses from charging batteries are highly flammable and great care should be

taken to charge in well ventilated areas.

• There is an explosion risk if the battery terminals are short circuited, when connecting/disconnecting ALWAYS exercise great care so that the terminals or battery leads are NOT allowed to touch and cause a spark. ALWAYS use suitable insulated tools.

Electricity (Where Applicable)

DANGER : ELECTRICITY CAN KILL – NEVER WORK ON LIVE / ENERGISED EQUIPMENT.

• Prior to carrying out any maintenance work you MUST identify electrical

. isolation methods and isolate all electrical supplies.

• Prior to use and with all electrical supplies isolated, you MUST check all

electrical cables, plugs and connectors for the following;

- Are intact and have no signs of damage, to include but not limited to bare wires,

chaffing, cuts and loose wiring.

- If there are any signs of damage, the damaged item MUST be taken out of

service until the damage has been repaired by an electrically competent person.

- All trailing cables should be routed so as not to cause any kind of trip hazard.

- NEVER work on or near electricity with wet hands, wet clothing and wet gloves.

www.hyundaipowerproducts.co.uk

Page 9

Safety Information

Electricity (Continued)

• Power tools plug must match the outlet. Never modify the plug in any way. DO

NOT use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

• DO NOT expose this power tool to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock. DO NOT abuse the power cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil and sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• IMPORTANT: Make sure that the electric circuit is fused, and that the power,

voltage and frequency of the motor is supported by your mains supply. Also, make sure that your power supply is earthed. Connect your machine to earth. Never open the ON/OFF switchbox. However, if it should become necessary to do so, contact a qualified electrician. Make sure that you will never touch live contacts, specifically when you plug or unplug your machine. This machine and its power cord must never get into contact with water.

• Avoid body contact with earthed or grounded surfaces such as pipes, radiators,

ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• To prevent electric shock, use only with an extension cord suitable for outdoor

use. For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable.

• Before use, check that the extension cord is in good condition. When using an

extension cord, make sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

• Do not allow any part of the machine to make contact with water while it is in

operation. If the appliance becomes wet while turned off, wipe dry before starting. Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.

• Before use, check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. If the supply cord is damaged, it must be replaced by the manufacturer or a qualified person in order to avoid a hazard.

Double-Insulated Appliances

In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means that it is already provided on a double-insulated appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel. Replacement parts for a double-insulated appliance must be identical to the parts they replace.

www.hyundaipowerproducts.co.uk

Page 10

Safety Information

Vibrations (Where Applicable)

• Prolonged use of hand held (operated) machines will cause the user to feel the

effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death.

• Not all factors that lead to white finger disease are known, but cold weather,

smoking and other diseases that affect blood vessels and blood circulation as well as large and long-lasting impact of shocks are considered factors in the formation of white finger. Note the following to reduce the risk of white finger and carpal tunnel syndrome;

• Wear gloves and keep your hands warm.

• Take regular breaks.

• All of the above precautions may help reduce the risk of white finger disease but

not rule out the carpal tunnel syndrome. Long-term and regular users are therefore recommended to observe the condition of your hands and fingers. Seek medical attention immediately if any of the above symptoms should occur.

Noise (Where Applicable)

• The operating noise of the machine can damage your hearing. When wearing

protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when wearing ear protection because your ability to hear alarm warnings will be reduced.

• Noise emissions for this equipment is unavoidable. Carry out noisy work at

approved times and for certain periods. Limit the working time to a minimum. For your personal protection and protection of people working nearby it is also advisable for them to wear hearing protection.

• See Certificate of Conformity section for Outdoor Noise declaration of

. . conformity.

Residual Risks

Even when tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool’s construction and design:

1. Damage to lungs if an effective dust mask is not worn.

2. Damage to hearing if effective hearing protection is not worn.

Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.

www.hyundaipowerproducts.co.uk

Page 11

Safety Information

Intended Use

The HYP2HT550E is an electric 2 in 1 hedge trimmer from HYUNDAI. The HYP2HT550E has a blade length of 480mm; with a maximum cutting capacity of 20mm, powered by a 550W HYUNDAI motor. In Pole Configuration it can provide and extra 2.6m reach.

This machine is a garden tool and precisely a pedestrian controlled hedge trimmer. The machine is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly.

Intended Use

This machine was designed and manufactured for trimming hedges, bushes and shrubs.

User Types

This machine is intended for use by consumers, i.e. non professional operators. The machine is intended for “DIY” and domestic use only.

Improper Use

Any other usage not in keeping with the above mentioned may be hazardous and harm persons and/or cause damage.

www.hyundaipowerproducts.co.uk

Page 12

Safety Information

Personal Protective Equipment

Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection.

When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g. wearing safety glasses may disturb the seal of a respirator, causing air leaks.

Hand Protection Must Be Worn

Protective electrically non-conductive gloves are highly recommended when working.

Foot Protection Must Be Worn

Non-skid heavy duty footwear are highly recommended when working.

Hearing Protection Must Be Worn

Suitable safety hearing protection is recommended.

Eye Protection Must Be Worn

Always wear safety glasses/goggles and/or face shields. Everyday eyeglasses have only impact resistant lenses; they are not safety glasses/goggles.

Protective Clothing Must Be Worn

Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings, wrist watches), which can be caught in moving parts.

Head Protection Must Be Worn

Wear a safety helmet with a safety visor.

Face Shield Must Be Worn

Wear a face shield to protect your face.

www.hyundaipowerproducts.co.uk

Page 13

Safety Information

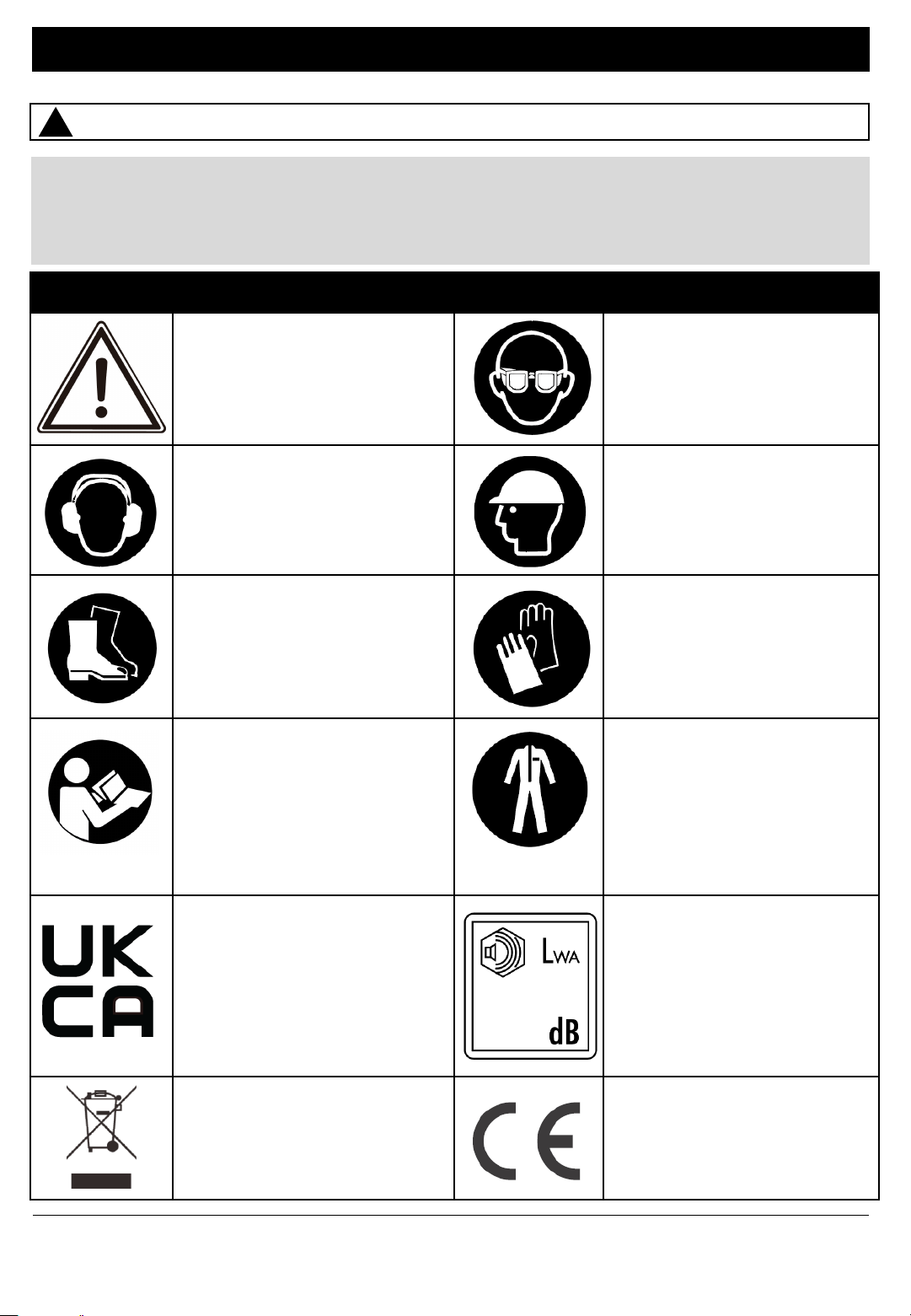

Symbols On The Machine

We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgement.

Symbol Description Symbol Description

Safety alert – Indicates a precaution, a warning or a danger.

Hearing protection must be worn.

Foot protection must be worn.

Read operator’s manual. Protective clothing must be

Eye protection must be worn.

Head protection must be worn.

Hand protection must be worn.

worn.

The UKCA (UK Conformity Assessed) marking is a UK product marking that is required for goods being placed on the market in Great Britain (England, Wales and Scotland).

This product should not be disposed of in domestic waste. Please contact your local recycling centre for disposal service.

www.hyundaipowerproducts.co.uk

Sound power level LWA data in dB.

This product complies with the European directives and an evaluation method of conformity for these directives was done.

Page 14

Safety Information

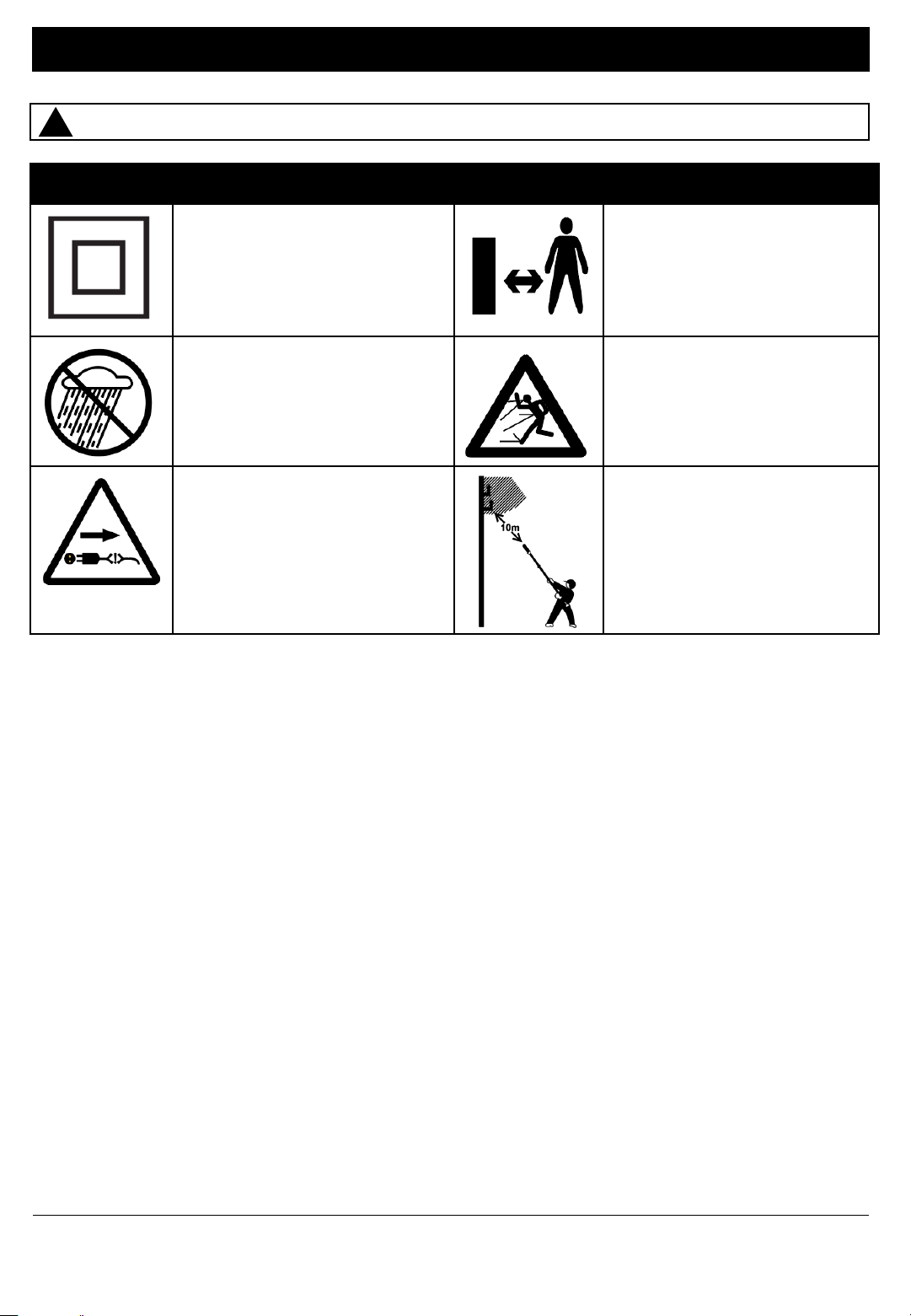

Symbols On The Machine (Continued)

Symbol Description Symbol Description

Class II tools symbol. Keep bystanders at a safe

distance away from the work area.

Do not expose to rain. Keep bystanders at a safe

distance away from the work area.

Disconnect the mains plug if the cord becomes damaged or entangled.

DANGER ELECTRIC SHOCK Keep it away at least 10m from transmission lines.

www.hyundaipowerproducts.co.uk

Page 15

Unboxing

WARNING : Unboxing and assembling the machine should be done on a flat,

surface with enough room. Disposal of the packaging should be done in accordance with the local regulations in force.

WARNING : Some of the packaging material may be harmful to children. Keep

out of reach of children.

1. Carefully remove the product from the packaging and examine it for any sign of

damage caused during shipping.

2. Lay the contents out and check them. If any part is damaged or missing, you

must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately.

3. You must keep the packaging material in case the machine needs to be

returned or repaired.

4. Ensure that you have all the accessories and tools you need for assembly and

operation including the suitable personal protective equipment.

We recommend that you fill out the information in the ‘Product Record’ section. If you need to contact an authorised dealer or customer service, you may need to provide this information.

www.hyundaipowerproducts.co.uk

Page 16

*Not To Scale

In The Box

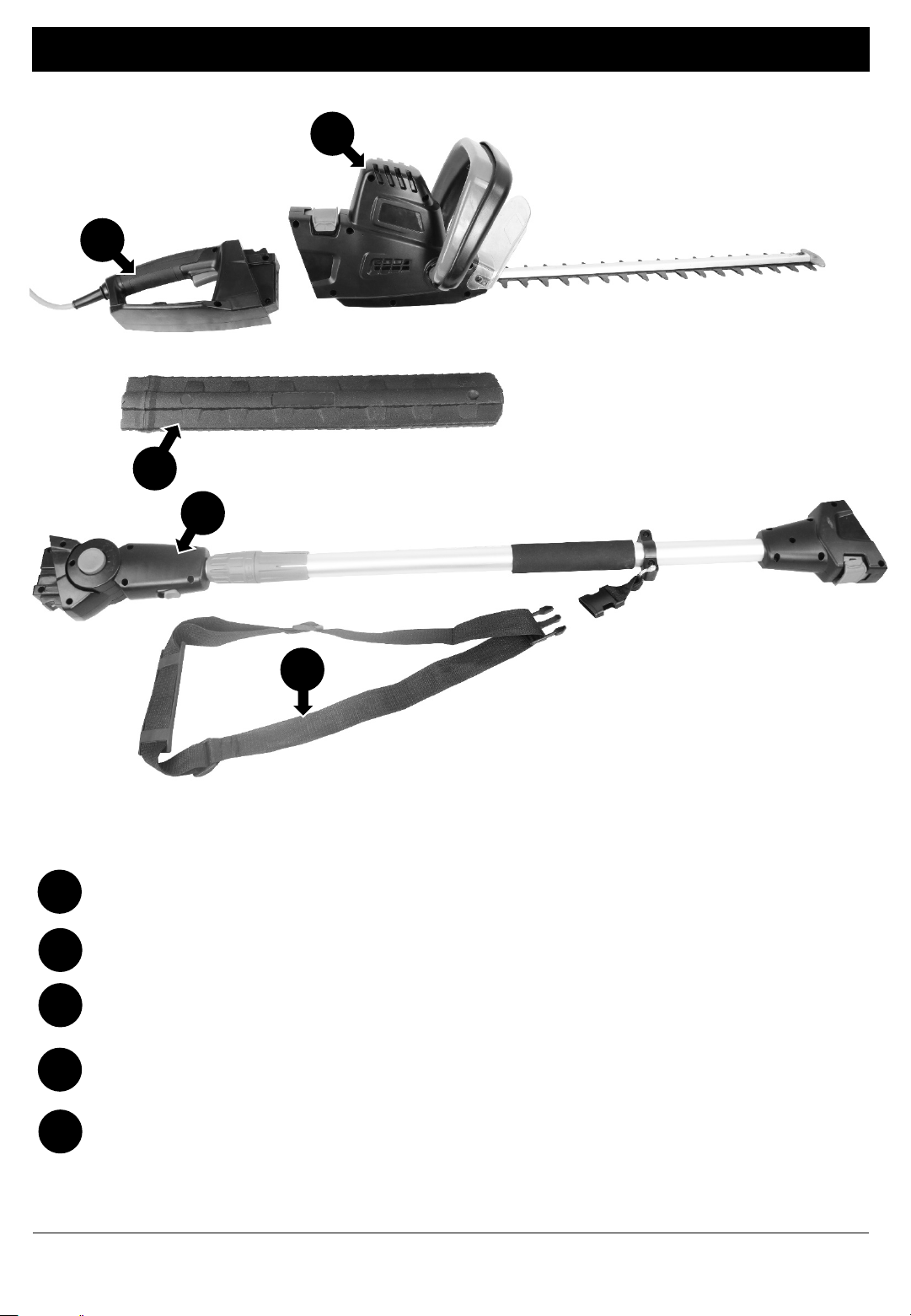

Hedge Trimmer Head

Trigger Handle

Blade Cover

Telescopic Extension Pole

Shoulder Strap

www.hyundaipowerproducts.co.uk

Page 17

*Not To Scale

Features

Descriptions on next page

www.hyundaipowerproducts.co.uk

Page 18

Features

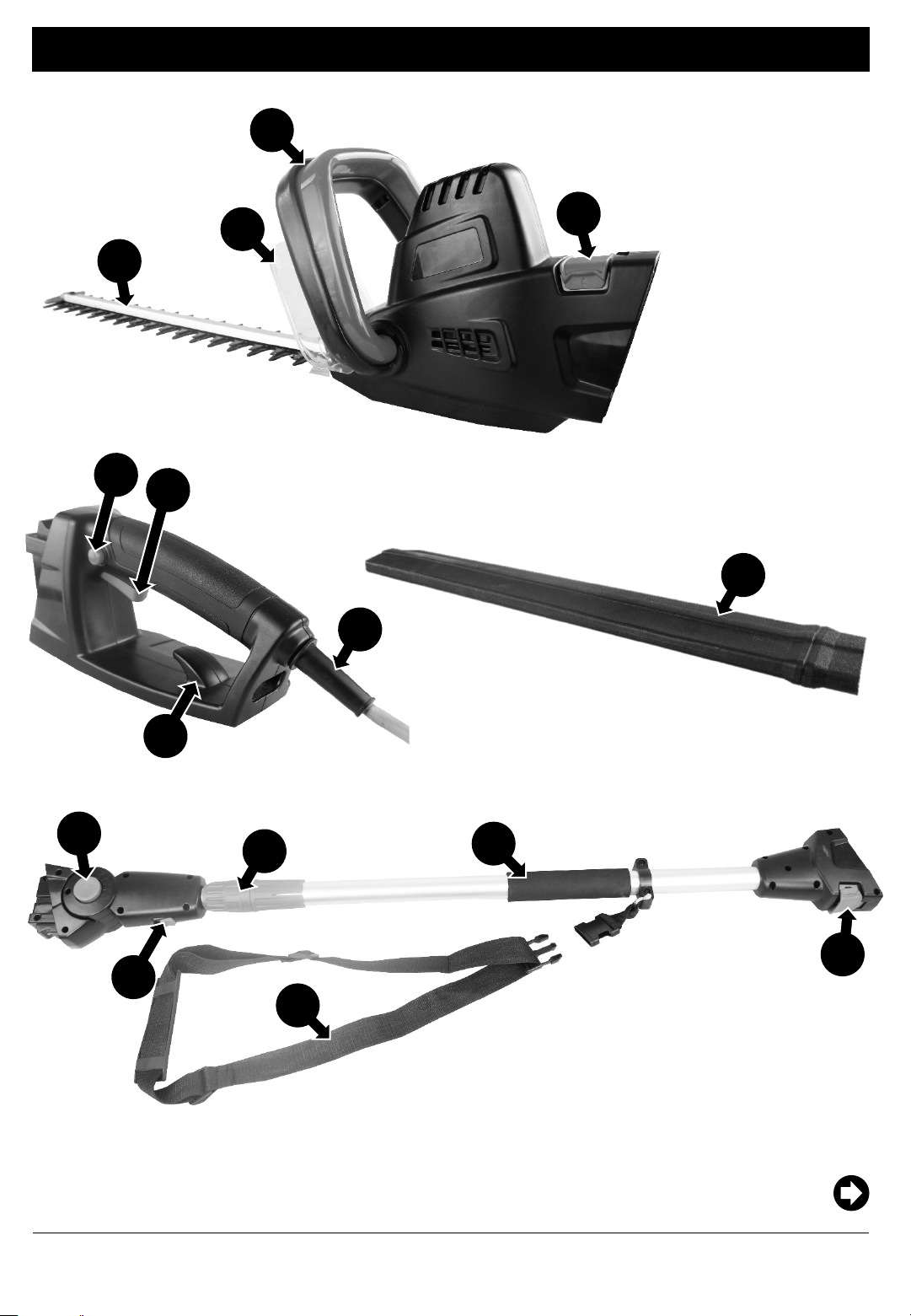

Blade Cover

Shoulder Strap

Trimmer Blade

Safety Guard

Front Handle / Front Safety Switch

Trimmer Head Quick Latch

Safety Locking Button

On / Off Trigger

Cable Hook

Cable Gland

Angle Adjustment Button

Extension Stop Switch

Length Extension Collar

Pole Grip

Extension Pole Quick Latch

www.hyundaipowerproducts.co.uk

Page 19

Assembly

Assembly Overview

Hand Held Hedge Trimmer Configuration Step 1 : Attach Handle to Hedge Trimmer Head Step 2 : Cord Management

Pole Trimmer Configuration Step 1 : Attach Handle to Extension Pole Step 2 : Attach Extension Pole to Trimmer Head Step 3 : Cord Management

WARNING! Ensure the machine IS NOT plugged into the mains power for

assembly. Assemble with the blade cover ON.

Hand Held Trimmer Configuration - Attach Handle

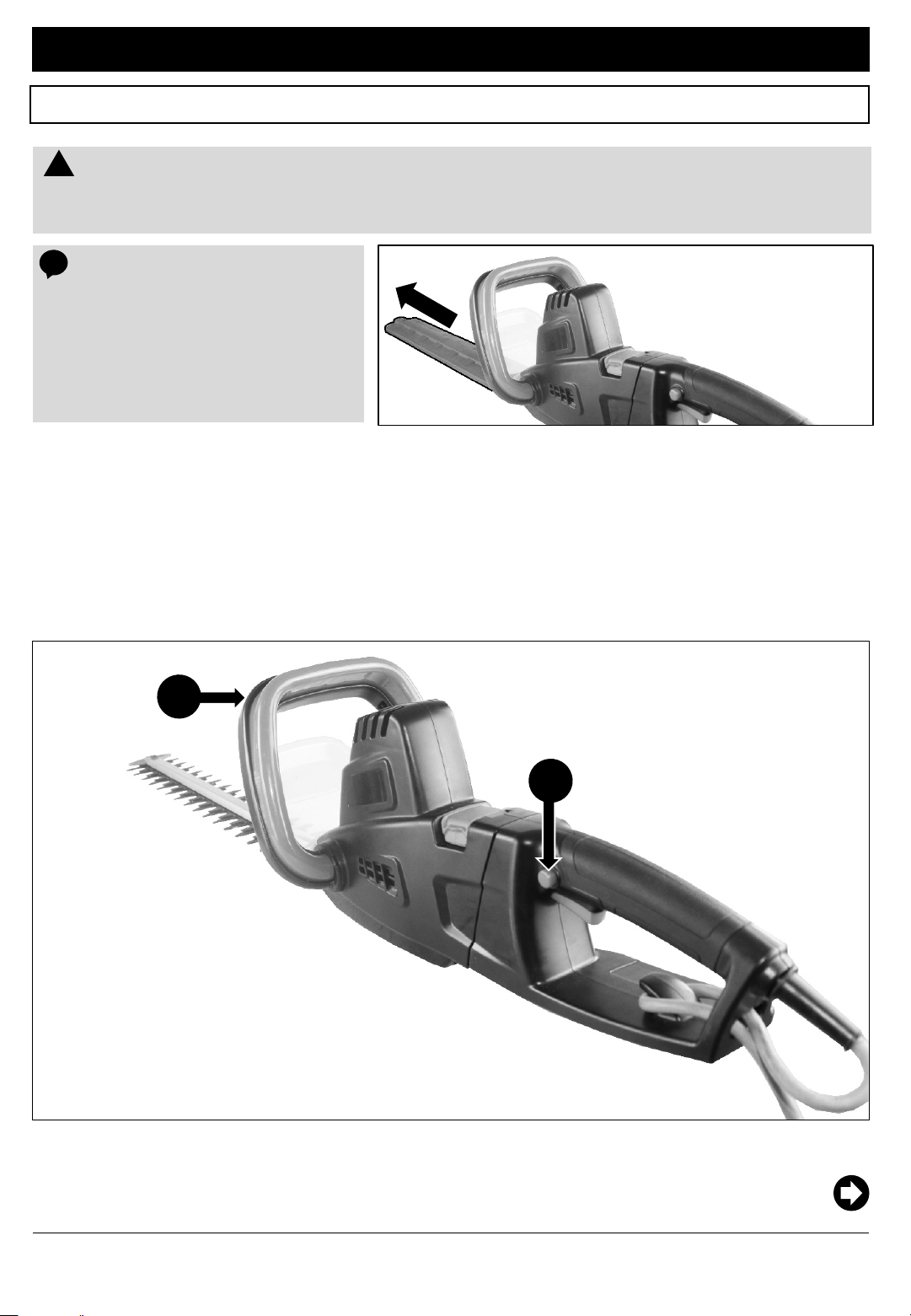

Insert the handle in the grooved slot at the back of the hedge trimmer head.

Continued on next page

www.hyundaipowerproducts.co.uk

Page 20

Assembly

Hand Held Trimmer Configuration - Attach Handle (Continued)

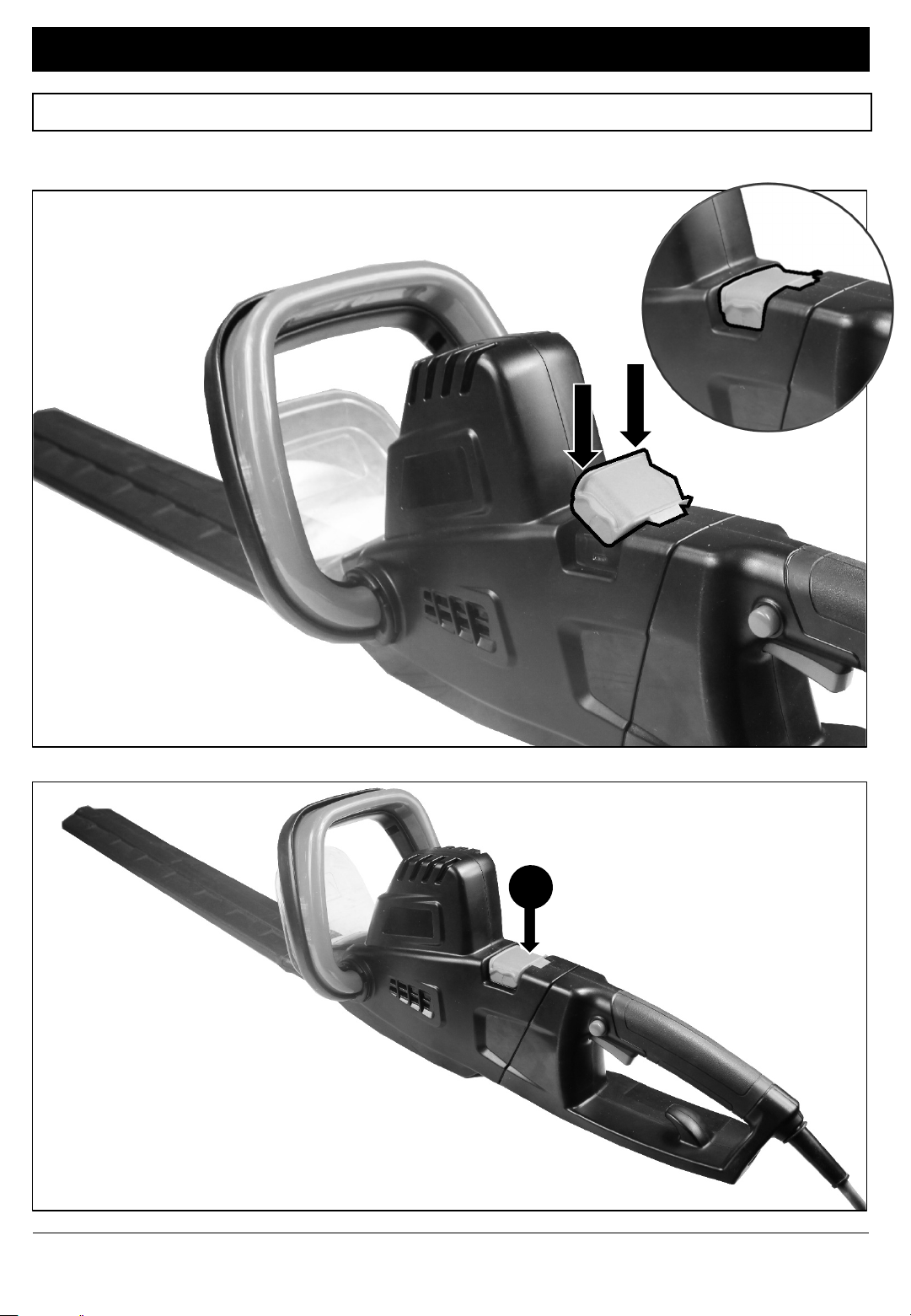

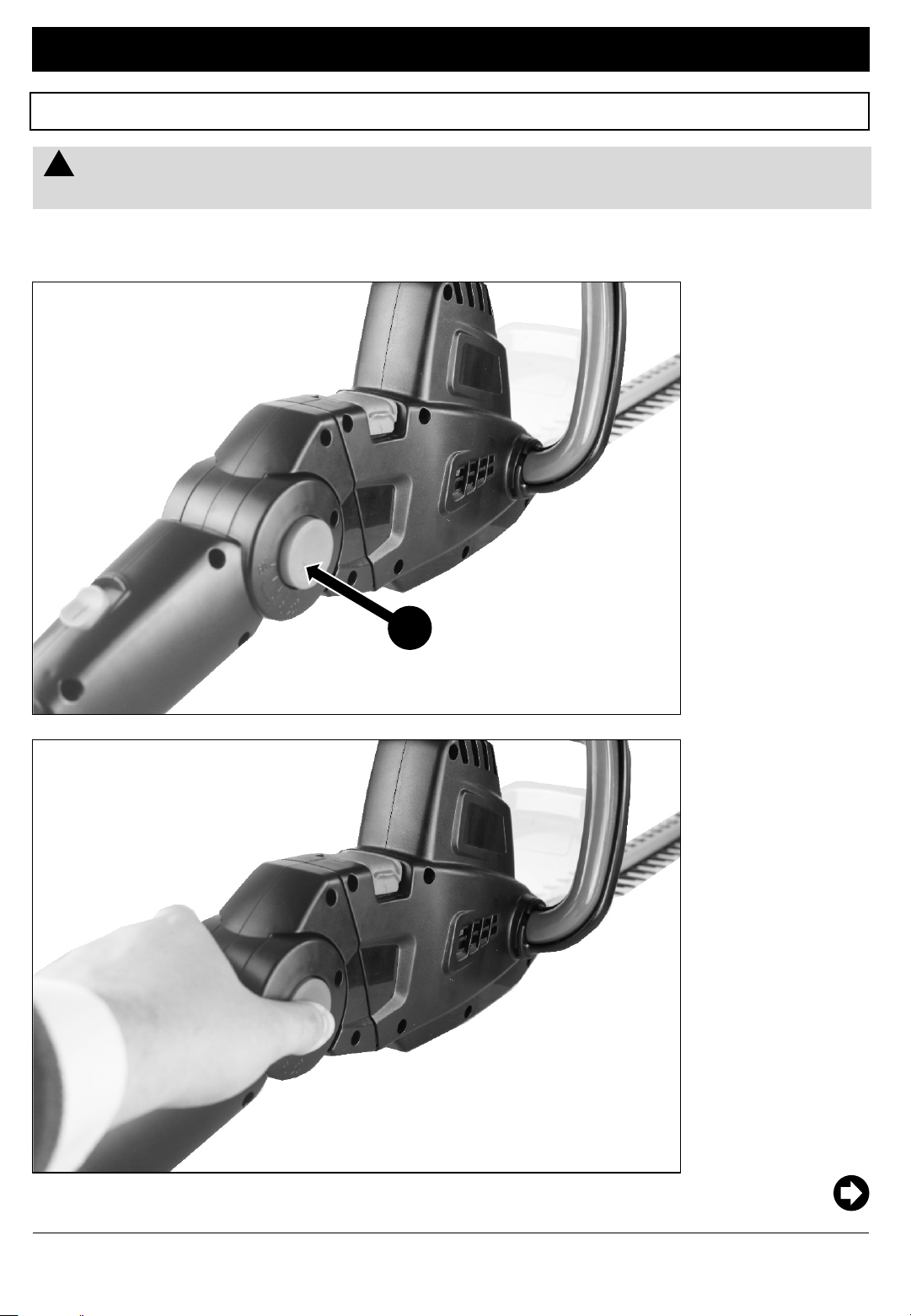

Secure the handle into place by locking the Trimmer Head Quick Latch (I).

www.hyundaipowerproducts.co.uk

Page 21

Assembly

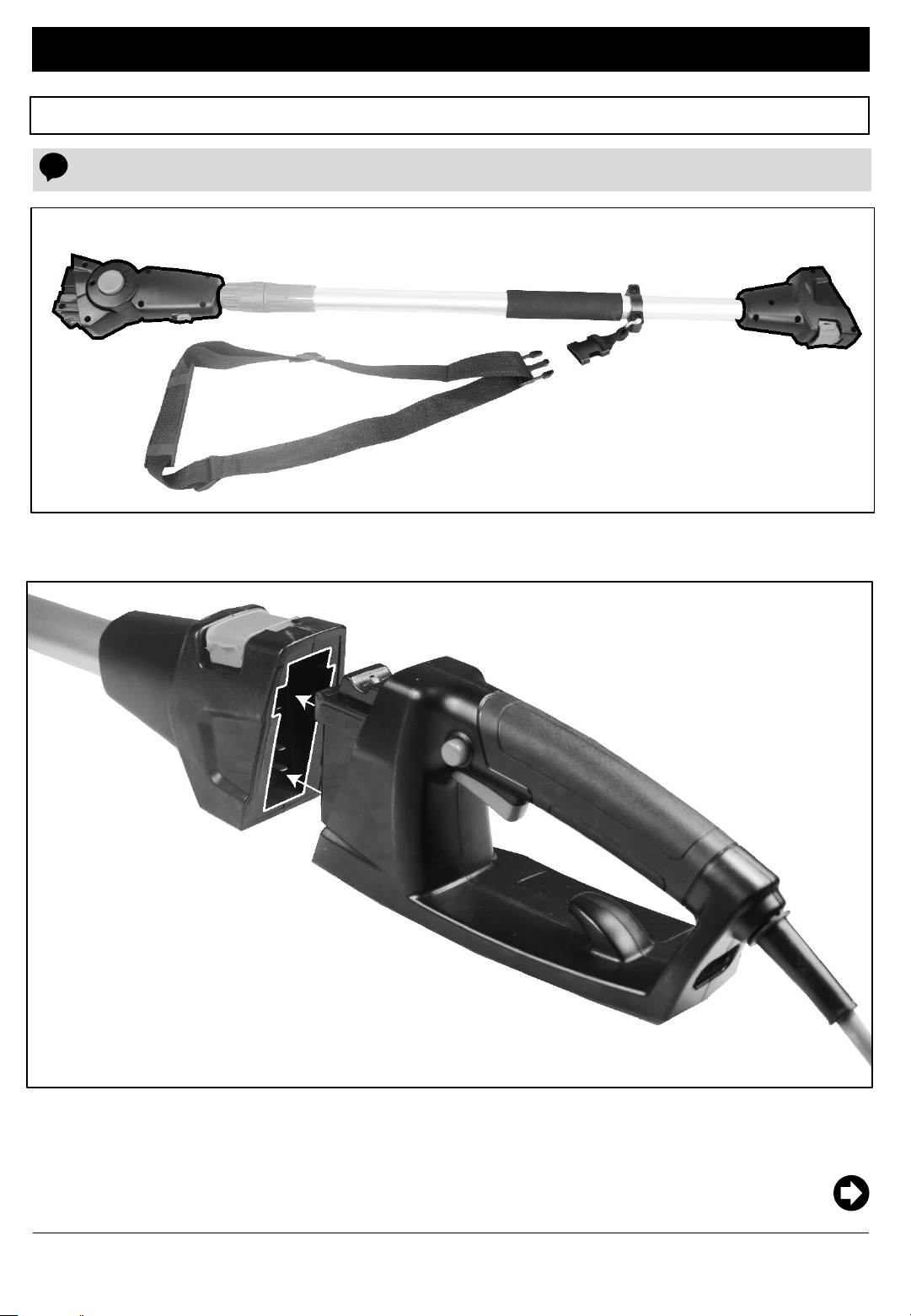

Pole Trimmer Configuration – Attach Handle

See image below to find the orientation of the extension pole (Top and Bottom).

Top Bottom

Insert the handle into the grooved slot at the bottom of the extension pole.

Continued on next page

www.hyundaipowerproducts.co.uk

Page 22

Assembly

Pole Trimmer Configuration – Attach Handle (Continued)

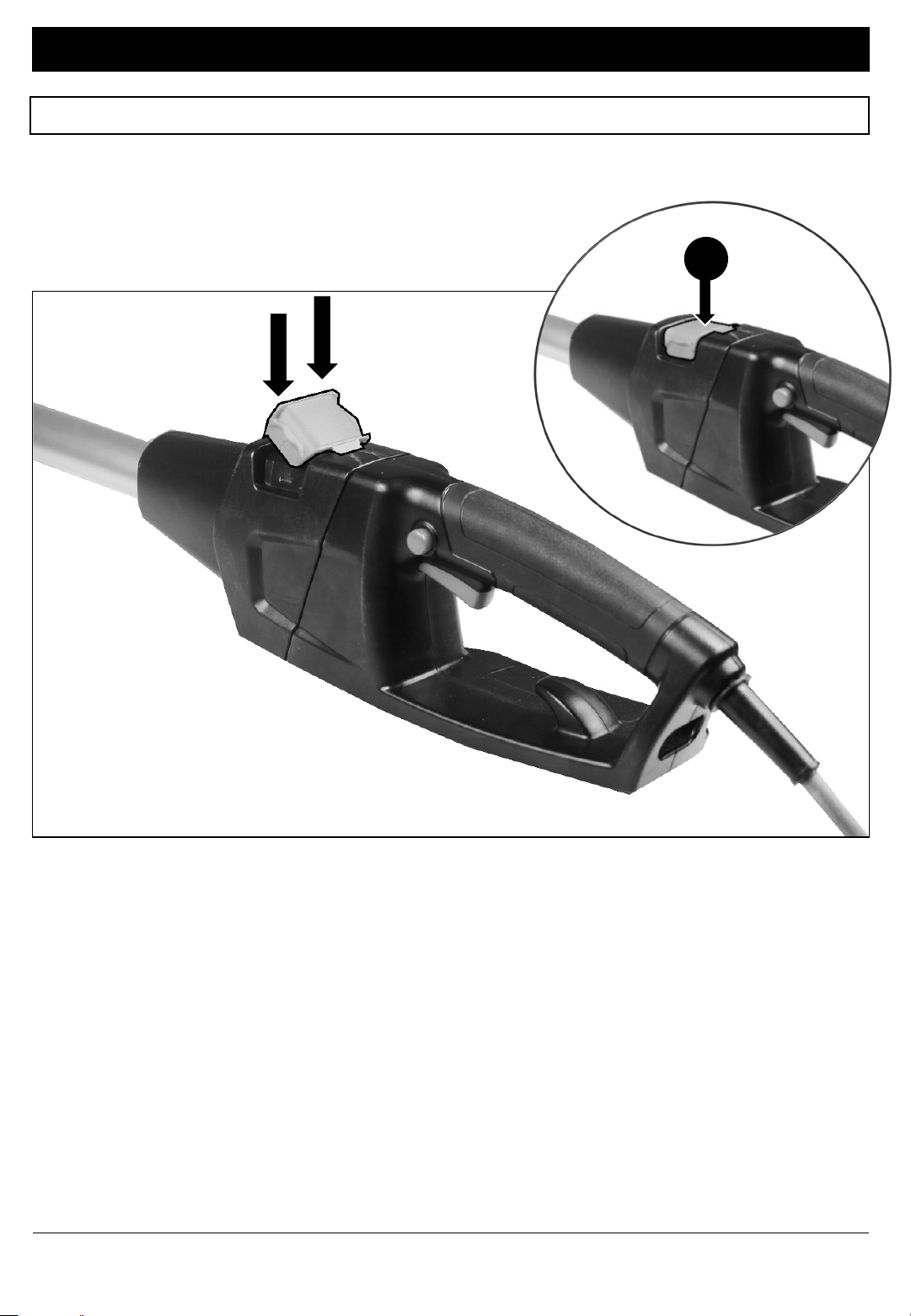

Secure the handle into place by closing the Extension Pole Quick Latch (R).

www.hyundaipowerproducts.co.uk

Page 23

Assembly

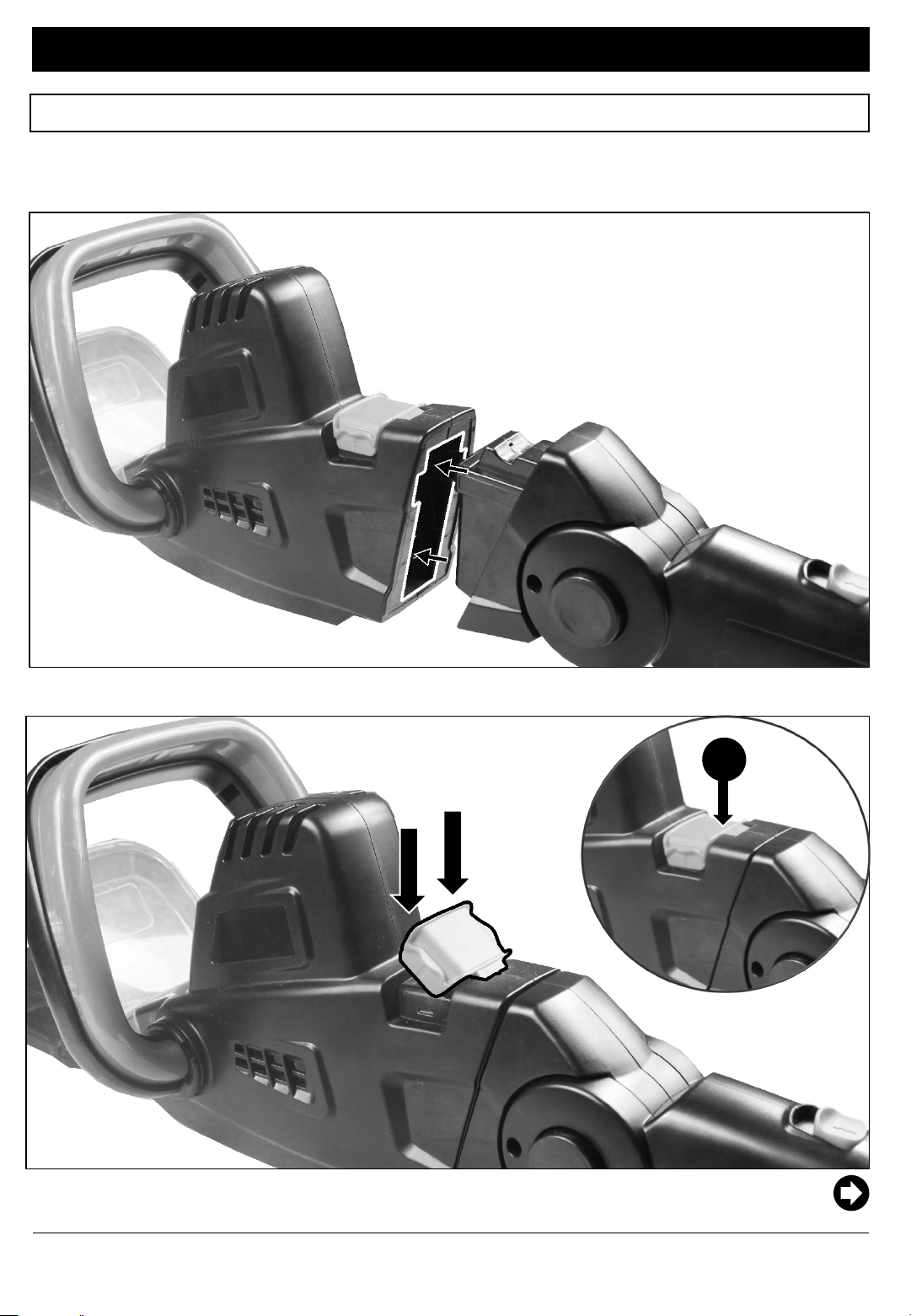

Pole Trimmer Configuration – Attach Trimmer Head

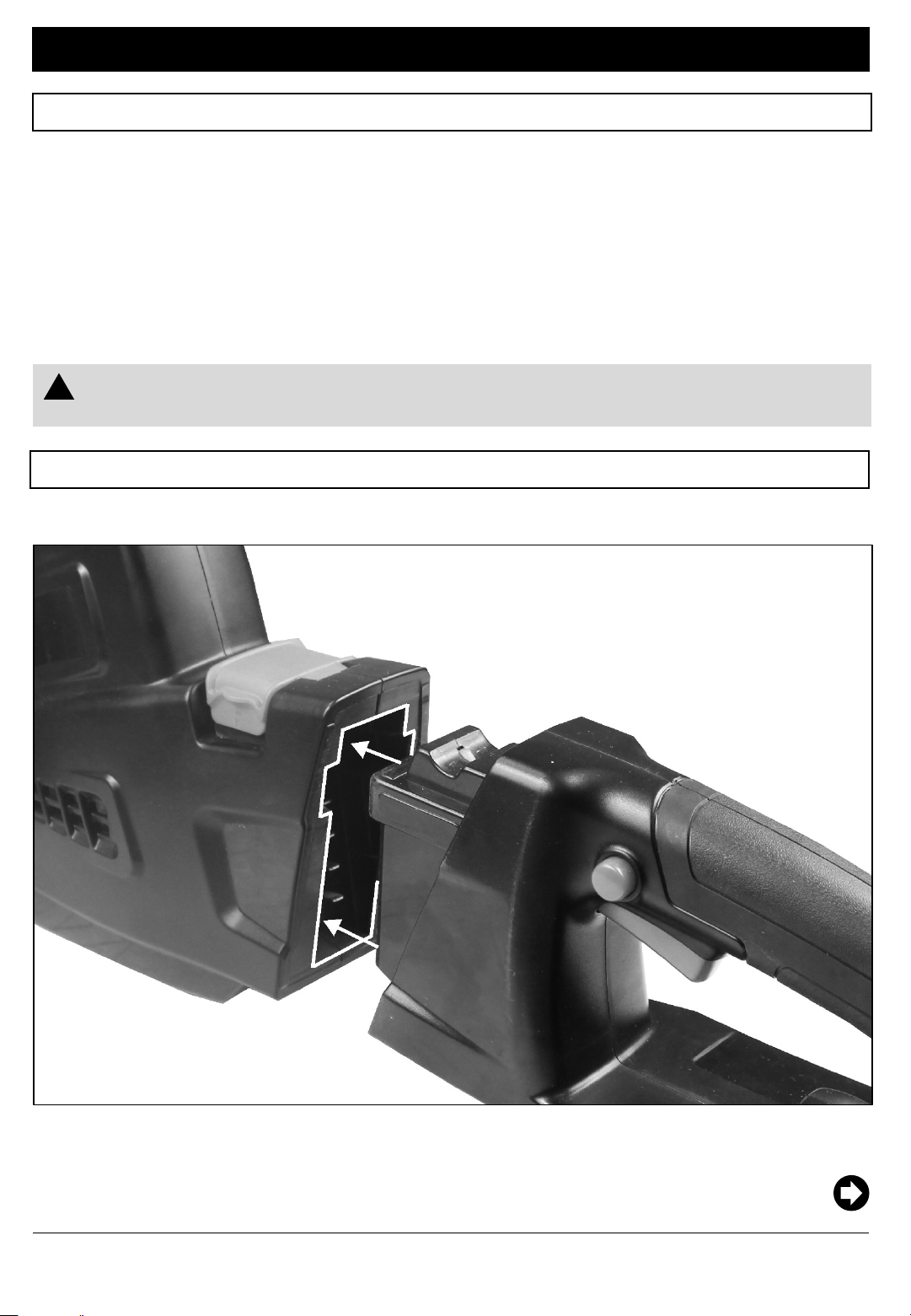

Insert the top of the extension pole into the grooved slot at the back of the trimmer head.

Secure the extension pole into place by closing the Trimmer Head Quick Latch (I).

Continued on next page

www.hyundaipowerproducts.co.uk

Page 24

Assembly

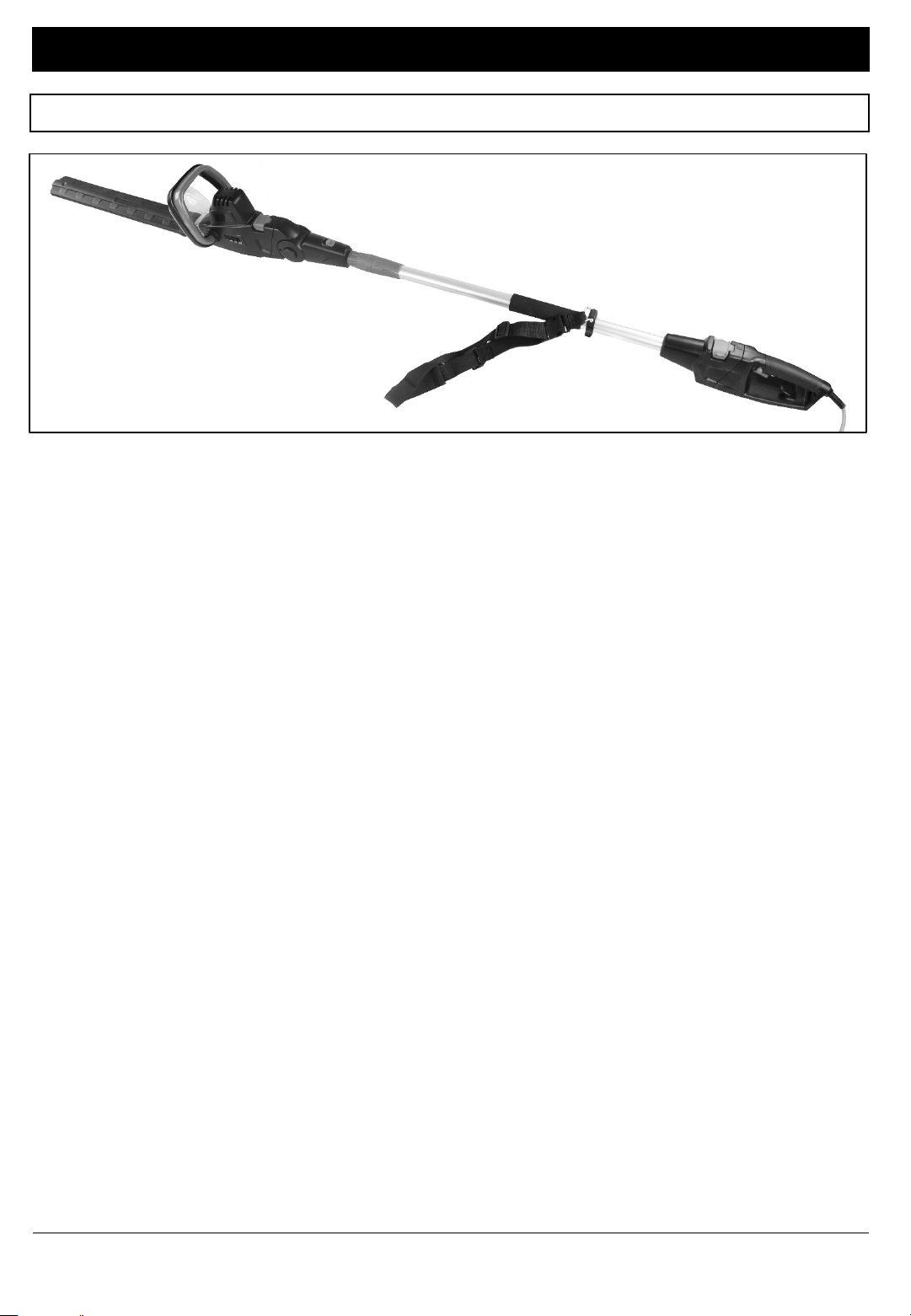

Pole Trimmer Configuration – Attach Trimmer Head (Continued)

www.hyundaipowerproducts.co.uk

Page 25

Assembly

Cord Management

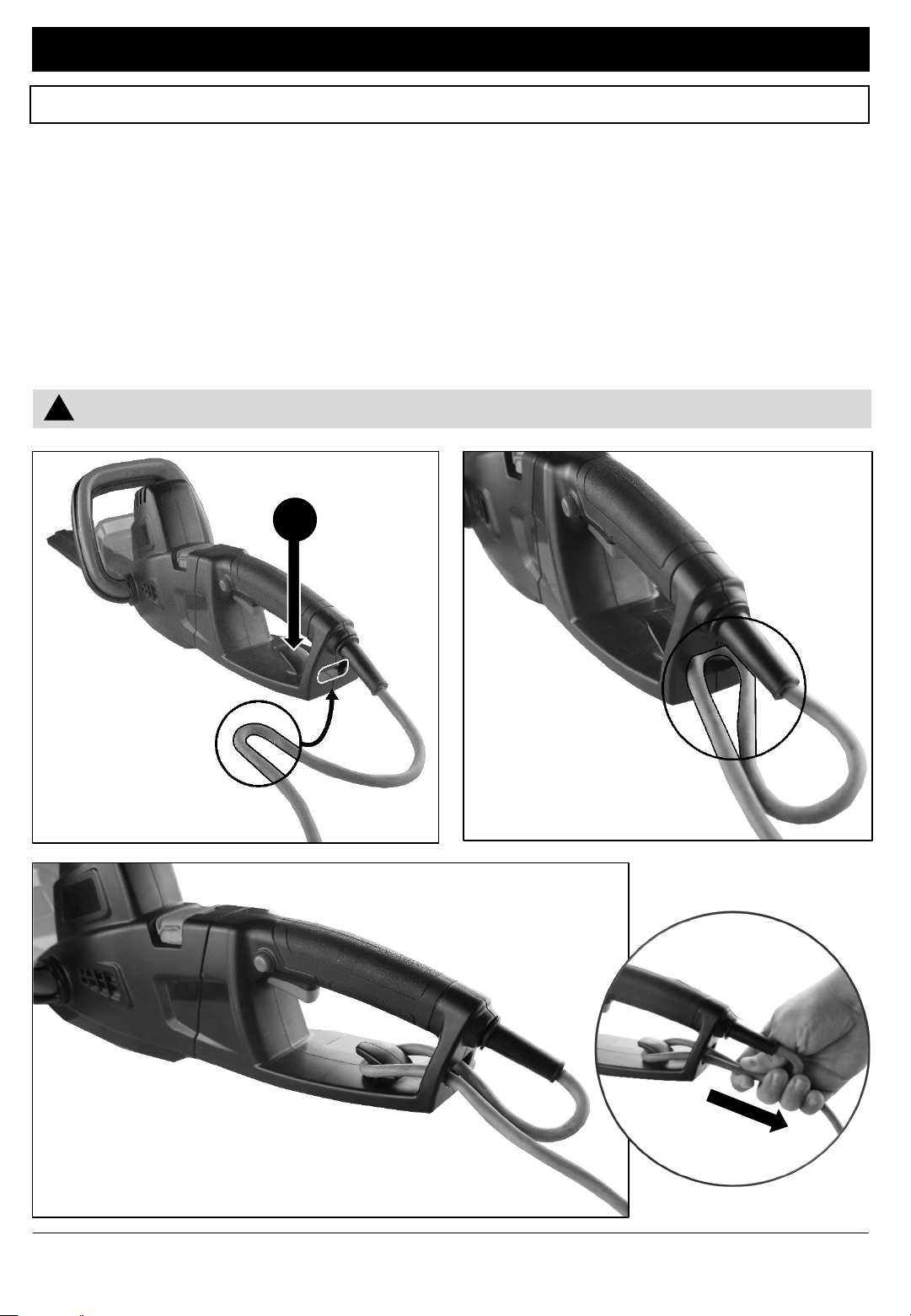

This step is essential for the health of the power cord. Sharp and sudden pulling of the cord can cause damage to the gland. Securing the cord as shown will prevent such damage. This step applies to both handheld and pole configurations.

1. Create a loop with the cord close to the trimmer head.

2. Pass the loop through the hole in the handle, over the Cable Hook (L), and give it a gentle pull to test.

The machine is now ready to be used in either configuration.

WARNING! The user manual must be read and understood before operation.

www.hyundaipowerproducts.co.uk

Page 26

Operation

Cutting A Hedge

When operating the hedge trimmer, keep the extension cord behind the

trimmer. Never drape it over the hedge being trimmed.

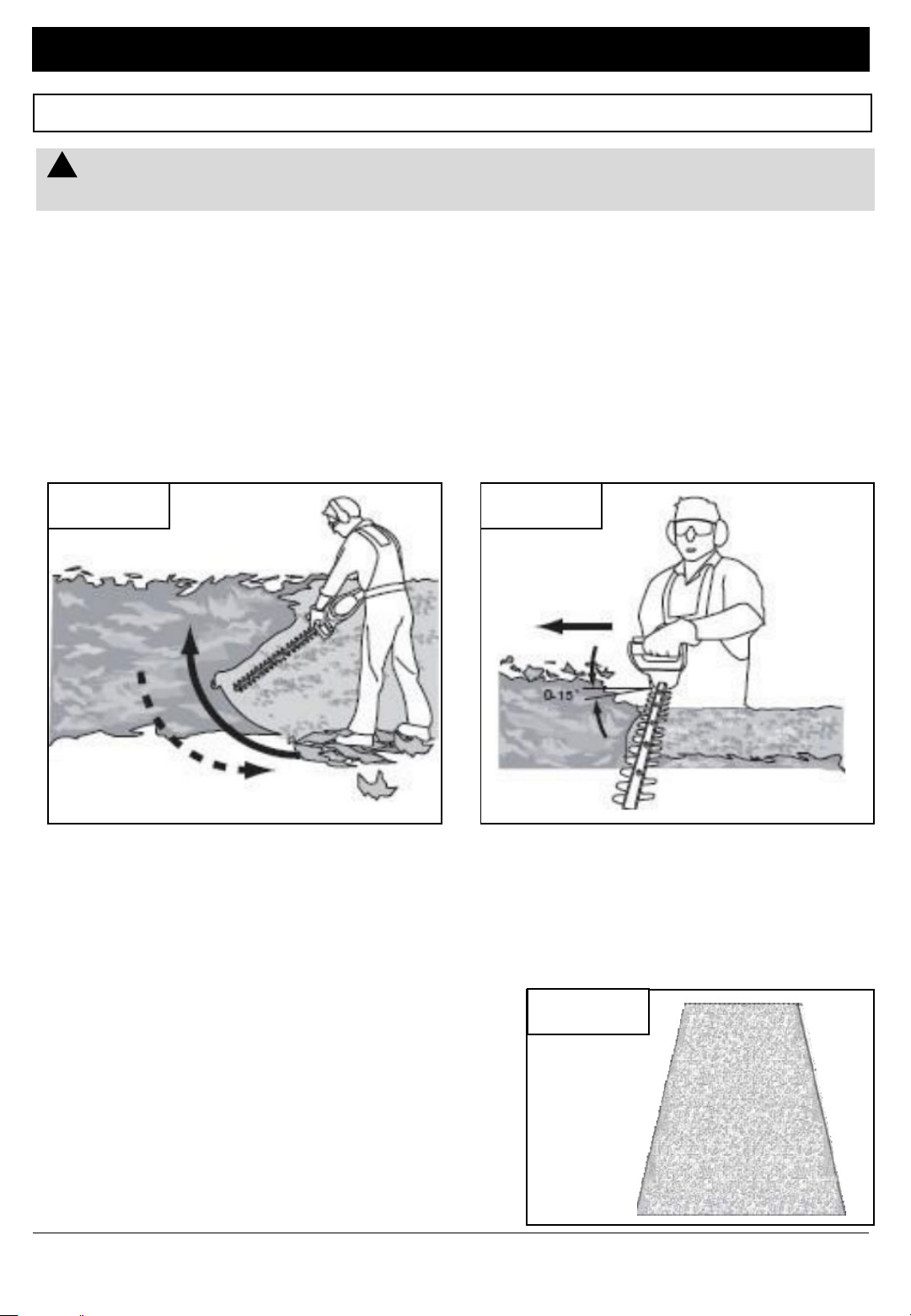

1. Cut and remove branches exceeding the cutting capacity of this product using a proper pruner before operation.

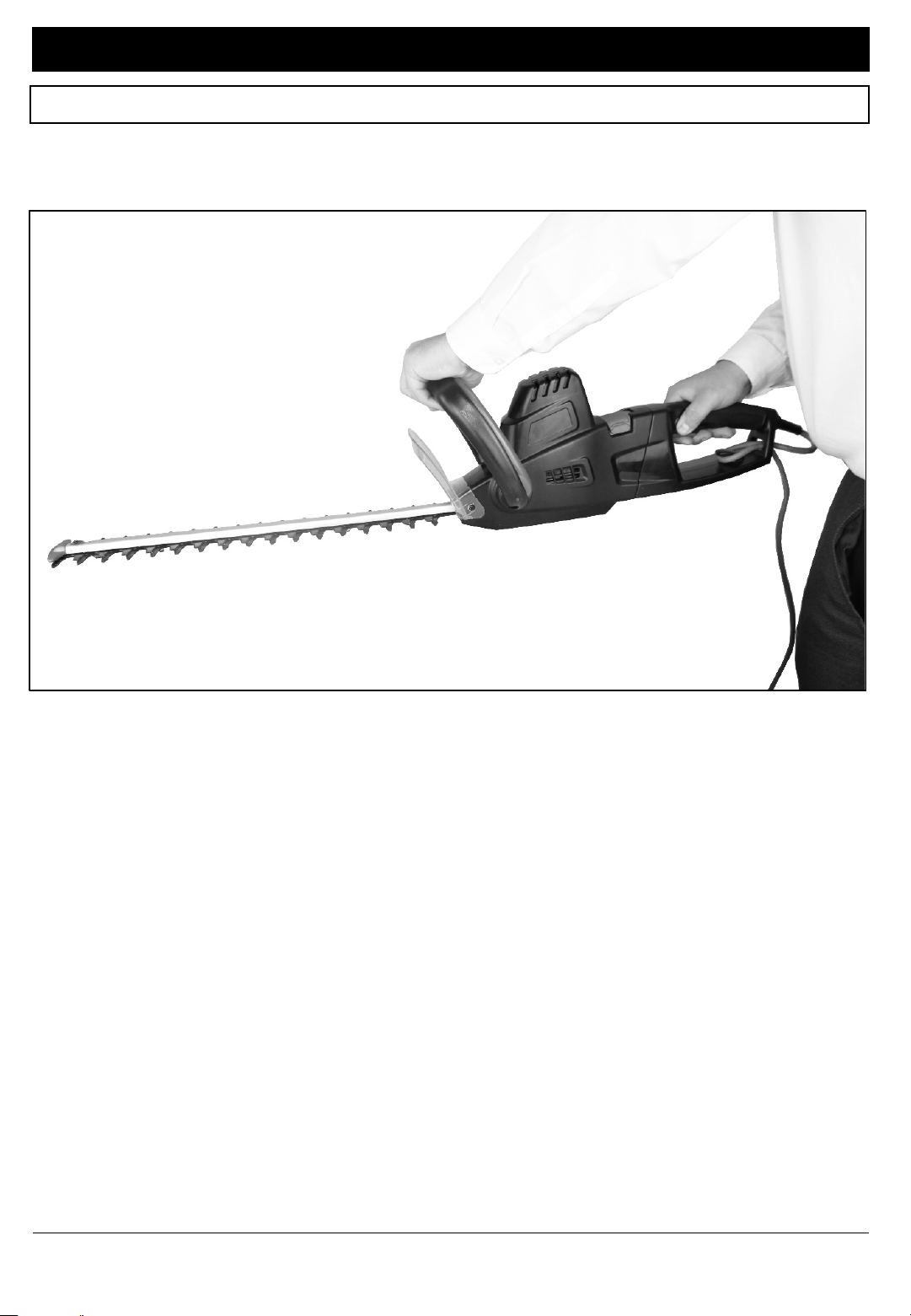

2. Always hold the product firmly with both hands on the front handle and rear handle. Never operate this product using only one hand.

3. Do not rush and do not attempt to cut too much with one stroke of the cutting device.

4. First cut both sides from the bottom cutting upwards to the top. This will prevent any of the cuttings falling into the path of the area still to be cut. See image 1.

5. After cutting the sides proceed to the top. Try to keep the cutting device angled at approximately 15° to the cutting surface. See image 2.

Image 1 Image 2

6. When cutting wide hedges with the cutting area in sight, move the cutting blade lightly through the cutting surface in a sweeping motion, following the shape of the hedge or shrub. A slight tilt downwards of the cutting blade in the direction of motion is recommended for optimum cutting performance.

7. Cut in a number of stages if the area being cut is particularly long to achieve a better result; smaller cuttings will allow for easy composting.

NOTE: When shaping it is advisable to achieve a trapezoidal shape (See image 3). A trapezoidal cut corresponds to the natural growth of plants and results in optimal hedge growth, as it will expose more light to the lower end of the hedge.

www.hyundaipowerproducts.co.uk

Image 3

Page 27

Operation

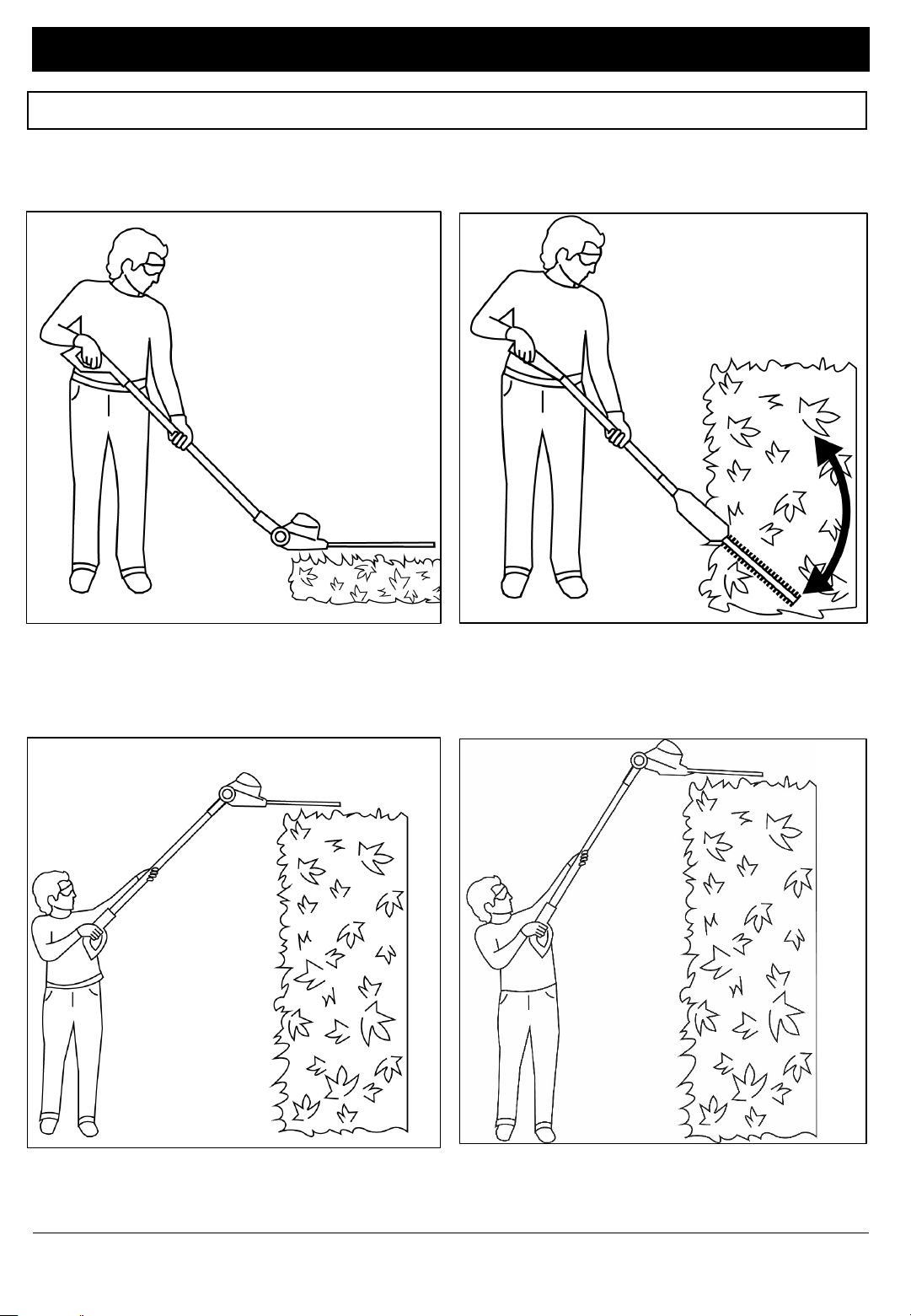

Choosing The Correct Angle

Make sure you are using the correct angle when working. If you do not angle the head correctly, you will not be able to see what you are cutting.

-20°

You can use the -20° angle to cut low hedges and shrubs near the ground.

0°

You can use the 0° angle to cut the sides of hedges in a sweeping motion.

20 ° / 40°

You can use the 20 ° and 40° angle to cut the top of hedges.

www.hyundaipowerproducts.co.uk

60°

You can use the 60° angle to cut the top of tall hedges.

Page 28

Operation

Maximum Cutting Capacity

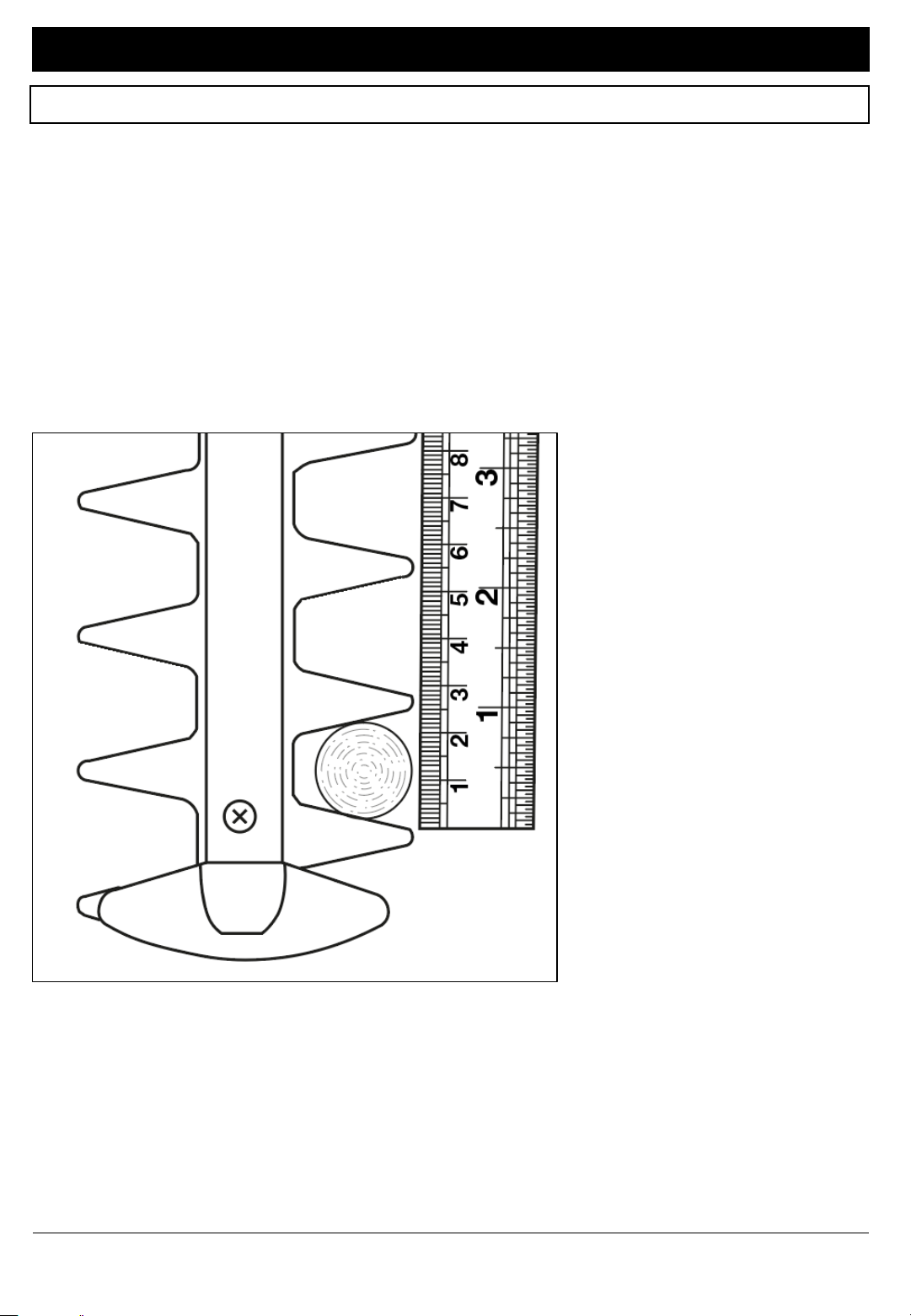

The HYP2HT550E solely a Hedge Trimmer. This machine is only suitable for trimming Hedges and bushes. It is NOT suitable for use on trees or thicker branch plants. The Trimmer blades have a Maximum Cutting Capacity of 20mm. Any branches or stems thicker than 20mm will cause damage to the blades.

Cut thicker branches/stems away with more suitable tools such as hand loppers or hand saws.

This machine is only suitable to be used in dry conditions, NEVER expose the machine to rain or wet weather conditions. This will substantially increase the risk of electric shock.

www.hyundaipowerproducts.co.uk

Page 29

Operation

Starting and Stopping Hand Held Configuration

WARNING! YOU MUST read and understand the user manual before starting the machine. Before connecting to mains supply, always check the switch is in the off position.

Before operating in either configuration, YOU MUST remove the Blade Cover (C). The machine MUST NOT be started whilst the blade cover is on.

1. Press the Safety Locking Button (J). The machine will not start if not pressed. Engage the Safety Locking Button (J) first, without pressing on the trigger on the handle.

2. Whilst pressing the Safety Locking Button (J), the Front Handle/Safety Switch (H) must also be pressed. The machine will not start if both aren’t both pressed simultaneously.

Continued on next page

www.hyundaipowerproducts.co.uk

Page 30

Operation

Starting and Stopping Hand Held Configuration (Continued)

3. With a firm grip on both handles, press the On/Off Trigger (K). The motor has 1

speed.

4. To stop, just release the On/Off Trigger (K), remove plug from mains power.

www.hyundaipowerproducts.co.uk

Page 31

Operation

Starting and Stopping Pole Trimmer Configuration

WARNING! YOU MUST read and understand the user manual before starting the machine. Before connecting to mains supply, always check the switch is in the off position.

Before operating in either configuration, YOU MUST remove the Blade Cover (C).

The machine MUST NOT be started whilst the blade cover is on.

In pole trimmer configuration, the Front Safety Switch (H) DOES NOT need to be

pressed to start.

In pole trimmer configuration, the Extension Stop Switch (O) can be used to cut the power. Ensure the Extension Stop Switch (O) is the in the backward position before starting.

Continued on next page

www.hyundaipowerproducts.co.uk

Page 32

Operation

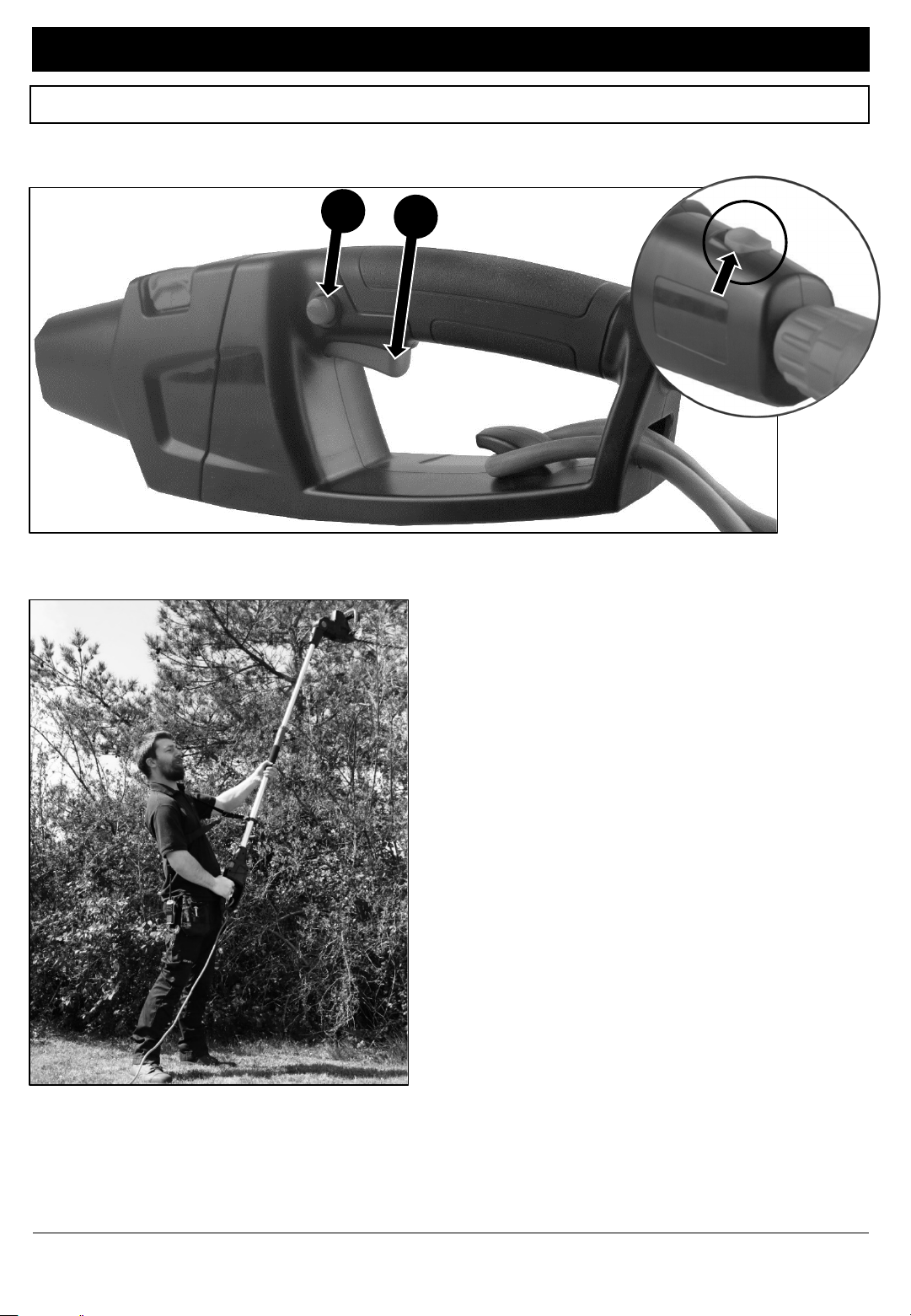

Starting and Stopping Pole Trimmer Configuration (Continued)

1. Press the Safety Locking Button (J). The machine will not start if not pressed.

2. With a firm grip on the handle and pole, press the On/Off Trigger (K). The motor has 1 speed.

Extension Stop

Switch (O)

3. To stop, just release the On/Off Trigger (K), remove plug from mains power. In pole trimmer configuration, the Extension Stop Switch (O) can be used to cut the power in the unlikely event releasing the On/Off Trigger (K) doesn’t stop the machine. In the unlikely event that this happens, please stop using the machine and contact the manufacturer for further assistance.

www.hyundaipowerproducts.co.uk

Page 33

Operation

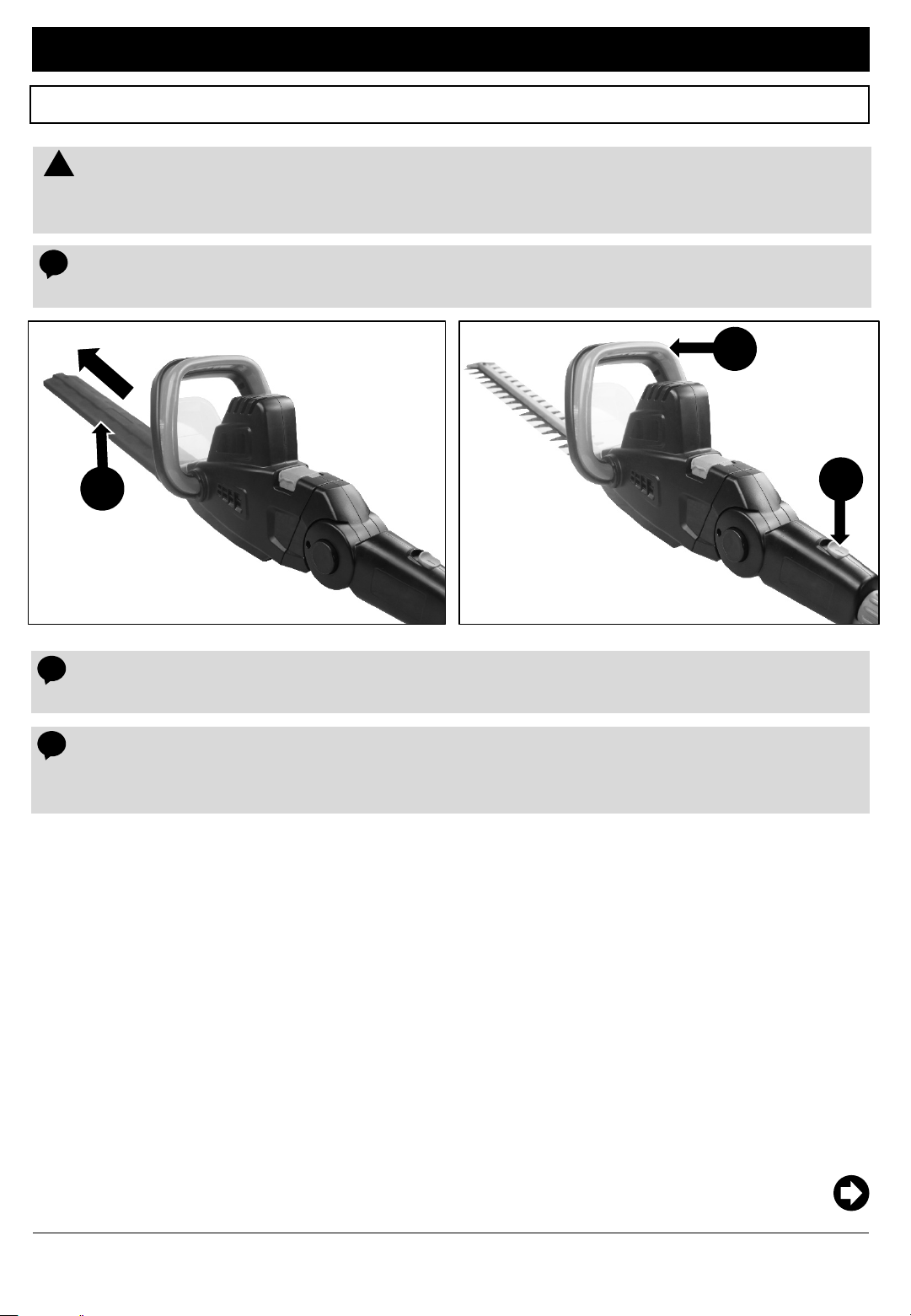

Adjusting Trimmer Angle

WARNING! The machine must NOT BE switched on when changing the trimmer

head angle. This is dangerous and will cause injury and/or damage to the machine.

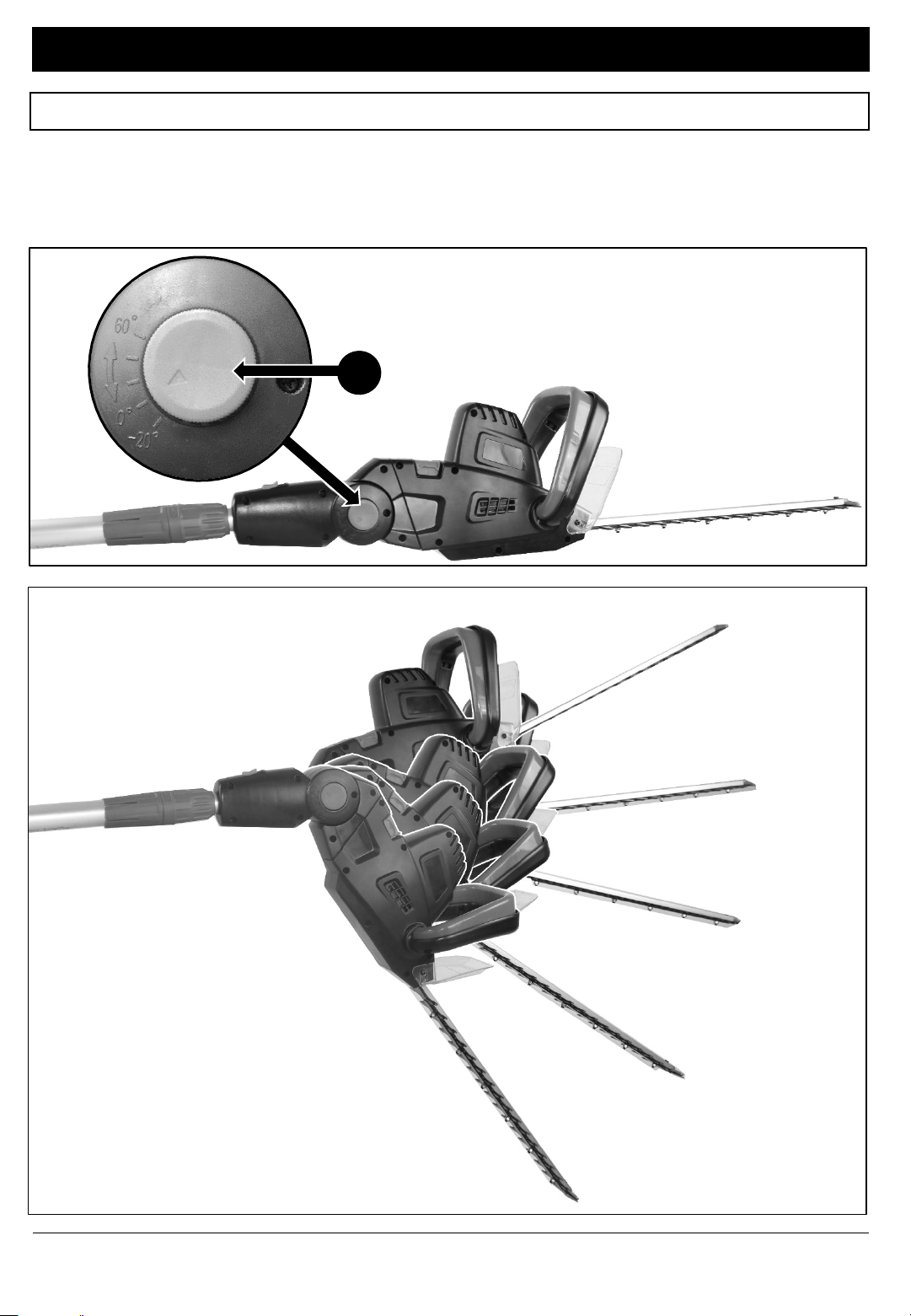

1. Press the Angle Adjustment Button (N) on the extension pole. This will disengage the lock on the trimmer head and allow it to pivot.

Continued on next page

www.hyundaipowerproducts.co.uk

Page 34

Operation

Adjusting Trimmer Angle (Continued)

2. Release the button when the preferred angle has been selected. If the Angle

Adjustment Button (N) is pressed and released, the trimmer head will lock into the

next setting automatically.

40°

-20°

0°

20°

60°

www.hyundaipowerproducts.co.uk

Page 35

Operation

Adjusting Pole Length

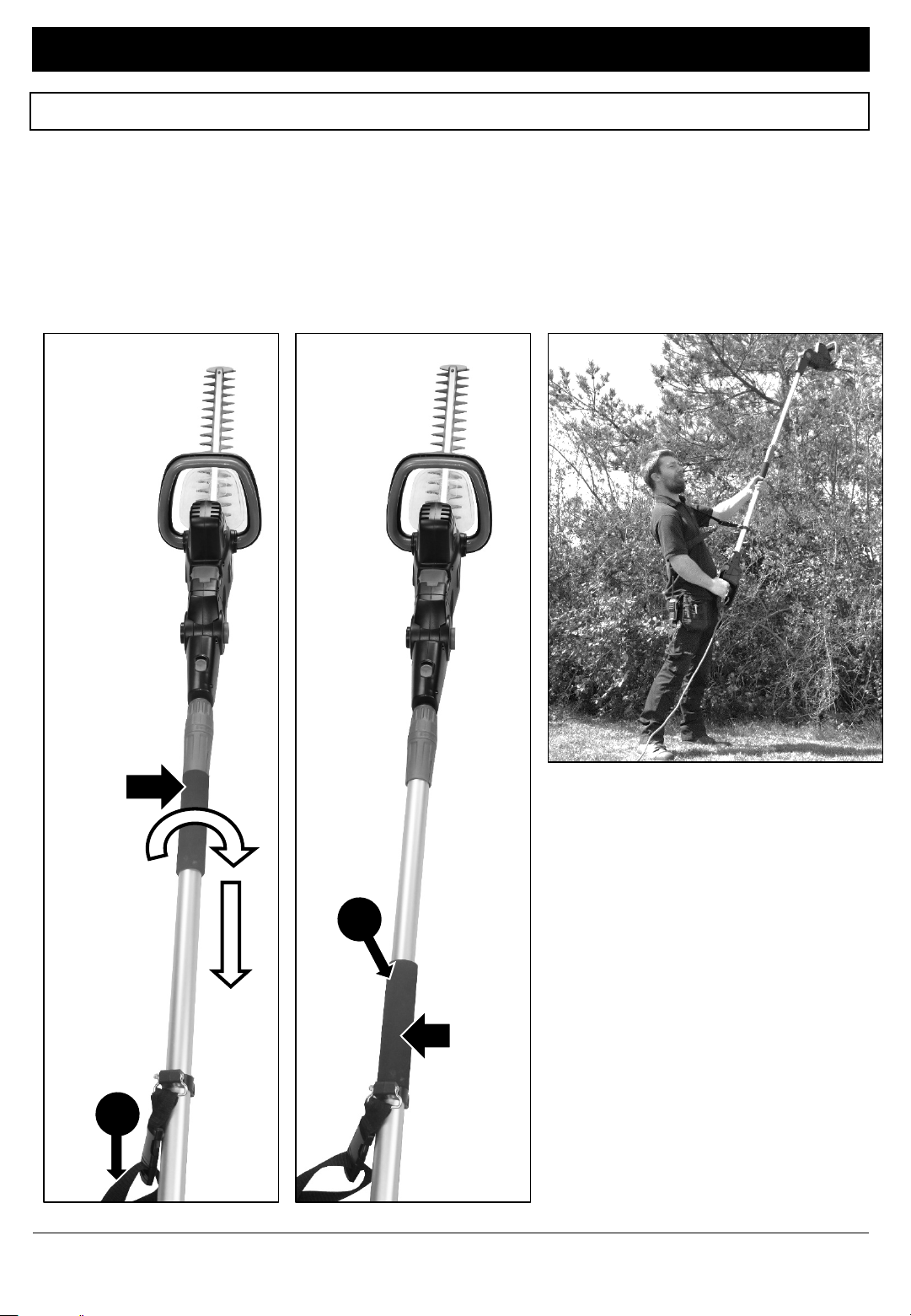

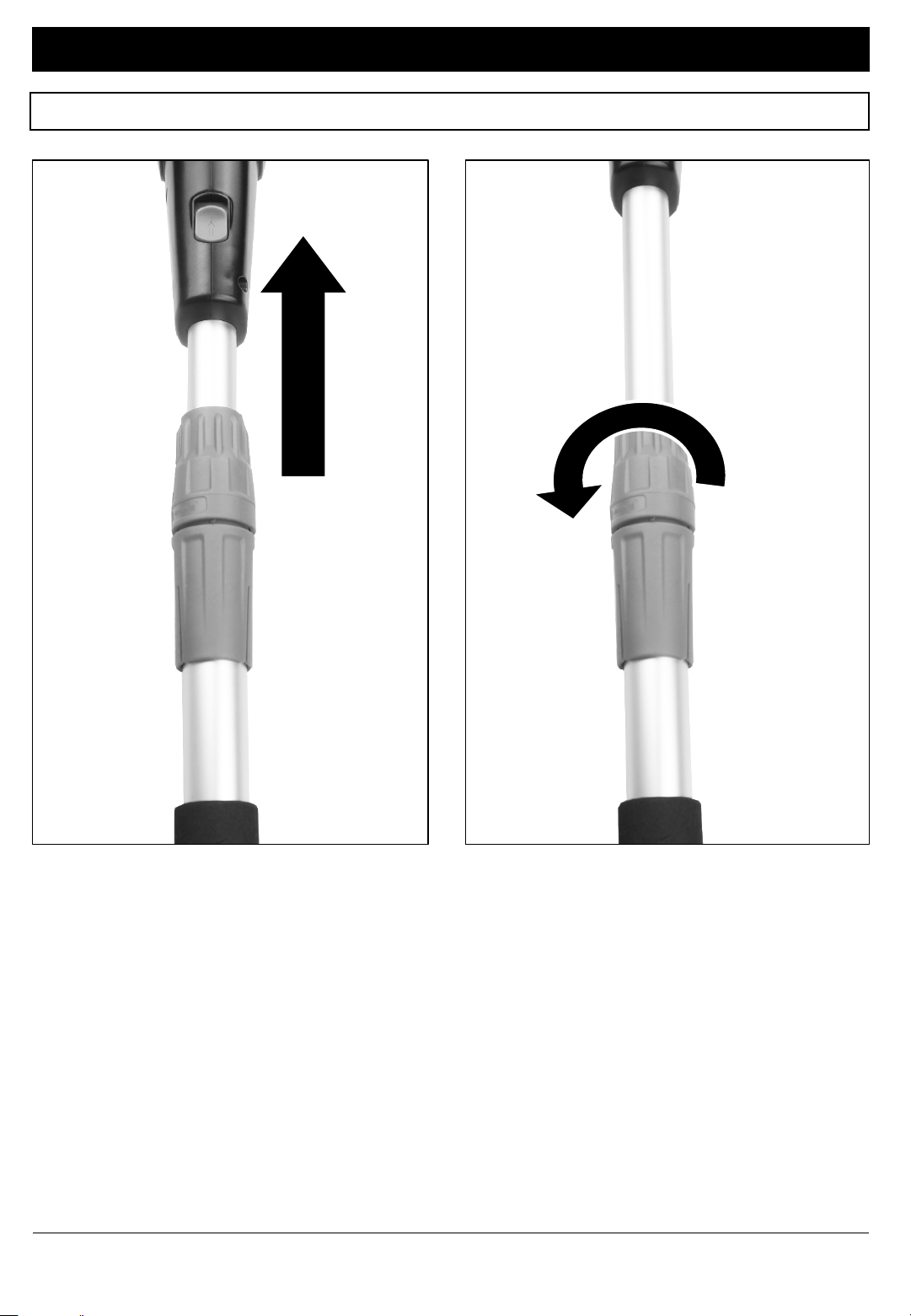

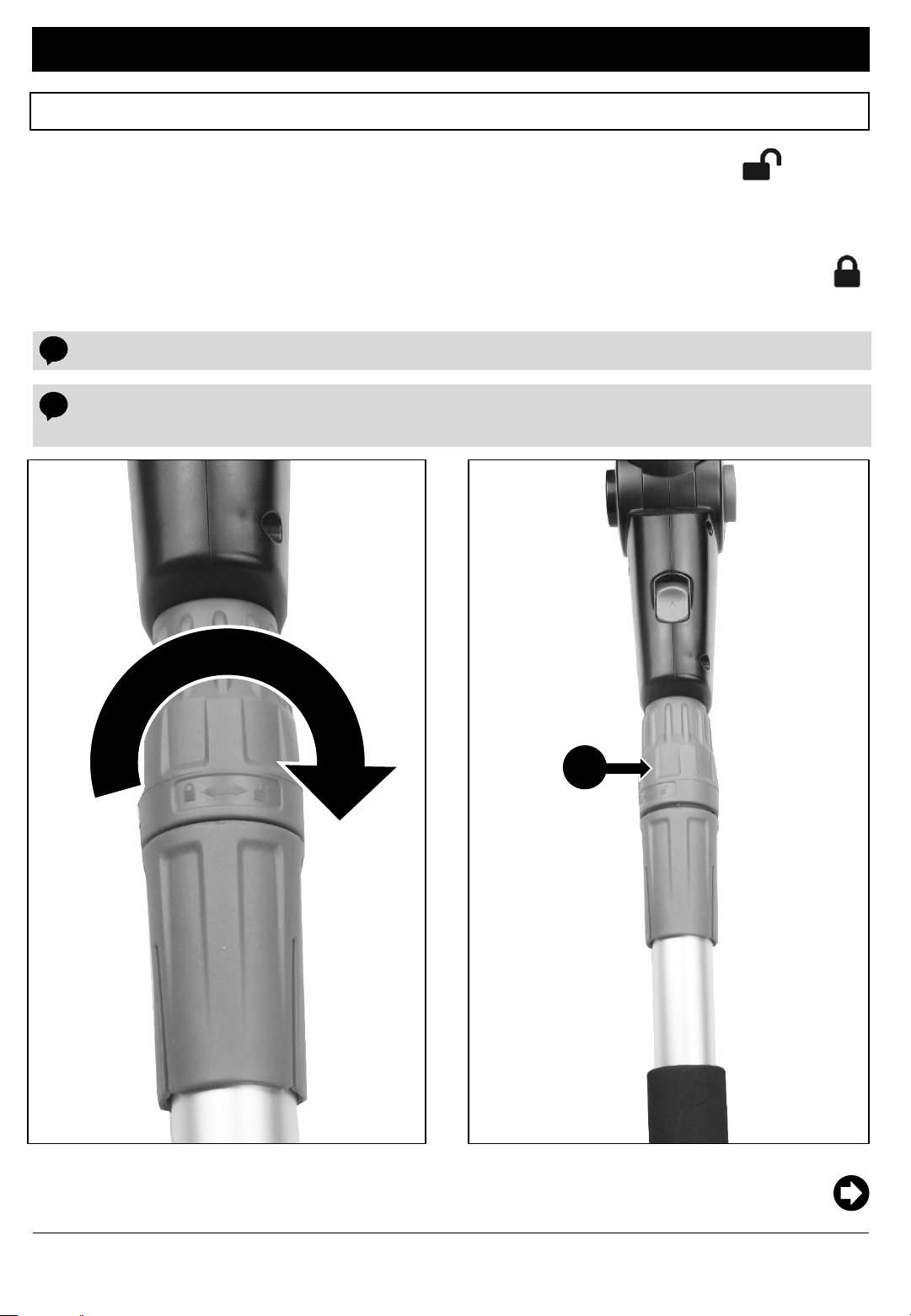

Twist the upper half of the Length Extension Collar (P) toward the Unlock symbol. This will loosen the tension on the pole. Rotate the collar once or twice as shown.

Pull the Trimmer head away from the Length Extension Collar (P) to extend the pole. When preferred length has been selected, rotate the upper half toward the Lock Symbol.

If the Trimmer Head doesn’t move, rotate the collar an additional turn or two.

If the pole doesn’t stay at the required length, tighten the collar for additional

force.

Continued on next page

www.hyundaipowerproducts.co.uk

Page 36

Operation

Adjusting Pole Length (Continued)

www.hyundaipowerproducts.co.uk

Page 37

Operation

Adjusting Pole Grip

When operating the Trimmer in the pole configuration it is recommended to use the Shoulder Strap (E) and the Pole Grip (Q). The HYP2HT550E can fatigue arms quickly, using the Shoulder Strap (E) and Pole Grip (Q) will help reduce fatigue.

To move the Pole Grip (Q) into a more suitable position, simply twist and add force in the direction suitable.

Upper

Position

Lower

Position

www.hyundaipowerproducts.co.uk

Page 38

Maintenance & Care

WARNING! When carrying out any maintenance, ensure the machine is

unplugged from mains power supply.

To ensure safety and reliability, repairs should only be carried out with genuine

replacement parts only.

Cleaning

To clean the body of the machine if required, use a damp cloth and mild soap. DO NOT use cleaning chemicals, penetrating oils or fuel to clean the body of the machine. This can cause damage and weaken the plastic.

Clearing Jams

When trimming, pieces of debris from the hedge can become lodged between the blades, causing the machine to stop. To clear the obstruction put the machine down on a level surface, with the power supply switch off. Clear the jam and proceed with operation

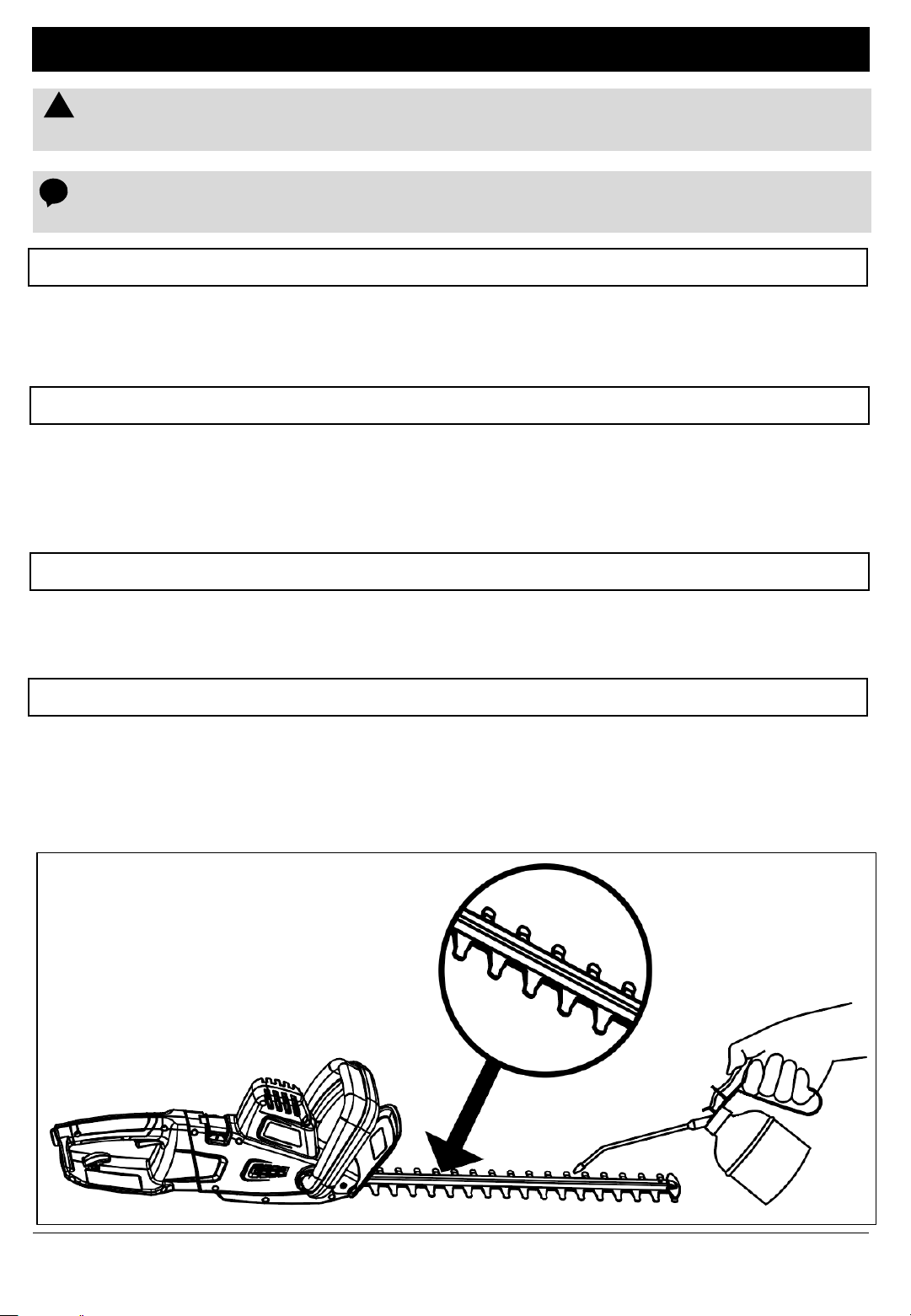

Blade Lubrication

Firstly remove any debris from the blades. Keeping away from the body of the machine, apply light machine oil or similar to the parts which make contact.

Blade Damage

If whilst trimming you hit any wire fences, stone posts etc. damage will occur to the blades, such as nicks or gauges. If the damage does not interfere with the motion of the blades, no action is required. If there is interference, using a file or sharpening stone/block, reduce the size of the nick/gauge. If damage is unmaintainable, please contact us.

www.hyundaipowerproducts.co.uk

Page 39

Technical Data

Specification

Model HYP2HT550E

Voltage 230V

Frequency 50Hz

Input Power 550W

No Load Speed 1600rpm

Cutting Diameter Capacity 20mm

Noise 97dB(A)

k = 1.05

Vibration 2.91m/s

Net Weight 4.2kg

Cable Length 10 metres

Cutting Capacity 20mm

Dimensions

Length (Handheld Configuration) 950mm

Length (Pole Configuration) 2050mm

Length (Pole Extended) 2650mm

Height 200mm

Blade Length 480mm

Cutting Length 440mm

k-1.5m/s

www.hyundaipowerproducts.co.uk

Page 40

Recycling & Disposal

We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. For further information please contact your local Authority for disposal advice.

You MUST make sure that all unused oil and fuel is disposed of correctly either beforehand or at your local Civic Amenity Site.

• Under NO circumstances must any fuel or oil be put down any drains.

• Certain products contain WEEE waste which should not be disposed of in your domestic waste.

• You MUST recycle WEEE in accordance with your local authority or recycling centre.

• Certain products contain batteries which should not be disposed of in your domestic waste.

• You MUST recycle batteries in accordance with your local authority or recycling centre.

• Unwanted packaging and materials should be stored and taken to a recycling centre so it can be disposed of in a manner which is compatible with the environment.

We are a Member of the VALPAK National Compliance Scheme and our registration number is RM08660. For further information about disposal please contact your Local Authority. You can also get more advice and guidance about recycling at the following website http://www.recycle-more.co.uk Should you pass this product on to another user either sold or loaned, you MUST pass on this user manual. This will make sure that all other users can use and maintain this machine safely.

Environmental Protection

1. Environmental protection should be a priority of considerable importance when using the machine, for the benefit of both social coexistence and the environment in which we live. Try not to cause any disturbance to the surrounding area.

2. You must comply with local regulations and provisions for the disposal of packaging, oils, fuel, filters, damaged parts or any elements which have a strong impact on the environment. This waste must not be disposed of as normal waste. It needs to be separated and taken to specified waste disposal centres where the material will be recycled.

3. You must comply with local regulations for the disposal of waste materials after mowing.

4. When disposing, do not pollute the environment with the machine, but hand it over to a disposal centre, in accordance with the local laws in force.

www.hyundaipowerproducts.co.uk

Page 41

EU Declaration Of Conformity

Importer and Authorised Representative

Genpower Ltd Isaac Way, Pembroke Dock, SA72 4RW

Country of Origin: China

Description: 2 In 1 Pole Hedge Trimmer

SKU Code: HYP2HT550E

Date of Issue: 01/06/2021

Regulations and Directives of Compliance

• 2006/42/EC The Machine Directive

• 2014/30/EU EMC Directive

• 2000/14/EC Noise Emissions

• 2011/65/EU RoHS

Statement of Declaration

We the importer and authorised representative of the product described confirm conformity within the provisions of applicable regulations and directives listed within this document.

Signed on Behalf of Genpower Ltd

Place of Issue: Genpower Ltd

Signatory Name: Roland Llewellin

Position: Managing Director

……………………………………

www.hyundaipowerproducts.co.uk

Page 42

Useful Information

Check Out Our YouTube Channel

Our videos on YouTube include:

• Unboxing

• Assembly of your machine

• How to service your machine

• Products in use

• ‘How To’ videos

• Product features

Go to YouTube and search ‘Hyundai Power Products’.

Warranty

Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website:

www.hyundaipowerproducts.co.uk

Manual Updates

Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. We reserve the right to make any modifications without prior notice whenever necessary. Our latest manuals are also placed online. All our manuals can be downloaded at:

www.hyundaipowerproducts.co.uk

Returning Your Product

If you are returning your product, please contact the dealer for their returns policy.

Leaving A Review

uk.trustpilot.com/review/hyundaipowerequipment.co.uk

Ordering Spare Parts

You can find the spare part you are looking for at power-spares.co.uk

www.hyundaipowerproducts.co.uk

Page 43

Product Record

Information

As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information.

Date Of Purchase:……………………………………………………………………………….....

Dealer Name:………………………………………………………………………………………..

Dealer Phone:…………………………………………………………………………………….....

Model Number:…………………………………………………………………………………......

Serial/Batch Number:………………………………………………………..………………........

Need Help? Talk To Our Experts

Our friendly aftersales team will be more than happy to help you.

Phone

Call our team on 01646 687 880

[email protected]

Online Live Chat

Go to www.hyundaipowerproducts.co.uk

Post

Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW.

Hyundai Support Website

Go to hyundaisupport.co.uk

www.hyundaipowerproducts.co.uk

Page 44

Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: [email protected] www.hyundaipowerproducts.co.uk

Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland

Licensed by Hyundai Corporation, Korea
