GENERAL INFORMATION
FCC Information
User Instructions
The Federal Communications Commission Radio Frequency Interference Statement includes the
following warning :
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in are
sidential installation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to
radiocommunications. However, there is no guarantee that interference will not occur in a
particularinstallation.
If this equipment does cause harmful interference to radio or television receptions, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures :
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.
User Information
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.Connecting of peripherals requires the use of grounded
shielded signal cables.
HYUNDAI FULL HD LCD TV
GENERAL INFORMATION
Important Tip
Image Retention Effect (Image Sticking)
1. Cause :
- Image Retention Effect may come from displaying a still picture in certain period of time with at a
GENERAL INFORMATION
Image Sticking Precaution
When watching a still Image within motion pictures and
Wide/4:3 screen
1. Note :
- When the central area of the screen and the screen edges are fixed, the different brightness level of
the edges may cause image retention on the edges when watching for a long time .
- This phenomenon is the same matter to other LCD manufacturers. Please do not watch a still image
for a long time.
- If you watch a still image for a long time, this may damage your TV.
* This matter does not come under the warranty.
Wide, 4:3 screen
Box still image
HYUNDAI FULL HD LCD TV
GENERAL INFORMATION
Features
Integrated HDTV
A HDTV has a built-in ATSC digital tuner.
It does not need a separate set-top box to receive over the-air DTV signal.
Dual Scan/Multi-Viewing
You can program analog TV broadcasting and digital TV broadcasting automatically at the same time
for multi-viewing.
A Wide Array of Screen Settings
You can choose different screen settings depending on the type of program you are watching or the
surrounding conditions (the outside weather conditions). You can switch among STANDARD, MILD,
VIVID, MULTIMEDIA options or you can configure the screen settings for yourself.
A Wide Array of Sound Settings
You can choose an optimal sound setting for the type of program you are watching.
You can switch among custuom Standard,Movies, Music, and Speech options or you can configure
the sound settings for yourself.
Favorite Channel Memory
You can memorize the channels you are watching frequently.
SRS TrueSurround XT
You can enjoy dynamic and surround sound with ordinary speakers.
Dolby Digital
When receiving digital broadcast signal, you can enjoy dynamic and surround sound with two
ordinary speakers just like Dolby Digital 5.1.
A Variety of Aspect Ratios
You can adjust the screen size at your preference.
HYUNDAI FULL HD LCD TV
GENERAL INFORMATION
Table of Contents
General Information
Safety Precaution ................................................................5
Contents of the Package .......................................................9
Products Sold Separately ......................................................9
Parts Names and Functions ................................................10
Remote Control ...................................................................14
Connections
How to connect indoor/outdor TV Antenna(UHF/VHF) ...........16
Before Connecting the Video/Audio Connections to External
Device. ..............................................................................17
How to Connect a VCR/Cable Receiverr ...............................18
How to Connect a SET-TOP BOX or DVD Player ...................19
How to Connect a Camcorder/Game Player .........................20
How to Connect to a PC ......................................................21
HDMI Connection ................................................................23
How to Connect an External Visual Device ...........................25
How to Use Digital Sound ....................................................26
Channel Setup
How to Select TUNER MODE ................................................27
How to Store Channels Automatically .................................28
How to Add/Erase Channels Manually ................................29
How to Set Channel Edit and Favorite Channels .................30
How to See Signal Strength ................................................31
How to Set The Input Mode .................................................32
Picture Setup
How to Select the Picture Mode ..........................................33
How to Set the Desired Picture ...........................................34
How to Select the Aspect Ratio ...........................................35
How to Watch PIP/POP ........................................................36
Sound Setup
How to Select the Audio Mode ............................................38
How to Adjust the Desired Audio Mode ..............................39
How to Use the Automatic Volume Control ...........................40
How to Listen to SRS TruSurround XT (Surround).................41
How to Set Audio Language ................................................42
How to Set the Digital Audio Output ....................................43
Function Setup
How to Set Auto Lock .........................................................44
How To Set Block By Rating.................................................46
How to View Closed Captions...............................................48
How to Set the EPG View ....................................................51
How to View Reservation List...............................................52
Setup
How to Set Date / Time........................................................53
How to Set Power On Time ..................................................54
How to Set Power Off Time..................................................55
How to Set Sleep Time ........................................................56
How to Choose Menu Language...........................................57
How to Set Menu Opacity.....................................................58
How to Set Emergency Alert ................................................59
How to Set the Geometry in PC Mode...................................60
Picture on Function Guide....................................................61
Appendix

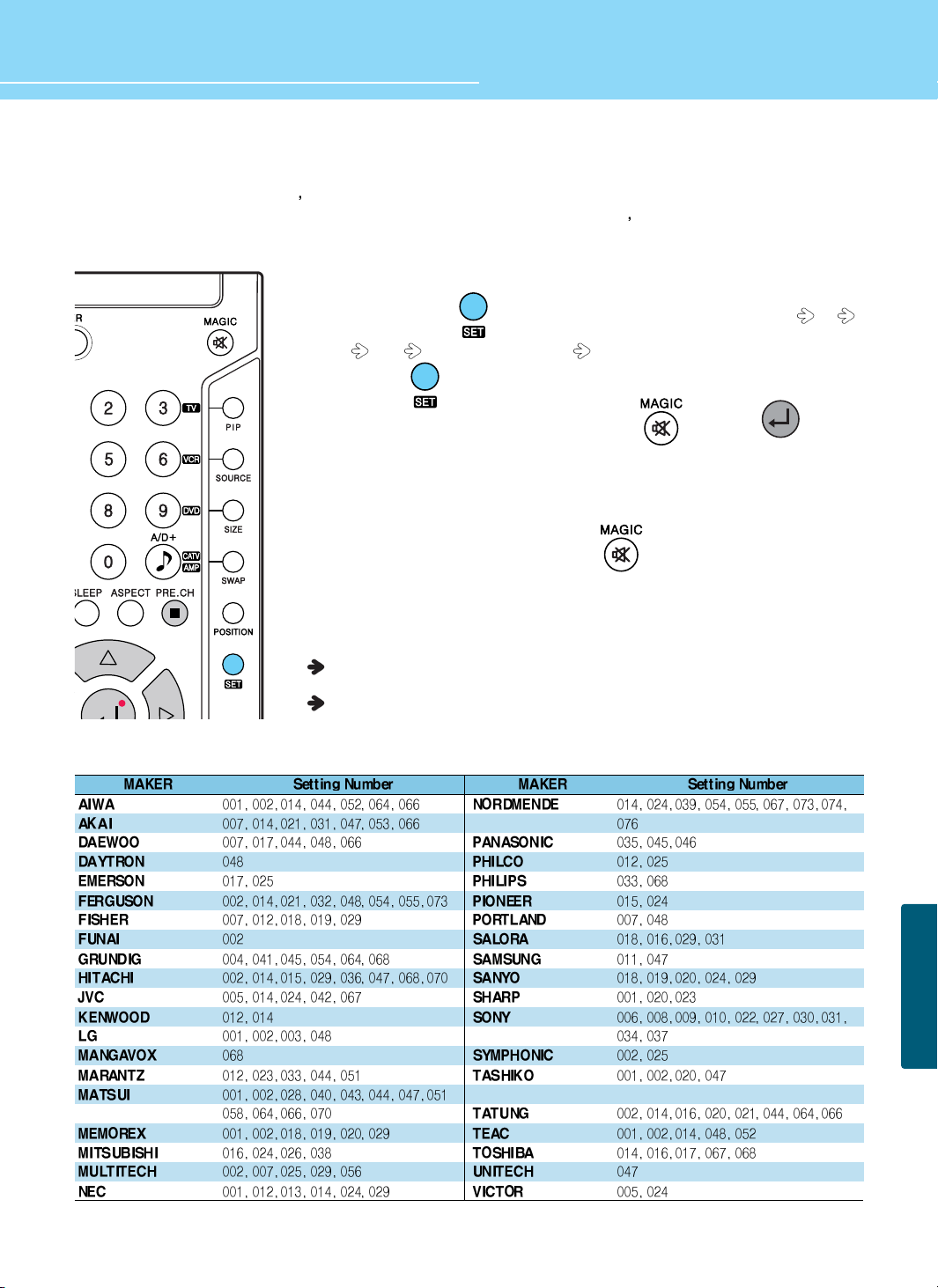

How to Use an Extemal Device Using the Remote Control ...62
Glossary .............................................................................64
Troubleshooting ..................................................................67
Care and Cleaning ..............................................................69
Product Specifications ........................................................70
5
GENERAL INFORMATION
Safety Precaution
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.
Do not connect multiple electrical
appliances to a single outlet.
- It may cause a fire due to overheating from
the outlet.
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV, be sure the antenna or
cable system is grounded so as to provide some protection against voltage surges
and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA
No.70-1984, provides information about proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
Example of Grounding According to National Electrical Code
Instruction
Do not use or store a flammable
spray or inflammable things near the
TV.
- They may cause explosion or fire.
Do not install the TV in a
bookshelf, closet, or a place where
there is poor air circulation.
- Fire may be caused due to the rise of
internal temperature.
Make sure to remove the speakers
before moving the TV with speakers
mounted on it.
- When the speakers are detached from the
unit while carrying it, this may cause damage
to the unit or personal injury.
6
HYUNDAI FULL HD LCD TV
GENERAL INFORMATION
If there is a persistent accumulation
of dusts or water on the plug, please
make sure to wipe it off using a dry
cloth.
- It may cause a fire or an electric shock.
Firmly plug in the power cord so that
it does not pull out.
- An unstable connection may cause fire.
Do not use a damaged power cord
or plug, or loose outlet.
- It may cause electric shock or fire.
Do not put a water bowl, vase,
candle, bug repellant smoke,
cigarette, plants, or heavy thing on
the TV.
- It may cause electric shock or fire and also
heavy things may cause injury when they
fall.
Do not install in a place where there
is oil, smoke, excessive humidity, or
where water may be sprinkled on it.
- This may cause electric shock or fire.
Do not install on an unstable place
or small support.
- This may cause the TV to fall, resulting in
serious injury to a child or adult.
7
GENERAL INFORMATION
Do not place any heat sources such as
radiators and heat registers, etc. near the TV.
- It may cause a fire.
Do not block ventilating slits with a table
cloth.
- Blocking the ventilation slits may produce
inner heat increase, resulting in a fire.
Keep the TV at least 10cm away from the
wall for ventilation.
- Fire may be caused due to the rise of inner
temperature.
Do not allow children to climb or play on the
TV.
- If it falls over on children, it may cause
serious injury.
Do not place toys and cookies, etc. on the TV,
which may attract children’s attention.
- If it falls over on children, it may cause serious
injury.
When cleaning the TV, make sure to
disconnect the power plug and use a dry, soft
cloth for a cleanup.
- Please avoid using chemicals such as wax,
benzene, alcohol, thinner, mosquito spray,
air freshener, lubricant or synthetic
detergent.
Unplug when you do not use your TV for a
long time.
- If dust is stacked on the TV, electric shock
or fire may be caused from heat, fire, or
deterioration of insulation.
When moving the TV, two or more people are
advised to carry it.
- Injury or damage may be caused when the
TV falls.
Never touch the power plug or outlet with
wet hands.
- This may cause electric shock.
8
HYUNDAI FULL HD LCD TV
GENERAL INFORMATION
Do not install the product on the floor.
- This may cause the TV to fall resulting in
serious injury.
Unplug the product during lightning or
thunderstorms and never touch the antenna
cable.
- It may cause a fire or an electric shock.
Keep the remote control batteries out of
sight and out reach of children.
- If your child swallows a battery, see your
doctor immediately.
When replacing batteries, make sure to
match the batteries to the (+) and (-) marks
in the battery compartment.
- Mismatching of polarities may result in
internal damage to batteries, fire due to
leakage or contamination.
Always use the standard batteries and avoid
using old batteries together with new ones.
- Otherwise it may result in internal damage
to batteries, fire due to leakage or
contamination.
In the event of damaging or dropping the
product, switch off the power and remove
the plug.
- Using a damaged product may cause an
electric shock or a fire.
- Contact your local service center.
Before moving the product, ensure to switch
off the power and unplug all the electrical
cords and the external connection cords such
as an antenna cable and other source
connections, etc.
- Electrical cords may be damaged, resulting in
a fire or an electrical shock.
Ensure the power cord doesn’t trail
across any hot objects like a heater.
- This may cause a fire or an electric shock.
Consult a service center or customer service
for inside cleaning about once a year.
- When dust is piled inside the TV for long
time, fire or malfunction may be caused.
9
GENERAL INFORMATION
Contents of the Package
hen opening the package, please ensure to check the following accessories provided.
Products Sold Separately
If you want to purchase separately sold products, consult a service center, electronics shops, or parts seller.
10
HYUNDAI FULL HD LCD TV
GENERAL INFORMATION
* This product image may be a bit different from the actual product.
Parts Names and Functions
Front View
- E425D/E465D
- Power Indicator Status -
Speaker
Remote sensor and power LED.
- Point the remote control toward here.
- It displays standby or operation status.
Power button
Use this button to turn on or off the TV.
Source button
Use this button to switch among inputs
connected to the TV.
Menu button
Use this button to display or exit from menus.
Select button
Use this button to select each item of menu.
Channel buttons
Use these buttons to change channels. These
buttons also serve as the cursor of Down and
Up buttons when in Menu mode.
Volume buttons
Use these buttons for your desired sound level.
These buttons also serve as the cursor of
Select/Adjust when in Menu mode.
Indicator
Red
Green
Status
Standby
Power on
11
GENERAL INFORMATION
* This product image may be a bit different from the actual product.
Power(AC) input terminal
connect the power cord to this
terminal
SPDIF optical digital audio output
terminal
Mini USB input terminal
This is used for picture on or
service check.
Video output terminal
Audio output terminal
AV 1 (Video 1) input terminal
AV 1 (Video 1) audio input terminal
Component 2 video input terminal
Component 1 video input terminal
Component 2 audio input terminal
Component 1 audio input termina
PC input terminal
PC audio input terminal
HDMI 1 input terminal
HDMI 2 input terminal
Antenna (Analgo/DTV) input
terminal
AV 3 (S-Video) input terminal
AV 2 (Video 2) input terminal
AV 2 (Video 2) / AV 3 (S-Video)
audio input terminal
RS-232C
This is used for service check.
Rear View - E425D/E465D
12
HYUNDAI FULL HD LCD TV
GENERAL INFORMATION
Front View
- E426D/E466D
* This product image may be a bit different from the actual product.
- Power Indicator Status -
Speaker
Remote sensor and power LED.
- Point the remote control toward here.
- It displays standby or operation status.
Power button
Use this button to turn on or off the TV.
Source button
Use this button to switch among inputs
connected to the TV.
Menu button
Use this button to display or exit from menus.
Select button
Use this button to select each item of menu.
Channel buttons
Use these buttons to change channels. These
buttons also serve as the cursor of Down and
Up buttons when in Menu mode.
Volume buttons
Use these buttons for your desired sound level.
These buttons also serve as the cursor of
Select/Adjust when in Menu mode.
Indicator
Red
Green
Status
Standby
Power on
13
GENERAL INFORMATION
* This product image may be a bit different from the actual product.
Power(AC) input terminal
connect the power cord to this
terminal
SPDIF optical digital audio output
terminal
Mini USB input terminal
This is used for picture on or
service check.
Video output terminal
Audio output terminal
AV 1 (Video 1) input terminal
AV 1 (Video 1) audio input terminal
Component 2 video input terminal
Component 1 video input terminal
Component 2 audio input terminal
Component 1 audio input termina
PC input terminal
PC audio input terminal
HDMI 1 input terminal
HDMI 2 input terminal
Antenna (Analgo/DTV) input
terminal
AV 3 (S-Video) input terminal
AV 2 (Video 2) input terminal
AV 2 (Video 2) / AV 3 (S-Video)
audio input terminal
RS-232C
This is used for service check.
Rear View - E426D/E466D
14
HYUNDAI FULL HD LCD TV
GENERAL INFORMATION
Remote Control
15
GENERAL INFORMATION
18. PICTURE MODE
19. SOUND MODE
20. BOOK-MARK
Use this button to select/deselect your frequently-used channel.
21. CC(Closed Caption)
22. FAVORITE
Use this button when watching your favorite channel.
23. ADD/ERASE
Use this button to add or erase channels.
24. INFOMATION
Use this button to display resolution or various program information.
25. SOURCE
Use this button to select External Input
26. VOLUME
27. FREEZE
28. SLEEP
29. ASPECT RATIO
Use this button to change the picture size.
30. NUMERIC KEYS
31. Use this buttons to use other manufacturer’s DVD or VCR.
How to Insert Batteries in Remote Control
* Battery type :1.5V/AAA
Press and hold
Δ part and push
to open cover.
Insert batteries with proper
polarities of +and -.
Use the remote control with cover
closed.
16
HYUNDAI FULL HD LCD TV
17
CONNECTIONS
- When connecting an external device, ensure to read the connecting device’s manual. The location or the number
of the terminals on the external device may be different depending on its model.
- Connect a
HDMI
connection to the output of DVD, cable receiver or satellite receiver. Connecting a
HDMI
connection to a PC may result in a message, “Unknown Signal”.
- Do not power on until all necessary connections are made. If power is given before connections completed, this
may damage the product.
- Make sure to match the cable in color with the terminal.
- Make sure to check the type of terminals to be connected.
Before Connecting the Video/Audio Connections to External Devices...
Please make sure to read the following information on connection to enjoy best picture quality.
Video/Audio connectors
Types of video/audio cable :
➀ HDMI ➁ 15-Pin D-Sub ➂ COMPONENT ➃ S-VIDEO ➄ COMPOSITE
Best picture quality is displayed in the following order.
The superior picture quality starts from the far left side.
18
CONNECTIONS
HYUNDAI FULL HD LCD TV
How to Connect a VCR/Cable Receiver
Connection Method
Connect the Video cable or S-Video cable between Video/S-Video output terminal of VCR or Cable receiver and
Video/S-Video input terminal of TV. (Connect the jacks to terminals in the same color.)
Connect the Audio cable (Left: white, Right: red) between Audio output terminal of VCR or cable receiver and
Audio input terminal of TV. (Connect the jacks to terminals in the same color.)
How to Watch
Turn on TV and press on remote control and then select AV1/AV2/AV3
banner on the botton side.
For more information, read the user’s guide of VCR or cable receiver.
1
1
To enjoy better picture quality, use the S-Video cable rather than the composite cable.
Audio cable
Video Cable
Video/Cable receiver
2
Audio cable
19
CONNECTIONS
How to Connect a SET-TOP BOX or DVD Player
Connection Method
Connect the Video cable (Y, Pb, Pr) between output terminals (Y, Pb, Pr) of DTV receiver or DVD player and the
input terminals (Y, Pb, Pr) of DTV/DVD (480i/480p/576i/576p/720p/1080i) on the rear of TV.
(Connect the jacks to terminal in the same color.)
Connect the Audio cable between Audio output terminal of DTV receiver or DVD player and Audio input
terminal for DTV/DVD Audio on the rear of TV. (Connect the jacks to terminals in the same color.)
How to Watch
Turn on TV and press on remote control until showing AV4/AV5
banner on the botton side.
For more information, read the user’s guide of DTV receiver or DVD player.
1
- Output terminal mark (Y, Pb, and Pr) of DVD player may be indicated as Y, B-Y, R-Y/Y-Cb-Cr /Y-Pb-Pr according
to the type of DVD player models.
- If your DVD player or Set Top Box supports HDMI /D-SUB, see Connecting to a PC (page 21) for connection.
You can enjoy more clear picture quality.
1
Audio cable
2
Video (Y, Pb, Pr) cable
DTV receiver / DVD Player
20
CONNECTIONS
HYUNDAI FULL HD LCD TV
How to Connect a Camcorder/Game Player
Connection Method
Connect the Video/S-Video cable between Video/S-Video output terminal of Camcorder/Game player and
Video/S-Video input terminal of TV. (Connect cables and terminal in the same colors.)
Connect the Audio cable (Left-white, Right-red) between Audio output terminal of Camcorder/Game player
and Audio input terminal of TV. (Connect the jacks to terminals in the same color.)
How to Watch
Turn on TV and press on remote control and then AV1/AV2/AV3
banner on the bottom side.
For more information, read the user’s guide of Game player or Camcorder.
1
1
2
Game PlayerCamcorder
Audio cable
Video cable
21
CONNECTIONS
How to Connect to a PC
Connection Method
Connect the PC signal cable (15-pin D-sub) between the output terminal of PC and the D-sub input terminal of
TV.
Connect the Audio cable between Audio output terminal of PC and Audio input terminal for PC on the rear of
TV. (Connect the jacks to terminals in the same color.)
When Using as a PC Monitor
Turn on TV and press on remote control until showing
PC/HDMI1/HDMI2 banner on the bottom side.
1
2
1
HDMI Cable
AUDIO Cable
D-SUB Cabke
- If you use the HDMI connection, you can enjoy better picture quality.
- This product supports Plug-and-Play function.
- We recommend the above method if the DVD player or set top box supports DTV signal with HDMI/D-Sub (15 pin)
cable for the better picture quality.
- If you input an unsupported resolution in PC or HDMI mode, the screen won’t be displayed properly.
22
CONNECTIONS
HYUNDAI FULL HD LCD TV
Resolution
31.47
37.50
31.47
37.88
46.88
48.36
56.50
60.02
63.90
67.50
Vertical frequency(Hz)
59.94
75.00
70.08
60.32
75.00
60.00
70.10
75.03
60.00
60.00
720 x 400
1280 x 1024
1920 x 1080
800 x 600
1024 x 768
640 x 480
Horizontal frequency(KHz)
Resolutions Supported in PC
23
CONNECTIONS
HDMI Connection
HDMI *1 (High Definition Multi media Interface) is the first all digital consumer electronics A/V interface that
supports uncompressed standard. The HDMI terminal supports both video and audio information.To the HDMI
input terminal, you can connect an EIA/CEA-861/861B*2 compliant consumer electronic device, such as a Set
Top Box or DVD player with HDMI or DVI output terminal.Input a High-bandwidth Digital Content Protection
(HDCP) high-definition picture source to this HDMI terminal, so you can display the high-definition pictures on
this TV in the digital form.
Compatible VIDEO Signal
This input terminal is not intended for use with computers.
Resolution
1920 X 1080 p/i
1280 X 720 p
720 X 576 p/i
640 X 480 p/i
Vertical scanning frequency(Hz)
50/60
50/60
50/60
50/60
1080 p/i
720 p
576 p/i
480 p/i
No. of dots(HXV)
HDMI Cable
Set Top Box
DVD Player
If the external device has DVI
output only, use a DVI to HDMI
adapter cable to connect to the
HDMI terminal.
HDMI
24
CONNECTIONS
HYUNDAI FULL HD LCD TV
Compatible sampling freguency of AUDIO signal through HDMI (L.PCM) : 48kHz / 44.1kHz / 32 kHz
Notes:
• This HDMI connector is Type A.
• If you connect an equipment without a digital output terminal, connect to the COMPONENT VIDEO, S VIDEO or
VIDEO input terminal on the TV so you can enjoy an analog signal.
• The DIGITAL IN terminal can only be used with 480i/576i/480p/576p/720p/1080i/1080p picture signals. Set
the Digital Set -Top -Box DIGITAL OUT terminal Output setting to 1080i, 1080p, 480i or 480p. For detailed
information, refer to the Digital Set -Top -Box instruction manual. If you cannot display the picture because
your Digital Set -Top -Box does not have a DIGITAL OUT terminal Output setting, use the component Video
Input (or the S Video Input or Video Input). In this case the picture will be displayed as an analog signal.
How to Watch
Turn on TV and Press on remote control until showing HDMI1/HDMI2
banner on the bottom side.
- *1 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMILicensing LLC.
- *2 EIA/CEA-861/861B profiles compliance covers profiles for transmission of uncompressed digital video
includinghigh bandwidth digital content protection.
1
25
CONNECTIONS
How to Connect an External Visual Device
You can connect your TV to other visual device to watch TV program at the same time.
Connection Method
Connect the Composite Video cable between Video input terminals of an external device and the Video output
terminals for Video on the rear of TV.
(Connect the jacks to terminals in the same color.)
Connect the Audio cable between Audio input terminal (Left-white, Right-red) of an external device and Audio
output terminal for Video on the rear of TV. (Connect the jacks and terminals in the same color.)
For more information, read the user’s guide of an external device.
1
2
3
External Visual Device
Audio Cable
Video Cable
Video and Audio outputs are available only when watching an Analog TV, Digital TV or VCR. This is not supported
in the Input Mode of Component, HDMI /D-SUB or S-Video.
26
CONNECTIONS
HYUNDAI FULL HD LCD TV
How to Use Digital Sound
Connection Method
Connect the optical cable to the digital audio output terminal for SPDIF optical digital audio output terminal on
the rear of TV.
Select Digital Sound Output. (See page 43)
For more information, read the user’s guide of the external sound device.
1
2
3
SPDIF Cable
Amplifier with Built-in Dolby Digital AC3
27
CHANNEL
1
2
3
How to Select TUNER MODE
You can choose the RF-input between off-air and cable.
Press Menu button.
Menu items appear on the screen.
Press up or down button to move to “channel”.
Press or buttons to select “channel”.
Press up or down button to move to Tuner Mode.
Press or buttons to select Tuner Mode.
Press up or down button to move to Air / Cable
and press button to select item you want.
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
28
HYUNDAI FULL HD LCD TV
CHANNELCHANNEL
1
2
3
How to Store Channels Automatically
- Your TV can memorize and store all of the available analog/digital broadcast signals for both “off-air”
(antenna) and cable channels.
- Before your television can begin memorizing the available channels, make sure to specify the type of the
signal source (antenna or cable) connected to your TV.
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to “channel”.
Press or button to select “channel”.
Press Up or Down button to move to “AUTO SCAN”.
Press or button to select “
AUTO SCAN
”.
Press button and Auto Scan is Activated
- In the middle of AUTO SCAN, if you press button or Menu Button, AUTO SCAN is interrupted.
Then the original channel is returned.
- If you have changed the connection of an antenna or cable, perform AUTO SCAN again.
29
CHANNELCHANNEL
How to Add/Erase Channels Manually
Users can add or erase the desired channels.
1
2
3
4
Press the number buttons
on remote control to view the channels that will be
added.
To Add Channel ,
Add the channel by pressing the ADD/ERASE button.
To Delete Channel,
Press channel buttons or the number buttons
on remote control to erase the channel.
Press the ADD/ERASE button to erase the channel
Press Left and Right buttons to set
YES/NO .
30
HYUNDAI FULL HD LCD TV
CHANNELCHANNEL
The Favorite function is available only with remote control.
1
2
3
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to “channel”.
Press button or to select “channel”.
Press Up or Down button to move to “channel edit”.
Press button or to select “channel edit”.
Press button to “select”.
You can channel and Favorite-channels by pressing
add/erase, Up/Down, left/right and buttons.
Press MENU or exit button after the setting is done, and you
can save the channels you select.
How to Set Channel Edit and Favorite Channels
Users can store frequently watched channels to quickly access a preferred channel.
How to Directly Add and Erase Favorite Channels : Press button.
How to Directly See Favorite Channels : Press button.
31
CHANNELCHANNEL
How to See Signal Strength
The function is only for DTV channel.
1
2
Press menu button.
menu items appear on the screen.
Press Up or Down button to move to “channel” .
Press or button to select “channel”.
Press Up or Down button to move to “signal strength”.
Press or button to select “signal strength”
then the signal strength of anntena appears
on the screen.
Press MENU button after the setting is done and menu
goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
32
HYUNDAI FULL HD LCD TV
CHANNEL
How to Set The Input Mode
1
2
3
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to “channel”.
Press or button to select “channel”.
Press Up or Down button to move to “external input”.
Press or button to select “external input”.
Press left or right button to set input mode
Whenever press left/right button to set input mode
Changes in following order.
TV(Air/Cable) AV1(Video1) AV2(Video2)
AV3(S-Video) AV4(Component1)
AV5(Component2) AV6(PC) AV7(HDMI1) AV8(HDMI2)
Press Menu button after the setting is done and menu goes to the previous Menu.
If the Exit button is prested, the menu will disappear.
You can set the input mode quickly using the remote control press the button
Whenever press this button, the input mode changes if following order
TV(Air/Cable) AV1(Video1) AV2(Video2) AV3(S-Video) AV4(Component1)
AV5(Component2) AV6(PC) AV7(HDMI1) AV8(HDMI2)
33
1
2
3
How to Select the Picture Mode
Users can automatically adjust the picture mode according to the input mode.
How to Directly Select Picture Mode : Press Pricture button.
- Whenever press this button, the mode changes in following order. CUSTOM STANDARD
MILD VIVID MULTIMEDIA.
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to picture.
Press or button to select picture.
Press Up or Down button to move to picture mode
Press or button to select
Whenever you press Up or Down button, the mode
changes in following order.
Custom Standard Mild Vivid
Multimedia
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
CUSTOM : When the user wants to directly set the values See the next page
STANDARD : Most video contents are appropriate to this mode
MILD : Soft display
VIVID: Clear and Vivid display
MULTIMEDIA : For multimedia screen like movies
If the adjustment of Contrast, Brightness, Sharpness, Saturation and Tint is changed, it’s changed to the
Custom mode automatically.
34
HYUNDAI FULL HD LCD TV
How to Set the Desired Picture
Users can manually adjust their desired picture.
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to picture.
Press or button to select picture.
Press Up or Down button to move to picture mode.
Press button or to select picture mode.
Press Up or Down buttom to move to custom and
Press button to make a selection.
Press Up or Down buttom to move to Brightness .
Press or button to select Brightness .
Press Left or Right button to adjust.
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
BRIGHTNESS : Adjust the brightness of the entire picture.
CONTRAST : Adjust the brightness and darkness of object and background.
SATURATION : Adjust colors into deeper or lighter colors.
TINT : Adjust colors naturally.
SHARPNESS : Adjust clarity of outline of objects.
COLOR TEMP : Whenever You Press left or right button, the mode changes in
following order NORMAL
WARM COOL
DNR : Reduce the Digital Noise in the DTV mode.
AD.CONTRAST : Adaptive contrast
TINT is not applied to PC mode
1
2
3
4
5
35
How to Select the Aspect Ratio
Users can manually adjust size of the screen.
How to Directly Select Picture Mode : Press Aspect button.
General broadcast picture is adjusted
to 16:9.
16 : 9
4:3 general picture size
4 : 3
Picture enlarged to 16:9 format, letter
box format.
ZOOM 1
Picture which enlarges 16:9 vertically
ZOOM 2
Picture size for panorama video
PANORAMA
You can use ASPECT key as follows.
- Digital TV input : 16 : 9 4 : 3 Zoom 1 Zoom 2
- Analog TV input (in Video, TV mode) : 16 : 9
4 : 3 Zoom 1 Zoom 2 Panorama
- PC mode : 16 : 9
4 : 3
- HDMI,COMPONENT Input : 16 : 9
4 : 3 Zoom 1 Zoom 2 Real
What is Real Mode?
- This Mode allows to show original display without over scanning when 1080i/p signal used in
component/HDMI Input Mode.
- According to inputted video sIgnal, Some noise can be displayed Mode on side of screen but this
noise is originally from inputted video signal.
Real size in HDMI, Component
REAL
How to Watch PIP/Double Window
36
HYUNDAI FULL HD LCD TV
Press button to set up PIP
PIP POP is selected whenever you press
Press button to select input source of sub screen.
Select input source of sub screen by pressing button and press OK button.
Press button to adjust sub screen.
Sub screen's size will change whenever you press.
Press button to swap main and sub screen.
Main and sub screen will be swapped whenever you press.
Press button to change the position of sub screen.
It moves left top right top right bottom left bottom
Press buttons to select the channel of sub screen.
Only in case sub screen's input is TV.
<PIP>
<Double Window>
Main and sub screen can't be used for same input sources.
37
Supported PIP Table
PIP : O → Supported, X → Not Supported
HMDI 1
O
O
O
O
O
O
O
X
X
HDMI 2
O
O
O
O
O
O
O
X
X
PC
O
O
O
O
O
O
X
O
O
Component 2
O
O
O
O
O
X
O
O
O
Component 1
O
O
O
O
X
O
O
O
O
S-VIDEO
O
O
X
X
O
O
O
O
O
TV
X
O
O
O
O
O
O
O
O
TV
VIDEO 1
VIDEO 2
S-Video
Component 1
Component 2
PC
HDMI 1
HDMI 2
VIDEO 1
O
X
O
O
O
O
O
O
O
VIDEO 2
O
O
X
X
O
O
O
O
O
Main
Sub
38
HYUNDAI FULL HD LCD TV
How to Directly Select Sound Mode : Press SOUND button.
Users can select Custom Standard Movies Music Speech
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to sound .
Press or button to select sound .
Press Up or Down button to move to sound mode
Press or button to select sound mode.
Mode is selected.
Whenever you press Up or Down button,
the mode changes in following order.
CUSTOM STANDARD MOVIES
MUSIC SPEECH
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
CUSTOM : When the user wants to set the value. See the next page
STANDARD : General sound mode. This fits most audio contents.
MOVIES : For enjoying vivid sound.
SPEECH : For enjoying clear sound.
MUSIC : For enjoying original sound.
1
2
3
How to Select the Audio Mode
Users can adjust sound mode automatically as they want.
SOUND
39
SOUND
How to Adjust the Desired Audio Mode
Users can adjust sound mode manually as they want.
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to sound.
Press or button to move to sound.
Press Up or Down button to move to sound mode
Press or to select.
Press Up or Down button to move to custom.
and press button to make a selection.
Press Up or Down to select items.
(Table, Bass and blance)
Press or button to select items.
Move between the items listed using UP or Down button
.
Adjust the level of the item selected using
Left or Right button.
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
TREBLE: Adjusts the range size of high sound.
BASS: Adjusts the range size of low sound.
BALANCE : Adjusts the balance of left and right speakers.
1
2
3
4
5
40
HYUNDAI FULL HD LCD TV
SOUND
If the SRS TruSurround XT function is activated, the AVL is disabled.
How to Use the Automatic Volume Control
With this Automatic Volume Level Control, everything you watch will always maintain the volume level that you
decide. Basically it is set to “ON”
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to sound .
Press or button to select sound .
Press Up or Down button to move to AVL.
Press or button to select AVL.
Press or button to set to on/off.
Press button to set to on/off.
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
1
2
3
41
SOUND
How to Directly Select Surround : Press the button.
- User can select TruSurround XT ON TruSurround XT OFF
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to sound.
Press or button to select sound.
Press Up or Down button to move to Surround.
Press or button to select Surround.
Press Left and Right buttons to set to
ON/OFF .
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
1
2
3
is a trademark of SRS Labs, Inc.
TruSurround XT technology is incorporated under
license from SRS Labs, Inc.
How to Listen to SRS TruSurround XT (Surround)
Users can enjoy spectacular 3D sound.
42
HYUNDAI FULL HD LCD TV
SOUND
How to Set Audio Language
While watching a digital program, you can listen to foreign language if the program is supported with foreign
language.
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to sound .
Press or button to select sound .
Press Up or Down button to move to Pref.Aud.Lang .
Press or button to select Pref.Aud.Lang .
Whenever you press Left or Right button,
the mode shifts in following order.
ENGLISH SPANISH FRANCE
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
1
2
3
How to Directly Select Audio Language : Press the button.
- Whenever you press this button, the mode shifts MONO STEREO SAP in order when receiving analog
signals.
You can select one of the languages listed you prefer when receiving digital signals.
43
SOUND
How to Set the Digital Audio Output
The digital audio output terminal allows you to enjoy digital sound.
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to sound .
Press or button to select sound.
Press Up or Down button to move to “Dig.Audio Out”
Press or buttons to select “
Dig.Audio Out”
Whenever you press Left or Right button, the mode
shifts in following order.
Dolby PCM
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
Manufactured under license from Dolby Laboratories.
“Dolby Digital” and the double-D symbol are trademarks of Dolby Laboratories.
1
2
3
44
HYUNDAI FULL HD LCD TV
How to Set Auto Lock
This function is used to prevent from using the control buttons on the front top of the TV or from connecting
external devices to the TV. You make sure to set a PIN number to use this function.
1
2
3
4
5
6
7
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to function .
Press or button to select function .
Press Up or Down buttons to move to “AUTO LOCK”.
Press or button to select “AUTO LOCK”.
Then the Enter PIN number window appears.
The default is 4 digits (0-0-0-0).
- To set Blocking :
Press Up or Down button to move to “SET BLOCKING”.
Press or button to select “SET BLOCKING”
Press Up or Down button to move to
ON/OFF .
Press button to make a selection.
- To set Channel blocking :
Press Up or Down button to move to
“CHANNEL BLOCKING”.
Press button to select “ BLOCK CHANNEL”.
Then the AUX BLOCK items appear.
Press Up or Down button to move to the
item you want.
Press button to set to
LOCK/UNLOCK .
If the item is set to ON, such item is disabled.
Continued on next page ......
FUNCTION
45
FUNCTION
Continued from previous page.....
(Set the Lock External Signal function.)
9
8
- To update DTV rating :
Press Up or Down button to move to “DTV Rating”.
Press button to select “DTV Rating”.
- To set setup code :
Press Up or Down button to select “SETUP CODE”.
Press button to select “SETUP CODE”
Then the Enter PIN number window appears.
Enter a 4- digit PIN number.
When the Confirm PIN number window appears,
enter the PIN number again.
Press MENU button after the setting is done
and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
If you forgot your PIN number, Enter a 4-digit number (0-7-1-1)twice in the pin number window.
10
46
FUNCTION
HYUNDAI FULL HD LCD TV
How To Set Block By Rating
This(V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station.
The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by
the categories chosen to be blocked.
V-Chip rating and categories
Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be
blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-tovideo movies use the Movie Rating System (MPAA) only.
Ratings for Movies previously shown in theaters :
Ratings for Television programs including made-for-TV movies :
Continued on next page ......
Movie Ratings : - Blocking Off (Permits all programs)
- G (General audience)
- PG (Parental guidance suggested)
- PG-13 (Parents strongly cautioned)
- R (Restricted)
- NC-17 (No one 17 and under admitted)
- X (Adult only)
- NR (Not Rated)
If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.
- TV-G (General audience)
- TV-PG (Parental guidance suggested)
- TV-14 (Parents strongly cautioned)
- TV-MA (Mature audience only)
- TV-Y (All children)
- TV-Y7 (Children 7 years older)
TV Rating Children : - Age (applies to TV-Y, TV-Y7)
- Fantasy Violence (applies to TV-Y7)
TV Rating General : - Age (applies to TV-G, TV-PG, TV-14, TV-MA)
- Dialogue-sexual dialogue (applies to TV-PG, TV-14)
- U Language-adult language (applies to TV-PG, TV-14, TV-MA)
- Sex-sexual situations (applies to TV-PG, TV-14, TV-MA)
- Violence (applies to TV-PG, TV-14, TV-MA)
47
FUNCTION
1
2
3
4
5
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to Auto Lock.
Press or button to select Auto Lock.
The message “Enter PIN” will appear.
Enter your 4-digit PIN number.
Press Up or Down button to move to
“BLOCK BY RATING” and press buttons
to make a selection.
The new screen will appear.
Press Up/Down and left/right buttons to
select the items (MPAA and TV Parental midelines)
Press up/down and left/right buttons
to select the item.
Press button to make a selection.
Press MENU button after the setting is done and
menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
48
FUNCTION
HYUNDAI FULL HD LCD TV
How to View Closed Captions
Choices in the closed caption menu are : CC Mode, Priority (Analog caption or Digital caption), and Option.
1. CC MODE :
Always On : Captioning information is always shown, when available.
Off : No captioning information is displayed.
On When Muted : Captioning information is shown, when mute.
2. PRIORITY :
You can choose whether the TV uses digital or analog captions for digital TV programs that have both or either.
- ANALOG (CAPTION) : You can select a closed caption mode, which is the mode, or source, used for displaying
captioning information for analog channels or digital channels, if available.
- DIGITAL (CAPTION) : You can select a closed caption, service mode(1-6) for digital channels.
The service modes support MPEG-2 based transport sources Service 1 and Service2 are the
primary and secondary languages, respectively.
Service3 and service4.5.6 are additional caption sources that may be available.
Continued on next page ......
• CAPTION :
The form for the words that scroll across the bottom of the TV screen : usually the audio portion of the
program provided for the hearing impaired.
CC 1 : For video related information that can be displayed. Script can be in any language.
CC 2/3/4 : Other modes used for video related information.
• TEXT :
The term for the words that appear in a large black frame and almost cover the entire screen :
Usually message provided by the broad caster.
T 1 : Blanks out a large portion of the picture on the television screen, and display program guide or any
other information currently being transmitted.
T 2/3/4 : other modes that display information and blank out a large portion of the picture of the TV screen.
49
FUNCTION
COLOR : Set the color of the cc Background AUTO -> BLACK -> WHITE -> RED -> GREEN -> BLUE -> YELLOW
-> MARGENTA -> CYAN
OPACIFY : Specify the opacity for the - AUTO -> SOLID -> TRANSPARENT -> TRANSLUCENT -> FLASHING
CAPTION SIZE : Set the size of the words - AUTO -> SMALL -> STANDARD -> LARGE
CAPTION STYLE : Set the style of the words - AUTO -> STYLE1 -> STYLE2 -> STYLE3 -> STYLE4 -> STYLE5
-> STYLE6 ->STYLE7.
TEXT COLOR : Choose a color for the text - AUTO -> BLACK -> WHITE -> RED -> GREEN -> BLUE -> YELLOW
-> MARGENTA -> CYAN
TEXT OPACIFY : Specify the opacity for the text - AUTO -> SOLID -> TRANSPARENT -> TRANSLUCENT
-> FLASHING
EDGE STYLE : Select Edge style for the text - AUTO -> NONE -> RASIED -> DEPRESSED -> UNIFORM
-> L-DROPSHADOW -> R-DROPSHADOW
EDGE COLOR : Select Edge color for the text - AUTO -> BLACK -> WHITE -> RED -> GREEN -> BLUE -> YELLOW
-> MARGENTA -> CYAN
ITALIC : Convert the text in to italic - AUTO -> ON -> OFF
UNDERLINE : Add the underline to the text - AUTO -> ON -> OFF
...... Continued from previous page.
3. OPTION :
Customized closed captioning for the digital caption by choosing the settings for the following options :
1) Caption Text
2) cc Background
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to function
and press or to select function.
Press Up and Down buttons to move to
“CLOSED CAPTION” and press or button
to make a selection.
Display MODE is highlighted.
Press Left and Right buttons to select
Off" or "Always On" or "On When Muted".
Sub menu items are activated.
Press Up or Down button to move the item.
Press Left or Right button to select the item.
1
2
3
4
50
FUNCTION
HYUNDAI FULL HD LCD TV
- To select caption option
Press Up or Down button to move to caption option.
Press or button to select caption option.
Press left/right buttons to select Auto/Option and
press to select make a selection.
If caption option selected options, CC Background and
caption Text are highlighted When selectiong the
CC Background and caption text, press button.
Press Up or Down button to move between the items
(cc Background and Caption text)
Press left/right buttons to select the item
Then you can choose the CC Background
and caption text by pressing up/down
and left/Right buttons.
Press MENU button after the setting is done and
menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
6
5
7
8
51
FUNCTION
3
4
How to Set the EPG View
- This service is only for DTV model.
2
1
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to function.
Press
or
button to select function.
Press Up or Down button to move to EPG View.
Press
or
button to select EPG View.
Press
or
button to see the EPG.
Then you can get information on the broadcasting
time and program.
Press Up or Down button to select the
program for reservation.
Press to reserve the selected program.
If reserved, clock mark will appear on the program.
Press MENU button after the setting is done and
menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
How to Directly Move to EPG : Press the button.
Five programs can be reserved.
52
FUNCTION
HYUNDAI FULL HD LCD TV
3
4
How to View Reservation List
2
1
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to function.
Press
or
button to select function.
Press Up or Down button to move to Reserv. List
.
Press
or
button to select Reserv. List
.
Press or to activate Reservation List.
If you reserved programs, Reservation List will appear.
If not, No program schedule will appear.
To cancel reserved programs, move to Reservation List and
press to cancel.
The clock symbol will disappear.
Press MENU button. If the message "Do you want to save ?"
appears, select Yes.
After saving, Reservation List will disappear.
53
SETUP
4
5
6
7
How to Set Date / Time
2
1
3
Press Menu button.
Menu item appear on the screen.
Press Up or Down button to move to setup
.
Press
or
button to select setup.
Press Up or Down button to move to “DATE/TIME” .
Press or button to select “DATE/TIME”.
Press or button to select “Observe or Do not observe”,
DayLight Saving Time.
Press button to select function
Press left/right buttons to timezone.
Whenever you press the buttons, timezone
is changed in following order.
Pacific
Mountain Central Eastern
Alaska Hawaii Atlantic
Press button to select “SETTING”.
Press Up or Down button to move to manual manually.
Press button to set the current “DATE/TIME”
Press Up/Down and Left/Right buttons to set
year, month, day, Hour, Minute and AM/PM
After setting,
Press
or
button to exit
“AUTO” is only for DTV mode.
If you select “AUTO”,
Press
or
button to select function
Press MENU button after the setting is done and
menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
How to Set Power on Time
- Yes can automatocally turn on or off the TV at a present time, To do this, you must set the time it you wish to
use the automatic on or off timers
54
HYUNDAI FULL HD LCD TV
SETUP
1
2
3
4
5
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to setup.
Press or button to select setup.
Press Up/Down button to select power on time
Press or button to select power on time.
Press button to activate power on time
whenever you press left and right button,
the mode shifts in following order
OFF
ONCE DAILY
If you select once or daliy in the “ACTIVATE”
You can set time and channel
Press up/down button to select Time.
Press button to set Time.
Press Left or Right button to move between Hour,
minute and AM/PM and press up or down buttons
to set Hour, minute and AM/PM
Press Up/Down buttons to select channel.
Press button to set channel.
Press numeric key to set channel number.
Press button to set.
Press MENU button after the setting is done and
menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
55
SETUP
How to Set Power Off Time
1
2
3
4
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to setup
Press or button to select setup.
Press Up/Down button to move to power off time
Press or button to select power off time.
Press button to activate power off time.
Whenever you press left and right button, the mode
shift in following order.
OFF
ONCE DAILY
If you select once or daily in the “ACTIVATE”
You can set time.
Press Up/Down buttons to select time.
Press button to set time.
Press Left or Right button to move between
hour, minute and AM/PM
Press Up or Down buttons to set
hour, minute and AM/PM.
Press button to set.
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
How to Set Sleep Time
56
HYUNDAI FULL HD LCD TV
SETUP
1
2
3
4
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to setup
Press or button to select setup.
Press Up or Down button to move to sleep time.
Press or button to set sleep time.
Press up or down button to set sleep time
Whenever you press up or down button the mode
shifts in following order.
OFF 15 30 45 60 90 120
180 240 MINUTES
Press button to set.
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
How to Directly Set the sleep timer : Press the button.
- Whenever press this button, the mode shifts off 15 30 45 60 90 120
180 240 minutes
57
SETUP
How to Choose Menu Language
Users can select their language preference in order to display main menus and sub menus, etc.
1
2
3
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to setup.
Press or button to select setup.
Press up/down button to move to menu language.
Press or button to select menu language.
Press or button to set language
Whenever you press Left or Right button,
the mode shifts in following order.
ENGLISH SPANISH FRENCH
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
58
HYUNDAI FULL HD LCD TV
SETUP
How to Set Menu Opacity
Users can select their language preference in order to display main menus and sub menus, etc.
1
2
3
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to setup.
Press or button to select setup.
Press Up or Down button to move to move to
menu opacify.
Press or button to select menu opacity.
Press left or right to set menu opacity you want.
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
59
SETUP
How to Set Emergency Alert
1
2
3
Press Menu button.
Menu items appear on the screen.
Press Up or Down button to move to setup .
Press or button to select setup
Press Up or Down button to move to Energ Alert.
Press or button to select
Energ Alert.
Press Up or Down button to move to Low/medium.
Press left or right button to select
present/discard.
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
60
HYUNDAI FULL HD LCD TV
SETUP
How to Set the Geometry in PC Mode
This function is only available in PC mode.
1
2
3
4
5
Press Menu button.
Menu item appear on the screen.
Press Up or Down button to move to setup.
Press or button to select setup.
Press Up or Down buttons to move to “PC”.
Press or button to select “PC”.
Press Up and Down buttons to move to
“Auto Adjustment”.
Press or button to adjust H/V-position auto.
Press Up and Down buttons to move to “TRACKING”.
After pressing OK button, you can select Phase,
Clock with Up or Down button and change the value
with Left or Right button.
Press Up or Down button to move to position.
Press or button to select position.
Press Up and Down buttons to adjust V-position .
Press or button to adjust H-position.
After setting press button to exit
Press MENU button after the setting is done and menu goes to the previous menu.
If the EXIT button is pressed, the menu will disappear.
H. POSITION : To adjust the horizontal position of the picture.
V. POSITION : To adjust the vertical position of the picture.
6
If the display input signal (resolution) has been changed, the picture will be automatically optimized.
Picture On Function Guide
Picture On function allow user to change factory power on screen “Hyundai IT Logo”.
1) Using PC image editor software to open your image file.
2) Resize the image pixel size to 960 x 550 using image editor software.
3) Set your image color to hi-color (16bit).
4) Save your image file name to “logo.bmp”.
5) Create new file folder name “DDM40” on your USB Flash drive. Copy the “logo.bmp” file to “DDM40”
file folder and connect USB Flash drive to TV using mini USB cable while TV power LED in Red
(Standby mode).
6) Press “Power” button on remote controller. Image file will upload to TV.
7) TV will display “SPLH: OK”, Press “Power” button to turn off the TV.
8) Disconnect the Mini USB cable from the TV and press “Power” button to turn on TV.
9) Power on screen is set and TV will display “logo.bmp” image.
61
SETUP
- Requirements: File Format - Bit Map(*.BMP) / Image pixel size 960X540 / BIT- 16bit
- Free image editor software can be found at the www.download.com
- Recommended USB Flash Drive: SanDisk Cruzer, Micro USB Flash Drive 256Mb, Hana Micro
62
HYUNDAI FULL HD LCD TV
How to Use an External Device Using the Remote Control
When setting other manufacturer s product using the remote control, some of the buttons on the remote control may
not operate or different functions may be activated, or some of other manufacturer s products may not work. Some
of DVD/VCR combos are allowed only either in DVD mode or VCR mode.
1. Turn on the external device you want to set.
2. Whenever you press button on the remote control, the mode shifts
TV
VCR DVD SAT(Satellite Receiver) in order.
Or Press the button and the prefered device(TV/VCR/DVD/SAT) at once.
3. If the external device has been chosen, press the button and button
at the same time for two seconds.
4. Enter an appropriate 3-digit number of the manufacturer from the DVD Setting
Number Table. (If the product brand you want to set has multiple setting numbers,
attempt to enter the setting numbers repeatedly until the product is turned off.)
5. When the product has turned off, press the button again.
(The appropriate button associated with the product will flash 3 times to show the
product operates properly.)
6. Check that the Power button works normally and then check that other function
buttons work normally.
If the Power button works normally but other function buttons do not, repeat the
above steps from the beginning.
Depending on product brands or setting numbers, the power button may work
normally but other function buttons do not work.
VCR Setting Number Table
APPENDIX
63
APPENDIX
DVD Setting Number Table
Satellite Receiver Setting Number Table
64
HYUNDAI FULL HD LCD TV
APPENDIX
Glossary 1
Component video Component video is sent through three cables: two color shade (chrominance) signals
and one brightness (luminance) signal. Component video achieves greater color
accuracy than composite video or S-VIDEO by splitting chrominance into two separate
portions.
Composite video Composite video is sent through a single cable. Composite video combines the color
shade (chrominance) and brightness (luminance) information into one video signal.
S-VIDEO S-VIDEO requires a single cable, which carries the brightness (luminance) and color
(chrominance) signals of the picture separately. S-VIDEO provides better resolution
than composite video, which carries the signals together.
480i Provides 480 lines of resolution. Displays images using interlaced scanning, which first
transmits all the odd lines on the TV screen and then the even lines.
480p Provides 480 lines of resolution. Displays images using progressive scanning, which
transmits each line from top to bottom.
720p Provides 720 lines of resolution. Displays images using progressive scanning, which
transmits each line from top to bottom.
1080p Provides 1080 lines of resolution. Displays images using progressive scanning, which
transmits each line from top to bottom.
1080i Provides 1080 lines of resolution. Displays images using interlaced scanning, which
first transmits all the odd lines on the TV screen and then the even lines. 1080i is one
of the formats used by HDTV (High Definition TV).
Digital television (DTV) A new technology for transmitting and receiving broadcast television signals. DTV
provides higher resolution and improved sound quality over analog television.
HDTV(High Definition TV) HDTV is a new kind of digital TV, creating a high quality picture, high definition. The
HDTV provides a theater-like screen with an aspect ratio of 16:9. Supports 720p or
higher.
SDTV(Standard Definition TV) SDTV is a new kind of standard definition digital TV, having a range of lower resolution
than the HDTV. Supports 480i.
Cable Broadcast Receiver A device that receives cable broadcasting. Connecting it to your TV set allows you to
watch a various channels.
(Converter)
Satellite Broadcasting Provides crisp picture and clear audio quality throughout the country via a satellite.
VHF/UHF VHF (Very High Frequency) is the part of the frequency spectrum from 30 to 300
megahertz. UHF (Ultra High Frequency) is the part of the frequency spectrum from 300
to 3,000 megahertz.
65
APPENDIX
Glossary 2
DVD DVD (Digital Versatile Disc) is an optical disc that can store a huge volume of
multimedia such as video, game, and audio application, etc.
Coaxial Cable Coaxial cable is the kind of rounded copper cable, which is generally used for TV
antenna.
Aspect ratio Refers to the ratio between the width and height of the screen. This TV has a 16:9
(widescreen) aspect ratio, as opposed to a 4:3 aspect ratio.
Picture Mode Picture Mode features the optimal picture quality. There are Standard-Mild-Vivid -
Multimedia-Custom features in order. “CUSTOM” allows you to adjust Contrast,
Brightness, Sharpness, Color and Tint.
Sound Mode Sound Mode features the optimal sound quality. There are Standard-Movies-Speech-
Music-Custom features in order. “CUSTOM” allows you to adjust high frequency sound,
middle frequency sound and low frequency sound.
Digital Broadcasting Video and Audio signals digitized and transmitted by broadcasting companies
complying with the new digital television standard developed by the ATSC (Advanced
Television System Committee). Digital Broadcasting technology provides multimedia
services including a variety of additional services as well as high-definition quality
picture.
Analog Broadcasting ATSC-based Video and Audio signals transmitted by broadcasting companies.
SRS TruSurround TX A well-recognized 3D sound technology developed by US SRS Labs, Inc.
This technology delivers the ultimate audio experience only with two speakers as if
through multi-channel speakers.
Dolby Digital Formerly known as AC-3, Dolby Digital is a digital audio coding technique that reduces
the amount of data needed to produce high quality sound.
Mono Audio signals are produced through a single channel. It is difficult to experience a
spectacular sound since audio signals are reproduced with a single speaker.
Stereo Audio signals are produced through two channels. A spectacular sound is reproduced
with two separated speakers.
Widescreen Term given to picture displays with a wider aspect ratio than NTSC 4:3. Digital HDTV is
16:9 widescreen. Most motion pictures also have a widescreen aspect ratio, some
even wider than 16:9.
External source Refers source signals that come from other external devices such as a VCR, camcorder
and DVD player, etc. than a TV set.
66
HYUNDAI FULL HD LCD TV
APPENDIX
Glossary 3
MTS A bilingual service provided when an overseas film, foreign drama or overseas news,
etc. is aired. You can select one of two choices: mother tongue and foreign language.
Or you can listen to both languages at the same time.
DVI Digital Visual Interface is a specification for digital signals. This interface using TMDS
transmission reduces the loss of signal, allowing to enjoy a clear and crisp image.
HDMI HDMI (High-Definition Multimedia Interface) is the first and only industry-supported,
uncompressed, all-digital audio/video interface.
HDMI provides an interface between any audio/video source, such as a set-top box,
DVD player, or A/V receiver and an audio and/or video monitor, such as a digital
television (DTV), over a single cable.
Virtual channels There is a new numbering system for DTV channels. The system, called the “DTV
virtual channels,” gives a number for each DTV program service, and almost always
uses the analog NTSC channel number as the first number for that station. The use of
virtual channels allows stations to use the same channel number “brand” for both
NTSC and DTV. The printed listing services have not yet changed their format to show
only the DTV virtual channel numbering system. So in the example, the station is using
RF Channel 38 for DTV and is transmitting DTV programs with virtual channel
numbers 15.n. The 15.n is short hand for 15.1, and 15.2 and 15.3, etc., as there can
be more than one DTV program lineup from the station. So, 15.1 is the first DTV
program lineup, 15.2 is the second, 15.3 is the third. Some DTV stations may have
only one virtual channel, others perhaps as many as six.
67
APPENDIX
Troubleshooting
Installation Problems
Picture Problems
Symptom
How can I install an
antenna?
TV screen is not clear after
installing an indoors
antenna.
How can I view cable
broadcasting?
Symptom
Neither picture nor
sound comes up.
Picture turns on slowly
after power is on.
Picture is distorted or frozen
while watching digital
broadcasting.
Input Source information
only appears on black
screen.
Poor reception on some
channels.
Black and white on some
channels.
TV won’t turn on.
Screen is too bright or too
dark.
Possible solution
Refer to page 16.
Indoors antenna may experience poor reception due to surrounding buildings. Please
install an outdoors antenna or wireless antenna.
Please install a cable broadcasting receiver (Converter).
Possible solution
Check whether power is on.
Check whether the power is cut or whether power cord is properly connected.
Try to plug another product’s power cord to the outlet the TV is plugged into.
This symptom is not a malfunction. This delay is designed to prevent the distorted and
noisy picture when power is on. However, if the picture does not appear more than 5
minutes after power is on, call a service center.
This symptom may be caused by weak reception. Contact your local station or cable
company.
Check whether your TV is properly connected to external devices.
Check whether you selected proper channels. Try re-orienting your antenna.
Check other channels for black and white screen. Adjust colour.
Ensure the power cord is plugged.
Adjust brightness.
68
HYUNDAI FULL HD LCD TV
APPENDIX
Sound Problems
General
Auto On does not work.
After setting the time,
I turned TV off and turn it on.
The programmed information
has been erased.
Symptom
Too much noise occurs.
No sound while viewing a
cable channel
Picture is OK but sound does
not come out.
One of the speakers does not
produce sound.
Symptom
Remote control won't work.
Where does the S-Video
cable plug in for audio
output?
Strange noises are heard.
I tried to use the TV screen
as a PC monitor
but it doesn’t work.
Ensure to use the remote control or power button on the product to turn off your TV. If
you unplug the power cord, the stand-by consumption power becomes 0 (zero), which
causes the programmed time to be erased.
Ensure to use the remote control or power button on the product to turn off your TV. If
you unplug the power cord, the stand-by consumption power becomes 0 (zero), which
causes the programmed time to be erased.
Possible solution
Check whether the audio setting is in the Stereo mode. In the Stereo mode, the sound
may be distorted in the area where experiences poor reception or is located far away
from a TV broadcasting station.
Make sure an audio or audio/video component is securely inserted into the appropriate
jacks. Check other channels for sound. Check the volume settings on the cable
broadcasting receiver.
Try to press volume up/volume down buttons of your remote control.
Try to press MUTE buttons of your remote control.
Select sound balance and make proper adjustment. (Page 39)
Check the speaker connection cables.
Possible solution
Check whether there is a blocking object between the remote control and TV.
Make sure your TV is Power On. (In case of normal, LED on the front panel is in Red.)
Check whether batteries are inserted with proper polarities(+, -).
When the batteries are worn out, replace with new ones.
Connect the two Audio jacks from the S-Video cable to the left and right ports on the
Composite.
Ticking noise during or after watching is caused by the change of ambient
environment such as humidity and temperature, which is characterized by plastic
products. Strange ticking noise occurs because a signal is suddenly transmitted to the
TV panel. So, this is not a malfunction.
Adjust the resolution referring to the standard signal mode table. Check the
specification of your video card installed in your PC. If your video card does not work in
supported hardware. Try upgrading the video card’s driver.
69
APPENDIX
Care and Cleaning
Cabinet Cleaning
Wipe a soft dry cloth.
Do not use inflammables like Benzene or Thinner, or wet clothes.
Do not scratch the panel of LCD with a fingernail or pointed object.
Screen Cleaning
Clean the screen with a soft cloth moistened in mild glass
detergent and dry with a soft cloth.
Never use any solvent on the screen such as Acetone, Benzene, or
Thinner, etc.
Cleaning Inside
When the inside needs to be cleaned, contact a service center or
distribution agent where the item is purchased.
It is recommended cleaning is complete before the rainy season.
70
HYUNDAI FULL HD LCD TV
APPENDIX
E465D
1(A/V audio common)
2(Audio included)
2(Audio included)
1
D-SUB
1920 X 1080 @ 60 Hz
L/R
2
No
1
2(L/R, SPDIF)
NTSC M / FM
ATSC
Component, S-Video,
Composite, PC, HDMI
AC 100 - 240 V, 50/60 Hz
260W (Typical )
< 1W
1143 x350 x 845
31.5 Kg
Remote control, Key control
Product Specifications - E425D/E465D
- The above specifications may be subject to change without prior notice.
S-Video
Video (RCA)
Component(Y/Cb/Cr)
Antenna
PC Connection jack
Max. resolution
Audio
HDMI
Memory Slot
Video
Audio
Analog
Digital
Video system
Supply
Consumption power
Stand-by power
Model
Input
Output
TV/Video
Power
Dimension
(W x D x H mm - Stand included)
Weigh (Stand included)
Control type
E425D
1(A/V audio common)
2(Audio included)
2(Audio included)
1
D-SUB
1920 X1080 @ 60 Hz
L/R
2
No
1
2(L/R, SPDIF)
NTSC M / FM
ATSC
Component, S-Video,
Composite, PC, HDMI
AC 100 - 240 V, 50/60 Hz
200W (Typical )
< 1W
1057 x350 x 796
32.6 Kg
Remote control, Key control
71
APPENDIX
E466D
1(A/V audio common)
2(Audio included)
2(Audio included)
1
D-SUB
1920 X 1080 @ 60 Hz
L/R
2
No
1
2(L/R, SPDIF)
NTSC M / FM
ATSC
Component, S-Video,
Composite, PC, HDMI
AC 100 - 240 V, 50/60 Hz
260W (Typical )
< 1W
1323 x310 x 757
31.5 Kg
Remote control, Key control
Product Specifications - E426D/E466D
- The above specifications may be subject to change without prior notice.
S-Video
Video (RCA)
Component(Y/Cb/Cr)
Antenna
PC Connection jack
Max. resolution
Audio
HDMI
Memory Slot
Video
Audio
Analog
Digital
Video system
Supply
Consumption power
Stand-by power
Model
Input
Output
TV/Video
Power
Dimension
(W x D x H mm - Stand included)
Weigh (Stand included)
Control type
E426D
1(A/V audio common)
2(Audio included)
2(Audio included)
1
D-SUB
1920 X1080 @ 60 Hz
L/R
2
No
1
2(L/R, SPDIF)
NTSC M / FM
ATSC
Component, S-Video,
Composite, PC, HDMI
AC 100 - 240 V, 50/60 Hz
200W (Typical )
< 1W
1237 x310 x 708
32.6 Kg
Remote control, Key control
Loading...
