Hyundai E321D, E371D, E261D User Manual
FCC Information
User Instructions
The Federal Communications Commission Radio Frequency Interference Statement includes
thefollowing warning :
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital
devicepursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
aresidential installation. This equipment generates, uses, and can radiate radio frequency energy and,
ifnot installed and used in accordance with the instructions, may cause harmful interference to
radiocommunications. However, there is no guarantee that interference will not occur in a
particularinstallation.
If this equipment does cause harmful interference to radio or television receptions, which can
bedetermined by turning the equipment off and on, the user is encouraged to try to correct
theinterference by one or more of the following measures :
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.
• Consult the dealer or an experienced radio/TV technician for assistance.
User Information
Changes or modifications not expressly approved by the party responsible for compliance could
voidthe user’s authority to operate the equipment.Connecting of peripherals requires the use of
grounded shielded signal cables.
HYUNDAI LCD TV
Important Tip
Image Retention Effect (Image Sticking)
1. Cause :
- Image Retention Effect may come from displaying a still picture in certain period of time with at a
certain area continuously, as the feature of LCD panel. This is caused due to brightness degradation.
Many LCD manufacturers are trying to overcome this limitation.
2. Prevention
- To avoid this matter, use the product after reducing brightness and contrast, especially when a still
image is displaying for a long time. (Contrast 50/Brightness 50 - See 34 page)
Once image retention occurs, use the mode that displays more motion pictures. It will help reduce this
matter.
3. Solution
- The temporary image sticking would decrease with displaying Full-White pattern during 10 hours.
* The permanent image sticking could not take off under the latest technology.
This method may be used to eliminate a temporary retained image that occurs after displaying a still
image for a certain period of time. Since it may take several minutes to several hours to remove image
sticking, it is recommendable to display motion pictures during 2~3 minutes every hour when keeping
displaying a still image. As image sticking is influenced by the brightness of a still image being
displayed and its display time, it is recommended that you reduce the brightness of the screen when
displaying a still image for a long time.
* Image Sticking does not come under the warranty.
Image Sticking Precaution
When watching a still Image within motion pictures and
Wide/4:3 screen
1. Note :
- When the central area of the screen and the screen edges are fixed, the different brightness level of
the edges may cause image retention on the edges when watching for a long time
- This phenomenon is the same matter to other LCD manufacturers. Please do not watch a still image
for a long time.
- If you watch a still image for a long time, this may damage your TV.
* This matter does not come under the warranty.
Wide, 4:3 screen
Box still image
HYUNDAI LCD TV
Features
Integrated HDTV
An HDTV has a built-in ATSC digital tuner.
It does not need a separate set-top box to receive over the-air DTV signal.
Dual Scan/Multi-Viewing
You can program analog TV broadcasting and digital TV broadcasting automatically at the same time
for multi-viewing.
A Wide Array of Screen Settings
You can choose different screen settings depending on the type of program you are watching or the
surrounding conditions (the outside weather conditions). You can switch among Standard, and Mild
options or you can configure the screen settings for yourself.
A Wide Array of Sound Settings
You can choose an optimal sound setting for the type of program you are watching.
You can switch among custuom Standard, movies, Music, and Speech options or you can configure
the sound settings for yourself.
Favorite Channel Memory
You can memorize the channels you are watching frequently.
SRS TrueSurround XT
You can enjoy dynamic and surround sound with ordinary speakers.
Dolby Digital
When receiving digital broadcast signal, you can enjoy dynamic and surround sound with two
ordinary speakers just like Dolby Digital 5.1.
A Variety of Aspect Ratios
You can adjust the screen size at your preference.
HYUNDAI LCD TV
Table of Contents
General Information
Safety Precaution ................................................................5
Contents of the Package .......................................................9
Products Sold Separately ......................................................9
Parts Names and Functions ................................................10
Remote Control ...................................................................14
Connections
How to Watch Both Analog and Digital Broadcasts
with a Single Antenna .........................................................16
Before Connecting the Video/Audio Connections to
External Devices... .............................................................17
How to Connect a VCR/Cable Receiver ................................18
How to Connect a SET TO Box or DVD Player ......................19
How to Connect a Camcorder/Game Player .........................20
How to Connect to a PC ......................................................21
HDMI Connection ................................................................23
How to Connect an External Visual Device ...........................25
How to Use Digital Sound ....................................................26
Channel Setup
How to Select Tuner Mode ..................................................27
How to Store Channels Automatically ..................................28
How to Add/Erase Channels Manually .................................29
How to Set Channel Edit and Favorite Channels ..................30
How to See Signal Strength ................................................31
How to the Input Mode ........................................................32
Picture Setup
How to Select the Picture Mode ..........................................33
How to Set the Desired Picture ...........................................34
How to Select the Aspect Ratio ...........................................35
Sound Setup
How to Select the Audio Mode ............................................36
How to Adjust the Desired Audio Mode ..............................37
How to Use the Automatic Volume Control ..........................38
How to Listen to SRS TruSurround XT (Surround) ................39
How to Set Audio Language ................................................40
How to Set the Digital Audio Output ....................................41
Function Setup
How to Set Auto Lock .........................................................42
How To Set Block Program .................................................44
How to View Closed Captions ..............................................46
How to Set EPG View ..........................................................49
Setup
How to the Set Date/Time ...................................................50
How to the Set Power on Time ............................................51
How to the Set Power off Time ............................................52
How to the Set Sleep Time ..................................................53
How to Choose Menu Language ..........................................54
How to Set Menu Opacify ....................................................55
How to Set Emergency Alert ...............................................56
How to Set Geometry In PC Mode .......................................57
Appendix
Glossary .............................................................................58
Troubleshooting ..................................................................61
Care and Cleaning ..............................................................63
Product Specifications ........................................................64
GENERAL INFORMATION
5
Safety Precaution
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.
Do not connect multiple electrical
appliances to a single outlet.
- It may cause a fire due to overheating from
the outlet.
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV, be sure the antenna or
cable system is grounded so as to provide some protection against voltage surges
and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA
No.70-1984, provides information about proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
Example of Grounding According to National Electrical Code
Instruction
Do not use or store a flammable
spray or inflammable things near the
TV.
- They may cause explosion or fire.
Do not install the TV in a
bookshelf, closet, or a place where
there is poor air circulation.
- Fire may be caused due to the rise of
internal temperature.
Make sure to remove the speakers
before moving the TV with speakers
mounted on it.
- When the speakers are detached from the
unit while carrying it, this may cause damage
to the unit or personal injury.
Any necessary action such as making the
antenna cable loop at the entrance of the
building should be taken to prevent rainwater
on the outdoor antenna cable from possibly
running into the indoor.
- If raindrop gets into the LCD TV, it may
cause a fire or an electric shock.
6
HYUNDAI LCD TV
GENERAL INFORMA TION
If there is a persistent accumulation
of dusts or water on the plug, please
make sure to wipe it off using a dry
cloth.
- It may cause a fire or an electric shock.
Firmly plug in the power cord so that
it does not pull out.
- An unstable connection may cause fire.
Do not use a damaged power cord
or plug, or loose outlet.
- It may cause electric shock or fire.
Do not put a water bowl, vase,
candle, bug repellant smoke,
cigarette, plants, or heavy thing on
the TV.
- It may cause electric shock or fire and also
heavy things may cause injury when they
fall.
Do not install in a place where there
is oil, smoke, excessive humidity, or
where water may be sprinkled on it.
- This may cause electric shock or fire.
Do not install on an unstable place
or small support.
- This may cause the TV to fall, resulting in
serious injury to a child or adult.
Never attempt to open, fix, or modify
your TV.
- When there is a need for fixing, call a
service center. Fire or electric shock may be
caused.
Do not put a metallic object like chopstick,
wire, or puncher or inflammables like paper
or a match in a vent, headphone jack, or AV
jacks of the TV.
- Electric shock or fire may be caused.
When the TV produces abnormal noise,
burning smell, or smoke, unplug the TV
immediately and call a service center.
- Electric shock or fire may be caused.
GENERAL INFORMATION
7
Safety Precaution ......................................Continued from previous page
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.
Do not place any heat sources such as
radiators and heat registers, etc. near the TV.
- It may cause a fire.
Do not block ventilating slits with a table
cloth.
- Blocking the ventilation slits may produce
inner heat increase, resulting in a fire.
Keep the TV at least 10cm away from the
wall for ventilation.
- Fire may be caused due to the rise of inner
temperature.
Do not allow children to climb or play on the
TV.
- If it falls over on children, it may cause
serious injury.
Do not place toys and cookies, etc. on the TV,
which may attract children’s attention.
- If it falls over on children, it may cause serious
injury.
When cleaning the TV, make sure to
disconnect the power plug and use a dry, soft
cloth for a cleanup.
- Please avoid using chemicals such as wax,
benzene, alcohol, thinner, mosquito spray,
air freshener, lubricant or synthetic
detergent.
Unplug when you do not use your TV for a
long time.
- If dust is stacked on the TV, electric shock
or fire may be caused from heat, fire, or
deterioration of insulation.
When moving the TV, two or more people are
advised to carry it.
- Injury or damage may be caused when the
TV falls.
Never touch the power plug or outlet with
wet hands.
- This may cause electric shock.
8
HYUNDAI LCD TV
GENERAL INFORMA TION
Do not install the product on the floor.
- If it falls over, your child may be injured.
Unplug the product during lightning or
thunderstorms and never touch the antenna
cable.
- It may cause a fire or an electric shock.
Keep the remote control batteries out of
sight and out reach of children.
- If your child swallows a battery, see your
doctor immediately.
When replacing batteries, make sure to
match the batteries to the (+) and (-) marks
in the battery compartment.
- Mismatching of polarities may result in
internal damage to batteries, fire due to
leakage or contamination.
Always use the standard batteries and avoid
using old batteries together with new ones.
- Otherwise it may result in internal damage
to batteries, fire due to leakage or
contamination.
In the event of damaging or dropping the
product, switch off the power and remove
the plug.
- Using a damaged product may cause an
electric shock or a fire.
- Contact your local service center.
Before moving the product, ensure to switch
off the power and unplug all the electrical
cords and the external connection cords such
as an antenna cable and other source
connections, etc.
- An electrical cord(s) may be damaged,
resulting in a fire or an electrical shock.
Ensure the power cord doesn’t trail
across any hot objects like a heater.
- This may cause a fire or an electric shock.
Consult a service center or customer service
for inside cleaning about once a year.
- When dust is piled inside the TV for long
time, fire or malfunction may be caused.
9
GENERAL INFORMATION
Contents of the Package
hen opening the package, please ensure to check the following accessories provided.
Products Sold Separately
If you want to purchase separately sold products, consult a service center, electronics shops, or parts seller.
P
O
W
E
R
S
O
U
R
C
E
F
R
E
E
Z
E
S
L
E
E
P
A
S
P
E
C
T
C
A
P
T
I
O
N
F
A
V
P
R
E
V
-
/
D
R
F
S
E
R
V
I
C
E
I
N
F
O
V
O
L
+
V
O
L
-
M
E
N
U
E
X
I
T
O
K
E
P
G
L
-
T
U
R
N
R
-
T
U
R
N
T
I
L
T
S
O
U
R
C
E
C
H
-
C
H
+
A
D
D
/
E
R
P
I
C
T
U
R
E
S
O
U
N
D
S
R
S
S
A
P
P
I
P
O
N
/
O
F
F
S
O
U
R
C
E
S
I
Z
E
S
W
A
P
P
O
S
I
T
I
O
N
Power CordAntenna Cable
(coaxial cable)
User's GuideRemote Control & 2 batteries
(1.5V AAA)
Hdmi cable
Component Cable
(Y, Pb, Pr)
Composite Cable
(Video/Audio)
PC signal Cable (D-SUB)
Audio Cable (PC)Audio Cable (DVD)
Wall Mounting Support
S-video Cable
10
HYUNDAI LCD TV
GENERAL INFORMA TION
Parts Names and Functions
Front View - E260D/E320D/E370D
* This product image may be a bit different from the actual product.
- Power Indicator Status -
Speaker
Remote sensor and power LED.
- Point the remote control toward here.
- It displays standby or operation status.
Power button
Use this button to turn on or off the TV.
Source button
Use this button to switch among inputs
connected to the TV.
Menu button
Use this button to display or exit from menus.
Select button
Use this button to select each item of menu.
Channel buttons
Use these buttons to change channels. These
buttons also serve as the cursor of Down and
Up buttons when in Menu mode.
Volume buttons
Use these buttons for your desired sound level.
These buttons also serve as the cursor of
Select/Adjust when in Menu mode.
Power switch - For E370D Model Only
Use this switch to turn on/off power.
Indicator
Red
Green
Status
Standby
Power on
11
GENERAL INFORMATION
Rear View - E260D/E320D/E370D
* This product image may be a bit different from the actual product.
Power Switch - For E260D/E320D Only
use this switch to tum on/off
power
Power(AC) Input terminal
Connect the power cord to this
terminal.
RS-232 input terminal
Connect to the RS-232 terminal of a
PC to check its service.
S/PDIF optical digital audio
output terminal
Video output terminal
Audio output terminal
HDMi input terminal
D-SUB input terminal
D-SUB Audio input terminal
Component 1 Video input terminal
Component 1 Audio input terminal
Component 2 Video input terminal
Component 2 Audio input terminal
Video input terminal
S-Video input terminal
S-Video/Video Audio input terminal
Antenna (Analog/DTV) input
terminal
Handle - For E260D Only
Front View - E261D/E321D/E371D
12
HYUNDAI LCD TV
GENERAL INFORMA TION
* This product image may be a bit different from the actual product.
- Power Indicator Status -
Speaker
Remote sensor and power LED.
- Point the remote control toward here.
- It displays standby or operation status.
Power button
Use this button to turn on or off the TV.
Source button
Use this button to switch among inputs
connected to the TV.
Menu button
Use this button to display or exit from menus.
Select button
Use this button to select each item of menu.
Channel buttons
Use these buttons to change channels. These
buttons also serve as the cursor of Down and
Up buttons when in Menu mode.
Volume buttons
Use these buttons for your desired sound level.
These buttons also serve as the cursor of
Select/Adjust when in Menu mode.
Power switch - For E371D Model Only
Use this switch to turn on/off power.
Indicator
Red
Green
Status
Standby
Power on
Rear View - E261D/E321D/E371D
13
GENERAL INFORMATION
Power Switch - For E261D/E321D Only
use this switch to tum on/off
power
Power(AC) Input terminal
Connect the power cord to this
terminal.
RS-232 input terminal
Connect to the RS-232 terminal of a
PC to check its service.
S/PDIF optical digital audio
output terminal
Video output terminal
Audio output terminal
HDMi input terminal
D-SUB input terminal
D-SUB Audio input terminal
Component 1 Video input terminal
Component 1 Audio input terminal
Component 2 Video input terminal
Component 2 Audio input terminal
Video input terminal
S-Video input terminal
S-Video/Video Audio input terminal
Antenna (Analog/DTV) input
terminal
Handle - For E261D Only
* This product image may be a bit different from the actual product.
14
HYUNDAI LCD TV
GENERAL INFORMA TION
Remote Control
1. POWER/STANDBY
2. POWER LED
3. MUTE
4. ASPECT
5. CAPTION
6. ADD/ERASE
Use this button to add or erase channels.
7. INFOMATION
Use this button to display resolution or various program
8. PICTURE
9. SOUND
10. SRS
Use this button to select 3D surround sound.
11. SAP
Use this button to listen in a foreign language
12. EXIT
Use this button to end the OSD
13. MENU SELECTION
Use this button to select menu item
14. LEFT/RIGHT MOVE/ADJUST
Use these buttons to move between menu items or to adjust
each item.
15. SOURCE
Use this button to select External input
16. EPG
Use this button to see digital broadcast information
17. MENU
Use this button to call the OSD to the screen.
18. NUMERIC KEYS
19. SERVICE
return to factory setting
20. FAVORITE
use this button when watching your favorite channel.
(Option)
(Option)
15
GENERAL INFORMATION
How to Insert Batteries in Remote Control
* Battery type :1.5V/AAA
Press and hold Δ part and push
to open cover.
Insert batteries with proper
polarities of +and -.
Use the remote control with cover
closed.
21. SLEEP
22. FREEZE
- Option -
23. TILT
24. PIP
- ON/OFF
: Use this button for PIP on/off
- Source
: Use this button to select the source of sub-picture.
- SIZE
: Use this button to select the size of sub-picture.
- POSITION
: Use this button to select the position of sub-picture.
- SWAP
: Use this button to swap main and sub-picture.
16
HYUNDAI LCD TV
How to Watch Both Analog and Digital Broadcasts with a Single Antenna
You can watch both analog and digital broadcasts by connecting a single antenna.
Connection Method
Make sure that the antenna cable is connected to ANT (ATV/DTV).
- Antenna or Cable service without a cable box connections
- For optimum picture quality, adjust antenna direction if need,
How to Watch
Turn on TV to activate Auto Channel (See page 28) to memorize the available channels.
Press INPUT on remote control until showing TV banner on the buttom side.
Press button or button to select the desired channels.
Ex.) When you want to watch Digital channel, press Number, -/DRF buttons.
1
2
3
- When inserting a 75 ohm coaxial cable into the input connection, ensure the wire tip not to bend.
- If you experience poor signal reception, we recommend you purchase a signal amplifier for better picture quality.
CONNECTIONS
17
CONNECTIONS
- When connecting an external device, ensure to read the connecting device’s manual. The location or the number
of the terminals on the external device may be different depending on its model.
- Connect a
HDMI
connection to the output of DVD, cable receiver or satellite receiver. Connecting a
HDMI
connection to a PC may result in a message, “Unknown Signal”.
- Do not power on until all necessary connections are made. If power is given before connections completed, this
may damage the product.
- Make sure to match the cable in color with the terminal.
- Make sure to check the type of terminals to be connected.
Before Connecting the Video/Audio Connections to External Devices...
Please make sure to read the following information on connection to enjoy best picture quality.
Video/Audio connectors
Types of video/audio cable :
➀ HDMI ➁ 15-Pin D-Sub ➂ COMPONENT ➃ S-VIDEO ➄ COMPOSITE
Best picture quality is displayed in the following order.
The superior picture quality starts from the far left side.
18
CONNECTIONS
HYUNDAI LCD TV

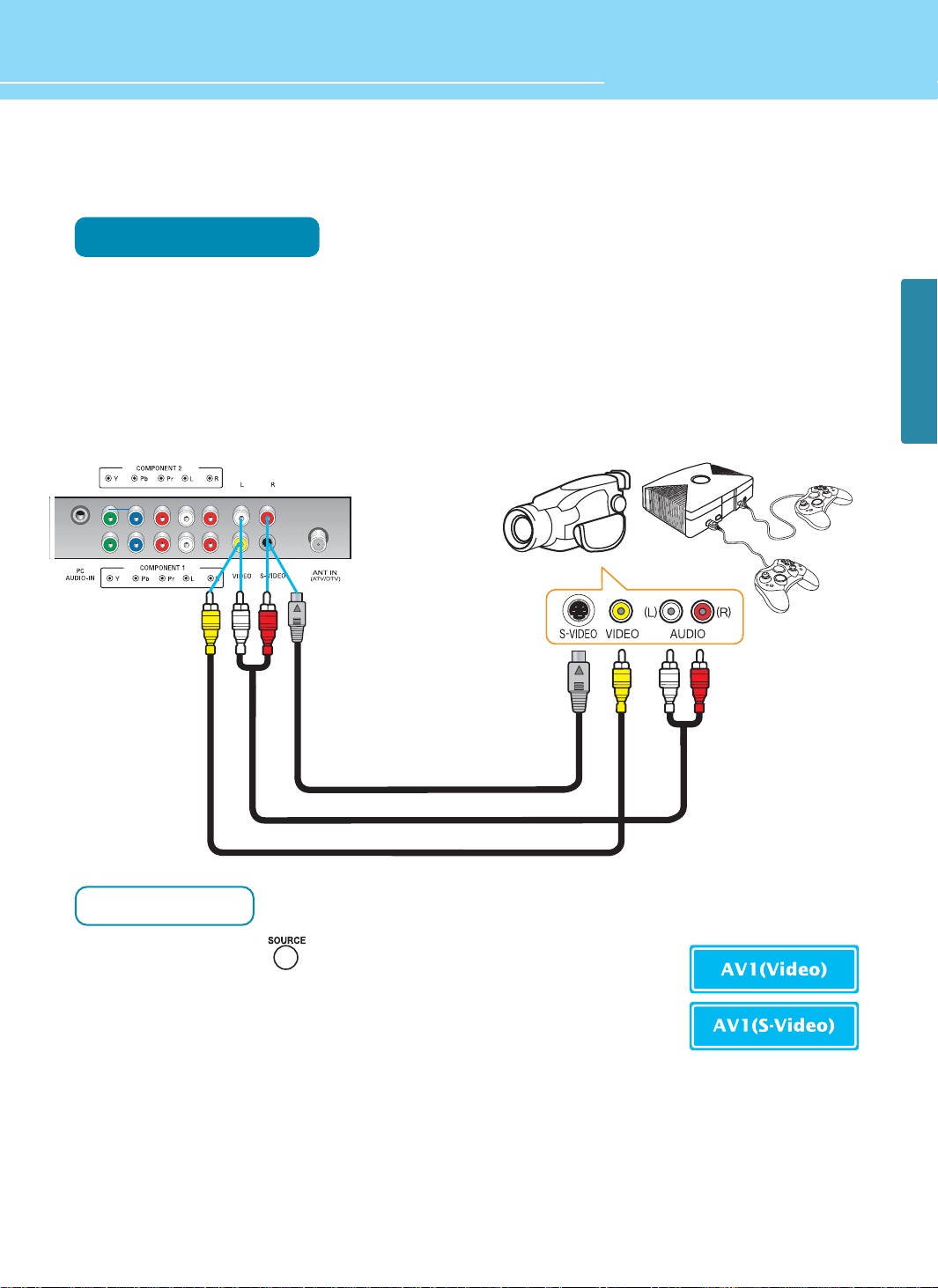

How to Connect a VCR/Cable Receiver
Connection Method
Connect the Video cable or S-Video cable between Video/S-Video output terminal of VCR or Cable receiver and
Video/S-Video input terminal of TV. (Connect the jacks to terminals in the same color.)
Connect the Audio cable (Left: white, Right: red) between Audio output terminal of VCR or cable receiver and
Audio input terminal of TV. (Connect the jacks to terminals in the same color.)
How to Watch
Turn on TV and press on remote control until showing AV1(CVBS)
or AV1(S-Video) banner on the botton side.
For more information, read the user’s guide of VCR or cable receiver.
1
1
To enjoy better picture quality, use the S-Video cable rather than the composite cable.
Audio cable
S-Video Cable
Video cable
Video/Cable receiver
2
Audio cable
Loading...
