Hytera Communications X1PU1 Users Manual

Preface
Thanks for your favor in our product. To derive optimum performance from the product, please read this manual and the supplied Safety Information Booklet carefully before use.
This manual is applicable to the following model: X1p
The following icons are available through this manual:
Alert Icons
Caution: indicates situations that could cause damage to your product.
Note: indicates tips that can help you make better use of your product.
Function Icons
: indicates functions that are available on digital channel only.
: indicates functions that are available on analog channel only.
Functions marked with no function icons are available on both analog and digital channels.
Term Explanation
Key Operation
Short press: to press a key and release it quickly. Long press: to press a key and remain holding it down for a predefined period (2 seconds by default). Hold down: to press a key and remain holding it down.
Private Call
Private Call is a call initiated by a single user to another user.
Group Call
Group Call is a call initiated by a single user to a group.
All Call
All Call is a call initiated by a single user to all the other users on a channel.
Squelch
This technology can remove excessive background noises, improving your communication quality.
1
Copyright Information
Hytera is the trademark or registered trademark of Hytera Communications Co., Ltd. (the Company) in PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
The product described in this manual may include the Company’s computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of the Company with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser regarding the Company’s computer programs. Any of the Company’s computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of the Company.
TM
The AMBE+2
voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digit al Voice Systems, Inc. This voice coding technology is licensed solely for use within this product. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code or in any other way convert the Object Code into a human readable form.
U.S. Patent Nos. #6,912,495 B2, #6,199,037 B1, #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166.
2
Disclaimer
The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of us.
If you have any suggestions or would like to learn more details, please visit our website at:
http://www.hytera.com
.
3
RF Radiation Information
The radio is not intended for use by general population in an uncontrolled environment. It is only for occupational use and only applied to work-related conditions. The radio must be only used by users, who are fully aware of the hazards of the exposure and who are able to exercise control over their RF exposure to qualify for the higher exposure limits.
RF Radiation Profile
Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are transmitted. RF technology is widely used in communication, medicine, food processing and other fields. It may generate radiation during use.
RF Radiation Safety
In order to ensure user health, experts from relevant industries including science, engineering, medicine and health work with international organizations to develop standards for safe exposure to RF radiation. These standards consist of: ¾ United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2
sub-part J;
¾ American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE)
C95. 1-1992;
¾ Institute of Electrical and Electronic Engineers (IEEE) C95. 1 – 1999; ¾ International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998;
FCC Regulations
Federal Communication Commission (FCC) requires that all radio communication products should meet the requirements set forth in the above standards before they can be marketed in the U.S, and the manufacturer shall post a RF label on the product to inform users of operational instructions, so as to enhance their occupational health against exposure to RF energy.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there
4
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct.
The interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
This device must accept any interference received, including interference that may cause undesired operation.
Note:” Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.”
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: Your radio radiates measurable RF energy only while it is transmitting (during talking), not when it
is receiving (listening) or in standby mode.
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. Please note that the above information is applicable to EU countries only.
5
Contents
Checking Items in the Package ....................................................................................................... 8
Product Overview ............................................................................................................................... 9
Product Controls .............................................................................................................................................. 9
Programmable Keys ....................................................................................................................................... 10
Before Use......................................................................................................................................... 11
Charging the Battery ....................................................................................................................................... 11

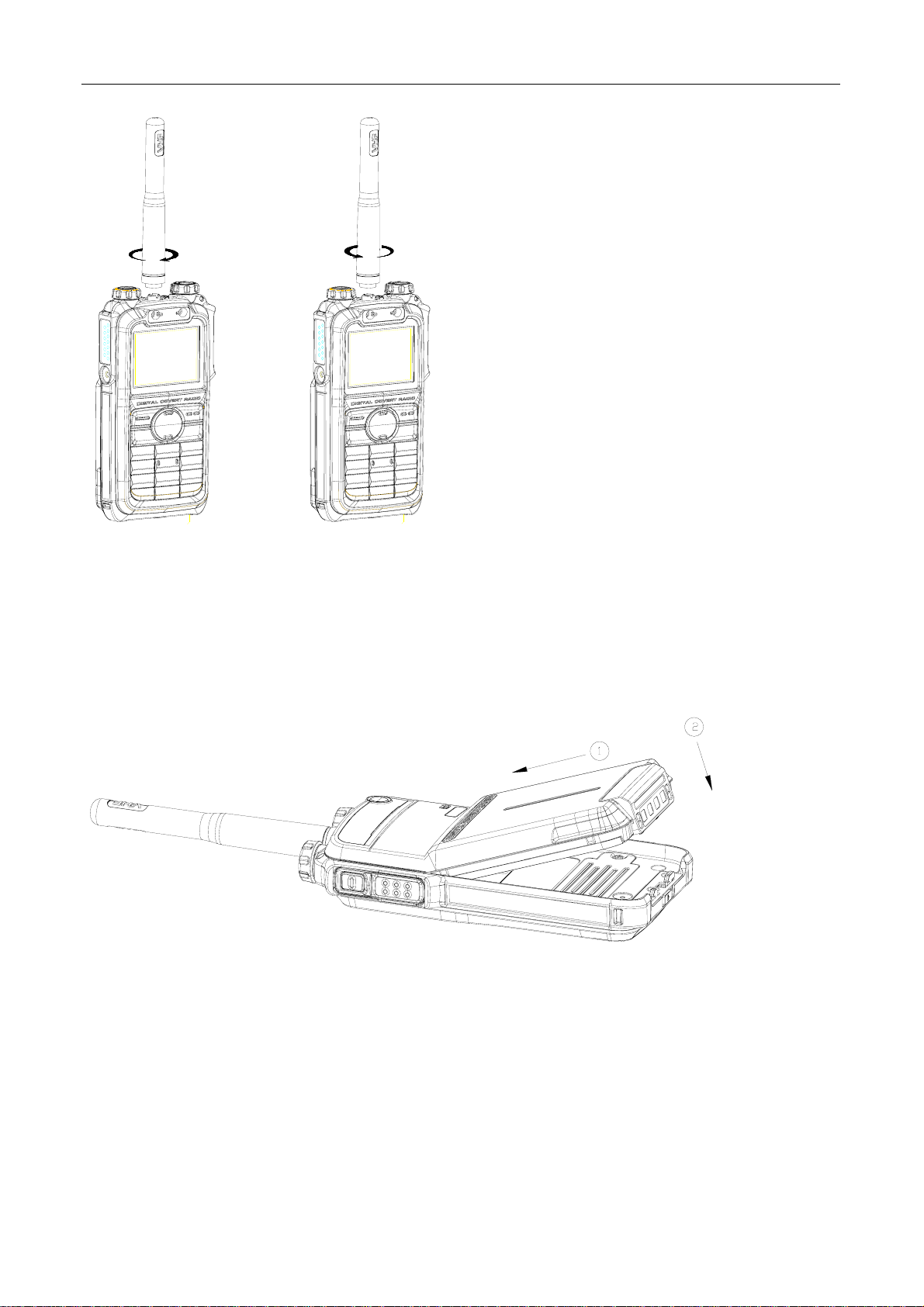

Assembling Accessories ................................................................................................................................. 12
Status Indication ............................................................................................................................... 14
LED Indicator ................................................................................................................................................ 14
Basic Operations .............................................................................................................................. 15
Turning the Radio On/Off .............................................................................................................................. 15
Adjusting the Volume ..................................................................................................................................... 15
Selecting a Zone ............................................................................................................................................. 15
Selecting a Channel ........................................................................................................................................ 16
Switching the Channel Mode ......................................................................................................................... 16
Enabling/Disabling the Bluetooth .................................................................................................................. 16
Call ...................................................................................................................................................... 16
Private Call ........................................................................................................................................ 16
Group Call
All Call
Calls on Analog Channels
.......................................................................................................................................... 17
............................................................................................................................................... 17
.................................................................................................................. 17
Functions and Operations ............................................................................................................... 18
Adjust Power Level ........................................................................................................................................ 18
Scan ................................................................................................................................................................ 18
T alk Around ................................................................................................................................................... 19
Monitor
Squelch Off
Adjust Squelch Level
One T ouch Call ................................................................................................................ .............................. 20
................................................................................................................................................ 19
....................................................................................................................................... 19
........................................................................................................................ 19
Telemetry
Roam
6
........................................................................................................................................... 21
.................................................................................................................................................. 21
Emergency ..................................................................................................................................................... 21
Man Down ..................................................................................................................................................... 25
Scrambler /Encrypt ..................................................................................................................... 25
Lone Worker .................................................................................................................................................. 26
Battery Strength Indicator .............................................................................................................................. 26
Busy Channel Lockout ................................................................................................................................... 27
Time-out Timer (TOT) ................................................................................................................................... 27
Pseudo Trunking
MIC AGC ....................................................................................................................................................... 27
Radio Registration Service
GPS Revert
................................................................................................................................ 27
................................................................................................................. 27
......................................................................................................................................... 28
Troubleshooting ................................................................................................................................ 28
Care and Cleaning ........................................................................................................................... 30
7
Checking Items in the Package
Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer.
Radio Unit Battery Charger
Power Adapter Strap Antenna
Manuals
Note: The antenna may vary with different frequency bands. And the frequency band is marked on
the label of antenna; if not, please refer to the label on the terminal for frequency band information.
8
Product Overview
Product Controls
5
2
1
6 7
8
9
14
15
16 17 18
10
3
4
No. Part Name No. Part Name
1
3
Accessory Jack
OK/Menu Key
11
12
13
2
4
Radio On-Off/Volume Control Knob
Numeric Keypad
19
5
7
9
9
Antenna
LED Indicator
Microphone 1
6
8
10
Channel Selector Knob
LCD Display
Up Key
