DI GI TAL PORTABLE RADIO
OW NE R’S MANUAL
Preface
Thanks for your favor in our product. This manual is helpful for you to quickly know how
to use the product. Please refer to the corresponding Feature Book for detailed features
and operations.
This manual is applicable to the following product:
PD505LF Digital Portable Radio
DIGITAL PORTABLE RADIO
Instructional Icons
Indicates functions that are available on digital channel only.
Indicates functions that are available on analog channel only.
Functions marked with no function icons are available on both analog and digital channels.
Disclaimer
The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specications
and designs are subject to change without notice due to continuous technology development. No part of this manual may be copied, modied, translated,
or distributed in any manner without the express written permission of us.
We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of the Third Party products and contents
involved in this manual.
If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.com.
RF Radiation Information
This product must be restricted to operations in an Occupational/Controlled RF exposure Environments. Users must be fully aware of the hazards of the
exposure and able to exercise control over their RF exposure to qualify for the higher exposure limits.
RF Radiation Prole
Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are transmitted. RF technology is widely used in
communication, medicine, food processing and other elds. It may generate radiation during use.
RF Radiation Safety
In order to ensure user health, experts from relevant industries including science, engineering, medicine and health work with international organizations to
develop standards for safe exposure to RF radiation. These standards consist of:
●
United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J;
●
American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992;
2
●
Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999;
●
International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998.
FCC Regulations
Federal Communication Commission (FCC) requires that all radio communication products should meet the requirements set forth in the above standards
before they can be marketed in the U.S, and the manufacturer shall post a RF label on the product to inform users of operational instructions, so as to
enhance their occupational health against exposure to RF energy.
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and
guidelines, users should transmit not more than 50% of the time and always adhere to the following procedures:
●
RF energy will be generated only when the radio is transmitting.
●
The radio must be 2.5 centimeters away from human body when transmitting.
EU Regulatory Conformance
As certied by the qualied laboratory, the product is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/
EC.
Please note that the above information is applicable to EU countries only.
3
Contents
Items in the Package ----------------------------------------1
Product Overview --------------------------------------------2
Product Controls ---------------------------------------------------2
Programmable Keys ----------------------------------------------3
Before Use ------------------------------------------------------3
Assembling the Radio --------------------------------------------3
Charging the Battery ----------------------------------------------4
Checking the Battery Power ------------------------------------4
Status Indication ---------------------------------------------5
LED Indicator -------------------------------------------------------5
Basic Operations ---------------------------------------------6
Powering On/Off ---------------------------------------------------6
Adjusting the Volume ---------------------------------------------6
Selecting a Zone ---------------------------------------------------6
Selecting a Channel -----------------------------------------------6
Call Services ---------------------------------------------------7
Calling on Digital Channel ----------------------------------7
Calling on Analog Channel (No Signaling)
-------------8
Feature Description -----------------------------------------8
Troubleshooting ----------------------------------------------9
Care and Cleaning -------------------------------------------10
Optional Accessories ---------------------------------------11
4
Items in the Package
Please unpack carefully and check that all items listed below are
received. If any item is missing or damaged, please contact your dealer.
The frequency band is marked on the label of antenna; if
not, please refer to the label on the radio for frequency
Note
band information.
All pictures in this manual are for reference only.
Note
1
Product Overview

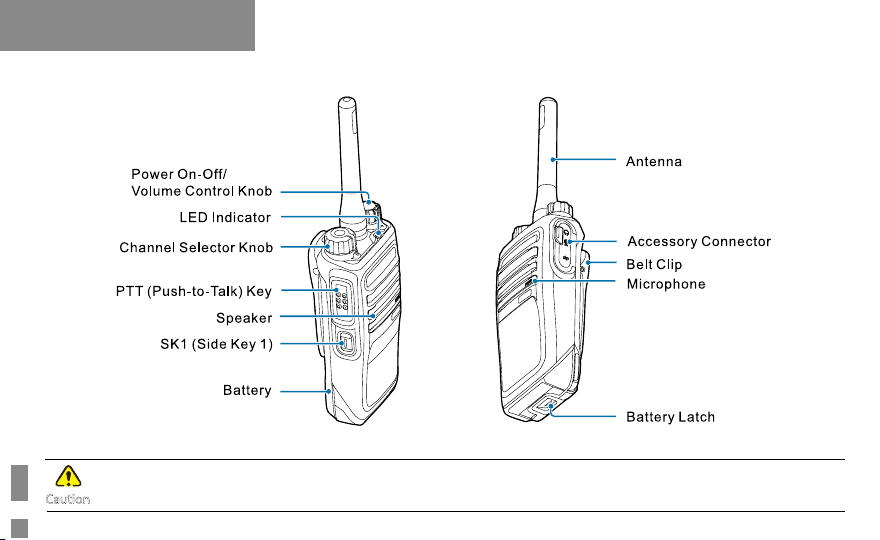

Product Controls
Do not swing the radio when holding it by the antenna, so as to avoid lowering the performance and shortening the life span
of the antenna.
Caution
2
Product Overview
Before Use
Programmable Keys
For enhanced convenience, you may request your dealer to program the
SK1 key as shortcut to certain feature. Please refer to the corresponding
Feature Book for feature details.
Assembling the Radio
Assembling the Battery
1.
1
2
“click ”
Assemble Disassemble
●
To remove the battery, please turn off the radio first. Then
slide the battery latch upwards to unlock the battery.
●
If not assembled with battery specified by Hytera,
Note
the radio will give an alarm tone to remind you when
powering on. Afterwards, it will operate normally.
3. Assembling the Belt Clip
1
Remove the screws Assemble the Belt Clip
“click ”
2
3
Before Use

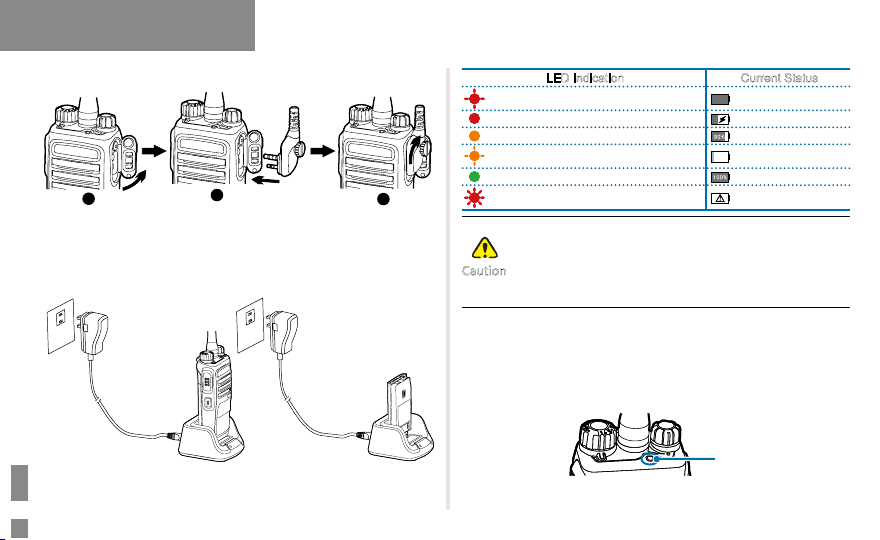

4. Assembling the Accessories
1
2
Charging the Battery
Please use the charger specified by the Company, and follows the
charging steps as shown below.
Charging the Radio
4
Charging the Battery
LED Indication Current Status
The LED Indicator ashes red slowly
The LED Indicator glows red
The LED Indicator glows orange
The LED Indicator ashes orange slowly
The LED Indicator glows green
3
The LED Indicator ashes red rapidly
●
Make sure the radio is powered off before charging.
Read the Safety Information Booklet in advance to get
Caution
necessary safety information.
●
To achieve optimal battery performance, please charge
the battery for at least 5 hours before initial use.
Standby (no load)
Charging
90%
90% charged
Low current charging
100%
Fully charged
Charging error
Checking the Battery Power
You may check the current battery power by holding the programmed
Battery Power Indicator key preset by your dealer. Release the key to
exit.
LED
Before Use
Status Indication
LED Indication Battery Power
The LED indicator glows green High
The LED indicator glows orange Medium
The LED indicator glows red Low
The LED indicator glows red
and low battery alert sounds
Under the low battery
threshold. Charge or replace the
battery for proper radio operation
LED Indicator
LED
LED Indication Product Status
The LED indicator ashes green Powering on
The LED indicator glows green Receiving
The LED indicator glows red Transmitting
The LED indicator ashes orange slowly Scanning or roaming
The LED indicator ashes orange rapidly Emergency
The call is established
The LED indicator glows orange
successfully, and you can
hold down the PTT key to
talk
5
Basic Operations
Powering On/Off
ON
“click ”
Adjusting the Volume
6
- +
OFF
“click ”
Selecting a Zone
You can include a group of channels with the same property in to a zone
for convenient management. The radio supports three zones, each of
which consists of up to 16 channels. You can switch to the appropriate
zone by pressing the programmed Zone Up or Zone Down key preset
by your dealer.
Selecting a Zone Selecting a Channel
Selecting a Channel
After the radio is powered on, you can rotate the Channel Selector knob
to select an appropriate channel. You can also switch to the designated
channel directly by pressing the programmed Preset Channel key preset
by your dealer.
If the Channel Notify feature is enabled by your dealer, the radio will play
the channel number upon channel switching.
Call Services
After the radio is powered on, you can make different kinds of calls. To
ensure optimal volume of the receiving radio, keep the microphone about
2.5 to 5 centimeters away from your mouth when transmitting.
The types of calls you may initiate are listed below:
●
Private call: A call made to a private contact.
●
Group call: A call made to the group contacts.
●
All call: A call made to all the contacts on the current channel.
M
0C
.
5
~
5
.
2
Calling on Digital Channel
You can initiate a private call, group call or all call (your radio must be
programmed to allow you to use the all call service) through the same
operations on digital channel. When calling back, the radio will make
a call to the calling party in private call and all call (your radio must be
programmed to allow you to call back in an all call); but in group call, the
radio will make a call to all parties involved when calling back.
Here we take the private call as example to illustrate the call process:
1. User A and B select the same digital channel.
2. User A holds down the PTT key to initiate a call.
You may preset a regular private call/group call/all call contact for
each digital channel via your dealer.
3. By holding down the PTT key, user A can talk to the microphone when
the LED indicator on the radio glows red.
4. User A releases the PTT key to nish talking.
User A can hold down the PTT key to talk when the LED indicator on
the radio is glowing orange.
When receiving, the LED indicator on the radio glows green.
5. User B can receive the call without any operation. When receiving,
the LED indicator glows green.
6. User B can hold down the PTT key to talk when the LED indicator on
the radio is glowing orange.
The duration of LED indicator glowing orange (Call Hold
Time) is preset by your dealer. The call will end if neither
Note
one talks before this duration expires.
7
Call Services Feature Description
Calling on Analog Channel (No Signaling)
On the analog channel without signaling, the calling operations are the
same as on the digital channel. The difference is that the called parties
are all the users on the channel, rather than the preset contact for the
channel.
Please refer to the corresponding Feature Book for calling operations on
the analog channel with signaling.
8
Available features of this radio are listed below. Please refer to the
corresponding Feature Book for details.
Feature Type Detailed Feature
Radio Features
Conventional
Common Features
Digital Features
Analog Feature
●
Radio setting: Power Level, Covert Mode
●
Convenient functionality: Shortcuts, One Touch
Call and VOX
●
Rent
●
Audio Optimization
●
Scan
●
Talk Around
●
Access management: Time-out-Timer (TOT),
Transmission Management
●
Basic voice services: Private Call, Group Call
●
Auxiliary voice service: All Call
●
Data service: Message
●
Security: Encrypt
●
Supplementary services
●
Patented features: Pseudo Trunking, Priority
Interrupt
●
Mobility management: Roam
●
Access management: Time-out-Timer (TOT),
Transmission Management, Monitor, Squelch
Off and Adjust Squelch Level
●
Voice services
●
Security: Scrambler
●
Signaling: HDC1200, 5-Tone and 2-Tone
Troubleshooting
If the solutions below cannot x the problems for you, or you may have some other queries, please contact us or your local dealer for more technical
support.
Phenomena Analysis Solution
Power-on Failure.
During receiving,
the voice is weak,
discontinuous or totally
inactive.
Unable to communicate
with other members.
Irrelevant
communication or
noise is heard on the
channel.
The noise is too loud.
The battery may be improperly installed. Remove the battery and reassemble it.
The battery power may be used up. Charge or replace the battery.
The battery is poorly connected due to dirtied or
damaged battery contacts.
Low battery voltage. Charge or replace the battery.
Low volume level. Increase the volume by rotating the Volume Control knob.
The antenna may be loosened or improperly installed. Reassemble the antenna after turning off the radio.
The speaker may be blocked or damaged.
The frequency or signaling may be inconsistent with
that of other members.
The channel type (digital/analog) may be set
inconsistently.
You may be too far away from the group members. Move towards other members.
You may be interrupted by radios using the same
frequency.
The radio may be set with no signaling.
You may be too far away from other members. Move towards other members.
You may locate in an unfavorable position. For
example, your communication may be blocked by high
buildings or frustrated in the underground areas.
You may suffer from external disturbance (such as
electromagnetic interference).
Clean the battery contacts. If the problem cannot be solved, contact
your dealer or authorized service center for inspection and repair.
Clean the surface of the speaker. If the problem cannot be solved,
contact your dealer or authorized service center for inspection and
repair
Set your TX/RX frequency and signaling to the same as that of
other members.
Make sure all members are on the same digital/analog channel.
Change the frequency, or adjust the squelch level.
Set signaling for all member radios to avoid interference at the
same frequency. And change the signaling settings for all portable
radios at the same time.
Move to an open and at area, and restart the radio to try again.
Stay away from equipment that may cause interference.
9
Care and Cleaning
To guarantee optimal performance as well as a long service life of the
product, please follow the tips below.
Product Care
Do not pierce or scrape the product.
HMNO4
H2TIO3
4
O
e
F
2
H
H
N
O
3
Keep the product far away from substances that can
corrode the circuit.
Do not hold the product by its antenna directly.
Do not hold the product by its earpiece cable directly.
Attach the accessory connector cover when the
accessory is not in use.
10
HNO2
H
M
N
O
4
HNO3
4
O
e
F
2
H
Product Cleaning
Turn off the product and remove the battery before
cleaning.
Caution
●
Clean up the dust and fine particles on the product surface and
charging piece with a clean and dry lint-free cloth or a brush regularly.
●
Use neutral cleanser and a non-woven fabric to clean the keys,
control knobs and front case after long-time use. Do not use
chemical preparations such as stain removers, alcohol, sprays or oil
preparations, so as to avoid surface case damage.
●
Make sure the product is completely dry before use.
Optional Accessories
The following items are the main optional accessories for the radio. For
more information of other accessories, please consult your local dealer.
Use the accessories specified by Hytera only. If not, the
Company shall not be liable for any losses or damages
Caution
arising out of use of unauthorized accessories.
MCA08 MCU Multi-unit Rapid-rate Charger (for
Li-Ion/Ni-MH batteries),
Power Supply:
Audio:
CH10A06 Dual-Pocket MCU Charger Kit(for
Li-Ion/Ni-MH battery, including Dual-Pocket
Charger and Switching Power),
PS7501 AC/DC Adaptor,
MCA05 Battery Optimizing System
EAM15 3-Wire Earpiece with Transparent Acoustic
Tube (Beige),
ESM14 Remote Earbud,
EAM17 Remote Earpiece with Transparent Acoustic
Tube,
EHM20 Remote Swivel Earset,
EHM19 Remote C-Earset,
SM08M3 Remote Speaker Microphone,
SM13M1 Remote Speaker Microphone (IP55)
Cable:
Carry Accessories:
PD50X Programming & Downloading
Functional Cable
NCN011 Nylon Carrying Case
11
81 1PD500 0000 0
201 4
L071 57 Z076 39 C105 24
Loading...
