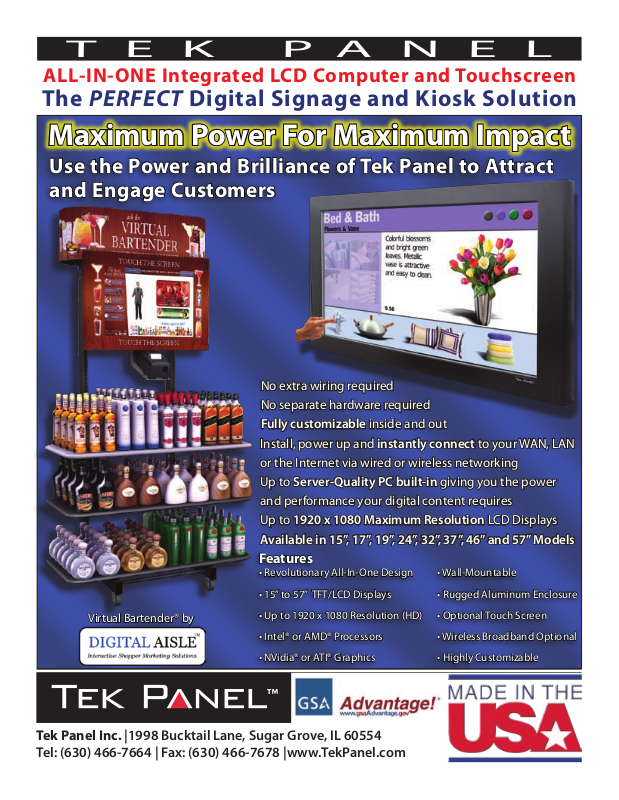

TEK PANEL

ALL-IN-ONE Integrated LCD Computer and Touchscreen

The PERFECT Digital Signage and Kiosk Solution

Maximum Power For Maximum Impact

Use the Power and Brilliance of Tek Panel to Attract
and Engage Customers

Virtual Bartender® by

No extra wiring required

No separate hardware required
Fully customizable inside and out
Install, power up and instantly connect to your WAN, LAN

or the Internet via wired or wireless networking
Up to Server-Quality PC built-in giving you the power

and performance your digital content requires
Up to 1920 x 1080 Maximum Resolution LCD Displays

Available in 15”, 17”, 19”, 24”, 32”, 37”, 46” and 57” Models

Features

• Revolutionary All-In-One Design

• 15” to 57” TFT/LCD Displays

• Up to 1920 x 1080 Resolution (HD)

• Intel® or AMD® Processors

• NVidia® or ATI® Graphics

• Wall-Mountable

• Rugged Aluminum Enclosure

• Optional Touch Screen

• Wireless Broadband Optional

• Highly Customizable

Tek Panel Inc. |1998 Bucktail Lane, Sugar Grove, IL 60554
Tel: [phone] | Fax: [phone] |www.TekPanel.com

TEK PANEL

Ultimate Display Brilliance and Power

Built Into One Integrated System

Available Features and Options:

Display:

15”, 17”, 19”, 24”, 32”, 37”, 46” and 57” Active Matrix TFT/
LCD Displays available
Up to 1920 x 1080 maximum resolution on larger units

o

viewing angle

170
Optional IR Touchscreen featuring 4096 x 4096 density

Processor:

A wide array of processors available including Athlon™
64 X2 Dual-Core Processors or Intel® Core™2 Duo or
Quad Core congurations

Operating System:

Microsoft Windows® Vista, XP Pro or Linux

Network Connectivity:

Integrated 10/1000 Ethernet or Wireless Available

Input/Output:

TV Tuner, VGA, Component HD, Composite, S-Video,
USB 2.0, Firewire, Ethernet, Serial, Parallel Port

Wireless Keyboard and Mouse

Mounted, Ruggedized, Wireless and Onscreen
Keyboards available

Warranty: 1-year Limited

(Extended warranty available)

All specications are subject to change without notice. All registered trademarks
are the property of their respective owners.

Storage:

Expandable up to 1TB drives, including Raid Array

Graphics:

Full line of ATI® or NVidia® graphics adapters available
including SLI™ and Crossre™ congurations

Sound/Speakers:

Integrated Sound with Internal Stereo Speakers

(Klipsch® Pro Media Speakers available)

Memory: Expandable up to 4GB of DDR 2 RAM

Tek Panels are Fully

Upgradeable and

Customizable

©2008 Tek Panel, Inc. All rights reserved.
