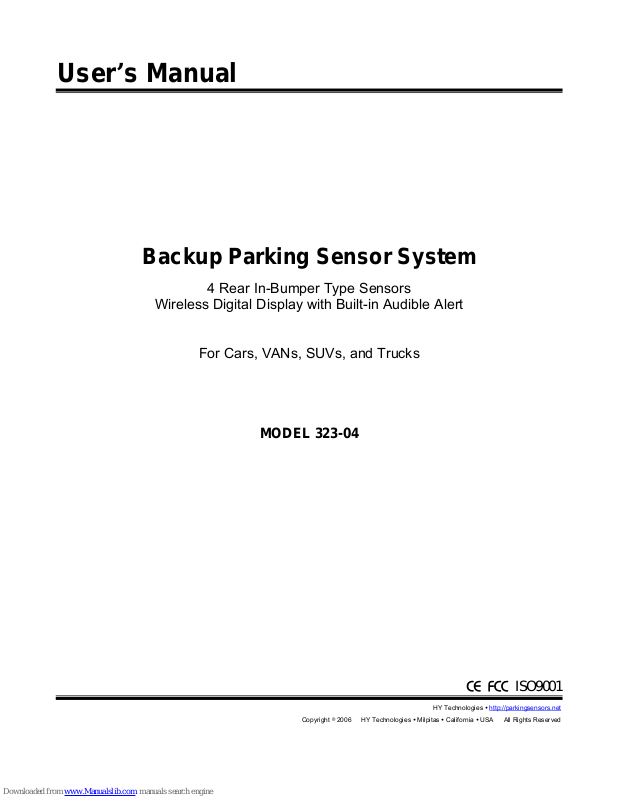

User’s Manual

Backup Parking Sensor System

4 Rear In-Bumper Type Sensors

Wireless Digital Display with Built-in Audible Alert

For Cars, VANs, SUVs, and Trucks

MODEL 323-04

CE FCC ISO9001

HY Technologies y http://parkingsensors.net

Page 2

Backup Parking Sensor System

4 Rear In-Bumper Type Sensors

Wireless Digital Display with Built-in Audible Alert

For Cars, VANs, SUVs, and Trucks

MODEL 323-04

Included in the Box

¾ 4x Sensors with attached cable and 2-pin mini

plug. Cable Length: 2.5m (8.2ft)

¾ 4x Wedge-Shaped Plastic Sensor Spacers for

non-vertical bumper

¾ 1x Main Control Box ¾ 1x Power Cable for Main Control Box with 3-pin

mini plug. Cable Length: 1.0m (3.3ft)

¾ 1x 3M Double-Sided Self-Adhesive Pad for

Main Control Box

Features

¾ 4 Rear Sensor Backup Parking System ¾ In-bumper type sensors to give the look of factory

installed system

¾ System activated when vehicle is in reverse ¾ Wireless LED Digital Display with built-in audible

alert (beeper) and On/Off switch

Specifications

¾ CE FCC ISO9001 Approved ¾ Wireless Display RF Range: 0~20m (65.6ft) ¾ RF Frequency: 433KHz ¾ Operating Voltage: DC 10.5V ~ 16V ¾ Detecting Range: 0.3m ~ 1.5m (1ft ~ 4.9ft)

Displayed as 0.0 when less than 0.3m (1ft)

¾ Measuring Error: ± 0.1m (or 0.1ft) ¾ Sensor Detection Angle: 90° ¾ Detection Response Time: 300ms ¾ Sensor Diameter: Φ21mm (13/16”) ¾ Audible Alert when obstacle within: 0.1m ~ 1.5m

(0.3ft ~ 4.9ft)

Note: The specifications are for reference only. They may be changed without prior notice.

Tools Needed

Φ21mm (13/16”) drill bit (include), drill, tape measure, chalk or marker, wire stripper, vinyl electrical tape, cable/wire ties, voltage meter, screw driver set, pliers.

Note: Use a bi-metal 21mm (13/16") drill bit (not included) if drilling through metal bumpers.

¾ 1x Wireless Digital Display with attached power cable

(2.0m or 6.5ft) and cigarette lighter type plug, double-sided self-adhesive pad on bottom of display

¾ 1x Drill Bit (Hole Saw)- Φ21mm (13/16”) ¾ 1x User’s Manual

¾ 7 LED Lights (Green/Yellow/Red) on each side of the

display indicating orientation of obstacles and Safe/Warning/Stop zone

¾ Designed for cars, VANs, SUVs, and trucks ¾ Distance display in feet or meters (optional) ¾ Limited 12 Month Warranty

¾ Ultrasonic Frequency: 40Khz ¾ Audible Alert Volume: 73 db ¾ Maximum Power Consumption: 3.6W ¾ Current Consumption: 50~180mA ¾ Operating Temperature Range: -30 ~ +70°C ¾ Dimensions of the Wireless Display: Width x Depth x

Height = 13.4cm x 3.0cm x 2.8cm (5.2" x 1.2” x 1.1")

¾ Dimensions of the Main Control Box: Width x Depth x

Height = 9.8cm x 7.0cm x 2.1cm (3.8” x 2.7" x 0.83")

- 1 -

Page 3

How the System Works

Fig. 3 Main Control Box, Wireless LED Display, and Wiring

Fig.1 Mounting Height and Position of Sensors

H = 50 ~ 80cm (20” ~ 32”) L1 = 6 ~ 15cm (2” ~ 6”) L2 = L3 = L4 or L2 = L4 = 0.3L, L3 = 0.4L

Ground

50 ~ 80cm (20” ~ 32”)

Sensor Center Line Parallel to Ground

Sensor

Sensor Mounting Height

Fig.2 Mounting Height and Angle of Sensor

L1 L3 L4

Ground

Sensors

DCBA

Back Up Light

Red (+) 12V

Black ( - ) or Chassis Ground

Main Control Box

To Cigarette Lighter (+12V)

A B C DPWR

Beeper On/Off Switch on Back of Display

8.8

Wireless LED Display

Power Plug

Power Plug Sensor Plugs

The Backup Parking Sensor System determines obstacle distance by measuring the time needed for the ultrasonic wave emitted by a sensor to reach an obstacle and for the sensor to receive the ultrasonic wave reflected from the obstacle. Given the speed of the ultrasonic wave, the system can then calculate and display the distance between the sensor and the obstacle.

To have the look of factory installed system, the system comes with 4 in-bumper type sensors to be installed in the rear bumper by drilling holes through the bumper.  The main control box is powered by tapping into the back up light wires so that the system will work only when vehicle is put in reverse.  It is supplied with a wireless LED digital display which shows the exact distance from an obstacle and eliminates the wiring between the display and main control box. The wireless display can be mounted up to 20m (66 feet) away from the main control box (still requires its own +12V power supply). This is especially convenient for installation on long vehicles.  The wireless display gets its power from cigarette lighter, ACC or ignition switch.  Seven (7) LED Lights (3xGreen/2xYellow/2xRed) on each side of the wireless display indicate both orientation of obstacles and Safe/Warning/Stop zone.  The audible alert (beeper) with on/off switch is built in the wireless display. It beeps faster as vehicle gets closer to obstacle and sounds continuously when vehicle is within 0.3m (1ft) from obstacle.

- 2 -

Page 4

Installation and Wiring

IMPORTANT: (a) Read this manual thoroughly before proceeding to installation. You can also have the system installed by a professional installer such as your local auto mechanic/auto electrician/car stereo store. (b) Turn off the engine and ACC during installation. (c) Double check that all wiring is correct before powering on the system. (d) During installation, avoid flatting, perforating, cutting, and extending the wires of sensors to reduce unnecessary signal loss.

1. Installation of the Main Control Box

a) Find a flat and clean surface inside the vehicle close to driver's side taillight assembly as the main control box

gets its power from the back up light and has all the rear sensors plugged into it. For trucks, you may install it inside the driver's side taillight assembly. Keep it away from areas of high heat, high humidity, direct water contact, direct sunlight, and electromagnetic devices.

b) Place the main control box in place temporarily without securing it to the vehicle as you may need to adjust

the location of the main control box while wiring.

c) After completing all wiring, use the double-sided self-adhesive pad included to secure the main control box to

the vehicle.

2. Installation of the Wireless LED Digital Display

a) Find a place for the wireless display on top of the dashboard where the driver can see it easily. Place the

wireless display in place temporarily without securing it to the top of the dashboard.

b) After completing all wiring, secure it with the included self-adhesive pad on the bottom of the display base.

3. Wiring Power Supply to the Wireless LED Digital Display

There are two methods for powering the wireless display: a) Method [1]: The wireless display comes with attached power cable and a cigarette lighter type plug. Simply

Insert the plug into the cigarette lighter jack.(Fig. 4).

b) Method [2]: If you want to route and hide the power cable of the display, you may cut off the cigarette lighter

type plug from the power cable, and wire the cable directly to ACC or "ON" block of the ignition switch. Strip 1" of the wires. Connect the red wire to +12V and the black wire to (-) negative or chassis ground. Wrap the connections with vinyl electrical tape.

4. Wiring Power Supply to the Main Control Box

a) Insert the 3-pin plug of the power cable of the main control box into its socket labeled PWR on the side of the

main control box (Fig. 3).

b) Locate the +12V and the (-) negative wires from the back up light near the taillight assembly. If necessary,

remove the taillight assembly to locate them.

c) Strip 1/2" of the wires found. d) Connect the red wire of the power cable to the +12V wire (Fig. 3) e) Connect the black wire of the power cable to the (-) negative or chassis ground (Fig. 3). f) Wrap the connections with vinyl electrical tape.

5. Installation of the Sensors IMPORTANT: (a) To avoid false alert from the system detecting the ground, the sensors should be mounted

between 50cm to 80cm (20" to 32") above the ground and the face of the sensors need to be vertical or slightly upward angled (Fig. 2). (b) Horizontally, the sensors should be equally spaced if possible or symmetric to the center of the bumper. (c) The outer two sensors should be mounted about 15cm (5.9") from the corner of the bumper for better corner coverage.

Note: The bumper surface for mounting the sensors should be as flat and vertical as possible.

a) Refer to Fig. 1 for mounting height and position of the sensors. b) Work under the rear bumper to check the internal structure of it before marking the positions for drilling holes.

If the view is blocked, you may need to remove the bumper.

c) With chalk or marker, mark the position of sensors on the rear bumper. Make sure that the sensors can be

pushed all the way in and that you can feed the wires through.

d) Drill the holes through the bumper at the marks with the Φ21mm drill bit included. Note: if drilling through

metal bumper, use a bi-metal

Φ21mm (13/16") drill bit (not included).

- 3 -

Page 5

e) If necessary, smooth the sharp edge of the holes with a polishing head or small round file. f) If you have a non-vertical bumper, you may need to use the wedge-shaped plastic sensor spacers

provided. Carefully push each sensor into its sensor spacer.

g) Run the sensor wires into the holes drilled. Push the sensors into the holes. Note: When pushing in the

sensors only apply pressure at the edges, not on the middle of the sensor to avoid damage to the sensor element. The sensors are tapered for a snug fit.

h) Run the sensor wires from the bumper into the trunk or inside of the vehicle through the existing small vent or

rubber grommet in the rear of the trunk or vehicle, and to the main control box. Note: Do not cut the sensors

wires.

i) Attach sensor wires to the vehicle body with cable/wire ties so that they will not get in the way of any moving

parts and there are no loose wires hanging down.

j) Plug one sensor at a time into its corresponding socket at the main control box, start the engine and put the

vehicle in reverse, the display should show the correct obstacle distance. Repeat the procedure for the remaining sensors.

Testing Your New Backup Parking Sensor System

Back your vehicle slowly (about 3 miles per hour) to approximately 2.5m (8.2 feet) from a flat vertical surface such as a wall. Continue to back up slowly and check the performance against Chart 1.

Note:

[1] The wireless display will light up only when the main control box is on (vehicle is in reverse).

[2] When you shift into reverse gear, the system will beep once indicating it is activated.

Using the Wireless Digital Display

The display has a built-in beeper (audible alert). There are seven (7) LED Lights (Green/Yellow/Red) on each side of the two-digit distance display (Fig. 4). The color LED lights have two functions: indicating the orientation of obstacle and showing if you are in Safe/Warning/Stop zone (Chart. 1).

Chart 1. Orientation of Obstacle, Digital Distance Display, and Beeping (Audible Alert)

Viewing from the Front of the Display

Obstacle Distance

LEDs on the Left Side

of the Display

Responding to Sensor A or B

Beeping

Digital

Distance

Display

LEDs on the Right Side

of the Display

Responding to Sensor C or D

Safe Zone

Outer Green Flashing No -.- Outer Green Flashing

(> 2.0m)

Safe Zone

Outer Green on Starting to

(2.0~1.5m)

Warning Zone

1 - 3 Green on Fast

(1.5~1.0m)

Warning Zone

3 Green/1 -2 Yellow on Faster

(1.0~0.7m)

Stop Zone

3 Green/2 Yellow/1 - 2 Red on Fastest

(0.7~0.3m)

Stop Zone

3 Green/2 Yellow/2 Red on Continuously 0.3 or 0.0 2 Red/2 Yellow/3 Green on

(0.3~0.0m)

(Note: 1meter = 3.3feet)

beep at 1.5m

- 4 -

Actual distance

Outer Green on

1 - 3 Green on

1 -2 Yellow/3 Green on

1 - 2 Red/2 Yellow/3 Green on

Page 6

Warning

z To avoid collision with obstacle because of the inertia of vehicle while backing up/parking, keep your vehicle

speed at about 3 miles per hour and stop the vehicle immediately once you hear the continuous beeping.

This is because even if brake is applied, your vehicle will still go for some distance (inertia) before it comes to a complete stop.

z Because the back up parking system detects obstacle by emitting ultrasonic wave and receiving reflected

ultrasonic wave from obstacle, the system may fail to give both visual and audible alert if an obstacle has smooth ball-shaped or sloped surfaces as such surfaces may not reflect ultrasonic wave back to the sensors. Drivers in these situations should pay more attention while parking their vehicles.

z In heavy falling rain or snow, the system may give alert as falling rain or snow may be detected as obstacles.

Keep surface of sensors clean of snow, mud, dirt, and other debris. Turn the beeper off if needed.

Troubleshooting

Problem Cause Solution

Display doesn't light up when reversing

Display light up but system is not detecting any obstacle

System showing distance but no beeping or system beeping but

No power to the display. No power to the main control box. Faulty display or main control box.

Sensors not connected. Faulty display. Faulty main control box.

Beeper turned off. Faulty display. Faulty main control box.

Check display power connection. Check main control box power connection. Replace the display or main control box.

Contact Technical Support for help.

Check sensor connection. Replace the display. Replace the main control box. Contact Technical Support for help.

Put beeper on/off switch to on position. Replace the display. Replace the main control box. Contact Technical Support for help.

no distance display Wrong LEDs light

Sensors are plugged into the wrong

sockets at the main control box

Install the sensors in the bumper as labeled in Fig. 1 and plug sensors as labeled on the sensor wires into their corresponding sockets

at the main control box (Fig. 3)

Display constantly shows 0.0 or beeps continuously

Object within 0.30m is detected Unplug all sensors, and then plug back in one

sensor at a time to find out which sensor is causing the problem. Adjust angle of the

sensor. Refer to 5. Installation of the Sensors for details.

Display shows a distance and beeps even there is no obstacle behind

Ground is detected. Sensor pointing angle is low. Sensor is installed too low (mounting

height below 0.5m)

Unplug all sensors, and then plug back in one sensor at a time to find out which sensor is causing the problem. Adjust angle of the

sensor. Refer to 5. Installation of the Sensors for details.

For more installation related questions and Frequently Asked Questions (FAQs) with answers, and product photos, visit our Web site at http://parkingsensors.net

- 5 -

Page 7

IMPORTANT

The Parking Sensor Systems sold and distributed by HY Technologies are only a device used to assist a driver while parking. They should not be considered as a substitute for driver responsibility when operating a vehicle. No warranty as to operational efficiency is granted. We don't guarantee or assume liability for collisions or damages that take place when parking your vehicle with the use of the Parking Sensor System. We will not be liable for any claims, actions, suit proceedings, costs, expenses, damages or liabilities arising out of the use of this product. By purchasing, installing and using such a Parking Sensor System, customers agree to take full responsibility of use of such System.

HY Technologies y http://parkingsensors.net

Made in China

- 6 -
