1365 Ethernet CAMAC Crate Controller
Hytec Electronics Ltd 2001
MK4
Technical Handbook
Issue 1
Technical Handbook ECC 1365 MK4
AMENDMENT RECORD
Issue Date Change Author Reviewed by
1
August 2001 New Document
P. Marshall M.Woodward
Checked by : - Date:-
[P. Marshall] Authorising Engineer
Hytec Electronics Ltd– Page 2
ECC 1365 MK4 Technical Handbook
This handbook is subject to copyright.
All rights are reserved.
Thi s document may not, in whole or in part, be copied, photocopied, reproduced,
translated or reduced to any electronic medium or machine-readable form without
prior written consent from HYTEC Electronics Ltd. UK.
The use of the equipment described herein do es not constitute any health or safety
hazards when used according to the instructions contained in this handbook.
However, your attention is drawn to the following basic safety precautions, which
should be observed.
1. Ensure that the instructions contained herein have been carried out and that
users have received adequate training.
2. If in doubt regarding the safe operation and maintenance of this equipment,
consult Hytec Electronics Ltd.
WARNINGS MUST BE OBSERVED AT ALL TIMES
THEY ARE PRINTED FOR YOUR PROTECTION.
Whilst every effort has been made in this handbook to instruct users in the correct
methods of using the equipment, Hytec Electronics Ltd. accepts no liability for
personal injury or damage to the equipment howsoever such injury or damage might
b e caused.
This handbook is believed to be accurate in all respects at the time of printing.
However, customer’s special requirements and other circumstances might make
modifications necessary from time to time.
Although every effort is made to keep the handbook relating to every part of this
equipment in step with future modifications, users are advised that if any doubt exists
regarding any statement, illustration or diagram, reference must be made to the
supplier.
Hytec Electronics Ltd. acknowledges all registered trademarks.
Hytec Electronics Ltd- Page 3
Technical Handbook ECC 1365 MK4
This page is intentionally blank
Hytec Electronics Ltd– Page 4
ECC 1365 MK4 Technical Handbook
1365 Ethernet Crate Controller MK 4
28/8/2001
ABBREVIATIONS...................................................................................................................9
1 INTRODUCTION...........................................................................................................10
1.1 How to use this Technical Handbook ......................................................................................................10
1.2 An outline of the ECC 1365 MK 4 functions..........................................................................................10
2 HARDWARE OVERVIEW ...........................................................................................12
2.1 The Controller Board.....................................................................................................................................12
2.2 The Support Board .........................................................................................................................................12
2.3 The UTP Ethernet Connection...................................................................................................................13

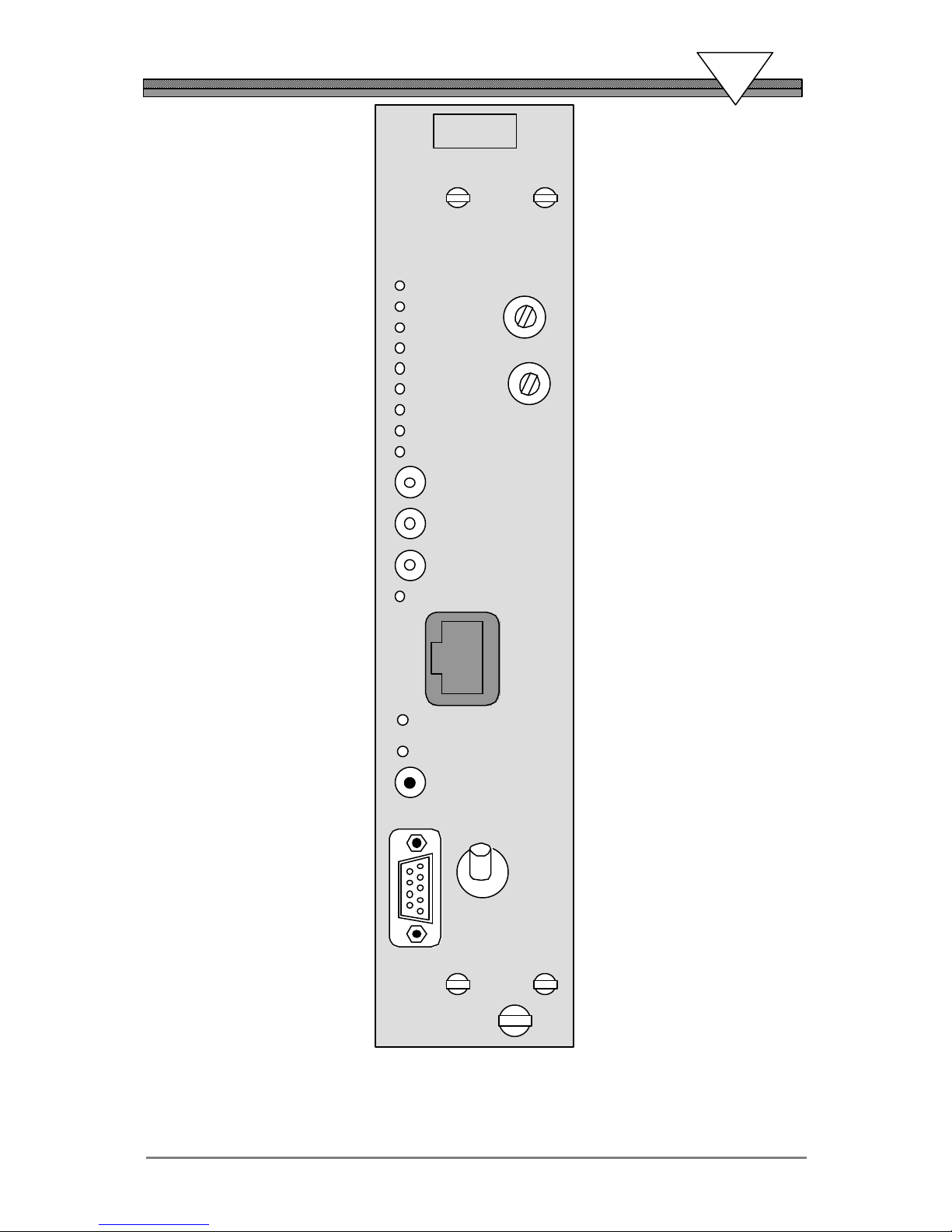

2.4 The Front Panel...............................................................................................................................................13
3 SOFTWARE OVERVIEW............................................................................................ 16
3.1 Host Software Overview...............................................................................................................................16
3.1.1 VMS Host Introduction.............................................................................................................................16
3.1.2 Unix Host Introduction ..............................................................................................................................17
3.1.3 User-based Software................................................................................................................................17
3.2
Firmware Overview........................................................................................................................................18
3.2.1 Major Functions ..........................................................................................................................................21
3.2.2 CAMAC Functionality...............................................................................................................................22
4 SYSTEM PROTOCOLS...............................................................................................23
4.1
4.2 Application Layer Protocols – Command Block Format .................................................................... 26
4.3 Data Segmentation .........................................................................................................................................28
4.4 Data to the ECC 1365 ...................................................................................................................................28
4.5 Data from the ECC 1365..............................................................................................................................28
4.6 ECC 1365 Commands ..................................................................................................................................29
4.7 CAMAC Operation Routines .......................................................................................................................30
4.8 Mapping ESONE / DOE Subroutines to Network Protocols............................................................31
4.9 Network Protocols...........................................................................................................................................34
Transport Layer Protocols............................................................................................................................23
4.1.1 Logical Link Control..................................................................................................................................24
4.1.2 UDP/IP...........................................................................................................................................................26
4.2.1 Command Block Format for ECP Frame Carried by UDP..........................................................27
4.9.1 Find Address Protocol ..............................................................................................................................34
4.9.2 ECC 1365 Reset Protocol......................................................................................................................34
4.9.3 ECC 1365 Status Protocol.....................................................................................................................35
4.9.4 Ethernet Control Protocol.......................................................................................................................35
5 NETWORK TIME ...........................................................................................................36
5.1 Theory.................................................................................................................................................................36
5.2 Practice...............................................................................................................................................................36
5.3 Network Time Algorithm ...............................................................................................................................37
5.4 Network Time Protocol..................................................................................................................................37
6 ETHERNET CAMAC CONTROLLER FIRMWAR E DETAILS ..............................38
6.1 Priorities & Main Control Loop....................................................................................................................38
6.2 Timer Interrupt Actions..................................................................................................................................42
6.3 QSPAN/82559 Interrupt Actions ................................................................................................................43
6.4 LAM Interrupt Actions ....................................................................................................................................44
6.5 Module booking...............................................................................................................................................44
6.6 LAM Booking....................................................................................................................................................45
6.7 Operating Statistics ........................................................................................................................................45
6.8 Tracing ................................................................................................................................................................47
6.9 Downloading New Software ........................................................................................................................47
6.10 Initialisation .......................................................................................................................................................47
6.11 The Tick Timer.................................................................................................................................................48
6.12 Time Tagging...................................................................................................................................................48
6.13 The Clock System...........................................................................................................................................48
6.14 The Crash Table..............................................................................................................................................48
6.15 Command Processing ...................................................................................................................................50
6.16 COR Processing..............................................................................................................................................50
6.17 Security Processing .......................................................................................................................................50
Hytec Electronics Ltd- Page 5
Technical Handbook ECC 1365 MK4
6.18 Power Fail .......................................................................................................................................................... 50
6.19 Error Codes.......................................................................................................................................................50
7 ECC 1365 FRONT PANEL DIAGNOSTICS TERMINAL SUPPORT...................51
7.1 Overview ............................................................................................................................................................51
7.1.1 Trap Details .................................................................................................................................................53
7.2 Normal Mode Commands............................................................................................................................53
7.2.1 Display Security.........................................................................................................................................53
7.2.2 Display DTM4 .............................................................................................................................................54
7.2.3 Display Statistics........................................................................................................................................54
7.2.4 Display Address.........................................................................................................................................56
7.2.5 Display Crash..............................................................................................................................................57
7.2.6 Display Mode ..............................................................................................................................................57
7.2.7 Display ARP ................................................................................................................................................57
7.2.8 Display Auto................................................................................................................................................57
7.2.9 Change Security........................................................................................................................................57
7.2.10 Change DTM4 [n].................................................................................................................................59
7.2.11 Change MODE [n]................................................................................................................................59
7.2.12 Reset ........................................................................................................................................................59
7.2.13 HELP........................................................................................................................................................60
7.2.14 CAMAC .................................................................................................................................................... 60
7.3 Battery-backed RAM Mode Commands .................................................................................................60
7.3.1 !INIT................................................................................................................................................................61
7.3.2 !AUTO............................................................................................................................................................61
7.3.3 !EPA[n] ..........................................................................................................................................................61
7.3.4 !EMA [n] ........................................................................................................................................................62
7.3.5 !CLRSEC ......................................................................................................................................................62
7.3.6 !DLMEM........................................................................................................................................................62
7.3.7 !IPA[n]............................................................................................................................................................63
7.3.8 !IPS[n]............................................................................................................................................................63
7.4 Diagnostic Mode Commands......................................................................................................................63
7.4.1 $CL .................................................................................................................................................................63
7.4.2 $DL .................................................................................................................................................................63
7.4.3 $DM ................................................................................................................................................................63
7.4.4 $DW...............................................................................................................................................................64
7.4.5 $DB.................................................................................................................................................................64
7.4.6 $CW...............................................................................................................................................................64
7.4.7 $CB.................................................................................................................................................................64
7.4.8 $DMOD .........................................................................................................................................................64
7.4.9 $DHOSTI......................................................................................................................................................64
7.4.10 $DHOSTE...............................................................................................................................................64
7.4.11 $RUN........................................................................................................................................................65
7.4.11.1 $RUN MEMORY ........................................................................................................................65
7.4.11.2 $RUN CAMAC............................................................................................................................66
7.4.11.3 $RUN TIMER..............................................................................................................................66
7.4.11.4 $RUN LEDS................................................................................................................................66
7.4.12 $NORMAL...............................................................................................................................................67
7.4.13 $CAMAC .................................................................................................................................................67
8 USING THE ECC 1365................................................................................................. 68
8.1 Installing the ECC 1365 ................................................................................................................................68
8.1.1 Configuring as Master ACB...................................................................................................................68
8.1.2 Configuring as Slave ACB......................................................................................................................69
8.1.3 Connecting to Thick Wire Ethernet......................................................................................................72

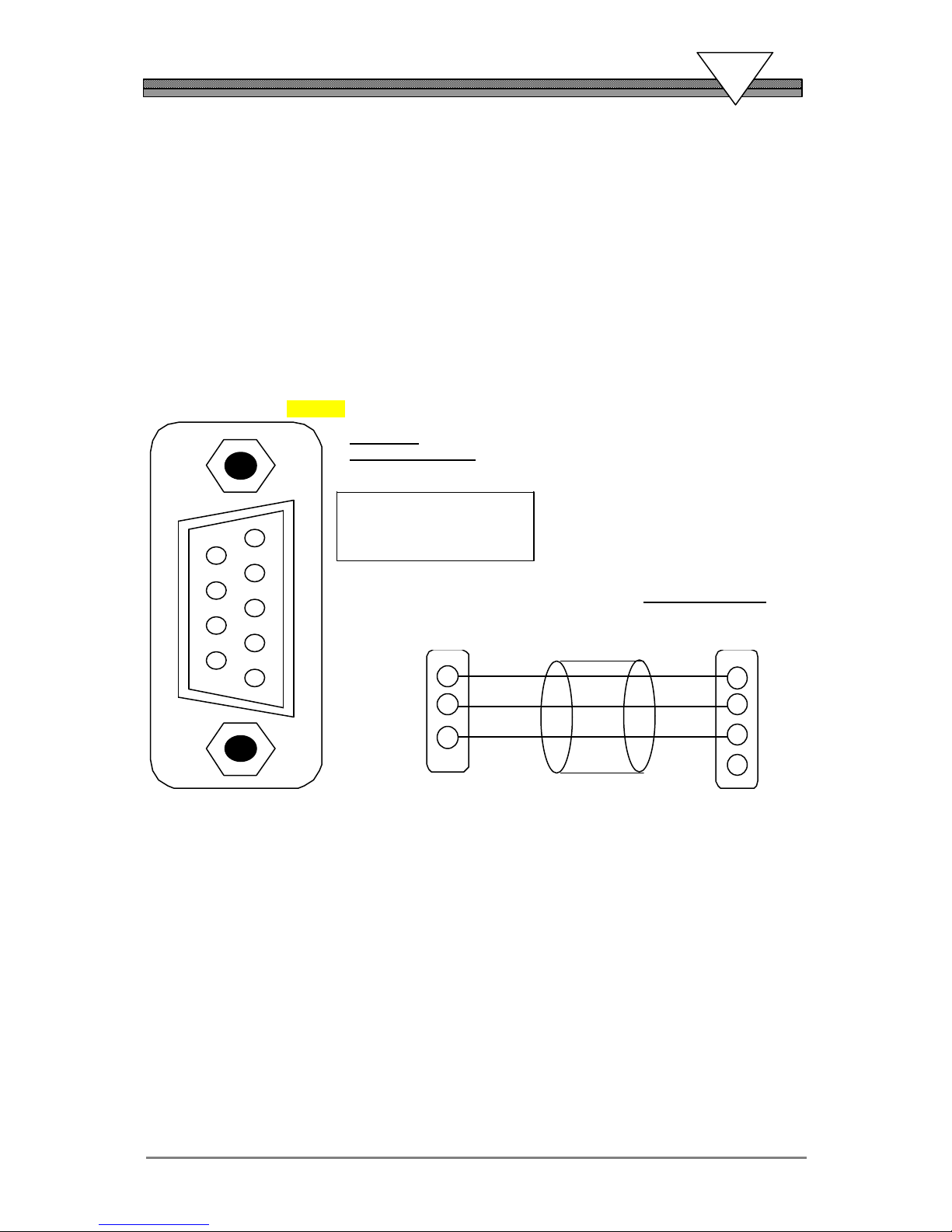

8.1.4 Connecting the Front Panel RS232 Port to a terminal.................................................................73
8.1.5 Configuring the Links & Switches ........................................................................................................73
8.1.5.1 CAMAC Crate Number Switches ..............................................................................................74
8.1.5.2 Diagnostic Mode/Normal /Reset Switch..................................................................................74
8.1.5.3 Z Switch..............................................................................................................................................74

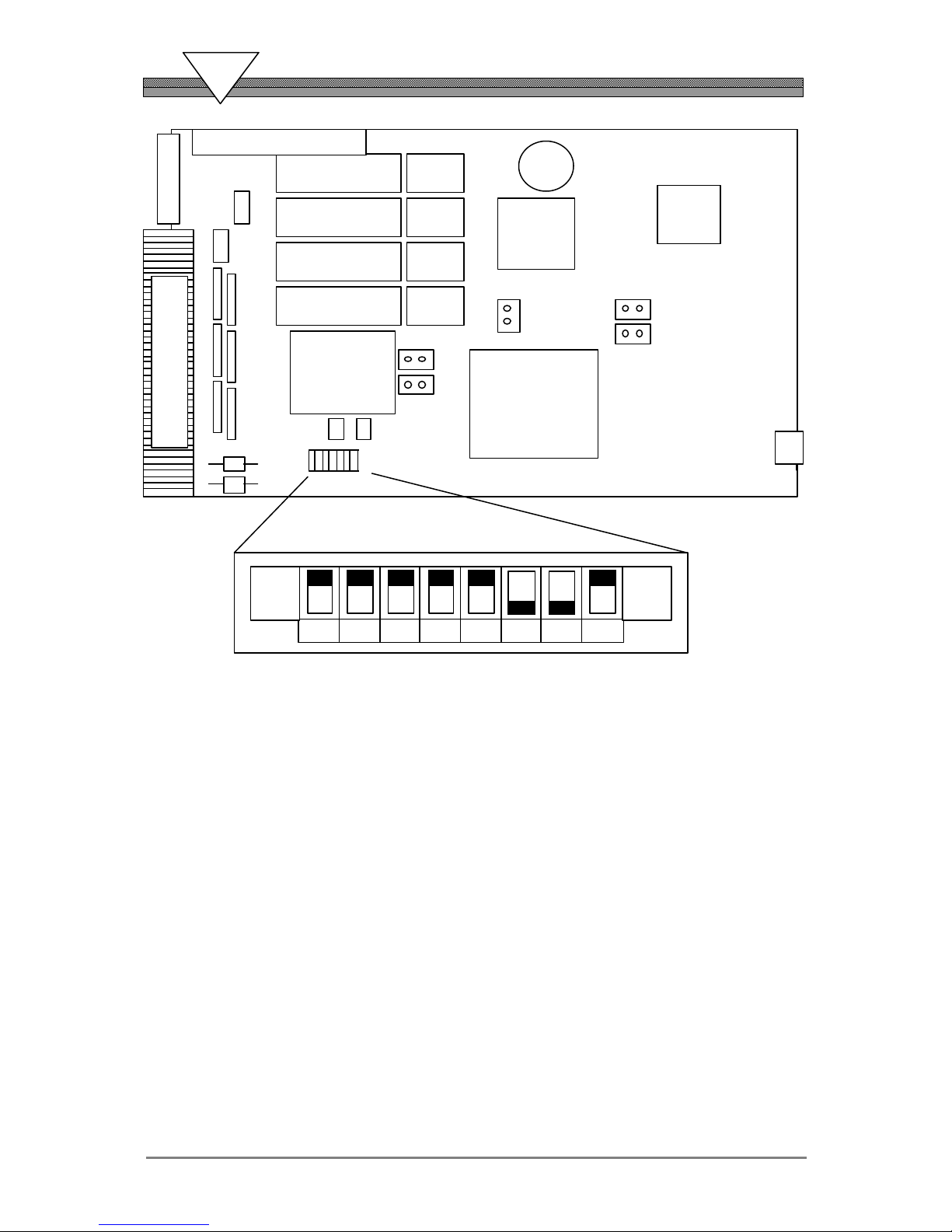

8.1.5.4 Left Hand Controller Board Switches .......................................................................................74
8.1.5.5 Left Hand Controller Board Jumpers .......................................................................................76
8.2 Initial Setup Of Battery-Backed RAM.......................................................................................................77
Hytec Electronics Ltd– Page 6
ECC 1365 MK4 Technical Handbook
8.2.1 Entering Battery-Backed Ram Setup Mode .....................................................................................77
8.2.2 Clearing All Data From The Battery-Backed RAM.........................................................................78
8.2.3 Setting Up The Ethernet Address........................................................................................................78
8.2.4 Setting Up The Internet Protocol And Socket ID Addresses. .....................................................78
8.2.4.1 Internet Addresses.........................................................................................................................79
8.2.4.2 PING Command ..............................................................................................................................80
8.2.4.3 Socket Address (port number)...................................................................................................80
8.2.5 Starting the ECC 1365 in Normal Mode ............................................................................................80
8.3 Trouble Shooting.............................................................................................................................................81
9 SECURITY FEATURES ...............................................................................................83
ECC 1365 MK 4 SPECIFICATION..................................................................................... 85
GLOSSARY ...........................................................................................................................86
REFERENCES.......................................................................................................................87
APPENDICES........................................................................................................................ 88
A1 ECC 1365 HARDWARE DETAILS............................................................................ 89
A2 ECC 1365 PROTOCOLS FRAME FORMATS......................................................... 94
A3 VAX/VMS HOST SOFTWARE DETAILS ................................................................. 97
A3.1 User-based Software.....................................................................................................................................97
A3.1.1 Overview.................................................................................................................................................97
A3.1.2 User Based Software Central Routine .......................................................................................... 99
A3.1.3 User Based Software Completion Processing...........................................................................99
A3.2 Interface Between User- and System- based Software ..................................................................100
A3.3 System-based Software ECC_1365 process......................................................................................101
A3.3.1 Initialisation...........................................................................................................................................102
A3.3.2 Normal Operations .............................................................................................................................102
A3.3.2.1 Host Event ..................................................................................................................................102
A3.3.2.2 Network Event..........................................................................................................................103
A3.3.2.3 Timer Event...............................................................................................................................103
A3.3.3 Received Ethernet Frame ...............................................................................................................104
A3.3.3.1 Normal Processing.................................................................................................................. 104
A3.3.3.2 Received Events......................................................................................................................104
A3.4 Data Structures..............................................................................................................................................106
A3.4.1 Global Memory Allocation...............................................................................................................106
A3.4.2
A3.4.3
A3.4.4 Access Table .......................................................................................................................................108
A3.4.5 ECC_HOST Control Table.............................................................................................................. 108
A3.4.6 Configuration Data File.....................................................................................................................108
LLC Control Table.............................................................................................................................. 107
Status Codes.......................................................................................................................................107
A4 AUXILIARY CONTROLLER LOCKOUT MODE (ACL MODE) ..........................109
A4.1 Overview ..........................................................................................................................................................109
A4.2 Multiple Controllers on the Auxiliary Control Bus (ACB).................................................................109
A4.3 Request Grant Mode...................................................................................................................................109
A4.4 ACL Mode........................................................................................................................................................109
A5 ERROR PROCESSING AND ERROR MESSAGES ............................................ 110
A5.1 VAX/VMS Error Processing.......................................................................................................................110
A5.2 UNIX Error Processing................................................................................................................................110
A5.3 Error messages .............................................................................................................................................110
A5.3.1 User Process Errors..........................................................................................................................111
A5.3.2 Manager Process Errors .................................................................................................................. 112
A5.3.3 ECC 1365 Controller Errors............................................................................................................114
Hytec Electronics Ltd- Page 7
Technical Handbook ECC 1365 MK4
FIGURES
Figure 1 1365 MK 4 Front Panel Details ............................................................................ 15
Figure 2:Ethernet/CAMAC System.....................................................................................16
Figure 3 VMS Host Processes ............................................................................................ 17

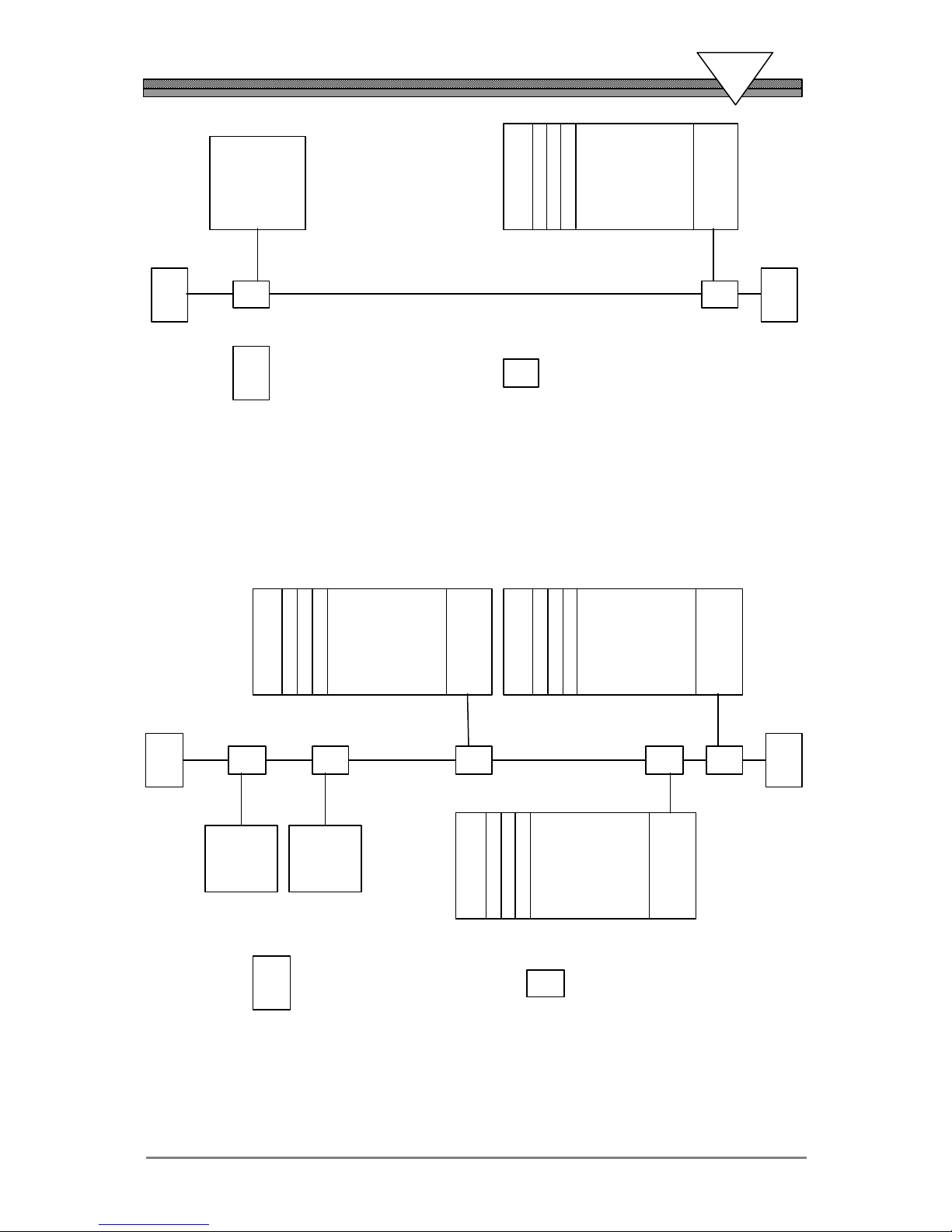

Figure 4 A simple System Configuration...........................................................................19
Figure 5 A multi host, multi-ECC system configuration...................................................19
Figure 6 Protocol Layer model for the ECC 1365............................................................ 23

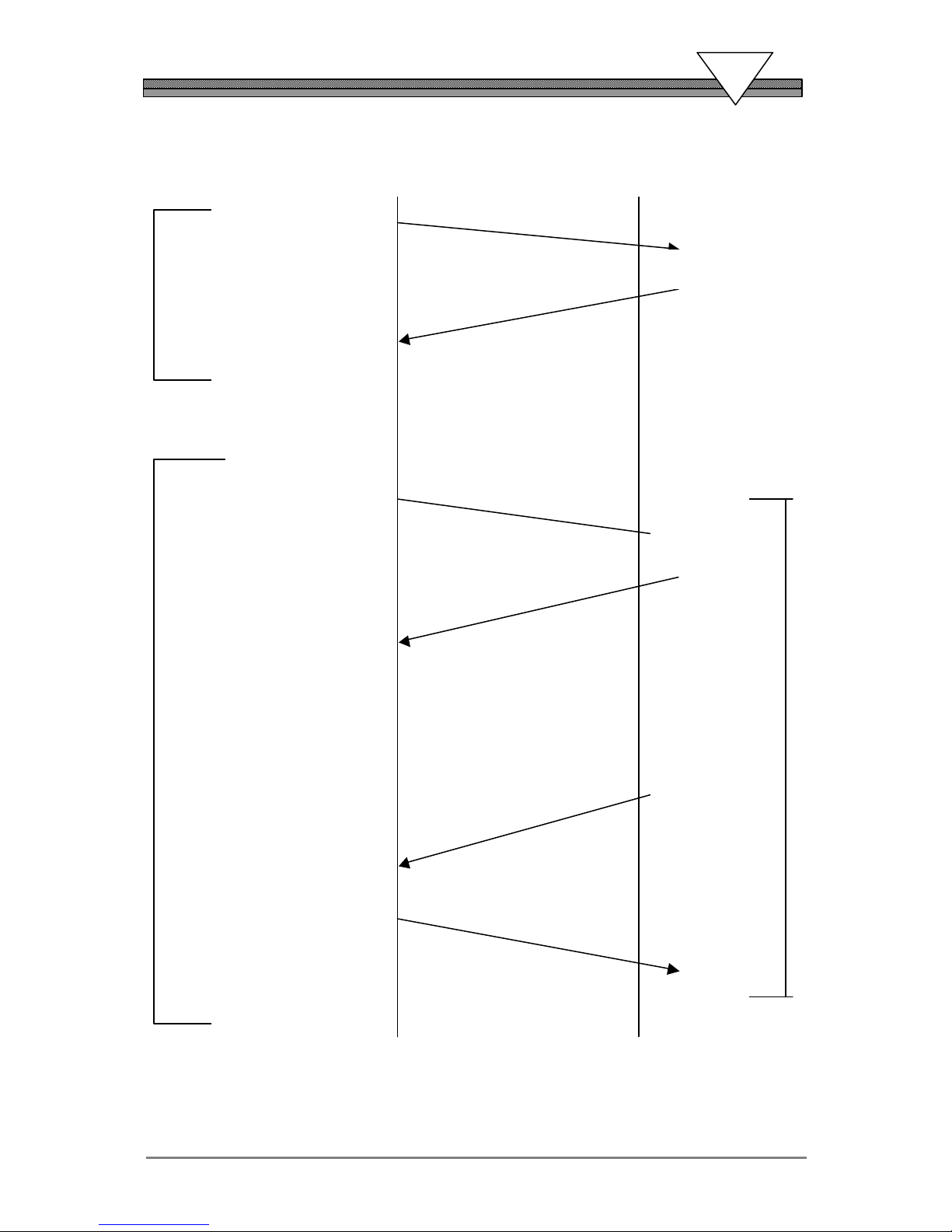

Figure 7 Network Interactions ..............................................................................................25
Figure 8 Processing Priorities ..............................................................................................39
Figure 9 Command List Data Flow- Immediate Operations ...........................................40
Figure 10 Command List Data Flow...................................................................................41
Figure 11 Command List Data Flow- Deferred Operations ............................................ 43
Figure 12 ECC 1365 MK 4 view of left hand side board ................................................. 70
Figure 13 ECC 1365 MK 4 view of right hand side board...............................................71
Figure 14 Diagnostic terminal 9 way D-type connector...................................................73
Figure 15 Internet Address Formats ...................................................................................79
Figure 16 Security Table Entry Format ..............................................................................83
Figure 17 Control Register Format.....................................................................................91
Figure 18 Status Register Format.......................................................................................92
TABLES
Table 1 (ECP) Frame Format when carried by LLC........................................................ 27
Table 2 ECP Frame format when carried by UDP...........................................................27
Table 3 ECC 1365 Command Format................................................................................ 29
Table 4 ECC 1365 Control Commands .............................................................................29
Table 5 CAMAC Operation Command ...............................................................................30
Table 6 CAMAC Operation Routines .................................................................................31
Table 7 Single Action Command Block..............................................................................31
Table 8 Mapping ESONE / DOE subroutines to ECC 1365 Commands ......................32
Table 9 Mapping ESONE / DOE Subroutines to ECC 1365 Commands Block
Transfers and Multiple actions .............................................................................33
Table 10 Statistics Table Format........................................................................................ 46
Table 11 Table Trace Entry Form.......................................................................................47
Table 12 ECC 1365 MK 4 Firmware Error Codes (Crash Codes)................................. 49
Table 13 ECC 1365 Front Panel Terminal Commands ...................................................52
Table 14 Command Word Abbreviations...........................................................................53
Table 15 ECC 1365 Statistics Printout...............................................................................55
Table 16 Available Diagnostic Tests ..................................................................................6 5
Table 17 Security Table Capabilities Field Format..........................................................84
Table A2-1 NTP Multicast Frame Format..........................................................................94
Table A2-2 FAP Multicast Frame Format..........................................................................94
Table A2-3 ERP Multicast Frame Format ........................................................................ 95
Table A2-4 ECP Frame Format (LLC and Pseudo LLC3 only). ..................................... 95
Table A3-1 ............................................................................................................................106
Table A3-2 ............................................................................................................................107
Table A3-3 ............................................................................................................................107
Table A3-4 ............................................................................................................................108
Table A3-5 ............................................................................................................................108
Hytec Electronics Ltd– Page 8
ECC 1365 MK4 Technical Handbook
ABBREVIATIONS
These abbreviations are used throughout
Each abbreviation is shown in full when first introduced in each chapter.
ACB Auxiliary Controller Bus
UTP Universal Twisted Pair
COR CAMAC Operation Routine
DOE Department of Energy
DTM4 CAMAC Dataway Test Module – Type 4 (Available from Hytec Electronics Ltd. UK)
ECC Ethernet Crate Controller
ECP Ethernet CAMAC Protocol
ESONE European Standards on Nuclear Equipment
FAP Find Address Protocol
LAM CAMAC Look at Me Interrupt
LLC Logical Link Control
LSAP Link Service Access Point
NTP Network Time Protocol
PID Process Identifier
QSPAN Motorola -to-PCI bridge chip
TCP/IP Transmission Control Protocol / Internet Protocol
UDP User Datagram Protocol
Hytec Electronics Ltd- Page 9
Technical Handbook ECC 1365 MK4
CHAPTER 1
1 INTRODUCTION
This handbook is concerned with the Ethernet Crate Controller, type ECC 1365 MK 4. It is one of a
range of CAMAC modules designed in the U.K. by HYTEC Electronics Ltd. Hytec is a long established
hardware, software and systems company, which leads CAMAC development in industry and
research.
1.1 How to use this Technical Handbook
The intended audience for this manual is both the purchaser of the ECC 1365 module who wishes to
get it configured and operational and for the system implementer who wishes to learn about the
module.
For the system implementer who wishes to learn about the module, he or she should read the
chapters in the order presented.
For the purchaser of an ECC 1365 module who wishes to get it configured and operational, he or she
should optionally read Chapters 1, 2 and 3 if familiarisation is necessary, and then proceed to Chapter
8.
It is essential that new purchasers read Chapter 8 thoroughly.
Installation of host software for VMS and UNIX is covered in the Installation Guide. In all cases, it is
assumed the reader is familiar with CAMAC systems and Ethernet Local Area Networks.
1.2 An outline of the ECC 1365 MK 4 functions
The ECC 1365 MK 4 controller is the latest version in the ECC 1365 range. It is an enhanced
performance version of the MKIII controller. It uses a 32 -bit Motorola 50MHz 68EC060 processor with
cache instead of the 68EC030 processor used in the MKIII. It also uses a later generation higher
performance Intel 82559 PCI Fast Ethernet chip in place of the SONIC (System Oriented Network
Interface Controller) chip used in the MKIII. Other functional changes described in detail in this
document and highlighted in our sales literature are also present. The result is that the MK 4 controller
is able to show a significant performance improvement over the MKIII version.
The HYTEC 1365 Ethernet CAMAC Controller (ECC 1365) is a two-width controller (ACB Master or
Slave), designed to be driven from one or more hosts across an Ethernet local area network. This
provides a fast and efficient interface between a CAMAC crate and a UTP Ethernet LAN.
The ECC 1365 MK 4 is based on a 32 bit Motorola 68EC060 processor with cache, with
comprehensive firmware resident in 256 Kbytes of EPROM, plus processor working space in 2 Mbytes
of RAM. Unused RAM can be configured to hold user-written downloaded commands and/or routines.
The front panel has one LAN connector – an 8-way MMJ-type 10/100 UTP connector. It also has an
RS232 port (9 -way D-type), for local diagnostic terminal support.
Hytec Electronics Ltd– Page 10
ECC 1365 MK4 Technical Handbook
The following features are provided by the ECC 1365:
∼ Compliant with CAMAC ACB – can be Master or Slave
∼ Full specification 10/100 UTP Ethernet with Auto-negotiation
∼ Uses a Motorola 68EC060 processor (50 MHz) with cache
∼ Supports multiple concurrent hosts
∼ Network Time Protocol Support
∼ Provides data timestamping
∼ Supports Block mode and List mode facilities
∼ Responds to down-line-loadable user-defined commands
∼ Software support available for a range of hosts, including:
Alpha AXP
DEC VAX/VMS
WindowsNT
LINUX
UNIX systems via User Datagram Protocol and Internet Protocol
(Note: UDP is normally available as part of the TCP/IP protocol set)
∼ Compliant with ISO/IEC IS8802 -3 CSMA/CD
∼ Supports standard ESONE /DOE subroutines
∼ Security, including controller -resident access tables
∼ Logical Link Control (ISO /IEC IS8802 -2) support
∼ User Datagram Protocol / Internet Protocol (U DP/IP) support
Hytec Electronics Ltd- Page 11
Technical Handbook ECC 1365 MK4
CHAPTER 2
2 HARDWARE OVERVIEW
The Ethernet Crate Controller is a two -width CAMAC module. It consists of two PCBs. The left board
(viewed from the front) is the main board and is known as the Controller Board. The right board is the
support board and contains the N and L Line decoding and pull-up resistors.
The controller can act as a Master Controller (see Chapter 8, USING THE ECC 1365 , Page 71) or as
an Auxiliary ACB Controller.
Front-panel connectors are provided for Ethernet, i.e. there is a standard 8-way MMJ Type UTP
connector, and a 9-way D-type diagnostic terminal connector.
2.1 The Controller Board
This full -size board takes up the left of the controller module and holds the:
50 MHz 68EC060 processor with cache
64K x 32 –bit long words of EPROM (firmware)
512K x 32-bit long words of static RAM (all battery-backed)
Configuration Switches and jumpers
QSPAN PCI Bridge chip
Intel 82559 PCI Fast Ethernet chip
MC68901 multi-function peripheral chip for diagnostic terminal and timing
functions.
Optional full 32-bit PCI socket for adding extra functionality
Xilinx-based CAMAC port and associated Ethernet address PROM.
2.2 The Support Board
The support board is a short board containing: -
∼ The N Line decoders.
∼ The N and L line pull-up resistor packs
Hytec Electronics Ltd– Page 12
ECC 1365 MK4 Technical Handbook
2.3 The UTP Ethernet Connection
The 10/100 Mbit UTP connection is accessed at the front panel, via an 8-way MMJ-type connector.
Data is passed between the ECC 1365 and the Ethernet via this connec tion. The Intel 82559
automatically connects at the highest available rate through auto-negotiation.
2.4 The Front Panel
The front panel is a standard two-wide panel from which all the ECC 1365 external functions are
connected, see Figure 1.
This figure shows:
∼ Twelve status LEDs, see below
∼ Two Crate Address rotary switches
∼ Three Request -Grant connectors
∼ UTP Ethernet connector
∼ A controller Reset / Normal / Diagnostic mode toggle switch
∼ An RS232 Diagnostic connector (9 -way D-type)
∼ CAMAC ZED button
A full description of these functions is given in Chapter 8.1, Installing the ECC 1365, Page 68.
Hytec Electronics Ltd- Page 13
Technical Handbook ECC 1365 MK4
Front Panel Status LEDs
NOX ON = No CAMAC X on last CAMAC cycle
NOQ ON = No CAMAC Q on last CAMAC cycle
INH ON = CAMAC Inhibit Line Asserted
SEC ON = No Security table entries present (controller is OPEN)
DIAG ON = Diagnostic mode selected. Normal operation not possible
DENB ON = CAMAC demands enabled to at least one host
COMM ON = Exec uting Command – Firmware is executing an internal command
FAST CAMAC ON = Executing CAMAC transfers in Fast CAMAC mode (later enhancement)
CAMAC ON = Executing CAMAC cycle
LINK ON = UTP Link established
ACTIVE ON = Network traffic active
SPEED ON = 100 Mbit link established.
Hytec Electronics Ltd– Page 14
ECC 1365 MK4 Technical Handbook
ETHERNET CRATE
HYTEC
ECC 1365
CONTROLLER MK4
Q
X
INH
SEC
DIA
DEN
COMM
FAST CAMAC
CAMAC
LINK
UTP
ACTIVE
SPEED
RS232
REQUEST
GRANT IN
GRANT OUT
Z
DIAG
RESET
MSD
LSD
NORM
Figure 1 1365 MK 4 Front Panel Details
Hytec Electronics Ltd- Page 15
Technical Handbook ECC 1365 MK4
CAMAC
I/F
Host
Ethernet Cable
Ethernet
Module
3 SOFTWARE OVERVIEW
CHAPTER 3
3.1 Host Software Overview
Host control of the ECC 1365 is achieved by specific CAMAC command and control messages,
delivered to the controller by either Logical Link Control type 1 & type 3 protocols (LLC1 & LLC3) or
the UDP/IP protocols. Users who prefer to implement their own host support can do so by using the
protocol definition documents available from Hytec Electronics Ltd.
Host support for DEC VAX, running VMS via logical link control protocols, and UNIX Systems via the
User Datagram Protocols are available. This includes device drivers, protocol handlers and system
processes, to manage user process requests and to provide configuration and time protocol support.
High-level language support is provided through a library that includes the ESONE / DOE subroutines,
with further routines to support the extra functionality of the controller. A command line interface is
available, to display the known configuration and individual controller statistics on a host terminal.
Use of message utilities are made for error reporting and system information messages.
Crate
Controller

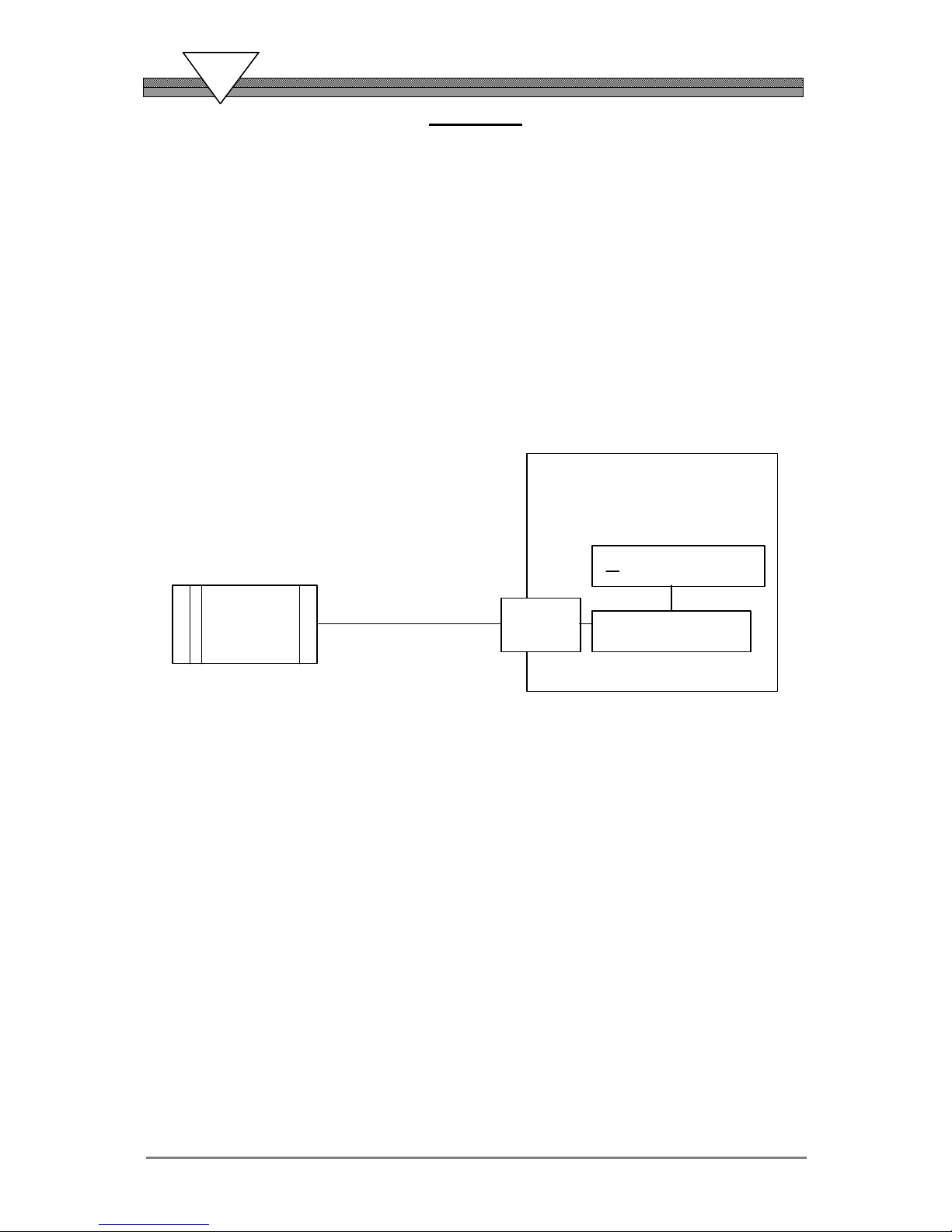

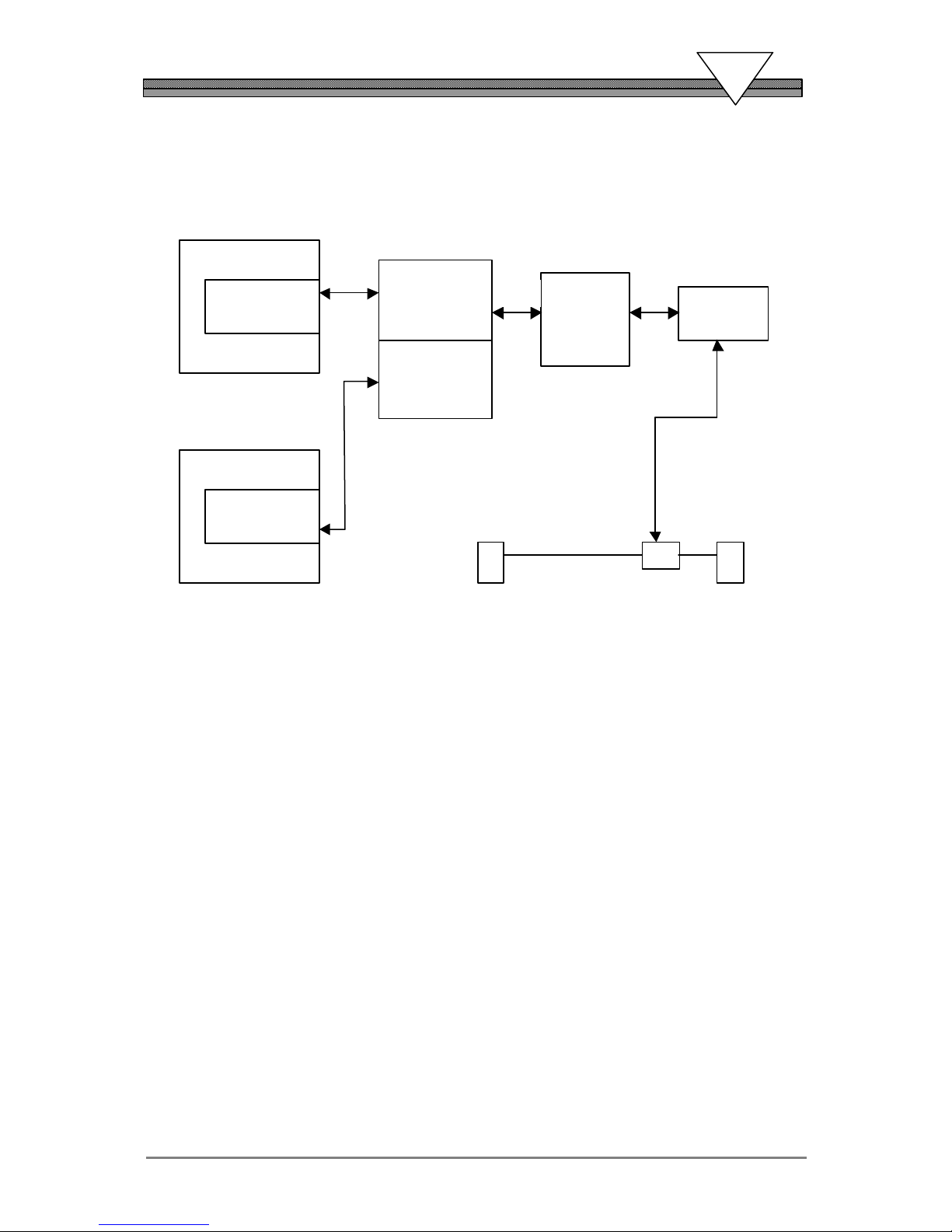

Figure 2:Ethernet/CAMAC System
H/W
Operating System
Application Program
Driver Software
3.1.1 VMS Host Introduction
A detailed description of VMS host software is given in Appendix 3.
The host software is designed to provide user access to Ethernet Crate Controller (ECC 1365)
modules on an Ethernet local area network. It runs under VMS (VMS is a trademark of Digital
Equipment Corporation). It supports multiple users on a single host system accessing multiple ECC
modules. Multiple host systems on the Ethernet are similarly supported.
Hytec Electronics Ltd– Page 16
ECC 1365 MK4 Technical Handbook
Ethernet
DMA
ECC/ESONE
ECC/ESONE
DATABASE
VAX/VMS
Driver
I/F
QIO
ECC 1365
The so ftware is divided into two distinct parts; that which runs as part of a user’s process and that
which runs in the system, see Figure 3. The former is available to the user as a set of callable
subroutines or a set of functions and these are provided in a library. The system software acts as the
focus for users’ access to ECC 1365 modules on the Ethernet.
User Process 1
Subroutines
User Process 2
Subroutines
Global
Section &
Event
Flags
Process
(Detached)
Crate tables
LAM booking
Tables etc
Figure 3 VMS Host Processes
Ethernet
Device
Hardware
3.1.2 Unix Host Introduction
The UNIX host software was originally written for the SUN Microsystems SUNOS Operating System.
This is SUN’s own version of UNIX, closely aligned to AT&T’s System V. The protocols employed are
the User Datagram Protocols and the Internet Protocols UDP/IP and are part of the TCP/IP Protocol
suite.
It is the UDP socket interface and the system calls for access and allocation of shared memory that
are likely to have shades of difference between flavours of UNIX. Hytec will normally undertake to give
the support necessary to get the UNIX Host Software operatio nal on other UNIX versions.
A system process is provided, similar to the VAX/VMS option, with a user process interface using
shared memory. The organization is similar to that shown in Figure 3.
3.1.3 User-based Software
A user process is able to communicate via the ESONE/DOE CAMAC subroutines (which do not return
until the specified operation is complete) or via a set of extended subroutines (which return
immediately). The latter require a user to call to a generalized wait routine, to receive the command
completion status when it is available. The routines also exist as a set of function calls.
Hytec Electronics Ltd- Page 17
Technical Handbook ECC 1365 MK4
The subroutines make use of the CTSTAT subroutine to provide status information to the user-based
software. The CAMAC functions return status directly to the user based software, making the call to
CTSTAT redundant.
An additional set of routines is provided to allow the user to access the full functionality of the ECC
1365.
All routine calls cause a parameter block to be built, based on the parameters passed as arguments,
together with an internal identification code which uniquely identifies which routine has been called.
First –order error checking is carried out at this stage and errors are available when control passes
back to the user -level software.
The extended ESONE/DOE CAMAC routines have, as additional arguments, a variable identifying a
local event flag (set on completion) and the address of an I/0 status block that contains, on completion,
the final status of the command.
A description of the EOSNE/DOE Subroutines is given in a separate document – see ref. 13.
3.2 Firmware Overview
The standard firmware supplied with the ECC 1365 MK 4 is loaded into 4 on -board EPROMs.
The firmware supports both the Logical Link Control transport protocols recommended for use with
VMS host -based configurations and the User Datagram Protocols (UDP)/Internet Protocols (IP)
intended for use with UNIX host-based configurations.
Both versions support the same controller functionality for;
The command structure
Booking
Queuing
Interrupts.
The ECC 1365 and its associated software are designed to be used in a system with a configuration
typically as illustrated in Figure 4.
Commands and data are passed across the Ethernet from the host system to the ECC 1365, using
Logical Lin k Control procedures (LLC1) & (LLC3) or UDP protocols. Responses and data are received
by the host from the Ethernet, using these protocols. The UDP protocols encapsulate the LLC
protocols so that a UDP / IP host must also prepare the LLC protocol packets.
Each ECC 1365 can be controlled by more than one host; a CAMAC module -booking scheme is used
by the ECC, to prevent more than one host attempting to control the same CAMAC module at any one
time. This can be disabled by setting the module “promiscuous” bit in the controller-booking table.
Each host can control CAMAC modules in more than one ECC 1365. A multi-host / multi-ECC
configuration is illustrated in Figure 5.
Hytec Electronics Ltd– Page 18
ECC 1365 MK4 Technical Handbook
Host
E
CAMAC
Et hernet cable
Switch
Ethernet hub
Host
E
CAMAC
S
Ethernet cable
Switch
Ethernet hub
E
CAMAC
Host
E
CAMAC
S
S
System
S
System
Figure 4 A simple System Configuration
Crate
System
S
Figure 5 A multi host, multi-ECC system configuration
C
C
Crate
Crate
Crate
C
C
S
C
C
C
C
Hytec Electronics Ltd- Page 19
Technical Handbook ECC 1365 MK4
If a host has a multi-task operating system, each task within that host can control more than one ECC
1365, with each task acting independently.
The commands and data passed across the Ethernet are encoded in a format that allows efficient and
flexible control of the ECC 1365. The standard ESONE / DOE subroutines are available in the host
and later sections describe both the coding scheme and the ESONE / DOE subroutine mappings. The
coding scheme permits a more flexible control of the ECC than allowed by the ESONE / DOE
subroutines.
One of the extensions available in this release of the software allows the host software to continue
operation whilst an ECC 1365 action is in progress (asynchronous calls).
A common time is maintained across the components of the system (as described in 5,NETWORK
TIME, Page 36, Network Time). The host can request timestamps to be appended whilst an ECC 1365
request proceeds through the system.
A security feature is implemented which allows a system administrator to define which hosts can
access the ECC 1365. Hosts can be denied access to the whole cra te or to individual stations within
the crate. Similarly, access to security table updating, issuing CAMAC Z, C and I or access to
downloading new operation routines or commands can be controlled. When no data exists in the
battery-backed RAM security table or the internal switch disabling security is ON, the whole controller
is completely open. Note, module and LAM booking is still operational when the controller is OPEN.
For multi-tasking host environment an option exists to either enable or disable PID booking. PID
booking enables booking of CAMAC stations and / or LAMs down to the individual process identifiers
(PIDs) in the host system. If PID booking is off then the booking is to be the host ID only.
The automatic booking of stations when they are accessed for the first time is known as auto booking.
This feature can be enabled or disabled.
Hytec Electronics Ltd– Page 20
ECC 1365 MK4 Technical Handbook
3.2.1 Major Functions
∼ Support for the QSPAN PCI bridge and Intel 82559 Ethernet chip set.
∼ Driving the controller’s internal CAMAC interface.
∼ Driving the Logical Link Control (LLC1 & LLC3) protocols and the UDP/IP protocols (subset of
TCP/IP).
∼ Driving the Hytec -specific CAMAC command protocols.
∼ Servicing and support for CAMAC interrupts.
∼ Support for Block Mode & List Mode commands.
∼ Support for down loadable user defined CAMAC operation routines or new complete
commands.
∼ Timer support, including controller timekeeping, network time protocol support and data
timestamping support.
∼ Maintenance of booking tables.
∼ Booking tables for CAMAC station booking (booked to a single host on the network or to a
single process in a multi-processing host).
∼ LAMs can be booked to a single host on the network or to a single process in a multi-
processing host.
∼ Auto booking of CAMAC stations is optionally supported.
∼ “Promiscuous” modes are supported, i.e. unrestricted access from any host or process.
∼ Security features support. Security tables, in battery-backed RAM, control which hosts can
access this controller.
∼ Front panel terminal handling. This allows a standard RS232 terminal to be connected to the
controller, to modify the security tables and examine the controller statistics tables.
∼ Statistics-gathering support. The firmware will gather statistics on Ethernet messages, failures,
errors, recoveries, etc. plus CAMAC statistic s, such as a number of LAMs, double-booking
attempts, security violations and Dataway timeouts.
Hytec Electronics Ltd- Page 21
Technical Handbook ECC 1365 MK4
3.2.2 CAMAC Functionality
These features combine to provide the controller with comprehensive CAMAC functionality.
This includes;
∼ Single action CAMAC commands
∼ Block mode CAMAC commands, including
Address scan modes
LAM synchronised modes
Controller synchronised modes
All Q modes
∼ List mode CAMAC commands. Command lists can be loaded and executed repeatedly.
∼ Full Q, X and timeout error handling (by message to host).
∼ Normal CAMAC controls of Z, Clear, Inhibit, etc.
∼ Full CAMAC LAM support. Host processes are notified when booked LAMs occur. Block and
List modes can be synchronised to LAMs.
∼ User defined controller commands can be downloaded from a host and then executed (this
permits applications to set up extra controller capability, if needed).
Hytec Electronics Ltd– Page 22
ECC 1365 MK4 Technical Handbook
UDP,
LLC1
Logical Link Control
CHAPTER 4
4 SYSTEM PROTOCOLS
The controller supports both the Logical Link Control and the UDP/IP protocols.
4.1 Transport Layer Protocols
The firmware supports two transpo rt layer protocols. Hosts can access the controller using either of
these, the controller is able to deal with both simultaneously.
Logical Link Control was chosen as an efficient, lightweight protocol to provide guaranteed delivery,
message sequencing an d transaction processing. It provides a secure, low-overhead system and is
the protocol used with Hytec’s VAX/VMS host implementation.
UDP/IP is supported to satisfy the increasing number of UNIX environment users.
User Datagram Protocols (UDP) is a member of the TCP/IP protocol set and is generally supported on
UNIX implementations. When using UDP protocols, the Logical Link Control protocols are still used.
The message, must be a normal LLC protocol message, then passed to the controller using UDP to
encapsulate it. See figure 6.
ARP
And
ICMP
Protocol
Handlers
And
LLC3
Protocol
Handlers
Hosts talking UDP protocols (Unix Hosts)

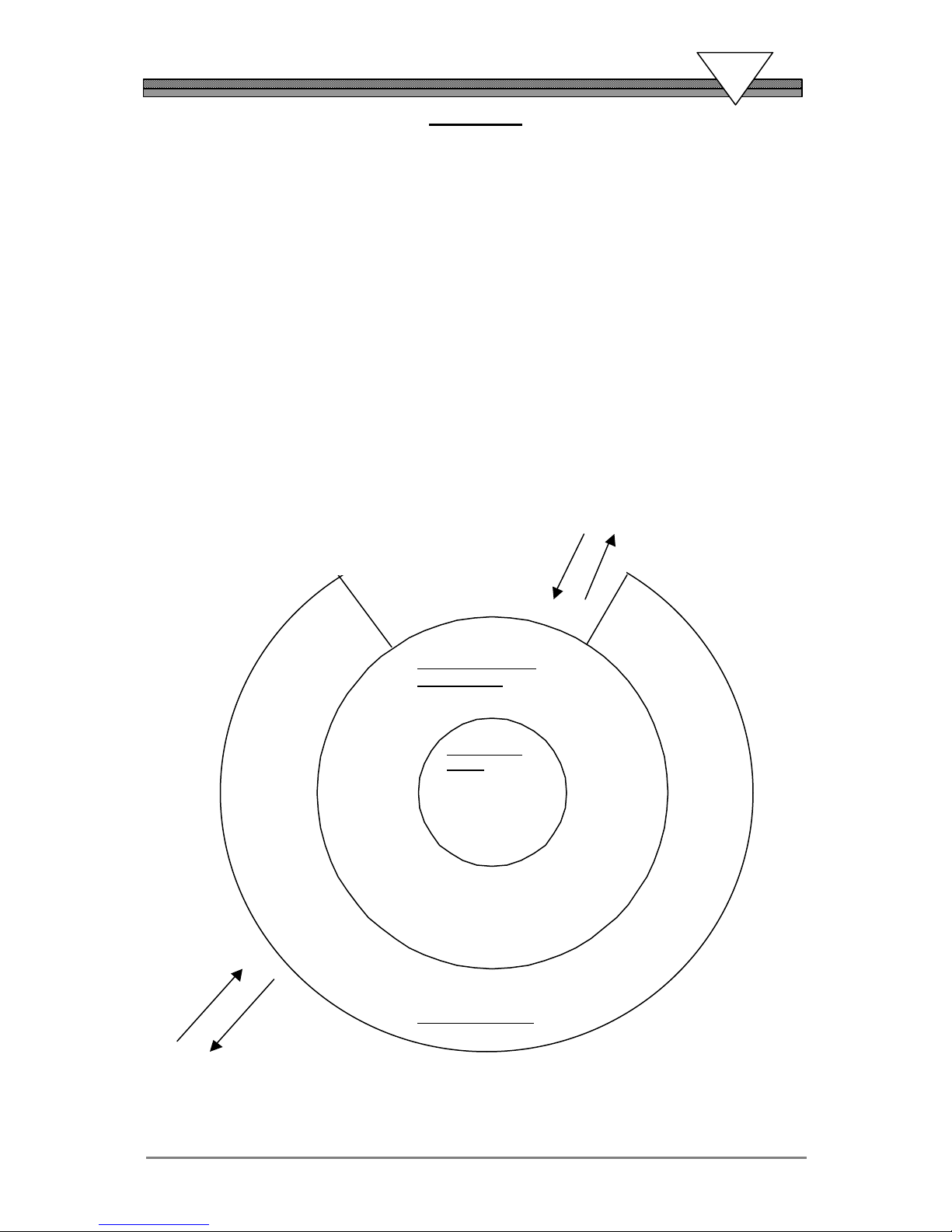

Figure 6 Protocol Layer model for the ECC 1365
Hosts talking directly LLC protocols (VMS Hosts)
Protocol Layer
APPLICATION
LAYER
Controller specific
CAMAC
Operation
Routine Protocol
UDP Protocol Layer
Hytec Electronics Ltd- Page 23
Technical Handbook ECC 1365 MK4
4.1.1 Logical Link Control
Both Logical Link Control (LLC1 and LLC3) procedures are used to transfer information between the
host(s) and the Ethernet Crate Controller(s) (ECC(s)).
LLC1 is used for:
Timer updates
ECC 1365 status requests
ECC 1365 reset requests
Find Crate address requests.
LLC3 is used to transmit command blocks to the ECC 1365 and to return the ECC’s response. Two
methods of operation are available:
Immediate response, where the command block is executed as soon as possible after
reception by the ECC 1365.
Deferred response, where the command block is queued by the ECC 1365 for later
execution.
The network interactions for these methods of operation are illustrated in Figure 7. A pair of (LSAP)
addresses are used, one for commands issued by the host and the other for commands issued by the
ECC 1365.
Hytec Electronics Ltd– Page 24
ECC 1365 MK4 Technical Handbook
Deferred response request
Operation complete
Queue request
Execute
Immediate response request
Host System Ethernet CAMAC Controller
Request + data
Operation complete
Response + data
Request + data
Acknowledge
Acknowledge
Figure 7 Network Interactions
Execute
Hytec Electronics Ltd- Page 25
Technical Handbook ECC 1365 MK4
Because LLC3 procedures are used for the main interaction between host and the ECC 1365, a
constraint is placed such that only one LLC3 operation (command -response sequence) can be in
progress between a given host and a given ECC 1365 at any time in a given direction.
Some Ethernet drivers, e.g. the current VMS driver, cannot transmit and receive LLC3 frames. For
these systems, a “pseudo LLC3 “ protocol is available. In this protocol, the LLC3 control and status
fields are carried in the first two bytes of the data area of the frame and the frame is converted to an
LLC1 UI frame. All the normal LLC3 procedures are operated using these two moved fields.
4.1.2 UDP/IP
The term TCP/IP has come to describe a family of Internet Protocols and not just the specific
Transmission Control Protocol and Internet Protocol ( see ref 15). The protocol of most immediate use
to the ECC 1365 operation is the User Datagram Protocols (UDP). Most UNIX implementations that
include TCP/IP support include UDP as well as part of the protocol family. Users should check
specifically with the version of UNIX and / or TCP/IP that they intend to use supports the User
Datagram Protocol.
In order to achieve a single firmware set that supports both Logical Link Control and UDP/IP, LLC3
procedures are carried in /Internet UDP/IP frames. Each ECC 1365 may be controlled by more than
one host using either LLC1 / LLC3 or UDP/IP protocols; the ECC 1365 will decide dynamical ly which
protocol the host is using.
The use of Internet UDP frames allows host systems with standard socket interfaces to communicate
easily with the ECC 1365 without the need to program at the Ethernet device driver level. This is
achieved by taking the standard “LLC3” frame, excluding the two Ethernet address fields and the MAC
length field (i.e. starting from the LCC LSAP field) and placing it as data in a UDP frame. As UDP is a
datagram protocol, LLC3 procedures are used to control the flow of data to and from the ECC 1365.
When the Internet Protocols are used, the Find Address Protocol (FAP) is not available and crates are
accessed by a crate number to internet address look up table maintained in the IP host
(IPADDR.DAT). The ECC 1365 will support the Address Resolution Protocol (ARP ref 19) for mapping
Internet addresses to Ethernet addresses and the Internet Control Message Protocol (ICMP ref 18) for
error reporting. (Note: the ECC 1365 will also respond to “ping” requests). The UDP/IP implementatio n
does not support Network Time Protocol (NTP), but may read correctly time stamped data as long as
at least one VAX/VMS host exists on the network to act as NTP master.
4.2 Application Layer Protocols – Command Block Format
When the immediate response mode is used, all data required by the ECC 1365 to perform the
requested operations (The command block and any required data) must be contained within one
Ethernet frame and all data to be returned by the ECC 1365 must also fit within one Ethernet frame.
When the deferred response mode is used, data can be larger than one Ethernet frame.
The Ethernet frame is shown in Table 1.
Hytec Electronics Ltd– Page 26
ECC 1365 MK4 Technical Handbook
Offset
(bytes)
0
6
12
14
15
16
17
18
19
20
22
24
26
28
32
34
36
38
When true LLC3 procedures are being used, the pseudo LLC3 fields become padding bytes and are
set to zero. When pseudo LLC3 procedures are being used, the LLC control field is set to “UI frame”,
the first padding field is set to zero and the LLC3 control and status bytes are inserted in the pseudo
LLC3 fields.
Length
(bytes)
6
6
2
1
1
1
1
1
1
2
2
2
2
4
2
2
2
n
Table 1 (ECP) Frame Format when carried by LLC
Contents
Destination Ethernet address
Source Ethernet address
MAC length field
LLC destination LSAP
LLC source LSAP
LLC control field
Padding byte (=0) or LLC3 status field
Padding byte (=0) or pseudo LLC3 control field
Padding byte (=0) or pseudo LLC3 status field
Fr ame type (=7)
Request number
CAMAC crate number
ECC host ID
Host PID
Host access ID
Flags
Status
Data area
4.2.1 Command Block Format for ECP Frame Carried by UDP
When an Ethernet Command Protocol (ECP) frame is carried by UDP, the two Ethernet address fields
and the MAC length field are omitted. The LLC3 command is provided as a “pseudo LLC3 “ frame as
described in section 4.1.1Logical Link Control, Page 24.
Offset
(bytes)
0
1
2
3
4
5
6
8
10
12
14
18
20
22
24
Length
(bytes)
1
1
1
1
1
1
2
2
2
2
4
2
2
2
n
Table 2 ECP Frame format when carried by UDP
Contents
LLC destination LSAP
LLC source LSAP
LLC control field (set to ‘UI Frame’)
LLC status field (set to 0)
Pseudo LLC3 control field
Pseudo LLC3 status field
Frame type (=7)
Request number
CAMAC crate number
ECC host ID
Host PID
Host Access ID
Flags
Status
Data area
Hytec Electronics Ltd- Page 27
Technical Handbook ECC 1365 MK4
4.3 Data Segmentation
When several Ethernet frames are used to transfer user data for one Ethernet CAMAC Protocol (ECP)
interaction (deferred response only), the data are considered to be a single stream split into several
segments (on e per Ethernet frame). These segments are delivered in sequence and can be
concatenated to reconstitute the original data stream.
Several ECC 1365 commands can be invoked by a single ECP interaction. The methods for
distinguishing the data associated with each command are described in outline below and in more
detail in the descriptions of the individual commands.
4.4 Data to the ECC 1365
The data stream to the ECC 1365 consists of a sequence of one or more ECC command blocks. Each
command block starts with a command code that is followed by any data required by that command.
The length of the command-specific data can be inferred from the command code or can be calculated
from a length or count field that follows the command code.
4.5 Data from the ECC 1365
The data stream from the ECC 1365 consists of a sequence of zeroes or one (or more) ECC data
blocks. Each block corresponds to an ECC command that requests data from the ECC. Commands
that do not request returned data do not generate an ECC data block.
An ECC 1365 data block can be further sub divided into data sections, where each section is
preceded by a length field. This field is a 16 -bit integer and its absolute value gives the number of 16bit words that follow i.e. the length count does not include itself. If the length count is negative, this
section is NOT the last one in the data block. If the length count is positive, this section IS the last one
in the data block. Note that a length count of zero is allowed and it indicates that there are no data in
this section but this is the end of the block.
The ECC 1365 and host systems handle the segmentation of the command block by queuing buffers
and maintaining a set of pointers locally. It is required that the header fields are all contained within the
first segment, so that only the parameter fields can span segments.
Hytec Electronics Ltd– Page 28
ECC 1365 MK4 Technical Handbook
4.6 ECC 1365 Commands
Each ECC 1365 command block is formatted as shown in table 3. The command code can be
followed by an optional, command -specific data. The ECC commands pre-defined by the ECC 1365
firmware are shown in table 4.
Command
(binary)
1ccc cccc mmmm mmmm
data
Command
Code
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
Description Modifier Contents
No Operation
CAMAC Operation
Set Maximum No -Interrupt Count
Set Wait Timer
Book Modu le
Unbook Module
Book Lam
Unbook Lam
Attach To Lam
Generate Dataway Initialise
Generate Crate Clear
Set / Clear Dataway Inhibit
Test Dataway Inhibit
Enable /Disable Crate Demand
Test Crate Demand Enabled
Test Crate Demand Present
Set LAM access mode
Clear LAM
Test LAM
Inform host of LAM
Change security table entry
Read booking table
Read timestamps
Read statistics data
Read trace buffer
Load new ECC command
Load new COR
Read security table
Store host command block
Store system command block
Chain to stored host block
Chain to stored system block
Set /clear module promiscuous flag
Set /clear LAM promiscuous flag
Pre-allocate response buffer space
Enable / disable module LAM
Clear all entries in security table
Attach COR to LAM
Definition
ECC control command
ccccccc – command code
mmmmmmmm – command modifier
Zero or more 16 -bit, command specific data words
Table 3 E CC 1365 Command Format
COR Number
Wait time value in 10 msec units
Station number
Station number
Station number
Station number
Station number
1 if set, 0 if clear
1 if enabled, 0 if disabled
Mode value
Station number
Station number
Station number
0-add, 1-update, 2-delete
Command number
Routine number
Stored block number
Stored block number
Stored block number
Stored block number
Set/clear + Station number
Set/clear + Station number
Station number
Table 4 ECC 1365 Control Commands
Hytec Electronics Ltd- Page 29
Technical Handbook ECC 1365 MK4
4.7 CAMAC Operation Routines
CAMAC operations are performed by a CAMAC Operation Routine (COR). The particular COR to be
used is specified in the modifier field of the “CAMAC operation” ECC 1365 command. There can be up
to 255 CORs, some of which are made available by the ECC 1365 software. CORs can also be
downloaded from a host.
Each COR is capable of executing a particular CAMAC sequence, e.g. there is a COR for Q repeat
operations. Several CORs might be available for the same CAMAC sequence; they differ in the type of
optimisation appli ed to the sequence. For example, for Q-repeat there is a COR that enables CAMAC
Look at ME (LAM) interrupts following a specified number of CAMAC operations. In addition, there is a
COR that will not enable LAM interrupts until the whole Q-repeat sequence is complete.
Table 5 shows the format of the CAMAC operation command. The operation counter is a 32-bit integer
which specifies how many CAMAC operations are to be performed. For a repeat operation, it specifies
how many times a successful repeat is to be performed using the following single CAMAC operation.
For general CAMAC operations, it specifies how many CAMAC operations follow.
Command List
(binary)
1000 0001 cccc cccc
LLLL LLLL LLLL LLLL
HHHH HHHH HHHH HHHH
0fff ffnn nnna aaas
xx xx xxxx xxxx xxxx
Definition
ECC CAMAC operation command
cccc cccc specifies COR to be used
Low 16-bits operation counter
High 16-bits operation counter
CAMAC operation
fffff CAMAC function code (5 bits)
nnnnn CAMAC station number (5 bits)
aaaa CAMAC subaddress (4 bits)
s data size indicator
s = ‘0’ – 16 bit data
s = ‘1’- 24 bit data
16 or 24 bits of data (see note) or further CAMAC
operations as necessary
Table 5 CAMAC Operation Command
Note:
24-bit CAMAC data are placed in the 24 least-significant bits of a 32-bit data word.
The 8 most-significant bits are ignored.
Table 6 shows the CORs that are available to the ECC 1365 software. The action of each COR is
described in terms of the block transfer mode descriptors, defined in Reference 6. The counter “maxnoint” is set by an ECC 1365 command and specifies how often interrupt shall be enabled by CORs
that permit interrupts during their execution. When interrupts are enabled, the ECC attempts to
transmit full response buffers back to the host.
Hytec Electronics Ltd– Page 30
ECC 1365 MK4 Technical Handbook
The COR routines that do not permit interrupts execute faster but at the expense of interrupt latency.
The requirements of a given application can be met by careful use of these routines, with the CORs
that enable interrupts with max-noint set to a suitable value. The use of CORs with the delay wait timer
(currently only COR 12) allows a slow poll of a module. A wait time of zero is permitted and this can be
used to provide round -robin polling of several modules.
COR Number Action
1
2
3
4
5
6
7
8
9
10
11
12
MCA mode. Q -responses are stored in the Q-response area.
Interrupts are disabled for the whole operation.
MCA mode. As 1 but interrupts are checked every “max-noint” CAMAC
operations.
ACA mode. Interrupts are disabled for the whole operation.
ACA mode. As 3 but interrupts are checked every “max-noint” CAMAC
operations.
UCS mode. Interrupts are disabled for the whole operation.
UCS mode. As 5 but interrupts are checked every “max-noint” CAMAC
operations.
UCW mode. Interrupts are disabled for the whole operation.
UCW mode. As 7 but interrupts are checked every “max-noint” CAMAC
operations.
ULS mode.
UQC mode. Interrupts are disabled for the whole operation.
UQC mode. As 10 but interrupts are checked every “max-noint” CAMAC
operations.
UQC mode. As 11 but after Q=0 response the next execution of the CAMAC
operation is delayed by the wait time.
Table 6 CAMAC Operation Routines
4.8 Mapping ESONE / DOE Subroutines to Network Protocols
Tables 7, 8 & 9 show the mapping on the European Standards On Nuclear Equipment (ESONE)
subroutines (known in the USA as DOE routines) into command blocks. When one of the ESONE /
DOE block routines requires to wait for a LAM before starting execution, a command with code 8
(attach to LAM) is pre -pended to the command list. When short data-word CAMAC operations are
required, the least significant bit of each CAMAC command is set to zero rather than one.
ESONE / DOE Subroutine Command List
Perform single CAMAC operation 1000 0001 0000 0001
0000 0000 0000 0001
0000 0000 0000 0000
0fff ffnn nnna aaal
Table 7 Single Action Command Block
Hytec Electronics Ltd- Page 31
Technical Handbook ECC 1365 MK4
ESONE / DOE Subroutine Command List Notes
Generate Dataway Initialise
Generate Crate Clear
Set / Clear Dataway Inhibit
Test Da taway Inhibit
Enable / Disable Crate Demand
Test Crate Demand Present
Clear LAM
Test LAM
Link LAM to Service procedure
Table 8 Mapping ESONE / DOE subroutines to ECC 1365 Commands
Notes:
1. Command modifier determines set or clear
2. Command modifier determines enable or disable.
3. The mode value is a copy of the LAM access specifier provided to the Declare LAM
subroutine
Generate Dataway Initialise
Generate Crate Clear
Set / Clear Dataway Inhibit
Test Dataway Inhibit
Enable / Disable Crate Demand
Test Crate Demand Present
Set LAM access mode
Clear LAM
Set LAM access mode
Test LAM
Set LAM access mode
Inform host of LAM
1
2
3
3
3
Hytec Electronics Ltd– Page 32
ECC 1365 MK4 Technical Handbook
ESONE / DOE Subroutines Command List Notes
General Multiple action
Address Scan
Controller-Synchronised Block
Transfer
LAM-Synchronised Block Transfer
Repeat Mode BlockTransfer
Table 9 Mapping ESONE / DOE Subroutines to ECC 1365 Commands Block Transfers and Multiple
Set “max-noint” count = 50
1000 0001 0000 0010
Number of operations (low)
Number of operations (high)
0fff ffnn nnna aaal
Data if write
0fff ffnn nnna aaal
Data if write
…………….
Set “max-noint” count = 50
1000 0001 0000 0100
0000 0000 0000 0010
0000 0000 0000 0000
0fff ffnn nnna aaal
0fff ffnn nnna aaal
Data if write
…………….
Set “max-noint” count = 50
1000 0001 0000 0110
Number of operations (low)
Number of operations (high)
0fff ffnn nnna aaal
Data if write
…………….
Or
Set “max-noint” count = 50
1000 0001 0000 1000
Number of operations (low)
Number of operations (high)
0fff ffnn nnna aaal
Data if write
…………….
Set LAM Access mode
1000 0001 00 00 1001
Number of operations (low)
Number of operations (high)
0fff ffnn nnna aaal
Data if write
…………….
Set “max-noint” count = 50
0000 0001 0000 1011
Number of operations (low)
Number of operations (high)
0fff ffnn nnna aaal
Data if write
…………….
Actions
1
2
3
See notes overleaf
Hytec Electronics Ltd- Page 33
Technical Handbook ECC 1365 MK4
Notes
1. Provides station number and subaddress of the last CAMAC operation.
2. Stop mode.
3. Stop-on-word mode
4.9 Network Protocols
4.9.1 Find Address Protocol
The Find Address Protocol (FAP) enables a host to determine the Ethernet address of an ECC, given
the number of the CAMAC crate controlled by that ECC. FAP is not available with UDP protocols.
If a host does not know the Ethernet address of an ECC 1365, it transmits a Find Address Request
multicast frame. This frame contains the number of the CAMAC crate being sought. The host waits for
3 seconds, for a Find Address Response multicast frame containi ng that CAMAC crate number. If a
response has not been received after 3 seconds, the request is re -transmitted but the number of
retries is limited to three. When a response is received, the source address of the response frame is
that of the sought ECC 13 65. The FAP multicast frame format is given in Appendix A2, Table A2.2
When an ECC receives a Find Address Request multicast frame with its CAMAC crate number, it
transmits a Find Address Response multicast frame with a copy of the CAMAC crate number.
As the Find Address Response frame is transmitted with a multicast address, it is potentially received
by all hosts on the Ethernet. Any host receiving such a frame but which has not transmitted a Find
Address Request, can use the information within the rece ived frame to maintain a table of known crate
and corresponding Ethernet addresses.
4.9.2 ECC 1365 Reset Protocol
The ECC Reset Protocol (ERP) can be used by a host to reset an ECC 1365. The function is not
available to UDP hosts.
When a host wishes to reset an ECC 1365, it transmits an ERP request multicast frame (table)
containing the CAMAC crate number of the ECC to be reset. The host waits for 60 seconds, for an
ERP Response multicast frame or an ERP active multicast frame containing the appropriate CAMAC
crate number. If a response has not been received after this time, the request is re -transmitted but the
number of retries is limited to three. The ERP frame format is given in Appendix A2, Table A2.3.
When an ERP Response frame is received, the host can assume that the ECC is resetting and, when
an ERP Active frame is received, the host can assume that the ECC has completed its reset
procedure.
When an ECC 1365 receives an ERP request, it checks that the originating host is allowed to make
that request. If permitted, it transmits an ERP Response and initiates a reset. If the host may not make
the request, it is ignored.
As the ERP response frame is transmitted with a multicast address, it is potentially received by all
hosts on the Ethernet. Any host rec eiving such a frame but which has not transmitted an ERP
Request, can use the information within the received frame.
When an ECC 1365 encounters a fatal internal error, it attempts to transmit an unsolicited ERP
response to inform hosts that it is resetting.
When an ECC 1365 completes its reset sequence, it transmits an ERP Active multicast frame to
inform hosts that it is available. Note that the ERP Active frame is not sent until the Network Time
Protocol (NTP) Listening state has been completed.
Hytec Electronics Ltd– Page 34
ECC 1365 MK4 Technical Handbook
4.9.3 ECC 1 365 Status Protocol
The status protocol returns various parameters from the ECC, such as queue length, free buffer
counts, etc. These can be used for performance monitoring.
4.9.4 Ethernet Control Protocol
The Ethernet Control Protocol (ECP) is used for norma l operation of the ECC 1365. It instructs the
ECC to perform CAMAC operations, transfers CAMAC data and enables control over the use of the
CAMAC modules controlled by the ECC. An overview description of ECPs is covered in Chapters
4.6,ECC 1365 Commands, Page 29 & 4.7,CAMAC Operation Routines, Page 30. The ECP frame
format is given in Appendix A2, Table A2.4
Hytec Electronics Ltd- Page 35
Technical Handbook ECC 1365 MK4
CHAPTER 5
5 NETWORK TIME
The network time protocol (NTP) maintains a uniform time across the network, by all systems
periodically generating NTP multicast frames. These frames contain a timestamp from the originator
and an estimate of the transmission delay.
Note: UDP protocol hosts (UNIX) cannot issue NTP multicast frames so, therefore, cannot become
network time masters. If networks contain at least one LLC protocol host (VMS) then normal network
time service will be available to UDP hosts.
5.1 Theory
The NTP is based on the wo rk of Lamport, see Reference 12. The aim is to ensure all ECC 1365
modules and all cooperating host processes on an Ethernet are synchronised with respect their record
of time.
For any event, ‘a’ can be said to occur before ‘b’ if the clock value of ‘a’ is less than the clock of ‘b’.
Events ‘a’ and ‘b’ might be events within a process or could be transmission and receipt, respectively,
of a message across a network. To guarantee that this system synchronises Network Time, two rules
must be applied.
Where ‘a’ and ‘b’ are events within a process, the clock for the process must be incremented
between successive events.
Where ‘a’ and ‘b’ are transmission and receipt, respectively, of a message, the message must
contain a timestamp of the transmitter, and upon receipt, the receiver must advance its clock
to at least the value of the timestamp.
In real time, there is some total delay between transmission and receipt but this delay is unknown to
the receiver. However, it is possible to calculate the minimum dela y in the system such that the
minimum delay is greater than zero and it is less than or equal to the total delay.
A process sends a message with its clock value as the timestamp. On reception, the receiving process
must set its clock equal to the maximum of its existing clock value or the timestamp value plus the
minimum delay.
Following this simple procedure, the Network Time is synchronised for all co-operating processes
attached to the network.
5.2 Practice
The working of the algorithm depends upo n the successful estimation of the minimum transfer delay of
a message between processes. The delay occurs in three places.
1 the transmission delay
2 the transit delay
3 the reception delay:
Hytec Electronics Ltd– Page 36
ECC 1365 MK4 Technical Handbook
Of these, the transit delay on an Ethernet is usually insignificant. The other two depend on the
functioning of the host system (the transmitter) and the ECC 1365 module (the receiver). The latter
can be minimized and accurately estimated. The former is host dependent and extremely variable,
depending on the processor and its loading. A separate program is provided which estimates this
value. If the transit delay on the Ethernet becomes significant over an extended period of time (due to
congestion or a fault condition), the accuracy of the network time across the total system decreases
(due to inaccuracies in the individual clocks). The accuracy of the network time is, to a first order,
equal to the transit delay being experienced.
5.3 Network Time Algorithm
This algorithm is executed on receipt of every NTP multicast. Netwo rk time is defined as the number of
10msec units since midnight, i.e. it provides a time -of –day clock.
Time, Tn is calculated as the sum of the timestamp value in the NTP multicast frame, the originator’s
estimate of its transmission delay and the receiver’s estimate of its receipt delay. If the value of Tn is
greater than the receiver’s current estimate of network time, the receiver replaces its value of network
time with Tn.
5.4 Network Time Protocol
All systems on the network generate NTP multicast frame s every 10 seconds. Generated frames
contain the originator’s current value of the network time and an estimate of the transmission delay in
the originating system. All systems –host(s) and Ethernet Crate Controller (ECC 1365) modules –
receive these frames and run the Network Time algorithm, taking into account the minimum delay
computed from the information provided in the frame. The NTP frame format is given in Appendix A2,
Table A2.1.
If the Network time held locally is required to advance, this is done immediately, by modification to the
Network Time Bias variable for host systems or directly, by altering the time -of-day count in the ECC
1365 modules.
NTP multicast frames also act as a heartbeat for all systems and the loss of six consecutive NTP
multicast frames can cause the software to reset any reference to the particular system.
All systems enter a Listening state on start up, this enables them to synchronise their clocks before
generating NTP frames. The listening time is 35 seconds. If no NTP multicasts are received during this
period, a host system sets its value for the network time to its own time-of-day and commences
sending NTP multicasts. An ECC 1365 module remains in the Listening state until it receives at least
one NTP multicast.
Hytec Electronics Ltd- Page 37
Technical Handbook ECC 1365 MK4
CHAPTER 6
6 ETHERNET CAMAC CONTR OLLER FIRMWARE DETAILS
The ECC 1365 CAMAC controller is designed to be driven from one or more hosts across an Ethernet
local area network. An overview of the network protocols used and the software provided in the
Ethernet Crate Controller (ECC 1365) and for host systems is described in Chapter 4,SYSTEM
PROTOCOLS , Page 23.
This chapter gives a more detailed description of the firmware structure, its functions and processing
priorities.
6.1 Priorities & Main Control Loop
The software in the ECC 1365 assigns event priority in the following order:
∼ The timer interrupt
∼ The QSPAN/82559 interrupt
∼ LAM interrupts.
∼ Received frames. Immediate response frames are actioned dur ing LLC3 frame input
processing
∼ Deferred response requests.
The requests contained in Logical Link Control (LLC1) frames are actioned within the QSPAN/82559
interrupt routines. Note that this includes the reset command and ensures that the ECC 1365 can be
reset despite the presence of a permanent CAMAC LAM interrupt condition or runaway command
execution:
Figure 8 illustrates these processing priorities and figures 9 & 10 show the flow of command lists
through the ECC 1365 software.
Hytec Electronics Ltd– Page 38
ECC 1365 MK4 Technical Handbook
Timer interrupt
82559 interrupt
LAM interrupt
Process entry
Process entry
Timer interrupt
82559 interrupt
LAM interrupt
from LLC3
input queue
from deferred
response queue
processing
processing
processing
Queue
empty
yes

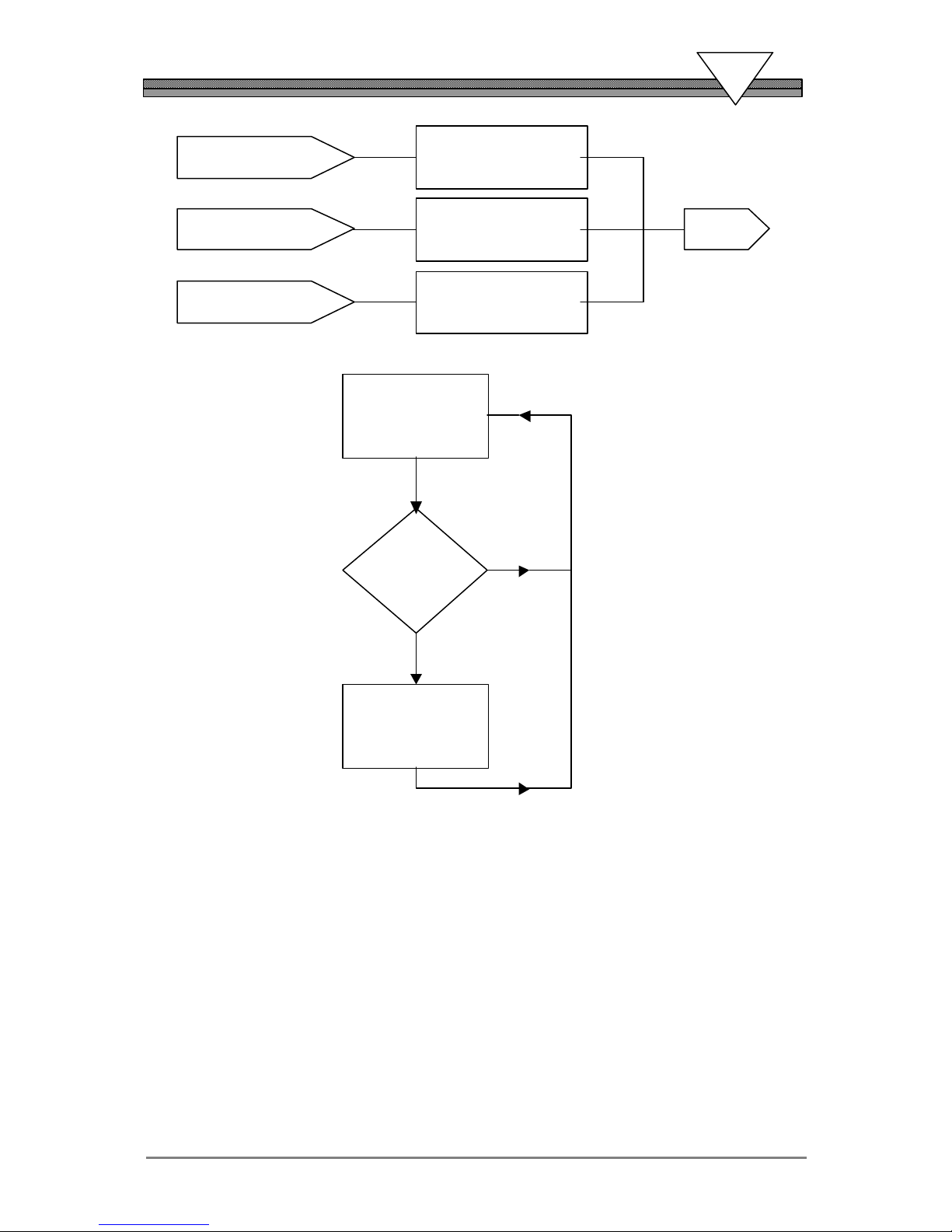

Figure 8 Processing Priorities
no
Exit
Hytec Electronics Ltd- Page 39
Technical Handbook ECC 1365 MK4
LLC3
Booking
Deferred
Send
Immediate
Execute
LLC3 /UDP
table
Accepted
Response
Response
Queue
A

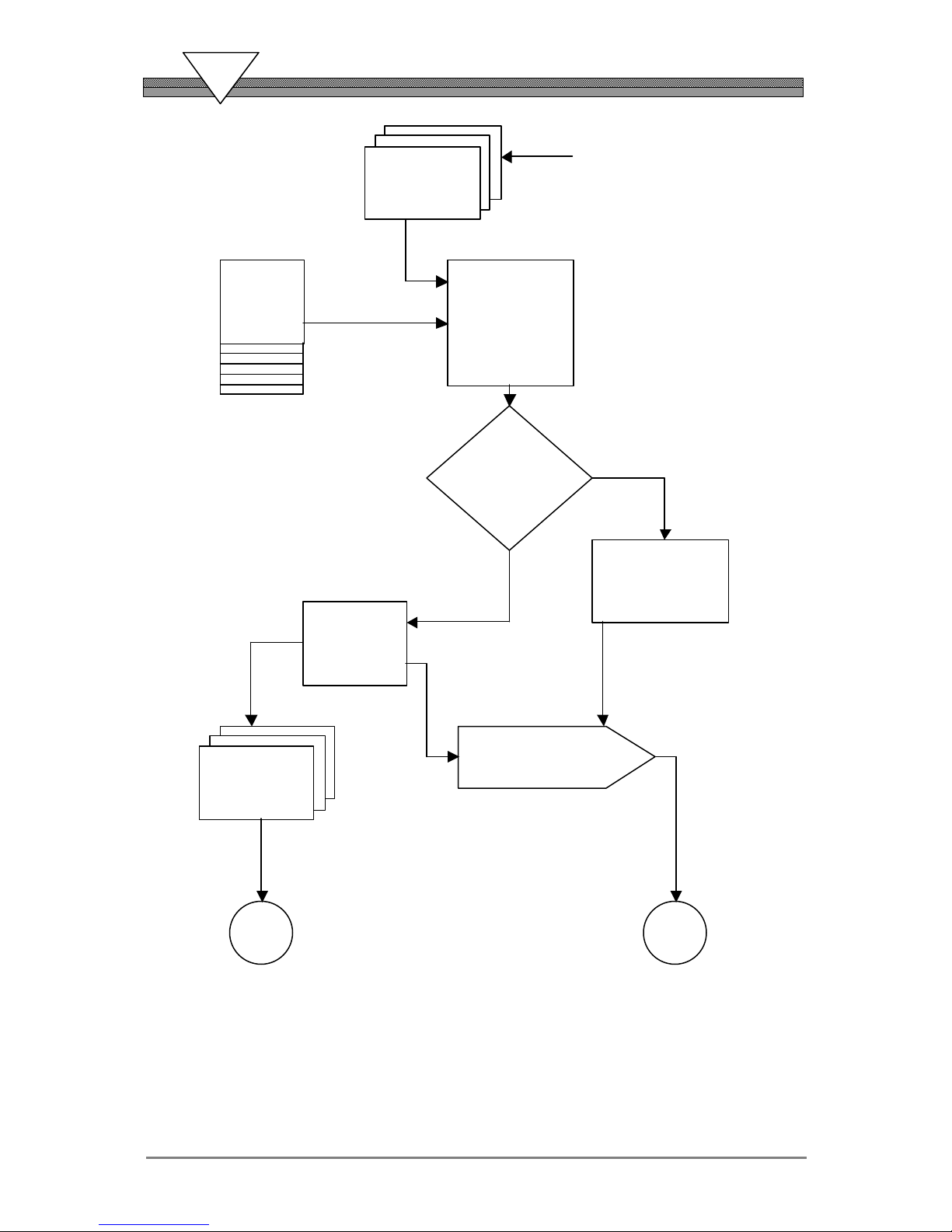

Figure 9 Command List Data Flow- Immediate Operations
Input
Queue
Attach
Booked
Module
Key
operation
Output
Processing
From 82559 or UDP
commands
B
Hytec Electronics Ltd– Page 40
ECC 1365 MK4 Technical Handbook
Deferred
Delay
LLC3
Execute
LLC3/UDP
82559
A
B
Response
Queue
Transmit
Ring
Ethernet

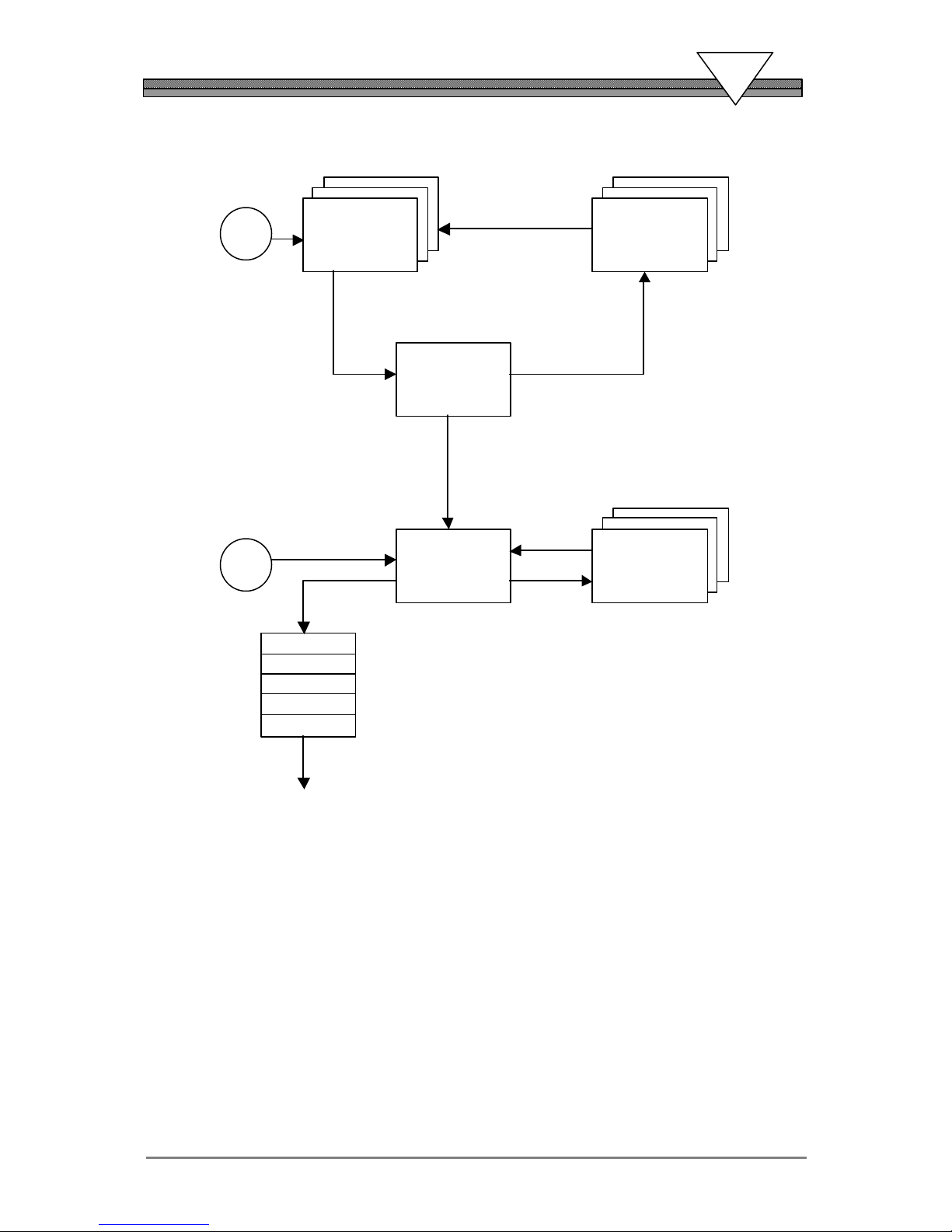

Figure 10 Command List Data Flow
Delay time complete
Commands
Output
processing
Queue
Delay repeat
Output
Queue
Hytec Electronics Ltd- Page 41
Technical Handbook ECC 1365 MK4
6.2 Timer Interrupt Actions
The timer interrupt routine performs the following actions on each interrupt:
Increment the real time clock.
Cycle through the queue of command blocks for which a delay timer is in effect. For each one,
decrement the timer and, if it is now zero, stop the timer and re-queue the associated
command block on to the deferred response queue.
Cycle down a list of outstanding LLC3 transmit timers. When it finds one, decrement the timer,
and if it is now zero, invoke the appropriate LLC3 error handler.
Hytec Electronics Ltd– Page 42
ECC 1365 MK4 Technical Handbook
Address
Address
Address
Address
Address
Address
Address
Build and send
status response
Build and send
address response
6.3 82559 Interrupt Actions

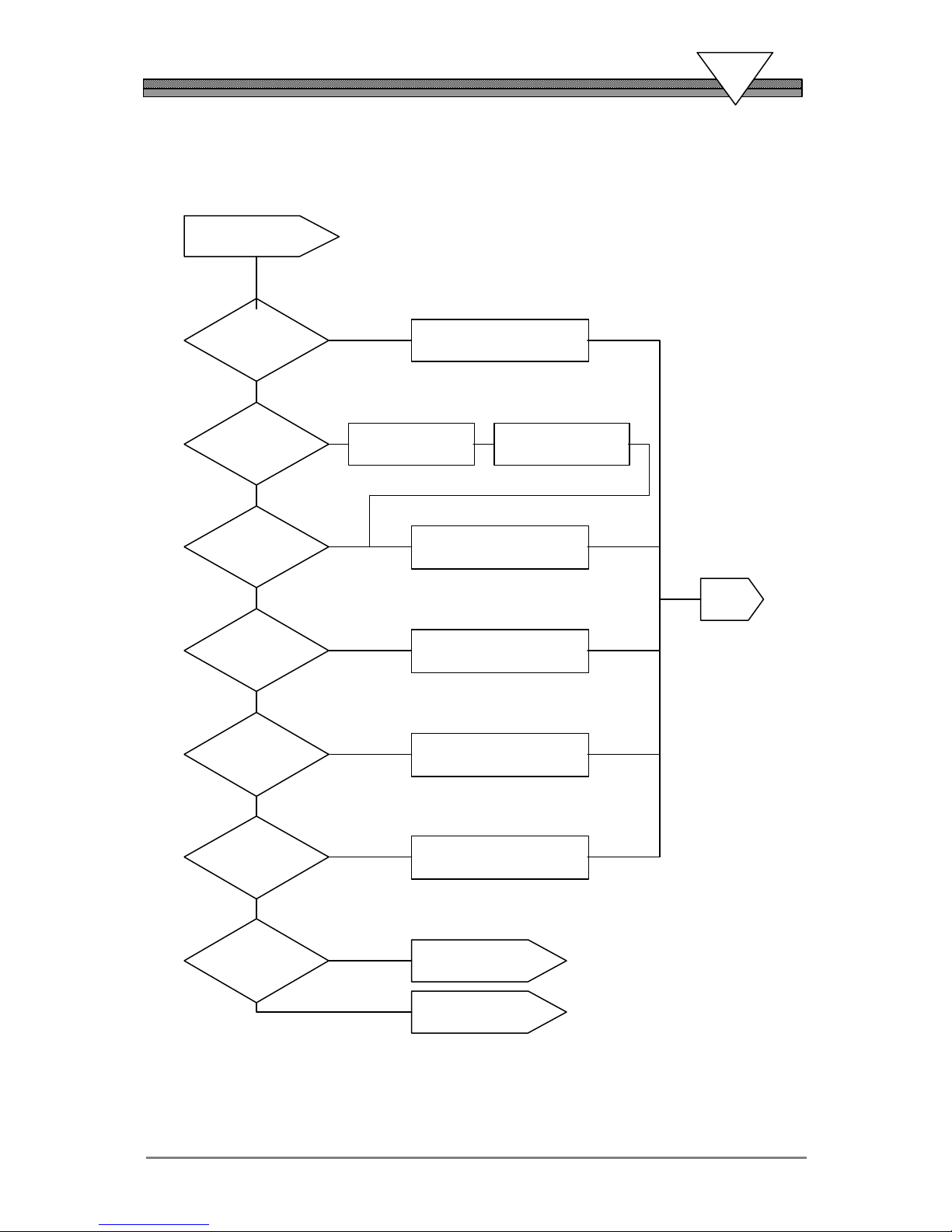

The action of the software when receiving an 82559 interrupt is shown in Figure 11.
82559 interrupt
Free Buffer
Request
IP Processing UDP Processing
Request
Queue Buffer
Request
Timer algorithm
Request
Request
Request
Reset processing
Request
Error processing
Figure 11 Command List Data Flow- Deferred Operations
Exit
Hytec Electronics Ltd- Page 43
Technical Handbook ECC 1365 MK4
6.4 LAM Interrupt Actions
The LAM interrupt handler checks the associated CAMAC module control block to determine the
action to be taken. This action is one of:
Send notification of the LAM to a host
Restart execution of a LAM -synchronised CAMAC operation
Start execution of an attached command block
Record an unexpected LAM message in the trace buffer and
Disable the appropriate LAM mask bit
6.5 Module booking
The software in the ECC 1365 maintains a booking table. Each entry in the field contains two fields; a
48-bit Ethernet address and a 24-bit booked module mask.
The Ethernet address field is used when starting processing a command and it identifies the entry for
t he host. If no entry is found, a new one is created with a booked module mask of all zeros.
The booked module mask contains a record of all modules booked by the host, where a 1 in bit
position 2N indicates that the module in station number N is booked. The booked module mask is
attached to the command block when processing the command begins.
Each CAMAC module has an associated control block that contains four fields of interest to the
module booking software:
A 24 -bit module identification field contains one single bit set in position in position 2N and can
be “bit-wise ANDed” with the booked module mask attached to the command block to see if
this module is booked to the issuing host.
A flag field contains a ‘module booked bit’-used to indicate that the module has been booked,
and a ‘module promiscuous bit’ – which indicates that the module can not be booked. The
initial state of the module promiscuous bit is read from permanent RAM if this is enabled;
otherwise, all modules are marked as non -promiscuous. The state of this bit can be altered by
ECC command code 32 or the relevant ECCOP command.
A ‘booking host ID’ field contains a pointer to the relevant entry in the booking table.
A ‘booking PID field’ contains the PID of the booking process.
Modules may be booked by host Ethernet address alone or by host Ethernet address and Process ID.
The PID booking mode is selected by switch SW1-2 on the side of the controller (on = enabled). Once
selected, this mode cannot be changed without switching the controller off and resetting the switch.
Note: Unix users should be wary of the PID mode being enabled.
If PID booking is enabled by the switch and an initialisation [!INIT] command is performed, auto
module booking is disabled.
Hytec Electronics Ltd– Page 44
ECC 1365 MK4 Technical Handbook
An auto-booking scheme may be enabled by the appropriate ECC command code or the relevant
ECCOP command. If enabled, the auto-booking is invoked during command block processing
whenever a module is referenced which is; not booked to the host, is not promiscuous and is not
booked to any other host (or PID if PID booking enabled). There is no corresponding auto-unbooking
mechanism and all modules must be unbooked explicitly. Notification of host reset (whether caused by
network or host failure) un -books all modules booked to that host. Dataway Clear and Dataway
Initialise do not un-book modules.
The ECCOP routine CLRBOOK will clear all booking on all modules; this routine can be protected
against by using “clear booking table allowed” flag in the security tables.
6.6 LAM Booking
The softwa re in the ECC 1365 operates a LAM booking scheme. This scheme allows a LAM from a
CAMAC module to be booked to a specific host or PID. Once a LAM is booked, the host can specify
what is to be done on receipt of a LAM from the module ( see also Chapter 6.4,LAM Interrupt Actions,
Page44). Operation of the booking procedures is similar to that for module booking, including autobooking and promiscuous operation – Command Codes 6,7,8 & 33 (see Chapter 6.5,Module booking,
Page 44 )
Note that booking a LAM requires that the host or PID has already booked the corresponding module.
6.7 Operating Statistics
The ECC 1365 software maintains a table of statistics that can be read by host systems (Command
Code 23) or displayed by a terminal connected to the ECC 1365 front panel port. These statistics
provide cumulative counts of the number of times that selected conditions are encountered in the
ECC. The content of the statistics table is shown in Table 10
Hytec Electronics Ltd- Page 45
Technical Handbook ECC 1365 MK4
Major Topic Counter Bit Length
82559
Module counters
(one block per module)
Memory allocation
Command block counters
Host table entry counters
Security table entry
counters
Crash table entries
(5 copies, see note)
Current up time
Download memory
Note: The crash table entries are time-ordered, with the last entry corresponding to the most recent
crash. Unused entries have a crash code of SUCCESS
Packets transmitted successfully
Packets having to defer on transmit
Number of excessive collisions
Number of illegal collisions
Number of excessive deferrals
Number of bad packe ts monitored
Packets received successfully
Number of receive FIFO overruns
Number of receive buffer overflows
Number of receive descriptor exhausted
Number of receive buffer exhausted
Number of collisions during reception
Number of heartbeat failures
Number of missed packets
Number of CRC errors
Number of frame alignment errors
Number of LAMs
Number of unexpected LAMs
Number of double booking attempts
Number of security violations
Number of Dataway timeouts
Kbytes currently allocated
Maximum Kbytes allocated
Number available
Number currently allocated
Number available
Number currently allocated
Maximum number allocated
Number available
Number currently allocated
Maximum number allocated
Up time to crash in seconds
Crash code
Time since last restart in seconds
Size available in bytes
Current usage in bytes
Table 10 Statistics Table Format
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
16
16
16
16
16
16
16
16
16
16
32
16
32
32
32
Hytec Electronics Ltd– Page 46
ECC 1365 MK4 Technical Handbook
6.8 Tracing
The ECC 1365 software records significant events (mostly errors) in a circular trace buffer. The trace
buffer is 1 Kbyte and maintains a record of the last 64 events. The format of a trace table entry is
shown in table 11.
Field Length (bytes)
Timestamp
Event code
Host Ethernet address
Module number
Interrupt level
Event-related data
Table 11 Table Trace Entry Form
Trace Table data can be read by a host (Command code 24).
4
2
6
1
1
2
6.9 Downloading New Software
It is possible for a host to load new software into the ECC 1365 (Command codes 25 & 26). This
software can replace an existing ECC command (or CAMAC operation routine – COR) or it may add a
new ECC command (or COR) by using an unused command code or routine number. An area of ECC
memory can be reserved for downloaded code; when this area is full, further download requests will
fail. The ECC must be reset to recover the space in the reserved memory.
A COR routine can be attached directly to a LAM so that when the LAM is present, the routine is
invoked. This allows downloaded code to handle LAMs.
A separate manual, entitled ‘Downloading Software’ describes this facility in more detail and is
normally shipped as part of the distribution.
6.10 Initialisation
Switches on the ECC 1365 are read to determine the initial operating parameters of the ECC 1365
software. These switches are used as follows:
The fro nt panel Normal Mode / Diagnostic Mode switch determines whether the ECC enters normal
operating mode or diagnostic mode.
Jumper JP4 enables or disables the use of a security table. In the disabled state, the software defaults
to no security features appl ied.
Four switches (5 to 8 on SW5) are used to specify the LSAP address pair to be used.
Details of these switch settings are in Chapter 8.1.6,Configuring the Links & Switches, Page 73
Hytec Electronics Ltd- Page 47
Technical Handbook ECC 1365 MK4
6.11 The Tick Timer
A 10 msec tick timer is implemented by one of the timers in the hardware. This is used to maintain a
time-of-day counter “cur-time” (in 10 msec units) and a time-since-last-restart counter “up_time” (in
seconds).
6.12 Time Tagging
The time when a command was received by the ECC 1365, the time when its execution commenced
and the time when its execution completed are recorded by the module firmware. A data block
containing these times for the most recently executed command can be read by a host on request
(command 22)
6.13 The Clock System
Since the time taken for the “Set time” message to be formed, transmitted by the host, received and
decoded by the controller and acted upon is indeterminate, the relationship between Controller Time
and Real Time is always in error up to 0.2 seconds either way.
The “Read Time” message is used to estimate the transmission delay of the message and determine
the error, if any, in the time held by the controller. The “Read Time” and “Set Time” processes operate
IN ADDITIO N to the NTP scheme that “trims” the RTC on each device.
In applications where very precise time tagging is required, a separate CAMAC Real Time
Clock module should be used, accessed by the host in the course of data collection.
6.14 The Crash Table
The firmware maintains a circular crash table in the battery -backed RAM, which contains the reason
for the last five system crashes together with the value of the “time up” variable at the time of the
crash. The index number at the start of the crash table indicates the next table entry to be written.
The error codes are shown in the table overleaf.
Hytec Electronics Ltd– Page 48
ECC 1365 MK4 Technical Handbook
Value
Name
Description
0
1
2
3
4
6
8
10
12
13
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
90
92
94
96
98
100
102
104
110
112
114
118
FAILURE OR FAIL
SUCCESS
QWASCLR
ERP_ACCEPTED
NOBUFS
NO_CMND_BLOCKS
BAD_PARAM
BAD_SEG
PROMISCUOUS
UPDATE_PROM
BAD_CMND
DUP_CRATE
ERP_REQUEST
HOST_FULL
FAIL_SECURITY
LAM_ATTACHED
MOD_BOOKED
TRAP_68901
TRAP_POWER
TRAP_BUS
TRAP_ADDRESS
TRAP_ILLEGAL
TRAP_DIVIDE
TRAP_CHK
TRAP_TRAPV
TRAP_PRIV
TRAP_TRACE
TRAP_BAD
TRAP_TRAP
MEMORY_ERROR
SEC_BADREQ
SEC_FULL
NO_SBLOCK
BAD_COR
USER_RESET
DIAG_9519
NO_DTM4
DIAG_CAMAC
INV_IMMEDIATE
BAD_CAMAC
DOWNLOAD_LOCK
DOWNLOAD_DATA
DOWNLOAD_FULL
NO_MEMORY
CAMAC_NOTX
CAMAC_NOTQ
CAMAC_NOTQX
IPTIMER_LOOP
PUSHDOWN_FAIL
MOD_BOOKED_PID
BAD_VERSION
DIAG_82559
82559_TXERR
TRAP_1101
TRAP_1111
REG_82559
General Failure
Function Performed Successfully
Queue Was Empty
ERP Request Accepted
Not Enough Buffers On Queue To Satisfy Request
No Command Blocks Left
Error Found When Encoding/Decoding A Parameter
Bad Segment Request
Booking Request Failed, The Module/LAM Is Promiscuous
Trace Table Entry Only, Promiscuous Flag Updated
Error Decoding ECC Command Or Undef. ECC Command
Duplicate CAMAC Crate Number Seen On Ethernet
Reset Request By ERP
Host Table Full
Host Request Failed Security Checks
LAM Already Attached
Module Booked To Another Host
Bad 68901 Interrupt
Power Fail Interrupt
Bus Error Interrupt
Address Error Interrupt
Illegal Instruction Interrupt
Zero Divide Interrupt
CHK Instruction Interrupt
TRAPV Instruction Interrupt
Privileged Instruction Interrupt
Trace Interrupt
General Bad Interrupt
TRAP Instruction Interrupt
Failed RAM Diagnostics
Bad Change Security Table Entry Request
Security Table Full
No Stored Command Block To Supply To
Non Existent CAMAC Operation Routine Requested
User Has Requested A Reset
Failed AMD9519 (UIC) Diagnostics
No DTM4 Module Has Been Defined For Test
Failed CAMAC Diagnostics
Command Invalid In Immediate Response Request
Bad CAMAC Operation Requested
Download Already In Progress
Error In The Download Data
Not Enough Memory For Download Data
Not Enough Memory For Getmem() Request
Not X During CAMAC Operation. Note: Warning Only
Not Q During CAMAC Operation.
No Q Or X During CAMAC Operation.
Loop In IP Timer Queue
Buffer too small for pushdown
Module booked to another PID
Firmware / host software version mismatch
Failed 82559 diagnostics
82559 hard TX error
Line 1101 exception interrupt
Line 1111 exception interrupt
Unable to read / write 82559 registers
Table 12 ECC 1365 MK 4 Firmware Error Codes (Crash Codes).
Hytec Electronics Ltd- Page 49
Technical Handbook ECC 1365 MK4
6.15 Command Processing
The command block in a received frame is decoded and executed within module “cmndexec .c”
A 128 -element lookup table is used to determine the ECC 1365 command routine to be executed.
The lookup table is set during ECC initialisation, to point to routines to execute the pre-defined ECC
commands shown in table 3. Undefined entries in the lookup table are initialised to point to an error
routine.
6.16 COR Processing
CAMAC operations requested by the “CAMAC operation” ECC 1365 command are handled by module
“cor.c” (Command Code 1).
A 256 -element lookup table is used to determine the CAMAC operation to be executed.
The lookup table is set during ECC initialisation, to point to routines to execute the pre-defined CORs
shown in Table 5. Undefined entries in the lookup table are initialised to point to an error routine.
6.17 Security Processing
A set of routines for handling the security table are present in module “security.c”. The security state of
the ECC 1365 is maintained in the global variable “security_state”. If this variable is zero, the ECC is
unsecure. If this variable is non -zero, the ECC is secure and the variable value indicates the number
of active entries in the security table. The check and link routines can be called independently of the
current security state, see also Chapter 9,SECURITY FEATURES, Page 83.
The security table can be read by all hosts (Command code 27) and can be changed by permitted
hosts (Command Code 20 )
NOTE: as a precaution against locking out access to an ECC 1365 by entering an erroneous Ethernet
address, when the entry is the first entry, (making a first entry changes controller state from OPEN to
SECURITY CHECK) a consistency check is carried out by the ECC 1365 firmware. The very first
security table update from a remote host must specify an Ethernet address equal to the source
address in the Ethernet frame and it will be forced to have security table update enabled for it.
6.18 Power Fail
The ECC 1365 MK 4 contains a CAMAC power -fail monitor. The power-fail monitor detects a sharp
drop in the incomi ng +6 volt rail and interrupts the processor through NMI (non maskable interrupt)
when this happens giving rise to Crash Code 36 and reports to all known hosts where possible.
6.19 Error Codes
A common set of error codes is used within the firmware. These are defined in module “structs.h” and
are reproduced in Table 12. Some of these codes are internal to the software and some can be
observed at the user level, e.g. in a system crash table entry.
Hytec Electronics Ltd– Page 50
ECC 1365 MK4 Technical Handbook
CHAPTER 7
7 ECC 1365 FRONT PANEL DIAGNOSTICS TERMINAL SUPPORT
T his section describes the command interface to the ECC 1365 firmware, available through the frontpanel RS232 connector. It defines the commands available and the output from those commands.
7.1 Overview
A simple command interface is available to a terminal connected to the front -panel RS232 connector
of the ECC 1365 module, see Chapter 8.1.5,Connecting the Front Panel RS232 Port to a terminal,
Page73. The comman ds are divided into three groups:
The first group contains the commands available for normal operation of the system.
The second group contains commands for configuration of the module.
The third group contains diagnostic commands.
The operating mode of the system determines which commands are available:
Normal mode makes available only normal commands.
Battery-backed RAM mode makes available the normal commands plus command for setting
the module configuration.
Diagnostic mode makes available the normal commands plus diagnostic commands. Note that
the diagnostic command $RUN is available only if the front panel switch is in the diagnostic
position at power up. Exit from this special startup mode is via a diagnostic command but
there is no entry to this special state from an operating system.
Note that whenever an error is made at the keyboard, e.g. the wrong command or a keying error, the
response is always:
Only in some instances will an explanation be given.
If a typing error is noticed immediately, use the Back Space key to move the cursor to the left and then
overtype.
The last five commands can be recalled by use of the VT200/VT300 terminal up -arrow key (similar to
the VM5/DCL method). For terminals without arrow keys, Ctrl/r can be used.
The available commands are shown in Table 13.
Bad command
Hytec Electronics Ltd- Page 51
Technical Handbook ECC 1365 MK4
Command Action
Normal Mode
DISPLAY SECURITY
DISPLAY DTM4
DISPLAY STATISTICS
DISPLAY ADDRESS
DISPLAY CRASH
DISPLAY MODE
DISPLAY ARP
DISPLAY AUTO
DISPLAY NL
CHANGE SECURITY
CHANGE DTM4
CHANGE MODE
CHANGE PR2401
CHANGE OD2407
RESET
CLRBOOK
CAMAC N A F [DATA]
HELP
Battery-backed RAM Mode
!INIT
!EPA
!EMA
!CLRSEC
!DLMEM
!IPA
!IPS
!AUTO
Diagnostic mode
$DM
$DL
$DW
$DB
$CL
$CW
$CB
$DMOD
$DHOSTI
$DHOSTE
$RUN
$NORMAL
$CAMAC n a f [data] [+]
Displays entries from the security table
Displays the CAMAC station number of a DTM4 module
Displays the contents of the statistics table
Displays the modules addresses
Displays the contents of the crash table
Displays the current operating mode
Displays ARP protocol details
Displays the current booking methods
Displays station numbers of the N/L line test modules
Change entries in the security table
Changes the CAMAC station number of a DTM4 module
Changes the operating mode
Change station number of PR2401 module (N line test)
Change station number of OD2407 module (L line test)
Resets the module and restarts the firmware
Clear all booking entries from the controller
Performs the specified CAMAC operation
Displays a list of available commands
Initialises the contents of the battery-backed RAM
Sets the module’s Ethernet physical address
Sets the module’s Ethernet multicast address
Clears all entries in the security table
Specifies the size of the download memory region
Sets module IP address
Sets module “well known” socket number
Enables or disables autobooking
Displays a block of memory
Displays a longword of memory
Displays a word of memory
Displays a byte of memory
Changes a longword of memory
Changes a word in memory
Changes a byte in memory
Displays a module control block
Displays a host control block
Displays a host control block
Runs a diagnostic routine
Exits the special diagnostic startup mode
Loop on the specified CAMAC routine
Table 13 ECC 1365 Front Panel Terminal Commands
This list is displayed whenever ‘help’ is typed (upper or lower case). The list is presented in four
sections, the first three stopping with the message:
The next section is then shown when <Return> is pressed. The help list can be aborted by pressing
Ctrl -C at any time.
Hytec Electronics Ltd– Page 52
-- more—
ECC 1365 MK4 Technical Handbook
Abbreviations are allowed for some of the commands, as shown below.
Command Word Abbreviation
DISPLAY
CHANGE
STATISTICS
Table 14 Command Word Abbreviations
Command details are given below.
Some commands cause the firmware to ask further questions, to define the operation to be performed.
If a default answer is relevant, it is shown in square brackets after the question,
e.g. [U(pdate)] or [D(elete)?]
Enter <Return> to accept the default displayed.
D
C
STATS
7.1.1 Trap Details
When the 68060 processor generates an unusual trap condition (e.g. Bus error) the firmware will
attempt to display diagnostic information on the terminal screen before completing crash/restart
processing. This information will include the contents of the 68060 registers at the trap and the top of
the stack (at the very top of the stack will be the 68060 exception frame).
7.2 Normal Mode Commands
7.2.1 Display Security
Enter either a 12 -digit (hexadecimal) Ethernet or an n.n.n.n style Internet Protocol address.
Alternatively press<return> to see a list of all entries in the table. If there are no entries, the message:
‘Security Table empty’ is displayed.
If a known Ethernet address is entered, a display is generated. A typical one is shown below
Addr ess SU Z C I DL PR E ST Module mask
111111111122222
123456789012345678901234
EEEE 0000 0000 X . . X X . X X XXXXX.....XXXXXXXXXXXXXX
Completed OK
Note: an ‘X’ denotes a bit set and a ‘.’ denotes a bit clear.
Hytec Electronics Ltd- Page 53
Technical Handbook ECC 1365 MK4
7.2.2 Display DTM4
DTM4 is the Hytec CAMAC Dataway Test Module, type 4 –used for diagnostic tests.
The command displays:
DTM4 is in station 2
7.2.3 Display Statistics
The firmware displays the statistics shown in Table 15. The output is paginated; press <return> to see
the next page or <Ctrl-C> to stop.
The statistics listing is initiated by the command;
display statistics
or
d stats
and a typical printout would be:
Hytec Electronics Ltd– Page 54
ECC 1365 MK4 Technical Handbook
Table 15 ECC 1365 Statistics Printout
82559 Statistics
Packets transmitted successfully 133
Packets having to defer on transmit 2
Number of excessive collisions 0
Number of max collisions 0
Number of normal collisions 0
Number of transmit under -runs 0
Packets received successfully 191
Number of receive overruns 0
Number of receive resource errors 0
Number of Frame Alignment errors 0
Number of CRC errors 0
Individual address register 1 -6 0 80 3 14 3 9
IP statistics
Total 0 runt 0 len err 0 vers err 0 checksum err 0 badproto 0
ICMP statistics
Chksum err 0 no space 0 icmp 0 bdsts 0
Type rcvd sent
UDP statistics
Sent 0 rcvd 0 bdcsts 0 chksum err 0 unknown socket 0
General statistics
Current up time 54:00
Missed timer interrupts 0
(corrected for)
Memory Statistics
Heap pool size 1940800 bytes
Memory currently allocated 50816 bytes in 33 blocks
Allocation high water mark 50816 bytes in 35 blocks
Current average block size 1588 bytes
Number command control blocks 50
Number currently allocated 0
Allocation high water mark 0
Number of host control blocks 30
Number currently allocated 0
Allocation high water mark 0
Number of security table entries 150
Number currently allocated 0
Allocation high water mark 0
Download memory size (bytes) 00000000
Current allocation (bytes) 0000 0000
Hytec Electronics Ltd- Page 55
Technical Handbook ECC 1365 MK4
CAMAC Module statistics
Station Good Unexpected Booking Security Dataway
LAMs LAMs failures violations timeouts
1 0 0 0 0 0
2 0 0 0 0 0
3 0 0 0 0 0
4 0 0 0 0 0
5 0 0 0 0 0
6 0 0 0 0 0
7 0 0 0 0 0
8 0 0 0 0 0
9 0 0 0 0 0
10 0 0 0 0 0
11 0 0 0 0 0
12 0 0 0 0 0
Enter <RETURN> to continue, <CTRL -C> to stop press <return>
Station Good Unexpected Booking Security Dataway
LAMs LAMs failures violations timeouts
13 0 0 0 0 0
14 0 0 0 0 0
15 0 0 0 0 0
16 0 0 0 0 0
17 0 0 0 0 0
18 0 0 0 0 0
19 0 0 0 0 0
20 0 0 0 0 0
21 0 0 0 0 0
21 0 0 0 0 0
22 0 0 0 0 0
23 0 0 0 0 0
24 0 0 0 0 0
7.2.4 Display Address
Typing this command causes the following display;
CAMAC crate number 1
Controller Ethernet address 0080 0314 0302
Multicast Ethernet address 0180 0300 0000
Host LSAP 60
Controller LSAP 64
Controller IP address 192.10.4.0
Controller Socket 240
Hytec Electronics Ltd– Page 56
ECC 1365 MK4 Technical Handbook
7.2.5 Display Crash
The firmware displ ays information for up to the last five firmware crashes. For each crash, the reason
code for that crash is displayed along with the previous uptime of the firmware (in seconds). For
example:
D crash
------ Restart History-----uptime 2:10:48 restart co de 68
uptime 1:06:21 restart code 31
uptime 3:28:19 restart code 25
7.2.6 Display Mode
The current operating mode of the module is shown:
Current mode is – normal
7.2.7 Display ARP
The firmware displays the Address Resolution Protocol (ARP) operating statistics and the current
contents of the ARP table, for example:
D ARP
Received 0 badtype 0 badlen 0 bogus addr 0 reqst in 0 replies 0 regst out 0
Type IP addr Time Q addr
7.2.8 Display Auto
This command displays the current state of auto-booking and the booking ty pe whether it be host only
or host and PID.
A typical display shows:
Auto booking is currently enabled
The booking is by host_id and PID
7.2.9 Change Security
The display shows:
Enter Ethernet address or IP address:
Enter either a 12 -digit (hexadecimal) Ethernet address as 3 groups of 4 digits, i.e. C0C0 0000 0000, or
as a decimal format IP address (e.g. 192.1.2.3).
Hytec Electronics Ltd- Page 57
Technical Handbook ECC 1365 MK4
The display might show:
No space for new entry
If no table space is available to add a new address (max.150).
If a table entry already exists, the question:
U(pdate) or D(elete)?[U]
Is displayed.
Enter “U” to update the entry or “D” to delete it. If the entry is not to be deleted, several questions are
asked to determine the contents of the table entry.
When updating an existing entry, the default values shown reflect the existing value and the display is:
Enter a 24-bit mask with not -blank and not -dot giving access to module
111111111122222
123456789012345678901234
…………………………………..
The dots indicate that access is not allowed to the module at the indicated CAMAC station for that host
address. The 24 numbers shown correspond to the CAMAC Station numbers (read vertically)
Enter a mask pattern. To do this, enter any character (except a blank or a dot) to permit access to
chosen modu les, e.g.
11111 11111111111111
This allows access to all modules, except station numbers 6 to 10 inclusive, for that address.
When <Return> has concluded the above selection, the following messages are displayed in turn –
each waits for a response, which can be acceptance of the offered default or the entry of another
option.
Note that responses must be made in UPPER CASE
Security table update allowed: Y(es),N(o):
Crate Initialise allowed: Y(es),N(o):
Crate Clear allowed: Y(es),N(o):
Set/Clear Dat away Inhibit allowed: Y(es),N(o):
Download new command or COR allowed: Y(es),N(o):
Alter module/LAM promiscuous flag allowed: Y(es),N(o):
ECC reset allowed: Y(es),N(o):
Store system command block allowed: Y(es),N(o):
Enable /disable autobooking allowed: Y(es),N(o):
Clear all booking entries allowed: Y(es),N(o):
Completed OK
Follow this sequence for all host addresses to be set up. Upon completion, run ‘display security’.
Hytec Electronics Ltd– Page 58
ECC 1365 MK4 Technical Handbook
WARNING:
Extreme caution should be taken when entering security data. If the security table was previously
empty (module was OPEN), you must ensure that the host address you enter is correct for the host
you are entering data for. Otherwise, all access to the module is prohibited until the error is corrected
or the security table disabled . Correctly entered Ethernet or IP addresses for existing hosts do not
cause a problem.
7.2.10 Change DTM4 [n]
Typing this command causes the message:
Enter (decimal) station number of DTM4 module (0=none) [0]:
To be displayed. The new station number then entered can be checked by using the display dtm4
command.
7.2.11 Change MODE [n]
When the command:
change mode
Is typed, the message:
WARNING- setting mode non-zero allows operations which may make the
controller function incorrectly. If in doubt, issue a RESET command.
Enter mode - 0(normal)
1(B-RAM setup)
2(Diagnostic)
3(B-RAM + Diagnostic)[2]:
is displayed. This warns that damage might result from misuse of commands not available in normal
mode.
The firmware then asks for the new mode to be entered. Type the required mode number, when the
response is:
Change complete.
7.2.12 Reset
Using this command causes the message:
WARNING – Reset will destroy all current controller operations and all
settings will be re-read from the switches and the battery -backed RAM.
Are you sure you wish to continue [no]:
If ‘yes’ is returned, the following message will be displayed.:
Hytec Electronics Ltd- Page 59
Technical Handbook ECC 1365 MK4
SYSTEM CRASH – Code 68 *************
HYTEC ELECTRONICS Ltd. ETHERNET CRATE CONTROLLER ECC1365 MK IV
Serial number 769
Firmware version 8.0 (Sept 2000)
1988 Kbytes memory installed
Co -processor not fitted
Main initialisation complete
----------- Restart History-------------
Uptime 2:10:48, restart code 68
Starting QSPAN diagnostics
PCI Ethernet initialised OK
I82559 diagnostics complete – s tart normal operation
I82559 Autonegotiation complete 100Mbit Half Duplex
7.2.13 HELP
The firmware displays the available commands together with a short description of their purpose. The
output is paginated; press <Return> to see the next page or <Ctrl-C> to st op. Sample output is shown
in table13.
7.2.14 CAMAC
This command executes a single CAMAC command in the crate. The format is:CAMAC N A F [data]
Where: -
N = CAMAC station number in range 0..24
A = CAMAC sub-address in range 0..15
F = CAMAC Function Code in range 0..34
If the Function Code is a write (range 16 -23), then the data argument must be supplied:Data = CAMAC data in decimal
The CAMAC command responds with:-
CAMAC operation Fn Am at station p
Where n, m and p are N A F respectively.
I f the Function Code was a read (0-7) then the read data is displayed:-
Data = xxx (decimal) yyy (hex).
The Q and X responses are always shown thus: -
X – response =0 Q – response =0
Where response can be either 0 or 1 for false and true respectively.
7.3 Battery -backed RAM Mode Commands
If the firmware is not operating in battery-backed RAM mode, the following message is displayed and
the command is ignored.
Hytec Electronics Ltd– Page 60
Not in Battery-backed RAM setup mode
ECC 1365 MK4 Technical Handbook
7.3.1 !INIT
Typing this command causes the message:
WARNING- This command will destroy all data in the battery-backed RAM
Are you sure you wish to continue [no]:
If the answer is “yes”, the battery-backed RAM is initialised to the following state:
The crash table is emptied.
The Ethernet physical and multicast addresses are set up from the data in the internal
EPROM
The security table is emptied
The statistics data are cleared
Note: If the battery-backed RAM becomes corrupted, due to battery discharge, this command
MUST be issued before normal operation is possible.
7.3.2 !AUTO
Typing this command causes the message:
WARNING – Enabling and disabling the autobook function should only be
performed if all current users are made aware of the change to the
controller.
Enter –0(Autobook disabled)
1(Autobook enabled)
7.3.3 !EPA[n]
Set up the Ethernet Physical Address.
Syntax: !EPA xxxx xxxx xxxx
Where xxxx is a 4-digit hexadecimal number. The three numbers are the Ethernet Physical address.
The second digit of the first set of four must be even for a physical address.
If an error is made, the message:
Bad input –3 4-digit hex numbers required
Is shown. For example;
!EPA C0C0 0000 0001
This command allows you to set up a physical address different to the one stored in the internal
EPROM, if desired.
Hytec Electronics Ltd- Page 61
Technical Handbook ECC 1365 MK4
7.3.4 !EMA [n]
Set up the Ethernet Multicast Address.
Syntax: !EMA xxxx xxxx xxxx
Where xxxx is a 4-digit hexadecimal number. The three sets of four digits provide the Ethernet
Multicast address. The second digit of the first set of four must be odd for a multicast address.
The broadcast address of FFFF FFFF FFFF is not allowed. Example;
!EMA 8500 0000 0000
This command allows you to set up a multicast address different to the one stored in the internal
EPROM, if desired.
7.3.5 !CLRSEC
Clear the security table
Syntax: !CLRSEC
The command issues a warning message explaining that all the data in the security table are lost if
execution is continued.
Enter “Yes” to proceed, any other response is taken as no. Note: you must enter the full word ‘yes’ for
this command to operate.
7.3.6 !DLMEM
Declare downline load memory region, in bytes.
Syntax: !IDLMEM xxxxxxxx
Where xxxxxxxx is a hexadecimal number specifying the number of bytes to allocate to the download
memory region after the next ECC restart. The value is stored in the battery-backed RAM.
If an odd number of bytes is specified, the message:
Even length in hex required
Is shown.
If too much memory is specified, the message:
Can’t allocate more than ½ free memory to download region
is given. The rest of the memory is requi red for system buffers.
Hytec Electronics Ltd– Page 62
ECC 1365 MK4 Technical Handbook
7.3.7 !IPA[n]
Syntax: !IPA nnn.nnn.nnn.nnn
where nnn.nnn.nnn.nnn is the decimal form of the module’s IP address. The value will be stored in the
battery-backed RAM. See Chapter 8.2.4,Setting Up The I nternet Protocol And Socket ID Addresses. ,
Page 78 for details of IP addresses.
7.3.8 !IPS[n]
Syntax: !IPS nnn
where nnn is the decimal number specifying the module’s “well known” socket number. The value will
be stored in the battery -backed RAM. See Chapter 8.2.4,Setting Up The Internet Protocol And Socket
ID Addresses., Page 81 for details of socket numbers.
7.4 Diagnostic Mode Commands
If the firmware is not operating in diagnostic mode, the following message is displayed, and the
command is ignored.
Not in Diagnostic mode
Note that the $RUN commands are available in this mode.
7.4.1 $CL
Syntax: $CL hexaddr hexvalue
Changes the longword of memory at hexaddr to hexvalue. Hexaddr must be even.
7.4.2 $D L
Syntax: $DL hexaddr
Displays the longword of memory at hexaddr. Hexaddr must be even.
7.4.3 $DM
Syntax: $DM hexaddr hexlength
Displays hexlength bytes of memory starting at hexaddr. Hexaddr must be even.
If hexlength is not specified, a length of 128 bytes is used.
The display is paged in 128 -byte pages; press <Return> to see the next page or <Ctrl-C> to stop.
Hytec Electronics Ltd- Page 63
Technical Handbook ECC 1365 MK4
7.4.4 $DW
Syntax: $DW hexaddr
Displays the word of memory at hexaddr. Hexaddr must be even.
7.4.5 $DB
Syntax: $DB hexaddr
Displays the byte of memory at hexaddr. Hexaddr can be odd.
7.4.6 $CW
Syntax: $CW hexaddr hexvalue
Changes the word of memory at hexaddr to hexvalue. Hexaddr must be even.
7.4.7 $CB
Syntax: $CB hexaddr hexvalue
Changes the byte of memory at hexaddr to hexvalue. Hexaddr can be odd.
7.4.8 $D MOD
Syntax: $DMOD index
Displays the module control block specified by index. Index is a decimal number and corresponds to a
CAMAC station number.
7.4.9 $DHOSTI
Syntax: $DHOSTI index
Displays the module control block specified by index. Index is a decimal number between zero and the
maximum number of simultaneous hosts supported by the system, minus one, i.e. 29.
7.4.10 $DHOSTE
Syntax: $DHOSTE xxxx xxxx xxxx
Displays the host control block corresponding to an Ethernet address, where xxxx is a 4 digit
hexadecimal number. The three sets of four digits provide the Ethernet physical address. The second
digit of the first set of four must be even for a physical address.
Hytec Electronics Ltd– Page 64
ECC 1365 MK4 Technical Handbook
7.4.11 $RUN
Syntax $RUN testname
If the firmware is not operating in startup diagnostic mode, the f ollowing message is displayed.
$RUN is available only at system startup and requires the start in
diagnostic mode switch to be set
Runs the diagnostics test specified by ‘testname’. Table 16 lists the available diagnostic tests. The
individual tests are described in more detail below.
Diagnostic test name Action
MEMORY
CAMAC
TIMER
LEDS
NL
Extended test of the buffer memory
CAMAC access and highway tests (requires DTM4)
68901 tick timer test
Front panel LEDs, 8-bit DIP switch and CAMAC crate address
switch test
Station number and LAM line test using special modules – Hytec
use only
Table 16 Available Diagnostic Tests
7.4.11.1 $RUN MEMORY
A moving bit pattern is written to the buffer memory, then read, and checked. Nine complete passes
are made through the memory. A typical message is
Memory test of buffer area C17C20 to DF1000
This test takes less than one minute to complete.
Only buffer memory is checked with this test as the remainder of the RAM is required for system
operation.
The test displays a rotating windmill whilst running and can be aborted by pressing <CTRL -C>. If the
test fails, the appropriate memory address and data are displayed.
Hytec Electronics Ltd- Page 65
Technical Handbook ECC 1365 MK4
7.4.11.2 $RUN CAMAC
This test runs a 24-bit read/write data check at the DTM4, followed by Function code, Sub-address, Q
and X response checks.
Dataway Z, C and I are checked for correct operation.
The message:
No DTM4 module defined
Might be displayed. Enter the command ‘change dtm4’ and then the required station number (see
above) before re -attempting $RUN CAMAC
If successful, the message;
Test 1 – 16-bit write/read
Test 2 – 8-bit data high register test
Test 3 – FA control lines set
Test 4 – Crate initialise test
Test 5 – Crate clear test
Test 6 – Crate inhibit test
Test 7 – Q & X test
Comp leted OK
is shown.
NOTE! This test will only run correctly with a Hytec Electronics Ltd. Dataway test module type DTM4.
7.4.11.3 $RUN TIMER
This test checks the operation of the timer (Timer A) on the 68901 MFP chip. A 1-second tick timer is
initialised and the message “Tick ” is output to the terminal on every timer interrupt. The ticks can be
timed to check clock accuracy.
Terminate the test by pressing <CTRL-C>.
7.4.11.4 $RUN LEDS
This test consists of four parts and each is terminated by pressing <CTRL-C>
A bouncing, single bit pattern is written to the LEDs ‘NOQ’ to ‘FAST CAMAC’ inclusive.
The 8-way DIP switch SW1 (emulation) is copied to the LEDs
The 8-way DIP switch SW2 (emulation) is copied to the LEDs
The CAMAC Crate number switches are copied to the LEDs
The display is:
LED test – check for a bouncing pattern
Press Ctrl -C to abort
8-way DIP switch SW1 test – switch value copied to LEDs
Press Ctrl -C to abort
8-way DIP switch SW2 test – switch value copied to LEDs
Press Ctrl -C to abort
CAMAC Crate switch test – switch value copied to LEDs
Press Ctrl -C to abort
Test terminated
Hytec Electronics Ltd– Page 66
ECC 1365 MK4 Technical Handbook
Important notes:
The SW1 and SW2 tests relate to the switches in the Mk3 controller and only parts of these are
controlled by switch SW5. SW5 elements 5-8 (LSAP) appear in the lower 4 LEDs (DIAG to FAST
CAMAC) during the SW1 test, and elements 1 and 3 control LEDs NOQ and INH during the SW2 test.
Jumpers JP3 and JP4 appear in the SW1 test on NOQ and NOX respectively (JP IN = ON).
7.4.12 $NORMAL
The firmware is switched out of the special startup diagnostic mode and normal system operation is
initiated. The action is the same as starting the system with the NORMAL/DIAGNOSTIC switch in the
normal position.
After this command has been actioned, the $RUN command is no longer availabl e.
7.4.13 $CAMAC
CAMAC command loop. This command is similar to the normal mode CAMAC command (7.2.14)
where N, A, F and data are supplied. The command is executed in a continuous loop until <CTRL-C>
is entered. If the command line is terminated with a + after t he data (for CAMAC writes only) then the
data is auto incremented on each cycle of the loop.
This command is only available in diagnostic mode.
Command format: $CAMAC N A F [data]
or if F is a write command (16..23) then: $CAMAC N A F data +
where:-
N = CAMAC station in range 1..24
A = CAMAC sub-address in range 0..15
F = CAMAC function code in range 0..31
Data = data for write command (decimal)
+ = auto increment data
Once the command is entered (RETURN key enters the command) the CAMAC c ommand loop is
entered. The message: -
Type Ctrl -c to stop
is displayed.
Hytec Electronics Ltd- Page 67
Technical Handbook ECC 1365 MK4
CHAPTER 8
8 USING THE ECC 1365
The following sections describe how to configure the ECC 1365 hardware and software and how to
verify correct installation. It includes some tips on troubleshooting, should problems with the ECC 1365
arise. See the relevant Installation guides for VMS, UNIX or other host software installations.
8.1 Installing the ECC 1365
The normal delivery configuration of an ECC 1365 will be as Master ACB controller; the front panel
RS232 port set for 9600 Baud and the LSAP address set to 60 hex.
It is recommended that you check all configuration details, the links and the switches of all delivered
units prior to initial operation.
8.1.1 Configuring as Master ACB
The ECC 1365 is configured as a Master ACB controller as follows:
1 To configure the unit as a master ACB controller the configuration of both the left hand
and right hand boards must be as follows:
To access the right -hand board, open the unit by removing the top rail screws of the right
hand station and loosening those at the bottom. There is one screw on the rear panel and
one on the front panel. The right hand board should now be fitted in place using the four
M2 pan-head screws. Now re-assemble the unit, by carefully closing the unit and re-
securing the two screws (front & back panels).
2 Install the rear panel ACB connector cable between the two ACB IDC headers.
3 Install the six SIL (8 x 470R) (RN1-6) and two DIL (13 x 470R) (RN7, RN8) “pull-up”
resistor packs in their sockets on the rear (close to the CAMAC connector) of the left hand
controller board. The resistor packs are installed as shown in Figure 12 and access
necessitates removal of the left hand side panel. Be careful to orientate the resistor
networks correctly. Note that the common end of the SIL networks is at the bottom.
IMPORTANT: Ensure that the correct values are located in the sockets, and in the correct
orientation.
4 Install the single pole LEMO cable between the front panel “Request” and “G rant in”
sockets.
The unit is now configured for Master ACB operation.
Hytec Electronics Ltd– Page 68
ECC 1365 MK4 Technical Handbook
8.1.2 Configuring as Slave ACB
The ECC 1365 is configured as Slave ACB controller as follows:
1 To configure the unit as a slave ACB controller the pull up resistor packs must be removed
f rom the left-hand board and the right-hand board should be removed as follows:-
To access the right-hand board, first, remove the interconnecting ACB cable, if fitted from the rear
panel ACB connectors of the unit. The unit must then be opened, by removin g the top rail screws of
the right hand station and loosening the bottom rail screws. There is one screw on the rear panel and
one on the front panel. Open the unit and remove the four M2 pan-head screws securing the short
right-hand card to the rails. Re -assemble, by carefully closing the unit and re-securing the two screws
(front & back panels).
Note: the supplied rear panel ACB ribbon interconnect is not fitted in slave ACB mode. A
special rear ACB cable is required (available from Hytec on request) wit h the appropriate
number of connectors for the configuration you are using.
2 Remove the six “pull up” SIL resistor packs, RN1 - 6 from their sockets on the rear (close to
the CAMAC connector) of the left hand controller board and the two DIL resistor packs, RN7
and RN8. The resistor packs are located as shown in Figure 12 and access necessitates
removal of the left hand panel.
The unit is now configured for Slave ACB operation. Remember to re -configure the front panel
“Request/Grant” daisy chain, as approp riate, when the unit is installed as a Slave controller in a
CAMAC system.
Hytec Electronics Ltd- Page 69
Technical Handbook ECC 1365 MK4

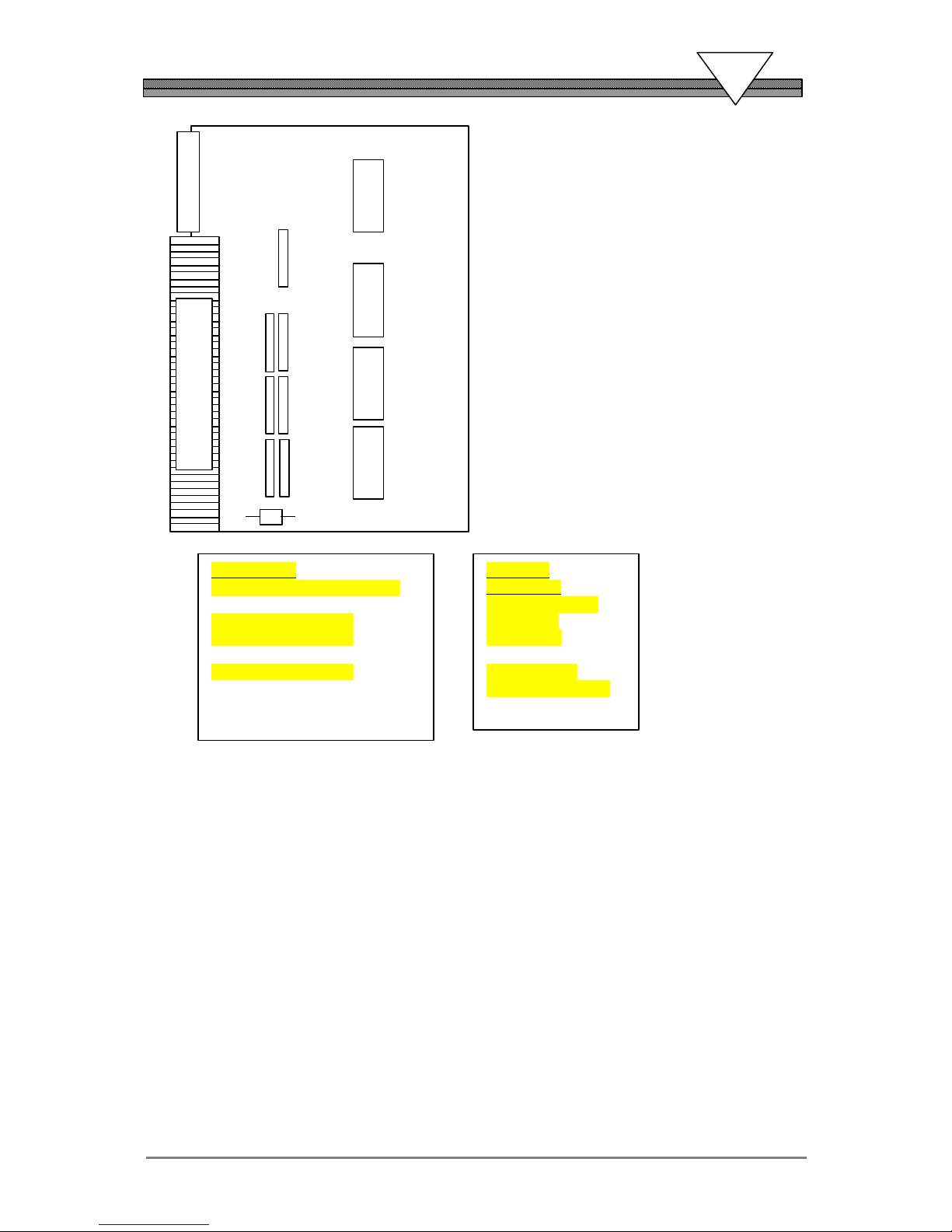

1 2 3 4 5 6 7
8
ON
ON
BT
JP2
JP1
FS1
1 8 JP4
Boot PROM
JP6
HYTEC ECC 1365 MK4
MC 68ECO60
CAMAC Dataway Connector
SW5
RN8
Firmware PROM 3
Firmware PROM 2
RN7
RAM
RAM
1
Firmware PROM 1
RN6
Firmware PROM 0
RN2 RN3
RN5
RN1
RN4
XILINX
RAM
RAM
JP3
RC50
ON
FS2
Address PROM
SW5
OFF
SW5
OFF
Figure 12 ECC 1365 MK 4 view of left hand side board
Hytec Electronics Ltd– Page 70
ECC 1365 MK4 Technical Handbook
FS1
RN7
CAMAC Dataway Connector
RN2 RN3 RN1
RN4 RN6 RN5
FUSE VALUES
Fuses are PICOFUSE Type 275
LHB FS1 3 AMP
LHB FS2 1 AMP
RHB FS1 1 AMP
RESISTOR
NETWORKS
RN1 to RN6 on left
hand board:
SIL 8 x 470R
And RN7, RN8:
DIL 13 x 470R packs
Figure 13 ECC 1365 MK 4 view of right hand side board
Hytec Electronics Ltd- Page 71
Technical Handbook ECC 1365 MK4
8.1.3 Connecting to UTP Ethernet
The front panel 8-way connector, “UTP”, is for 10/100 UTP Ethernet connection. The connector pin-out
and wiring assignment is standard, and is fully covered in the Ethernet specification, see reference 3.
To check for LINK configuration, observe the front panel LINK LED above the UTP connector. If, when
powered up, this LED is illuminated (after a short initial delay), the controller has correctly detected a
valid link for UTP Ethernet operation. The Ethernet controller will auto-negotiate with the link partner
and establish the best available connection. This will normally be either 10Mbit or 100Mbit, Half
Duplex. If 100 Mbits is selected, the ‘SPEED’ LED will be illuminated. A message is sent to the
diagnostic terminal during initialisation in Normal mode, indicating the result of the negotiation.
If the cable connection is subsequently lost (cable unplugged or broken) this is detected, notified to the
terminal and re -connection attempted at regular intervals.
Hytec Electronics Ltd– Page 72
ECC 1365 MK4 Technical Handbook
Pin1 Signal Ground
Front Panel
987654321
7 3 2 1 3 2 1
8.1.4 Connecting the Front Panel RS232 Port to a terminal
The front panel diagnostic terminal is connected via the 9-way D-type socket. This is an RS232
connection whose pin allocation is given in Fig 14 . Both the transmit and receive paths operate at the
selected Baud rate with the following serial settings:
8 data bits
1 stop bit
no parity
The line speed is set in firmware at 9600 Baud. Line data flow control is via the ASCII characters XON,
XOFF. A VT100 or compatible type of terminal is suitable.
The diagnostic terminal prints messages at module power-up and is used for initialisation of the
module, various types of status displays, setting up of security features and for running diagnostics.
Full details are given in Chapter 7.
9-Way RS232 Socket
View from FRONT
Pin2 Transmit Data
Pin3 Receive Data
ECC1365
9 way plug
CABLE DETAILS
screen
25 way socket
Terminal
Figure 14: Diagnostic terminal 9-way D-type connector
8.1.5 Configuring the Links & Switches
The ECC 1365 has a number of links and switches that must be set up before using the module. The
switches that need to be configured are those which select the operating mode of the controller. Other
links on the controller board are factory configured but may need to be modified for special
configurations. Normal operation also requires that the rear panel ACB link cable (Master mode only)
and the front panel single -pole LEMO cable link from “Request” to “Grant In” must be installed.
Details of links and switch settings that may need attention are given in the following sections. Links
and switches not documented should NOT be changed.
Hytec Electronics Ltd- Page 73
Technical Handbook ECC 1365 MK4
8.1.5.1 CAMAC Crate Number Switches
To identify the CAMAC crate from a host computer, the Ethernet Crate Controller is addressed by its
CAMAC crate number (this is normal CAMAC philosophy). Each ECC 1365 on the same Ethernet
must have a unique CAMAC crate number.
The controller’s CAMAC crate number is set up on the two front panel rotary switches located above
the UTP connector. Set the switches by inserting a small screwdriver into their centre slot and rotating,
when the arrow on the switch shows the setting. The switches can be set from ‘0’ to ‘F’ in normal
hexadecimal fashion. This gives a maximum crate number of 255 decimal. (FF hex).
To set the switches, convert the required crate number to a hexadecimal value and then set the
switches accordingly. For example, to set up for crate 42, convert 42 to hexadecimal, which is 2A hex.
Set the MSD switch to 2 and the LSD switch to A. Note that these switches are only read at RESET or
power-up.
8.1.5.2 Diagnostic Mode/Normal /Reset Switch
The front panel Diagnostic /Normal /Reset mode switch is a three-position toggle with a non -latching
position for Reset mode and a latching position for Diagnostics mode.
Operating the switch to the RESET position, forces either a soft or hard reset to the controller. The soft
or hard reset mode is selected by JP6 on the left -hand board, see Chapter 8.1.5.5, Left Hand
Controller Board Jumpers, Page 76. After a 2-second pause, this causes the controller to re -initialise
and enter the appropriate operating mode.
The switch centre position is the NORMAL operating position for the controller.
The upper switch position is for DIAGNOSTIC mode. To select this, move the switch to RESET and
immediately move it to DI AGNOSTIC. The controller then initialises into the Diagnostic mode, making
available the $RUN and $CAMAC commands form the front panel diagnostic terminal.
To terminate Diagnostic mode, RESET the controller, leaving the switch in the NORMAL position.
8.1.5.3 Z Switch
The front panel Z switch is a push button that issues a CAMAC dataway ZED. The action of
depressing the switch interrupts the processor and causes a CAMAC Dataway cycle issuing a CAMAC
ZED (CAMAC initialise) to be executed. The switch is deliberatel y mounted flush with the front panel to
avoid accidental operation.
Note: Issuing a CAMAC ZED to a CAMAC crate causes a total crate re-initialisation and should
therefore be used with extreme caution. It should never be done to a running system unless
full authorization for such action has been obtained.
8.1.5.4 Left Hand Controller Board Switches
The left hand controller board has one bank of switches, accessible through a cut out in the bottom
rear of the left hand side panel. These switches are shown in Figur e 12
The switches have the following functions and should be set up at installation time.
Hytec Electronics Ltd– Page 74
ECC 1365 MK4 Technical Handbook
Switches SW5 – left hand board
Switch SW5-1 CAMAC ZED on reset. When enabled (SW2-1 is up) the firmware will issue a CAMAC
ZED when the module is reset. When disabled (Switch SW2-1 is down) no CAMAC ZED is issued at
module reset.
Switch SW5-2 is not used. [Spare]
Switch SW5-3 sets the accuracy for the internal tick counter. If the switch is down (OFF) the normal
10ms tick is maintained, if the switch is up (ON) t he tick rate is increased to 1ms. This may be used for
more accurate timing of operations or more frequent timer routines.
Switch SW5-4 is not used. [Spare]
Switches SW5-5 to Switch SW5-8 are used to configure top four bits of the Link Service Access Poi nt
(LSAP) address. The LLC protocols require two LSAP addresses, the second of which always has the
value of the switch setting plus 4. This MUST be set up even when used with UDP protocol only
systems.
For example: for LSAP address of 60hex, set switches SW5-7 and switch SW5-6 down (OFF) and
Switch SW5-5 and SW5-8 up (ON). This gives the first LSAP address as 60hex and the second LSAP
address is automatically set to 64.
Hytec Electronics Ltd- Page 75
Technical Handbook ECC 1365 MK4
8.1.5.5 Left Hand Controller Board Jumpers
The left hand board jumper locations are shown in figure 12. Their functions are as follows: -
JUMPERS JP1 and JP2 – factory use only, DO NOT CHANGE DELIVERED SETTINGS.
Jumper JP3 is a security override setting. With the jumper fitted, the security feature is enabled and
any security data in the battery-backed RAM is active. With the jumper OUT, all security features are
disabled and battery-backed RAM security data are ignored.
Jumper JP4 is used to enable or disable PID mode booking. When the jumper is IN, modules are
booked according to the host E thernet address and the PID of the process. If the jumper is OUT, then
modules are booked by host Ethernet address only.
JUMPER JP6 – HARDWARE RESET ENABLED – this jumper selects the soft / hard reset action of
the front panel reset switch. With JP6 installed, a hardware reset is enabled (reset pin of processor is
toggled). With JP6 removed, a soft reset is enabled whereupon the firmware initiates the reset action.
A soft reset allows the firmware to fully execute the ECC 1365 reset protocol enabling all hosts to be
informed of the reset. A hard reset occurs instantaneously and therefore precludes reset protocol
notifications.
Hytec Electronics Ltd– Page 76
ECC 1365 MK4 Technical Handbook
8.2 Initial Setup Of Battery -Backed RAM
To enable operation of the ECC 1365, the battery-backed RAM must be initialised. This proce ss must
also be carried out whenever the battery-backed RAM has been corrupted, or when you suspect that
the battery has become discharged. The NiCad battery (BT1 in figure 12) is permanently on trickle
charge whenever the ECC 1365 is powered and once full y charged, should maintain the state of the
battery-backed RAM for many months.
It is also possible that you will need to change the settings loaded at factory test time. Note that if the
battery-backed RAM has lost its data or you suspect it is corrupted , the controller will not initialise in
normal mode. In this case, you must first initialise the module in diagnostic mode and follow the
procedure defined below before normal operation can commence.
8.2.1 Entering Battery-Backed Ram Setup Mode
This can be don e only with a terminal connected to the front panel. At this terminal, enter the change
mode command by typing:
CHANGE MODE <RETURN>
Enter ‘3’ <RETURN>, to enter diagnostic plus battery-backed RAM setup.
Hytec Electronics Ltd- Page 77
Technical Handbook ECC 1365 MK4
8.2.2 Clearing All Data From The Battery-Backed RAM
Initialise the battery-backed RAM by entering
!INIT <RETURN>
Answer ‘yes’ to the prompt.
8.2.3 Setting Up The Ethernet Address
The unit requires two Ethernet addresses for normal operation. These are its physical address (its
unique address on the Ethernet) and its multicast address that all 1365 controllers and hosts use.
Each unit is supplied with its own unique Ethernet address in an internal PROM. This is read and
loaded into battery-backed RAM when the !INIT command is issued. This setting can be overridden
using the !EPA command (see Chapter 7.3, Battery-backed RAM Mode Commands, Page 61.
Each unit is also shipped with an identical multicast address, unique to ECC 1365 controllers. This is
also loaded by the !INIT c ommand. The setting can be overridden by the !EMA command (see chapter
7.3 Battery -backed RAM Mode Commands, Page 61)
The default physical Ethernet address of each unit is as follows:
0080 0314 0302. The first six HEX digits are defined by Hytec’s company ID. Digit seven, a ‘1’, defines
the unit as an ECC1365 variant, and the eighth digit, a ‘4’, shows it is a Mark 4 unit. The final four HEX
digits are the serial number of the unit.
The default multicast address for all ECC units and hosts is:
0180 0300 0000.
The multicast address specified must be unique for CAMAC controller multicasting, i.e. it must:
∼ Not conflict with multicasts used by other non-CAMAC interfaces on the same Ethernet.
∼ Conform to the IEEE 8802.3 Ethernet multicast addressing requirements
∼ Be the same multicast address used for all ECC 1365 controllers in the same group, i.e. a
group of controllers and host machines will share the controllers on the same multicast.
Another group of hosts and controllers on the same Ethernet with a different multicast exist
separately and will be invisible to each other.
∼ Be the same multicast address stated in the ECC 1365 host software configuration files.
All host config uration files must have the same Ethernet multicast address when connected to the
same Ethernet.
8.2.4 Setting Up The Internet Protocol And Socket ID Addresses.
For operation with UDP/IP protocols, the unit requires that an Internet Protocol address and UDP
socket address be set up. These addresses are NOT installed in the internal PROM and therefore
MUST be set up for UDP/IP operation.
It is not necessary to initialise these fields if you intend to work in an LLC3 only environment (ALPHA
or VAX hosts).The valu es you enter will be stored in the unit’s battery-backed RAM and thus be saved
when the unit is powered down.
Hytec Electronics Ltd– Page 78
ECC 1365 MK4 Technical Handbook
8.2.4.1 Internet Addresses
The Internet Address is a 32 -bit number that encodes both a network address and a host ID. Every
host and IP internet must ha ve a unique 32-bit address. There are three formats that determine how
the 32-bit field is divided up between network address and host ID. The relevance of this in this
discussion is that if your network does not contain an Internet router then your ECC 1365 Internet
address must have the same network address field as your host otherwise the host will not see the
target. The three types of Internet Address formats are shown in Figure 15.
Class A
Class B
Class C
0 Net id Host id
1 0
7 bits
Net id
21 bits 8 bits
1 1 0 Net id Host id
24 bits
16 bits 14 bits
Host id
Figure 15 Internet Address Formats
The other vital information is to understand how internet addresses are written. They are written as
four decimal numbers separated by decimal points. Each decimal number encodes one byte of the 32 bit Internet Address. For example, the 32 -bit hexadecimal value 0X 0102FF04 is written 1.2.255.4
The number range of the first decimal number identifies the class of the address. Numbers in the
range 0 to 127 are class A, numbers in the range 128 to 191 are class B and numbers greater than or
equal to 192 are class C.
In order to determine the IP address to assign to your ECC 1365 first give it the same network id field
as your machine and then give it a unique host id value.
I.e. if your host IP address is
192.4.6.0
then assign
192.4.6.1
to your ECC 1365 (assuming 192.4.6.1 is not used by any other host).
To determine your host IP address, examine the hosts field in the /etc directory
e.g cat /etc/hosts
To set up the IP address use the !IPA command ( section 7.6) whilst in battery-backed RAM setup
mode.
NOTE: The IP address, socket number and CAMAC crate number assigned to the controller must be
entered in the IPADDR.dat file in /ecc_dir ( see section 11.3).
Hytec Electronics Ltd- Page 79
Technical Handbook ECC 1365 MK4
8.2.4.2 PING Command
The controller will respond to the Internet Control Message Protocol “PING” command.
To ping the controller, assuming that the internet address has been set up correctly as described in
8.2.4.1,Internet Addresses, Page 79 above, type the UNIX command:
Ping 192.4.6.1
The response will be
192.4.6.1 is alive
Or if it fails, typically:
192.4.6.1 is unknown
The ping command is a test of basic IP communications and PING must be working before you go on
to get the UDP/host code working.
Check the syntax of the PING command for your version of UNIX before you enter the command.
8.2.4.3 Socket Address (port number)
The socket address (also known as the port number) is a 16 -bit integer that associates the host
process, the data and the target process. The value you choo se must not be one of the other “well
known port numbers” on the system, indeed some port number values are internet specific and must
not be used. The value you choose to use must be well known to all TCP and UDP protocol users on
your network and be uniq ue to ECC 1365 controller use. All controllers on your network should use
this same number. We have used the value 240 and have not found any problems on our network.
The socket address (or port number) is set up in the controller using the !IPS command described in
section 7.3,Battery-backed RAM Mode Commands, Page 60The controller must be in battery-backed
RAM set up mode to use the !IPS.
8.2.5 Starting the ECC 1365 in Normal Mode
Once the battery-backed RAM is initialised and the Ethernet address is set up, the controller can
operate normally. If you wish to initialise the security table and/or set up the download command RAM
area, this can be done whilst still in battery-backed RAM mode, using the commands given in Chapter
7.3,Battery -backed RAM Mode Commands, Page 60
To enter normal operation at this point, operate the front panel switch, leaving it in its normal position
after toggling to RESET.
Hytec Electronics Ltd– Page 80
ECC 1365 MK4 Technical Handbook
8.3 Trouble Shooting
The following is a list of faults or problems that you may encounter along with a few possible causes
and suggested solutions. This is not an exhaustive list but may help with overcoming initial “teething”
problems for unfamiliar users.
If the problem persists or the solution cannot be found, please contact Hytec Electronics Ltd, U.K. or
our agents worldwide for advice
IF IN DOUBT – ASK!
The list is divided into two sections. The first deals solely with the ECC 1365 co ntroller unit and its
installation in a CAMAC crate. The second list considers VAX/VMS host problems and system
problems arising from the host / ECC 1365 combination.
Hytec Electronics Ltd- Page 81
Technical Handbook ECC 1365 MK4
ECC 1365 Trouble shooting
PROBLEM POSSIBLE CAUSES AND FIXES
1. Front panel LEDs do
not light
2. Module will not
initialise
3. Front panel port does
not communicate with
terminal
4.CAMAC self test fails
($RUN CAMAC in
diagnostic mode)
§
§ Check CAMAC crate power supplies are Ok (+6V, -6V,
+24V, -24V)
§ Check ECC 1365 internal fuses are OK – see figures 12
& 13 (3 fuses). If fuses have blown, check for causes
before replacing and re -trying.
§ Battery -backed RAM corrupted (possibly due to the
battery being discharged) Need to initialise, see chapter
8.2, Initial Setup Of Battery-Backed RAM. Page 77
§ Ethernet not connected correctly. Check UTP
connection. See section 8.1.3, Connecting to UTP
Ethernet, Page 72.
§ Ethernet crossover problem – check that the hub port is
not a crossover type.
§ CAMAC self test fails, see 4 below
§ Check ACB cable between left hand and right hand
CAMAC PCBs is correctly inserted.
§ Check interconnection cable. See figure 14 for wiring
details.
§ Check terminal Baud rate setting is 9600.
§ Check for 8 data bits, 1 stop bit, no parity.
§ Check for receive/transmit polarity in cable (pin2/ pin3
problem)
§ Issue XON to ECC 1365 by typing <CTRL-Q> (ECC
1365 uses XON/XOFF for flow control).
§ Check LEMO cable is fitted between REQUEST and
GRANT IN on the front panel. (ACB Master only).
§ Check ACB ribbon cable is fitted at rear of unit (ACB
Master only)
§ Check module is in control station (rightmost CAMAC
station).
§ Check LEMO cables between GRANT OUT and
GRANT IN fitted between Master and other slave ACB
controllers.
§ Check that test module is a HYTEC Dataway Display
type DTM4
§ Check that DTM4 station number has been defined
(see CHANGE DTM4 command, section 7.2,Normal
Mode Commands, Page 53
Hytec Electronics Ltd– Page 82
ECC 1365 MK4 Technical Handbook
CHAPTER 9
9 SECURITY FEATURES
The software in the Ethernet Crate Controller (ECC 1365) maintains a table containing the address of
host systems that are allowed to access the ECC (the use of this table is enabled by switch SW1-1 on
the ECC – see Chapter 8.1.5.5, Left Hand Controller Board Switches, page75.
For each address, a mask defines which modules the host system can access and a set of capabilities
define which ECC-wide operations the host can perform.
The table is kept in battery-backed RAM so that it is maintained when power is removed from the ECC
1365.
All security features are optional. If the table is empty, the ECC is “open” and any host is allowed to
perform any operation. If there is at least one entry in the table, the ECC is “closed” and only the hosts
in the table can access the ECC.
Note! Changing data in the security table requires care. Errors in data entry can cause confusing
results. In order to protect hosts who attempt to make the first entry to an ‘open’ module the following
conditions are enforced:-
When a host system sends a security table update command, and the security table in the
ECC 1365 is currently empty (i.e. OPEN), then the host address in the command message
must match the source address of the message and the security table update enable bit is
forced to be SET.
The table can be updated by one of two methods:
A terminal can be connected to the front panel RS232 connector and a simple command
interface then used to display and change table entries. See section 7.2,Normal Mode
Commands, Page 53
A host can make changes to the table across the Ethernet, provided that the table is initiall y
empty or the host has the required capability specified in its existing table entry. (Command
code 20).
The security table can contain approximately 150 entries and the format of an entry in the table is
shown in Table 18.
Ethernet IP Address Capabilities Flags Module mask
48 bits 16 bits 8 bits 24 bits
Figure 16 Security Table Entry Format
Where :
Capabilities is a 16-bit field defining the capability of this host to perform ECC-wide operations
Module mask is a 24-bit field and contains a 1 in bit position 2N if the host is allowed access to the
module in station number N.
Hytec Electronics Ltd- Page 83
Technical Handbook ECC 1365 MK4
Value (binary) Meaning
.... .... .... ...0
.... .... .... ...1
.... .... .... ..0.
.... .... .... ..1.
.... .... .... .0..
.... .... .... .1..
.... . ... .... 0...
.... .... .... 1...
.... .... ...0 ....
.... .... ...1 ....
.... .... ..0. ....
.... .... ..1. ....
.... .... .0.. ....
.... .... .1.. ....
.... .... 0... ....
.... .... 1... ....
.... ...0 .... ....
.... ...1 .... ....
.... ..0. .... ....
.. .. ..1. .... ....
Security table update not allowed
Security table update allowed
Crate Initialise not allowed
Crate Initialise allowed
Crate Clear not allowed
Crate Clear allowed
Set/Clear Dataway Inhibit not allowed
Set/Clear Dataway Inhibit allowed
Download new command or COR not allowed
Download new command or COR allowed
Alter module/LAM promiscuous flag not allowed
Alter module/LAM promiscuous flag allowed
ECC reset not allowed
ECC reset allowed
Store system command block not allowed
Store system command block allowed
Enable / disable autobooking not allowed
Enable / disable autobooking allowed
Purge booking entries not allowed
Purge booking entries allowed
Table 17 Security Table Capabilities Field Format
Hytec Electronics Ltd– Page 84
ECC 1365 MK4 Technical Handbook
ECC 1365 MK 4 SPECIFICATION
Mechanical
Dual-width CAMAC Crate Controller module to ANSI/IEEE Std 583-1982 (EUR4100).
Height 120mm
Width 35mm
Depth 330 mm (including rear connectors & front panel switch)
Weight 1.3kg
Electrical
Power Supplies:
+6V 2.0 A max
+24V 400mA max
Fuses – see fig12.
Operating temperature: 0 to +50 °C. Forced air-cooling mandatory.
Connectors
Rear Panel ACB connector
40-way 3M low-profile box header (centre bump polarization)
Front Panel
Request/Grant In/Grant Out
Single Pole LEMO “00 size” socket
UTP Ethernet
8-way MMJ socket.
RS232
9-way sub -miniature D-type socket, with screw locks.
(see figure 14 for connections)
Hytec Electronics Ltd- Page 85
Technical Handbook ECC 1365 MK4
GLOSSARY
ARP Address Resolution Protocol
Dataway Q Single bit response to CAMAC status interrogation, i.e. True or False.
Dataway X Single bit response. Returned after each CAMAC cycle
0= either no module or the module does not support the command
1= the module responds to the command.
Enable demand Enable CAMAC interrupts (LAMs).
Ethernet A local area network technology originally developed by DEC, Intel and
Xerox. A new version of the technology is specified by ISO and is more
accurately described as Carrier Sense Multiple Access with Collision
Detection (see reference 3 for full details). The term “Ethernet” still commonly
refers to this type of technology.
Ethernet address a 48-bit address which uniquely identifies a system on an Ethernet local are
network
Event Flags Status posting bits maintained by VMS, which are used to perform a variety of
signalling functions
Global Section A section of memory, which may be shared by more than one VMS process
IP Internet Protocol
ICMP Internet Control Message Protocol
LSAP the Link Service Access Point is the interface between the Link Layer (layer2)
of the ISO 7-Layer model) and the user of that service. In the ISO model, the
user is the Network Layer (layer3). However, in this document, the application
interfaces directly to the Link Layer
LSAP Address. An 8-bit address, used by the Link layer withi n a particular system, to identify
an LSAP.
Logical Link Control Procedures
These concern the data-link layer and support medium-independent data link
functions and use the service of the Medium Access Control sub -layer. Type
1 operations describe a connectionless mode of operation [Reference 2].
Type 3 operations describe a connectionless acknowledged mode of
operation [Reference 4]
Multicast Address An Ethernet address that is accepted by a group of systems on an Ethernet
local area network.
TCP/IP Tr ansmission Control Protocol/Internet Protocol.
UDP User Datagram Protocol
Hytec Electronics Ltd– Page 86
ECC 1365 MK4 Technical Handbook
REFERENCES
1 ESONE SR/01, 1978, Subroutines for CAMAC.
2 ISO/IEC IS8802-2 Logical Link Control for Local Area Networks
3 ISO/IEC IS8802-3 Carrier Sense, Multiple Access with Collisio n Detection (CSMA/CD)
access method and physical layer specification.
4 ISO/IEC JTC1/SC6 N5231 Local area Networks, Part 2 Logical Link Control Addendum 2:
Acknowledged Connectionless Service, Type 3 operation.
5 IEEE Std 583-1975, Modular instrumentation and digital interface system (CAMAC).
6 IEEE Std 683-1976, IEEE recommended practices for block transfers in CAMAC systems
7 System Oriented Network Interface Controller (SONIC) National Semiconductor Local
Area Network Data Book
8 Vax/VMS vol.7B Program Develo pment: Message Utility Reference Manual.
9 Vax/VMS vol.8C System Routines: Run-time Library Reference Manual
10 Vax/VMS vol.8D System Routines: System Services Reference Manual
11 Vax/VMS vol.10A System Programming: I/O Part II
12 L.Lamport (1978) comm. ACM 21 (7), pp558-565.
13 The HYTEC 1365 Ethernet Crate Controller – User Guide To The Extended ESONE
Routines (FORTRAN and C editions available)
14 Introduction to Internet Protocols. Computer Science Facilities Group, Rutgers, The State
University of New Jersey, USA 1987
15 RFC 791, Internet Protocol
16 RFC 768, User Datagram Protocol
17 RFC 792, Internet Control Message Protocol
18 RFC 826, Address Resolution Protocol
19 RFC 1010, Assigned numbers.
Hytec Electronics Ltd- Page 87
Technical Handbook ECC 1365 MK4
APPENDICES
Hytec Electronics Ltd– Page 88
ECC 1365 MK4 Technical Handbook
Must
APPENDIX A1
A1 ECC 1365 HARDWARE DETAILS
The CAMAC Port
The processor accesses CAMAC through a memory-mapped interface. The Base address of the
CAMAC Port and Control and Status Registers start at HEX 800000. The CAMAC Station Number,
Subaddress and Function Code are encoded into the “memory” address used by the processor, to
access CAMAC as follows:
Note that F16 is derived directly from R/W
When the processor accesses CAMAC, a Read or Write memory cycle occurs, whose length depends
on the time taken to gain ACB Mastership and then compl ete the CAMAC cycle. To guard against
ACB lockup, for example, a Timeout protection system is incorporated, which also prevents nonexistent memory accesses. Whilst the CAMAC address access takes place, 24 bits of data can be
transferred in either directio n.
A separate Status Register tells the processor whether Q and X were received in the last CAMAC
cycle, (see below).
Internal Controller Functions.
These are implemented in a way similar to a standard set of “Type A” Controller Commands, with the
inclusion of most of those relevant to a Programmable LAM Grader, addressed through Station 28 or
30.
A(12) F(1) Read LAM status (Actual L line states) Q=0
A(13) F(1) Read LAM mask (Host specific) Q=0
A(14) F(1) Read LAM request Register (Host Specific) Q=0
A(0) F(8) Test Controller LAM Q=LAM
A(0) F(10) Clear Controller LAM Q=0
A(13) F(11) Clear all LAM Mask bits (Host specific) Q=0
A(0) F(14) Set Controller LAM Q=0
A(13) F(20) Bit set LAM Mask Q=0
A(13) F(22) Bit clear LAM Mask Q=0
A(1) or A(10) F(24) Disable Demands + Q=0
A(1) or A(10) F(26) Enable Demands + Q=0
A(8) F(26) Generate Z Q=0
A(9) F(24) Remove I Q=0
A(9) F(26) Set I Q=0
A(9) F(27) Test Dataway I Q=I
A(10) F(27) Test Demands Enabled + Q=DE
A(11) F(27) Test Demands Present + Q=DP
1 0 0 0 0 0 0 0 0 F8 F4 F2 F1 N16 N8 N4 N2 N1 A8 A4 A2 A1 0 0
Base address F Code Station number Subaddress
be
zero
Hytec Electronics Ltd- Page 89
Technical Handbook ECC 1365 MK4
+ means Demand relevant to a specific host, i.e. the controller can send Demand Messages to some
hosts but not to others.
NOTE: These commands are provided through the firmware and are intended for compatibility
only. Their use is strongly discouraged. Use the appropriate ESONE / DOE routine instead.
Single Action Messages result in the controller doing the appropriate CAMAC command and then
returning a message with any read data collected, followed by a Status byte (showing Q and X for the
cycle). An error occurring during the cycle results in an error reply message being sent (see below).
Block command messages result in a number of CAMAC cycles taking place in the selected
Q mode (provided that none of the stations referred to by the block command are booked to another
host). The number of CAMAC cycles are defined by the message and they are all performed unless
some error arises to curtail the sequence. The various sources of error all result in a “Block Mod e
Incomplete” type reply message being sent, for the following reasons:
a) No X (except in Q scan)
b) No Q (except in Q ignore or Q scan)
c) Timeout failure (see Errors and Interrupts, below)
d) Cycle Count complete before End Address in Q scan
e) Q Scan End Address before Cycle Count complete in Q Scan
Note that the “incomplete” message can still contain data
Hytec Electronics Ltd– Page 90
ECC 1365 MK4 Technical Handbook
Write X
Controller LAM
CAMAC Port Control and Status Register.
The CAMAC Port is equipped with an 8-bit Control and Status register. By writing to this Register, the
processor can over-write the Dataway Q and X stores, assert or remove the controller’s Dataway
Inhibit signal & the “Software LAM” and control the generation of Power-Fail Interrupts. The status
Register shows the state of:
Q and X during the last CAMAC cycle
Dataway Inhibit
Controller LAM
Power-Fail Interrupt Disable
Power-fail Flag
The NORMAL / DIAGNOSTIC Switch

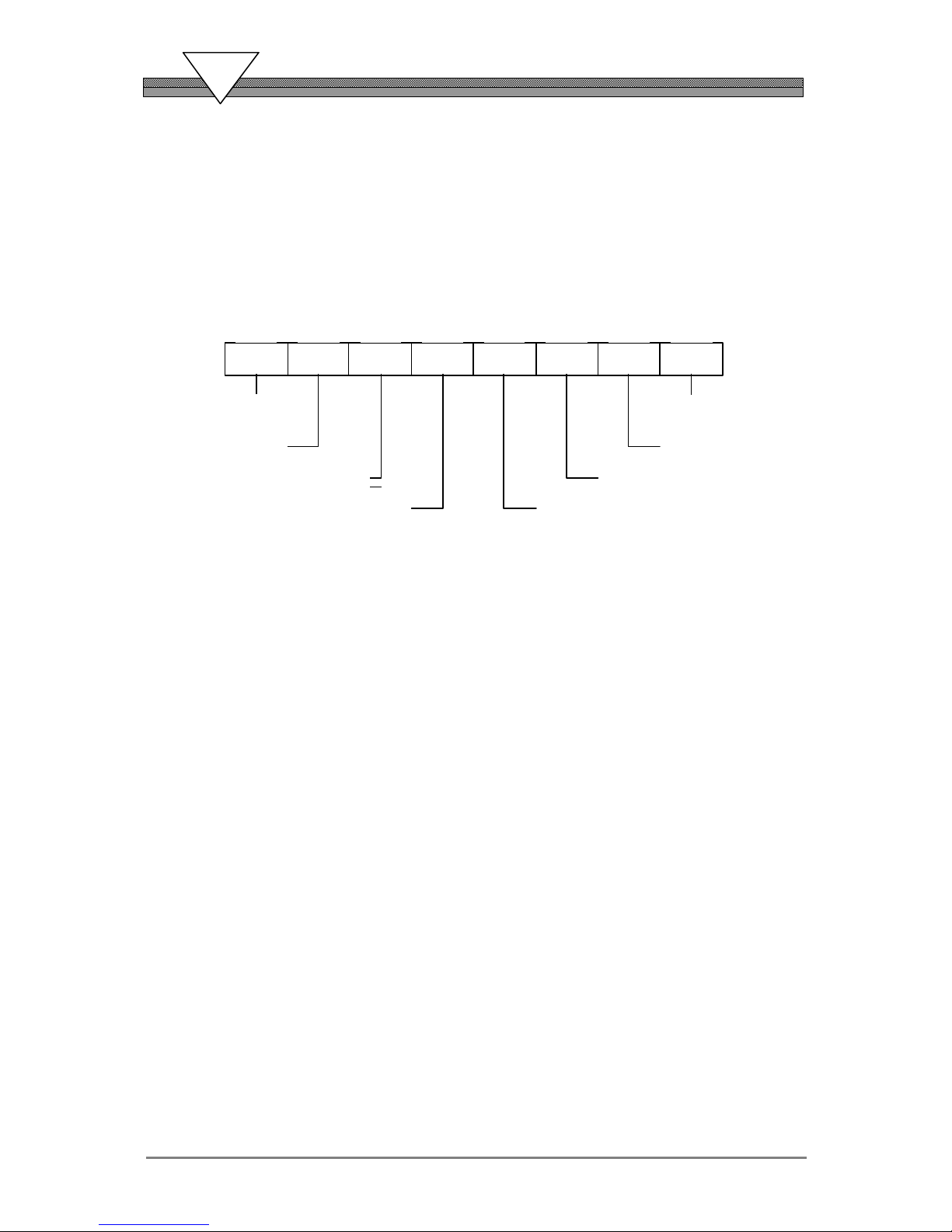

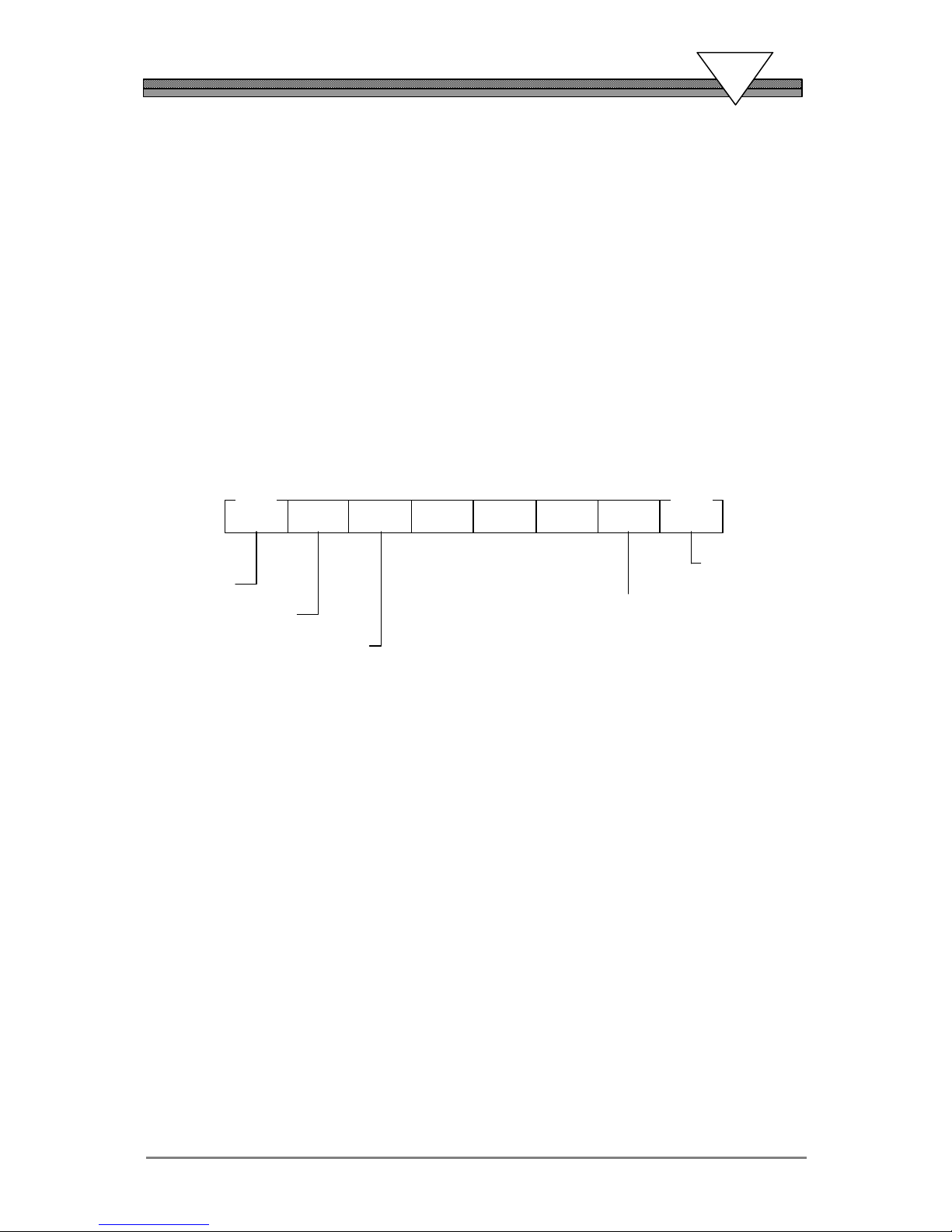

Control Register Format
Power-Fail Interrupt Disable
D7
X CL PID x x x INH Q
Inhibit (Controller Output)
Figure 17 Control Register Format
D0
Write Q
The controller LAM enables the processor to generate a LAM for Test Purposes.
The Power -Fail Interrupt Disable gates the output of the power monitoring circuit before it causes an
interrupt.
Hytec Electronics Ltd- Page 91
Technical Handbook ECC 1365 MK4
Controller LAM
D5
D1
Spare
X Response
Status Register Format
The Status Register is an 8-bit register, which contains the following information:
a) The state of Dataway Q from the last CAMAC cycle
b) The state of Dataway I (a logical OR of controller INH and others)
c) spare
d) The state of the DIAGNOSTIC/NORMAL mode switch
e) spare
f ) The power -fail interrupt disable bit state.
g) The state of the Contro ller LAM
h) The state of Dataway X from the last CAMAC cycle
Errors and Interrupts
After a CAMAC Cycle has been initiated by the processor (by asserting Transfer Start with the bus
address within the CAMAC area), The “memory” cycle is completed (even if it has to be cut short by
the Timeout Monitor circuit). This monitor protects against ACB failures plus any attempted access to
non-existent memory. It works as follows:
Some extern al cause could prevent the successful completion of a CAMAC cycle e.g. someone
holding the ACB or an attempt made to access a memory location which does not physically exist
(determined by the transfer acknowledge (TA) Response Programmed Logic Device). Then, a preset
time (nominally 10 microseconds) after the Cycle was initiated, the Timeout Circuit causes BUS
ERROR to be asserted into the processor. The processor issues a RESET to clear the fault and sends
a “Processor Timeout” message to the host.
LAM H andling
LAM signals are received on the left hand board via the ACB Auxiliary ‘L’ Lines. If the controller is a
Master in Stations 24 and 25, these will be terminated on the right hand board and fed through the
ACB cable to the left-hand board.
The 24 LAM lines are connected to the Xilinx chip on the left-hand board. This provides full masking
and/or prioritising of the LAMs under software control. This logic produces its own interrupt signal and
this is fed into the processor’s Prioritised Interrupt Handl er as IRQ4.
Power-Fail Interrupt Disable
D7
X CL PID x DM x INH Q
D6
D4
Figure 18 Status Register Format
D
D2
Diagnostic Mode enabled
Dataway Inhibit
spare
D0
Q-response
Hytec Electronics Ltd– Page 92
ECC 1365 MK4 Technical Handbook
Power Fail
This circuit monitors the CAMAC +6 volt power rail inside the Ethernet Crate Controller. The circuit
output is connected to the processor’s Non -Maskable Interrupt line through a gate, which can be
controlled by the processor via one of the Control Register Output lines (bit 5). The processor
response to the power -fail interrupt is to attempt to notify all known hosts.
Serial Port
A front panel 9-way D type connector is provided for an external RS232 or RS423 device to
communicate with the processor, see Chapters 2.6 and 8.1.5.4, Left Hand Controller Board Switches,
Page 76 .
A VDU can be connected and two principal uses are envisaged:
During commissioning, to select test routines from the firmwar e, to check out sections of the
controller.
In operation, to allow “privileged access” to the Security Tables, held in the battery-backed
RAM.
Bit and Byte Order
The bit numbering in this document has bit 0 as the least significant bit.
All data define d in this document, except the MAC and LLC headers, is in Vax byte order. Thus
processors such as the 68060 need to re-order the data as follows:
8-bit values are correctly ordered;
16-bit values need to have the two bytes swapped;
32-bit values need to apply the 16-bit swap to the two halves.
The first 16 bits are then the low 16 bits of the 32 -bit value and the second 16 bits are the high 16 bits
of the 32 -bit value.
RAM Memory
The standard controller is equipped with 2 Mbytes of Static RAM memory pr ovided by four 512K byte
devices.
RAM addresses are:
2 Mbyte Hex C00000 to DFFFFC 4 x 512K
Hytec Electronics Ltd- Page 93
Technical Handbook ECC 1365 MK4
APPENDIX A2
A2 ECC 1365 PROTOCOLS F RAME FORMATS
Offset (bytes) Length
(bytes)
0
6
12
14
15
16
17
18
20
24
Note: see Chapter 5.4, Network Time Protocol, Page 37.
Offset (bytes) Length
0
6
12
14
15
16
17
18
20
Note: see Chapter 4.9.1,Find Address Protocol, PageError! Bookmark not defined..
6
6
2
1
1
1
1
2
4
2
(bytes)
6
6
2
1
1
1
1
2
2
Contents
Multicast Ethernet Address
Source Ethernet Address
MAC Length Field
LLC Destination LSAP
LLC Source LSAP
LLC Control Field (=UI Frame)
Padding Byte (=0)
Frame Type (=1)
Originator’s Network Time (10msec since midnight)
Originator’s transmission delay (10 msec units)
Table A2-1 NTP Multicast Frame Format
Contents
Multicast Ethernet Address
Source Ethernet Address
MAC Length Field
LLC Destination LSAP
LLC Source LSAP
LLC Control Field (=UI Frame)
Padding Byte (=0)
Frame Type (=2 for Request, =3 for Response)
CAMAC crate number
Table A2-2 FAP Multicast Frame Format
Hytec Electronics Ltd– Page 94
ECC 1365 MK4 Technical Handbook
Offset (bytes) Length
(bytes)
0
6
12
14
15
16
17
18
20
Note: see Chapter 4.9.2, ECC 1365 Reset Protocol, PageError! Bookmark not defined.
Offset (bytes) Length
0
6
12
14
15
16
17
18
20
22
24
26
28
32
34
36
38
The fields in the frames are defined as follows (LLC and MAC fields are defined in the appropriate
standards):
When true LLC3 procedures are used, the pseudo LLC3 fields become padding bytes and are set to
zero.
When pseudo LLC3 procedures are used, the LLC control field is set to “UI frame”, the first padding
field is zero and the LLC3 control and status bytes are inserted into the pseudo LLC3 fields.
6
6
2
1
1
1
1
2
2
(bytes)
6
6
2
1
1
1
1
2
2
2
2
2
4
2
2
2
n
Table A2-4 ECP Frame Format (LLC and Pseudo LLC3 only).
Contents
Multicast Ethernet Address
Source Ethernet Address
MAC Length Field
LLC Destination LSAP
LLC Source LSAP
LLC Control Field (=UI Frame)
Padding Byte (=0)
Frame Type (=4 for Request, = TODO ? for Response
= TODO ? for Active)
CAMAC crate number
Table A2-3 ERP Multicast Frame Format
Contents
Destination Ethernet Address
Source Ethernet Address
MAC Length Field
LLC Destination LSAP
LLC Source LSAP
LLC Control Field
Padding Byte (=0) or LLC3 status field
Padding Byte (=0) or pseudo LLC3 control field
Frame Type (=7)
Request number
CAMAC crate number
ECC Host ID
Host PID
Host access ID
Flags
Software Version number from host / Status to host
Data area
Hytec Electronics Ltd- Page 95
Technical Handbook ECC 1365 MK4
Frame type identifies an ECP frame. Set to 7.
Request number is unique to each request from the host to the ECC. A sequence number can
be used.
CAMAC Crate Number is the number of the CAMAC crate controlled by the ECC. It is used to cross
check the request / response.
ECC host number is copied by the host from responses to subsequent requests. It is used by the
ECC to speed table lookup. A value of –1 indicates “not known”.
Host Process Identifier (PID) is copied by the ECC from a request to its response. It is used by the
host to identify the originating user process.
Host access ID is copied by the ECC from a request to a response. It is used by the host to
speed table lookup.
Flags a 16 bit flag field is formatted as follows.
[.... .... xxxx xxxx] Local to host or ECC. Always zero during transfer.
[1... .... .... ....] Immediate response required
[0... .... .... ....] Deferred response required.
[.... ...1 .... ....] First segment of sequence of frames.
[.... ..1. .... ....] Last segment of sequence of frames.
Note that an immediate response request and its response must have both the first and last segment
flags set to 1.
Version The version number of the host software (allows version compatibility checking)
Status The completion status of a requested operation (see Appendix 3.)
Data The user data
Hytec Electronics Ltd– Page 96
ECC 1365 MK4 Technical Handbook
APPENDIX A3
A3 VAX/VMS HOST SOFTWARE DETAILS
This appendix describes the host system software, which is written for VAX machines running Version
5.n of VMS (VAX and VMS are trademarks of Digital Equipment Corporation) It describes the internals
of this software together with its data structures and the interface with its user processes and with the
controller.
A3.1 User-based Software
A3.1.1 Overview
A user process is able to communicate via the ESONE / DOE CAMAC subroutines (which do not
return until the specified operation is complete) or via a set of extended ESONE / DOE CAMAC
subroutines, which return immediately. The latter require a user call to a generalized wait routine, to
receive the command completion status when it is available. The routines also exist as a set of
function calls.
The ESONE / DOE CAMAC subroutines make use of the CTSTAT subroutine to provide status
information to the user -based software. The ESONE / DOE CAMAC functions return status directly to
the user based software, making the call to CTSTAT redundant.
An additional set of routines is provided to allow the user to access the full functionality of the ECC
1365.
All routine calls cause a parameter block to be built, based on the parameters passed as arguments
together with an internal identification code, which uniquely identifies which routine has been called.
First-order error checking is carried out at this stage and errors are available when control passes
back to the user -level software.
The extended ESONE / DOE CAMAC routines have, as additional parameters, a variable identifying a
local event flag (set on completion) and the address of an I/O status block which contains, on
completion, the final status of the command.
Hytec Electronics Ltd- Page 97
Technical Handbook ECC 1365 MK4
Parameter
Exception
Global
Obtains lock
ECC$LCK
block
Handler
Entry added
Figure A3-1 User Process to ECC 1365 Host Process communication
User Program
User
Code
ESONE/DOE subroutines
Central Routine
Access Table
Section
ECC$GBL
ECC-1365
process
Hytec Electronics Ltd– Page 98
ECC 1365 MK4 Technical Handbook
A3.1.2 User Based Software Central Routine
Once the parameter block has been constructed, it is pass ed to a central routine that acts as the focus
for all user -callable routines. This routine is responsible for the communications between the user’s
process and the system process (called ECC_1365). This involves establishing the linkage to the
ECC_1365 pr ocess, constructing and transferring user CAMAC commands to the ECC_1365 process
for transmission onwards and tidying up on completion.
The central routine establishes a VMS exception handler that is called if any exception condition is
generated by the user code. The exception handler tidies up the association with the ECC_1365
process and releases all resources held by the user process. The process of tidying up includes
signalling to the ECC_1365 process to clear all references to this user process and free up any
resources held on its behalf.
Establishment of the linkage with the ECC_1365 process should be read in conjunction with the
description of the interface between the ECC_1365 process and all user processes.
The user process identifier, (the PID) is obtained via a call to a VAX/VMS System Service and is
stored in the Access Table and used in all communications with the ECC_1365 process.
An attempt is made to obtain the exclusive lock ECC$LCK and any failure is reported back to the user
level co de by the mechanism described above.
The global section ECC$GBL which has been established by the ECC_1365 process is mapped.
An Access Table (in the global section) is searched to find an available entry. If the search is
successful, the entry is marked “in use” by adding the PID to this table. If no entry is available, an error
is returned to the user -level code. In either case, the lock is released at this point.
The table entry contains the address of a queue origin (which is used to receive information from the
ECC_1365 process) and the value of a common event flag on which this process awaits
communications from the ECC_1365 process.
The ECC_1365 process has a single input queue and an associated common event flag which is
known to the user process. These are used to transmit information to the ECC_1365 process.
The received parameter block is decoded and the equivalent ECC 1365 command block constructed
in memory, the details of which are described in Chapter 4.6 System Protocols. This command block
is transferred to the ECC_1365 process in a set of one or more buffers. The header field of the buffers
is completed, to include the index to the Access Table and the PID of this process. These are used
uniquely to identify the buffers to the system.
T he command block is copied to the data area of the set of buffers and the parameters block is set up
to ease the extraction of data from the set of buffers when they have been received by an ECC 1365
module.
A3.1.3 User Based Software Completion Processing
If the transferred command resulted from a call to a standard ESONE / DOE CAMAC routine, the
process at this point waits on its common event flag for completion of the command. This wait
operation is guarded by a safety timer to ensure that a deadlock is avoid ed.
If the command resulted from a call to an extended ESONE / DOE CAMAC routine, a summary of the
command is written and added to the “awaiting completion “ queue and control passed back to the
user-level code. The status indicating successful queuing of the command is available to the user-level
code.
Hytec Electronics Ltd- Page 99
Technical Handbook ECC 1365 MK4
On completion from the wait state, the complete command block is extracted from the set of returning
buffers and a parameter block is encoded. This is passed back to the specific ESONE / DOE routine
which extracts the data and passes them back in the arguments of the original call. The final
completion status is available at this time.
If, while awaiting completion of a standard ESONE / DOE CAMAC routine command an extended
command completes, it is saved on the “completed” queue to be handled later, when the user-level
code calls the wait-on-completion routine, as defined in the extended ESONE / DOE CAMAC routine
set.
If the safety timer expires, all association with the ECC_1365 process is removed and control is
passed back to the user -level code. The error status is available to the user-level code.
If the user –level code has made calls to the ESONE / DOE CAMAC routines, a call must at some time
be made to the wait-on-completion routine to receive back the results of the CAMAC command. The
routine is called with the logical OR of the set of local event flags passed as arguments in previous
calls.
This routine either waits on completion from the ECC_1365 process or uses entries on the
“completed” queue to satisfy the command completions specified by the set of local event flags. The
relevant I/O status blocks are identified, together with any user data areas. These are loaded with
information from the completing request and control is passed back to the user-level code.
In this mode of operation, it is essential that all data structures passed to the extended ESONE / DOE
CAMAC subroutines are unmodified until completion occurs, indicated by the returning I/O status
block.
When the user code terminates, control passes through the exception handler, which ensures that the
linkage with the ECC_1365 process is broken and any resources held by the user’s process are
returned correctly.
A set of routines is provided to allow access to the ECC 1365 modules to perform management
operations. This includes reading statistics, tracing buffers, perform download requests and accessing
the security features. Suitable authorisation checking is included in this software.
A3.2 Interface Between User- and System- based Software
The ECC_1365 process runs as system process distinct from any user process. Inter-process
communication is by the use of a mapped global section, with the logical name ECC$GBL. This is
created by the ECC_1365 process to hold tables, queue origins and buffers.
The ECC_1365 process is able to support a configurable number of user processes and generates the
required table space at initialisation. For each user process that is supported, one of the common
event flag numbers is allocated from the set of co mmon event flags defined by VMS for inter-process
communications. This sets the limits of user processes to 60.
A single queue origin and common event flag number is defined for the ECC_1365 process which is
known to all user processes and represents the mechanism of communication between a user process
and the ECC_1365 process.
An Access Table is defined to allow user processes to connect to the system process. This table
contains the queue origin, to be used by the user process to obtain information fr om the ECC_1365
process, together with the value of the common event flag on which it waits.
To access this table, a locking mechanism is defined using the Lock Management Service of VMS.
This lock is known by the logical name ECC$LCK. This exclusive lock ensures there can be no
interaction between user processes when an attempt is made to connect to the ECC_1365 process.
The user process adds its PID to its Access Table entry to provide unique identification and all
communications from a user process contain the PID of that process to ensure consistency
