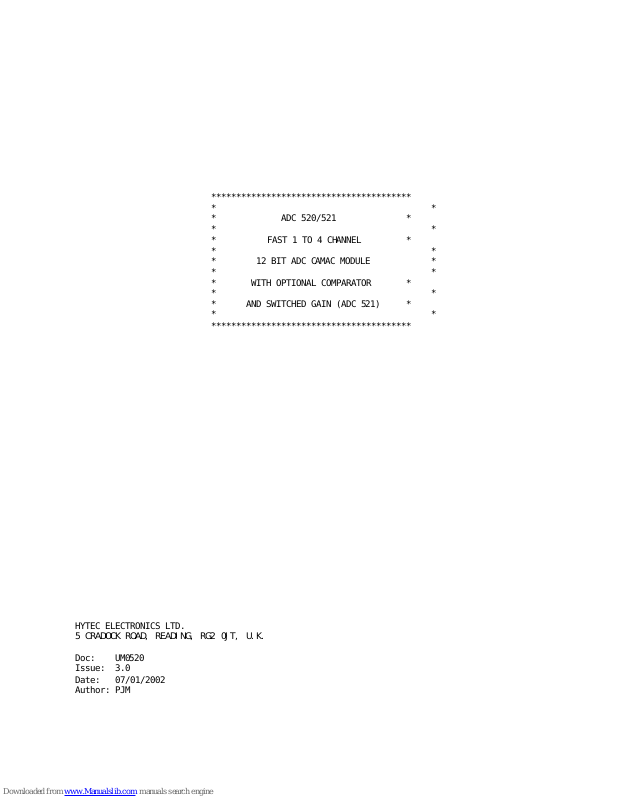

* ADC 520/521 *
* *
* FAST 1 TO 4 CHANNEL *
* *
* 12 BIT ADC CAMAC MODULE *
* *
* WITH OPTIONAL COMPARATOR *
* *
* AND SWITCHED GAIN (ADC 521) *
* *
****************************************
HYTEC ELECTRONICS LTD.
5 CRADOCK ROAD, READING, RG2 0JT, U.K.
Doc: UM0520
Issue: 3.0
Date: 07/01/2002
Author: PJM
Page 2
Doc: UM0520
Issue: 3.0
Date: 07/01/2002
Page: 1/9
Author: PJM
CONTENTS
1. Introduction
2. CAMAC Command Set
3. Configuration Links
4. Operating Modes
4.1 Continuous Mode
4.1.1 Internal Triggering
4.1.2 External Triggering
4.2 Non-continuous or Comparator Mode
4.3 Test Mode
5. Control Register
6. Data Format
7. Getting Started
8. Power requirements
9. Parts List
Page 3
Doc: UM0520
Issue: 3.0
Date: 07/01/2002
Page: 2/9
Author: PJM
1. INTRODUCTION
This unit is a high speed Analogue to Digital converter module with up to four
inputs, each with its own 12 Bit ADC chip and all capable of performing concurrent
conversions in as little as 10 microseconds. Each input is fitted with a sampleand-hold amplifier with a settling time of one microsecond, whose gain can be
switched under Dataway control (to special order - see ADC521 below) to cater for
input ranges down to 500mV without significant drift errors. A comparator can also
be fitted as an optional extra, which when loaded with a 12 bit binary value from
the dataway performs a comparison with the output of channel 1 (Subaddress 0)
every time a conversion is completed, whereupon it can stop, or carry on
performing conversions depending on the state of "Greater than" or "Less than"
flags, allowing experiments like stress/strain plotting to be achieved very
easily. The "Fast" version of this unit, the ADC520F has a conversion time of 15
microseconds, a slightly slower standard version is available, with a maximum
conversion time of 25uS, as well as an even faster version ("EF" type) with a
conversion time of 10uS.
The ADC 521 is a variant of the ADC 520 which has analogue switches for each
channel to permit the gain of the Sample- and-Hold amplifier to be changed in a
"times 1" "times N" fashion, the value of N being chosen by the customer up to a
value of 50. See also section 6.
A Differential Input variant is also offered, where the input sample- and-hold
amplifiers are modified to take the difference between the two input lines from
two-pole front panel LEMO sockets. This type is selected by a suffix 'M'.
Page 4
Doc: UM0520
Issue: 3.0
Date: 07/01/2002
Page: 3/9
Author: PJM
2. COMMAND SET
Note. - Because the unit has 1 - 4 channels and an optional comparator, links
are used to define the configuration, which also govern the Q and X responses.
Command Meaning Response
F(0) A(0) Read ch 1 data X=1, Q=1 if Data Ready
F(0) A(1) Read ch 2 data X=1, Q=1 if Data Ready
(only if fitted)
F(0) A(2) Read ch 3 data X=1, Q=1 if Data Ready
(only if fitted)
F(0) A(3) Read ch 4 data X=1, Q=1 if Data Ready
(only if fitted)
F(1) A(0) Read Control Register X=1, Q=1
F(8) A(15) Test LAM X=1, Q=LAM
F(16) A(0) Write Comparator X=1, Q=Accepted-Data Ready
(only if fitted)
This command (F(16) A(0)) also loads the gain control bits for the alternative use
of the comparator register in the ADC 521. Bit W1 corresponds to Channel 1, W2 =
Channel 2 etc.
F(16) A(15) Write Test Mode Data X=1, Q=1
into all Data Registers,
disable ADC's, enter Test Mode
F(17) A(0) Write Control Register X=1, Q=1
F(24) A(0) Disable LAM X=1, Q=0
F(26) A(0) Enable LAM X=1, Q=0
F(27) A(0) Test LAM Enabled X =1, Q=Enabled
F(25) A(15) Reset, Exit Test Mode X=1 Q=0
Page 5
Doc: UM0520
Issue: 3.0
Date: 07/01/2002
Page: 4/9
Author: PJM
3. CONFIGURATION LINKS
These are located at the top of the PCB at the back:-
o o
LK14 LK13
o o
| | OV
| |
o o
LK11 LK12
o o
NO LINKS - All 4 channels and comparator fitted
LK 14 in - Comparator not fitted
LK 13 in - Channel 4 not fitted
LK 12 in - Channel 3 not fitted
LK 11 in - Channel 2 not fitted
Other Links
LK 1 to 4 Select UNIPOLAR or BIPOLAR for corresponding
channel. (LK1 = CH 1)
A - B = BIPOLAR
A - C = UNIPOLAR
LK 5 to 8 Select input span for each channel (LK5=CH1)
A - B = 20V SPAN (Note: Not in Unipolar Mode)
A - C = 10V SPAN
LK 9 Select Test Retrigger Mode
Hytec use only - do not fit.
LK 10 Select Int/Ext Trigger input
A - B = Internal Retrigger (another conversion as
soon as data taken)
A - C = External Retrigger
Page 6
Doc: UM0520
Issue: 3.0
Date: 07/01/2002
Page: 5/9
Author: PJM
4. OPERATING MODES
This unit operates in three principal modes:-
4.1 Continuous Mode
4.1.1 Internal Triggering (Link 10 in position A - B)
The unit performs conversions on all channels fitted and when all have finished,
sets the "Data Ready" Flag - this will also cause a LAM if enabled - it then does
another conversion. When this is finished, if the Flag is still set, it waits
until it is reset, and when it is, stores the data from this last conversion and
starts another. The "Data Ready" Flag is then, of course, immediately set again.
The resetting of the "Data Ready" Flag is accomplished by selecting (through the
Control Register) which dataway command shall signify that all the data has been
read out, i.e. this is the last read command before a new conversion should start.
Thus, for a 2 channel ADC, one would chose F(0) A(1) as the Restart Command, then
after both subaddresses A(0) and A(1) have been read, a new conversion would
start.
4.1.2 External Triggering (Link 10 in position A - C)
In this mode, the Trigger Input will start a new conversion following its LOW to
HIGH transition. The Trigger Input is TTL compatible, pulled up to +5V by a 1K
resistor. After this conversion, the results are stored in the Data Registers and
the "Data Ready" Flag is set. The Data is then read out, finishing with the chosen
Restart Command, which resets the "Data Ready" Flag. The unit will now accept a
new Trigger Input pulse. The input Sample and Hold circuits go into SAMPLE mode as
soon as the conversion is completed, and enter HOLD mode 50nS after the active
(Low to High) transition of the Trigger Input. 200nS later, to allow for settling
of the Sample and Hold amplifiers, a new conversion is started.
One Trigger Out pulse is produced every time the "Data Ready" Flag is set. It is a
1uSec wide Low going TTL pulse.
4.2 Non- Continuous or Comparator Mode
Every time a conversion is completed, the state of the comparator output flags are
examined, using the "Greater than"/"Less than" selection from the Control Register
to generate a single "True/False" signal. If it is False, the data is discarded
and a new conversion starts; if it is True then the data is stored and the "Data
Ready" Flag is set, causing a LAM if enabled. The Flag is reset and a new series
of conversions is started by the selected Restart Command, which in this case
should be F(16) A(0) to signify that data has been read out and a new value loaded
into the comparator.
Page 7
Doc: UM0520
Issue: 3.0
Date: 07/01/2002
Page: 6/9
Author: PJM
4.3 Test Mode
For testing purposes, all data registers can be written at the same time with
F(16) A(15). They can all then be read back individually by F(0) A(0- 3) to check
all the data paths.
Entering Test Mode by issuing the command F(16) A(15) disables normal ADC
operation. F(25) A(15) is used to exit Test Mode and return to normal operation.
5. CONTROL REGISTER
All the features described under "Operating Modes" on page 5 are selected through
the Control Register, which has 4 writeable bits and 6 readable bits:-
6 5 4 3 2 1
| | | | | | |
| STOP | F | R1 | R0 | CONT | G/L |
| | | | | | |
R0 and R1 select the Restart Command as follows:-
| | | |
| R1 | R0 | Restart Command |
| | | |
| 0 | 0 | F(16) A(0) |
| 0 | 1 | F(0) A(0) |
| 1 | 0 | F(0) A(1) |
| 1 | 1 | F(0) A(3) |
| | | |
Note that F(0) A(2) is not available as a restart command since a 3 channel ADC is
not offered.
CONT selects Continuous or Comparator Mode.
CONT = '1' - CONTINUOUS
CONT = '0' - COMPARATOR
G/L Selects whether the comparator is looking for an output from Channel 1 ADC
Greater Than or Less Than the value written into the Comparator Register: -
G/L = '1' - Greater Than
G/L = '0' - Less Than
The above bits are all writeable and read able, together with two extra read -only
bits:-
F (FLAG) - The "Data Ready" Flag - '1' = Data Ready
STOP - The output of the comparator logic - '1' = 'True'
Page 8
Doc: UM0520
Issue: 3.0
Date: 07/01/2002
Page: 7/9
Author: PJM
6. DATA FORMAT
The ADC and the Comparator both use straight Binary or Offset Binary, depending
whether the unit is in Unipolar or Bipolar Mode.
Note - 0- 20V Unipolar is NOT available.
Standard input ran ges are +/-5V, 0-10V, +/-10V.
Special Input Ranges can be supplied to reduce the input range down as low as
500mV, for example, by adding extra components around the input Sample- and-Hold
amplifier, contact HYTEC for details.
These ranges can be switched from the dataway, in a "Times 1, Times N" fashion on
a per-channel basis. In this case, the control of the switches is achieved through
the bottom four bits of the Comparator Register, where bit 1 corresponds to the
switch, which will control the gain of Channel 1.
This module is known as the ADC 521.
Data Written = '1' - Gain is "Times N"
Data Written = '0' - Gain is "Times 1"
7. GETTING STARTED
With a fast ADC unit like this, with its Special Control Register functions,
actually getting it to start doing what you want can be quite tricky. Follow these
rules:
Decide the Operating Mode, Restart Command etc. and load the Control Register with
F(17) A(0). This command is accepted at any time. If you choose Comparator Mode,
start by selecting Greater Than, whereupon the Flag will immediately be set
because the Comparator Register is reset by Power- On or F(25) A(15). (Any ADC data
will be greater than zero at this point so the Data Ready Flag will be set).
Having got the Flag set, you may now access the Comparator Register and the
Control Register to set up your starting conditions. (Note: the unit will not let
you write to the Comparator or Read the Data unless the Flag is set).
If you want Continuous Mode, just write this to the Control Register with the
Restart Command Selection and the unit will immediately tell you it has "Data
Ready". Take the data, ending with the Restart Command and away you go!
If you get "stuck" try F(25) A(15) to kick the unit into life!
8. POWER REQUIREMENTS
+ 6V 1A
+ 24V 100mA
- 24V 100mA
Page 9
Doc: UM0520
Issue: 3.0
Date: 07/01/2002
Page: 8/9
Author: PJM
9. PARTS LIST
Integrated Circuits
Type Qty Location(s)
74LS00 2 IC23, IC31
74LS02 5 IC6, IC18, IC29, IC32, IC33
74LS04 1 IC30
74LS08 3 IC8, IC25, IC28
74LS14 1 IC14
74LS74 3 IC15, IC26, IC27
74LS85 3 IC20, IC21, IC22 (Comparator only)
74LS123 3 IC24, IC34, IC35
74LS139 1 IC17
74LS153 1 IC13
74LS174 2 IC11, IC12 (Comparator or ADC 521)
74LS175 1 IC10
74LS365 1 IC19
74LS366 2 IC4, IC5
74LS652 ** 8 IC36 - IC43 inc. (4 channel unit)
7401 3 IC1, IC2, IC3
7405 1 IC7
7437 1 IC16
PLS100 1 IC9 (Version 4, on socket)
HA5320- 5 ** 4 IC48, IC49, IC50, IC51
ADC674K ** 4 IC44, IC45, IC46, IC47
(See Note 1 on page 9 about ADC chip types for each module type)
** Note: On 1 or 2 channel units, unused channels will not be equipped with S/H
(HA5320-5), ADC or data regist er (LS652) chips.
7815 1 VREG (+12 V Reg)
7915 1 VREG (-12 V Reg) Front panel.
Discrete Semiconductors
1N5401 1 D1
1N4148 9 D2 - D10 inc.
Passive Components
10R 0.25W 8 R21 - R28 inc.
100R 4 R13 - R16 inc.
220R 2 R43, R44
270R 4 R33 - R36 inc.
330R 1 R53
1K0 7 R41,R42,R45,R52,R54,R55,R56
6K8 2 R59, R60
10K 12 R46 - R50 inc., R62 - R68 inc.
22K 8 R5 - R12 inc.
33K 1 R51
39K 2 R58, R61
100K 4 R29 - R32 inc.
1M0 4 R1 - R4 inc.
Page 10
Doc: UM0520
Issue: 3.0
Date: 07/01/2002
Page: 9/9
Author: PJM
PARTS LIST (cont.)
200R Preset 8 RV5 - RV12 inc.
10K Preset 4 RV1 - RV4 inc.
20K Preset 4 RV13 - RV16 inc.
SOT (Special) 8 R17 - R20 inc., R37 - R40 inc.
47pF cer. 4 C31 - C34 inc.
82pF cer. 4 C15 - C18 inc.
220pF cer. 1 C29
1n0 cer. 1 C30
100nF cer. 20 C19 - C22 inc., C23 - C26 inc.
and all decouplers "C".
1uF 35V tant. 4 C3 - C6 inc.
15uF 16V tant. 2 C27, C28
10 0uF 6V tant. 2 C1, C2
SOT *** 8 C7 - C14 inc.
Fuse 1A 2 FS2, FS3
Fuse 2A 1 FS1
Note 1: The type of ADC chip fitted depends on the
type/grade of module ordered as follows:-
Standard units : 25 uSec. conversion - ADC chip is ADC574K
Fast units (F) : 15 uSec. conversion - ADC chip is ADC674K
Extra Fast (EF): 10 uSec. conversion - ADC chip is ADC774K
*** Extra "Select- on-Test" components which may be added to
special order.
Loading...
