Page 1
Hypex Electronics BV
Kattegat 8
9723 JP Groningen, The Netherlands
+31 50 526 4993
[email protected]

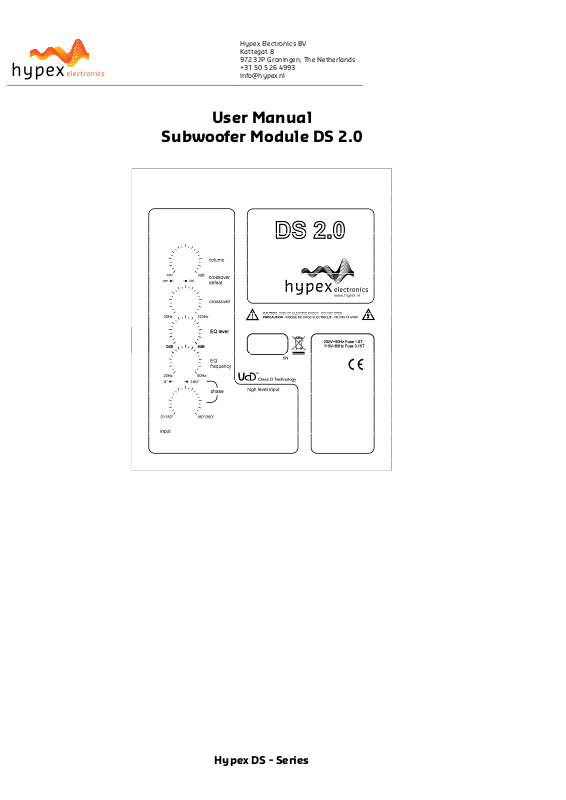

User Manual
Subwoofer Module DS 2.0
Hypex DS - Series
Page 2
General safety instructions ……………………………………………… 3
Introduction ………………………………..……………..……………………. 4
Connections ……………………………………..…………………………….. 5
Crossover settings ………………….………..……………………………. 6
Technical data / Warranty …………………………..…………………. 7
DS2.0
- 2 -
Page 3
DS2.0
CAUTION
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: SHOCK HAZARD.
AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR.
CAUTION: REPLACE FUSE WITH SAME TYPE AND RATING.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE.
DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE.
ATTENTION: DEBRANCHER AVANT DE REMPLACER LE FUSIBLE.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
GENERAL SAFETY INSTRUCTIONS
1. Read instructions. Read the safety and operating instructions before operating the
appliance.
2. Retain instructions. Retain the safety and operating instructions for future reference.
3. Water and moisture. Do not use the appliance near water, for example near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool and
the like.
4. Heat. Site the appliance away from heat sources such as radiators, heaters, stoves, or
other appliances that produce heat.
5. Power cord protection. Route power cords so that they are not likely to be walked on
or pinched by items placed upon or against them, paying particular attention to cords
at plugs, power sockets, and at the point where they exit from the appliance.
6. Unplug this apparatus during lightning storms or when unused for long periods of
time.
7. Objects and liquid entry. Take care not to let objects or liquids fall into the product.
8. The product should be serviced by qualified personnel only.
REPLACING THE FUSE
Should the mains fuse blow, replace it only with an equivalent part. The fuse holder is located
just below the mains inlet socket. To replace the fuse, disconnect the product from the mains
supply. Using a flat blade screwdriver remove and replace the fuse. Contact your local retailer.
- 3 -
Page 4

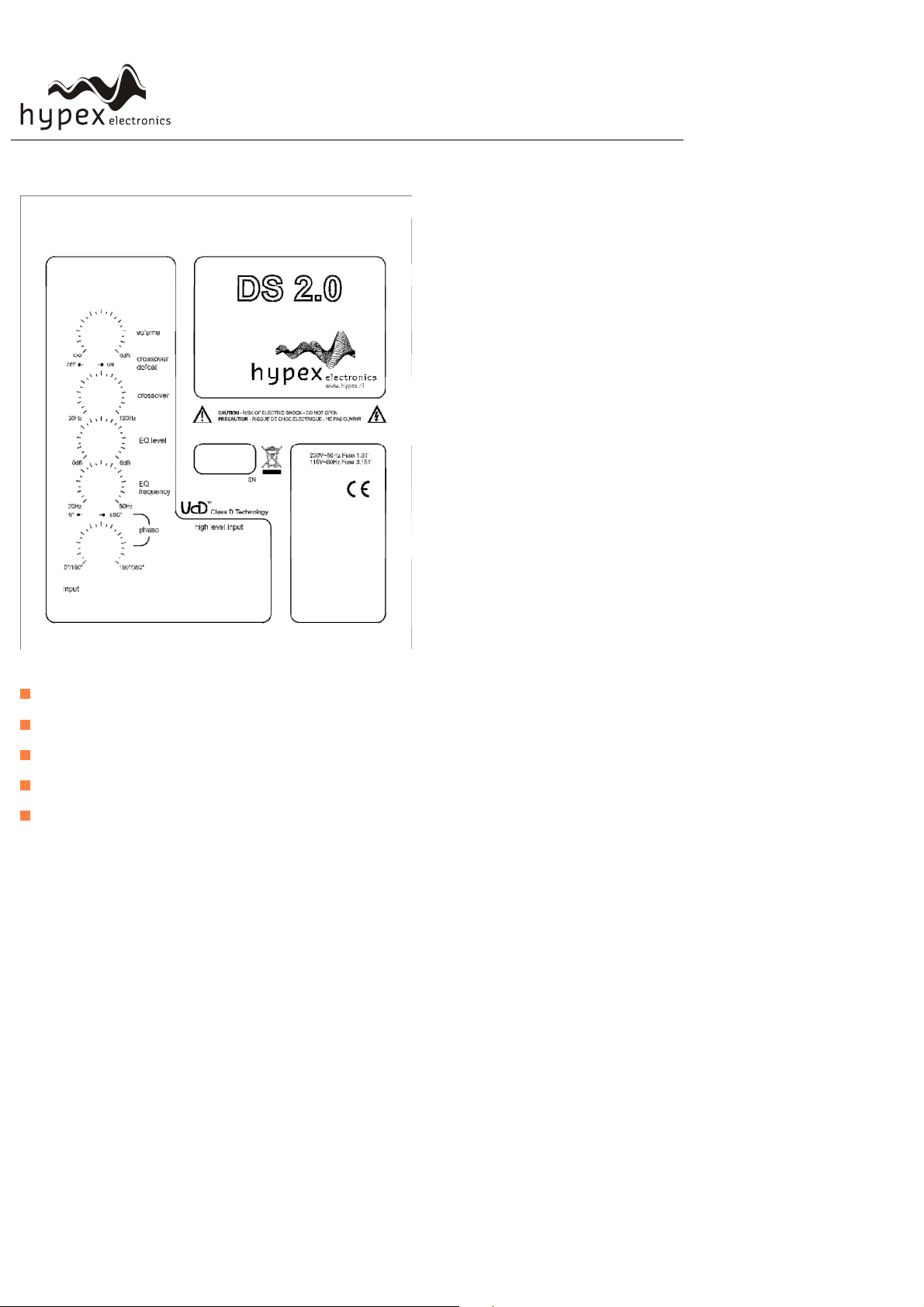

Introduction
DS2.0
High efficiency Class D design.
Active subwoofer amplifier.
Power output 175 Wrms into 4 ohms.
Crossover filter, 18dB/octave.
Subsonic-filter 12Hz, 24dB/octave.
- 4 -
Page 5
DS2.0
The DS 2.0 is a state-of-the-art Class D amplifier module for active subwoofer use. Accurate rendition of the low bass range is a
substantial component of a high-quality music reproduction. For an impressive bass rendition large loudspeakers are unfortunately
inevitable. If you prefer small loudspeakers for optical reasons, you can use the DS2.0 to extend your bass rendition. The crossover
frequency is adjustable steplessly between 30Hz and 120Hz. Due to this large range of control a problem-free connection is possible to
different subwoofer and other loudspeaker systems. Additionally this active system has a low bass rise. An active 4th order subsonic
filter with Butterworth characteristic protects the loudspeaker against mechanical overloading, since the ultralow portion of the fed signal
would cause extreme diaphragm deflections.
Connections
Be sure to disconnect the DS2.0 from the mains before proceeding!

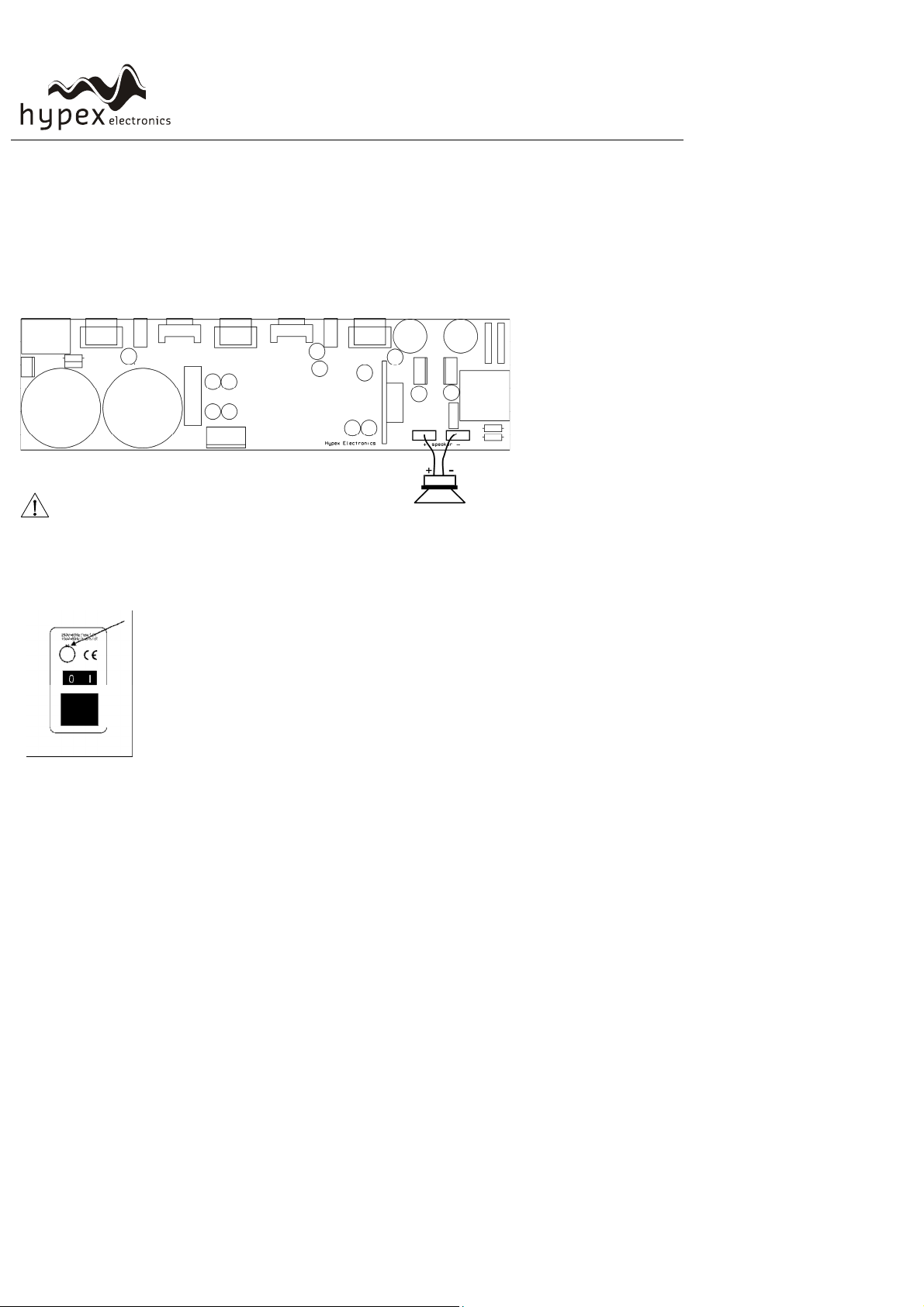

Connect the loudspeaker, wired with wire of sufficient cross-section (1.5mm2 or 15AWG), to the amplifier board as shown in the picture
above. Use suitable crimp connectors and crimp them with a suitable crimp tool. Check the voltage selector on the front panel and make
sure the voltage is set according the mains voltage used in your country.
Mains voltage selector.
- 5 -
Page 6

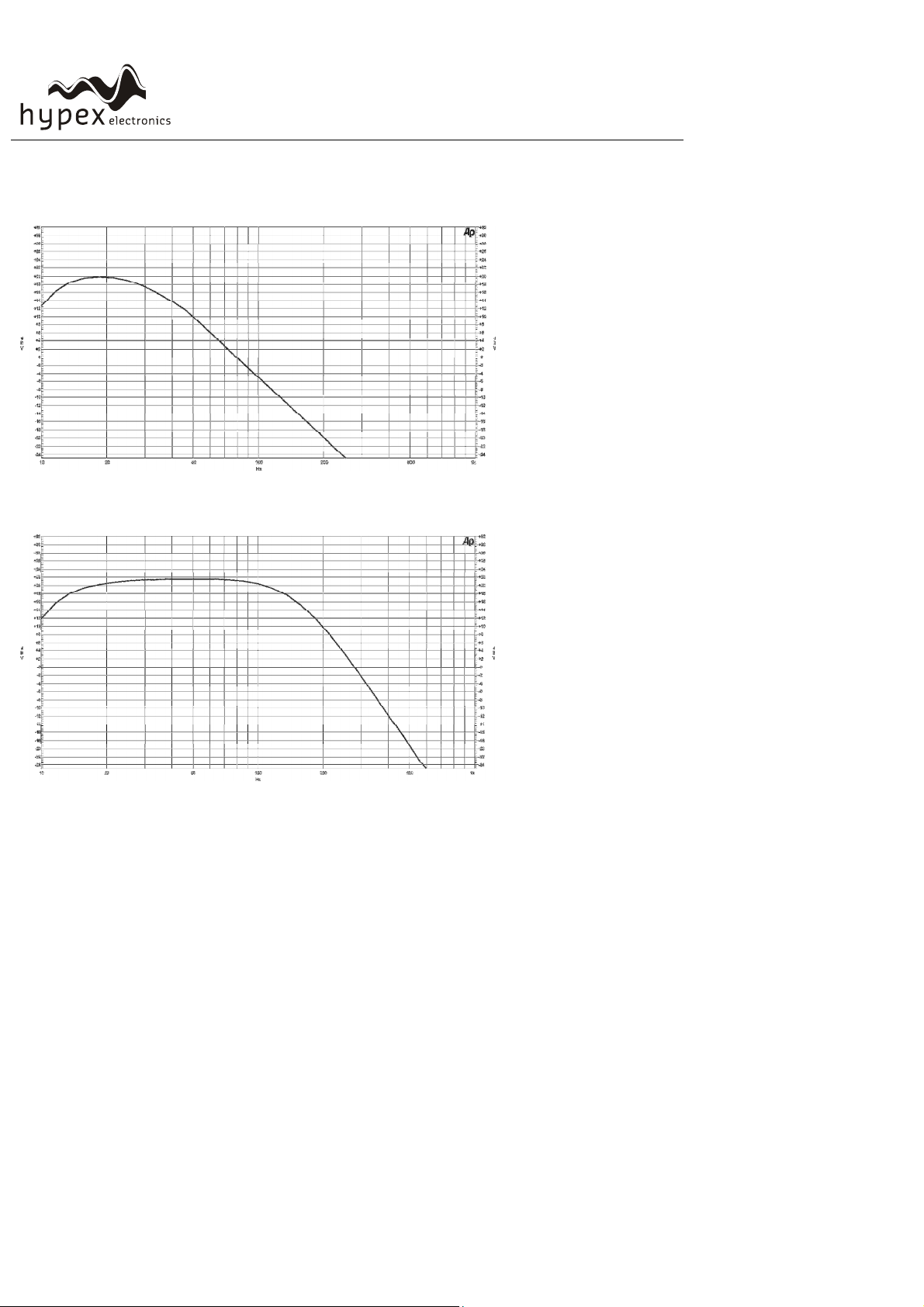

Crossover settings
Crossover example 1.
DS2.0
Crossover frequency is set to 30Hz.
Crossover example 2
Crossover frequency is set to 120Hz.
.
- 6 -
Page 7
Technical Data
Continuous output power (8 Ohm) 100 Watts (+0, -0.5dB)
Continuous output power (4 Ohm) 175 Watts (+0, -0.5dB)
Subsonic-filter 12Hz / -3dB, 24dB/Octave
Phase 0° - 180°, 180° - 360°
Crossover frequency subwoofer 30Hz - 120Hz, 18dB/Octave
Bassboost 20Hz - 50Hz
Bassboost level 0dB - +6dB
Damping factor 500
Protection Output shortcut
Crossover filtering Linkwitz-Riley, 18dB/Octave
Input impedance RCA 10 kOhm
Input impedance high level 1 kOhm

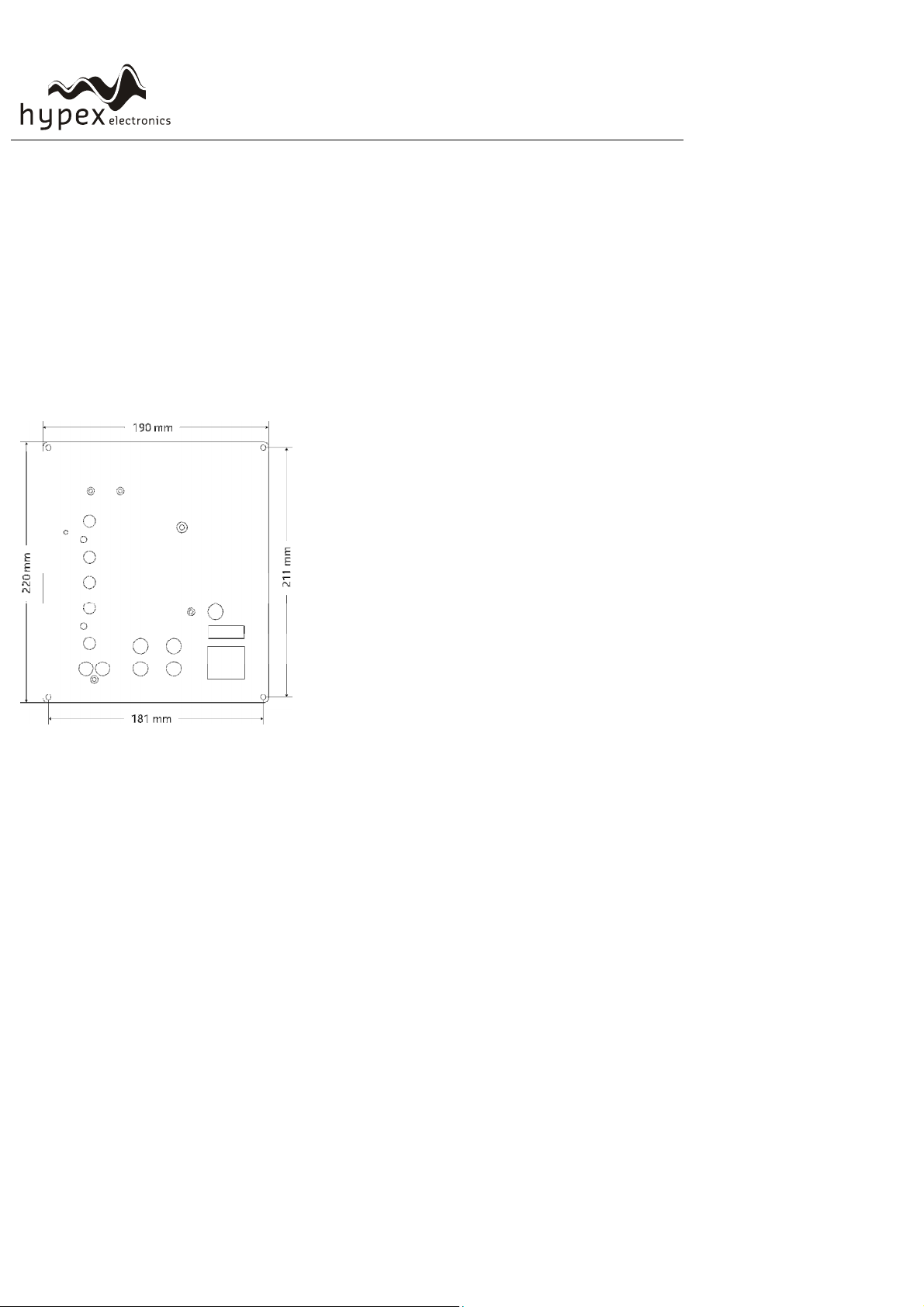

Dimensions 190mm x 220mm x 60mm (W x H x D)
Weight 2.5 kg
DS2.0
Warranty
The work carries warranty out for all provable material and production defects for the duration of 12 months starting from sales. All
damage, which is caused by wrong or inappropriate operation, is excluded from the warranty.
- 7 -
