Page 1
Hypex Electronics BV
Kattegat 8
9723 JP Groningen, The Netherlands
+31 50 526 4993
[email protected]

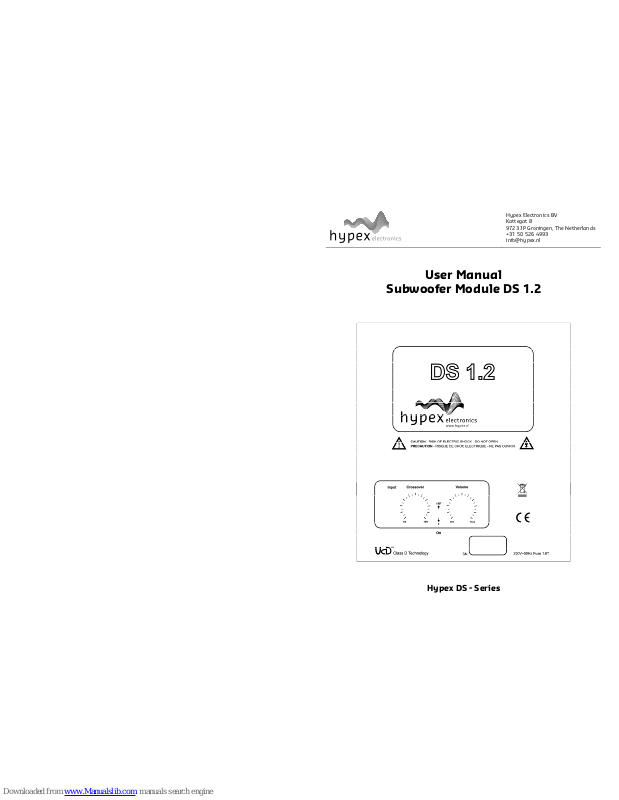

Hypex DS - Series
User Manual
Subwoofer Module DS 1.2
Page 2
DS1.2
- 2 -
General safety instructions ……………………………………………… 3
Introduction ………………………………..……………..……………………. 4
Connections ……………………………………..…………………………….. 5
Crossover settings ………………….………..……………………………. 6
Technical data / Warranty …………………………..…………………. 7
DS1.2
- 7 -
Technical Data
Continuous output power (8 Ohm) 75 Watts (+0, -0.5dB)
Continuous output power (4 Ohm) 120 Watts (+0, -0.5dB)
Subsonic-filter 20Hz / -3dB, 24dB/Octave
Crossover frequency subwoofer 50Hz - 150Hz, 18dB/Octave
Bassboost 25Hz
Bassboost level 2dB
Damping factor 500
Protection Output shortcut
Crossover filtering Linkwitz-Riley, 12dB/Octave
Input impedance RCA 10 kOhm
Dimensions 170mm x 190mm x 60mm (W x H x D)
Weight 2 kg
Warranty
The work carries warranty out for all provable material and production defects for the duration
of 12 months starting from sales. All damage, which is caused by wrong or inappropriate
operation, is excluded from the warranty.
Page 3
DS1.2
- 6 -

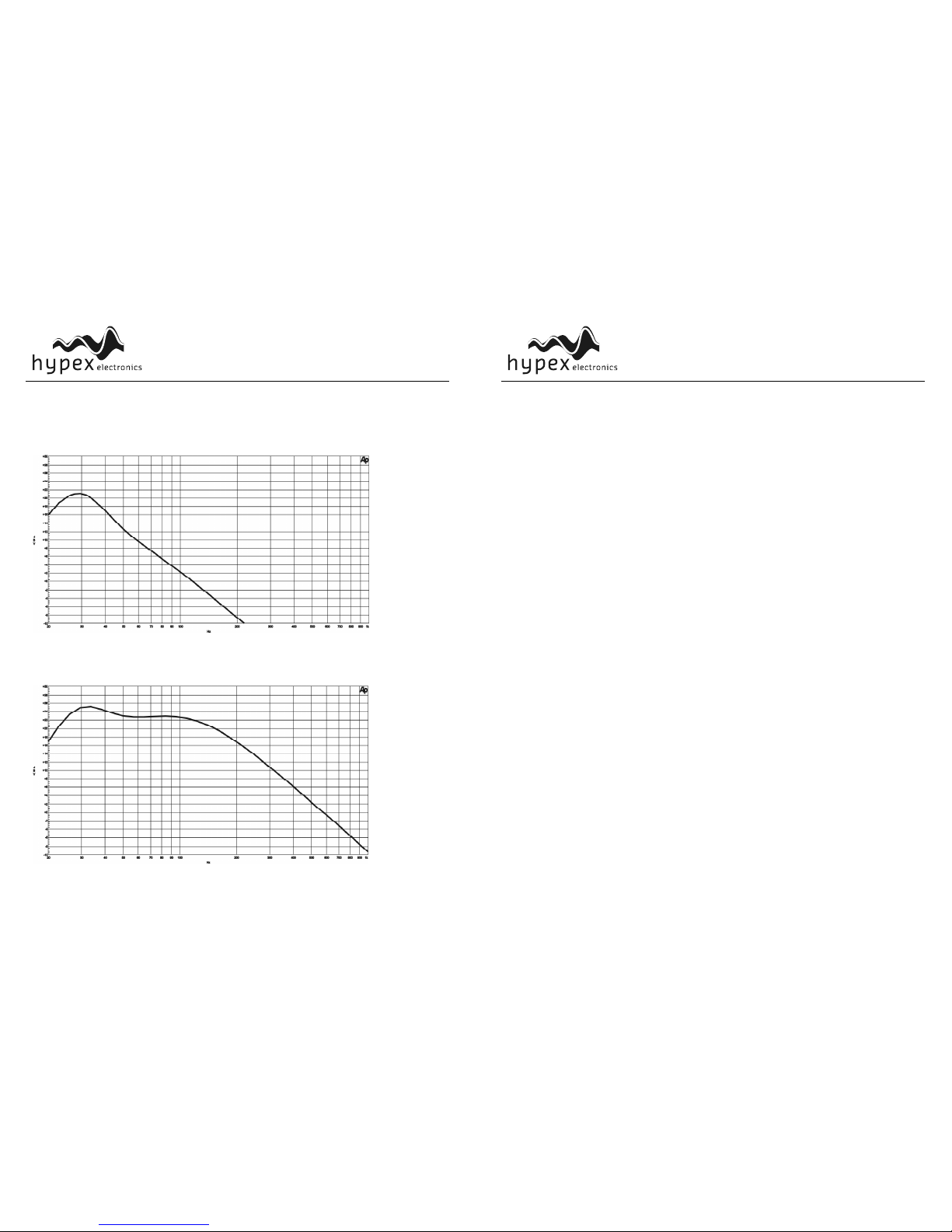

Crossover settings
Crossover example 1.
Crossover frequency is set to 50Hz.
Crossover example 2.
Crossover frequency is set to 150Hz.
DS1.2
- 3 -
CAUTION
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: SHOCK HAZARD.
AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR.
CAUTION: REPLACE FUSE WITH SAME TYPE AND RATING.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE.
DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE.
ATTENTION: DEBRANCHER AVANT DE REMPLACER LE FUSIBLE.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
GENERAL SAFETY INSTRUCTIONS
1. Read instructions. Read the safety and operating instructions before operating the
appliance.
2. Retain instructions. Retain the safety and operating instructions for future reference.
3. Water and moisture. Do not use the appliance near water, for example near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool and
the like.
4. Heat. Site the appliance away from heat sources such as radiators, heaters, stoves, or
other appliances that produce heat.
5. Power cord protection. Route power cords so that they are not likely to be walked on
or pinched by items placed upon or against them, paying particular attention to cords
at plugs, power sockets, and at the point where they exit from the appliance.
6. Unplug this apparatus during lightning storms or when unused for long periods of
time.
7. Objects and liquid entry. Take care not to let objects or liquids fall into the product.
8. The product should be serviced by qualified personnel only.
REPLACING THE FUSE
Should the mains fuse blow, replace it only with an equivalent part. The fuse holder is located
just below the mains inlet socket. To replace the fuse, disconnect the product from the mains
supply. Using a flat blade screwdriver remove and replace the fuse. Contact your local retailer.
Page 4
DS1.2
- 4 -

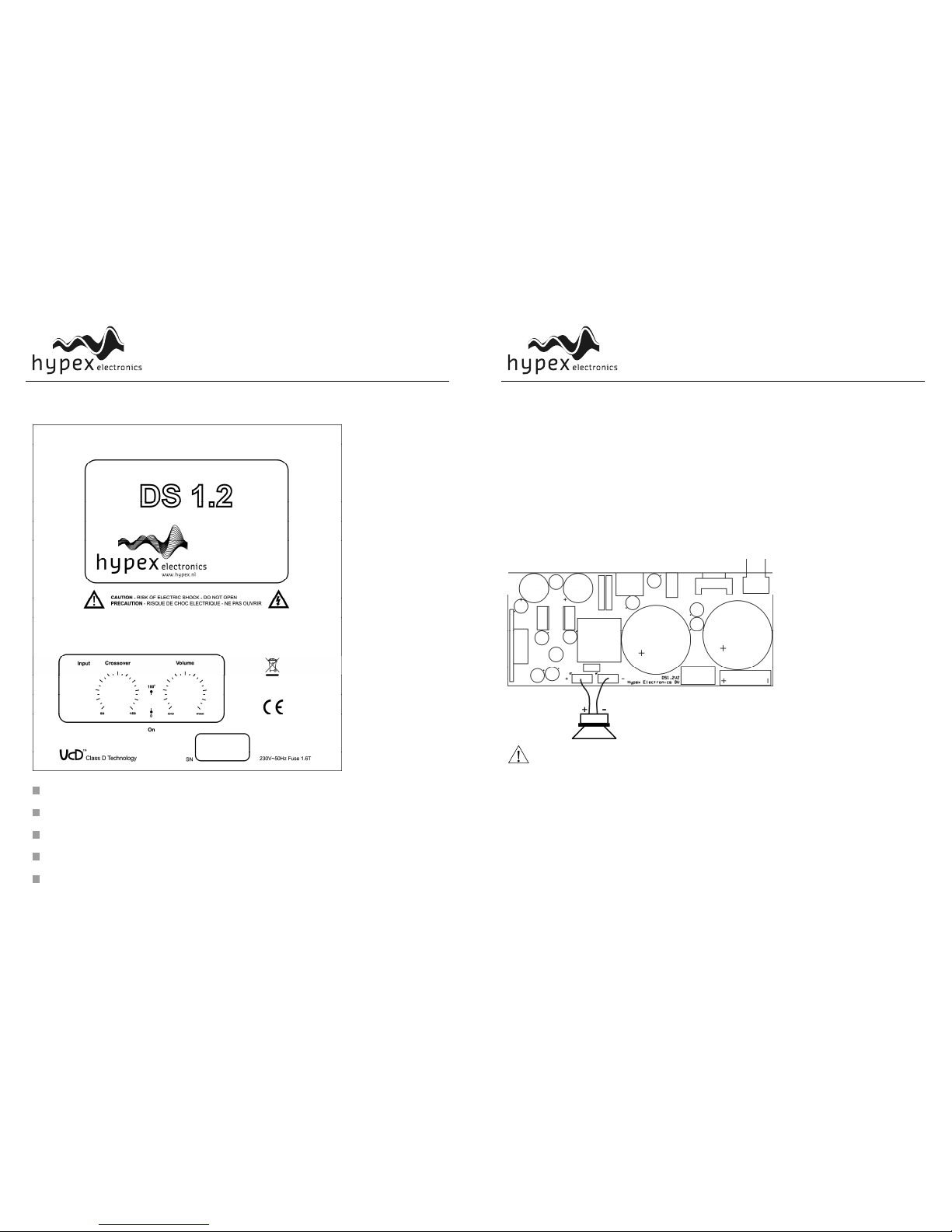

Introduction
High efficiency Class D design.
Active subwoofer amplifier.
Power output 120 Wrms into 4 ohms.
Crossover filter, 12dB/octave.
Subsonic-filter 20Hz, 24dB/octave.
DS1.2
- 5 -
The DS 1.2 is a state-of-the-art Class D amplifier module for active subwoofer use. Accurate
rendition of the low bass range is a substantial component of a high-quality music
reproduction. For an impressive bass rendition large loudspeakers are unfortunately inevitable.
If you prefer small loudspeakers for optical reasons, you can use the DS1.2 to extend your bass
rendition. The crossover frequency is adjustable steplessly between 50Hz and 150Hz. Due to
this large range of control a problem-free connection is possible to different subwoofer and
other loudspeaker systems. Additionally this active system has a low bass rise. An active 4th
order subsonic filter with Butterworth characteristic protects the loudspeaker against
mechanical overloading, since the ultralow portion of the fed signal would cause extreme
diaphragm deflections.
Connections
Be sure to disconnect the DS1.2 from the mains before proceeding!
Connect the loudspeaker, wired with wire of sufficient cross-section (1.5mm2 or 15AWG), to the
amplifier board as shown in the picture above. Use suitable crimp connectors and crimp them
with a suitable crimp tool. Check the voltage selector on the front panel and make sure the
voltage is set according the mains voltage used in your country.
