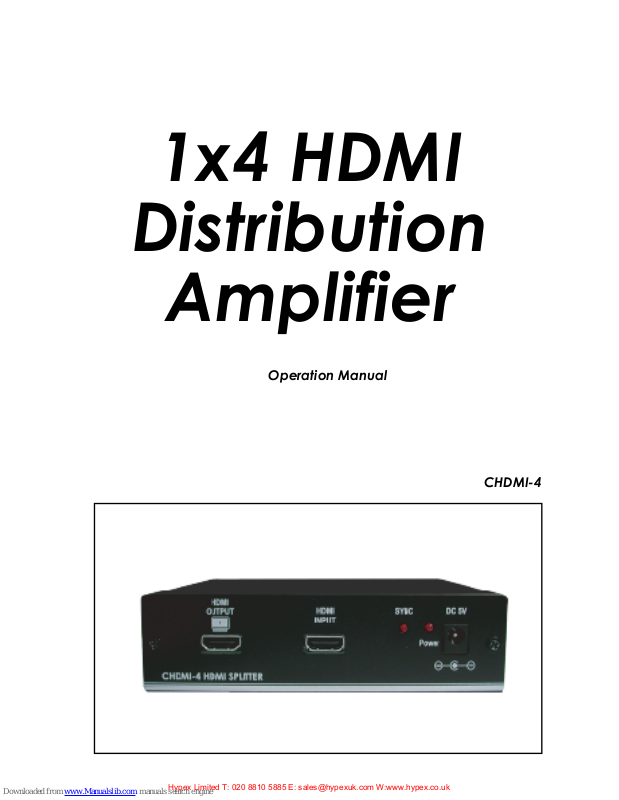

Page 1
1x4 HDMI
Distribution
Amplifier
Operation Manual
CHDMI-4
Hypex Limited T: 020 8810 5885 E: [email protected] W:www.hypex.co.uk
Page 2
Introduction
Cypress CHDMI-4 is a high performance HDMI distribution amplifier.
It allows one HDMI source to connect up to 4 HDMI displays simutaneously.
Features
1. Built-in EDID and HDCP keyset allows each output to work independently in
connecting to a HDMI display.
2. Splits a HDMI source up to 4 outputs without loss.
3. Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable.
4 Supports a wide range of PC and HDTV resolutions from VGA to UXGA
and 480p to 1080p. Maximum resolution bandwidth 165MHz.
5. Can be cascaded up to 3 layers.
6. Each of the buffered output can run up to 15 meters@1600x1200.
Operation Controls and Functions
Front Panel
1
4
2 3
1. HDMI output 1: Connect to the HDMI input of your first display.
2. HDMI input: Connect to the HDMI or DVI output of your source equipment
such as DVD player or set-top-box.
3. Sync Led: The led will illuminate when the HDMI source signal is connected
to the input.
4. Power input: Plug the supplied 5VDC power supply into the unit.
The led will illuminate when connected.
Rear Panel
1
1. HDMI output 2/3/4: Connect each of these output ports to the HDMI input
of a HDMI display.
HDMI
OUTPUT
HDMI
OUTPUT
HDMI
OUTPUT
3 24
DC 5V
Power
SYNC
OUTPUT
CHDMI-4 HDMI SPLITTER
1
HDMI
HDMI
INPUT
Hypex Limited T: 020 8810 5885 E: [email protected] W:www.hypex.co.uk
Page 3
Specifications:
- Frequency bandwidth: 1.65Gbps(single link)
- Input/Output:
1-in/4-out HDMI female port/Power consumption: 6W Max
- 5VDC universal power supply
- Operating temperature range: 0 ~ 70 C
- Operating humidity range: 30 to 80% RH
- Dimensions: 102(W) x141(D) x 38(H)mm
- Weight: 550g

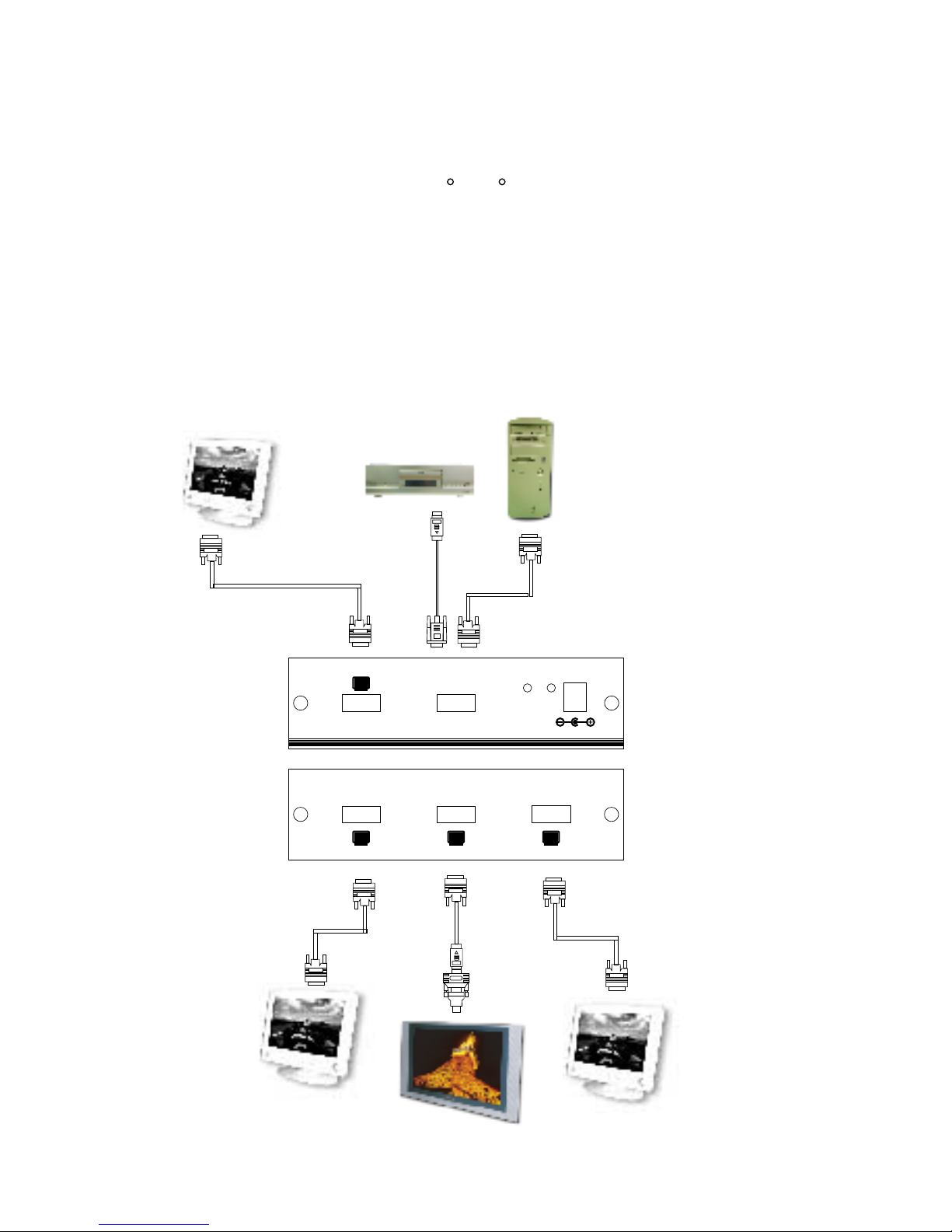

Connection and Installation
DVD or Set-Top Box
PC
DVI to
HDMI
Cable
or
PHDMI display
HDMI
HDMI to DVI Cable
HDMI Cable
HDMI
Cable
LCD TV
Projector
HDMI
HDMI
Cable
HDTV
HDMI Cable
PC Monitor
DC 5V
Power
SYNC
OUTPUT
CHDMI-4 HDMI SPLITTER
1
HDMI
HDMI
INPUT
HDMI
OUTPUT
HDMI
OUTPUT
HDMI
OUTPUT
3 24
Hypex Limited T: 020 8810 5885 E: [email protected] W:www.hypex.co.uk
