HyperX HX429S17IBK2-64 User Manual

64GB (32G

)

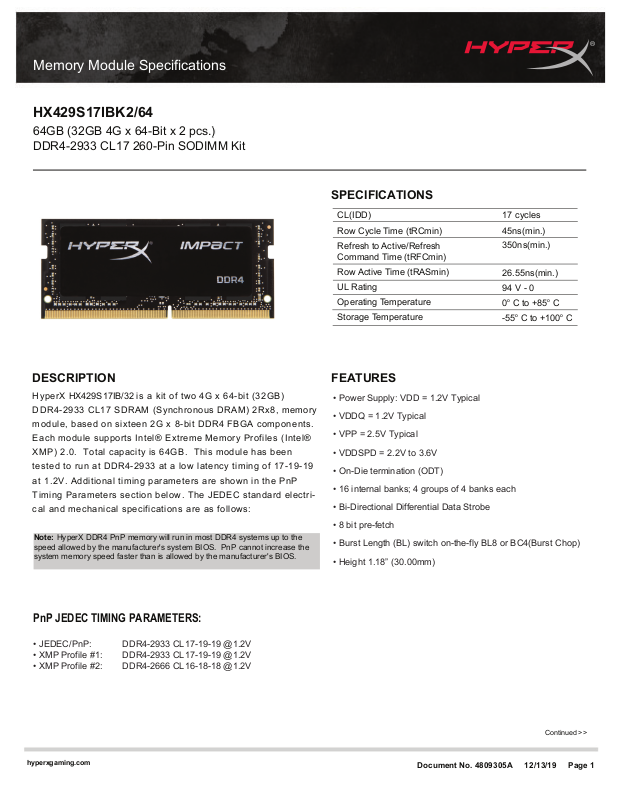

Memory Module Specifications

HX429S17IBK2/64

HX429S17IBK2/6

64GB (32GB 4G x 64-Bit x 2 pcs.)

B 4G x 64-Bit x 2 pcs.

DDR4-2933 CL17 260-Pin SODIMM Kit

DESCRIPTION

HyperX HX429S17IB/32 is a kit of two 4G x 64-bit (32GB)

DDR4-2933 CL17 SDRAM (Synchronous DRAM) 2Rx8, memory

module, based on sixteen 2G x 8-bit DDR4 FBGA components.

Each module supports Intel® Extreme Memory Profiles (Intel®

XMP) 2.0. Total capacity is 64GB. This module has been

tested to run at DDR4-2933 at a low latency timing of 17-19-19

at 1.2V. Additional timing parameters are shown in the PnP

Timing Parameters section below. The JEDEC standard electri-

cal and mechanical specifications are as follows:

Note: HyperX DDR4 PnP memory will run in most DDR4 systems up to the speed allowed by the manufacturer's system BIOS. PnP cannot increase the system memory speed faster than is allowed by the manufacturer's BIOS.

SPECIFICATIONS

CL(IDD)

Row Cycle Time (tRCmin)

Refresh to Active/Refresh Command Time (tRFCmin)

Row Active Time (tRASmin)

UL Rating

Operating Temperature

Storage Temperature

17 cycles

45ns(min.)

350ns(min.)

26.55ns(min.)

94 V - 0

C to +85o C

C to +100o C

-55

FEATURES

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.18” (30.00mm)

PnP JEDEC TIMING PARAMETERS:

• JEDEC/PnP: DDR4-2933 CL17-19-19 @1.2V

• XMP Profile #1: DDR4-2933 CL17-19-19 @1.2V

• XMP Profile #2: DDR4-2666 CL16-18-18 @1.2V

hyperxgaming.com

Continued >>

Document No. 4809305A 12/13/19 Page 1

continued

MODULE DIMENSIONS

All measurements are in millimeters.

(Tolerances on all dimensions are ±0.12 unless otherwise specified)

The product images shown are for illustration purposes only and may not be an exact representation of the product. Kingston reserves the right to change any information at anytime without notice.

FOR MORE INFORMATION, GO TO HYPERXGAMING.COM

All Kingston products are tested to meet our published specifications. Some motherboards or system configurations may not operate at the published HyperX memory speeds and timing settings. Kingston does not recommend that any user attempt to run their computers faster than the published speed. Overclocking or modifying your system timing may result in damage to computer components.

HyperX is a division of Kingston.

Document No. 4809305A Page 2
