HyperX HX421S14IBK4-16 Technical data

6

)

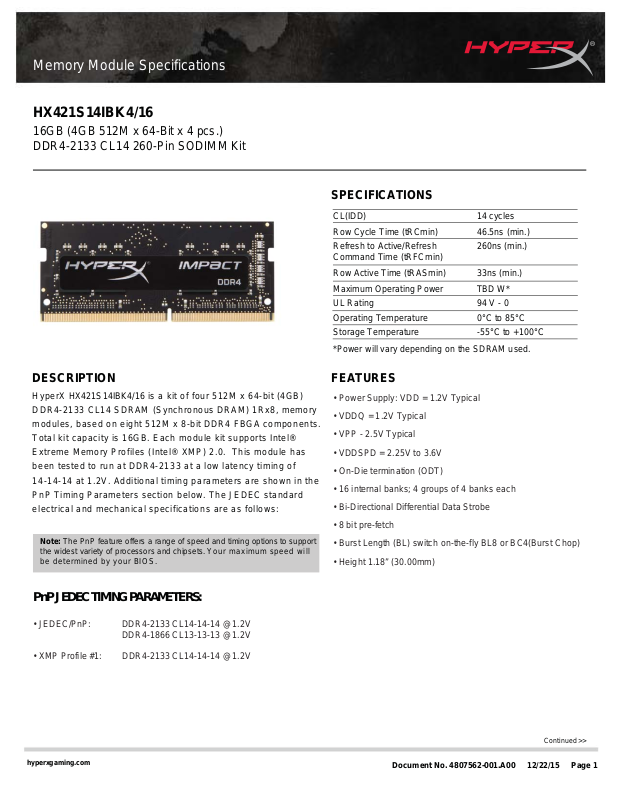

Memory Module Specifications

HX421S14IBK4/16

HX421S14IBK4/1

16GB (4GB 512M x 64-Bit x 4 pcs.)

16GB (4GB 512M x 64-Bit x 4 pcs.
DDR4-2133 CL14 260-Pin SODIMM Kit

SPECIFICATIONS

14 cyclesCL(IDD)
Row Cycle Time (tRCmin) 46.5ns (min.)
Refresh to Active/Refresh 260ns (min.)

Command Time (tRFCmin)
Row Active Time (tRASmin) 33ns (min.)
Maximum Operating Power TBD W*

0 - V 49gnitaR LU
Operating Temperature 0°C to 85°C
Storage Temperature -55°C to +100°C

*Power will vary depending on the SDRAM used.

DESCRIPTION

HyperX HX421S14IBK4/16 is a kit of four 512M x 64-bit (4GB)
DDR4-2133 CL14 SDRAM (Synchronous DRAM) 1Rx8, memory
modules, based on eight 512M x 8-bit DDR4 FBGA components.
Total kit capacity is 16GB. Each module kit supports Intel®
Extreme Memory Profiles (Intel® XMP) 2.0. This module has
been tested to run at DDR4-2133 at a low latency timing of
14-14-14 at 1.2V. Additional timing parameters are shown in the
PnP Timing Parameters section below. The JEDEC standard
electrical and mechanical specifications are as follows:

Note: The PnP feature offers a range of speed and timing options to support
the widest variety of processors and chipsets. Your maximum speed will
be determined by your BIOS.

PnP JEDEC TIMING PARAMETERS:

• JEDEC/PnP: DDR4-2133 CL14-14-14 @1.2V
DDR4-1866 CL13-13-13 @1.2V

• XMP Profile #1: DDR4-2133 CL14-14-14 @1.2V

FEATURES

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP - 2.5V Typical

• VDDSPD = 2.25V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.18” (30.00mm)

hyperxgaming.com

Continued >>

Document No. 4807562-001.A00 12/22/15 Page 1

continued

MODULE DIMENSIONS

FOR MORE INFORMATION, GO TO HYPERXGAMING.COM

All Kingston products are tested to meet our published specifications. Some motherboards or system configurations may not operate at
the published HyperX memory speeds and timing settings. Kingston does not recommend that any user attempt to run their computers

the published HyperX memory speeds and timing settings. Kingston does not recommend that any user attempt to run their computers
faster than the published speed. Overclocking or modifying your system timing may result in damage to computer components.

faster than the published speed. Overclocking or modifying your system timing may result in damage to computer components.

HyperX is a division of Kingston.

©2015 Kingston Technology Corporation, 17600 Newhope Street, Fountain Valley, CA 92708 USA.
All rights reserved. All trademarks and registered trademarks are the property of their respective owners.

Document No. 4807562-001.A00 Page 2
