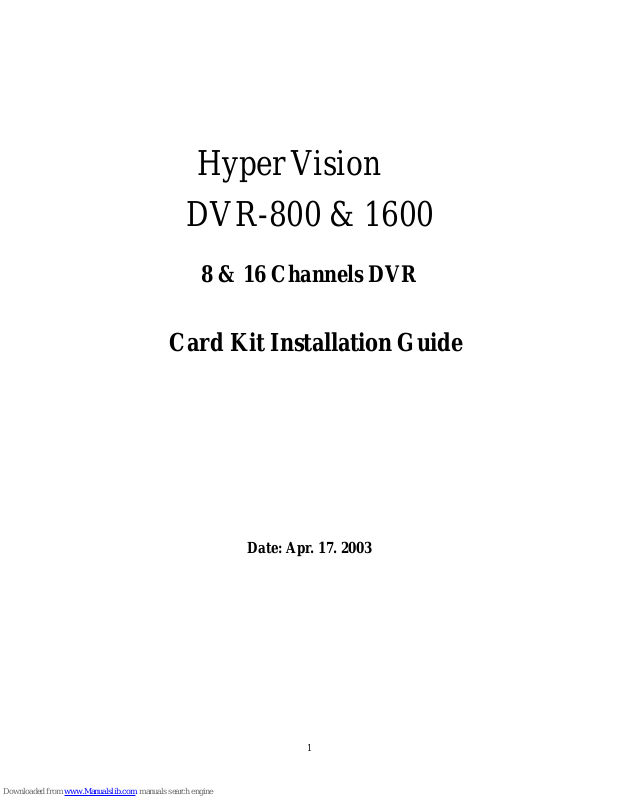

Hyper Vision DVR-800, DVR-1600 Installation Manual

Hyper Vision

DVR-800 & 1600

8 & 16 Channels DVR

Card Kit Installation Guide

Date: Apr. 17. 2003

1

LIST

1. DVR-800 & 1600 DVR SYSTEM REQUIREMENT.................................................................3

2. DVR-800 & 1600 CARD KIT PACKAGE CONTENTS...........................................................4

3. INST ALL THE CAPTURE CARDS ...........................................................................................5

4. INSTALL THE FLASH MODULE & HARD DISK.................................................................6

4-1 INSTALL THE FLASH MODULE ......................................................................................................6

4-2 INST ALL HARD DISK.....................................................................................................................7

5. INSTALL OTHER PARTS..........................................................................................................8

5-1 CPU.......................................................................................................................................8

5-2 DRAM...................................................................................................................................8

5-3 FLOPPY ..................................................................................................................................8

5-4 RESET BUTTON ON CASE........................................................................................................8

6. CONFIGURE BIOS PARAMETERS...............................................................................................9

6-1. FOR GIGABYTE GA-8IEX............................................................................................................10

6-2.FOR GIGABYTE GA-8SG667........................................................................................................12

6-3.FOR ASUS P4S533-E...................................................................................................................14

6-4.FOR ASUS P4PE ..........................................................................................................................17

6-5.FOR GIGABYTE GA-8PE667 PRO.................................................................................................21

7. BOOT AND TEST............................................................................................................................24

7-1 CONNECT CAMERAS ..................................................................................................................24

7-2 BOOT AND TEST .........................................................................................................................24

8. QUESTION AND ANSWER ...........................................................................................................25

8-1 SYSTEM REQUESTS TO FORMAT HARD DISK AGAIN AFTER FORMA TTING HARD DISK...................25

8-2 SYSTEM REBOOTS CONTINUOUSLY. ............................................................................................25

2

1. DVR-800 & 1600 DVR System Requirement

Hyper Vision 8CH & 16CH DVR card kit needs to specify the combination of

“motherboard chipset ”, “VGA chip”, and “network interface chip”.

Hyper Vision DVR card kit specifies:

Motherboard Chipset Intel 845E, SiS645DX, SiS648, Intel 845PE
VGA Chip nVIDIA TNT2, GeForce2, GeForce4
Network Interface Chip Realtek 8139C

Remark: DVR-800 & 1600 also supports VGA card with TV-out function. If you

would like to install the VGA card with TV-out function, you could use the
VGA card with nVidia GeForce4 MX440 chip (eg. MSI MX440-T8X).

This document takes GigaByte GA-8IEX motherboard (Intel 845E chipset) as

an example, which has the following peripheral controllers:

GA-8IEX

Motherboard Chipset Intel 845E
VGA Chip nVIDIA TNT2
Network Interface Chip Realtek 8139C

If you could not find GigaByte GA-8IEX motherboard, you could try the other
motherboards such as Gigabyte GA-8SG667, GA-8PE667 Pro, ASUS P4S533-E,
ASUS P4PE, or motherboards with Intel 845E/ Intel 845PE/ SiS645DX/ SiS648
chipset.

3

2. DVR-800 & 1600 Card Kit Package Contents

DVR-800 & 1600 card kit includes,

1. Four capture cards (Fig.2-1).

2. One system module and one power cable for this module (Fig2-2)

3. One special cable for connecting the system module and internal CD/RW. If you

use the external CD/RW (USB interface), you won’t need this cable (Fig2-3).

Fig.2-1 Capture Card

Fig.2-2 System Module

Fig.2-3 Special Cable

Plug into the

primary IDE slot

Connect to system

module

Connect to

internal CD/RW

4

Install the Capture Cards

This section describes the installation procedures on GigaByte GA-8IEX
motherboard (w/ Intel 845E chipset) as an example.

Please install all interface cards as the photo (Fig 3-1) below:

1. Insert the display card into the AGP slot.

2. Insert 4 capture cards into 1st, 2nd, 3rd, 4th PCI slots.

3. Insert the network interface card into the last PCI slot.

4 capture cards

here

AGP slot for

display card

Network card

here

Fig 3-1 DVR-800 & 1600 capture cards installed on GA-8IEX

Remark:
The example above is the installation procedure on GA-8IEX motherboard. For
the other motherboard with Intel 845E/SiS 645DX/SiS648 chipset, the
installation procedure is similar to the above procedures.

5

3. Install the Flash Module & Hard Disk

4-1 Install the Flash Module

In general, there are two IDE slots, one is Primary (the red one on GA-8IEX),
and the other is Secondary. Please plug the System Module into Primary IDE slot and
set it as “Master”, then connect the D-type power line to power supply as the figure
below.

If you would like to install the internal CD/RW burner also (DVR-800 & 1600
supports the internal CD/RW and USB external CD/RW both), please use the special
cable as the figure below which is included in the shipping box to connect the system
module (set as Primary IDE Master) and the internal CD/RW (set as Primary IDE
Slave).

6

Connect to internal CD/RW burner

(Set as Primary IDE “Slave”)

Plug into the
primary IDE slot

Connect to system module

(Set as Primary IDE “Master”)

4-2 Install Hard disk

DVR-800 & 1600 could support 2 Hard Disks. If you install one hard disk only,
please set it as Secondary IDE “Master”. If you install the 2nd hard disk, please set it
as Secondary IDE “Slave”.

First, configure the jumper of hard disk as Master (refer to manual of hard disk),
then link hard disk with 40-pins parallel cable to the Secondary IDE slot (the white
one on the GA-8IEX).

Please pay attention to the direction of the 40-pins parallel cable. Some cheap
cable without “foolproof” may cause mistake. Normally, there is a red line marked on
the 1

st

pin of the cable, which should be connected to 1st pin of hard disk and IDE slot.

7

5. Install Other Parts

5-1 CPU

GA-8IEX has a Socket 478 for CPU. For Hyper Vision, the system recording
frame rate is depended on the CPU that system uses. If it uses the Intel P4-2.4G, the
system recording frame rate is around 100fps(Frame per Second).

5-2 DRAM

System’s minimum requirement is 256MB(DDR for GA-8IEX).

5-3 Floppy

Hyper Vision supports “Save-to-Floppy” function for single picture, so you can
connect a 3.5” 1.44MB floppy to FDD slot on motherboard for this feature.

5-4 Reset Button on Case

Please DO NOT attach the Reset Button to the reset pin of motherboard, which
means, please do not enable reset function.

If users make the mistake to trigger the reset button, it will immediately
shutdown the whole machine abnormally and loose some records. However, if user
push the “Power Button”, the system could close all the opened files, and keep the
integrity of records.
