PRODUCT SPECIFICATIONS

MAX200 Power Supplies

The MAX200 is a constant current, secondary converter chopper power supply providing
continuously variable amperage from 40 amps to 200 amps. It conforms to the following
specifications:

SPECIFICATIONS

Section 1

SPECIFICATIONS

Maximum OCV (U0)......................................280 VDC

Output Current (I2)........................................40-200 amps

Output Voltage (U2) ......................................150 VDC

Duty Cycle Rating (X)...................................100% up to 30kW

Input Power (Input Voltage (U1) x Input Current (I1):

073002*........................................................240/480 VAC, 3Ø, 60 Hz, 90/45 amps

073020**

073003*........................................................600 VAC, 3Ø, 60Hz, 36 amps

073021**

073004*........................................................208 VAC, 3Ø, 60Hz, 104 amps

073022**

073005*........................................................220/380/415 VAC, 3Ø, 50 Hz, 98/57/52

073023** amps

073026*........................................................200 VAC, 3Ø, 50 Hz, 108 amps

073024**

073200*........................................................400 VAC - CE, 3Ø, 50 Hz, 56 amps

073213**

073036*........................................................500 VAC, 3Ø, 50 Hz, 43 amps

073039**

* MAX200 Power Supply - comes without THC Configuration
** MAX200 Power Supply for use with the machine torch - comes with THC Configuration

MAX200 Product Configuration Manual

1-1

SPECIFICATIONS

Dimensions:

Width ............................................................28-1/4" (71 cm)

Height...........................................................35-1/2" (90 cm) w/o casters; 40-3/4" (104 cm) -CE

43" (109 cm) w/casters; 48-1/4" (122 cm) -CE

Depth............................................................41-1/4" (104 cm) w/o handle

50" (127 cm) w/handle

Weight ..........................................................780 pounds (351 kg); 800 pounds (363 kg) -CE

Cooling .........................................................Forced Air (Class F)

Torch Coolant Tank Capacity .......................2.9 gallons (11 liters)

Torch Coolant Requirements and

Coolant Safety Data .....................................See Appendix section of instruction manual

Gas Requirements:

Gas Type/Quality..........................................Air (compressed)/clean, dry, oil-free

Plasma Gases..............................................Air, O2, N2, H35

Shield Gases................................................Air, CO2, N

Plasma Gas Flow .........................................66 scfh (Air), 60 scfh (N2), 70 scfh (H35),

72 scfh (O2)

Shield Gas Flow ...........................................220 scfh (CO2), 280 scfh (Air), 290 scfh (N2)

Plasma Gas Inlet Pressure ..........................90/120 psi (6.2/8.3 bar) (flowing)

Shield Gas Inlet Pressure ............................90 psi (6.2 bar) (flowing)

Plasma Gas Pressure (Test/Run).................See

Shield Gas Pressure ....................................70 psi (4.8 bar)

Oxygen (O
Nitrogen (N
Carbon Dioxide (CO2 )/99.5% (compressed or
liquid)
Argon/Hydrogen (H35 = 35% Hydrogen/65%
Argon)

Cut Charts

(#800870) or IM98 (#800980)

)/99.5% (liquid)

2

)/99.995% (liquid)

2

2

in Operation section of IM87

PAC200T (90° & 65°) Cutting/PAC200E (65°) Gouging/MAX200 Rev 1 (90°) Hand
Torches

Maximum cutting thickness ..........................2 inches (50 mm)

Maximum current at 100% duty cycle ..........200 amps

Plasma Gas Flow .........................................66 scfh (Air), 60 scfh (N2), 70 scfh (H35), 72 scfh

(O2)

Shield Gas Flow ...........................................220 scfh (CO2), 280 scfh (Air), 290 scfh (N2)

Water Coolant Flow Rate .............................0.8 gpm (3.0 l/min)

Weight ..........................................................3 lbs (1.4 kg - MAX200 Rev 1 90°) 2-1/2 lbs.

(1.1 kg - PAC200T/E)

1-2

MAX200 Product Configuration Manual

MAX200 Machine Torch

Maximum cutting thickness ..........................2 inches (50 mm)

Maximum current at 100% duty cycle ..........200 amps

Plasma Gas Flow .........................................66 scfh (Air), 60 scfh (N

Shield Gas Flow ...........................................220 scfh (CO

Water Coolant Flow Rate .............................0.8 gpm (3.0 l/min)

Weight ..........................................................2-1/2 lbs. (1.1 kg)

Switch Remote (SR) V/C Control - Optional

Controls........................................................Start button:

pilot arc.

power supply.

displays value on LEDs.

Control Range ..............................................Current: 40 to 200 Amps

Voltage: 100 to 200 Volts

Control Resolution........................................Current: 20 Amps

Voltage: 5 Volts

Dimensions:

Width ............................................................11-1/2" ( 29 cm)

Height...........................................................5" (13 cm)

Depth............................................................13-1/4" (34 cm)

Weight ..........................................................6 pounds (2.7 kg)

SPECIFICATIONS

), 70 scfh (H35), 72 scfh (O2)

2

), 280 scfh (Air), 290 scfh (N2)

2

Activates IHS (if on) and initializes

Stop button:

Deactivates main contactor in

IHS On/Off switch:

Turns IHS system on or off.

Auto Height On/Off switch:

Activates THC in power supply.

Voltage adjust pot:

Adjusts arc cutting voltage and

Current adjust pot:

Adjusts arc cutting current and
displays value on LEDs.

Digital Remote (DR) V/C Control - Optional

Controls........................................................Voltage adjust pot:

displays value on LEDs.

Dimensions:

Width ............................................................11-1/2" (29 cm)

Height...........................................................3" (7.6 cm)

Depth............................................................13-3/8" (34 cm)

Weight ..........................................................5 pounds-5 oz. (2.4 kg)

MAX200 Product Configuration Manual

Adjusts arc cutting voltage and

Current adjust pot:

Adjusts arc cutting current and
displays value on LEDs.

1-3

SPECIFICATIONS

Programmable Remote (PR) V/C Control - Optional

Controls........................................................None. Controlled through guidance

machinery computer.

Dimensions:

Width ............................................................11-1/2" (29 cm)

Height...........................................................3" (7.6 cm)

Depth............................................................12-1/2" (31.8 cm)

Weight ..........................................................5 pounds-5 oz. (2.4 kg)

Remote Current (RCC) Control - Optional

Dimensions and Weight:

Width ............................................................6-1/2" (16.5 cm)

Height...........................................................2-1/2" (6.2 cm)

Depth............................................................8-1/2" (21.6 cm)

Weight ..........................................................3 pounds (1.4 kg)

Initial Height Sensing - Optional

Input Power ..................................................120 VAC from power supply

Air Pressure .................................................20 psi (1.4 bar) regulated shop air input

to solenoid.

Dimensions:

Width ............................................................9" (23 cm)

Height...........................................................4-1/2" (11 cm)

Depth............................................................11-1/2" (29 cm)

Weight ..........................................................13 pounds (6 kg)

Water Muffler - Optional - (not used with the stainless steel torch)

Refer to Water Muffler Instruction Manual (P/N 802050).

1-4

MAX200 Product Configuration Manual

Section 2

MAX200 MACHINE SYSTEM ORDER FORM

MAX200 Product Configuration Manual

2-1

MAX200

Power
Supply

Air Reg.

Second

MAX200

Power
Supply

IHS

Console

Torch

WM

WM

Pump

CNC

Interface

(customer

supplied)

1 MAX200 Power Supply (PS)
2 Machine Torch Assembly
3 Leads Between Power Supply and Torch
4 Machine Interface Cable Between Power Supply and

CNC Interface
5 Programmable Remote Voltage & Current Control
6 Cable Between Power Supply and Programmable Remote or

Digital Remote
7 Cable Between Programmable Remote and CNC Interface
8 Digital Remote Voltage & Current Control
9 Switch Remote Voltage & Current Control
10 Cable Between Power Supply and Switch Current

Programmable

Remote V/C

Digital

Remote V/C

11 Remote Current Control
12 Cable Between Power Supply and Current Remote
13 Inductive IHS System
14 IHS Pressure Regulator Assembly
15 Inductive IHS Lead Set
16 Water Muffler System (not used with the stainless steel torch)
17 Additional Length WM Hose
18 Cable Between Water Muffler Pump and Power Supply
19 Work Cable Between Power Supply and Work Table
20 Hold Cable Between Power Supplies

Switch

Remote V/C

Remote
Current
Control

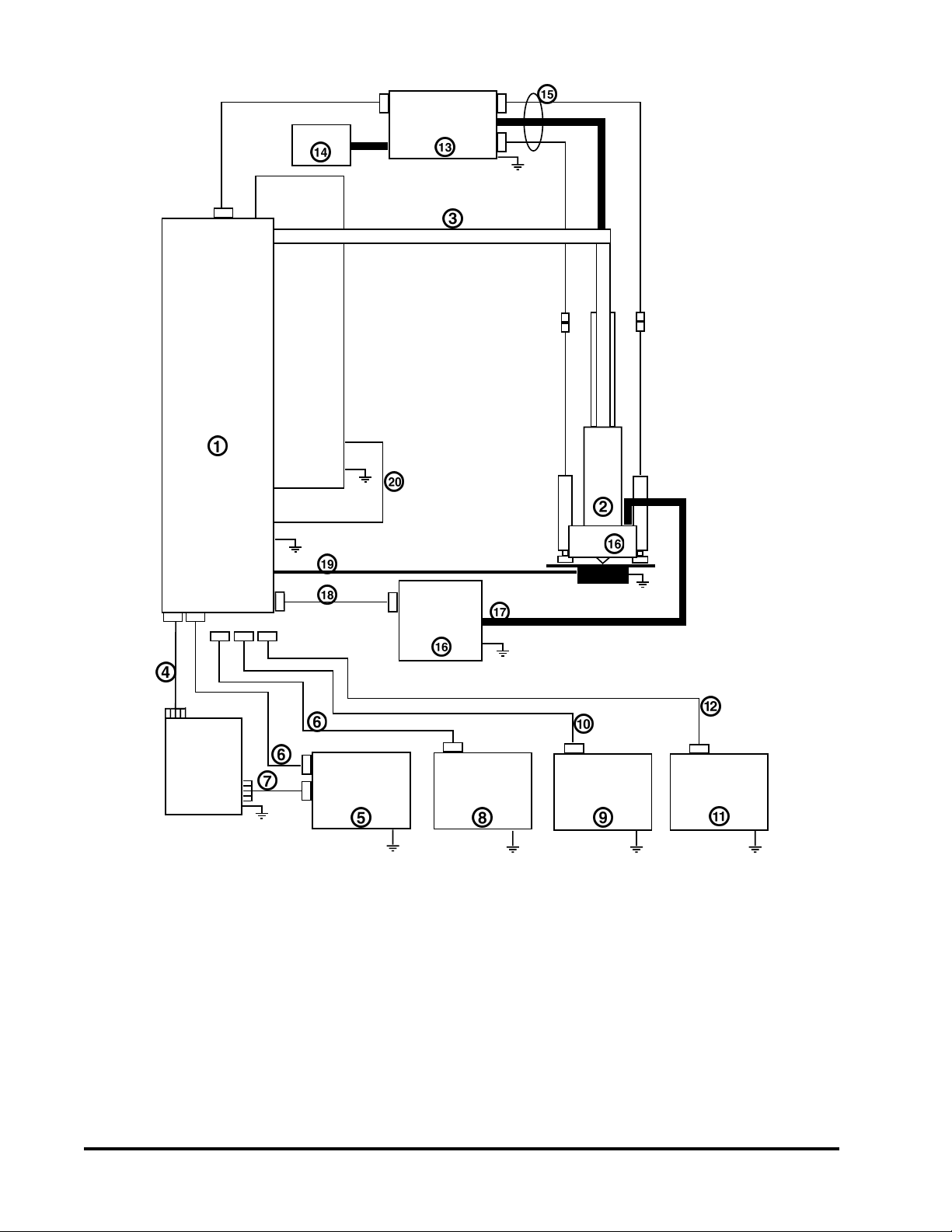

MAX200 Machine System Block Diagram

MAX200 Product Configuration Manual2-2

Section 3

MAX200 HAND SYSTEM ORDER FORM

MAX200 Product Configuration Manual

3-1

MAX200

Power
Supply

MAX200

Power
Supply

1

2

MAX200

Power
Supply

3

1 MAX200 Hand Cutting System
2 MAX200 Hand Gouging System
3 MAX200 Power Supply
4 PAC200T 90° Cutting Torch Assembly with

25 ft (7.6 m) Leads

MAX200 Hand Systems and Options

4

5

6

7

5 PAC200T 65° Cutting Torch Assembly with 25 ft (7.6 m) Leads
6 PAC200E Gouging Torch Assembly with 25 ft (7.6 m) Leads
7 Extended Leads

MAX200 Product Configuration Manual3-2

Distributor Information:

Customer Information:

HYPERTHERM

MAX200 Machine System Order Form

1 MAX200 Power Supply

073026 MAX200 PS,200V,50 Hz
073004 MAX200 PS,208V,60 Hz
073005 MAX200 PS,220/380/415V,50 Hz

Comes Wired for 380V

073002 MAX200 PS,240/480V,60 Hz

Comes Wired for 480V
073200 MAX200 PS,400V - CE, 50Hz
073036 MAX200 PS,500V,50 Hz
073003 MAX200 PS,600V,60 Hz

073024 MAX200 PS,200V,60 Hz,with THC
073022 MAX200 PS,208V,60 Hz,with THC
073023 MAX200 PS,220/380/415V,50 Hz,
with THC Comes Wired for 380V.
073020 MAX200 PS,240/480V,60 Hz,
with THC Comes Wired for 480V.
073213 MAX200 PS,400V - CE, 50Hz,with THC
073039 MAX200 PS,500V,50 Hz,with THC
073021 MAX200 PS,600V,60 Hz,with THC

2 Standard Machine Torch Assembly with 2" Dia. Sleeve

128380 MAX200 Std. Mach. Torch Assy w/2" Dia. Sleeve

2 Stainless Steel Machine Torch Assembly with 2" Dia. Sleeve

128365 MAX200 S.S. Mach. Torch Assy w/2" Dia. Sleeve

2 Optional Machine Torch Assembly with 1-3/4" Dia. Sleeve

128364 MAX200 Opt. Mach. Torch Assy w/1-3/4" Dia. Sleeve

2A Torch Mounting Bracket - For 2" Dia. Sleeve

020046 Torch Mounting Bracket for 2" Dia. Sleeve

2A Torch Mounting Bracket - For 1-3/4" Dia. Sleeve

020522 Torch Mounting Bracket for 1-3/4" Dia. Sleeve

Circle these numbers when
ordering the 073... power
supply number to have the
power supply prewired for
the alternate voltages

560131 - for 220V
560135 - for 415V
560132 - for 240V

Circle these numbers when
ordering the 073... power
supply number to have the
power supply prewired for
the alternate voltages

560131 - for 220V
560135 - for 415V
560132 - for 240V

3 Leads Between PS and Torch

028454 10 Ft
028455 15 Ft
028456 20 Ft
028383 25 Ft
028457 30 Ft
028458 35 Ft
028459 40 Ft

4 Machine Interface Cable from Power Supply to

CNC Interface

023334 25 Ft
023335 50 Ft
023336 75 Ft

5 Programmable Voltage/Current Control

055004 Control, Programmable V/C (PR)

6 Cable Between Power Supply and

Programmable Remote or Digital Remote

023346 25 Ft
023347 50 Ft
023348 75 Ft
023349 100 Ft
023742 125 Ft

7 Cable Between Programmable Remote and

CNC Interface

023098 10 Ft
023099 25 Ft
023100 50 Ft

8 Digital Remote Voltage/Current Control

073007 Control, Digital V/C (DR)

028460 45 Ft
028384 50 Ft
028773 60 Ft
028599 75 Ft
028781 100 Ft
028782 125 Ft
028783 150 Ft

023337 100 Ft
023338 150 Ft
023339 200 Ft

023350 150 Ft
023351 200 Ft
023813 250 Ft
023577 275 Ft
023818 300 Ft

9 Switch Remote Voltage/Current Control

073001 Control, Switch V/C (SR)

10 Cable Between Power Supply and Switch Remote

023319 25 Ft
023328 50 Ft
023329 75 Ft

11 Remote Current Control

073193 Control, Remote Current (RCC)

12 Cable Between PS and Current Remote

023675 25 Ft
023759 38 Ft
023676 50 Ft
023677 75 Ft

13 Ind. Initial Height Sensing (IHS) System for 2" Torch

028720 IHS System, Inductive for 2" Dia. Torch

13 Ind. Initial Height Sensing (IHS) System for 1-3/4" Torch

028390 IHS System, Inductive for 1-3/4" Dia. Torch

14 IHS Pressure Regulator Assembly

029758 IHS Pressure Regulator SA

15 Inductive IHS Lead Set

028811 25 ft
028812 50 ft
028813 75 ft

023330 100 Ft
023331 150 Ft
023332 200 Ft

023678 100 Ft
023958 115 Ft
023679 150 Ft
023680 200 Ft

028814 100 ft
028815 150 ft
028816 200 ft

16 Water Muffler System - with Hoses (not used with the stnls. steel torch)

034096 WM Sys/w hoses, 240/480V, 3Ø, 60 Hz
034100 WM Sys/w hoses, 380/415V, 3Ø, 60 Hz
034098 WM Sys/w hoses, 600V, 3Ø, 60 Hz

16 Water Muffler System - without Hoses (not used with the stnls. steel torch)

034097 WM Sys/wo hoses, 240/480V, 3Ø, 60 Hz
034101 WM Sys/wo hoses, 380/415V, 3Ø, 60 Hz
034099 WM Sys/wo hoses, 600V, 3Ø, 60 Hz

17 Additional Length WM Hose, Specify Length (Ft)

034051 Add’l Length W-M Hose (Qty in Ft.)

18 Cable Between WM Pump and Power Supply

023866 50 Ft
023867 75 Ft
023868 100 Ft

19 Work Cable Between Power Supply

and Work Table

MAX200 Mechanized Systems

023755 4 Ft
023920 8 Ft
023508 10 Ft
023403 15 Ft

20 Hold Cable Between Power Supplies

023340 15 Ft
023341 25 Ft
023342 50 Ft

Consumable Parts Kit

028392 Kit: MAX200 Consumable Parts
028429 Kit: MAX200 International Consumable Parts

023404 25 Ft
023968 30 Ft
023986 35 Ft
023405 50 Ft

023343 100 Ft
023344 150 Ft

Distributor Information:

1 MAX200 Hand Cutting System

Customer Information:

HYPERTHERM

MAX200 Hand System Order Form

With 25 Ft (7.6 m) Torch Leads

073163 MAX200T,Hand Cutting System, 25 Ft Leads, 200V,50 Hz

073139 MAX200T,Hand Cutting System, 25 Ft Leads, 208V,60 Hz

073151 MAX200T,Hand Cutting System, 25 Ft Leads, 380/415V,50 Hz
073115 MAX200T,Hand Cutting System, 25 Ft Leads, 240/480V,60 Hz

073175 MAX200T,Hand Cutting System, 25 Ft Leads, 500V,50 Hz

073127 MAX200T,Hand Cutting System, 25 Ft Leads, 600V,60 Hz

With 50 Ft (15 m) Torch Leads

073164 MAX200T,Hand Cutting System, 50 Ft Leads, 200V,50 Hz

073140 MAX200T,Hand Cutting System, 50 Ft Leads, 208V,60 Hz

073152 MAX200T,Hand Cutting System, 50 Ft Leads, 380/415V,50 Hz
073116 MAX200T,Hand Cutting System, 50 Ft Leads, 240/480V,60 Hz

073176 MAX200T,Hand Cutting System, 50 Ft Leads, 500V,50 Hz

073128 MAX200T,Hand Cutting System, 50 Ft Leads, 600V,60 Hz

With 75 Ft (23 m) Torch Leads

073165 MAX200T,Hand Cutting System, 75 Ft Leads, 200V,50 Hz

073141 MAX200T,Hand Cutting System, 75 Ft Leads, 208V,60 Hz

073153 MAX200T,Hand Cutting System, 75 Ft Leads, 380/415V,50 Hz
073117 MAX200T,Hand Cutting System, 75 Ft Leads, 240/480V,60 Hz

073177 MAX200T,Hand Cutting System, 75 Ft Leads, 500V,50 Hz

073129 MAX200T,Hand Cutting System, 75 Ft Leads, 600V,60 Hz

With 100 Ft (30 m) Torch Leads

073166 MAX200T,Hand Cutting System, 100 Ft Leads, 200V,50 Hz

073142 MAX200T,Hand Cutting System, 100 Ft Leads, 208V,60 Hz

073154 MAX200T,Hand Cutting System, 100 Ft Leads, 380/415V,50 Hz
073118 MAX200T,Hand Cutting System, 100 Ft Leads, 240/480V,60 Hz

073178 MAX200T,Hand Cutting System, 100 Ft Leads, 500V,50 Hz

073130 MAX200T,Hand Cutting System, 100 Ft Leads, 600V,60 Hz

With 125 Ft (38 m) Torch Leads

073167 MAX200T,Hand Cutting System, 125 Ft Leads, 200V,50 Hz

073143 MAX200T,Hand Cutting System, 125 Ft Leads, 208V,60 Hz

073155 MAX200T,Hand Cutting System, 125 Ft Leads, 380/415V,50 Hz
073119 MAX200T,Hand Cutting System, 125 Ft Leads, 240/480V,60 Hz

073179 MAX200T,Hand Cutting System, 125 Ft Leads, 500V,50 Hz

073131 MAX200T,Hand Cutting System, 125 Ft Leads, 600V,60 Hz

With 150 Ft (46 m) Torch Leads

073168 MAX200T,Hand Cutting System, 150 Ft Leads, 200V,50 Hz
073144 MAX200T,Hand Cutting System, 150 Ft Leads, 208V,60 Hz
073156 MAX200T,Hand Cutting System, 150 Ft Leads, 380/415V,50 Hz
073120 MAX200T,Hand Cutting System, 150 Ft Leads, 240/480V,60 Hz
073180 MAX200T,Hand Cutting System, 150 Ft Leads, 500V,50 Hz
073132 MAX200T,Hand Cutting System, 150 Ft Leads, 600V,60 Hz

2 MAX200 Hand Gouging System

With 25 Ft (7.6 m) Torch Leads

073169 MAX200E,Hand Gouging System, 25 Ft Leads, 200V,50 Hz

073145 MAX200E,Hand Gouging System, 25 Ft Leads, 208V,60 Hz

073157 MAX200E,Hand Gouging System, 25 Ft Leads, 380/415V,50 Hz
073121 MAX200E,Hand Gouging System, 25 Ft Leads, 240/480V,60 Hz

073181 MAX200E,Hand Gouging System, 25 Ft Leads, 500V,50 Hz

073133 MAX200E,Hand Gouging System, 25 Ft Leads, 600V,60 Hz

With 50 Ft (15 m) Torch Leads

073170 MAX200E,Hand Gouging System, 50 Ft Leads, 200V,50 Hz

073146 MAX200E,Hand Gouging System, 50 Ft Leads, 208V,60 Hz

073158 MAX200E,Hand Gouging System, 50 Ft Leads, 380/415V,50 Hz
073122 MAX200E,Hand Gouging System, 50 Ft Leads, 240/480V,60 Hz

073182 MAX200E,Hand Gouging System, 50 Ft Leads, 500V,50 Hz

073134 MAX200E,Hand Gouging System, 50 Ft Leads, 600V,60 Hz

With 75 Ft (23 m) Torch Leads

073171 MAX200E,Hand Gouging System, 75 Ft Leads, 200V,50 Hz

073147 MAX200E,Hand Gouging System, 75 Ft Leads, 208V,60 Hz

073159 MAX200E,Hand Gouging System, 75 Ft Leads, 380/415V,50 Hz
073123 MAX200E,Hand Gouging System, 75 Ft Leads, 240/480V,60 Hz

073183 MAX200E,Hand Gouging System, 75 Ft Leads, 500V,50 Hz

073135 MAX200E,Hand Gouging System, 75 Ft Leads, 600V,60 Hz

With 100 Ft (30 m) Leads

MAX200 Hand Systems

073172 MAX200E,Hand Gouging System, 100 Ft Leads, 200V,50 Hz
073148 MAX200E,Hand Gouging System, 100 Ft Leads, 208V,60 Hz
073160 MAX200E,Hand Gouging System, 100 Ft Leads, 380/415V,50 Hz
073124 MAX200E,Hand Gouging System, 100 Ft Leads, 240/480V,60 Hz
073184 MAX200E,Hand Gouging System, 100 Ft Leads, 500V,50 Hz
073136 MAX200E,Hand Gouging System, 100 Ft Leads, 600V,60 Hz

With 125 Ft (38 m) Leads

073173 MAX200E,Hand Gouging System, 125 Ft Leads, 200V,50 Hz
073149 MAX200E,Hand Gouging System, 125 Ft Leads, 208V,60 Hz
073161 MAX200E,Hand Gouging System, 125 Ft Leads, 380/415V,50 Hz
073125 MAX200E,Hand Gouging System, 125 Ft Leads, 240/480V,60 Hz
073185 MAX200E,Hand Gouging System, 125 Ft Leads, 500V,50 Hz
073137 MAX200E,Hand Gouging System, 125 Ft Leads, 600V,60 Hz

With 150 Ft (46 m) Leads

073174 MAX200E,Hand Gouging System, 150 Ft Leads, 200V,50 Hz
073150 MAX200E,Hand Gouging System, 150 Ft Leads, 208V,60 Hz
073162 MAX200E,Hand Gouging System, 150 Ft Leads, 380/415V,50 Hz
073126 MAX200E,Hand Gouging System, 150 Ft Leads, 240/480V,60 Hz
073186 MAX200E,Hand Gouging System, 150 Ft Leads, 500V,50 Hz
073138 MAX200E,Hand Gouging System, 150 Ft Leads, 600V,60 Hz

Building or Customizing a System:

3 MAX200 Power Supply

073026 MAX200 PS,200V,50 Hz
073004 MAX200 PS,208V,60 Hz
073005 MAX200 PS,220/380/415V,50 Hz

Comes Wired for 380V

073002 MAX200 PS,240/480V,60 Hz

Circle these numbers when
ordering the 073... power
supply number to have the
power supply prewired for
the alternate voltages

560131 - for 220V
560135 - for 415V
560132 - for 240V

Comes Wired for 480V
073200 MAX200 PS,400V - CE, 50Hz
073036 MAX200 PS,500V,50 Hz
073003 MAX200 PS,600V,60 Hz

4 PAC121T 90° Cutting Torch Assembly with 25 Ft (7.6 m) Torch Leads

073189

5 PAC121T 65° Cutting Torch Assembly with 25 Ft (7.6 m) Torch Leads

073110

6 PAC121E Gouging Torch Assembly with 25 Ft (7.6 m) Torch Leads

073111

7 Extended Leads

028715 50 Ft
028716 75 Ft
028717 100 Ft
028718 125 Ft
028719 150 Ft

Consumable Parts Kits

028750 PAC200T Parts Kit
028751 PAC200E Parts Kit
