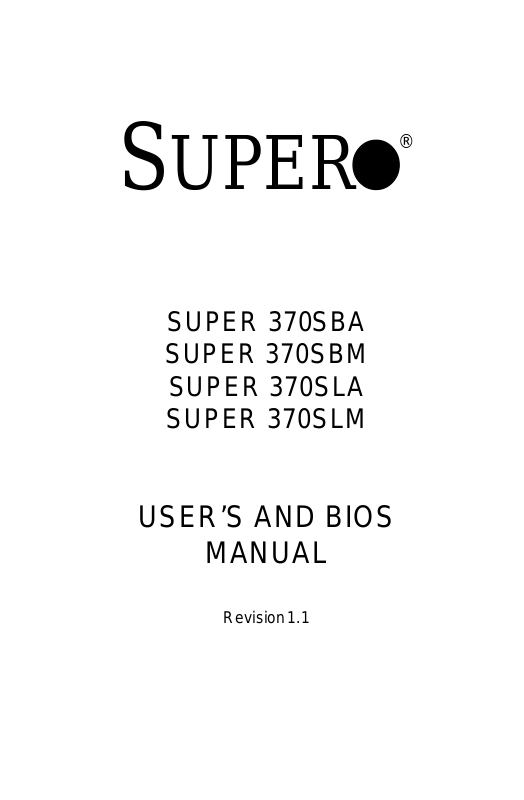

SUPER 370SBA
SUPER 370SBM
SUPER 370SLA
SUPER 370SLM
USER’S AND BIOS
®
MANUAL
Revision 1.1
The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com.
SUPERMICRO COMPUTER reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.
IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF THE REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE OR DATA.
Unless you request and receive written permission from SUPERMICRO COMPUTER, you may not copy any part of this document.
Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 1999 by SUPERMICRO COMPUTER INC. All rights reserved.
Printed in the United States of America.
Preface
About This Manual
This manual is written for system houses, PC technicians and knowledgeable PC end users. It provides information for the installation and use of the SUPER 370SBA/370SBM/370SLA/370SLM motherboard. SUPER 370SBA/370SBM/370SLA/370SLM motherboards support Intel® Celeron™ 333/366 MHz or higher PPGA processors.
The addition of the Intel Celeron processor family with the Dual Independent Bus Architecture is housed in a package called the Plastic Pin Grid Array (PPGA). This package and its associated "370-pin socket" infrastructure will provide the headroom for future low-cost, high-performance processors.
Manual Organization
Chapter 1, Introduction, describes the features, specifications and performance of the SUPER 370SBA/370SBM/370SLA/370SLM system board, provides de­tailed information about the chip set and offers warranty information.
Preface
Refer to Chapter 2, Installation, for instructions on how to install the Celeron PPGA processor and the heat sink support. This chapter provides you with instructions for handling static-sensitive devices. Read this chapter when you want to install DIMMs and to mount the system board in the chassis. Also refer to this chapter to connect the floppy and hard disk drives, IDE interfaces, the parallel port and the serial ports, as well as the cables for the power supply, the reset button, the Keylock/Power LED, the speaker and the keyboard.
If you encounter any problems, please see Chapter 3, Troubleshooting, which describes troubleshooting procedures for the video, memory and the setup con­figuration stored in memory. For quick reference, a general FAQ (Frequently Asked Questions) section is provided. Instructions are also included for techni­cal support procedures, for returning merchandise for service and for BIOS up­grades using our BBS#.
See Chapter 4 for configuration data and BIOS features. Chapter 5 has information on running setup and includes default settings for
Standard Setup, Advanced Setup, Chipset function, Power Management, PCI/ PnP Setup, and Peripheral Setup.
iii
Preface
Appendix A offers information on BIOS error beep codes and messages. Appendix B shows post diagnostic error messages.
iv
Table of Contents
Table of Contents
Preface
About This Manual................................................................................................. i ii
Manual Organization.............................................................................................. i ii
Jumper Quick Reference....................................................................................... viii
Front Control Panel Connector.............................................................................. ix
Chapter 1: Introduction
1-1 Overview .......................................................................................................1-1
SUPER 370SBA Image .........................................................................1-2
SUPER 370SBA Motherboard Layout .................................................1-3
SUPER 370SBM Image.........................................................................1-4
SUPER 370SBM Motherboard Layout .................................................1-5
SUPER 370SLA Image..........................................................................1-6
SUPER 370SLA Motherboard Layout ..................................................1-7
SUPER 370SLM Image .........................................................................1-8
SUPER 370SLM Motherboard Layout .................................................1-9
System Block Diagram .......................................................................1-10
1-2 Motherboard Features...............................................................................1-11
1-3 Chip Set Overview.....................................................................................1-13
440BX Chip Set.................................................................................... 1-13
440LX Chip Set .................................................................................... 1-13
1-4 PC Health Monitoring ............................................................................... 1-14
Onboard Voltage Monitors .................................................................. 1-14
Three-Fan Status Monitors .................................................................1-14
Environmental Temperature Control ................................................... 1-14
CPU Fan Auto-Off in Sleep Mode ......................................................1-14
CPU Overheat LED and Thermal Fan Control ..................................1-15
Chassis Intrusion Detection................................................................ 1-15
System Resource Alert .......................................................................1-15
Hardware BIOS Virus Protection ........................................................1-15
Switching Voltage Regulator for the CPU Core ................................1-15
Intel LANDesk® Client Manager (LDCM) Support............................ 1-16
1- 6 ACPI/PC 98 Features............................................................................... 1-16
Microsoft OnNow.................................................................................. 1-16
Slow Blinking LED for Suspend State Indicator............................... 1-17
BIOS Support for USB Keyboard .......................................................1-17
Real-Time Clock Wake-up Alarm .......................................................1-17
Main Switch Override Mechanism ......................................................1-17
v
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
External Modem Ring-on..................................................................... 1-17
Wake-On-LAN (WOL) .........................................................................1-17
1-7 Power Supply Requirements....................................................................1-18
1-8 Super I/O....................................................................................................1-18
Chapter 2: Installation
2-1 Static-Sensitive Devices.............................................................................2-1
Precautions.............................................................................................2-1
Unpacking ............................................................................................... 2-1
2- 2 Celeron PPGA Processor Installation ......................................................2-2
2-3 Explanation and Diagram of Jumper/Connector.......................................2-3
2-4 Mounting the Motherboard in the Chassis ...............................................2-3
2-5 Connecting Cables......................................................................................2-3
ATX Power Supply Connector...............................................................2-3
Infrared Connector ..................................................................................2-4
PW_ON Connector.................................................................................2-4
Reset Connector ....................................................................................2-4
Hard Drive LED Connector ....................................................................2-4
Keylock/Power LED Connector ..... . . ... . ... . . ... . ... . . ...................................2-5
Speaker Connector ................................................................................ 2-5
ATX PS/2 Keyboard and PS/2 Mouse Ports ...................................... 2-5
Universal Serial Bus ..............................................................................2-5
ATX Serial Ports.....................................................................................2-6
CMOS Clear ...........................................................................................2-6
Wake-on-LAN..........................................................................................2-6
Fan Connectors......................................................................................2-6
Chassis Intrusion ................................................................................... 2-7
Keyboard Wake-Up ................................................................................2-7
Overheat LED ......................................................................................... 2-7
Bus Speed ..............................................................................................2-7
2-6 Installing DIMMs..........................................................................................2-8
2- 7 Connecting Parallel, Floppy and Hard Disk Drives .................................2-9
Parallel Port Connector ....................................................................... 2-10
Floppy Connector .................................................................................2-10
IDE Interfaces....................................................................................... 2-10
AGP Port ..............................................................................................2-11
Chapter 3: Troubleshooting
3-1 Troubleshooting Procedures ......................................................................3-1
Before Power On.................................................................................... 3-1
vi
Table of Contents
No Power ................................................................................................ 3-2
No Video .................................................................................................3-2
Memory Error..........................................................................................3-2
Losing the System’s Setup Configuration ...........................................3-2
3-2 Technical Support Procedures .................................................................. 3-3
3-3 Frequently Asked Questions .....................................................................3-4
3-4 Returning Merchandise for Service ...........................................................3-6
Chapter 4: AMIBIOS
4-1 Introduction ..................................................................................................4-1
System BIOS ..........................................................................................4-1
Configuration Data..................................................................................4-1
How Data Is Configured.........................................................................4-1
POST Memory Test ...............................................................................4-1
4-2 BIOS Features.............................................................................................4-2
BIOS Configuration Summary Screen .................................................4-3
AMIBIOS Setup ......................................................................................4-3
Chapter 5: Running Setup
5-1 Setup............................................................................................................ 5-1
Standard Setup ...................................................................................... 5-1
Advanced Setup .....................................................................................5-3
Chipset Setup.........................................................................................5-7
Power Management .............................................................................5-12
PCI/PnP Setup .....................................................................................5-14
Peripheral Setup...................................................................................5-17
5-2 Security Setup ..........................................................................................5-20
Supervisor/User ....................................................................................5-20
5-3 Utility Setup............................................................................................... 5-21
Anti-Virus ..............................................................................................5-21
Language............................................................................................... 5-21
5-4 Default Setting...........................................................................................5-21
Optimal Default.....................................................................................5-21
Fail-Safe Default...................................................................................5-21
Appendices:
Appendix A: BIOS Error Beep Codes and Messages ..................................... A-1
Appendix B: AMIBIOS Post Diagnostic Error Messages ................................ B-1
vii
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Jumpers Quick Reference
370SBA/ 370SLA/
370SBM 370SLM
Jumpers Jumpers Function Page JBT1 JBT1 CMOS Clear 2-6
JPWAKE JPWAKE Keyboard Wake-Up 2-7 JP11 JP11 Bus Speed 2-7
Connectors Connectors Function Page J8 J8 AGP Port 2-11
J15, J16 J15, J16 IDE Connectors 2-10 J17, J18 J17, J18 USB Ports 2-5 J19 J19 Parallel Port 2-10 J20 J20 COM1 2-6 J21 J21 COM2 2-6 J22 J22 Floppy Connector 2-10 J32 J32 ATX Power Connector 2-3 J34 J34 PS/2 Keyboard and Mouse 2-5 JF1: 1-4 JF1: 1-4 IDE LED 2-4 JF1: 5-7 JF1: 5-7 Power ON LED 2-5 JF1: 8-9 JF1: 8-9 Keylock 2-5 JF1: 10-13 JF1: 10-13 Speaker 2-5 JF2: 1-5 JF2: 1-5 IR (Infrared) Connector 2-4 JF2: 9-10 JF2: 7-8 Power ON Switch 2-4 JF2: 12-13 JF2: 10-11 Reset Switch 2-4 JOH: 1-2 JOH: 1-2 Overheat LED 2-7 JL1 JL1 Chassis Intrusion Switch 2-7 JT1 JT1 CPU Fan 2-6 JT2 JT2 Chassis Fan 2-6 JT3 JT3 Thermal Control Fan 2-6 WO L W OL Wake-on-LAN 2-6
viii
Front Control Panel Connector
JF2 JF1
11
IDE
IR Con
X
Power On
LED
Power LED
Keyboard Lock
IDE LED
Keyboard Lock
Speaker
Quick Reference
JF1
1
Power LED
JF1
Keylock
X
Reset
Speaker
IR Com
X
Power On
X
Reset
Overheat LED
Please see pages 2-4 through 2-7 for pin definitions.
ix
JF2
1
JOH
JF2
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Notes
x
Chapter 1: Introduction
Chapter 1: Introduction
Chapter 1
Introduction
1-1 Overview
The SUPER 370SBA/370SBM/370SLA/370SLM motherboards support single Intel® Celeron™ 333/366 MHz or higher Plastic Pin Grid Array (PPGA) proces­sors at a 66 MHz front side bus speed. (The 100 MHz FSB speed is only available when using 100 MHz FSB Celeron processors. ) The SUPER 370SBA and 370SBM motherboards are based on Intel’s 440BX chip set, and the SUPER 370SLA and 370SLM motherboards are based on Intel’s 440LX chip set. Both 440BX and 440LX chip sets enable an Accelerated Graphics Port (AGP), Wake­on-LAN™, synchronous DRAM (SDRAM), concurrent PCI and dual IDE channels that support Ultra DMA 33 MB/s burst data transfer rate.
The SUPER 370SBA and 370SLA are ATX form factor motherboards and have 4 PCI and 3 ISA slots. The SUPER 370SBM and 370SLM are microATX form factor motherboards and have 3 PCI and 1 ISA slots. All four motherboards have an AGP port, and can accommodate a total of 384 MB PC100 unbuffered SDRAM memory with three 168-pin dual inline memory module (DIMM) sockets. The SUPER 370SBA and 370SBM motherboards can support the 100 MHz front side bus speed for future Celeron PPGA upgrades, and its 440BX chip set allows you to install up to 768 MB of PC100 registered SDRAM. The SUPER 370SLA and 370SLM motherboards support the 66 MHz system bus speed only, and can accept either PC66 EDO or PC100 SDRAM DIMMs.
AGP reduces contention between the CPU and I/O devices by broadening the graphics bandwidth to memory. It delivers a maximum of 532 MB/s in the 2x transfer mode, which is quadruple the PCI speed!
Wake-On-LAN (WOL) allows for remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the com­plexity of managing the network.
Other features that maximize customer satisfaction and simplicity in managing the computer are its support for the PC 98 and the Advanced Configuration and Power Interface (ACPI) standards. With PC Health Monitoring, you can protect your system from problems before they even occur.
All motherboards include the following I/O: 2 IDE ports, a floppy port, an ECP/ EPP supported parallel port, PS/2 mouse and PS/2 keyboard ports, 2 serial ports, an infrared port and 2 USB ports.
1-1
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
SUPER 370SBA
Figure 1-1. SUPER 370SBA Motherboard Image
1-2
---------
Keybd
USB
COM 1COM 2
12 inches
370SBA
l
Super
Mouse
LPT 1
Super
BIOS
JPWAKE (see Note 1)
1
JT1 - CPU FAN
ATX Power
1
I/O
7 inches
Celeron
Processor
(PPGA package)
440BX
Chipset
1
JP11
1
AGP
PCI 4
PCI 3
PCI 2
PCI 1
ISA 3
ISA 2
Battery
DIMM - BANK 2
DIMM - BANK 1
DIMM - BANK 0
IDE 1
1
JL1 - CHASSIS
INTRUSION SW
(see Note 2)
1
WOL
1
PIIX4EB
Chapter 1: Introduction
JT2 - CHASSIS FAN
JT3 - THERMAL CTL FAN
JOH (OVERHEAT LED) RESET SW POWER ON LED
IR CON (INFRARED PORT)
SPEAKER
IDE 2 Floppy
KEYLOCK
IDE LED
1 1
JBT1 - CMOS CLEAR
1
ISA 1
Jumper Settings
JPWAKE: 1-2 Disable Keyboard Wake-Up (default) JP11: 1-2 Auto Select Bus Speed
JBT1: 1-2 Normal
2-3 Enable Keyboard Wake-Up (see Note 1) 2-3 66MHz Bus Speed
OFF 100MHz Bus Speed 2-3 CMOS Clear
Figure 1-2. SUPER 370SBA Motherboard Layout
1-3
To enable Keyboard Wake-Up, set JPWAKE jumper to 2-3 Keyboard Wake-Up function in system BIOS.
2
Chassis Intrusion Switch (JL1) is normally open. If connected to chassis switch, removing chassis cover causes switch input to close.
3
No CPU jumper settings are required for the Celeron (333/366 MHz) processor. The settings are preset (fixed bus ratio) in the processor.
and
ENABLE
1
Notes
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
SUPER 370SBM
Figure 1-3. SUPER 370SBM Motherboard Image
1-4
---------
Keybd
Mouse
USB
COM 1COM 2
9.6 inches
370SBM
l
Super
ATX Power
LPT 1
Super
BIOS
JPWAKE (see Note 1)
1
JT1 - CPU FAN
1
I/O
7.25 inches
Celeron
Processor
(PPGA package)
440BX
Chipset
1
JP11
1
AGP
PCI 3
PCI 2
PCI 1
ISA 1
Battery
DIMM - BANK 2
DIMM - BANK 1
DIMM - BANK 0
IDE 1
1
JL1 - CHASSIS
INTRUSION SW
(see Note 2)
1
PIIX4EB
Chapter 1: Introduction
JT2 - CHASSIS FAN
JT3 - THERMAL CTL FAN
Speaker
Keylock
IDE 2 Floppy
1 1
1
1
1
WOL
Power
LED
JF1
JF2
IDE
LED
JBT1 - CMOS CLEAR JOH - OVERHEAT LED
11
JF2JF1
Reset
X
Power On
X
IR Con
Jumper Settings
JPWAKE: 1-2 Disable Keyboard Wake-Up (default) JP11: 1-2 Auto Select Bus Speed
JBT1: 1-2 Normal
2-3 Enable Keyboard Wake-Up (see Note 1) 2-3 66MHz Bus Speed
OFF 100MHz Bus Speed 2-3 CMOS Clear
Figure 1-4. SUPER 370SBM Motherboard Layout
1-5
Notes
1
To enable Keyboard Wake-Up, set JPWAKE jumper to 2-3 Keyboard Wake-Up function in system BIOS.
2
Chassis Intrusion Switch (JL1) is normally open. If connected to chassis switch, removing chassis cover causes switch input to close.
3
No CPU jumper settings are required for the Celeron (333/366 MHz) processor. The settings are preset (fixed bus ratio) in the processor.
and
ENABLE
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
SUPER 370SLA
Figure 1-5. SUPER 370SLA Motherboard Image
1-6
---------
Keybd
USB
COM 1COM 2
12 inches
370SLA
l
Super
Mouse
LPT 1
Super
BIOS
JPWAKE (see Note 1)
1
JT1 - CPU FAN
ATX Power
1
I/O
7 inches
Celeron
Processor
(PPGA package)
440LX
Chipset
1
AGP
PCI 4
PCI 3
PCI 2
PCI 1
ISA 3
ISA 2
Battery
DIMM - BANK 2
DIMM - BANK 1
DIMM - BANK 0
IDE 1
1
JL1 - CHASSIS
INTRUSION SW
(see Note 2)
1
WOL
1
PIIX4EB
Chapter 1: Introduction
JT2 - CHASSIS FAN
JT3 - THERMAL CTL FAN
JOH (OVERHEAT LED) RESET SW POWER ON LED
IR CON (INFRARED PORT)
SPEAKER
IDE 2 Floppy
KEYLOCK
IDE LED
1 1
JBT1 - CMOS CLEAR
1
ISA 1
Jumper Settings
JPWAKE: 1-2 Disable Keyboard Wake-Up (default) JBT1: 1-2 Normal
2-3 Enable Keyboard Wake-Up (see Note 1) 2-3 CMOS Clear
Figure 1-6. SUPER 370SLA Motherboard Layout
1-7
To enable Keyboard Wake-Up, set JPWAKE jumper to 2-3 Keyboard Wake-Up function in system BIOS.
2
Chassis Intrusion Switch (JL1) is normally open. If connected to chassis switch, removing chassis cover causes switch input to close.
3
No CPU jumper settings are required for the Celeron (333/366 MHz) processor. The settings are preset (fixed bus ratio) in the processor.
and
ENABLE
1
Notes
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
SUPER 370SLM
Figure 1-7. SUPER 370SLM Motherboard Image
1-8
---------
Keybd
Mouse
USB
COM 1COM 2
9.6 inches
370SLM
l
Super
ATX Power
LPT 1
Super
BIOS
JPWAKE (see Note 1)
1
JT1 - CPU FAN
1
I/O
7.25 inches
Celeron
Processor
(PPGA package)
440LX
Chipset
1
AGP
PCI 3
PCI 2
PCI 1
ISA 1
Battery
DIMM - BANK 2
DIMM - BANK 1
DIMM - BANK 0
IDE 1
1
JL1 - CHASSIS
INTRUSION SW
(see Note 2)
1
WOL
1
PIIX4EB
Chapter 1: Introduction
JT2 - CHASSIS FAN
JT3 - THERMAL CTL FAN
JOH (OVERHEAT LED) RESET SW POWER ON LED
IR CON (INFRARED PORT)
SPEAKER
IDE 2 Floppy
KEYLOCK
IDE LED
1 1
JBT1 - CMOS CLEAR
1
Jumper Settings
JPWAKE: 1-2 Disable Keyboard Wake-Up (default) JBT1: 1-2 Normal
2-3 Enable Keyboard Wake-Up (see Note 1) 2-3 CMOS Clear
Figure 1-8. SUPER 370SLM Motherboard Layout
1-9
Notes
1
To enable Keyboard Wake-Up, set JPWAKE jumper to 2-3 Keyboard Wake-Up function in system BIOS.
2
Chassis Intrusion Switch (JL1) is normally open. If connected to chassis switch, removing chassis cover causes switch input to close.
3
No CPU jumper settings are required for the Celeron (333/366 MHz) processor. The settings are preset (fixed bus ratio) in the processor.
and
ENABLE
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
CPU
Host Bus
AGP
Power
Management
USB Ports
440BX
Port
440LX
PIIX4E
or
IDE Ports
USB
SIO
*
= ATX motherboards have 3 ISA and 4 PCI slots.
microATX motherboards have 1 ISA and 3 PCI slots.
BIOS
Figure 1-9. 440BX/LX AGP Chip Set:
System Block Diagram
SDRAM
PCI Slots*
SMBus
ISA Slots*
1-10
Chapter 1: Introduction
1-2 Features of the 370SBA, 370SBM, 370SLA and
370SLM Motherboards*
*
Bold text indicates variations in features.
The following list covers the general features of the 370SBA, 370SBM, 370SLA and 370SLM motherboards.
CPU
• Single Celeron 333/366/400 MHz PPGA processors at a 66 MHz front side bus speed. (The 100 MHz FSB speed is only available when using 100 MHz FSB Celeron processors. For future processor support, check our web site at http://www.supermicro.com.)
Memory
• 384 MB EDO or 384 MB unbuffered 3.3V SDRAM at 66 MHz (370SLA and
370SLM only)
• 384 MB EDO or 384 MB unbuffered 3.3V SDRAM, or 768 MB registered SDRAM (370SBA and 370SBM only)
(Note: The maximum cacheable memory size depends on the processor capabilities.)
• Error Checking and Correction and Error Checking support
Chip Set
• Intel 440BX for 370SBA and 370SBM
• Intel 440LX for 370SLA and 370SLM
Expansion Slots
370SBA / 370SLA 370SBM / 370SLM
• 4 PCI slots • 3 PCI slots
• 3 ISA slots • 1 ISA slots [one shared PCI/ISA slot] [one shared PCI/ISA slot]
• 1 AGP slot • 1 AGP slot
BIOS
• 2 Mb AMI® Flash BIOS
• APM 1.2, DMI 2.1, Plug and Play (PnP)
• ACPI Support
PC Health Monitoring
• Seven onboard voltage monitors for CPU core(s), CPU I/O, +3.3V, ±5V, and ±12V
• Three-fan status monitors with firmware/software on/off control
• Environmental temperature monitor and control
• CPU fan auto-off in sleep mode
• Chassis overheat LED and thermal fan control
1-11
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
• Chassis intrusion detection
• System resource alert
• Hardware BIOS virus protection
• Switching voltage regulator for the CPU core
• SUPERMICRO SUPER Doctor and Intel® LANDesk® Client Manager (LDCM) support (optional)
ACPI/PC 98 Features
• Microsoft OnNow
• Slow blinking LED for suspend state indicator
• BIOS support for USB keyboard
• Real-time clock wake-up alarm
• Main switch override mechanism
• External modem ring-on
On-Board I/O
• 2 EIDE Bus Master interfaces support Ultra DMA/33 and Mode 4
• 1 floppy port interface
• 2 Fast UART 16550 serial ports
• 1 parallel port that supports EPP (Enhanced Parallel Port) and ECP (Extended Capabilities Port)
• PS/2 mouse and PS/2 keyboard
• Infrared port
• 2 USB (Universal Serial Bus) ports
CD Utilities
• Intel LANDesk Client Manager for Windows NT® and Windows® 95 (optional)
• PIIX4 Upgrade Utility for Windows 95
• BIOS Flash Upgrade Utility
• SUPER Doctor Utility
Dimensions
• SUPER 370SBA - ATX (12" x 7")
• SUPER 370SBM - microATX (9.6" x 7.25")
• SUPER 370SLA - ATX (12" x 7")
• SUPER 370SLM - microATX (9.6" x 7.25")
1-12
Chapter 1: Introduction
1-3 Chip Set Overview
440BX Chip Set
The 440BX chip set, developed by Intel, is the ultimate processor platform tar­geted for 3D graphics and multimedia applications. Along with a System-to-PCI bridge integrated with an optimized DRAM controller and data path, this chip set supports the Accelerated Graphics Port (AGP) interface. AGP is a high perfor­mance, component level interconnect targeted at 3D applications and based on a set of performance enhancements to PCI. The I/O subsystem portion of the 440BX platform is based on the PIIX4E, a highly integrated version of Intel's PCI­to-ISA bridge family.
The PCI/AGP and system bus interface controller (82443BX) supports one Celeron processor. It provides an optimized 72-bit DRAM interface (64 bits of data plus ECC) that supports 3.3V DRAM technology. The controller provides the interface to a PCI bus operating at 33 MHz. This interface implementation is compliant with the PCI Rev 2.1 Specification. The AGP interface is based on AGP Specification Rev 1.0. It can support data transfer rates of up to 133 MHz (532 MB/s).
440LX Chip Set
The 440LX chip set, developed by Intel, is a high-performance processor platform targeted for existing 3D graphics and multimedia applications. Along with a System-to-PCI bridge integrated with an optimized DRAM controller and data path, this chip set supports the Accelerated Graphics Port (AGP) interface. AGP is a high performance, component level interconnect targeted at 3D applications and based on a set of performance enhancements to PCI. The I/O subsystem portion of the 440LX platform is based on the PIIX4, a highly integrated version of Intel's PCI-to-ISA bridge family.
The 440LX PCI/AGP Controller (PAC) system bus interface supports one Celeron processor. It provides an optimized 72-bit DRAM interface (64 bits of data plus ECC) that supports 3.3V DRAM technology. The PAC provides the interface to a PCI bus operating at 33 MHz. This interface implementation is compliant with the PCI Rev 2.1 Specification. The AGP interface is based on AGP Specification Rev 1.0. It can support data transfer rates of up to 133 MHz (532 MB/s).
1-13
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
1-4 PC Health Monitoring
This section describes the PC health monitoring features of the SUPER 370SBA, 370SBM, 370SLA and 370SLM. All have an onboard System Hardware Monitor chip that supports PC health monitoring.
Seven Onboard Voltage Monitors for the CPU Core(s), CPU I/
±±
O, +3.3V,
The onboard voltage monitor scans these seven monitored voltages continuously. Once a voltage becomes unstable, it will give a warning or send an error message to the screen. Users can adjust the voltage thresholds to define the sensitivity of the voltage monitor.
Note: -5V is not required when using a microATX (SFX) power supply.
±5V,
±±
Three-Fan Status Monitors with Firmware/Software On/Off Control
The PC health monitor can check the RPM status of the cooling fans. The onboard 3-pin CPU fan is controlled by the ACPI BIOS and the ACPI-enabled operating system. The thermal fans are controlled by the overheat detection logic.
and
±±
±12V
±±
Environmental Temperature Control
The thermal control sensor monitors the CPU temperature in real-time and will turn on a back-up fan whenever the CPU temperature exceeds a user-defined threshold. The overheat circuitry runs independently from the CPU. It can continue to monitor for overheat conditions even when the CPU is in sleep mode. Once it detects that the CPU temperature is too high, it will automatically turn on the back-up fan to prevent any overheat damage to the CPU. The onboard chassis thermal circuitry can monitor the overall system temperature and alert users when the chassis temperature is too high.
CPU Fan Auto-Off in Sleep Mode
The CPU fan activates when the power is turned on. It can be turned off when the CPU is in sleep mode. When in sleep mode, the CPU does not run at full power, and thereby generates less heat. For power saving purposes, the user has the option to shut down the CPU fan.
1-14
Chapter 1: Introduction
CPU Overheat LED and Thermal Fan Control
This feature is available when the user enables the CPU overheat warning function in the BIOS (see page 5-17). The overheat sensor is triggered when the CPU temperature exceeds the temperature configured by the user. When the overheat sensor is triggered, both the overheat fan and the warning LED are activated.
Chassis Intrusion Detection
The chassis intrusion circuitry can detect unauthorized intrusion to the system. The chassis intrusion connector is located on JL1. Attach a microswitch to JL1. When the microswitch is closed, it means that the chassis has been opened. The circuitry will then alert the user with a warning message when the system is turned on. This feature is available when the user is running Intel's LANDesk Client Manager and SUPERMICRO's Super Doctor.
System Resource Alert
This feature is available when used with Intel's LANDesk Client Manager. It is used to notify the user of certain system events. For example, if the system is running low on virtual memory and there is insufficient hard drive space for saving the data, you can be alerted of the potential problem.
Hardware BIOS Virus Protection
The system BIOS is protected by hardware so that no virus can infect the BIOS area. The user can only change the BIOS content through the flash utility provided by SUPERMICRO. This feature can prevent viruses from infecting the BIOS area and destroying valuable data.
Switching Voltage Regulator for the CPU Core
The switching voltage regulator for the CPU core can support up to 20A of current, with the auto-sensing voltage ID ranging from 1.8V to 3.5V. This will allow the regulator to run cooler and thus make the system more stable.
1-15
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
Intel LANDesk® Client Manager (LDCM) Support
As the computer industry grows, PC systems have become more complex and harder to manage. Historically, only experts have been able to fully understand and control these complex systems. Today's users want manageable systems that they can interact with automatically. Client Manager enables both admin­istrators and clients to:
• Review system inventory
• View DMI-compliant component information
• Back up and restore system configuration files
• Troubleshoot
• Receive notifications of system events
• Transfer files to and from client workstations
• Remotely boot up client workstations
1-6 ACPI/PC 98 Features
ACPI stands for Advanced Configuration and Power Interface. The ACPI speci­fication defines a flexible and abstract hardware interface that provides a stan­dard way to integrate power management features throughout a PC system, including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as CD-ROMs, network cards, hard disk drives and printers. This also includes consumer devices connected to the PC such as VCRs, TVs, telephones and stereos.
In addition to enabling operating system-directed power management, ACPI pro­vides a generic system event mechanism for Plug and Play and an operating system-independent interface for configuration control. ACPI leverages the Plug and Play BIOS data structures while providing a processor architecture-indepen­dent implementation that is compatible with both Windows 98 and Windows NT
5.0.
Microsoft OnNow
The OnNow design initiative is a comprehensive, system-wide approach to sys­tem and device power control. OnNow is a term for a PC that is always on but appears off and responds immediately to user or other requests.
1-16
Chapter 1: Introduction
Slow Blinking LED for Suspend State Indicator
When the CPU goes into a suspend state, the power LED will start blinking to indicate that the CPU is in suspend mode. When the user presses any key, the CPU will wake-up and the LED will automatically stop blinking and remain on.
BIOS Support for USB Keyboard
If the USB keyboard is the only keyboard in the system, the USB keyboard will work like a normal keyboard during system boot-up.
Real-Time Clock Wake-up Alarm
Although the PC may be perceived to be off when not in use, it is still capable of responding to preset wake-up events. In the BIOS, the user can set a timer to wake-up the system at a predetermined time (see page 5-14).
Main Switch Override Mechanism
When an ATX power supply is used, the power button can function as a system suspend button. When the user depresses the power button, the system will enter a SoftOff state. The monitor will be suspended, and the hard drive will spin down. Depressing the power button again will cause the whole system to wake­up. During the SoftOff state, the ATX power supply provides power to keep the required circuitry in the system alive. In case the system malfunctions and you want to turn off the power, just depress and hold the power button for 4 seconds. The power will turn off and no power will be provided to the motherboard.
External Modem Ring-on
Wake-up events can be triggered by a device such as the external modem ringing when the system is in SoftOff state. Note that external modem ring-on can only be used with an ATX 2.01 (or above) compliant power supply.
Wake-On-LAN (WOL)
Wake-on-LAN is defined as the ability of a management application to remotely power up a computer that is powered off. Remote PC setup, updates and asset tracking can occur after hours and on weekends so daily LAN traffic is kept to a minimum and users are not interrupted.
The motherboards have a 3-pin header (WOL) used to connect to the 3-pin header on a Network Interface Card (NIC) that has WOL capability. Note that Wake-On­Lan can only be used with an ATX 2.01 (or above) compliant power supply.
1-17
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
1-7 Power Supply Requirements
As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates of 300 MHz and above.
The SUPER 370SBA/370SBM/370SLA/370SLM accommodates ATX power sup­plies, and the 370SBM and 370SLM accommodates the new SFX power sup­plies. Although most power supplies generally meet the specifications required by the CPU, some power supplies are inadequate.
It is highly recommended that you use a high quality power supply which meets ATX Power Supply Specification 2.01. Additionally, in areas where noisy power transmission is present, you may choose to install a line filter to separate the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges.
1-8 Super I/O
The disk drive adapter functions of the Super I/O chip include a floppy disk drive controller that is compatible with industry standard 82077/765, a data separator, write pre-compensation circuitry, decode logic, data rate selection, a clock gen­erator, drive interface control logic and interrupt and DMA logic. The wide range of functions integrated onto the Super I/O greatly reduces the number of compo­nents required for interfacing with floppy disk drives. The Super I/O supports four 360 K, 720 K, 1.2 M, 1.44 M or 2.88 M disk drives and data transfer rates of 250 Kb/s, 500 Kb/s or 1 Mb/s.
The Super I/O provides two high speed serial communication ports (16550 UARTs), one of which supports serial infrared communication. Each UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability, and a processor interrupt system. Both UARTs provide legacy speed with baud rate up to 115.2 Kbps as well as an advanced speed with baud rates of 230 K, 460 K or 921 Kbps, which support higher speed modems.
The Super I/O supports one PC-compatible printer port (SPP), Bi-directional Printer Port (BPP), Enhanced Parallel Port (EPP) or Extended Capabilities Port (ECP). Extension FDD and Extension 2FDD Modes are also available through the printer port interface pins to allow one or two external floppy disk drives to be connected.
1-18
Chapter 1: Introduction
The Super I/O provides functions that comply with ACPI (Advanced Configuration and Power Interface), which includes support of legacy and ACPI power manage­ment through an SMI or SCI function pin. It also features auto power manage­ment to reduce power consumption.
The Super I/O complies with Microsoft PC98 Hardware Design Guide. IRQs, DMAs and I/O space resources can flexibly adjust to meet ISA PnP require­ments. Moreover, it meets the specifications of PC98's power management requirements: ACPI and APM (Advanced Power Management).
1-19
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
Notes
1-20
Chapter 2: Installation
Chapter 2: Installation
Chapter 2
Installation
2-1 Static-Sensitive Devices
Static-sensitive electrical discharge can damage electronic components. To prevent damage to your system board, it is important to handle it very care­fully. The following measures are generally sufficient to protect your equip­ment from static discharge.
Precautions
• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before you remove the board from the
antistatic bag.
• Handle the board by its edges only; do not touch its components,
peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the system board and peripherals back into their antistatic bags when
not in use.
• For grounding purposes, be sure your computer system’s chassis provides
excellent conductivity between its power supply, the case, the mounting fas­teners and the system board.
Unpacking
The system board is shipped in antistatic packaging to avoid static damage. When unpacking the board, be sure the person handling the board is static­protected.
2-1
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
2-2 Celeron PPGA Processor Installation
The Celeron PPGA processor resides in the 370-pin Zero Insertion Force (ZIF) socket on the motherboard.
1. Always turn system power OFF before installing or
!
CAUTION
Perform the following steps to install the Celeron PPGA processor:
1. Unlatch and lift the lever on the side of the 370-pin ZIF socket.
Pin 1
removing any device.
2. Always observe static electricity precautions when handling any components.
3. Inserting the processor chip incorrectly may damage the chip.
4. The processor requires the use of a heat sink/cooling de­vice.
Lever
(latched)
2. Carefully handle the processor chip by its edges and avoid touching any of the pins on the bottom of the chip.
3. The processor chip has a notch on one corner identifying pin 1. Pin 1 on the socket is located in the blank triangle area near the end of the level (when latched). Align the notch (pin 1) on the chip with pin 1 on the socket, and carefully place the processor in the socket. The processor should slide easily into the socket.
4. Swing the lever to the down position and latch it to lock the processor in place.
2-2
Processor
(installed)
Chapter 2: Installation
2-3 Explanation and
Diagram of Jumper/ Connector
To modify the operation of the moth­erboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square.
Connector
Pins
Jumper
Cap
Setting
3 2 1
Pin 1-2 short
2-4 Mounting the Motherboard in the Chassis
All the motherboards have standard mounting holes to fit different types of chassis. Chassis may come with a variety of mounting fasteners, made of metal or plastic. Although a chassis may have both metal and plastic fasten­ers, metal fasteners are the most highly recommended because they ground the system board to the chassis. Therefore, use as many metal fasteners as possible for better grounding.
2-5 Connecting Cables
ATX Power Supply Connector
After you have securely mounted the motherboard to the chassis, you are ready to connect the cables. Attach a power supply cable to J32 for an ATX power supply. See Table 2-1 for the pin definitions of an ATX power supply.
Pin Number Definition 1 3.3V 2 3.3V 3 Ground 4 5V 5 Ground 6 5V 7 Ground 8 PW-OK 9 5VSB 10 1 2 V
Table 2-1
ATX Power Supply Connector
Pin Definitions for J32
Pin Number Definition 11 3.3V 12 -12V 13 Ground 14 PS-ON 15 Ground 16 Ground 17 Ground 18 -5 V 19 5V 20 5V
If installing a 370SBM or 370SLM microATX motherboard, an SFX power supply is recommended (though an ATX power supply also works with a microATX mother­board). Attach a power supply cable to J32 for an SFX power supply. See Table 2-2 for the pin definitions of an SFX power supply.
SFX Power Supply Connector
Pin Number Definition 1 3.3V 2 3.3V 3 Ground 4 5V 5 Ground 6 5V 7 Ground 8 PW-OK 9 5VSB 10 1 2 V
Note: There is no -5V pin for SFX power.
2-3
Table 2-2
Pin Definitions for J32
Pin Number Definition 11 3.3V/sense 12 -12V 13 Ground 14 PS-ON 15 Ground 16 Ground 17 Ground 18 Reserved 19 5V 20 5V
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
Table 2-3
Infrared Pin
Infrared Connector
The infrared connector is located on pins 1-5 of JF2. See Table 2-3 for pin definitions.
Definitions
for JF2
Pin
Number
1 2 3 4 5
PW_ON Connector
The PW_ON connector is located on pins 9 and 10 of JF2. Momentarily contacting both pins will power on/off the system. The user can also con­figure this button to function as a suspend button. (See BIOS setup information on page 5-12). To turn off the power when set to suspend mode, hold down the power button for at least 4 seconds. See Table 2­4 for pin definitions.
Table 2-4
PW-ON Connector
Pin Definitions
Pin
Number
9
10
Definition
+5V
IRRX
Ground
IRTX
for JF2
Definition
PW_ON
Ground
Key
Reset Connector
The reset connector is located on pins 12 and 13 of JF2. This con­nector attaches to the hardware re­set switch on the computer case. See Table 2-5 for pin definitions.
Hard Drive LED Connector
The connector for the IDE hard drive LED is located on pins 1 to 4 of JF1. Attach the hard drive LED cable to pins 1 and 2. See Table 2-6 for pin definitions.
2-4
Table 2-5
Reset Pin
Definitions
for JF2
Pin
Number
Definition
12
Ground
13
Reset
Table 2-6
IDE Hard Drive LED
Pin Definitions
for JF1
Pin
Definition
Number
1 2 3 4
+5V HD Active HD Active
+5V
Chapter 2: Installation
Keylock/Power LED Connector
The keylock/power LED connector is located on pins 5 to 9 of JF1. See Table 2-7 for pin definitions. Pins 5 and 7 are for the power LED. Pins 8 and 9 are for the keylock.
Speaker Connector
The speaker connector is located on pins 10 to 13 of JF1. See Table 2-8 for pin definitions.
ATX PS/2 Keyboard and PS/2 Mouse Ports
The ATX PS/2 keyboard and the PS/2 mouse are located on J34. See Table 2-9 for pin definitions.
Keylock/Power LED Pin Definition
Pin
Number
5 6 7 8 9
Speaker Connector Pin Definitions for
Pin
Number
10 11 12 13
Table 2-7
for JF1
Function
VCC +5V
Red wire, LED power
VCC +5V
Red wire, LED power
Ground Ground
Table 2-8
JF1
Function
+
Red wire, Speaker data
Key
Table 2-9 ATX PS/2 Keyboard
and PS/2 Mouse
Ports
Pin Definitions
for J34
Pin
Definition
Number
1 2
Ground
3 4
Clock
5 6
Definition
LED control
Keyboard inhibit
Black wire
Definition
No connection
Key
Speaker data
Data
NC
VCC
NC
Universal Serial Bus
The two Universal Serial Bus con­nectors are located on J17 and J18. See Table 2-10 for pin definitions.
Pin Number Definition 1 +5V 2 P0­ 3 P0+ 4 Ground 5 N / A
2-5
J17
Table 2-10
J18
Pin Number Definition 1 +5V 2 P 0 ­ 3 P0+ 4 Ground 5 Key
Universal Serial Bus Pin Definitions
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
ATX Serial Ports
ATX serial port COM1 is located on J20 and serial port COM2 is located on J21. See Table 2-11 for pin defi­nitions.
CMOS Clear
Refer to Table 2-12 for instructions on how to clear the CMOS. For an
ATX power supply, you need to completely shut down the sys­tem, then use JBT1 to clear the CMOS. Do not use the PW_ON
connector to clear the CMOS. A second way of resetting the CMOS contents is by depressing the <Ins> key, then turning on the system power. Release the key when the power comes on.
ATX Serial Ports Pin Definitions
Pin Number Definition 1 DCD 2 DS R 3 Serial In 4 R T S 5 Serial Out
CMOS Clear Pin Definitions
Jumper
Position
Table 2-11
J20
Table 2-12
for Number JBT1
1-2 2-3
Position
Normal
Definition
CMOS Clear
1-2
Pin Number Definition 6 CTS 7 DTR 8 RI 9 Ground 10 NC
Normal
Position
2-3
CMOS Clear
J21
Wake-on-LAN
The Wake-on-LAN connector is lo­cated on WOL. Refer to Table 2-13 for pin definitions.
Fan Connectors*
The thermal/overheat fan is located on JT3. The CPU fans are located on JT1 and JT2. Refer to Table 2-14 for pin definitions.
2-6
Table 2-13
Wake-on-LAN Pin
Definition located at
WOL
Pin
Number
Definitions for JT1, JT2, JT3
Pin
Number
1 2 3
* Caution: These fan connectors are DC direct.
Definition
1
+5V Standby
2
Ground
3
Wake up
Table 2-14
Fan Connectors Pin
Definition
Ground (black)
+12V (red)
Tachometer
Chapter 2: Installation
Chassis Intrusion
The Chassis Intrusion Detector is located on JL1. See the board lay­outs in Chapter 1 and the PC Health Monitor section on page 1-15 for more information. See Table 2-15 for pin definitions.
Keyboard Wake-Up
The Keyboard Wake-Up jumper is lo­cated on JPWAKE. To enable Key­board Wake-Up, set the JPWAKE jumper to 2-3 and enable the Keyboard Wake-Up func­tion in the system BIOS (see page 5­18 for more details). Refer to Table 2­16 for pin definitions.
Overheat LED
The Overheat LED connector is lo­cated on pins 1 and 2 of JOH. Re­fer to Table 2-17 for pin definitions.
Table 2-15
Chassis Intrusion
Detector Settings on
JL1
Pin
Number
Open = Default, Close = Intrusion
Jumper
Position
Number
Definition
1
Intrusion Input
2
Ground
Table 2-16
Keyboard Wake-Up Pin
Definitions for JPWAKE
1-2 2-3
Position
Disabled
Overheat LED Pin Definition for JOH
Pin
1 2
Definition Disabled
Wake-Up Enabled
1-2
Wake-Up Enabled
Table 2-17
Definition
12V
OH Active
Position
2-3
Bus Speed
The Bus Speed jumper is located on JP11. Note: Bus speed select
(JP11) is not available on the 370SLA and 370SLM, which use the 440LX chipset. Refer to Table
2-18 for instructions on setting the bus speed using jumper JP11. JP11 jumper setting 1-2 is the default setting.
Celeron processors only support a 66 MHz bus speed. Future Celeron processors may support a 100 MHz bus speed.)
(Note: Current
2-7
Table 2-18
Bus Speed Pin
Definitions for JP11
Jumper
Position
1-2 2-3
OFF
Position
1-2
Auto Select
Definition
Auto Select
100 MHz
Position
2-3
66 MHz
66 MHz
Position
OFF
100 MHz
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
2-6 Installing DIMMs
CAUTION
Exercise extreme care when installing or removing the DIMM
modules to prevent any possible damage.
1. Insert DIMMs in Bank 0 through Bank 3 as required for the desired system memory.
2. Insert each DIMM module vertically into its socket. Pay attention to the two notches along the bottom of the module to prevent inserting the DIMM incorrectly.
3. Gently press the DIMM module until it snaps upright into place in the socket.
4. For best results, install DIMMs starting from Bank 0 (the DIMM socket farthest from the BX or LX chip).
Figure 2-1. DIMM Installation
Side View of DIMM Installation into Socket
PC100
To Install:
Insert vertically, press down until it snaps into place. Pay attention to the two notches.
Notches
DIMM
Note: Notches
should align
with the
receptive points
on the socket
PC100
Notches
Top View of DIMM Socket
2-8
DIMM Socket
To Remove:
Use your thumb to gently push the edge of the socket and release the module. Do this on both sides for each module.
Chapter 2: Installation
2-7 Connecting Parallel, Floppy and Hard Disk Drives
Use the following information to connect the floppy and hard disk drive cables.
• The floppy disk drive cable has seven twisted wires.
• A red mark on a wire typically designates the location of pin 1.
• A single floppy disk drive ribbon cable has 34 wires and two connectors to provide for two floppy disk drives. The connector with twisted wires always connects to drive A, and the connector without twisted wires always connects to drive B.
• An IDE hard disk drive requires a data ribbon cable with 40 wires.
• A single IDE hard disk drive cable has two connectors to provide for two drives. To select an IDE disk drive as C, you would normally set the drive select jumper on the drive to DS1 (or Master). To select an IDE disk drive as D, you would normally set the drive select jumper on the drive to DS2 (or Slave). Consult the documentation that came with your disk drive for details on actual jumper locations and settings.
2-9
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
Parallel Port Pin Definitions for Connector J19
Pin Number Function 1 Strobe­ 3 Data Bit 0 5 Data Bit 1 7 Data Bit 2 9 Data Bit 3 11 Data Bit 4 13 Data Bit 5 15 Data Bit 6 17 Data Bit 7 19 ACK 21 BUSY 23 PE 25 SLCT
Table 2-19
Pin Number Function 2 Auto Feed­ 4 Error­ 6 Init­ 8 SLCT IN­ 10 G N D 12 G N D 14 G N D 16 G N D 18 G N D 20 G N D 22 G N D 24 G N D 26 NC
Floppy Connector
The floppy connector is located on J22. See Table 2-20 for pin definitions.
Parallel Port Connector
The parallel port is located on J19. See Table 2-19 for pin defi­nitions.
Floppy Connector Pin Definitions for J22
Pin Number Function 1 GND 3 GND 5 Key 7 GND 9 GND 11 G ND 13 G ND 15 G ND 17 G ND 19 G ND 21 G ND 23 G ND 25 G ND 27 G ND 29 G ND 31 G ND 33 G ND
Table 2-20
Pin Number Function 2 FDHDIN 4 Reserved 6 F D E D I N 8 Index­ 10 Motor Enable 12 Drive Select B­ 14 Drive Select A­ 16 Motor Enable 18 DIR­ 20 STEP­ 22 Write Data­ 24 Write Gate­ 26 Track 00­ 28 Write Protect­ 30 Read Data­ 32 Side 1 Select­ 34 Diskette
Table 2-21
IDE Connector Pin Definitions
Pin Number Function 1 Reset IDE 3 Host Data 7 5 Host Data 6 7 Host Data 5 9 Host Data 4 11 Host Data 3 13 Host Data 2 15 Host Data 1 17 Host Data 0 19 GN D 21 DRQ3 23 I/O Write­ 25 I/O Read­ 27 IOCHRDY 29 DACK3­ 31 IRQ14 33 Addr 1 35 Addr 0 37 Chip Select 0 39 Activity
Pin Number Function 2 GND 4 Host Data 8 6 Host Data 9 8 Host Data 10 10 Host Data 11 12 Host Data 12 14 Host Data 13 16 Host Data 14 18 Host Data 15 20 K ey 22 GND 24 GND 26 GND 28 BALE 30 GND 32 IOCS16­ 34 GND 36 Addr 2 38 Chip Select 1­ 40 GND
2-10
IDE Interfaces
There are no jumpers to configure the onboard IDE interfaces J15 and J16. Refer to Table 2-21 for the pin definitions.
AGP Port
There are no jumpers to con­figure the AGP port J8. Re­fer to Table 2-22 for the pin definitions.
Pin #
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
Chapter 2: Installation
Table 2-22
AGP Port Pin Definitions for J8
B
Spare
5.0V
5.0V
USB+
GND
INTB#
CLK
REQ#
VCC3.3
ST0 ST2
RBF#
GND Spare SBA0
VCC3.3
SBA2
SB_STB
GND SBA4 SBA6
KEY KEY KEY
KEY AD31 AD29
VCC3.3
AD27 AD25
GND
AD_STB1
AD23
Reserved*
Reserved
Reserved
Reserved
A
12V
Spare USB-
GND
INTA#
RST# GNT#
VCC3.3
ST1
PIPE#
GND Spare SBA1
VCC3.3
SBA3
GND SBA5 SBA7
KEY
KEY
KEY
KEY AD30 AD28
VCC3.3
AD26 AD24
GND
C/BE3#
Pin #
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66
B
Vddq3.3
AD21 AD19
GND
AD17
C/BE2#
Vddq3.3
IRDY#
GND
VCC3.3
DEVSEL#
Vddq3.3
PERR#
GND SERR# C/BE1#
Vddq3.3
AD14 AD12
GND
AD10
AD8
Vddq3.3
AD_STB0
AD7
GND
AD5 AD3
Vddq3.3
AD1
SMB0
A
Vddq3.3
AD22 AD20
GND AD18 AD16
Vddq3.3
Frame#
GND
VCC3.3 TRDY# STOP#
Spare
GND
PAR AD15
Vddq3.3
AD13 AD11
GND
AD9
C/BE0#
Vddq3.3
Reserved
AD6
GND
AD4 AD2
Vddq3.3
AD0
SMB1
2-11
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
Notes
2-12
Chapter 3: Troubleshooting
g
Chapter 3: Troubleshooting
Chapter 3
Troubleshooting
3-1 Troubleshooting Procedures
Use the following procedures and chart to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Tech­nical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.
Before Power On
1. Make sure no short circuits exist between the motherboard and chassis.
2. Disconnect all ribbon/wire cables from the motherboard.
3. Remove all add-on cards except the video/graphics card. (Be sure the video/graphics card is inserted properly.)
4. Install a CPU, the chassis speaker and the power LED to the motherboard. (Check all the jumper settings as well.)
5. Install a memory module into Bank 0.
6. Check the power supply voltage monitor 115V/230V switch.
Power
Supply OK?
Y
Figure 3-1. Troubleshooting Flowchart
N
Replace Power
Supply
Y
Y
N
Power On
System Power
LED on?
Y
Video
Display?
N
Speaker
Beeps?
Remove Memory
Speaker
Beeps?
N
Check CPU &
BIOS
Speaker
Beeps?
N
Replace
Motherboard
N
See "Before Power On", above, before proceedin with these steps.
Y
System
Halts?
Check BIOS
Y
Settings &
Add-on Cards
Number of
Beeps
Memory
Problem:
Check Memory
3-1
N
Motherboard
Y
6
Good
Video Card
Problem
8
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
No Power
1. Make sure that the default jumper is on and the CPU is correctly set up.
2. Turn the power switch on and off to test the system.
3. If changing the jumper setting has not helped, clear CMOS.
4. Check the power supply voltage monitor. (Check the power supply 115V/ 230V switch.)
No Video
Use the following steps to troubleshoot your system configuration.
1. If the power is on but you have no video, remove all the add-on cards and cables.
2. Check for shorted connections, especially under the motherboard.
3. Check the jumpers settings, clock speed and voltage settings.
4. Use the speaker to determine if any beep codes exist. Refer to Appendix A for details on beep codes.
NOTE
If you are a system integrator, VAR or OEM, a POST diagnostics
card is recommended. For port 80h codes, refer to Appendix B.
Memory Errors
If you encounter memory error, follow the procedures below.
1. Check to determine if the DIMM modules are improperly installed.
2. Make sure that different types of DIMMs have not been installed in different banks (e.g., a mixture of 2MB x 36 and 1 MB x 36 DIMMs in Bank 0).
3. Determine if different speeds of DIMMs have been installed and verify that the BIOS setup is configured for the fastest speed of RAM used. It is recommended to use the same RAM speed for all DIMMs in the system.
4. Check for bad DIMM modules or chips.
5. Try to install the minimum amount of memory first (a single bank).
Losing the System’s Setup Configuration
1. Check the setting of jumper JBT1. Ensure that you are using a high quality power supply. A poor quality power supply may cause the
3-2
Chapter 3: Troubleshooting
system to lose the CMOS setup information. Refer to Chapter 1 of this manual for details.
2. If the above step does not fix the setup configuration problem, contact your vendor for repairs.
3-2 Technical Support Procedures
1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently Asked Question' (FAQ) sections in this chapter of the manual or check our web site FAQ (http:// www.supermicro.com) before contacting Technical Support.
2. Take note that as a motherboard manufacturer, Super Micro does not sell directly to end-users, so it is best to check with your distributor or reseller for troubleshooting services. They should know of any possible problem(s) with the specific system configuration that was sold to you.
3. BIOS upgrades can be downloaded from the SUPER BBS# (408) 895-2022, 24 hours a day, using 1200-28800 baud, 8 data bits, 1 stop bit and no parity. BIOS upgrades can also be downloaded from our web site at http:// www.supermicro.com.
Note: Not all BIOS can be flashed depending on the modifications to the boot block code.
4. If you still cannot resolve the problem, include the following information when you e-mail Super Micro for technical support:
• BIOS release date/version
• System board serial number
• Product model name
• Invoice number and date
• System configuration
Due to the volume of e-mail we recieve and the time it takes to replicate problems, a response to your question may not be immediately available. Please understand that we do not have the resources to serve every end­user, however we will try our best to help all our customers.
5. Distributors: For immediate assistance, please have your account number ready when placing a call to our technical support department.
3-3
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
3-3 Frequently Asked Questions
Question:
the 370SBA/370SBM/370SLA/370SLM motherboard can support?
Answer:
supports 64-bit or 72-bit (64 bits of memory data plus 8 ECC bits) DRAM from 8 MB to 512 MB for SDRAM and from 8 MB to 768 MB for EDO or registered DIMMs. The DRAM types supported are either Extended Data Out (EDO), Synchronous DRAM (SDRAM) or registered DIMM modules.
Note: EDO DIMMs are not recommended for running 100 MHz bus speed.
1. Mixing ECC and non-ECC will result in non-ECC operation. EC/ECC is
2. EDO memory and SDRAM cannot be mixed.
3. Registered SDRAM and unbuffered SDRAM cannot be mixed.
4. Mixing PC/100 DIMM and PC/66 DIMM will result in an unexpected
5. User should populate the DIMMs starting with the DIMM socket located
6. If EDO memory is used, the CPU bus should be set at 66 MHz Bus speed
Question: Answer:
experiencing no problems with your system. BIOS file updates are located on our web site at http:// www.supermicro.com. Please check the current BIOS revision and make sure it is newer than your BIOS before downloading. Select your motherboard model and download the BIOS file to your computer. Unzip the BIOS update file and you will find the readme.txt (flash instructions), the sm2flash.com (BIOS flash utility), and the BIOS image (xxxxxx.rom) files. Copy these files onto a bootable floppy and reboot your system. It is not necessary to set BIOS boot block protection jumpers on the motherboard. At the DOS prompt, enter the command "sm2flash." This will start the flash utility and give you an opportunity to save your current BIOS image. Flash the boot block and enter the name of the update BIOS image file. NOTE: It is important to save your current BIOS and rename it "super.rom" in case you need to recover from a failed BIOS update. Select flash boot block, then enter the update BIOS image. Select
What are the differences between the various memories that
The 370SBA/370SBM integrates a main memory DRAM controller that
supported properly in the 440BX, only if all the memory is 72 bits wide. A system with a mixture of 64 and 72-bit wide memory will disable the ECC mode.
memory count or system errors.
the furthest from the BX chip.
only.
How do I update my BIOS?
It is recommended that you do not upgrade your BIOS if you are
3-4
Chapter 3: Troubleshooting
"Y" to start the BIOS flash procedure and do not disturb your system until the flash utility displays that the procedure is complete. After updating your BIOS, clear CMOS then load Optimal Values in the BIOS.
Question:
can I correct this?
Answer:
indicates that the flashing procedure failed. To remedy this, first clear CMOS per the instructions in this manual and retry the BIOS flashing procedure. If you still do not have video, please use the following BIOS recovery procedure. Turn your system off and place the floppy disk with the saved BIOS image file (see above FAQ) in drive A. Press and hold <CTRL> and <Home> at the same time, then turn on the power with these keys pressed until your floppy drive starts reading. Your screen will remain blank until the BIOS program is done. If the system reboots correctly, then the recovery was successful.
Question:
and which BIOS setting should I choose?
Answer:
370SLM is 168-pin DIMM 3.3v non-buffered SPD (Serial Present Detection) SDRAM, SDRAM and EDO memory. SPD SDRAM is preferred but is not essen­tial. IMPORTANT: Please do not mix memory types; the results are unpredict­able. If your memory count is exactly half of the correct value, please go to the BIOS in Chipset Setup and set "SDRAM AUTOSIZING SUPPORT" to Change between available options until one setting correctly displays your memory.
Question: Answer:
built-in support for AGP. Some AGP video adapters can run Windows 95 OSR2.1 with special drivers. Please contact your graphics adapter vendor for more details.
After flashing the BIOS my system does not have video. How
If the system does not have video after flashing your new BIOS, it
I have memory problems. What is the correct memory to use
The correct memory to use on the SUPER 370SBA/370SBM/370SLA/
Enabled
Which Operating System (OS) supports AGP?
At present, Windows 98 and Windows NT 5.0 are the only OS that have
.
Question: Answer:
will greatly enhance your system. We recommend that you review the CD and install the applications you need. Applications included on the CD are PCI IDE Bus Master drivers for Windows 95 and Windows NT, 440BX/LX chip set drivers for Windows 95 and Super Doctor Monitoring software.
Do I need the CD that came with your motherboard?
The supplied compact disc has quite a few drivers and programs that
3-5
SUPER 370SBA/370SBM/370SLA/370SLM User's Manual
Question:
off switch?
Answer:
feature is enabled in the BIOS, the motherboard will have instant off capabili­ties as long as the BIOS has control of the system. When this feature is disabled or when the BIOS is not in control, such as during memory count (the first screen that appears when the system is turned on), the momentary on/off switch must be held for more than four seconds to shut down. This feature is required to implement the ACPI features on the motherboard.
Question:
seems to be fine. Is this correct or not?
Answer:
penalties. These devices are designed to work correctly while sharing IRQs.
Why can't I turn off the power using the momentary power on/
The instant power off function is controlled by the BIOS. When this
I see some of my PCI devices sharing IRQs, but the system
Some PCI Bus Mastering devices can share IRQs without performance
3-4 Returning Merchandise for Service
A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Ship­ping and handling charges will be applied for all orders that must be mailed when service is complete.
This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alternation, misuse, abuse or improper maintenance of products.
During the warranty period, contact your distributor first for any product prob­lems.
3-6
Chapter 4: AMIBIOS
Chapter 4: AMIBIOS
Chapter 4
AMIBIOS
4-1 Introduction
This chapter describes the AMIBIOS for the Intel 440LX/BX Celeron 333-400 MHz processors. The AMI ROM BIOS is stored in the Flash EEPROM and is easily upgraded using a floppy disk-based program.
System BIOS
The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT®, and PS/2® compatible computers. WinBIOS is a high-quality example of a system BIOS.
Configuration Data
AT-compatible systems, also called ISA (Industry Standard Architecture) must have a place to store system information when the computer is turned off. The original IBM AT had 64k bytes of non-volatile memory storage in CMOS RAM. All AT-compatible systems have at least 64k bytes of CMOS RAM, which is usually part of the Real-Time Clock. Many systems have 128k bytes of CMOS RAM.
How Data Is Configured
AMIBIOS provides a Setup utility in ROM that is accessed by pressing <Del> at the appropriate time during system boot. Setup configures data in CMOS RAM.
POST Memory Test
Normally, the only visible POST routine is the memory test. The screen that appears when the system is powered on is shown on the next page.
An AMIBIOS Identification string is displayed at the left bottom corner of the screen, below the copyright message.
4-1
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
American
Mega
Trends
S
UPER
Checking NVRAM xxxxx KB OK
AMIBIOS (c) 1997 American Megatrends, Inc. 0404981500 Pentium II Motherboard Made in USA R1.0
BIOS date code
BIOS revision code
Hit <DEL> if you want to run SETUP
(C) Super Micro Computer, Inc., XX-XXXX-XXXXXX-XXXXXXXX-XXXXXX-XXXX-X
4-2 BIOS Features
The AMIBIOS:
• Supports Plug and Play V1.0A and DMI 2.1
• Supports Intel PCI 2.1 (Peripheral Component Interconnect) local bus
specification
• Supports Advanced Power Management (APM) specification v 1.1
• Supports xACP2
• Supports Flash ROM.
AMIBIOS supports the LS120 drive made by Matsushita-Kotobuki Electronics Industries Ltd. The LS120:
• Can be used as a boot device
• Is accessible as the next available floppy drive.
AMIBIOS supports PC Health Monitoring chips. When a failure occurs in a monitored activity, AMIBIOS can sound an alarm and display a message. The PC Health Monitoring chips monitor:
• CPU temperature
• Additional temperature sensors
• Chassis intrusion detector
• Five positive voltage inputs
• Two negative voltage inputs
• Three fan speed monitoring inputs.
4-2
Chapter 4: AMIBIOS
BIOS Configuration Summary Screen
AMIBIOS displays a screen that looks similar to the following when the POST routines complete successfully.
AMIBIOS System Configuration (C) 1985-1997 American Megatrends Inc.,
Main Processor : Pentium(tm) II Base Memory Size : 640 KB Math Processor : Built-In Ext. Memory Size : 64512 KB Floppy Drive A: : 1.44 MB, 31/ Floppy Drive B: : None Serial Port(s) : 3F8, 2F8 AMI-BIOS Date : 7/15/95 Parallel Port(s) : 378 Processor Clock : 350MHz External Cache : 512 KB
PCI Devices PCI Onboard PCI Bridge PCI Onboard Bridge Device PCI Onboard USB Controller PCI Onboard IDE PCI Onboard SCSI, IRQ 10 PCI Onboard SCSI, IRQ 10 PCI Slot 4 VGA, IRQ 11
*Note: The picture above reflects a board equipped with SCSI, but may be taken as a general example.
Display Type : VGA/EGA
2
AMIBIOS Setup
See the following page for examples of the AMIBIOS Setup screen, featuring options and settings. Figure 4-1 shows the highlight other options, use the arrow keys or the tab key to move to other option boxes. Figure 4-2 shows the settings for the Standard setup. Settings can be viewed by highlighting a desired option and pressing <Enter>. Use the arrow keys to choose a setting. Note: Optimal settings for all options can be set automatically. Go to the Use the arrow keys to highlight
Optimal
yes,
icon in the default box and press <Enter>.
Standard
option highlighted. To
then press <Enter>.
4-3
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Figure 4-1. Standard Option Highlighted
Figure 4-2. Settings for Standard Option
4-4
Chapter 5: Running Setup
Chapter 5: Running Setup
Chapter 5
Running Setup
Optimal and Fail-Safe default settings are in bold
text unless otherwise noted.
The WinBIOS Setup options described in this section are selected by choosing the appropriate high-level icon from the Standard Setup screen. All displayed icons are described in this section, although the screen display is often all you need to understand how to set the options.
running AMIBIOS Setup, Version 2.5 © 1997.
5-1 Setup
Standard Setup
Pri Master Pri Slave Sec Master Sec Slave Date/Time Floppy A Floppy B
Select these options to configure the drive named in the option. Select
Auto Detect IDE
screen with a list of drive parameters appears. Click on OK to configure the drive.
to let AMIBIOS automatically configure the drive. A
Note: The 370S* motherboards are
Type How to Configure
IDE
Select
Type
. Select parameters. Click on OK when AMIBIOS displays the drive parameters. Select drive has a capacity greater than 540 MB. Select the
Block Mode
transfers. Select the 32-bit data transfers. Select to allow AMIBIOS to determine the PIO Mode. It is best to select the PIO mode. If you select a PIO mode that is not supported by the IDE drive, the drive will not work properly. If you are absolutely certain that you know the drive’s PIO mode, select PIO mode 0-4, as appropriate.
. Select On to allow block mode data
Auto
to let AMIBIOS determine the
LBA Mode
32-bit mode
Auto
to allow AMIBIOS to determine
. Select On if the
. Select
PIO mode
. Select
5-1
On
to allow
On
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
SCSI
Select
Type
. Select
Not Installed
on the drive parameter screen. The SCSI drivers provided by the SCSI manufacturer should allow you to configure the SCSI drive.
IDE CDROM
Select
Type
: Select
ATAPI CDROM
on the drive parameter screen. ATAPI CDROM enables ATAPI-compliant IDE CD­ROM drives to be automatically configured Select
Auto
for
PIO Mode to let AMIBIOS configure IDE CD-ROM drives.
Removable Media Drive
Select
Type
: Select
ARMD
on the drive parameter screen. ATAPI Removal Media Device (ARMD) enables removable media drives to be configured. Select
Auto
for PIO Mode to let AMIBIOS emulate LS120 as a floppy, Iomega ZIP as a hard drive, and MO as a hard drive.
Entering Drive Parameters (User Defined)
You can also enter the hard disk drive parameters. The drive parameters are:
Parameter Description
Type The number for a drive with certain identification parameters.
Cylinders The number of cylinders in the disk drive.
Heads The number of heads.
Write The size of a sector gets progressively smaller as the track
Precompensation diameter diminishes. Yet each sector must still hold 512 bytes.
Sectors The number of sectors per track. MFM drives have 17 sectors
Capacity The formatted capacity of the drive is (Number of heads) x
Write precompensation circuitry on the hard disk compensates for the physical difference in sector size by boosting the write current for sectors on inner tracks. This parameter is the track number where write precompensation begins.
per track. RLL drives have 26 sectors per track. ESDI drives have 34 sectors per track. SCSI and IDE drive may have even more sectors per track.
(Number of cylinders) x (Number of sectors per track) x (512 bytes per sector)
5-2
Chapter 5: Running Setup
Date and Time Configuration
Select the Standard option. Select the for each category are displayed. Enter new values through the keyboard.
Date/Time
icon. The current values
Floppy A Floppy B
Choose the Floppy Drive A or B icon to specify the floppy drive type. The settings are
inch, 1.44 MB 3½ inch
Not Installed, 360 KB 5¼ inch, 1.2 MB 5¼ inch, 720 KB 3½
or
2.88 MB 3½ inch
.
Note: The Optimal and Fail­Safe settings for Floppy Drive A are 1.44 MB 3 1/2 inch and for Floppy Drive B are Not Installed
.
Advanced Setup
Quick Boot
The Settings are to boot quickly when the computer is powered on. This option replaces the old Above 1 MB Memory Test Advanced Setup option. The settings are:
Setting Description
Disabled
Disabled
AMIBIOS tests all system memory. AMIBIOS waits up to 40 seconds for a READY signal from the IDE hard disk drive. AMIBIOS waits for .5 seconds after sending a RESET signal to the IDE drive to allow the IDE drive time to get ready again. AMIBIOS checks for a <Del> key press and runs AMIBIOS Setup if the key has been pressed.
or
Enabled
. Set to
Enabled
to permit AMIBIOS
Enabled
AMIBIOS does not test system memory above 1 MB AMIBIOS does not wait up to 40 seconds for a READY signal from the IDE hard disk drive. If a READY signal is not received immediately from the IDE drive, AMIBIOS does not configure that drive. AMIBIOS does not wait for .5 seconds after sending a RESET signal to the IDE drive to allow the IDE drive time to get ready again. In
Enabled,
keyboard will be bypassed.
Note: You cannot run AMIBIOS Setup at system boot, because there is no delay for the Hit <Del> to run Setup message.
5-3
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Pri Master ARMD Emulated as Pri Slave ARMD Emulated as Sec Master ARMD Emulated as Sec Slave ARMD Emulated as
Options for Pri Master ARMD Emulated as, Pri Slave ARMD Emulated as, Sec Master ARMD Emulated as and Sec Slave ARMD Emulated as are
Auto, Floppy or Hard disk
.
1st Boot Device 2nd Boot Device 3rd Boot Device
The options for 1st Boot Device are
Disabled, 1st IDE-HDD, 2nd IDE-HDD, 3rd IDE-HDD, 4th IDE-HDD, Floppy, ARMD-FDD, ARMD-HDD, ATAPI CD ROM, SCSI, Network
or
I20
. The options for 2nd Boot Device are
Disabled, 1st IDE-HDD, 2nd IDE-HDD, 3rd IDE-HDD, 4th IDE-HDD, Floppy, ARMD­FDD, ARMD-HDD or ATAPI CD ROM
. The options for 3rd Boot Device are
Disabled, 1st IDE-HDD, 2nd IDE-HDD, 3rd IDE-HDD, 4th IDE-HDD, Floppy, ARMD-FDD, ARMD-HDD or ATAPI CD ROM
1st IDE-HDD, 2nd IDE-HDD, 3rd IDE-HDD and 4th IDE-HDD are the four hard disks that can be installed by the BIOS. 1st IDE-HDD is the first hard disk installed by the BIOS, 2nd IDE-HDD is the second hard disk, and so on. For example, if the system has a hard disk connected to Primary Slave and another hard disk to Secondary Master, then 1st IDE-HDD will be referred to as the hard disk connected to Primary Slave and 2nd IDE-HDD will be referred to as the hard disk connected to the Secondary Master. 3rd IDE-HDD and 4th IDE-HDD are not present. Note that the order of the initialization of the devices connected to the primary and secondary channels are Primary Master first, Primary Slave second, Secondary Master third, and Secondary Slave fourth.
.
The BIOS will attempt to read the boot record from 1st, 2nd, 3rd and 4th boot device in the selected order until it is successful in reading the booting record. The BIOS will not attempt to boot from any device which is not selected as the boot device.
Try Other Boot Device
This option controls the action of the BIOS if all the selected boot devices failed to boot. The settings for this option are selected and all the selected boot devices failed to boot, the BIOS will try to boot from the other boot devices (in a predefined sequence) which are present but not selected as boot devices in the setup (and hence not yet
Yes
or No. If
Yes
is
5-4
Chapter 5: Running Setup
been tried for booting). If selected as No and all selected boot devices failed to boot, the BIOS will try not to boot from the other boot devices which may be present but not selected as boot devices in setup.
Initial Display Mode
This option determines the display screen with which the POST is going to start the display. The settings for this option are selected as screen. If
BIOS,
the POST will start with the normal sign-on message
Silent
is selected, the POST will start with the silent screen.
Display Mode at Add-on ROM Init
This option determines the display mode during add-on ROM (except Video add-on ROM) initialization. The settings for this option are
Keep Current
to be changed to BIOS mode before giving control to any add-on ROM. If no add-on ROM is found, then the current display mode will remain unchanged even if this setup question is selected as selected as unchanged.
. If selected as
Keep Current,
Force BIOS,
then the current display mode will remain
Floppy Access Control
The settings for this option are
Hard Disk Access Control
The settings for this option are
Read-Write
Read-Write
BIOS
or
Silent
. If
Force BIOS
the POST will force the display
or
Read-Only
or
Read-Only
Force BIOS.
.
.
If
or
S.M.A.R.T. for Hard Disks
S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a technology developed to manage the reliability of the hard disk by predict­ing future device failures. The hard disk needs to be S.M.A.R.T. capable. The settings for this option are
Disabled
or
Enabled
.
Note: S.M.A.R.T. cannot predict all future device failures. S.M.A.R.T. should be used as a warning tool, not as a tool to predict the device reliability
.
Boot Up Num-Lock
Settings for this option are BIOS turns off the Num Lock key when the system is powered on. This will enable the end user to use the arrow keys on both the numeric keypad and the keyboard.
On
or
Off
. When this option is set to On, the
PS/2 Mouse Support
Settings for this option are
Enabled
, AMIBIOS supports a PS/2-type mouse.
Enabled
or
Disabled
. When this option is set to
5-5
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Primary Display
This option specifies the type of display adapter card installed in the system. The settings are
Absent, VGA/EGA, CGA40x25, CGA80x25
or
Mono
.
Password Check
This option enables the password check option every time the system boots or the end user runs WinBIOS Setup. If word prompt appears every time the computer is turned on. If chosen, the password prompt appears if WinBIOS Setup is executed.
Always
is chosen, a user pass-
Setup
Boot to OS/2
If DRAM size is over 64 MB, set this option to run with IBM OS/2. The settings are No or
Yes
to permit AMIBIOS to
Yes
.
Internal Cache
This option is for enabling or disabling the internal cache memory. The settings for this option are
Disabled
,
WriteThru
, or
WriteBack
.
System BIOS Cacheable
When set to can be read from or written to cache memory. The contents of this memory segment are always copied from the BIOS ROM to system RAM for faster execution. The settings are
Enabled
, the contents of the F0000h system memory segment
Enabled
or
Disabled
.
Note: The Optimal default setting is Enabled and the Fail-Safe default setting is Disabled. Set this option to Enabled to permit the contents of F0000h RAM memory segment to be written to and read from cache memory.
is
CPU ECC
This option is Pentium II L2 cache ECC function.
grayed out
for the Celeron processor, but is available for the
C000, 16K Shadow C400, 16K Shadow
(370S* motherboard defaults are C000:Enabled, C400:Cached.) These options specify how the 32 KB of video ROM at C0000h and C4000h is treated. The settings are:
Disabled,
to copied (shadowed) from ROM to RAM for faster execution. When set to
Cached
copied from ROM to RAM, and can be written to or read from cache memory.
the contents of the video ROM are not copied to RAM. When set
Enabled,
the contents of the video ROM area from C0000h-C7FFFh are
, the contents of the video ROM area from C0000h-C7FFFh are
Disabled, Enabled or Cached
. When set to
5-6
Chapter 5: Running Setup
C800, 16K Shadow CC00, 16K Shadow D000, 16K Shadow D400, 16K Shadow D800, 16K Shadow DC00, 16K Shadow
These options enable shadowing of the contents of the ROM area named in the option. The ROM area not used by ISA adapter cards is allocated to PCI adapter cards. The settings are: When set to RAM. When set to
Disabled,
Enabled,
the contents of the video ROM are not copied to
the contents of the video ROM area from
Disabled, Enabled or Cached
.
C0000h-C7FFFh are copied (shadowed) from ROM to RAM for faster execution. When set to
Cached,
the contents of the video ROM area from C0000h-C7FFFh are copied from ROM to RAM and can be written to or read from cache memory.
Chipset Setup
USB Function
The settings for this option are
Enabled
to enable the USB (Universal Serial Bus) functions.
USB KB/Mouse Legacy Support
The settings for this option are
Disabled
. Set this option to
mouse.
Enabled
or
Disabled
. Set this option to
Keyboard, Auto, Keyboard+Mouse
Enabled
to enable the USB keyboard and
or
Port 64/60 Emulation
The settings for this option are
Enabled
to enable the USB (Universal Serial Bus) functions.
Enabled
or
Disabled
. Set this option to
SERR# (System Error)
The settings for this option are
Enabled
or
Disabled
. Set to
Enabled
to enable the SERR# signal on the bus. BX asserts this signal to indicate a system error condition. SERR# is asserted under the following conditions:
- In an ECC configuration, the 82443BX asserts SERR#, for single bit (correctable) ECC errors or multiple bit (non-correctable) ECC errors if SERR# signaling is enabled via the ERRCMD control register. Any ECC errors received during initialization should be ignored.
- The 82443BX asserts SERR# for one clock when it detects a target abort during 82443BX initiated PCI cycle.
- The 82443BX can also assert SERR# when a PCI parity error occurs during the address or data phase.
- The 82443BX can assert SERR# when it detects a PCI address or data parity error on AGP.
- The 82443BX can assert SERR# upon detection of access to an invalid entry in the Graphics Aperature Translation Table.
5-7
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
- The 82443BX can assert SERR# upon detecting an invalid AGP master access outside of AGP aperture and outside of main DRAM range (i.e., in the 640k - 1M range or above TOM).
- The 82443BX can assert SERR# upon detecting an invalid AGP master access outside of AGP aperture.
- The 82443BX asserts SERR# for one clock when it detects a target abort during 82443BX initiated AGP cycle.
PERR#
This option signals data parity errors of the PCI bus. The settings are
Enabled
or
Disabled
. Set to
Enabled
to enable the PERR# signal.
WSC# Handshake (Write Snoop Complete)
This signal is asserted active to indicate that all the snoop activity on the CPU bus on the behalf of the last PCI-DRAM write transaction is complete and that it is safe to send the APIC interrupt message. The settings for this option are
Enabled
or
Disabled
. Set to
Enabled
to enable handshaking
for the WSC# signal.
USWC Write Post
The settings for this option are
Enabled
or
Disabled
. This option sets the status of USWC (Uncacheable, Speculative, Write-Combining) posted writes and is used to combine several partial writes to the frame buffer into a single write in order to reduce the data bus traffic. Set to enable USWC posted writes to I/O. Set to
Disabled
Enabled
to disable USWC
posted writes to I/O.
to
BX/GX Master Latency Timer (CLKs)
This option specifies the master latency timings (in PCI clocks) for devices in the computer. It defines the number of PCI clocks a PCI master can own on the bus after PCI central arbiter removes the grant signal. The settings are
Disabled, 32, 64, 96, 128, 160, 192
or
224
.
Multi-Trans Timer (Clks)
This option specifies the multi-trans latency timings (in PCI clocks) for devices in the computer. It reduces overhead switching between different masters. The settings are
Disabled, 32, 64, 96, 128, 160, 192
or
224
.
PCI1 to PCI0 Access
PCI1 refers to AGP in BX and LX chipsets. PCI0 is the normal PCI bus.
Note: Normally AGP master should not access to a PCI target
settings for this option are
Enabled
or
Disabled
. Set to
Enabled
. The
to enable
access between two different PCI buses (PCI1 and PCI0).
5-8
Chapter 5: Running Setup
Memory Autosizing Support
The dynamic detection and sizing of SDRAM and EDO is performed by the BIOS in a system populated with memory which has no SPD information. When set to settings for this option are
DRAM Integrity Mode
This option is Pentium II processor.
DRAM Refresh Rate
This option specifies the interval between Refresh signals to DRAM system memory. The settings for this option are
62.4 us, 124.8 us
Memory Hole
This option specifies the location of an area of memory that cannot be addressed on the ISA bus. The settings are
512 KB-640 KB
SDRAM CAS# Latency
This option regulates the column address strobe. The settings are 2 SCLKs, 3 SCLKs or
Enable
, memory does not have the SPD information. The
Auto
or
Enable
.
grayed out
for the Celeron processor, but is available for the
or
249.6 us
15.6 us
.
(micro-seconds),
Disabled, 15 MB-16 MB
.
Auto
.
31.2 us
, or
,
SDRAM RAS# to CAS# Delay
This option specifies the length of the delay inserted between the RAS and CAS signals of the DRAM system memory access cycle if SDRAM is installed. The settings are optimal delay),
2 SCLKs
is Auto and the Fail-Safe default setting is 3 SCLKs
or
Auto
(AMIBIOS automatically determines the
3 SCLKs
.
Note: The Optimal default setting
.
SDRAM RAS# Precharge
This option specifies the length of the RAS precharge part of the DRAM system memory access cycle when Synchronous DRAM system memory is installed in the computer. The settings are determines the optimal delay),
2 SCLKs or 3 SCLKs
Auto
(AMIBIOS automatically
.
Note: The Optimal
default setting is Auto and the Fail-Safe default setting is 3 SCLKs. Power Down SDRAM
BX supports SDRAM power down mode to minimize SDRAM power usage. The settings for this option are enables the SDRAM Power Down feature.
Enabled
or
Disabled
. The
Enabled
setting
5-9
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
ACPI Control Register
The settings for this option are
Enabled
control register.
to enable the ACPI (Advanced Configuration and Power Interface)
Enabled
or
Disabled
. Set this option to
Gated Clock
Signal GCLKEN enables internal dynamic clock gating in the 82443BX when a AGPset “IDLE” state occurs. This happens when the 82443BX detects an idle state on all its buses. The settings for this option are
Enabled
or
Disabled
. The
Enabled
setting enables the gated clock.
Graphics Aperture Size
This option specifies the amount of system memory that can be used by the Accelerated Graphics Port (AGP). The settings are
MB, 32 MB, 64 MB, 128 MB
, or
256 MB
.
4 MB, 8 MB, 16
Search for MDA (Monochrome Adapter) Range (B0000h-B7FFFh) Resources
Legacy support requires the ability to have a second graphics controller (monochrome) in the system. In an AGP system, accesses in the normal VGA range are forwarded to the AGP bus. Since the monochrome adapter may be on the PCI (or ISA) bus, the 82443BX must decode cycles in the MDA range and forward them to PCI. The settings for this option are or No. Set this option to
Yes
to let AMIBIOS search for MDA resources.
Yes
AGP Multi-Trans Timer (AGP Clks)
This option sets the AGP multi-trans timer. The settings are in units of AGP clocks: 32, 64, 96,
128, 160, 192
, or
224
.
AGP Low-Priority Timer
This option controls the minimum tenure on the AGP for low priority data transaction for both read and write. The settings are
64, 80, 96, 112, 128, 144, 176, 192, 208, 224, or 240
Disabled, 16, 32, 48,
.
AGP SERR (Advanced Graphic Port System Error)
BX asserts this signal to indicate a AGP system error condition. The settings for this option are the AGP SERR# signal.
Enabled
or
Disabled
. Set to
Enabled
to enable
5-10
Chapter 5: Running Setup
AGP Parity Error Response
The settings for this option are enable the AGP (Accelerated Graphics Port) to respond to parity errors.
8bit I/O Recovery Time
This option specifies the length of a delay inserted between consecutive 8­bit I/O operations. The settings are
SYSCLKs, 4 SYSCLKs, 5 SYSCLKs, 6 SYSCLKs, 7 SYSCLKs SYSCLKs
.
16bit I/O Recovery Time
This option specifies the length of a delay inserted between consecutive 16-bit I/O operations. The settings are
3 SYSCLKs
, or
4 SYSCLKs
PIIX4 SERR#
This signal is asserted to indicate a PIIX4 System Error condition. The settings for this option are enables the SERR# signal for the Intel PIIX4 chip.
USB Passive Release
BX releases USB bus when it is idle to maximize the USB bus usage. The settings for this option are to enable passive release for USB.
Enabled
.
Enabled
Enabled
or
Disabled
. Set to
Enabled
Disabled, 1 SYSCLK, 2 SYSCLKs, 3
or
8
Disabled, 1 SYSCLK, 2 SYSCLKs
or
Disabled
or
Disabled
. The
Enabled
. Set this option to
option
Enabled
to
,
PIIX4 Passive Release
This option functions similarly to USB Passive Release. The settings for this option are release for the Intel PIIX4 chip.
Enabled
or
Disabled
. Set to
Enabled
to enable passive
PIIX4 Delayed Transaction
BX is capable of PIIX4 transaction to improve PIIX4 interrupt efficiency. The settings for this option are
Enabled
to enable delayed transactions for the Intel PIIX4 chip.
Enabled
or
Disabled
. Set this option to
Type F DMA Buffer Control1 Type F DMA Buffer Control2
These options specify the DMA channel where Type F buffer control is implemented. The settings are
2, Channel-3, Channel-4, Channel-5, Channel-6
Disabled, Channel-0, Channel-1, Channel-
or
Channel-7
.
5-11
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
DMA0 Type DMA1 Type DMA2 Type DMA3 Type DMA5 Type DMA6 Type DMA7 Type
These options specify the bus that the specified DMA channel can be used on. The settings are
PC/PCI, Distributed
, or
Normal ISA
.
Memory Buffer Strength
The settings for this option are
Strong, Median
, or
Auto
.
Manufacturer’s Setting
Modes 0 through 4 are available.
Note: The user should always set this
option to mode 0. All other modes are for factory testing only
Power Management
Power Management
The settings for this feature are: the power conservation feature specified by Intel and Microsoft INT 15h Advance Power Management BIOS functions.
APM
or
Disabled
. Set to
APM
to enable
.
Power Button Function
This option specifies how the power button mounted externally on the computer chassis is used. The settings are: to
On/Off
, pushing the power button turns the computer on or off. When
set to
Suspend
mode or Full On power mode.
, pushing the power button places the computer in Suspend
Suspend
or
On/Off
. When set
Green PC Monitor Power State
This option specifies the power state that the green PC-compliant video monitor enters when AMIBIOS places it in a power savings state after the specified period of display inactivity has expired. The settings are
Suspend
Suspend and the Fail-Safe setting is Standby
or
Off. Note: The Optimal default setting for this option is
.
Standby
Video Power Down Mode
This option specifies the power conserving state that the VGA video subsystem enters after the specified period of display inactivity has expired. The settings are
Disabled, Standby
, or
Suspend
.
Note: The Optimal default setting for this option is Suspend and the Fail-Safe default setting is Disabled
.
5-12
,
Chapter 5: Running Setup
Hard Disk Power Down Mode
This option specifies the power conserving state that the hard disk drive enters after the specified period of hard drive inactivity has expired. The settings are
setting for this option is Suspend and the Fail-Safe default setting is Disabled
Hard Disk Timeout (Minutes)
This option specifies the length of a period of hard disk drive inactivity. When this length of time expires, the computer enters power-conserving state specified in the Hard Disk Power Down Mode option. The settings are
Disabled
Power Saving Type
The settings for this option are
Standby/Suspend Timer Unit
This allows you to set the standby timeout and suspend timeout timer unit. The settings are
Standby Timeout
This option specifies the length of a period of system inactivity while in full power on state. When this length of time expires, the computer enters standby power state. The settings are
Min in 4 minute intervals
Disabled, Standby
.
and
1 Min through 15 Min in 1 minute intervals
32 secs, 4 msecs, 4 min
, or
Suspend
.
Note: The Optimal default
Sleep, Stop Clock or Deep Sleep
or
4 secs
Disabled
.
and
.
.
.
4 Min through 508
Suspend Timeout (Minutes)
This option specifies the length of a period of system inactivity while in standby state. When this length of time expires, the computer enters suspend power state. The settings are
Min in 4 minute intervals
.
Disabled
and
4 Min through 508
Slow Clock Ratio
The value of the slow clock ratio indicates the percentage of time the STPCLK# signal is asserted while in the thermal throttle mode. The settings are
62.5-75%
Disabled, 0-12.5%, 12.5-25%, 25-37.5%, 37.5-50%, 50-62.5%
, or
75-87.5%
.
Display Activity
This option specifies if AMIBIOS is to monitor display activity for power conservation purposes. When this option is set to display activity for the length of time specified in the Standby Timeout (Minute) option, the computer enters a power savings state. The settings are
Monitor
or
Ignore
.
Monitor
and there is no
5-13
,
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Device 6 (Serial port 1) Device 7 (Serial port 2) Device 8 (Parallel port) Device 5 (Floppy disk) Device 0 (Primary Master IDE) Device 1 (Primary Slave IDE) Device 2 (Secondary Master IDE) Device 3 (Secondary Slave IDE)
When set to fied hardware interrupt request line. If set to Monitor and the computer is in a power saving state, AMIBIOS watches for activity on the specifies IRQ line. The computer enters the Full On state if any activity occurs. AMIBIOS reloads the Standby and Suspend timeout timers if activity occurs on the specified IRQ line.
Monitor
, these options enable event monitoring on the speci-
Note: The Optimal default setting for each option is Ignore with the exception of Devices 0 (Primary Master IDE) and 6 (Serial Port 1) which should be set to Monitor. The Fail-Safe default for each option is Monitor.
LAN Wake-Up RTC Wake-Up
Options for LAN Wake-Up and RTC (Real Time Clock) Wake-Up are
Disabled
Minute settings can be set to the desired wake-up time relative to the
current real time clock.
or
Enabled.
When RTC Wake-Up is enabled, the Hour and
PCI/PnP Setup
Plug and Play-Aware OS
The settings for this option are No or operating system in the computer is aware of and follows the Plug and Play specification. AMIBIOS only detects and enables PnP ISA adapter cards that are required for system boot. Currently, only Windows 95 is PnP­Aware. Set this option to Windows 3.x) does not use PnP. You must set this option correctly. Otherwise, PnP-aware adapter cards installed in the computer will not be configured properly.
No
if the operating system (such as DOS, OS/2,
Yes
. Set this option to
Yes
if the
PCI Latency Timer (PCI Clocks)
This option specifies the latency timings in PCI clocks for all PCI devices. The settings are 32, 64, 96,
128, 160, 192, 224
, or
248
.
5-14
Chapter 5: Running Setup
PCI VGA Palette Snoop
The settings for this option are multiple VGA devices operating on different buses can handle data from the CPU on each set of palette registers on every video device. Bit 5 of the command register in the PCI device configuration space is the VGA Palette Snoop bit (0 is disabled). For example: if there are two VGA devices in the computer (one PCI and one ISA) and this option is disabled, data read and written by the CPU is only directed to the PCI VGA device’s palette registers. If enabled, data read and written by the CPU is directed to both the PCI VGA device’s palette registers and the ISA VGA palette registers. This will permit the palette registers of both devices to be identical. This option must be set to system requires VGA palette snooping.
Enabled
PCI IDE Busmaster
The settings for this option are specify the IDE Controller on the PCI bus has bus mastering capabilities. Under Windows 95, you should set this option to Bus Mastering driver.
Offboard PCI IDE Card
This option specifies if an offboard PCI IDE controller adapter card is installed in the computer. The PCI expansion slot on the motherboard where the offboard PCI IDE controller is installed must be specified. If an offboard PCI IDE controller is used, the onboard IDE controller is automati­cally disabled. The settings are where the offboard PCI IDE controller adapter card is installed),
2, Slot 3, Slot 4, Slot 5
or
Disabled or Enabled.
if any ISA adapter card installed in the
Slot 6
Disabled
Auto
.
or
Enabled
(AMIBIOS automatically determines
When set to
. Set to
Disabled
and install the
Enabled,
Enabled
Slot 1, Slot
to
This option forces IRQ14 and IRQ15 to a PCI slot on the PCI local bus. This is necessary to support non-compliant ISA IDE controller adapter cards. If an offboard PCI IDE controller adapter card is installed in the computer, you must also set the Offboard PCI IDE Primary IRQ and Offboard PCI IDE Secondary IRQ options.
Offboard PCI IDE Primary IRQ Offboard PCI IDE Secondary IRQ
These options specify the PCI interrupt used by the primary (or secondary) IDE channel on the offboard PCI IDE controller. The settings are
Hardwired, INTA, INTB, INTC
, or
INTD
.
Disabled
5-15
,
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
PCI Slot1 IRQ Priority PCI Slot2 IRQ Priority PCI Slot3 IRQ Priority PCI Slot4 IRQ Priority
These options specify the IRQ priority for PCI devices installed in the PCI expansion slots. The settings are or
15, in priority order
.
Auto, (IRQ) 3, 4, 5, 7, 9, 10, 11, 12, 14,
DMA Channel 0 DMA Channel 1 DMA Channel 3 DMA Channel 5 DMA Channel 6 DMA Channel 7
These DMA channels control the data transfers between the I/O devices and the system memory. The chipset allows the BIOS to choose which channels to do the job. The settings are
PnP or ISA/EISA.
IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10 IRQ11 IRQ12 IRQ14 IRQ15
These options specify which bus the specified IRQ line is used on and allow you to reserve IRQs for legacy ISA adapter cards. If more IRQs must be removed from the pool, the end user can use these options to reserve the IRQ by assigning an by AMIBIOS. All IRQs used by onboard I/O are configured as PCI/PnP.
ISA/EISA
setting to it. Onboard I/O is configured
IRQ14 and 15 will not be available if the onboard PCI IDE is enabled. If all IRQs are set to PCI IDE, IRQ 9 will still be available for PCI and PnP devices. This is because at least one IRQ must be available for PCI and PnP devices. The settings are
ISA/EISA
and IRQ14 and 15 are allocated to the onboard
PCI/PnP or ISA/EISA.
5-16
Chapter 5: Running Setup
Reserved Memory Size
This option specifies the size of the memory area reserved for legacy ISA adapter cards. The settings are
Disabled, 16K, 32K
or
64K
.
Reserved Memory Address
This option specifies the beginning address (in hex) of the reserved memory area. The specified ROM memory area is reserved for use by legacy ISA adapter cards. The settings are
D8000
or
DC000
.
C8000, CC000, D0000, D4000
PCI Device Search Order
The settings are priority during system startup of the PCI card slots; starting from PCI 1 thru PCI 4 (First-Last) or PCI 4 thru PCI 1 (Last-First).
First-Last
or
Last-First
. This option selects the search
Default Primary Video
This feature supports multiple displays, and selects the default video device based on card type. The settings are
AGP
or
PCI
.
Peripheral Setup
Remote Power On
Microsoft’s Memphis OS supports this feature which can wake-up the system from SoftOff state through devices (such as an external modem) that are connected to COM1 or COM2. The settings are
Enabled
.
Disabled
or
,
CPU Current Temperature
The current CPU temperature is displayed in this option.
Note: This option shows both CPU1 and CPU2 , but CPU2 is grayed out with only one Celeron processor.
CPU Overheat Warning
The settings for this option are this option allows the user to set an overheat warning temperature.
Enabled
or
Disabled.
When set to
Enabled
CPU Overheat Warning Temperature
This option is Pentium II processor.
grayed out
for the Celeron processor, but is available for the
5-17
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
H/W Monitor In0 (CPU 1) H/W Monitor In1 (CPU 2 - grayed out for Celeron processor) H/W Monitor In2 (+3.3V) H/W Monitor In3 (+5V) H/W Monitor In4 (+12V) H/W Monitor In5 (-12V) H/W Monitor In6 (-5V) CPU1 Fan CPU2 Fan (grayed out for Celeron processor) Thermal Control Fan (grayed out for Celeron processor)
The above features are for PC Health Monitoring. The motherboards with W83781D have seven on-board voltage monitors for the CPU core, CPU I/O, +3.3V, +5V, -5V, +12V, and -12V, and three fan status monitors.
Power Loss Control
This option determines how power is restored in the event of AC power loss. Settings are: provides no automatic power loss control, and power is controlled by the chassis POWER switch. Always ON will automatically power-on the system whenever source power is applied to the system (the power cord is plugged in). The Previous setting remembers the previous power state (ON or OFF), and restores that power state upon the return of source power.
Always OFF, Always ON
, or
Previous
. Always OFF
Keyboard Wake-up Function
This option allows the system to ‘wake-up’ from standby or sleep mode by pressing any key on the keyboard. Settings are
Disabled
or
Enabled
.
Note: The JPWAKE jumper on the system board must be set to 2-3 before the Enabled setting will work.
On-Board FDC
This option enables the FDC (Floppy Drive Controller) on the motherboard. The settings are controller should be enabled),
Auto
(AMIBIOS automatically determines if the floppy
Disabled
, or
Enabled
.
On-Board Serial Port A
This option specifies the base I/O port address of serial port 1. The settings are port address),
COM4
Auto
(AMIBIOS automatically determines the correct base I/O
Disabled, 3F8h/
.
COM1,
2F8h/COM2, 3E8h/COM3
or
2E8h/
5-18
Chapter 5: Running Setup
On-Board Serial Port B
This option specifies the base I/O port address of serial port 2. The settings are port address),
COM4
IR Port Support
This option enables the infrared port feature on the system board. Settings are:
Disabled
IR Mode Select
Settings are:
IR Base Address Select
Settings are:
IR IRQ Select
Settings are: 3, 4, 9, 10, or 11.
IR DMA Select
Settings are:
On-Board Parallel Port
This option specifies the base I/O port address of the parallel port on the motherboard. The settings are the correct base I/O port address),
Auto
Disabled, 3F8h/COM1, 2F8h/COM2, 3E8h/COM3
.
or
Yes, ASK IR, High
Slow, Fast, Absent
Disabled, 0, 1
(AMIBIOS automatically determines the correct base I/O
or
2E8h/
Enabled
. If Enabled, the following settings can be made:
, or
Off
.
, or
Present
.
, or 3.
Auto
(AMIBIOS automatically determines
Disabled, 378, 278
or
3BC
.
Parallel Port Mode
This option specifies the parallel port mode. The settings are
Dir, EPP
used. Use Parallel Port) to provide asymmetric bidirectional data transfer driven by the host device. Use rates of up to 2.5 Mbps. ECP uses the DMA protocol and provides symmetric bidirectional communication.
or
ECP
Bi-Dir
. When set to
to support bidirectional transfers. Use
ECP
(Extended Capabilities Port) to achieve data transfer
Normal,
the normal parallel port mode is
Note: The Optimal default setting
for this option is ECP and the Fail-Safe setting is Normal
EPP
.
Normal, Bi-
(Enhanced
EPP Version
The settings are 1.7 or 1.9.
Parallel Port IRQ
This option specifies the IRQ to be used by the parallel port. The settings are
Auto, 5
or 7.
5-19
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Parallel Port DMA Channel
This option is only available if the setting of the parallel port mode option is
ECP
. The settings are 0, 1, 2, 3, 5, 6 or 7.
On-Board IDE
This option specifies the onboard IDE controller channels to be used. The settings are
Disabled, Primary, Secondary
or
Both
.
5-2 Security Setup
Supervisor/User
The system can be configured so that all users must enter a password every time the system boots or when the WINBIOS setup is executed. You can set either a Supervisor password or a User password. If you do not want to use a password, just press <Enter> when the password prompt appears.
The password check option is enabled in the Advanced Setup by choosing either
Always
or
Setup
. The password is stored in CMOS RAM. You can enter a password by typing the password on the keyboard, selecting each letter via the mouse, or selecting each letter via the pen stylus. Pen access must be customized for each specific hardware platform.
When you select Supervisor or User, AMIBIOS prompts for a password. You must set the Supervisor password before you can set the User password. Enter a 1-6 character password. The password does not appear on the screen when typed. Retype the new password as prompted and press <Enter>. Make sure you write it down. If you forget it, you must drain CMOS RAM and reconfigure.
5-20
Chapter 5: Running Setup
5-3 Utility Setup
Anti-Virus
When this icon is selected, AMIBIOS issues a warning when any program (or virus) issues a disk format command or attempts to write to the boot sector of the hard disk drive. The settings are
Enabled
or
Disabled
.
Language
Note: The Optimal and Fail-Safe default settings for this option are English.
5-4 Default Setting
Every option in WinBIOS Setup contains two default settings: a Fail-Safe default, and an Optimal default.
Optimal Default
The Optimal default settings provide optimum performance settings for all devices and system features.
Fail-Safe Default
The Fail-Safe default settings consist of the safest set of parameters. Use them if the system is behaving erratically. They should always work but do not provide optimal system performance characteristics.
5-21
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Notes
5-22
Appendix A: BIOS Error Beep Codes
Appendix A
BIOS Error Beep Codes & Messages
During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.
Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen.
Fatal errors are those which will not allow the system to continue the boot-up procedure. If a fatal error occurs, you should consult with your system manu­facturer for possible repairs.
These fatal errors are usually communicated through a series of audible beeps. The numbers on the fatal error list, on the following page, correspond to the number of beeps for the corresponding error. All errors listed, with the exception of #8, are fatal errors.
A-1
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Beeps Error message Description
1 Refresh Failure The memory refresh circuitry on the
motherboard is faulty.
2 Parity Error A parity error was detected in the base
memory (the first 64 KB block) of the system.
3 Base 64 KB Memory Failure A memory failure occurred within the
first 64 KB of memory.
4 Timer Not Operational A memory failure was detected in the
first 64 KB of memory, or Timer 1 is not functioning.
5 Processor Error The CPU on the system board
generated an error.
6 8042 - Gate A20 Failure The keyboard controller (8042) contains
the Gate A20 switch which allows the CPU to operate in virtual mode. This error means that the BIOS cannot switch the CPU into protected mode.
7 Processor Exception The CPU on the motherboard generated
Interrupt Error an exception interrupt.
8 Display Memory Read/Write The system video adapter is either
Error missing or its memory is faulty.
Please Note:
9 ROM Checksum Error The ROM checksum value does not
match the value encoded in the BIOS.
10 CMOS Shutdown Register The shutdown register for CMOS
Read/Write Error memory has failed.
This is not a fatal error.
Refer to the table on page A-3 for solutions to the error beep codes.
A-2
Appendix A: BIOS Error Beep Codes
If it beeps... then ...
1, 2, 3 times reseat the DIMM memory. If the
system still beeps, replace the memory.
6 times reseat the keyboard controller chip. If it
still beeps, replace the keyboard controller. If it still beeps, try a different keyboard, or replace the keyboard fuse, if the keyboard has one.
8 times there is a memory error on the
video adapter. Replace the video adapter, or the RAM on the video adapter.
9 times the BIOS ROM chip is bad.
The system probably needs a new BIOS ROM chip.
4, 5, 7, the motherboard must be replaced. or 10 times
A-3
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Error Message Information
8042 Gate -- A20 Gate A20 on the keyboard controller (8042) Error is not working. Replace the 8042.
Address Line Short! Error in the address decoding circuitry on
the motherboard.
C: Drive Error Hard disk drive C: does not respond. Run
the Hard Disk Utility to correct this problem. Also, check the C: hard disk type in Standard Setup to make sure that the hard disk type is correct.
C: Drive Failure Hard disk drive C: does not respond.
Replace the hard disk drive.
Cache Memory Bad Cache memory is defective. Replace it. Do
Not Enable Cache!
CH-2 Timer Error Most ISA computers include two times.
There is an error in time 2.
CMOS Battery State Low CMOS RAM is powered by a battery. The
battery power is low. Replace the battery.
CMOS Checksum Failure After CMOS RAM values are saved, a
checksum value is generated for error checking. The previous value is different from the current value. Run WINBIOS Setup or AMIBIOS Setup.
CMOS System Option The values stored in CMOS RAM are either Not Set corrupt or nonexistent. Run WINBIOS
Setup or AMIBIOS Setup.
CMOS Display Type The video type in CMOS RAM does not Mismatch match the type detected by the BIOS. Run
WINBIOS Setup or AMIBIOS Setup.
CMOS Memory Size The amount of memory on the motherboard is Mismatch different than the amount in CMOS RAM.
Run WINBIOS Setup or AMIBIOS Setup.
A-4
Appendix A: BIOS Error Beep Codes
Error Message Information
CMOS Time and Run Standard Setup to set the date and time Date Not Set in CMOS RAM.
D: Drive Error Hard disk drive D: does not respond. Run
the Hard Disk Utility. Also check the D: hard disk type in Standard Setup to make sure that the hard disk drive type is correct.
D: Drive Failure Hard disk drive D: does not respond.
Replace the hard disk.
Diskette Boot Failure The boot disk in floppy drive A: is corrupt. It
cannot be used to boot the computer. Use another boot disk and follow the screen instructions.
Display Switch Some compters require a video switch on the Not Proper motherboard be set to either color or
monochrome. Turn the computer off, set the switch, then power on.
DMA Error Error in the DMA controller.
DMA #1 Error Error in the first DMA channel.
DMA #2 Error Error in the second DMA channel.
FDD Controller Failure The BIOS cannot communicate with the
floppy disk drive controller. Check all appropriate connections after the computer is powered down.
HDD Controller Failure The BIOS cannot communicate with the hard
disk drive controller. Check all appropriate connections after the computer is powered down.
INTR #1 Error Interrupt channel 1 failed POST.
INTR #2 Error Interrupt channel 2 failed POST.
A-5
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Error Message Information
Invalid Boot Diskette The BIOS can read the disk in floppy drive
A:, but cannot boot the computer. Use another boot disk.
Keyboard Is Locked... The keyboard lock on the computer is Unlock It engaged. The computer must be unlocked to
continue.
Keyboard Error There is a timing problem with the keyboard.
Keyboard
Set the
Not Installed
to routines.
KB/Interface Error There is an error in the keyboard connector.
No ROM BASIC Cannot find a bootable sector on either disk
drive A: or hard disk drive C:. The BIOS calls INT 18h which generates this message. Use a bootable disk.
Off Board Parity error in memory installed in an Parity Error expansion slot. The format is:
OFF BOARD PARITY ERROR ADDR (HEX) = (XXXX) XXXX is the hex address where the error occurred. Run AMIDiag to find and correct memory problems.
options in Standard Setup
to skip the keyboard post
On Board Parity error in motherboard memory. The Parity Error format is:
ON BOARD PARITY ERROR ADDR (HEX) = (XXXX) XXXX is the hex address where the error occurred. Run AMIDiag to find and correct memory problems.
Parity Error???? Parity error in system memory at an unknown
address. Run AMIDiag to find and correct memory problems.
A-6
Appendix B: AMIBIOS POST Diagnostics Error Messages
Appendix B: AMIBIOS POST Diagnostics Error Messages
Appendix B
AMI BIOS POST Diagnostic Error Messages
This section describes the power-on self-tests (POST) port 80 codes for the AMI BIOS.
Check Point Description
00 Code copying to specific areas is done. Passing control
to INT 19h boot loader next.
03 NMI is Disabled. Next, checking for a soft reset or a
power-on condition.
05 The BIOS stack has been built. Next, disabling cache
memory. 06 Uncompressing the post code unit next. 07 Next, initializing the CPU init and the CPU data area. 08 The CMOS checksum calculation is done next. 0B Next, performing any required initialization before
keyboard BAT command is issued. 0C The keyboard controller I/B is free. Next, issuing the
BAT command to the keyboard controller. 0E The keyboard controller BAT command result has been
verified. Next, performing any necessary initialization
after the keyboard controller BAT command test. 0F The initialization after the keyboard controller BAT
command test is done. The keyboard command byte is
written next.
B-1
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Check Point Description
10 The keyboard controller command byte is written.
Next, issuing the pin 23 and 24 blocking and unblocking commands.
11 Next, checking if the <End or <Ins> keys were pressed
during power on. Initializing CMOS RAM if the Initialize CMOS RAM in every boot AMIBIOS POST option was set in AMIBCP or the <End> key was pressed.
12 Next, disabling DMA controllers 1 and 2 and interrupt
controllers 1 and 2.
13 The video display has been disabled. Port B has been
initialized. Next, initializing the chipset. 14 The 8254 timer test will begin next. 19 The 8254 timer test is over. Starting the memory refresh
test next. 1A The memory refresh test line is toggling. Checking the
15 second on/off time next. 23 Reading the 8042 input port and disabling the
MEGAKEY Green PC feature next. Making the
BIOS code segment writable and performing any
necessary configuration before initializing the interrupt
vectors. 24 The configuration required before interrupt vector
initialization has completed. Interrupt vector initialization
is done. Clearing the password if the POST DIAG
switch is on. 25 Interrupt vector initialization is done. Clearing the
password if the POST DIAG Switch is on. 27 Any initialization before setting video mode will be
done next.
B-2
Appendix B: AMIBIOS POST Diagnostics Error Messages
Check Point Description
28 Initialization before setting the video mode is complete.
Configuring the monochrome mode and color mode settings next.
2A Bus initialization system, static, output devices will be
done next, if present.
2B Passing control to the video ROM to perform any
required configuration before the video ROM test.
2C All necessary processing before passing control to the
video ROM is done. Looking for the video ROM next and passing control to it.
2D The video ROM has returned control to BIOS POST.
Performing any required processing after the video ROM had control.
2E Completed post-video ROM test processing. If the
EGA/VGA controller is not found, performing the display memory read/write test next.
2F The EGA/VGA controller was not found. The display
memory read/write test is about to begin.
30 The display memory read/write test passed. Look for
retrace checking next.
31 The display memory read/write test or retrace checking
failed. Performing the alternate display memory read/write test next.
32 The alternate display memory read/write test passed.
Looking for alternate display retrace checking next.
34 Video display checking is over. Setting the display
mode next.
37 The display mode is set. Displaying the power on
message next.
B-3
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Check Point Description
38 Initializing the bus input, IPL, and general devices next, if
present. 39 Displaying bus initialization error messages. 3A The new cursor position has been read and saved.
Displaying the Hit <DEL> message next. 40 Preparing the descriptor tables next. 42 The descriptor tables are prepared. Entering protected
mode for the memory test next. 43 Entered protected mode. Enabling interrupts for
diagnostics mode next. 44 Interrupts enabled if the diagnostics switch is on.
Initializing data to check memory wraparound at 0:0 next. 45 Data initialized. Checking for memory wraparound at
0:0 and finding the total system memory size next. 46 The memory wraparound test has completed. The
memory size calculation has been completed. Writing
patterns to test memory next. 47 The memory pattern has been written to extended
memory. Writing patterns to the base 640 KB memory
next. 48 Patterns written in base memory. Determining the
amount of memory below 1 MB next. 49 The amount of memory below 1 MB has been found
and verified. Determining the amount of memory above
1 MB memory next. 4B The amount of memory above 1 MB has been found
and verified. Checking for a soft reset and clearing the
memory below 1 MB for the soft reset next. If this is a
power on situation, going to checkpoint 4Eh next.
B-4
Appendix B: AMIBIOS POST Diagnostics Error Messages
Check Point Description
4C The memory below 1 MB has been cleared via a soft
reset. Clearing the memory above 1 MB next.
4D The memory above 1 MB has been cleared via a soft
reset. Saving the memory size next. Going to checkpoint 52h next.
4E The memory test started, but not as the result of a soft
reset. Displaying the first 64 KB memory size next.
4F The memory size display has started. The display is
updated during the memory test. Performing the sequential and random memory test next.
50 The memory below 1 MB has been tested and
initialized. Adjusting the displayed memory size for relocation and shadowing next.
51 The memory size display was adjusted for relocation
and shadowing. Testing the memory above 1 MB next.
52 The memory above 1 MB has been tested and
initialized. Saving the memory size information next.
53 The memory size information and the CPU registers are
saved. Entering real mode next.
54 Shutdown was successful. The CPU is in real mode.
Disabling the Gate A20 line, parity, and the NMI next.
57 The A20 address line, parity, and the NMI are
disabled. Adjusting the memory size depending on relocation and shadowing next.
58 The memory size was adjusted for relocation and
shadowing. Clearing the Hit <DEL> message next.
59 The Hit <DEL> message is cleared. The <WAIT>
message is displayed. Starting the DMA and interrupt controller test next.
B-5
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Check Point Description
60 The DMA page register test passed. Performing the
DMA Controller 1 base register test next. 62 The DMA controller 1 base register test passed.
Performing the DMA controller 2 base register test next. 65 The DMA controller 2 base register test passed.
Programming DMA controllers 1 and 2 next. 66 Completed programming DMA controllers 1 and 2.
Initializing the 8259 interrupt controller next. 7F Extended NMI source enabling is in progress. 80 The keyboard test has started. Clearing the output
buffer and checking for stuck keys. Issuing the
keyboard reset command next. 81 A keyboard reset error or stuck key was found. Issuing
the keyboard controller interface test command next. 82 The keyboard controller interface test completed.
Writing the command byte and initializing the circular
buffer next. 83 The command byte was written and global data
initialization has been completed. Checking for a
locked key next. 84 Locked key checking is over. Checking for a memory
size mismatch with CMOS RAM data next. 85 The memory size check is done. Displaying a soft error
and checking for a password or bypassing WINBIOS
Setup next. 86 The password was checked. Performing any required
programming before WINBIOS Setup next.
B-6
Appendix B: AMIBIOS POST Diagnostics Error Messages
Check Point Description
87 The programming before WINBIOS Setup has
been completed. Uncompressing the WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility next.
88 Returned from WINBIOS Setup and cleared the screen.
Performing any necessary programming after WINBIOS Setup next.
89 The programming after WINBIOS Setup has been
completed. Displaying the power-on screen message next.
8B The first screen message has been displayed. The
<WAIT...> message is displayed. Performing the PS/2 mouse check and extended BIOS data area allocation
check next. 8C Programming the WINBIOS Setup options next. 8D The WINBIOS Setup options are programmed.
Resetting the hard disk controller next. 8F The hard disk controller has been reset. Configuring the
floppy drive controller next. 91 The floppy drive controller has been configured.
Configuring the hard disk drive controller next. 95 Initializing the bus option ROMs from C800 next. 96 Initializing before passing control to the adaptor ROM at
C800. 97 Initialization before the C800 adaptor ROM gains
control has been completed. The adaptor ROM check
is next. 98 The adaptor ROM had control and has now returned
control to BIOS POST. Performing any required
processing after the option ROM returned control.
B-7
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Check Point Description
99 Any initialization required after the option ROM test has
been completed. Configuring the timer data area and printer base address next.
9A Set the timer and printer base addresses. Setting the
RS-232 base address next.
9B Returned after setting the RS-232 base address.
Performing any required initialization before the Coprocessor test next.
9C Required initialization before the Coprocessor test is
over. Initializing the Coprocessor next.
9D Coprocessor initialized. Performing any required
initialization after the Coprocessor test next.
9E Initialization after the Coprocessor test is complete.
Checking the extended keyboard, keyboard ID, and Num Lock key next. Issuing the keyboard ID command
next. A2 Displaying any soft errors next. A3 The soft error display has completed. Setting the
keyboard typematic rate next. A4 The keyboard typematic rate is set. Programming the
memory wait states next. A5 Memory wait state programming is over. Clearing the
screen and enabling parity and the NMI next. A7 NMI and parity enabled. Performing any initialization
required before passing control to the adaptor ROM at
E000 next. A8 Initialization before passing control to the adaptor ROM
at E000h completed. Passing control to the adaptor
ROM at E000h next.
B-8
Appendix B: AMIBIOS POST Diagnostics Error Messages
Check Point Description
A9 Returned from adaptor ROM at E000h control.
Next, performing any initialization required after the E000 option ROM had control.
AA Initialization after E000 option ROM control has
completed. Displaying the system configuration next.
AB Building the multiprocessor table, if necessary. POST
next. B0 The system configuration is displayed. AC Uncompressing the DMI data and initializing DMI. B1 Copying any code to specific areas. D0h The NMI is disabled. Power on delay is starting.
Next, the initialization cade checksum will be verified. D1h Initializing the DMA controller. Performing the keyboard
controller BAT test. Starting memory refresh, and
entering 4 GB flat mode next. D3h Starting memory sizing next. D4h Returning to real mode. Executing any OEM patches
and setting the stack next. D5h Passing control to the uncompressed code in shadow
RAM at E000:0000h. The initialization code is copied to
segment 0 and control will be transferred to segment
0.
D6h Control is in segment 0. Next, checking if
<Ctrl><Home>was pressed and verifying the system
BIOS checksum.
If either <Ctrl><Home>was pressed or the system BIOS
checksum is bad, next the system will go to checkpoint
code E0h.
Otherwise, going to checkpoint code D7h.
B-9
SUPER 370SBA/370SBM/370SLA/370SLM User’s Manual
Notes
B-10
Loading...
