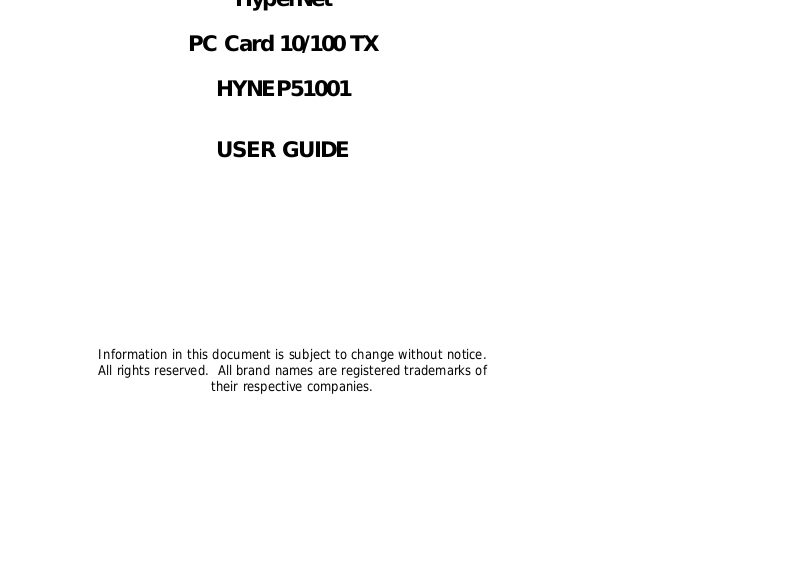

Page 1
HyperNet
PC Card 10/100 TX
HYNEP51001
USER GUIDE
Information in this document is subject to change without notice.
All rights reserved. All brand names are registered trademarks of
their respective companies.
Page 2
Operations of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
European Community (EC) Electromagnetic Compatibility
Directive.
This equipment has been tested and found to comply with the protections
requirements of European Emission Standard EN55022 and the Generic European
Immunity Standard EN50082-1. This equipment is designed to operate in a
domestic environment and as such is tested to the EN55022 ITE domestic
emissions limit. The domestic immunity standard EN5008 2-1 calls for the
following basic standards:
(a) IEC 801-2 Electro st a ti c Di scha rg e
(b) IEC 801-3 RF Immu n it y
(c) IEC 801-4 Transient Burst
Copyright
This document and all material contained within it are copyrighted. The document
may not, in whole or part, be copied, photocopied, reproduced, translated, or
reduced to any electronic medium or machine readable form without prior written
consent from HYPERTEC.
HYPERTEC reserves the right to make modifications to the product without
notification. Hypertec is a trademark and the Hypertec logo is a registered
trademark of HYPERTEC. All other brand and product names included herein may
be trademarks of the respective companies.
©1998 Hypertec, Ltd. All rights reserved.
Page 3
100Mbps Ethernet networks.
Features
Dual-speed 10Mbps (10BASE-T) and 100Mbps (100BASE-TX) operation
Automatic sensing and switching between 10/100Mbps operation
Super low power consumption
Full Duplex - Independent receive and transmit circuits allow for full duplex
operation at both 10Mbps and 100Mbps, giving the adapter a maximum
throughput of 200Mbps
Platform independent - supports all PC Card, Type II compliant PCs
Wide selection of software drivers to support all major network operating
systems including: Windows 98, Windows 95, Windows NT, Novell NetWare
Superior Ethernet throughput performance using Dynamic Pipelining technology
Direct line interface - cable only - no external dangle
Includes Direct Enablers for reduced memory requirements
Supports both 10Mbps and 100Mbps operations with a single RJ-45 female
connector
Card and Socket Services support
Page 4
Static Electricity Warning
Static electricity is accumulated naturally in the human body, and can be
discharged through electrical components by touching them. This shock can
potentially cause permanent internal damage to the component.
When installing the adapter, please observe the following precautions:
Discharge yourself before commencing by touching a grounded metal appliance,
such as the metal frame of a computer - while it is tuned off, but still plugged into
the wall socket.
Hold the adapter or any other boards by their edges only. Never touch any
exposed pins on the adapter.
If possible, install the adapter as soon as you remove it from its anti-static bag,
without putting it down. If you must put it down, place it on the anti-static bag in
which it was packed.
Do not place the adapter on any metal surface.
Hardware Installation
The HyperNet PC Card 10/100 TX hardware installation is a three step process:
1. Insert the HyperNet adapter into the computers PCMCIA slot
2. Connect the media coupler to the HyperNet adapter
3. Attach the network cable
The HyperNet PC Card 10/100 TX adapter is a Type 11 PC Card with a 68-pin
connector, which is compatible with any Type 11 PCMCIA slot. If your computer
has more than one slot, you may insert the adapter in any of them. The software
will automatically determine into which slot the adapter is inserted. Gently insert
the card into the PCMCIA slot, pushing until it sits firmly in place, care must be
taken not to force it as the adapter is 'keyed' to fit only one way. If it does not
register smoothly, withdraw it and check that the keyed plug on the adapter is
correctly aligned with the keyed socket in the host PC.
Page 5
3. From the Program Manager, select File Menu.
(For Windows 95, select the start menu)
4. Select Run…
5. Type A:\SETUP and select OK.
6. Follow the Help utility's on-screen instructions for the setup process.
DOS Installation
Look at the README file.
Software Included
ODI workstation drivers for Novell NetWare, NetWare Lite, Novell DOS 7 and
OS2
NDIS 2.0.1 driver for Microsoft LAN Manager, Windows for Workgroups, Artisoft
LANtastic, Banyan Vines, OS2 and others.
NDIS 3 for Windows 98, Windows 95 and Windows NT
Wizard utility for installation, self-test and diagnostics
Disconnecting the HyperNet PC Card 10/100 TX
To remove the card from the computer PCMCIA slot, activate the release switch
located on your computer. Alternatively, you may simply disconnect the media
coupler, and leave the HyperNet PC Card in place in the slot ready for you to use it
next time you need it.
To remove the media coupler from the card, gently squeeze the plastic clip
depressors located on the coupler and separate it from the card.
Never disconnect the HyperNet PC Card by pulling on the cable.
If at any time during installation you experience difficulties, please contact
Hypertec Technical Support on +44 1488 686844 (01488 686844 in the UK).
Page 6
Length - 3.37" (85 mm)
Width - 2.13" (54 mm)
Thickness - 0.197" (5 mm)
Power Consumption:
100BASE-TX: 260mA
10BASE-T : 190mA
Operating Tem perature:
0°-50°C
Operating Humidity:
0% - 90% non-condensing
Certifications:
FCC Part 15, Subpart B class A
CE
Ethernet Protocols:
IEEE 802.3U (Fast Ethernet, 100BASE-TX)
IEEE 802.3 (Eth e rn e t , 10BA S E- T)
Data Transfer Rate:
100 or 10 Mbits/sec
Connector:
Unshielded female RJ45 connector to be checked.
Page 7
This warranty applies only to the original registered end user purchaser of the
product and does not include service to repair damage resulting from accident,
disaster, misuse, abuse or non-Hypertec modification of the product.
Additional components installed by the dealer or end user are not covered by this
warranty. Apart from the above, no warranty is expressed or implied, including
warranty of merchantability or warranty of fitness for use for a particular purpose.
The liability of Hypertec is limited to the repair or replacement of the product with
a functionally equivalent or better product. Hypertec is not liable for any
accidental, general, special, exemplary or consequential damages resulting from
any product failure, even if Hypertec has been advised of the possibility of such
damages.
Hypertec Limited
Units 1-3 Station Road
Hungerford, Berkshire RG17 0DY
