Hypertec IP68 User Manual

®

Part Code Description

HKB-MED-KG15001 PS/2 105 Key IP 68 sealed Medical Zeomic keyboard in Black (US Layout).

HKB-MED-KG15003 USB 105 Key IP 68 sealed Medical Zeomic keyboard in Black (US Layout).

HKB-MED-KG15002 PS/2 105 Key IP 68 sealed Medical Zeomic keyboard in Black (UK Layout - MOQ 10 units).

HKB-MED-KG15004 USB 105 Key IP 68 sealed Medical Zeomic keyboard in Black (UK Layout - MOQ 10 units).

Other language versions/interfaces/configuration available on special request

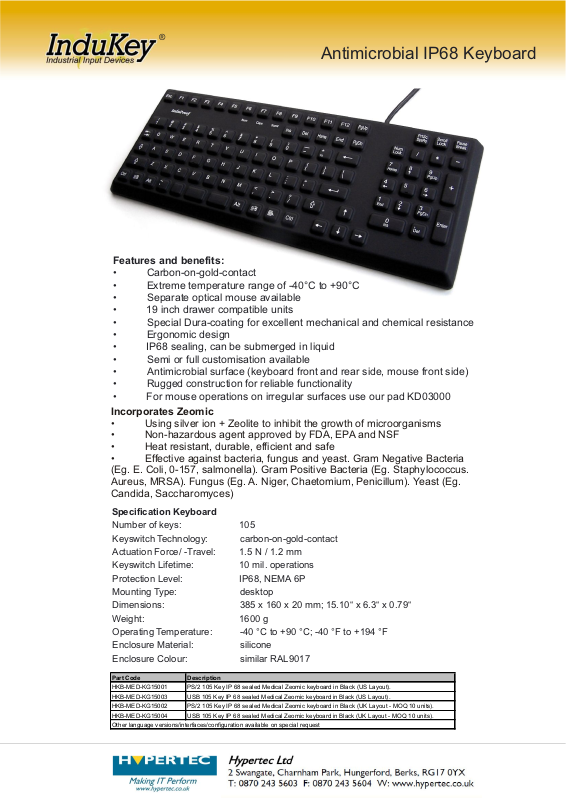

Antimicrobial IP68 Keyboard

Features and benefits:

• Carbon-on-gold-contact

• Extreme temperature range of -40°C to +90°C

• Separate optical mouse available

• 19 inch drawer compatible units

• Special Dura-coating for excellent mechanical and chemical resistance

• Ergonomic design

• IP68 sealing, can be submerged in liquid

• Semi or full customisation available

• Antimicrobial surface (keyboard front and rear side, mouse front side)

• Rugged construction for reliable functionality

• For mouse operations on irregular surfaces use our pad KD03000

Incorporates Zeomic

• Using silver ion + Zeolite to inhibit the growth of microorganisms

• Non-hazardous agent approved by FDA, EPA and NSF

• Heat resistant, durable, efficient and safe

• Effective against bacteria, fungus and yeast. Gram Negative Bacteria
(Eg. E. Coli, 0-157, salmonella). Gram Positive Bacteria (Eg. Staphylococcus.
Aureus, MRSA). Fungus (Eg. A. Niger, Chaetomium, Penicillum). Yeast (Eg.
Candida, Saccharomyces)

Specification Keyboard

Number of keys: 105
Keyswitch Technology: carbon-on-gold-contact
Actuation Force/ -Travel: 1.5 N / 1.2 mm
Keyswitch Lifetime: 10 mil. operations
Protection Level: IP68, NEMA 6P
Mounting Type: desktop
Dimensions: 385 x 160 x 20 mm; 15.10“ x 6.3“ x 0.79“
Weight: 1600 g
Operating Temperature: -40 °C to +90 °C; -40 °F to +194 °F
Enclosure Material: silicone
Enclosure Colour: similar RAL9017
