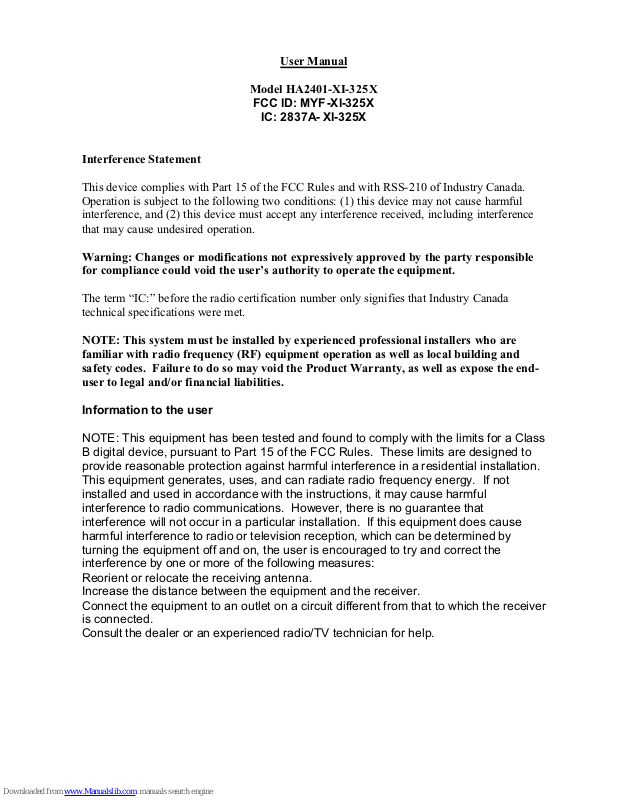

HyperLink Technologies HA2401-XI-325X User Manual

User Manual

Model HA2401-XI-325X

FCC ID: MYF-XI-325X

IC: 2837A- XI-325X

Interference Statement

This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.

Warning: Changes or modifications not expressively approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

The term “IC:” before the radio certification number only signifies that Industry Canada
technical specifications were met.

NOTE: This system must be installed by experienced professional installers who are
familiar with radio frequency (RF) equipment operation as well as local building and
safety codes. Failure to do so may void the Product Warranty, as well as expose the end­user to legal and/or financial liabilities.

Information to the user

NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications of equipment not expressly approved by the
manufacturer could void the user’s authority to operate the equipment and the
company’s warranty.

NOTE: Certain high gain antennas are intended for point-to-point or point-to­multipoint applications only. These antennas are clearly identified in the table
contained in this manual. Note that +36 dBi may only be exceeded for point-to­point applications as given in 15.247(b). It is the installers responsibility that
when using these antennas to ensure that the system is used exclusively for
point-to-point operations, and that the antenna may not be co-located with other
intentional radiators transmitting the same information". The device and its
antenna and must not be co-located or operating in conjunction with any other
antenna or transmitter.

The table contained in this manual identifies which antennas are considered
“fixed” and which are “mobile”. When this device is installed as a fixed-mount
application there is a minimum required separation distance of 100 cm between
the antenna and all persons during normal operation. All mobile antennas must
be mounted at a minimum distance of 20 cm from users.

Router Installation:

Conduct a Site Survey to determine the best location for the system. Once located,
install the Router in an appropriate location. Follow the Router mounting instructions
for specific mounting details.

Open the access cover by depressing the two tabs. Slide the PC Card into the PC
Card Slot and plug in the pigtail cable as shown. Then replace the access cover:

Connect the Pigtail Cable between the PC Card and the Amplifier/DC Injector input.

Install the Antenna

NOTE: The antenna system shall be installed ONLY by experienced antenna
installers who are familiar with local building and safety codes, and wherever
necessary have been licensed by appropriate government regulatory bodies.
Failure to do so may void the Product Warranty, as well as expose the end-user
to legal and/or financial liabilities. Hyperlink Technologies, its agents, resellers
or distributors, are not liable for injury, damage, or violation of government
regulations that may arise from failing to comply with the guidelines described
in this document.

Mount the antenna according to the specific installation instructions for the model you
are installing. When choosing the antenna site you must observe the following
exposure limits:

The table contained in Appendix B of this manual identifies which antennas are
considered “fixed” and which are “mobile”. When this device is installed as a
fixed-mount application there is a minimum required separation distance of one
100 cm between the antenna and all persons during normal operation. All
mobile antennas must be mounted at a minimum distance of 20 cm from users.

Once the antenna is installed connect the antenna to the amplifier using the antenna
cable.

Configuring the Wireless Router

Connect to Unit with a cross-over cable to your PC or through a Switch (HUB) with
straight cables. Apply power to the Router unit. Check the diagnostic lights to ensure
proper connection. You should now be ready to configure the Router.

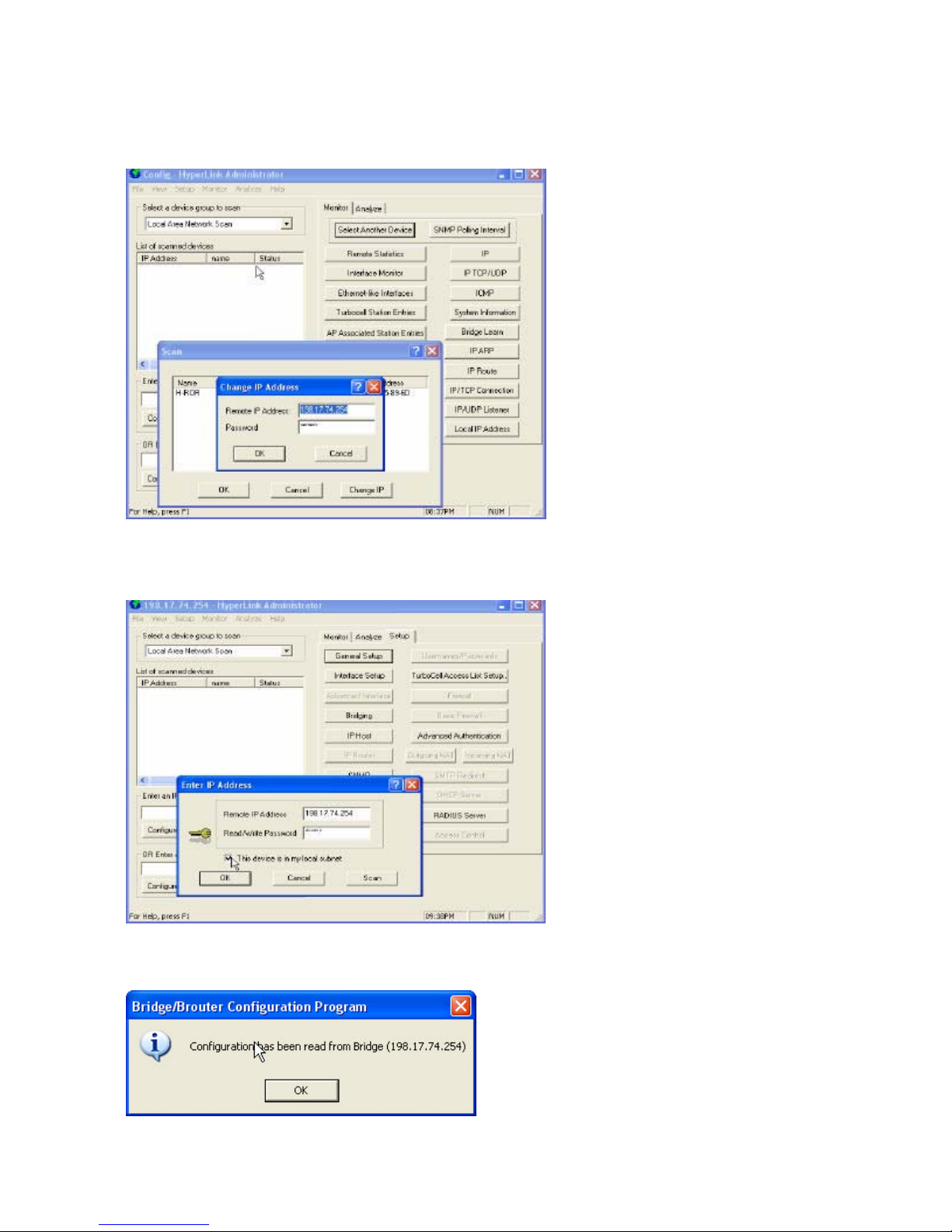

Launch the Network Configurator Utility

Click on File, Open Remote Config

Click on Scan to locate the Device

Select the Router to configure by Clicking on Name and Click on Change IP Button to

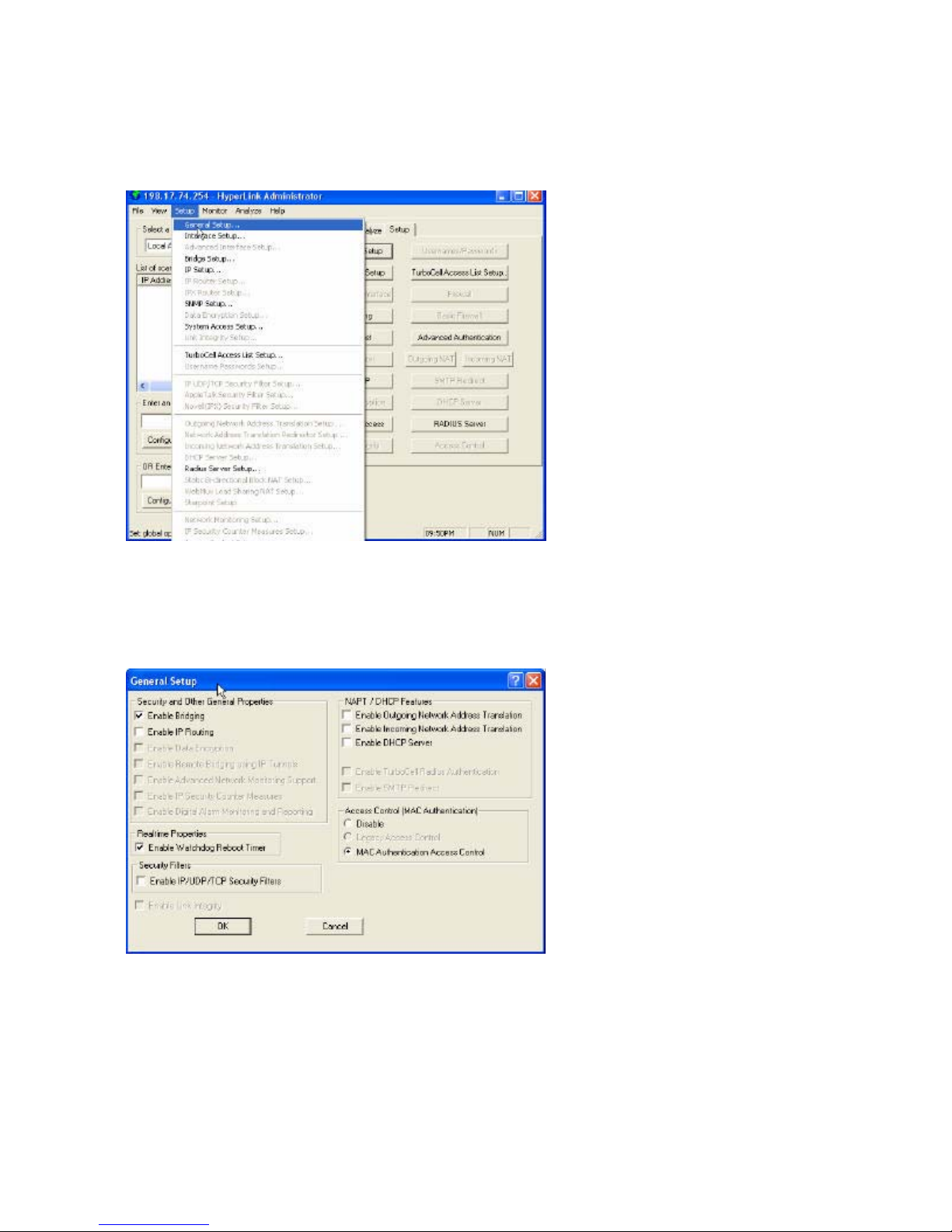

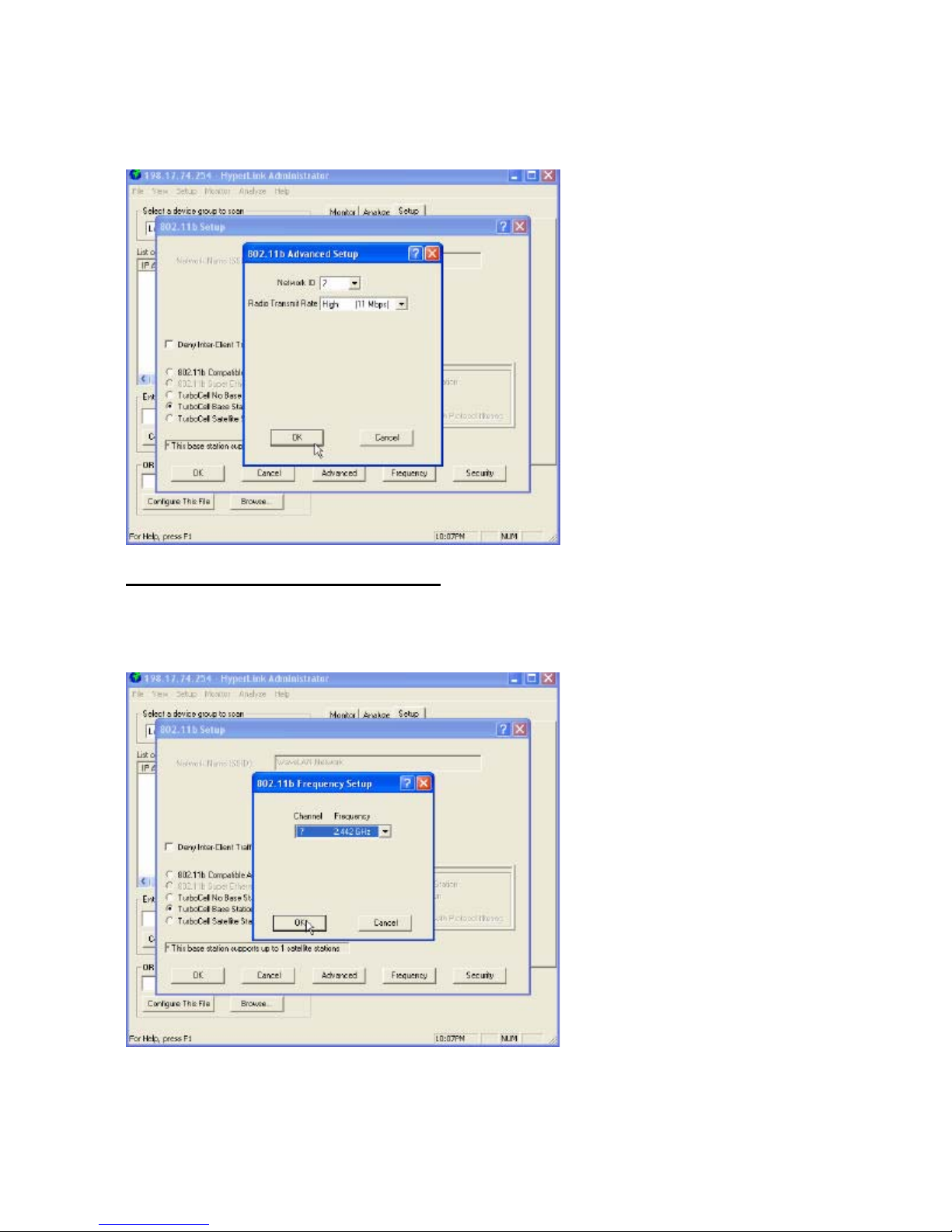

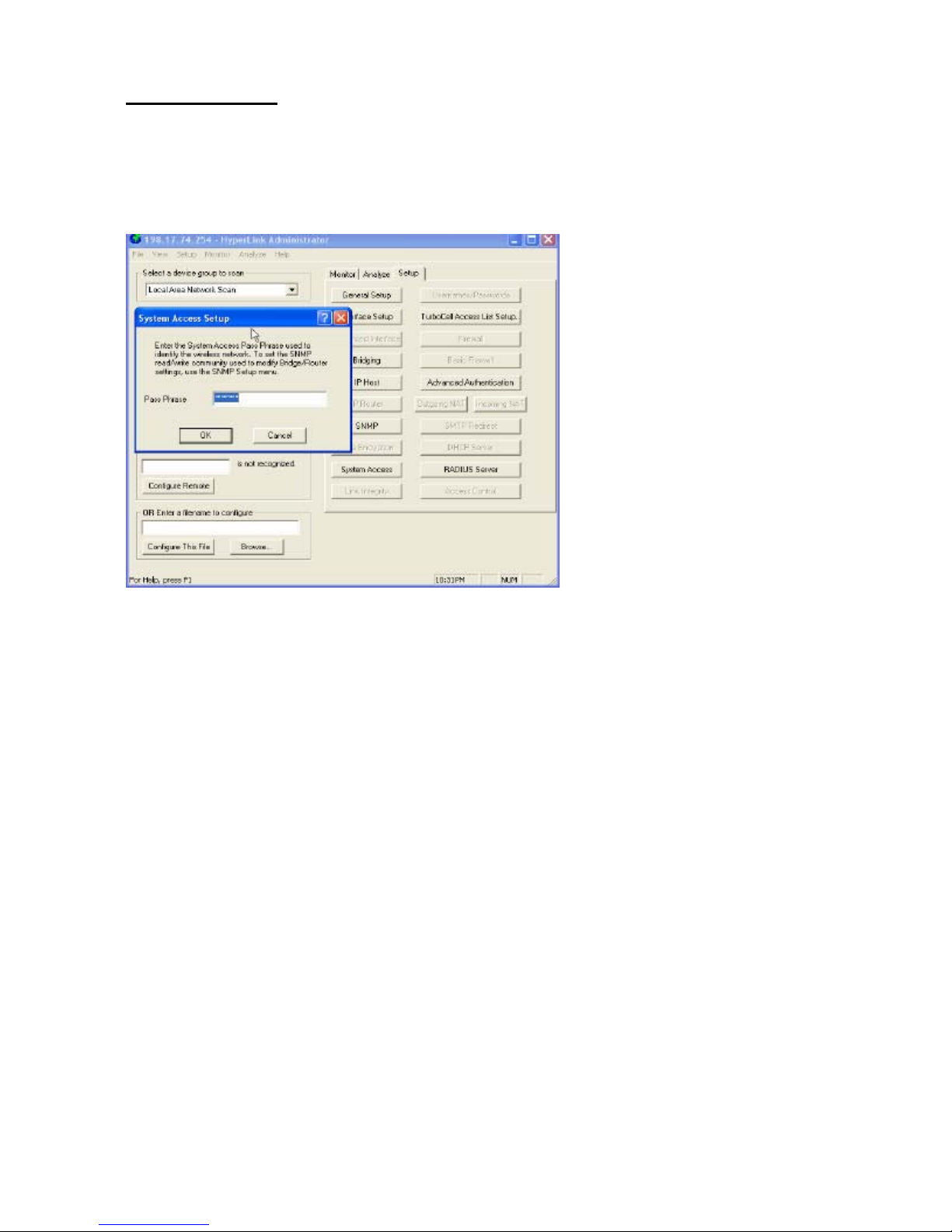

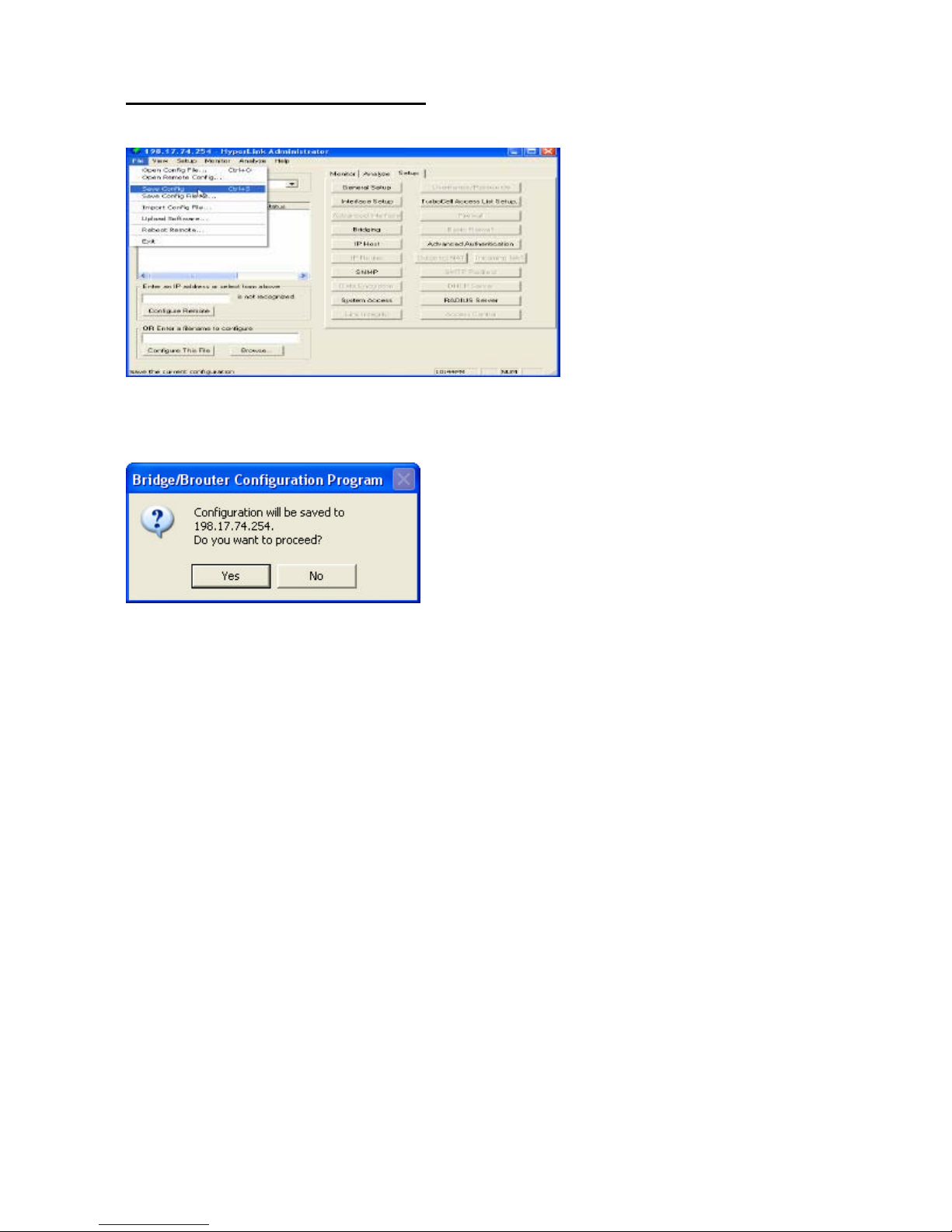

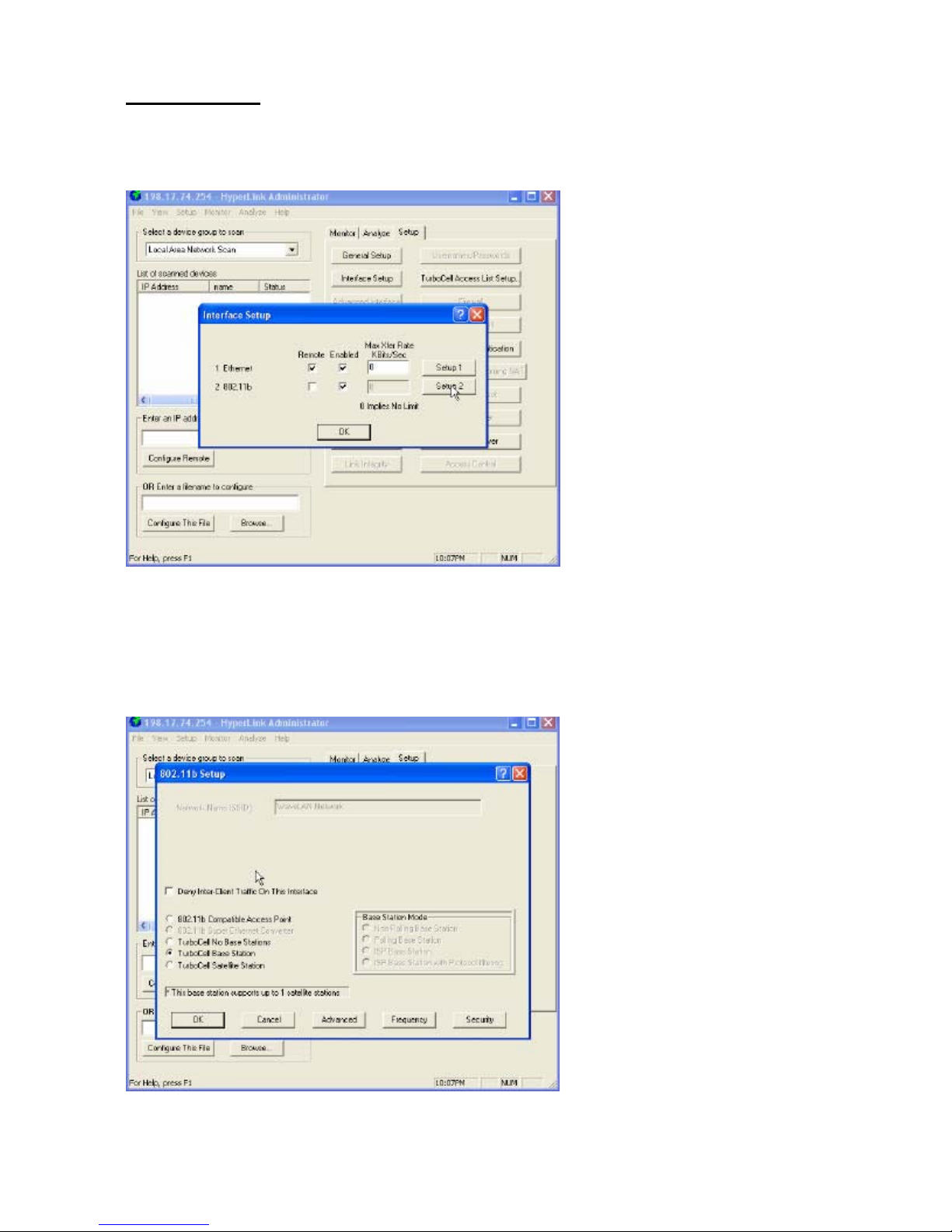

change to IP on your local subnet (similar to the configuration PC).
