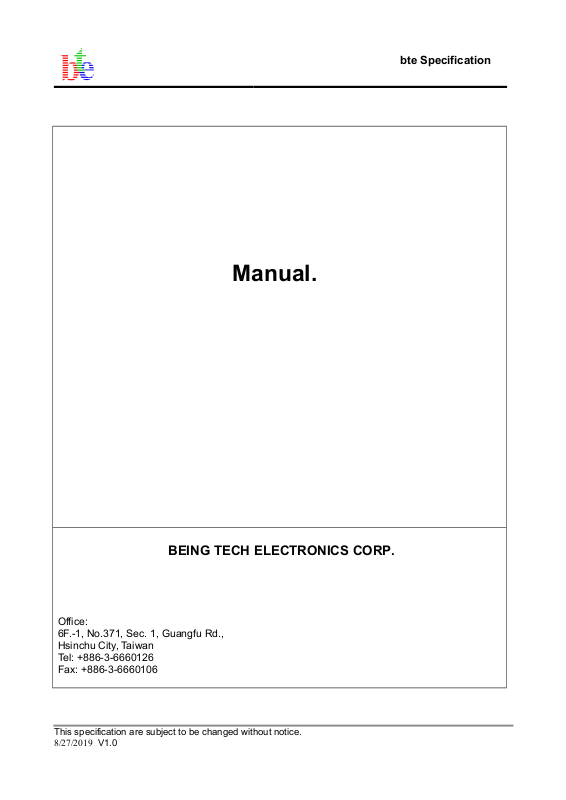

Page 1
Manual.
bte Specification
BEING TECH ELECTRONICS CORP.
Office:
6F.-1, No.371, Sec. 1, Guangfu Rd.,
Hsinchu City, Taiwan
Tel: +886-3-6660126
Fax: +886-3-6660106
This specification are subject to be changed without notice.
8/27/2019 V1.0
Page 2
BEING TECH ELECTRONICS CORP.
6F.-1, No.371, Sec. 1, Guangfu Rd., Hsinchu City, Taiwan 30074
C、Specification：
首崴電子股份有限公司
TEL: 886-3-6660126 FAX: 886-3-6660106
RF LED
SYNC
Status LED
Start
1.Press & hold SYNC for 2 seconds to enter pairing mode. RF LED will start
to fast flash.
stick
2. Press Up/Down/Left/Right/Start/A/B/Z/L/R/C-up/C-down/C-left/C-right keys
will turn on the controller and enter to link mode, RF LED will start to low
flash.
3. Stick is analog output only used in the game.
4. RF LED will become solid when connection is successful.
5. When controller in pairing/link/RF connection successful mode, press
SYNC will power off.
6. 10 seconds with no RF connection will power off. 5 minutes with no keys
change will power off.
7. N64 controller can connect to N64 dongle, Android phone, Windows and
macOS system.
8. Status LED:
low battery mode – low flash
battery charging – solid
battery fully charged – turn off
2
Page 3
首崴電子股份有限公司
BEING TECH ELECTRONICS CORP.
6F.-1, No.371, Sec. 1, Guangfu Rd., Hsinchu City, Taiwan 30074
TEL: 886-3-6660126 FAX: 886-3-6660106
D、Bluetooth Related Specification
Wireless Bluetooth v2.0 Class 2
Data Rate Bluetooth v2.0 (1Mbps)
Bandwidth 2.402GHz ~ 2.480GHz
RF output power Bluetooth class 2 (up to +2dBm)
Meet FCC and R&TTE
Sensitive down to -81dBm
Spread Spectrum Frequency Hopping Spread Spectrum (FHSS)
Modulation Method GFSK
Operation Range Up to 10M (open space)
Storage Temp. -10℃ ~ 85℃
Operation Humidity 10% ~ 90 % (55±2℃)
Operation Temp. 0℃~ 55℃
E、Electrical Specifications：
1. Working voltage: 3.3V~4.2V
2. Working current: 35mA ±10mA
3. Sleeping current: 60uA ±10uA
4. RF effective range：10m (open space)
Changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the
equipment.
3
