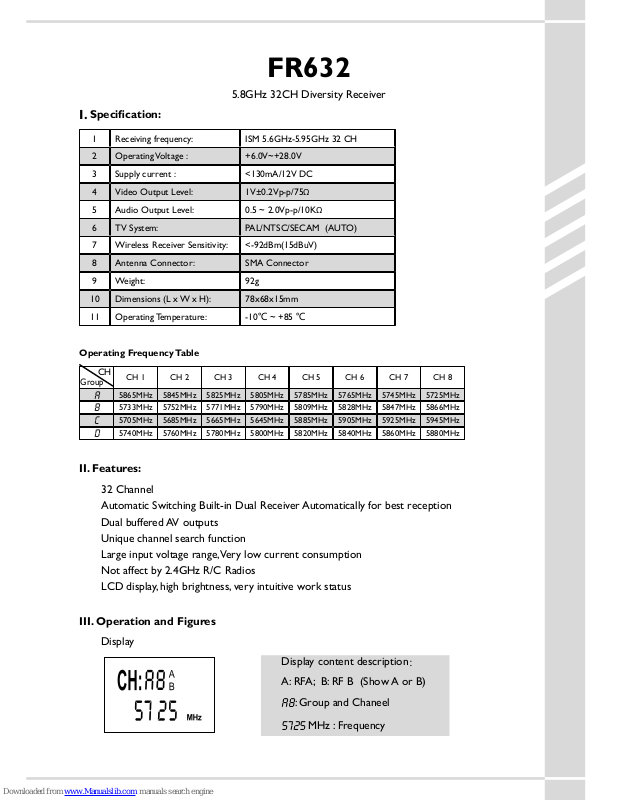

Hyperion FR632 User Manual
FR632
5.8GHz 32CH Diversity Receiver
I .
Specication:
1 Receiving frequency: ISM 5.6GHz-5.95GHz 32 CH
2 Operating Voltage : +6.0V~+28.0V
3 Supply current : <130mA/12V DC
4 Video Output Level: 1V±0.2Vp-p/75
Ω
5 Audio Output Level: 0.5 ~ 2.0Vp-p/10K
Ω
6 TV System: PAL/NTSC/SECAM (AUTO)
7 Wireless Receiver Sensitivity: <-92dBm(15dBuV)
8 Antenna Connector: SMA Connector
9 Weight: 92g
10 Dimensions (L x W x H): 78x68x15mm
11 Operating Temperature: -10℃ ~ +85
℃
Operating Frequency Table
CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
A
5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz 5725MHz
b
5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz
C
5705MHz 5685MHz 5665MHz 5645MHz 5885MHz 5905MHz 5925MHz 5945MHz
d
5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5880MHz
II. Features:
32 Channel
Automatic Switching Built-in Dual Receiver Automatically for best reception
Dual buffered AV outputs
Unique channel search function
Large input voltage range, Very low current consumption
Not affect by 2.4GHz R/C Radios
LCD display, high brightness, very intuitive work status
III. Operation and Figures
Display
Display content description
：
A: RFA; B: RF B (Show A or B)
A8
: Group and Chaneel
5725
MHz : Frequency
CH
Group
Functions Operating
Key operation
Scan/Group(1)
Press button 2S, the system will enter the
search state, when search for a certain intensity
signal, a stop at the channel;
Short press button to select a different
frequency groups, namely
A, b, c, d.
Power/Channel(2)
Press button 2S, power on or off;
Short press button to select a different channel,
1--- 8.
Interface
RF A AV OUT(3)
RF A receives the output of an AV signal ;
RF B AV OUT(4)
RF B receives the output of an AV signal;
DIVERSITY AV OUT(5)
DIVERSITY the received AV signal output ;
DC IN(6)
DC IN, +6V~+28V power supply.
ANT B(7)
RFB Antenna;
ANT A(8)
RFA Antenna;
1
5 3 4 6
2
87
