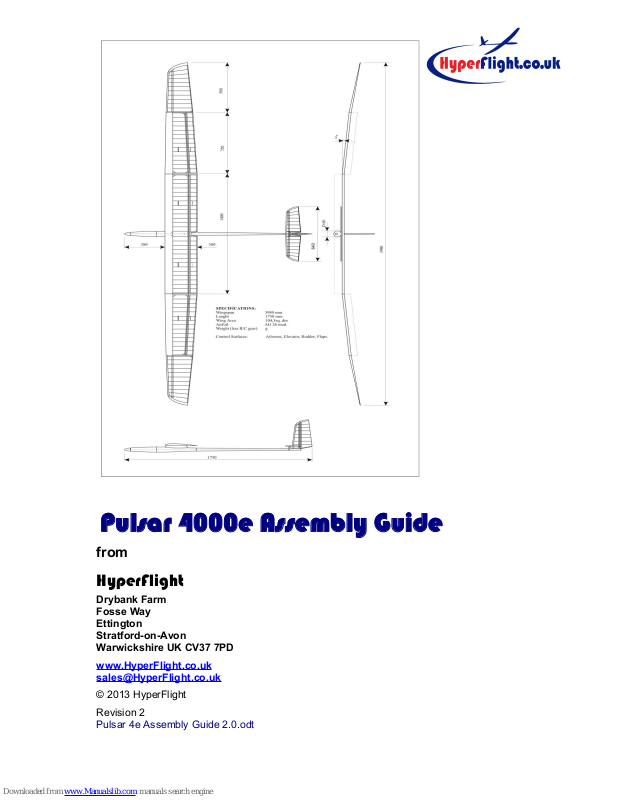

Hyperflight Pulsar 4000e Assembly Manual
Pulsar 4000e Assembly Guide
from
HyperFlight
Drybank Farm
Fosse Way
Ettington
Stratford-on-Avon
Warwickshire UK CV37 7PD
www.HyperFlight.co.uk
sales@HyperFlight.co.uk
© 2013 HyperFlight
Revision 2
Pulsar 4e Assembly Guide 2.0.odt
HyperFlight Pulsar 4000e Assembly Guide
Warning, this is not a toy!
If you are new to the hobby of flying RC model airplanes, DO NOT attempt to fly this
model by yourself! There are hundreds of BMFA (British Model Flying Association)
clubs in the UK. Ask your local hobby shop for the location of the nearest club in your
area, or check out the www.bmfa.org.uk (or your national modelling organisations) web
site. Many clubs often have qualified instructors to teach you how to fly. If you are an
accomplished pilot then you should have no problem in flying this model. However the
Pulsar 4000e is potentially a lethal object. Do fly responsibly, and make sure your third
party liability (eg BMFA) insurance is valid.
Limit of Liability
All Starflight products are constructed to the highest standard and made strong enough
for reasonable usage by an experienced and responsible r/c aircraft pilot. By keeping
this model you confirm that the parts have not been structurally damaged and are fit for
purpose as received.
The craftsmanship, attention to detail, and actions of the builder/flyer of this model
airplane kit will ultimately determine the airworthiness, flight performance, and the
safety of the finished model. You confirm that you take full responsibility for the safe
usage, construction, and maintenance of the model, and you will not hold
HyperFlight.co.uk or its owners, staff, agents, contractors, or helpers in any way
responsible for any damages or injury that may occur as a result of operating or flying
this model. HyperFlight’s sole obligation shall be to replace those parts of the kit
proven to be defective or missing. If you are not willing to agree to this binding
condition of sale please return the model in as-received condition to Hyperflight for a
refund.
Model Specifications
(c) 2012 HyperFlight Drybank Farm Fose Way Ettington Stratford-on-Avon Warwickshire CV37 7PD 2
HyperFlight Pulsar 4000e Assembly Guide
Main Parts
Wing tips (2)
Wing centre panel
Fin & rudder
Tailplane
Boom with TP mount
Pod & nosecone
Small Parts
5 servo covers with fairings
1 elevator servo cover
2 larger horns (flaps)
3 smaller horns (ail, rudder)
10 clevises
2 flap pushrods
2 aileron pushrods
1 rudder pushrods
Wing mounting bolts
Tail mounting bolts
R/C Functions
Left & right aileron
Left & right flap
Elevator
Rudder
Throttle
To maximise the model's potential a computer radio is highly recommended.
Suggested Servos
