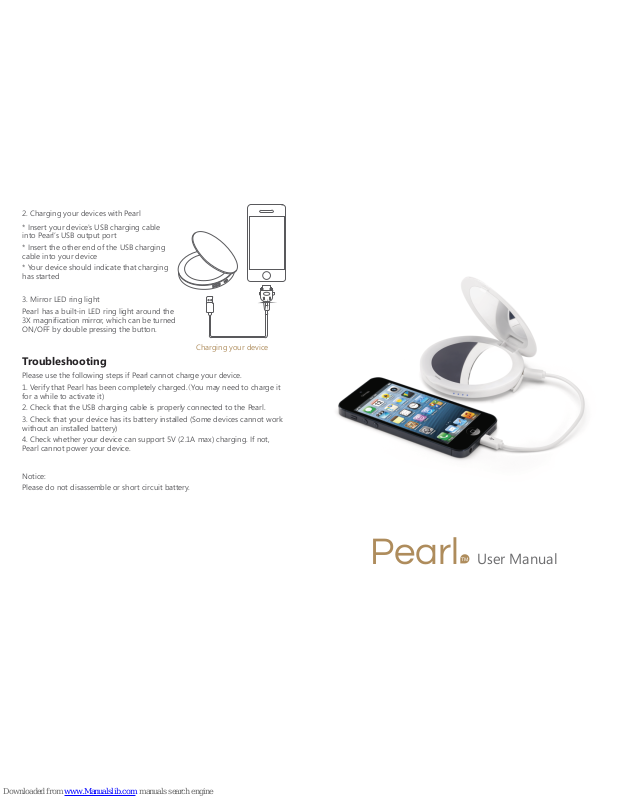

2. Charging your devices with Pearl
*
into Pearl’s USB output port
* Insert the other end of the USB charging
cable into your device
* Your device should indicate that charging
has started
Insert your device's USB charging cable
Charging your device
3. Mirror LED ring light
Pearl has a built-in LED ring light around the
3X magnification mirror, which can be turned
ON/OFF by double pressing the button.
Troubleshooting
Please use the following steps if cannot charge your device.
1. Verify that Pearl has been completely charged. You may need to charge it
for a while to activate it)
2. Check that the USB charging cable is properly connected to the Pearl.
3. Check that your device has its battery installed (Some devices cannot work
without an installed battery)
4. Check whether your device can support 5V (2.1A max) charging. If not,
Pearl cannot power your device.
Pearl
(
Notice:
Please do not disassemble or short circuit battery.
User Manual
Pearl
Page 2
TM
Thank you for using Pearl Compact Mirror & USB Battery.
Illustration description
Specifications
Normal Mirror
Power Button
LED Battery Indicator
LED Ring Light
3X Magnification Mirror
Magnetic Closure
LED Ring Light
3X MirrorMagnification
LED Battery Indicator
Power Button
LED Ring Light
LED Ring Light
3X MirrorMagnification
5V USB Output
5V Micro USB Input
Battery Indicator 1 x LED 2 x LED 3 x LED 4 x LED
Power Remaining
1%-25% 26%-50% 51%-75% 76%-100%
What's in the box?
* Pearl
* USB charging cable
* Carry bag
Note: Included accessories may vary according to different sales region.
How to use
1. Charging
Before using Pearl for the first time, please charge it fully for 2-3 hours.
Pearl should be recharged every 6 months when not in use.
Pearl
* Insert the standard USB connector of the charging cable into the USB
port of the computer or USB power adapter (not included)
* Insert the Micro USB connector into the Pearl
* The LED battery indicator will show the current charging level
* The unit is fully charged when the LED battery indicator are all solid blue
(unit has built-in overcharge protection)
Charging from USB power adapter
(not included)
Charging from computer USB port
Capacity: 3000mAh Charge time: 2-3 hours
Input power: 5V/1A(Micro USB port) Output power: 5V/2.1A(USB port)
Battery life: up to 1,000 Cycles
Battery chemistry: Lithium polymer
Weight: 4.2oz / 0.3lb / 119g
Dimensions: 90 x 90 x 13mm
