HYMINI MW_PB01 Instruction Manual

GREEN POWER IS IN YOUR HAND

PORTABLE POWER BANK + UNIVERSAL ADAPTOR

+ WIND POWERED GENERATOR

MW_PB01

INSTRUCTION MANUAL v2.1

FEATURES

TM

1. With HYmini, all you need to carry is one charger for most of your 5V

handheld wireless devices. There is no need to carry extra power sources. A
1200mAh lithium ion polymer rechargeable battery is built into the unit.

2. HYmini is universally adaptable for your mobile devices. A USB transfer

cable and mobile phone adaptors are included. MP3 player, iPod1, PDA, digital
camera, and other 5V handheld devices can be charged with original
manufacturer USB or aftermarket USB cables.

3. No additional software is required.

4. HYmini is a lightweight, handheld, and compact green portable power

bank.

5. HYmini can be securely fastened onto your arms, bicycle handle bar, motor

bike and automobile window, so that you can charge HYmini in motion.

A revolutionary way of capcturing renewable power for
your handheld devices

Utility invention, TM, Logo, and information on this instruction belong to
MINIWIZ Sustainable Energy Development Ltd.
US & International registered patent pending #11744480
All Rights Reserved

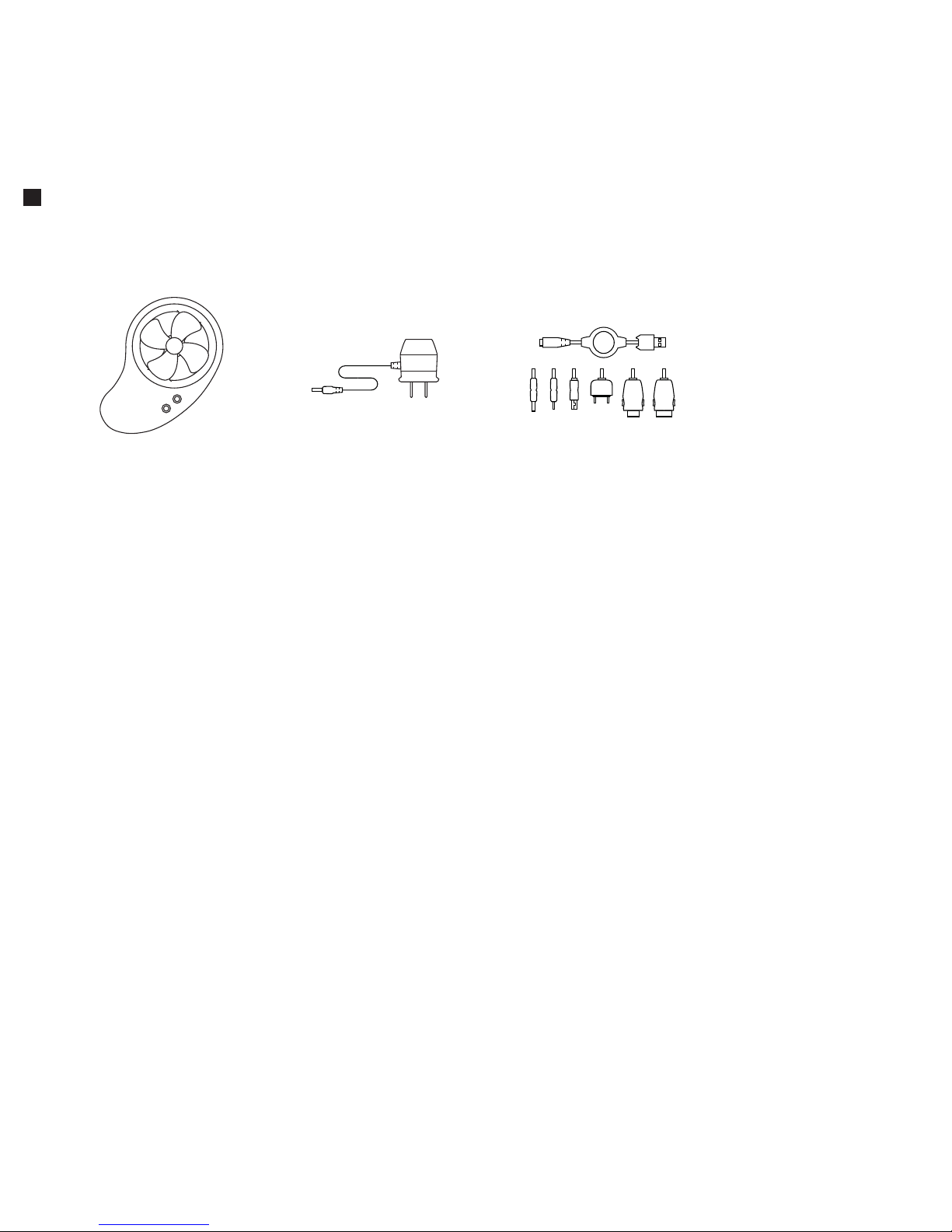

your HYmini package includes the following components :

BEFORE USING HYmini

GETTING STARTED

Step 1

: Charge your HYmini with the included 100~240V wall plug adaptor by
inserting the adaptor’s connector into HYmini’s DC jack until charge indicator turns
green. Step 1 is highly recommended for the rst time (approx.4 hours).

Step 2

: HYmini is now ready to charge your other 5V* handheld devices through
its USB 2.0 outlet. Insert USB transfer cable provided in the box to connect HYmini and
your mobile phone. Shift the switch to “charge” position to charge your mobile phone.
An original manufacture USB or aftermarket USB cable can be used to charge your
other handheld devices.

Step 3

: HYmini can be used as a wall plug charging adaptor** for many of your
handheld devices. First, connect the wall plug adaptor into HYmini’s DC jack. Then, use
the USB transfer cable to connect your mobile devices with HYmini’s USB 2.0 outlet.
Shift the switch to “charge” position (battery icon) to begin charging.

**universal power outputs USB 2.0 output @ 5V adaptive 200mA to 850mA depends on devices.

*5 V digital device includes: mobile phone, mp3, iPod®, PDA, digital camera, other handheld devices.

USB transfer cable

& 6 connectors

Nokia / Motorola /

Sony Ericsson /

Samsung / LG

AC/DC power adaptor

North American/Japanese 2-pin

HYmini

Portable power bank

universal adaptor

wind powered generator

Position the switch in the middle to “turn o” charge function

Position the switch to light icon to use “LED ashlight”

Position the switch to battery icon to “charge devices”

* You can charge HYmini™ with mini wind generator and miniSOLAR panel
during discharge and LED ashlight functions.

Control switch: Charging devices > Power o > LED lights on

External connection: DC jack / Charge indicator/ USB jack

(protected behind the weather proof rubber door)

LED ashlights

Holder clipping point

HYmini INTRODUCTION

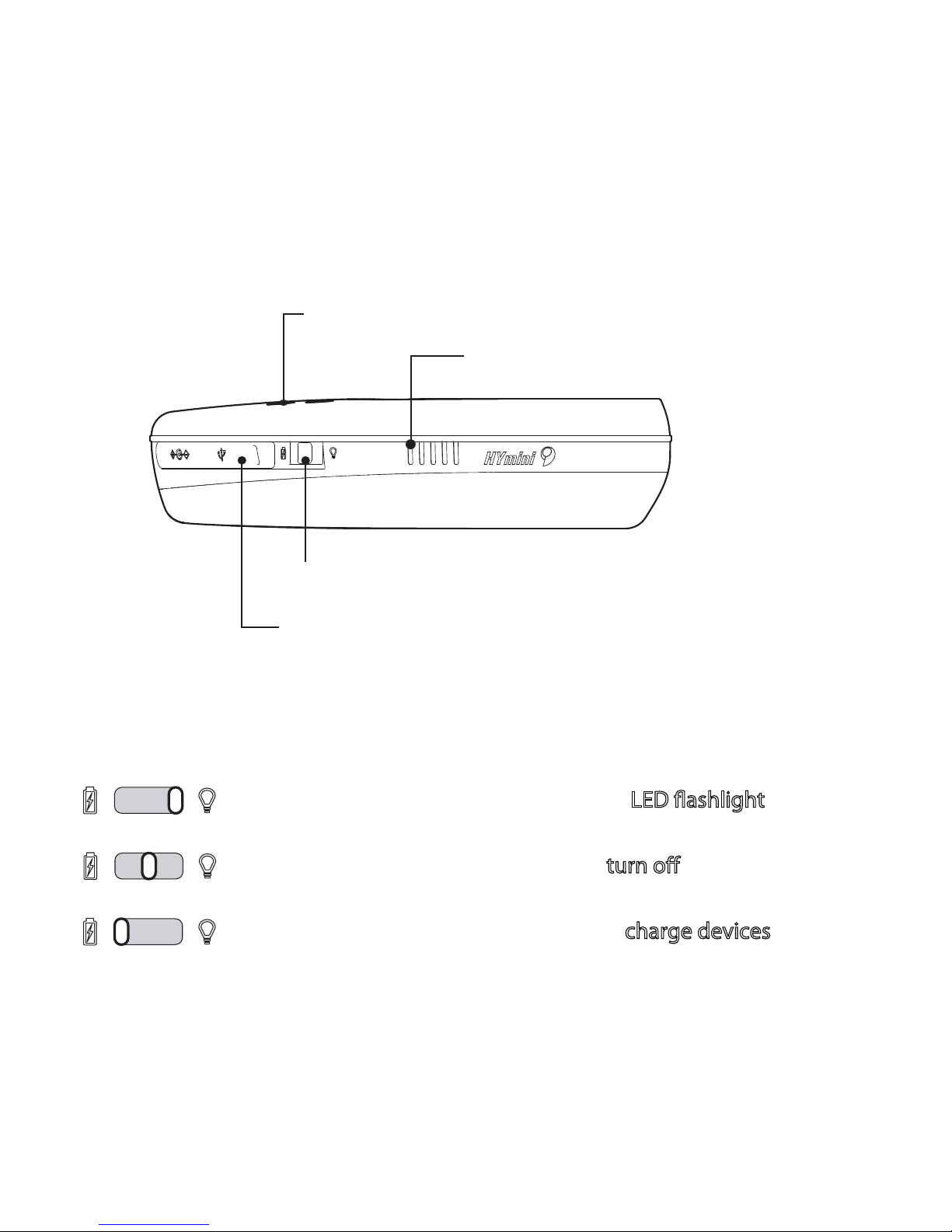

HYmini CONTROLS

NOTE: Fasten your HYmini with specially designed holder during active wind charging.
Be sure to lock your HYmini into its clipping point.

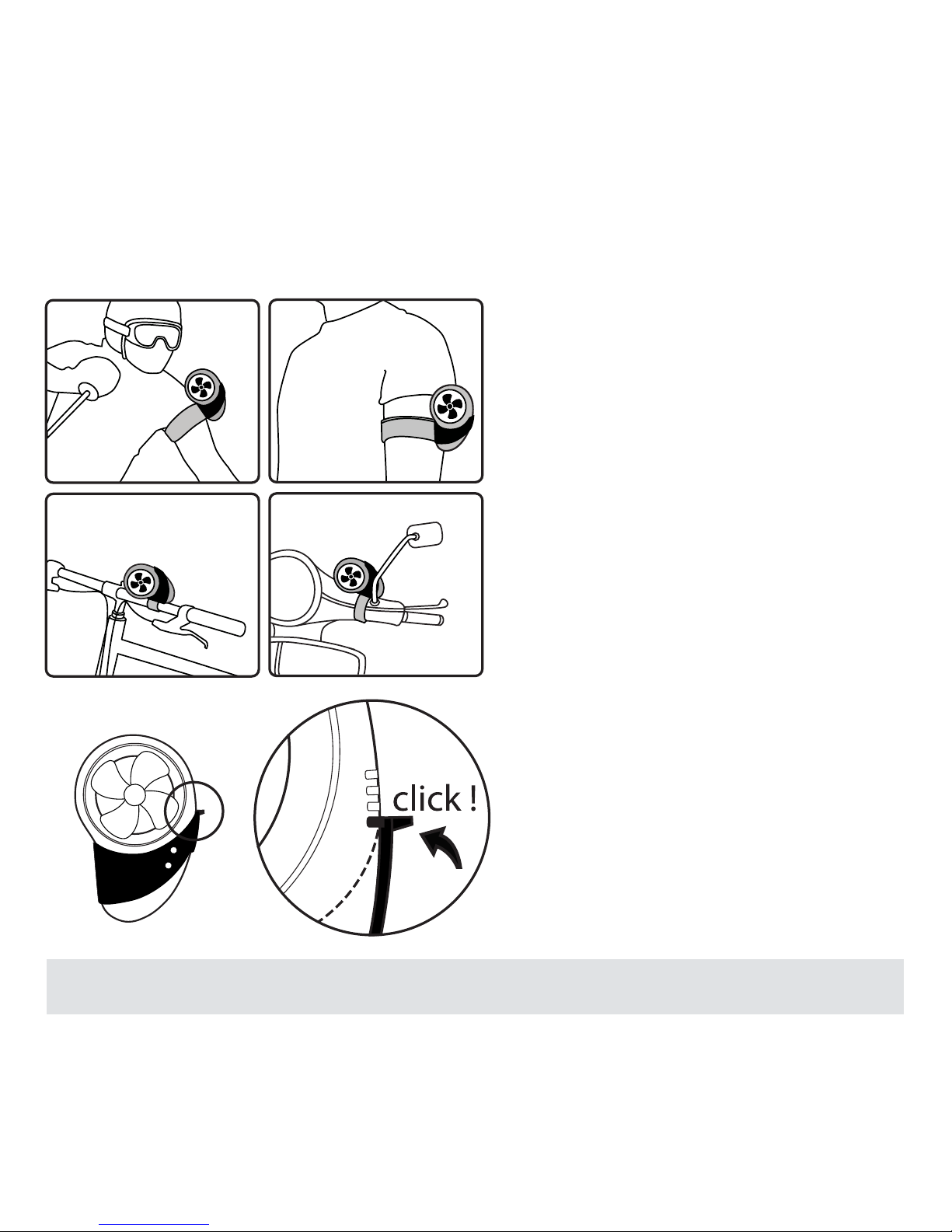

Bike holder kit

Armband kit

HYmini’s HANDS-FREE ACCESSORY KITS

(sold separately)

CHARGING THE DEVICE

B. USING BUILT-IN WIND GENERATOR

1.To activate the fan and to attain enough power to charge HYmini, a wind speed of at
least 9 mph is required. When the device is charged by wind power, a green light
adjacent to the fan will turn on to indicate that the internal battery of the device is
charging.

2.The higher the wind speed, the more power will be generated and stored in the
internal battery. Please note that a consistent voltage, preferably higher voltage, is
required for an ecient charge-in rate. Wind speed of 15 mph and above (40 mph max)
with an extended period of exposure is ideal for ecient charging.

3.HYmini‘s turbine is designed to be impact-safe and removable.

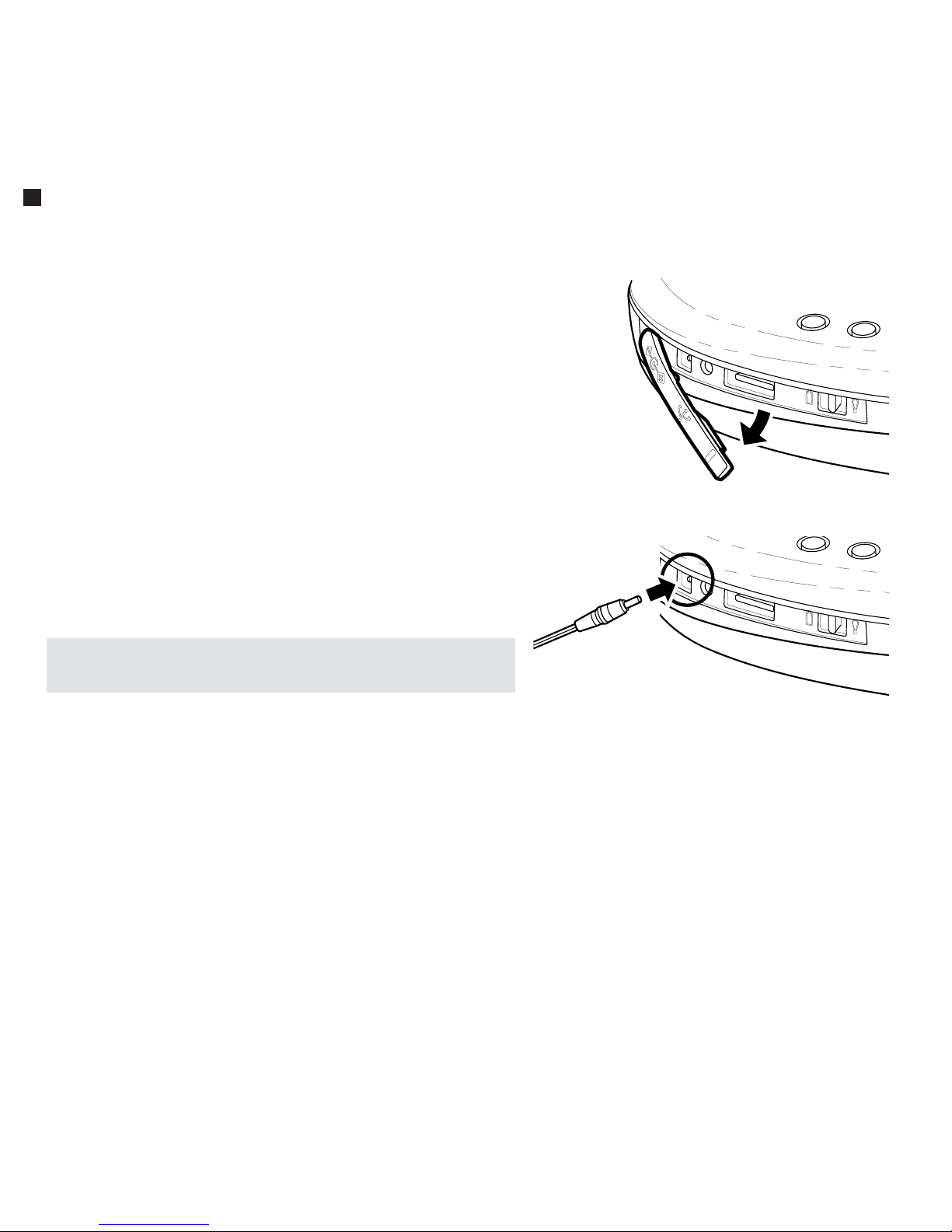

A. USING 100~240V AC TO DC POWER

1.Using the AC-DC adaptor provided in the

box, connect HYmini to a 100~240V wall

electrical outlet through the DC input jack. An
indicator on the side, adjacent to the USB
outlet, turns red when the device is charging.
Once the indicator turns green, it the internal
battery has completed charging. Note that a
safety control circuit protects the device from
being overcharged.

2. You can also charge HYmini using other DC
inputs, including hand crank generators, and
PC or laptop computer USB cable outlets.

NOTE: Be sure that the input current is LESS
than 1A or 1000mA and 5V max.

NOTE: When charging with a completely empty battery (when the LED cannot be turned
on), the device will take longer to charge. Charge-in eciency will dramatically
increase with at least 20% residual capacity stored in HYmini’s internal battery. In
other words, it is not recommended to solely rely on the wind generator to fully
charge HYmini when its internal battery is completely emptied.

C. USING miniSOLAR PANEL (sold separately)

1.Connect the HYmini wind unit to the miniSOLAR panel through DC input jack, and place
the solar panel in a position where it can absorb radiation.

2.The side indicator turns red when enough sun or light power is converted into
electrical current and stored in the device’s internal battery. The indicator on the side
turns green when HYmini’s internal battery completes charging. The built-in safety
control circuit protects HYmini from being overcharged.

3.To link two or more solar batteries together, you can connect multiple panels by linking
the female DC jacks one.

NOTE: Power converted by multiple miniSOLAR panel is cumulative, therefore, the
more panels you have the more power is stored. The eciency is greatly increased
with full direct sun. Solar panels are to be purchased separately at additional cost.

NOTE: You can increase capacity by linking up to 4 panels.

WARRANTY INFORMATION

60-DAY LIMITED WARRANTY

MINIWIZ S.E.D. LTD warrants HYmini products against any defect due to faulty material
or workmanship for a 60-day period after the original date of consumer purchase
shipments. This warranty does not cover cosmetic or damage due to acts of God, misuse,
abuse, negligence, commercial use, modication of, or to any part of the product. This
warranty does not cover damages due to improper operation or maintenance. If the
product should become defective within the warranty period, MINIWIZ will repair it or
choose to replace it free of charge.

HYmini products are warranted by MINIWIZ for 60 days. You may return the defective
Products purchased directly from HYmini Online Store within 60 days following the
date of shipment by MINIWIZ for a new product replacement. To get a new product
replacement, you must obtain a Return Merchandise Authorization number (RMA no.)
and a RMA form from us rst. You must complete the RMA form with the RMA no. issued
to you, and return your product at the specied return address in order to get a
replacement. The RMA no., RMA form, and return address can be obtained from HYmini
Online Store Customer Support at [email protected]. Please note on the outside of
the returned Product container that it is a return for MINIWIZ.

MINIWIZ will replace the returned Product with a new replacement unit within 60 days.
No replacement unit will be shipped until after the defective Product is returned,
received and inspected by HYmini support team. If you return a Product to MINIWIZ (1)
without a complete RMA form and RMA no. from MINIWIZ, (2) beyond the 60 day period,
(3) without proper packaging, (4) without all parts and accessories, or (5) with no visible
and functional manufacturing defects, MINIWIZ reserves the right to either refuse
delivery of the replacement Product or charge you with a restocking fee.

For questions regarding our return policy, please contact us at [email protected]

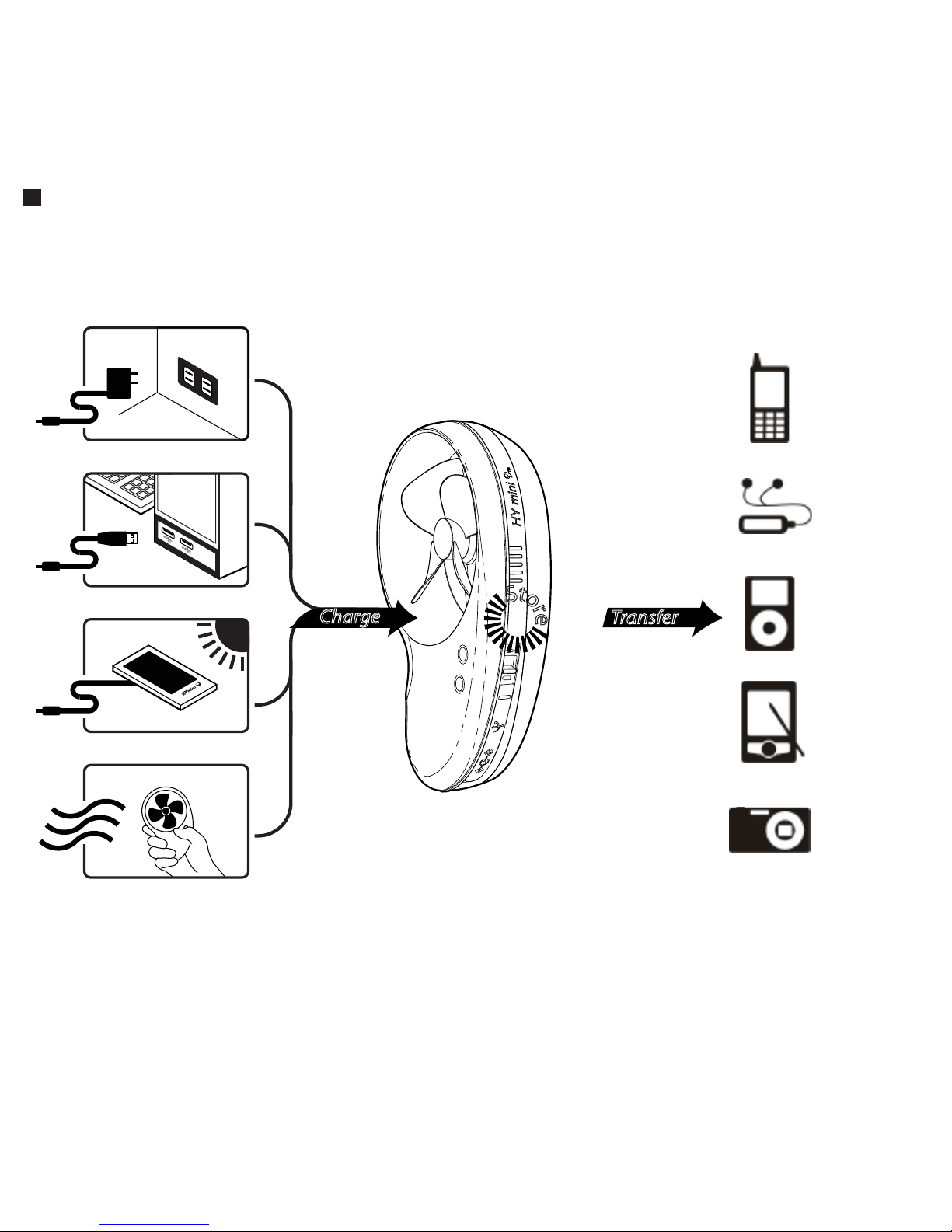

MULTIPLE POWER INPUT & OUPUT
& WIND OUTPUT DATA REFERENCE

*The data is based on 20 minutes uninterrupted 19 mph wind tunnel test.
**Wall plug and miniSOLAR panel can fully charge HYmini’s internal battery.

20*

pics

Digital

Camera

40*

MP3

minutes
play time

40*

PDA

minutes
opt time

3G mobile

4*

minutes
talk time

iPod®

30*

minutes
play time

PC / laptop USB 2.0 outlet

Portable miniSOLAR panels

100~240V AC wall plug

built-in supplemental
wind powered generator

TM

Transfer

(USB 2.0)

Charge

(Input DC)

S

t

o

r

e

Carrying HYmini

HYmini contains delicate components. Do not bend, drop, or crush HYmini units.

Using DC ports

Never force a connector into a port. Make sure that the connector matches the port, and
that you have positioned the connector correctly in relation to the port.

Keep HYmini within acceptable temperatures

Battery life might be aected in extreme temperature conditions. Always keep HYmini
between -20°C and 45°C. Avoid re and high heat condition.

Charging HYmini

To charge HYmini, use only the 5V DC output charging devices less than 1A. Read safety
instructions for all products and accessories before using with HYmini. MINIWIZ is not
responsible for the operation of third party accessories or their compliance with safety
and regulatory standards. HYmini and its adaptor may become warm during normal use.
Always allow adequate ventilation around HYmini.

Avoiding water and wet locations

Avoid using HYmini in the rain, near washbasins, or other wet locations. Do not attempt
to dry HYmini devices with an external heat source such as hair dryer, radiator, or oven.

Charging safely with hands-free holders

Keep your eyes on the road or slope. If you decide to use HYmini to capture wind or sun
energy while driving, skiing, boating or biking, etc., please use HYmini’s convenient
hands-free holders and clips.

Choking Hazards

HYmini contains small parts, which may present a choking hazard to small children.
Keep HYmini and its accessories away from small children.

Do not throw in trash

The built-in lithium-ion battery can be recycled. Please nd the nearest recycling location
in your area.

CAUTION

TECHNICAL SPECIFICATION

Size: Height 5.4 inches/width 3.4 inches/depth 1.3 inches
Weight: 3.5 ounces or 100g approximately
built-in 1200mAh lithium-ion polymer rechargeable battery
Input current: less than 1A or 1000mA and 5V max
The charging rate for wind: 9mph min ~ 40mph max

Multiple power inputs

- Conventional 100~240V AC adaptor

- PC / laptop USB 2.0 outlet

- HYmini portable miniSOLAR panels (sold separately )

- Built-in supplemental wind powered generator. (Input voltage and current varied with
dierent wind speed and battery loading conditions.)

NOTE: Due to safety concerns for the lithium-ion battery, charge-in voltage and current
are limited.

Universal power outputs

- USB 2.0 output at 5V adaptive 200mA ~ 850mA depending on devices

- Common 5V digital devices include mobile phone, MP3 player, iPod, PDA, digital
camera, etc. (Recharge mobile device time via USB is about 1-2 hours depending on
devices)

USB adaptor mobile phone support lists

Nokia: 3230, 3250, 6101, 6192, 6103, 6111, 6131, 6170, 6233, 6270, 6280, 6300, N70,
N80, N90, N91, N92 / Motorola: V3 V3i, U6, A668, E770, E680, E680i, E375, MPX200,
E1070, L6 / Sony Ericsson: Z520i, Z530i, K510i, K600i, K608i, W700i, K750i, W800i,
W810i, W810i, W900i, W550i, W300i / Samsung: A580, A630, A800, A850, A900, A920,
A930, A940, A950, A960, A970, T209, T309, T319, T609, N200, N400, N625, X495, X496,
X497, X507, ZX10, C207, D307, D357, V200, V205, V206, E635, A790, A795, D347, D407 /
LG: U8110/U8120/U8130/U8138/U8150/U8180/U8290/U8330 or compatible model

NOTE: HYmini may be compatible with many more other models or handheld devices
that are not listed, please check on www.hymini.com for latest information.

printed on
unbleached recycled paper
with lead free ink

.iPod® is a registered trademark of Apple Inc. in the U.S.A. or other countries.

.Nokia is a registered trademark of Nokia Corporation in the U.S.A. or other countries.
.Sony Ericsson is a registered trademark of Sony Ericsson Mobile Com. AB in the U.S.A. or other countries.
.Samsung is a registered trademark of SAMSUNG Corporation in the U.S.A. or other countries.
.Motorola is a registered trademark of Motorola, Inc in the U.S.A. or other countries.
.LG is a registered trademark of LG Electronics in the U.S.A. or other countries.

* Brand and product names mentioned are trademarks of their respective companies.

Referenced Trademarks

* All specications are subject to change without notice. Please check with your supplier for exact oers.
Products may not be available in all markets.
* Product colors and accessories are subject to change without notice.
* MINIWIZ accepts no responsibility for damages of other devices when charging by HYmini.

MINIWIZ Sustainable Energy Development Ltd.

Add: 2F, Suite 2, No. 270, Sec. 5, Zhong Shiao E. Rd, Hsin Yi District, Taipei 11060, Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
www.hymini.com

Printed in China
