Page 1
MISSING A PART?
There is no need to return
this item to the store.
Instead call our TOLL FREE
HOTLINE.
1-800-990-6003

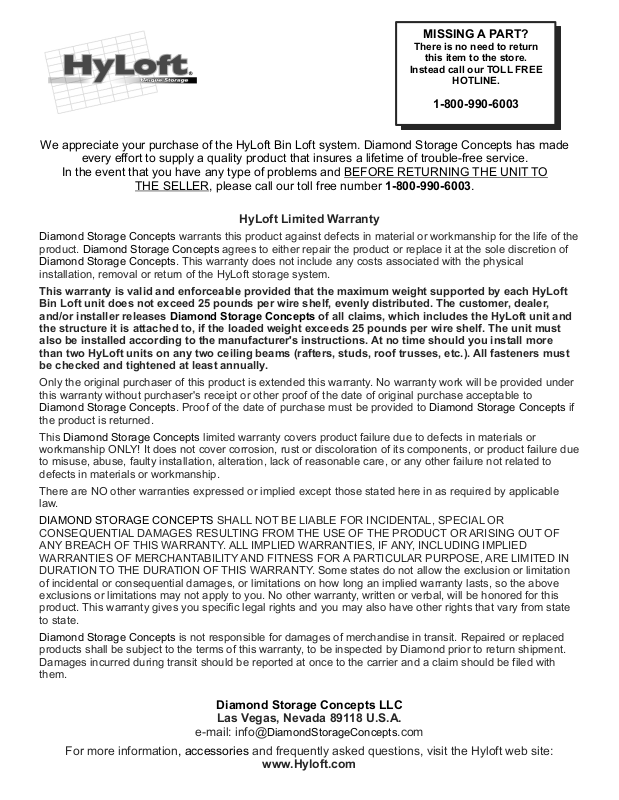

We appreciate your purchase of the HyLoft Bin Loft system. Diamond Storage Concepts has made
every effort to supply a quality product that insures a lifetime of trouble-free service.
In the event that you have any type of problems and BEFORE RETURNING THE UNIT TO
THE SELLER, please call our toll free number 1-800-990-6003.
HyLoft Limited Warranty
Diamond Storage Concepts
product. agrees to either repair the product or replace it at the sole discretion of
Diamond Storage Concepts
installation, removal or return of the HyLoft storage system.
This warranty is valid and enforceable provided that the maximum weight supported by each HyLoft
Bin Loft unit does not exceed 25 pounds per wire shelf, evenly distributed. The customer, dealer,
and/or installer releases of all claims, which includes the HyLoft unit and
the structure it is attached to, if the loaded weight exceeds 25 pounds per wire shelf. The unit must
also be installed according to the manufacturer's instructions. At no time should you install more
than two HyLoft units on any two ceiling beams (rafters, studs, roof trusses, etc.). All fasteners must
be checked and tightened at least annually.
Only the original purchaser of this product is extended this warranty. No warranty work will be provided under
this warranty without purchaser's receipt or other proof of the date of original purchase acceptable to
Diamond Storage Concepts Diamond Storage Concepts
the product is returned.
This limited warranty covers product failure due to defects in materials or
workmanship ONLY! It does not cover corrosion, rust or discoloration of its components, or product failure due
to misuse, abuse, faulty installation, alteration, lack of reasonable care, or any other failure not related to
defects in materials or workmanship.
There are NO other warranties expressed or implied except those stated here in as required by applicable
law.
DIAMOND STORAGE CONCEPTS
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT OR ARISING OUT OF
ANY BREACH OF THIS WARRANTY. ALL IMPLIED WARRANTIES, IF ANY, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow the exclusion or limitation
of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you. No other warranty, written or verbal, will be honored for this
product. This warranty gives you specific legal rights and you may also have other rights that vary from state
to state.
Diamond Storage Concepts
products shall be subject to the terms of this warranty, to be inspected by Diamond prior to return shipment.
Damages incurred during transit should be reported at once to the carrier and a claim should be filed with
them.
Diamond Storage Concepts
Diamond Storage Concepts
warrants this product against defects in material or workmanship for the life of the
. This warranty does not include any costs associated with the physical
Diamond Storage Concepts
. Proof of the date of purchase must be provided to if
SHALL NOT BE LIABLE FOR INCIDENTAL, SPECIAL OR
is not responsible for damages of merchandise in transit. Repaired or replaced
Diamond Storage Concepts LLC
Las Vegas, Nevada 89118 U.S.A.
e-mail: info@ .com
For more information and frequently asked questions, visit the Hyloft web site:
, accessories
DiamondStorageConcepts
www.Hyloft.com
Page 2
ASSEMBLY INSTRUCTIONS
Bin Loft Storage Unit
One Unit Shown (2 wide).
Item # 00517
MISSING A PART?
There is no need to
return this item to the
store. Instead call our
TOLL FREE HOTLINE.
1-800-990-6003
Parts Included:
3 double slotted wall
standards (9" length)
Tools Required:
Holds two large
Bins (Not Included)
Approximate Assembly Time Required: 30 minutes or less
6 lag screws ¼" X 2"
2 Wire Shelves
6 lag screws ¼" X 2.5"
(6mm x 51mm)
(6mm x 64mm)
These Instructions
and
Limited Warranty
Eye Protection
Tape Measure
3/16"
Drill Bit
(4.8mm)
Power
Drill
7/16" Wrench
(11 mm)
OR
Socket Wrench
or Nut Driver
7/16"
Stud/Joist
Finder
(optional)
Pencil
Level
MISSING A PART? There is no need to return this item to the store. Instead, call us Toll Free 1-800-990-6003
Page 3
Approximate Assembly Time: 30 minutes or less

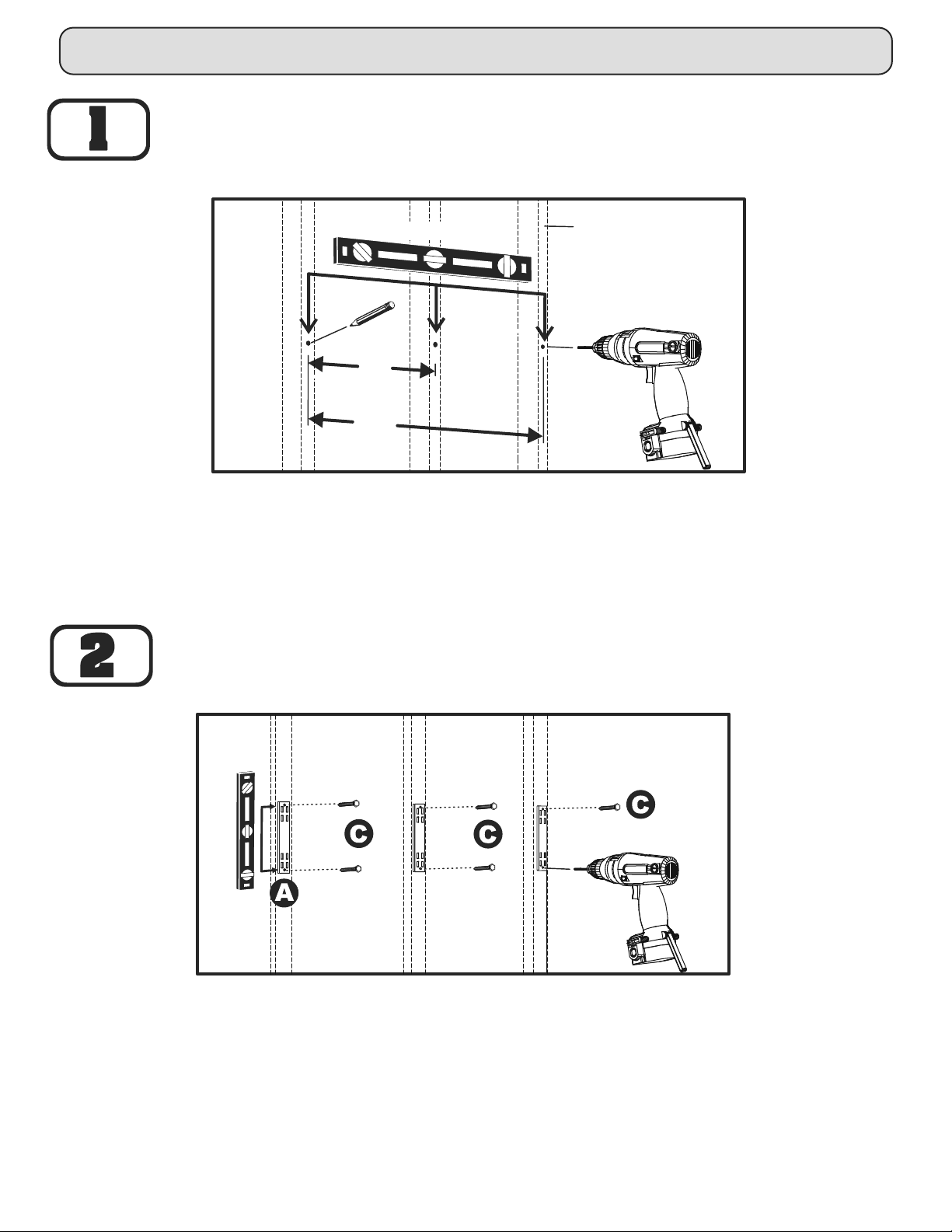

LOCATE WALL STUDS & DRILL HOLES
LEVEL
Wall Studs(may
be hidden behind
sheet rock wall
boards)
16"
centers
32"
centers
Using a stud finder, locate 2 wall studs that are 16" & 32" center to center apart. Using a pencil,
mark the top mounting hole centers. Make sure holes are level and the same distance from the
floor. Pre-drill the 2 marked holes using a 3/16" (5 mm) drill bit.
IMPORTANT: Unit MUST be installed into wall studs. Do not use wall anchors for mounting directly to
sheet rock.
ATTACH SLOTTED STANDARDS TO WALL STUDS
LEVEL
Install 3 Lag Screws (C) in top holes of Wall Standards (A) using a Socket Wrench or Nut Driver.
Make sure Wall Standards are vertically plumb, and drill through lower hole into wall studs. Install
remaining 3 Lag Screws (C) in bottom holes of Wall Standards (A) using a Socket Wrench or Nut
Driver.
Page 4
3

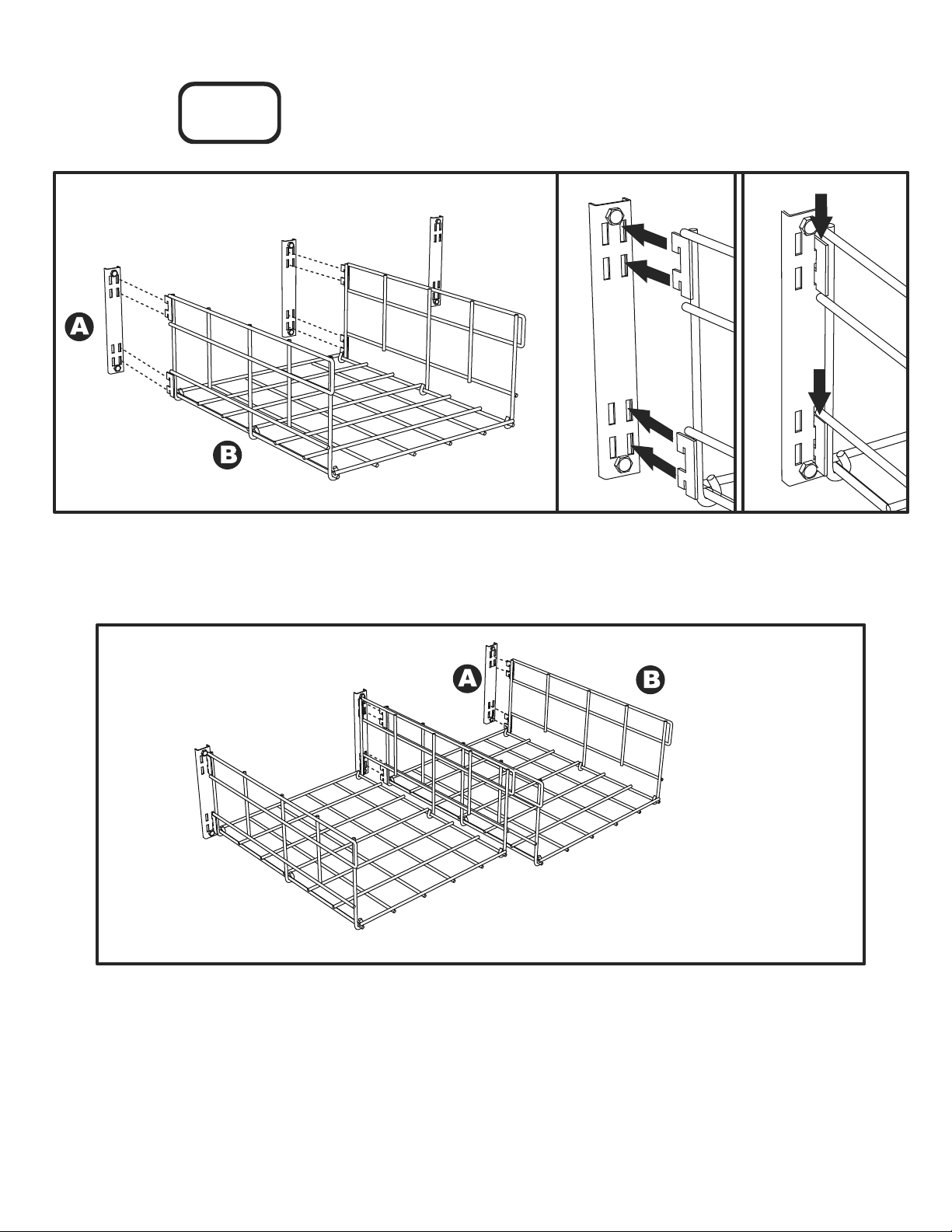

ATTACH WIRE SHELVES
Fully insert hooks
into slots
Detail A
Insert brackets of Wire Shelves (B) starting with the second row of slots in Wall Brackets (A). Insert 2nd
Wire Shelf as shown. Be sure that the shelf bracket hooks are fully inserted in and pushed down,
locking the brackets into the slots before placing weight on the shelf. (See Details A & B)
Push down hooks
to lock
Detail B
Insert 2nd Wire Shelf as shown.
You have now completed the installation are ready to load your new HyLoft Bin Loft Storage
Unit. (Maximum 25 lbs. per wire shelf).
Make sure all screws and brackets are securely fastened into wall studs before placing bins,
boxes or other storage items.
Periodically (at least annually) check all connections to ensure that they remain tightly
fastened.
