Hygena 633-2923, 633-2758, 198-9405, 633-2844, 194-7605 Instruction manual

MADE IN

BRITAIN

Dimensions

Width - 60cm

Depth - 59cm

Height - 213cm

Valencia - 600mm Larder Cabinet

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 3 - 05/08/14

Important - Please read these instructions fully before starting assembly

hygena

633/7777

633/2923

633/2758

198/9405

633/2844

194/7605

If you are fitting a Fridge/Freezer inside this unit please refer to the instructions that were supplied with the appliance.

We recommend that you contact a registered installer.

Cabinet

Black Door Pack

Cream Door Pack

Oak Door Pack

White Gloss Door Pack

White HN Door Pack

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 47kgs. Please lift with care.

• Check you have all the components and tools listed on pages 1, 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

Tools required

Rule Scissors Hammer

Eye protection (when using a hammer or drill)

Cross-head screwdriver

Electric drill

Components - Panels

Please check you have all the panels listed below

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Loose Shelf (DPF079A)

(568 x 431mm) x 3

Back (DPF109A)

(579 x 1976mm)

Valencia Door (DPF148B)

(597 x 716mm)

Valencia Larder Door (DPF156B)

(597 x 1258mm)

Left Side (DPF106B)

(1980 x 560mm)

Right Side (DPF107B)

(1980 x 560mm)

Fixed Shelf (DPF108B)

(569 x 494mm)

Top/Base (DPF078B)

(569 x 494mm) x 2

Small Back

(D1148)

(164.5 x 570mm)

Please check you have all the fittings listed below

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Wooden dowel (F22) x 18

Metal dowel (F901) x 12

Large locking nut (F900) x 12

G H I a

I c

I d

I e

I b

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

J K

13mm Screw (F63) x 10

13mm Screw (F79) x 2

Connecting Sleeve (F432) x 2 19mm Connecting bolt (F461) x 2

L M

25mm Screw (F50) x 9

Hinge Cover (F119) x 5

Bracket (F945) x 2

Shelf support (F110) x 12

Hinge Plate (F117) x 5

Hinge Arm (F118) x 5

Leg Bracket (F127) x 2

Leg Socket (F120) x 4

Leg Clip (F128) x 2

16mm Screw (F129) x 16

Leg (F122) x 4

ygen

OOa

25mm Screw (F132) x 4

Handle (F214) x 2

45mm Screw (F65) x 4

Step 1

Step 2

Prepare the left side

Refer to step 1 and, if required, fit 5 hinge

plates onto the left side , as shown.

Screw 6 metal dowels into the left side .

Note: Tighten the metal dowels up fully against the panels.

Fit a bracket to the left side using screw , flush with the top edge and back edge, see diagram.

Choose which way you would like the doors to open

You can fit the doors to the left side or right side.

Assembly Instructions

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

If you would

like your doors

to open this

way, fit the

hinge plates to

the left side

If you would

like your doors

to open this

way, fit the

hinge plates to

the right side

IMPORTANT

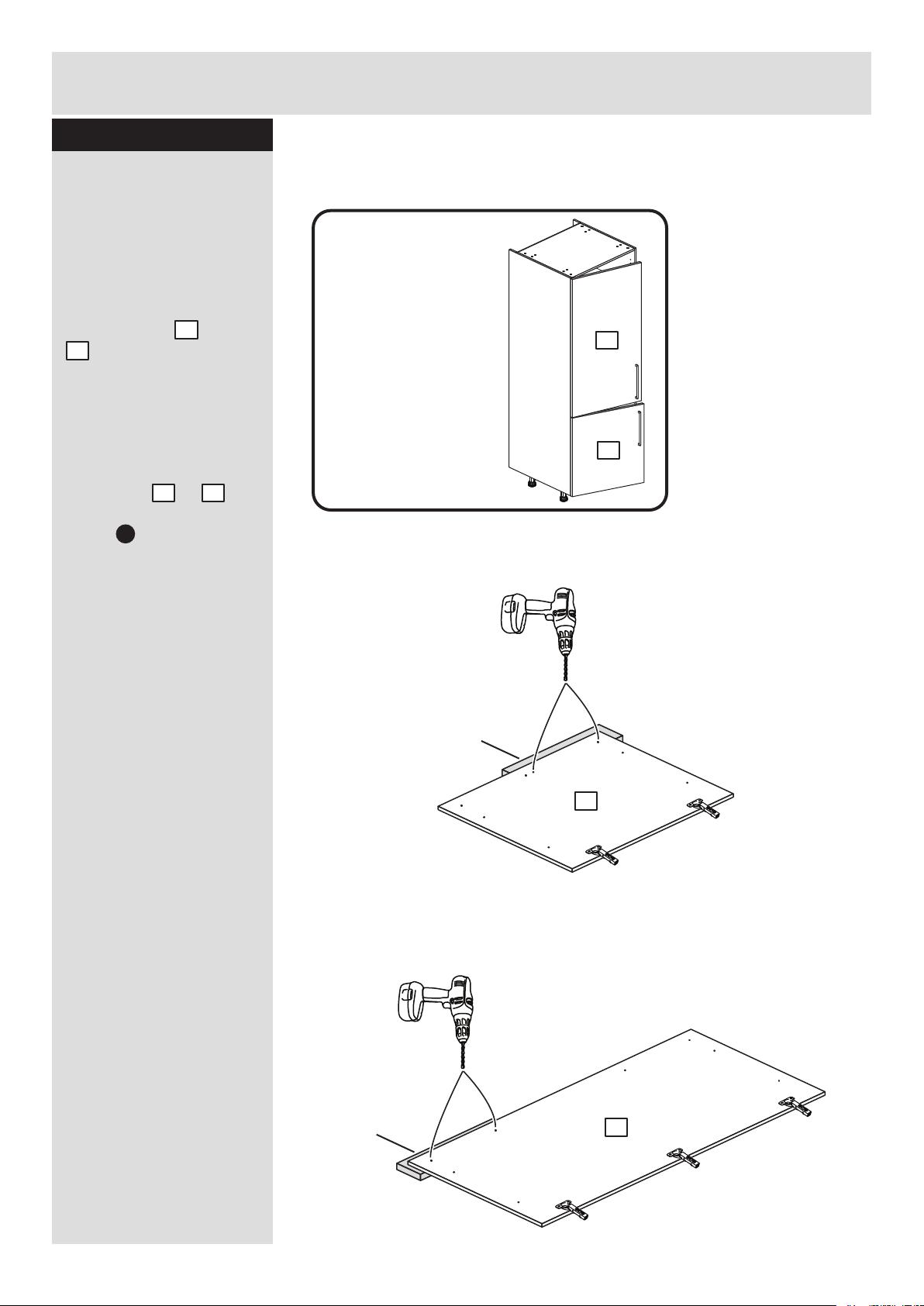

Only carry out this step if you are building a Larder Cupboard. If you are building a housing for a fridge/freezer go to Step 3.

Step 3

Step 4

Assembly Instructions

Prepare the right side

Refer to step 1 and, if required, fit 5 hinge plates onto the right side , as shown.

Screw 6 metal dowels into the holes shown on the right side .

Fit a bracket to the right side , flush with the top edge and back edge, see diagram.

Secure the bracket using screw .

Prepare the left side

Refer to step 1 and, if required, fit 5 hinge

plates onto the left side , as shown.

Screw 6 metal dowels into the left side .

Note: Tighten the metal dowels up fully against the panels.

Fit a bracket to the left side using screw , flush with the top edge and back edge, see diagram.

IMPORTANT

Only carry out this step if you are building a housing for a fridge/freezer. If you are building a Larder Cupboard you have already prepared this panel in Step 2.

IMPORTANT

Only carry out this step if you are building a Larder Cupboard. If you are building a housing for a fridge/freezer go to Step 5.
