Hygena 157-1844, 171-5703, 391-2607 Instruction manual
MADE IN
BRITAIN
Dimensions
Width - 146cm
Depth - 39cm
Height - 63.5cm
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 4 - 26/05/15
Important - Please read these instructions fully before starting assembly
157/1844
171/5703
391/2607
Aurora - 4 Drawer 2 Door Sideboard
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 40kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below

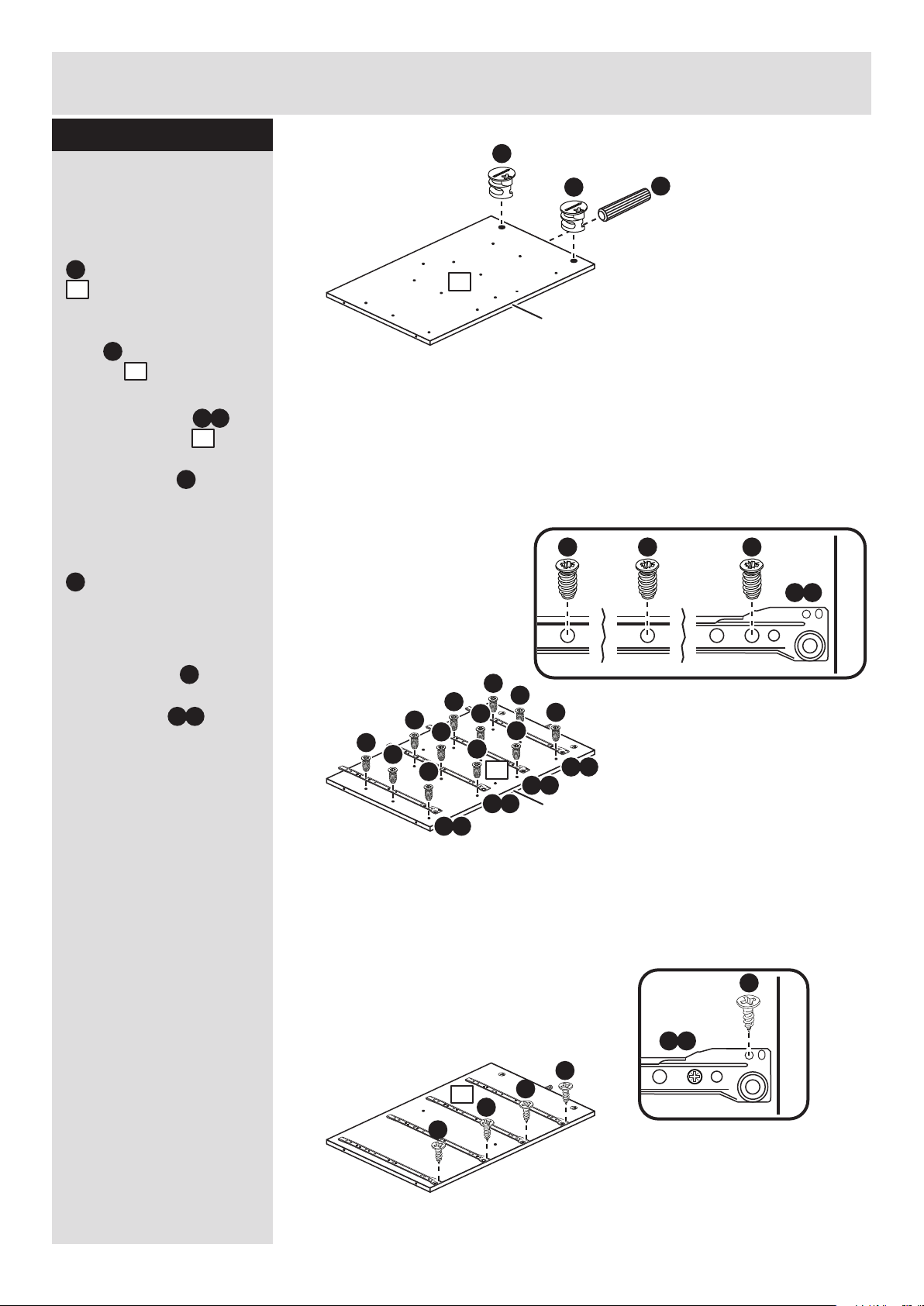

Top (D2608A)
(1460 x 389mm)

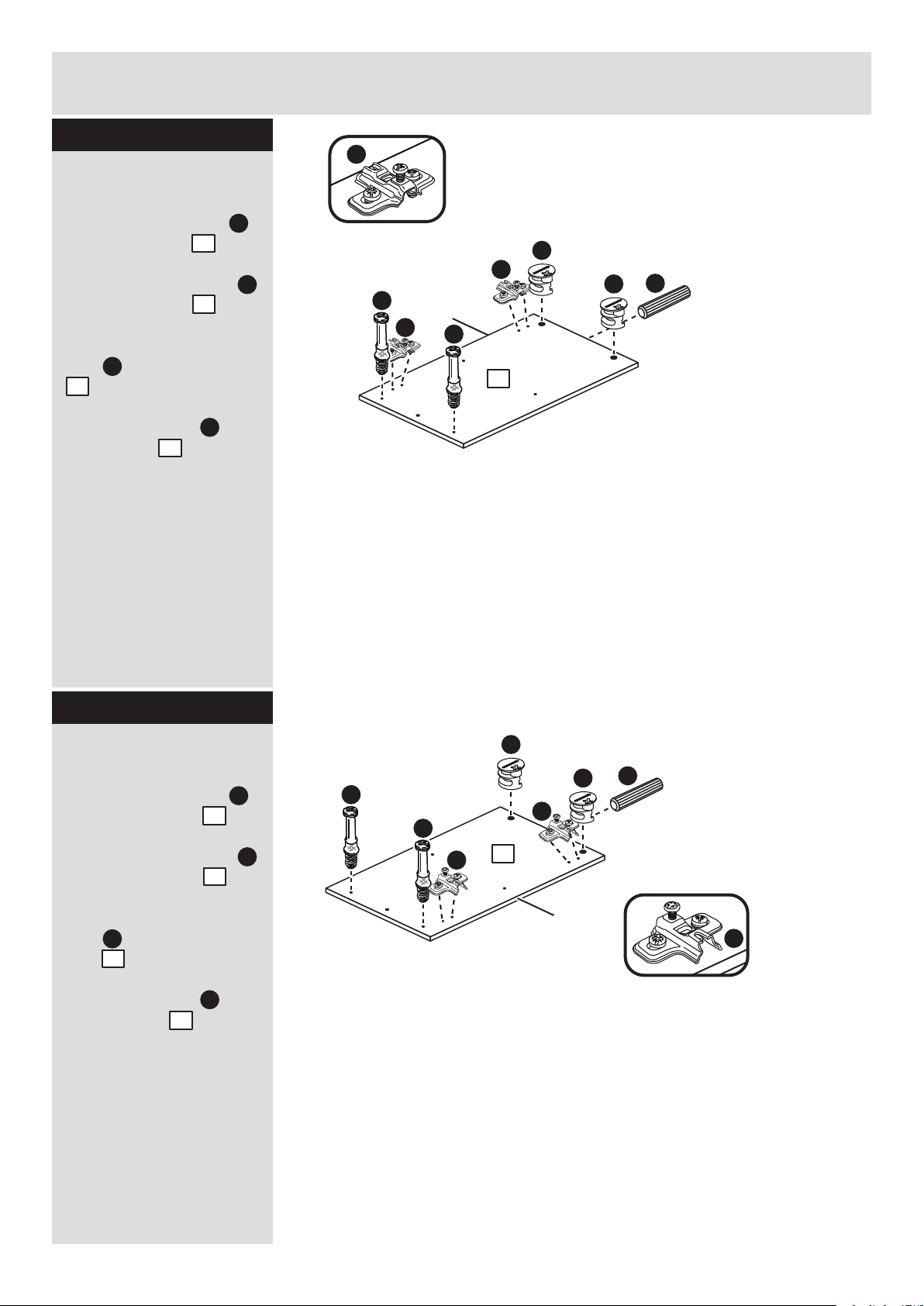

Right Side (D2610A)
(620 x 371mm)
Base (D2613A)
(1420 x 369mm)
Door (D2614A)
(589 x 423mm) x 2
1
2 3
5
Left Side (D2600A)
(620 x 371mm)
13
9
6
4
8
7
Small Drawer Front (D2606A)
(595 x 137mm) x 3
10
Large Drawer Front (D2607A)
(595 x 169mm)
Drawer Back (W531-95)
(531 x 95mm) x 4
12
14
15
Shelf (D2616A)
(403 x 367mm) x 2
Back (X1446-608)
(1446 x 608mm)
11
Left Upright (D2602A)
(585 x 368mm)
Right Upright (D2612A)
(585 x 368mm)
Drawer Base (T542-347)
(542 x 347mm) x 4
Left Drawer
Side (W350-95LLH)
(350 x 95mm) x 4
Right Drawer
Side (W350-95LRH)
(350 x 95mm) x 4
Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 6
B
Metal dowel (F901) x 20
C
D
Large locking
nut (F900) x 12
E F
G H I
Small locking
nut (F3) x 8
Nail (F51) x 28
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
K
Door Plate (F259) x 6
13mm Screw (F52) x 36 13mm Screw (F63) x 32
L
Door Push (F258) x 6
O
Feet (F854) x 4
M
J
Knock-in Peg (F171) x 16
N

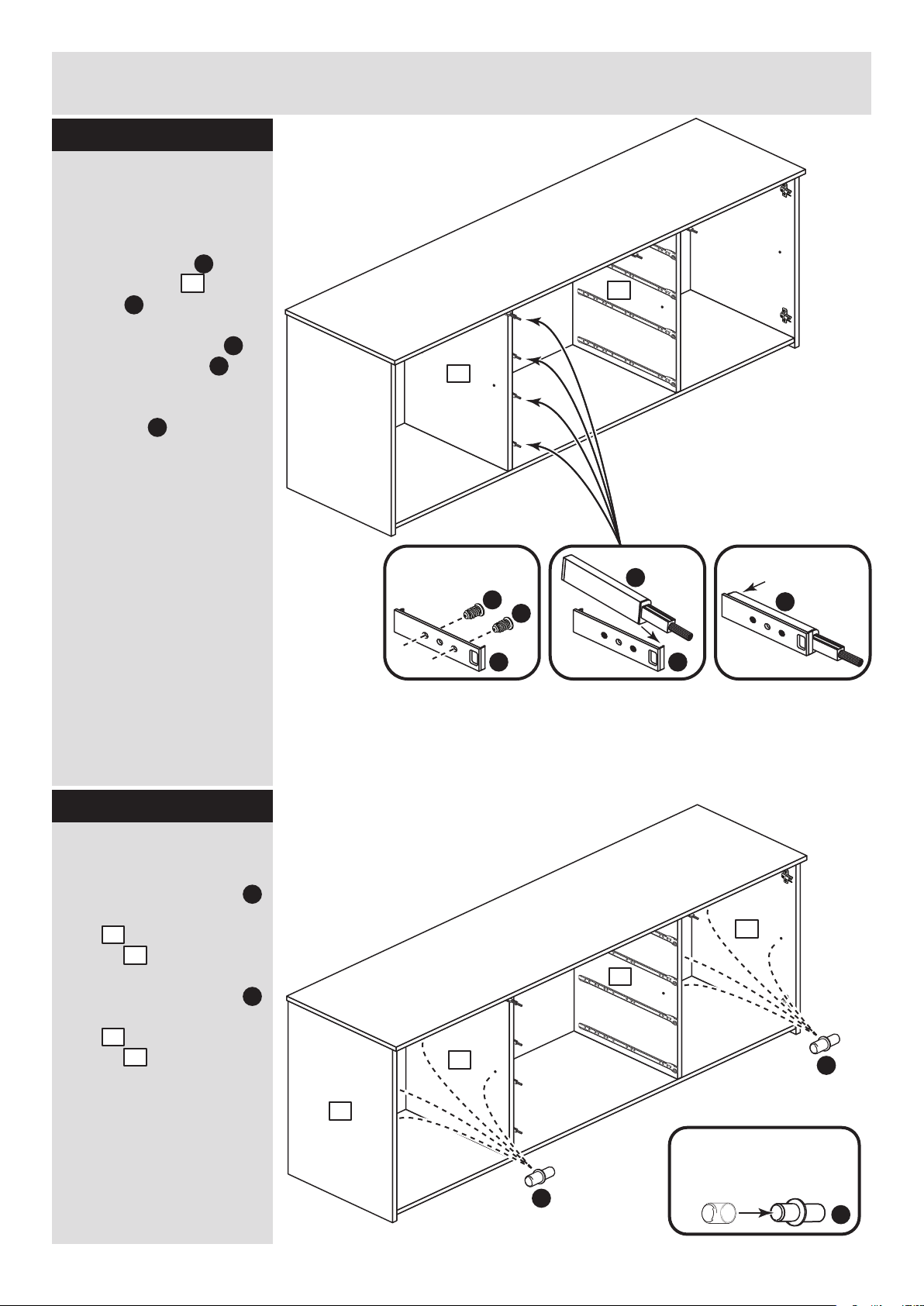

R Runner (F160) x 4
b
L Runner (F161) x 4
N
c
L Runner (F159) x 4
N
a
R Runner (F162) x 4
N
d
350mm long
P

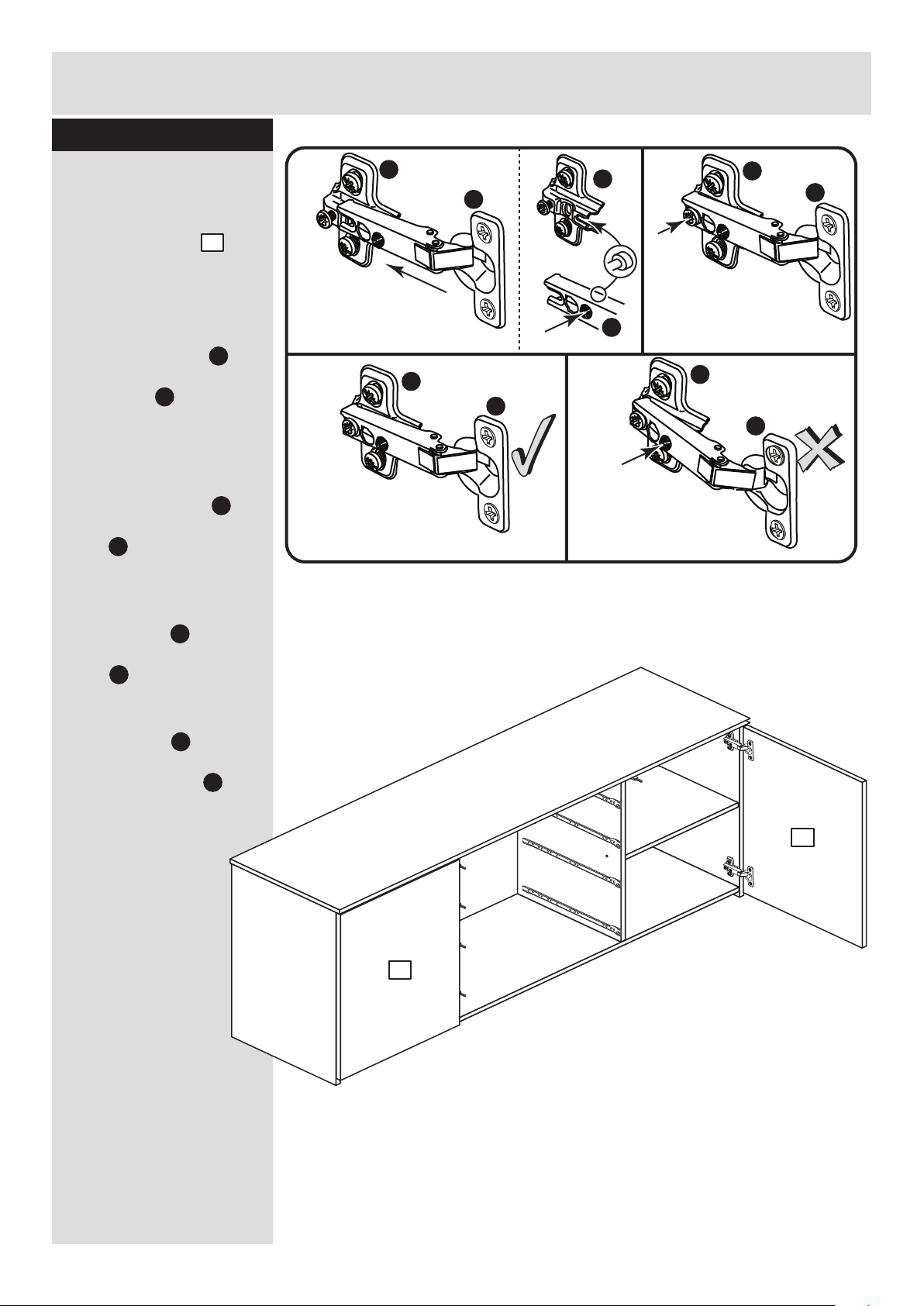

Hinge (F518) x 4
Hinge plate
(F523) x 4
Shelf support (F121) x 8
55mm Screw (F898) x 4
Q
Wedgefix (F639) x 16
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 03456 400800 quoting the reference
numbers below
Step 1
x 3
x 4 x 4
x 1
B
B
B
D
Step 2
Prepare the drawer
fronts
Screw 2 metal dowels
into each small drawer
front and the large
drawer front .
Note: Tighten metal
dowels up fully against
the panels.
B
7
8
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Step 3
D
10
11
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer fronts and .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
11
7 8
10
11
7 8
D
10
11
Groove
D
D
D
11
10
D
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the groove is on the inside, as shown.
10
B
B
B
B
x 4
7
8
Assembly Instructions
5
Step 4
10
11
13
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front and .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
13
10 11
7 8
J
J
J
J
10
12
11
13
12
10 11
13
12
12
J
10 11
7 8
7 8
x 4
x 4
