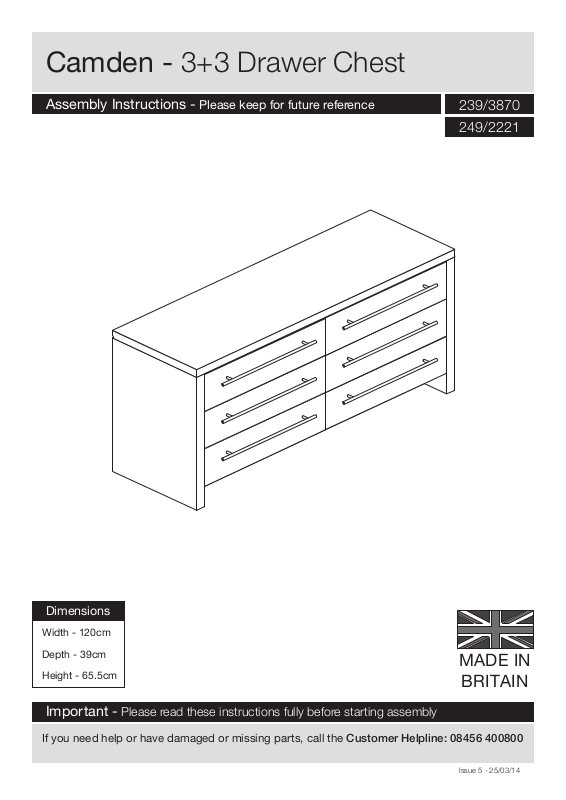

Hygena 239-3870, 249-2221 Instruction manual

MADE IN

BRITAIN

Dimensions

Width - 120cm

Depth - 39cm

Height - 65.5cm

Camden - 3+3 Drawer Chest

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 5 - 25/03/14

Important - Please read these instructions fully before starting assembly

239/3870

249/2221

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs approximately 36kgs. Please lift with care.

• Check you have all the components and tools listed on pages 2 and 3.

• Remove all fittings from the plastic bags and separate them into their groups.

• Keep children and animals away from the work area, small parts could choke if swallowed.

• Parts of the assembly will be easier with 2 people.

• Make sure you have enough space to layout the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position (in the same room) as possible.

• Assemble on a soft level surface to avoid damaging the unit or your floor (use opened out unit carton).

Care and maintenance

• Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

• From time to time check that there are no loose screws on this unit.

• This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

• We do not recommend the use of power drill/drivers for

inserting screws, as this could damage the unit. Only use hand screwdrivers.

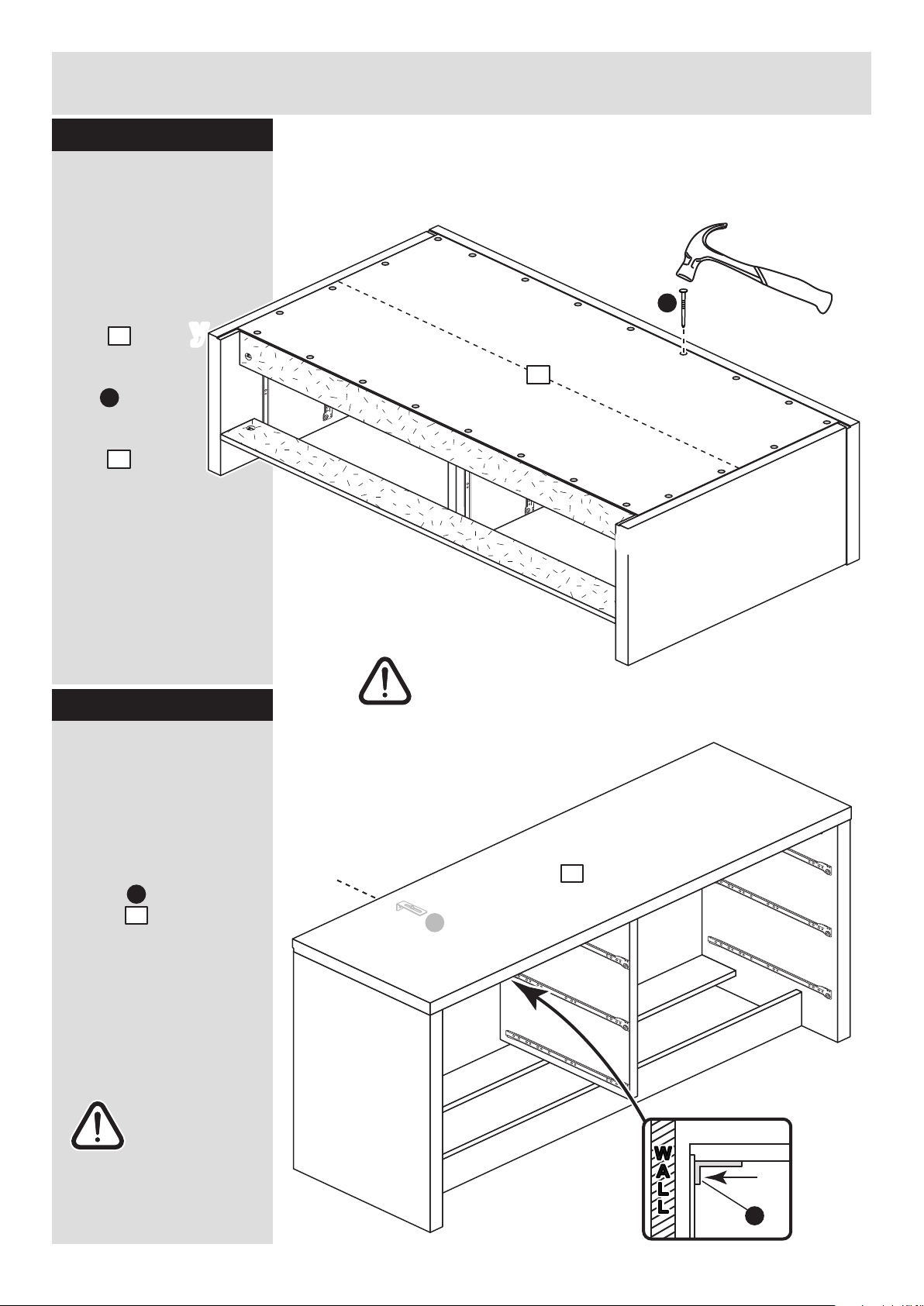

• Safety note: It is recommended that this unit is secured to a wall using the bracket supplied.

• Dispose of all packaging carefully and responsibly.

Components - Panels

Please check you have all the panels listed below

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Left Side (D1996A)

(620 x 389mm)

Divider (D1999A)

(524 x 368mm)

Top (D2002A)

(1198 x 391mm)

Plinth (D1998A)

(1124 x 96mm) x 2

Left Drawer Front (D2000A)

(559 x 173mm) x 3

Right Side (D1997A)

(620 x 389mm)

Right Drawer Front (D2001A)

(559 x 173mm) x 3

Drawer Base (T513-347)

(513 x 347mm) x 6

Drawer Back (W502-124)

(502 x 124mm) x 6

Back (X944)

(1142 x 572mm)

1 2 3

8 9

Left Drawer Side (W350-124LH)

(350 x 124mm) x 6

Right Drawer Side (W350-124RH)

(350 x 124mm) x 6

Please check you have all the fittings listed below

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Wooden dowel (F22) x 4

Metal dowel (F901) x 18

Large locking nut (F900) x 6

Small locking nut (F3) x 12

Small metal dowel (F893) x 4

19mm Screw (F461) x 12

Nail (F51) x 23

J K

Hollow core locking nut (F892) x 4

Bracket (F327) x 1

Wedgefix (F639) x 24

Knock-in Peg (F171) x 24

13mm Screw (F63) x 36

13mm Screw (F52) x 36

13mm Screw (F79) x 1

R Runner (F160) x 6

L Runner (F161) x 6

L Runner (F159) x 6

R Runner (F162) x 6

Handle (F309) x 6

432mm

Assembly Instructions

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

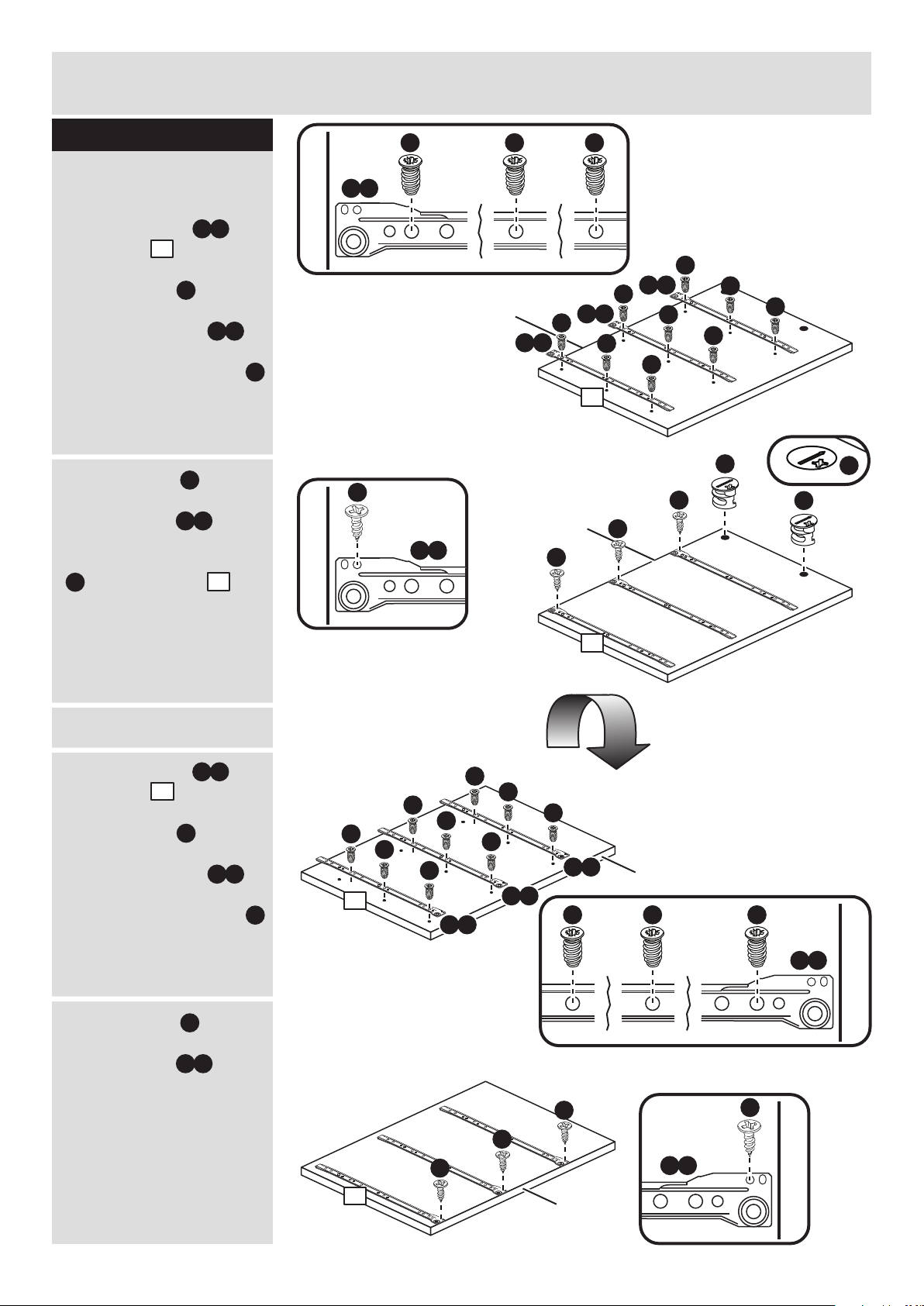

Step 1

Prepare the drawer fronts

Screw 2 metal dowels into the left drawer fronts , and right drawer fronts .

Note: Tighten the metal dowels up fully against the panels.

Prepare the drawer sides

Insert a small locking nut into the hole shown on the left drawer side and right drawer side .

Note: The arrow on the locking nut must point towards the hole in the edge of the panel.

Step 2

Note: Due to the manufacturing process, the holes for the locking nut can be on either surface of the drawer sides.

x 3

x 6

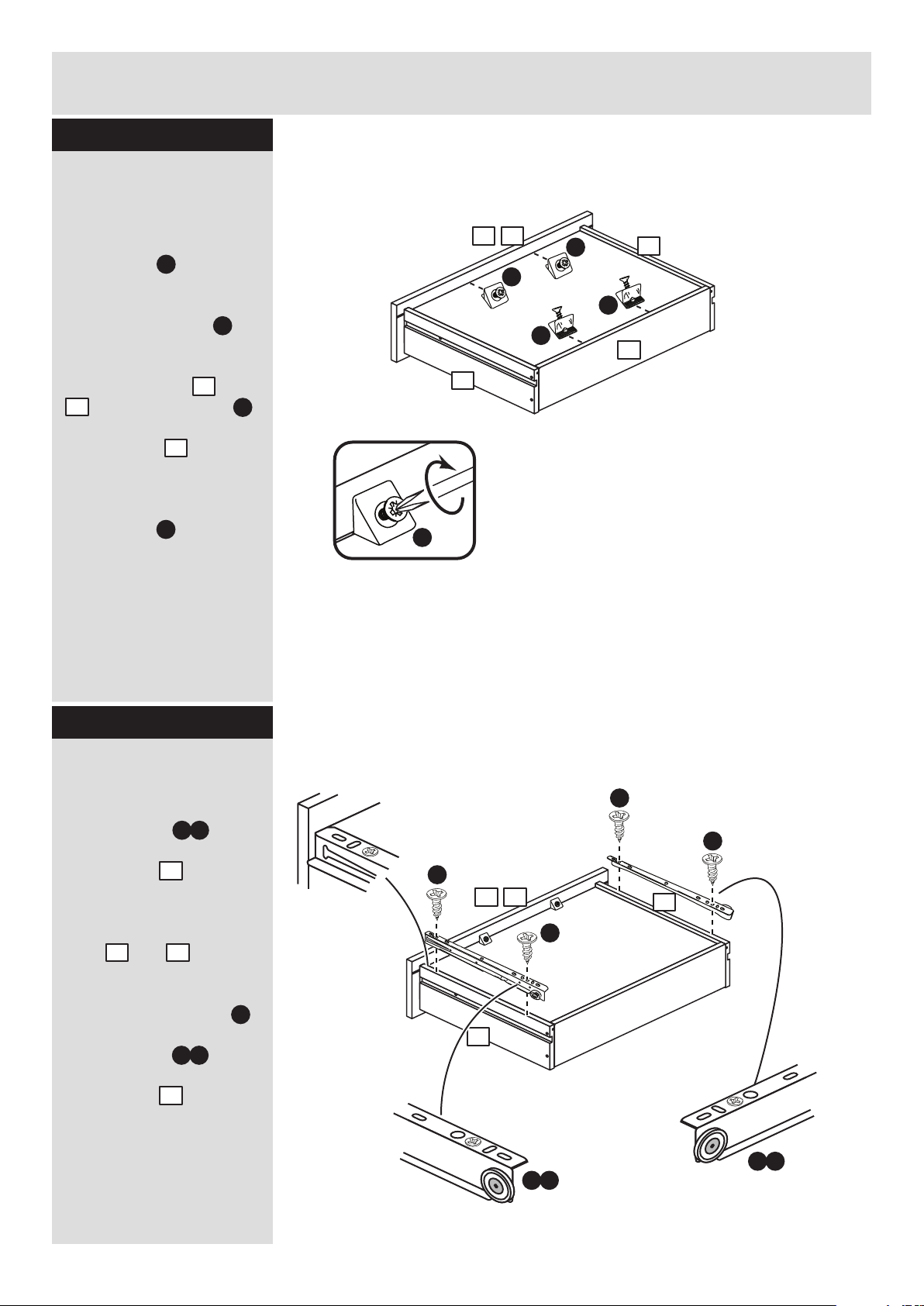

Step 3

Attach the drawer sides to the drawer front

Push the left drawer side . and right drawer side . onto the back of the left drawer front and right drawer front .

Turn the small locking nuts on the left drawer side and right drawer side .

Note: Turn the locking nuts clockwise to secure panels - more than 1/2 a turn.

8 9

Note: The locking nuts can be on either surface of the drawer sides. Make sure that the small groove is on the inside, as shown.

Small Groove

x 3

Note: The right drawer front has a shallow identification mark.
