Hygena 2463243 Instruction manual

MADE IN

BRITAIN

Dimensions

Width - 50cm

Depth - 59cm

Height - 87cm

Valencia - 500mm Base Cabinet

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 2 - 31/07/14

Important - Please read these instructions fully before starting assembly

hygena

656/5776

633/2882

633/2710

205/4009

633/2806

192/3722

Cabinet

Black Door Pack

Cream Door Pack

Oak Door Pack

White Gloss Door Pack

White HN Door Pack

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs
approximately 16.5kgs.
Please lift with care.

• Check you have all the
components and tools listed on
pages 1, 2 and 3.

• Remove all fittings from the
plastic bags and separate them
into their groups.

• Keep children and animals
away from the work area, small
parts could choke if swallowed.

• Parts of the assembly will be
easier with 2 people.

• Make sure you have enough
space to layout the parts before
starting.

• Do not stand or put weight on
the product, this could cause
damage.

• Assemble the item as close to
its final position (in the same
room) as possible.

• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).

1

Care and maintenance

• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.

• From time to time check that
there are no loose screws on
this unit.

• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.

Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

Tools required

Rule Scissors Hammer

Eye protection
(when using a
hammer or drill)

Cross-head
screwdriver

Electric drill

• We do not
recommend the
use of power
drill/drivers for

inserting screws,
as this could damage the unit.
Only use hand screwdrivers.

• Safety note: It is
recommended that this unit is
secured to a wall using the
brackets supplied.

• Dispose of all packaging
carefully and responsibly.

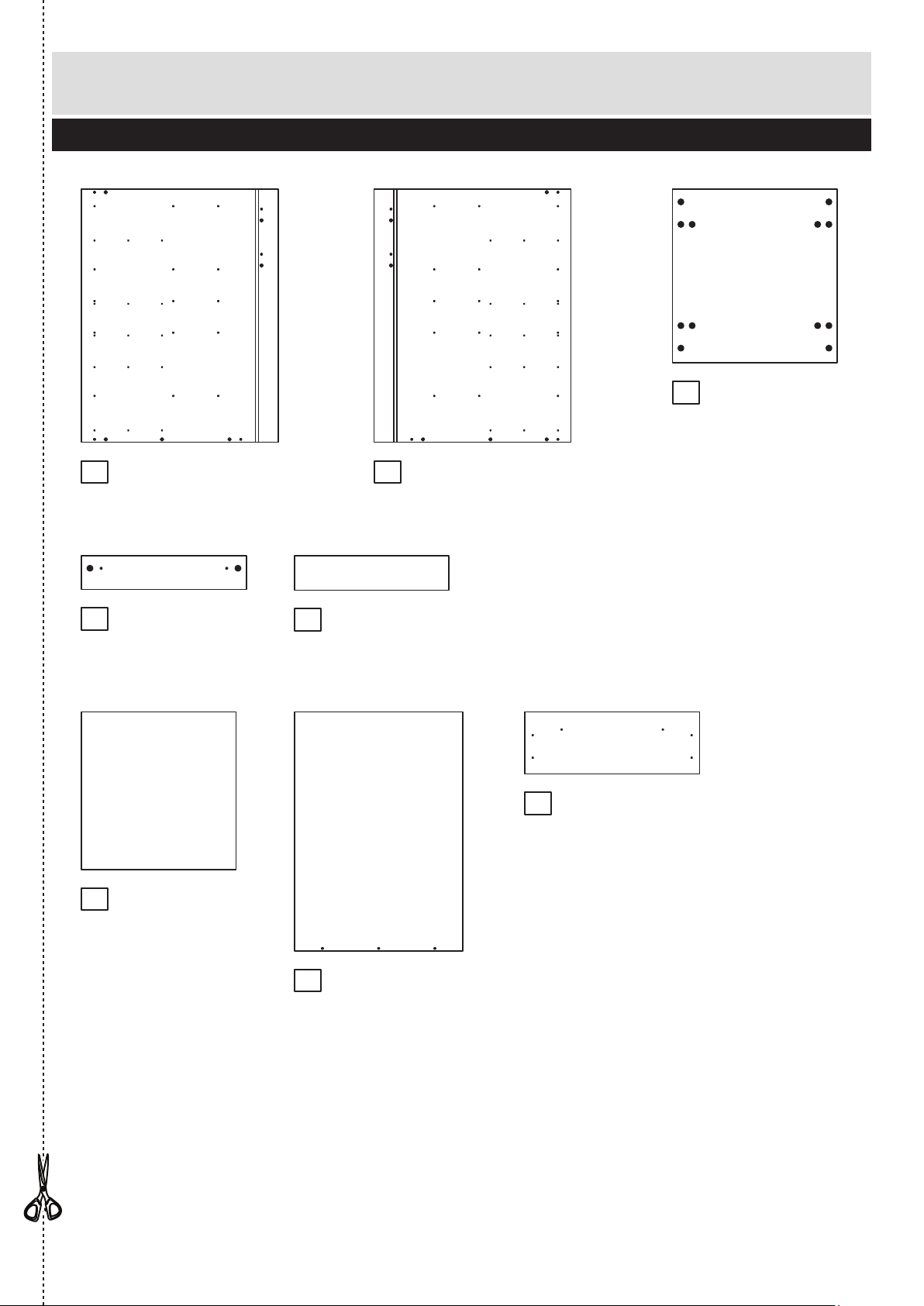

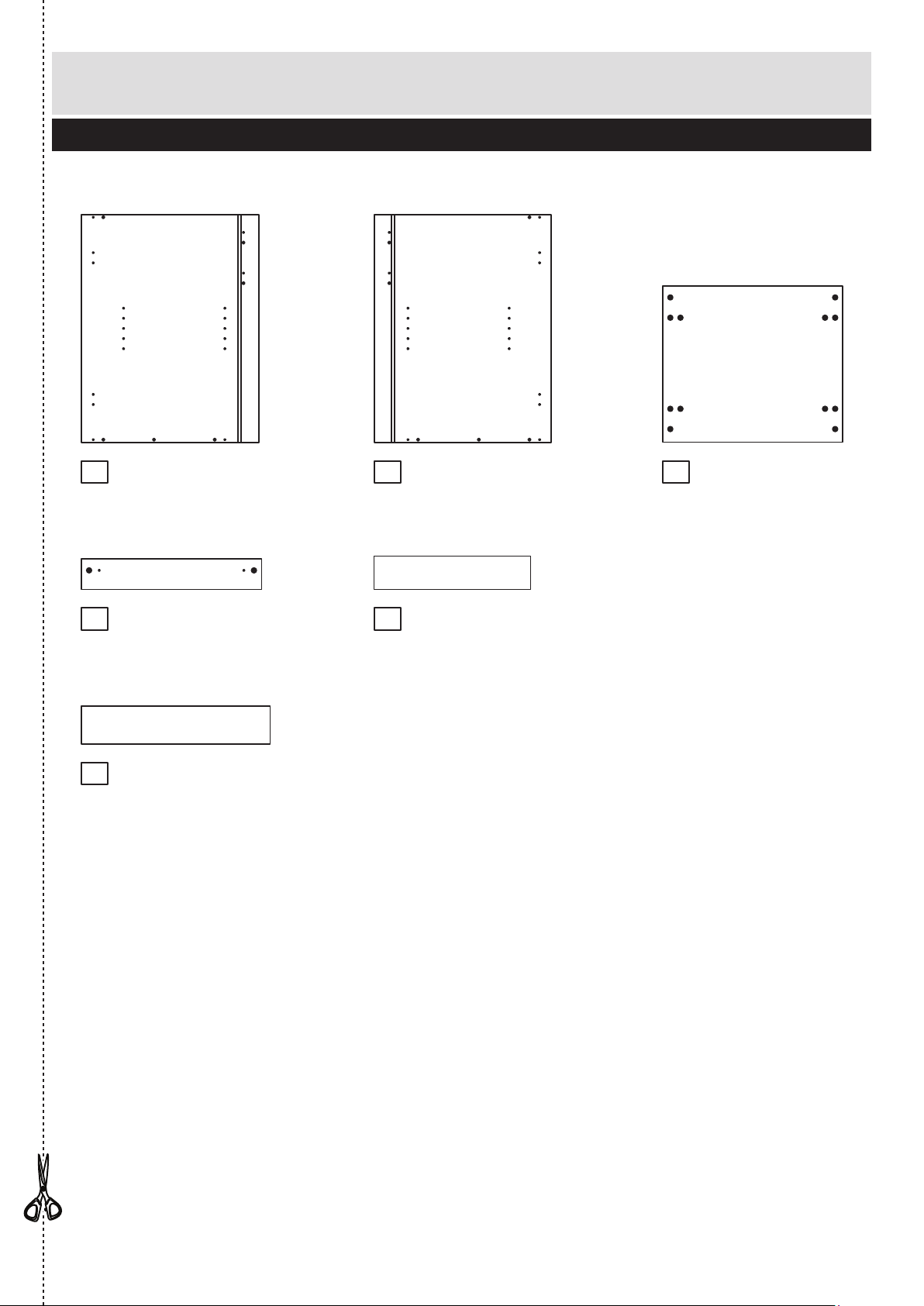

Components - Panels

Please check you have all the panels listed below

2

1

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

5

2

6

4

3

Left Side (DPF068A)

(720 x 560mm)

Right Side (DPF069A)

(720 x 560mm)

Back (DPF077A)

(479 x 680mm)

Loose Shelf (DPF075A)

(468 x 431mm)

Base (DPF074A)

(469 x 494mm)

Cross Rail (DPF076A)

(469 x 96mm) x 2

7

Door (DPF147B)

(497 x 716mm)

The front surface

of this door is

protected with a

peel-off film

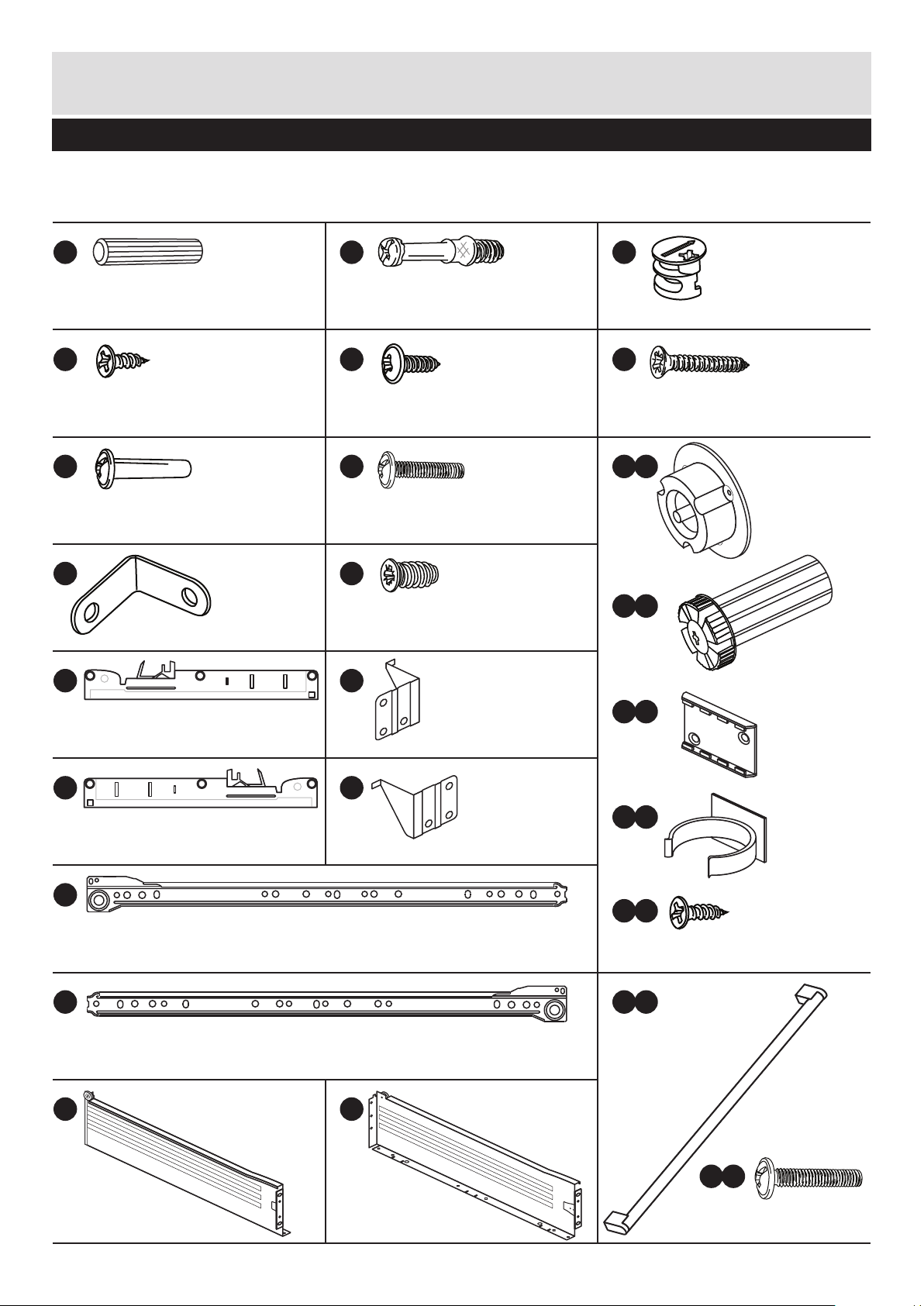

Please check you have all the fittings listed below

3

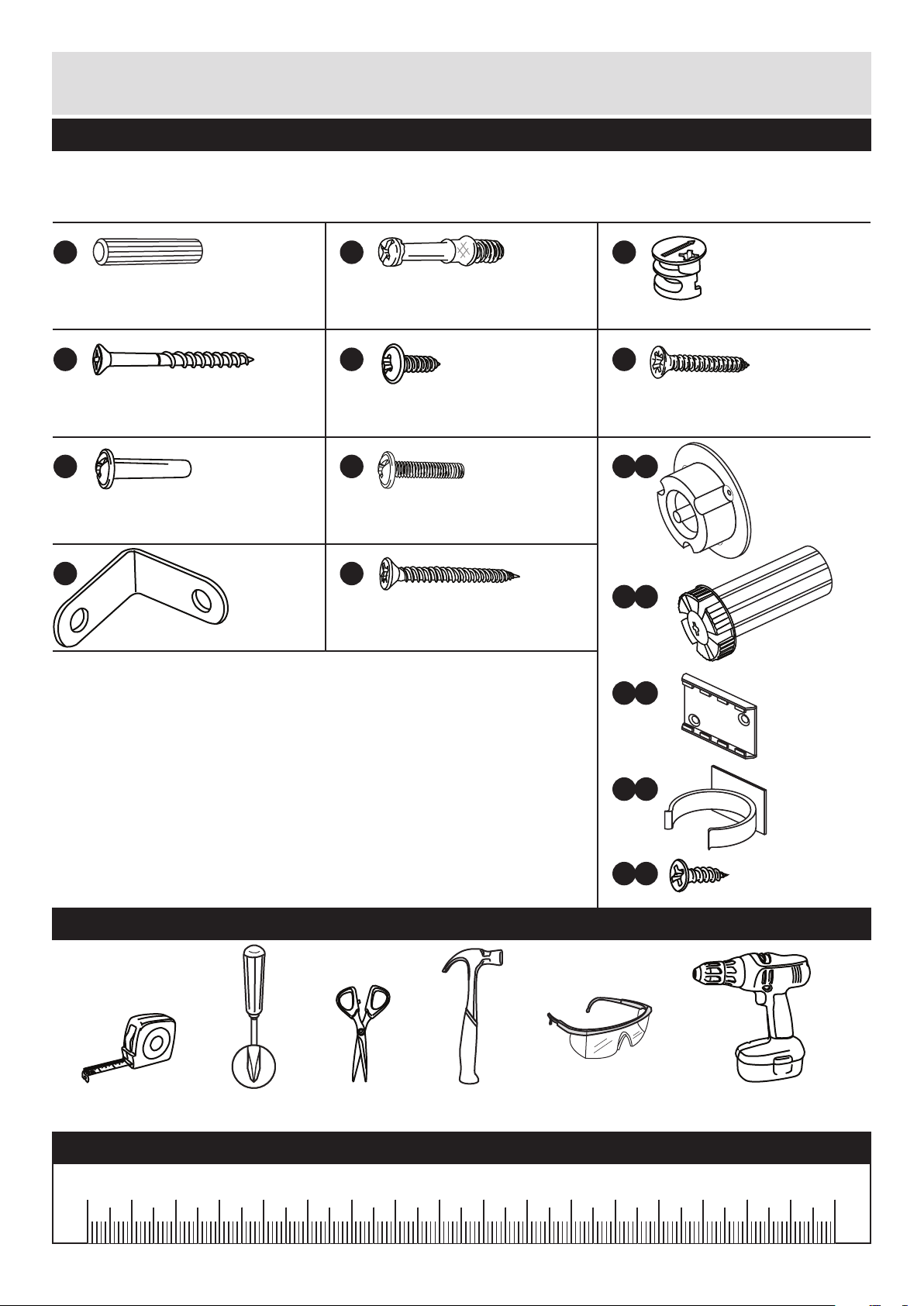

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.

A

Wooden dowel (F22) x 10

B

Metal dowel (F901) x 8

C

D

Large locking
nut (F900) x 8

F

G H I a

I c

I d

I e

I b

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

J K

13mm Screw (F63) x 4

E

13mm Screw (F79) x 6

Connecting Sleeve (F432) x 2 19mm Connecting bolt (F461) x 2

L M

25mm Screw (F50) x 5

N

Hinge Cover (F119) x 2

Bracket (F945) x 4

Shelf support (F110) x 4

Hinge Plate
(F117) x 2

Hinge Arm (F118) x 2

Leg Bracket
(F127) x 2

Leg Socket
(F120) x 4

Leg Clip
(F128) x 2

16mm Screw
(F129) x 16

Leg (F122) x 4

h

ygen

a

OOa

b

25mm Screw (F132) x 2

Handle (F214) x 1

Assembly Instructions

4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Step 1

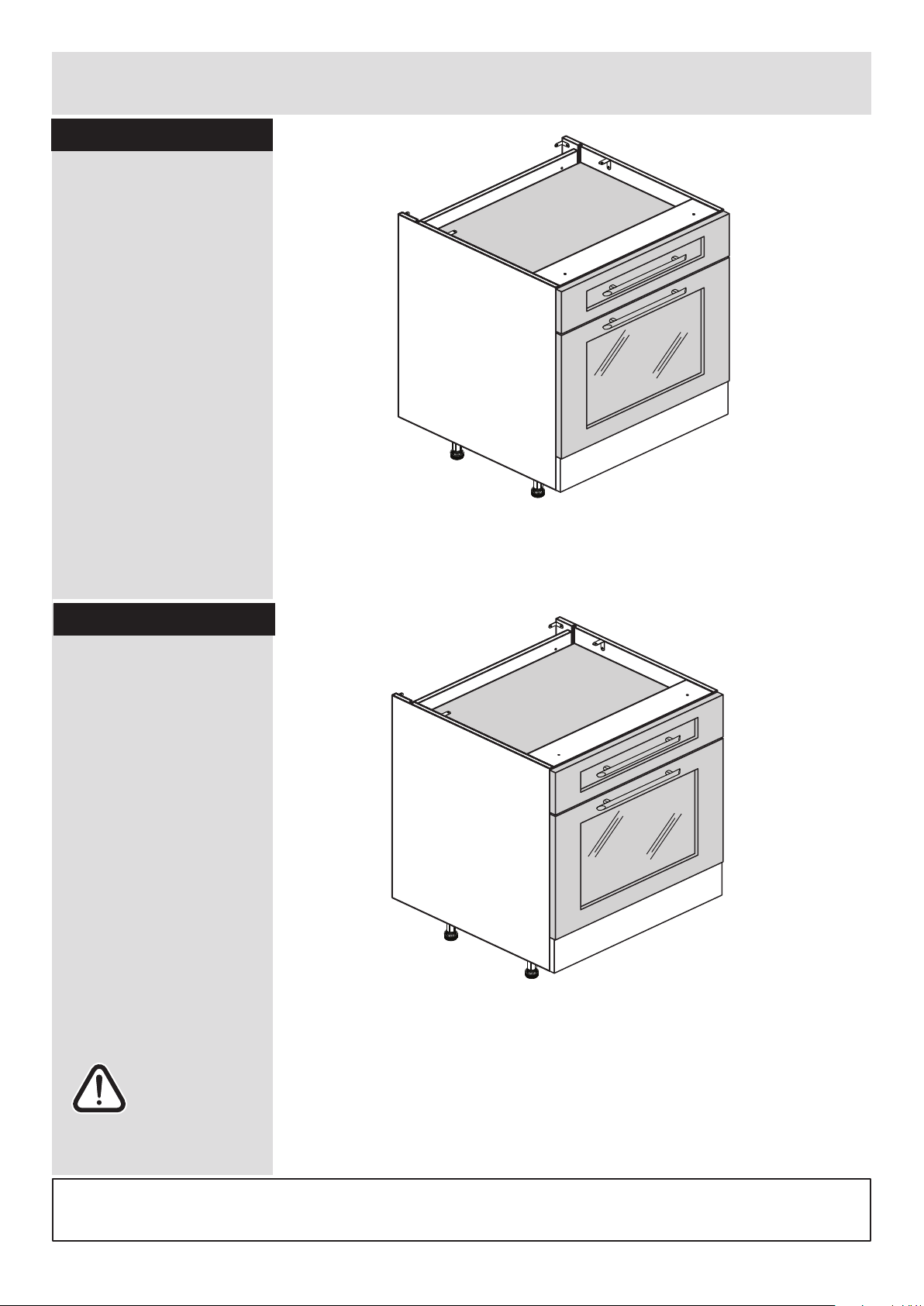

Choose which way
you would like the
door to open

You can fit the door to
the left side or right side.

If you would

like your door

to open this

way, fit the

hinge plates

to the left side

If you would

like your door

to open this

way, fit the

hinge plates to

the right side

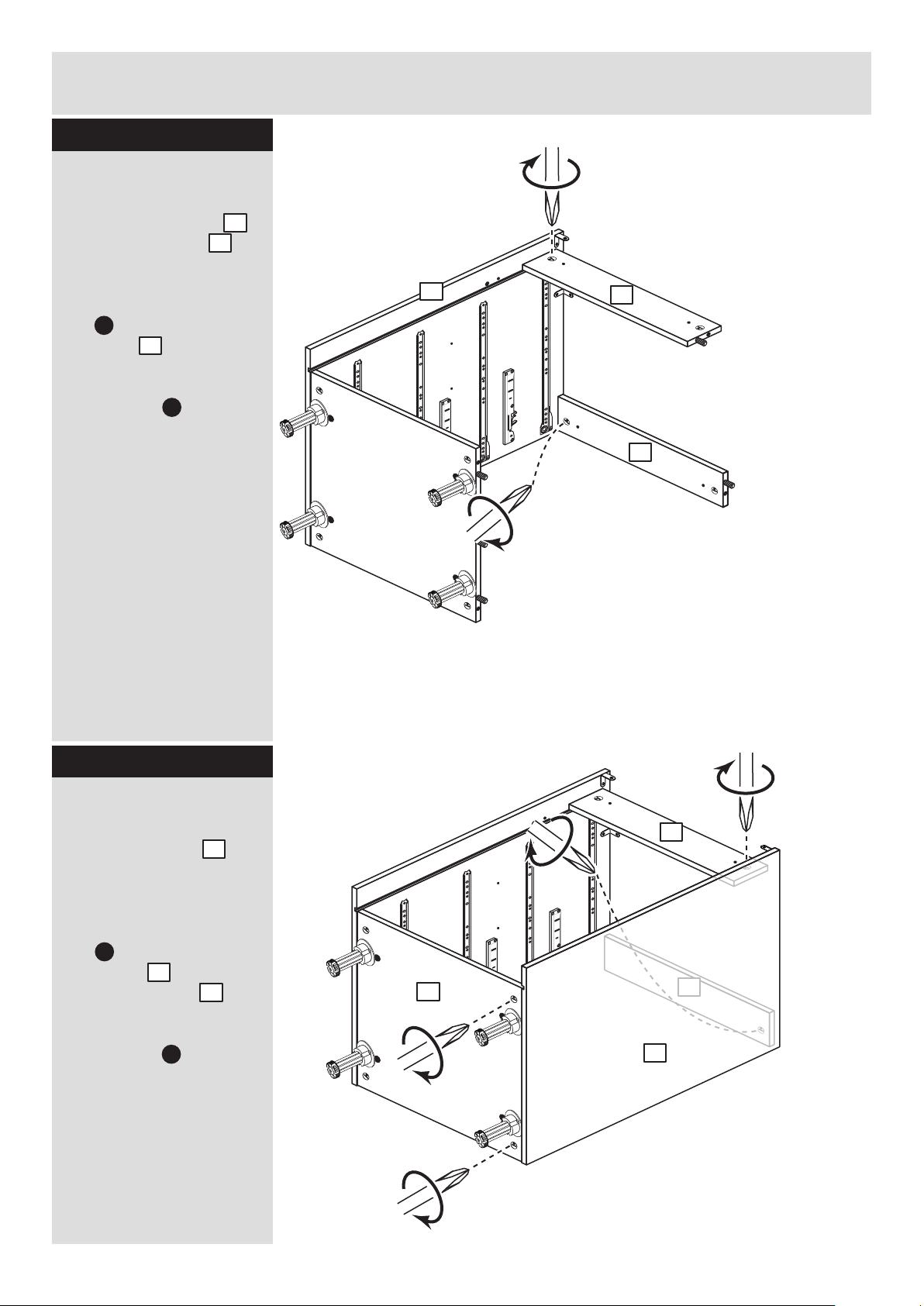

Step 2

L

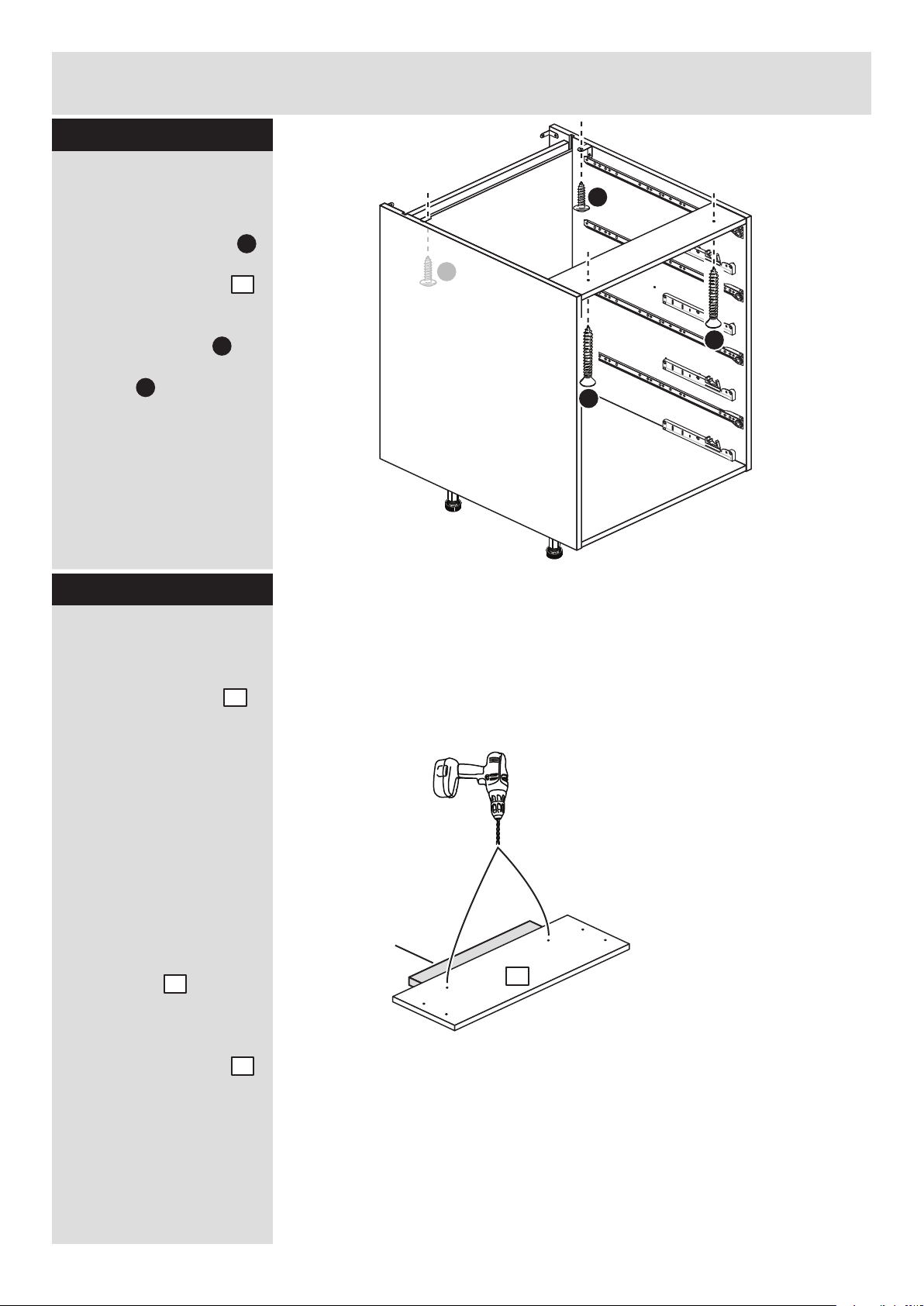

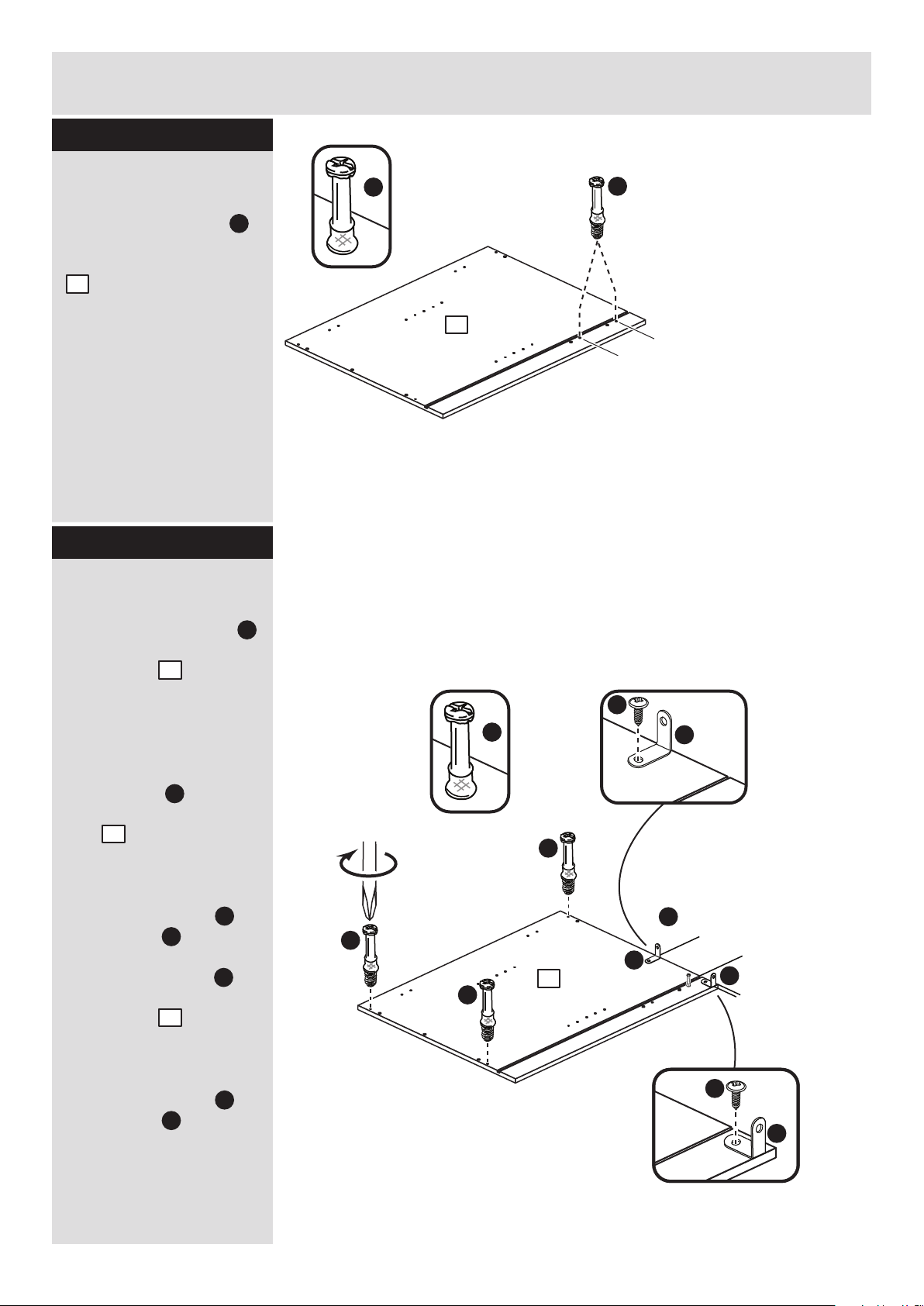

Prepare the left side

Refer to step 1 and, if
required, fit 2 hinge

plates onto the left
side , making sure
that the slot is facing
towards the front edge.

Screw 4 metal dowels
into the holes shown on
the left side .

Note: Tighten metal
dowels up fully against
the panels.

Fit a bracket flush to
the top edge of the left
side , about 150mm
in from the groove, see
diagram.

Secure the bracket
using screw .

Fit another bracket
flush to the back edge of
the left side , about
5mm down from the top
edge, see diagram.

Secure the bracket
using screw .

Note: The brackets must
be flush with the
top/back edge of the
panel.

1

B

1

J

J

1

J

1

E

J

E

B

B

B

B

L

L

5mm

150mm

J

J

J

E

1

B

1

L

J

E

5mm

150mm

5

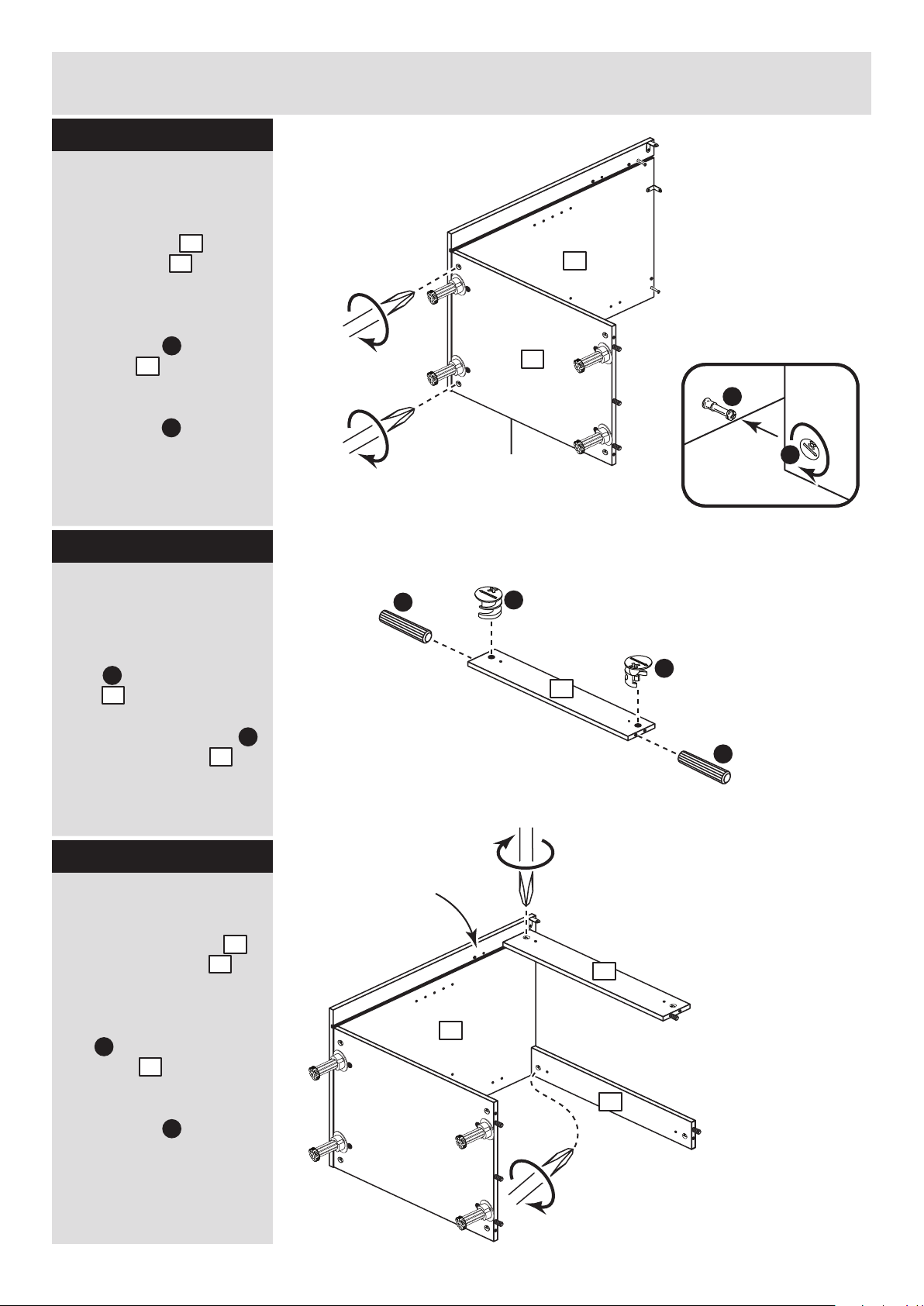

Step 3

A

A

A

Assembly Instructions

Step 4

L

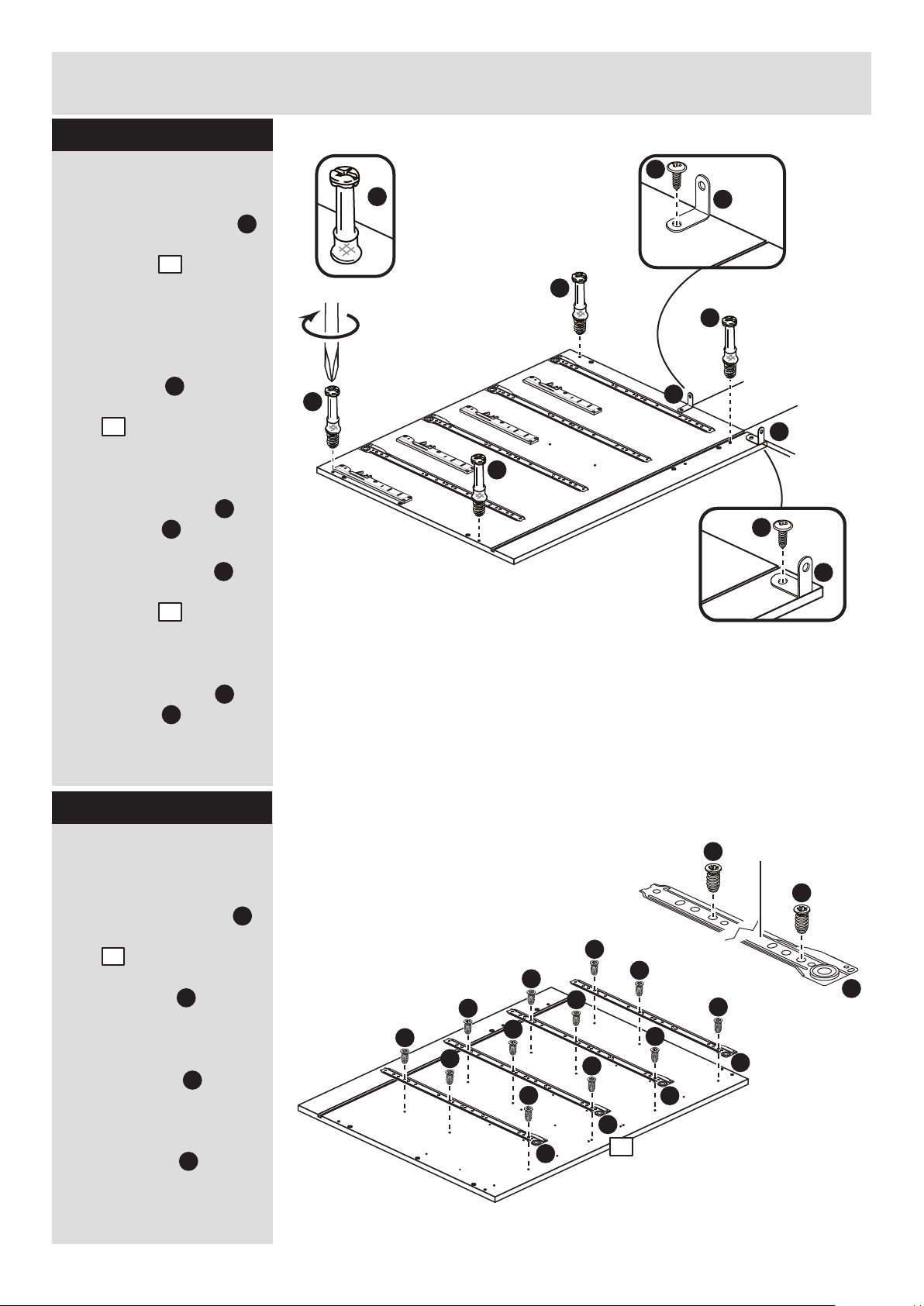

Prepare the right side

Refer to step 1 and, if
required, fit 2 hinge

plates onto the right
side , making sure
that the slot is facing
towards the front edge.

Screw 4 metal dowels
into the holes shown on
the right side .

Fit a bracket flush to
the top edge of the right
side , about 150mm
in from the groove, see
diagram.

Secure the bracket
using screw .

Fit another bracket
flush to the back edge of
the right side , about
5mm down from the top
edge, see diagram.

Secure the bracket
using screw .

2

B

2

J

J

2

J

2

E

J

E

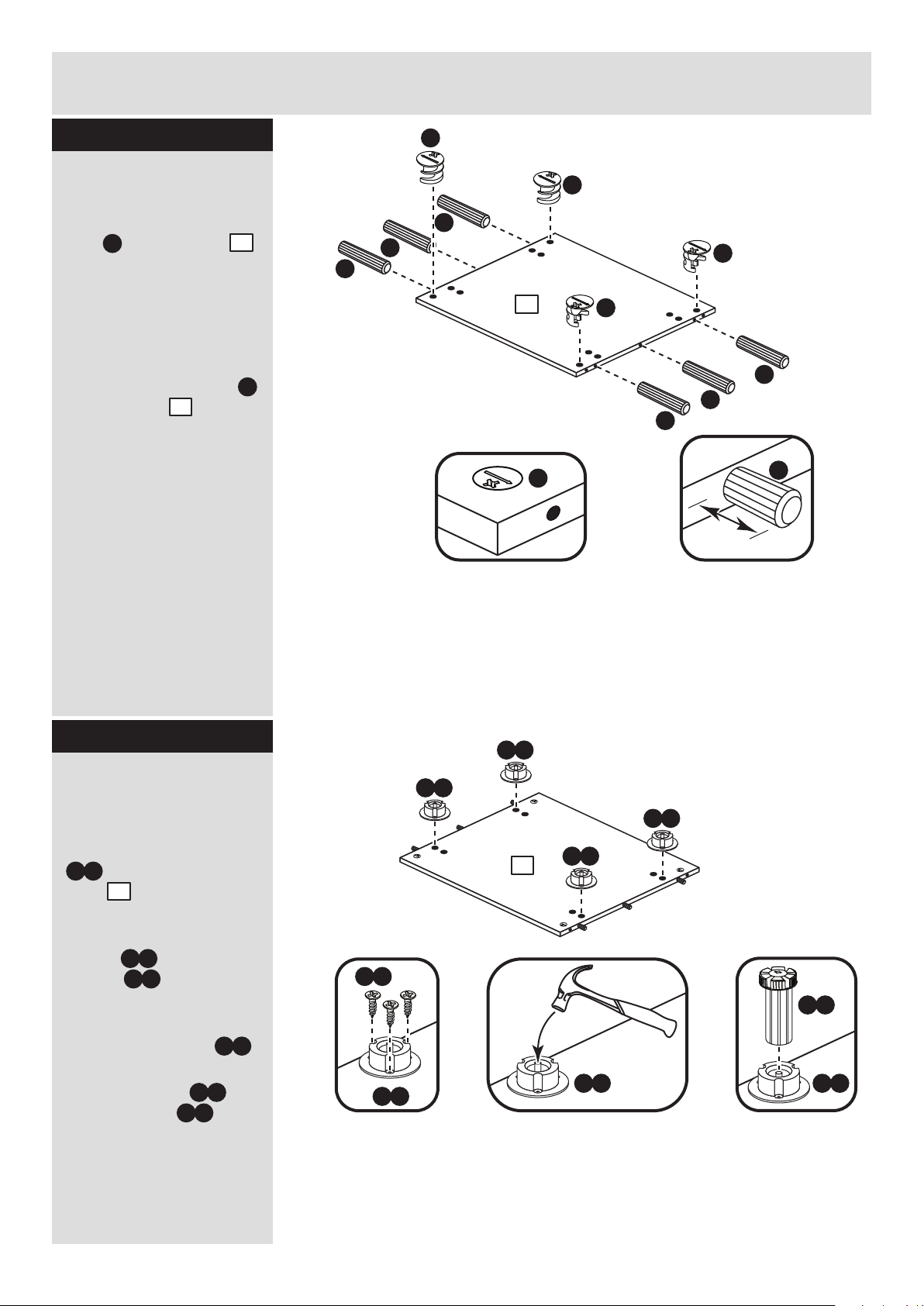

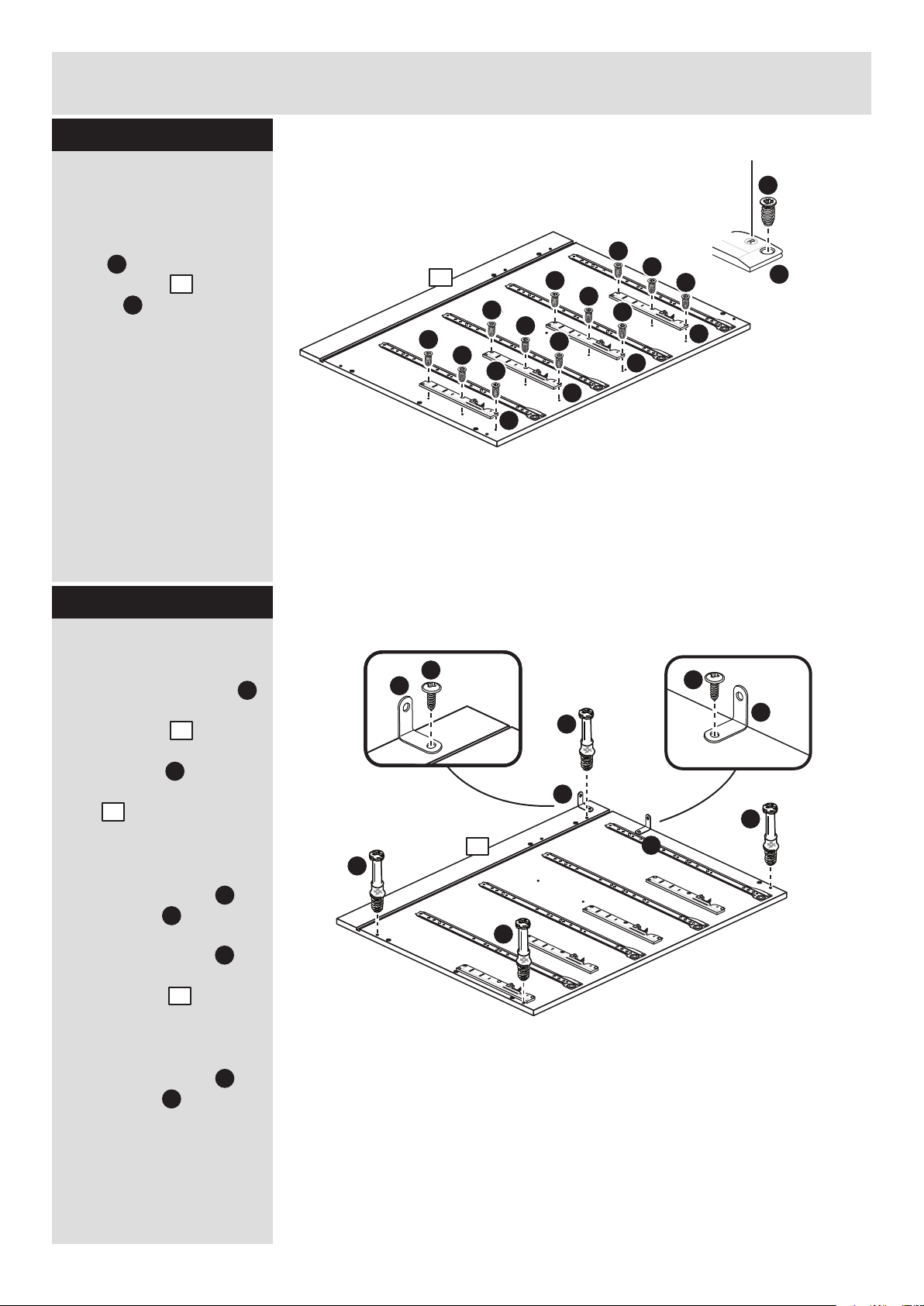

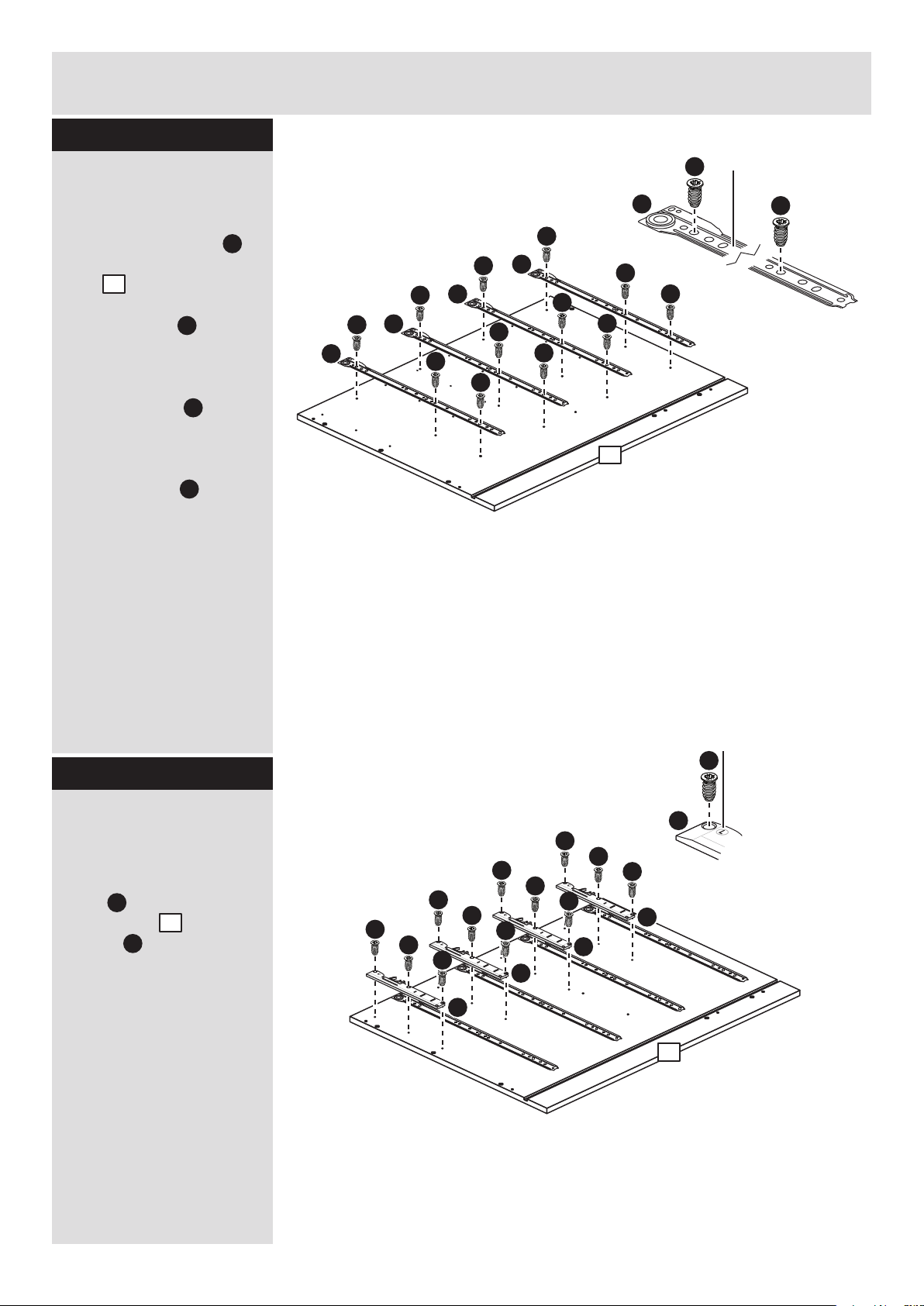

Prepare the base

Insert 4 large locking
nuts into the base
as shown.

Note: Arrow on locking
nut must point towards
hole in edge of panel.

Tap 6 wooden dowels
into the base as
shown.

Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.

C

C

3

10mm

A

A

3

A

A

A

C

C

C

C

3

L

2

J

J

J

E

B

B

B

B

L

2

L

J

E

Assembly Instructions

6

Step 5

Step 6

Step 7

4

A

A

C

C

C

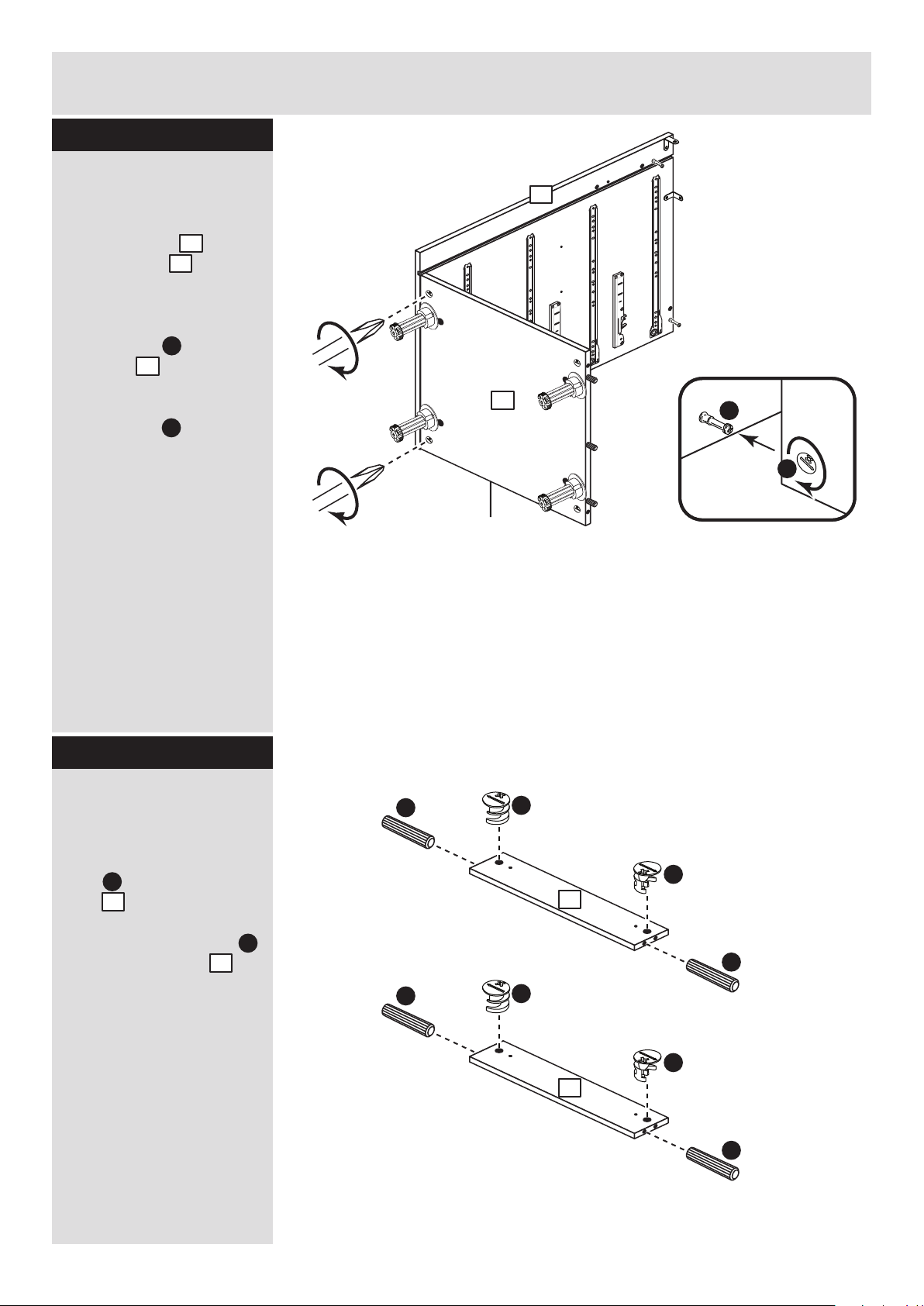

Prepare the 2 cross
rails

Insert 2 large locking
nuts into the cross
rails as shown.

Tap 2 wooden dowels
into the cross rails as
shown.

4

4

A

Finished

front edge

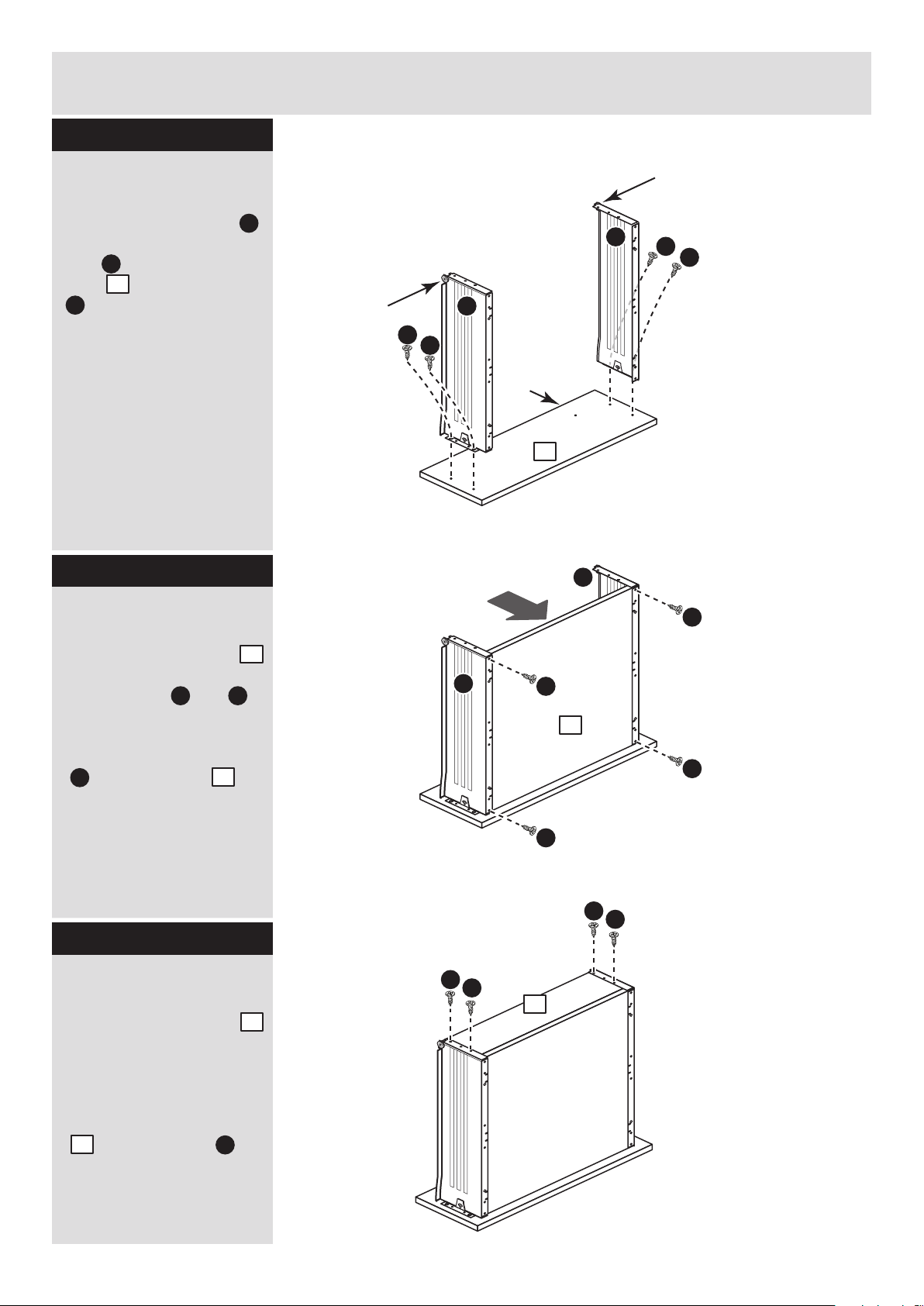

Join the right side and
base

Push the base onto
the right side .

Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .

Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.

B

C

2

3

3

3

2

C

C

I aI a

I b

b: c: d:

I a

I a

I a

I a

3

Fit the legs to the
base

a: Push the leg sockets

. into the holes in the
base as shown.

b: Secure each leg

socket with 3
screws .

c: Tap in the centre plug

on each leg socket .

d: Push the leg into

the leg socket .

I a

I a

I a

I e

I e

3

x 3

I a

I a

I b

x 2

Assembly Instructions

7

Step 8

Step 9

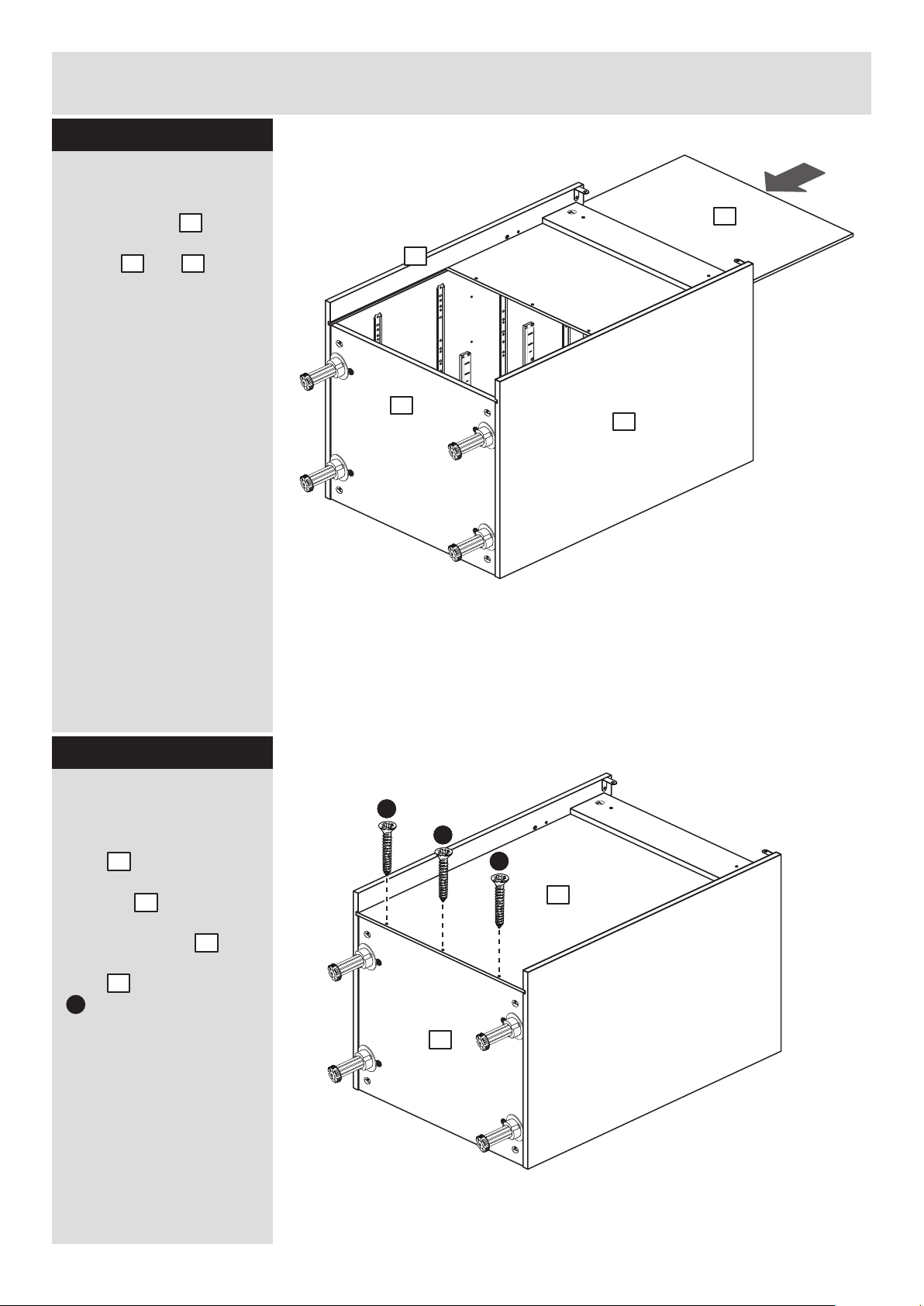

Fit the left side

Push the left side
onto the assembly.

Use a screwdriver to
tighten the large locking
nut fitted to the 2
cross rails and the 2
fitted to the base .

Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.

3

1

C

C

4

4

2

Fit the 2 cross rails

Push each cross rail
onto the right side .

Use a screwdriver to
tighten the large locking
nut fitted to each
cross rail .

Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.

4

4

2

C

C

4

Support this cross rail
until the left side has been
fitted in the next step.

2

4

4

1

4

3

Assembly Instructions

8

Step 10

Step 11

Secure the back

The bottom edge of the
back must be flush
with the bottom edge of
the base .

Secure the back to
the back edge of the
base using 3 screws
. .

Stand the unit up for
the next stage.

6

6

3

3

F

Fit the back

Slide the back along
the grooves in the side
panels and .

6

1 2

6

2

4

3

2

4

1

3

6

F

F

F

1

Assembly Instructions

9

Step 12

Secure the unit to the
wall

Using the brackets
fitted to the back edge of
the sides and
screw the unit to the
wall.

Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the unit to
the wall.

J

5mm

Warning: Take
care when

drilling the wall

that you do not
drill into any pipes, wires
etc. If in doubt, consult
an expert.

Step 13

Joining units together

Fittings have been
supplied so you are able
to join units together.

Make sure that your first
unit is level.

Push the other unit up
against first unit and
ensure both units are
level.

Check that the ends are
flush and in line, then
clamp them together.

Using a 5mm drill bit,
drill 2 holes (approximate
positions shown circled)
in the side panel into the
adjoining side panel of
the other unit.

Push the connecting
sleeves into the holes
and then screw the
connecting bolts in
from the other side.

G

H

G

H

1

2

1 2

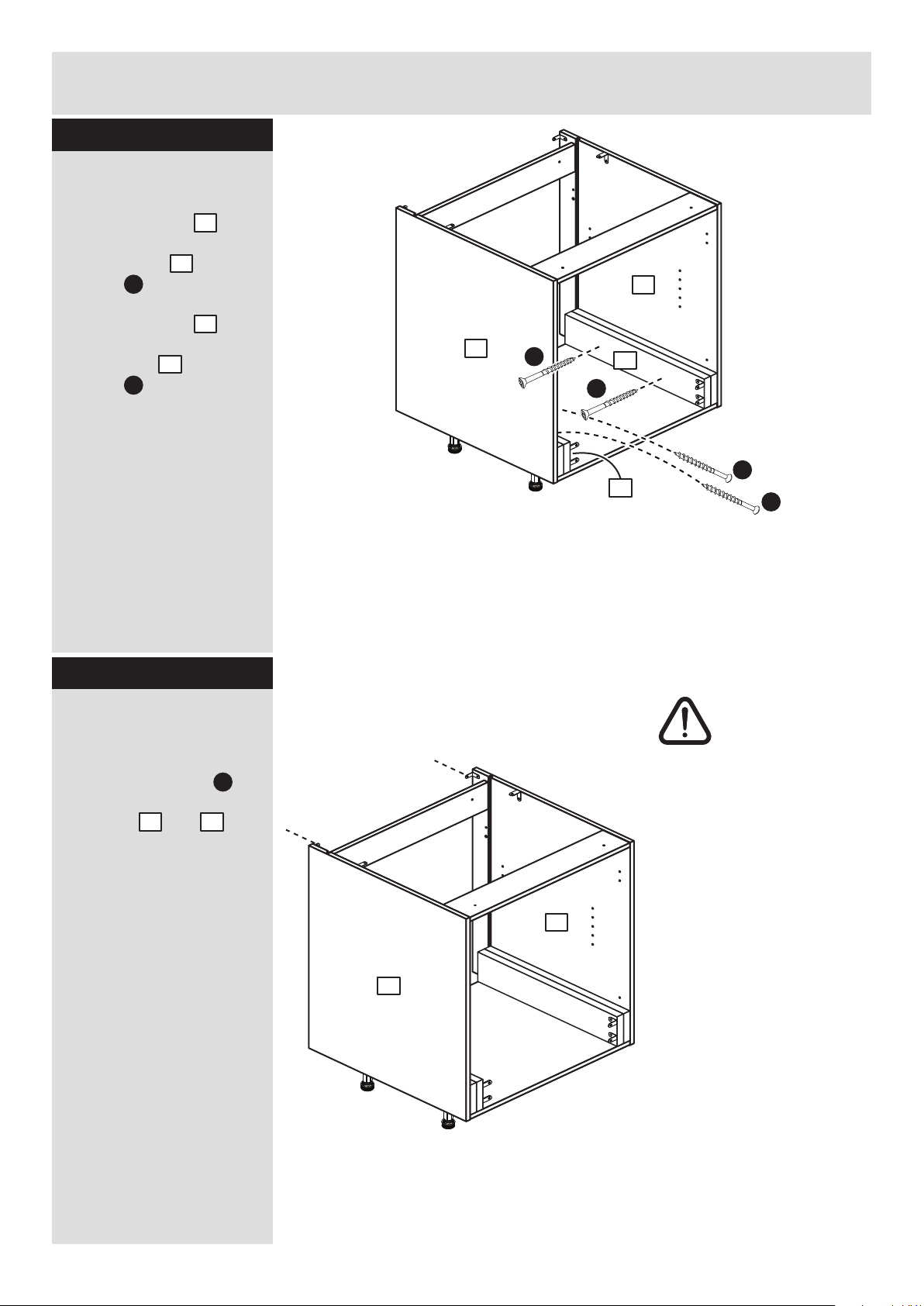

Assembly Instructions

10

Step 14

Fit the loose shelf

Insert 4 shelf studs at
the required height.

Lower the loose shelf
down onto the shelf
studs .

Step 16

K

K

5

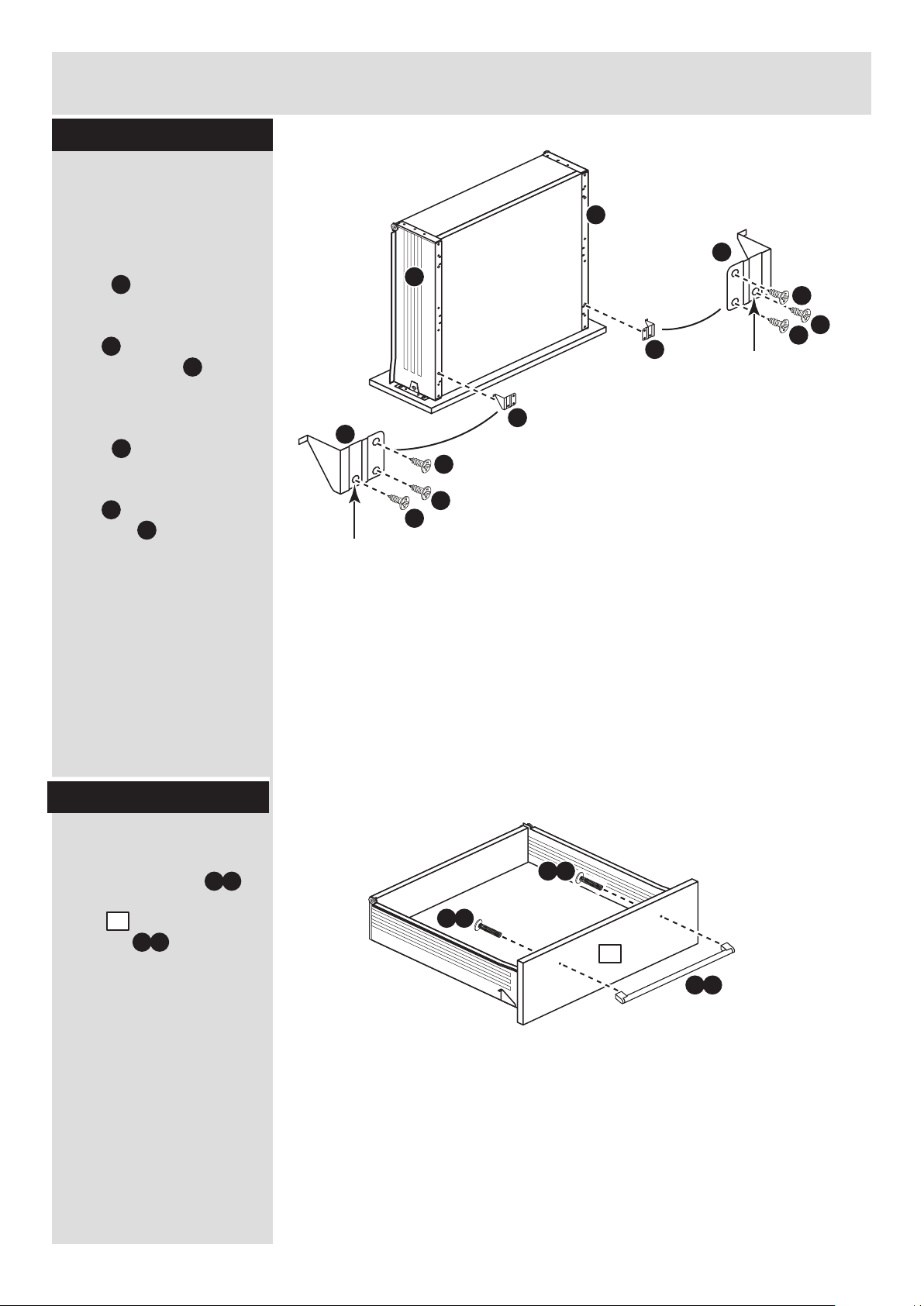

Prepare the door

Push fit the 2 hinges
into the door .

Secure each hinge with
2 screws .

Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the front edge of the
door.

Step 15

Fit the unit to worktop

To fit the unit to the
worktop use 2 screws
to screw up through the
holes in the cross rail
as shown.

Then use 2 screws to
screw up through the
brackets as shown.

D

M

7

F

E

J

4

7

M

M

90

M

D

D

D

D

1

2

K

x 4

5

F

F

E

E

4

Assembly Instructions

11

Step 17

Small piece of

waste wood

Drill these 2 holes if

you have fitted the

hinges to the left side.

Drill these 2 holes if you

have fitted the hinges

to the right side.

DO NOT drill

any other holes

DO NOT drill

any other holes

or

Drill the handle holes
in the door

Important: Please follow
these instructions
carefully.

Lay the door down
onto a smooth surface.

Important: Carefully
choose which holes you
need to drill.
This will depend on
which side you fitted the
hinge plates .

Check that the holes and
hinges are in the same
place as the diagrams.

Note: We recommend
the use of a small piece
of waste wood, placed
behind the hole while
drilling, to reduce the
possibility of any
breakout.

Using the pilot hole in
the rear face of the door,
. drill through the
holes indicated opposite,
using a 2.5mm diameter
drill.

Turn the door over
and open out the 2.5mm
holes that you have just
drilled by drilling back
through them with a
5mm drill.

Note: Drill bits are not
provided.

7

L

7

7

ONLY drill

these 2 holes

ONLY drill

these 2 holes

Small piece of

waste wood

7

7

PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY

TO CHOOSE WHICH 2 HOLES YOU WILL NEED TO DRILL

O a

Assembly Instructions

12

Step 18

a:

b:

c:

This shows the door being fitted to hinge

plates on the right side.

You may have fitted them to the left side.

Push and

click

Push

d:

Fit door and handle

2 people are needed
here

Note: The easiest way to

attach the door is to
fit the top hinge first,
then align and fit the
other hinge.

a: Push the hooks on

the hinge arm
underneath the front of
the hinge plate .

b: Press the front of the

hinge arm against the
hinge plate until it
clicks into place.

c: If you need to

seperate the hinge arm
. from the hinge plate,
. press the button at
the end of the hinge arm
and lift it off of the hinge
plate.

d: Attach the handle

. to the door
using the 2 screws
packed with it.

L

M

M

L

L

M

L

M

L

L

M

7

M

L

M

O a

O b

7

b

7

O b

O b

Assembly Instructions

13

Step 19

Adjust the door if
needed

a: Height adjustment.

Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.

b: Forward and Back

adjustment.
Loosen screw B on hinge
arm and move door in or
out as required.
Retighten screw B.

c: Sideways

adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C

a:

b:

c:

A

A

C

B

Assembly Instructions

14

Step 20

Fit the hinge covers

Push the hinge covers
onto the hinge arms .

Step 21

N

M

h

ygen

a

N

M

Pencil mark

Plinth

I c

I c

I d

Plinth

I e I e

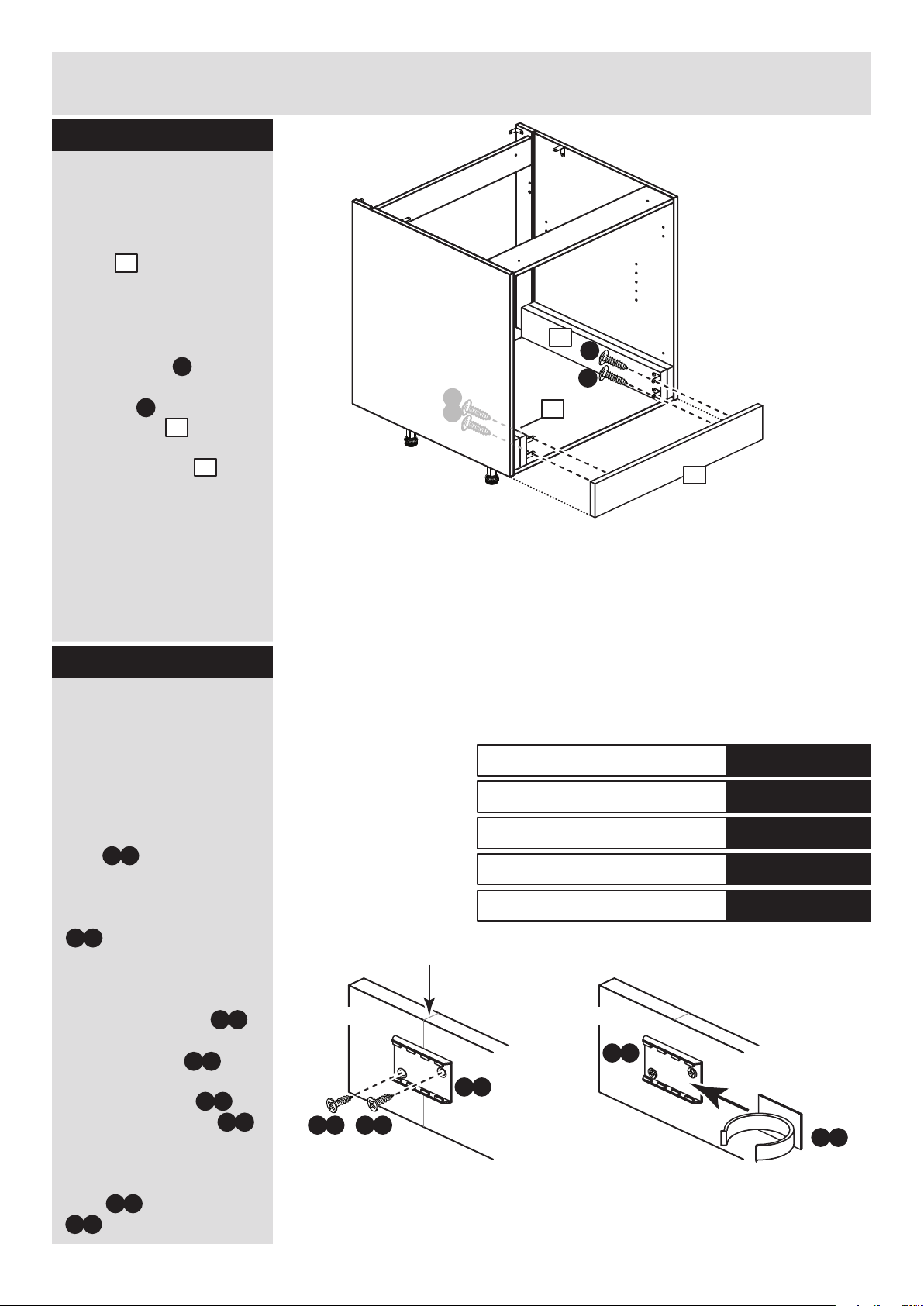

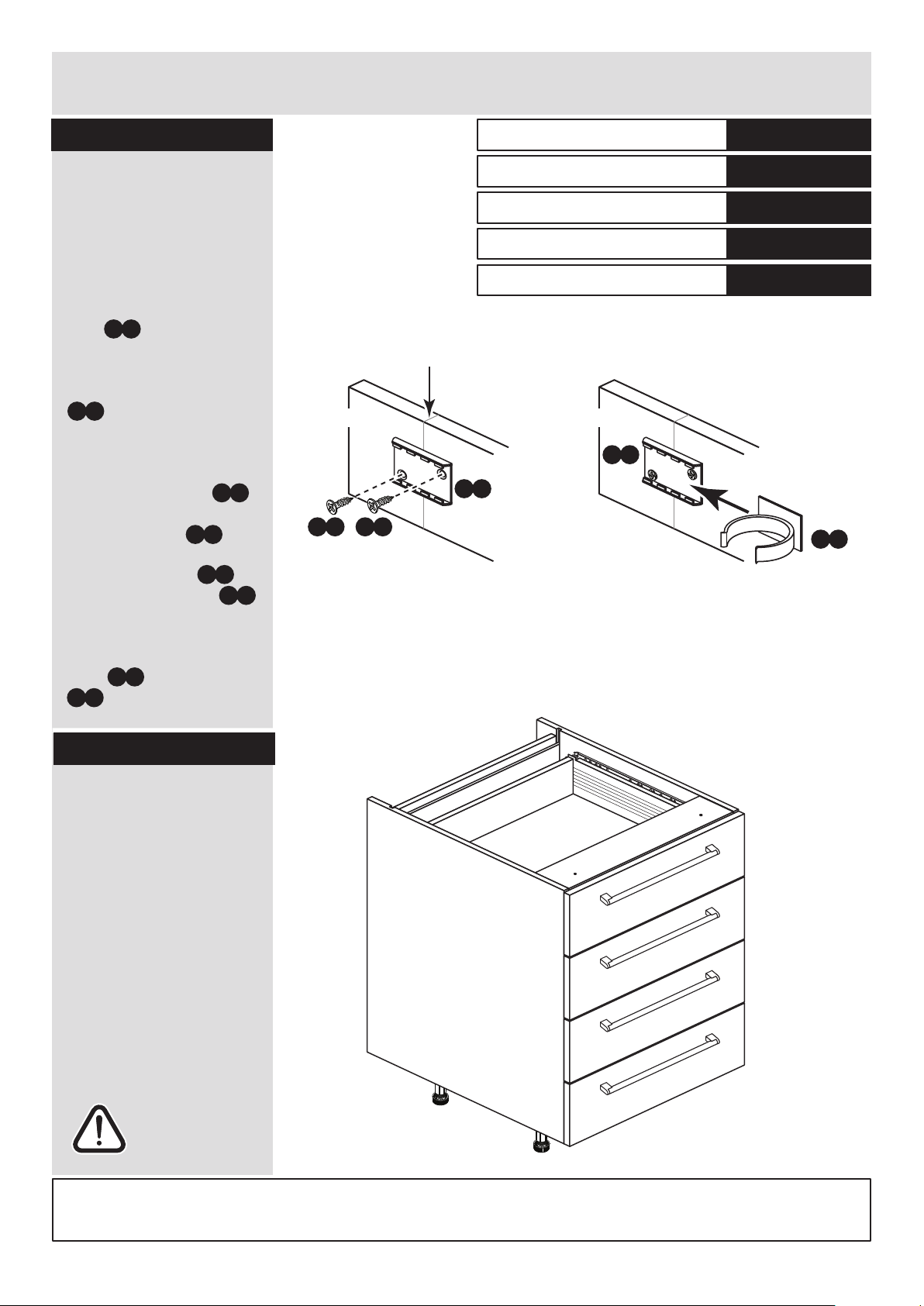

Fit the plinth

After cutting the plinth to
the required length, offer
the plinth up to the unit
and using a pencil, mark
the position of the unit’s
legs on the back of
the plinth.

Position the leg bracket
. so it is in the centre
of the pencil mark and
half way up the plinth.

Fix the leg bracket
to the back of the plinth
using 2 screws .

Slide the leg clip
into the leg bracket

Offer the plinth up to the
unit and push the leg
clips onto the legs
. .

I b

I b

I c

I c

I c

I d

I d

.

I e

608/2345

608/2369

205/5668

198/9917

608/2352

Black Plinth Pack

Cream Plinth Pack

Oak Plinth Pack

White HN Plinth Pack

White Gloss Plinth Pack

Assembly Instructions

15

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

and quote the reference numbers on the component pages.

Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW

Step 22

ALR2651

Fit other products to
the unit

To fit other products to
this unit e.g. worktops
etc., please follow the
instructions packed with
them.

We recommend that you
consult a qualified joiner
or kitchen fitter.

Assembly is complete

Warning: The
unit is heavy.
Lift with care.

MADE IN

BRITAIN

Dimensions

Width - 50cm

Depth - 59cm

Height - 87cm

Valencia - 4 Drawer Cabinet

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 2 - 31/07/14

Important - Please read these instructions fully before starting assembly

hygena

656/5848

633/2909

633/2734

205/4528

633/2820

204/6718

R

Cabinet

Black Drawer Pack

Cream Drawer Pack

Oak Drawer Pack

White Gloss Drawer Pack

White HN Drawer Pack

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs
approximately 16.5kgs.
Please lift with care.

• Check you have all the
components and tools listed on
pages 2, 3 and 4.

• Remove all fittings from the
plastic bags and separate them
into their groups.

• Keep children and animals
away from the work area, small
parts could choke if swallowed.

• Parts of the assembly will be
easier with 2 people.

• Make sure you have enough
space to layout the parts before
starting.

• Do not stand or put weight on
the product, this could cause
damage.

• Assemble the item as close to
its final position (in the same
room) as possible.

• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).

• We do not
recommend the
use of power
drill/drivers for

inserting screws,
as this could damage the unit.
Only use hand screwdrivers.

• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).

• Dispose of all packaging
carefully and responsibly.

1

Care and maintenance

• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.

• From time to time check that
there are no loose screws on
this unit.

• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.

Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

Components - Panels

Please check you have all the panels listed below

2

1

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

2

7

4

3

Back (DPF077A)

(479 x 680mm)

6

Base (DPF074A)

(469 x 494mm)

Cross Rail (DPF076A)

(469 x 96mm) x 2

5

Drawer Back (DPF130A)

(439 x 98mm) x 4

Left Side (DPF087A)

(720 x 560mm)

Right Side (DPF088A)

(720 x 560mm)

Drawer Base (DPF129A)

(439 x 448mm) x 4

8

Drawer Front (DPF151B)

(497 x 176mm) x 4

Please check you have all the fittings listed below

3

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.

A

Wooden dowel (F22) x 10

B

Metal dowel (F901) x 8

C

D

Large locking
nut (F900) x 8

F

G H I a

I c

I d

I e

I b

J K

13mm Screw (F63) x 72

E

13mm Screw (F79) x 6

Connecting Sleeve (F432) x 2 19mm Connecting bolt (F461) x 2

L M

N O

S

P

Q

R

25mm Screw (F50) x 5

Bracket (F945) x 4

Leg Bracket
(F127) x 2

Leg Socket
(F120) x 4

Leg Clip
(F128) x 2

16mm Screw
(F129) x 16

Leg (F122) x 4

13mm Screw (F52) x 48

Left Runner (F139) x 4

L

R

Left Soft Close Unit (F141) x 4

Right Soft Close Unit (F142) x 4

Left Soft Close
Catch (F143) x 4

Right Soft Close
Catch (F144) x 4

Left Drawer
Side (F145) x 4

Right Drawer
Side (F146) x 4

L

R

Right Runner (F140) x 4

Door Handle

(F214) x 4

T a

T b

25mm Screw (F132) x 8

Assembly Instructions

4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Step 1

L

L

L

L

L

L

L

L

L

L

L

L

L

K

K

L

Fit the left runners to
the left side

Fit the 4 left runners
marked ‘L’ to the left
side .

The 1st screw uses
the 2nd hole in from the
front of the runner.

The 2nd screw uses
the 4th hole in from the
back of the runner.

The 3rd screw uses
the 8th hole in from the
back of the runner.

Fit left soft close units
to the left side

Fit the 4 left soft close
units . marked ‘L’ to
the left side using 3
screws .

1

1

1

1

Step 2

L

K

K

K

L

K

K

K

L

K

K

K

L

K

K

K

K

K

P

L

L

P

P

P

P

P

K

K

K

K

K

K

K

K

K

K

K

K

K

K

L

L

L

L

L

L

K

Assembly Instructions

5

Step 3

Prepare the left side

Screw 4 metal dowels
into the holes shown on
the left side .

Note: Tighten metal
dowels up fully against
the panels.

Fit a bracket flush to
the top edge of the left
side , about 150mm
in from the groove, see
diagram.

Secure the bracket
using screw .

Fit another bracket
flush to the back edge of
the left side , about
5mm down from the top
edge, see diagram.

Secure the bracket
using screw .

B

1

J

J

1

J

1

E

J

E

J

E

B

J

E

L

L

L

L

L

L

L

L

L

L

L

L

B

B

B

B

5mm

150mm

J

J

R

R

R

R

R

R

Fit the right runners
to the right side

Fit the 4 right runners
marked ‘R’ to the right
side .

The 1st screw uses
the 2nd hole in from the
front of the runner.

The 2nd screw uses
the 4th hole in from the
back of the runner.

The 3rd screw uses
the 8th hole in from the
back of the runner.

2

2

K

K

K

Q

Step 4

Note: The brackets must
be flush with the top/back
edge of the panel.

Q

Q

Q

Q

Q

K

K

K

K

K

K

K

K

K

K

K

K

K

K

Assembly Instructions

6

Step 5

Step 6

R

R

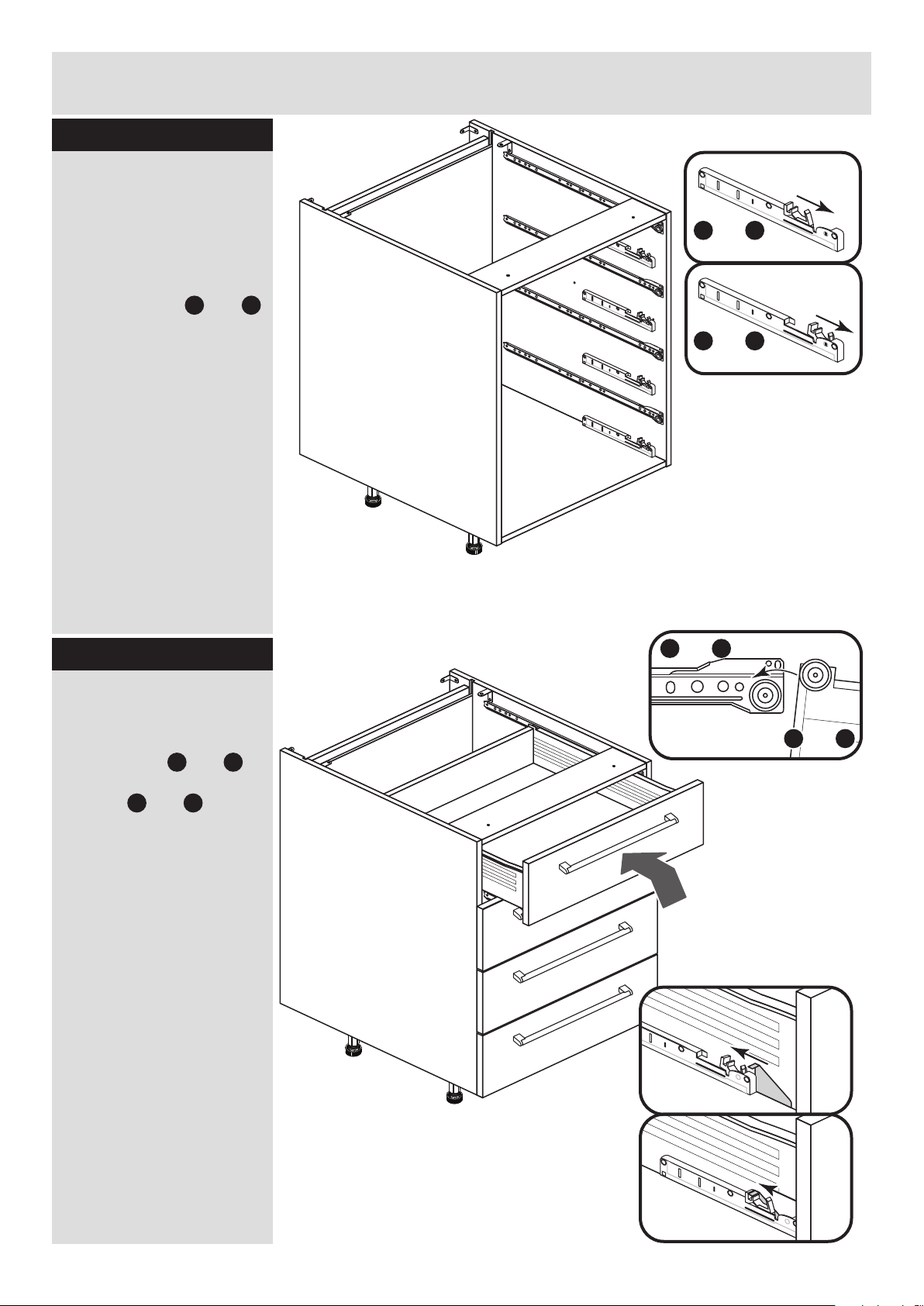

Fit soft close units to
the right side

Fit the 4 right soft close
units marked ‘R’ to
the right side using 3
screws .

2

K

N

R

R

R

R

R

R

R

R

2

R

R

R

R

2

Prepare the right side

Screw 4 metal dowels
into the holes shown on
the right side .

Fit a bracket flush to
the top edge of the right
side , about 150mm
in from the groove, see
diagram.

Secure the bracket
using screw .

Fit another bracket
flush to the back edge of
the right side , about
5mm down from the top
edge, see diagram.

Secure the bracket
using screw .

B

2

J

J

2

J

2

E

J

E

J

J

J

E

B

B

B

B

J

E

R

R

R

R

N

N

N

N

N

K

K

K

K

K

K

K

K

K

K

K

K

K

Assembly Instructions

7

Step 7

Step 8

A

A

A

Prepare the base

Insert 4 large locking
nuts into the base
as shown.

Note: Arrow on locking
nut must point towards
hole in edge of panel.

Tap 6 wooden dowels
into the base as
shown.

Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.

C

C

3

10mm

A

A

3

A

A

A

C

C

C

C

3

I a I a

I b

b:

a:

c: d:

I a

I a

I a

I a

3

Fit the legs to the
base

a: Push the leg sockets

. into the holes in the
base as shown.

b: Secure each leg

socket with 3
screws .

c: Tap in the centre plug

on each leg socket .

d: Push the leg into

the leg socket .

I a

I a

I a

I e

I e

3

x 3

I a

I a

I b

R

R

R

R

R

R

R

R

Assembly Instructions

8

Step 9

Step 10

4

A

A

C

C

4

A

A

C

C

C

Prepare the 2 cross
rails

Insert 2 large locking
nuts into the cross
rails as shown.

Tap 2 wooden dowels
into the cross rails as
shown.

4

4

A

Finished

front edge

Join the right side and
base

Push the base onto
the right side .

Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .

Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.

B

F

2

3

3

3

2

C

C

Assembly Instructions

9

Step 11

4

Fit the 2 cross rails

Push each cross rail
onto the right side .

Use a screwdriver to
tighten the large locking
nut fitted to each
cross rail .

Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.

2

C

C

4

R

R

R

R

R

R

R

R

2

4

4

Support this cross rail
until the left side has been
fitted in the next step.

R

R

R

R

R

R

R

R

1

4

Step 12

Fit the left side

Push the left side
onto the assembly.

Use a screwdriver to
tighten the large locking
nut fitted to the 2
cross rails and the 2
fitted to the base .

Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.

3

3

1

C

C

4

4

Assembly Instructions

10

Step 13

Step 14

Fit the back

Slide the back along
the grooves in the side
panels and .

7

1 2

R

R

R

R

R

R

R

R

7

1

3

2

R

R

R

R

R

R

R

R

3

F

F

F

Secure the back

The bottom edge of the
back must be flush
with the bottom edge of
the base .

Secure the back to
the back edge of the
base using 3 screws
. .

Stand the unit up for
the next stage.

7

7

3

3

F

7

Assembly Instructions

11

Step 15

Step 16

R

R

R

R

R

Secure the unit to the
wall

Using the brackets
fitted to the back edge of
the sides and
screw the unit to the
wall.

Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the Unit to
the wall.

F

5mm

Warning: Take
care when

drilling the wall

that you do not
drill into any pipes, wires
etc. If in doubt, consult
an expert.

Joining units together

Fittings have been
supplied so you are able
to join units together.

Make sure that your first
unit is level.

Push the other unit up
against first unit and
ensure both units are
level.

Check that the ends are
flush and in line, then
clamp them together.

Using a 5mm drill bit,
drill 2 holes (approximate
positions shown circled)
in the side panel into the
adjoining side panel of
the other unit.

Push the connecting
sleeves into the holes
and then screw the
connecting bolts in
from the other side.

G

H

G

H

1 2

R

R

1

2

R

R

R

R

R

R

R

R

R

Assembly Instructions

12

Step 17

Step 18

Drill the handle holes
in the drawer fronts

Lay the drawer front
down onto a soft,
smooth surface.

Note: We recommend
the use of a small piece
of waste wood, placed
behind the hole while
drilling, to reduce the
possibility of any
breakout.

Using the pilot holes in
the rear face of the
drawer front , drill
through the holes using a

2.5mm diameter drill.

Turn the drawer front
over and open out the

2.5mm holes that you
have just drilled by
drilling back through
them with a 5mm drill.

Note: Drill bits are not
provided.

Fit the unit to worktop

To fit the unit to the
worktop use 2 screws
to screw up through the
holes in the cross rail
as shown.

Then use 2 screws to
screw up through the
brackets as shown.

F

E

J

4

R

R

R

R

R

R

R

F

F

E

E

8

R

ONLY drill

these 2 holes

Small piece of

waste wood

8

8

8

x 4

Assembly Instructions

13

Step 19

Step 20

Step 21

Prepare the drawers

Fit the left drawer side
and right side drawer
side onto the drawer
front using 4 screws
. into the slotted holes.

Important: Make sure
that the drawer sides
and drawer front are the
correct way around.

D

D

D

D

S

S

Top of

drawer

front

Wheel on

outside
surface

Wheel on

outside
surface

R

R

8

8

D

Fit the drawer base

Push the drawer base
against the bottom of the
drawer sides and .

While holding it in place,
secure the drawer base
. using 4 screws
into the front and back
holes, as shown.

D

D

D

D

S

R

6

6

6

R S

D

x 4

Fit the drawer back

Push the drawer back
up into the drawer
assembly.

While holding it in place,
secure the drawer back
. using 4 screws
into the top and bottom
holes, as shown.

D

D

D

D

5

5

5

D

x 4

x 4

Assembly Instructions

Step 22

Step 23

14

Fit the soft close
catches

Position the location hole
of the right soft close
catch marked ‘R’ into
the 3rd hole up from the
front of the right drawer
side then secure
using 3 screws .

Position the location hole
of the left soft close
catch marked ‘L’ into
the 3rd hole up from the
front of the left drawer
side and secure using
3 screws .

L

R

O

O

M

O

S

R

M

S

R

D

M

D

D

D

D

Location

hole

D

D

D

Location

hole

x 4

Fit the handle

Attach the handle
supplied with the drawer
front using the
screw(s) packed
with it.

T b

T b

T a

8

T a

8

T b

Assembly Instructions

15

Step 24

Step 25

L N

R

R

R

R

R

R

R

R

R

Prepare the soft close
units

Before fitting the drawers
you will need to push the
movable part of the 8
soft close units and
forward until it clicks into
place.

NL

R

and

NL

and

R

R

R

R

R

R

R

R

Fit the drawers

Slide the wheels on the
drawer sides and
over the wheels on the
runners and then
push the drawer into
position.

Important: Make sure
that 2 soft close catches
on each drawer engage
with the soft close units
fitted to the side panels.

P Q

R S

and

and

R S

P Q

Assembly Instructions

16

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

and quote the reference numbers on the component pages.

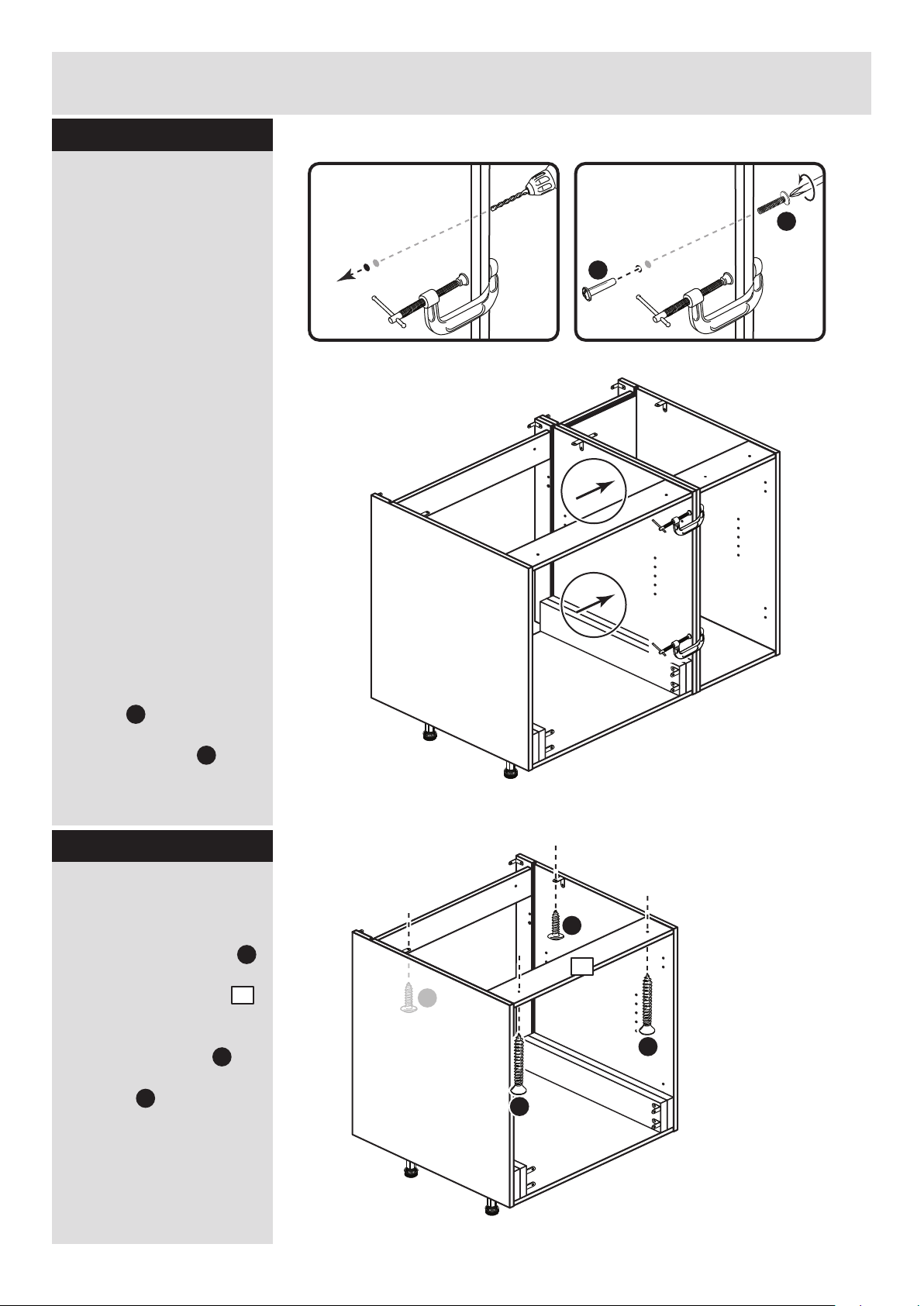

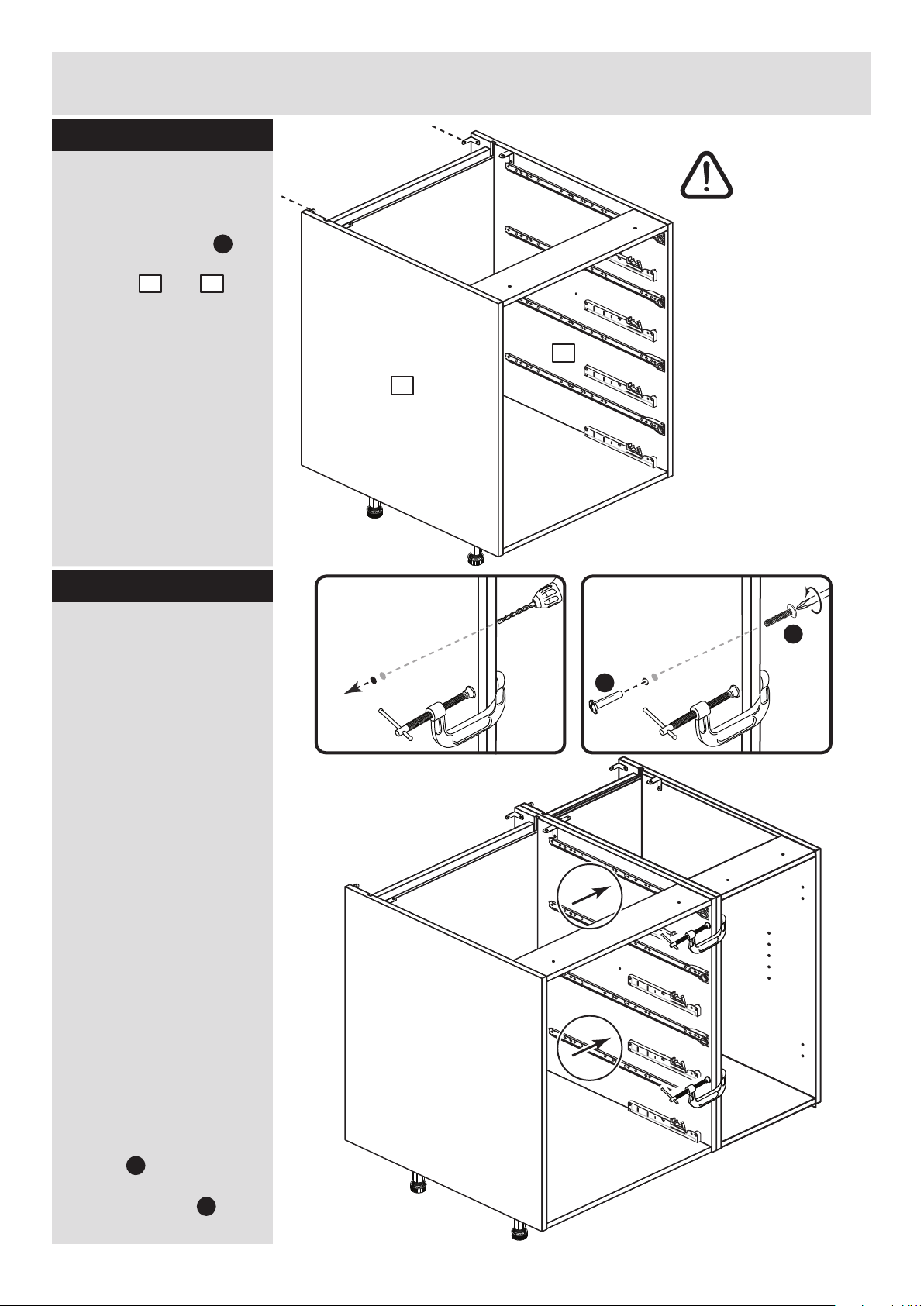

Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW

Step 26

Fit other products to
the unit

To fit other products to
this unit e.g. worktops
etc., please follow the
instructions packed with
them.

We recommend that you
consult a qualified joiner
or kitchen fitter.

Assembly is complete

Warning: The
unit is heavy.
Lift with care.

R

Fit the plinth

After cutting the plinth to
the required length, offer
the plinth up to the unit
and using a pencil, mark
the position of the unit’s
legs on the back of
the plinth.

Position the leg bracket
. so it is in the centre
of the pencil mark and
half way up the plinth.

Fix the leg bracket
to the back of the plinth
using 2 screws .

Slide the leg clip
into the leg bracket

Offer the plinth up to the
unit and push the leg
clips onto the legs
. .

I b

I b

I c

I c

I c

I d

I d

.

I e

Pencil mark

Plinth

I c

I c

I d

Plinth

I e I e

Step 27

608/2345

608/2369

205/5668

198/9917

608/2352

Black Plinth Pack

Cream Plinth Pack

Oak Plinth Pack

White HN Plinth Pack

White Gloss Plinth Pack

ALR2654

MADE IN

BRITAIN

Dimensions

Width - 60cm

Depth - 59cm

Height - 87cm

Valencia - Under Oven Cabinet

Assembly Instructions - Please keep for future reference

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Issue 2 - 05/08/14

Important - Please read these instructions fully before starting assembly

hygena

656/5831

656/6720

656/6744

205/4281

656/6737

203/8104

Cabinet

Black Door Pack

Cream Door Pack

Oak Door Pack

White Gloss Door Pack

White HN Door Pack

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Warning: This unit weighs
approximately 16.5kgs.
Please lift with care.

• Check you have all the
components and tools listed on
pages 2, 3 and 4.

• Remove all fittings from the
plastic bags and separate them
into their groups.

• Keep children and animals
away from the work area, small
parts could choke if swallowed.

• Parts of the assembly will be
easier with 2 people.

• Make sure you have enough
space to layout the parts before
starting.

• Do not stand or put weight on
the product, this could cause
damage.

• Assemble the item as close to
its final position (in the same
room) as possible.

• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).

1

Care and maintenance

• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.

• From time to time check that
there are no loose screws on
this unit.

• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.

Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

• We do not
recommend the
use of power
drill/drivers for

inserting screws,
as this could damage the unit.
Only use hand screwdrivers.

• Safety note: It is
recommended that this unit is
secured to a wall using the
brackets supplied.

• Dispose of all packaging
carefully and responsibly.

Components - Panels

Please check you have all the panels listed below

2

1

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

2

4

3

Left Side (DPF068A)

(720 x 560mm)

Right Side (DPF069A)

(720 x 560mm)

Base (DPF078A)

(569 x 494mm)

Cross Rail (DPF080A)

(569 x 96mm) x 2

5

Support Rail (DPF112A)

(495 x 105mm) x 4

The front surface of this fascia

is protected with a peel-off film

Appliance Fascia (DPF124B)

(596 x 120mm)

6

Please check you have all the fittings listed below

3

Components - Fittings

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Tools required

Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.

A

Wooden dowel (F22) x 10

B

Metal dowel (F901) x 8

C

D

Large locking
nut (F900) x 8

G H

K

I a

I c

I d

I e

I b

Rule Scissors Hammer

Eye protection
(when using a
hammer or drill)

Cross-head
screwdriver

Ruler - Use this ruler to help correctly identify the screws

mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

J

Electric drill

E

13mm Screw (F79) x 14

Connecting Sleeve (F432) x 2 19mm Connecting bolt (F461) x 2

Bracket (F945) x 8

Leg Bracket
(F127) x 2

Leg Socket
(F120) x 4

Leg Clip
(F128) x 2

16mm Screw
(F129) x 16

Leg (F122) x 4

45mm Screw (F65) x 4

F

25mm Screw (F50) x 2

38mm Screw (F933) x 4

Assembly Instructions

4

If you have damaged or missing components, call the

Customer Helpline: 08456 400800 quoting the reference

numbers below

Step 1

B

B

J

J

J

E

1

B

J

E

5mm

150mm

B

B

B

1st 5mm hole

2nd 5mm hole

1

Prepare the left side

Screw a metal dowel
into one of the holes
shown on the left side
. .

Note: Tighten metal
dowels up fully against
the panels.

Important: The position
of the metal dowel
depends on where you
would like the cross rail
to be.

B

1

B

The hole chosen for the metal
dowel determines the position of
the rear cross rail.
This will depend on where the
services to the oven will be located.

We recommend that you consult a
qualified joiner or kitchen fitter.

Step 2

Prepare the left side

Screw 3 metal dowels
into the holes shown on
the left side .

Note: Tighten metal
dowels up fully against
the panels.

Fit a bracket flush to
the top edge of the left
side , about 150mm
in from the groove, see
diagram.

Secure the bracket
using screw .

Fit another bracket
flush to the back edge of
the left side , about
5mm down from the top
edge, see diagram.

Secure the bracket
using screw .

Note: The brackets must
be flush with the
top/back edge of the
panel.

B

1

J

J

1

J

1

E

J

E

Only screw ONE metal dowel into

one of these holes.

Assembly Instructions

5

Step 3

Step 4

Prepare the right side

Screw 3 metal dowels
into the holes shown on
the right side .

Fit a bracket flush to
the top edge of the right
side , about 150mm
in from the groove, see
diagram.

Secure the bracket
using screw .

Fit another bracket
flush to the back edge of
the right side , about
5mm down from the top
edge, see diagram.

Secure the bracket
using screw .

B

2

J

J

2

J

2

E

J

E

J

E

B

B

B

J

J

2

J

E

Prepare the right side

Screw a metal dowel
into one of the holes
shown on the right side
. .

Use the same hole that
you used for the left side
in step 1.

B

B

2

2

Only screw ONE metal dowel

into one of these holes (use

the same hole that you used

for the left side in step 1).

Assembly Instructions

6

Step 5

Step 6

I a I a

I b

b: c: d:

Fit the legs to the
base

a: Push the leg sockets

. into the holes in the
base as shown.

b: Secure each leg

socket with 3
screws .

c: Tap in the centre plug

on each leg socket .

d: Push the leg into

the leg socket .

I a

I a

I a

I e

I e

3

x 3

I a

I a

I b

I a

I a

I a

I a

3

A

A

Prepare the base

Insert 4 large locking
nuts into the base
as shown.

Note: Arrow on locking
nut must point towards
hole in edge of panel.

Tap 6 wooden dowels
into the base as
shown.

Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.

C

C

3

10mm

A

A

3

A

A

A

C

C

C

C

A

3

Assembly Instructions

7

Step 7

4

Fit the 2 cross rails

Push each cross rail
onto the right side .

Use a screwdriver to
tighten the large locking
nut fitted to each
cross rail .

Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.

2

C

C

4

2

4

4

Support the rear cross rail
until the left side has been
fitted in the next step.

Finished

front edge

Step 8

A

C

Prepare the 2 cross
rails

Insert 2 large locking
nuts into the cross
rails as shown.

Tap 2 wooden dowels
into the cross rails as
shown.

Step 9

4

4

A

Join the right side and
base

Push the base onto
the right side .

Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .

Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.

B

F

3

3

2

C

C

2

3

A

C

C

4

You may have
selected to fit the
rear cross rail here
(refer back to step 1).

Assembly Instructions

8

Step 10

Step 11

Fit 2 support rails

Fit a support rail to
the right side using 2
screws .

Fit a support rail to
the left side using 2
screws .

Note: The support rails
must be flush with the
front of the unit.

Step 12

Prepare the other 2
support rails

Fit 2 brackets flush to
one end of the remaing
support rails using
screw .

Fit the left side

Push the left side
onto the assembly.

Use a screwdriver to
tighten the large locking
nut fitted to the 2
cross rails and the 2
fitted to the base .

Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.

3

1

C

C

4

4

1

4

3

1

2

K

K

K

K

5

5

5

1

2

K

5

K

J

J

J

E

E

J

J

E

E

5

5

E

Assembly Instructions

9

Step 13

Step 14

Fit 2 support rails

Fit a support rail flush
with the support rail on
the right side using 2
screws .

Fit a support rail flush
with the support rail on
the left side using 2
screws .

D

D

1

2

5

1

2

D

5

D

Warning: Take

care when

drilling the wall

that you do not
drill into any pipes, wires
etc. If in doubt, consult
an expert.

1

2

D

D

5

5

Secure the unit to the
wall

Using the brackets
fitted to the back edge of
the sides and
screw the unit to the
wall.

Fixings are not supplied
as they will need to suit
the wall type, and the
length of screw will
depend on the distance
of the back of the Unit to
the wall.

J

1 2

Assembly Instructions

10

Step 15

Step 16

Joining units together

Fittings have been
supplied so you are able
to join units together.

Make sure that your first
unit is level.

Push the other unit up
against first unit and
ensure both units are
level.

Check that the ends are
flush and in line, then
clamp them together.

Using a 5mm drill bit,
drill 2 holes (approximate
positions shown circled)
in the side panel into the
adjoining side panel of
the other unit.

Push the connecting
sleeves into the holes
and then screw the
connecting bolts in
from the other side.

G

H

Fit the unit to worktop

To fit the unit to the
worktop use 2 screws
to screw up through the
holes in the cross rail
as shown.

Then use 2 screws to
screw up through the
brackets as shown.

F

E

J

4

F

F

E

E

4

5mm

G

H

Assembly Instructions

11

Step 17

Step 18

Fit the appliance
fascia

Offer the appliance
fascia up to the unit,
so that it is flush with the
bottom and sides of the
unit.

Use 2 screws to
screw through the
brackets fitted to the
support rails and into
the back surface of the
appliance fascia .

6

E

J

5

5

6

6

E

E

5

E
E

Pencil mark

Plinth

I c

I c

I d

Plinth

I e I e

Fit the plinth

After cutting the plinth to
the required length, offer
the plinth up to the unit
and using a pencil, mark
the position of the unit’s
legs on the back of
the plinth.

Position the leg bracket
. so it is in the centre
of the pencil mark and
half way up the plinth.

Fix the leg bracket
to the back of the plinth
using 2 screws .

Slide the leg clip
into the leg bracket

Offer the plinth up to the
unit and push the leg
clips onto the legs
. .

I b

I b

I c

I c

I c

I d

I d

.

I e

608/2345

608/2369

205/5668

198/9917

608/2352

Black Plinth Pack

Cream Plinth Pack

Oak Plinth Pack

White HN Plinth Pack

White Gloss Plinth Pack

Assembly Instructions

13

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

and quote the reference numbers on the component pages.

Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW

Step 19

Fit other products to
the unit

To fit other products to
this unit e.g. worktops
etc., please follow the
instructions packed with
them.

We recommend that you
consult a qualified joiner
or kitchen fitter.

Assembly is complete

Warning: The
unit is heavy.
Lift with care.

Install the oven

Please refer to the
instructions that were
supplied with the oven.

We recommend that
you contact a
registered installer.

Step 20

ALR2659
