Page 1
MADE IN
BRITAIN
Dimensions
Width - 116.5cm
Depth - 49.5cm
Height - 183.5cm
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 3 - 12/12/13
Important - Please read these instructions fully before starting assembly
305/0772
305/0765
Camden - 2 Drawer 3 Door Mirror Robe
162/3204
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 76kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Rule
Tools required
Rule
ScissorsSquare
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)
Page 3
Components - Panels
Please check you have all the panels listed below
2
1 2
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
7 8
3
4 5
6
Hanging Rail (FHR343)
(343mm long)
9
Hanging Rail (FHR715)
(715mm long)
10
11
13
14
15
12
18 19
Foldy Back (X946)
(1368 x 740mm)
Mirror Door
(D2018MA)
(1345 x 358mm)
(Mirror - SG06
1344 x 358mm
Safety Back SAR)
Left Side (D2019A)
(1800 x 491mm)
Right Side (D2015A)
(1800 x 491mm)
Small Back Rail (D2013A)
(349.5 x 130mm)
Large Back Rail (D2014A)
(725.5 x 130mm)
Plinth (D2012A)
(1090 x 96mm) x 2
Horizontal (D2010A)
(1090 x 473mm)
Plain Door (D2018A)
(1345 x 358mm) x 2
Top (D2009A)
(1166 x 492mm)
Upright (D2016A)
(1344 x 472mm)
Drawer Front (D2017A)
(1084 x 173mm) x 2
Drawer Base (T559)
(1050 x 317mm) x 2
Drawer Back (W559)
(1039 x 105mm) x 2
Left Drawer Side (W418LH)
(320 x 105mm) x 2
Right Drawer Side (W418RH)
(320 x 105mm) x 2
16
Back (X947)
(1368 x 363mm)
17
Page 4
Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
B C
D E F
G H I
Nail (F51) x 38
L
Hinge plate
(F523) x 9
Rail Holder
(F891) x 4
13mm Screw (F63) x 38
Hollow core
locking nut
(F892) x 4
Small metal dowel
(F893) x 4
Metal dowel (F901) x 16
Large locking
nut (F900) x 14
A
Wooden dowel (F22) x 12
K
Bracket (F327) x 1
O
NM
Q
Small locking
nut (F3) x 4
19mm Screw (F461) x 8
Knock-in Peg (F171) x 8
P
Double metal dowel (F566) x 1
13mm Screw (F52) x 12
S
R Runner (F160) x 2
b
L Runner (F161) x 2
S
c
L Runner (F159) x 2
S
a
R Runner (F162) x 2
S
d
J
13mm Screw (F79) x 13
R
R
Hinge (F522) x 9
Brace bar (F177) x 2
T
40mm Screw (F910) x 2
Handle (F309) x 4
U
432mm
307mm
Page 5
Assembly Instructions
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
4
G
I
I
13
Prepare the 2 drawer
fronts
Screw 2 metal dowels
into the holes shown on
the back of each drawer
front .
Note: Tighten metal
dowels up fully against
the panels.
G
11
Prepare drawer sides
and drawer backs
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
I
13
14
Step 2
14
I
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
x 2
x 2 x 2
x 2
Step 3
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
13
14
11
I
13
14
I
B
G
I
Note: The locking nuts can be on
either surface of the drawer sides.
Make sure that the small groove
is on the inside, as shown.
G
G
11
Groove
11
13
14
Page 6
11
Assembly Instructions
5
Step 4
M
M
Step 5
x 2
8
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
15
13 14
11
Attach the handles
Attach a handle to
each drawer front
using 2 screws .
U
O
Step 6
11
x 2
U
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
12
13 14
15
12
12
M
13 14
M
13
14
15
11
x 2
8
13
12
14
15
M
O
O
11
Page 7
J
Assembly Instructions
6
Step 7
Step 8
x 2
Fit runners to the
drawers
Fit the runner to the
bottom edge of the left
drawer side , as
shown, making sure that
it is pushed up against
the back of the drawer
front . Use a bradawl
to mark the fixing
positions, then secure
with 2 screws .
Fit the runner to the
bottom edge of the right
drawer side using the
same method.
14
S c
13
11
F
S d
Fit the brace bars
Turn the 2 drawer
assemblies over and fit a
brace bar to each
one.
Position the brace bar
in the middle of the
drawer base between
the drawer front and
drawer back .
Once in position secure
the brace bar with 2
screws .
T
J
12
11
T
15
T
T
J
x 2
F
F
F
F
Runners must be
pushed up against
the drawer front
S c
S d
12
11
15
13
11
14
J
T
Page 8
Finished
front edge
Assembly Instructions
7
Step 9
Prepare the upright
a: Tap 2 wooden
dowels into the ends
of the upright .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
To fit the rail holder ,
screw through the top
hole with screw and
into the mark hole drilled
in the upright . Make
sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
Turn upright panel over
E
F
F
b:
a:
4
Turn the upright over
L
10mm
A
A
4
L
b: Fit 3 hinge plates
onto the upright ,
making sure that the slot
is facing towards the
finished front edge.
To fit the rail holder ,
screw through the top
hole with screw and
into the mark hole drilled
in the upright . Make
sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
Insert 2 large locking
nuts into the upright.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
4
E
F
F
4
H
F
E
F
E
H
A
A
F
F
E
4
H
H
F
F
E
4
L
L
L
Finished
front edge
Page 9
A
Assembly Instructions
8
Step 10
C
C
C
C
C
Prepare the top
Screw 4 small metal
dowels into the holes
on the top .
Screw 2 metal
dowels into the holes
on the top .
Note: Tighten metal
dowels up fully against
the panels.
Step 11
Prepare the horizontal
Insert 4 large locking
nuts into the
horizontal .
Tap 2 wooden dowels
into the horizontal .
C
7
7
G
G
G
G
7
H
8
A
8
H
H
H
H
plain chipboard surface
8
Finished
front edge
Finished
front edge
A
Page 10
Finished
front edge
Finished
front edge
Assembly Instructions
9

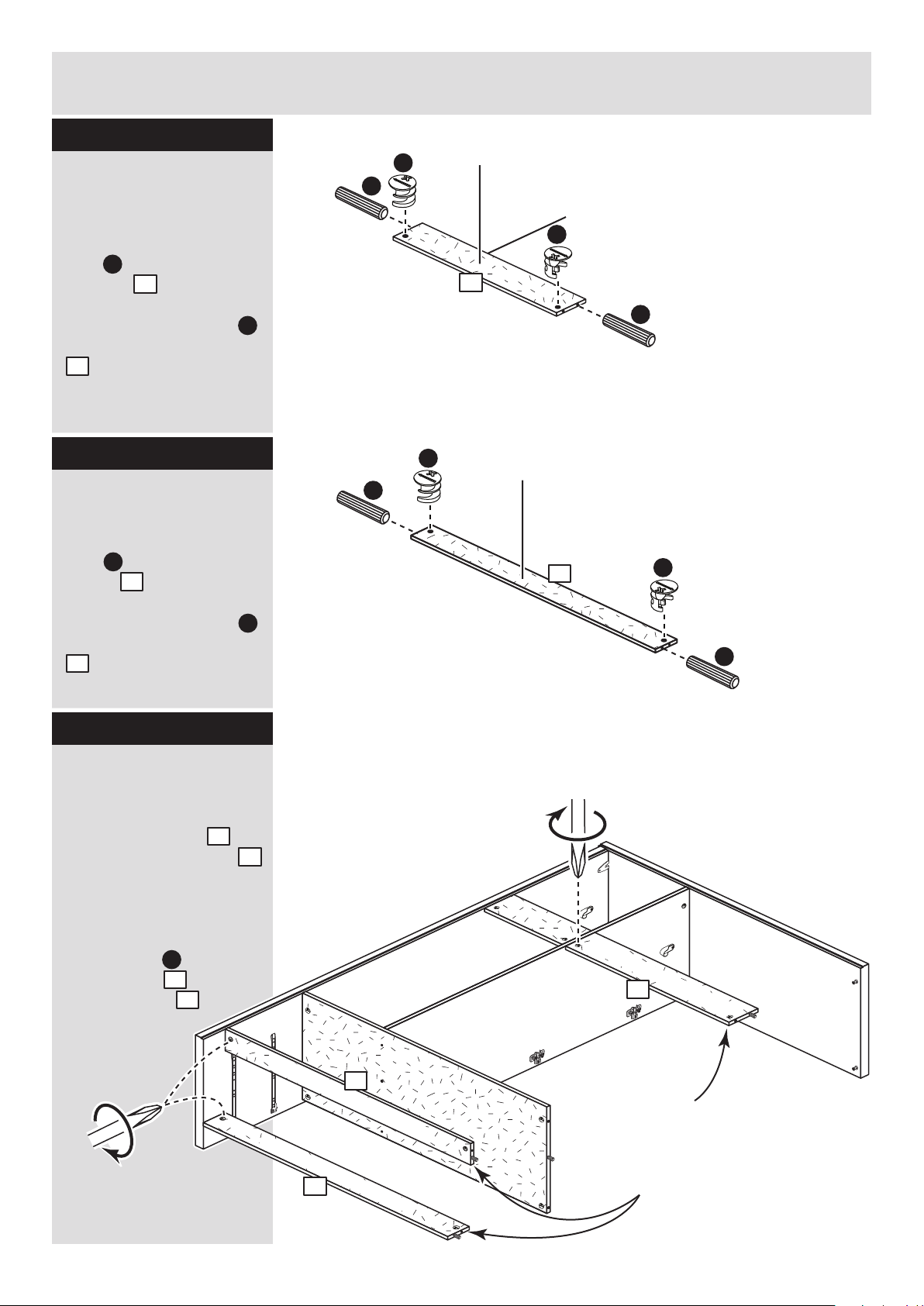

Step 12
H
G
Q
8
4
Fit the horizontal to
the upright
Push the horizontal
onto the upright and
secure using 2 screws .
Fit the upright to the
top
Push the top onto
the upright .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the upright .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
7
4
H
H
4
Step 13
Step 14
Finished
front edge
7
4
Finished
front edge
8
plain chipboard surface
Q
Q
4
A
Prepare the small
back rail
Insert 2 large locking
nuts into the small
back rail .
Tap 2 wooden dowels
into the small back rail
. .
H
A
H
H
A
Plain chipboard
surface
16
16
16
Page 11
Assembly Instructions
10
Step 15
Prepare the right side
a: Fit the 2 runners
to the right side .
The 1st screw uses
the 2nd hole in from the
front of the runner .
The 2nd and 3rd screw
use the holes that line up
with the other panel
holes.
Fit a rail holder to the
right side using 2
screws .
b: Fit a screw into
the 2nd hole at the top of
the runners .
Push 2 hollow core
locking nuts into the
right side , making
sure that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Note: The pin should be
tapped in flush with the
top surface of the hollow
core locking nut .
Screw 5 metal dowels
into the holes on the
right side .
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
2
N
B
B
2
B
G
2
S b
S b
N
F
S b
S b
N
Finished front edge
N
1st
screw
2nd
screw
N
3rd
screw
S b
Finished front edge
F
N
N
S b
N
N
N
S b
N
F
F
G
G
G
G
G
B
B
L
L
L
F
F
E
F
E
2
L
2
Finished
front edge
Finished
front edge
2
2
B
B B
L
a:
b:
Page 12
Finished
front edge
Assembly Instructions
11
Step 16
Fit the right side to
the assembly
Push the right side
onto the top and
horizontal .
Note: You will need to
make sure that the 2
small metal dowels
fitted to the top , slide
into the top of the 2
hollow core locking nuts
. fitted to the right
side .
Insert a screwdriver into
the 2 hollow core locking
nuts and turn the nuts
inside as far as they will
go.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the horizontal .
C
B B
2
7
8
C
7
B
2
B
H
8
Finished
front edge
2
Fit the small back rail
to the right side
Push the small back rail
. onto the right side .
Use a screwdriver to
tighten the large locking
nut fitted to the back
of the small back rail .
16
16 2
H
16
Step 17
2
8
7
Page 13
Assembly Instructions
12
Step 18
Fit the double metal
dowel
Tap the double metal
dowel through the
upright and into the
small back rail until it
‘’bottoms out’’.
4
16
P
P
4
16
16
Step 19
Secure the small back
rail to the upright
Use a screwdriver to
tighten the large locking
nut fitted to the back
of the small back rail .
H
16
Page 14
G
Assembly Instructions
13
Step 20
Prepare the left side
a: Fit the 2 runners
to the left side .
The 1st screw uses
the 2nd hole in from the
front of the runner .
The 2nd and 3rd screw
use the holes that line up
with the other panel
holes.
Fit a rail holder to the
left side using 2
screws .
b: Fit a screw into
the 2nd hole at the top of
the runners .
Push 2 hollow core
locking nuts into the
left side , making sure
that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Note: The pin should be
tapped in flush with the
top surface of the hollow
core locking nut .
Screw 5 metal dowels
into the holes on the left
side .
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
1
N
B
B
1
B
G
1
S a
S a
N
F
S a
F
E
1
L
1
S a
N
Finished front edge
N
1st
screw
2nd
screw
N
3rd
screw
S a
Finished front edge
F
N
S a
N
N
N
S a
N
N
F
F
E
B
B
G
G
G
G
L
L
L
L
F
F
1
1
Finished
front edge
Finished
front edge
a:
b:
Page 15
Assembly Instructions
14
Step 21
Fit the 2 plinths and
the large back rail
Push the 2 plinths
and the large back rail .
onto the assembly.
Use a screwdriver to
tighten the 3 large
locking nuts fitted to
the 2 plinths and the
large back rail .
H
3
17
17
3
17
Note: Support
the large back rail
and plinths until
the left side has
been fitted.
Finished
front edge
A
Prepare the large
back rail
Insert 2 large locking
nuts into the large
back rail .
Tap 2 wooden dowels
into the large back rail
. .
H
A
H
H
A
Plain chipboard
surface
17
17
17
Step 22
A
A
Prepare the 2 plinths
Insert 2 large locking
nuts into each of the
plinths .
Tap 2 wooden dowels
into each of the plinths
. .
Step 23
H
3
3
A
3
x 2
H
H
Plain chipboard
surface
plain chipboard surface
plain chipboard surface
3
plain chipboard surface
3
Page 16
Assembly Instructions
15
Step 24
Fit the left side to the
assembly
Push the left side
onto the assembly as
shown.
Note: You will need to
make sure that the 2
small metal dowels
fitted to the top , slide
into the top of the 2
hollow core locking nuts
. fitted to the left
side .
Insert a screwdriver into
the 2 hollow core locking
nuts and turn the nuts
inside as far as they will
go.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the horizontal and
the large locking nut
fitted to each plinth .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
17
3
3
8
1
C
7
B
1
B
8
3
H
H
H
C
B
B B
7
1
Page 17
Assembly Instructions
16
Step 25
Warning: The
unit is heavy.
Lift with care.
19
18
J
D
J
Fit the back panels
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
and foldy back , unit
colour facing down, onto
the unit as shown.
Make sure that the 2
backs are pushed up
tight against each other
and that they meet in the
centre of the upright
panel’s edge.
Nail around the
outside edges of the 2
backs.
Note: Do not nail where
the 2 backs meet. Nails
should be spaced about
150mm apart.
c: Using 8 screws ,
screw down between the
2 backs and into the
upright panel’s back
edge.
Note: You will need to
keep 1 screw to use
in the final step.
Stand the unit up for
the next step.
4
4
J
x 8
D
b:
yyy
x
x
19
18
J
c:
19
18
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
Page 18
Assembly Instructions
17
Step 26
9 10
E
9
Fit the hanging rails
and drawers
Push hanging rails
and into the rail
holders fitted to the
side and upright panels.
Slide the wheels of the
runners fitted to the
drawers, over the wheels
of the runners fitted to
the side panels and push
the drawers into position.
E
10
and
Prepare the 3 doors
Lay the doors down onto
a soft, smooth surface.
Push fit 3 hinges into
each plain door and
the mirror door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the front edge of the
door.
F
R
5
6
Step 27
Warning:
Glass! Handle
with care
9
10
Panel
Drawer
x 1
90
R
6
x 2
5
R
F
F
R
F
F
R
F
F
R
F
F
R
F
F
R
F
F
Page 19
Assembly Instructions
18
Step 28
Drill 2 handle holes in
each of the plain
doors only
Important: DO NOT drill
into the mirror door.
Please follow these
instructions carefully.
Lay the 2 plain doors
down onto a smooth
surface.
Check that the hinges
and holes are in the
same place as the
diagrams.
Note: We recommend
the use of a small piece
of waste wood, placed
behind the holes while
drilling, to reduce the
possibility of any
breakout.
Using the pilot holes in
the rear face of the door,
drill through the 2 holes
indicated opposite, using
a 2.5mm diameter drill.
Turn the door over and
open out the 2.5mm
holes that you have just
drilled by drilling back
through them with a
5mm drill.
5
IMPORTANT
DO NOT drill into the Mirror Door.
Carefully choose which 2 holes you
need to drill in each of the plain doors.
This will be the
left hand door
This will be the
right hand door
Small piece
of waste
wood
ONLY drill these
2 holes in 1 door
Small piece
of waste
wood
ONLY drill these
2 holes in 1 door
5
5
Page 20
19
Fit doors and handles
2 people are needed
here
Note: The easiest way to
attach each door and
. is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each plain door using
2 screws .
e:
R
R
R
L
L
L
R
L
U
O
5
6
5
a: b:
c: d:
L
R
L
L
B
L
R
R
R
A
R
L
B
O
U
O
Warning:
Glass! Handle
with care
5
6
U
5
Assembly Instructions
Step 29
Page 21
Assembly Instructions
20
Step 30
Adjust doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the top (or
base) of the unit is level,
front-to-back and sideto-side in the 3 positions
shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
b:
c:
d:
a:
A
A
B
C
Page 22
21
Assembly Instructions
Step 31
Attach bracket to top
To prevent possible
overbalancing, we
recommend that this unit
is secured to a suitable
wall by use of the
bracket fitted to the
top of the unit.
Fixings are not supplied,
as they will need to suit
the wall type and the
length of screw will
depend on the distance
from the back of the unit
to the wall.
Fit the bracket loosely
onto the top of the unit,
fixing screw between
10-15mm in from the
back edge, and mark the
wall for the wall fixing.
Swivel the bracket
away from the wall and
drill a hole in the wall
using a suitable drill bit
and fit your wall fixing.
Swivel the bracket
back and fix the bracket
to the wall, then tighten
Screw .
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Warning: The
unit is heavy.
Lift with care.
K
K
J
K
K
J
WALL
WALL
Back of Unit
K
J
K
10-15mm
Top of Unit
Page 23
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Assembly Instructions
22
Step 32
Assembly is complete
IMPORTANT INFORMATION ABOUT THIS PRODUCT
This product complies with the requirements of BS 7449:1991 and has been
manufactured by
DECORATIVE PANELS FURNITURE LTD, TEESSIDE
INDUSTRIAL ESTATE, THORNABY-ON-TEES, CLEVELAND, TS17 9LT
.
The product code for this unit and the item code(s) for the glass
components are listed in the Assembly Instructions along with a description
of the type of glass used. All clear/tinted glass complies with the
requirements of BS 6206 Class A. All mirrors comply with the requirements
of BS 6206 Class C. If the glass component contained in this unit is chipped
or broken consult the furniture manufacturer, retailer, or agent with regard to
obtaining a manufacturing specification and shape for replacement glass
quoting the unit description and batch number or date of manufacture.
Do not place very hot or very cold items against or in close proximity to
glass surface(s) unless adequately thick insulating material is used to
prevent such items coming in contact with the glass.
Do not strike the glass with hard or pointed items.
Do not sit or stand upon horizontal glass surfaces.
When cleaning glass panels use a damp cloth or leather with washing up
liquid or soft soap if necessary - do not use washing powders or any other
substance containing abrasives since these substances scratch glass.
If stated in the instruction leaflet, it is essential that this unit is fixed to a wall.
KEEP THESE INSTRUCTIONS FOR FUTURE USE
Warning: The
unit is heavy.
Lift with care.
Page 24
ALR2833
Loading...
