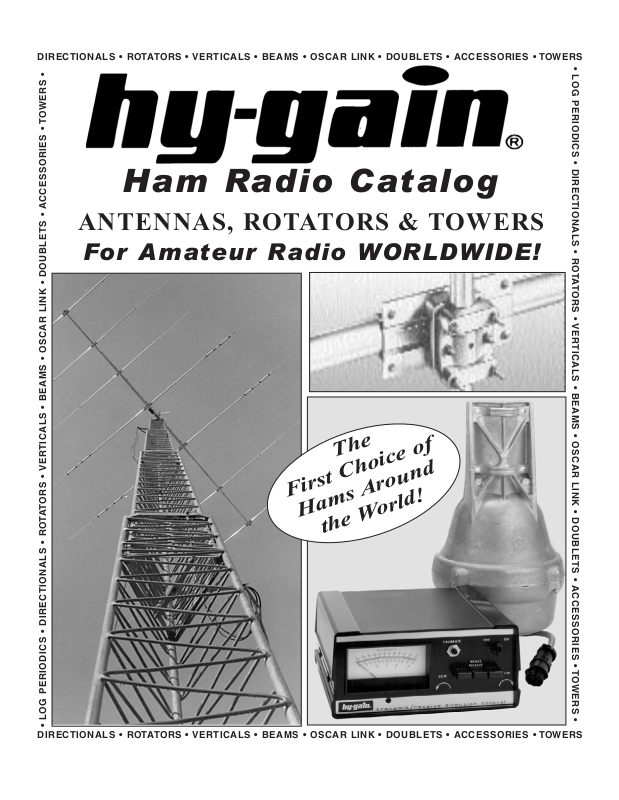

Page 1

DIRECTIONALS • ROTATORS • VERTICALS • BEAMS • OSCAR LINK • DOUBLETS • ACCESSORIES • TOWERS

• LOG PERIODICS • DIRECTIONALS • ROTATORS • VERTICALS • BEAMS • OSCAR LINK • DOUBLETS • ACCESSORIES • TOWERS •

DIRECTIONALS • ROTATORS • VERTICALS • BEAMS • OSCAR LINK • DOUBLETS • ACCESSORIES • TOWERS

ANTENNAS, ROTATORS & TOWERS

For Amateur Radio WORLDWIDE!

Ham Radio Catalog

The

First Choice of

Hams Around

the World!

Page 2

TAILTWISTER SERIES II

For large medium antenna arrays up to 20 sq. ft. wind load. Available with DCU-1 Pathfinder digital control (T2XD) or standard analog control box (T2X) with new 5-second brake delay and new Test/Calibrate function. Low temperature grease, alloy ring gear, indicator potentiometer, ferrite beads on potentiometer wires, new weatherproof AMP connectors plus 8-pin plug at control box, triple bearing race with 138 ball bearings for large load bearing strength, electric locking steel wedge brake, North or South center of rotation scale on meter, low voltage control, 21/16 inch max. mast.

AR-40

For compact antenna arrays and large FM/TV up to 3.0 square feet wind load area. Dual 12 ball bearing race. Automatic position sensor never needs resetting. Fully automatic control -- just dial and touch for any desired location. Solid state, low voltage control, safe and silent operation. 21/16 inch max mast size. MSLD light duty lower mast support included.

CD-45II

For antenna arrays up to

8.5 sq. feet mounted inside tower or 5 sq. ft. with mast adapter. Low temperature grease good to -30 F degrees. New Test/Calibrate function. Bell rotator design gives total weather protection, dual 58 ball bearing race gives proven support. Diecast ring gear, stamped steel gear drive, heavy duty, trouble free gear train, North center scale, lighted directional indicator, 8-pin plug/socket on control unit, snapaction control switches, low voltage control, safe operation, takes maximum mast size to 21/16 inches. MSLD light duty lower mast support included.

HDR-300A

For king-sized

antenna arrays up to 25 sq.ft. wind load area. Control cable connector, new hardened stainless steel output shaft, new North or South centered calibration, new ferrite beads on potentiometer wires reduce RF susceptibility, new longer output shaft keyway adds reliability. Self-centering steel clamp/hardware. Display accurate to 1

. Machined steel output.

HAM-IV

The most popular

rotator in the world!

For medium communications arrays up to 15 square feet wind load area. New 5-second brake delay!

New Test/Calibrate function. New low temperature grease

permits normal operation down to -30 degrees F. New alloy ring gear gives extra strength up to 100,000 PSI for maximum reliability. New indicator potentiometer. New ferrite beads reduce RF susceptibility. New Cinch plug plus 8-pin plug at control box. Dual 98 ball bearing race for load bearing strength and electric locking steel wedge brake prevents wind induced antenna movement. North or South center of rotation scale on meter, low voltage control, max mast size of 21/16 inches.

HAM-V

For medium antenna arrays up to 15 square feet wind load area. Similar to the HAM IV, but includes DCU-1 Pathfinder digital control unit with gas plasma display. Provides automatic operation of brake and rotor, compatible with many logging/contest programs, 6 presets for beam headings, 1 degree accuracy, auto 8-second brake delay, 360 degree choice for center location, more!

ROTATOR OPTIONS

MSHD, $99.95. Heavy duty mast support for T2X, HAM-IV and HAM-V. MSLD, $39.95. Light duty mast support for CD-45II and AR-40. TSP-1, $34.95. Lower spacer plate for HAM-IV and HAM-V.

ROTATOR CABLE

879-1608, $0.49 per foot. 8 conductors PVC cable, 6-18 AWG + 2 -16 AWG, 200V for Hy-Gain

(R)

rotators.

ROTATOR POTENTIOMETER

RPM-1, $34.95. Rotator replacement pot for HAM II, III, IV, V, T2X. 500 Ohm. Same as p/n 5023100.

T-2X

649

T-2XD

1029

with DCU-1

HAM IV and HAM V Rotator Specifications

Wind Load capacity (inside tower)

Wind Load (w/mast adapter)

Turning Power

Brake Power

Brake Construction

Bearing Assembly

Mounting Hardware

Control Cable Conductors

Shipping Weight

Effective Moment (in tower)

15 square feet

7.5 square feet

800 in.-lbs.

5000 in.-lbs.

Electric Wedge

dual race/96 ball bearings

Clamp plate/steel U-bolts

26 lbs.

2800 ft.-lbs.

HDR-300A Rotator Specifications

TAILTWISTER Rotator Specifications

Wind load capacity(inside tower)

Wind Load (w/ mast adapter)

Turning Power

Brake Power

Brake Construction

Bearing Assembly

Mounting Hardware

Control Cable Conductors

Shipping Weight

Effective Moment (in tower)

20 square feet

10 square feet

1000 in.-lbs. 9000 in.-lbs.

Electric Wedge

Triple race/138 ball brngs

Clamp plate/steel U-bolts

31 lbs.

3400 ft.-lbs.

25 square feet

not applicable

5000 in.-lbs.

7500 in.-lbs.

solenoid operated locking

bronze sleeve w/rollers

stainless steel bolts

61 lbs.

5000 ft.-lbs.

Wind load capacity

(inside tower)

Wind Load (w/ mast adapter)

Turning Power

Brake Power

Brake Construction

Bearing Assembly

Mounting Hardware

Control Cable Conductors

Shipping Weight

Effective Moment (in tower)

CD-45II Rotator Specifications

8.5 square feet

5.0 square feet

600 in.-lbs.

800 in.-lbs.

Disc Brake

Dual race/48 ball brings

Clamp plate/steel U-bolts

22 lbs.

1200 ft.-lbs.

Wind load capacity (inside tower)

Wind Load (w/ mast adapter)

Turning Power

Brake Power

Brake Construction

Bearing Assembly

Mounting Hardware

Control Cable Conductors

Shipping Weight

Effective Moment (in tower)

AR-40 Rotator Specifications

3.0 square feet

1.5 square feet

350 in.-lbs.

450 in.-lbs.

Disc Brake

Dual race/12 ball bearings

Clamp plate/steel bolts

14 lbs.

300 ft.-lbs.

Wind load capacity (inside tower)

Wind Load (w/ mast adapter)

Turning Power

Brake Power

Brake Construction

Bearing Assembly

Mounting Hardware

Control Cable Conductors

Shipping Weight

Effective Moment (in tower)

HAM-IV

559

HAM-V

949

with DCU-1

CD-45II

389

Hy-Gain . . . Antennas, Towers and Rotators 2

ROTATORS

. . . the first choice of hams around the world!

AR-40

289

HDR-300A

1379

Digital Automatic Controller

Controls

T2X, HAM IV and HAM V.

Auto operation of brake/ rotor, computer control with RS232 pass-through, compatible with many logging/contest programs, 6 presets for favorite beam headings, 1 degree heading accuracy, Auto 8-sec. brake delay, 360 degree choice for center of rotation!

Rotator Auto Brake Delay

RBD-5

allows a automatic 5 second

brake delay for your Hy- Gain rotator. This

delay insures that the rotator is fully stopped before the brake is engaged. No more accidentally engaging brake while the rotator is in movement. Use with HAM II, III, IV, V, T2Xs. Easy-to-install. Includes pre-assembled PCB and hardware.

DCU-1

649

NEW!

RBD-5

AR-35 Rotator/Controller

The AR-35 is designed for the use of

small UHF, VHF, 6-Meter, TV and FM antennas. Includes automatic controller, rotator, mounting clamps and mounting hardware. Use 110 VAC.

AR-35

Page 3

www.hy-gain.com 3

Hy-Gain VHF Vertical Antennas

Hy-Gain VHF Ground Planes

Oscar Link 435 MHz• 145.9 MHz

VHF/UHF DX Beam Antennas

Hy-Gain’s DXSeries VHF/UHF Beams are based on the DL6WU element length and

spacing and were further refined

on Hy-Gain’s antenna test range and by computer modeling. Both beams feature encapsulated weath-

erproof feedpoints with type N connectors for excellent VSWR and power handling.

High quality mechanical construction is assured by heavy wall booms and boom supports made of 6063-T832 aluminum tubing, stainless steel hardware, UV stabilized thick-shoulder element insulators and PTFE coaxial baluns.

2 Meter vertical with 5.2 dBi gain

derived from the famous extended double zepp antenna design. Radiating elements are two collinear 5/8waves fed in phase. 2 sets of

/4wave radials properly decouple lower radiator from the mast. SO-239, handles 500 Watts. 9 ft.

V-2R

109

Covers

138-175 MHz

V-42R is independently tunable at 144 and

440 MHz. Fed through one coax cable, it has sets of 1/

wave radials which properly decouple 5/

wave radiators from the mast. Gives 5 dBd gain UHF and 3 dBd gain on VHF. Type N, handles 200 Watts. 9 ft.

V-42R

169

Covers 143-

153, and 436-

455 MHz

UB-7031DX

219

Covers

420-438 MHz

UHF vertical with 5.2 dBi gain derived from double zepp antenna design. Type N, handles 500

Watts, 4 foot. 11/4Meter vertical w/5.2 dBi gain, double zepp design. SO-239, handles 500 Watts. 6ft., 9 in.

V-4R

109

Covers

400-475 MHz

V-3R

119

Covers

216-225 MHz

V-6R antenna is based on 2 collinear 5/

wave radiators. 500 Watt enclosed coil and 2 sets of 1/4wave radials provide complete mast decoupling and optimum pattern and gain. Rugged design for severe weather, also DC ground lightning protector. 25 ft., 3 in., UHF female connect, handles 500 Watts.

V-6R

204

Covers 51-54

MHz

V-2R

V-42R

V-4R

V-3R

V-6R

138-175

143-153,

436-455 400-475

216-225

51-54

5.2 dBi

7.2 UHF

5.2 VHF 5,2 dBi

5.2 dBi

500 Watts

200 Watts

continuous

500 Watts

105 mph

100 mph

230 mph

100 mph

80 mph

2 in. OD

1.5-2.25

9 foot

4 foot

6 ft. 9 in.

25 ft. 3 in.

6 pounds

4 pounds

5 pounds

15 pounds

Model# Frequenc Gain dBi Pwr Input Wind Max Mast Height Weight

UB-7031DX

VB-215DX

VB-64DX

VB-66DX

420-438

144-146

50-54

19.8 dBi

16.4 dBi

10.4 dBi

12.5 dBi

2 kW PEP

500 Watts

1.5kW

PEP

1.9 sq. ft.

2.75 sq. ft.

1.1 sq. ft.

1.8 sq. ft.

24.06 ft.

27.88 ft.

12 ft.

24.575 ft.

9.25 lbs.

13.56 lbs.

10 lbs.

17 lbs.

Model# Frequenc Gain dBi Pwr Input wind area #Element Boom Weight

VB-215DX

229

Covers

144-146 MHz

VB-64DX

144

Covers

50-54 MHz

These 2 Meter FM beam antennas include Hy-Gain’s exclusive

Beta MatchTMto provide exceptional Front-to-Back ratio and maxi-

mum obtainable gains. The VB-23FM (8.3 dBi gain), VB-25FM (11.2 dBi gain), VB-28FM (14 dBi gain), and the VB-214FM (15.2 dBi gain) gives you a wide choice of 2 Meter Beam performance from which to choose. Accepts up to 2 inch mast.

VB-23FM

2 Meter FM

Beam

VB-25FM

2 Meter FM

Beam

VB-28FM

2 Meter FM

Beam

VB-214FM

2 Meter FM

Beam

VB-23FM

VB-25FM

VB-28FM

VB-214FM

20 dB

8.3 dBi

11.2 dBi

14 dBi

15.2 dBi

500 Watts

40.25 in.

39.625 in.

40.25 in.

39.5 in.

43.5 in.

75 in.

148.75 in.

15 ft. 6 in.

2.0 in

2 pounds

3 pounds

4 pounds

6 pounds

Model# F/B MAX Gain dBi Pwr Input Long el Boom Mast dia. Weight

GPG-2B is a 5/8 Wavelength Ground Plane for two meters is omni-directional and tunable from 142-185 MHz. It delivers an omnidirectional gain of 3.2 dBi. Handles 100 Watts. Measures 4 feet, max

mast mount accepted is 1.625 in O.D. Wind area

is .30 sq. ft. GPG-1B is a 1/4 Wavelength ground plane similar to the GPG2B. It has unity gain, covers 144148 MHz. GPG-1, $39.95, is similar to GPG-

GPG-2B

Covers

142-185 MHz

GPG-1B

Covers

144-148 MHz

Hy-Gain’s Oscar Link antennas are complete with the necessary phasing lines, relays and hardware. Left and right circularity switching reduces fading. True RF switching elements are rated

at 200 Watts and improved VSWR for higher efficiency. Feed points are encapsulated, weather pro-

tected for long life. The fiber-

glass crossboom maintains the integrity of the circularity pattern.

DB-218SAT, $559.95. The complete 2 Meter/ 440 MHz Oscar Link antenna system with crossboom assembly with necessary

phasing lines, relays and hardware.

VB-216SAT

VB-7030SAT

25 dB

13.7 dBi

16.2 dBi

200 W PEP

200 W PEP1630

168.75 in.

134 inches

1.1 sq. ft.

.7 sq. ft.

7 lbs.

4 lbs.

Model# F/B ratio Gain dBi Pwr Input # Element Boom Wind Weight

VB-216SAT

229

Covers

144-148 MHz

UB-7030SAT

229

Covers

432-438 MHz

FB-217SAT

119

Crossboom

Assembly only

6-Meter DX Beam Antennas

VHF-FM Beam Antennas

The VB64DX and VB66DX

feature a concept in beam construction that provides actual delivered performance equalling maximum theoretical gain. The 4-element VB-64DX generates an impressive 10.4 dBi gain and the 6-element VB-66DX increases the gain to an unprecedented 12.5 dBi.

VB-66DX

264

Covers

50-54 MHz

Page 4

4 Hy-Gain . . . Antennas, Rotators and Towers

LP-1009A, $1429.95. LP-1009A for UHF connector. LP-1009AN for “N” connector. Covers 10/12/15/17/20 Meters

Covers the complete 13-30 MHz HF spectrum under a 2:1 VSWR. Built to commercial specifications, it is used by MARS, monitoring stations, marine and government radio stations around the world and now it’s available to Hy-Gain amateur customers. The discerning ham operator will appreciate its performance and ease of use. Just imagine all that spectrum coverage and only one feedline. Exclusive 2KW BN-4000 current type

balun included. Use T2X Tailtwister or HDR-300A rotators.

LP-1010A, $1799.95. LP-1010A for UHF connector. LP-1010AN for “N” connector. Covers10-30 MHz

(10, 12, 15, 17, 20, and 30 Meters)

There are only a few antennas that offer as much HF frequency coverage as the LP1010A. Like the LP-1009A, this antenna is built to commercial standards using stainless steel hardware and having a wind survivability of 93 mph. Rotatable with use of T2X or HDR-300A rotators.

Hy-Gain Discoverer Series Antennas

Hy-Gain HF Log Periodic Antennas

DISCOVERER 71, $289.95. Covers 30/40 Meters.

This rotatable dipole of low weight and wind surface area so easily fits most existing beam installations. Tuned to either 30 or 40 Meters with a front-to-side ratio of 30 dB for a fast, expansion of band capability. Feeds with 50 Ohm coax. Pre-formed mast clamp.

DISCOVERER 72, $649.95. Covers 30/40 Meters.

This two-element 40 Meter beam has a unique hairpin loading system. It delivers superior performance. Feeds with 50 Ohm coax and comes factory pre-tuned with Hy-

Gain’s exclusive BetaMatchTM. Tiltable boom-to-mast bracket and stainless steel hardware is included. Hy-Gain high power BN-4000 balun is recommended.

DIR-73K, $409.95. Add-On 30/40 Meter Director Kit

Converts the Discoverer 72 into a three-element beam. Amazingly, it’s all on a 35 foot boom, outperforming the other brands that are much larger. Discoverer 72 with director Kit fits on medium duty towers such asHG52SS, saving both cost and space. HyGain offers wide bandwidth and Hy-Q efficiency without coils. Handle legal power limits.

Hy-Gain Long Johns HF Monobanders

LJ-105CA, $289.95.10 Meters, 5 elements, Exclusive 50 Ohm BetaMatchTM. Excellent DC Ground. Stainless steel hardware and clamps. BN-4000 Balun recommended. LJ-155CA, $429.95. 15/12 Meters, Five Elements, Exclusive 50 Ohm BetaMatchTM. Excellent DC Ground. Stainless steel hardware and clamps. Includes 12 Meter setting. BN-4000 Balun recommended. LJ-205CA, $769.95. 20/17 Meters, Five Elements. Exclusive 50 Ohm BetaMatchTM. Excellent DC Ground. Stainless steel hardware and clamps. BN-4000 Balun recommended. Manual has setting for both bands. LJ-204BA, $539.95. 20/17 Meters, Four Elements. Exclusive 50 Ohm BetaMatchTM. The LJ-204BA has a tiltable cast aluminum boom-to-mast clamp, heavy gauge

machine-formed element-to-boom brackets and stainless steel hardware and clamps. BN-4000 Balun is recommended. Manual has setting for both bands. LJ-103BA, $159.95. 10 Meters, Three Elements. Feeds with 50 Ohm coax, comes factory pre-tuned with Hy-Gain’s exclusive BetaMatchTM. BN-86 balun recommended. Includes stainless steel hardware and clamps. LJ-153BA, $209.95. 15 Meters, 3 elements. Feeds with 50 Ohm coax, BetaMatchTM, 5.7 dBd gain. BN-4000 Balun recommended. Stainless steel hardware and clamps. LJ-203BA, $329.95. 20 Meters, Three elements on a 16 foot boom. The LJ-203BA feeds with 50 Ohm coax, factory pre-tuned with Hy-Gain’s exclusive BetaMatchTM.

BN-4000 Balun is recommended. Stainless steel hardware and clamps. Tiltable, cast aluminum boom-to-mast bracket.

Model #

LJ-105CA LJ-155CA LJ-205CA LJ-204BA LJ-103BA LJ-153BA LJ-203BA

Gain (dBi)

10.8 dBi

9.8 dBi

8.7 dBi

8.2 dBi

7.9 dBi

7.3 dBi

F/B Max

36 dB 25 dB 30 dB 28 dB 24 dB 25 dB 23 dB

Max Power

1500 W PEP 1500 W PEP 1500 W PEP 1500 W PEP 1500 W PEP 1500 W PEP 1500 W PEP

Boom Size

24 feet 26 feet 34 feet 26 feet

8 feet

12 feet

16 feet, 6 in.

element size

18 feet 25 feet

36 feet 36 feet, 6 in. 18 feet, 7 in.

24 feet, 11”

37 feet

turn Radius

15 feet

17 feet, 6 in.

25 feet 22 feet, 6 in. 10 feet, 2 in. 14 feet, 3 in.

20 feet

Mast diam.

1.9-2.5 in.

1.625-2.0 in.

1.9-2.5 in.

Surface

3.9 sq. feet

5.2 sq. feet

9.0 sq. feet

7.3 sq. feet 2 sq. feet 3 sq. feet

5.4 sq. feet

Wind

100 m.p.h.

88 m.p.h.

99 m.p.h. 100 m.p.h. 107 m.p.h.

80 m.p.h.

Model #

DIS-71 DIS-72

DIR-73K

Gain (dBi)

6.5 dBi

7.5 dBi

F/B Max

35 dB 15 dB 26 dB

Max Power

1500 W PEP 1500 W PEP 1500 W PEP

Boom size

2.7 feet

22.6 feet 35 feet

elment size

45 feet

44.8 feet

45.7 feet

turn Radius

22.5 feet 25 feet

28.9 feet

Mast diam.

1.9-2.5 in.

Surface

2.7 sq. feet

6.0 sq. feet

9.0 sq. feet

Wind

100 m.p.h.

80 m.p.h. 80 m.p.h.

Model #

LP-1009A/N LP-1010A/N

Gain (dBi)

7.3 dBi

7.0 dBi

F/B Max

22 dB 22 dB

Max Power

1500 W PEP 1500 W PEP

Boom size

27 feet 36 feet

element

39 feet 48 feet

turn Radius

22.5 feet

28.5

Mast diam.

1.9-2.5 in.

Surface

12.5 sq. feet 16 sq. feet

Wind

103 m.p.h.

93 m.p.h.

Page 5

www.hy-gain.com 5

HF BEAMS

...

TH-11DX

1159

11-Elements, 4.0 kW PEP,

10, 12, 15, 17, 20 Meters

TH-5MK2, $759.95. 5-element, 1.5 kW PEP, 10,15,20 Meters

TH-3MK4, $469.95. 3-element, 1.5 kW PEP, 10,15,20 Meters

EXP-14, $599.95. 4-element, 1.5 kW PEP, 10,15,20 Meters

TH-2MK3, $369.95. 2-element, 1.5 kW PEP, 10,15,20 Meters

Compact

3-element

10, 15, 20 Meter Tri-Bander

For limited space . . . Installs anywhere . . . 14.75 ft turning

radius . . . weighs 21 lbs . . . Rotate with CD-45II, HAM-IV

TH-7DX, $869.95. 7-element, 1.5 kW PEP, 10,15,20 Meters

TH-11DX, $1159.95. 11-element, 4.0 kW PEP, 10,12,15,17,20M

7-Elements gives you the highest average gain of any Hy-Gain tri-bander! Dual driven for broadband operation without compromising gain. SWR less than 2:1 on all bands. Combined monoband and trapped parasitic elements give you an excellent F/B ratio. Hy-Gain’s diecast aluminum, rugged boom-to-mast clamp, heavy gauge element-to-boom brackets, BN-86 balun. For high power, use BN-4000.

The broadband five element TH5-MK2 gives you out- standing gain. Separate air dielectric Hy-Q traps let you adjust for maximum F/B ratio on each band. Has Hy-

Gain’s exclusive BetaMATCHTM, stainless steel hardware

and compression clamps and BN-86 balun.

DB-1015, $449.95. 7-element, 1.5 kW PEP, 10 & 15 Meters

This dual band beam for 10 and 15 Meters incorporates Hy-Gain’s superior mechanical design and has been computer optimized and range-tested for max performance. DB-1015 features a 14 foot boom in 4 sections. Handles full legal power and has Hy-Gain’s rugged boom-to-mast clamp. DB-1217, $449.95. Similar to DB1015, but is dual band coverage for 12 and 17 Meters.

The super popular TH-3MK4 gives you the most gain for your money in a full-power, full-size durable Hy-Gain

tri-bander! Impressive average gain and whopping average front-to-back ratio. Handles 1.5 kW PEP. 95 MPH wind survival. Fits on average lot -- turning radius is just

15.3 feet. 4-piece boom is ideal for DXpeditions. Choose CD-45II or HAM-IV rotator. Hy-Gain BetaMatchTMfor DC ground, full power Hy-QTMtraps, rugged boom-tomast bracket and mounts on standard 2”O.D. mast. Stainless steel hardware. BN-86 balun recommended.

The 2-element TH-2MK3 is Hy-Gain’s most economical full power (1.5kW PEP) full size tri-bander. Increase your effective radiated power and hear far better! Ruggedly constructed, top-performing, compact 6 foot boom, tight

14.3 foot turning radius. Installs almost anywhere. Rotate with CD-45II or HAM-IV. Use BN-86 balun.

Revolutionary 4-element compact tri-bander can add

40 or 30 Meters! 14 foot boom and tight 17.25 feet turning

radius. Fits on roof tri-pod, mast or medium duty tower. Hy-Gain’s patented broadbanding ParaSleeve gives you less than 2:1 VSWR. 1.5kW PEP. BetaMATCHTMprovides DC ground to eliminate static. Has BN-86 balun.

QK-710, $169.95. 30/40 Meter option kit for EXP-14.

The choice of top DXers. With 11-elements, excellent gain and 5-bands,

the super rugged TH-11DX is the “Big Daddy”of all HF beams! Handles 2000 Watts continuous, 4000 Watts PEP.

Every part is selected for durability and ruggedness for years of troublefree service. Features a low loss log-periodic driven array on all bands with monoband reflectors, BN-4000 high power balun, corrosion resistant wire boom support, hot dipped gal-vanized and stainless steel parts.

Stainless steel hardware and clamps are used on all electrical connections.

TH-3JRS, $359.95.

Hy-Gain’s most popular 3-element 10, 15, 20 Meter tri-bander fits on most lots!

Same top performance as the full power TH3MK4 in a compact 600 watt PEP design.

Excellent gain and F/B ratio let you compete with the “big guns”.

Tooled manufacturing gives you Hy-Gain durability with 80 MPH wind survival.

Fits on light tower, suitable guyed TV pole, or roof tri-pod.

9.8

4000

1500

600

1500

10,12,15,17,20

10, 15, 20

10,15,20

10, 15

12, 17

12.5

9.4

7.4

4.6

3.35

3.25

7.5

6.7

100

115

31.5

27.42

27.25

27.3

31.5

29.5

18.42

15.33

14.75

14.25

17.25

16.3

1.9-2.5

1.5-2.5

1.9-2.5

1.25-2.0

1.9-2.5

1.5-2.5

T2X

HAM-IV

CD-45II

HAM IV

$1159.95

$869.95

$759.95

$469.95

$359.95

$369.95

$599.95

$449.95

Model

No.

No. of

elements

avg gain

dBi

avg F/B

gain

MaxPwr

watts PEP

Bands

Covered

Wind

sq.ft. area

Wind

(mph)

Survival

Boom

(feet)

Longest

Elem.

(ft)

Turning

radius

(ft)

Weight

(lbs.)

Mast dia O.D.(in.)

Recom.

Rotator

Retail

Price

opt.

30/40

TH-11DX

TH-7DX

TH-5MK2

TH-3MK4

TH-3JRS

TH-2MK3

EXP-14

DB-1015

DB-1217

8.4

8.77

8.3

8.0

5.6

8.1

15-20

. . . are stronger, lighter, have less wind surface and last years longer.

Page 6

6 Hy-Gain . . . Antennas, Rotators and Towers!

DX-77A,

449

DX-88,

369

AV-18VS

AV-12AVQ

124

AV-14AVQ

169

AV-18HT

849

AV-18HT, $849.95.

10/12/15/20/40/80 M

17 & 160 Meters optional

Standing 53 feet tall, the famous Hy-

Gain HyTower is the world’s best performing vertical! The AV-18HT features automatic band selection achieved through a unique stub-decoupling system which effectively isolates various sections of the antenna so that an electrical 1/4 wavelength (or odd multiple of a 1/4 wavelength) exists on all bands. Approximately 250 kHz bandwidth at 2:1 VSWR on 80 Meters. With the addition of a base loading coil LC-160Q or MK160A, it also provides exceptional 160 Meter performance. The 24 foot tower is all rugged, hot-dip galvanized steel and all hardware is iridited for corrosion resistance. Special tilt-over hinged base for easy raising and lowering. 53 feet, 114 lbs. MK-17, $89.95. 17M add-on Kit.

LC-160Q, $109.95. 160 M loading coil. MK-160A, $119.95. 160M 1500W kit.

DX-88, $369.95.

10/12/15/17/20/30/40/80M

160 Meters optional.

All bands are easily tuned with the

DX-88’s exclusive adjustable capacitors. 80 and 40 Meters can even be tuned from the ground without having to lower the antenna. Super heavy-duty construction. 25 feet, 18 pounds. DX-88 OPTIONS:

KIT-160-88, $189.95. 160 M add-on kit. GRK-88, $99.95. Ground Radial System. RRK-88, $99.95. Roof Radial System.

DX-77A, $449.95.

10/12/15/17/20/30/40 M

No ground radials required! Off-cen- ter-fed Windom has 55% greater bandwidth than competitive verticals. Heavyduty tiltable base. Each band independently tunable. 29 feet, 25 pounds.

AV-18AVQII, $229.95.

10/15/20/40/80

New! The classic is back with

improved design including three separate air dielectric Hy-QTMtraps for 10 through 80 Meters --1.5 kW PEP. A loading coil and an effective radiator is used for 80 Meters --1kW PEP.

AV-18VS, $89.95.

10/12/15/17/20/30/40/80 M

High quality construction and low cost

make the AV-18VS an exceptional value. Easily tuned to any band by adjusting feed point at the base loading coil. Roof mount with Hy-Gain AV-14RMQ kit, $89.95. 18 feet, 4 pounds.

AV-14AVQ, $169.95.

10/15/20/40 M

The Hy-Gain AV-14AVQ uses the

same trap design as the famous Hy-Gain Thunderbird beams. Three separate air dielectric Hy-Q traps with oversize coils give superb stability and 1/4 wave resonance on all bands. 18 feet, 9 pounds.

New!MK-80, $79.95. 80 Meter add-on

kit for AV-14AVQ. Easy to install. Includes pre-wound loading coil, hardware.

AV-12AVQ, $124.95.

10, 15, 20 M

The AV-12AVQ also uses Thunderbird

beam design air dielectric traps for extremely Hy-Q performance. This is the way to go for inexpensive tri-band performance in limited space. 13 ft., 9 lbs. Roof mount with AV-14RMQ kit, $89.95.

AV-14RMQ, $89.95

Roof Mounting Kit

The AV-14RMQ roof mounting kit provides rugged support for Hy-gain models AV-18VS, AV-14AVQ and AV12AVQ. Kit includes base plate, mast, radial/guy wires and mounting hardware.

HF VERTICALS

All hy-gain multi-band vertical antennas are entirely self supporting -- no guys

required. They offer remarkable DX performance with their extremely low angle of radiation and omnidirectional pattern.

All hy-gain vertical antennas handle 1500 Watts PEP SSB, have low SWR, automatic band-switching (except AV-18VS) and include a 12-inch heavy duty mast support bracket (except AV-18HT). Heavy duty, slotted, tapered swaged, aircraft quality aluminum tubing with full circumference compression clamps is used for radiators. Includes all stainless steel hardware. Recessed SO-239 prevents moisture damage.

Hy-gain verticals go up easily with just hand tools and their cost is surprisingly low. All hy-gain Verticals feature a two year limited warranty.

Model #

AV-18HT

AV-14AVQ

AV-12AVQ

AV-18VS

DX-88

DX-77A

AV-18AVQII

Price

$849.95

$169.95

$124.95

$89.95

$369.95

$449.95 $229.95

Bands

10,15,20,40,80

10,15,20,40

10/15/20 M

10 - 80 M

10 - 40 M

10/15/20/40/80

Max Power

1500 W PEP

1500 W PEP 1500WPEP

Height 53 feet

18 feet

13 feet

18 feet

25 feet

29 feet 18 feet

Weight

114 pounds

9 pounds

4 pounds

18 pounds

25 pounds 12 pounds

Wind Surv.

75 MPH 80 MPH

80 MPH 80 MPH

75 mph

no guy

60 mph no guy

70 mph guy

Rec. Mast

------

1.5-1.625”

Self-supporting -- no guys required . . . remarkable DX performance -- low angle radiation, omnidirectional . . . 1500 Watts . . . Low SWR . . . 2 year limited warranty

Free

Manuals!

AV-18AVQII

229

Hy-Gain Roof Mount

This roof mount will support a modest antenna with rotor and thrust bearing, not included.

4.5 feet tall, weighs 18 lbs. (max load 100 lbs).

RT-424

UPS

Shippable

Page 7

Hy-Gain Tower Bases

Specially

designed for Hy-gain crankup towers. Complete with

base hinge and foundation welded steel-cage. Specify tower model. *Must be shipped by truck, call for quote.

www.hy-gain.com 7

Hy-Gain

(R)

Multi-Band PATRIOT Vertical Antennas

hy-gain’s new PATRIOT HF verticals are the best built, best performing and best priced multiband verticals available today.

Make full use of your sunspot cycle with the PATRIOT’s low angle signal.

AV-640, $389.95, uses quarter wave stubs on 6, 10, 12 and 17 meters and efficient end loading coil and capacity hats on 15, 20, 30 and 40 meters.

Instead of typical traps, the AV-640 resonators are placed in parallel not in series.

End loading of the lower HF bands allows efficient operation with a manageable antenna height.

No ground or radials needed -- Effective counterpoise replaces radials, end fed with broadband matching unit.

Automatic bandswitching -- Single coax cable feed, each band is individually tunable, wide VSWR bandwidth.

Sleek and low-profile -- Low wind surface area, small area required for mounting, mounts easily on decks, roofs and patios.

Built-to-last -- High wind survival, matching unit made from all Teflon

insulat-

ed wire. Hy-gain

warranty -- 2- year limited warranty, replacement parts in stock.

AV-620, $289.95. Covers all bands 6 through 20 Meters with no traps, no coils,

no radials yielding an uncompromised signal across all bands.

8-band vertical covers 40/30/20/17/15/12/10/6 Meters

• No radials • No traps • No ground • No tuning • Handles 1500 Watts

hy-gainRAV-640

8 Bands: 40, 30, 20, 17, 15, 12, 10, 6 M

389

Suggested Retail

Call your dealer for

your best price!

hy-gain

(R)

AV-620

6 bands: 20, 17, 15, 12, 10, 6 M

289

Suggested Retail

BN-86, $79.95. Broadband 50 Ohm ferrite balun. Useable from 3 to 30 MHz. Rated at 1500 Watts PEP. Recommended for all HF Yagi antennas. It provides improved front-to-back ratio. Comes with clamp to bolt to boom, SO-239 connector.

BN-4000B, $109.95. Broadband 50 Ohm Beam current balun is potted to seal out moisture. Rated at 4000 Watts for increased power handling capabilities. Range is 1 MHz to 54 MHz. SO-239 connector. BN-4000D, $109.95. dipoles. BN-4000N, $119.95. “N” connector.

FAMOUS Heavy Duty HY-GAIN BALUNS

AV-620/640 Matching Network

Model #

AV-620 AV-640

Bands

6B, 6-20 8B, 6-40

Max Pwr

1500W 1500W

Height

22.5 feet

25.5 feet

Weight

10.5 lbs.

17.5 lbs.

wind surv

80 MPH 80 MPH

Antenna Wire & Installation Rope

A. Select Hy-Gain Nylon or Polyester dacron

rope for your wire antenna installations. Black, UV resistant.

RPA-100, $7.95. 100 feet, 3/32” nylon. RPA-250, $14.95. 250 feet, 3/32” nylon. RPC-100, $9.95. 100 ft,

/16” polyester.

RPC-250, $19.95. 250 ft.,

16” polyester.

B. Dacron Wire Rope, 3/32”.

Fine copper wire is webbed into Dacron rope. Makes it extremely flexible but super strong/light. Ideal for wire/dipoles.

DWR-120, 120 Ft., $29.95.

nylon/polysester rope

Dacron wire rope

Extra-strong -- will not break, arc over or melt even under full legal power. Molded ridges give extra-long path to prevent high-voltage breakdown. Use as center or end insulator for dipoles, doublets, G5RVs, guy wires, vees.

Hy-gain Glazed

Ceramic Insulator

E-2

69c

each

E-26

$395

6-Pack

4 Foot Ground Rod

Durable 4’

copper bonded

steel earth ground rod is a tough 3/8 inch diameter. Sharp pointed end is easy to drive into ground. Use it to tie your equipment to a single earth ground to help bleed off static and RFI and prevent RF hot spots. Use several to form a good RF ground for random, long wire and vertical antennas.

GR-1

$495

Ship Code B

Hygain Insulators

for multiband dipole antennas

C-1, $29.95.

Center Insulator for multiband dipole antenna.

C-1C, $29.95.

Similar to C-1, but has SO-239 antenna connector.

E-1, $6.95.

End Insulator for Multi-

band doublet antenna. Set of 2.

Model#

TB-37 TB-52 TB-54 TB-70

Tower

HG-37SS HG-52SS HG-54HD HG-70HD

Price

$299.95 $299.95 $299.95 $349.95

Weight

50 lbs.* 80 lbs.* 90 lbs.*

102 lbs.*

Lightning Surge Arrestor

LA-2, $39.95. Safeguard

your expensive equipment

from static electricity

and lightning induced

surges on 50 Ohm

coaxial line. Ultra-fast gas discharge tube safely shunts up to 5000 amps of peak impulse current harmlessly to an independent ground. SWR less than 1.1:1. Less than 0.1 dB loss. Use up to 1000 MHz. Handles 1.5 kW PEP. Does not protect against a direct lightning hit. GDT-2, $19.95. Replacement Gas Discharge tube.

Page 8

TO:

For your nearest hy-gain dealer or to order: call 800-973-6572

OFFICE ADDRESS: hy-gain, 300 Industrial Park Road, Starkville, MS 39759 USA

• VOICE: 662-323-9595 • FAX: 662-323-6551 • WEB SITE: http://www.hy-gain.com

For technical information and part orders:

FACTORY ADDRESS: 308 Industrial Park Road, Starkville, MS 39759 USA

Voice: 662-323-9538 • FAX: 662-323-5803

All prices and specifications are subject to change without notice or obligation. Catalog # 04/05

(c)

2005. hy-gainR.

300 Industrial Park Road Starkville, MS 39759 USA

Bulk Rate

U.S. Postage

PAID

Starkville, MS

39759

Permit No. 19

Standing a tall 39 feet with full-size elements

and rated at 5 KW, the AV-18JR Hy-gain

HyTower-Jr.TMis the world’s second best* per-

forming vertical!

Stub-decoupling is used to give full-size quarter wave radiators on 40, 20, 15, 10 Meters with super efficient cage loading on 80 Meters.

The HyTower-JrTMhas almost no losses --

your ground system determines your efficiency.

It is automatic bandswitching, fed with 50 Ohm coax and has low SWR over an exceptionally wide bandwidth with SWR less than 1.2 at resonance.

The main radiator is aircraft high-strength, heavy walled, 2-inch aluminum tubing swedged at the top. Self-supporting in winds up to 40 MPH. Mounts on 11/4 inch plumber’s pipe. Heavy duty components will give you years of trouble-free operating pleasure.

Requires good ground system for optimum performance. UPS Shippable.

*The famous 53 foot Hy-gain HyTower

is legendary. It’s

the premier, best performing vertical in the world -- bar none!

At less than half the price with nearly the same performance and based on the same principles, the HyTowerJrTMis the poor man’s version of its father HyTower.

Of course, JuniorTMdoesn’t have its father’s rugged hot- dipped galvanized steel tower and construction!

New!

Hy-Gain HyTower-Jr

Stands 39 feet tall . . . Full 1/4 Wave on 40, 20, 15, 10

Meters . . . Cage loading on 80 Meters . . . World’s

Second Best Vertical Antenna . . .

AV-18HTJr.

349

Ship Code E

HF Multiband Hy-Q trap DOUBLETS

Multiband Hy-Q trap doublets DP-2BDQ for 80 and 40 Meters. Maximum length of dipole, 101 ft. DP-5BDQ for 80 through 10 Meters. Maxium length of dipole, 94 feet. The Hy-Gain DP-2BDQ are Hy-Q trap doublets designed for horizontal or inverted “V” rated at legal power. Both feature individually pretuned matched traps for each band. 50 Ohm feed. Coaxial cable not included. Both handle 2 kW PEP.

ADJUSTABLE HF DIPOLE ANTENNA

The DP-19PD is a lightweight, adjustable dipole antenna that operates anywhere in the 2-30 MHz frequency range, including all HF amateur bands 80-10 Meters. Perfect for field day, emergency communications or anytime you need to put up a dipole in a hurry. The DP-19PD uses braided nylon wire rope; the conductors are woven into the rope. Uncoil the conductor using the pre-marked frequencies for easy installation. One hundred feet of support rope is provided on another bobbin on each end of the antenna as well as an SO-239 UHF connector on the center insulator. Shipping weight is 4.5 lbs. Handles 1 kW PEP.

OD x Wall-Th x ID

.625”x.035”x.555”

.750”x.058”x.634”

.875”x.058”x.759”

1.000”x.058”x.884”

1.125”x.058”x1.009”

1.250”x.058”x1.134”

1.375”x.058”x1.259”

1.500”x.058”x1.384”

1.625”x.058”x1.509”

1.750”x.083”x1.584”

2.000’x.120”x1.760”

6’standard; price/ea

AT-0625C-6U, $5.70

AT-0750E-6U, $6.30

AT-0875E-6U, $6.90

AT-1000E-6U, $7.50

AT-1125E-6U, $8.40

AT-1250E-6U, $9.60

AT-1375E-6U, $10.80

AT-1500E-6U, $12.00

*AT-1625E-4U, $9.10

AT-1750G-6U, $15.30

AT-2000I-6U, $18.30

6’slitted; price/ea.

AT-0625C-6S, $6.90

AT-0750E-6S, $7.50

AT-0875E-6S, $8.10

AT-1000E-6S, $8.70

AT-1125E-6S, $9.60

AT-1250E-6S, $10.80

AT-1375E-6S, $12.09

AT-1500E-6S, $13.20

*AT-1625E-4S, $10.30

AT-1750G-6S, $17.10

AT-2000I-6S, $20.40

Add’l/ft

$1.00

$1.10

$1.20

$1.30

$1.45

$1.65

$1.85

$2.05

$2.35

$2.60

$3.10

* Only four foot sections available in this model.

AT-2000I-6W, $24.60 each. Unique tubing has one end slitted and one end swaged to make it stackable. Join one end to other to make a longer pole. Secure with standard host clamp. Strong, 2”OD x .120” wall. Good for base sections of vertical antennas. Standard 6-ft. length, longer sections, to 20 ft. available. Add $3.00 each add’l foot.

DP-2BDQ

139

40/80 Meters

DP-5BDQ

259

10-80 Meters

DP-19PD

279

160-10 Meters

Hy-gain Aluminum Tubing

6063 T832 round, drawn aluminum tubing sold in 2 styles:

6’ standard or 6’ slitted (on one end, .093” gaps, 1-2” slit lengths).

Sizes .625-1.625” fit together to make telescoping mast.

Use host clamps to secure.

Six foot lengths ship by UPS, longer units must ship UPS

oversize or truck.
