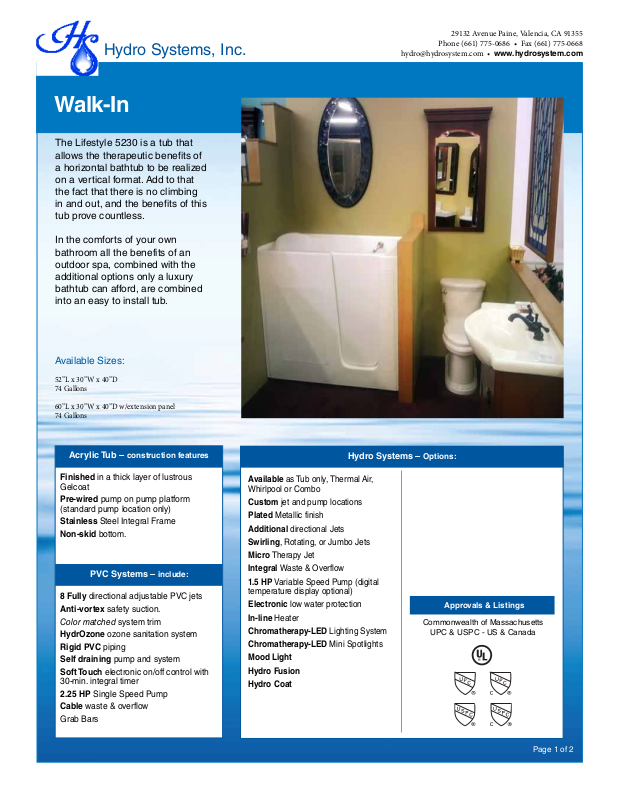

Hydro Systems, Inc.
Walk-In
The Lifestyle 5230 is a tub that
allows the therapeutic benefits of
a horizontal bathtub to be realized
on a vertical format. Add to that
the fact that there is no climbing
in and out, and the benefits of this
tub prove countless.
In the comforts of your own
bathroom all the benefits of an
outdoor spa, combined with the
additional options only a luxury
bathtub can afford, are combined
into an easy to install tub.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Available Sizes:
52”L x 30”W x 40”D
74 Gallons
60”L x 30”W x 40”D w/extension panel
74 Gallons
Acrylic Tub – construction features
Finished in a thick layer of lustrous
Gelcoat
Pre-wired pump on pump platform
(standard pump location only)
Stainless Steel Integral Frame
Non-skid bottom.
PVC Systems – include:
8 Fully directional adjustable PVC jets
Anti-vortex safety suction.
Color matched system trim
HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with
30-min. integral timer
2.25 HP Single Speed Pump
Cable waste & overflow
Grab Bars
Hydro Systems – Options:
Available as Tub only, Thermal Air,
Whirlpool or Combo
Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow
1.5 HP Variable Speed Pump (digital
temperature display optional)
Electronic low water protection
In-line Heater
Chromatherapy-LED Lighting System
Chromatherapy-LED Mini Spotlights
Mood Light
Hydro Fusion
Hydro Coat
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Page 1 of 2
Hydro Systems, Inc.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Must be set in Mortar Base
AS SHOWN:
Soaking Tub Only
ALSO AVAILABLE:
Whirlpool option w/ standard jets
ermal Air, Combo jets
Must be set in mortar base.
Walk-In
Model GC AC A B C D E F G H I J K L M O P
5230 √ N/A 52”
S T U V W X Y Z AA BB CC
22” 24½” 17” 19½” 3½” 19½” 17” 1¾” N/A N/A N/A
Amps Volts Breaker Dedicated Service
13.5 120 20 amps GFCI Protected
29¾”
9½” 15” 8”
1¾” 40” ¾” 6” 52”
5¼”
15” 19¾” 17” 24” 22”
8”
Jets Pump Wat.Cap.
EE
59¼”
8 2.25 74 gal.
Framing Dimension
3 Wall Installation
Model 5230 (L)ength (W)idth ((H)eigth Ledger(--Molded FlangeMM
with extension panel 60” 30”
without extension panel 52” 30”
Disclaimer: Certain options or altering the pump/blower location may cause the pump/blower to
extend beyond the tub decking.
For cutout dimensions wait for unit to arrive. All specifications subject to change without notice.
Q R
40”
40”
Page 2 of 2
