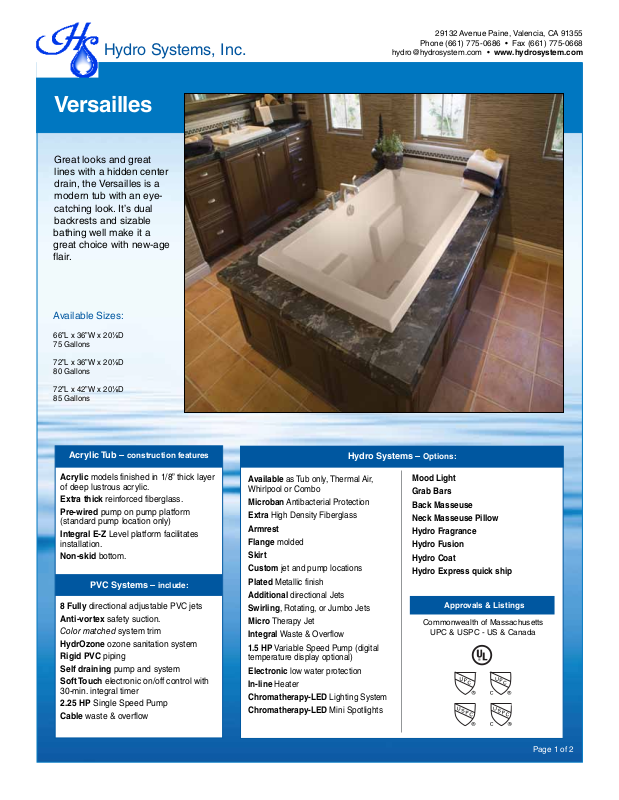

Hydro Systems, Inc.
Versailles
Great looks and great
lines with a hidden center
drain, the Versailles is a
modern tub with an eyecatching look. It’s dual
backrests and sizable
bathing well make it a
great choice with new-age
flair.
Available Sizes:
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
66”L x 36”W x 20⅛D
75 Gallons
72”L x 36”W x 20⅛D
80 Gallons
72”L x 42”W x 20⅛D
85 Gallons
Acrylic Tub – construction features
Acrylic models finished in 1/8” thick layer
of deep lustrous acrylic.
Extra thick reinforced fiberglass.
Pre-wired pump on pump platform
(standard pump location only)
Integral E-Z Level platform facilitates
installation.
Non-skid bottom.
PVC Systems – include:
8 Fully directional adjustable PVC jets
Anti-vortex safety suction.
Color matched system trim
HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with
30-min. integral timer
2.25 HP Single Speed Pump
Cable waste & overflow
Hydro Systems – Options:
Available as Tub only, Thermal Air,
Whirlpool or Combo
Microban Antibacterial Protection
Extra High Density Fiberglass
Armrest
Flange molded
Skirt
Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow
1.5 HP Variable Speed Pump (digital
temperature display optional)
Electronic low water protection
In-line Heater
Chromatherapy-LED Lighting System
Chromatherapy-LED Mini Spotlights
Mood Light
Grab Bars
Back Masseuse
Neck Masseuse Pillow
Hydro Fragrance
Hydro Fusion
Hydro Coat
Hydro Express quick ship
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Page 1 of 2
Hydro Systems, Inc.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
hydro@hydrosystem.com • www.hydrosystem.com
Must be set in Mortar Base
AS SHOWN:
Whirlpool option w/ standard jets
ALSO AVAILABLE:
Soaking Tub Only, Whirlpool,
Thermal Air, Combo
Note: Acrylic
drain covers
are not weight
bearing
Must be set in mortar base.
Versailles
Model Gel Coat Acrylic A B C D E F G H I J K L Jets Pump Water Cap.
Model GC AC A B C D E F G H I J K L M N O P Jet Pump Wat.Cap.
6636 N/A 66” 36” 18 ” 33”
7236 N/A 72” 36” 18 ” 36” 4” 3” 6”
7242 N/A 72” 42” 21” 36” 4” 3” 6”
Amp Volt Breaker Dedicated Service
13.5 120 20 amp GFCI Protected
3” 6”
4”
Disclaimer: Certain options or altering
the pump/blower location may cause
the pump/blower to extend beyond the
tub decking.
For cutout dimensions wait for unit to
arrive.
All specifications subject to change
without notice.
20⅛”
20⅛”
20⅛”
19” 1¾” 58”
20” 1¾” 64”
20” 1¾” 64”
42¼”
47⅜”
47⅜”
30” 26” 114
30” 26” 114
36” 32” 114
8 2.25
2⅜”
8 2.25
2⅜”
8 2.25 85 gal.
2⅜”
75 gal.
80 gal.
Island Drop-In 3 Wall Enclosure
Model (L)ength (W)idth (H)eigth Finish (L)ength (W)idth (H)eigth Ledger
6636 64” 34”
7236 70” 34”
7242 70” 40”
18⅝”
18⅝”
18⅝”
66” 36”
72” 36”
72” 42”
20⅞”
20⅞”
20⅞”
Page 2 of 2
