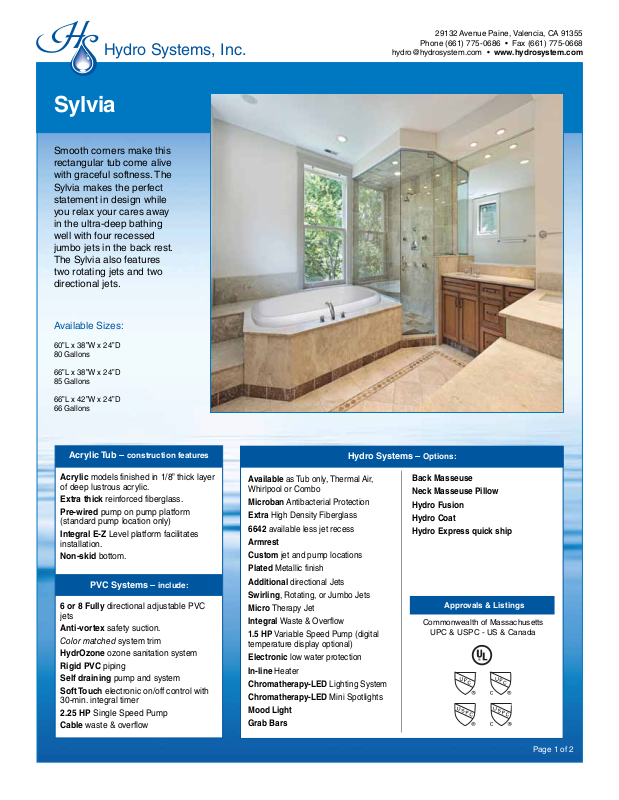

Page 1
Hydro Systems, Inc.
Sylvia
Smooth corners make this
rectangular tub come alive
with graceful softness. The
Sylvia makes the perfect
statement in design while
you relax your cares away
in the ultra-deep bathing
well with four recessed
jumbo jets in the back rest.
The Sylvia also features
two rotating jets and two
directional jets.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
[email protected] • www.hydrosystem.com
Available Sizes:
60”L x 38”W x 24”D
80 Gallons
66”L x 38”W x 24”D
85 Gallons
66”L x 42”W x 24”D
66 Gallons
Acrylic Tub – construction features
Acrylic models finished in 1/8” thick layer
of deep lustrous acrylic.
Extra thick reinforced fiberglass.
Pre-wired pump on pump platform
(standard pump location only)
Integral E-Z Level platform facilitates
installation.
Non-skid bottom.
PVC Systems – include:
6 or 8 Fully directional adjustable PVC
jets
Anti-vortex safety suction.
Color matched system trim
HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with
30-min. integral timer
2.25 HP Single Speed Pump
Cable waste & overflow
Hydro Systems – Options:
Available as Tub only, Thermal Air,
Whirlpool or Combo
Microban Antibacterial Protection
Extra High Density Fiberglass
6642 available less jet recess
Armrest
Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow
1.5 HP Variable Speed Pump (digital
temperature display optional)
Electronic low water protection
In-line Heater
Chromatherapy-LED Lighting System
Chromatherapy-LED Mini Spotlights
Mood Light
Grab Bars
Back Masseuse
Neck Masseuse Pillow
Hydro Fusion
Hydro Coat
Hydro Express quick ship
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Page 1 of 2
Page 2
Hydro Systems, Inc.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
[email protected] • www.hydrosystem.com
Must be set in Mortar Base
AS SHOWN:
Whirlpool option w/ standard jets
Must be set in mortar base.
Sylvia
ALSO AVAILABLE:
Soaking Tub Only, Whirlpool,
Thermal Air, Combo
Model GC AC A B C D E F G H I J K L Jet Pump Wat.Cap.
6038 N/A 60” 38” 30” 8” 3½” 3½” 41” 24” 2½” 21½” 27” 2” 6 2.25 80 gal.
6638 N/A 66” 38” 33” 8” 3½” 3½” 47” 24” 2½” 21½” 27” 2” 8 2.25 85 gal.
6642 N/A 66” 42” 33” 8” 3” 3¼” 47” 24” 2½” 21½” 31” 2” 4 Std/4 Jumbo 2.25 95 gal.
Amp Volt Breaker Dedicated Service
13.5 120 20 amp GFCI Protected
Island Drop-In
Model (L)ength (W)idth (H)eigth Finish
6038 58” 36” 20½”
6638 64” 36” 20½”
6642 64” 40” 20½”
Disclaimer: Certain options or altering the pump/blower location may cause the pump/blower to extend beyond the tub decking.
For cutout dimensions wait for unit to arrive.
All specifications subject to change without notice.
Page 2 of 2
