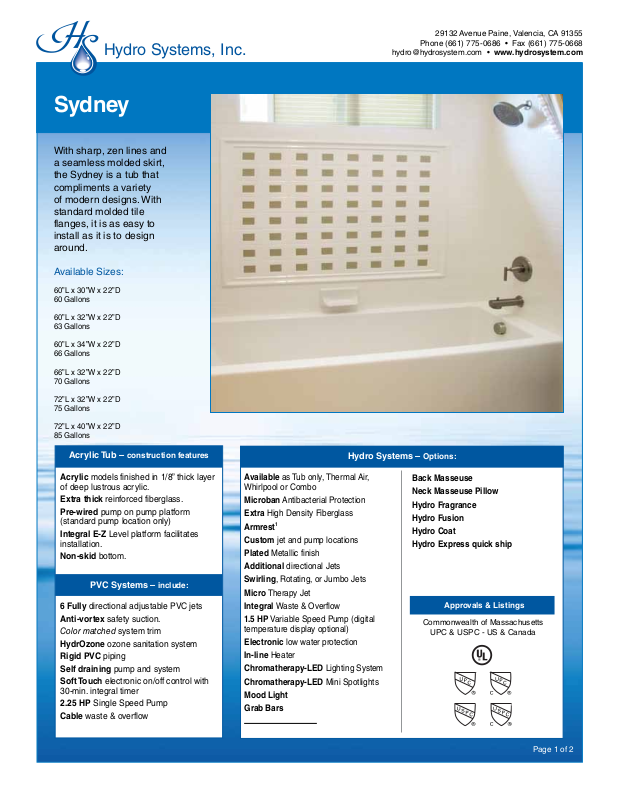

Page 1
Hydro Systems, Inc.
Sydney
With sharp, zen lines and
a seamless molded skirt,
the Sydney is a tub that
compliments a variety
of modern designs. With
standard molded tile
flanges, it is as easy to
install as it is to design
around.
Available Sizes:
60”L x 30”W x 22”D
60 Gallons
60”L x 32”W x 22”D
63 Gallons
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
[email protected] • www.hydrosystem.com
60”L x 34”W x 22”D
66 Gallons
66”L x 32”W x 22”D
70 Gallons
72”L x 32”W x 22”D
75 Gallons
72”L x 40”W x 22”D
85 Gallons
Acrylic Tub – construction features
Acrylic models finished in 1/8” thick layer
of deep lustrous acrylic.
Extra thick reinforced fiberglass.
Pre-wired pump on pump platform
(standard pump location only)
Integral E-Z Level platform facilitates
installation.
Non-skid bottom.
PVC Systems – include:
6 Fully directional adjustable PVC jets
Anti-vortex safety suction.
Color matched system trim
HydrOzone ozone sanitation system
Rigid PVC piping
Self draining pump and system
Soft Touch electronic on/off control with
30-min. integral timer
2.25 HP Single Speed Pump
Cable waste & overflow
Hydro Systems – Options:
Available as Tub only, Thermal Air,
Whirlpool or Combo
Microban Antibacterial Protection
Extra High Density Fiberglass
Armrest
Custom jet and pump locations
Plated Metallic finish
Additional directional Jets
Swirling, Rotating, or Jumbo Jets
Micro Therapy Jet
Integral Waste & Overflow
1.5 HP Variable Speed Pump (digital
temperature display optional)
Electronic low water protection
In-line Heater
Chromatherapy-LED Lighting System
Chromatherapy-LED Mini Spotlights
Mood Light
Grab Bars
1
Back Masseuse
Neck Masseuse Pillow
Hydro Fragrance
Hydro Fusion
Hydro Coat
Hydro Express quick ship
Approvals & Listings
Commonwealth of Massachusetts
UPC & USPC - US & Canada
Page 1 of 2
Page 2
Hydro Systems, Inc.
29132 Avenue Paine, Valencia, CA 91355
Phone (661) 775-0686 • Fax (661) 775-0668
[email protected] • www.hydrosystem.com
AS SHOWN:
Whirlpool option w/ standard jets
Must be set in Mortar Base
Must be set in mortar base.
Sydney
ALSO AVAILABLE:
Soaking Tub Only, Thermal Air, Combo
Note: Sydney 6632 does not have the front skirt flange
Model GC AC A B C D E F G H I J K L M N O P Q R S Jet Pump Wat.Cap.
6030 N/A √ 60” 30” 15” 9” 3” 4” 31” 21” 22” 2¾” 52” 41” 31” 30” 23” 18” 19½” 15” 18½” 6 2.25 60 gal.
6032 N/A √ 60” 32” 16” 9” 3” 4” 33” 21” 22” 2¾” 52” 41” 33” 32” 25” 20” 19½” 16” 18½” 6 2.25 63 gal.
6034 N/A √ 60” 34” 17” 9” 3” 4” 35” 21” 22” 2¾” 52” 41” 35” 34” 27” 22” 19½” 17” 18½” 6 2.25 66 gal.
6632 N/A √ 66” 32” 16” 9½” 3” 4” 32” 21” 22” N/A 58” 49” 32” 32” 26” 23” N/A 16” 19½” 6 2.25 70 gal.
7232 N/A √ 72” 32” 16” 9” 3” 4” 33” 21” 22” 2¾” 64” 52” 33” 32” 28” 23” 19½” 16” 18½” 6 2.25 75 gal.
7240 N/A √ 72” 40” 20” 9” 3” 4” 41” 21” 22” 2¾” 64” 52” 41” 40” 33 28” 19½” 20” 18½” 6 2.25 85 gal.
Amp Volt Breaker Dedicated Service
13.5 120 20 amp GFCI Protected
Disclaimer: Certain options
or altering the pump/blower
location may cause the pump/
blower to extend beyond the tub
decking.
For cutout dimensions wait for
unit to arrive.
All specifications subject to
change without notice.
Model (L)ength (W)idth (H)eigth Finish
6030 60” 30” 20¾”
6032 60” 32” 20¾”
6034 60” 34” 20¾”
6632 66” 32” 21”
7232 72” 32” 20¾”
7240 72” 40” 20¾”
3 Wall Installation
