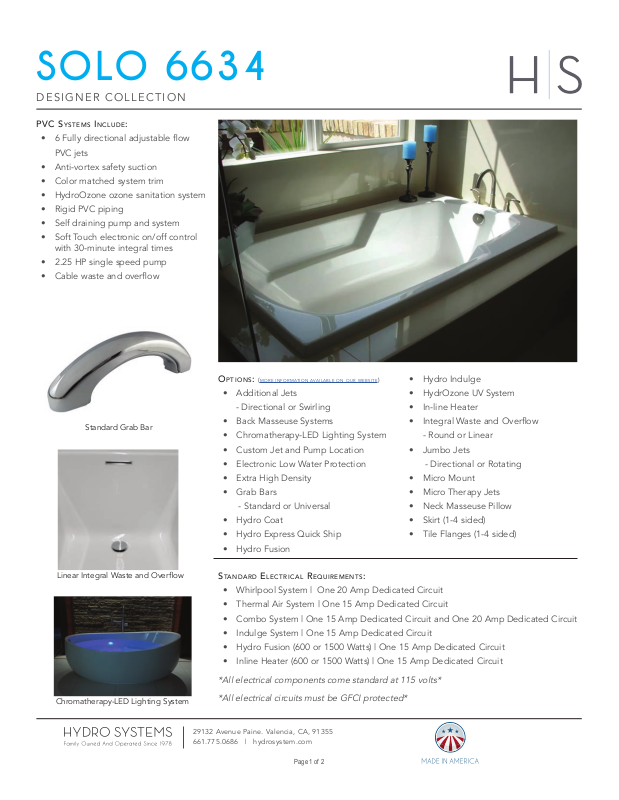

Hydro Systems HYDR1534 Specifications
SOLO 6634
DESIGNER COLLECTION
PV C Sy St em S In Cl ud e:
• 6 Fully directional adjustable ow
PVC jets
• Anti-vortex safety suction
• Color matched system trim
• HydroOzone ozone sanitation system
• Rigid PVC piping
• Self draining pump and system
• Soft Touch electronic on/off control
with 30-minute integral times
• 2.25 HP single speed pump
• Cable waste and overow
Standard Grab Bar
Linear Integral Waste and Overow
OP tI On S: ( mor e in form ation avai labl e on our web site )
• Additional Jets
- Directional or Swirling
• Back Masseuse Systems
• Chromatherapy-LED Lighting System
• Custom Jet and Pump Location
• Electronic Low Water Protection
• Extra High Density
• Grab Bars
- Standard or Universal
• Hydro Coat
• Hydro Express Quick Ship
• Hydro Fusion
Sta nd ar d el eC tr IC al req uI re me nt S:
• Whirlpool System | One 20 Amp Dedicated Circuit
• Thermal Air System | One 15 Amp Dedicated Circuit
• Combo System | One 15 Amp Dedicated Circuit and One 20 Amp Dedicated Circuit
• Indulge System | One 15 Amp Dedicated Circuit
• Hydro Fusion (600 or 1500 Watts) | One 15 Amp Dedicated Circuit
• Inline Heater (600 or 1500 Watts) | One 15 Amp Dedicated Circuit
• Hydro Indulge
• HydrOzone UV System
• In-line Heater
• Integral Waste and Overow
- Round or Linear
• Jumbo Jets
- Directional or Rotating
• Micro Mount
• Micro Therapy Jets
• Neck Masseuse Pillow
• Skirt (1-4 sided)
• Tile Flanges (1-4 sided)
Chromatherapy-LED Lighting System
*All electrical components come standard at 115 volts*
*All electrical circuits must be GFCI protected*
29132 Avenue Paine. Valencia, CA, 91355
661.775.0686 | hydrosystem.com
Page 1 of 2
SOLO 6634
Oppttiioonnaall EEqquuiippmmeenntt DDiimmeennssiioonnss
s
s
s
s
s
DESIGNER COLLECTION
aS S hO wn :
Whirlpool option
Fe atu re S Sh Ow n:
• Overflow location
• Standard jet location
al SO a VaI la bl e:
• Soaking tub only
• Thermal Air
• Combo
ba Ck Sl OP e:
37 degrees
wat er CaPa CI ty :
55 Gallons
we Ig ht :
100-140 Pounds depending on system
dr OP -I n In St al la tI On d Im en SI On S:
• (L)ength- 64”
• (W)idth- 32”
• Finish (H)eight- 18”
3- wa ll I nS ta ll at IO n dI me nS IO nS :
• (L)ength- 66”
• (W)idth- 34”
• Top of Ledger- 19-1/2”
In Sta ll atIO n tIP S:
• When adding integral linear drain
p-trap location is now below waste
• Adding multiple systems/options may
require equipment to stick out from
tub deck or be installed remotely
*Tub must be set in mortar base*
aCrylIC tub
• Acrylic models nished in 1/8” thick layer of deep lustrous acrylic
• Pre-wired pump on pump platform (standard pump location only)
• Integral E-Z level platform facilitates installation
• Micro mount reduces lip height to nominal 1/2”
• Micro mount requires increase in framing height by an additional 1-1/4”
• Installation videos available on our website.
66
2
17
8
2
34
OOppttiioonnaall EEqquuiippmmeenntt DDiimmeennssiioonns
OOppttiioonnaall EEqquuiippmmeenntt DDiimmeennssiioonns
OOppttiioonnaall EEqquuiippmmeenntt DDiimmeennssiioonns
OOppttiioonnaall EEqquuiippmmeenntt DDiimmeennssiioonns
OOppttiioonnaall EEqquuiippmmeenntt DDiimmeennssiioonns
O
• Whirlpool Pump: 12"(H) x 16"(L)
• Thermal Air Blower: 5"(H) x 11"(L)
• Hydro Fusion: 7"(H) x 15.5"(L)
• Hydro Indulge: 11"(H) x 19"(L)
1.75
18
CODES AND COMPLIANCES
Massachusetts code File no: P1-0614-491
29132 Avenue Paine. Valencia, CA, 91355
661.775.0686 | hydrosystem.com
16.25
37°
1
47
Page 2 of 2
All specications and options subject to change without notice please
contact a Hydro Systems representative for more information.
Certain options or altering the pump/blower location may cause
the pump/blower to extend beyond the tub decking. For cutout
dimensions wait for unit to arrive. All specications subject to change
without notice.
16.25
18.75
